Power 7 Technology 2014PON0001 WIFISD With Power Bank User Manual Users Manua 1

Power7 Technology(Dong Guan) Co., Ltd. WIFISD With Power Bank Users Manua 1

Contents

Users Manua 1

1
Power 7 W,F,SD :LWK3RZHU%DQN
(Pontoon)
Datasheet
Table of Content
Introduction .........................................................................................................................2
Target Users/Markets..........................................................................................................2
Features..............................................................................................................................3
Applications.........................................................................................................................4
Hardware Specifications .....................................................................................................5
Interface Illustration.............................................................................................................7
Software Specifications.......................................................................................................7
File & System Manager App ...............................................................................................9
System Requirements.........................................................................................................9
Client Tools .........................................................................................................................9
Pontoon Unifies Your Family with Recreation ...................................................................10
Version 0.1
Last Updated: August 20, 2013
Author: Power 7 PM Department
2
pm@power7tech.com.cn
Introduction

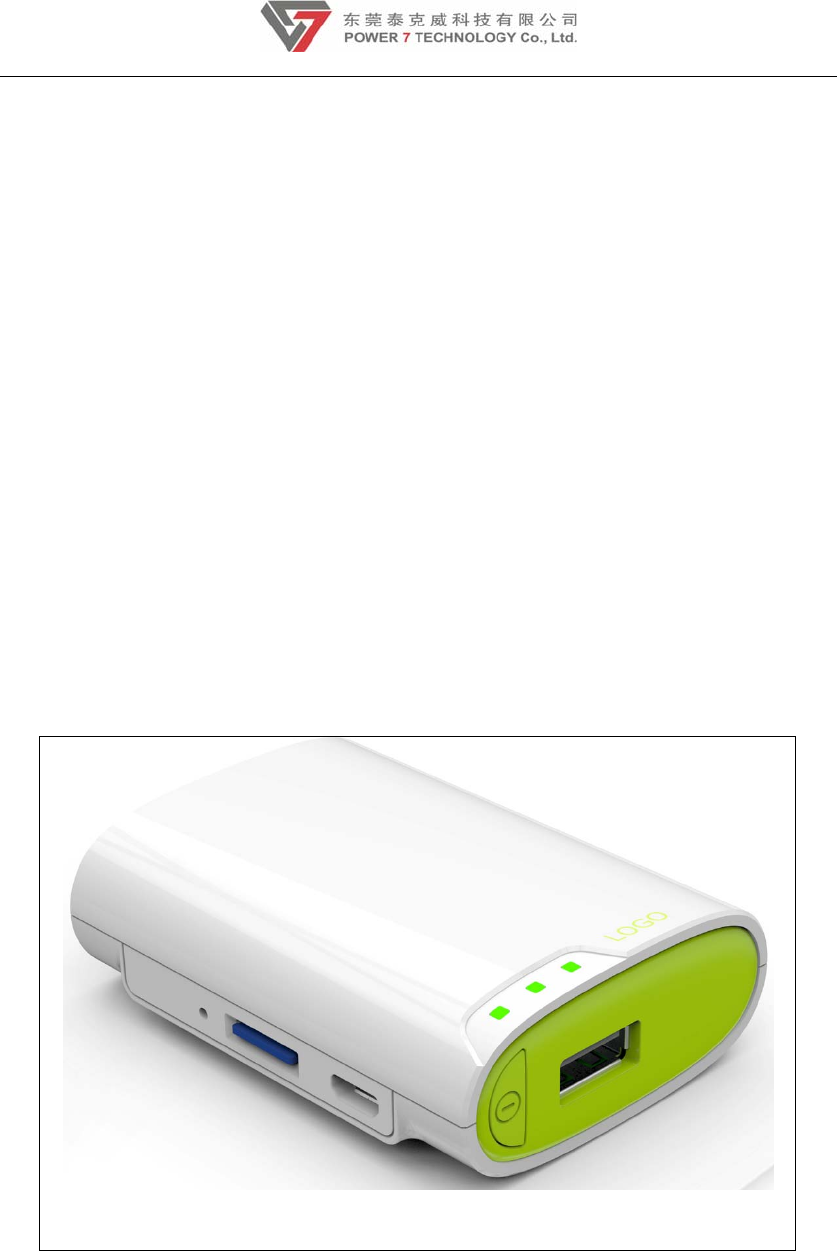

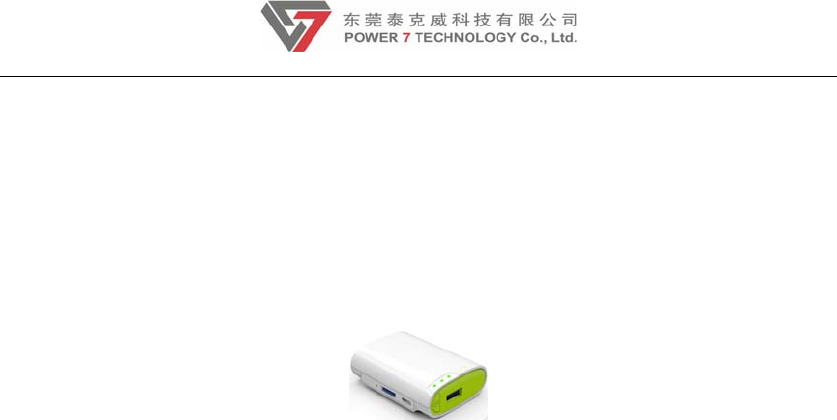

Power 7 WIFISD With Power Bank (Project Name: Pontoon)is a portable wireless storage device
with one Micro SD slot and one USB 2.0 host. Pontoon allows you to convert any SD memory
card and USB external storage devices into a WiFi accessible media. Simply insert your SD
memory card into the SD slot or connect your USB external storage into the built-in USB port.
Switch the unit on and you can now wirelessly access your videos, music, photos, data and
stream it to your iPad®, iPhone®, tablets, smartphones, and notebooks. There is no need to
worry about running out of space on your mobile devices. For maximum portability, Pontoon
has a built-in rechargeable battery. Simply plug it into any available USB port on your
computer to charge. As simple as 1-2-3, you are ready to enjoy your device and no waiting
needed. With the SD or External USB connected, the portable WiFi SD/USB can be
accessed while the battery is charging. Without the wired limitation, you can enjoy listening to
music while travelling with Pontoon in your backpack, share photo with your family by placing it
at any house corner or lay back watching movies in the beach – with a range of up to 150ft
you’ll never feel tethered to your Pontoon. Best of all, the Pontoon can bridge the Internet
connection to your existing wireless router, so you may access the data in the storage while
surfing the Internet simultaneously.
Pontoon
TargetUsers/Markets
y Mobile Device User
iPhone®, iPad®, smartphone, tablet or notebook user may unleash from very limited storage
capacity by throwing large files such as movies, music or PowerPoint files to Pontoon.
All product pictures are for reference only
3
y Frequent Business Traveler
Businessman may show customer the product datasheet, contract or quotation in Pontoon
anytime in the coffee shop, meeting room or hotel.
y Movies & Music Download Mania
Have already downloaded hundreds or thousands of movies, music by BitTorrent at home but
you can not enjoy watching or listening to them while you are outside? Pontoon is the solution
for you.
y Salesman
Pontoon may save mobile sales person like insurance broker, realty broker from carrying bulky
brochure or flyers.
y Legacy USB External HDD Device Hater
Just can not stand anymore to be tethered by USB cable whenever you need to transfer files
between your notebook and external HDD? Pontoon is the answer for you!
y Small Enterprise Mobile NAS
The critical and confidential business data should not be bound to the file server or NAS in
your company. Pontoon allows you to have a backup of your important data which is portable
with you.
y Home Mobile NAS
With Pontoon at home, you do not need to always turn on your notebook or PC in order to
share data with your family. Moreover, Pontoon can be your portable entertainment center
while your family go out for vacation.
Features
y File and System Manager App
Two way file transferring between Pontoon and your iPhone®, iPad®, sma rtphone, tablet or
computer with Wi-Fi co nnectivity (802.11 b/g/n). Available iOS and Android mobile app with
search utility function to find and locate specific data file.
y Bridge to Internet Access
Bypass your Internet access to your existing Wi Fi router, so you may access any dat a in the
SD or USB Storage while surfing the Internet simultaneously.
y WiFi SD or USB external HDD Accessible while Charging
Using notebooks with available USB port or optional AC adaptor, the WiFi SD or USB Storage
can be accessed while charging the internal battery.
y Share with Friends & Family
Allow 5 maximum concurrent connections for sharing videos, audios, photos and data.
y Extended Battery Life
Up to 10 hours of continuous use battery life for maximum portability.
y USB 2.0 Host for Data Sync and Battery Charging
USB 2.0 port for faster transfer between Micro SD and PC.
Easy to Configure and Operate
Friendly user interfa ce design with wizard guide to assure even the novice ca n get Ponto on
start to operate in minutes.
4
Applications
y Bridge to Internet Access
Scenario 1 - If you got an existing wired router for Internet access
Wirelessly Bridge to Internet Access
Scenario 1 - If you got an existing WiFi router for Internet access
Wirelessly Bridge to Internet Access
5

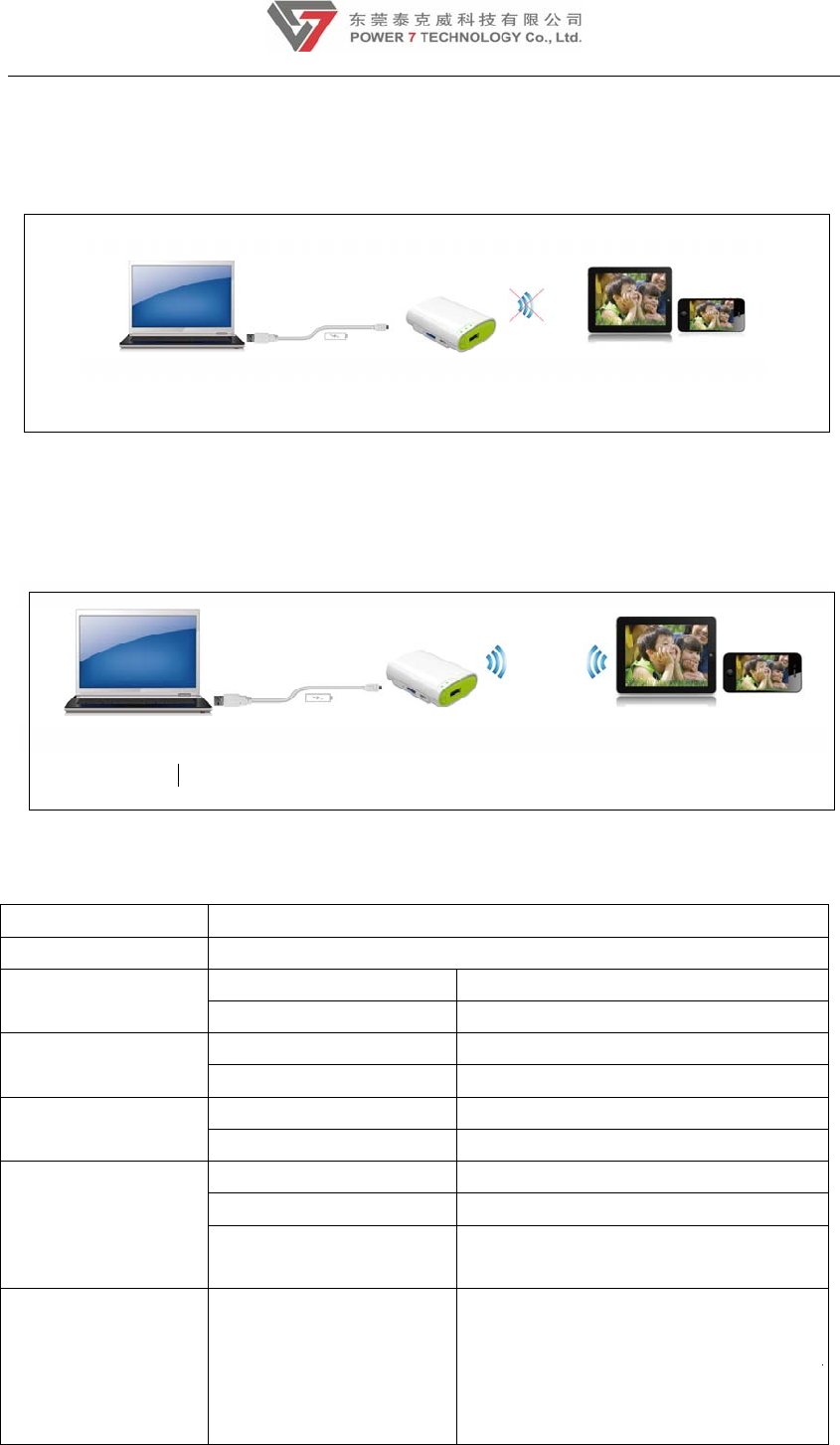

y Connect to the USB Port
Scenario 1 - Press power switch button off and then connect to the USB port of
notebook, Pontoon works solely as an Micro SD reader with power charge to extend
usage time
Pontoon works as a Micro SD reader only
Scenario 2 - Press power switch button on and then connect to USB port of notebook,
Pontoon works solely as a WiFi SD or USB external HDD/Flash with power charge to
extend usage time
Pontoon works as a WiFi Micro SD reader or USB external HDD
HardwareSpecifications
Project name Pontoon
Model name PON-WIFI-D11U-C26-WG
Model Ralin k RT5350
CPU Frequency MIPS24KEc 360MHZ
Model EN25Q 64-104WIP
Flash Capacity 8MByte SPI flash
Model M12L2 561616A-6TG (SDRAM)
SDRAM Capacity 32MB (256Mbit)
standard 802.1 1 b/g/n
Frequency 2.4GHz
WiFi
Speed 72Mbps for 20MHz
150Mbps for 40MHz
Interface Battery
LED (Green&Red)
LED light to show the battery status
right after power on:
Green: ≥30%
Red: <30%
Red LED fast flash: <10% depleting
6
Green LED slow flash:
Every 2 seconds for charging
Every 1.5 seconds for shutting down
WiFi LED (Blue) WiFi LED shows the system initiating
state:
Start flashing: Kernel loading in process
Stop flashing: System initiation
completes
Fast blinking: Reading or writing
Internet LED (Green) Internet LED state:
Extinguishing: No connection
Flashing: Connecting underway
Solid green: Connecting successfully
Micro SD card slot Support micro SD/SDHC,SDXC upto
2TB
Power button Power on/off switch button
Reset button Factory default reset button
WAN port RJ45 100Mbit/s
USB device interface Micro USB 2.0
USB host interface USB 2.0:
Support USB flash/HDD
Support 1.0A output current charging
for iPhone®, smartphone.
Antenna Signal strength 2.5dBi (WiFi component)
17dBm (Main chip)
Capacity 2600mAh Li-ion Polymer battery
Battery Charging current Max 1.6A
Max power dissipation
(tested with Micro SD
read/write without USB
storage activity)
* It will vary slightly with
different type of Micro SD
2W
Power dissipation
Standby power (tested
with TOSHIBA 1TB
HDD,H DD slept during
the test)
1.5W
Environmental
requirements
y Operating Temperature: 5°C to 35°C
y Non-Operating Temperature: 0°C to 60°C
y Operating Humidity: 5% to 90% (Non-condensing)
y Non-operating Humidity: 5% ~ 90 % (Non-condensing)
Product dimension 73mm L x 53mm W x 23mm H
7
Emission (EMI),
Safety & Other
Certifications
y FCC Class B
y CE

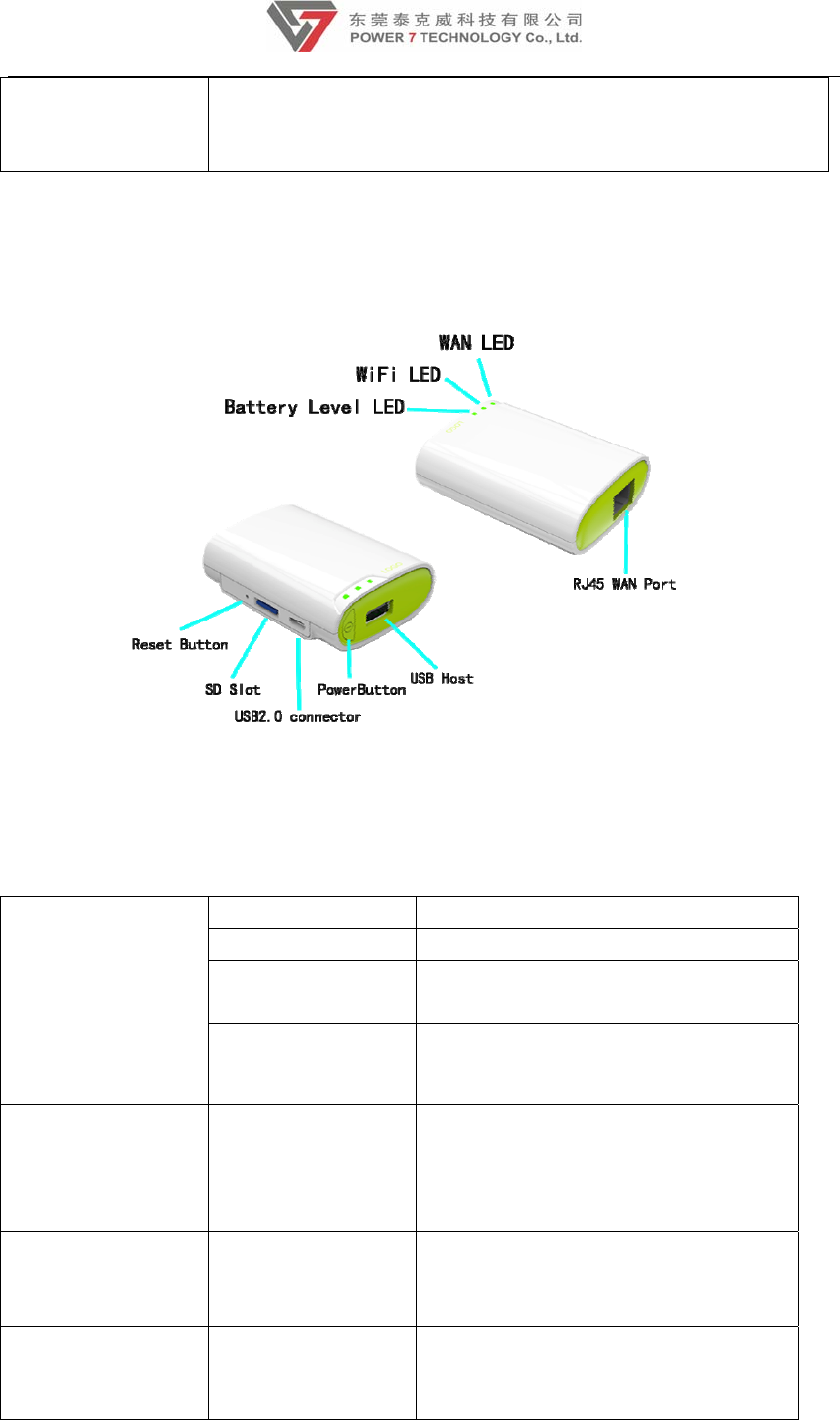

InterfaceIllustration
Pontoon Interface Illustration
SoftwareSpecifications
Language selection To select your native languages
Firmware upgrade To upgrade firmware by web browser
Configuration setting To backup and retrieve system
configuration setting
System setting
Factory default
setting restore
To restore default system setting
originated in factory production
File system FAT16/FAT32 A) Support Microsoft Windows
FAT16/FAT32/exFAT file system
B) Application tools:
FAT file system inspection and repair tool
File service CIFS protocol Provide shared services to files and
printers for clients on Microsoft Windows
Network
Samba service Provide shared services to files and
printers for clients on Microsoft Windows
Network and Unix-Like Network
8
OS A build-in browser which support
common operation system such as
Windows, Linux, Mac® OS and smart
terminal for easy management
HTTP(S) service
WebDAV protocol Makes the Web a readable and writable
medium which allow users to edit and
manage documents and files stored on
World Wide Web servers
Access control Password protection A) WiFi access control:
y Non e
y WP A
y WP A2
y WP A&WPA2
B) WEB access control
y Pa ssword login
C) Samba access control
y Pa ssword login
Default security:
A) Authentication needed with
password 11 111111
B) No authentication
C) No authentication
WiFi setting A) WiFi login history cache
B) WiFi auto login
A) Available wireless networks display
Network
Management
LAN side setting A) Pontoon IP setting
B) Subnet mask setting
C) DHCP server setting
D) Default gateway setting
E) Default DNS setting
Application software Client A) Windows XP/2003/Vista/7/8, Linux,
Unix, Mac®
B) Android: tablet, smartphone
C) iOS: iPad®, iPhone®
File Formats iOS Client A) Audio: Support formats of
MP3
、
AAC
、
m4a
、
wav
、
aiff
B) V ideo: Support formats of MP4
、
MOV
、
m4v
、
avi
C) Photo: Support formats of jpg
、
tiff
、
bmp,gif(image)
D) Do cument: Support formats of
keynote
、
numbers
、
page
、
excel
、
word
、
pdf
、
txt
、
ppt
9
Android Client A) Audio: Support formats of MP3 only
at present
B) V ideo:MP4
C) Photo: Support formats of.jpg
、
.png
D) Do cument: Support formats of txt
、
word
、
excel
、
ppt and pdf
File&SystemManagerApp
y Support the keyword search function from the current folder
y Support the file list/thumbnail view, support thumbnail images show and MP3 artwork
shows; Support gravity sensor switch direction
y Support checkmark/delete function and support local/WiFi Storage data transmission in
between
y Playing music/video/photos by iPhone®, iPad® and tablet and smartphone (JPG, mp3,
mp4, decoding ability more dependent on the system, file format depend on the player
software installed on you device,Power7 suggest to use RockPlayer/Mobo player on the
Android and Oplayer/GoodPlayer on iOS)
y Support to play the photos by filmstrip mode and support background music playing
y Support video drag and play
y Support music artwork shows, circulation play set, drag operation
y Support email to send out pictures/documents
y Support network and Pontoon’s parameters setting
y Transfer videos and photos from and to the iPhone®, iPad® to Pontoon
SystemRequirements
y iPhone®, iPad®, smartphone, tablet or computer with Wi-Fi connectivity (802.11 b/g/n)
y Mac® or PC computer running Windows 8, Windows 7, Windows Vista, Windows XP or
Mac OS X 10.6.0 or later operating system for loading media on to Pontoon via USB
ClientTools
Computer Client Tool
y Auto search and access the Pontoon on WLAN
y Supports Windows XP/2003Vista/7/8 and Mac® iOS operation system
Mobile Application Tool
y Supports iOS (iPhone® and iPad®) and Android (smartphone and tablet)
y Stream audios and videos and view photos from the Pontoon
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) Thi s devi ce may not cause ha rmful interferen ce, and (2) thi s device m ust
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement:
This device complies with FCC radiation exposure limits set forth for the uncontrolled environment.
This device should be installed and operated with minimum distance of 20 cm from human body.
10
lkkjj
11
PontoonUnifiesYourFamilywithRecreation
USA OFFICE
World Headquarters
4601 E. Airport, Drive, Ontario, CA 91761, USA
http://www.power7tech.com
sales@power7tech.com
Tel: 909.230.6788 Fax: 909.230.6889
TAIWAN OFFICE
Power 7 Technology Corporation
5F-3, N o.258, Li ancheng R oad, Z honghe
District, New Taipei City 235, Taiwan(R.O.C.)
http://www.power7tech.com.tw
sales@power7tech.com.tw
Tel: 886.2.8227.1790 Fax: 886.2.8227.1026
CHINA OFFICE
Power 7 (Shenzhen)Technology Company, Ltd.
Building A, Zhang keng Industr y Zone, M infu R oad M inzhi
Village, Longhua Town, Baoan District Shenzhen, Guandong
Province PR, China
http://www.power7tech.com.cn
pm@power7tech.com.cn
Tel: 86.755.8886.8949 Fax: 86.755.8179.8032

Navigation menu
