Power 7 Technology 2015ATO0001 WiFi USB Storage User Manual

Power7 Technology(Dong Guan) Co., Ltd. WiFi USB Storage

User Manual

1
Power 7 WiFi Storage
Device(ATOMIC100)
Datasheet
Table of Content
Introduction ......................................................................................................................... 2
Target Users/Markets .......................................................................................................... 2
Features .............................................................................................................................. 3
Applications ......................................................................................................................... 4
Hardware Specifications ..................................................................................................... 5
Interface Illustration ............................................................................................................. 6
Software Specifications ....................................................................................................... 7
File & System Manager App ............................................................................................... 9
System Requirements ......................................................................................................... 9
Client Tools ......................................................................................................................... 9
ATOMIC100 on the Beach ................................................................................................ 10
Version 1.0
Last Updated: April 21, 2014
Author: P7 PM Department
pm@power7tech.com.cn
2
Introduction
Power7 WiFi dongle device(Project Name: ATOMIC100)is a portable wireless storage device
with one USB 2.0 host. ATOMIC100 allows you to convert any USB external storage devices
into a WiFi accessible media. Connect your USB external storage into the built-in USB port.
Power the unit on and you can now wirelessly access your videos, music, photos, data and
stream it to your iPad®, iPhone®, tablets, smartphones, and notebooks. There is no need to
worry about running out of space on your mobile devices. As simple as 1-2, you are ready to
enjoy your device and no waiting needed. Without the wired limitation, you can enjoy
listening to music while travelling with ATOMIC100 in your backpack, share photo with your
family by placing it at any house corner or lay back watching movies in the beach – with a
range of up to 150ft you’ll never feel tethered to your ATOMIC100. Best of all, the ATOMIC100
can bridge the Internet connection to your existing wireless/wired router, so you may access
the data in the storage while surfing the Internet simultaneously. Also it can works as a
powerbank to charge your phone/PADs, unto 2.1A output current.
TargetUsers/Markets
Mobile Device User
iPhone®, iPad®, smartphone, tablet or notebook user may unleash from very limited storage
capacity by throwing large files such as movies, music or PowerPoint files to ATOMIC100. Also
it is your mobile device’s powerback.
Frequent Business Traveler
Businessman may show customer the product datasheet, contract or quotation in ATOMIC100
3
anytime in the coffee shop, meeting room or hotel. Also it is your mobile device’s powerback.
Movies & Music Download Mania
Have already downloaded hundreds or thousands of movies, music by BitTorrent at home but
you can not enjoy watching or listening to them while you are outside? ATOMIC100 is the
solution for you.
Salesman
ATOMIC100 may save mobile sales person like insurance broker, realty broker from carrying
bulky brochure or flyers.
Legacy USB External HDD Device Hater
Just can not stand anymore to be tethered by USB cable whenever you need to transfer files
between your notebook and external HDD? ATOMIC100 is the answer for you!
Small Enterprise Mobile NAS
The critical and confidential business data should not be bound to the file server or NAS in
your company. ATOMIC100 allows you to have a backup of your important data which is
portable with you.
Home Mobile NAS
With ATOMIC100 at home, you do not need to always turn on your notebook in order to share
data with your family. Moreover, ATOMIC100 can be your portable entertainment center while
your family goes out for vacation.
Features
96mm(L)x44mm(W)x44mm(H).
Stream media over wireless enabled services up to 5 users simultaneously
Supports various personal computer and mobile operating systems to access and stream
music, videos, photos and documents.
Built-in 10400mAh battery
Built-in USB-A Port to support External USB Mass Storage and charging USB powered
devices up to 2.1A/5V max.
Wireless or Wired(RJ45) Internet pass-through connection, supporting IEEE 802.11 b/g/n
speeds and works as an Access Point.
Available mobile app with copy, delete, upload and search function to locate and access the
files much faster.
4

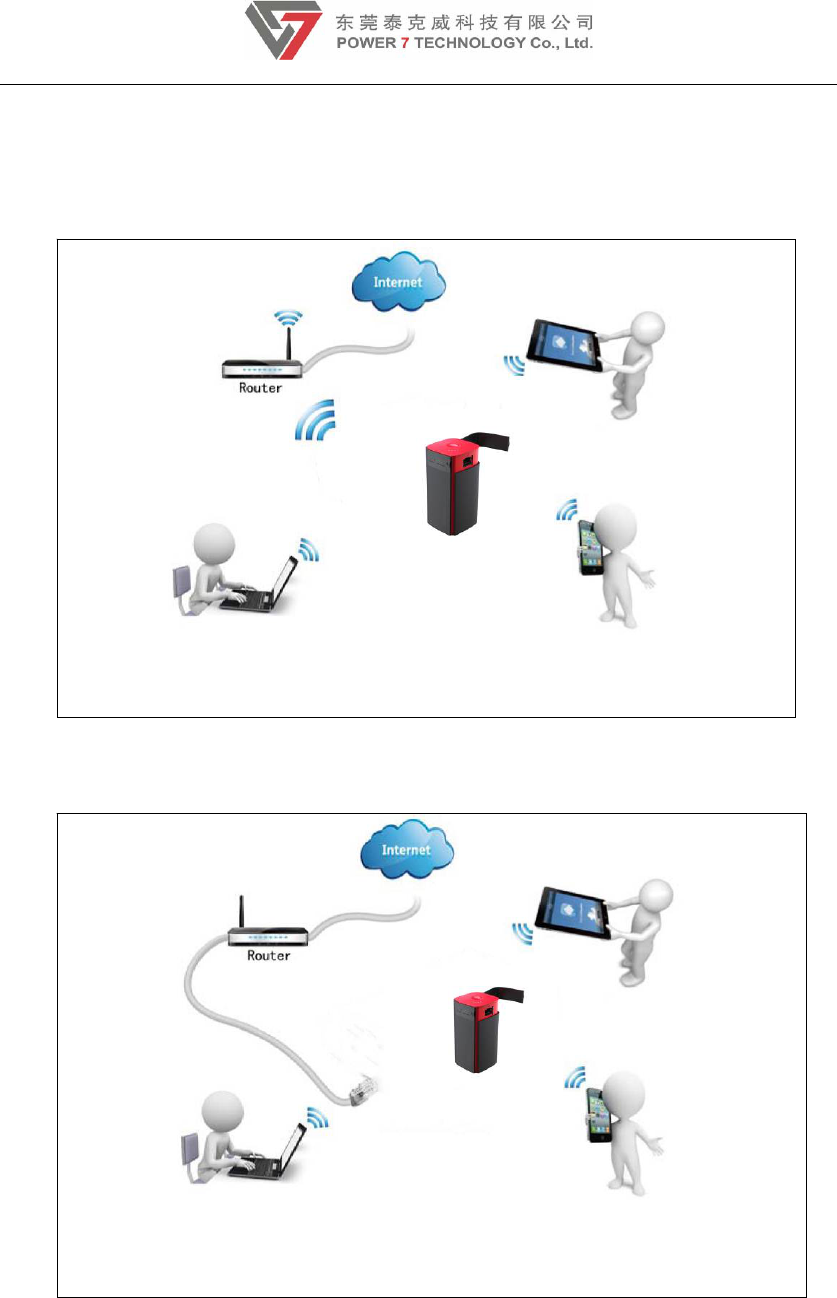

Applications
Bridge to Internet Access
Scenario 1 - If you got an existing WiFi router for Internet access
Wirelessly Bridge to Internet Access
Scenario 2- If you got an existing wired router for Internet access
Wired Bridge to Internet Access (via RJ45 Ethernet Port)
5
HardwareSpecifications
Project name ATOMIC100
Model name ATO-WIFI-USB
CPU Model MTK 7620
Frequency MIPS24KEc 360MHZ
Flash Type SPI Flash
Capacity 8MByte SPI flash
Memory Type SDRAM
Capacity 32MB*16Bits(64MB)
WiFi
standard 802.11 b/g/n
Transceiver 1TX 1RX
Frequency 2.4GHz
Antenna Chip Antenna
Speed 72Mbps for 20MHz
150Mbps for 40MHz
WAN port Protocol Ethernet
Speed 100Mbit/s
Interface
Battery
LED (Blue*4pcs)
LED light to show the percentage of
remaining power.
As below :
LED1: 0~25%
LED2:26~50%
LED3:51~75%
LED4:76~100%
WiFi LED/WLAN (Blue/Green)
WiFi LED shows the system initiating
state:
Blue LED Start flashing: Kernel loading
in process
Blue LED Stop flashing: System
initiation completes
GreenLED：Internet is connected
successful
Power button 1. Power on/off button (3 second long
pressing)
2. percentage of remaining power
6
button(short pressing)
Reset button Factory default reset button
USB device interface Micro USB 2.0 for charging internal
battery, upto 1.6A current.
USB host interface In power on mode , it can connect USB
storage for WiFi accessing. In power
on &off mode, It can charge your
mobile device(iPhone/iPAD/iPAD mini,
other smart phone/PAD) , up to 2.1A
current.
WAN port RJ45 100Mbit/s
Battery
Capacity 10400mAh 4 x18650 battery
Charging current 1.6A
Discharge Current Max 2.1A
Over current protection Up to 2.1A by CMOS PWM
Environmental
requirements
Operating Temperature: 5°C to 35°C
Non-Operating Temperature: 0°C to 60°C
Operating Humidity: 5% to 90% (Non-condensing)
Non-operating Humidity: 5% ~ 90 % (Non-condensing)
Product dimension 96mm L x44mm W x 44mm H
Emission (EMI),
Safety & Other
Certifications
FCC Class B
CE

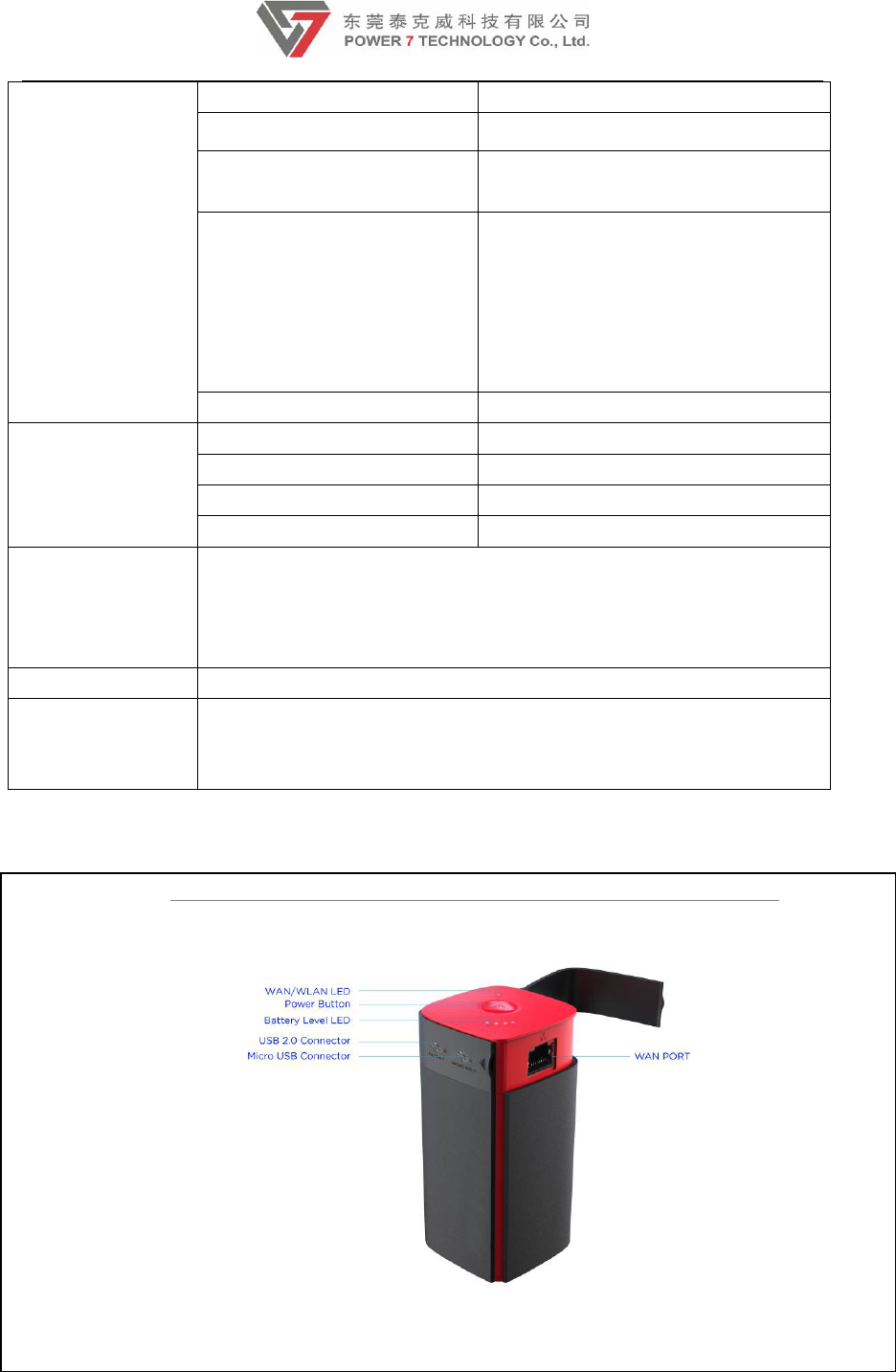

InterfaceIllustration
ATOMIC100 Interface Illustration
7
SoftwareSpecifications
System setting Language selection To select your native languages
Firmware upgrade To upgrade firmware by web browser
Configuration setting To backup and retrieve system
configuration setting
Factory default
setting restore
To restore default system setting
originated in factory production
File system NTFS A) Support Microsoft Windows NTFS
file system
B) Application tools:
Tuxera NTFS tool for mounting file
system
NTFS file system inspection and
repair tool
FAT16/FAT32
A) Support Microsoft Windows
FAT16/FAT32 file system
B) Application tools:
FAT file system inspection and repair tool
File service CIFS protocol Provide shared services to files for
clients on Microsoft Windows Network
Samba service Provide shared services to files and
printers for clients on Microsoft Windows
Network and Unix-Like Network
Media Server Support DLNA compatible device
HTTP service OS A build-in browser which support
common operation system such as
Windows, Linux, Mac® OS and smart
terminal for easy management
WebDAV protocol Makes the Web a readable and writable
medium which allow users to edit and
manage documents and files stored on
World Wide Web servers
Access control Password protection A) WiFi access control:
None
WPA
WPA2
WPA&WPA2
B) WEB access control
Password login
C) Samba access control
Password login
8
Default security:
A) Authentication needed with
password 11111111
B) No authentication
C) No authentication
USB storage
management
Storage display
Storage partition size and remaining space display
Network
Management
WAN side setting A) Static IP
B) Dynamic IP
LAN side setting A) ATOMIC100 IP setting
B) Subnet mask setting
C) DHCP server setting
D) Default gateway setting
E) Default DNS setting
WiFi setting A) WiFi mode setting
B) WiFi basic setting
C) WiFi security setting
Application software Client A) Windows XP/2003/Vista/7/8, Linux,
Unix, Mac®
B) Android: tablet, smartphone
C) iOS: iPad®, iPhone®
File Formats iOS Client A) Audio: Support formats of
MP3
、
AAC
、
m4a
、
wav
、
aiff
B) Video: Support formats of MP4
、
MOV
、
m4v
、
avi
C) Photo: Support formats of jpg
、
tiff
、
bmp
，
gif(image)
D) Document: Support formats of
keynote
、
numbers
、
page
、
excel
、
word
、
pdf
、
txt
、
ppt
Android Client A) Audio: Support formats of
MP3 ,Video:MP4
B) Photo: Support formats of.jpg
、
.png
C) Document: Support formats of txt
、
word
、
excel
、
ppt and pdf
Note: other file formats support is based
on the android product OS performance
9
File&SystemManagerApp
Support the keyword search function from the current folder
Support the file list/thumbnail view, support thumbnail images show and MP3 artwork
shows; Support gravity sensor switch direction
Support checkmark/delete function and support local/WiFi Storage data transmission in
between
Playing music/video/photos by iPhone®, iPad® and tablet and smartphone (JPG, mp3,
mp4, decoding ability more dependent on the system, file format depend on the player
software installed on you device,Power7 suggest to use MX player/Mobo Player on the
Android and Oplayer/GoodPlayer on iOS)
Support to play the photos by filmstrip mode and support background music playing
Support video drag and play
Support music artwork shows, circulation play set, drag operation
Support email to send out pictures/documents
Support network and ATOMIC100’s parameters setting
Transfer videos and photos from and to the iPhone®, iPad® to ATOMIC100
SystemRequirements
iPhone®, iPad®, smartphone, tablet or computer with Wi-Fi connectivity (802.11 b/g/n)
Mac® or PC computer running Windows 8,7, Windows Vista, Windows XP or Mac OS®
X 10.6.0 or later operating system for loading media on to ATOMIC100 via USB
ClientTools
Computer Client Tool
Auto search and access the ATOMIC100 on WLAN
Supports Windows XP/2003Vista/7 /8 and Mac® iOS operation system
Mobile Application Tool
Supports iOS (iPhone® and iPad®) and Android (smartphone and tablet)
Stream audios and videos and view photos from the ATOMIC100
FCCStatement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
10
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCCRadiationExposureStatement
This device complies with FCC SAR exposure limits set forth for an uncontrolled environment.
SAR compliance for using the equipment in close proximity to the human body has been
evaluated at 5mm.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
11
ATOMIC100ontheBeach
Are you ready to have a completely relaxing vacation on the beach with ATOMIC100?
USA OFFICE
World Headquarters
4601 E. Airport, Drive, Ontario, CA 91761, USA
http://www.power7tech.com
sales@power7tech.com
Tel: 909.230.6788 Fax: 909.230.6889
TAIWAN OFFICE
Power 7 Technology Corporation
5F-3, No.258, Liancheng Road, Zhonghe
District, New Taipei City 235, Taiwan(R.O.C.)
http://www.power7tech.com.tw
sales@power7tech.com.tw
Tel: 886.2.8227.1790 Fax: 886.2.8227.1026
CHINA OFFICE
Power 7 (Shenzhen)Technology Company, Ltd.
Building A, Zhangkeng Industry Zone, Minfu Road Minzhi
Village, Longhua Town, Baoan District Shenzhen, Guandong
Province PR, China
http:www.power7tech.com.cn
pm@power7tech.com.cn
Tel: 86.755.8886.8949 Fax: 86.755.8179.8032

Navigation menu
