Power 7 Technology 2015CAM0001 WiFi USB Storage User Manual
Power7 Technology(Dong Guan) Co., Ltd. WiFi USB Storage
User Manual
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
1
PRODUCT OVERVIEW
The portable Wi-Fi dongle (code name: Camper) device allows you to convert USB external storage
devices into a Wi-Fi accessible media.
connect your USB external storage into the built-in USB port. Power the unit on and you can now
wirelessly access your videos, music, photos, data and stream it to your iPad®, iPhone®, tablets,
smartphones, and notebooks. There is no need to worry about running out of space on your mobile
devices
Product Features
Supports USB 1.1, 2.0 External Storage devices
Stream media over WiFi enabled devices up to 5 users simultaneously
Access and stream your music, videos, photos and data from USB external storage using the free
custom mobile app supporting iOS and Android operating systems
Search function to locate and access your file much faster
Internet access capability via wireless, supporting 802.11 b/g/n speeds
Supports LAN data-shares and cross-platforms including Windows, Mac, Linux, iOS and Android.
Support multiple NSA, including Samba / WebDAV
Internet access capability via the RJ45 or wireless, supporting 802.11 b/g/n speeds
Support multiple platform client tools, including Windows, Mac, Linux, iOS, and Android

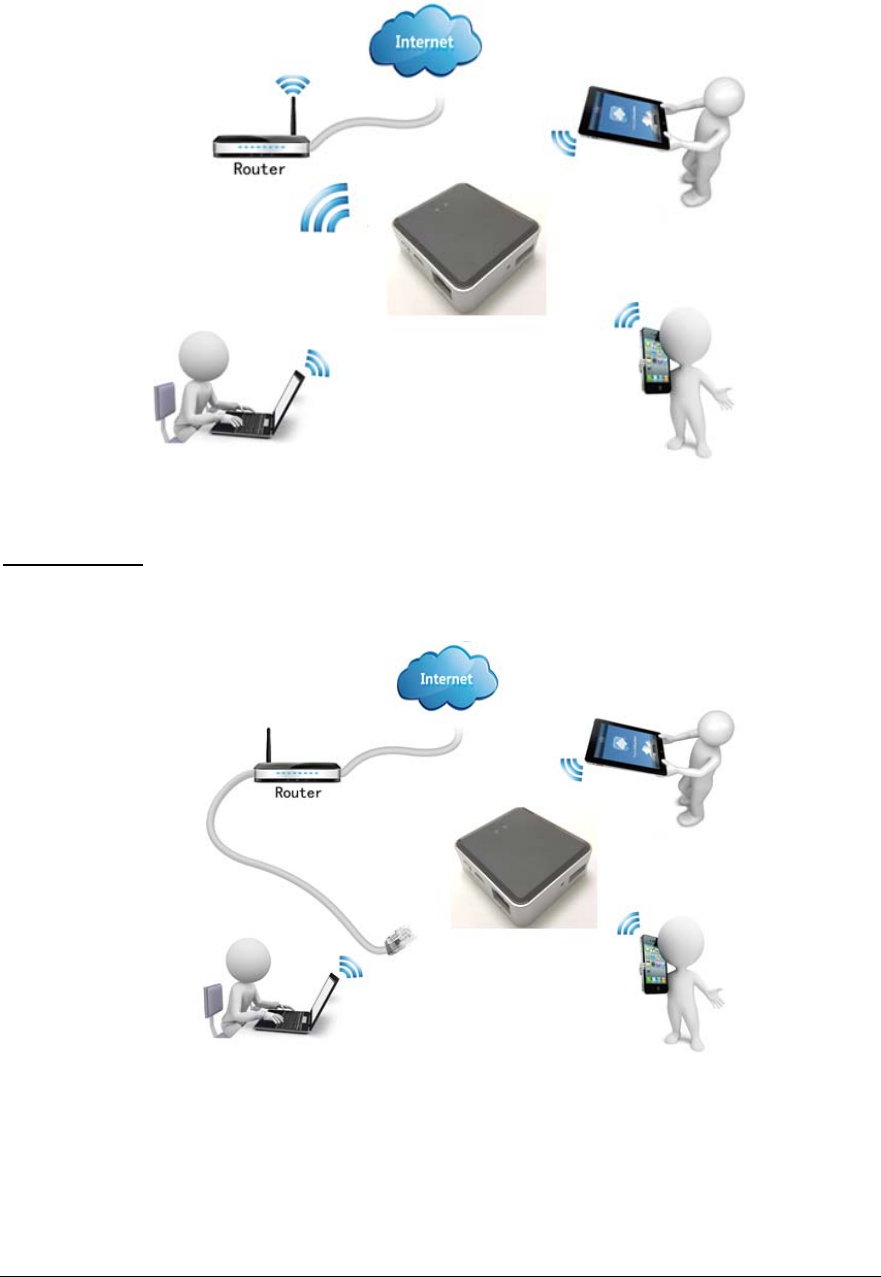

A. Wireless Mode. Wirelessly connect the Wi-Fi dongle to your existing wireless router to function as
a wireless Internet pass-through to have access to the internet as illustrated below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
2
B．Wired mode. Connect the Wi-Fi SD/USB using the RJ45 cable into the available port on the back
of your router to function as an wired Internet pass-through, the DHCP feature of the Wi-Fi HDD will
automatically assign an IP address to have access to the internet.

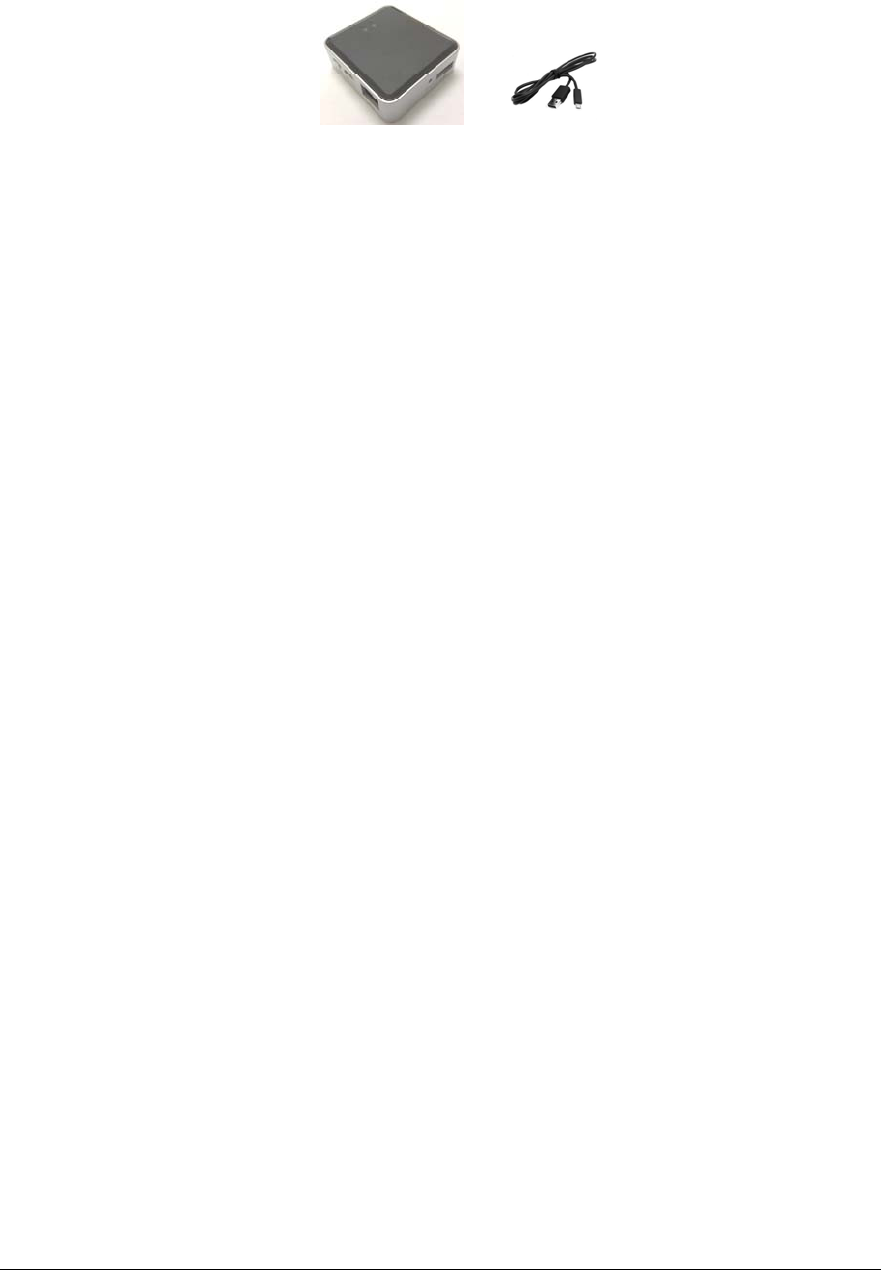

1. Hardware and Accessories
The Power 7 Wi-Fi dongle kit includes the following:
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
3
2 Product Parameters
2.1 Product Dimensions
Dimension：56mm (L) X 51mm (W) X 1mm (H)
2.2. Product Specification
CPU:
Model: Ralink RT5350
Frequency: MIPS24KEc 360MHZ
Wi-Fi:
Standard: 802.11 b/g/n,
Frequency: 2.4 GHZ
Speed: 72Mbps at 20MHz
150Mbps at 40MHz
Power consumption:
A) external storage Read/Write*：2W
B) Stand-by: 1.5W
C) Emission (EMI) Safety and Other Certifications: FCC (Class B) and CE
2.3. Operating Temperature
The normal operating temperature of the device is between 5°C to 35°C. Non-operating temperature is
between 0° to 60°C.
The operating humidity (non-condensing) is between 5% to 90% and non-operating humidity is 5% ~ 90%
(non-condensing).
3. Minimum Hardware Requirements
Internet Connection
PC Operating System Requirements
o Windows: XP/Vista/Windows 7
o Mac: OS X 10.6.0 and later
o Others: Fedora 12 (Linux) and late
PC Web Browser
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
4
o Windows: Supports Internet Explorer 7.0 and higher version
o Mac: Supports Safari 3.0 and higher version
o Others: Firefox 3.5 and higher version
iOS: 4.0 and above
Android: 2.3 and above
Router or Switch

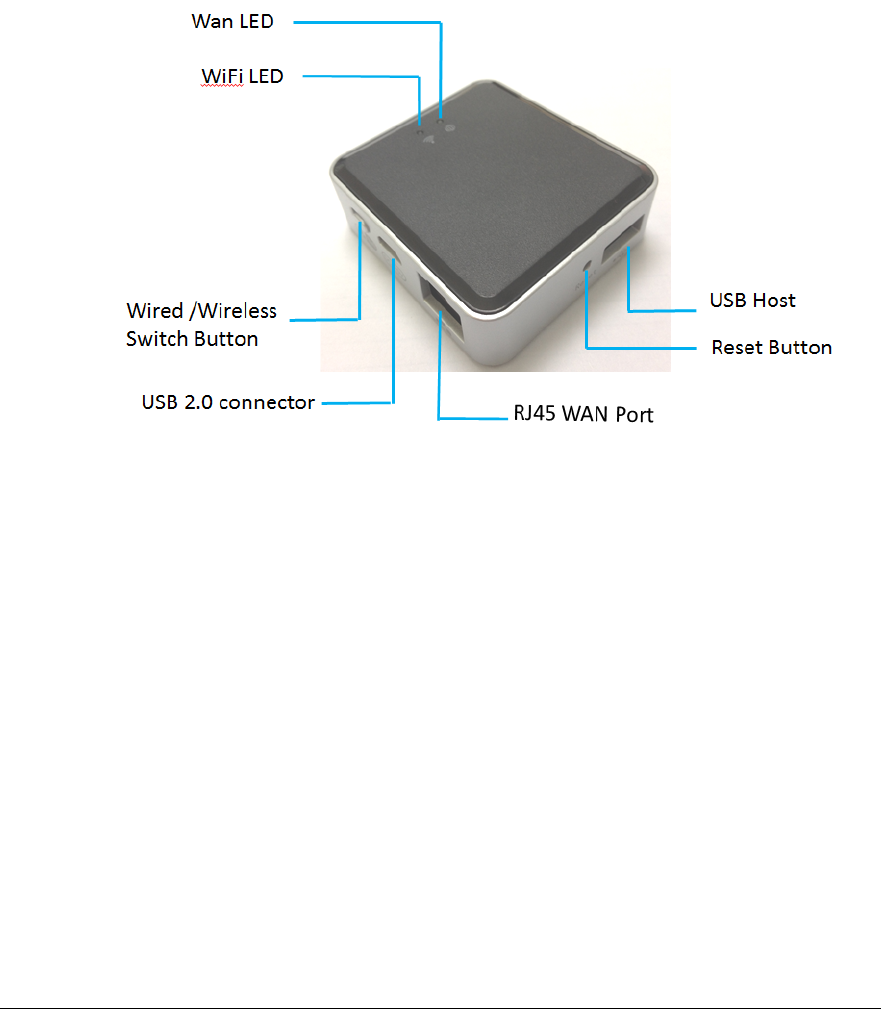

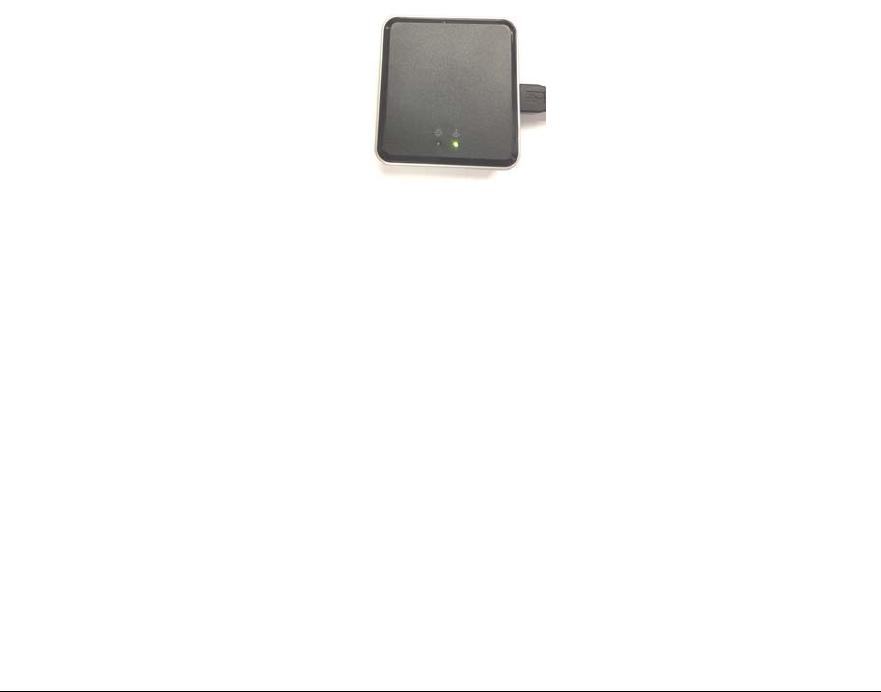

4. Product View
5. Device Interface
5.1 USB Host Interface: The built-in USB 2.0 Host Interface for connecting any USB Mass
Storage device and for charging mobile devices such as smartphones, MP3 Players, and tablets.
5.2 USB Interface： The built-in Micro USB 2.0 is for data transfer and power on the device when
connected directly into the computer’s USB port or wall chargers.
5.3 Reset Button: Reset the device to the Default Factory Settings.
5.4 Switch Button：Switch the connect mode（Wireless /Wired）
5.5 RJ45 WAN Port
A. Router/Access Point. The Wi-Fi HDD will serve as host. With the built-in DHCP function, it can
assign IP address to connect two or more devices through Wi-Fi.
5.6 LED Panel
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
5
Wi-Fi LED:
Green Color:
Flashing: Starts the Initialization process
Steady Light: Initialization process completed
Ready to use
Wi-Fi signal is normal
LED Off: The device is no power
Wan LED:
Steady Light: connection is successful
LED Off: The device is no power
6. Storage Installation
6.1USB External Storage
Locate the USB port on the device. Simply insert the any USB Mass Storage device including Flash
Drives, External Hard Drive and card readers into the USB port of the device as seen the image below.
Power on the device. Wait for few seconds to complete the initialization process and your USB external
storage is ready to use.
7. PC Client Software Installation
Our included Client Utility software is the only software that you will need to copy on your computer. This
software utility allows you to easily search and look for your Wi-Fi SD/USB that is connected from your
home network.
1. Copy the “AirStor” executable file on your PC and follow the on-screen instructions.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
6
2. Once the copy is complete, double-click on the “AirStor” icon on your desktop to launch the
software utility.
8. Using Personal Computer
8.1. Connecting Wirelessly to PC
Switch-on the Wi-Fi SD/USB by pressing the power button at the front panel. Wait for few minutes until
the Wireless LED remain lit. Enable the Wi-Fi feature on your PC and open the Wireless Network
Connection. Select the WiFiSD-XXXX wireless connection (default wireless SSID: WiFiSD-XXXX) and
enter the default password as 11111111. Once you have successfully connected to your Wi-Fi SD/USB,
you may now run the “AirStor” to search for your device and complete the configuration process.
8.2. PC Client Login Utility

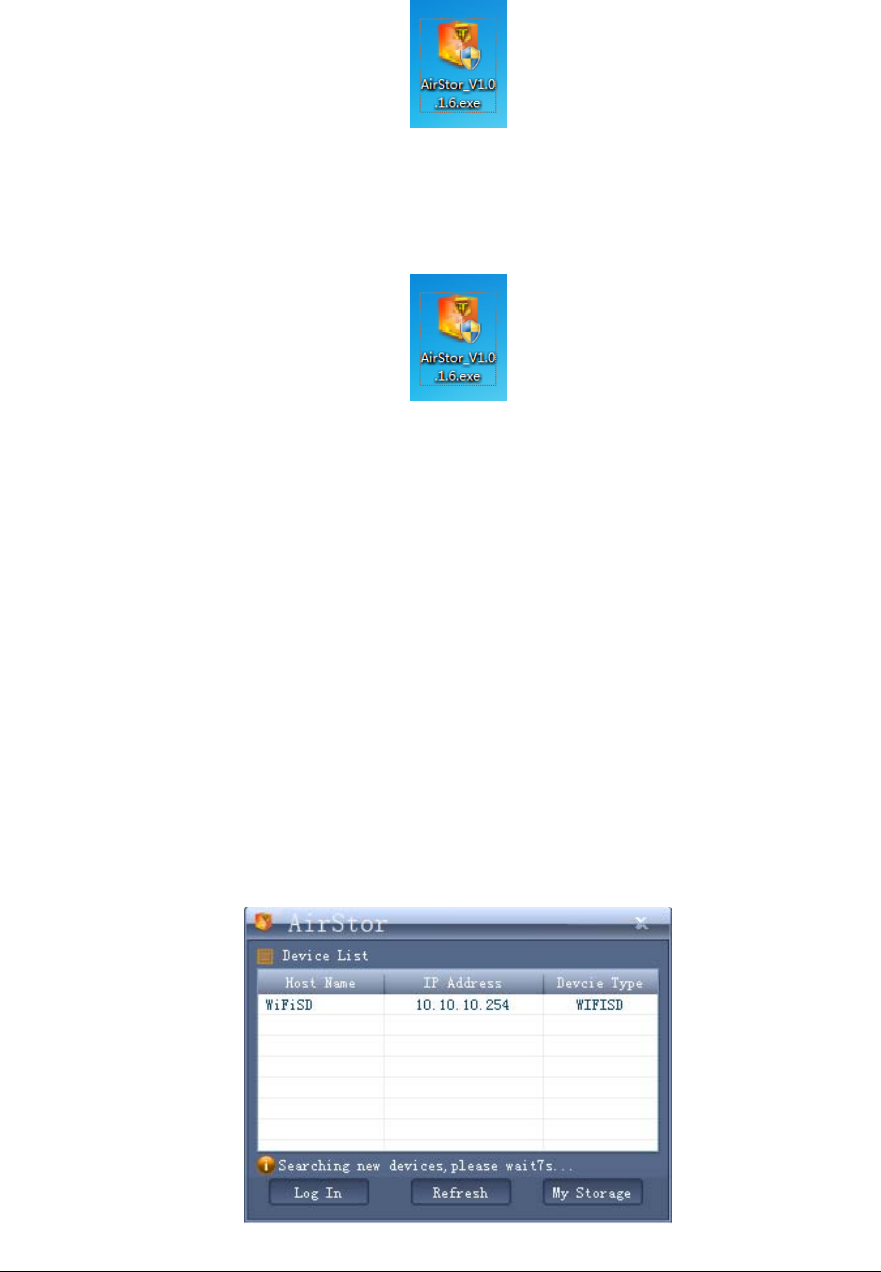

Double-click the “AirStor” icon on your desktop. The software utility will search all the connected devices in
your network as seen on the screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
7
If you do not find the WiFiSD on the list of devices connected in your network, click on the “Refresh” button
to refresh the device list.
Select the WiFiSD on the list, then click on the “Log In” button to enter the web interface as seen on the
image below.

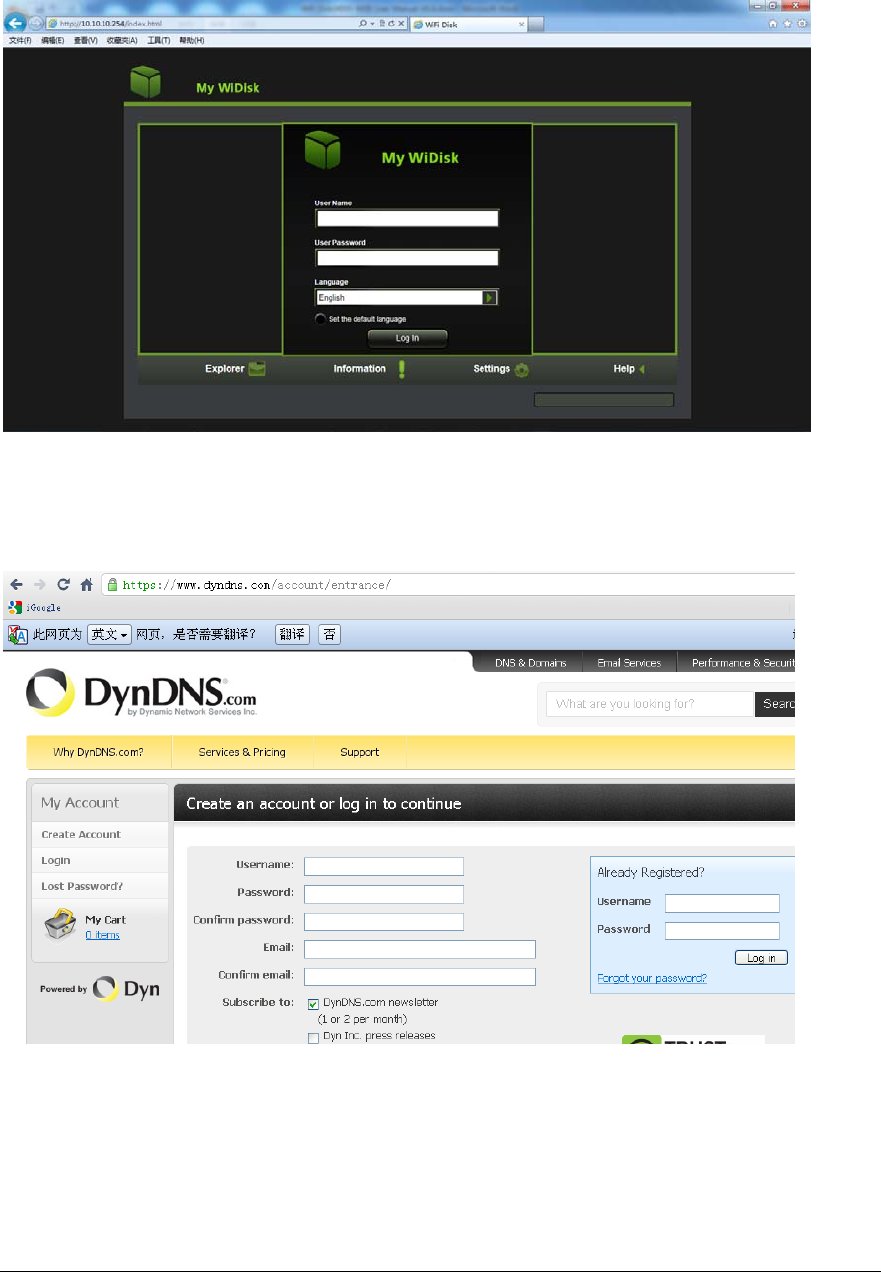

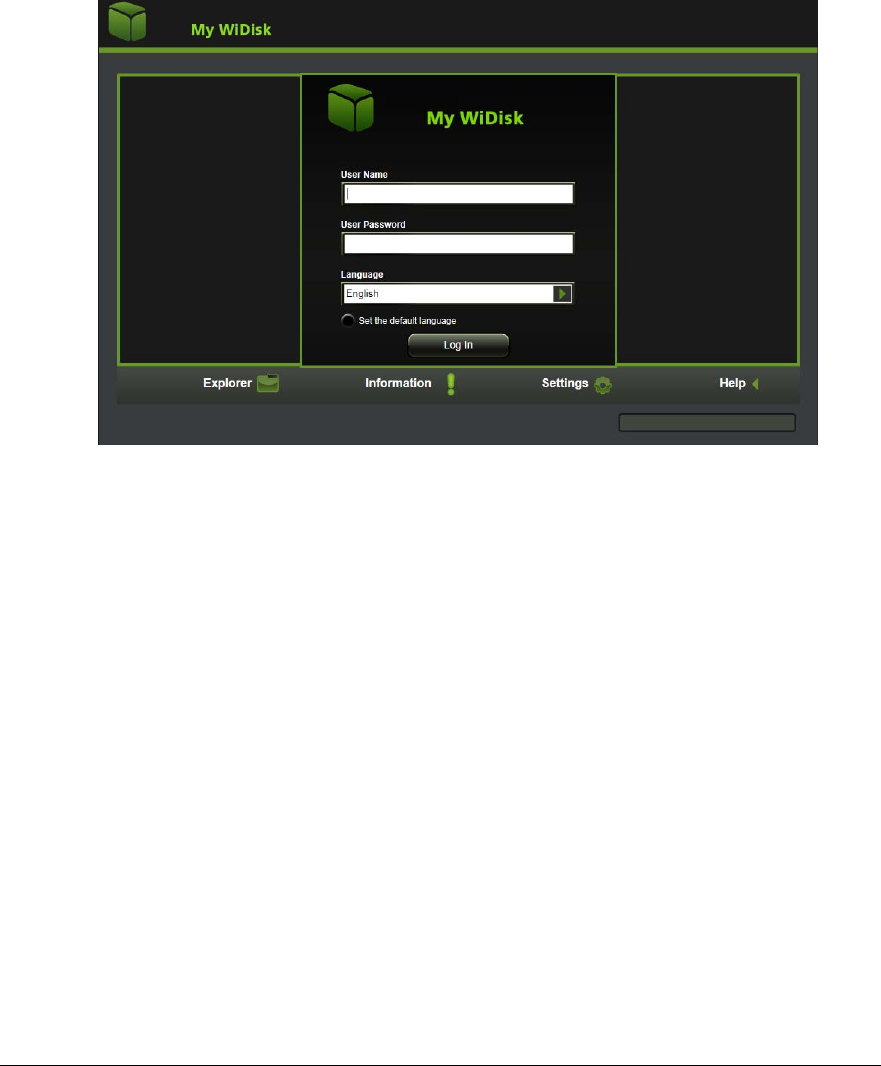

Type the default User Name as admin and leave the User Password as blank. Click on the “Log In”
button to access the Web Management Interface.
If you choose to click on the “My Storage” button, enter the admin login name and password to gain access
to the Wi-Fi SD/USB. Once successfully logged-in, it automatically mount the storage area of the Wi-Fi
SD/USB onto your desktop
8.3. Wi-Fi SD/USB Configuration using PC
Once your Wi-Fi enabled-PC is successfully connect to the Wi-Fi SD/USB, using the “AirStor” will allow
you to access our built-in Web Management Interface and configure your device.

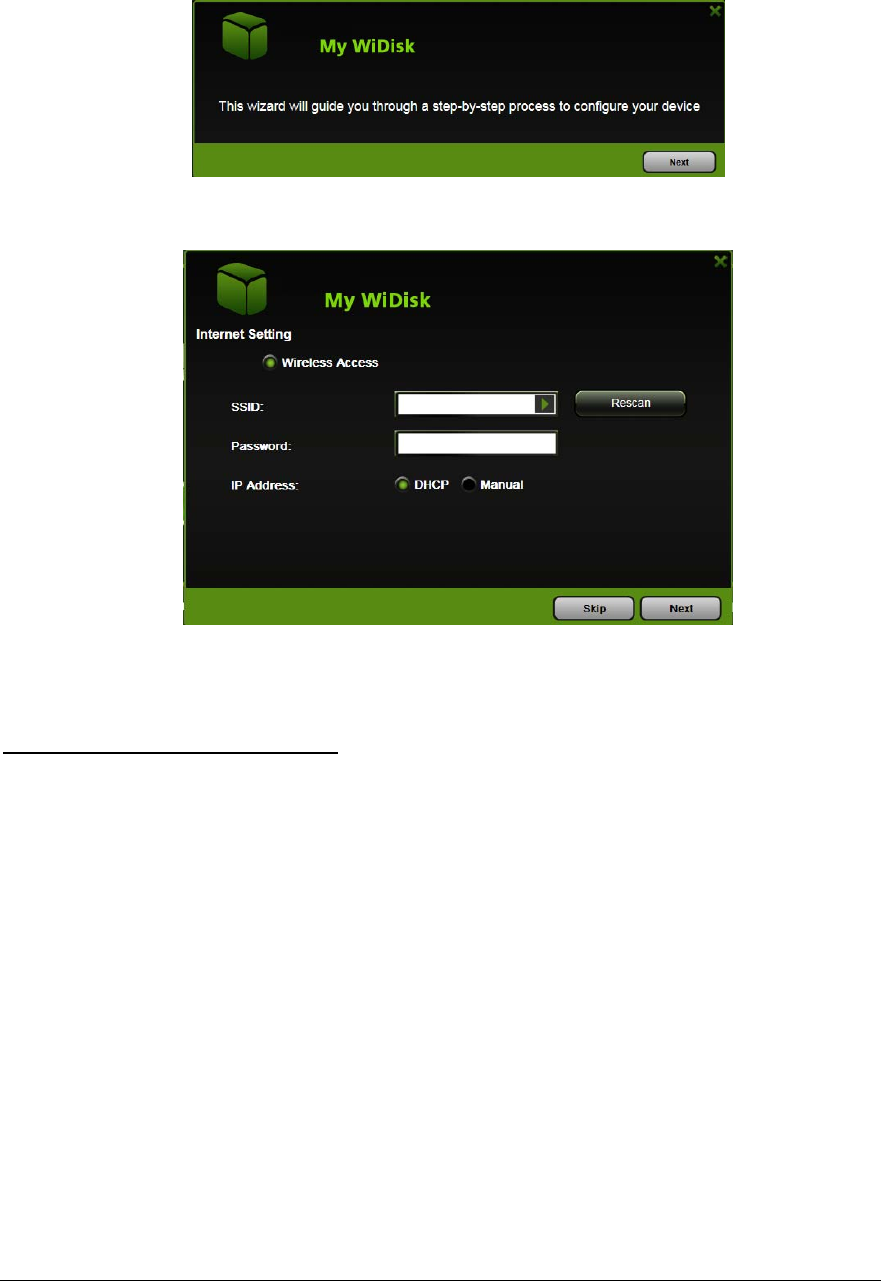

1. During the initial setup, our Wizard will automatically run and will guide you through the
step-by-step process on configuring the Wi-Fi SD/USB as seen on the screenshot below. You
may cancel this process by clicking on the “X” at the top right corner of the window. If you
cancel the Wizard, it will keep the factory default settings of your Wi-Fi SD/USB.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
8
2. Click on the “Next” button. By default, the Wired Access is selected.
Wireless Access. Connecting the Wi-Fi SD/USB to another wireless device to have the
internet access.

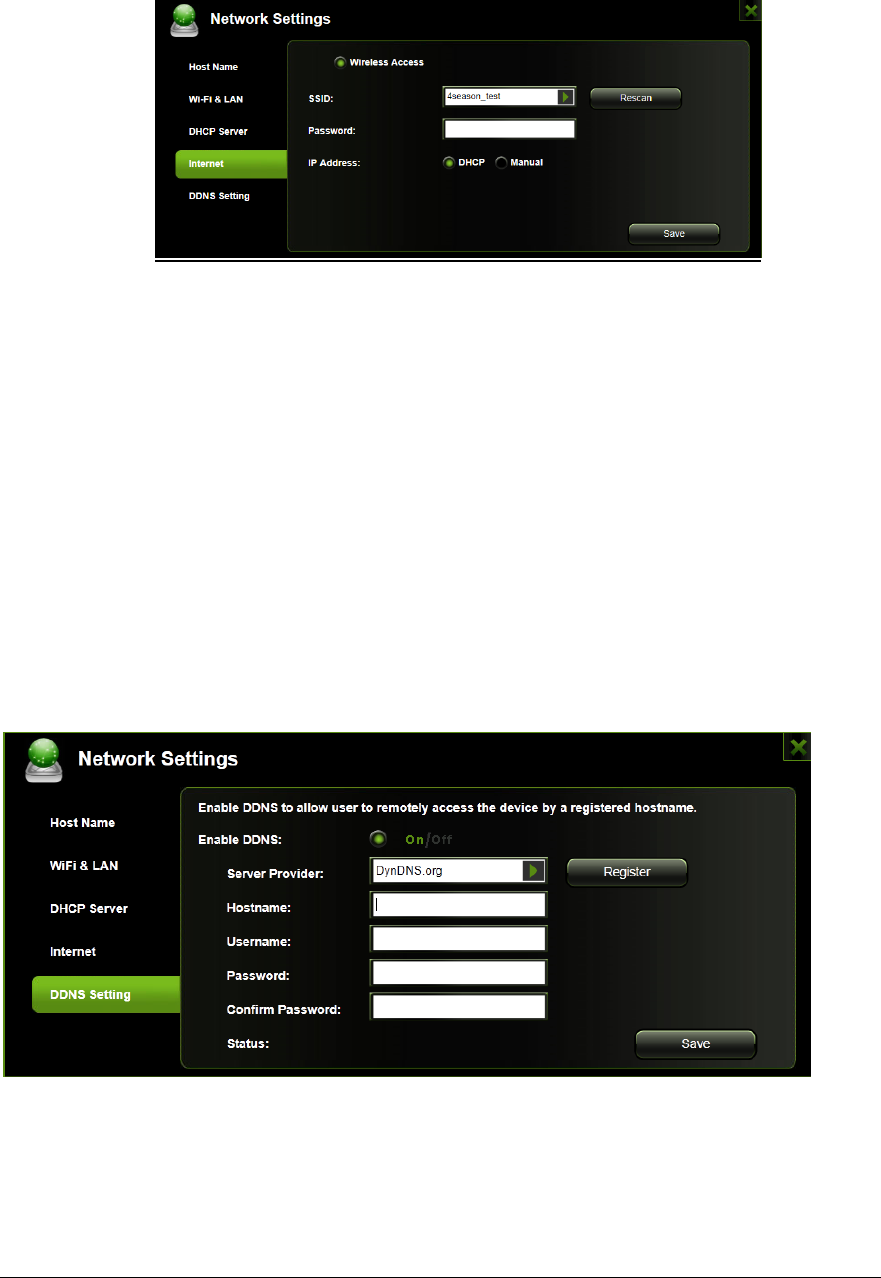

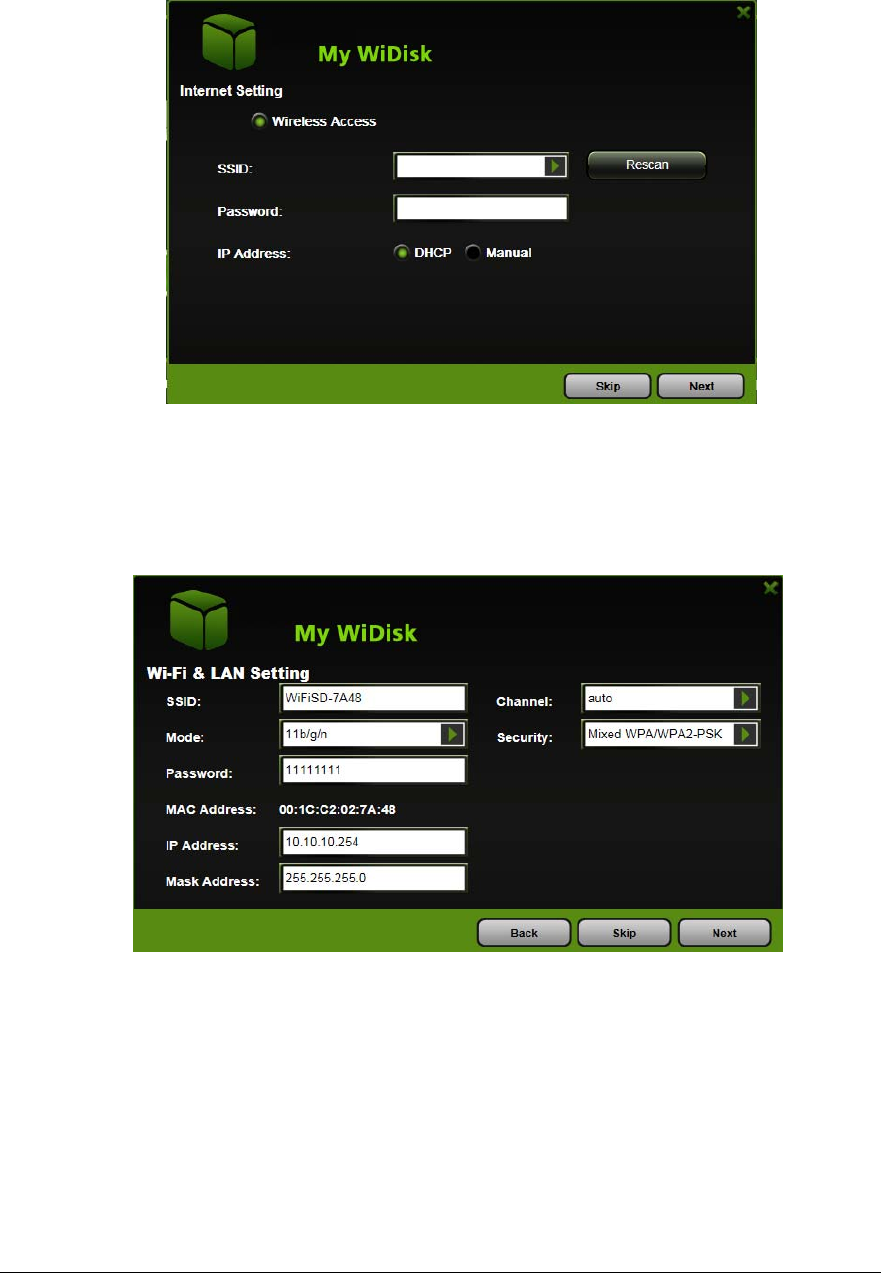

Selecting the Wireless Access
1. SSID. Enter the SSID name or click on the “Rescan” button to automatically search for the
available wireless network connections.
2. Password. Enter the correct password to join the wireless network connection selected.
3. IP Address. Select either DHCP or Manually assign an IP address
a. By selecting DHCP, the host will provide an IP address automatically to connect to the
internet
b. By selecting Manual, you have to manually assign an IP address to connect to the
internet
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
9
3. Click on the “Next” button. The next step is to configure the Wi-Fi Disk.
D) SSID： Enter the Campernation of letters and numbers only. 32 characters is the
maximum allowable SSID length
E) Channel： The default setting is set to Auto. There are 14 available channels to
choose from.
F) Modes: The default setting is 11b/g/n. You can also manually set the modes to
11Mbps (802.11b), 54MBPS (802.11G), and 150Mbps (802.11n).
G) Security: The default setting is Mixed WPA/WPA2-PSK. WPA-PSK and WPA2-PSK
are also available.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
10
H) Password： The default password is set to 11111111.
I) IP Address： The default IP address is set to 10.10.10.254 with subnet mask of
255.255.255.0. The IP address can be changed.

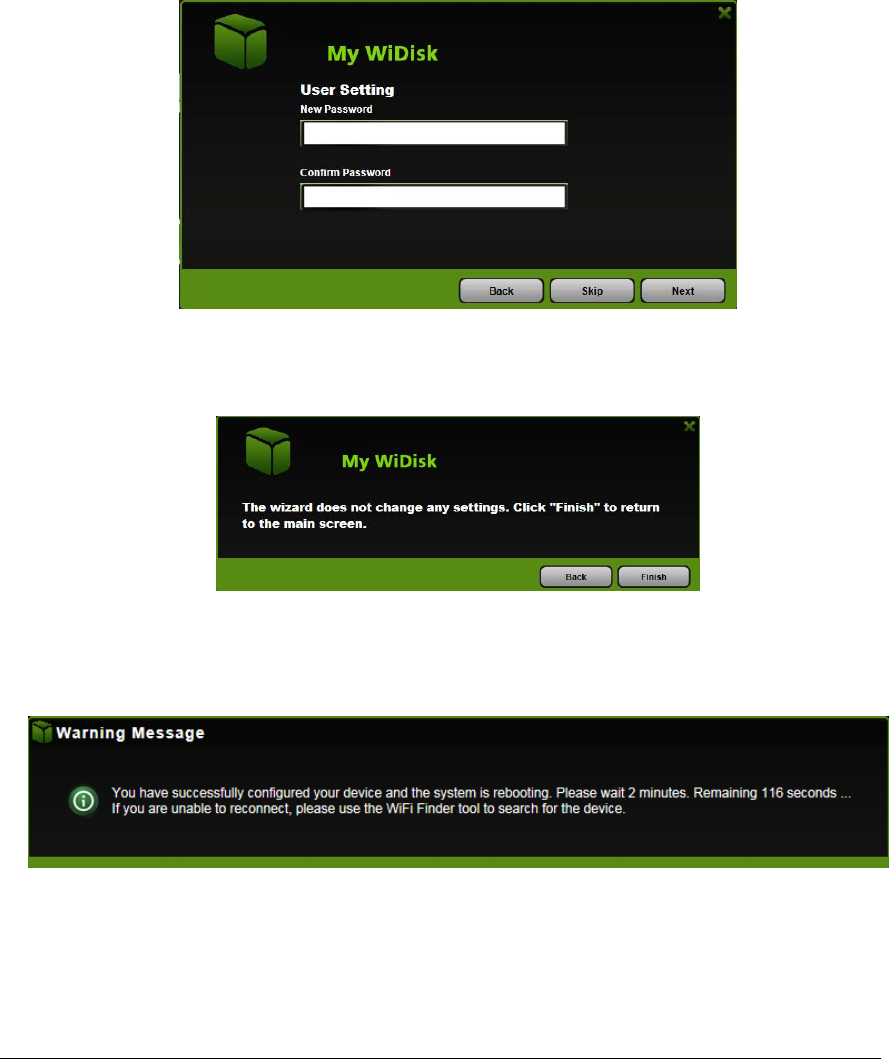

4. Click on the “Next” button. The next step is to change the admin default password. Click on the
“Next” button once the password has been modified. You may click on the “Skip” button to keep the
default password.
5. Click on the “Finish” button to complete and save the changes made.

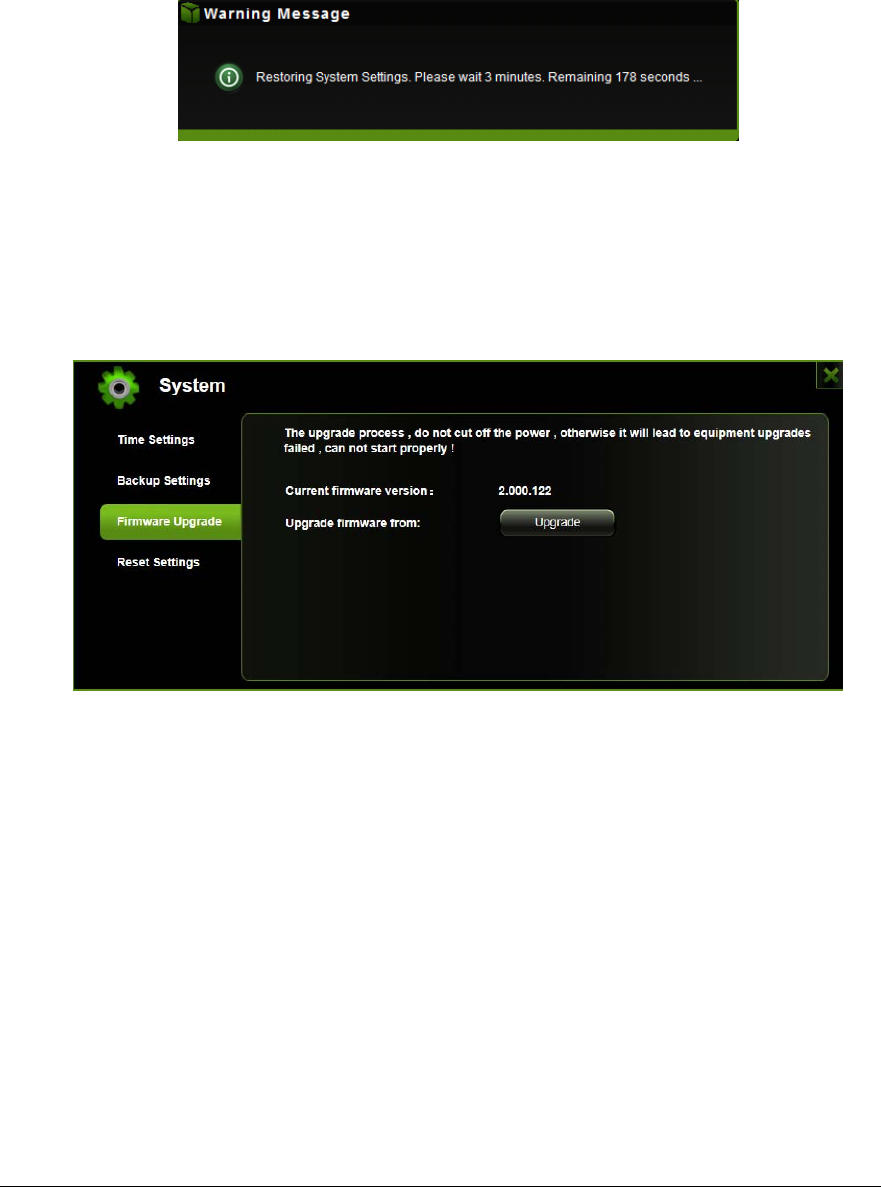

The system will start rebooting. This process will take approximately 5 minutes as seen on the
image below.

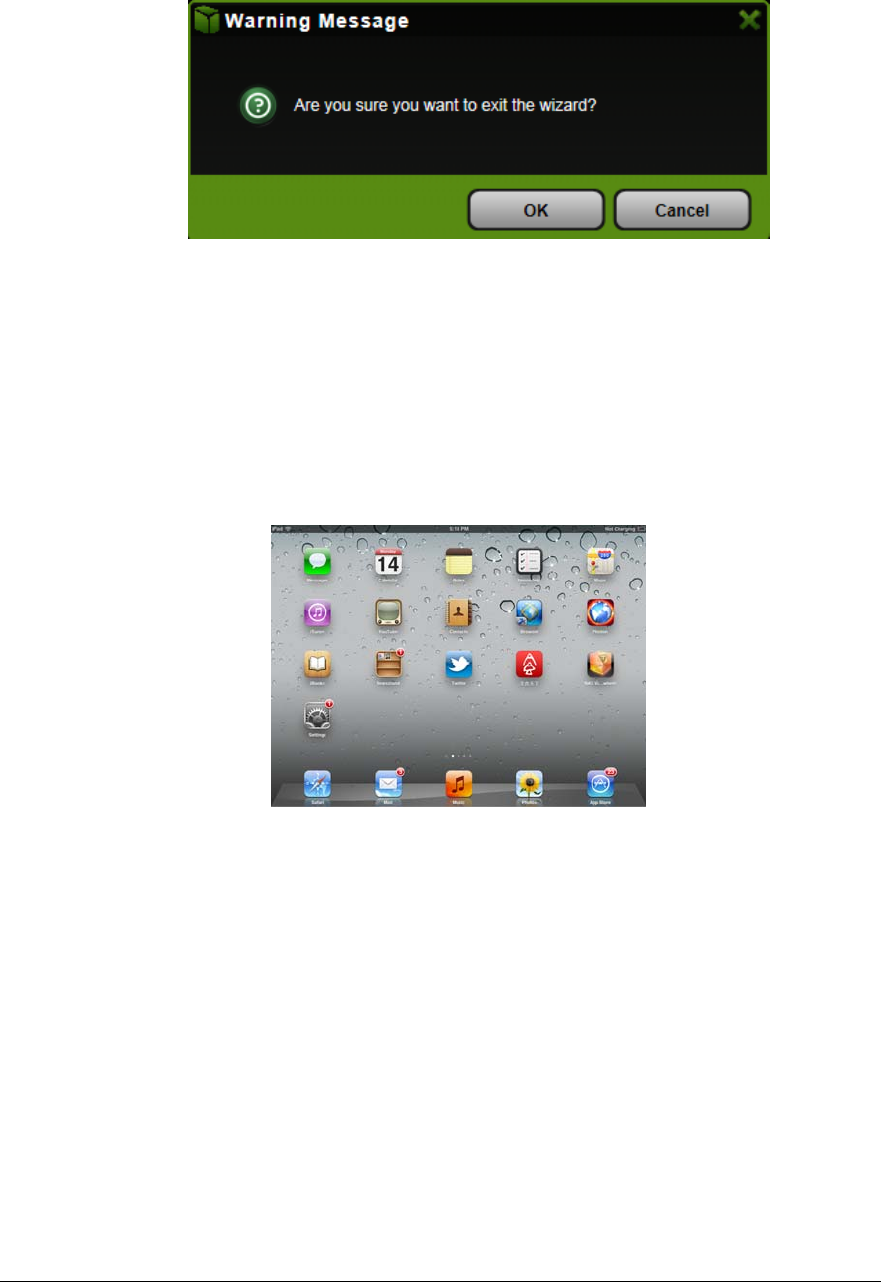

The step-by-step wizard can be canceled at anytime. Click on the “X” located at the top right of
the window as seen on the image below. Click on the “OK” button to exit or “Cancel”.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
11
9. Using Mobile Devices
9.1. iOS Client App Installation
1. Click on the “App Store” icon on the iOS device as seen on the image below. Search and locate
the free “AirStor” app and follow the on-screen installation instructions.

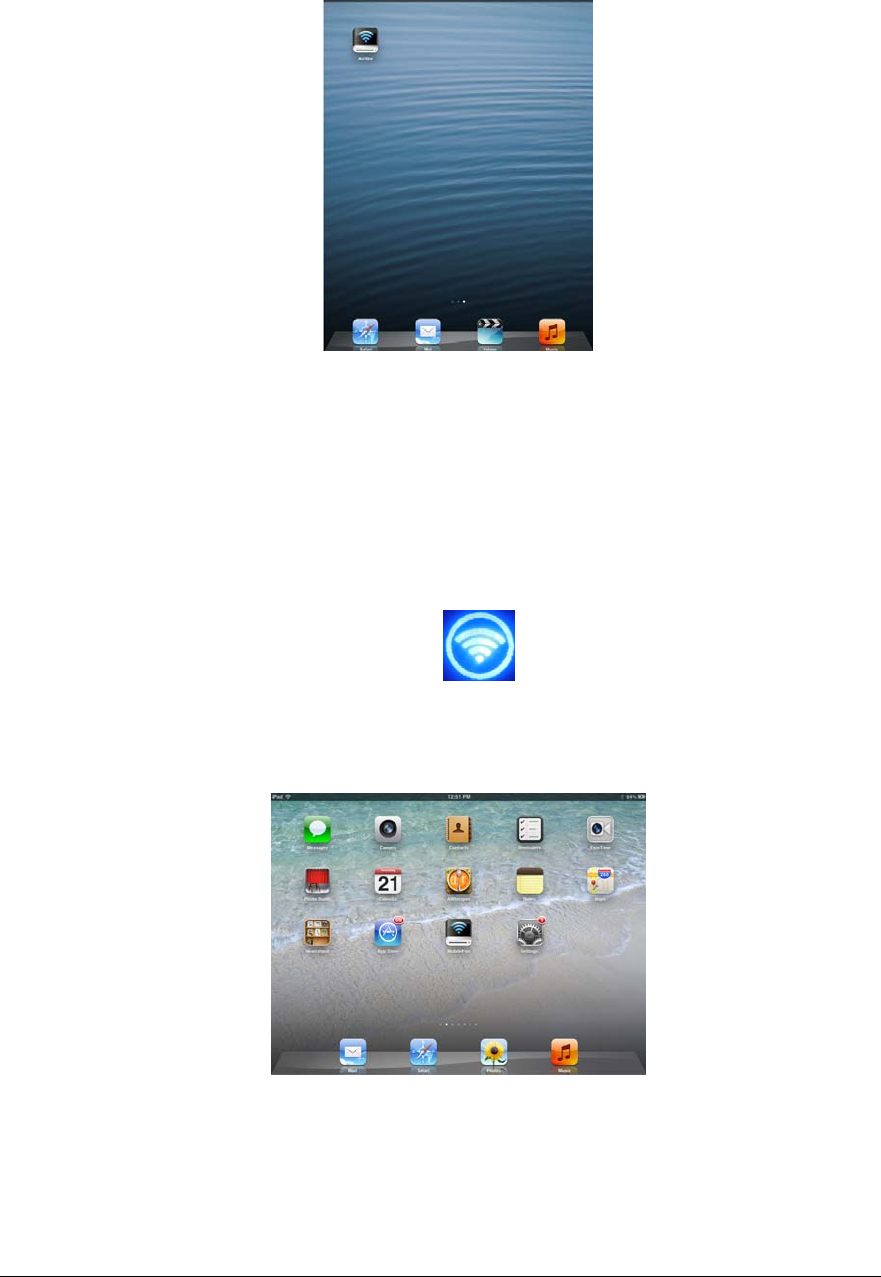

2. Once the installation process has been completed, the “AirStor” app can be found on the desktop
as seen on the image below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
12
9.2. Wirelessly connecting your iPhone/iPad
1. Turn-on the Wi-Fi SD/USB. Wait for few minutes to complete the initialization process. The
blue Wi-Fi LED on the device should remain solid indicating that the initialization process has
been completed.
2. Click on the “Settings” icon on the iOS device as seen on the screenshot below.

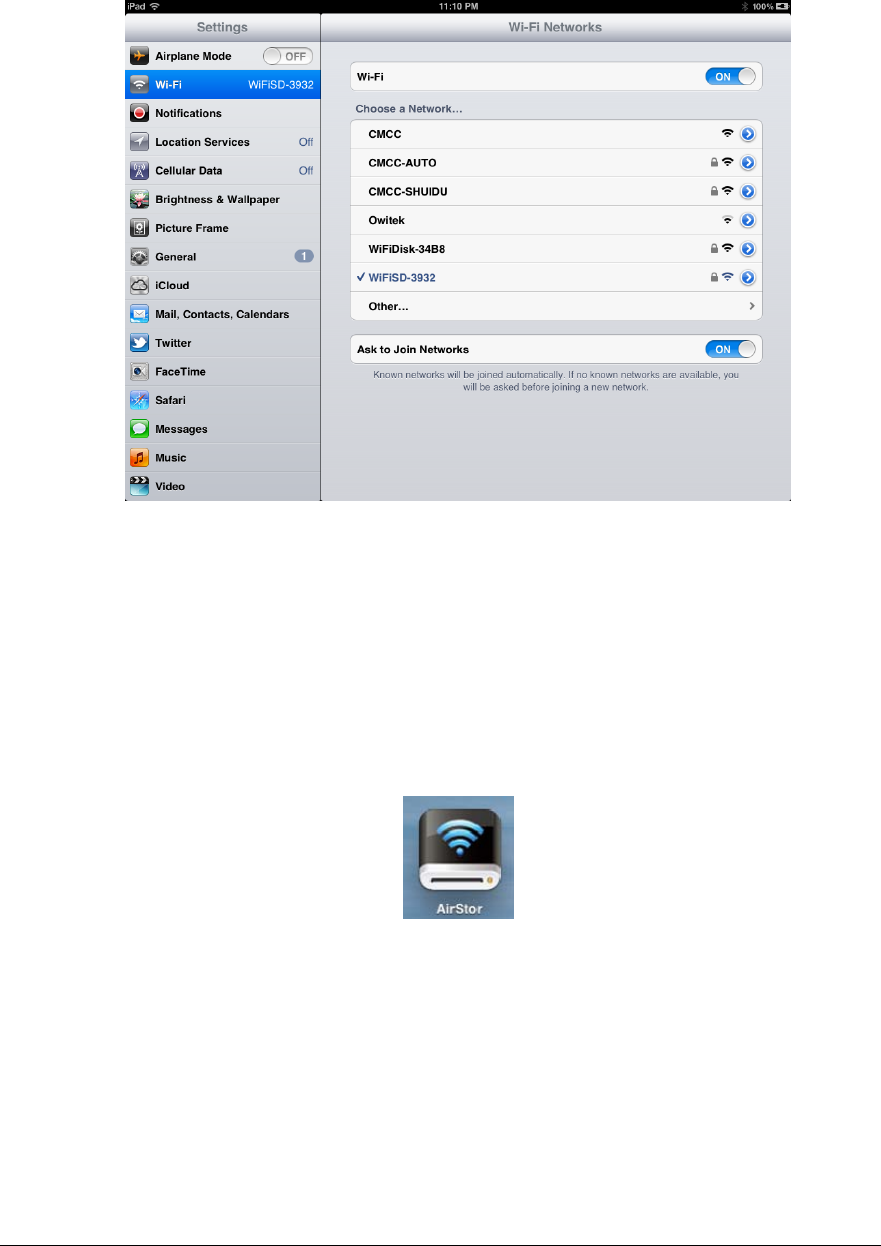

3. Click on the “Wi-Fi”. Inside the Wi-Fi Networks, the “WiFiSD-XXXX” should appear on the list.
Click on the “WiFiSD-3932” as seen on the image below. The “3932” part of the SSID is the last
4 digits of the device MAC Address. Enter the default password (11111111) and click on the “Join”
button.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
13
Once the “WiFiSD-XXXX” is selected, a check mark will appear before the SSID and the Wi-Fi
logo will appear after the device name on the top left of the display.

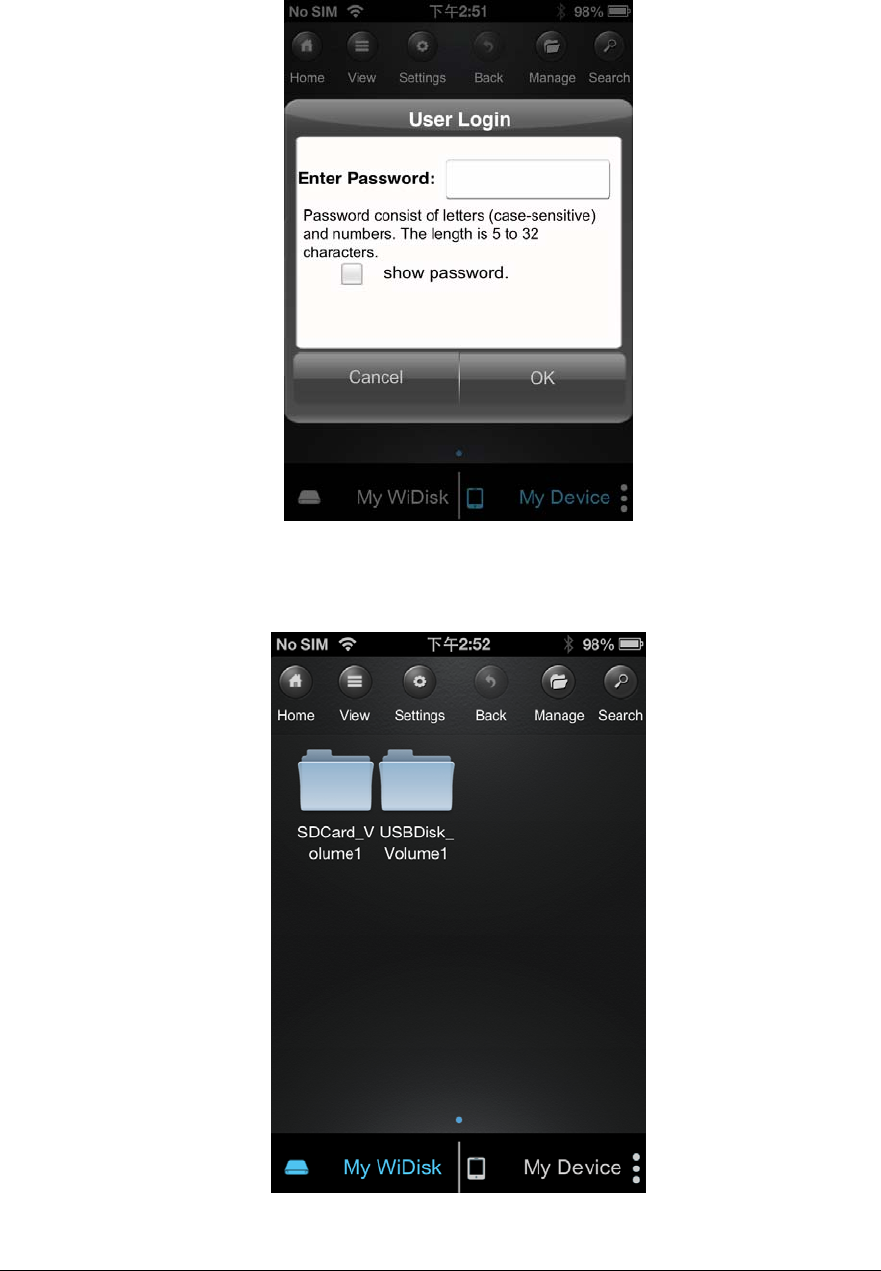

9.3. iOS User Login
1. Click on the “AirStor” icon to launch the app as seen on the image below.
2. Enter admin as the user name and the password that you assigned during the configuration
process. The password is only required during the first login. The device remembers the
password and there is no need to enter it again afterward.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
14

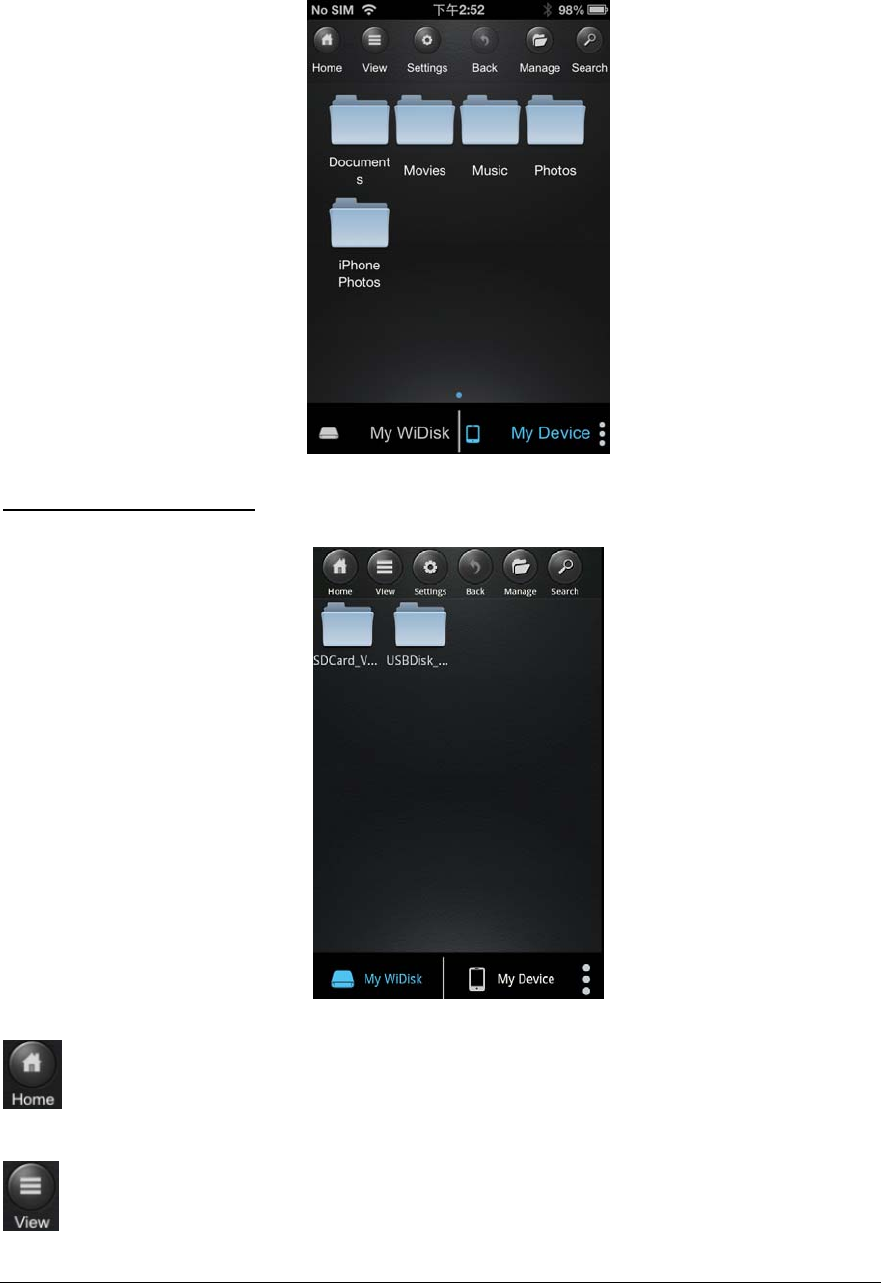

3. Once the password has been entered correctly, you will be automatically connected into the
“My WiDisk”. The “My WiDisk” is the Wi-Fi SD/USB Storage.

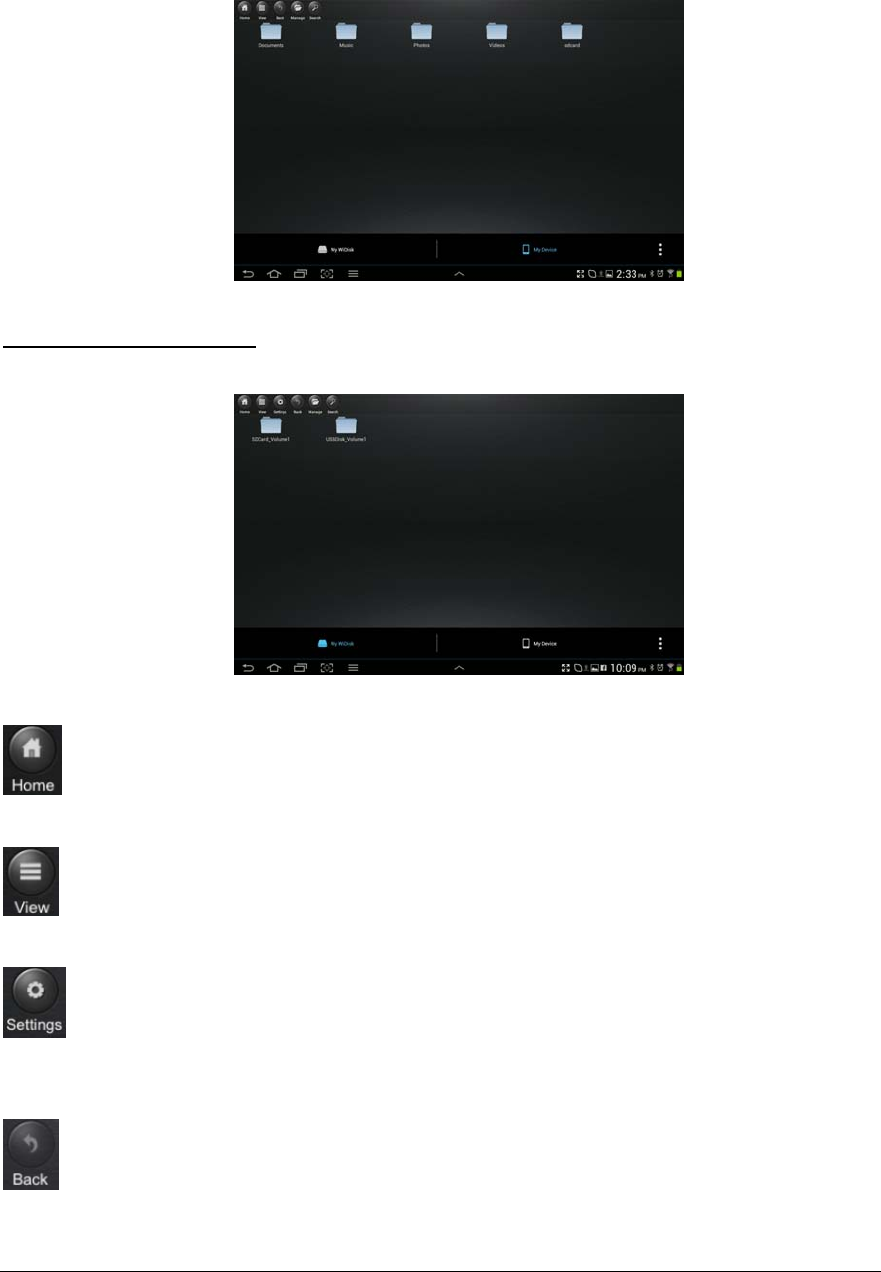

As seen on the screenshot above, the SD Memory Card and the USB Flash Disk are both mounted on the desktop.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
15
9.4. Android Client App Installation

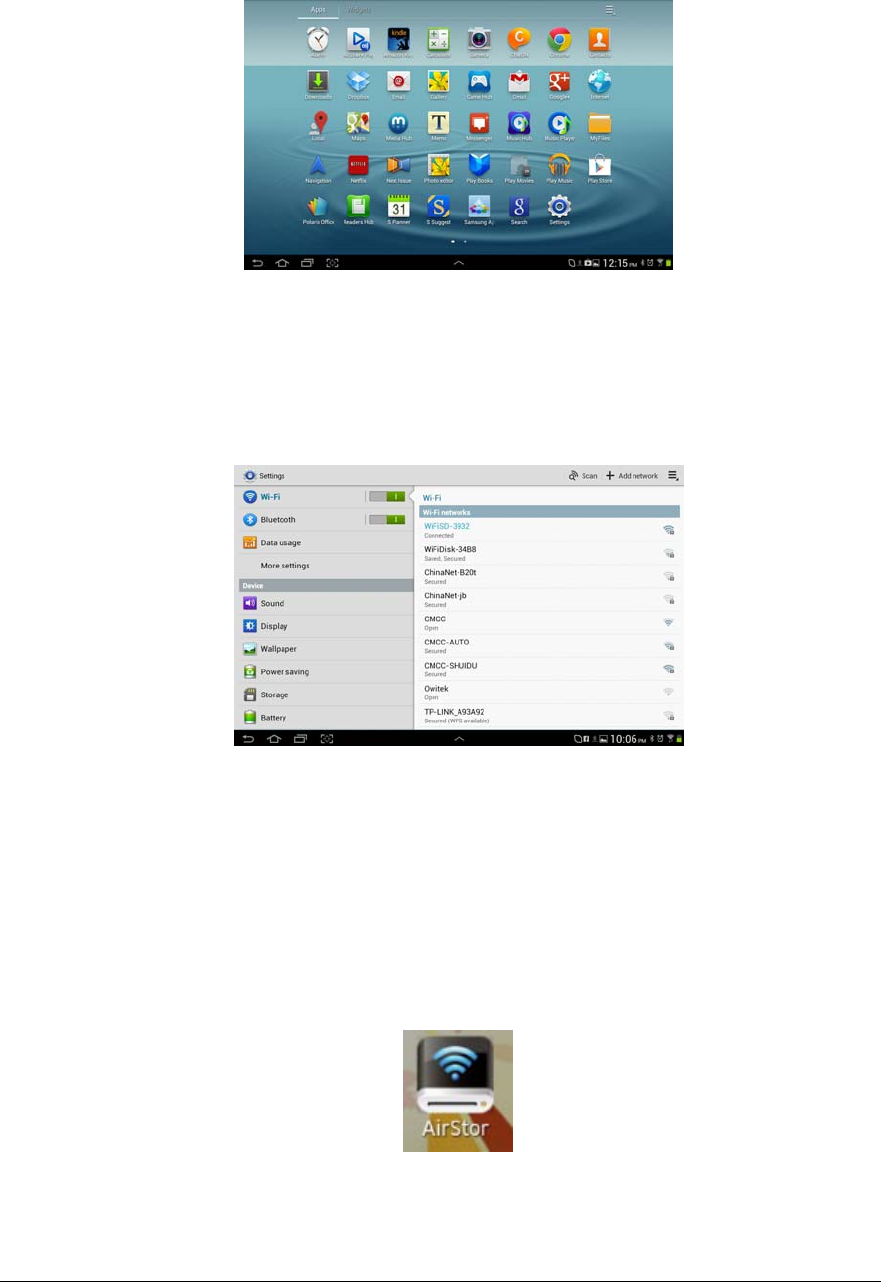

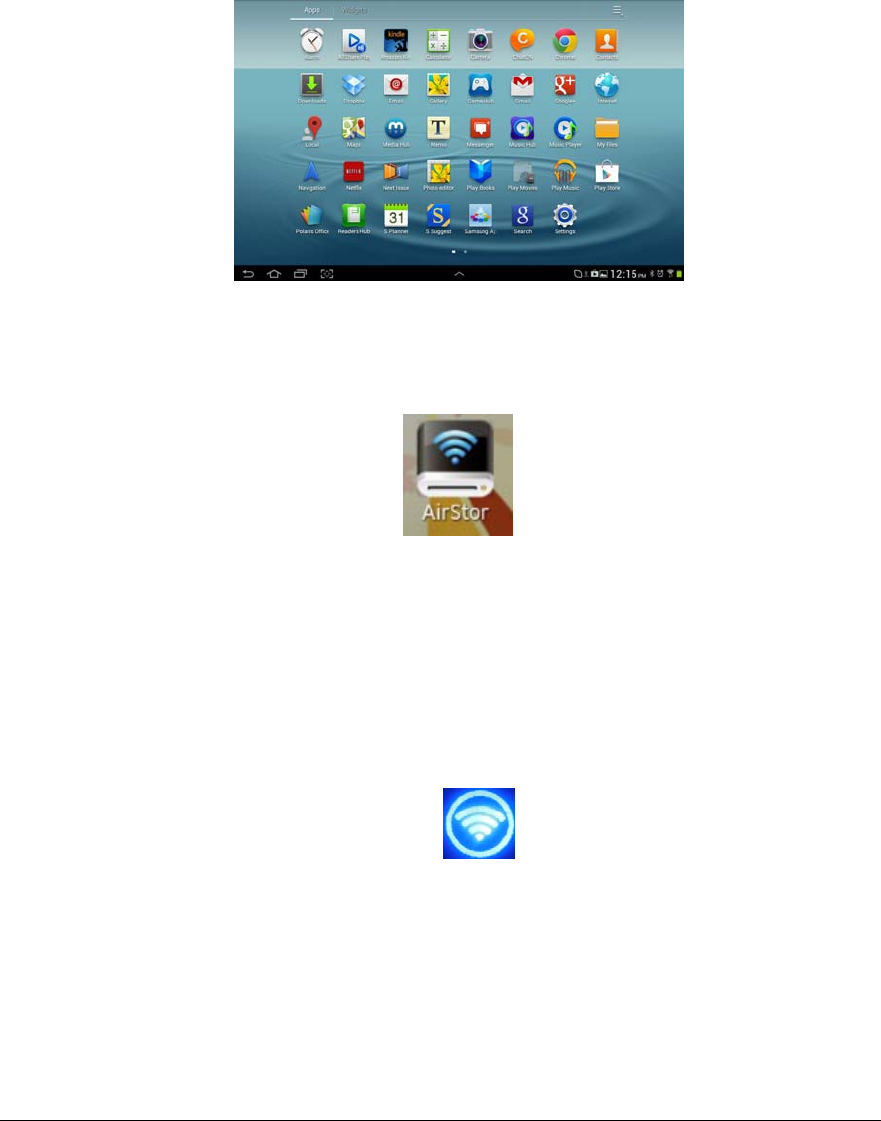

1. Click on the “Play Store” icon on the desktop as seen on the image below. Search and locate the
free “AirStor” app and follow the on-screen installation instructions.

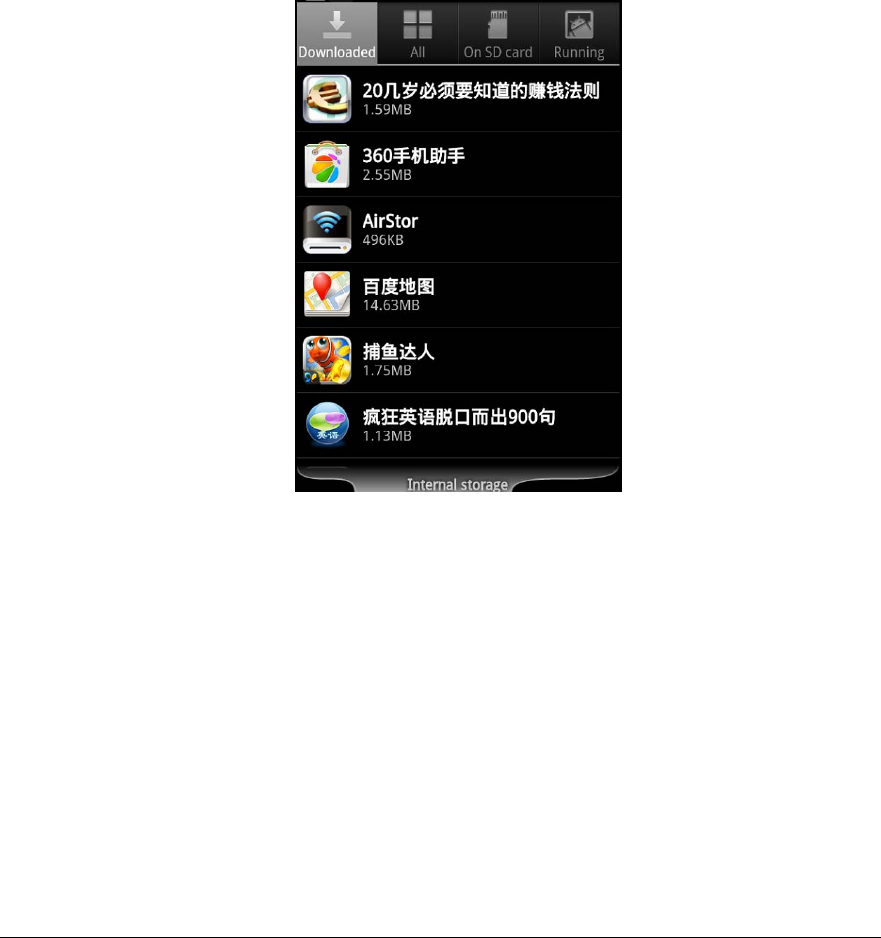

2. Once the installation process has been completed, the “AirStor” app can be found on the desktop
as seen on the image below.
9.5. Wirelessly connecting your Android devices
1. Turn-on the Wi-Fi SD/USB. Wait for few minutes to complete the initialization process. The
blue Wi-Fi LED on the device should remain solid indicating that the initialization process has
been completed.
2. Click on the “Settings” icon on your desktop as seen on the screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
16
3. Switch the Wi-Fi to ON position. Inside the Wi-Fi networks, the “WiFiSD-XXXX” should
appear on the list. Click on the “WiFiSD-3932” as seen on the image below. The “3932” part
of the SSID is the last 4 digits of the device MAC Address. Enter the default password (11111111)
and click on the “Connect” button.
4. The word “Connected” will appear under the SSID name of which is an indication that the
Android Device is connected to the Wi-Fi SD/USB.
9.6. Android User Login
1. Click on the “AirStor” icon to launch the app as seen on the image below.
2. Enter the Admin password that you assigned during the configuration process. The
password is only required during the first login. The device remembers the password and there is
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
17
no need to enter it again the second time you login.

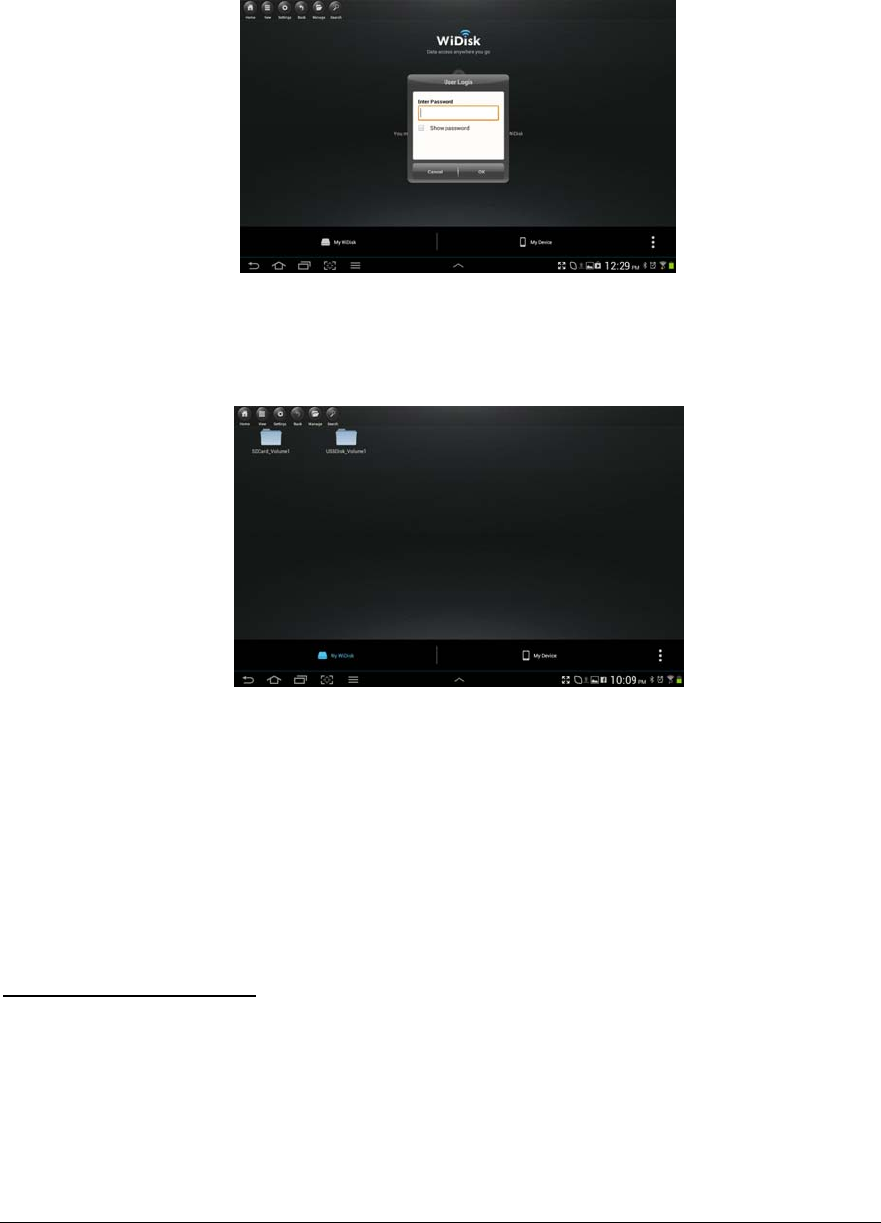

3. Once the password has been entered correctly, you will be automatically connected into the
“My WiDisk”. The “My WiDisk” is the Wi-Fi SD/USB Storage.
As seen on the screenshot above, the SD Memory Card and the USB Flash Disk are both mounted on the desktop.
10. Basic Functionality
10.1. iOS Device Client
Once you have successfully connected to the Wi-Fi SD/USB, by default, you will be inside the “My WiDisk”.
The “My WiDisk” is the Wi-Fi SD/USB and the “My Device” is the device that you are using to access the
Wi-Fi SD/USB. Few buttons that can be found inside the Main Screen as listed below.
My Device Main Screen View – By default, the Documents folder, Music folder, Photos Folder, Videos
folders and iPad (or iPhone) folder are available to easily organize your files inside the My Device.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
18
My WiDisk Main Screen View – the WiFiSD_Volume1 and USBDisk_Volume1 can be seen on the desktop.
Home Button – back to the main screen.
View Button - change to List or Thumbnail view.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
19
Setting Button – change the Wi-Fi SD/USB configuration.
Back Button – back to previous screen

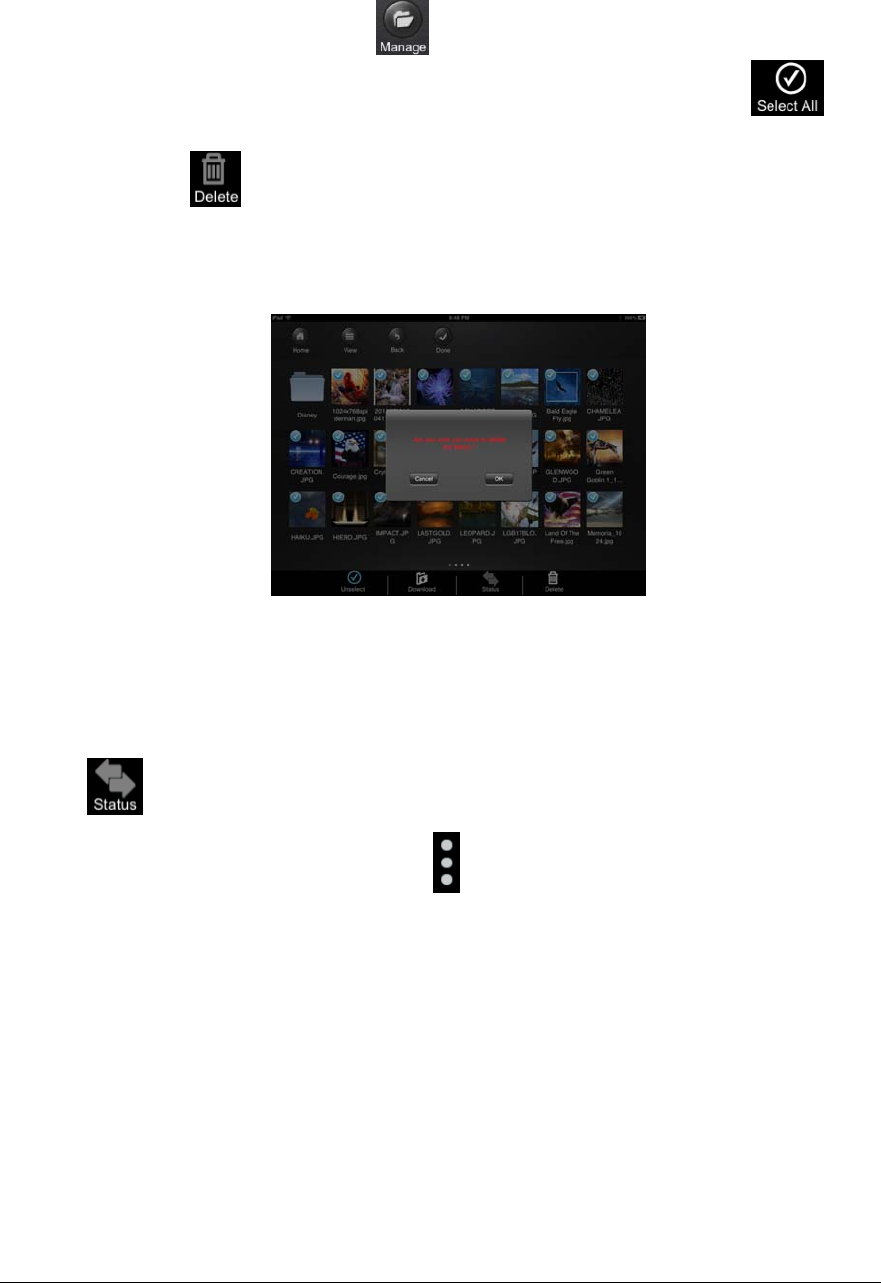

File Manager Button – to share, copy, delete, download, upload file functions
Search Box – to search for specific file name and/or file extension.
My WiDisk – the Wi-Fi SD/USB or the Remote Storage.
My Device – the device that you are using to access the Wi-Fi SD/USB or the
Local Storage
More Button – to view the About, Now playing and the File Transfer status.
10.2. Android Device Client
Once you have successfully connected to the Wi-Fi SD/USB, by default, you will be inside the “My WiDisk”.
The “My WiDisk” is the Wi-Fi SD/USB and the “My Device” is the device that you are using to access the
Wi-Fi SD/USB. Few buttons that can be found inside the Main Screen as listed below.
My Device Main Screen View – By default, the Documents folder, Music folder, Photos Folder, Videos
folders and SDCard folder are available to easily organize your files inside the My Device.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
20
My WiDisk Main Screen View - the WiFiSD_Volume1 and USBDisk_Volume1 can be seen on the desktop.
Home Button – back to the main screen.
View Button - change to List or Thumbnail view.
Setting Button – change the Wi-Fi SD/USB configuration. This button is only active when switched
to the “My WiDisk”.
Back Button – back to previous screen
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
21
File Manager button – to share, copy, edit, delete, download, upload file functions
Search Box – to search for specific file name and/or extension.
My WiDisk – the Wi-Fi SD/USB or the Remote Storage
My Device – the device that you are using to access the Wi-Fi SD/USB or the
Local Storage
More Button – to view the About, File transfer status, Now playing status and the Exit button.
10.3. Playing Music/Audio (iOS and Android)
Tip: It is highly recommended to create a folder or folders where to copy all your music files into the
Wi-Fi SD/USB for ease of use and file organization.
The Music or Audio files can be played regardless if you are inside the “My WiDisk” or “My Device”
Simply locate the music or audio file that you would like to play. Click on the file name and your music will
automatically play.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
22
Note: Please consult your device manual to check whether it will support the music/audio files that
you would like to play.
- When clicked, the current music that is playing will restart at 0.00. Clicked twice, it will play the
previous music.
- When clicked, it will play the next music
- When clicked, it will start playing the music or audio file. Click again, the will pause/stop
playing the music.
- When clicked, it will exit the music player interface.
Five play-modes:
a. - Play current song: the current music that is playing will be stopped, and playing
progress will back to 0.00.
b. - Repeat current song: the player will always play the current song, and it will only
stop playing when the button is clicked.
c. - Shuffle all songs: the music or the audio files will be played randomly.
d. - Play current list: the music or the audio files will be played sequentially.
e. - Repeat all songs: the music or the audio files will be played in sequence, and it
will only stop playing when the button is clicked.
Tip: You can click and hold, then slide the music progress button to fast-forward or rewind the music.
Note: You can exit the Music Player Interface at any time and will continue to play the music or audio
file in the background.
10.4. Playing movie/video (iOS only)
Tip: It is highly recommended to create a folder or folders where to copy all your movie files into the
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
23
Wi-Fi SD/USB for ease of use and file organization.

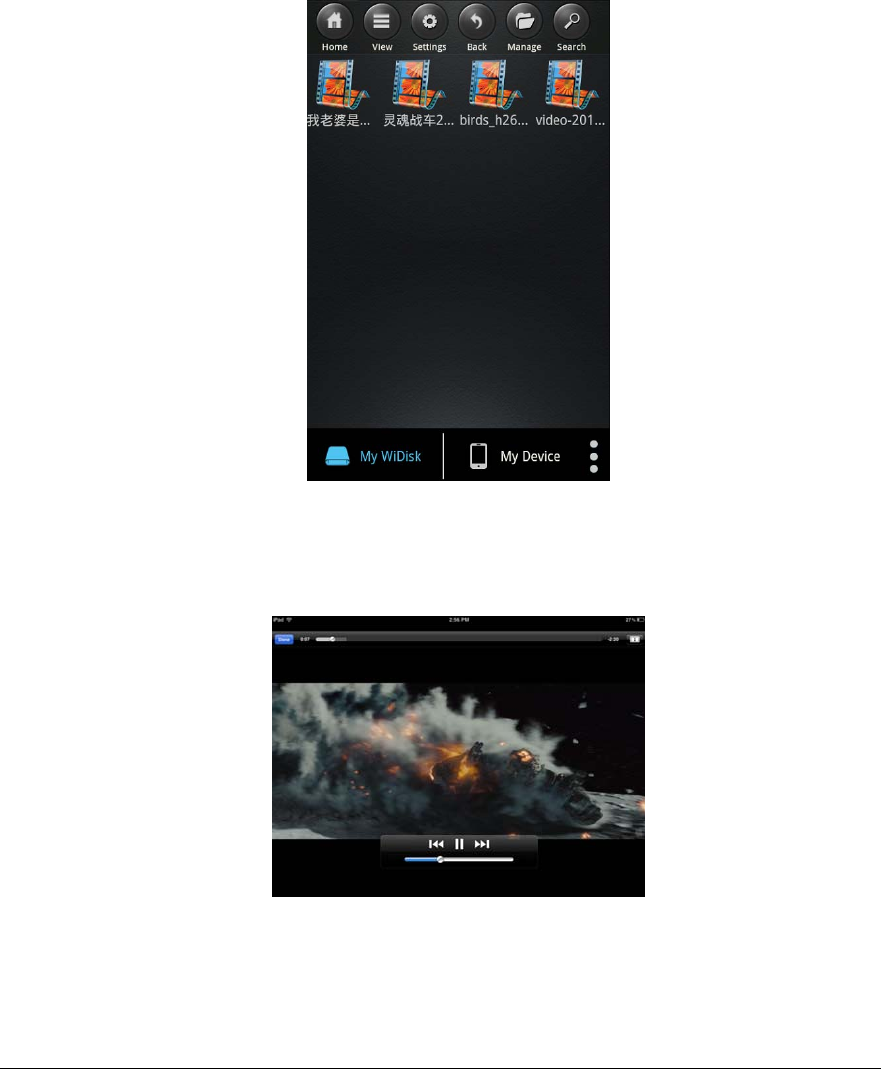

The movie or video files can be played regardless if you are inside the “My WiDisk” or “My Device”.
Simply locate the movie or video file that you would like to play. Click on the file name and your movie will
automatically play as seen on the screenshot below.
Note: Please consult your device manual to check whether it will support the movie or video files
that you would like to play.
By default, the video playback is in the landscape mode. See the button functionalities below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
24
1. - When clicked, the movie that is currently playing will stop and will exit the Movie Player
Interface.
2. - When clicked, this will scale the movie automatically according to your preference.
3. - Click, hold and slide the progress button to fast-forward or rewind the movie.
4. - Click, hold and slide the volume control to increase or lower the volume.
5. Press and hold to fast-rewind the movie while playing.
6. Press and hold to fast-forward the movie while playing.
7. When clicked, it will start playing or resume playing the movie.
8. When clicked, it will pause the movie from playing.
10.5 Playing movie/video (Android only)
Tip: It is highly recommended to create a folder or folders where to copy all your movie files into the
Wi-Fi SD/USB for ease of use and file organization.
The movie or video files can be played regardless if you are inside the “My WiDisk” or “My Device”.
Simply locate the movie or video file that you would like to play. Click on the file name and the list of
movie player will appear as seen on the screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
25
Note: The control panel will vary depending on the movie player installed on your Android devices.
Please consult the movie player’s user guide on how to control the movie.
10.6. Viewing/playing photos (iOS only)
Tip: It is highly recommended to create a folder or folders where to copy all your photos into the
Wi-Fi SD/USB for ease of use and file organization.
Note: The Wi-Fi SD/USB currently supports .jpg, tiff, png and .bmp images.
The supported photos can be viewed as thumbnails or as a list as seen on the screenshot below.
Any photos that are not supported can be viewed as a generic thumbnail or icon.
To view a photo, simply click on the photo icon or file name as seen on the screenshot below. You can
swipe your finger across the screen to manually view the photos or click the button, to
automatically play the photos as slideshow.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
26
There are few available functions to control the slideshow.
Click the button to pause the slideshow from playing and press again to continue
playing．
Click the button to restart or to replay the slideshow.
Click the button to play the slideshow once and it will stop at the last image or photo.
Click the button to return from the previous screen.
Click the button to share photos via email, adding the photo inside the device Photo Album
or through Facebook. Internet connection is required to share photos via email or Facebook.
Click the button to add background music while playing the slideshow as seen on the
screenshot below.
Stop/Continue playing button - to stop or continue playing the background music.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
27
Select button - search and locate the file or files that you would like to play as the background
music. Click on the button to return to the slideshow as seen on the screenshot below.
Repeat button – the background music will continue playing the same music when it is
switched-on. By default, this option is switched-off.
10.7. Viewing/playing photos (Android only)
Tip: It is highly recommended to create a folder or folders where to copy all your photos into the
Wi-Fi SD/USB for ease of use and file organization.
Note: The Wi-Fi SD/USB currently supports .jpg, gif and .png images.
The supported images can be viewed as thumbnails or as a list as seen on the screenshot below.
Any photos that are not supported can be viewed as a generic thumbnail or icon.
To view a photo, simply click on the photo icon or file name as seen on the screenshot below. You can
Thumbnail view
List view
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
28
swipe your finger across the screen to manually view the photos or click the button, to
automatically play the photos as slideshow.
There are few functions that are available to control the slideshow.
Click the button to pause the slideshow from playing and press again to continue
playing．
Click the button to restart or to replay the slideshow.
Click the button to play the slideshow once and it will stop at the last image or photo.
Click the button to return from the previous screen.
Click the button to share photos via email, adding the photo inside the device Photo Album
or through Facebook. Internet connection is required to share photos via email or Facebook.
Click the button to add background music while playing the slideshow as seen on the
screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
29
10.8. Sharing photos/images (iOS only)
There are few available options to share photos to your friends and family; by email, saving to the
device Photo Album and upload to Facebook.
Note: Internet connection is required to share photos/images via email or accessing any social media
network.
Click on the button located at the top right of the screen to show the three options
available to share your photos/images. Click the button to return from the previous
screen.
1）E-Mail button – when clicked, the default email app will automatically launch and the selected
photo as an attachment.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
30
2）Add to photo – when clicked, the selected photo will be saved into the Photo Album of the device.
3）Upload to Facebook – when clicked, you will be directed to the Facebook login screen. The
Facebook app must be installed on your device. Facebook login and password is required.
10.9. Sharing photos/images (Android only)
Sharing photos using your Android device will vary depending on the apps installed on your device.
Note: Internet connection is required to share photos/images via email or accessing any social media
networks.
Click the button to return from the previous screen or to exit. Click the button located at
the top right of the screen to show the three available options to share your photos.
1) Share button – when clicked, a list of app installed on your Android will appear as seen on the
screenshot below. You may select from the list which app to launch.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
31
2) Save Photo button - when clicked, the selected photo will be saved into the device Photo
Gallery.
10.10. Opening/viewing documents (iOS only)
The device client app supports keynote, numbers, page, Excel, Word, .pdf, .txt and ppt files.
To open or view any documents, simply click on the file name or the icon. This will automatically
open the supported file. Click the button to return from the previous screen or click the
button to send the file via email as seen on the screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
32
Note: Internet connection is required to send emails.
Click the “E-Mail” button. The default email app will launch automatically and the selected document
will be sent as an attachment.
.

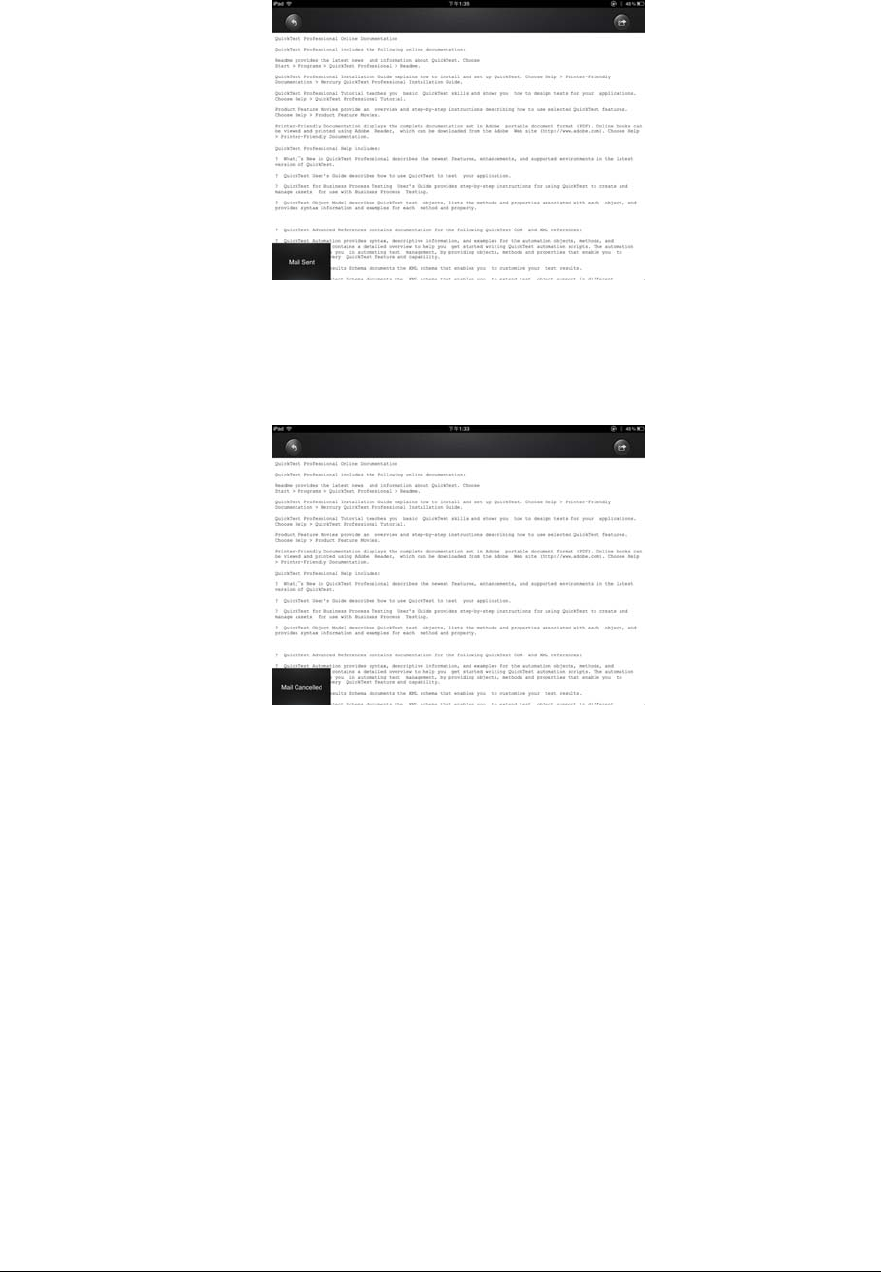

Once the email is sent, there will be a “Mail Sent” message that will appear on the lower-left corner of
the screen. This is an indication that the email was sent successfully.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
33
“Mail Canceled” message will appear on the lower-left corner of the screen when the email is
canceled. See the screen shot below.
10.11. Opening/viewing documents (Android only)
To open/view a document using your Android device, simply click on the file name or icon that you
wish to open/view. This will automatically open the file using the default viewer or the installed app on
your Android device as seen on the screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
34
Note: Internet connection is required to send emails. Due to the complexity of the Android OS,
sending emails may vary depending on the app installed on your mobile device. Please consult your
device manual if in doubt.
To send the document as an attachment, click on the button at the top right of the screen. Click
on the “File”, then “Send”. Once the “Send” button is clicked, a list of installed app will appear on
your screen. You may select from the list of app that you wish to use to send or share the selected
document. See the screenshot below.
10.12. Copy, Delete, Download, Upload functions (iOS and Android)
You may click on the button at anytime to share, copy, delete, download, and upload files. As
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
35
seen on the screenshots below, the button will appear at the top as part of the menu once the
button is clicked.
At the bottom of the screen, there are few available functions. See below for their functions.
- Once clicked, all files will be selected. The icon will turn into blue color and a check mark
will appear on all files.
- Click once again, all files will be unselected. The check marks will no longer
visible.
Tip: You may select a single or multiple files by clicking on the thumbnail. You may also click and
hold on the thumbnail for a few seconds and drag it to button to download, or icon to
upload or to button to delete a file or files.
Screenshot from iOS Device
Screenshot from Android Device
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
36
- From the My WiDisk, the file or files may be downloaded to the local drive or to the My
Device. The down arrow indicates that you are currently in the My WiDisk.
- From the My Device, the file or files may be uploaded to the remote storage or to the My
WiDisk. The up arrow indicates that you are currently in the My Device.
- When clicked, the list of files that are in queue for uploads/downloads will appear as well as
the list of files that were copied/transferred successfully.
- When clicked, any selected files will be deleted.
10.13. Copying/transferring file to the My Device (iOS and Android)
Once you get connected into the Wi-Fi SD/USB, you can copy/transfer a single or multiple files into
the local storage (My Device).
1. Click on the .
2. Use your index finger to select a single or multiple files or you may use to select all
files to be copied/transferred as seen on screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
37
3. Click on the .
4. Select and click the folder where you want the file or files to be copied or transferred.
A new folder may be created to copy/transfer the selected file or files. To create a new folder,
simply click on the “Create Folder” button. Enter the new folder name inside the box and
click the “Done” button as seen on the screenshot below. The folder name must be at least 2
characters and up to maximum of 26 characters in length. Click the “Cancel” button to exit.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
38
5. Click on the “Confirm” button to start copying/transferring files as seen on the screenshot
below.
Note: Successfully copied/transferred file or files will be listed below inside the “Recent” window
as seen on the screenshot above. Click on the “Clear” button to remove or clear the list.
6. Click anywhere on the screen and you will return to the previous screen. Once done, click
on the to exit.
10.14. Copying/transferring file to My WiDisk (iOS and Android)
Note: Make sure you switch to the “My Device”.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
39
1. Click on the button.
2. Use your index finger to select a single or multiple files or you may use the button to
select all files to be copied/transferred.
3. Click on the button.
4. Select and click the folder where you want the file or files to be copied or transferred.
A new folder may be created to copy/transfer the selected file or files. To create a new folder,
simply click on the “Create Folder” button. Enter the new folder name inside the box and
click the “Create” button as seen on the screenshot below. The folder name must be at least 2
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
40
characters and up to maximum of 26 characters in length. Click the “Cancel” button to exit.
5. Click on the “Select” button to start copying/transferring files as seen on the screenshot below
into the “My WiDisk”.
6. Click anywhere on the screen and you will return to the previous screen. Once done, click
on the to exit.
10.15. Deleting/erasing a single or multiple files (iOS and Android)
A single or multiple files can be easily deleted/erased whether you are in “My Device” or in “My
WiDisk”
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
41
To delete file or files, click on the button.
Use your index finger to select a single or multiple files. You may click on the button to
Select All files to delete/erase.
Click on the to delete or erase the selected file or files. A warning message will
appear on the screen to confirm file deletion as seen on the screenshot below. Click OK to
continue deleting files.
10.17. Upload/download history and status
If you have uploaded or download multiple files from/to the Wi-Fi SD/USB to the My Device, simply
click the button to check the files on the queue or files that were successfully
copied/transferred. You may also click on the button on the main screen to check on the status.
10.18. Exiting AirStor App (iOS)
To exit from using the AirStor on iPhone/ iPad devices, simply press the Home key on your Apple
Device.

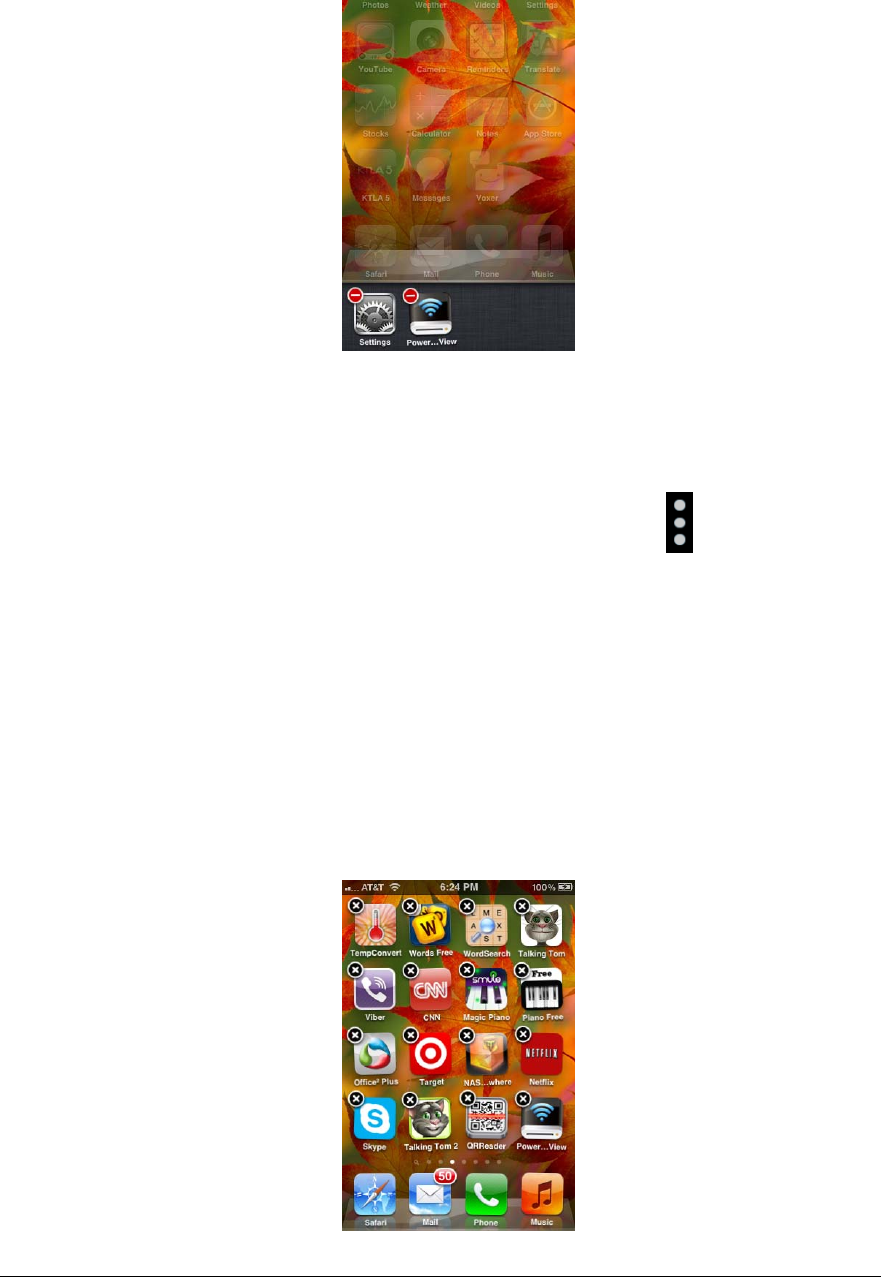

To reset the app, click on the Home key twice and the list of app will appear at the bottom of your
device. Click and hold the application icon until the minus “-“ sign appears at the top corner of the
app icon. Click on the minus “-“ sign to remove the app as seen on the screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
42
10.19. Exiting AirStor App (Android)
To exit from using the AirStor Android mobile devices, simply click on the and select the “Exit”
button. A warning “Are you sure you want to exit this applet?” message will appear. Click “OK” to
continue existing or click “Cancel”.
10.20. Uninstall AirStor App (iOS)
To uninstall the app from your Apple Mobile Devices, click and hold the AirStor app for few seconds.
An “X” mark will appear on all the icons on your mobile device as seen on the screenshot below.
Simple click on the “X” located at the top-left corner of the AirStor icon and this will remove the app
from your Apple device.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
43

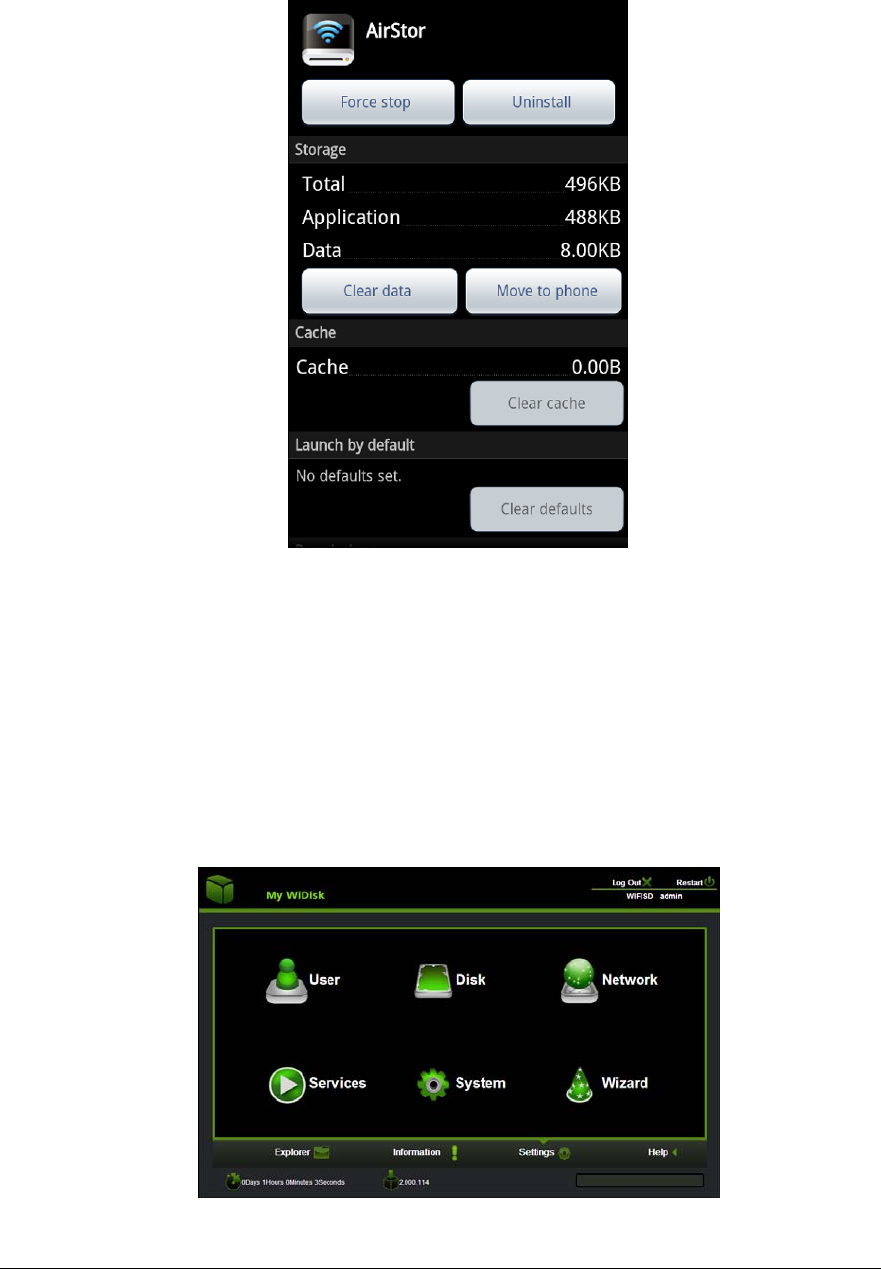

10.21. Uninstall AirStor App (Android)
To uninstall the AirStor app from your Android mobile devices, see the instructions below.
Note: Uninstalling app on the Android devices will vary. Please consult your mobile device manual
prior to removing any application.
1. Click on the Settings icon from your desktop.
2. Go into the application manager.
3. Locate and select the AirStor app.
4. Click on the “Uninstall” button.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
44
5. A warning “AirStor. This application will be uninstalled.” Click the “OK” button to continue
uninstalling the app or click on the “Cancel” button.
11. WEB Management Functions
Our built-in Web Management software is a unique web-based utility stored inside our Wi-Fi SD/USB
product. No software is needed to install on your Personal Computer to use this utility. Simply launch
our “AirStor” client app or open your web browser and enter the 10.10.10.254 IP address.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
45

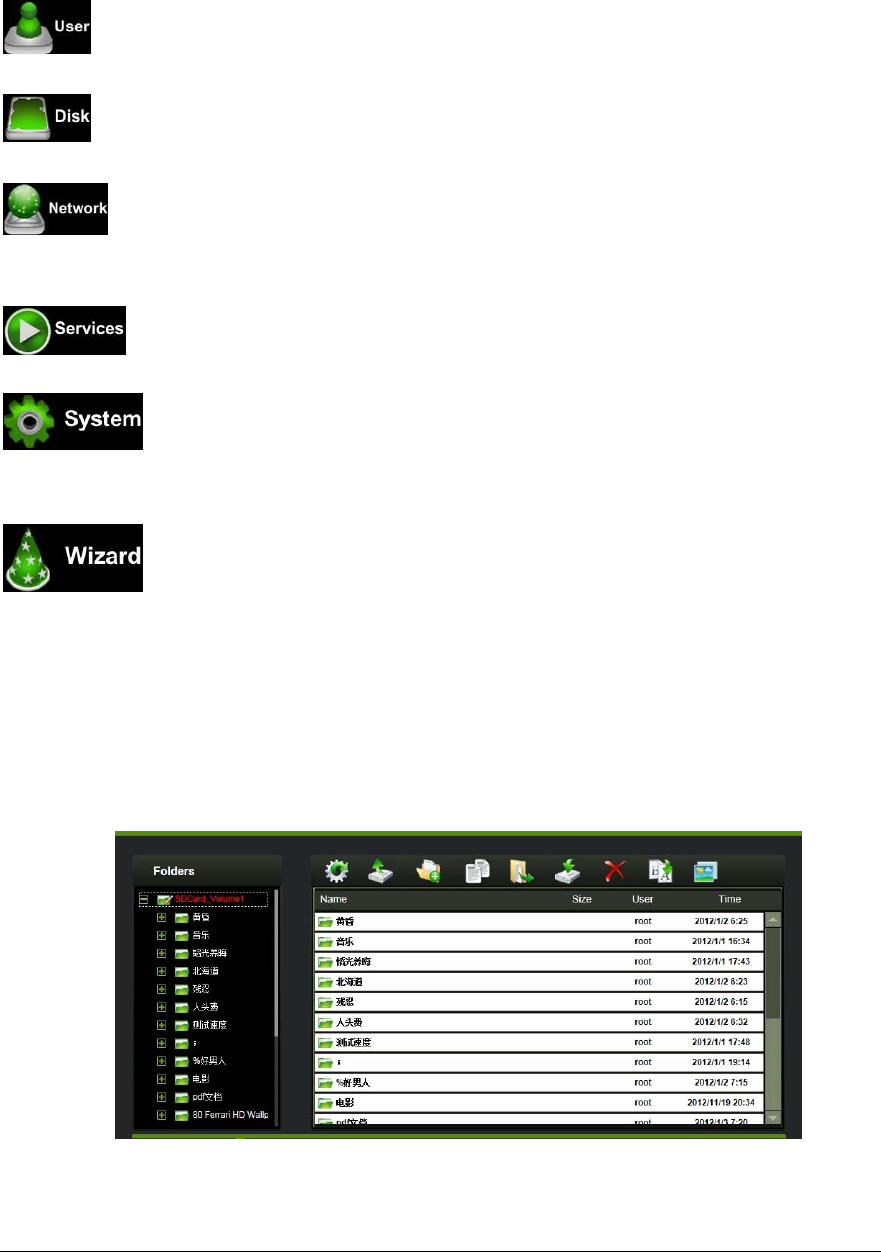

Allows the user to make changes on the admin password.
Provides information of the Internal hard disk drive.

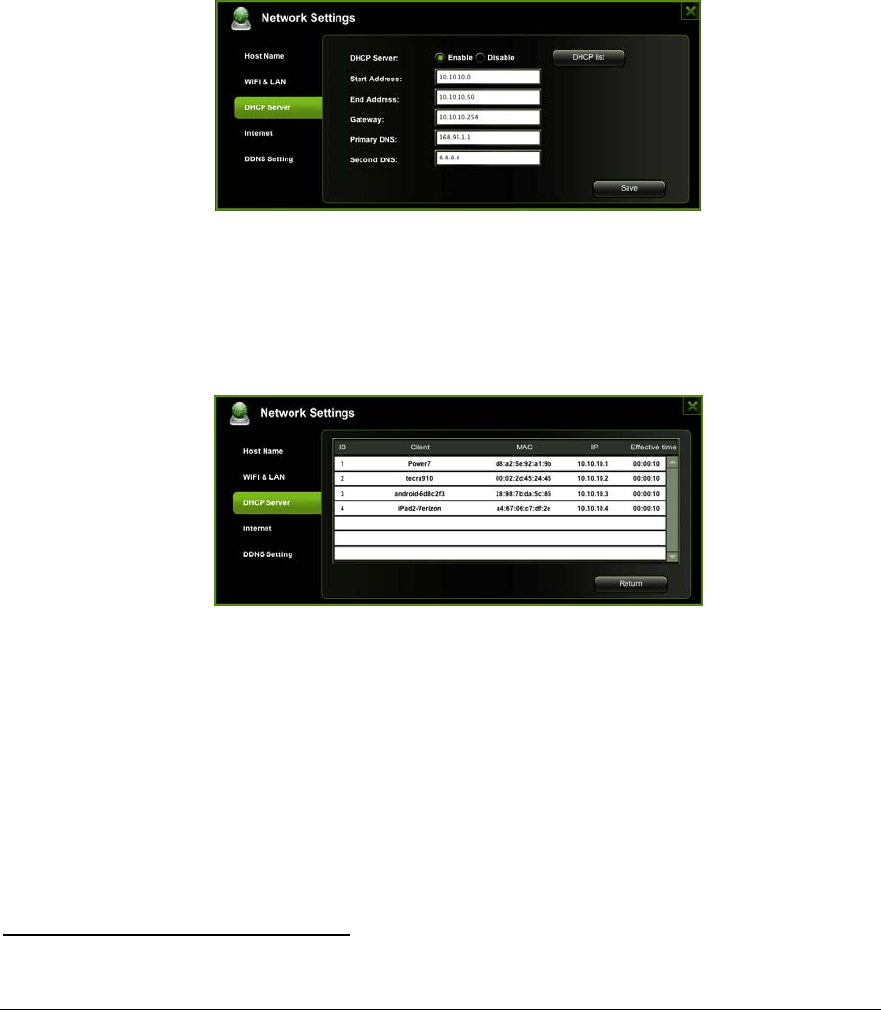

Networking Settings allow the user to make modifications and changes to Host Name, Wi-Fi
and LAN, DHCP Server, Internet and DDNS.
Allows the users to enable and diCamper the Win File and Ext Net Services.

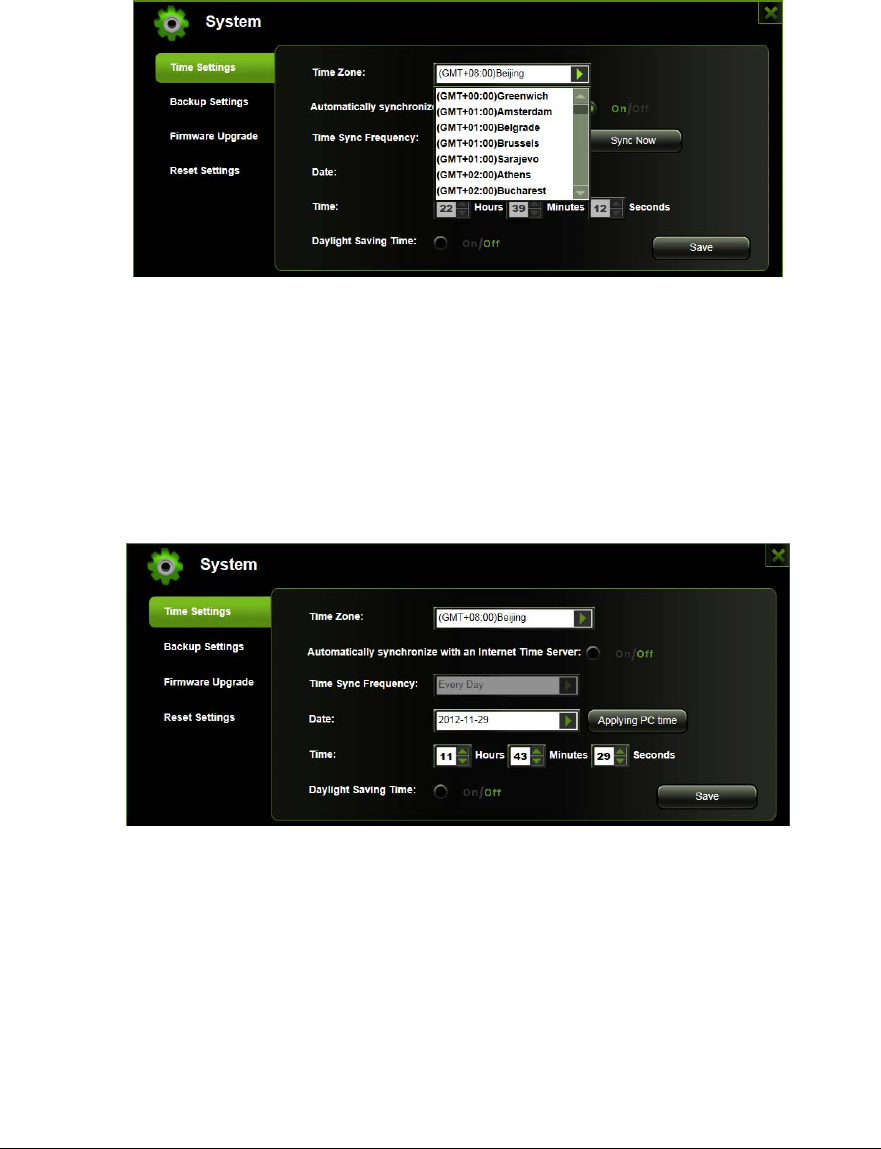

Allows the user to make modifications and changes to the Time Settings, Create System
Backup, Firmware Upgrade and Resetting to the factory default setup.
This will guide the user through a step-by-step process to configure the device.
11.1. Explorer Function
Our user-friendly web based utility allows the user to upload files to the device, create folders, copy,
cut, delete and rename folders and file names. We provide similar functionalities as the windows
explorer of which makes our interface much easier to use.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
46

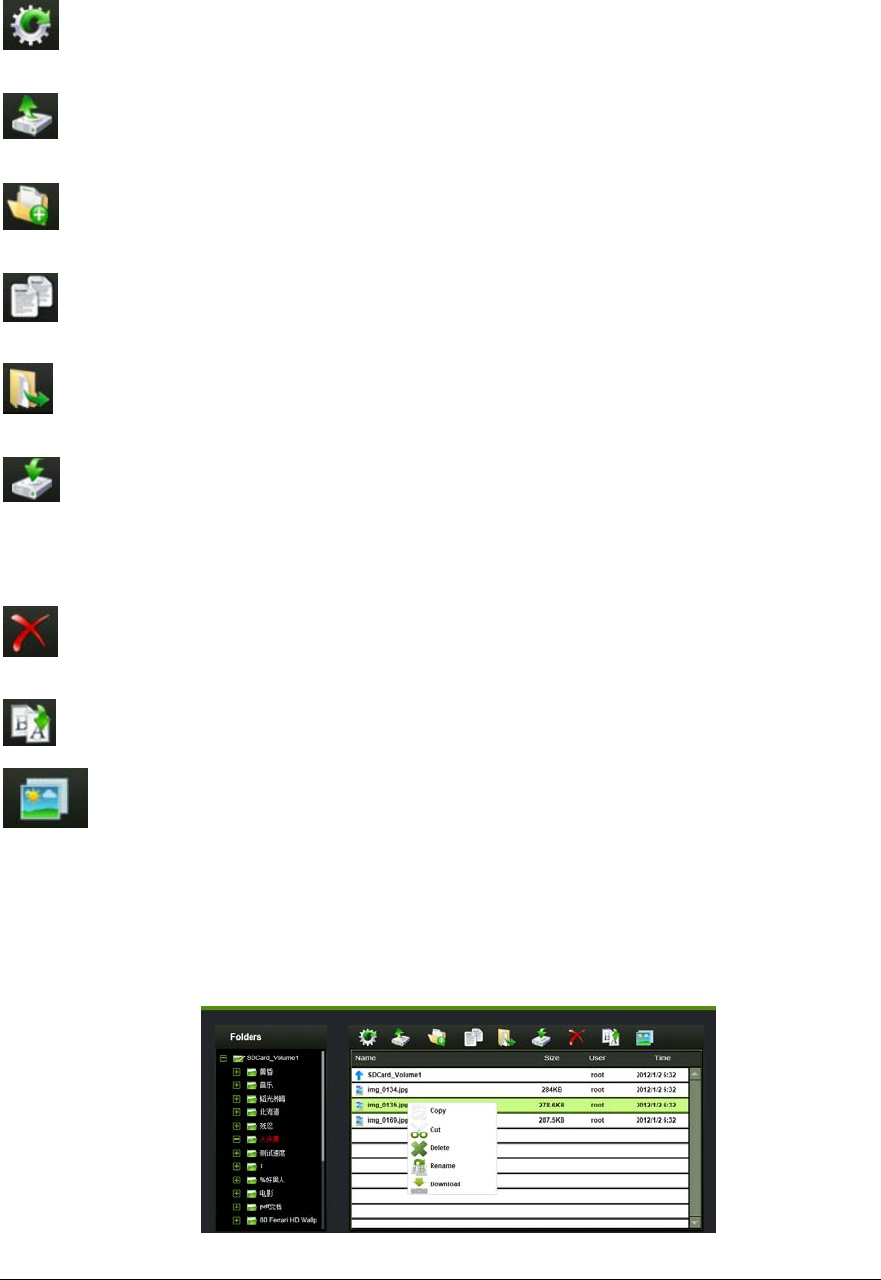

Refresh button - to refresh the display
Upload button - to upload file or files into a specific folder.
Create Folder - to create a new folder. Maximum folder name is 26 characters in length.
Copy button - to copy file or files and paste them into another folder.
Move button - to move a file or files from one location to another
Download button - to download a file or files into a specific location. If the software installed
on your computer supports a specific file type, this file will automatically open otherwise, it will ask you
to download the file into a specific location. Downloading a folder or folders is currently not supported.
Delete button - to delete a file or files.
Renaming button - to make name modification or changing the file name.
Photo View button- to view images
11.2. Context Menu

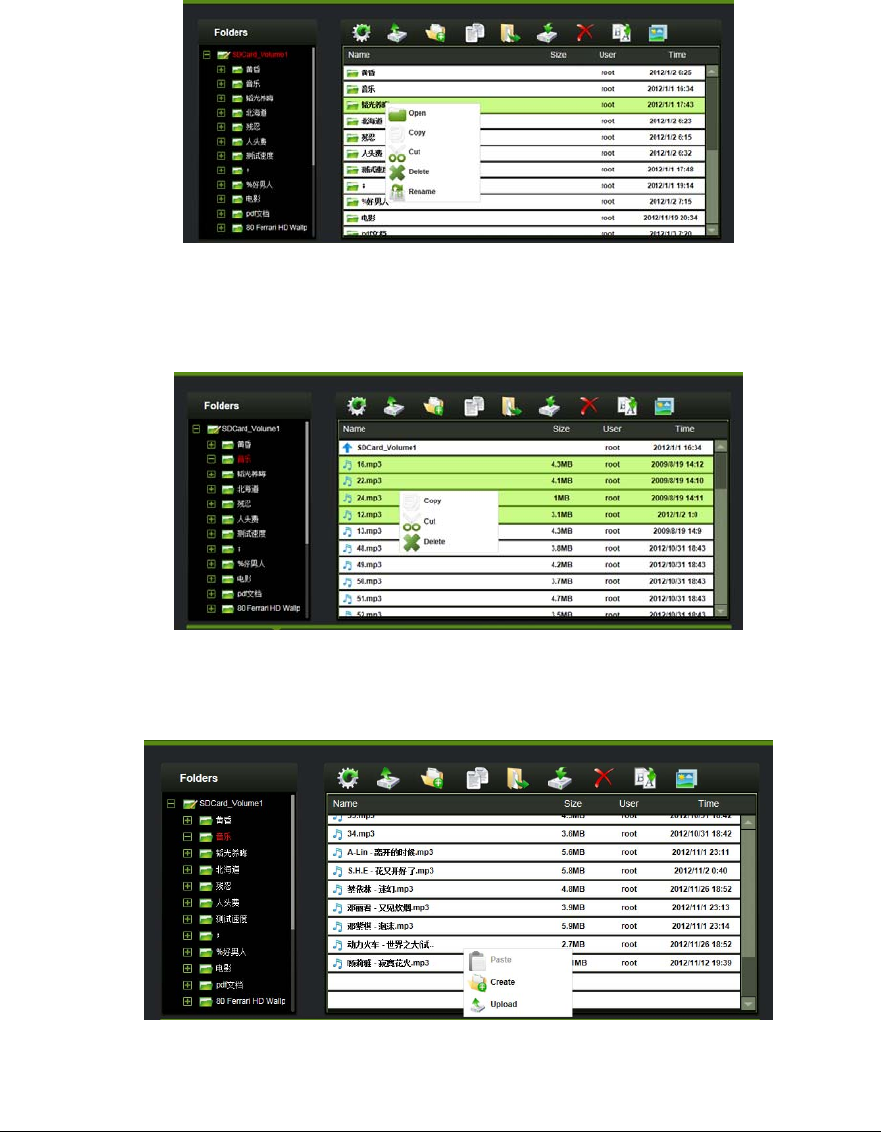

1. On the file level, you can right-click using your mouse and a pop-menu will appear. You
may Copy, Cut, Delete, Rename or Download as seen on the screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
47
2. On the folder level, you can right-click using your mouse and a pop-up menu will appear. You
may Open, Copy, Cut, Delete or Rename the folder as seen on the screenshot below.
3. Selecting multiple files and right-click on the mouse will allow the user to either Copy, Cut or
Delete the files as seen on the screenshot below.
4. Right-clicking at the bottom of the window as seen below will allow the user to either Paste,
Create or Upload file or files.
◆Open Command – Select a folder and right-click. Inside the pop-up menu, select “Open” to
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
48
view the contents or open the folder.
◆Copy Command - Select a folder or a file and then right-click. Inside the pop-up menu, select
“Copy” to make a copy of the entire folder or a file and paste into another location or folder.
◆Cut Command- Select multiple files or folders and then right-click. Inside the pop-up menu,
select “Cut” and then paste the files or folders into another folder.
◆Paste Command – After using the Cut or Copy command, right-click to launch the pop-up
menu and then select “Paste” to place the file or folder into another location.
◆Delete Command – Right-click and then select “Delete” to erase a single, multiple files or
folders.
◆Create Command - Right-click on the blank area inside the window and a pop-up menu will
appear. Select “Create”. Enter the folder name inside the Create Folder window and click on
Save.
◆Rename Command – Right-click on the folder or the file name and select “Rename”. This
allows the user to make changes on the folder or file name. Click on the “Save” after the name
has been changed.
◆Upload Command - Right-click the empty area inside the window. Select “Upload” inside the
pop-up menu and browse for the file to be uploaded inside the current location.
◆Download Command – Select and right-click on the file to be downloaded. From the pop-up
menu, select “Download”. The file will automatically open if any of the software installed on the
computer supports this file type otherwise, it will ask you to download the file into a specific
location. Downloading a folder or folders is currently not supported.
11.3. Keyboard Shortcuts
Our built-in Web Management Interface supports keyboard commands and shortcuts such as the
following:
Tab Key, Enter Key, Home Key, PGUP, PGDN,, End Key, Up Arrow, Down Arrow, Left, Arrow Right Arrow,
and Delete Key
Windows – Ctrl+C = Copy; Ctrl+V = Paste
Mac – CMD+C = Copy; CMD+V = Past
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
49
11.4. Drag and Drop
A single file drag and drop is supported by our built-in Web Management Interface, simply click and hold on
the file inside the main window and drag it to any folders available inside the Folders tree.
11.5. Information
Provides detail information regarding the hardware condition, network status and storage information.

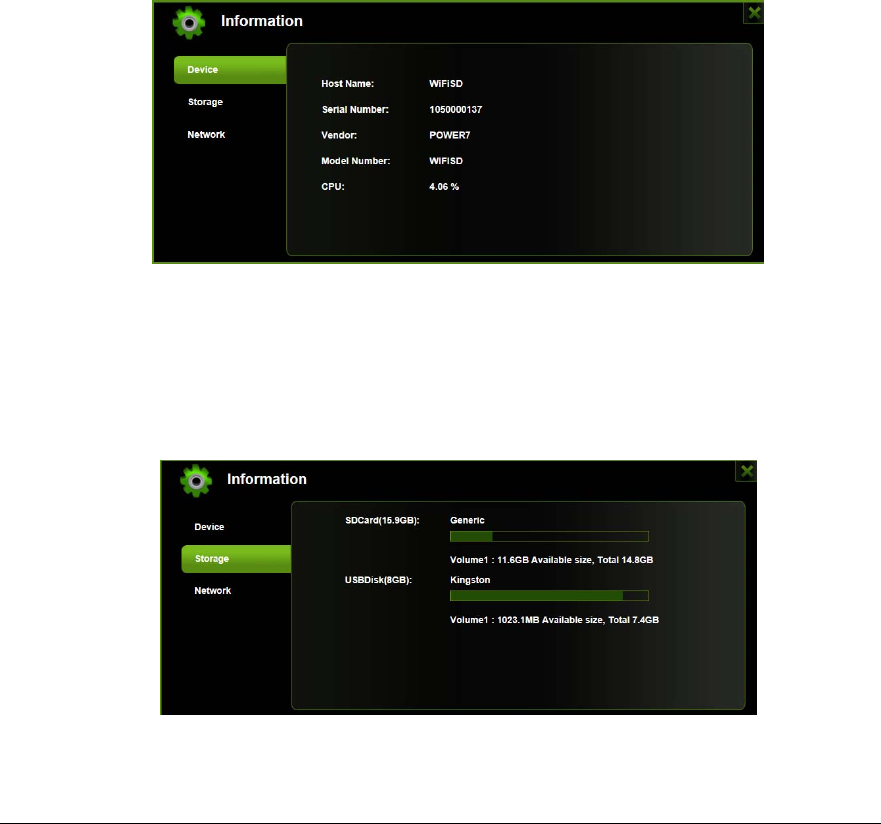

11.5.1. Device Information
Provides information such as the Host Name, Device Serial Number, Manufacturer Name, Model Number
and CPU utilization as seen on the screenshot below.
11.5.2. Storage Information
Provides information regarding the internal storage such as the total capacity, hard drive
manufacturer and available storage as seen on the screenshot below.
11.5.3. Network Information
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
50

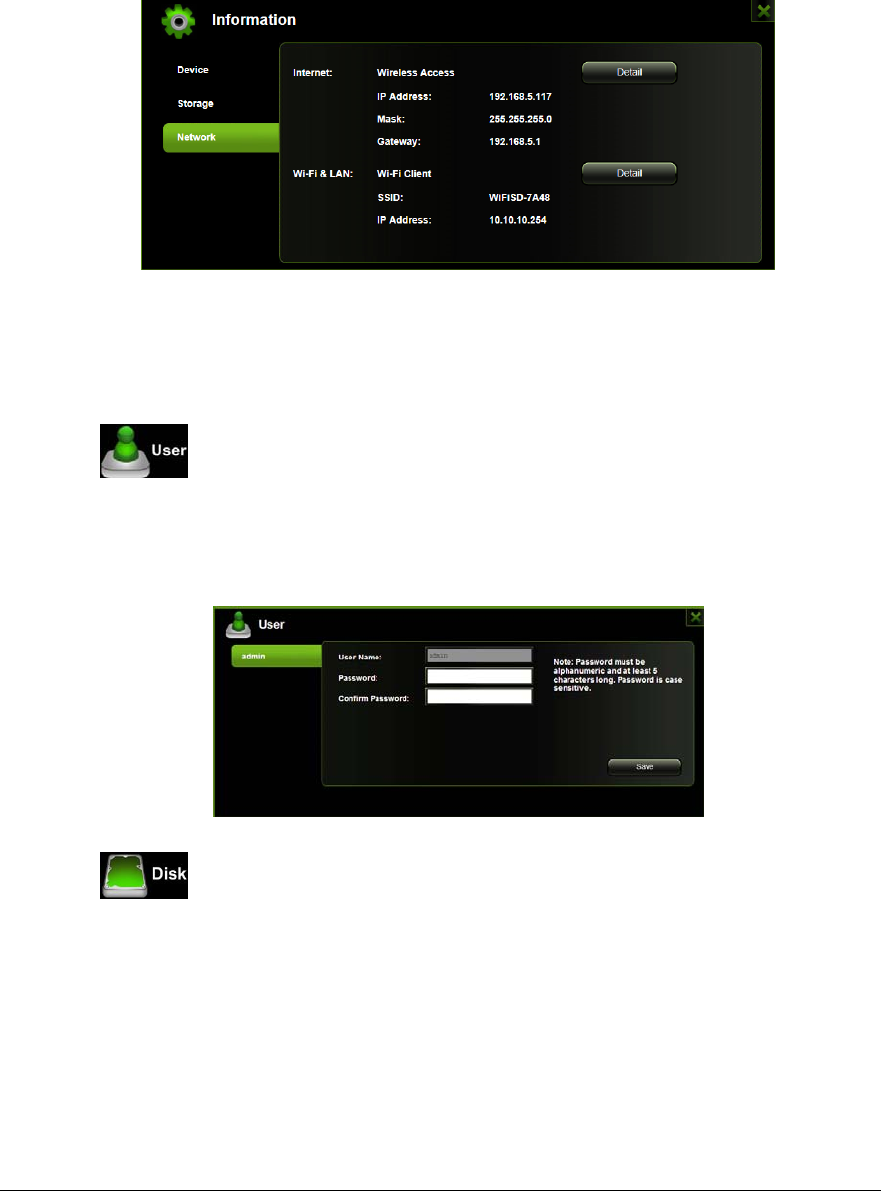

Provides detailed information regarding the current network settings such as the connection to access the
internet, Wi-Fi SSID and IP Address as seen on the screenshot below.
11.6. Settings
11.6.1. Admin User
Click on the “User” button. This window will allow you to modify the admin password as seen on the
screenshot below. The password should be at minimum of 5 characters to maximum 32 characters in
length. Click on the “Save” button the password has been changed.
The default User Name is admin and no password is assigned. Click on the “X” to cancel and exit.

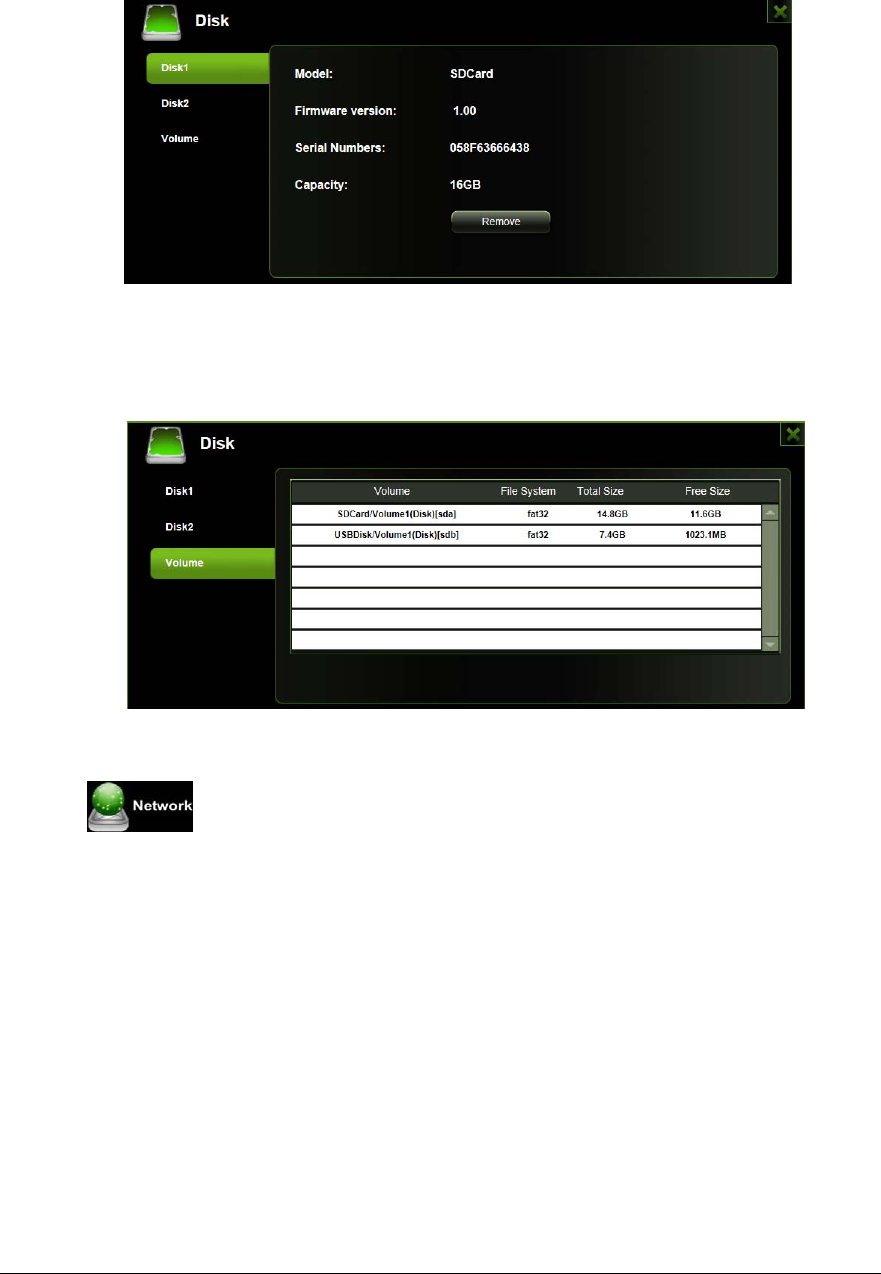

11.6.2. Disk
Click on the “Disk” button. This window provides information regarding the internal hard drive as seen on
the screenshot below. It provides detailed information including firmware version, serial number, disk
total capacity, temperature, and more.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
51
As seen on the screenshot below, the Volume screen provides information regarding the File System used
to format the internal hard disk drive, total and available capacity.
,
Click on the “X” to exit.
11.7. Network Settings
11.7.1 Hostname
The Host Name is a name that is assigned to certain device that is connected to a computer network.
The Host Name can be modified to whatever name that will fit your needs. It must begin with a letter and
followed by a Campernation of letters and numbers. The Host Name must be at least 2 characters up to
maximum 8 characters in length.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
52
Click on the “Save” button after making any changes. Click on the “X” to exit and cancel.
11.7.2. Wi-Fi & LAN
The settings inside the Wi-Fi & LAN can be modified based on your needs. See the screenshot below for
the available options.
J) SSID： Enter the Campernation of letters and numbers only. 32 characters is the
maximum allowable SSID length
K) Channel： The default setting is set to Auto. There are 14 available channels to
choose from.
L) Modes: The default setting is 11b/g/n. You can also manually set the modes to
11Mbps (802.11b), 54MBPS (802.11G), and 150Mbps (802.11n).
M) Security: The default setting is Mixed WPA/WPA2-PSK. WPA-PSK and WPA2-PSK
are also available.
N) Password： The default password is set to 11111111.
O) IP Address： The default IP address is set to 10.10.10.254 with subnet mask of
255.255.255.0. The IP address can be changed.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
53
Click on the “Save” button after making any changes. Click on the “X” to exit and cancel.
11.7.3. DHCP Server
The DHCP or Dynamic Host Configuration Protocol is a network protocol that enables a server to
automatically assign an IP address to a computer connected into a network. By default, the DHCP Server
option is enabled. This option can be diCamperd if needed and the IP address can be manually
assigned.
Click on the “Save” button after making any changes. Click on the “X” to exit and cancel.
Click on the “DHCP List” button and it will provide a list of all the computers and devices connected to your
Wi-Fi SD/USB Device. Please see the screenshot below.
11.7.4. Internet Settings
There are two available Internet Access options –
A. Wireless Access. Connecting the Wi-Fi SD/USB to another wireless device to have the internet
access.
B. Wired Access. Directly connecting the Wi-Fi SD/USB to the available port on the back the router.
This feature is only available with built-in RJ45 port.
Selecting the Wireless Access Option
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
54
4. SSID. Type-in the SSID name or click on the “Rescan” button to automatically search for the
available wireless network connections.
5. Password. Type-in the correct password to join the wireless network connection selected.
6. IP Address. Select either DHCP or Manually assign an IP address
a. By selecting DHCP, the host will provide an automatic IP address to connect to the
internet
b. By selecting Manual, you have to manually assign an IP address to connect to the
internet
11.7.5 DDNS Settings
DDNS is named Dynamic DNS; it is a method/protocol/network service that provides the capability for
a networked device, to notify a Domain Name System (DNS) name server to change, in real time, the
active DNS configuration of its configured hostnames,addresses or other information. So DDNS can let
you access your device through Internet at anywhere.
Configure DDNS steps:
Step 1: select enable DDNS option on this page。
Step 2：Select on DDNS server provide, and register an account if you do not use yet
Step 3：Input your dynamic DNS in test box of host name
Step 4：Enter your DDNS application service user name in the text box of user name
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
55
Step 5：Enter your DDNS application's password in the text box of password
Step 6: Click the "save" button

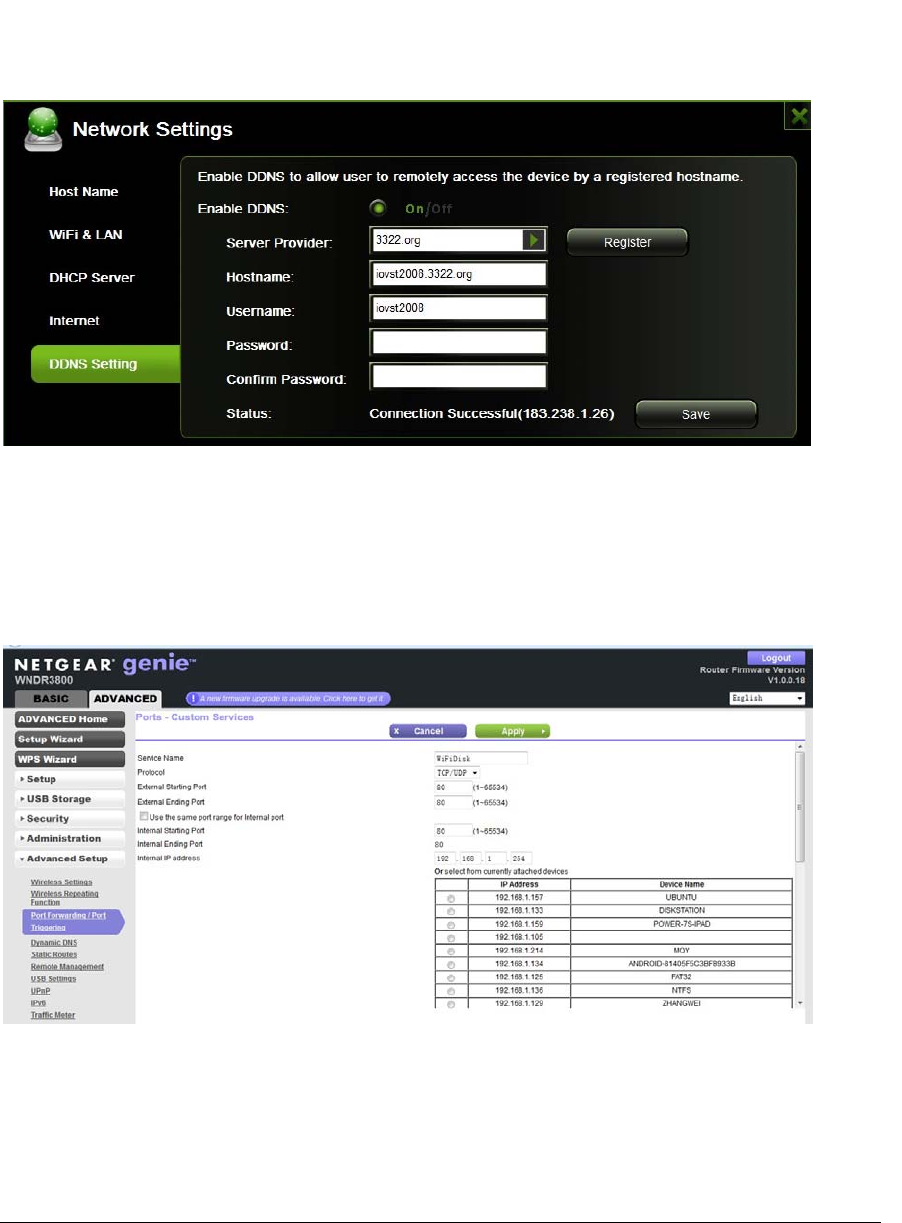

If the "Status" appear "Connection successful," the words said setting successful, as below. If appear
"Connection failure" said set failed, please check your domain, user name and password.
If device mode is Wired Access,we should set DMZ on routers directly ,but if device mode is
Wireless Access mode, we should not only set up the DDNS, but also set up the router port forwarding .
Assume that device’s IP is 192.168.1.254,we enter the router that connecting with device,and setting
up the router port forwarding in port forwarding interface. shown as follows:
We can through the http:// domain access device after setting successful, shown as follows:
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
56
Let’s take dyndns.org as an example. Register an account in https://www.dyndns.com free of charge,
shown as follows

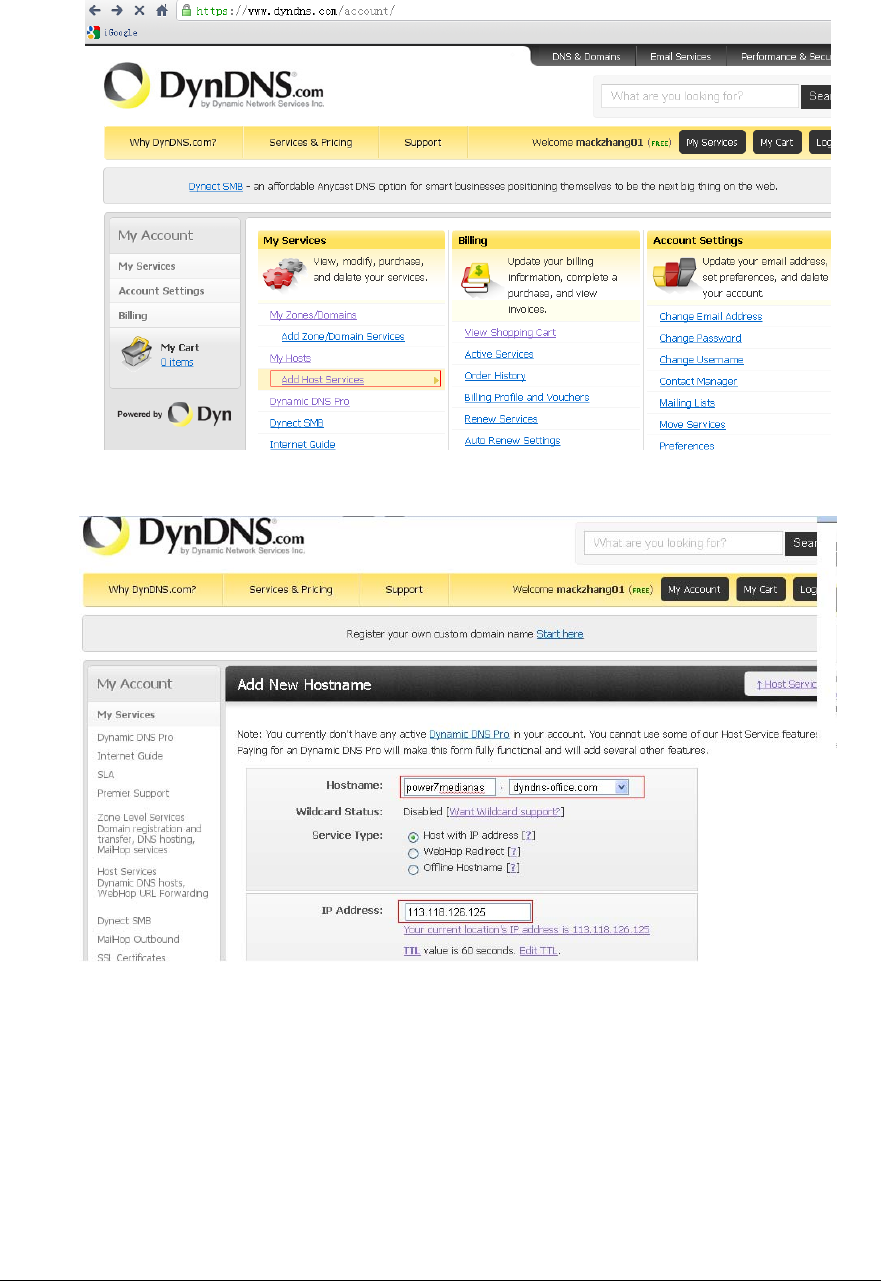

An account and password are acquired once the registration succeeds, and then apply for an DDNS
domain name. Enter “my account”, click “add host services” to enter the application window of domain
name
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
57
Fill hostname/IP address and IP address as well as IP address of LAN where the nase is located to
the Wlan network (if your PC and nas are within the same LAN, log in http://whatismyipaddress.com/ to
check IP address also the DynDNS below show your LAN IP address)
Meanwhile select the purpose of application；

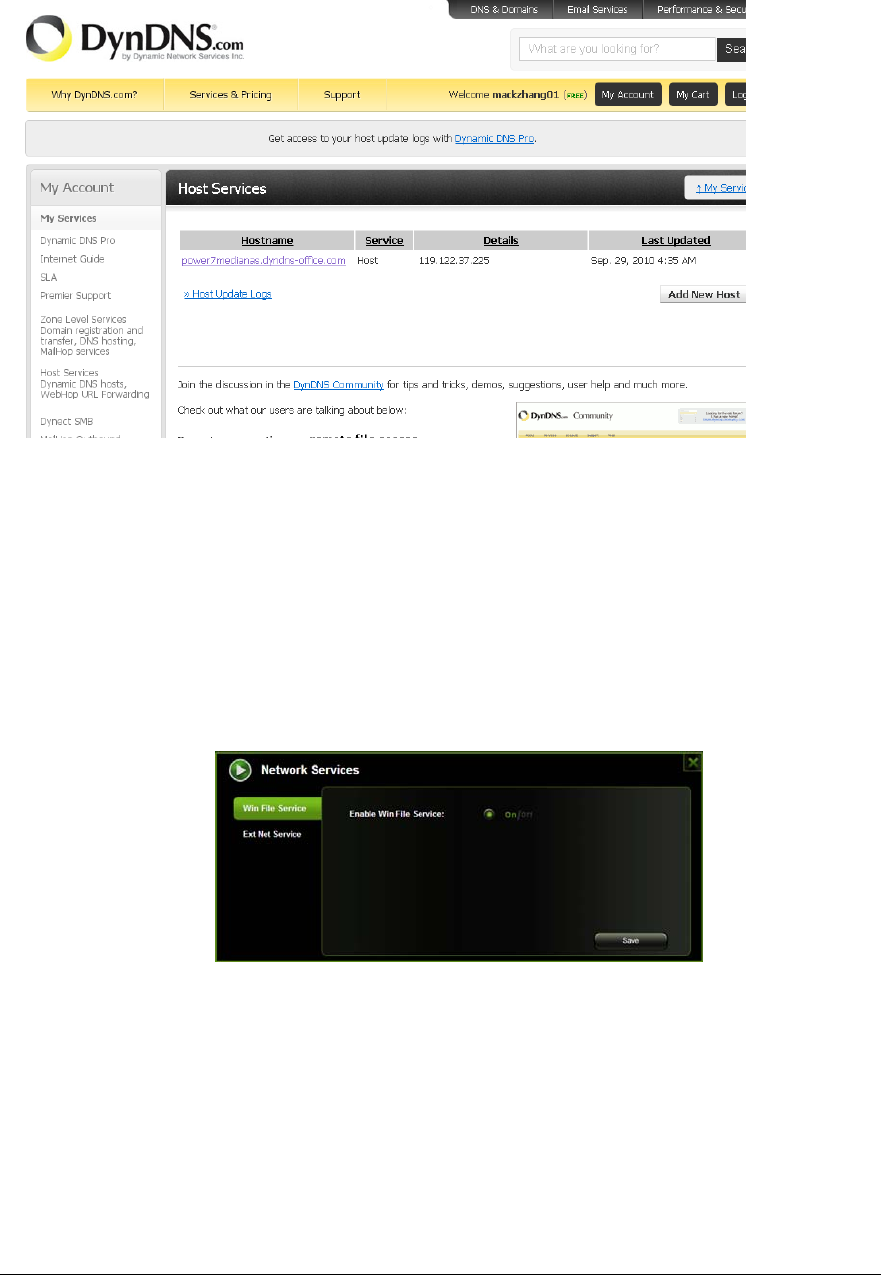

Your domain name can be seen in my host once the application succeeds, shown as follows：
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
58
11.8 Network Services
Windows sharing and network services are available to access the Wi-Fi SD/USB
11.8.1. Windows Sharing Services
Data sharing and accessing the Wi-Fi SD/USB product makes it simple by enabling the Windows File
Services. By default, this feature is already enabled as seen on the screenshot below.
11.9. System Settings
11.9.1 Time Settings
The time settings can be changed based on the region where you are located. You can choose to
synchronize time with the Internet or the time on your PC.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
59
Click on the drop-down list and select the region you are located and switch-on the “Automatically
synchronize with an Internet Time Server”. This will automatically update the time when the Wi-Fi
SD/USB is connected to the internet.
The “Time Sync Frequency” can be set to everyday, every 2 days, every 3 days, up to every 7 days.
The automatic time synchronization can be switched-off and apply the PC time instead. Applying
the PC time will automatically adjust the time and date based on the PC time. See the image below.
Click on the “X” button to exit and cancel the Time Settings.
11.9.2. Backup Settings

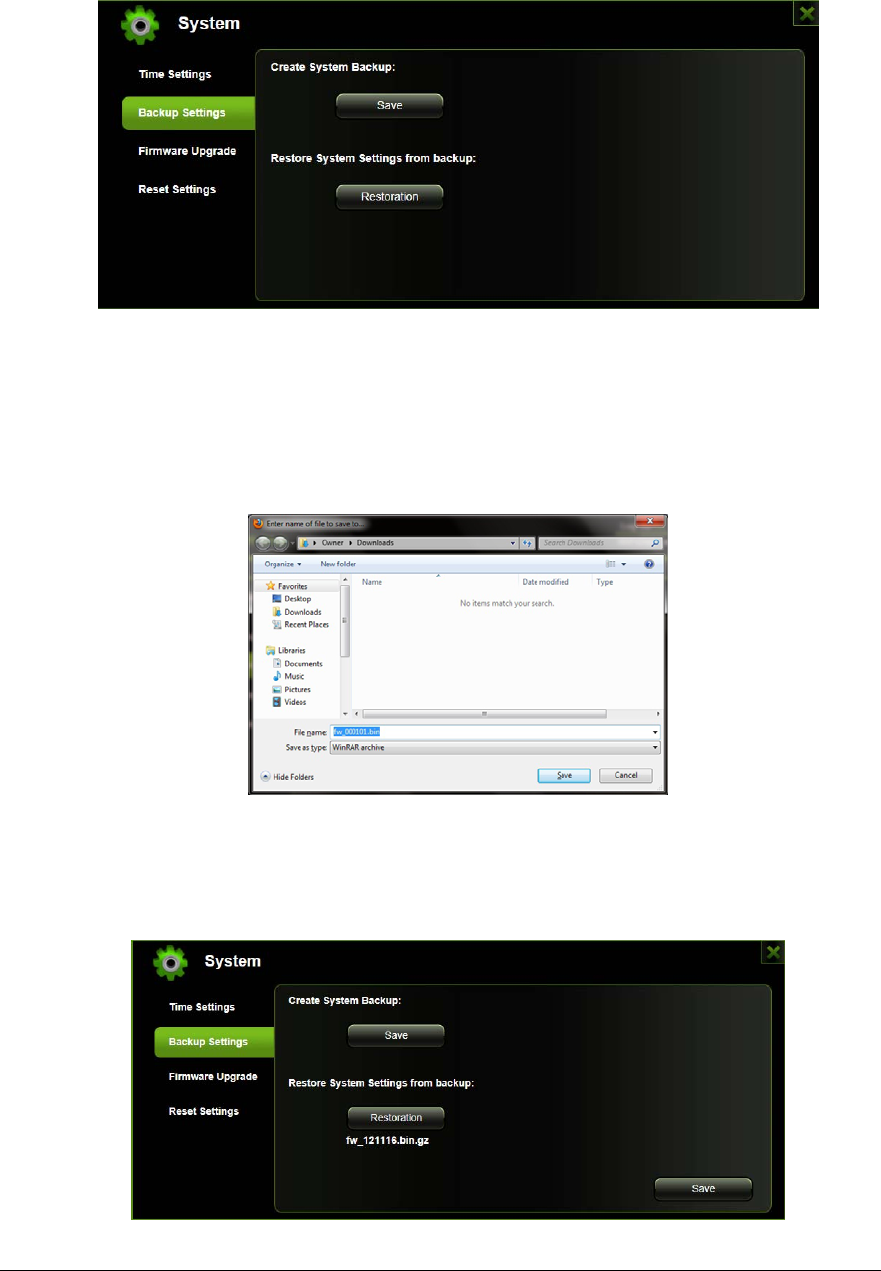

Creating a backup as seen on the screenshot below can save the Wi-Fi SD/USB system
configuration. Please note that this process will not create a backup of the Wi-Fi SD/USB contents.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
60
Simply click on the “Save” button create the backup. This process will create a .bin.gz or .bin file of
which can be used to restore the current settings of the Wi-Fi SD/USB.
Click the “Save” button to save the backup file on your computer as seen on the screenshot below.
To restore the backup, click the folder icon. Locate and select the .bin or .bin.gz file. The backup
file will appear below the folder as seen on the screenshot below. Click on the “Save” button to
restore.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
61
A warning message will appear as seen on the screenshot below.
The device will reboot automatically once the restore process has been completed and will return to
login screen.
11.9.3. Firmware Upgrade
The device firmware can be upgraded by following the simple steps below.
1. Download and save the latest firmware version on your computer.

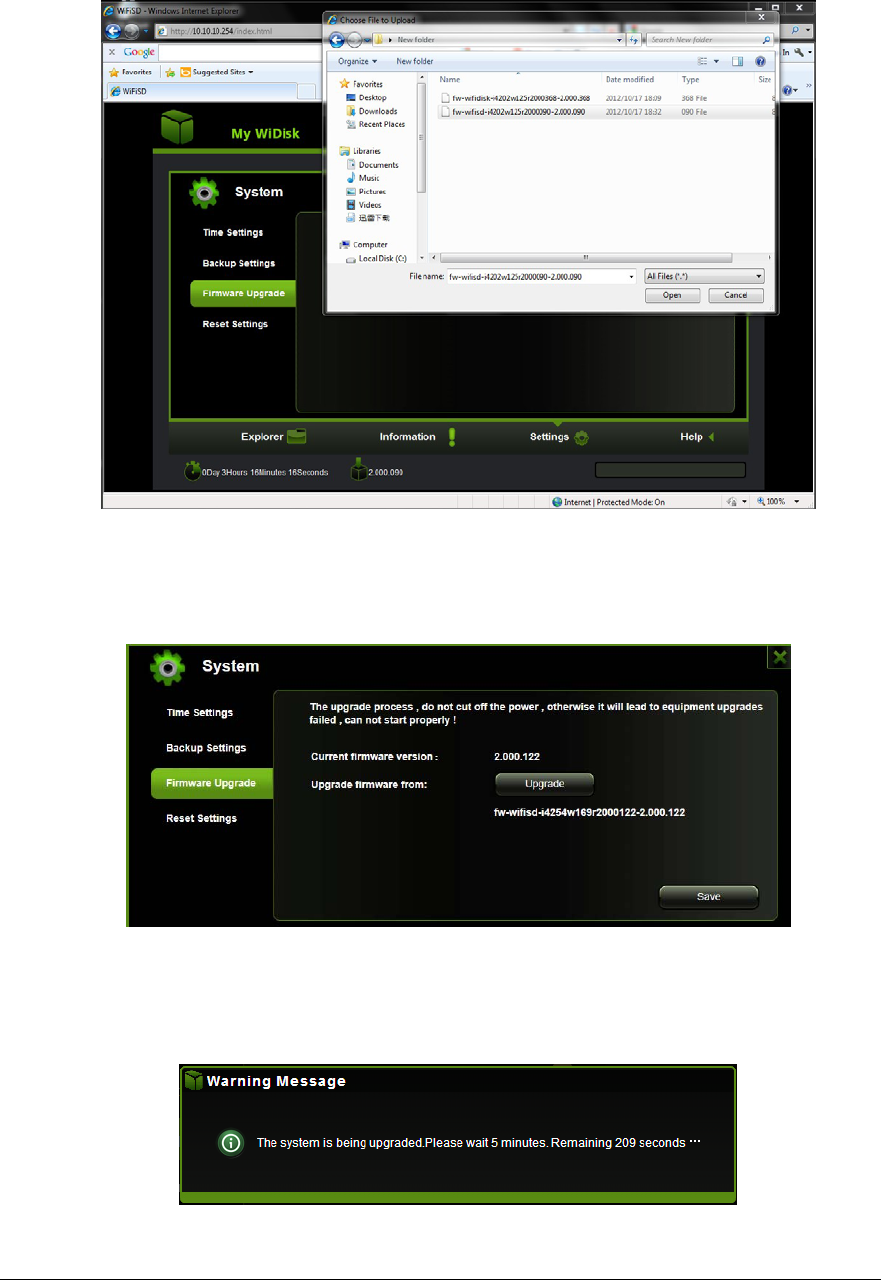

2. Click on the folder icon, search and locate the firmware file on your computer and then click on the
“Open” button as seen on the screenshot below.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
62
3. The latest firmware update file will appear at the bottom of the folder. Click on the “Save” button
to continue updating the firmware.
4. Once the firmware has been installed, the warning message as seen on the screenshot below will
appear and the device will automatically reboot and will go back into the login screen.
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
63
11.9.4. Resetting to factory defaults
Resetting to factory defaults will reset all your customized settings or whatever changes you made
back to its original settings.
Simply click on the radio button after the “Restore to Factory Default Settings:” Click on the “Save”
button to continue.
The Warning Message window will appear. The Wi-Fi SD/USB will automatically reboot once the
restoring to the factory default settings have been completed. See the screenshot below.
Note: This process will reset the Wi-Fi SSID, and the password including the admin password.
12. Help
The Help icon provide information and basic instructions on how to setup and configure the Wi-Fi
SD/USB production.
13. FCC
13.1 FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0
64
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
13.2 FCC Radiation Exposure Statement
This device complies with FCC SAR exposure limits set forth for an uncontrolled
environment
SAR compliance for using the equipment in close proximity to the human body has been
evaluated at 5mm.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
13.3 Caution!
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
