Introduction
Power7 WiFi HDD device(Project Name: UHD F800)is a portable wireless storage device with
a built-in 2.5” SATA hard disk drive with up to 3TB capacity. UHD F800 supports USB3.0 for
faster transfer speed with your PC or Mac®computer. You can then stream music, photos,
movies and documents from UHD F800 to your iPad®, iPhone®, Android tablet or smartphone
via its WiFi connection. You can also share versatile data on the UHD F800 with your family
and friends, with up to five concurrent connections from mobile devices such as iPad®,
iPhone®, Android tablet or smartphone. Without the wired limitation, you can enjoy listening to
music while travelling with UHD F800 in your backpack, share photo with your family by
placing it at any house corner or lay back watching movies in the beach – with a range of up to
150ft you’ll never feel tethered to your UHD F800. Best of all, the UHD F800 can bridge the
Internet connection to your existing wireless or wired router, so you may access the data in the
storage while surfing the Internet simultaneously.

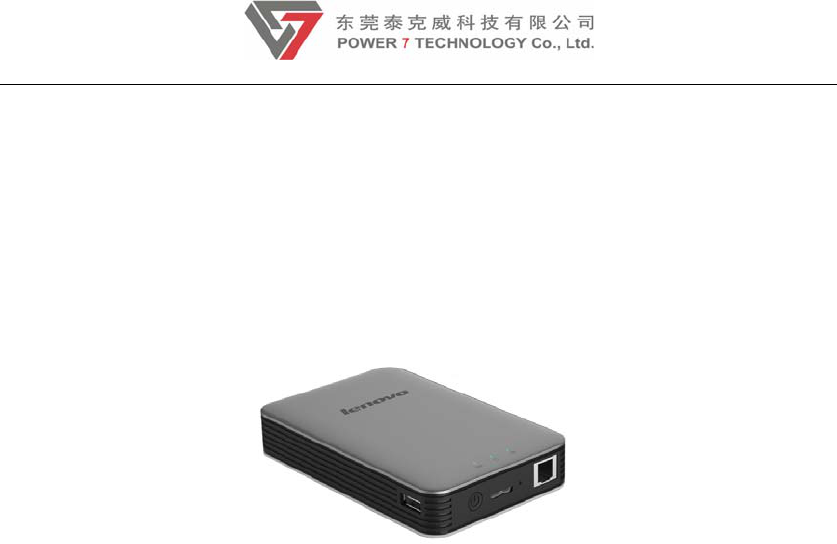

UHD F800
TargetUsers/Markets
Mobile Device User
iPhone®, iPad®, smartphone, tablet or notebook user may unleash from very limited storage
capacity by throwing large files such as movies, music or powerpoint files to UHD F800.
Frequent Business Traveler
3
Businessman may show customer the product datasheet, contract or quotation in UHD F800
anytime in the coffee shop, meeting room or hotel.
Movies & Music Download Mania
Have already downloaded hundreds or thousands of movies, music by BitTorrent at home but
you can not enjoy watching or listening to them while you are outside? UHD F800 is the
solution for you.
Salesman
UHD F800 may save mobile sales person like insurance broker, realty broker from carrying
bulky brochure or flyers.
Legacy USB External HDD Device Hater
Just can not stand anymore to be tethered by USB cable whenever you need to transfer files
between your notebook and external HDD? UHD F800 is the answer for you!
Small Enterprise Mobile NAS
The critical and confidential business data should not be bound to the file server or NAS in
your company. UHD F800 allows you to have a backup of your important data which is
portable with you.
Home Mobile NAS
With UHD F800 at home, you do not need to always turn on your notebook in order to share
data with your family. Moreover, UHD F800 can be your portable entertainment centre while
your family go out for vacation.
Features
File and System Manager App
Two way file transferring between Thunder and your iPhone®, iPad®, smartphone, tablet or
computer with Wi-Fi connectivity (802.11 b/g/n). Available iOS and Android mobile app with
search utility function to find and locate specific data file.
Bridge to Internet Access
Bypass your Internet access to your existing WiFi router, so you may access any data in the
HDD while surfing the Internet simultaneously. (For wired only environment, we provide
optional RJ45 Ethernet port).
WiFi HDD Accessible while Charging
Using notebooks with available USB port or optional AC adaptor, the WiFi storage can be
accessed while charging the internal battery.
Share with Friends & Family
Allow 5 maximum concurrent connections for sharing videos, audios, photos and data.
Extended Battery Life
Up to 6 hours of continuous use battery life for maximum portability.
USB 3.0 Host for Data Sync and Battery Charging
Build-in 2.5” internal hard disk drive and USB 3.0 port for faster transfer speed. Wirelessly
stream videos, audios, photos and access data using iOS and Android devices, tablets and
notebooks.
4
Easy to Configure and Operate
Friendly user interface design with wizard guide to assure even the novice can get UHD F800
start to operate in minutes.
Applications
Bridge to Internet Access

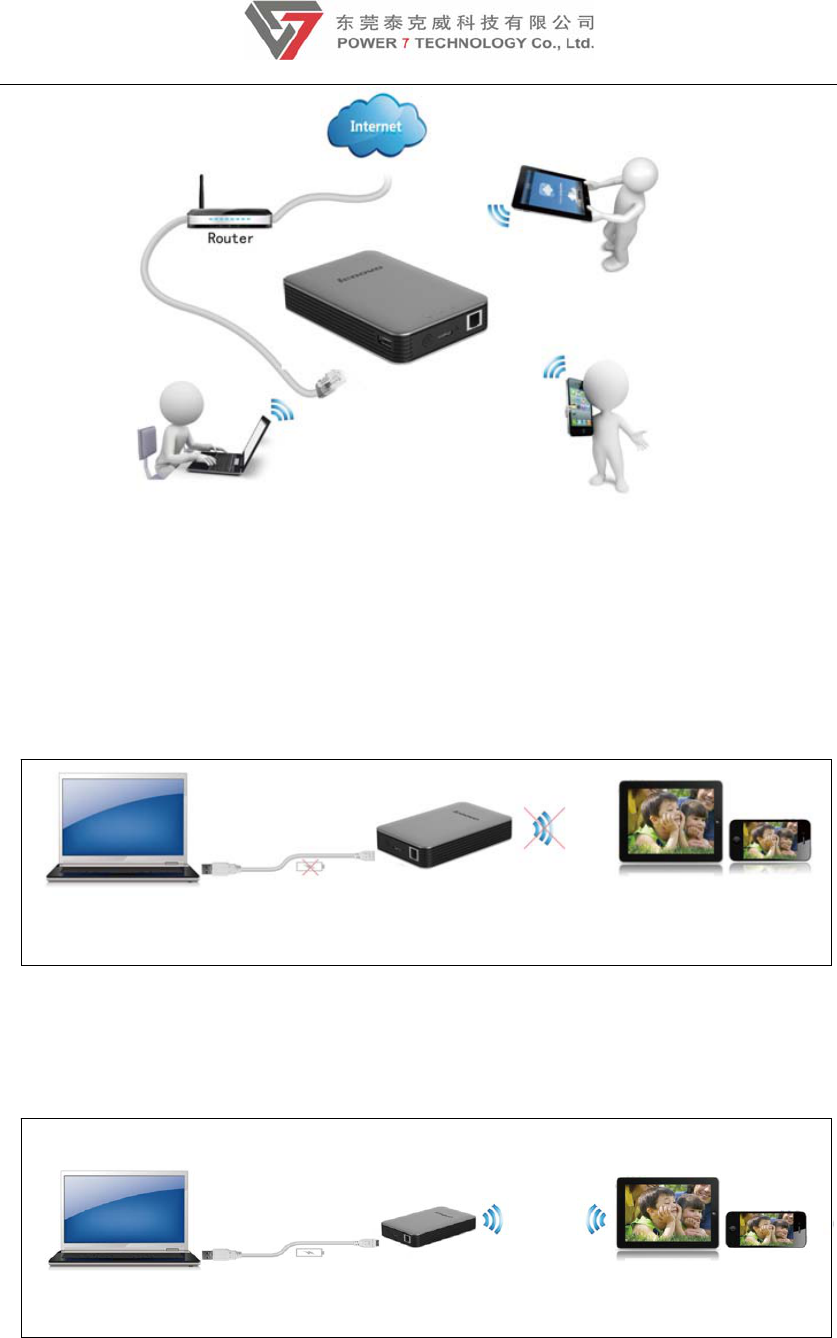

Scenario 1 - If you got an existing WiFi router for Internet access
Wirelessly Bridge to Internet Access

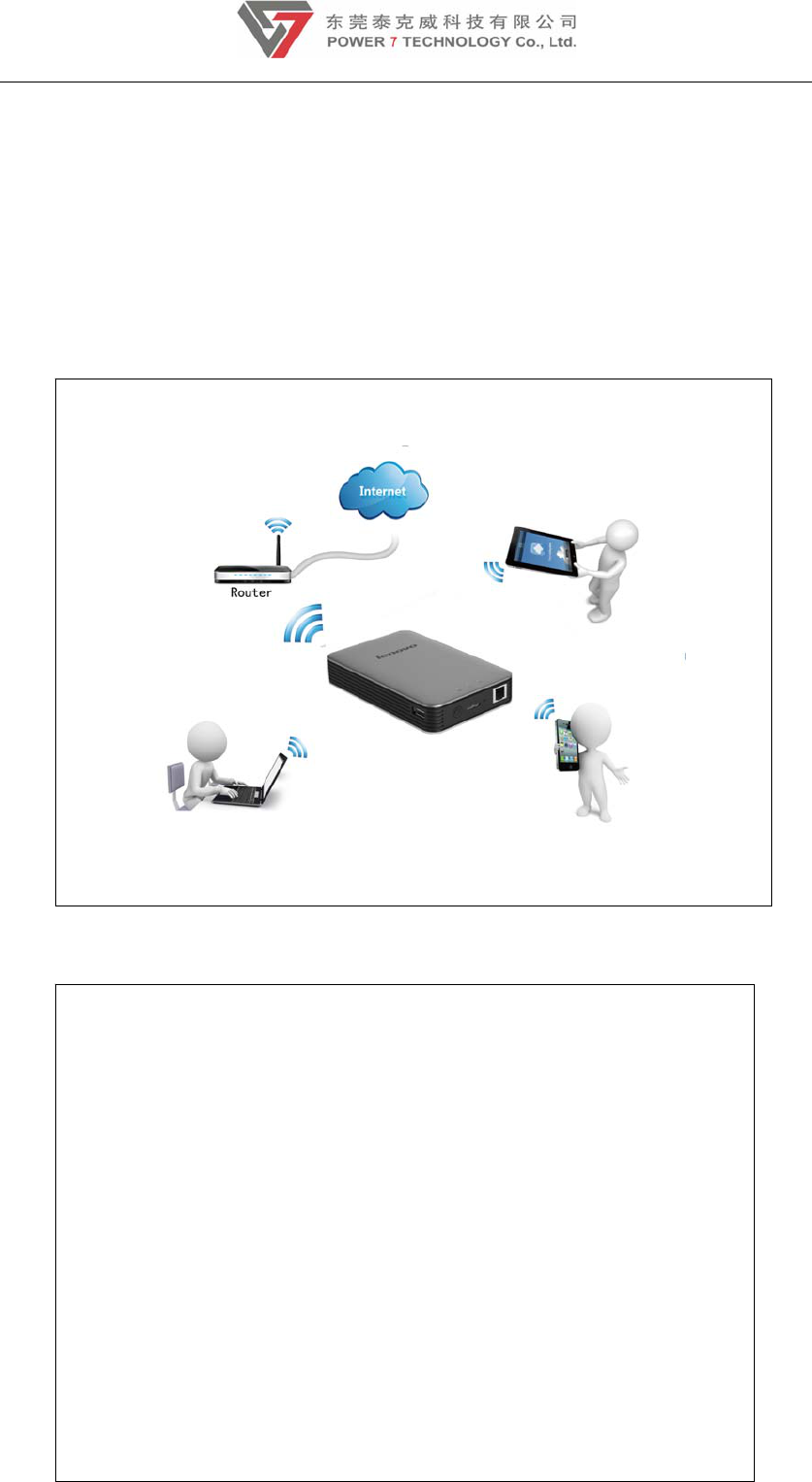

Scenario 2- If you got an existing wired router for Internet access
5
Wired Bridge to Internet Access (via RJ45 Ethernet Port)
Connect to the USB Port
Scenario 1 – Press power button off and then connect to the USB port of notebook, UHD
F800 works solely as an USB external HDD with power charge but no WiFi HDD access
UHD F800 works as an USB external HDD only in no charging mode
Scenario 2 - Press power button on and then connect to USB port of notebook, UHD
F800 works solely as a WiFi HDD with power charge to extend usage time
UHD F800 works as a WiFi HDD only in charging mode,and not USB external HDD

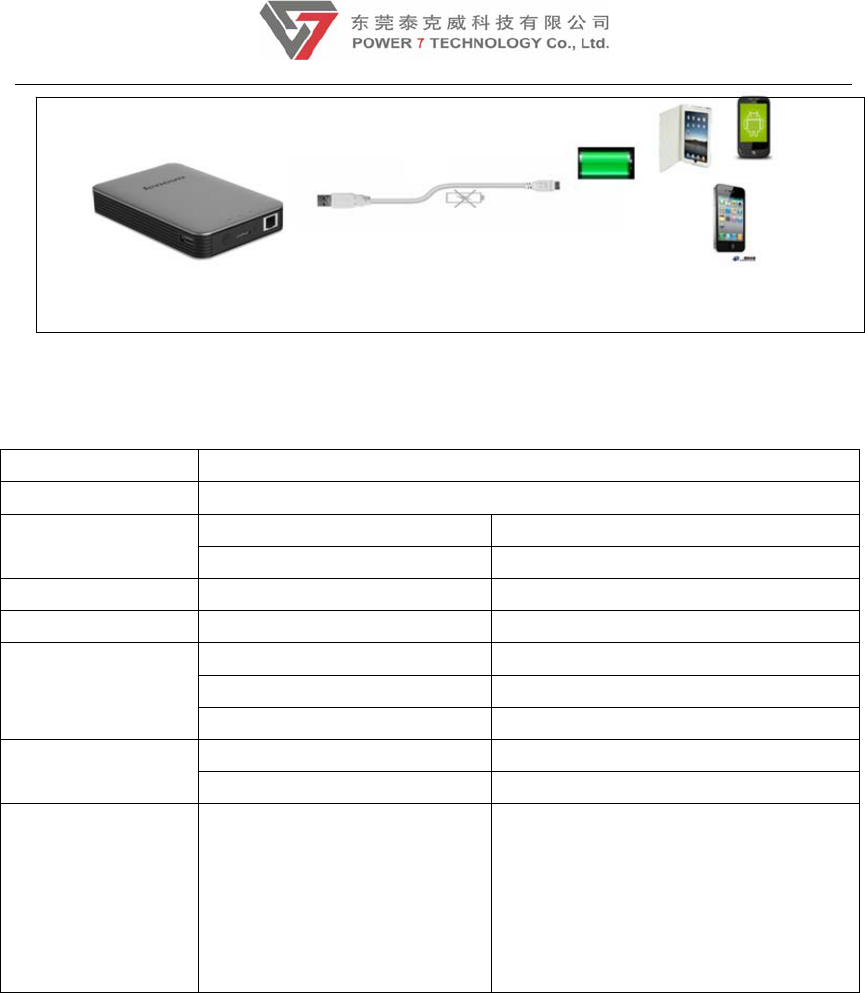

Scenario 3-Press power button off and then connect the device to smart phone or iPAD,
UHD F800 works as a charger to extend the usage time of external device.
6
UHD F800 could work as a charger only in power off mode
HardwareSpecifications
Project name UHD F800
Model name LEN-UHDF800-WIFI-S250UN-7620
CPU Model MTK MT7620N
Frequency MIPS24KEc 600MHZ
Flash Capacity 8MByte SPI flash
DDR1 RAM Capacity 32MB (256Mbit)
WiFi
standard 802.11 b/g/n
Frequency 2.4GHz
Speed 2T2R up to 300Mbps
WAN port (optional) Protocol Ethernet
Speed 100Mbit/s
Interface Battery
LED (Green&Red)
LED light to show the battery status
right after power on:
Green: >30%
Red: <30%
Red LED fast flash: <10% depleting
Green LED slow flash: charging
7
WiFi/internet LED indicator
(Green and Blue)
In WiFi storage mode:
Blue blinking: system is booting
Blue : System is ready to use(but
internet is not available)
Green: internet is available.
HDD LED (White) In the state of WiFi mode：
White light: connection is successful
White blinks: during the Read/Write
In the state of external HDD mode:
White: the LED blinks during the
Read/Write
Power button Short press Power on/off button
Reset button Factory default reset button
USB device interface Micro USB 3.0
USB host interface When it’s turned off,USB 2.0 host for
charging smart phone/tablet(both in
power on or power off mode, MAX
5V@1A)
WAN port RJ45 100Mbit/s
Antenna Signal strength 2dBi (WiFi Antenna)
15dBm(Main chip)
Battery
Capacity 4000mAh Li-Po battery
Charging current 2.1A/1.5A/1A/800mA/500mA etc
Smart charge accordingly
Hard disk drive Built-in 2.5” SATA HDD, up to 3TB capacity
Sleep Function
If HDD were inactive for 4 minutes, it
spins down to save power and extend
its lifetime
Environmental
requirements
Operating Temperature: 5°C to 40°C
Non-Operating Temperature: 0°C to 60°C
Operating Humidity: 5% to 90% (Non-condensing)
8
Non-operating Humidity: 5% ~ 90 % (Non-condensing)
Product dimension 129mm L x 83mm W x 25mm H
Emission (EMI),
Safety & Other
Certifications
FCC Class B
CE
InterfaceIllustration

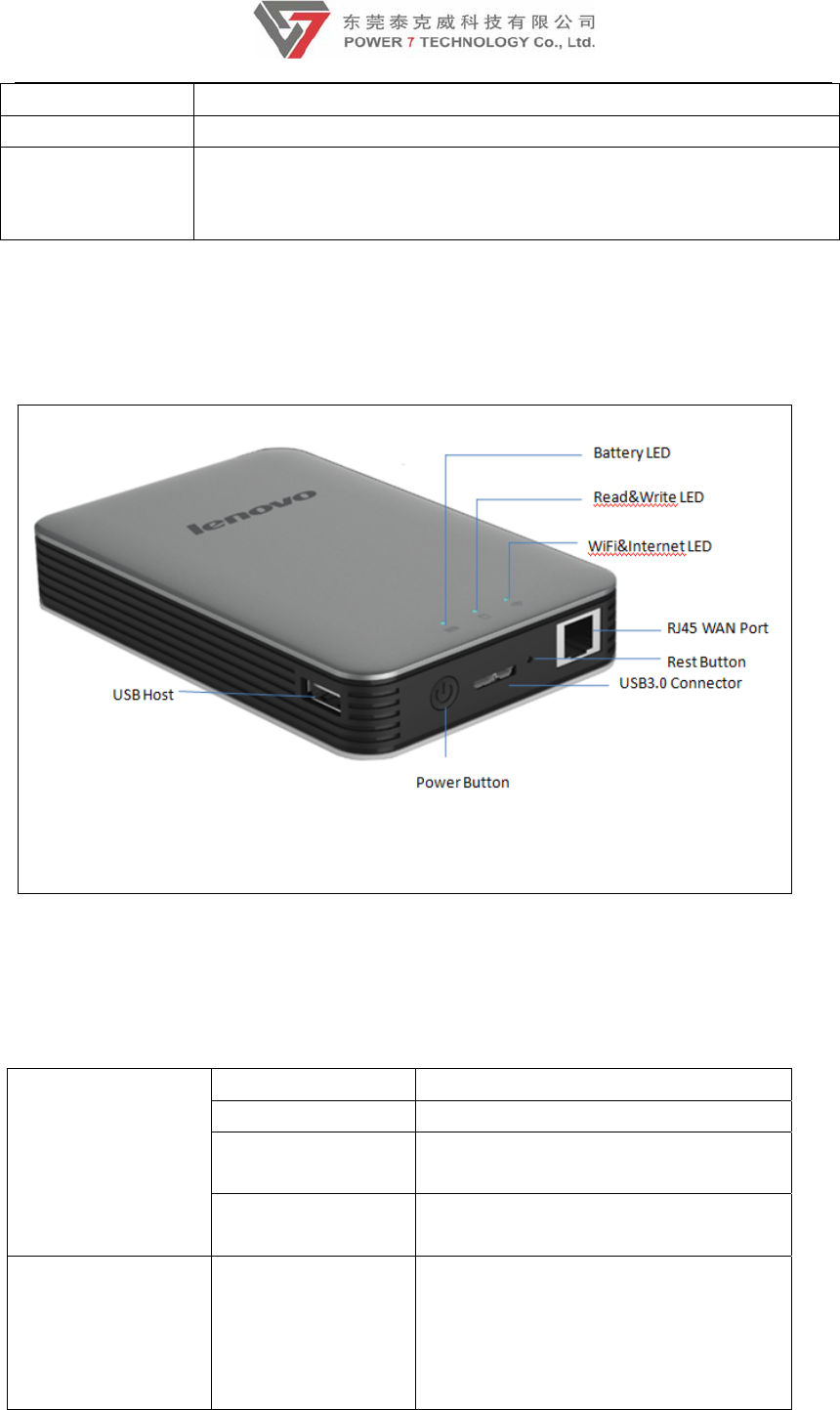

UHD F800 Interface Illustration
SoftwareSpecifications
System setting Language selection To select your native languages
Firmware upgrade To upgrade firmware by web browser
Configuration setting To backup and retrieve system
configuration setting
Factory default
setting restore
To restore default system setting
originated in factory production
File system NTFS A) Support Microsoft Windows NTFS
file system
B) Application tools:
Tuxera NTFS tool for mounting file
system
9
NTFS file system inspection and
repair tool
FAT16/FAT32
A) Support Microsoft Windows
FAT16/FAT32 file system
B) Application tools:
FAT file system inspection and repair tool
File service CIFS protocol Provide shared services to files and
printers for clients on Microsoft Windows
Network
DLNA Provide DLNA server(DMS)
Samba service Provide shared services to files and
printers for clients on Microsoft Windows
Network and Unix-Like Network
HTTP(S) service OS A build-in browser which support
common operation system such as
Windows, Linux, Mac® OS and smart
terminal for easy management
WebDAV protocol Makes the Web a readable and writable
medium which allow users to edit and
manage documents and files stored on
World Wide Web servers
Access control Password protection A) WiFi access control:
None
WPA
WPA2
WPA&WPA2
B) WEB access control
Password login
C) Samba access control
Password login
Default security:
A) Authentication needed with
password 11111111
B) No authentication
C) No authentication
HDD management HDD display
HDD partition size and remaining space display
HDD initialization
HDD partition format
Network
Management
WAN side setting A) Static IP
B) Dynamic IP
LAN side setting A) UHD F800 IP setting
B) Subnet mask setting
10
C) DHCP server setting
D) Default gateway setting
E) Default DNS setting
WiFi setting A) WiFi mode setting
B) WiFi basic setting
C) WiFi security setting
Application software Client A) Windows XP/2003/Vista/7, Linux,
Unix, Mac®
B) Android: tablet, smartphone
C) iOS: iPad®, iPhone®
File Formats iOS Client A) Audio: Support formats of
MP3
、
AAC
、
m4a
、
wav
、
aiff
B) Video: Support formats of MP4
、
MOV
、
m4v
、
avi
、
rmvb
、
wmv
、
mpg
C) Photo: Support formats of jpg
、
tiff
、
bmp
，
gif(image)
D) Document: Support formats of
keynote
、
numbers
、
page
、
excel
、
word
、
pdf
、
txt
、
ppt
Android Client A) Audio: Support formats of MP3 only
at present
B) Video:MP4
C) Photo: Support formats of.jpg
、
.png
D) Document: Support formats of txt
、
word
、
excel
、
ppt and pdf
File&SystemManagerApp
Support the keyword search function from the current folder
Support the file list/thumbnail view, support thumbnail images show and MP3 artwork
shows; Support gravity sensor switch direction
Support checkmark/delete function and support local/WiFi Storage data transmission in
between
Playing music/video/photos by iPhone®, iPad® and tablet and smartphone (JPG, mp3,
mp4, decoding ability more dependent on the system, file format depend on the player
software installed on you device,Power7 suggest to use RockPlayer/Mobo Player on the
Android and Oplayer/GoodPlayer on iOS)
Support to play the photos by filmstrip mode and support background music playing
Support video drag and play
11
Support music artwork shows, circulation play set, drag operation
Support email to send out pictures/documents
Support network and UHD F800’s parameters setting
Transfer videos and photos from and to the iPhone®, iPad® to UHD F800
SystemRequirements
iPhone®, iPad®, smartphone, tablet or computer with Wi-Fi connectivity (802.11 b/g/n)
Mac® or PC computer running Windows 7, Windows Vista, Windows XP or Mac OS® X
10.6.0 or later operating system for loading media on to UHD F800 via USB
ClientTools
Computer Client Tool
Auto search and access the UHD F800 on WLAN
Supports Windows XP/2003Vista/7 and Mac® iOS operation system
Mobile Application Tool
Supports iOS (iPhone® and iPad®) and Android (smartphone and tablet)
Stream audios and videos and view photos from the UHD F800
12
UHDF800ontheBeach
Are you ready to have a completely relaxing vacation on the beach with UHD F800?
USA OFFICE
World Headquarters
4601 E. Airport, Drive, Ontario, CA 91761, USA
http://www.power7tech.com
sales@power7tech.com
Tel: 909.230.6788 Fax: 909.230.6889
TAIWAN OFFICE
Power 7 Technology Corporation
5F-3, No.258, Liancheng Road, Zhonghe
District, New Taipei City 235, Taiwan(R.O.C.)
http://www.power7tech.com.tw
sales@power7tech.com.tw
Tel: 886.2.8227.1790 Fax: 886.2.8227.1026
CHINA OFFICE
Power 7 (Shenzhen)Technology Company, Ltd.
Building A, Zhangkeng Industry Zone, Minfu Road Minzhi
Village, Longhua Town, Baoan District Shenzhen, Guandong
Province PR, China
http:www.power7tech.com.cn
pm@power7tech.com.cn
Tel: 86.755.8886.8949 Fax: 86.755.8179.8032
13
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be
installed and operated in accordance with provided instructions and the antenna(s) used for
this transmitter must be installed to provide a separation distance of at least 10 millimetres
from all persons and must not be co-located or operating in conjunction with any other antenna
or transmitter. End-users and installers must be provide with antenna installation instructions
and consider removing the no-collocation statement.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
14
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102
and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF
exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de
RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information
canadienne sur l'exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with a minimum distance of 10
millimetres between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre
antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance
minimum de 10 millimètres entre le radiateur et votre corps
