Users Manual
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
1

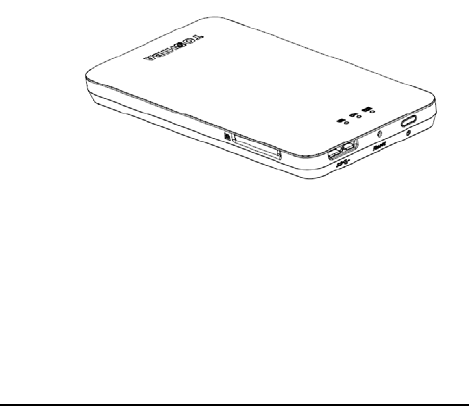

Canvio AERO Mobile
Model: DTQ112
User Manual
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
2
1. CanvioAERO Mobile Overview
Toshiba Wi-Fi SSD (code name: CanvioAEROMobile) allows to wirelessly
access your music, videos, pictures, data and stream it to your iPad®,
iPhone®, tablets, smartphones, and notebooks – no cords or cables to
tangle. With the internal SSD storage, there is no need to worry about
running out of space on your mobile devices and the built-in USB 3.0 port
makes the file transfer easier and much faster.
2. CanvioAEROMobileFeatures
Can work in two modes: DAS(Direct-Attached Storage) mode and
Wi-Fi mode(Wi-Fi Storage mode)
Access and stream your music, videos, pictures and data using the
free Application supporting iOS and Android operating systems
Up to8 Hours of continuous battery life in video streaming condition.
Search function to locate and access your file much faster.
Internet access capability via wireless, supporting 802.11 b/g/n
Built-in 128GB SSD with NTFS format.
Supports SD memory, SDHC, Class 10 compatible.
Support multiple-network accessing, including WebDAV.
3. Components
CanvioAEROMobileincludes the following components:
Toshiba Wi-Fi SSD( CanvioAEROMobile)
AC adapter
USB 3.0 cable
Quick Start guide
User manual(This document)
Pouch for AEROMobile
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
3
4. CanvioAEROMobile Specification

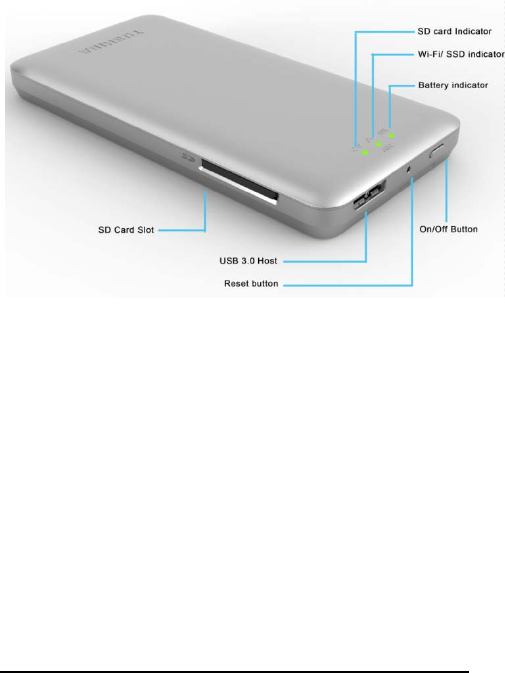

4.1 Hardware specification
Product Dimension: 123.5mm (L)*63.0mm (W)*12.5mm (H)
Weight: 1xxg
CPU: MTK MT7620A (600MHZ)
Battery: 3100mAh Li-ion type
Wi-Fi:
Standard: 802.11 b/g/n
Frequency: 2.4 GHZ
Speed: 1T1R up to 150Mbps
On/Off button:
Press it 2 seconds, Wi-Fi mode turn ON,
Press it 2 seconds, Wi-Fi mode turn OFF from ON.
If battery is too low, you could not turn on the AEROMobile, Orange
color battery indicator will blinking with 6 seconds, then OFF.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
4
Reset button:
In Wi-Fi mode, press it with 5S, system restore to factory settings
USB3.0 Host：
Compatible with USB3.0 and USB2.0
Connect to computer, It uses for transmit data between the computer
and CanvioAEROMobile.
Connect to AC adapter, it use for charging the product battery.
SD Card Slot:
Class 10 compatible, support SD memories, SDHC.
In Wi-Fi mode, youcan access SD card.
Battery Indicator
Green color: The battery power is ≥30%.
Yellow color: The battery power is <30% and >10%.
Orange color with faster blinking: the product is out of battery or the
production temperature is too high, it will shut down with blinking 30s.
Green or Yellow color with slow blinking: The battery is charging.
Green or Yellow color with faster blinking: The product is shutting
down or turning on.
LED off: The device is power off.
Wi-Fi/SSD indicator
Wi-Fi Mode
Blue color: Wi-Fi is ON, without data access.
Blue color with blinking: Storage access
Blue light off: Wi-Fi is OFF.
DAS Mode
White color: without data access
White color with blinking: data access
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
5
White Light off: Safety Remove, system Sleep or standby.
SD Card indicator:
Only light in Wi-Fi Mode
Violet color: without access.
Violet color with blinking: SD card access
Violet color off: SD Card goes into standby.
Environment requirement:
Temperature
Operating: 5 to 35degree Celsius
Storage: -20 to 60 degree Celsius
Humidity
Operating: 20-80%
Storage: 8-90%
4.2 Software specification
Compatible file type
Videos: mp4, 3gp, m4v, mov, avi
Music: mp3, m4a, aac, wav
Pictures: jpg, bmp, png, gif, tif
Documents(iOS only): pdf, doc, docx, ppt, pptx, xls, xlsx, txt, (rtf)
Others: will be opened by external software
System requirement
PC Operating System
Windows: Windows 7/8/8.1
Mac: OS X 10.7/10.8/10.9
Web browser:
Windows: Internet Explorer 9.0 or later
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
6
Mac: Safari 5.0 or later
Others: Firefox 3.0 or later; Google Chrome 13 or later;
iOS: 5.1and above
Android: 2.3 and above

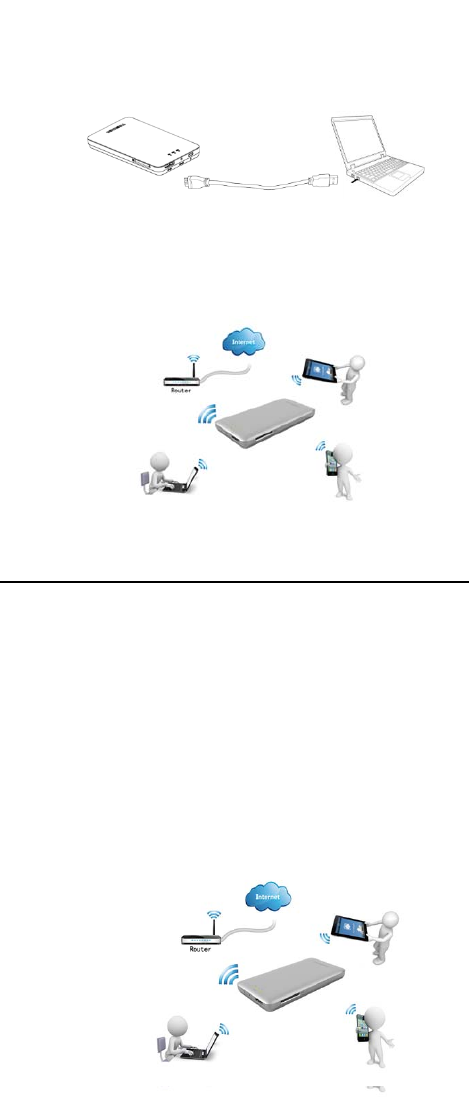

4.3 Function modes
DAS mode (Direct-Attached Storage):
Simply connect CanvioAEROMobile to computer’s USB port with attached
USB 3.0 cable. It works in DAS mode automatically. You can start
transferring data to and from the product.
Wi-Fi mode (Wi-Fi storage)
Press ON/OFF button and power on system, CanvioAEROMobile works as
Wi-Fi mode, you can accessed CanvioAEROMobile wirelessly from PC,
MAC, iOS and Android mobile devices using the AEROMobile Client.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
7

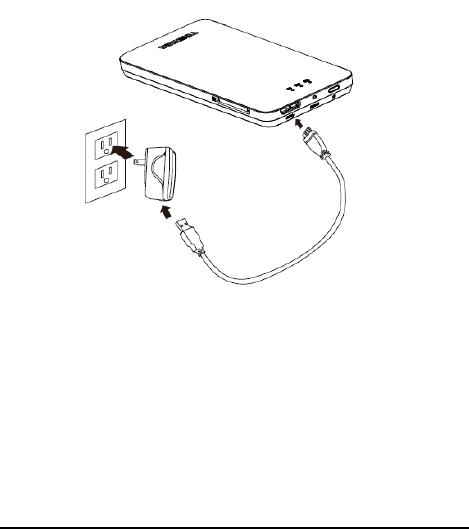

5. Charging CanvioAERO Mobile
CanvioAEROMobilecan be charge via AC adaptor with attached USB
cable.
You should charge CanvioAEROMobile when you see the battery indicator
is Yellow color.
While charging, you can see the battery indicator will light with slowblinking
(interval time is 2 seconds).
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
8
6. Canvio AERO Mobile Software Utility
Instruction
6.1 System login
6.1.1 Web browser login
A. Connecting Wirelessly to PC/Mac
Switch-on the CanvioAEROMobile by pressing the power button. Wait for
few minutes until the Wireless LED steady.
Enable the Wi-Fi feature on your PC/Mac and open the Wireless Network
Connection.
Select “Toshiba-wssd-xxxx” wireless connection (default wireless SSID:
Toshiba-wssd-xxxx) and enter the default password as 12345678. Once
you have successfully connected to your CanvioAEROMobile.
B. Web browser login

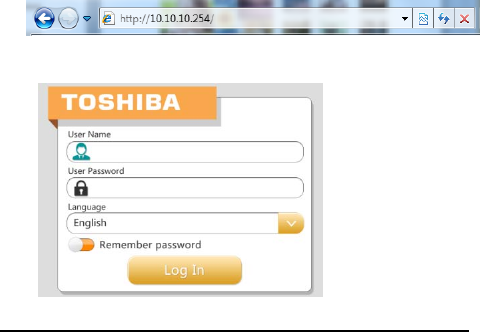

Open web browser, input “http://10.10.10.254” as the default URL
(If Internet is not available, input any URL, will jump to this page)
You will enter the web interface as below
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
9
Type the default User Name as admin and leave the User Password as
blank, and you can select the language you want.
Click on the “login” button to access the Web main Interface
6.1.2 iOS client login
A. Install iOS application
Search and locate the free TOSHIBA app called “WiFiSSD” from the Apple
Store.
Install the “WiFiSSD” app and follow the on-screen installation instructions.
The “WiFiSSD” icon will appear on the desktop once the installation
process has been completed
B. Connecting wirelessly to iOS device.
Switch-on the CanvioAEROMobile by pressing the power button. Wait for
few minutes until the Wireless LED steady.
Go to the Setting->Wi-Fi option in your iPad/iPhone. Click and choose on
the “Toshiba-wssd-xxxx” as seen on the image below, Using “12345678”
as the default password.
C. Application login

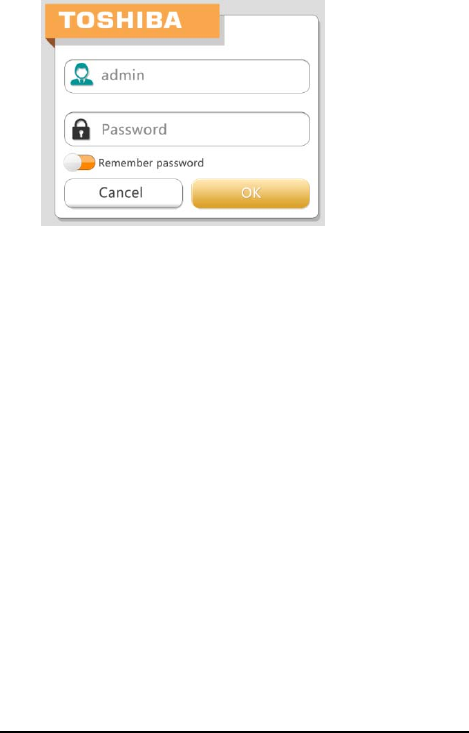

Run the applet “WiFiSSD” and log into the“WiFiSSD” as seen on the
screenshot below.
Default setting of the users is “admin”
Default setting of the password is no password needed
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
10
Click on the “OK” button to access the mainInterface.
Android client login
A. Install Android application
Search and locate the free TOSHIBA application called “WiFiSSD” from the
Google Play Store. Install the “WiFiSSD” app and follow the on-screen
installation instructions.
The “WiFiSSD” icon will appear on the desktop once the installation
process has been completed.
B. Connecting Wirelessly to Android device.
Switch-on the CanvioAEROMobile by pressing the power button. Wait for
few minutes until the Wireless LED steady.
Go to the Setting->Wi-Fi option in your tablet or smart phone. Click and
choose on the “Toshiba-wssd-xxxx”, Using “12345678” as the default
password.
C. Application login
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
11

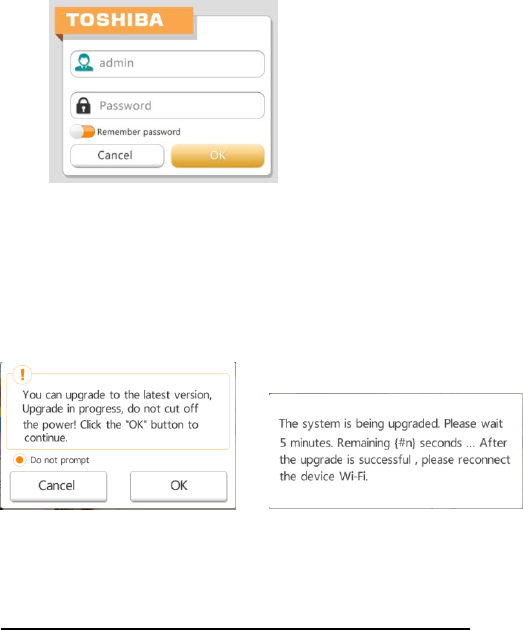

Run the applet “WiFiSSD” and log into the“WiFiSSD” as seen on the
screenshot below.
Default setting of the users is “admin”
Default setting of the password is no password needed
Click on the “OK” button to access the mainInterface.
6.2 Main interface

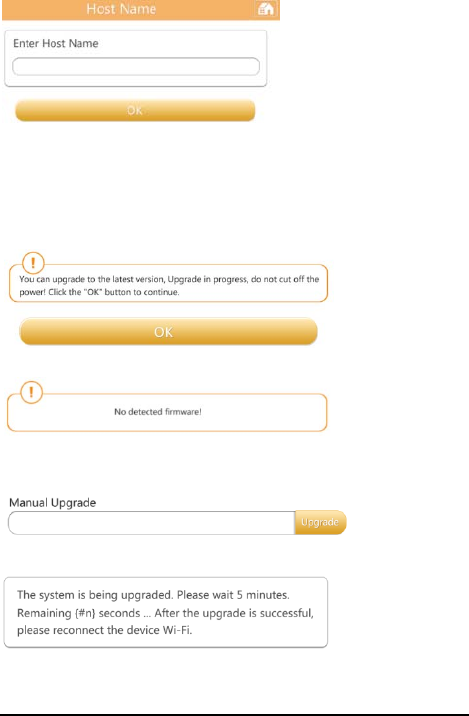

When you enter the main interface, AEROMobile may inform you if there is
a new Firmware. You can select to“OK” update, or select cancel, or never
prompt.
If you select OK to update, the system will inform you to wait 5mins.
If you select cancel, next time when you login and enter main interface,
AEROMobile will inform you again.
If you select never prompt, AEROMobile will never inform you the firmware
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
12
upgrade. If you still want to upgrade firmware. You can go to setting page to
upgrade firmware manually.

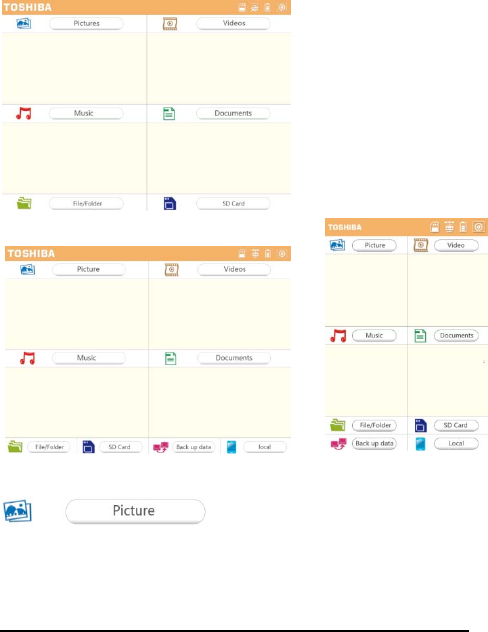

Web main interface
Application main interface:
(For big screen) (For small screen)
Display pictures preview. If it is not enough pictures, it will show the current
pictures.
Click on the pictures button to enter Pictures Management
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
13

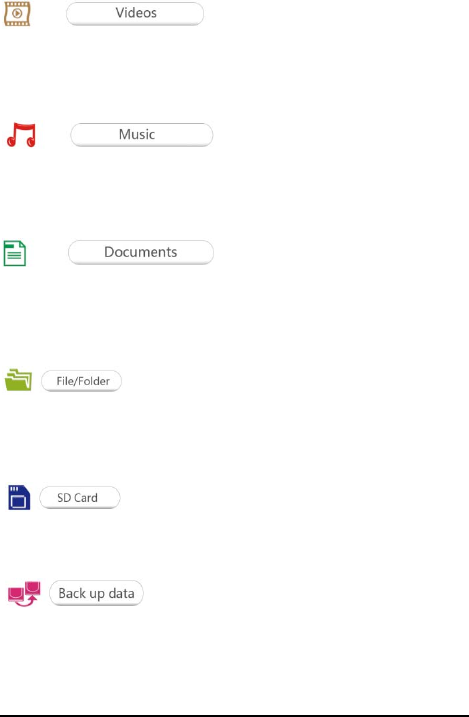

Display video files preview. If no video, it will use the default picture. If it is
not enough videos, it will show the current videos.
Click on the videos button to enter Videos Management.
Display music files preview. If no music, it will use the default picture. If it is
not enough 2 music, it will show the current music.
Click on the music button to enter Music Management
Display documents preview. If no document, it will use the default picture. If
it is not enough documents, it will show the current documents.
Click on the documents button to enter Documents Management.

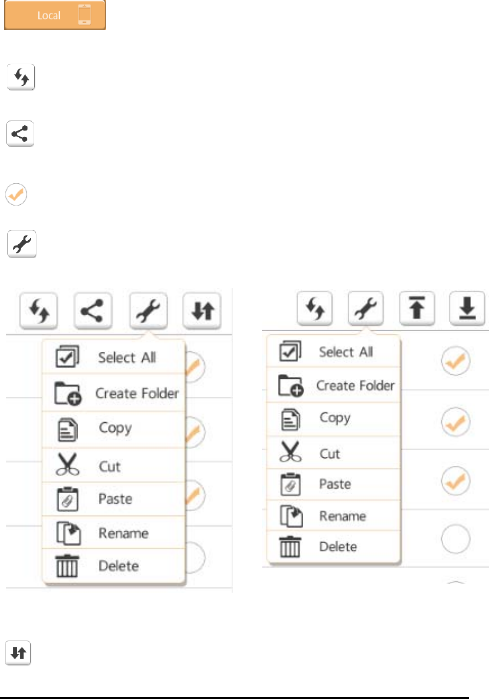

Click on this button, you can enter File/Folder Management Interface,
where you can create folder, copy file/folder, delete file/folder, share file,
upload/download file etc.

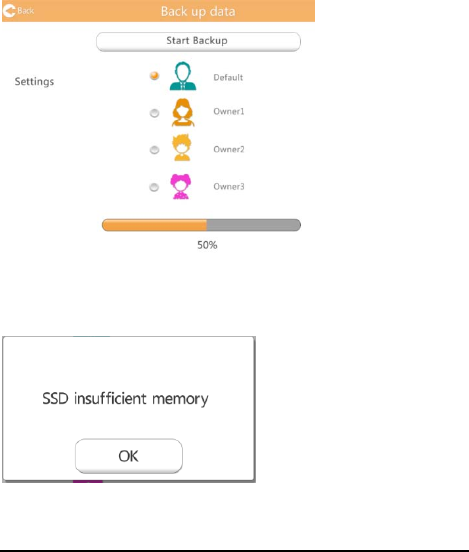

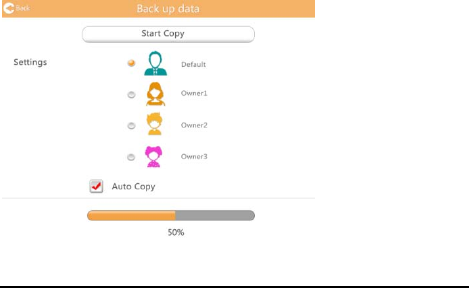

You can incremental back up all the videos and pictures in the SD Card to
one of the four user directories: Default, Owner1, Owner2 or Owner3.
(iOS and Android device only)
You can incremental back up the local camera videos and pictures to one of
the four user directories: Default, Owner1, Owner2 or Owner3.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
14
(iOS and Android only)
You can switch to the local, access to the local files
SD card is available
I
nternet connection is available.
No Internet connection
Display the current battery capacity of CanvioAEROMobile

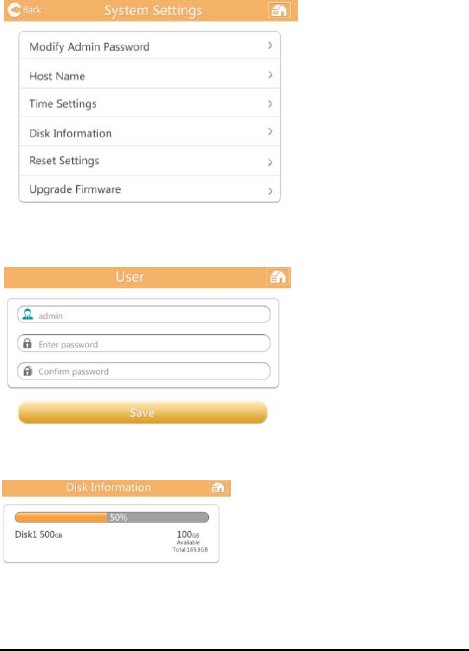

Click on this button, you can enter the CanvioAEROMobile’s system
settings
6.3 Pictures Management

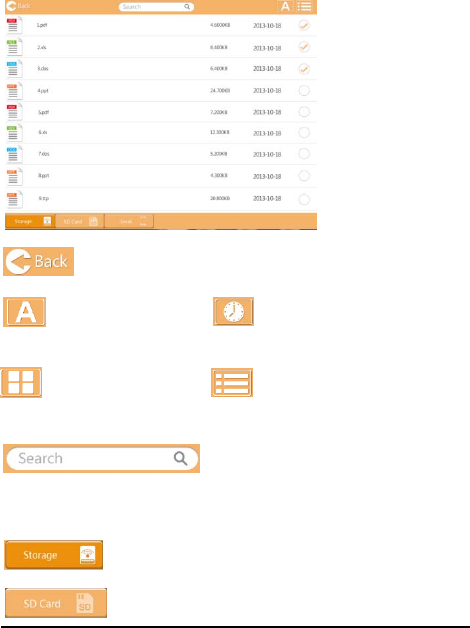

6.3.1 pictures management interface
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
15

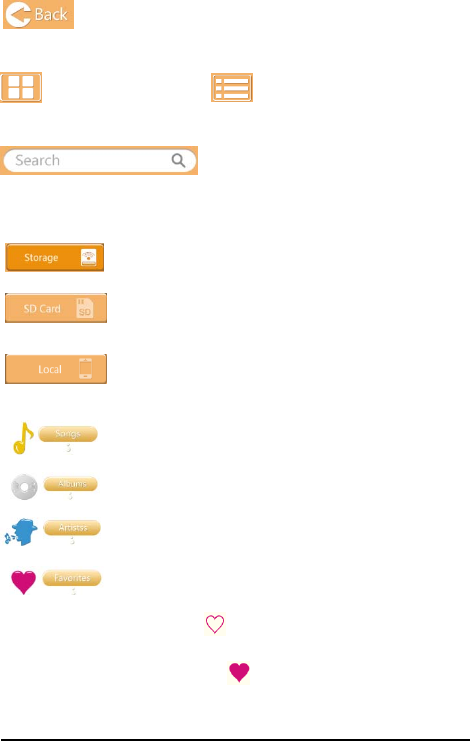

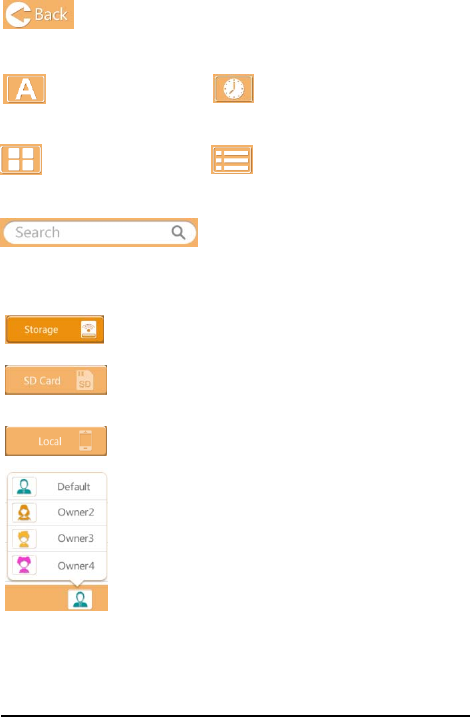

Return to the main page
“Sort by name” mode, “Sort by date” mode
Click the button can switch to each other
“
Thumbnail” mode, “list” mode
Click the button can switch to each other
Enter the key letters or numbers in the search box, you can search out all
the picture files contains the keyword
Switch to SSD Storage of the CanvioAEROMobile
Switch to SD Card of the CanvioAEROMobile
Switch to the local iOS and Android device. (iOS and
Android device only)
When switch to SSD “Storage” of the
CanvioAEROMobile. You can choice the pictures from
one of the 4 users.The 4 users default names are
“Default”, “Owner1”, “Owenr2”, and “Owener3”
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
16
6.3.2 Picture Viewer Interface

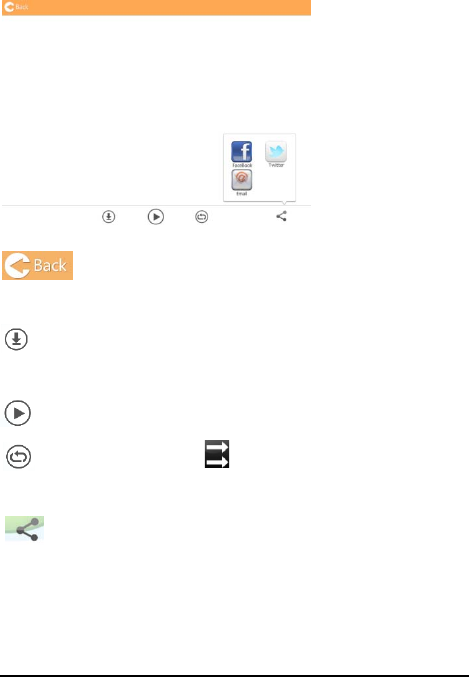

Click the picture to enter the Picture Viewer Interface.
Click the "Back" button to return to Pictures Management Interface.
Click the “Download" button, you can download the current picture to
the local album.
Click on the "play/pause" button, can start and stop photo slide show.
“Loop playback” mode, “Sequential Mode”
Click on the button, you can switch to each other.
Click the”Share” button, you can share the current picture to
Facebook/Twitter/Email.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
17
6.4 Videos Management
6.4.1 Videos Management Interface
Return to the main page
“Sort by name” mode, “Sort by date” mode
Click the button can switch to each other
“
Thumbnail” mode, “list” mode
Click the button can switch to each other
Enter the key letters or numbers in the search box, you can search out all
the picture files contains the keyword
Switch to SSD Storage of the CanvioAEROMobile
Switch to SD Card of the CanvioAEROMobile
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
18
Switch to the local iOS and Android device. (iOS and
Android only)
When switch to SSD “Storage” of the CanvioAEROMobile. You
can choice the pictures from one of the 4 users.
The 4 users default names are “Default”, “Owner1”, “Owenr2”, and
“Owener3”

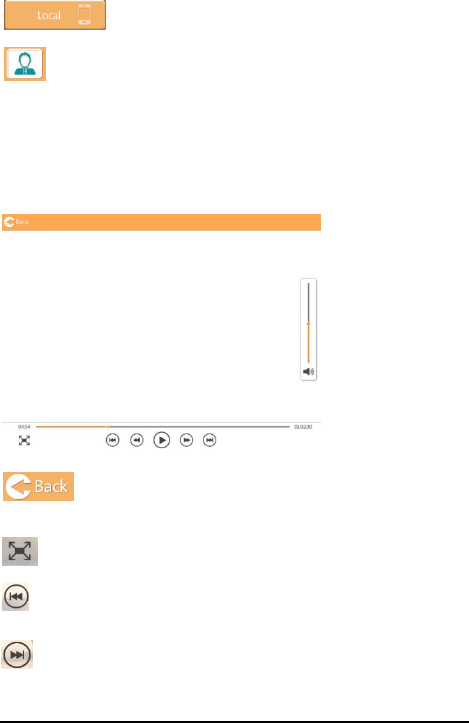

6.4.2 Video playback interface(iOS and Android device only)
Click on the video file, switch to the video player interface.
Click the "Back" button to return to the Videos Management Interface.
Click the “Zoom” button; you can adjust the playback screen size.
Click the "Previous" button to switch to the previous video playback.
Click the “Next " button to switch to the next video playback.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
19
Click the “Rewind” button and the video rewind at the speed of 20
seconds.
Click the "Forward" button and the video forward at the speed of 20
seconds.
Click the “Pause / Play “button to play / pause the current playing
video.
Playback progress bar, drag the progress bar, the video will jump to the
drag position to play.
Volume control bar, drag the control bar, you can adjust the volume of
the video. The volume is divided into four states: quiet, small,
medium and maximum volume.
If the web browser support video play, you can play the video within the web
browser, otherwise, you will be asked to download the video to local device.
6.5 Music Management
6.5.1 Music Management Interface
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
20
Return to the main page
“
Thumbnail” mode, “list” mode
Click the button can switch to each other
Enter the key letters or numbers in the search box, you can search out all
the picture files contains the keyword
Switch to SSD Storage of the CanvioAEROMobile
Switch to SD Card of the CanvioAEROMobile
Switch to the local iOS and Android device. (iOS and
Android device only)
"All Songs", "All Songs" is the default mode.
"Album": All the songs are classified by album.
"Artist": All the songs are classified by artist.
"Favorites": "Favorites" is display all your favorites
songs. You can add the songs to favorite page by
clicking on in “All music” page, “Album” page and
“Artist” page, and remove the songs from favorite page
by clicking on in favorite page.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
21

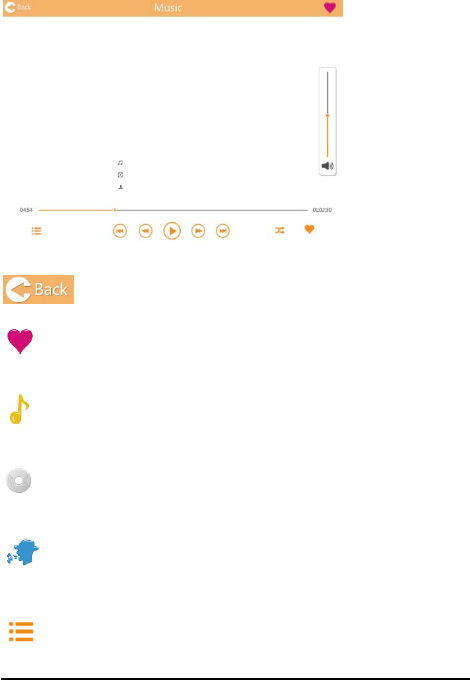

6.5.2 Music Play Interface(iOS and Android device only)
Click on the music file, enter into music player interface.
Return to the Music management Interface
Playing the ”Favourites” music, it will dispay “Favourites” Music icon
in the Music Player Interface
Playing the ”All Songs” , it will dispay “All Songs” icon in the music
player interface
Playing the ”Artist”, it will dispay “Artist” icon in the Music Player
Interface
Play the ”Album”, it will dispay “Album” icon in the Music Player
Interface
Click on the "Music Playlist" button, pop-up the list of songs in the
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
22
Music Playback Interface, the user can switch the songs.
Click the "Previous" button to switch to the previous music.
Click the “Next " button to switch to the next music.

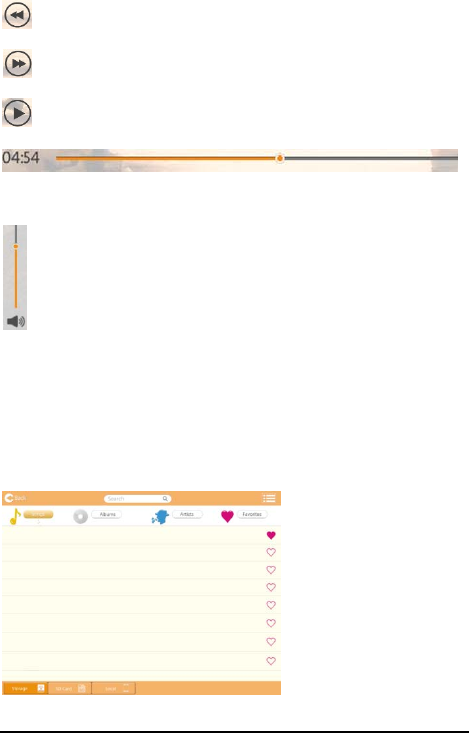

Click the “Rewind” button and the music rewind at the speed of 20
seconds.
Click the "Forward" button and the music forward at the speed of 20
seconds.
Click the “Pause / Play “button to play / pause the playing music.
Playing progress bar, drag the progress bar, the music will jump to the drag
position to play.
Volume control bar, drag the control bar, you can adjust the volume of
the music. The volume is divided into four states: quiet, small,
medium and maximum volume.
Click the “Music Mode" button, you can switch four kinds of musical
modes:
Shuffle (default mode), loop playback, order play andsinglecycle.
Click the “Favorites” button; you can add the currently playing music
to “Favorites”.
If the web browser support music play, you can play the music on line within
the web browser, otherwise, you will be asked to download the music file to
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
23
local device
6.6 Documents Management
6.6.1 Music Management Interface
Return to the main page
“Sort by name” mode, “Sort by date” mode
Click the button can switch to each other
“
Thumbnail” mode, “List” mode
Click the button can switch to each other
Enter the key letters or numbers in the search box, you can search out all
the picture files contains the keyword
Switch to SSD Storage of the CanvioAEROMobile
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
24
Switch to SD Card of the CanvioAEROMobile
Switch to the local iOS and Android device. (iOS and
Android device only)
6.6.2 Document Viewer(iOS and Android device only)
Click the "Back" button to return to the Document management
Interface.
Click the "Share" button; you can share the current document by
Email.
If the web browser support file view, you can view the file on line within the
web browser, otherwise, you will be asked to download the file to local
device
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
25
6.7 File/Folder management
File/Folder Management Interface
(For Application) (For web browser)
Return to the main page
“Sort by name” mode, “Sort by date” mode
Click the button can switch to each other
“
Thumbnail” mode, “List” mode
Click the button can switch to each other
Enter the key letters or numbers in the search box, you can search out all
the picture files contains the keyword
Switch to SSD Storage of the CanvioAEROMobile
Switch to SD Card of the CanvioAEROMobile
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
26
Switch to the local iOS and Android device. (iOS and
Android only)
Refresh the screen.
(Application only)
Click the”Share” button, you can share the current file to Email.
File or folder was selected
Setting button, you can select all/unselect all, create new folders,
copy, cut, paste, rename, delete file/folder.
(Application) (Web browser)
(Application only)Click on transmission button, you will enter file
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
27
transmission interface.

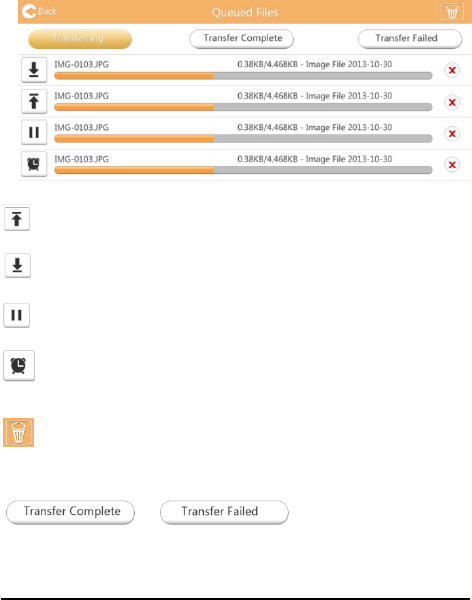

Or when the file or folder copy, cut, upload or download to the target
directory, transmission interface will pop up. In the transmission interface
you can see the progress, delete the transferring file; you can also view the
successful and failed transfer file.
(Icon in the queued files)Uploading file/ folder indicator
(Icon in the queued files)Downloading file/ folder indicator
Pause the upload and download file/ folder
The file/folder waiting for uploads ordownloads. Our application can
allow upload and download one by one.
Cancel all the queued files
You can see the translation result from the next two button of
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
28
In the transfer fail page. You can select re-translate by clicking button
(Web browser only)Upload file from local. When you select local file
and upload to AEROMobile. You can see the upload progress bar.
(Web browser only)Download file from AEROMobile.
Downloading method is depends on which web browser you are using
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
29
6.8 SD Card Management
You can back up the files in the SD Card to one of the four user directories:
Default, Owner1, Owner2, and Owner3. The backup is an incremental
backup.
You can backup SD card manually or using automatic backup function.
If the backup files size bigger than the empty space in SSD, you will see a
warning message before the backup.
Manual Backup:
You can select the backup user, click "Start Copy", videos and pictures from
the SD Card will be backed up to the selected user directory, the backup
progress is displayed in the bottom of the interface .
Automatic Backup:
Select automatic backup. When you insert SD card next time, all the videos
and pictures in the SD Card will be backed up to the selected user directory
automatically.
The progress bar will be displayed in the bottom of the interface.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
30
6.9 Backup Management
(iOS and Android device only)
You can back up the videos and pictures in the iOS and Android device to
one of the SSD Air's four user directories: Default, Owner1, Owner2, and
Owner3.
Click the "Start Backup" button to start the backup, backup progress bar is
displayed in the bottom of the interface.
If the backup files size bigger than the empty space in SSD, you will see a
warning message before the backup.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
31

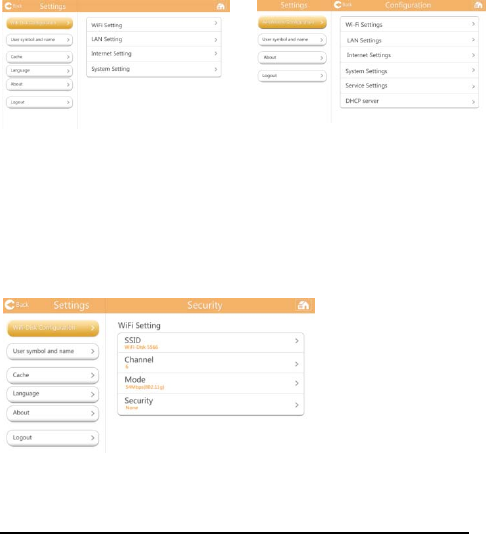

6.10 Settings Management
Click the “Settings" button on the top right corner of the “Main interface” to

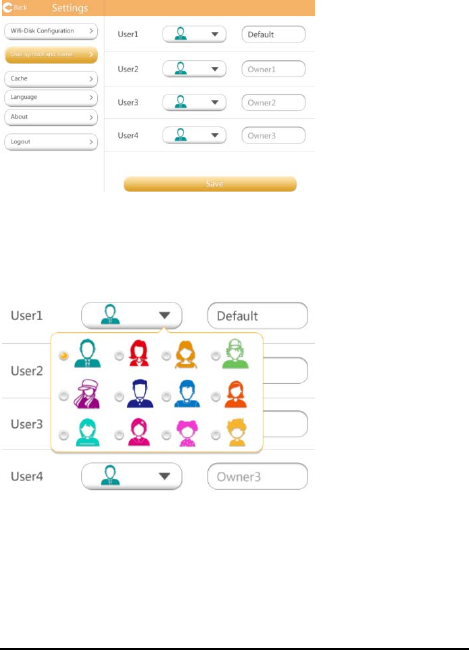

enter setting interface includingmodules: AEROMobileConfigurations, user

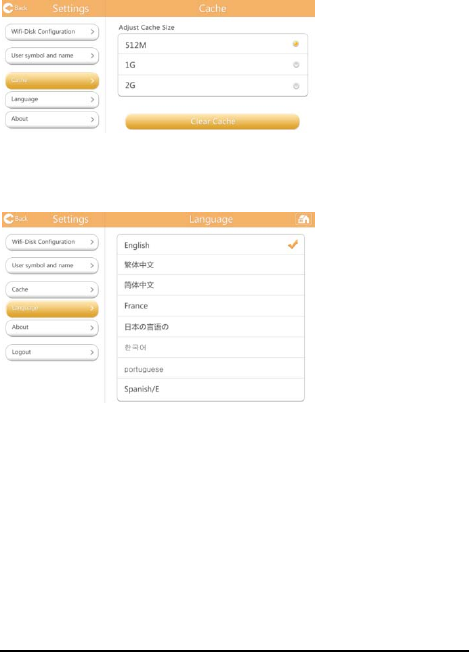

image and name, cache (Application only), language (Application only),
about and logout.
6.10.1 Configurations
(Applications) (Web browser)
6.10.1.1 Wi-Fi Setting
Wi-Fi setting For Application
Click on Wi-Fi Settings, enter Wi-Fi setting page, which include Modify
SSID、Modify Channel、Modify Mode、Modify Security.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
32

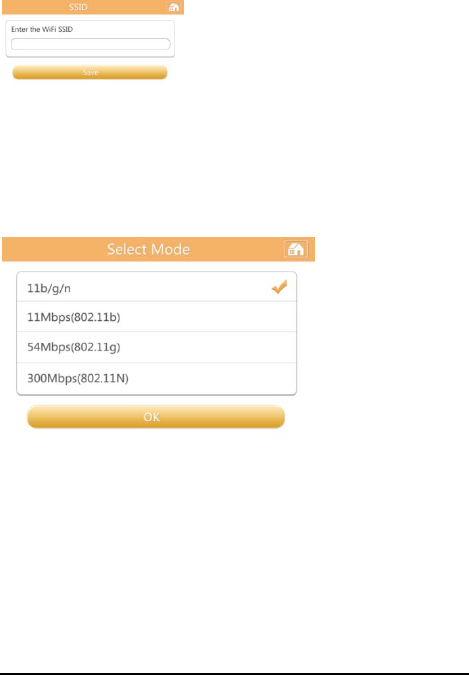

Click on SSID button. Enter setting SSID page.
You can enter your Own SSID. Default SSID is “Toshiba-wssd-xxxx”
Click on Channel button. Enter setting Wi-Fi Channel page.
You can select the Wi-Fi channel as you want. Or you can let it “Auto”
Click on mode button. Enter setting Wi-Fi mode page.

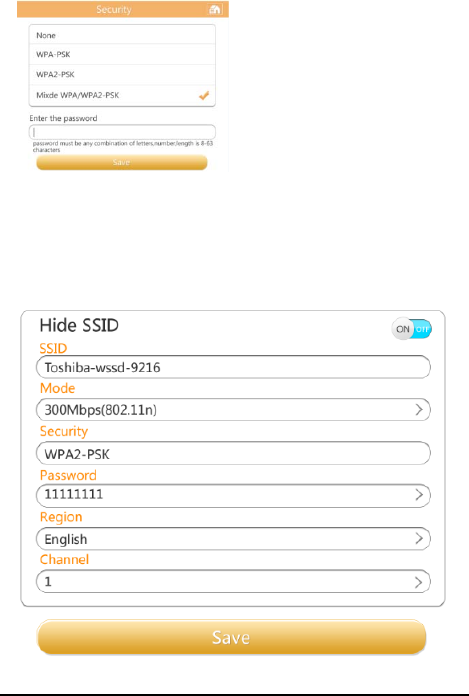

Click on security button. Enter setting Wi-Fi security page.
You need to enter a password if you select WPA-PSK, WPA2-PSK or Mixed
WPA/WPA2-PSK.
Default Password is “12345678”
No password is needed if selected “None”
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
33
Wi-Fi setting for Web browser
The setting functions are similar withApplication Wi-Fi setting. Even the UI
design is difference.
In Web browser, you can select the SSID is Hide or Shown.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
34
6.10.1.2 LAN Settings
Click on LAN setting, you will enter LAN setting page.
(Application)
Web browser
MAC address: This is for your reference. You could not change it.
IP Address: Click on this button, you can modify the IP address of device.
Subnet Mask: Click on this button, you can modify the Subnet Mask of
device.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
35

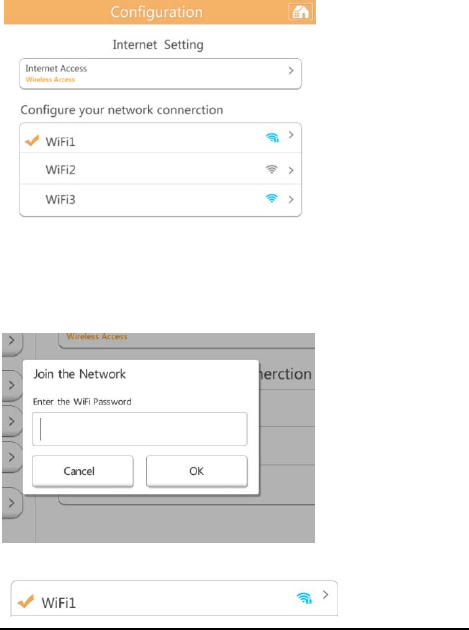

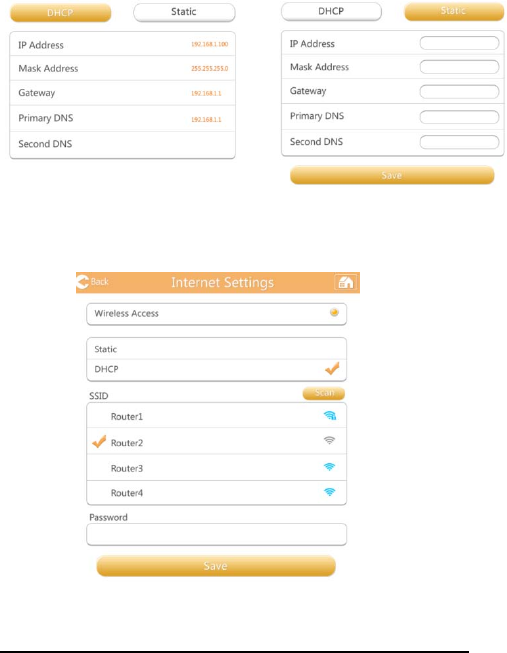

6.10.1.3 Internet Setting
For Application
Click on Internet Settings, enter Internet setting page
You can configure your network connection between CanvioAEROMobile
and Wi-Fi router.
Select the router from the Access Points list. You may be asked to input a
password for the connection.
If connect successfully, ahook icon will show in front of the access point.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
36
You can set to use Dynamic IP or static IP as you want in this internet
setting.
For web browser
It has similar function, but only slight difference in UI design.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
37
6.10.1.4 System Setting
In system setting, you can modify user’s password, change the host name,
and check SSD capacity and remaining capacity, upgrade firmware.
Modify Admin Password
SSD capacity information:
Modify Host name
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
38
Firmware Upgrade:
Click on the Online Upgrade button.
You can upgrade Firmware of CanvioAEROMobile if there is a new
Firmware.
If no new firmware is found. You will see the message as below
In web browser, you can also upgrade the firmware manually.
With this button, you can update the firmware version as you want.
Once you start the firmware upgrade, you will see below information.

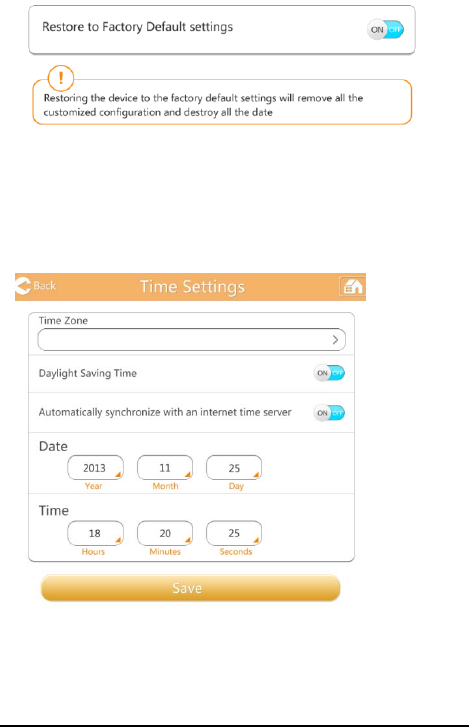

Restore factory setting (Web browser only)
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
39
Time setting (Web browser only)
You can select the time Zone for your AEROMobile manually.
You can also set the date/time for it.
By the default setting, your AEROMobile could synchronize data and time
with your mobile device or Internet.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
40

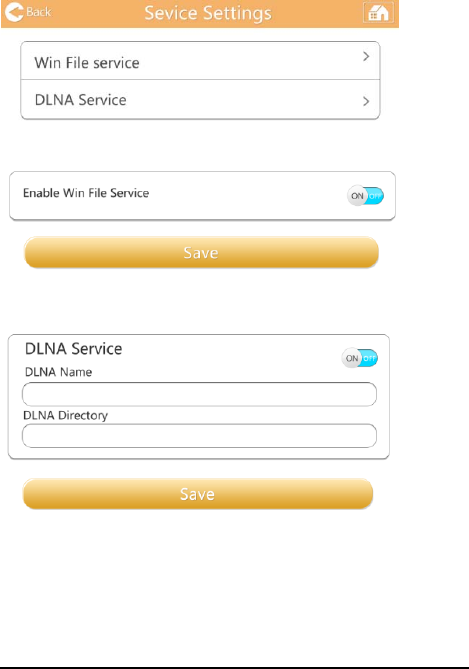

6.10.1.5 Service Settings (Web browser only)
You can set the DLAN service information and win file service here.
Enable Win file service.
Settingabout DLNA service
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
41

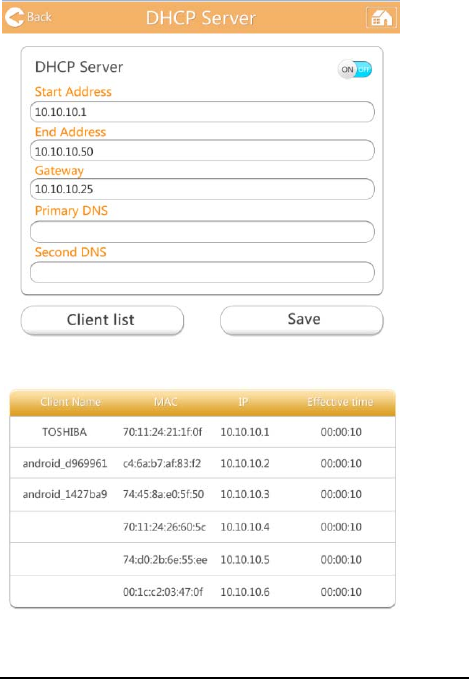

6.10.1.6 DHCP Settings (Web browser only)
You can set up DHCP server information.
You can also check the client list
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
42
6.10.2 User Image and Name Management
Enter the user symbol and name page; you will see the page as below.
In this page, you can change the four users’ Icon and name; this change will
reflect in the picture management page, video management page, SD card
page and Backup back up page
There are total 12 Icons for your selection.
You can also type a new name for each user.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
43
6.10.3 Cache (Applications only)
Setting caches in local device will improve the response speed of the
CanvioAEROMobile.You can adjust the size of the caches.
6.10.4 Language(Applications only)
You can select the language as you want for the CanvioAEROMobile.
Default language is English.
6.10.5 About
You can visit the company's site, the company name, firmware version
andApplication client version.
6.10.6 Logout
Logout the current user, switch to the login screen.
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
44
FCC Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment and it also complies with Part 15 of the FCC RF
Rules. This equipment must be installed and operated in accordance with
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
45
provided instructions and the antenna(s) used for this transmitter must not
be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provide with antenna
installation instructions and consider removing the no-collocation
statement.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
SAR information
This transmitter must not be co-located or operating in conjunction with any
other antenna or
transmitter. This equipment should be installed and operated with a minimu
m distance of 0 millimetres between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps
TOSHIBA Corporation –wireless SSD User Manual v0.1.1
46
qu'aucune autre
antenne ou émetteur. Cet équipement devrait être installé et actionné avec
une distance
minimum de 0 millimètres entre le radiateur et votre corps
Canada Statement
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of
the device.
Le présentappareilestconforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitationestautorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi,
mêmesi le brouillageest susceptible d'encompromettre le fonctionnement.
