Power 7 Technology W9M3R6-PNY Wi-Fi Card Reader User Manual 1 ok
Power7 Technology(Dong Guan) Co., Ltd. Wi-Fi Card Reader 1 ok
Users Manual
1
Power 7 WiFi Card Reader(PNY)
Datasheet
All product picture are for reference only
Table of Content
Introduction ......................................................................................................................... 2
Target Users/Markets .......................................................................................................... 2
Features .............................................................................................................................. 3
Applications ......................................................................................................................... 3
Hardware Specifications ..................................................................................................... 5
Interface Illustration ............................................................................................................. 6
Software Specifications ....................................................................................................... 7
File & System Manager App ............................................................................................... 9
System Requirements ......................................................................................................... 9
Client Tools ......................................................................................................................... 9
Version 0.1
Last Updated: August 20, 2013
Author: Power 7 PM Department
pm@power7tech.com.cn
2
Introduction
Power 7 WiFi Card Reader (Project Name: PNY) is a portable wireless storage device with one
SD slot and one USB 2.0 host. PNY allows you to convert any SD memory card and USB
external storage devices into a WiFi accessible media. Simply insert your SD memory card
into the SD slot or connect your USB external storage into the built-in USB port. Switch the
unit on and you can now wirelessly access your videos, music, photos, data and stream it to
your iPad®, iPhone®, tablets, smartphones, and notebooks. There is no need to worry about
running out of space on your mobile devices. For maximum portability, PNY has a built-in
rechargeable battery. Simply plug it into any available USB port on your computer to charge.
As simple as 1-2-3, you are ready to enjoy your device and no waiting needed. With the SD
or External USB connected, the portable WiFi SD/USB can be accessed while the battery is
charging. Without the wired limitation, you can enjoy listening to music while travelling with
PNY in your backpack, share photo with your family by placing it at any house corner or lay
back watching movies in the beach – with a range of up to 150ft you’ll never feel tethered to
your PNY. Best of all, the PNY can bridge the Internet connection to your existing wireless
router, so you may access the data in the storage while surfing the Internet simultaneously.
TargetUsers/Markets
Mobile Device User
iPhone®, iPad®, smartphone, tablet or notebook user may unleash from very limited storage
capacity by throwing large files such as movies, music or powerpoint files to PNY.
Frequent Business Traveler
Businessman may show customer the product datasheet, contract or quotation in PNY
anytime in the coffee shop, meeting room or hotel.
Movies & Music Download Mania
Have already downloaded hundreds or thousands of movies, music by BitTorrent at home but
you can not enjoy watching or listening to them while you are outside? PNY is the solution for
you.
Salesman
PNY may save mobile sales person like insurance broker, realty broker from carrying bulky
brochure or flyers.
Legacy USB External HDD Device Hater
Just can not stand anymore to be tethered by USB cable whenever you need to transfer files
between your notebook and external HDD? PNY is the answer for you!
Small Enterprise Mobile NAS
The critical and confidential business data should not be bound to the file server or NAS in
your company. PNY allows you to have a backup of your important data which is portable with
you.
3
Home Mobile NAS
With PNY at home, you do not need to always turn on your notebook or PC in order to share
data with your family. Moreover, PNY can be your portable entertainment centre while your
family go out for vacation.
Features
File and System Manager App
Two way file transferring between PNY and your iPhone®, iPad®, smartphone, tablet or
computer with Wi-Fi connectivity (802.11 b/g/n). Available iOS and Android mobile app with
search utility function to find and locate specific data file.
Bridge to Internet Access
Bypass your Internet access to your existing WiFi router, so you may access any data in the
SD or HDD while surfing the Internet simultaneously.
WiFi SD or USB external HDD Accessible while Charging
Using notebooks with available USB port or optional AC adaptor, the WiFi SD or USB external
HDD can be accessed while charging the internal battery.
Share with Friends & Family
Allow 7.5 maximum concurrent connections for sharing videos, audios, photos and data.
Extended Battery Life
Up to 10 hours of continuous use battery life for maximum portability.
USB 2.0 Host for Data Sync and Battery Charging
USB 2.0 port for faster transfer between SD and PC.
Easy to Configure and Operate
Friendly user interface design with wizard guide to assure even the novice can get PNY start to
operate in minutes.

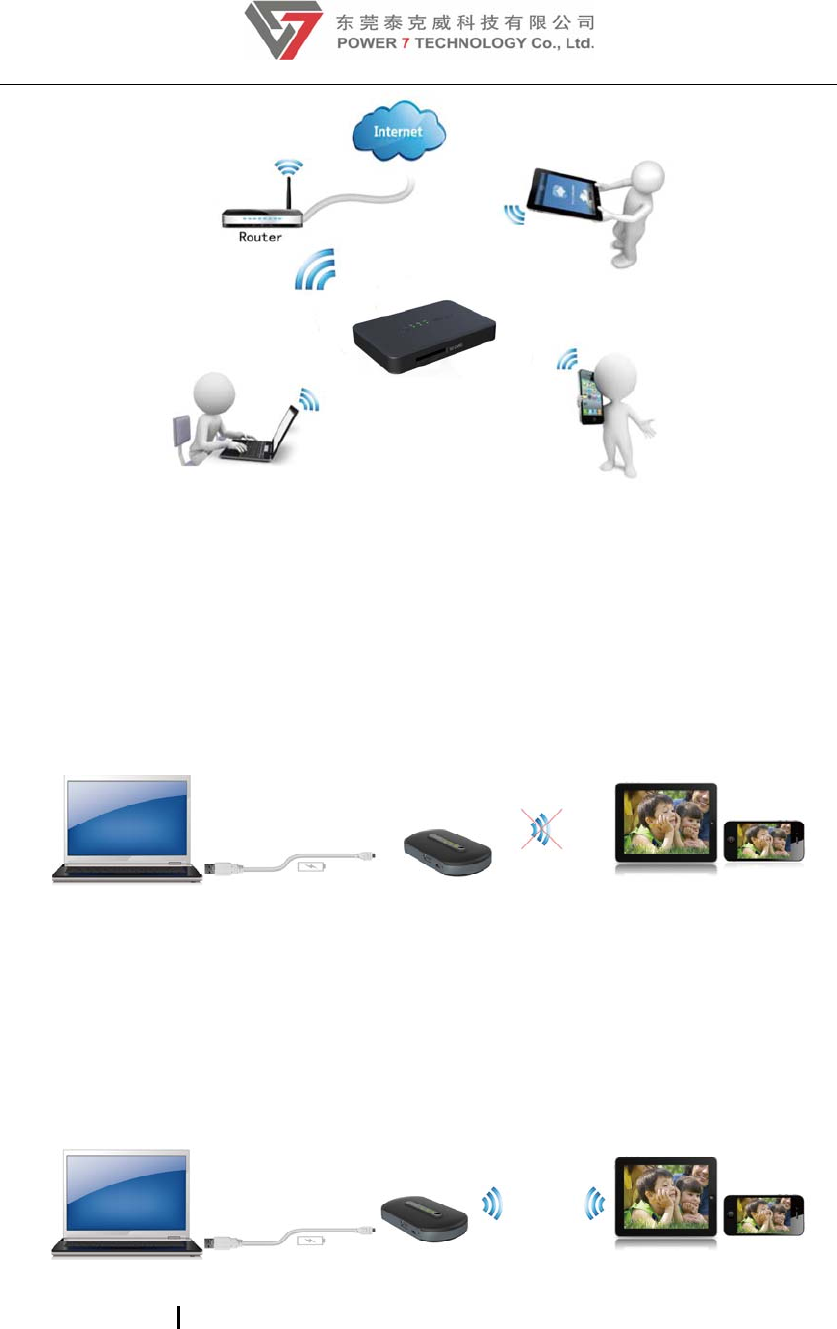

Applications
Bridge to Internet Access
Scenario 1 - If you got an existing WiFi router for Internet access
4
Wirelessly Bridge to Internet Access
Connect to the USB Port
Scenario 1 - Press power switch button off and then connect to the USB port of
notebook, PNY works solely as an SD reader with power charge to extend usage time
PNY works as a SD reader only
Scenario 2 - Press power switch button on and then connect to USB port of notebook,
PNY works solely as a WiFi SD or USB external HDD/Flash with power charge to extend
usage time
PNY works as a WiFi SD reader or USB external HDD
5
HardwareSpecifications
Project name PNY
Model name P-R2000-1AMKK01-RB，P-R2000-1AMKK01-FR
CPU Model Ralink RT5350
Frequency MIPS24KEc 360MHZ
Flash Model EN25Q64-104WIP
Capacity 8MByte SPI flash
SDRAM Model M12L2561616A-6TG (SDRAM)
Capacity 32MB (256Mbit)
WiFi
standard 802.11 b/g/n
Frequency 2.4GHz
Speed 72Mbps for 20MHz
150Mbps for 40MHz
Interface
Battery
LED (Green&Red)
LED light to show the battery status
right after power on:
Green: ≥30%
Red: <30%
Red LED fast flash: <10% depleting
Green LED slow flash:
Every 2 seconds for charging
Every 1.5 seconds for shutting down
WiFi LED (Blue) WiFi LED shows the system initiating
state:
Start flashing: Kernel loading in process
Stop flashing: System initiation
completes
Fast blinking: Reading or writing
Internet LED (Green) Internet LED state:
Extinguishing: No connection
Flashing: Connecting underway
Solid green: Connecting successfully
SD card slot Support SD/SDHC,SDXC up to 2TB
Power button Power on/off switch button
Reset button Factory default reset button
USB device interface Micro USB 2.0
USB host interface USB 2.0:
Support USB flash/HDD
Support 1A output current charging for
iPhone®, smartphone.
Antenna Signal strength 2.5dBi (WiFi component)
18dBm (Main chip)
6
Battery Capacity 2000mAh Li-ion Polymer battery
Charging current Max 1000mA
Power dissipation
Max power dissipation
(tested with SD read/write
without USB storage
activity)
* It will vary slightly with
different type of SD
2W
Standby power (tested
with TOSHIBA 1TB
HDD,HDD slept during
the test)
1.5W
Environmental
requirements
Operating Temperature: 5°C to 35°C
Non-Operating Temperature: 0°C to 60°C
Operating Humidity: 5% to 90% (Non-condensing)
Non-operating Humidity: 5% ~ 90 % (Non-condensing)
Product dimension 118mm (L) x 79mm (W) x 14mm (H)
Emission (EMI),
Safety & Other
Certifications
FCC Class B
CE

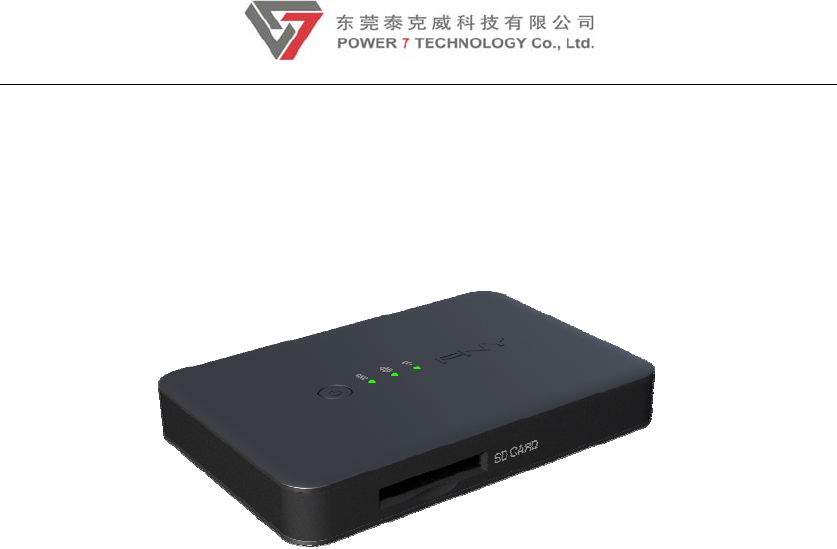

InterfaceIllustration
PNY Interface Illustration
7
SoftwareSpecifications
System setting Language selection To select your native languages
Firmware upgrade To upgrade firmware by web browser
Configuration setting To backup and retrieve system
configuration setting
Factory default
setting restore
To restore default system setting
originated in factory production
File system FAT16/FAT32 A) Support Microsoft Windows
FAT16/FAT32 file system
B) Application tools:
FAT file system inspection and repair tool
File service CIFS protocol Provide shared services to files and
printers for clients on Microsoft Windows
Network
Samba service Provide shared services to files and
printers for clients on Microsoft Windows
Network and Unix-Like Network
HTTP(S) service OS A build-in browser which support
common operation system such as
Windows, Linux, Mac® OS and smart
terminal for easy management
WebDAV protocol Makes the Web a readable and writable
medium which allow users to edit and
manage documents and files stored on
World Wide Web servers
Access control Password protection A) WiFi access control:
None
WPA
WPA2
WPA&WPA2
B) WEB access control
Password login
C) Samba access control
Password login
Default security:
A) Authentication needed with
password 11111111
B) No authentication
C) No authentication
Network
Management
WiFi setting A) WiFi login history cache
B) WiFi auto login
8
A) Available wireless networks display
side setting A) PNY IP setting
B) Subnet mask setting
C) DHCP server setting
D) Default gateway setting
E) Default DNS setting
Application software Client A) Windows XP/2003/Vista/7, Linux,
Unix, Mac®
B) Android: tablet, smartphone
C) iOS: iPad®, iPhone®
File Formats iOS Client A) Audio: Support formats of
MP3
、
AAC
、
m4a
、
wav
、
aiff
B) Video: Support formats of MP4
、
MOV
、
m4v
、
avi
C) Photo: Support formats of jpg
、
tiff
、
bmp
，
gif(image)
D) Document: Support formats of
keynote
、
numbers
、
page
、
excel
、
word
、
pdf
、
txt
、
ppt
Android Client A) Audio: Support formats of MP3 only
at present
B) Video:MP4
C) Photo: Support formats of.jpg
、
.png
D) Document: Support formats of txt
、
word
、
excel
、
ppt and pdf
9
File&SystemManagerApp
Support the keyword search function from the current folder
Support the file list/thumbnail view, support thumbnail images show and MP3 artwork
shows; Support gravity sensor switch direction
Support checkmark/delete function and support local/WiFi Storage data transmission in
between
Playing music/video/photos by iPhone®, iPad® and tablet and smartphone (JPG, mp3,
mp4, decoding ability more dependent on the system, file format depend on the player
software installed on you device,Power7 suggest to use RockPlayer/Mobo player on the
Android and Oplayer/GoodPlayer on iOS)
Support to play the photos by filmstrip mode and support background music playing
Support video drag and play
Support music artwork shows, circulation play set, drag operation
Support email to send out pictures/documents
Support network and PNY’s parameters setting
Transfer videos and photos from and to the iPhone®, iPad® to PNY
SystemRequirements
iPhone®, iPad®, smartphone, tablet or computer with Wi-Fi connectivity (802.11 b/g/n)
Mac® or PC computer running Windows 7, Windows Vista, Windows XP or Mac OS X
10.6.0 or later operating system for loading media on to PNY via USB
ClientTools
Computer Client Tool
Auto search and access the PNY on WLAN
Supports Windows XP/2003Vista/7 and Mac® iOS operation system
Mobile Application Tool
Supports iOS (iPhone® and iPad®) and Android (smartphone and tablet)
Stream audios and videos and view photos from the PNY
10
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment .This equipment should be installed and operated
with minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
