user guide
PowerKiss
Wire-free
Charging
2
PowerKiss User Guide
Version 3.1 (ZM1003)
© PowerKiss 2011
3
PowerKiss
User Guide
Thank you for choosing PowerKiss. PowerKiss technology
provides a simple, efficient and user-friendly way to keep
your dear devices charged.
With PowerKiss, you represent state-of-the-art technology
and design. Imagine getting rid of low batteries and the
annoying, tangled wires from tabletops at the same time!
Step into the future with us.
Maija Itkonen, CEO of PowerKiss
Yours,
4
Contents
PowerKiss wire-free charging 5
Ring 5
Heart 5
How to use PowerKiss wire-free charging 6
STEP I: ATTACH THE RING 6
STEP II: PLACE RING ON THE HOTSPOT 7
STEP III: RED MEANS CHARGING 8
How to choose the right Ring for your device 9
Ring and Hotspot indication lights 10
Troubleshooting 11
1. My device does not start to charge 11
2. My device stops charging 13
Useful things to know 15
Safety instructions 16
1. Safety distances 16
2. General usage instructions 17
3. General safety instructions 18
Technical Specifications 19
The Ring 19
The Heart 19
Official power supplies 19
Regulatory Compliance Information 20
FCC Compliance Statement 20
EU declaration of conformity 21
Limited manufacturer's warranty 22
Correct disposal of this product 23
5

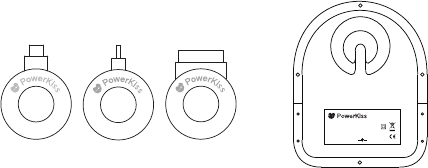

PowerKiss wire-free charging
The essence of wire-free charging is the pairing of Heart
and Ring. The Heart is the transmitter and the Ring is the
receiver and together they enable wire-free charging on
almost any surface.
Ring
The Ring is a small accessory that is plugged into handheld
devices, such as mobile phones or mp3-players. As soon as
the Ring is plugged in, the device is ready to be a part of a
wire-free energy transaction.
Heart
To turn a surface into a wire-free charging platform it first
needs to be given a Heart. Like most, this Heart is also
hidden except for a small LED light to indicate that it is
ready to charge a mobile device wearing a Ring. The LED is
also the center point of the charging area, called PowerKiss
Hotspot. Whenever the device with Ring is on this Hotspot,
the wire-free charging begins.
I.T.E.
Wire-free Charging Transmitter
Inp ut: 12 ± 0.2 V DC / 1 .0 A / 12 W
Ind oor use only
Version: 2.1 S/N : A0 0500
Heart
+
-
FCC ID: ZMI-WCT12W
Use only with power supplies listed in the manual
6
How to use PowerKiss wire-free charging

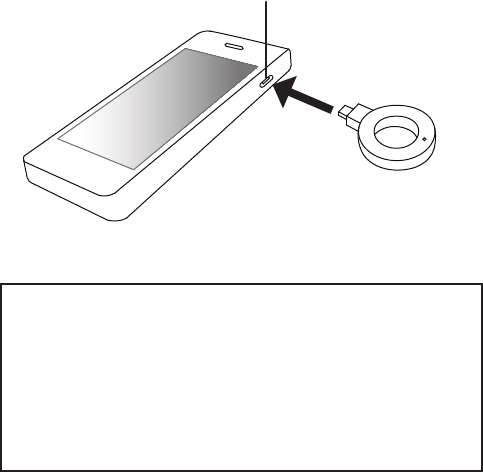

STEP I: ATTACH THE RING
Connect the Ring to your electronic device through the
charger connector port.
Ring
• There are different Rings, please confirm that you are
using the right model-specific Ring
• Please confirm that the port you are using for charging
is power-enabled, some USB ports do not transfer
power
• The devices without a PowerKiss Ring will not charge
on the charging area
charger
port
7
How to use PowerKiss wire-free charging

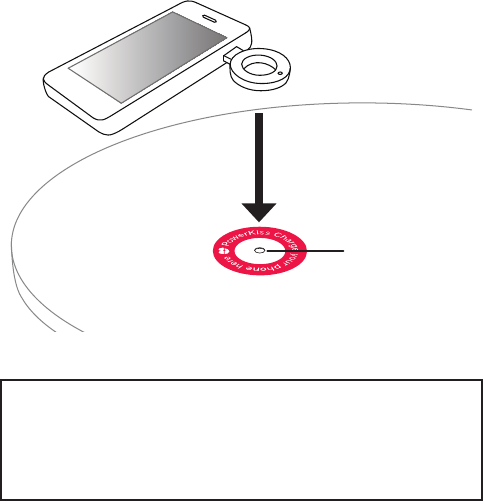

STEP II: PLACE RING ON THE HOTSPOT
Place your device down on the charging area so that the
Ring is inside the PowerKiss Hotspot. The indication light of
the Hotspot should be visible through the hole of the Ring.
PowerKiss
Hotspot
• The indication light of the Hotspot should be white
before placing the device to charge, if not, please wait
for a few seconds for the light to change
• The installations of PowerKiss system might vary
white
light
8
How to use PowerKiss wire-free charging

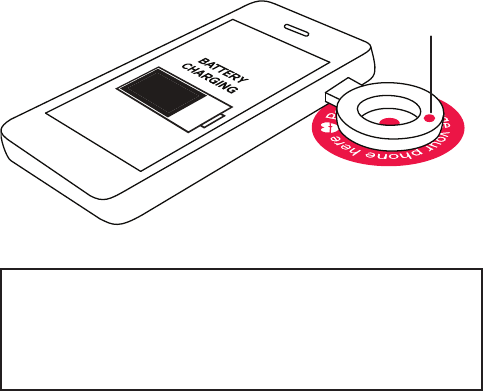

STEP III: RED MEANS CHARGING
As the Heart inside the furniture recognizes the Ring, the
Hotspot’s indication light turns from white to red. The
charging starts as a red light appears also on the Ring.
When the battery is detected to be full, the charging ends.
In this situation, the indication light on the Hotspot turns to
green and the light on the Ring goes out. In some cases
the light remains red if the device is drawing maintenance
power.
The red light on the Ring indicates ongoing charging
and the red indication light on the charging area
indicates that the Ring has been recognized by the
Hotspot (placed correctly)
red light
9

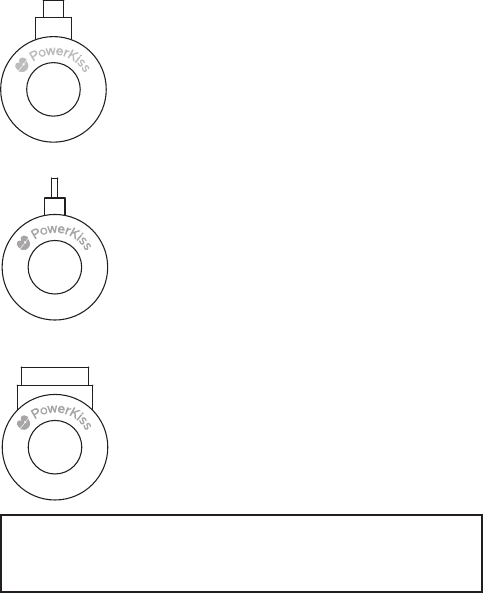

How to choose the right Ring for your device
MicroUSB Ring
• High variety of devices using micro USB
connector for charging (mostly smart
phones), such as Nokia, Samsung, LG,
Sony Ericsson, HTC, BlackBerry and many
others
• Please confirm that the USB port you are
using for the charging is power-enabled,
some USB ports do not transfer power
Nokia Ring
• High variety of Nokia phones with
proprietary Nokia power connector
iRing
• Proprietary Ring for Apple devices with
Apple connector, such as iPhones & iPods
Check powerkiss.com for the latest information about
compatible devices
10
Ring and Hotspot indication lights
Charging area
ready for use
Ring placed correctly
on charging area, wait
for red light to light
on the Ring as a sign
of charging
Device charging
Meaning
Charging interrupted
Charging complete
Hotspot
White light
Red light
Red light
Yellow light
Green light
Ring
No light
Red light
Red light or
no light
No light
No light
11
The device is not aligned
properly, please follow
the instructions in section
How to use PowerKiss
wire-free charging
Ring placed correctly on
charging area, wait for red
light to light on the Ring
as a sign of charging
Check the device, if the
battery is full, the charg-
ing will not start. Please,
remove the device from
the Hotspot
ActionHotspot
White light
Red light
Yellow light
(1)
Ring
No light
No light
No light
Troubleshooting
1. My device does not start to charge
Please, check the indicator lights on Ring and Hotspot
Hotspot is not active,
please, check that the
Heart in the table is
plugged correctly into a
power supply
No light No light
12
Check your device, if the
battery is NOT full and you
have inserted the right
model-specific Ring into
your device, an interruption
in the charging has occured.
Please, remove the device
from the Hotspot, wait for
the white light to appear
and re-align the device as
instructed in section How
to use PowerKiss wire-free
charging
Yellow light
(3)
No light
Action
Hotspot Ring
Check your device, if the
battery is NOT full, please
confirm that you have
inserted the right model-
specific Ring to your
device, as instructed in the
section How to choose the
right Ring for your device
Yellow light
(2)
No light
• If the problem persists, try to re-boot your device as
instructed by the manufacturer of your device
• If your device’s battery is completely dead and not
been used for a long period of time, there is a possibility
that it should be charged with its regular charger for
initial charge
13
An interruption in the
charging has occured.
Please, remove the device
from the Hotspot, wait for
white light to appear and
re-align the device as
instructed in section How
to use PowerKiss wire-
free charging
Action
Hotspot
Yellow light
Ring
No light
Troubleshooting
2. My device stops charging
Please, check the indicator lights on Ring and Hotspot
Check your device, if
the battery is full, please,
remove the device from
the Hotspot
Green light Red light /
No light
Check your device, if
the battery is NOT full,
please, remove the
device from the Hotspot.
Wait for white light to
appear on the Hotspot
and re-align the device
as instructed in section
How to use PowerKiss
wire-free charging
Green light No light
14
• In some cases, the device’s internal features may have
an effect on the wire-free charging, thus causing breaks
in the charging. These features are dependent on the
usage rate and age of the particular device
• If you have constant challenges with a particular device
that should be supported by the PowerKiss system,
please, contact support@powerkiss.com
15
Useful things to know
• You may choose to charge more than one device at the
same time on the same Hotspot. This is possible but affects
the charging rate of the devices
• The electromagnetic fields emitted by PowerKiss wire-free
charging do not alter or damage the information written on
magnetic stripes of credit or similar cards
• To ensure proper charging, the Ring should not be higher
than 10mm above the charging area (from surface of the
furniture to bottom of the Ring) during the charging process
• The rate of charging may vary and is dependent on the
individual features of the device and its battery, such as rate
of usage and age. To speed up the charging process, please
switch off all other applications on the device that might
require power to operate, such as Wi-Fi search, Bluetooth
and active display
• Confirm that there are no metal objects or objects
containing highly magnetic parts on the charging area at
any time, they disturbe the power transaction and might
affect the operations of the PowerKiss system and the
device being charged
• The device can be used normally during the charging
process, with some limitations on applications that rely
heavily on radio or magnetic frequencies
16
Safety instructions
1. Safety distances
• Maintain at least 25cm vertical and 20cm horizontal
separation between PowerKiss wire-free charging area and
user’s body when using the wire-free charging
• Keep medical appliances, such as pacemakers, hearing
aids or other such devices, at least 30cm away from the
charging area at any times
• Keep metal objects or objects containing highly magnetic
parts at least 15cm away from the charging area at any
times
When using an electrical device, basic
precautions should always be followed,
including the following instructions
17
2. General usage instructions
• Use PowerKiss products only as instructed in official
PowerKiss manuals
• Use PowerKiss Hearts only with official power supplies and
only as instructed in technical specifications
• PowerKiss system emits electromagnetic fields that may
interfere in some situations with applications and external
accessories using highly sensitive magnetic or radio
frequency transmitters. If you confront problems using
these applications during wire-free charging, please, take
the device from the charging area for the time of the use
• It is normal for the Ring to become warm during the
charging process, use caution when handling the Ring
immediately after or during the charging process
• Do not use PowerKiss wire-free charging for charging
damaged or otherwise altered devices
• Do not use damaged or otherwise altered PowerKiss
products
• Close supervision is necessary when PowerKiss devices
are used by or near children or disabled persons
18
3. General safety instructions
• Do not disassemble or alter in any ways PowerKiss devices
due to a risk of electric shock
• Do not put any stickers or other additional labels or
accessories on the Ring
• Do not place the Ring into water or temperature above
40°C
• Your PowerKiss Heart emits electromagnetic fields that
may interfere with unshielded or improperly shielded
electronic equipment, such as pacemakers, hearing aids,
medical devices, and other electronic devices if they are
within 30cm from the charging area. If you have any reason
to suspect that your PowerKiss Heart is interfering with
another device, unplug the PowerKiss Heart from the power
source immediately and contact the manufacturer of the
other device for further guidance
• PowerKiss devices are complex electronic devices—
protect them from impacts and rough handling to avoid
serious damage
19
Technical Specifications
The Heart
Dimensions (LxWxH):
• 163mm x 132mm x 24mm
Power consumption:
• Charging 12W (max)
• Standby 240mW
Charging area/Hotspot size:
• Width 60mm
• Height 15mm
The Ring
Dimensions (LxWxH):
• 43-46mm x 34mm x 7.5mm
Power output:
• 5W (max)
Compatibility:
• Nokia 2mm
• Apple
• MicroUSB
Official power supplies
Use only power supplies listed below with Hearts.
With one Heart (single):
• RS SAW18-12.0-1500 (only within CE or FCC certified areas)
or
• PhiHong PSM36W-120TW (only within areas where CB certification or
FCC is required)
With two Hearts (double, power divided):
• Mascot 2720 0000 40 (only within CE certified area)
or
• PhiHong PSM36W-120TW (only within areas where CB or FCC
certification is required)
20
Regulatory Compliance Information
FCC Compliance Statement (United States) - FCC Class
B Part 15
This device complies with Part 15 of the Federal Communications
Commission (FCC) Rules. Operation is subject to the following
two conditions:
• This device may not cause harmful interference
• This device must accept any interference received, including
interference that may cause undesired operation. See
instructions below if radio or television interference is suspected.
FCC Compliance Notice
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the manufacturer’s instructions,
may cause interference harmful to radio or television
reception or radio communication.
There is no guarantee, however, that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception
or radio communication, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna until the
21
interference stops.
• Increase the separation between the equipment and the
receiver.
• Connect the equipment an outlet that is on a different
circuit from the receiver.
• Consult the dealer or an experienced radio or TV
technician for help.
CAUTION: Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment.
EU declaration of conformity
Powerkiss Ltd hereby declares that the products PowerKiss
Ring (model 11RXX) and PowerKiss Heart (model 2.1) have been
designed and manufactured in accordance with the following
standards: EN 61000-6-3 (incl. EN 55022), EN 61000-3-2, EN
61000-6-1(incl. EN 61000-4-2, EN 61000-4-3, EN 61000-4-
4, EN 61000-4-5), IEC 61000-4-6, EN 61000-4-11, EN 62233
and EN 60950, and conforms to: EMC Directive 2004/108/EC,
Health and safety Directive 2004/40/EC, Low Voltage Directive
“LVD” 2006/95/EC, Hazardous substances “RoHS” Directive
2002/95/EC, Waste Electrical and Electronic Equipment Directive
2002/96/EC, CE marking Directive 93/68/EEC, Eco-design
Directive 2005/32/EC
Betonimiehenkuja 5
FIN-02150 ESPOO
Finland
23.07.2010 Maija Itkonen, CEO
22
Limited manufacturer's warranty for PowerKiss devices
This Limited Manufacturer's Warranty for PowerKiss devices sold in the European Union,
Iceland, Norway, Switzerland, and Turkey is valid as of October, 2011
MANUFACTURER'S LIMITED WARRANTY
NOTE! This Limited Warranty does not affect your legal (statutory) rights under your applicable
national laws relating to the sale of consumer products.
PowerKiss Ltd provides this Limited Warranty to you who have purchased the PowerKiss
product(s) included in the sales package ("Product").
PowerKiss Ltd sells its products with the intent that they are free of defects in manufacture and
workmanship for twelve (12) months from the date of original purchase by the first end-user.
PowerKiss warrants that its products will be free of defects in material and workmanship under
normal use and service defined in user guide. This warranty extends only to consumers and
does not extend to Retailers.
This warranty does not cover normal tear and wear, damage caused by misuse or abuse;
accident; indirect accident; the attachment of any unauthorized accessory; usage otherwise
than intended to be used; alteration to the product; improper installation; unauthorized service,
repairs or modifications; improper use of electrical/power supply; loss of power; dropped
product; malfunction or damage of an operating part from failure to provide manufacturer’s
recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental
out of specs conditions ; loss of use during the period the product is at a repair facility or
otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the
control of PowerKiss Ltd
This Limited Warranty is only valid and enforceable in the country where you have purchased
the Product provided that PowerKiss has intended the Product for sale in that country.
However, if you have purchased the Product in a member state of the European Union, Iceland,
Norway, Switzerland or Turkey and PowerKiss originally intended the Product for sale in one
of these countries, this Limited Warranty is valid and enforceable in all of these above listed
countries.
How to get warranty service
If you wish to make a claim under this Limited Warranty, please return your Product to
PowerKiss Ltd
When making a claim under this Limited Warranty you will be required to provide:
a) the Product
b) the original proof of purchase, which clearly indicates the name and address of the seller, the
date and place of purchase, the product type and serial number, when applicable.
Other important notices
All parts of the Product or other equipment that PowerKiss has replaced shall become the
property of PowerKiss. If the Product is found not to be covered by the terms and conditions of
this Limited Warranty, PowerKiss reserve the right to charge a handling fee
23
Correct disposal of this product
Waste Electrical & Electronic Equipment, applicable in the European Union and
other European countries with separate collection systems.
This marking on the product, accessories or literature indicates that the product
and its electronic accessories (e.g. power cables and adapters) should not be
disposed of with other household waste at the end of their working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other
commercial wastes for disposal. This EEE is compliant with RoHS. The package of the product
is recyclable.
Limitation of PowerKiss’s liability
This Limited Warranty is your sole and exclusive remedy against PowerKiss and PowerKiss’s
sole and exclusive liability in respect of defects in your Product. This Limited Warranty replaces
all other PowerKiss warranties and liabilities, whether oral, written, (non-mandatory) statutory,
contractual, in tort or otherwise, including, without limitation, and where permitted by applicable
law, any implied conditions, warranties or other terms as to satisfactory quality or fitness for
purpose. However, this Limited Warranty shall neither exclude nor limit
i) any of your legal (statutory) rights under the applicable national laws or ii) any of your rights
against the seller of the Product.
To the extent permitted by applicable law(s) PowerKiss does not assume any liability for loss of
or damage to or , for any loss of profit, loss of use of Products or functionality, loss of business,
loss of contracts, loss of revenues or loss of anticipated savings, increased costs or expenses or
for any indirect loss or damage, consequential loss or damage or special loss or damage.
To the extent permitted by applicable law, PowerKiss´s liability shall be limited to the purchase
value of the Product. The above limitations shall not apply in case of gross negligence or
intentional misconduct of PowerKiss or in case of death or personal injury resulting from
PowerKiss´s proven negligence.
www.powerkiss.com
info@powerkiss.com© PowerKiss 2011
