12-17 0070245

Pramac America, LLC

P.O. Box 6001 Kearney, NE 68848

1-800-445-1805

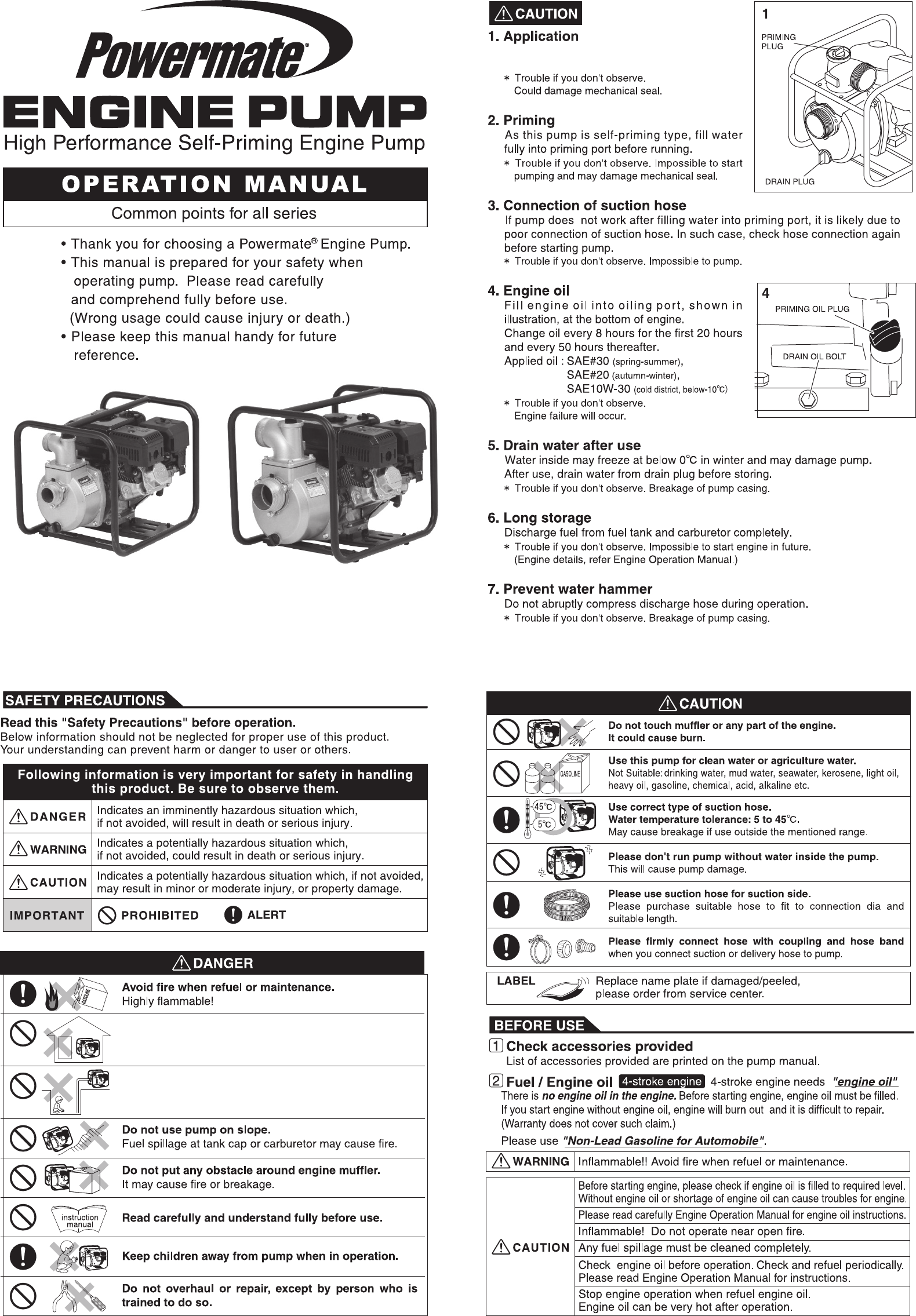

Do not operate pump inside a room or under bad

ventilation condition. Harmful substances are in

exhaust gas. There is a danger of gas poisoning

In case of operating pump in a well or in a hollow, the

person operating the pump must not enter the small

space as there is danger of gas poisoning

As this pump is designed for agricultural use,

do not use with muddy water

(if kept more than 30 days) may

31

85 ft. (26m)

76 mm (3")50 mm (2")

23' (7.0104)

Powermate

179cc

0.95 GAL (3.6 Liter)

Approx. 2hrs (full tank) Approx. 2hrs (full tank)

0.95 GAL (3.6 Liter)

6.0 H.P.

58 lbs (26 kg) 62 lbs (28 kg)

6.0 H.P.

179cc

Powermate

82' (25m)

158 USG/min (600L/min) 260 USG/min (984L/min)

PP0100363 PP0100365

1 PPK51100-V010110-H700 FRAME ASSY 1

2PPK90001-0612-01 Bolt M6 X 12mm 4

3PPK51014HY020120-0000 RUBBER MOUNT 4

4PPK90314-0600-33 NUT, ACORN M6 4

5 PPK90001-0850-01 Bolt M8 X 50mm 4

6PPK90327-0800-31 NUT M8 4

REF.

NO. QTYPART NO. DESCRIPTION

4PPK90005-0820-01 Bolt M8 X 20mm 7

5PPK90408-0800-01 Washer M8 11

6PPK90005-0825-01 Bolt M8 X 25mm 4

10 PPK70116-V010310-0000 SUCTION FLANGE 1

11 PPK70115-V010210-0000 CHECK VALVE 1

12 PPK70107-V010210-0000 PLUG 2

13 PPK70122-V010210-0000 O-RING, PLUG 2

14 PPK70108-V010310-0000 DELIVERY FLANGE 1

15 PPK70109-V010210-0000 GASKET, DELIVERY FLANGE 1

16 PPK70105-V010210-0000 PUMP CASING 1

17 PPK70104-V010210-0000 O-RING, VOLUTE CASING 1

18 PPK70103-V010210-0000 VOLUTE CASING 1

19 PPK90007-V010110-0000 Bolt 5/16-24 X 1.25" UNF 1

20 PPK90409-V010210-0000 WASHER 1

21 PPK70102-V010410-0000 IMPELLER 1

22 PPK90522-V010210-0000 KEY 1

23 PPK70119-V010210-0000 O-RING, PUMP CASING 1

24 PPK70125-V010210-0000 WASHER 1

25 PPK70309-V010210-0000 SEAL,PORCELAIN 1

26 PPK70300-V010210-0000 SEAL ASSY, MECHANISM 1

28 PPK70118-V010410-0000 FLANGE BRACKET 1

29 PPK90409-V010210-0000 WASHER 4

30 PPK90007-V010210-0000 Bolt 5/16-24 X 2.25" UNF 4

REF.

NO. QTY

PART NO. DESCRIPTION

PP0100363 PUMP PARTS

31 Note A Powermate 179cc Engine 1

One (1) year from the date of purchase on products used for consumer,

business or commercial applications.

7

authorized service representative to be defective in material or workmanship. This warranty covers

to state. Some states do not allow a disclaimer or implied warranties, or the exclusion or limitation of

1 PPK51100-V010110-H700 FRAME ASSY 1

2PPK90001-0612-01 Bolt M6 X 12mm 4

3 PPK51014HY020120-0000 RUBBER MOUNT 4

4PPK90314-0600-33 Nut, Acorn M6 4

5 PPK90001-0850-01 Bolt M8 X 50mm 4

6PPK90327-0800-31 Nut M8 4

REF.

NO. QTYPART NO. DESCRIPTION

4PPK90005-1025-01 Bolt M10 X 25 mm 7

5PPK90408-1000-01 WASHER M10 11

6PPK90005-1025-01 Bolt M10 X 25mm 4

10 PPK70116-V020310-0000 SUCTION FLANGE 1

11 PPK70115-V020210-0000 CHECK VALVE 1

12 PPK70107-V010210-0000 PLUG 2

13 PPK70122-V010210-0000 O-RING, PLUG 2

14 PPK70108-V020310-0000 DELIVERY FLANGE 1

15 PPK70109-V020210-0000 GASKET, DELIVERY FLANGE 1

16 PPK70105-V020210-0000 PUMP CASING 1

17 PPK70104-V020210-0000 O-RING, VOLUTE CASING 1

18 PPK70103-V020210-0000 VOLUTE CASING 1

19 PPK90007-V010110-0000 Bolt 5/16-24 X 1.25" UNF 1

20 PPK90409-V010210-0000 WASHER 1

21 PPK70102-V020410-0000 IMPELLER 1

22 PPK90522-V010210-0000 KEY 1

23 PPK70119-V020210-0000 O-RING, PUMP CASING 1

24 PPK70125-V010210-0000 WASHER 1

25 PPK70309-V010210-0000 SEAL,PORCELAIN 1

26 PPK70300-V010210-0000 SEAL ASSY, MECHANISM 1

28 PPK70118-V020410-0000 FLANGE BRACKET 1

29 PPK90409-V010210-0000 WASHER 4

30 PPK90007-V010210-0000 Bolt 5/16-24 X 2.25" UNF 4

REF.

NO. QTY

PART NO. DESCRIPTION

31 Note A Powermate 179cc Engine 1

PP0100365 PUMP PARTS
