User Manual
All Versions
USB
SMART SURGE
PROTECTOR
© Copyright 2010
The information contained herein is subject to change without notice.
This document contains proprietary information, which is protected by copyright.
No part of this document may be photocopied, reproduced,
or translated into another language without the prior written consent.
January 2010
R9P-503
R9P-805
TABLE OF CONTENTS
INTRODUCTION------------------------------------------------------------- 2
FEATURES------------------------------------------------------------------3
INSTALLATION------------------------------------------------------------- 4
USB TRANSMITTER WIRELESS RANGE------------------------------------- 4
WALL MOUNTING---------------------------------------------------------- 4
HOOKUP INSTRUCTION---------------------------------------------------- 4
OPERATION---------------------------------------------------------------- 8
USE USB TRANSMITTER TO CONTROL ENERGY SAVER OUTLETS---------- 8
SURGE PROTECTOR MANUAL ON/OFF AND LEARNING BUTTON----------- 9
SPECIFICATIONS------------------------------------------------------------11
INTRODUCTION
Thank you for purchasing the USB Smart Surge Protector, an innovative product
which is designed to reduce both stand-by power waste & energy cost.
Stand-by power has always been around us. Many consumers often think their
appliance is off. In fact, it is still standing by and still consuming power.
Inspired by Green, the USB Smart Surge System provides easy & efficient way to
manage power outlets and stop stand-by power waste.

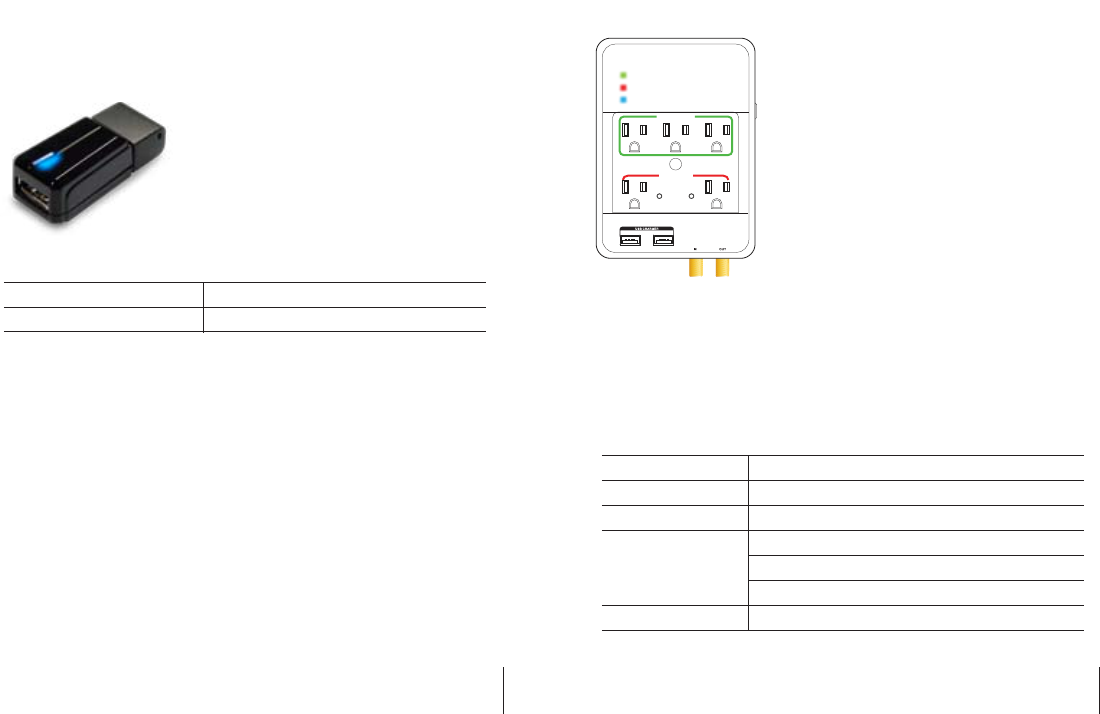

The System consists of two parts, USB Transmitter and Surge Protector.
When USB Transmitter is connected to device’s USB port, it detects power in the
USB port and wirelessly controls the “ENERGY SAVER outlets” on the Surge
Protector accordingly.
These conditions are when you turn on the device; USB Transmitter will wirelessly
turn on the “ENERGY SAVER outlets” on the Surge Protector.
When you turn off the device; USB Transmitter will wirelessly turn off the
“ENERGY SAVER outlets” on the Surge Protector. As a result, the stand-by power
waste is efficiently reduced.
The Surge Protector also provides advanced surge protection & power filtration to
protect your electronic equipments from power surges & voltage spikes. And
power filtration cleans the AC contamination and improves the performance of
connected electronic equipments.
The USB Smart Surge Protector makes a great companion for everyday energy
conservation and surge protection
USB Smart Surge Manual All Versions V1.0
1
USB Smart Surge Manual All Versions V1.0
2
FEATURES
USB TRANSMITTER
Bypass USB Transmitter Design
- Unique Bypass USB Port design frees up the USB port for other USB devices.
- Great feature if your main device does not have enough USB ports.
Learning and Grouping capability
- One USB Transmitter can group with multi Surge Protectors by learning
capability.
- Enjoy the convenience that one USB Transmitter can control multi Surge
Protectors within its wireless range.
SURGE PROTECTOR
Controlled by the USB Transmitter, the ENERGY SAVER outlets on the Surge
Protector automatically switch On or Off to eliminate unnecessary energy
waste.
Advanced Surge Protection protects your electronic equipments from surges
and voltage spikes.
EMI/RFI Noise Filtration eliminates the interference and improves the
performance of your electronic equipments.
INSTALLATION
USB TRANSMITTER WIRELESS RANGE
In open space, the USB Transmitter has a wireless range up to 25 feet* to control
the Surge Protector.
* Actual range may vary depending on environment condition, interference and
building materials.
WALL MOUNTING
Mounting the Surge Protector
Note: Wall Mounting is available only on Strip and the Block type Surge Protector.
1. There are mounting holes on the back of the Surge Protector for wall or base
board mounting.
2. Install screws (not included) on wall or baseboard surface (leaving at least 1/4
inch of the screw exposed).
3. Place and secure the Surge Protector on mounted screws.
CONNECTING INSTRUCTION
Before you start, take a few minutes to understand the conditions for the USB
Transmitter to work correctly.
Few devices will always have power in its USB port regardless the on/off status of
the devices. This is due to convenience reason that the user can still use the USB
port with other handheld devices. In this case, the devices usually have higher
stand-by power since the USB port always draws power from the devices.
USB Smart Surge Manual All Versions V1.0
3
USB Smart Surge Manual All Versions V1.0
4
Since the USB Transmitter detects the power on/off status in device USB port to
correctly control the ENERGY SAVER outlets on the Surge Protector, the USB
Transmitter will not work with device that always has power in its USB port when
it is completely turned off.
The USB Transmitter is a great tool to check if your device USB port continues to
draw power while it’s turned off.
While your device is off, connect the USB Transmitter to one of its USB port. If the
blue LED light illuminates, this indicates there is still power in the USB port when
the device is off. Locate and use another USB port that does not have power in it
for the USB Transmitter to correctly function.
Step 1
Connect electronic devices to the “ENERGY SAVER” outlets
“ENERGY SAVER OUTLETS”
These outlets are for devices which do not need to be on all the time and can be
completely turned off when not in use. These outlets are automatically switched
On and Off by the wireless USB Transmitter for energy conservation purpose
The ideal electronic devices for “ENERGY SAVER OUTLETS” are listed below
Step 2
Connect electronic devices to the “ALWAYS ON” outlets
ALWAYS ON OUTLETS”
These outlets are not switchable and provide continuous power for devices which
always need to be stay on at all time.
Device which is hard drive-base or used for recording or schedule recording
purpose should be connected to ALWAYS ON outlets.
The ideal electronic devices for “ALWAYS ON OUTLETS” are listed below
Step 3
Connect the main device to power source then connect the USB Transmitter to
the main device’s USB port

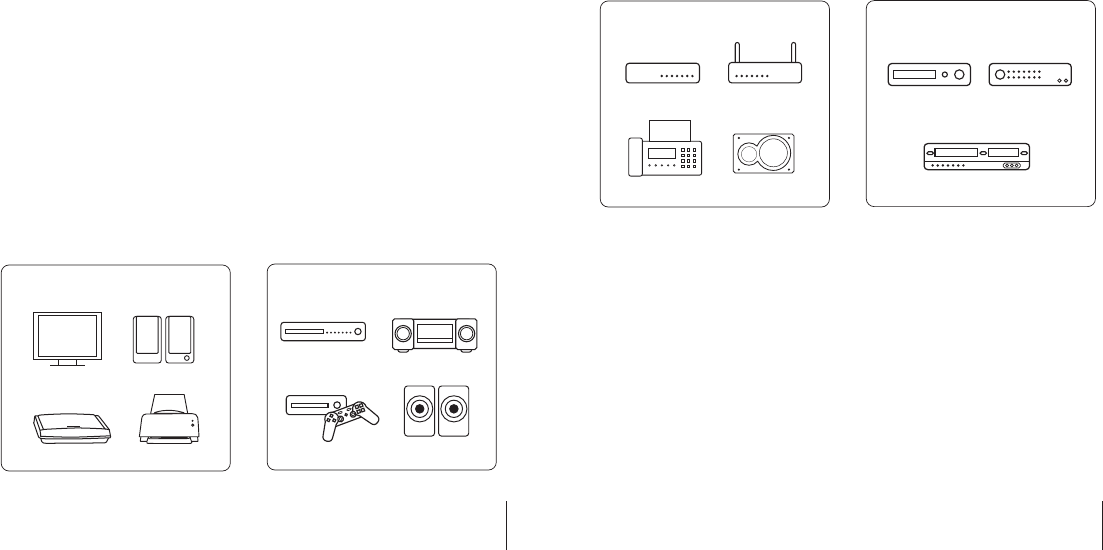

The ideal electronic devices which can be used as a main device are listed below
IN HOME ENTERTAINMENT
DVD Amplifier
Game Console Subwoofer
IN HOME OFFICE
Monitor Speakers
scanner Printer
USB Smart Surge Manual All Versions V1.0
5
USB Smart Surge Manual All Versions V1.0
6
IN HOME OFFICE
Modem Wireless Router
Fax machine External Hard drive
IN HOME ENTERTAINMENT
Cable/Sat Box
DVD Recorder / VCR
DVR
“USB CHARGER PORTS”
These two USB charging ports can provide 5V, total current rating of 1.5 Amps.
Exceeding 1.5 Amps rating will trigger the overload protection and disable the
charging function. If your portable devices could not be charged, unplug the
devices from the USB charging ports, and make sure the device you are going to
charge will not exceed total 1.5 Amps.
“TELEPHONE (RJ11) PROTECTION”
Provide protection against surges on phone line.
“NETWORK JACK (RJ45) PROTECTION”
Provide protection against surges on network line.
“DSS/COAX CONNECTOR PROTECTION”
Provide protection against surges on cable, DSS, and cable modem.
OPERATION
USE USB TRANSMITTER TO CONTROL ENERGY SAVER OUTLETS
Devices such as desktop pc, laptop or LCD/LED TV with USB port are ideal to be
used as the main device.
Connect USB Transmitter to the main device USB port. The unique bypass USB
port design allows the user to connect any USB device to the bypass USB
Transmitter.

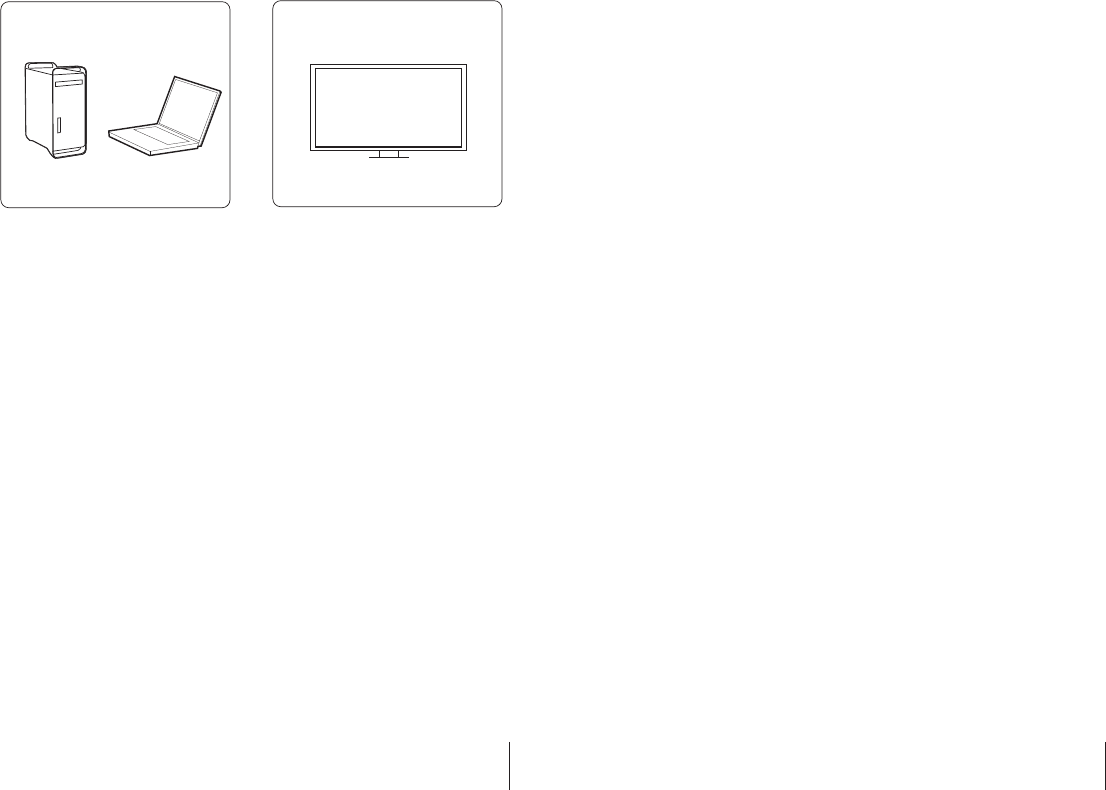

IN HOME OFFICE
Desktop PC Laptop
IN HOME ENTERTAINMENT
LCD / LED TV with USB Port
USB Smart Surge Manual All Versions V1.0
7
USB Smart Surge Manual All Versions V1.0
8
Note : The USB Transmitter can wirelessly control the surge protector within 25 ft.
Depending on user’s home setting; the main device can be connected to the
Always On Outlet” on the surge protector or any power outlet within the wireless
range.
If the user connects the main device to the Energy Saver Outlet on the surge
protector, due to the configuration of the product; the User will always need to
manually turn on the power of the Energy Saver Outlets before the main device
can be turned on.
Step 4
Plug in the power cord of the Surge Protector into the power outlet
Note: The ENERGY SAVER outlets on the surge protector are default at power off
status

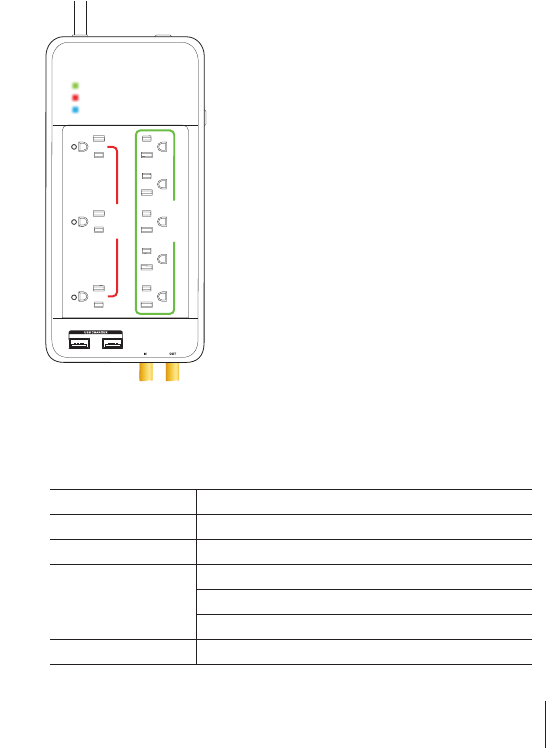

Optional* Connections on the Surge Protector
*Optional connections are only available on selected models
When you turn on the main device, USB Transmitter will sense the power in the
USB port, and wirelessly turn on the ENERGY SAVER outlets on the Surge
Protector.
When you turn off the main device, USB Transmitter will sense no power in the
USB port, and wirelessly turn off the ENERGY SAVER outlets on the Surge
Protector to eliminate stand-by power waste.
Note : When the main device is turned off, the ENERGY SAVER outlets will be
turned off after 120~180 seconds.
This is to avoid immediate power cut off of the device on ENERGY SAVER outlets
while it is still in operation, so there is still time to turn off peripheral devices
before power is cut off.
When the ENERGY SAVER ON indicator light on the surge protector flashes, this
indicates the ENERGY SAVER outlets will be turned off in about 120 seconds.
SURGE PROTECTOR MANUAL ON/OFF AND LEARNING BUTTON
Note : This button serves as Manual and Learning functions.
Manual On/Off
If you have lost your USB Transmitter, you can still manually switch on/off the
ENERGY SAVER outlets on the Surge Protector
1. Press the button once to switch on the ENERGY SAVER outlets. The ENERGY
SAVER ON indicator light will illuminate to indicate that the ENERGY SAVER
outlets are switched on.
2. Press the button once to switch off the ENERGY SAVER outlets. The ENERGY
SAVER ON indicator light will go off to indicate that the ENERGY SAVER outlets
are switched off.
LEARNING function
The USB Transmitter and the Surge Protector in the kit are pre-paired and ready
to use.
If you purchase another compatible Surge Protector, you can pair the exiting USB
Transmitter with the new purchase Surge Protector.
1. For first time pairing the USB Transmitter and the Surge Protector, locate the
surge protector close to the main device.
2. Turn on the main device before pairing the USB Transmitter and the Surge
Protector.
3. Press and hold the learning button on the Surge Protector for 5 seconds. At this
time, the ENERGY SAVER ON indicator light will go flashing.
Note: you can release the button once the indicator light goes flashing
4. When the indicator light starts to flash; within 5 seconds, connect the USB
Transmitter to the main device USB port. Once the USB Transmitter detects the
power in main device USB port, it will send wireless code to the Surge Protector.
5. If the Surge Protector has successfully learned the code from the USB
Transmitter, the ENERGY SAVER ON indicator light will go from flashing to solid
light, then go off.
6. Redo step 3~5 if learning is not successful.
USB Smart Surge Manual All Versions V1.0
9
USB Smart Surge Manual All Versions V1.0
10
SPECIFICATIONS
USB Smart Surge Manual All Versions V1.0
11
USB Smart Surge Manual All Versions V1.0
12
Wireless Bypass USB Transmitter
* Bypass USB Port
Allow user to connect any USB device to this port
* Power On Indicator Light
The blue light illuminates to indicate the
USB Transmitter is powered on
* Cover Cap for USB Transmitter
Protection cap for USB connection
Power On indicator
Wireless Range
Blue LED
Up to 25 ft (Open Space)
Electrical Rating
Surge Suppression
Clamping Voltage
Optional Secondary
Stand-by power
15A / 120V, 60Hz, 1800 Watts
1080 J
400 V
2 ports USB Charger (5V, total 1.5 Amps)
Combo Phone Line (RJ11) & Network (RJ45) Protection
DSS/COAX Connector Protection
<0.7W
USB Smart Wall Tap Type
Surge Protector
* 2 “Always-On” Outlets
Provide continuous power for connected devices
* 3 “Energy Saver” Outlets
Controlled on/off by USB Transmitter
* Protected Indicator Light
The green light illuminates to indicate the
surge protection is active
* Grounded Fault Indicator Light
The red light only illuminates to indicate that the power
outlets are not properly grounded
* Energy Saver On Indicator Light
The blue light illuminates to indicate the Energy Saver
Outlets are switched on
*Always On Indicator Light
The green light illuminates to indicate that the
Always On Outlets are active
* Manual ON/OFF and Learning Button
Press the button to power on/off the Energy Saver
Outlets or execute learning function
PROTECTED
GROUNDED FAULT
ENERGY SAVER ON
ENERGY SAVER
ALWAYS ON
USB Smart Surge Manual All Versions V1.0
13
USB Smart Block Type Surge Protector
* 3 “Always-On” Outlets
Provide continuous power for connected devices
* 5 “Energy Saver” Outlets
Controlled on/off by USB Transmitter
* Protected Indicator Light
The green light illuminates to indicate the
surge protection is active
* Grounded Fault Indicator Light
The red light only illuminates to indicate that the power
outlets are not properly grounded
* Energy Saver On Indicator Light
The blue light illuminates to indicate the Energy Saver
Outlets are switched on
*Always On Indicator Light
The green light illuminates to indicate that the Always On
Outlets are active
* Manual ON/OFF and Learning Button
Press the button to power on/off the Energy Saver Outlets
or execute learning function
* Circuit Breaker Reset Button
Reset the circuit breaker after a current overload at 15 Amps.
Disconnect all equipments before executing reset button
Electrical Rating
Surge Suppression
Clamping Voltage
Optional Secondary
Stand-by power
15A / 120V, 60Hz, 1800 Watts
2160 J
330 V
2 ports USB Charger (5V, total 1.5 Amps)
Combo Phone Line (RJ11) & Network (RJ45) Protection
DSS/COAX Connector Protection
<0.7W
ENERGY SAVER
PROTECTED
GROUNDED FAULT
ENERGY SAVER ON
ALWAYS ON
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.

Navigation menu
