Precise Biometrics MS010039 MIFARE Contactless Card & Fingerprint Reader User Manual Revised Users Manual
Precise Biometrics AB MIFARE Contactless Card & Fingerprint Reader Revised Users Manual
Contents
- 1. Additonal FCC Statement to be added
- 2. Revised Users Manual
Revised Users Manual

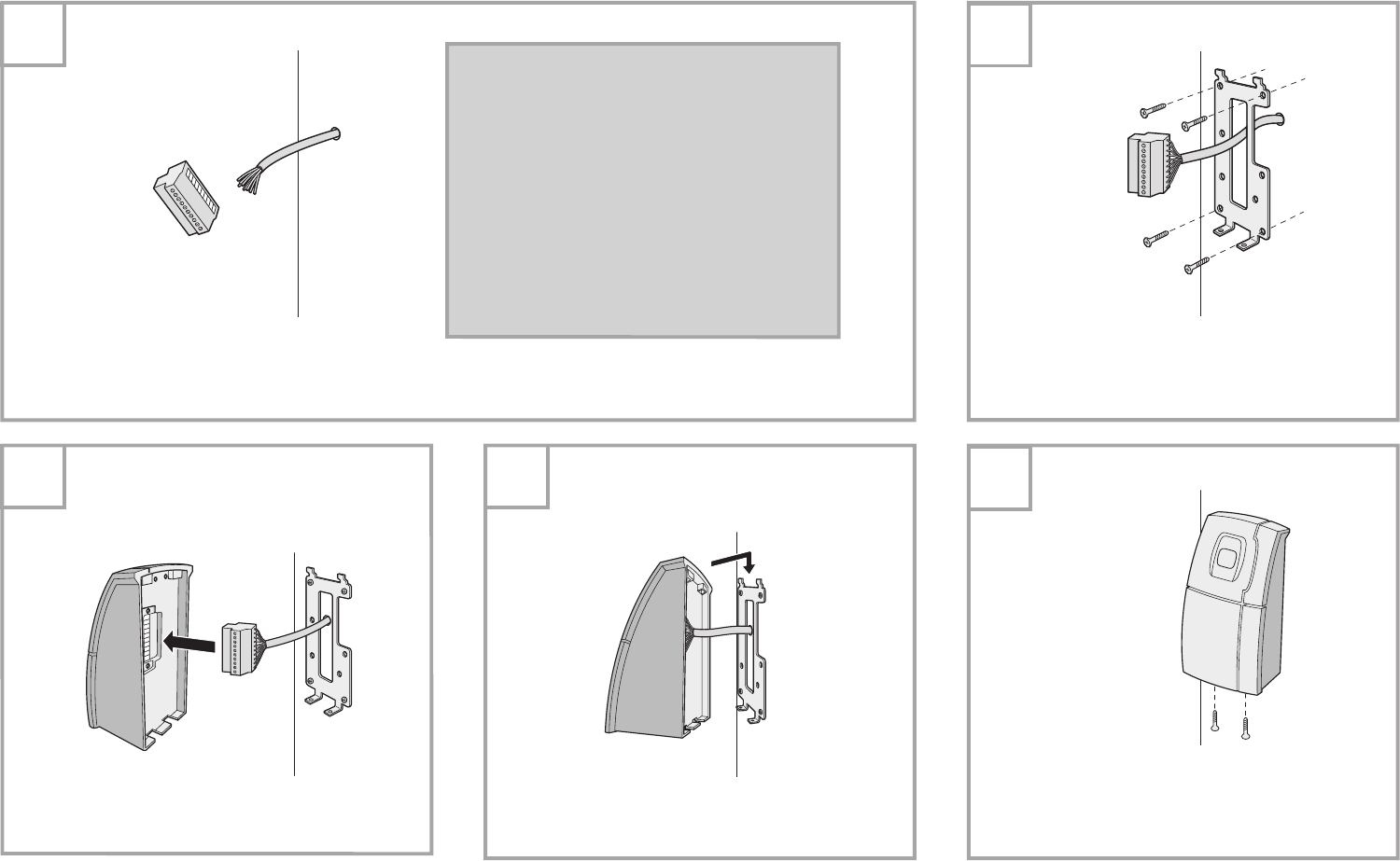

Installation of Precise BioAccess¸
2.
1.
Fasten the holder onto the wall.
Mount Precise BioAccess¸
onto the holder. Torque max 1.0 Nm.
Plug the connector.
4.
3.
1Do not connect
2DATA (magstripe) / DATA 0 (Wiegand) OUTPUT
3CLOCK (magstripe) / DATA 1 (Wiegand) OUTPUT
4CARD PRESENT OUTPUT
5 Tamper switch loop
6 Tamper switch loop
7 GROUND (power)
8* Upper red LED (5V = on) INPUT
9* Upper green LED (5V = on) INPUT
10 POWER 12-24 VDC
5.
Secure Precise BioAccess¸.
Use only screw driver Torx T10.
*See Operation mode on opposite page
access control side of the system. Recomended mounting height 1,4meter/4.6 feet.
Connect the wires using a shielded cable. The shielding must be connected to earth at the

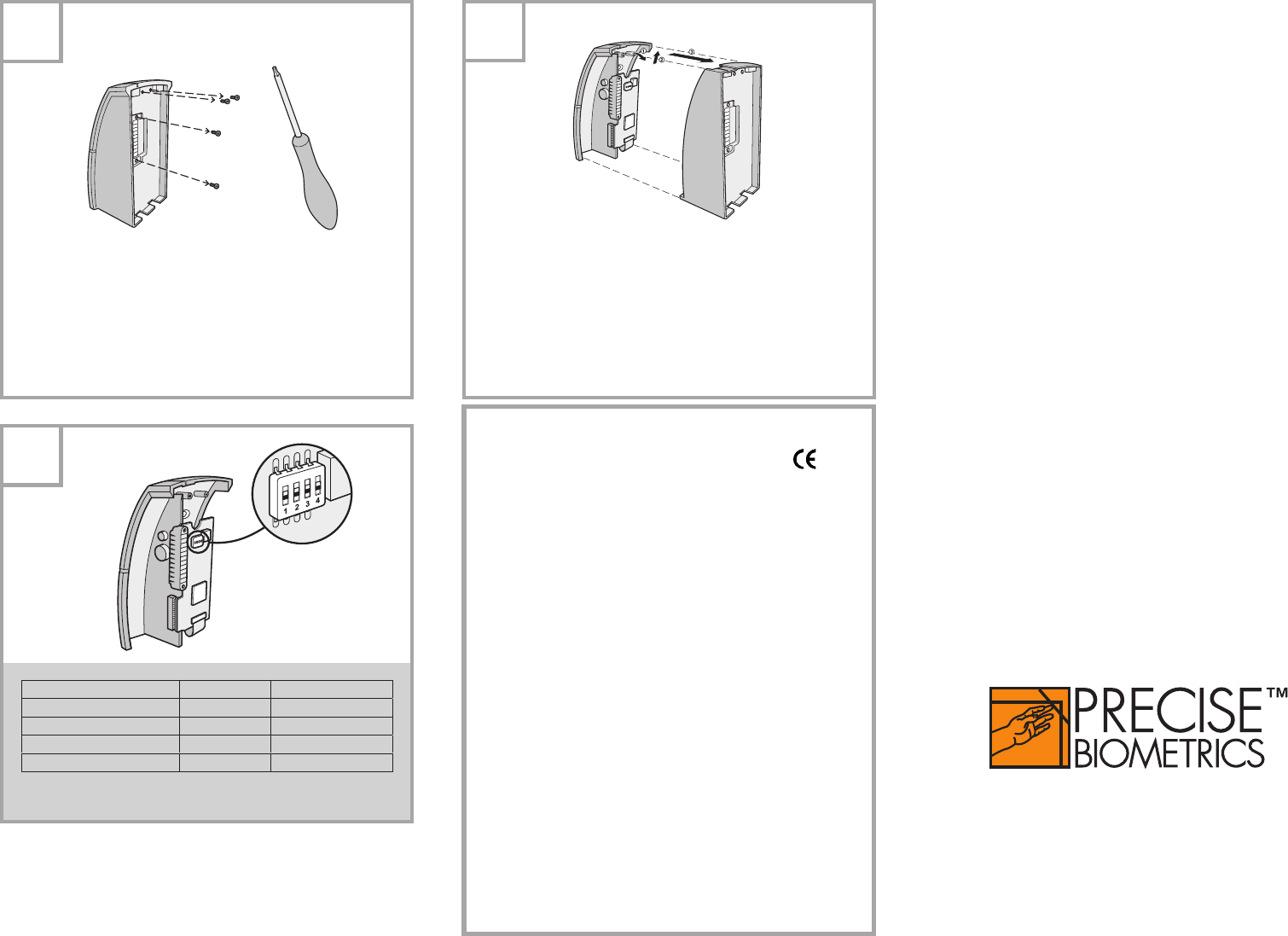

Operation mode
2.
Unscrew the four screws on the back of
Precise BioAccess¸.
1. Loosen the top.
2. Press back cover slightly upwards .
3. Pull apart.
AM010018 R1BMar. -02
Installation of
Precise BioAccess¸
Dag Hammarskjöldsväg 2, SE-224 64 Lund, Sweden.
Phone +46 46 311 100, Fax +46 46 311 101
info@precisebiometrics.com
www.precisebiometrics.com
1.
3.
,
Function ON OFF
1. Sound Inactive * Active
2. Upper LED control Active * Inactive
3. Customized card No. Enabled * Disable
4. RFU Forbidden! * Must be OFF
*) Factory settings
CE Notice (Europe)
This device meets the following technical standards as indicated by the symbol
on the device:
• EN 55022:1998 Limit B (Radiated emission)
• EN 55024:1998 (Immunity of IT-equipment)
• EN 61000-6-2:1999 (Immunity for industrial environments)
• EN 300 330-2: v.1.1.1 (06-2001) (Radio - spectrum)
• EN 301 489-01: v.1.2.1 (07-2000) (Radio - EMC)
• EN 301 489-03 (07-2000) (Radio - EMC)
FCC Information (U.S.A.)
This device has been certified to the FCC rules and regulations (CFR47 Part 15 Subpart C) for
the low power transmitter contained within this device. In addition, this device has also been
verified to comply with Class B digital device requirements as specified in the FCCrules and
regulations (CFR47 Part 15 Subpart B).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digi-
tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver
is connected
• Connect the equipment into an outlet on a circuit different from that to which the receiver
• Consult the dealer or an experienced radio/TV technician for help
CAUTION: Changes or modifications not expressly approved by the party responsible for
compliance could void the user`s authority to operate the equipment.
