90
FOR USE AS A PRE-FILTER
The 225T panels are manufactured from
two distinct 100% resin bonded polyester
media layers with a wire support frame
sealed in between the two layers.This pro-
vides a self-supportive, self sealing panel
filter which significantly decreases air
bypass when installed in the entire filter
track.
The entry layer of the 225T panel is made
from 15 denier polyester fibers lofted to a
1” depth. This single denier media pro-
vides the first stage of filtration. The
downstream side of the media is treated
with a special non-migrating tackifier which significantly increases
the filter’s efficiency. The second media layer is made from 6
denier polyester fibers heavily needled to a dense 1/4” depth. This
adds a final layer of defense against small particulate.
The progressive density media structure is what makes the 225T
panel so effective. The particles are “funneled” out of the airstream.
Large particles are captured on the outer layer and finer particles
are captured in the final layer.
225 Panel filters are available as single panels with one single wire
support covering the entire filter area, or link panels utilizing multiple
wire support pieces inside a single piece of media. Both the single
panels and the link panels are available in custom sizes.
Test Type Fractional Efficiency
Test Number T033103A
Flow Rate/Velocity 1968 cfm
Test Aerosol: KCI Neutralized
DP (”H20) 0.414
Size 24x24 panel
Initial
Size Fractional
Range (mm) Efficiency (%)
0.3-0.4 0.8
0.4-0.55 6.3
0.55-0.7 14.8
0.7-1.0 25.2
1.0-1.3 34.4
1.3-1.6 40.6
1.6-2.2 47.0
2.2-3.0 53.5
3.0-4.0 59.6
4.0-5.5 65.7
5.5-7.0 70.2
7.0-10.0 75.4
Fractional Efficiency vs. Particle Diameter
Fractional Efficiency %
100
80
60
40
20
0
Particle Diameter (µm)
0.1 1 10
225T Panel
2-Ply Polyester Panel Filter
91
225T 2-Ply Standard Single Panels
PA0286 225RT-1224 12X24 RING PANEL 225T SINGLE 24
PA0287 225RT-1520 15X20 RING PANEL 225T SINGLE 24
PA0288 225RT-1524 15X24 RING PANEL 225T SINGLE 24
PA0289 225RT-1616 16X16 RING PANEL 225T SINGLE 24
PA0290 225RT-1618 16X18 RING PANEL 225T SINGLE 24
PA0291 225RT-1620 16X20 RING PANEL 225T SINGLE 24
PA0292 225RT-1624 16X24 RING PANEL 225T SINGLE 24
PA0293 225RT-1625 16X25 RING PANEL 225T SINGLE 24
PA0294 225RT-1824 18X24 RING PANEL 225T SINGLE 24
PA0295 225RT-2020 20X20 RING PANEL 225T SINGLE 24
PA0296 225RT-2020-20 20X20 RING PANEL 225T SINGLE 20
PA0297 225RT-2024 20X24 RING PANEL 225T SINGLE 24
PA0298 225RT-2024-20 20X24 RING PANEL 225T SINGLE 20
PA0299 225RT-2025 20X25 RING PANEL 225T SINGLE 24
PA0302 225RT-2025-16 20X25 RING PANEL 225T SINGLE 16
PA0301 225RT-2025-18 20X25 RING PANEL 225T SINGLE 18
PA0300 225RT-2025-20 20X25 RING PANEL 225T SINGLE 20
PA2927 225RT-2025CARBN 20X25 RING PANEL 225T CARBON 12
PA0303 225RT-2424 24X24 RING PANEL 225T SINGLE 24
PA0304 225RT-2424-20 24X24 RING PANEL 225T SINGLE 20
PA0305 225RT-2525 25X25 RING PANEL 225T SINGLE 24
225T 2-Ply Continous Single Panels
PA0306 225RT-1224C 12X24 225T CONTINUOUS LINK 24
PA0307 225RT-1520C 15X20 225T CONTINUOUS LINK 24
PA0308 225RT-1524C 15X24 225T CONTINUOUS LINK 24
PA0309 225RT-1616C 16X16 225T CONTINUOUS LINK 24
PA0310 225RT-1618C 16X18 225T CONTINUOUS LINK 24
PA0311 225RT-1620C 16X20 225T CONTINUOUS LINK 24
PA0312 225RT-1624C 16X24 225T CONTINUOUS LINK 24
PA0313 225RT-1625C 16X25 225T CONTINUOUS LINK 24
PA0314 225RT-1816C 18x16 225T CONTINUOUS LINK 24
PA0315 225RT-1824C 18X24 225T CONTINUOUS LINK 24
PA0316 225RT-2015C 20X15 225T CONTINUOUS LINK 24
PA0317 225RT-2016C 20X16 225T CONTINUOUS LINK 24
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
92
PA0318 225RT-2020C 20X20 225T CONTINUOUS LINK 24
PA0319 225RT-2024C 20X24 225T CONTINUOUS LINK 24
PA0320 225RT-2025C 20X25 225T CONTINUOUS LINK 24
PA0321 225RT-2412C 24X12 225T CONTINUOUS LINK 24
PA0322 225RT-2415C 24X15 225T CONTINUOUS LINK 24
PA0323 225RT-2416C 24X16 225T CONTINUOUS LINK 24
PA0324 225RT-2418C 24X18 225T CONTINUOUS LINK 24
PA0325 225RT-2420C 24X20 225T CONTINUOUS LINK 24
PA0326 225RT-2424C 24X24 225T CONTINUOUS LINK 24
PA0327 225RT-2516C 25X16 225T CONTINUOUS LINK 24
PA0328 225RT-2520C 25X20 225T CONTINUOUS LINK 24
PA0329 225RT-2525C 25X25 225T CONTINUOUS LINK 24
225T 2-Ply Custom Single Panels
PA0264 225RCST-099 0-99 CUSTOM RING PANEL 225T 12
PA0266 225RCST-199 150-199 CUSTOM RING PANEL 225T 12
PA0267 225RCST-249 200-249 CUSTOM RING PANEL 225T 12
PA0268 225RCST-299 250-299 CUSTOM RING PANEL 225T 12
PA0269 225RCST-349 300-349 CUSTOM RING PANEL 225T 12
PA0270 225RCST-399 350-399 CUSTOM RING PANEL 225T 12
PA0271 225RCST-449 400-499 CUSTOM RING PANEL 225T 12
PA0272 225RCST-499 450-499 CUSTOM RING PANEL 225T 12
PA0273 225RCST-549 500-549 CUSTOM RING PANEL 225T 12
PA0274 225RCST-599 550-599 CUSTOM RING PANEL 225T 12
PA0275 225RCST-649 600-649 CUSTOM RING PANEL 225T 12
PA0276 225RCST-699 650-699 CUSTOM RING PANEL 225T 12
PA0277 225RCST-799 700-799 CUSTOM RING PANEL 225T 12
PA0278 225RCST-899 800-899 CUSTOM RING PANEL 225T 12
PA0279 225RCST-999 900-999 CUSTOM RING PANEL 225T 12
PA0280 225RCST-1099 1000-1099 CUST RING PANEL 225T 12
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
93
PA0281 225RCST-1199 1100-1199 CUST RING PANEL 225T 12
PA0282 225RCST-1299 1200-1299 CUST RING PANEL 225T 12
PA0283 225RCST-1399 1300-1399 CUST RING PANEL 225T 12
PA0265 225RCST-149 100-149 CUSTOM RING PANEL 225T 12
225T 2-Ply Standard Link Panels
PA0284 225RCST-1499 1400-1499 CUST RING PANEL 225T 12
PA0285 225RCST-1599 1500-1599 CUST RING PANEL 225T 12
PA0145 225LT-1248-24 12X48 RING PANEL 225T LINK 12
PA0146 225LT-1272-24 12X72 RING PANEL 225T LINK 8
PA0147 225LT-1296-24 12X96 RING PANEL 225T LINK 6
PA0148 225LT-12120-24 12X120 RING PANEL 225T LINK 4
PA0149 225LT-12144-24 12X144 RING PANEL 225T LINK 4
PA0150 225LT-1540-20 15X40 RING PANEL 225T LINK 12
PA0151 225LT-1548-24 15X48 RING PANEL 225T LINK 12
PA0152 225LT-1560-20 15X60 RING PANEL 225T LINK 8
PA0153 225LT-1572-24 15X72 RING PANEL 225T LINK 8
PA0154 225LT-1580-20 15X80 RING PANEL 225T LINK 6
PA0155 225LT-1596-24 15X96 RING PANEL 225T LINK 6
PA0156 225LT-15100-20 15X100 RING PANEL 225T LINK 4
PA0157 225LT-15120-20 15X120 RING PANEL 225T LINK 4
PA0158 225LT-15120-24 15X120 RING PANEL 225T LINK 4
PA0159 225LT-15144-24 15X144 RING PANEL 225T LINK 4
PA0173 225LT-16100-20 16X100 RING PANEL 225T LINK 4
PA0160 225LT-1632-16 16X32 RING PANEL 225T LINK 12
PA0161 225LT-1636-18 16X36 RING PANEL 225T LINK 12
PA0162 225LT-1640-20 16X40 RING PANEL 225T LINK 12
PA0163 225LT-1648-24 16X48 RING PANEL 225T LINK 12
PA0164 225LT-1650-25 16X50 RING PANEL 225T LINK 12
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
94
PA0165 225LT-1654-18 16X54 RING PANEL 225T LINK 8
PA0166 225LT-1660-20 16X60 RING PANEL 225T LINK 8
PA0167 225LT-1664-16 16X64 RING PANEL 225T LINK 6
PA0168 225LT-1672-18 16X72 RING PANEL 225T LINK 6
PA0169 225LT-1672-24 16X72 RING PANEL 225T LINK 8
PA0170 225LT-1675-25 16X75 RING PANEL 225T LINK 8
PA0171 225LT-1680-20 16X80 RING PANEL 225T LINK 6
PA0172 225LT-1696-24 16X96 RING PANEL 225T LINK 6
PA0174 225LT-16100-25 16X100 RING PANEL 225T LINK 6
PA0175 225LT-16120-20 16X120 RING PANEL 225T LINK 4
PA0176 225LT-16120-24 16X120 RING PANEL 225T LINK 4
PA0177 225LT-16125-25 16X125 RING PANEL 225T LINK 4
PA0178 225LT-16140-20 16X140 RING PANEL 225T LINK 3
PA0179 225LT-16144-24 16X144 RING PANEL 225T LINK 4
PA0180 225LT-16150-25 16X150 RING PANEL 225T LINK 4
PA0181 225LT-1832-16 18X32 RING PANEL 225T LINK 12
PA0182 225LT-1848-16 18X48 RING PANEL 225T LINK 8
PA0183 225LT-1848-24 18X48 RING PANEL 225T LINK 12
PA0184 225LT-1864-16 18X64 RING PANEL 225T LINK 6
PA0185 225LT-1872-24 18X72 RING PANEL 225T LINK 6
PA0186 225LT-1880-16 18X80 RING PANEL 225T LINK 4
PA0187 225LT-1896-16 18X96 RING PANEL 225T LINK 4
PA0188 225LT-1896-24 18X96 RING PANEL 225T LINK 6
PA0189 225LT-18120-24 18X120 RING PANEL 225T LINK 4
PA0190 225LT-18144-24 18X144 RING PANEL 225T LINK 4
PA0191 225LT-2032-16 20X32 RING PANEL 225T LINK 12
PA0192 225LT-2040-20 20X40 RING PANEL 225T LINK 12
PA0193 225LT-2045-15 20X45 RING PANEL 225T LINK 8
PA0194 225LT-2048-16 20X48 RING PANEL 225T LINK 12
PA0195 225LT-2048-24 20X48 RING PANEL 225T LINK 8
PA2964 225LT8-2050-25 20X50 RING PANEL 225 LINK 8
PA0196 225LT-2050-25 20X50 RING PANEL 225T LINK 12
PA0197 225LT-2060-15 20X60 RING PANEL 225T LINK 6
PA0198 225LT-2060-20 20X60 RING PANEL 225T LINK 8
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
95
PA0199 225LT-2064-16 20X64 RING PANEL 225T LINK 6
PA0200 225LT-2072-24 20X72 RING PANEL 225T LINK 8
PA0201 225LT-2072-24-6 20X72 RING PANEL 225T LINK 6
PA0202 225LT-2075-25 20X75 RING PANEL 225T LINK 8
PA0203 225LT-2080-16 20X80 RING PANEL 225T LINK 4
PA0204 225LT-2080-20 20X80 RING PANEL 225T LINK 6
PA0205 225LT-2090-15 20X90 RING PANEL 225T LINK 4
PA0206 225LT-2096-16 20X96 RING PANEL 225T LINK 4
PA0207 225LT-2096-24 20X96 RING PANEL 225T LINK 6
PA0208 225LT-20100-20 20X100 RING PANEL 225T LINK 4
PA0209 225LT-20105-15 20X105 RING PANEL 225T LINK 3
PA0210 225LT-20112-16 20X112 RING PANEL 225T LINK 3
PA0211 225LT-20120-15 20X120 RING PANEL 225T LINK 3
PA0212 225LT-20120-20 20X120 RING PANEL 225T LINK 4
PA0213 225LT-20120-24 20X120 RING PANEL 225T LINK 4
PA0214 225LT-20125-25 20X125 RING PANEL 225T LINK 4
PA0215 225LT-20140-20 20X140 RING PANEL 225T LINK 3
PA0216 225LT-20144-24 20X144 RING PANEL 225T LINK 4
PA0217 225LT-20150-25 20X150 RING PANEL 225T LINK 4
PA0218 225LT-2430-15 24X30 RING PANEL 225T LINK 12
PA0219 225LT-2432-16 24X32 RING PANEL 225T LINK 12
PA0220 225LT-2436-12 24X36 RING PANEL 225T LINK 8
PA0221 225LT-2436-18 24X36 RING PANEL 225T LINK 12
PA0222 225LT-2440-20 24X40 RING PANEL 225T LINK 12
PA0223 225LT-2445-15 24X45 RING PANEL 225T LINK 8
PA0224 225LT-2448-16 24X48 RING PANEL 225T LINK 8
PA0225 225LT-2448-24 24X48 RING PANEL 225T LINK 12
PA0226 225LT-2454-18 24X54 RING PANEL 225T LINK 8
PA0227 225LT-2460-15 24X60 RING PANEL 225T LINK 6
PA0228 225LT-2460-20 24X60 RING PANEL 225T LINK 8
PA0229 225LT-2464-16 24X64 RING PANEL 225T LINK 6
PA0230 225LT-2472-12 24X72 RING PANEL 225T LINK 4
PA0231 225LT-2472-18 24X72 RING PANEL 225T LINK 6
PA0233 225LT-2472-24 24X72 RING PANEL 225T LINK 8
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
96

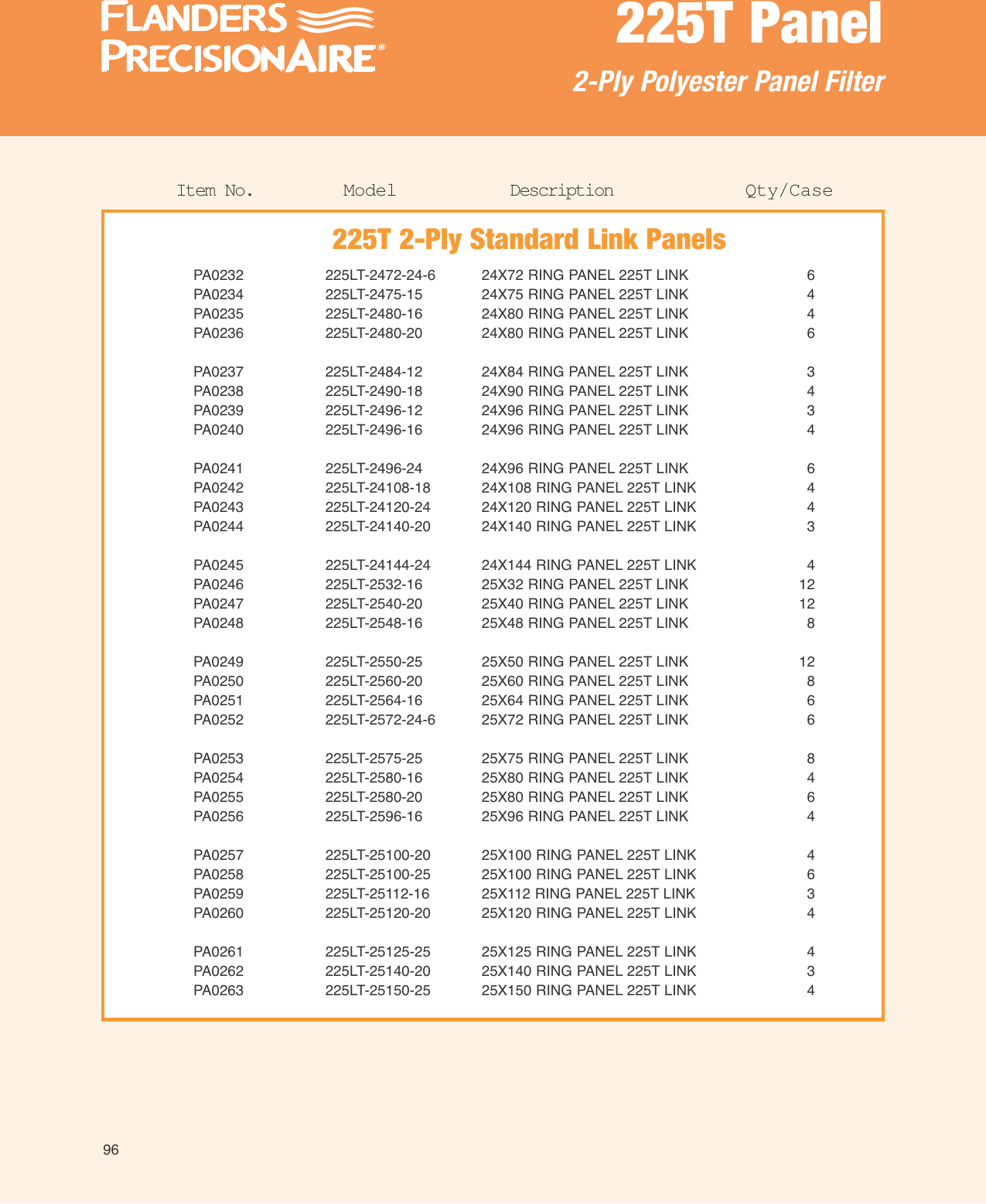

225T 2-Ply Standard Link Panels
PA0232 225LT-2472-24-6 24X72 RING PANEL 225T LINK 6
PA0234 225LT-2475-15 24X75 RING PANEL 225T LINK 4
PA0235 225LT-2480-16 24X80 RING PANEL 225T LINK 4
PA0236 225LT-2480-20 24X80 RING PANEL 225T LINK 6
PA0237 225LT-2484-12 24X84 RING PANEL 225T LINK 3
PA0238 225LT-2490-18 24X90 RING PANEL 225T LINK 4
PA0239 225LT-2496-12 24X96 RING PANEL 225T LINK 3
PA0240 225LT-2496-16 24X96 RING PANEL 225T LINK 4
PA0241 225LT-2496-24 24X96 RING PANEL 225T LINK 6
PA0242 225LT-24108-18 24X108 RING PANEL 225T LINK 4
PA0243 225LT-24120-24 24X120 RING PANEL 225T LINK 4
PA0244 225LT-24140-20 24X140 RING PANEL 225T LINK 3
PA0245 225LT-24144-24 24X144 RING PANEL 225T LINK 4
PA0246 225LT-2532-16 25X32 RING PANEL 225T LINK 12
PA0247 225LT-2540-20 25X40 RING PANEL 225T LINK 12
PA0248 225LT-2548-16 25X48 RING PANEL 225T LINK 8
PA0249 225LT-2550-25 25X50 RING PANEL 225T LINK 12
PA0250 225LT-2560-20 25X60 RING PANEL 225T LINK 8
PA0251 225LT-2564-16 25X64 RING PANEL 225T LINK 6
PA0252 225LT-2572-24-6 25X72 RING PANEL 225T LINK 6
PA0253 225LT-2575-25 25X75 RING PANEL 225T LINK 8
PA0254 225LT-2580-16 25X80 RING PANEL 225T LINK 4
PA0255 225LT-2580-20 25X80 RING PANEL 225T LINK 6
PA0256 225LT-2596-16 25X96 RING PANEL 225T LINK 4
PA0257 225LT-25100-20 25X100 RING PANEL 225T LINK 4
PA0258 225LT-25100-25 25X100 RING PANEL 225T LINK 6
PA0259 225LT-25112-16 25X112 RING PANEL 225T LINK 3
PA0260 225LT-25120-20 25X120 RING PANEL 225T LINK 4
PA0261 225LT-25125-25 25X125 RING PANEL 225T LINK 4
PA0262 225LT-25140-20 25X140 RING PANEL 225T LINK 3
PA0263 225LT-25150-25 25X150 RING PANEL 225T LINK 4
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
97
225T 2-Ply Custom Link Panels
PA0105 225LCST-099 CUSTOM 225T LINK 0-99 SQ" 6
PA0106 225LCST-199 CUSTOM 225T LINK 100-199 SQ" 6
PA0107 225LCST-299 CUSTOM 225T LINK 200-299 SQ" 6
PA0108 225LCST-399 CUSTOM 225T LINK 300-399 SQ" 6
PA0109 225LCST-499 CUSTOM 225T LINK 400-499 SQ" 6
PA0110 225LCST-599 CUSTOM 225T LINK 500-599 SQ" 6
PA0111 225LCST-699 CUSTOM 225T LINK 600-699 SQ" 6
PA0112 225LCST-799 CUSTOM 225T LINK 700-799 SQ" 6
PA0113 225LCST-899 CUSTOM 225T LINK 800-899 SQ" 6
PA0114 225LCST-999 CUSTOM 225T LINK 900-999 SQ" 6
PA0115 225LCST-1099 CUSTOM 225T LINK 1000-1099 SQ" 6
PA0116 225LCST-1199 CUSTOM 225T LINK 1100-1199 SQ" 6
PA0117 225LCST-1299 CUSTOM 225T LINK 1200-1299 SQ" 6
PA0118 225LCST-1399 CUSTOM 225T LINK 1300-1399 SQ" 6
PA0119 225LCST-1499 CUSTOM 225T LINK 1400-1499 SQ" 6
PA0120 225LCST-1599 CUSTOM 225T LINK 1500-1599 SQ" 6
PA0121 225LCST-1699 CUSTOM 225T LINK 1600-1699 SQ" 6
PA0122 225LCST-1799 CUSTOM 225T LINK 1700-1799 SQ" 6
PA0123 225LCST-1899 CUSTOM 225T LINK 1800-1899 SQ" 6
PA0124 225LCST-1999 CUSTOM 225T LINK 1900-1999 SQ" 6
PA0125 225LCST-2099 CUSTOM 225T LINK 2000-2099 SQ" 6
PA0126 225LCST-2199 CUSTOM 225T LINK 2100-2199 SQ" 6
PA0127 225LCST-2299 CUSTOM 225T LINK 2200-2299 SQ" 6
PA0128 225LCST-2399 CUSTOM 225T LINK 2300-2399 SQ" 6
PA0129 225LCST-2499 CUSTOM 225T LINK 2400-2499 SQ" 6
PA0130 225LCST-2599 CUSTOM 225T LINK 2500-2599 SQ" 6
PA0131 225LCST-2699 CUSTOM 225T LINK 2600-2699 SQ" 6
PA0132 225LCST-2799 CUSTOM 225T LINK 2700-2799 SQ" 6
PA0133 225LCST-2899 CUSTOM 225T LINK 2800-2899 SQ" 6
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
98

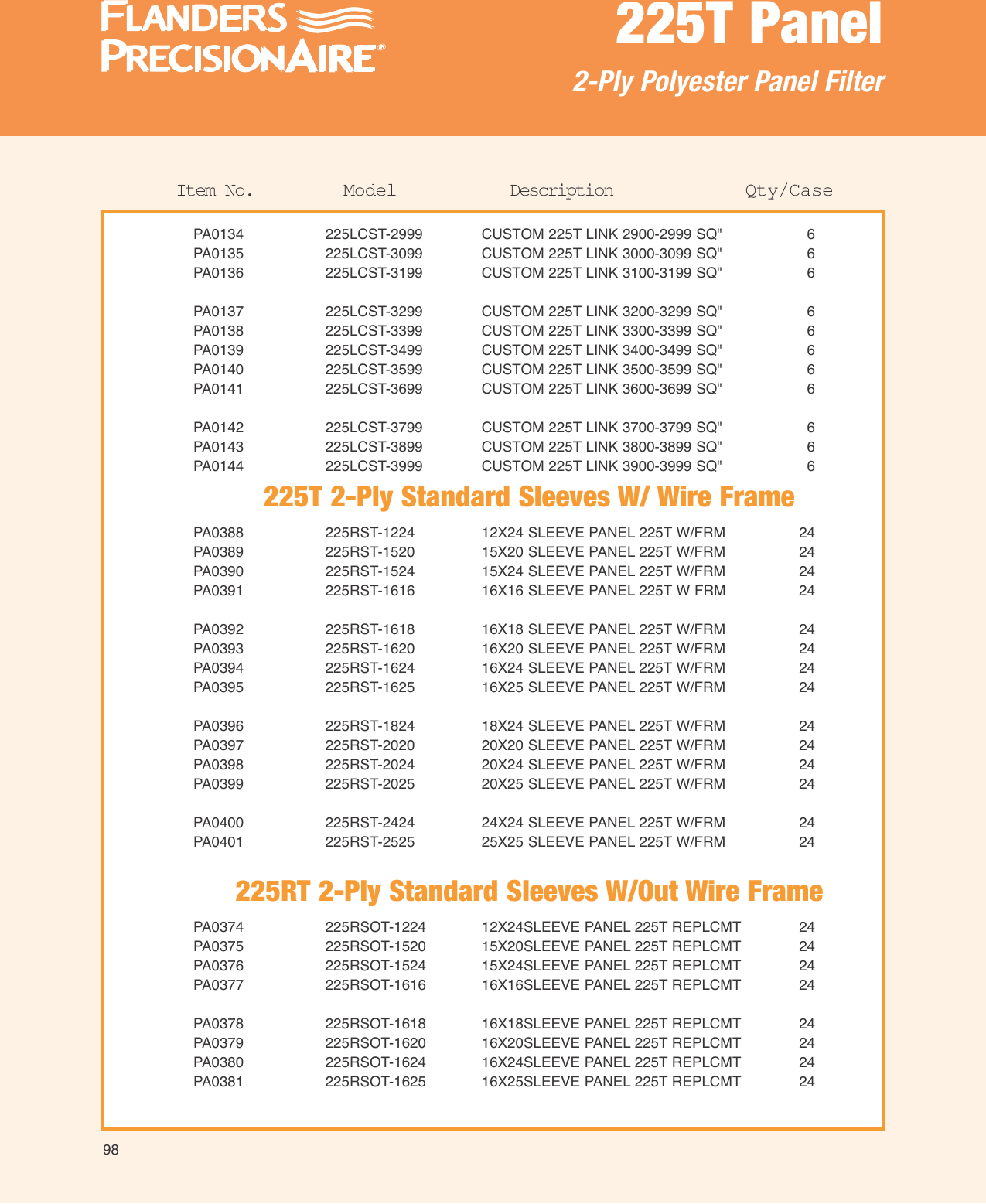

PA0134 225LCST-2999 CUSTOM 225T LINK 2900-2999 SQ" 6
PA0135 225LCST-3099 CUSTOM 225T LINK 3000-3099 SQ" 6
PA0136 225LCST-3199 CUSTOM 225T LINK 3100-3199 SQ" 6
PA0137 225LCST-3299 CUSTOM 225T LINK 3200-3299 SQ" 6
PA0138 225LCST-3399 CUSTOM 225T LINK 3300-3399 SQ" 6
PA0139 225LCST-3499 CUSTOM 225T LINK 3400-3499 SQ" 6
PA0140 225LCST-3599 CUSTOM 225T LINK 3500-3599 SQ" 6
PA0141 225LCST-3699 CUSTOM 225T LINK 3600-3699 SQ" 6
PA0142 225LCST-3799 CUSTOM 225T LINK 3700-3799 SQ" 6
PA0143 225LCST-3899 CUSTOM 225T LINK 3800-3899 SQ" 6
PA0144 225LCST-3999 CUSTOM 225T LINK 3900-3999 SQ" 6
225T 2-Ply Standard Sleeves W/ Wire Frame
PA0388 225RST-1224 12X24 SLEEVE PANEL 225T W/FRM 24
PA0389 225RST-1520 15X20 SLEEVE PANEL 225T W/FRM 24
PA0390 225RST-1524 15X24 SLEEVE PANEL 225T W/FRM 24
PA0391 225RST-1616 16X16 SLEEVE PANEL 225T W FRM 24
PA0392 225RST-1618 16X18 SLEEVE PANEL 225T W/FRM 24
PA0393 225RST-1620 16X20 SLEEVE PANEL 225T W/FRM 24
PA0394 225RST-1624 16X24 SLEEVE PANEL 225T W/FRM 24
PA0395 225RST-1625 16X25 SLEEVE PANEL 225T W/FRM 24
PA0396 225RST-1824 18X24 SLEEVE PANEL 225T W/FRM 24
PA0397 225RST-2020 20X20 SLEEVE PANEL 225T W/FRM 24
PA0398 225RST-2024 20X24 SLEEVE PANEL 225T W/FRM 24
PA0399 225RST-2025 20X25 SLEEVE PANEL 225T W/FRM 24
PA0400 225RST-2424 24X24 SLEEVE PANEL 225T W/FRM 24
PA0401 225RST-2525 25X25 SLEEVE PANEL 225T W/FRM 24
225RT 2-Ply Standard Sleeves W/Out Wire Frame
PA0374 225RSOT-1224 12X24SLEEVE PANEL 225T REPLCMT 24
PA0375 225RSOT-1520 15X20SLEEVE PANEL 225T REPLCMT 24
PA0376 225RSOT-1524 15X24SLEEVE PANEL 225T REPLCMT 24
PA0377 225RSOT-1616 16X16SLEEVE PANEL 225T REPLCMT 24
PA0378 225RSOT-1618 16X18SLEEVE PANEL 225T REPLCMT 24
PA0379 225RSOT-1620 16X20SLEEVE PANEL 225T REPLCMT 24
PA0380 225RSOT-1624 16X24SLEEVE PANEL 225T REPLCMT 24
PA0381 225RSOT-1625 16X25SLEEVE PANEL 225T REPLCMT 24
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
99
PA0382 225RSOT-1824 18X24SLEEVE PANEL 225T REPLCMT 24
PA0383 225RSOT-2020 20X20SLEEVE PANEL 225T REPLCMT 24
PA0384 225RSOT-2024 20X24SLEEVE PANEL 225T REPLCMT 24
PA0385 225RSOT-2025 20X25SLEEVE PANEL 225T REPLCMT 24
PA0386 225RSOT-2424 24X24SLEEVE PANEL 225T REPLCMT 24
PA0387 225RSOT-2525 25X25SLEEVE PANEL 225T REPLCMT 24
225T 2-Ply Custom Sleeves W/ Wire Frame
PA0352 225RCSST-099 0-99 SLEEVE PL 225T CUST W FRM 12
PA0354 225RCSST-199 150-199SLEEVE PL 225TCUST WFRM 12
PA0355 225RCSST-249 200-249SLEEVE PL 225TCUST WFRM 12
PA0356 225RCSST-299 250-299SLEEVE PL 225TCUST WFRM 12
PA0357 225RCSST-349 300-349SLEEVE PL 225TCUST WFRM 12
PA0358 225RCSST-399 350-399SLEEVE PL 225TCUST WFRM 12
PA0359 225RCSST-449 400-449SLEEVE PL 225TCUST WFRM 12
PA0360 225RCSST-499 450-499SLEEVE PL 225TCUST WFRM 12
PA0361 225RCSST-549 500-549SLEEVE PL 225TCUST WFRM 12
PA0362 225RCSST-599 550-599SLEEVE PL 225TCUST WFRM 12
PA0363 225RCSST-649 600-649SLEEVE PL 225TCUST WFRM 12
PA0364 225RCSST-699 650-699SLEEVE PL 225TCUST WFRM 12
PA0365 225RCSST-799 700-799SLEEVE PL 225TCUST WFRM 12
PA0366 225RCSST-899 800-899SLEEVE PL 225TCUST WFRM 12
PA0367 225RCSST-999 900-999SLEEVE PL 225TCUST WFRM 12
PA0368 225RCSST-1099 1000-1099 SLEEVE PL 225TCUST FR 12
PA0369 225RCSST-1199 1100-1199 SLEEVE PL 225TCUST FR 12
PA0370 225RCSST-1299 1200-1299 SLEEVE PL 225TCUST FR 12
PA0371 225RCSST-1399 1300-1399 SLEEVE PL 225TCUST FR 12
PA0353 225RCSST-149 100-149SLEEVE PL 225TCUST WFRM 12
PA0372 225RCSST-1499 1400-1499 SLEEVE PL 225TCUST FR 12
PA0373 225RCSST-1599 1500-1599 SLEEVE PL 225TCUST FR 12
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
100
225T 2-Ply Custom Sleeves W/Out Wire Frame
PA0330 225RCSSOT-099 0-99 SLEEVE PL 225T CUST REPL 12
PA0332 225RCSSOT-199 150-199SLEEVE PL 225TCUST REPL 12
PA0333 225RCSSOT-249 200-249SLEEVE PL 225TCUST REPL 12
PA0334 225RCSSOT-299 250-299SLEEVE PL 225TCUST REPL 12
PA0335 225RCSSOT-349 300-349SLEEVE PL 225TCUST REPL 12
PA0336 225RCSSOT-399 350-399SLEEVE PL 225TCUST REPL 12
PA0337 225RCSSOT-449 400-449 SLEEVE PL 225TCUST REPL 12
PA0338 225RCSSOT-499 450-499SLEEVE PL 225TCUST REPL 12
PA0339 225RCSSOT-549 500-549SLEEVE PL 225TCUST REPL 12
PA0340 225RCSSOT-599 550-599SLEEVE PL 225TCUST REPL 12
PA0341 225RCSSOT-649 600-649SLEEVE PL 225TCUST REPL 12
PA0342 225RCSSOT-699 650-699SLEEVE PL 225TCUST REPL 12
PA0343 225RCSSOT-799 700-799SLEEVE PL 225TCUST REPL 12
PA0344 225RCSSOT-899 800-899SLEEVE PL 225TCUST REPL 12
PA0345 225RCSSOT-999 900-999SLEEVE PL 225TCUST REPL 12
PA0346 225RCSSOT-1099 1000-1099 SLEEVE PL225TCUST REP 12
PA0347 225RCSSOT-1199 1100-1199 SLEEVE PL225TCUST REP 12
PA0348 225RCSSOT-1299 1200-1299 SLEEVE PL225TCUST REP 12
PA0349 225RCSSOT-1399 1300-1399 SLEEVE PL225TCUST REP 12
PA0331 225RCSSOT-149 100-149SLEEVE PL 225TCUST REPL 12
PA0350 225RCSSOT-1499 1400-1499 SLEEVE PL225TCUST REP 12
PA0351 225RCSSOT-1599 1500-1599 SLEEVE PL225TCUST REP 12
225T 2-Ply 100 FT. Sleeve Rolls
PA0402 225SRT-06100 6"X100' SLEEVE 225T Roll 1
PA0403 225SRT-065100 6-1/2"X100' SLEEVE 225T Roll 1
PA0404 225SRT-0675100 6-3/4"X100' SLEEVE 225T Roll 1
PA0405 225SRT-07100 7"X100' SLEEVE 225T Roll 1
PA0406 225SRT-0725100 7-1/4"X100' SLEEVE 225T Roll 1
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
101
PA0407 225SRT-075100 7-1/2"X100' SLEEVE 225T Roll 1
PA0408 225SRT-0775100 7-3/4"X100' SLEEVE 225T Roll 1
PA0409 225SRT-08100 8"X100' SLEEVE 225T Roll 1
PA0410 225SRT-0825100 8-1/4"X100' SLEEVE 225T Roll 1
PA0411 225SRT-085100 8-1/2"X100' SLEEVE 225T Roll 1
PA0412 225SRT-09100 9"X100' SLEEVE 225T Roll 1
PA0413 225SRT-0925100 9-1/4"X100' SLEEVE 225T Roll 1
PA0414 225SRT-095100 9-1/2"X100' SLEEVE 225T Roll 1
PA0415 225SRT-10100 10"X100' SLEEVE 225T Roll 1
PA2919 225SRT-105100 10-1/2"X100' SLEEVE 225T ROLL 1
PA0416 225SRT-11100 11"X100' SLEEVE 225T Roll 1
PA0417 225SRT-115100 11-1/2"X100' SLEEVE 225T Roll 1
PA0418 225SRT-12100 12"X100' SLEEVE 225T Roll 1
PA0419 225SRT-125100 12-1/2"X100' SLEEVE 225T Roll 1
PA0420 225SRT-13100 13"X100' SLEEVE 225T Roll 1
PA0421 225SRT-135100 13-1/2"X100' SLEEVE 225T Roll 1
PA0422 225SRT-14100 14"X100' SLEEVE 225T Roll 1
PA0423 225SRT-145100 14-1/2"X100' SLEEVE 225T Roll 1
PA0424 225SRT-15100 15"X100' SLEEVE 225T Roll 1
PA0425 225SRT-155100 15-1/2"X100' SLEEVE 225T Roll 1
PA0426 225SRT-16100 16"X100' SLEEVE 225T Roll 1
PA0427 225SRT-18100 18"X100' SLEEVE 225T Roll 1
PA0428 225SRT-19100 19"X100' SLEEVE 225T Roll 1
PA0429 225SRT-20100 20"X100' SLEEVE 225T Roll 1
PA0430 225SRT-22100 22"X100' SLEEVE 225T Roll 1
PA0431 225SRT-24100 24"X100' SLEEVE 225T Roll 1
PA0432 225SRT-25100 25"X100' SLEEVE 225T Roll 1
PA0433 225SRT-30100 30"X100' SLEEVE 225T Roll 1
PA0434 225SRT-50100 50"X100' SLEEVE 225T Roll 1
PA0435 225SRT-60100 60"X100' SLEEVE 225T Roll 1
PA0436 225SRT-78100 78"X100' SLEEVE 225T Roll 1
225T Panel
2-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
