Precyse Technologies BC91403000 PBC BEACON User Manual
Precyse Technologies Inc PBC BEACON
User Manual
![](/img.php?id=1729865&img=bg1.png)
Precyse Technologies, Inc.
Date: 24 June 2012 Page 1 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Document No.
Revision 1.4
PBC beacon BC91/403000
Release Date: //
Prepared by:
Distribution (Check all appropriate):
Precyse Only Project Team Only Customer and Supplier
c:\hardwarews\production\pd-915\bc915\documents\fcc\bc91403000 user manual.docx
![](/img.php?id=1729865&img=bg2.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 2 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Revision Record
Rev.
Effective
Date
Description
1.0
10/08/2008
1st release
1.1
11/08/2008
Revised according to comments by Michael
1.2
4/11/2008
Added antenna specifications
1.3
21/6/2012
Updated to regulatory requirements
1.4
24/6/2012
Added marketing information
Reference documents
#
Doc #
Description
1
![](/img.php?id=1729865&img=bg3.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 3 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
TABLE OF CONTENTS
Section/Title Page
Regulatory Information/disclaimers ....................................................................... 4
Abstract ................................................................................................................. 6
Product description ............................................................................................... 6
PBC beacon: ...................................................................................................... 6
Technical Data Sheet – Beacon 915 ..................................................................... 6
Compatibility: .............................................................................................. 6
Performance: ................................................................................................ 6
Communication: .......................................................................................... 6
Electrical: ....................................................................................................... 6
Environmental: ............................................................................................ 6
Antennae .............................................................................................................. 7
Schematics ........................................................................................................... 7
System test configuration ...................................................................................... 7
Beacon ............................................................................................................... 7
Method of operation .............................................................................................. 8
iLocate system block diagram ............................................................................... 8
Unit definitions: ................................................................................................... 10
![](/img.php?id=1729865&img=bg4.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 4 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Regulatory Information/disclaimers
Installation and use of this Wireless Radio device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any changes or
modifications made to this device that are not expressly approved by the manufacturer may
void the user’s authority to operate the equipment. The Manufacturer is not responsible for
any radio or television interference caused by unauthorized modification of this device, of the
substitution or attachment. Manufacturer and its authorized resellers or distributors will
assume no liability for any damage or violation of government regulations arising from failing
to comply with these guidelines.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
Instructions concerning human exposure to radio frequency electromagnetic fields:
To comply with FCC Section 1.307 (b) (1) for human exposure to radio frequency
electromagnetic fields, implement the following instruction:
A distance of at least 20cm. between the equipment and all persons should be maintained
during the operation of the equipment. The minimum distance will be determined after testing
has been completed.
![](/img.php?id=1729865&img=bg5.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 5 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician.
FCC Warning
Modifications not expressly approved by the manufacturer could
void the user authority to operate the equipment under FCC
Rules.
![](/img.php?id=1729865&img=bg6.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 6 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Abstract
This document describes the iLocate system hardware:
1. PBC beacon, Precyse part # BC91/403000, referred to as the PBC.
Product description
PBC beacon:
The PBC is used to define a location zone. It is based on a microcontroller and 4 RF
transceivers.
It uses the iLocate proprietary protocol which provides a 2 way, half duplex communication with
the base station and to transmit its ID to the SATs.
The unit is DC powered, 12 – 24Vdc, up to 100mA.
Technical Data Sheet – Beacon 915
Compatibility:
PBC Beacon, 915MHz, versions: BC91/403000
Performance:
Read range: up to 500 m. (Within line of sight)
Write range: up to 500 m. (Within line of sight)
Read rate: 250 Kbps.
Write rate: 250 Kbps.
Communication:
Frequency: 905.00 to 915.00 MHz ISM license free band
Modulation: 2FSK
EIRP: Up to 9.4 dBm, digitally controlled
Communication protocol: 2WiSAP, optional AES128 Encryption
Transmission: Event base and on demand (TOM/SOM)
External interfaces: USB
Electrical:
Power supply: 12-24 V DC, up to 250 mA
Safety: CE, UL compatible
Environmental:
Size: W 112mm X L 125mm X H 45mm
Operating temperature: 0°C to +55°C (-5°F to +185°F)
Humidity: 90% non-condensing
![](/img.php?id=1729865&img=bg7.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 7 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Enclosure: IP54
Antennae
The Antennae for the PBC are EAD# ST-918
Specifications:
Type: Quarter wave Monopole
Gain: 0dBi
Impedance: 50Ohm
VSWR: < 2.0:1
Polarization: Vertical
Radiation pattern: Omni
Schematics
Will be provided on demand and under confidential agreement (not for public use)
System test configuration
Beacon
The unit was configured for normal operation. In this mode the beacon transmits its ID
packet continuously, with 20% duty cycle.
For intermodulation tests, the unit was configured to transmit on all 4 channels
simultaneously.
The unit transmission channels were set to 0 (905.0MHz), 8 (911.4MHz) and 16 (917.8MHz).
![](/img.php?id=1729865&img=bg8.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 8 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Method of operation
The PBC has 4 independent transceivers. The transceivers cannot operate as MIMO or
phase array (beam shaping).
All the transceivers are connected to a single low power microprocessor unit. Each
transceiver in the unit transmits its identification packet at 20% or lower duty cycle.
Each transceiver operates at a different 800KHz band (905.0, 905.8, 906.6 etc).
One of the channels (One which has the best reception from the base station) acts as a
communication channel to the base station.
This unit’s function is to provide location information to the mobile agents (tags). Upon
packet reception, the tag transmits its signal strength (RSSI) and ID to the base station, and
its location can be calculated using various algorithms.
![](/img.php?id=1729865&img=bg9.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 9 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338

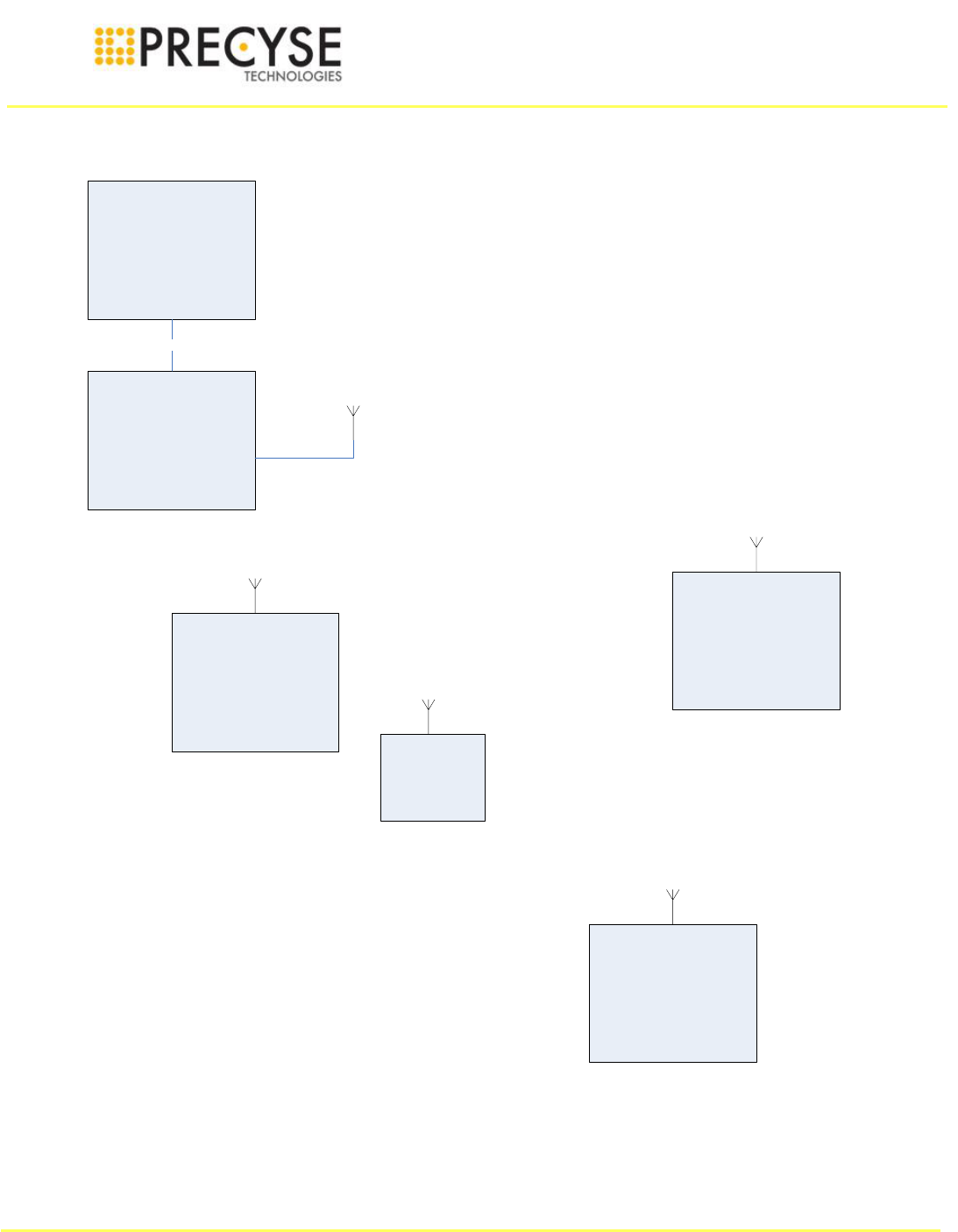

iLocate system block diagram
PC
PBS
TAG (SAT)
Attached to
assets
Ethernet
PBC1
PBC2
PBC3
![](/img.php?id=1729865&img=bga.png)
Precyse Technologies, Ltd.
Date: 24 June 2012 Page 10 of 10
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Unit definitions:
Base station, referred to as PBS: A radio device that transmits data to and from the tag (SAT) to a
personal computer (PC), also provides synchronization signal. The unit is powered by a DC power
supply.
Beacon, referred to as PBC: A radio device that defines a location. Location detection can be
realized through one or more PBCs. The unit is powered by a DC power supply.
Tag (SAT): A radio device that is used to track and monitor assets. It communicates with the PBS
and can detect the PBC signals.
Marketing and installation
1. EUT intended use and application: The BC91403000 (PBC) is used as a radio
beacon for the iLocate system. By transmitting a constant signal, it allows the tags
(SA24003000) to identify their location. The EUT is installed either indoors or
outdoors (inside an appropriate sealed box). The installation requirements are proper
site planning, infrastructure (AC supply with an AC to DC adapter or DC supply,
mechanical mounting, clearance around it), sealed box (Per Precyse tech
requirements, an IP55 or equivalent box uninterrupted power supply where required,
etc).
2. Marketing: The EUT is sold to system integrators only. It is not available for non
qualified persons or integrators.
