PBS Base station
BS91/103000
Release Date: 17/11/2010
Prepared by: Lior Bilia
Distribution (Check all appropriate):
Precyse Only Project Team Only Customer and Supplier
c:\hardwarews\certification documents\pbs915\bs91510300 user manual.docx
Revision Record
![](/img.php?id=1728247&img=bg2.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 2 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Rev.
Effective
Date
Description
1.0
17/11/2010
1st release
1.1
Changed from EIRP to ERP
1.2
4/6/2012
Added Regulatory disclaimer
Reference documents
#
Doc #
Description
1
![](/img.php?id=1728247&img=bg3.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 3 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
TABLE OF CONTENTS
Section/Title Page
Regulatory Information/disclaimers ....................................................................... 4
Abstract ................................................................................................................. 6
Product description ............................................................................................... 6
PBS base station: .............................................................................................. 6
Technical specifications – PBS Base station 915MHz .......................................... 6
Compatibility: ..................................................................................................... 6
Performance: ..................................................................................................... 6
Communication: ................................................................................................. 6
Electrical: ........................................................................................................... 6
Environmental: ................................................................................................... 7
Certification: ....................................................................................................... 7
PBS connectors and indicators .......................................................................... 8
Schematics ........................................................................................................... 9
iLocate system block diagram ............................................................................. 10
Labels ................................................................................................................. 11
Unit definitions: ................................................................................................... 11
Antenna .............................................................................................................. 12
Appendix A: Marketing and installation ............................................................... 12
![](/img.php?id=1728247&img=bg4.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 4 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Regulatory Information/disclaimers
Installation and use of this Wireless Radio device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any changes or
modifications made to this device that are not expressly approved by the manufacturer may
void the user’s authority to operate the equipment. The Manufacturer is not responsible for
any radio or television interference caused by unauthorized modification of this device, of the
substitution or attachment. Manufacturer and its authorized resellers or distributors will
assume no liability for any damage or violation of government regulations arising from failing
to comply with these guidelines.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
Instructions concerning human exposure to radio frequency electromagnetic fields:
To comply with FCC Section 1.307 (b) (1) for human exposure to radio frequency
electromagnetic fields, implement the following instruction:
A distance of at least 20cm. between the equipment and all persons should be maintained
during the operation of the equipment. The minimum distance will be determined after testing
has been completed.
![](/img.php?id=1728247&img=bg5.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 5 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician.
FCC Warning
Modifications not expressly approved by the manufacturer could
void the user authority to operate the equipment under FCC
Rules.
![](/img.php?id=1728247&img=bg6.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 6 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Abstract
This document describes the iLocate system hardware:
1. PBS base station, Precyse part #BS91/103000, referred to as the PBS.
Product description
PBS base station:
The PBS is used to communicate between the asset agents and a personal computer. It also
provides synchronization signal for the system.
It uses the iLocate proprietary protocol which provides a 2 way, half duplex communication with
the tags and beacons.
The unit is DC powered, 12 - 24Vdc, up to 500mA.
Technical specifications – PBS Base station 915MHz
Compatibility:
PBS Base Station, 915MHz, versions: BS91/103000
Performance:
Read rate: 250Kbps.
Write rate: 250Kbps.
Communication:
Frequency: 902.00 – 928.00 MHz ISM license free band
Modulation: GFSK
ERP: Up to 19dBm, digitally controlled
Communication protocol: 2WiSAP, optional AES128 Encryption
Transmission: Event base and on demand.
External interfaces: Ethernet.
Occupied bandwidth: 500KHz.
Electrical:
Power supply: 12-24 V DC, up to 250 mA
Safety: CE, UL compatible
![](/img.php?id=1728247&img=bg7.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 7 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Environmental:
Size: W 180mm X L 165mm X H 32mm
Operating temperature: -20°C to +85°C (-5°F to +185°F)
Humidity: 90% non-condensing
Enclosure: IP54
Certification:
FCCID: WONBS91103000
![](/img.php?id=1728247&img=bg8.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 8 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
PBS connectors and indicators
PBS - front view
17. External amplifier
connector
18. Synch Generator
(GPS Antenna)
13-16. RF Channels
antennae connectors
4
2
1
3
7. DC Power port
8. Heartbeat port
9-12. TCP\IP
ports 1-4
4
3
2
1
1. Power indicator
2. Synch indicator
3-6. PBS channel
indicators 1-4
1
2
3
4
![](/img.php?id=1728247&img=bg9.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 9 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
PBS - rear view
Connector /
indicator
Description
1. Power indicator
LED (red)
On - Power is connected.
Flashing - There is a problem with the power supply.
Off – power supply not connected.
2. Synch indicator
Synchronization LED (green)– Flashes once a second when
the system is active
3-6. PBS channel
indicators #1-4
Green LED (green) – flashes when a signal is sent on the
corresponding channel
7. DC Power port
DC power port (12V-2.08A, 25W MAX)
8. Heartbeat port
Not used at this stage
9-12. TCP\IP port 1-4
Network connector for corresponding channel. RJ45
connector.
13,16. RF Channel 1,4
antennae connectors
Disabled RF ports. These ports are disconnected internally.
14, 15
RF transmit, RF receive – Connected to Amplifier unit.
17. External amplifier
connector
A DB9 connector that contains DC voltage supply and
control outputs.
Warning: Do not connect this port to a computer or any
other RS232 terminal equipment.
18. GPS Antenna
connector
GPS input port. Connect the supplied GPS antenna.
Schematics
Will be provided on demand and under on-disclosure agreement.
![](/img.php?id=1728247&img=bga.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 10 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
iLocate system block diagram
PC
PBS
TAG (SAT)
Attached to
assets
Ethernet
PBC1
PBC2
PBC3
![](/img.php?id=1728247&img=bgb.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 11 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338

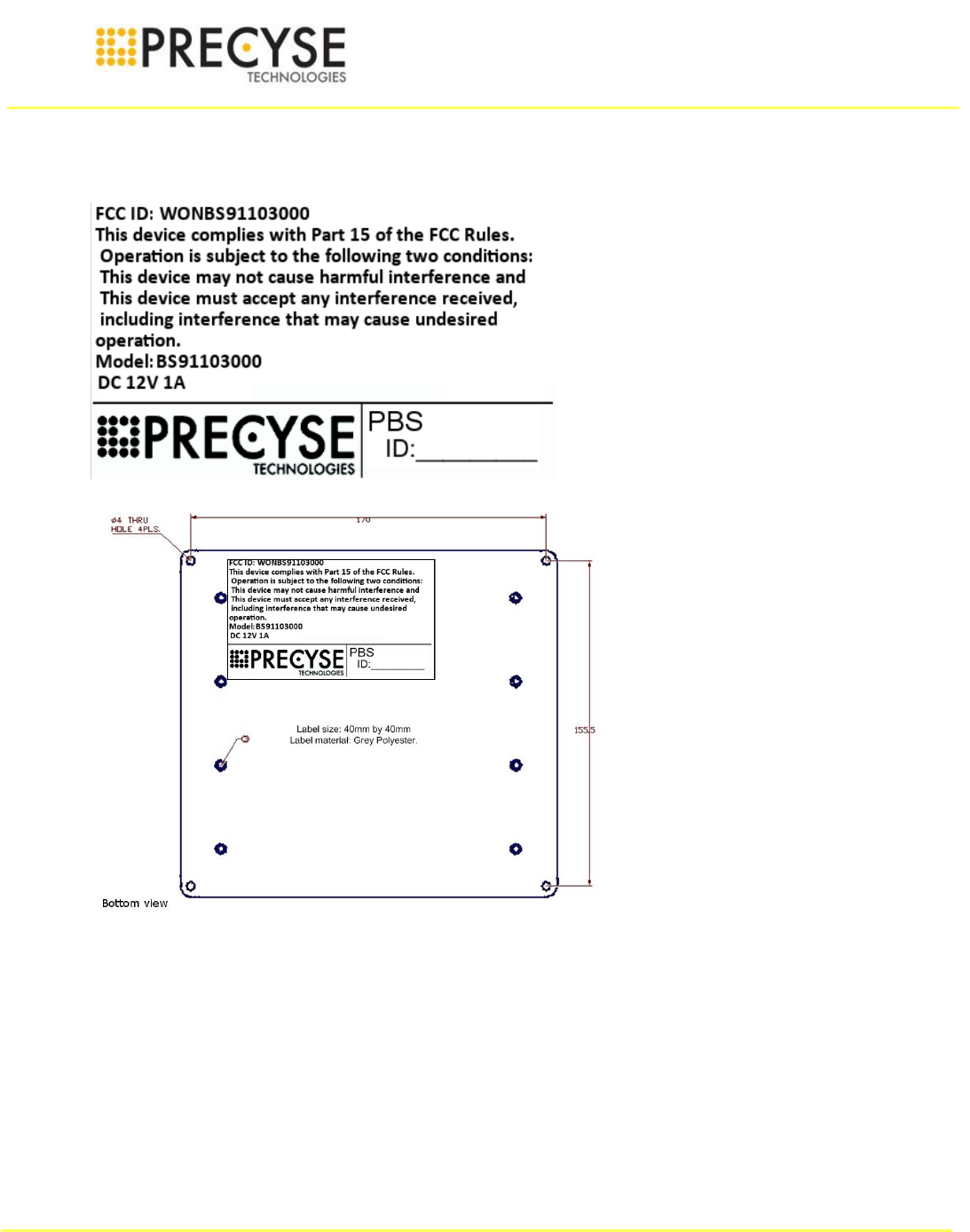

Labels
Label:
Label placement:
Unit definitions:
Base station, referred to as PBS: A radio device that transmits data to and from the tag (SAT) to a
personal computer (PC), also provides synchronization signal. The unit is powered by a DC power
supply.
Beacon, referred to as PBC: A radio device that defines a location. Location detection can be
realized through one or more PBCs. The unit is powered by a DC power supply.
Tag (SAT): A radio device that is used to track and monitor assets. It communicates with the PBS
and can detect the PBC signals.
![](/img.php?id=1728247&img=bgc.png)
Precyse Technologies, Ltd..
Date: 4 June 2012 Page 12 of 12
Precyse Technologies
100 Ashford Center North
Suite 360
Atlanta, GA 30338
Antenna
Antenna for the PBS is Pasternack 51028
Specifications:
Type: Half wave dipole
Gain: 5dBi
Impedance: 50Ohm
VSWR: < 2.0:1
Polarization: Vertical
Radiation pattern: Omni
Appendix A: Marketing and installation
1. The product intended use and application:
The BS91103000 (PBS) is used as a radio base station for the iLocate system.
By transmitting a synchronization signal, and receiving transmissions from other
devices on the iLocate network it acts as a bridge between the iLocate hardware and
a personal computer.
2. The EUT is installed either indoors or outdoors (inside an appropriate sealed box).
The installation requirements are proper site planning, infrastructure (AC supply with
an AC to DC adapter or DC supply, mechanical mounting, clearance around it),
sealed box (Per Precyse Tech’s requirements, an IP55 or equivalent box
uninterrupted power supply where required, etc).
3. Marketing:
The EUT is sold to system integrators only. It is not available for the general public.
The product requires non-trivial installation and tuning procedures.
