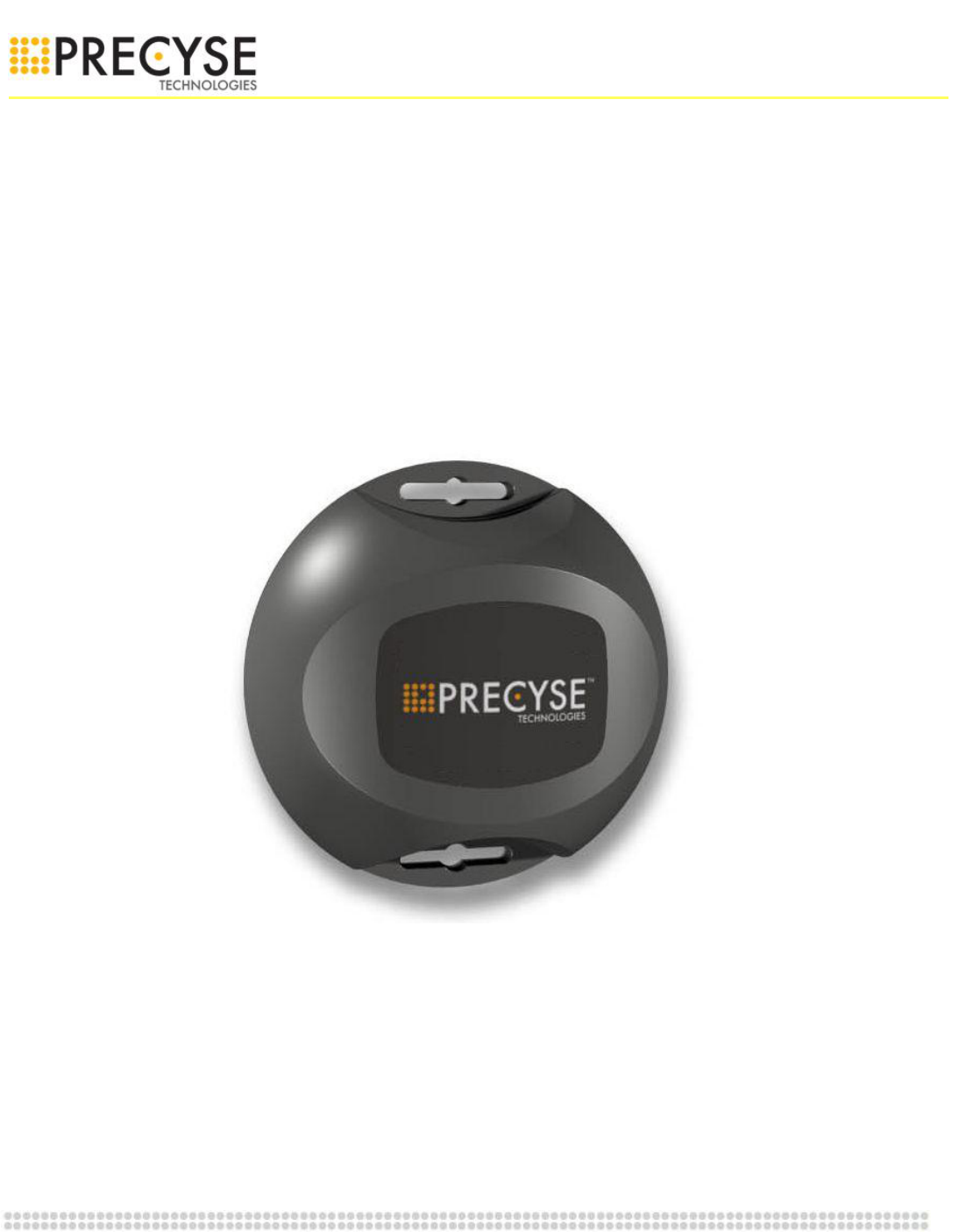

Precyse Technologies SA24003000 SA Tag 2.4 GHz Smart Agent Tag User Manual 1
Precyse Technologies Inc SA Tag 2.4 GHz Smart Agent Tag 1
Users Manual
![](/img.php?id=1021373&img=bg1.png)
1
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
Document No.
Revision 1
User’s Manual
SA tag SA24/003000
Release Date: 10/15/2008
Prepared by:
Distribution (Check all appropriate):
Precyse Only Project Team Only Customer and Supplier
![](/img.php?id=1021373&img=bg2.png)
2
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
Revision Record
Rev.
Effective
Date
Description
1
Initial release
1.01
Removed duplicate FCC warning
Reference documents
#
Doc #
Description
1
![](/img.php?id=1021373&img=bg3.png)
3
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................................................................................. 3
ACRONYMS ................................................................................................................................................................................ 4
INTRODUCTION ......................................................................................................................................................................... 5
REGULATORY INFORMATION/DISCLAIMERS .............................................................................................................................. 5
PRODUCT DESCRIPTION ............................................................................................................................................................. 7
SA TAG: ............................................................................................................................................................................................ 7
TECHNICAL PARAMETERS .......................................................................................................................................................... 7
COMPATIBILITY: .................................................................................................................................................................................. 7
PERFORMANCE: .................................................................................................................................................................................. 7
COMMUNICATION:.............................................................................................................................................................................. 7
ELECTRICAL: ....................................................................................................................................................................................... 7
ENVIRONMENTAL: ............................................................................................................................................................................... 8
GENERAL VIEW .......................................................................................................................................................................... 8
ENCLOSURE ASSEMBLY:.................................................................................................................................................... 9
HARDWARE CONFIGURATION ............................................................................................... ERROR! BOOKMARK NOT DEFINED.
INSTALLATION ......................................................................................................................................................................... 11
![](/img.php?id=1021373&img=bg4.png)
4
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
Acronyms
PBS
RF Base Station
Beacon/PBC
RF Transmitter that is continuously transmitting its ID
SA tag (SAT)
compact battery powered device, usually attached to the monitored asset
![](/img.php?id=1021373&img=bg5.png)
5
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
Introduction
This document provides you with technical support information, and sources for additional product information.
Regulatory Information/disclaimers
Installation and use of this Wireless Radio device must be in strict accordance with the instructions included in
the user documentation provided with the product. Any changes or modifications made to this device that are
not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The
Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of
this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will
assume no liability for any damage or violation of government regulations arising from failing to comply with
these guidelines.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
Instructions concerning human exposure to radio frequency electromagnetic fields:
To comply with FCC Section 1.307 (b) (1) for human exposure to radio frequency electromagnetic fields,
implement the following instruction:
A distance of at least 20cm. between the equipment and all persons should be maintained during the operation
of the equipment. The minimum distance will be determined after testing has been completed.
This document is confidential and proprietary. No part of this document may be reproduced, stored, or
transmitted in any form or by any means without prior written permission from Precyse technologies Inc.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation."
![](/img.php?id=1021373&img=bg6.png)
6
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician.
FCC Warning
Modifications not expressly approved by the manufacturer could
void the user authority to operate the equipment under FCC Rules.
![](/img.php?id=1021373&img=bg7.png)
7
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
Product description
SA tag:
The SAT is used to track assets in real time. It is based on an RF transceiver and a microcontroller.
It uses the iLocate proprietary protocol which provides a 2 way, half duplex communication with the base station.
The unit is powered by 2x 2/3 AA lithium thionyl chloride (Li-SOCl2) batteries and is hermetically sealed with no
connectors available to the end user.
Technical Parameters
Compatibility:
SA Tag, 2.45GHz, versions: SA24 / 003000
Performance:
Read range: up to 500 m. (Within line of sight)
Write range: up to 500 m. (Within line of sight)
Read rate: 256 Kbps.
Write rate: 256 Kbps.
Battery size: up to two 3.6V 2/3 AA Lithium non rechargeable (LI-SOCl2)
Battery life: up to 7 years (depending on application)
Communication:
Frequency: 2400 – 2483.5 MHz ISM license free band
Modulation: Q-PSK (DSSS)
Channel bandwidth: 5MHz
EIRP: Up to 23 dBm, digitally controlled
Communication protocol: 2WiSAP, optional AES128 Encryption
Transmission: Event base and on demand
External interfaces: 2 Analog inputs, 6 digital IOs, up to 5 user buttons. No external connector is available
to the end user.
Internal sensors: Motion and temperature sensors.
Electrical:
Power supply: Two 3.6 V DC batteries, permanently attached.
![](/img.php?id=1021373&img=bg8.png)
8
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
Environmental:
Size: 70mm base diameter X 28mm height
Operating temperature: -40°C to +90°C (–40°F to +194°F)
Humidity: 90% non-condensing
Enclosure: IP65
Weight: 50gr. (1.76 ounce)
General View
Here you can find the standard SAT variation, with two push buttons on it and one internal antenna.
There are more then one options for SAT configuration, for example: keypad instead of push buttons or external
antenna instead of internal one.
![](/img.php?id=1021373&img=bg9.png)
9
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526

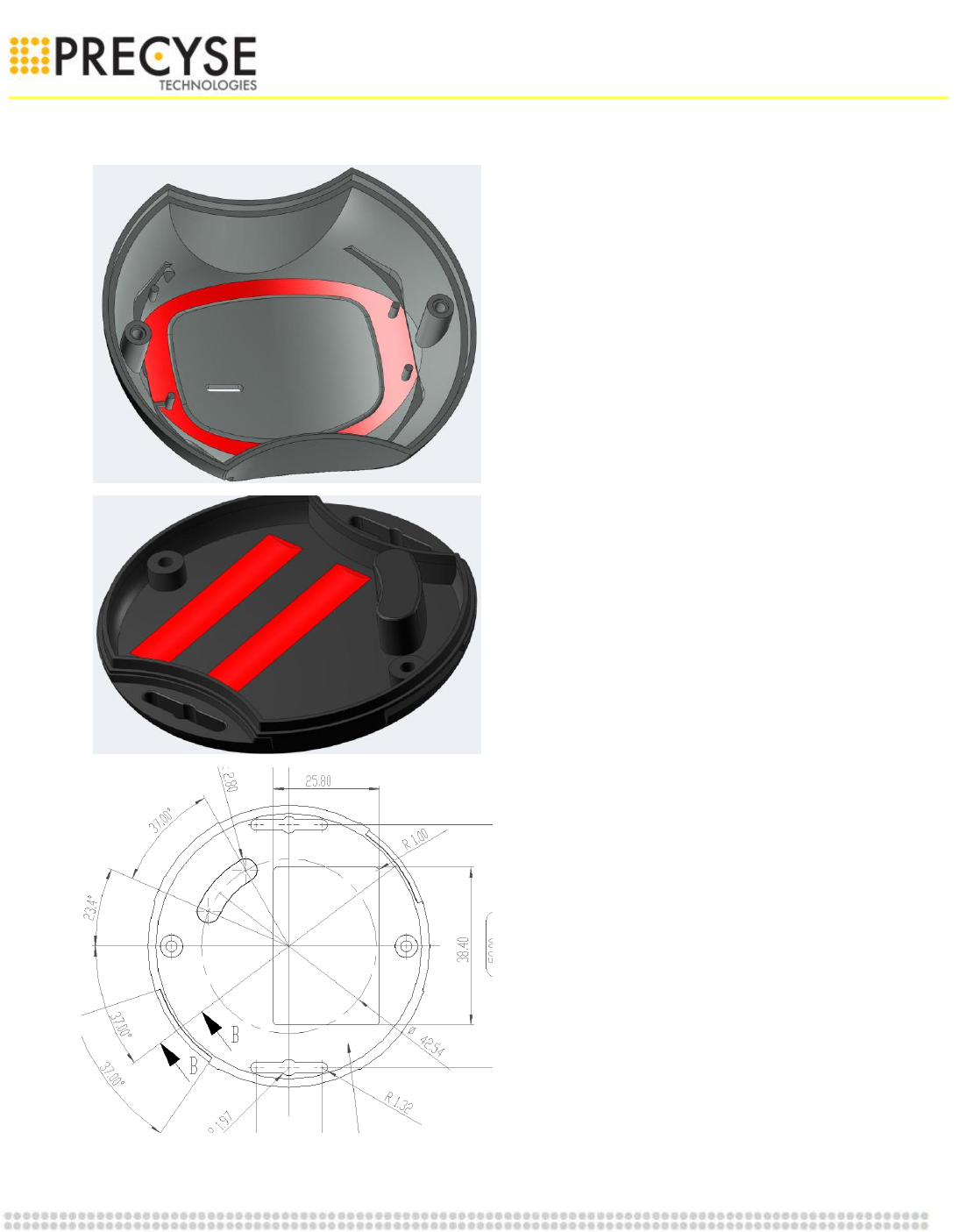

Enclosure assembly:
Top cover
Bottom cover.
Label placement
Label and markings are in the rectangular
section.
IP 65 sealed enclosure with size of 70mm base diameter X 28mm height.
![](/img.php?id=1021373&img=bga.png)
10
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
![](/img.php?id=1021373&img=bgb.png)
11
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526

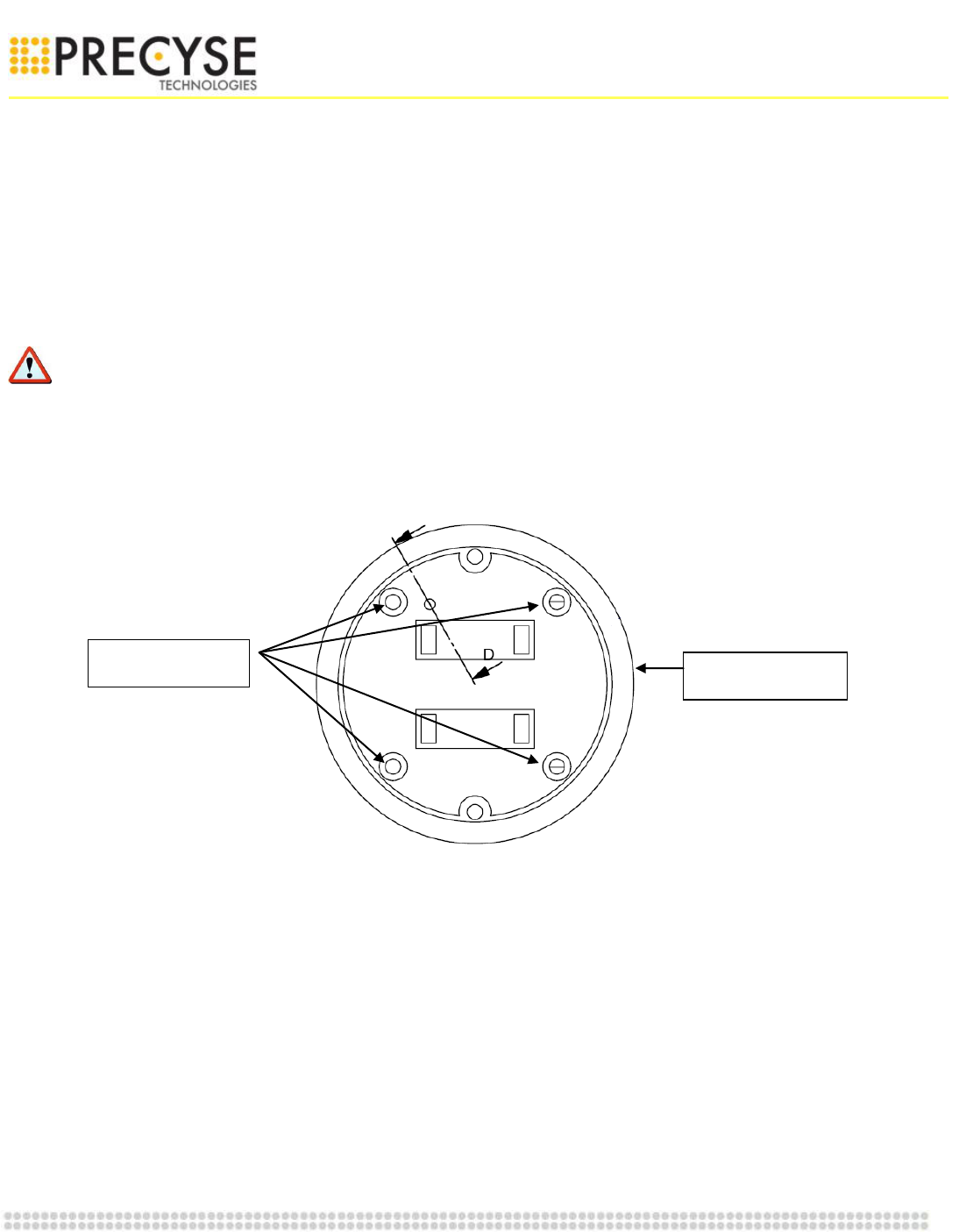

Installation
The SA tag supplied with mounting kit and can be installed on-site by an authorized service technician only. Please
acknowledge the following important notice:
Warning: Opening the unit voids the warranty.
Step by step installation:
1. Define the specific location of SA tag on your product or on any other asset you want to track –
2. Install the mounting kit of SA tag accordantly to the picture below :

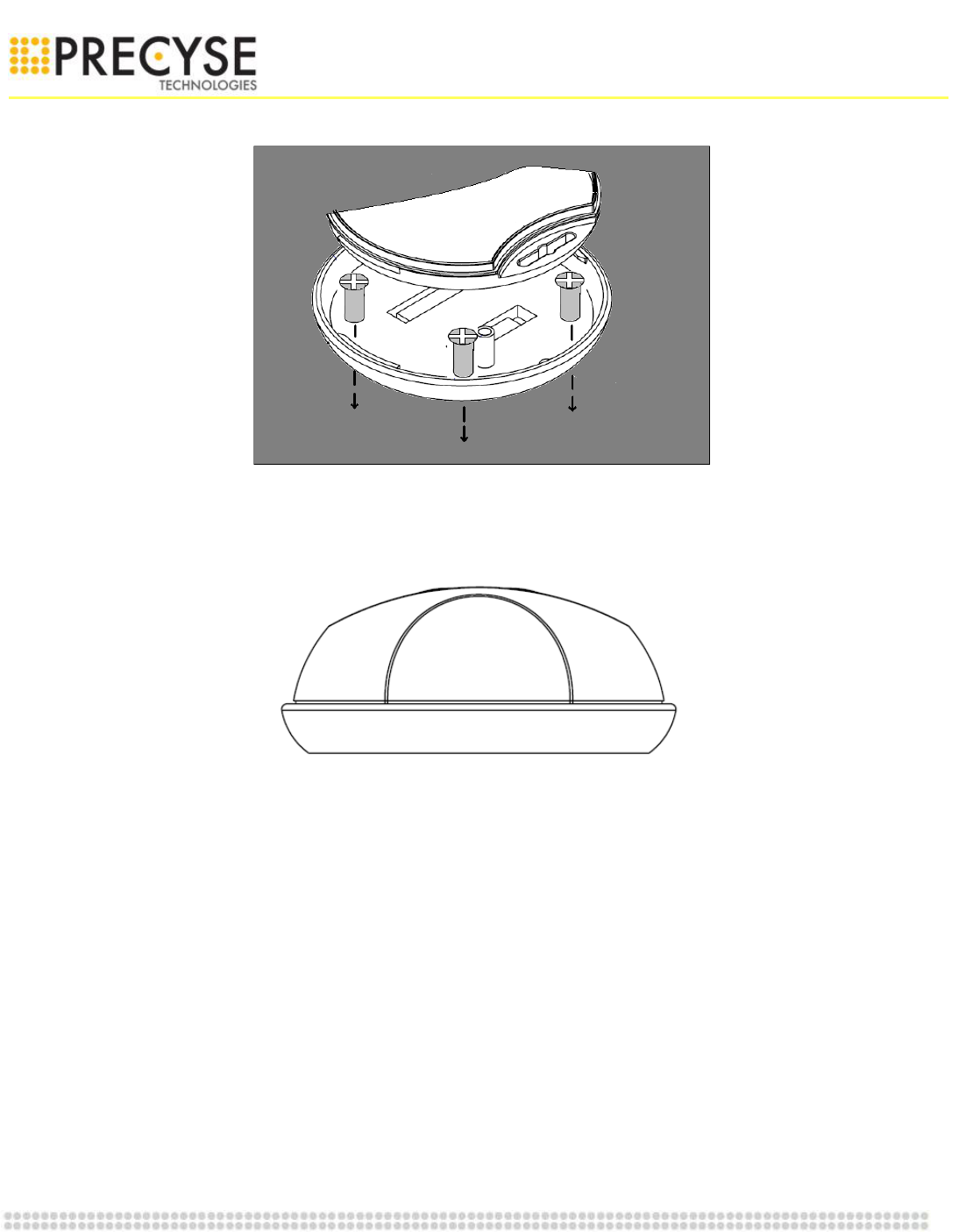

SA mounting kit
Screw placement
![](/img.php?id=1021373&img=bgc.png)
12
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526

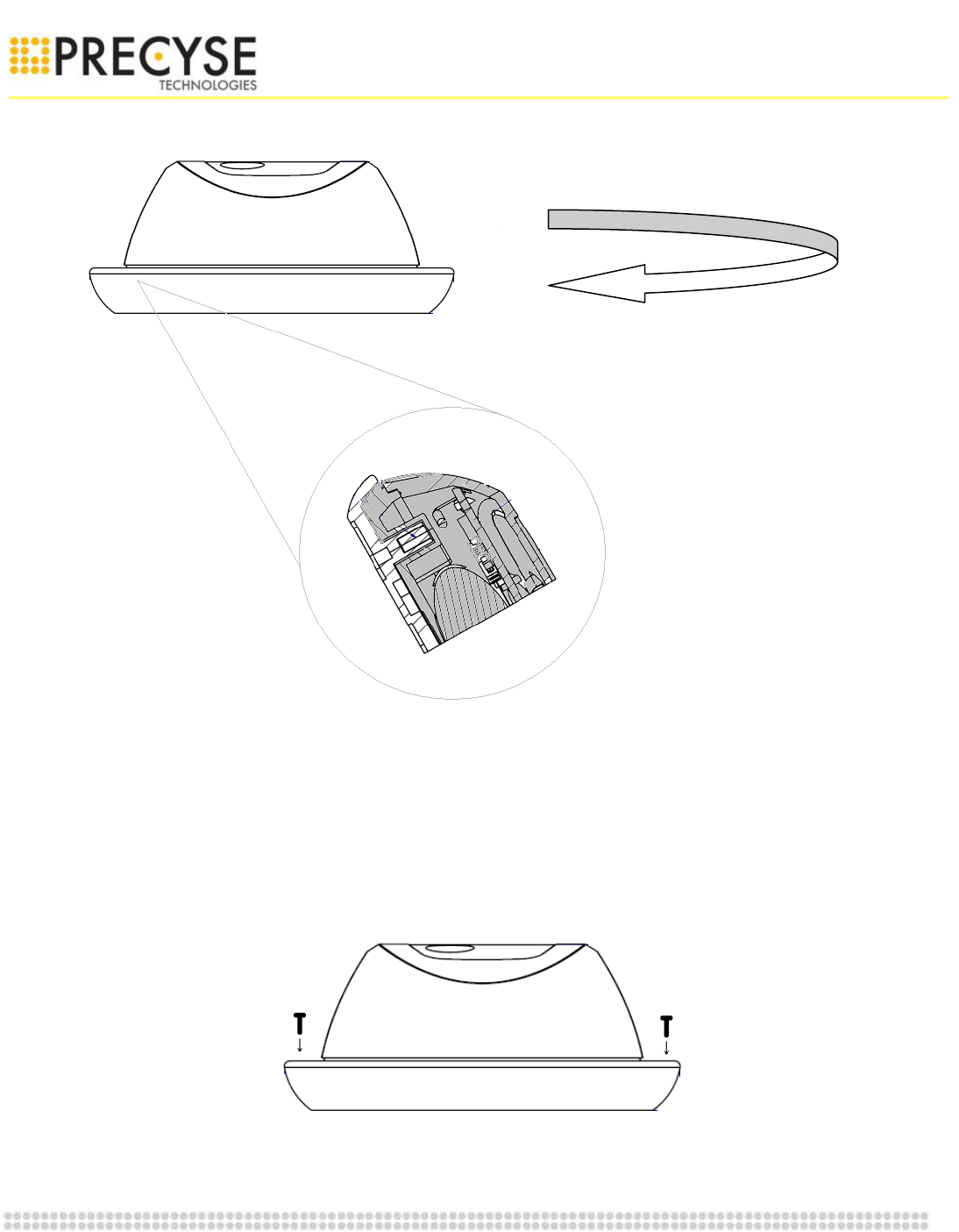

3. Place your SA tag inside the mounting kit and look it accordantly to the picture below:
a) Insert the SA tag inside the mounting kit –
b) Turn the tag at 15 degrees to the right to lock it inside the mounting kit -
![](/img.php?id=1021373&img=bgd.png)
13
Confidential
One Stamford Plaza, 263 Tresser Blvd
Suite 957, Stamford, CT 06901
Tel: 203.564.1526
c) Fix the tag in its place by screwing it to the body of the mounting kit -
4. Double check after installation.
