915 Vehicle Agent
FCC ID:WONSA91004023
User Manual
Release Date: 13/01/2015
Prepared by: Yossi Nurok
Distribution (Check all appropriate):
[ ] Precyse Only [ ] Project Team Only [ ] Customer and Supplier
![](/img.php?id=2545304&img=bg2.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 2 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
Revision Record
Rev.
Effective
Date
Description
1.0
13/1/2015
915 Vehicle Agent user manual initial release
1.1
1/3/2015
1. Added installation notice p.8.
2. Fixed product description to 915 Vehicle Agent p.6.
3. Added description of antenna location and its
unreachability to End User p.7.
Reference documents
#
Doc #
Description
1
![](/img.php?id=2545304&img=bg3.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 3 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
TABLE OF CONTENTS
Section/Title Page
Introduction ...................................................................................................... 4
Regulatory Information/disclaimers .................................................................. 4
Product description .......................................................................................... 6
915 Vehicle Agent ......................................................................................... 6
Technical Parameters ...................................................................................... 6
Model: ........................................................................................................... 6
Performance: ................................................................................................ 6
Communication: ............................................................................................ 6
Electrical: ...................................................................................................... 6
Environmental: .............................................................................................. 7
Antenna: ....................................................................................................... 7
System test configuration ................................................................................. 8
SAT ............................................................................................................... 8
Theory of operation .......................................................................................... 9
![](/img.php?id=2545304&img=bg4.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 4 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
Introduction
This document provides you with technical support information, and sources for
additional product information.
Regulatory Information/disclaimers
Installation and use of this Wireless Radio device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any changes
or modifications made to this device that are not expressly approved by the manufacturer
may void the user’s authority to operate the equipment. The Manufacturer is not
responsible for any radio or television interference caused by unauthorized modification
of this device, of the substitution or attachment. Manufacturer and its authorized resellers
or distributors will assume no liability for any damage or violation of government
regulations arising from failing to comply with these guidelines.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
This document is confidential and proprietary. No part of this document may be
reproduced, stored, or transmitted in any form or by any means without prior written
permission from Precyse Technologies Inc.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause
undesired operation.”
![](/img.php?id=2545304&img=bg5.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 5 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician.
FCC Warning
Modifications not expressly approved by the manufacturer could
void the user authority to operate the equipment under FCC
Rules.
![](/img.php?id=2545304&img=bg6.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 6 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
Product description
915 Vehicle Agent
FCC ID: WONSA91004023
The SA Tag is used to track assets in real time. It is based on an RF transceiver and a
microcontroller.
It uses the Precyse N3 proprietary protocol which provides a 2 way, half duplex
communication with the base station.
The unit is powered by a 12/24VDC inlet.
Technical Parameters
Model:
SA91/004023
Performance:
Read range: up to 1km. (Within line of sight)
Write range: up to 1km. (Within line of sight)
Read rate: 250Kbps.
Write rate: 250Kbps.
Communication:
Frequency: 905-917.14MHz ISM within license free band
Modulation: 2-FSK
Channel bandwidth: 800KHz
Number of channels: 16
ERP: Up to 22.8dBm, digitally controlled
Communication protocol: N3.
Transmission: Event base and on demand
GPS receiver.
Internal sensors: Motion, temperature sensors.
Electrical:
Power supply: 12/24VDC inlet
![](/img.php?id=2545304&img=bg7.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 7 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
Environmental:
Size: 170mm (L) x 110mm (W) x 100mm (H)
Operating temperature: -20°C to +75°C
Humidity: 90% non-condensing
Weight: 100gr. (4 ounces)
Antenna:
End user cannot change antenna (comply with 15.203). The antenna is connected to the rest
of the unit under the enclosure - see figure 1 for internal part of unit with the SMA connector
antenna and figure 2 for the final product.

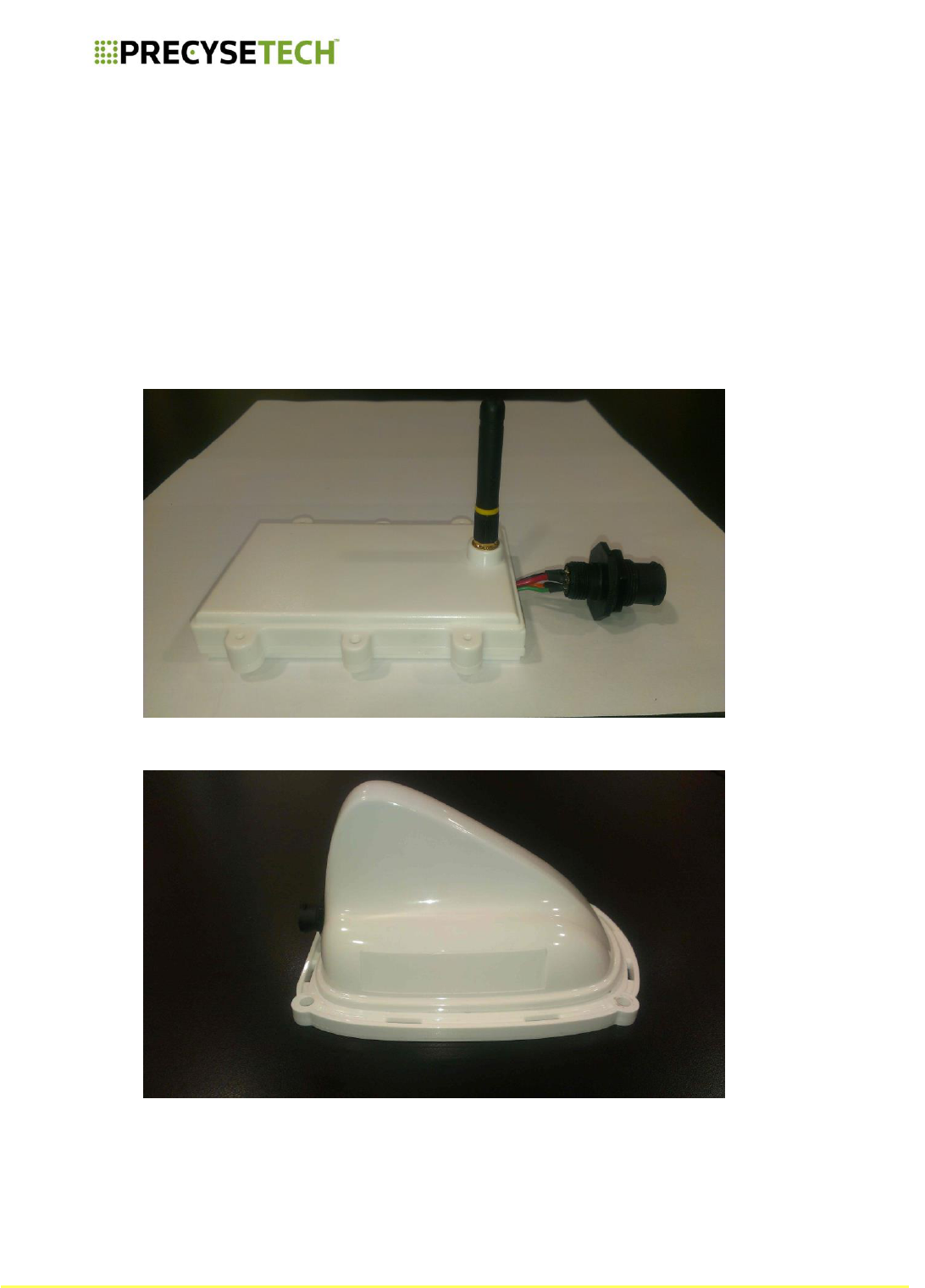

Figure 1
Figure 2
![](/img.php?id=2545304&img=bg8.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 8 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
System test configuration
SAT
The unit tested was configured with all hardware options present. Since the unit, under its
normal operation, does not transmit data periodically, for emissions measurements, the SAT
was programmed with special test software to transmit packets continuously at 22.8dBm
output power, duty cycle (67.7%) with power amplifier enabled for FCC test requirement
only.
Normal operation duty cycle, assuming worst case, one event per second is less than
0.5% (5mSec transmit time per 1 second).
Installation diagram
The SA91/004023 should be connected to car battery using cable described in figure 3
(optional: through 1A fuse) and mounted on external part of the vehicle e.g. hood or grille.
This equipment has been approved for mobile applications where the equipment
should be used at distances greater than 20cm from the human body (with the
exception of hands, wrists, feet and ankles). Operation at distances less than 20 cm
is strictly prohibited.
![](/img.php?id=2545304&img=bg9.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 9 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
TITLE
Vehicle tag cable assembly
DRAWN BY
Desginer
DESCRIPTION
Cable assembly for FedEx Vehicle tag
DATE
1/13/2015
FULL FILENAME
VISIODOCUMENT
Copyright ©
FIELD
H
G
F
E
D
C
B
A
87654321
H
G
F
E
D
C
B
A
87654321
A
Front side
(socket) view
B
C
D
F
E
1. Connector: Souriau UTS6JC106S. contact arrangement 10-6, Contact type: sockets.
IP68
2. Contacts PN: RC20W3K. Populated sockets:C (Red),D (Black). Alternate stamped
contacts: SC20W3S25
3. Cable: 2 conductors, 20AWG, Black and Red, AWM2464, 80°C VW-1, Length 3m.
Jacket color: Black
PN: Alphawire 1895C
4. FUSE holder FHAC0001ZXJ littlefuse
5. FUSE 287001 littlefuse
300cm
50cm FUSE
HOLDER
23cm
227cm

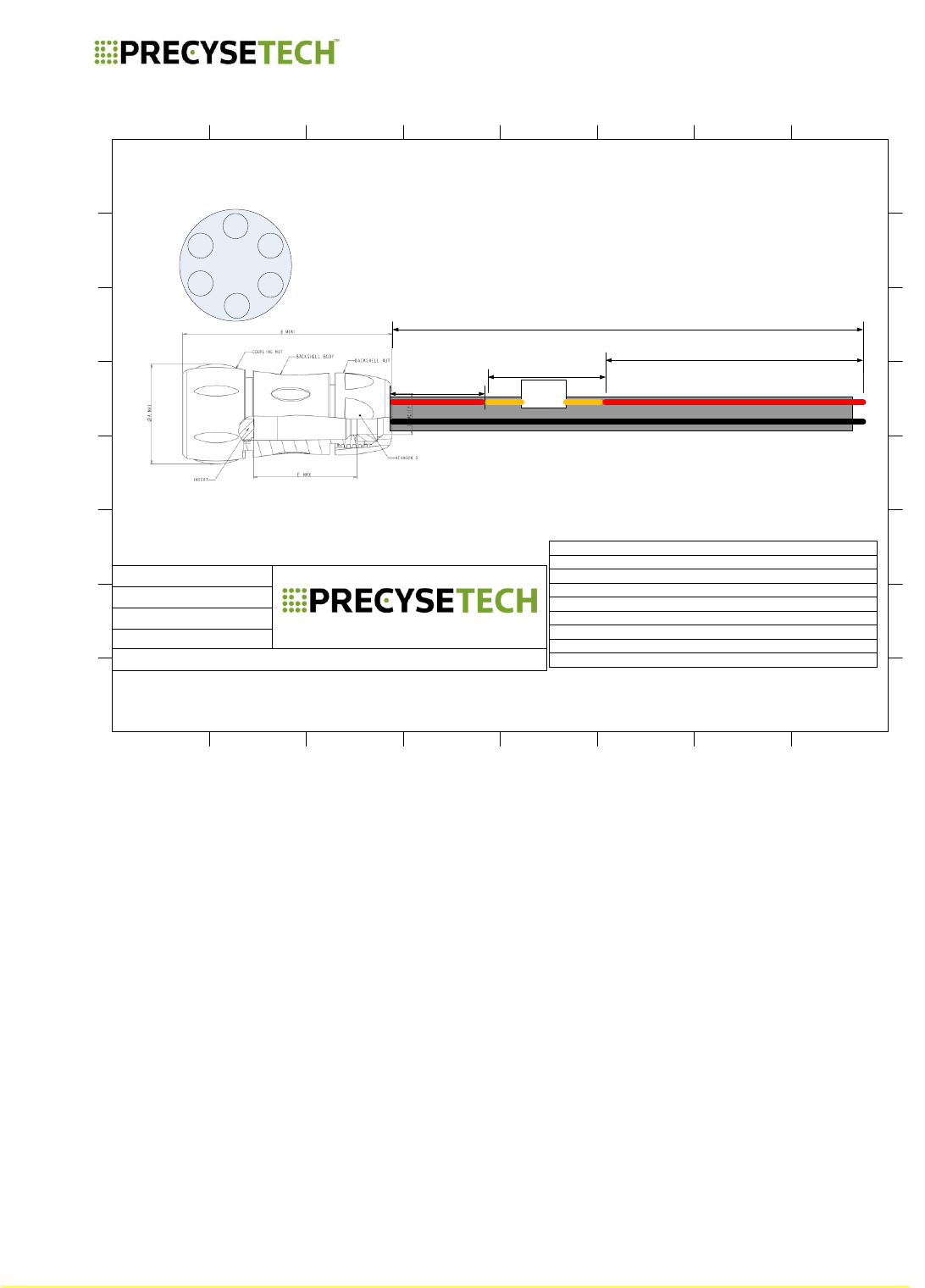

Figure 3 - optional cable with fuse
Theory of operation
The SAT method of communication is synchronized event based reporting, the SAT spends
most of its time in low power sleep mode. Event could be GPS location, motion start and stop,
PBC found and which one. When an event happens, the SAT sends a report to the base
station. In order to avoid packet collisions and associated detection methods, the system uses
a synchronous protocol, that is, An SAT can transmit data only after receiving a
synchronization signal from the base station.
![](/img.php?id=2545304&img=bga.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 10 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
PC
PBS
TAG (SAT)
Attached to
assets
Ethernet
PBC1
PBC2
PBC3
Figure 4 - iLocate system block diagram
![](/img.php?id=2545304&img=bgb.png)
Precyse Technologies, Ltd.
Date: 3 March 2015 Page 11 of 11
Precyse Technologies Inc
Ha'amal 11
Haamal 11 Rosh Haayin
Rosh Ha'ayin, 48092
Israel
Unit definitions:
Base station, referred to as PBS: A radio device that transmits data to and from the tag (SAT)
to a personal computer (PC), also provides synchronization signal. The unit is powered by a
DC power supply.
Beacon, referred to as PBC: A radio device that defines a location. Location detection can be
realized through one or more PBCs. The unit is powered by a DC power supply.
Tag (SAT): A radio device that is used to track and monitor assets. It communicates with the
PBS and can detect the PBC signals.
