Table of Contents
1. Description
2. Operation
3. Specifications
4. Cables
5. FCC Statement
1. Description.
The V+F Lens Control is available as a single channel wireless/cable control (p/n 4050) or
a cable only version (p/n 4051). Both are used with DM-1 or DM-2 digital motors. The
cable only version is intended to control the iris function of cinema style lenses mounted
on video cameras. In this mode, the iris is controlled through:
• the cameras’ remote set-up box (Sony RMB-150 or equivalent)
• through the cable connected Remote iris Box (p/n 4020)
• through the on-board control knob.
The wireless version adds the possibility of control through any of three wireless hand
units:
• Focus-Iris Hand Unit (p/n 4024)
• FI+Z Hand Unit w/ MW Transmitter (p/n 4000 + 4910)
• Radio Micro Force unit (p/n 4015 or 4016)
Wireless channels are indicated on the digital display. A three position switch adjusts
the motor torque level, and a second switch determines the direction of motor rotation.
The small size of the control makes it especially suitable for hand held use.
The FI+Z Hand Unit (p/n 4000 with Microwave Transmitter p/n 4910), the Focus-Iris
Hand Unit (p/n 4024) or the Radio Micro Force (p/n 4015 or 4016) can all be used for
wireless operation with version p/n 4050. The mode switch selects whether the unit
responds to Focus, Iris, or Zoom commands. Camera Run/VTR signals are available for
controlling all film and video cameras.
The unit operates over a voltage range of 11 - 30 VDC. For video cameras, all power and
control signals are provided through the 12-pin Hirose on the camera. Film cameras
having accessory receptacles capable of 1.5A @ 24V (Arri 435, Panavision) can also be
used to provide both power and camera run functions. Otherwise separate receptacles
are provided for external power and Camera Run/VTR.
2. Operation
.
A. Camera Connections and Mounting
a. Secure the V+F Lens Control to the Matte Box Support Rods using the Mounting Bracket.
The jaw opening is adjusted to accommodate different rod sizes by turning the free half of
the bracket as shown in the picture above.
b. The V+F unit can be powered directly from the camera, or through a separate power
cable. The cables for connection to the camera are p/n 4620 ~ 4630, and the power cables
are p/n 4640, and 4641. See the complete list of cables in Section 4 of this document.
c. Connect the digital motor (DM-1 or DM-2) with the motor cable (p/n 4410 ~ 4412).
d. Use a Swing Arm Motor Bracket (p/n 4301 ~ 4303, 4333) to attach the motor to the Matte
Box Support Rods. Engage the motor to the lens.

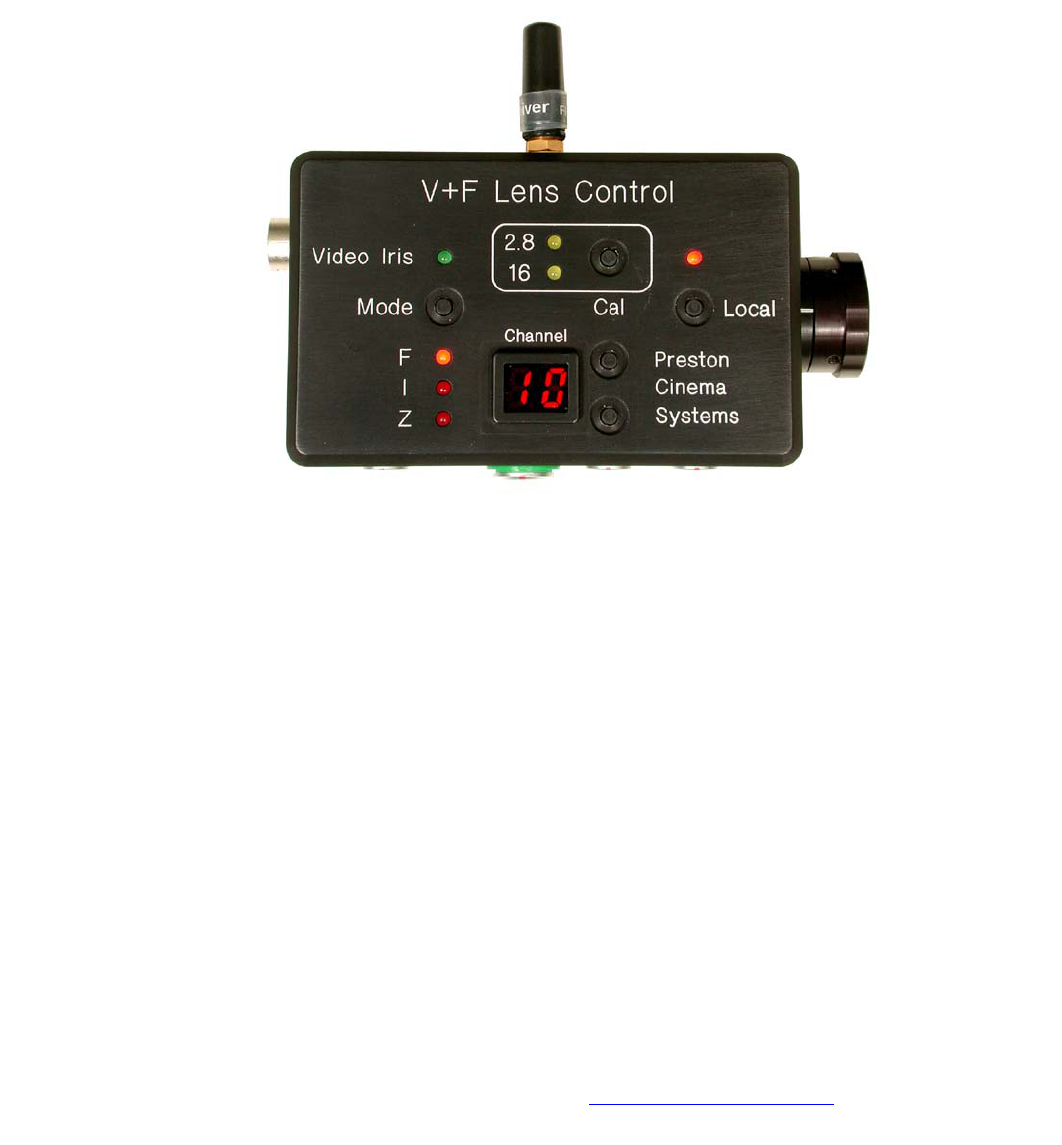

p/n 4050 Wireless Version p/n 4051 Cable Only Version
VLC Receptacles Mounting Bracket p/n 4342
B. Set-up Procedure-Video Camera Calibration
i. Power the camera.
ii. Wireless Version only: Set the mode to Video by pressing the mode button until
the “Video Iris” LED is lit. Press the “Cal” button. The Digital Motor will find the
end stops of the lens. The f2.8 LED should be blinking. Using the knob on the
VLC to move the iris to f2.8 and press the “Cal” button again. Now the F16 LED
will blink.
iii. Cable Only Version. There is no mode switch on this unit. Initiate calibration by
pressing the “Cal” button. After the motor finds the end stops of the lens, the
F2.8 LED will blink. Use the knob to set the lens to F2.8 and press the “Cal”
button again. Now the F16 LED will blink. Adjust the lens to F16 and press the
“Cal” button. Turn the knob until the iris is at F16 and press the Cal button. The
lens is now calibrated to the video camera and the engraved F-stop marks on
the knob should match those of the lens.
C. Set-Up Procedure for wireless operation. The V+F (p/n 4050) can be controlled through its
microwave link by the following hand controls:
a. The FI+Z Hand Unit
b. The Focus-Iris Hand Unit
c. The Radio Micro Force module with a Micro Force control.
Communication between the Hand Unit and the V+F will be established when both units are set
to the same channel. The wireless channel is by using the channel button located to the right of
the LED channel display.
D. Control of the motor can be switched from an external source (wireless Hand Unit or RMB150
type device) to the knob by pressing the “Local” button. The red LED will be lit when the unit is
under local control.
E. The V+F may also be controlled via a cable connection through the Remote Iris Box (p/n 4020).
To use this device with the V+F, place the unit into the “Local” mode and connect the Iris Box to
the V+F “Remote” receptacle with cable 4642
VLC and Digital Motor with brackets
3. Specifications
Size 107mm x 66mm x 45mm (4.2" x 2.6" x 1.75")
Weight: 350g
Power Requirements: 11 - 30 VDC 0.2A quiescent at 12VDC.
4. Cables and Accessories
4342 Mounting Bracket (spare) for 15 – 19mm rods
4620 Camera Cable Arriflex 12V 11-pin Fischer
4621 Camera Cable Arriflex 24V 3-pin Fischer
4622 Camera Cable Panavision Film
4623 Camera Cable Panavision Genesis
4624 Camera Cable Aaton
4630 Camera Cable Sony
4640 Aux Power Cable 12V 4-pin XLR
4641 Aux Power Cable 24V 3-pin XLR
4642 Remote Iris Cable Box 8’
5. FCC Statement
Remote Iris Box p/n 4020
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
This equipment has been verified to comply with the limits for a class B computing device,
pursuant to FCC Rules. Operation with non-approved equipment is likely to result in interference
to radio and TV reception.
The user is cautioned that changes and modifications made to the equipment without the
approval of manufacturer could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received including interference that may cause
undesired operation.
FCC RF EXPOSURE STATEMENT
To satisfy RF exposure requirements, this device and its antenna must operate with a
separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter.
