Primax Electronics B81116 Bluetooth Headset User Manual Modify
Primax Electronics Ltd Bluetooth Headset Modify
Manual
Confidential
User Guide
for
Bluetooth Headset PHS-4
By
Primax Electronics Ltd.
Confidential User Guide
Primax Electronics Ltd. 2
Change History
Version Date Author Status Comment
0.1 16.05.2006 River.Yang Draft Initial Draft
0.2 27.Jun.2006 River.Yang Draft Update because
the UI change
0.3 31.Jul.2006 River.Yang Draft Update because
the UI change
0.4 1.Aug.2006 River.Yang Draft Update because
the UI change
Confidential User Guide
Primax Electronics Ltd. 3
Table of Contents
1. INTRODUCTION.................................................................................................4
2. GETTING STARTED...........................................................................................6
3. CHARGING THE BATTERY...............................................................................6
4. PAIRING THE BLUETOOTH HEADSET WITH A COMPATIBLE PHONE........6
5. DISCONNECTING THE BLUETOOTH HEADSET FROM THE PHONE............7
6. RECONNECTING THE PAIRED BLUETOOTH HEADSET TO THE
COMPATIBLE PHONE..............................................................................................7
7. POWERING UP...................................................................................................8
8. MAKING CALLS.................................................................................................8
9. ANSWERING AND ENDING A CALL................................................................8
10. REJECTING A CALL......................................................................................8
11. REDIALING THE LAST DIALED NUMBER....................................................8
12. MUTING AN ONGOING CALL........................................................................8
13. VOICE DIALING..............................................................................................9
14. ADJUSTING THE EARPHONE VOLUME......................................................9
15. SWITCHING THE CALL BETWEEN PHONE AND HEADSET......................9
16. ERASE ALL PAIRED DEVICE INFORMATION..............................................9
17. FEDERAL COMMUNICATION COMMISSION INTERFERENCE
STATEMENT.................................................................................................10
Confidential User Guide
Primax Electronics Ltd. 4
1. Introduction
Thanks for purchasing PHS-4.Your PHS-4 is a stylish headset that enables
comfortable handsfree communication with compatible phone that supports Bluetooth
technology.

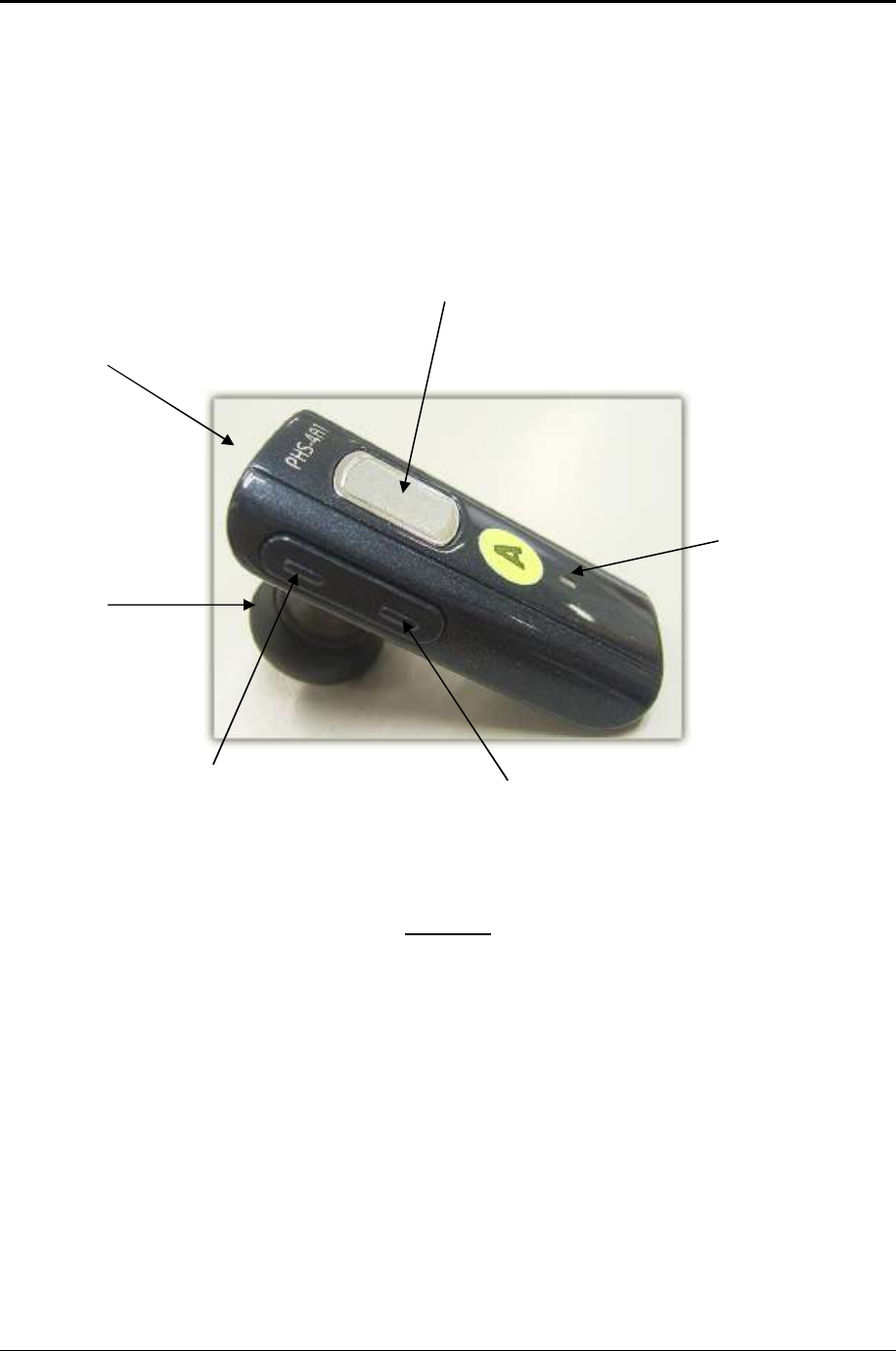

The PHS-4 contains the following parts, as shown in Figure 1.
Figure 1
1.1 Power/Send/End key (1)
• Switches the headset on and off
• Answer incoming call
• End active call
1 - Power/Send/End key
2 - Indication light
3 - Volume up key 4 - Volume down key
5 - Charger connector
6 - Earpiece
Confidential User Guide
Primax Electronics Ltd. 5
• Reject incoming call
1.2 Indicator Light (2):
• Power on –Blue light constant on for 1 seconds and beep once.
• Pairing state –Blue/Red light flashing alternatively, the flashing
continues for approximately 3 minutes or until the headset is
connected to a compatible phone. If the headset can’t be
connected to the phone during this time, the headset enter
connectable status.
• Connectable –Blue light flashing once every 5 seconds.
• Connection active –Blue light flashing twice every 8 seconds
• Incoming call –Blue light flashing 3 times every 1 second.
• Active call –Blue/Red light flashing alternatively every 5 seconds.
• Power off –Red light constant on for 1 seconds and beep once.
• Low battery – The Led frequence is ten times of the Led current
status,and beep on every 20 seconds
1.2 Volume up (3): Increase the earpiece volume
1.3 Volume down (4): Decrease the earpiece volume
1.5 Charger connector (5): For headset battery charging
1.6 Earpiece (6): Relay the caller’s voice.
Confidential User Guide
Primax Electronics Ltd. 6
2. Getting started
Take out all components from the package.
1. PHS-4 Headset
2. Charger
3. User guide
4. Quick reference (optional)
3. Charging the battery
Before using PHS-4, you must charge the product for approximately 2 hours. When
the battery is fully charged, it provides up to 7 hours of talk time and up to 200 hours
of standby time.
1. Connect the charger cable to PHS-4
2. Plug the AC adapter into a wall outlet. When PHS-4 is charging, red indicator light
will display.
3. When the battery is fully charged, the Red light is off. Unplug the charger cable
from the wall outlet and PHS-4.
4. Pairing the Bluetooth headset with a compatible phone
Pairing is the process of linking the headset with your Bluetooth enabled mobile
phone. After this process is completed, you can use the PHS-4 only with this paired
mobile phone. If you want to use PHS-4 with another mobile phone, you must repeat
the pairing process again. The PHS-4 can be paired with up to 8 compatible phones
but connected to only one phone at a time.
1. Make sure that the compatible phone is turned on and within 10 meters of the
headset.
2. Turn on PHS-4 and make sure the headset is charged. Press and hold volume up
key and volume down key together for about 2 seconds. The blue and red LEDs will
flash alternatively. Release both buttons and the headset is now in pairing mode.
3. Activate the Bluetooth connection from the phone. You may need to consult with
user guide of your phone regarding how to do that.
4. Set the phone to start searching for Bluetooth devices as instructed in user guide
of your phone.
5. Select the PHS-4 from the list.
6. Enter the pin code 0000 to connect (or “pair”) PHS-4 to the phone.
Confidential User Guide
Primax Electronics Ltd. 7
PHS-4 beeps once and an active Bluetooth connection is displayed by a blinking blue
indicator light.
If PHS-4 is turned on within 10 meters of several paired phones, the headset will try
to connect to the last connected phone within 20 seconds. If the headset cannot
connect to the last connected phone(for example, phone is turned off or it rejects the
connection), it remains connectable until user action or Headset’s battery runs out.
which is displayed by the blinking blue indicator light.
7. Start using the headset.
5. Disconnecting the Bluetooth headset from the phone
To disconnect PHS-4 from the phone, do one of the following:
1 Turn off PHS-4.
2. Disconnect PHS-4 in the phone menu.
3. Move the headset more than 10 meters away from the phone.
Note that you do not need to delete the pairing with the headset to disconnect it.
When you reconnect a paired headset, you will not be asked for its pin code again.
6. Reconnecting the paired Bluetooth headset to the compatible
phone
To reconnect PHS-4 to the last connected phone, you can use any one of the
following actions:
1. Restart PHS-4 by powering off and power on again.
2. Make the connection in the phone menu as instructed in the user guide of your
phone.
3. Press the Power/send/end key and Volume up key together for about 2 second
4. Press the Power/send/end key and Volume down key together for about 2
second.
5. Take the headset 10 meters away the connected phone, headset will
disconnect from the phone, come back within 10 minutes and the headset will
auto reconnect with the phone.
Confidential User Guide
Primax Electronics Ltd. 8
7. Powering Up
To turn on PHS-4
Press and hold the power key for 2 seconds. PHS-4 beeps and the blue indicator
light starts blinking. (First time use requires pressing it for 5 seconds.)
To turn off PHS-4
Press and hold the power key for 2 second, PHS-4 beeps and the red indicator light
is displayed briefly.
8. Making calls
When PHS-4 is connected to the phone, make a call by using the phone in the
normal way. Note that the call functions depend on the phone that you use.
9. Answering and ending a call
When you receive a call, you hear a ringing tone through the headset.
Short press the power/send/end key to answer the call or to end the currently active
call.You can also answer and end the call using the phone.
Note: Some phones offer Auto Answer function and may be used with Headset or
Handsfree, but this is a phone dependent feature. Please check out the manual of
your phone about how to use that function.
10. Rejecting a call
When you receive an incoming call that you do not want to answer, double press the
power/send/end key
11. Redialing the last dialed number
Press the volume up key and hold it for 2 seconds when no call is in progress.
12. Muting an ongoing call
You can mute or unmute the ongoing call by pressing the power/send/end and
volume up keys together for 2 seconds when a call is in progress. A tone plays
every 5 seconds to indicate the call in mute state.
Confidential User Guide
Primax Electronics Ltd. 9
13. Voice dialing
When no call is in progress, press volume down key and hold it for 2 seconds until
there is a tone that indicates that you can start saying the voice tag. The phone plays
the voice tag and dials the related phone number.
Note: This is a phone dependent feature. Please check out the manual of your phone
about how to use that function.
14. Adjusting the earphone volume
Press the volume up key to increase or the volume down key to decrease the volume.
15. Switching the call between phone and headset
Press the power/send/end and volume down keys together for 2 seconds or use the
corresponding function in your phone.
16. Erase all paired device information
When PHS-4 in Connectable state, press the Volume up key and hold for 5 seconds,
after heard a tone played, release the key
Confidential User Guide
Primax Electronics Ltd. 10
17. Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
