User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 1 (10)
Primax Electronics Ltd. - 1
User Guide of Bluetooth USB Adapter
Owner: Wendy Oy
Document ID:
Version: 0.1
Status: Draft
Copyrightã 2005 PRIMAX Electronics. All rights reserved. This material, including
documentation and any related computer programs, is protected by copyright controlled by
PRIMAX Electronics. All rights are reserved. Copying, including reproducing, storing, adapting
or translating, any or all of this material requires the prior written consent of PRIMAX
Electronics. This material also contains confidential information, which may not be disclosed to
others without the prior written consent of PRIMAX Electronics.
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 2 (10)
Primax Electronics Ltd. - 2
Change History
Version Date Status Handled by Comments
0.1 28.Oct.05 Draft Wendy Oy For Toshiba Version 3.03.10©
References
N/A
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 3 (10)
Primax Electronics Ltd. - 3
Contents
1. SPECIFICATION............................................................................................................4
2. BLUETOOTH USB ADAPTER QUICK START..............................................................5
2.1. Include in this package....................................................................................................5
2.2. System Requirements.....................................................................................................5
2.2.1. Hardware Requirements...................................................................................................5
2.2.2. Operating System Requirements......................................................................................5
2.3. Registration.....................................................................................................................5
3. INSTALLATION INSTRUCTIONS..................................................................................6
3.1. Windows Users Installation.............................................................................................6
3.2. Mac OS X users ( 10.2.8 or later ).................................................................................10
4. DECLARATION............................................................................................................11
4.1. Federal Communications Commission Radio Frequency Interference Statement.........11
4.2. Declaration of Conformity Compliance Statement for the Primax BT dongle.................11
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 4 (10)
Primax Electronics Ltd. - 4
1. Specification
Communication Method :Bluetooth standard
n Frequency :2400 ~ 2483.5 MHz
n Power Requirements :5V DC
n Operation Temperature Range :-5℃ to +50℃
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 5 (10)
Primax Electronics Ltd. - 5
2. Bluetooth USB Adapter Quick Start
2.1. Include in this package
n Bluetooth USB Adapter
n CD-ROM with Bluetooth software and manual
n This quick start guide
2.2. System Requirements
2.2.1. Hardware Requirements
n PC with a Pentium process or equivalent or any Macintosh computer running OS
10.2.8 or later
n Available USB port ( USB 2.0 or 1.1 )
n CD-ROM drive
2.2.2. Operating System Requirements
n Windows 98 Second Edition
n Windows ME
n Windows XP Professional (Service Pack 1 or above )
n Windows XP Home (Service Pack 1 or above)
n Windows 2000 Professional (Service Pack 3 or Above)
n Mac OS 10.2.8 or later
2.3. Registration
Please read this Quick Start guide to learn valuable information about the proper use and
installation of your new Bluetooth USB adapter.
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 6 (10)
Primax Electronics Ltd. - 6
3. Installation Instructions
3.1. Windows Users Installation

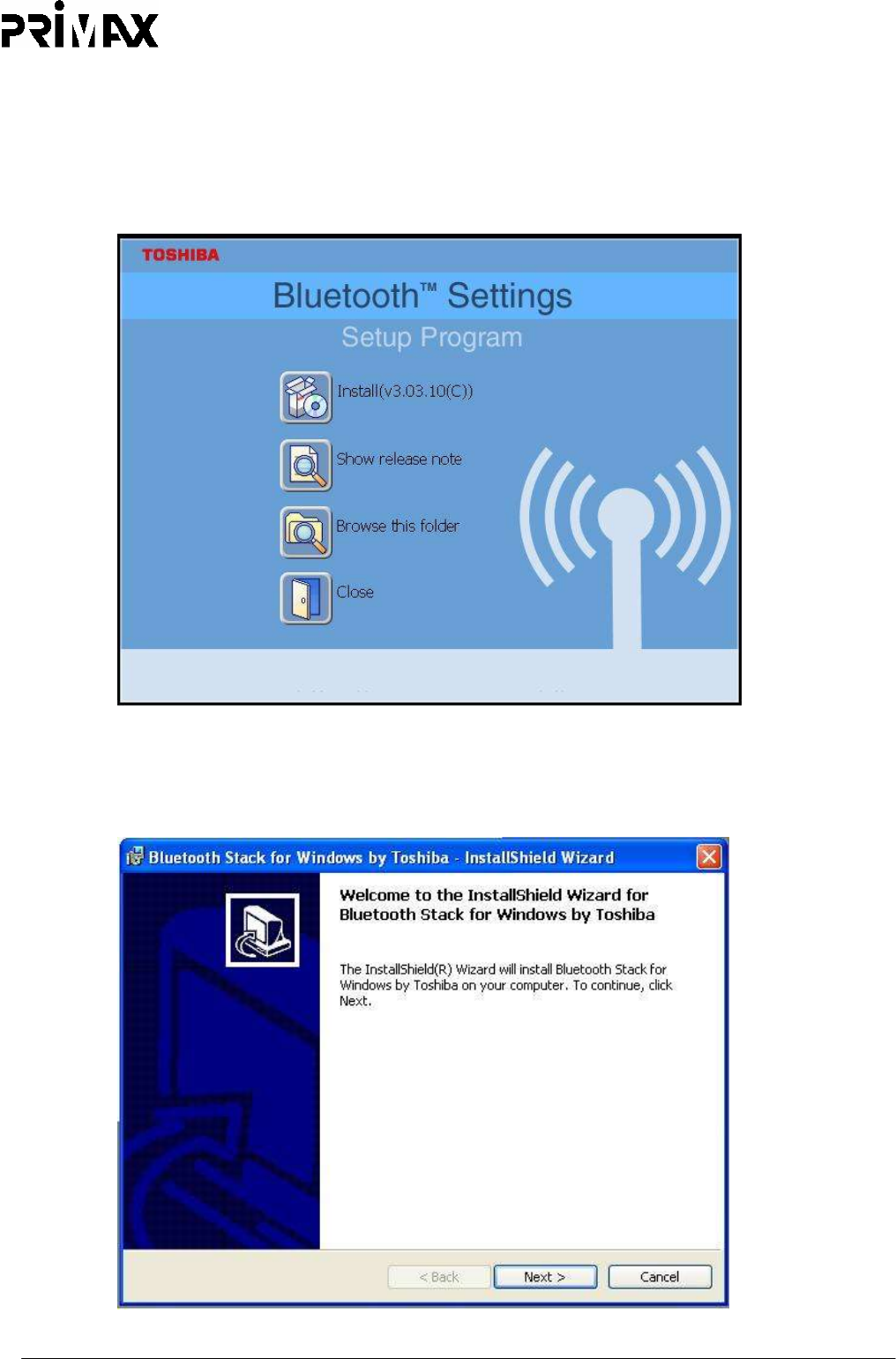

n Step1: Put the installation CD in your CD drive.
n Step2: Click “Installation” button to Start Install Process (If CD does not auto play, select
Start > Run … and type: D:\Setup.exe, where ‘D’ is the letter of your CD drive)
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 7 (10)
Primax Electronics Ltd. - 7

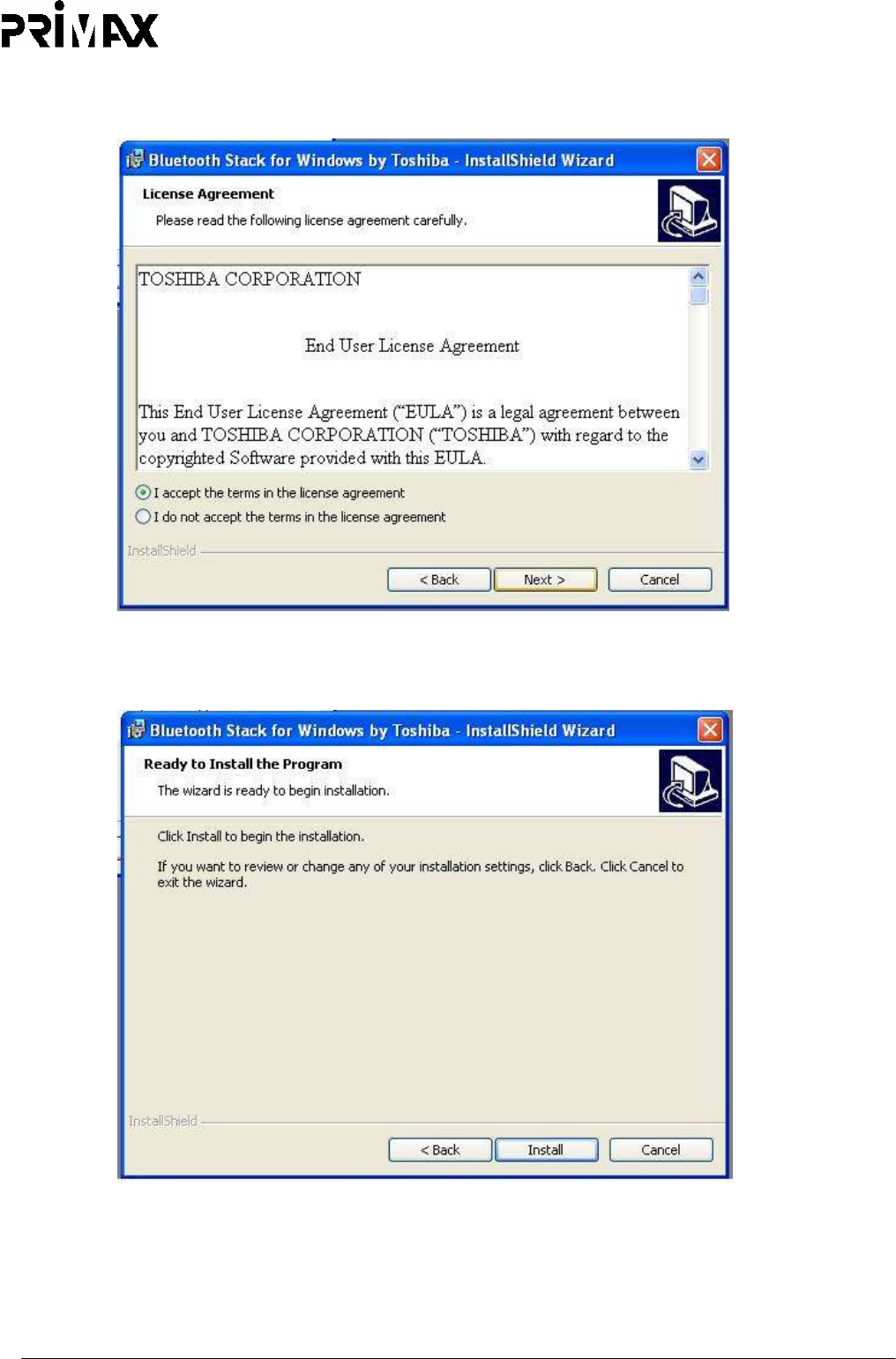

n Step3: Click “Next” to begin
n Step4: Select “I accept the terms in the license agreement”, and click “Next”
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 8 (10)
Primax Electronics Ltd. - 8

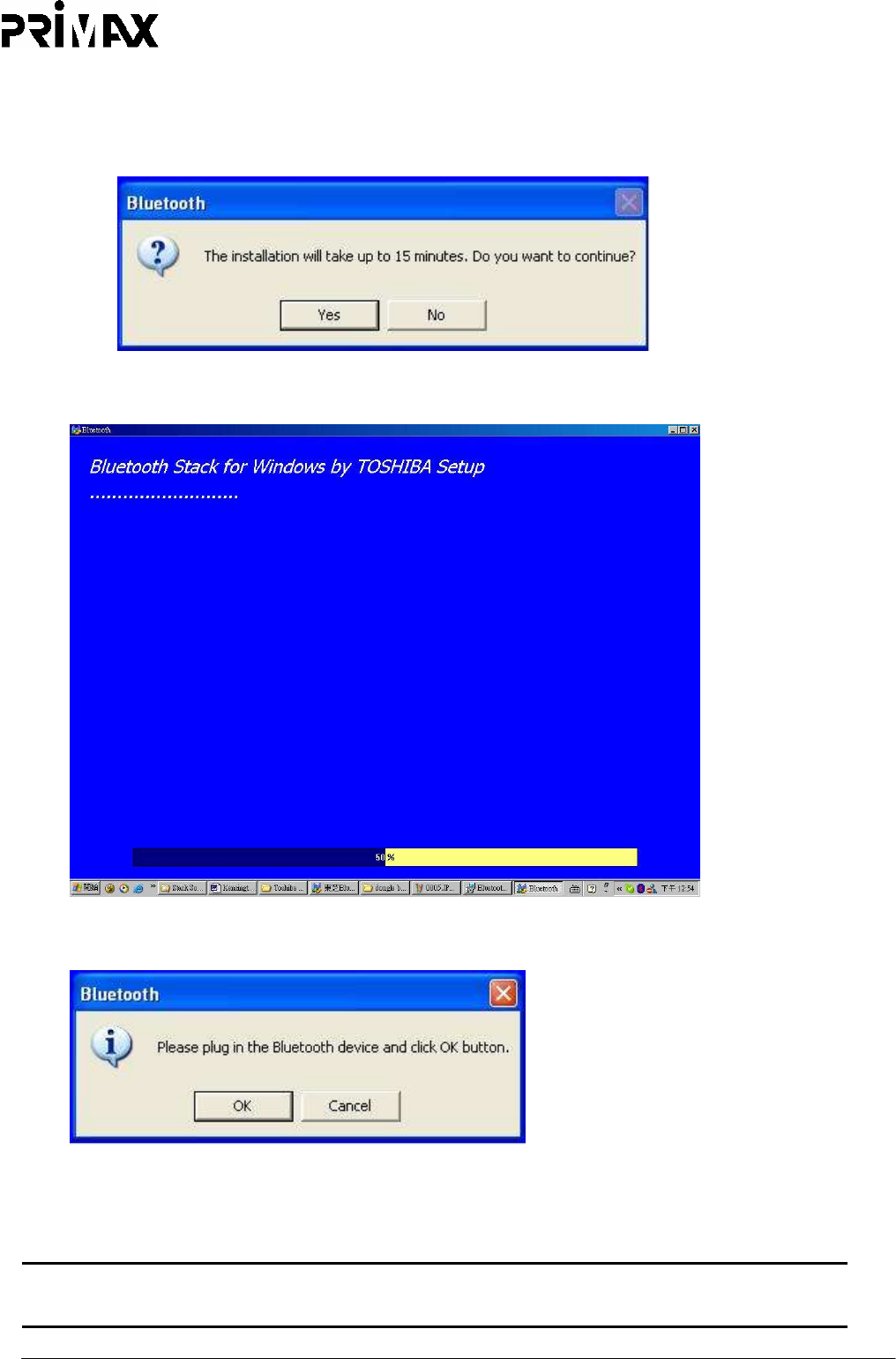

n Step5: Click “Install” to Begin Installing the software. A status window shows the
progress of the installation.
n Step6: Click “Yes” to continue install process
n Step7: Click “OK” to continue
Note: If this warning appears, plug the Bluetooth USB adapter into an available USB port.
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 9 (10)
Primax Electronics Ltd. - 9

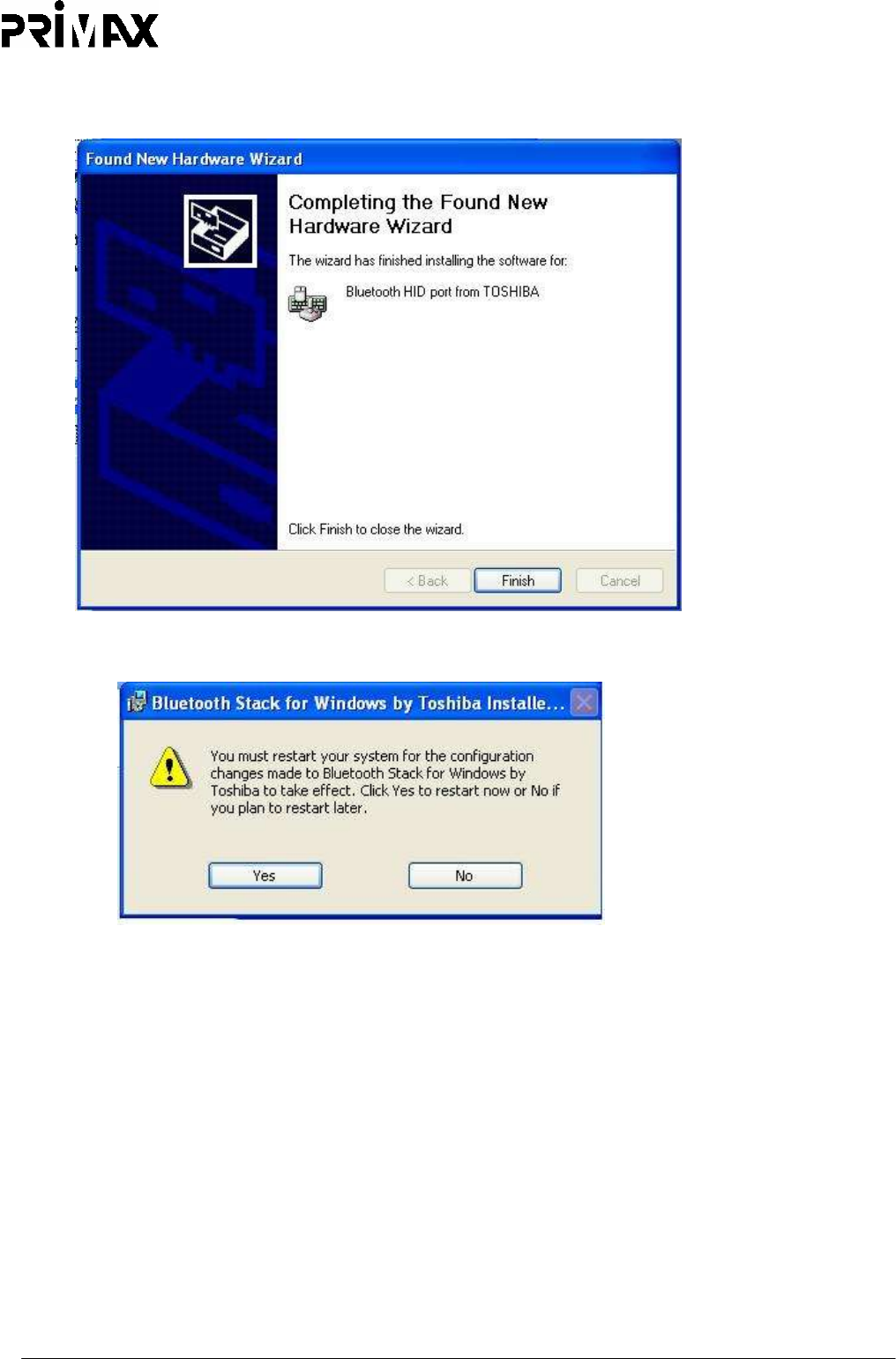

n Step8: Click “Finish” and then click “Exit “on the main CD contents screen
n Step9: Click “Yes” to restart Windows
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 10 (10)
Primax Electronics Ltd. - 10
3.2. Mac OS X users ( 10.2.8 or later )

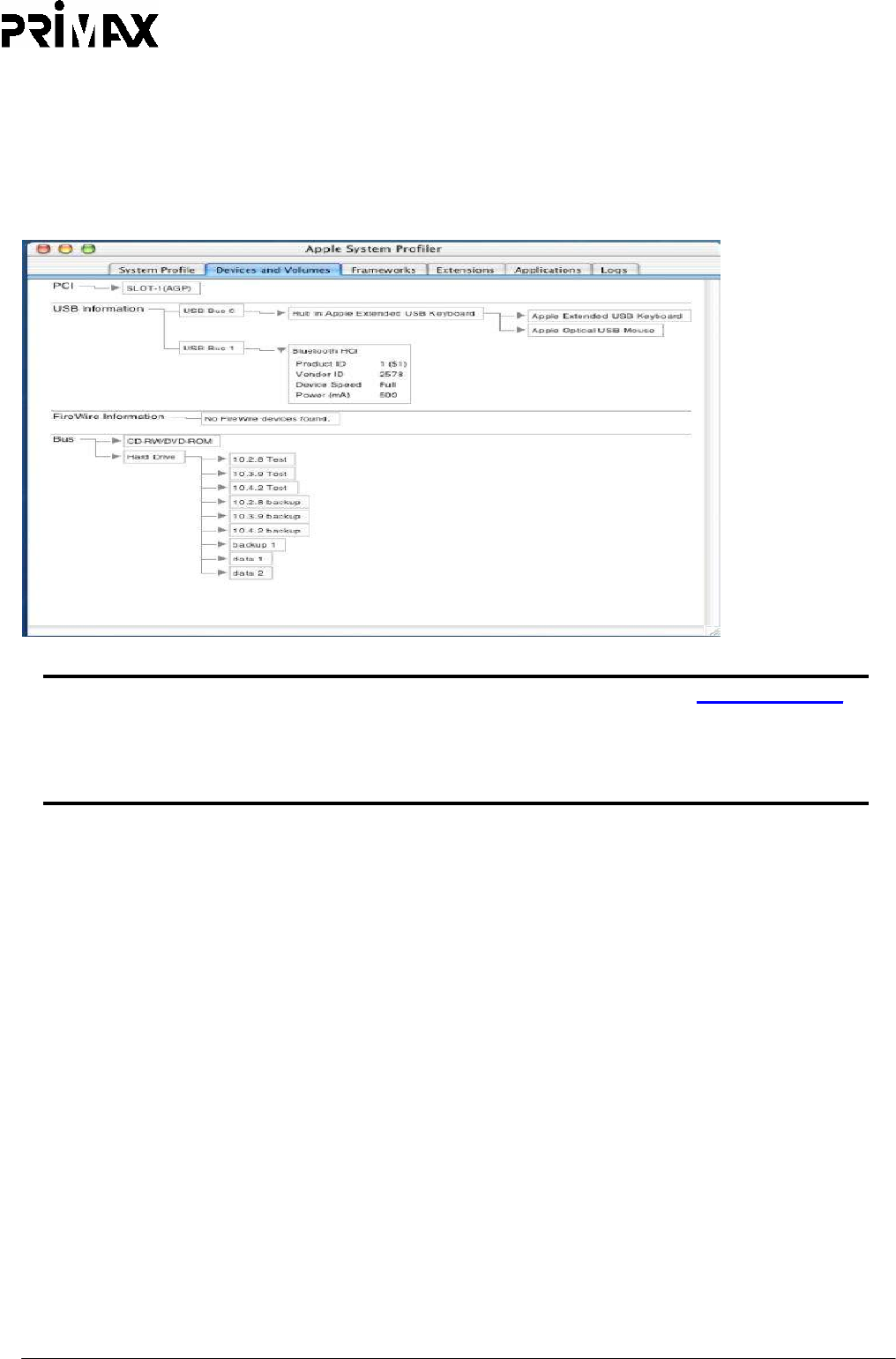

n Step1: After you plug the Bluetooth USB Adapter, the system Profile will find the
Bluetooth device
Note: For more information on using Bluetooth with Mac OS X, visit www.apple.com
and click on the Support tab. Select Bluetooth from the drop down menu , or enter it
into a search filed. Help is also available on your computer (10.2.8 and later). Select
Help (Mac Help) from the Finder Menu.
致伸科技股份有限公司
PRIMAX ELECTRONICS LTD.
User Guide of Generic Bluetooth USB Adapter
Product name: BT Dongle
Primax No.:
Document No.: Rev.: 0.1 Date: 2005/10/28 11 (10)
Primax Electronics Ltd. - 11
4.Declaration
4.1. Federal Communications Commission Radio Frequency Interference Statement
The BT2.0 dongle model no. 26-50701 has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does not cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and receiver.
n Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
n Consult the dealer or an experienced radio/TV technician for help.
MODIFICATIONS: Modifications not expressly approved by Primax may void the user’s
authority to operate the device under FCC regulations and must not be made.
SHIELDED CABLES: In order to meet FCC requirements, all connections to equipment
using a Primax input device should be made using only the shielded cable provided.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
4.2. Declaration of Conformity Compliance Statement for the Primax BT dongle
The BT2.0 dongle model no. 26-50701 complies with Part 15 of the FCC Rules. Operation is
subject to conditions
1) This device may not cause harmful interference, and,
2) This device must accept any interference received, including interference that may
cause undesired operation
As defined in Section 2.909 of the FCC Rules, the responsible party of this device is Primax
Electronics LTD. 669,Ruey Kuang Road, Neihu 114, Taipei, Taiwan, R.O.C.
886-2-2798-9008.
