Zero Touch BT Dongle
User’s Guide
Brand : Lenovo
Model No : AIO-D
Rating: 5V DC 80mA
Made in China
Introduction
Package Contents
· USB Bluetooth adapter x 1
· Installation CD x 1 (includes Bluetooth software and User’s Guide)
· User’s Guide x 1
PC Requirements
· Pentium processor or equivalent
· At least one USB port (USB 2.1 , 2.0 or 1.1)
· CD-ROM drive
· Operating System: Windows® 2000, Windows® XP with Service Pack 1 or higher, Windows® Vista.
Installing the Bluetooth Software (Vista)
Before installing the Bluetooth software, plug the USB Bluetooth adapter into a USB port of your computer. If not, a warning message will appear and prompt you to
plug the USB Bluetooth adapter into a USB port during the installation.
The following procedures are based on Windows Vista operating system.
1. Insert the provided Installation CD in the CD ROM drive.
2. The Bluetooth software loads automatically. If not, click the Setup.exe in the CD ROM.
3. The welcome screen appears. Click Next to begin installation.
4. Read the agreement and select I accept the terms in the license agreement. Click Next to continue.
5. The program will be installed in the folder as shown. Click Change to install in a different directory. Click Next to continue.
6. Click Install to start the installation. The installation may take some time to complete.
Note: If the “Bluetooth device not found” message appears, plug the USB Bluetooth adapter into a USB port of your computer and click OK.
The Found New Hardware Wizard starts installing the components for the USB Bluetooth adapter.
7. The following screen appears to indicate installation is complete.
8. Click Yes to restart your computer and for the new settings to take effect.
Using the Bluetooth Software (Vista)
After you have completed the driver and software installation and reboot your computer, a Bluetooth icon will appear on your desktop and in the bottom right hand
corner of your desktop screen (systray). The Bluetooth icon gives you access to the Bluetooth shortcut menu, and Bluetooth Devices, for configuring your Bluetooth
settings.
Right click the Bluetooth icon for to display the shortcut menu.
· Add a Bluetooth Device: Click to add a new Bluetooth device.
· Show Bluetooth Devices: Click to show all detected Bluetooth devices.
· Send a File: Click to send a file using Bluetooth File Sharing.
· Receive a File: Click to receive a file using Bluetooth File Sharing.
· Join a Personal Area Network: Click to join a private Bluetooth network.
· Open Bluetooth Settings: Click to open the Bluetooth Devices screen.
· Remove Bluetooth Icon: Click to remove the Bluetooth icon from the system tray.
Double click the Bluetooth icon for access to Bluetooth Devices.
You can manage all your Bluetooth connections and settings from the Bluetooth Devices screen.
Use the tabs at the top of the screen to navigate the Bluetooth Devices screen.
Click OK to confirm a setting, and close the screen, click Cancel to cancel any changes, and click Apply to confirm a setting without closing the screen.

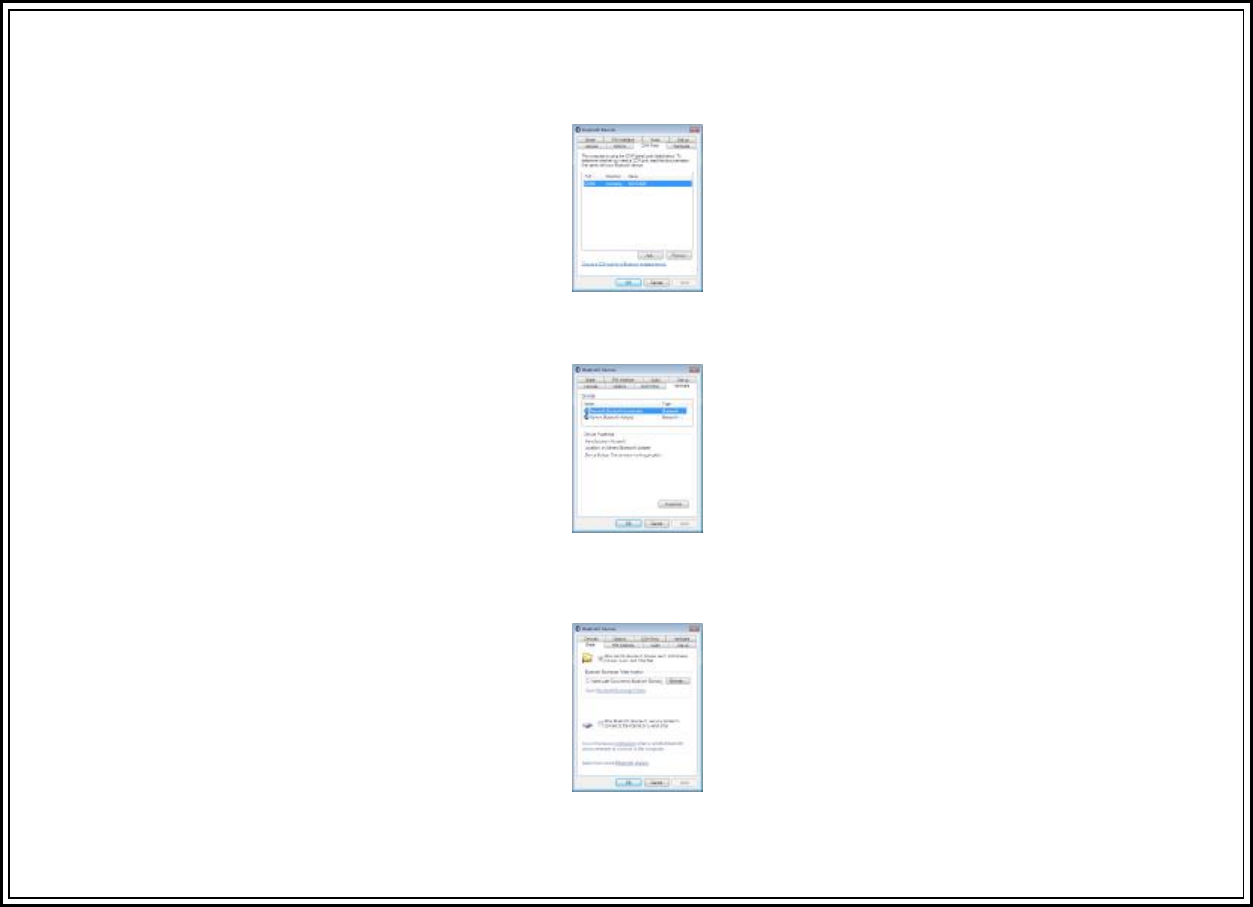

Devices Tab
Click the Devices tab to view all detected Bluetooth devices. Click Add to configure a new device, click Properties to view the properties for a selected device, or
Remove to remove a device from the list.
Options Tab
Click the Options tab to set discovery and connection permissions. You can also select to how the Bluetooth icon in the system taskbar from here.
Click Restore Defaults to restore all settings to their original defaults.
COM Ports Tab
Click the COM Ports tab to configure COM (serial) port settings for Bluetooth enabled devices. Click Add to configure assign a COM port to a Bluetooth enabled
device, or Remove to remove a device from the list.
Hardware Tab
Click the Hardware tab to view hardware information on all connected devices. Select a device from the list and click Properties to see detailed information.
Share Tab
Click the Share tab to configure sharing permissions and settings for sent and received files. You can specify what type of files can be accessed by remote devices,
where to store shared files, and to allow Bluetooth devices to use your computers modem to access the Internet or to send faxes.
PIM Interface Tab
Click the PIM Interface tab to configure settings for received PIM items, such as business cards, calendar items, e-mails, and notes. Select the type of PIM items to
accept from the drop-down menus.
Audio Tab
Click the Audio tab to configure settings for Bluetooth devices to be used for audio playback, audio recording, or telephony. Select a device from the list and click
Connect or Remove to remove a device from the list.
Dial-up Tab
Click the Dial-up tab to configure settings for Bluetooth devices to be used for connecting to the Internet using Bluetooth dial-up. Select a device from the list and click
Connect, or Remove to remove a device from the list.
Installing the Bluetooth Software (XP)
Before installing the Bluetooth software, plug the USB Bluetooth adapter into a USB port of your computer. If not, a warning message will appear and prompt you to
plug the USB Bluetooth adapter into a USB port during the installation.
The following procedures are based on Windows XP operating system.
1. Insert the provided Installation CD in the CD ROM drive.
2. The Bluetooth software loads automatically. If not, click the Setup.exe in the CD ROM.

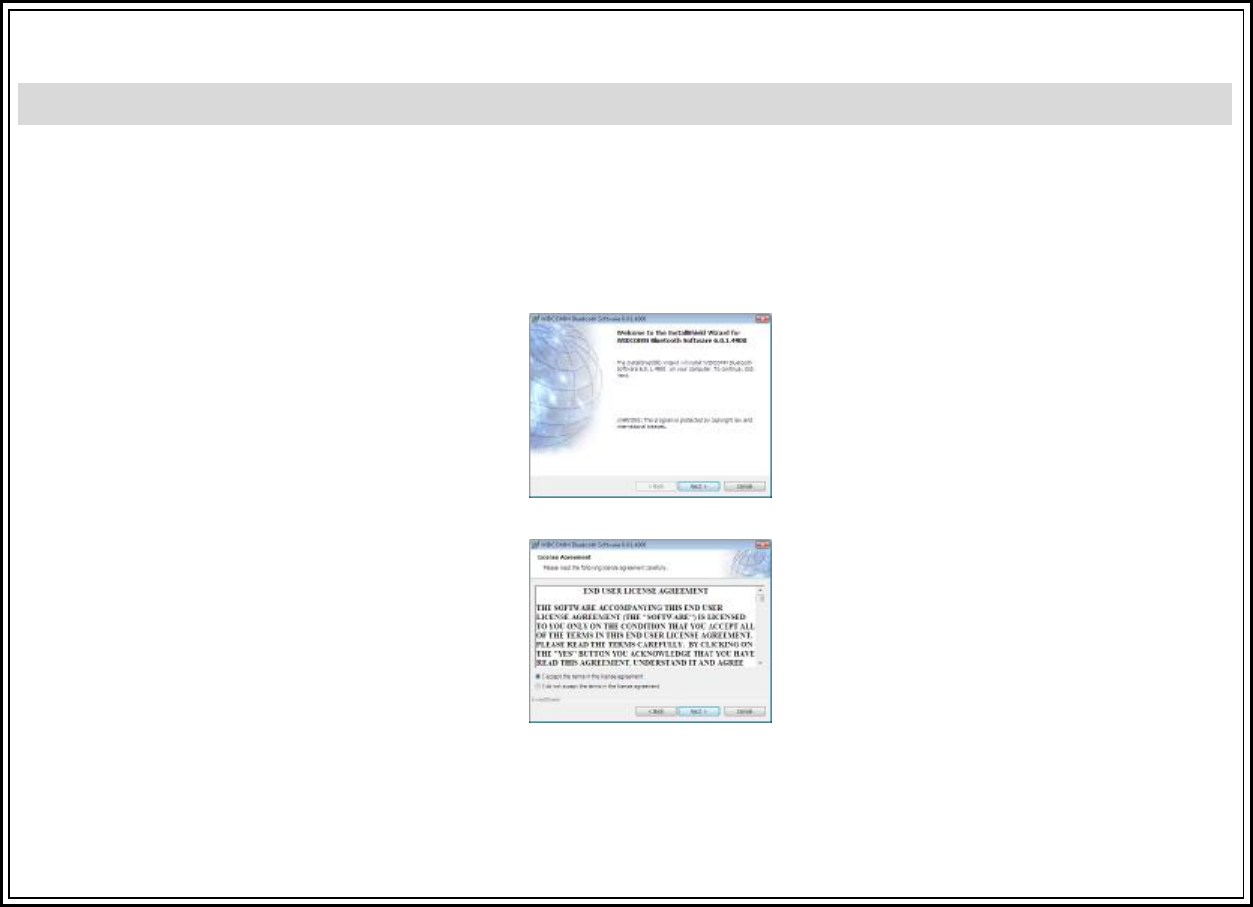

3. The welcome screen appears. Click Next to begin installation.
4. Read the agreement and select “ I accept the terms in the license agreement”. Click Next to continue.
5. The program will be installed in the folder as shown. Click Change to install in a different directory. Click Next to continue.
6. Click Install to start the installation. The installation may take some time to complete.
Note: If the “Bluetooth device not found” message appears, plug the USB Bluetooth adapter into a USB port of your computer and click OK.
The Found New Hardware Wizard starts installing the components for the USB Bluetooth adapter.
7. The following screen appears to indicate installation is complete.
Setting up the Bluetooth Software (XP)

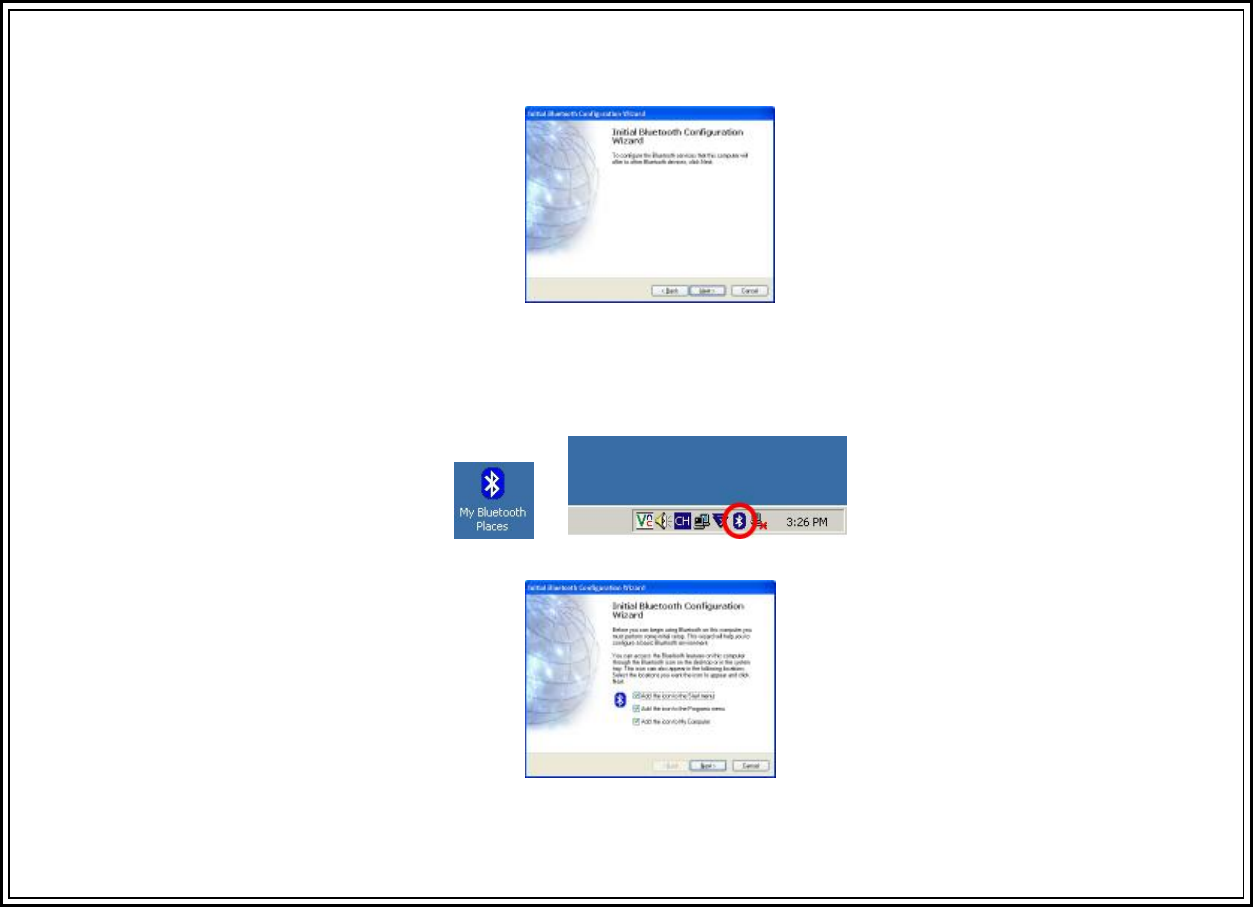

To start using the Bluetooth software, double click My Bluetooth Places on the desktop or the Bluetooth icon in the system tray.

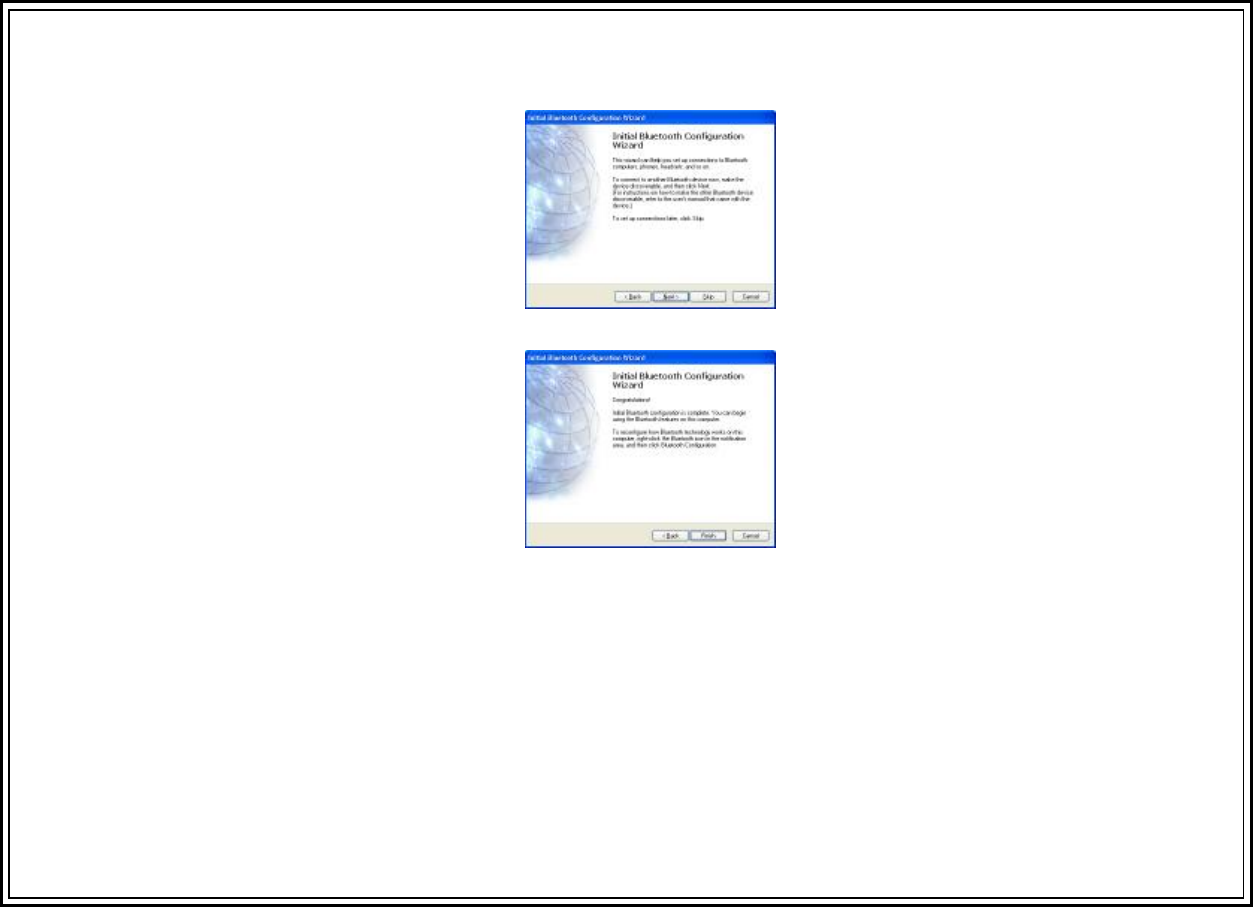

1. The Initial Bluetooth Configuration Wizard launches. Uncheck the options you do not require and click Next to continue.

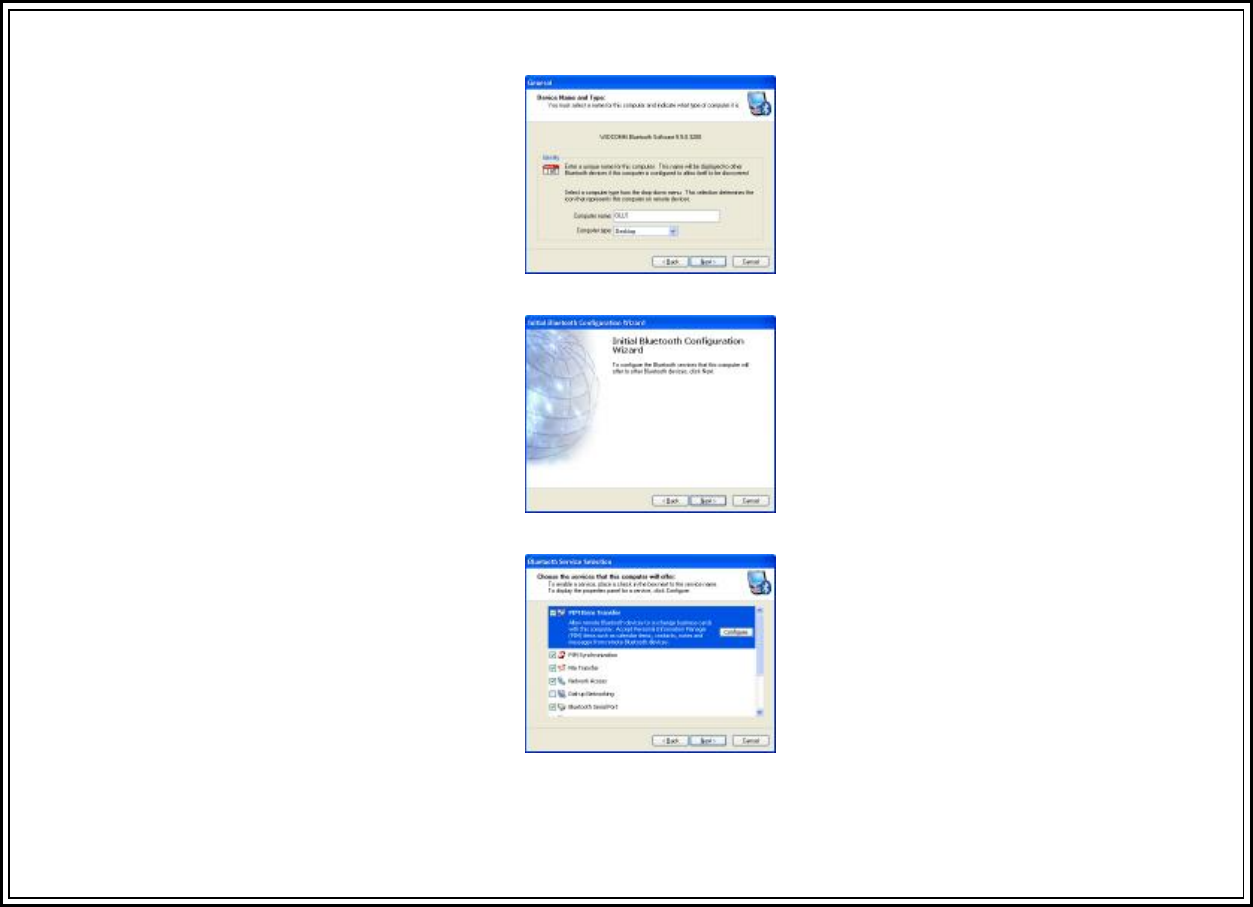

2. Enter a name and select either Laptop Computer or Desktop Computer from the drop-down menu for your computer. Click Next to continue.
3. Click Next to continue.

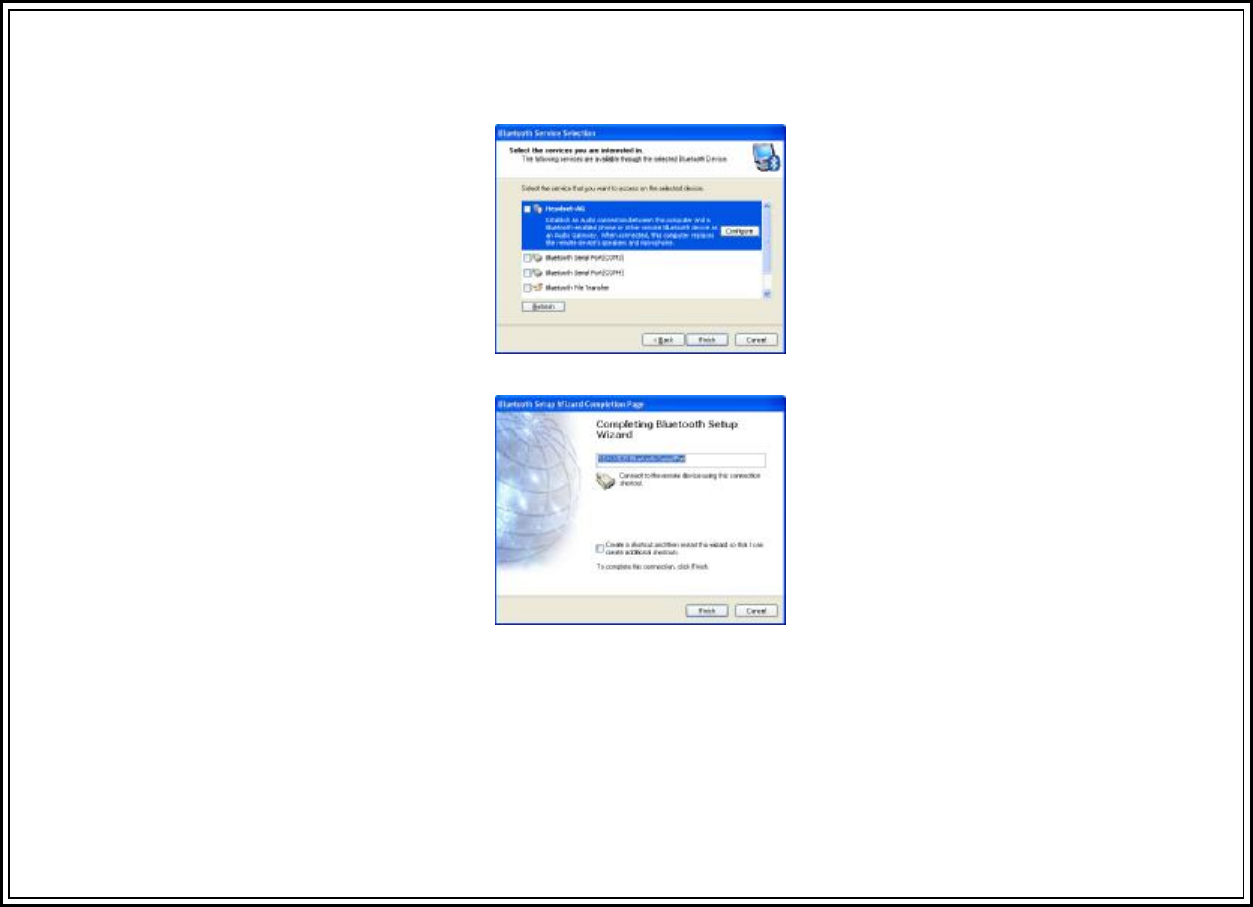

4. Select the services that your computer will provide to other Bluetooth devices and click Next.
5. If you have another Bluetooth device to configure, click Next. Otherwise, click Skip.
6. Once configuration is complete, click Finish.
Connecting Bluetooth Device (XP)
Note: Before you begin, refer to the manual that came with your Bluetooth devices for instructions on how to connect them wirelessly to the adapter.
- To connect with the Bluetooth devices, such as printers, modems, and PDAs, you can use the Bluetooth Set Wizard to set up a connection. Open the
Bluetooth Set Wizard in My Bluetooth Places window.

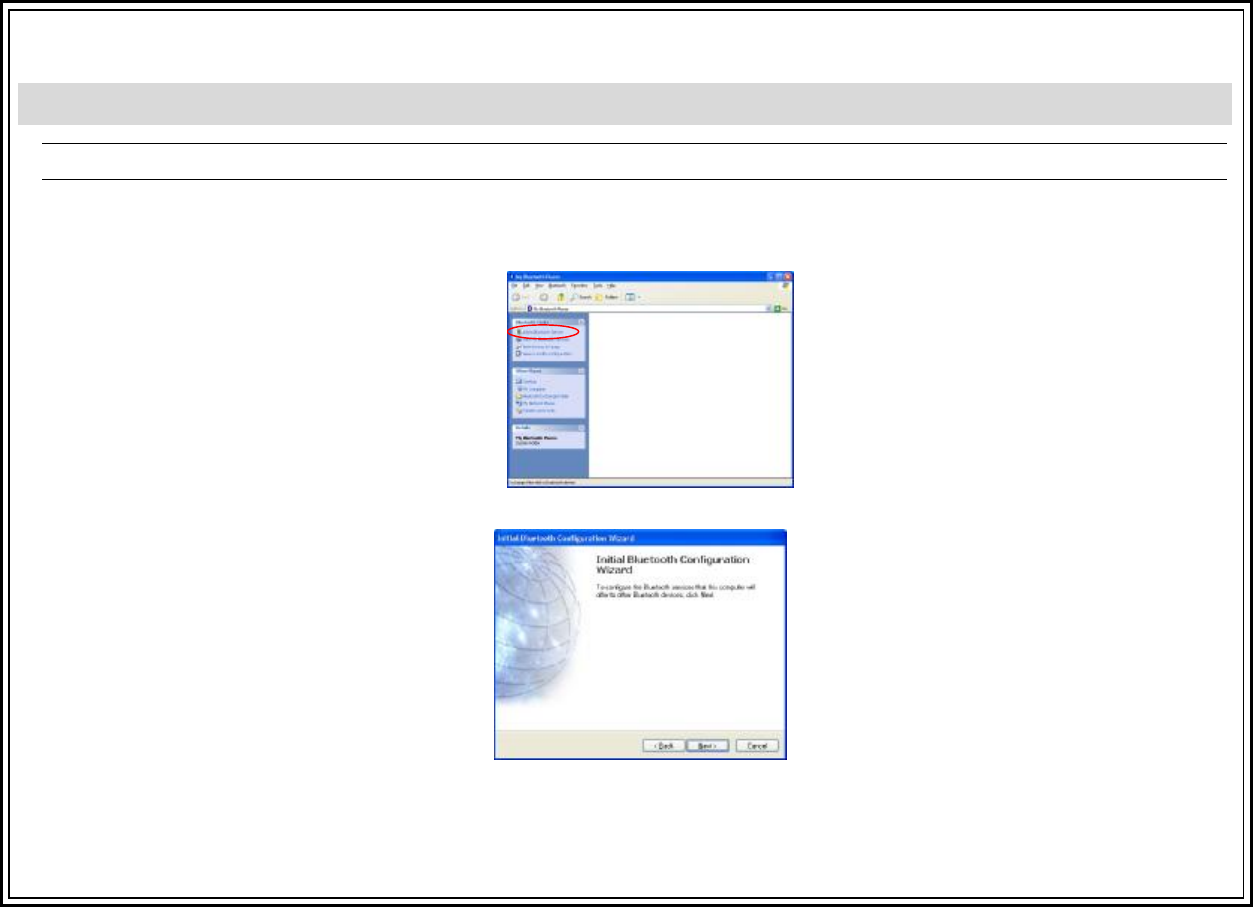

1. Click Add a Bluetooth Device to begin.
2. Click Next to continue.
3. The discovered Bluetooth devices are shown on the screen. Select a device and click Next to continue.
4. The following Security Setup screen appears. Type the digits shown on the screen to connect the device.
5. Select the services to enable and click Next.
6. Enter the name for your Bluetooth device and choose if you want to create shortcut and restart wizard.
7. Your Bluetooth device is now connected. Click the shortcut to start using the device.

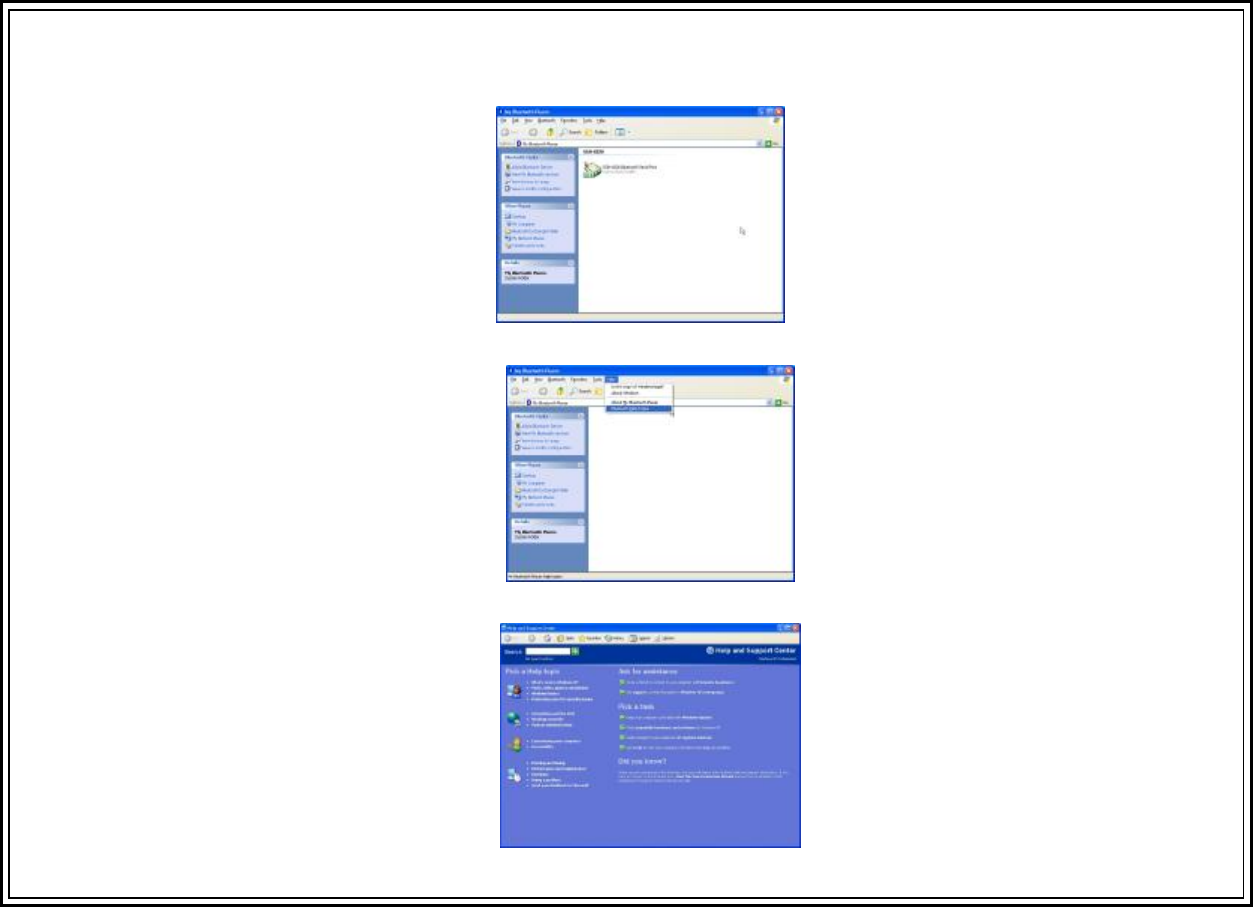

For detailed connection settings, refer to the Help file in the My Bluetooth Places window. Click Help > Bluetooth Help Topics to open the Help file.
Or press F1 to open Microsoft Windows® XP Help and Support Center and search for Bluetooth. You can find instructions on how to connect other devices.
