Manual Part 1

2.4 GHz Wireless Combo
RF-CMBO
User Guide
RF-CMBO_10-0213_MAN_V1_English.fm Page 1 Monday, March 29, 2010 9:40 AM
2
2.4 GHz Wireless Combo
Contents
Important safety instructions ..................................... 3
Introduction ...................................................................... 4
Features............................................................................... 4
Package contents .................................................. 5
System requirements ........................................... 5
Keyboard top .......................................................... 5
Keyboard status LED............................................. 7
Keyboard bottom .................................................. 7
Mouse top ................................................................ 8
Mouse status LED .................................................. 8
Mouse bottom........................................................ 9
Setting up the keyboard and mouse......................10
Installing keyboard batteries...........................10
Installing the mouse batteries ........................11
Setting up the keyboard and mouse............13
RF-CMBO_10-0213_MAN_V1_English.fm Page 2 Wednesday, March 31, 2010 3:35 PM
3RF-CMBO
Using the combo driver ..............................................13
Installing the combo driver .............................14
Configuring the mouse.....................................14
Uninstalling the combo driver........................19
Maintaining .....................................................................20
Troubleshooting ............................................................20
Specifications..................................................................20
Legal notices ...................................................................22
One-year limited warranty.........................................25
Important safety instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
8Only use attachments/accessories specified by the manufacturer.
9To reduce the risk of fire or electric shock, do not expose this device to
rain, moisture, dripping, or splashing, and no objects filled with liquids,
such as vases, shall be placed on it.
10 Batteries should not be exposed to excessive heat such as sunshine, fire,
or the like.
Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
RF-CMBO_10-0213_MAN_V1_English.fm Page 3 Wednesday, March 31, 2010 3:35 PM
4
Introduction
Congratulations on your purchase of a Rocketfish 2.4 GHz Wireless
Combo.
This guide explains how to correctly operate and get the best
performance from your wireless keyboard and mouse. Read this user
guide carefully before using your product, then keep it next to your
computer for quick reference.
Features
•Keyboard
•104-key design
Eighteen hotkeys
One connect button
Power switch
•Soft palm rest
Laser mouse
Tilt/ scroll wheel
Three mouse buttons
Two hotkey buttons
One pairing button
Power switch
•Power saving mode
•Working range up to 10 meters (line-of-sight)
Dual color status LED indicator
If any item is missing or damaged, contact Rocketfish at
1-800-620-2790.
RF-CMBO_10-0213_MAN_V1_English.fm Page 4 Wednesday, March 31, 2010 3:35 PM
5RF-CMBO
Package contents
Before you start using your keyboard and mouse the first time, verify
that your package contains the following:
•Keyboard
•Laser Mouse
2.4 GHz receiver
Installation CD
Batteries for the keyboard and mouse
•Quick setup guide
System requirements
Computer with a USB port
Microsoft Windows® XP Service Pack 3 or higher, Windows® Vista,
Windows® 7

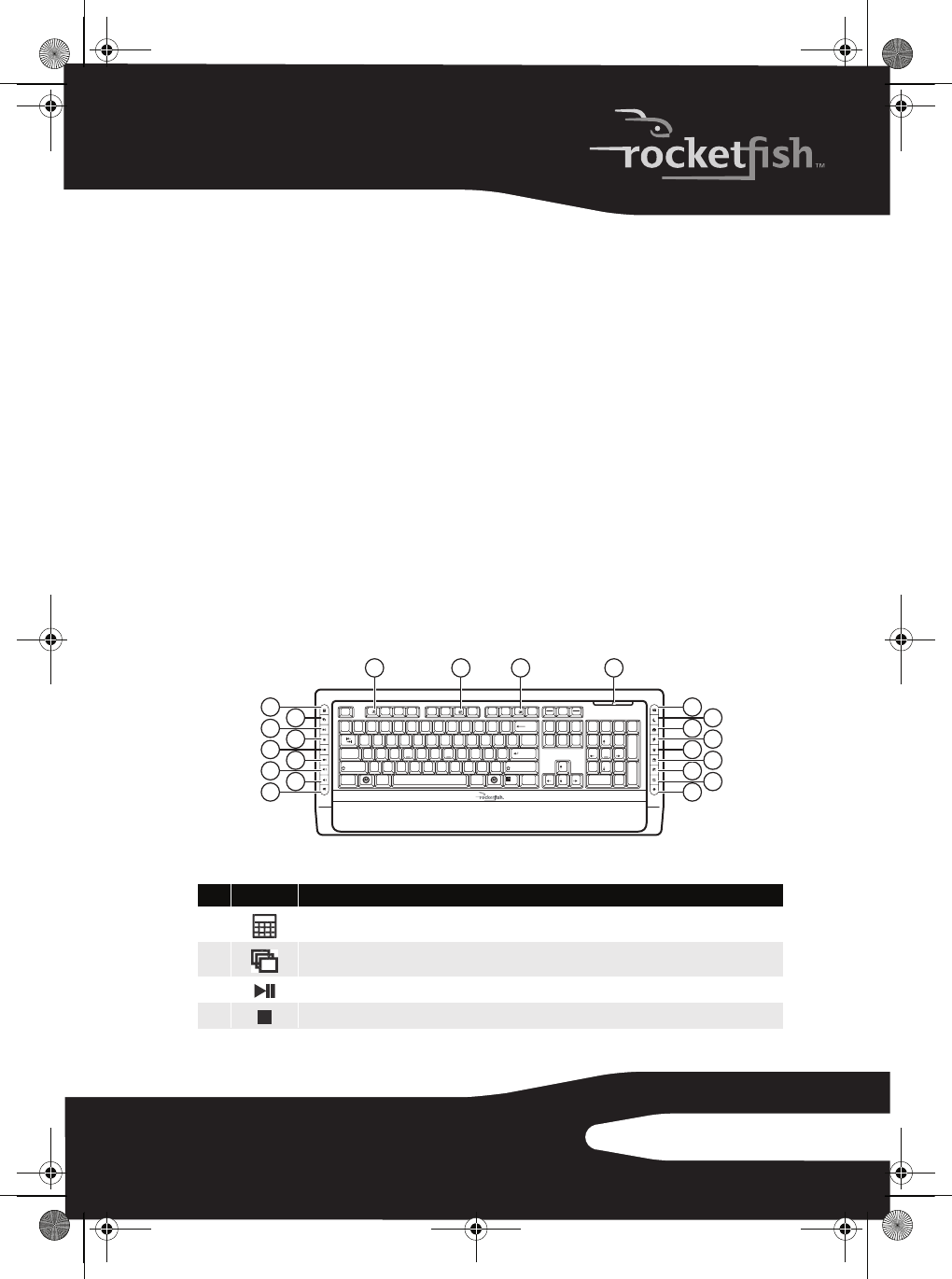

Keyboard top
#Icon Description
1Calculator button. Press to open the open the calculator.
2Application Switch button. Press to switch between open programs.
3Play/Pause button. Press to start or pause CD or DVD playback.
4Stop button. Press to stop CD or DVD playback.
Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
Prt Scr
Screen
Insert
Backspace
Enter
Enter
AltCtrl
Caps Lock
Tab
Alt Ctrl
Page
Up
Page
Down
+
=
_
-
--
)(
**
&^%$#@!~
`
_
/
+
Delete
Scroll
End
Home
Home
798
End
1
10
23456789
QP
{
[
{
[
\
/
WE R T Y U I O
A:
;
"
'
SDFGHJ KL
ZXCVB NM
<
,.
>?
Ins
0
Del
.
4
PgUp
3
PgDn
Num
Lock
65
2
Shift Shift
Pause
Break
Lock
13121110
14
16
18
20
22
15
17
19
21
1
3
5
7
9
2
4
6
8
RF-CMBO_10-0213_MAN_V1_English.fm Page 5 Wednesday, March 31, 2010 3:35 PM
6

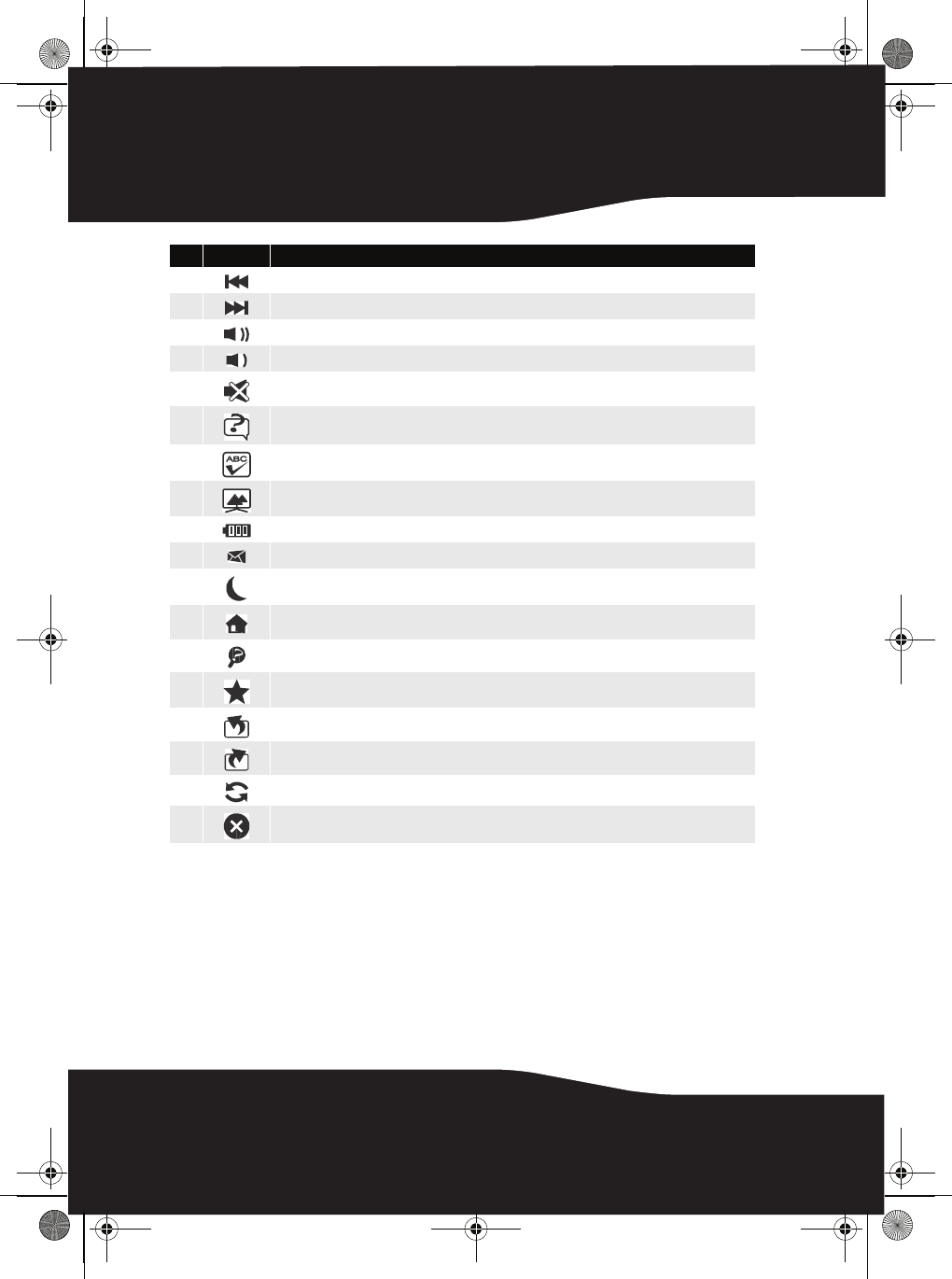

5Previous track button. Press to go to the previous track on a CD or previous chapter on a DVD.
6Next track button. Press to go to the next track on a CD or next chapter on a DVD.
7Increase volume button. Press to increase the volume.
8Decrease volume button. Press to decrease the volume.
9Mute volume button. Press to mute the sound. Press again to unmute the sound.
10 Help button. Press to open online help for the currently active application.
11 Spelling button. Press to run the spell checker for the currently active program (if available).
12 Slideshow button. Press to enter slideshow mode in Wondows Picture and Fax Viewer.
13 Status LED. For more information, see “Keyboard status LED” on page 7.
14 E-mail button. Press to open your e-mail program.
15 Sleep button. Press to put your computer in sleep mode. Press again to wake your computer.
16 Home button. Press to go to your home page in a Web browser.
17 Search button. Press to open the Search window.
18 My Favorite button. Press to open the list of your favorite Web sites.
19 Back Web page button. Press to go to the previous page in a Web browser.
20 Forward Web page button. Press to go to the next page in a Web browser.
21 Refresh Web page button. Press to refresh (reload) a page in a Web browser.
22 Stop Web page button. Press to stop loading a page in a Web browser.
#Icon Description
RF-CMBO_10-0213_MAN_V1_English.fm Page 6 Wednesday, March 31, 2010 3:35 PM
7RF-CMBO

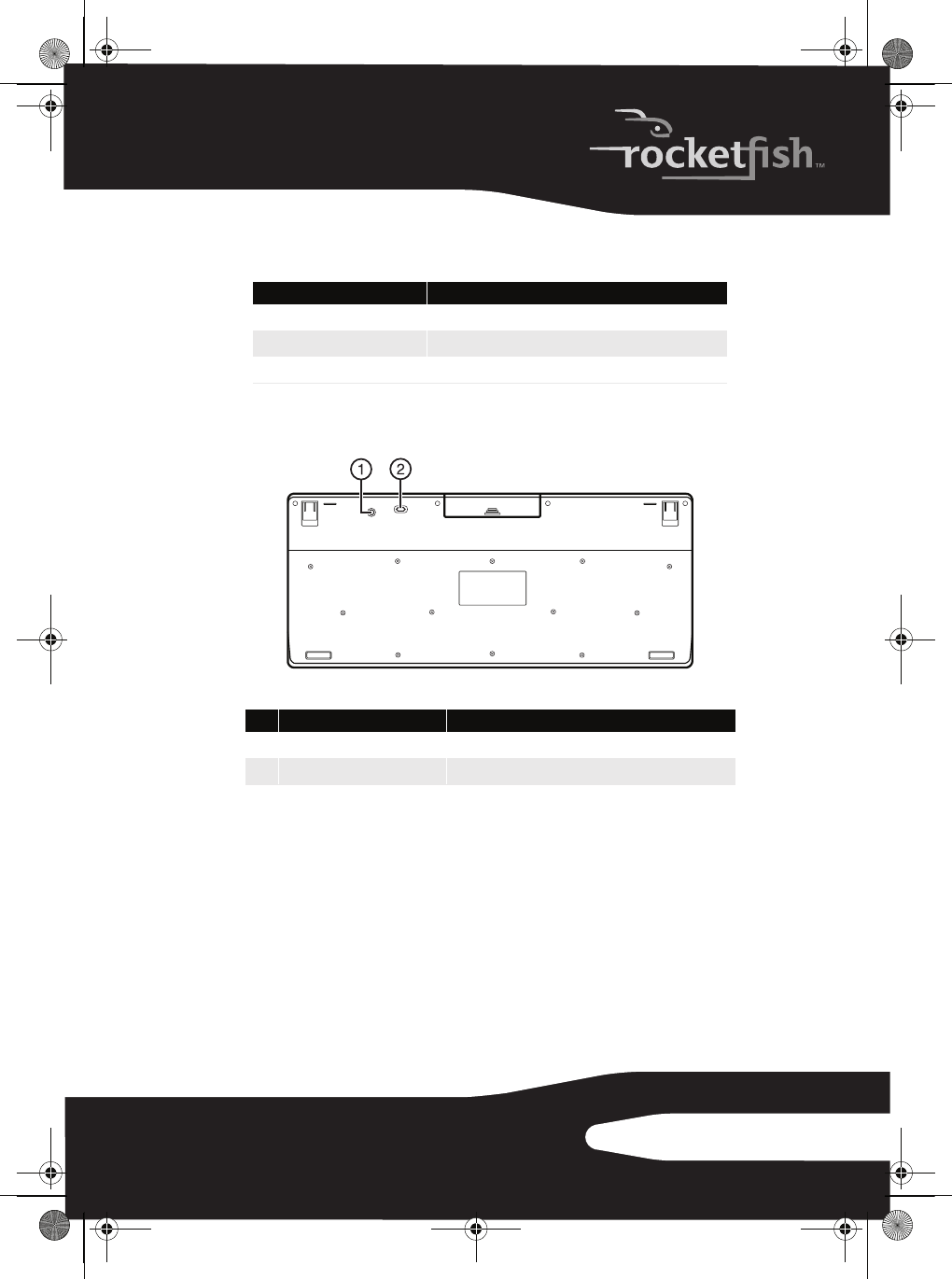

Keyboard status LED
Keyboard bottom
Color Description
Green The keyboard is turned on and the battery level normal.
Flashing red The battery level is low.
Flashing red and green The keyboard is pairing.
#Item Description
1CONNECT button Press to put the keyboard in pre-pairing mode.
2OFF ON switch Slide to turn the keyboard on or off.
CONNECT
OFF
ON
RF-CMBO_10-0213_MAN_V1_English.fm Page 7 Wednesday, March 31, 2010 3:35 PM
8

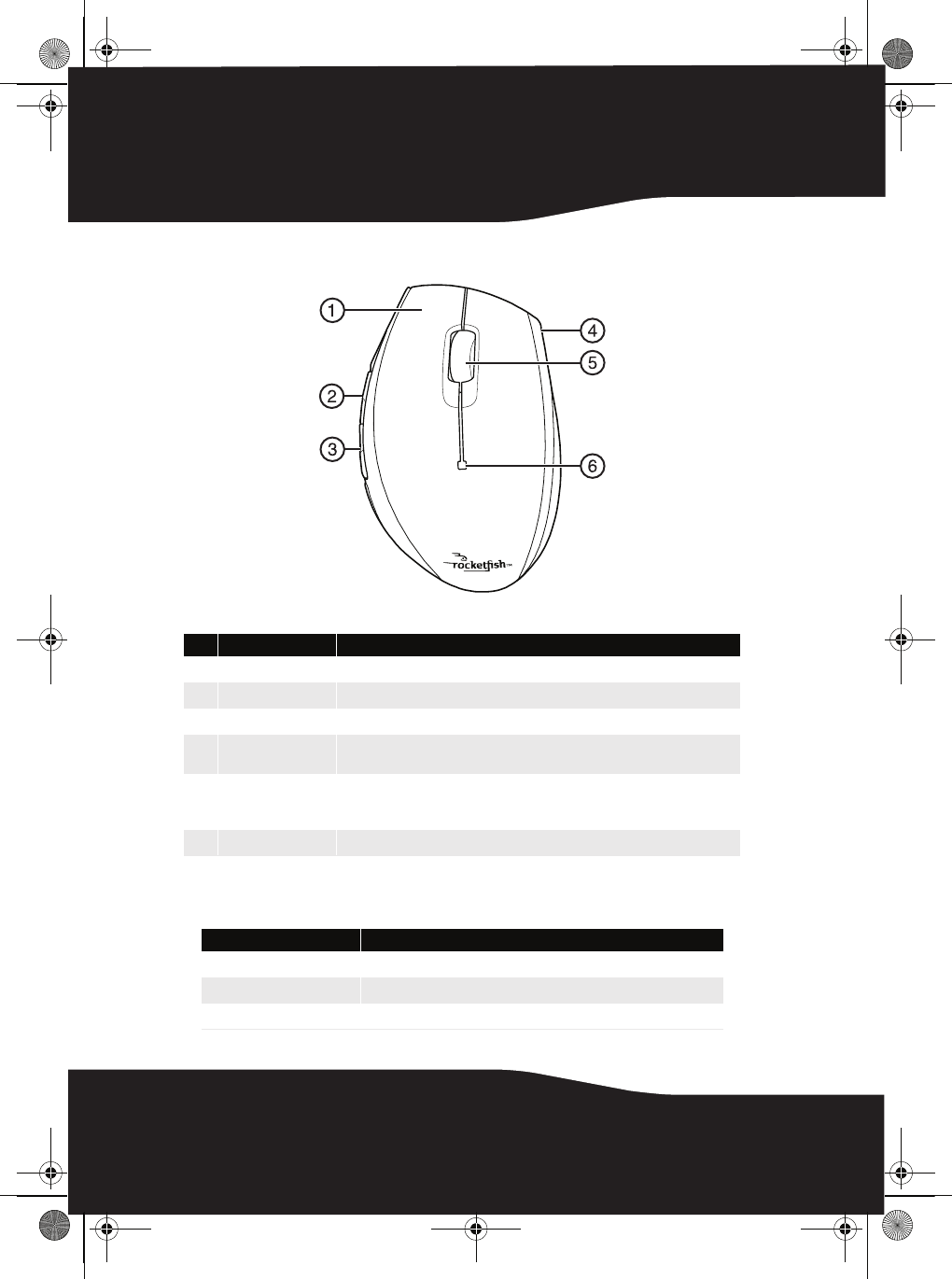

Mouse top
Mouse status LED
#Item Description
1Left button Press to perform left-button actions like selecting items or opening programs.
2Forward button Press to go to the next page in a Web browser.
3Back button Press to go to the previous page in a Web browser.
4Right button Press to perform standard right-mouse actions such as opening pop-up
menus or viewing help information.
5
Tilt/scroll wheel Roll to move the screen image up or down or tilt to move the screen left or
right. If you press down on the scroll wheel, a four-way icon appears on the
screen. Move the mouse up, down, left, or right to scroll.
6LED indicator Status LED. For more information, see “Mouse status LED” on page 8.
Color Description
Green The mouse is turned on and the battery level normal.
Flashing red The battery level is low.
Flashing green The mouse is pairing.
RF-CMBO_10-0213_MAN_V1_English.fm Page 8 Wednesday, March 31, 2010 3:35 PM
9RF-CMBO

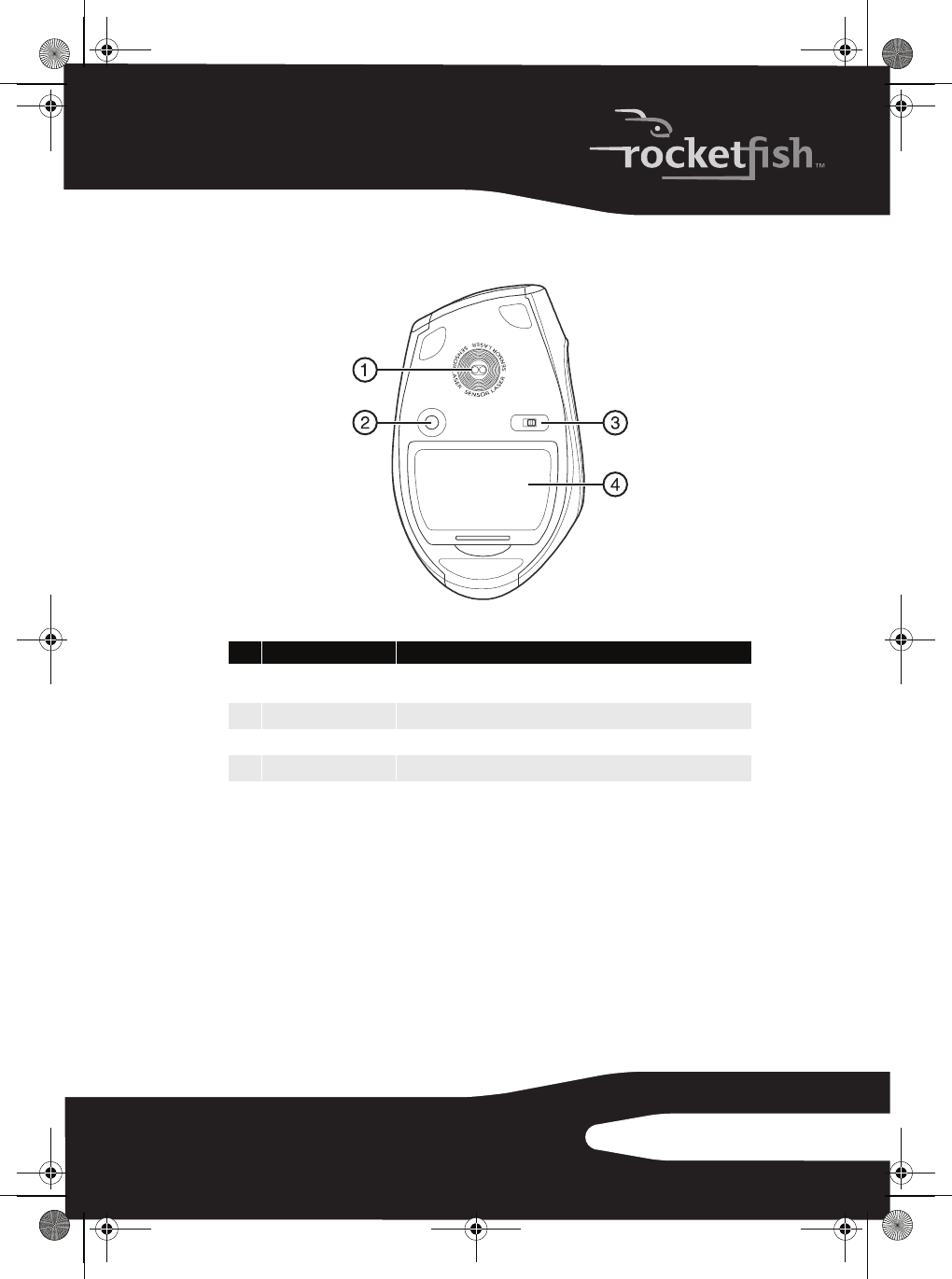

Mouse bottom
#Item Description
1Laser sensor Detects the mouse movements and sends signals to the computer to
move the mouse pointer on the screen.
2CONNECT button Press to put the mouse in pre-pairing mode.
3OFF ON switch Slide to turn the mouse on or off.
4Battery compartment Provides storage for the batteries and receiver.
CONNECT
OFF ON
RF-CMBO_10-0213_MAN_V1_English.fm Page 9 Wednesday, March 31, 2010 3:35 PM
10
Setting up the keyboard and mouse

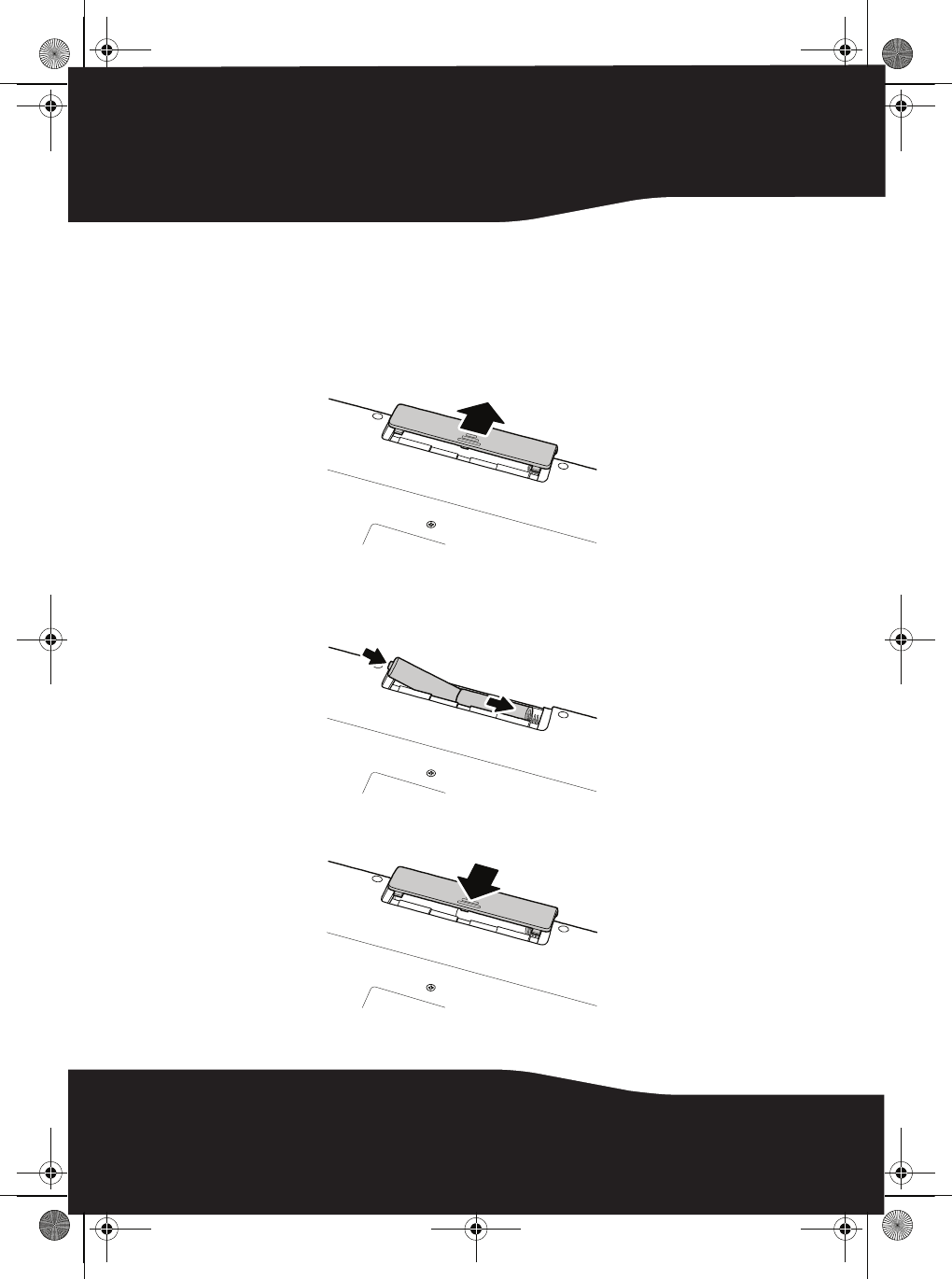

Installing keyboard batteries
To install keyboard batteries:
1Remove the battery compartment cover.
2Insert two AA batteries into the battery compartment. Make sure that
the + and – symbols on the batteries align with the + and – symbols in
the battery compartment.
3Replace the battery compartment cover.
RF-CMBO_10-0213_MAN_V1_English.fm Page 10 Wednesday, March 31, 2010 3:35 PM
11RF-CMBO

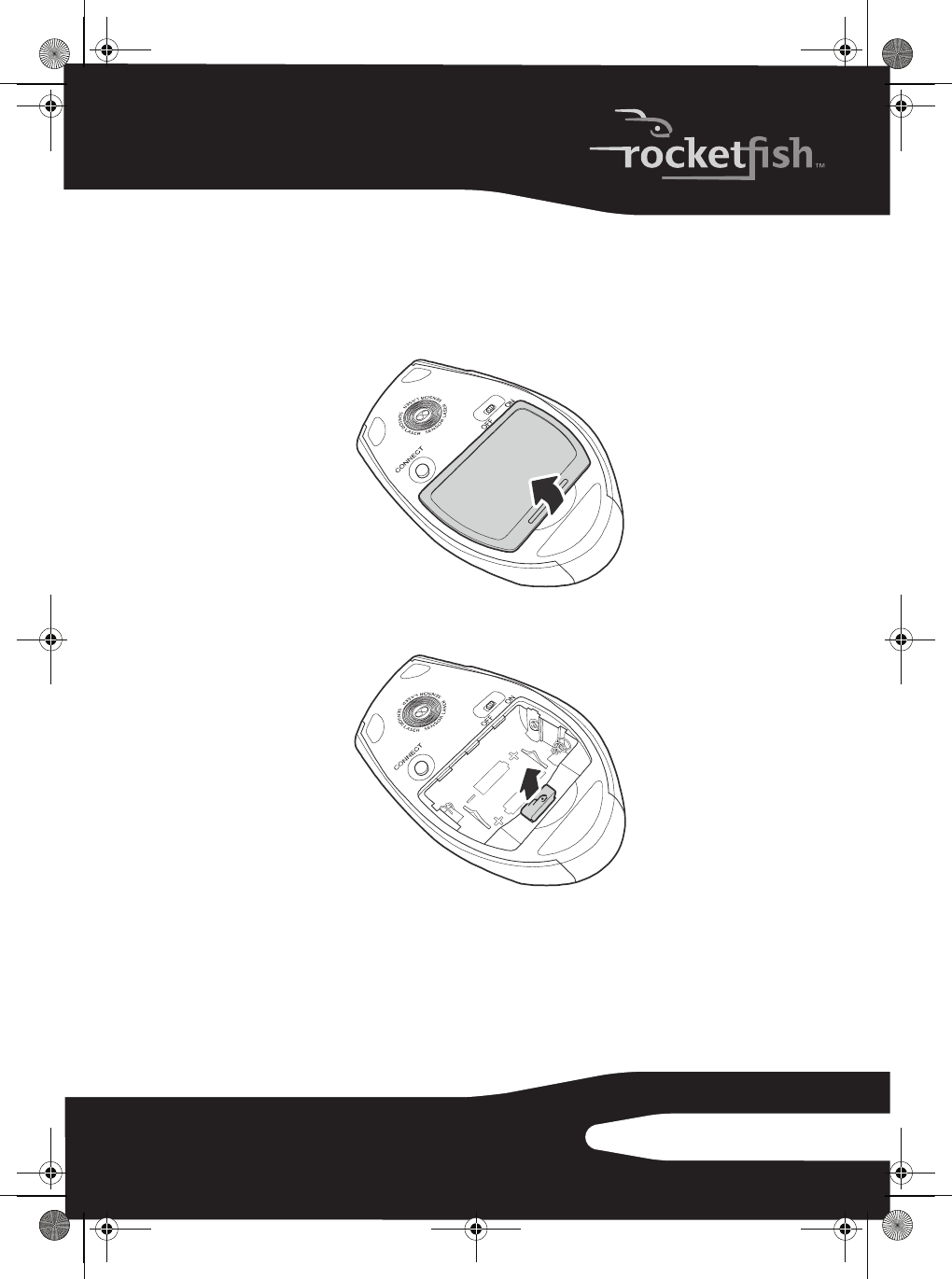

Installing the mouse batteries
To install mouse batteries:
1Press the tab to release the battery compartment cover, then remove the
cover.
2Pull the receiver out of the battery compartment.
RF-CMBO_10-0213_MAN_V1_English.fm Page 11 Wednesday, March 31, 2010 3:35 PM
12

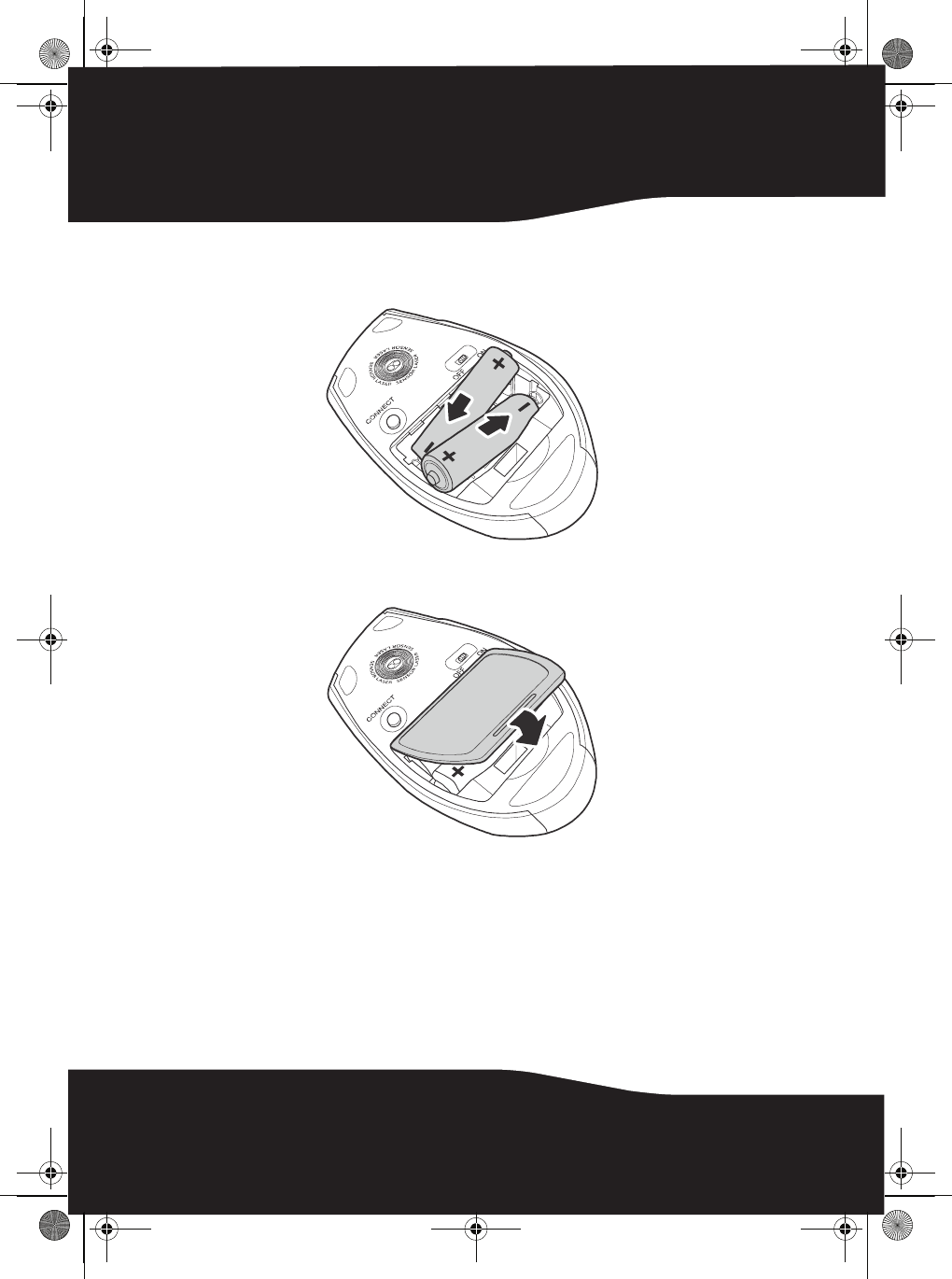

3Insert two AA batteries into the battery compartment. Make sure that
the + and – symbols on the batteries align with the + and – symbols in
the battery compartment.
4Replace the battery compartment cover.
RF-CMBO_10-0213_MAN_V1_English.fm Page 12 Wednesday, March 31, 2010 3:35 PM
13RF-CMBO

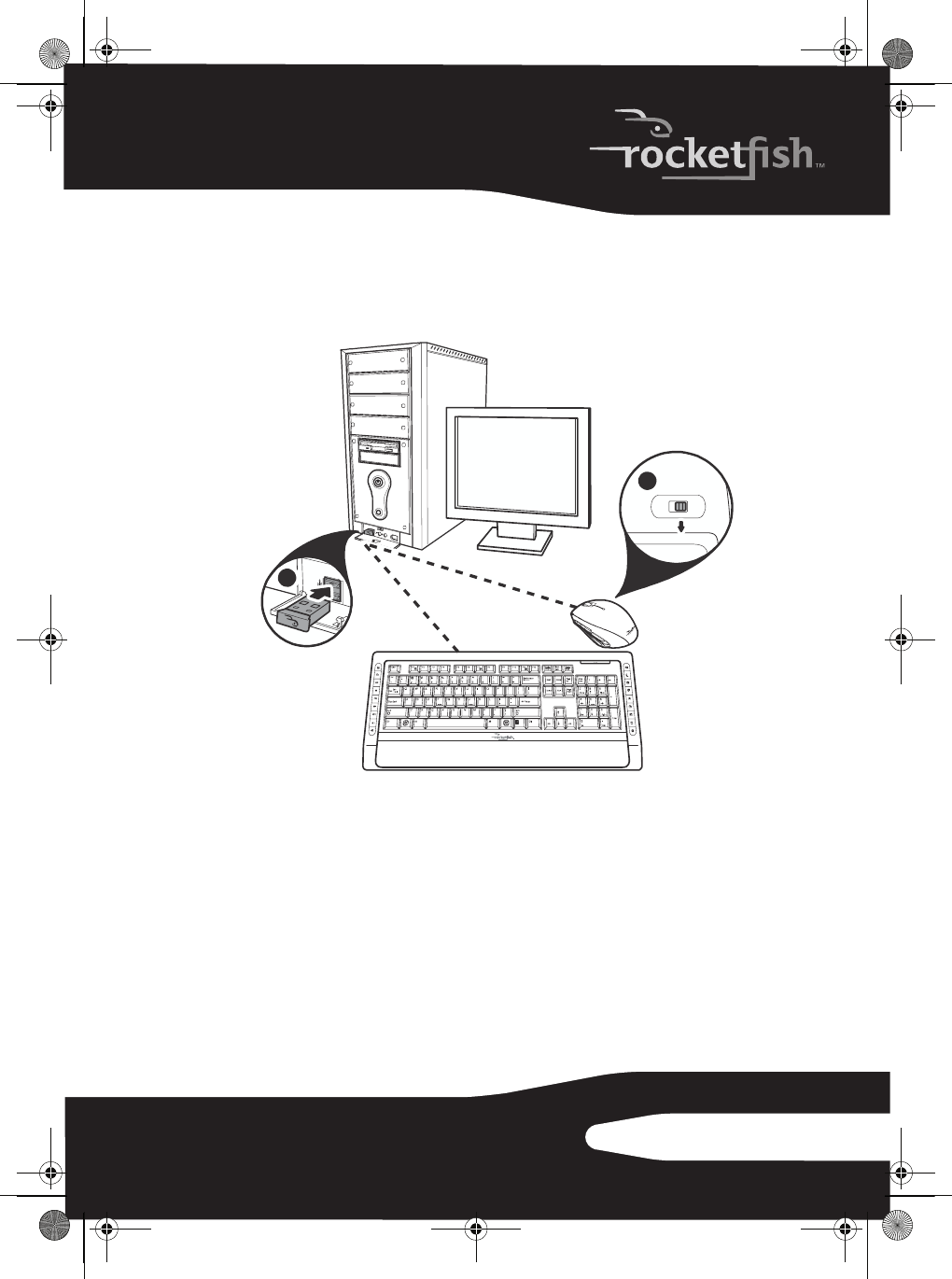

Setting up the keyboard and mouse
To set up the keyboard and mouse:
1Plug the 2.4 GHz receiver into an available USB port on your computer.
2Slide the power switch of the mouse to ON, to turn the mouse on.
3Slide the power switch of the keyboard to ON, to turn the keyboard on.
The computer recognizes the keyboard and mouse automatically.
The keyboard and mouse are ready to use.
Using the combo driver
To use advanced functions, such as tilt wheel driver, dynamic search
and magnifier, you need to install the mouse driver and software.
2
OFF
ON
1
RF-CMBO_10-0213_MAN_V1_English.fm Page 13 Wednesday, March 31, 2010 3:35 PM
14
Installing the combo driver
To install the combo driver:
1Insert the installation CD (provided) in the CD drive on your computer.
The installation program should start automatically. If it does not start
automatically, open Windows Explorer, browse to the CD, then double-
click autorun.exe. The Rocketfish Wireless combo screen opens.
2Click Install Combo Driver. The Welcome screen opens.
3Click Next. The Start installation screen opens.
4Click Next. An installation progress bar appears.
When the installation is complete, the Setup Complete screen opens.
5Click Finish.
Configuring the mouse
To configure the mouse:
Double-click the mouse icon on the system tray to open the mouse
program, then click a tab to adjust a mouse function. You can select any
of the following tabs:
Buttons—See “Configuring mouse buttons” on page 15.
Double-Click—See ”Adjusting the double-click speed” on page 16.
Orientation—See ”Adjusting the orientation” on page 16.
Wheel—See ”Adjusting the wheel settings” on page 17.
Pointer Utility—See “Adjusting pointer behavior” on page 18.
Mouse Suite—See “Hiding the system trays mouse icon” on page 18.
RF-CMBO_10-0213_MAN_V1_English.fm Page 14 Wednesday, March 31, 2010 3:35 PM
