Important safety instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
8Only use attachments/accessories specified by the manufacturer.
4
9To reduce the risk of fire or electric shock, do not expose this device to
rain, moisture, dripping, or splashing, and no objects filled with liquids,
such as vases, shall be placed on it.
10 Batteries should not be exposed to excessive heat such as sunshine, fire,
or the like.
Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
Introduction
Congratulations on your purchase of the RF-BTCMBO2 Bluetooth
keyboard and mouse. This keyboard and mouse represent the state
of the art in Bluetooth keyboard and mouse design and are designed
for reliable and trouble-free performance.
Features
•Power-saving mode
• Working range up to 33 feet (10 meters) (line-of-sight)
• Dual-color status LED indicator
Keyboard
• 104-key design
• Eighteen hotkeys
•One connect button
•Power switch
Mouse
• Tilt/scroll wheel
• Three mouse buttons
•Two hotkey buttons
• One pairing button
•Power switch
5RF-BTCMB02
USB Bluetooth receiver
• Bluetooth specification v1.0, v2.0, and v2.1 compliant
• Supports both keyboard and mouse
• Supports additional Bluetooth devices
Package contents
•Keyboard
•Laser mouse
• USB Bluetooth receiver (inside the mouse battery compartment)
• Installation CD including software and User Guide
• Batteries for the keyboard and mouse
• Quick Setup Guide
System requirements
•Computer with a USB port
• Microsoft Windows® 7, Windows Vista®, Windows® XP with Service Pack 3
or higher
6
Keyboard top
Note: To use the keyboard hotkeys, you must install the WIDCOMM Bluetooth stack.
See “Installing the software” on page 18.
#Icon Description
1
Gadget button (Windows Vista and Windows7) or
Calculator button (Windows XP). Press to open the
Gadget interface in Windows Vista or Windows 7 or press
to open the Calculator in Windows XP.
2
Flip 3D button (Windows Vista and Windows 7) or
Application Switch button (Windows XP). Press to
switch between open programs.
3Play/Pause button. Press to start or pause CD or DVD
playback.?
4Stop button. Press to stop CD or DVD playback.
5Next track button. Press to go to the next track on a CD or
next chapter on a DVD.
6Previous track button. Press to go to the previous track on
a CD or previous chapter on a DVD.
7Increase volume button. Press to increase the volume.
8Decrease volume button. Press to decrease the volume.
9Mute volume button. Press to mute the sound. Press
again to unmute the sound.
10 Help button. Press to open online help for the currently
active application.
11 Spelling button. Press to run the spell checker for the
currently active program (if available).
12 Slideshow button. Press to enter slideshow mode in
Wondows Picture and Fax Viewer.
Esc
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
Prt
Scr
Scroll
Pause
Scree
n
Loc
k
~
!
@
_
-
#
$
%
^
&
*
(
)
9
+
=
Backspace
Insert
Home
Pa
g
e
Num
Lock
_
/
*
9
PgUp
1
2
3
4
5
6
7
8
Up
`
Tab
Q
W
E
R
T
Y
U
I
O
P
{
[
7
8
H
Page
Down
Delete
End
\
+
A
S
D
F
G
H
J
K
L
:
"
;
4
5
6
Caps
Lock
Enter
Z
X
C
V
B
N
M
<
>
.
?
/
1
End
2
3
PgDn
.
Del
Shift
Shift
Enter
0
Ins
Ctrl
Alt
Alt
Ctrl
--
7RF-BTCMB02
Keyboard status LED

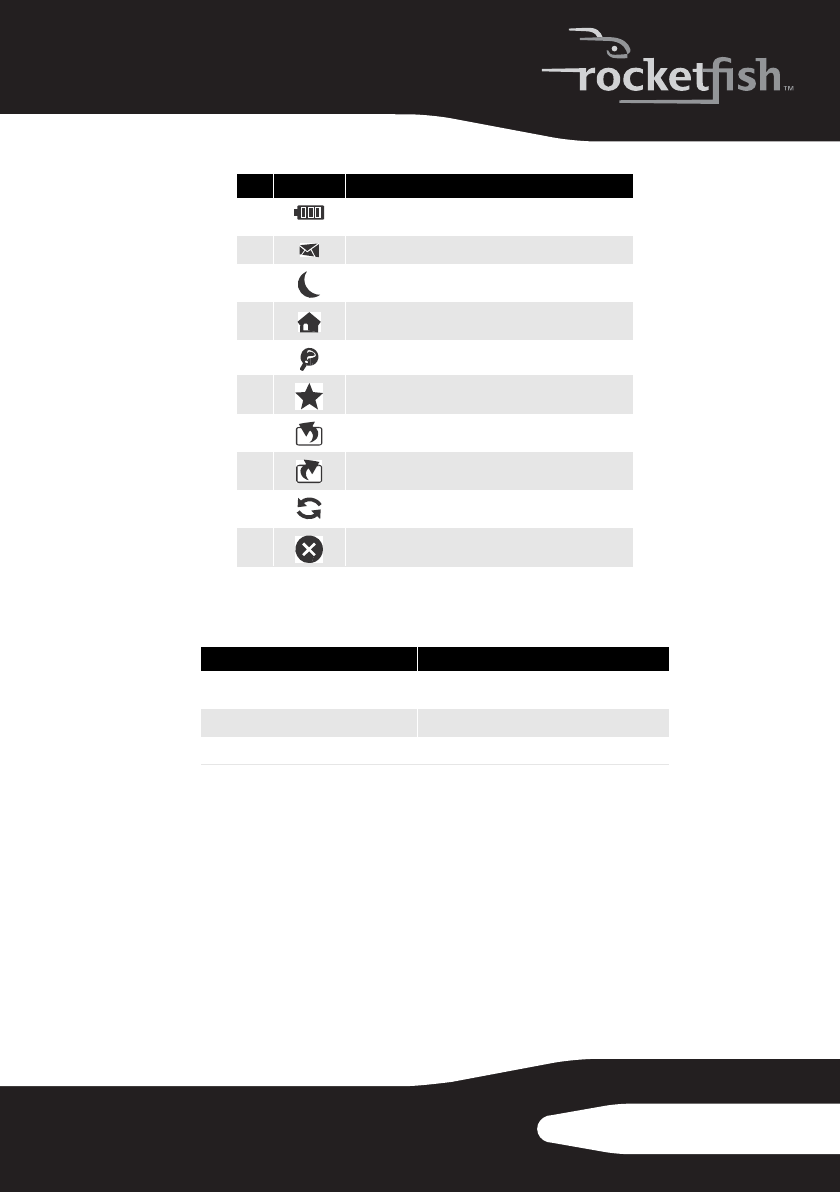

13 Status LED. For more information, see “Keyboard status
LED” on page 7.
14 E-mail button. Press to open your e-mail program.
15 Sleep button. Press to put your computer in sleep mode.
Press again to wake your computer.
16 Home button. Press to go to your home page in a Web
browser.
17 Search button. Press to open the Search window.
18 My Favorite button. Press to open the list of your favorite
Web sites.
19 Back Web page button. Press to go to the previous page in
a Web browser.
20 Forward Web page button. Press to go to the next page in
a Web browser.
21 Refresh Web page button. Press to refresh (reload) a page
in a Web browser.
22 Stop Web page button. Press to stop loading a page in a
Web browser.
Color Description
Green The keyboard is turned on and the battery level
normal.
Flashing red The battery level is low.
Flashing red and green The keyboard is pairing.
#Icon Description
8
Keyboard bottom
#Item Description
1CONNECT button Press to put the keyboard in pre-pairing mode.
2OFF ON switch Slide to turn the keyboard on or off.
CONNECT
OFF
ON
9RF-BTCMB02
Mouse top
Note: To use the mouse hotkey buttons, you must install the WIDCOMM Bluetooth
stack. See “Installing the software” on page 18.
To use horizontal scrolling, you must install the Bluetooth mouse software. See
“Installing the software” on page 18.
#Item Description
1Left button Press to perform left-button actions like selecting items
or opening programs.
2Forward button Press to go to the next page in a Web browser.
3Back button Press to go to the previous page in a Web browser.
4Right button Press to perform standard right-mouse actions such as
opening pop-up menus or viewing help information.
5

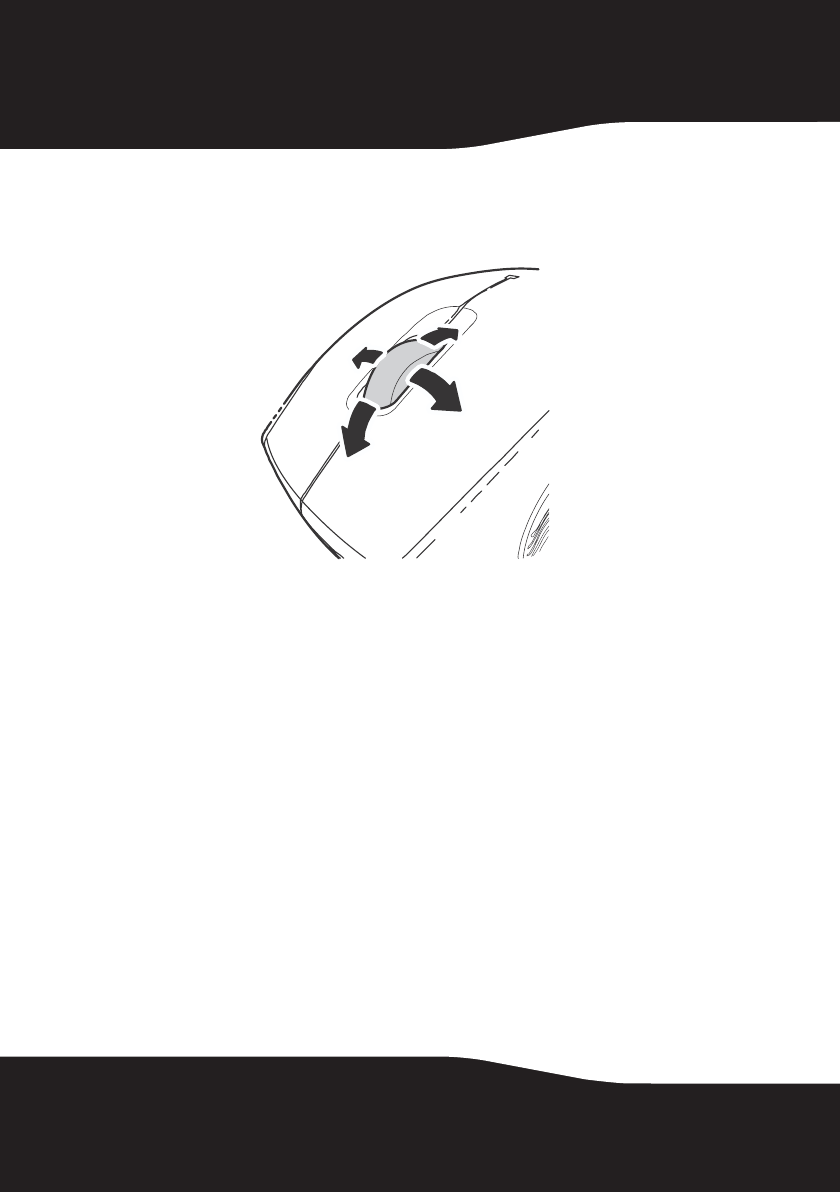

Tilt/scroll wheel Roll to move the screen image up or down or tilt to move
the screen left or right. If you press down on the scroll
wheel, a four-way icon appears on the screen. Move the
mouse up, down, left, or right to scroll.
6LED indicator Status LED. For more information, see “Mouse status LED”
on page 10.
10
Mouse status LED
Mouse bottom
Color Description
Green The mouse is turned on and the battery level
normal.
Flashing red The battery level is low.
Flashing green The mouse is pairing.

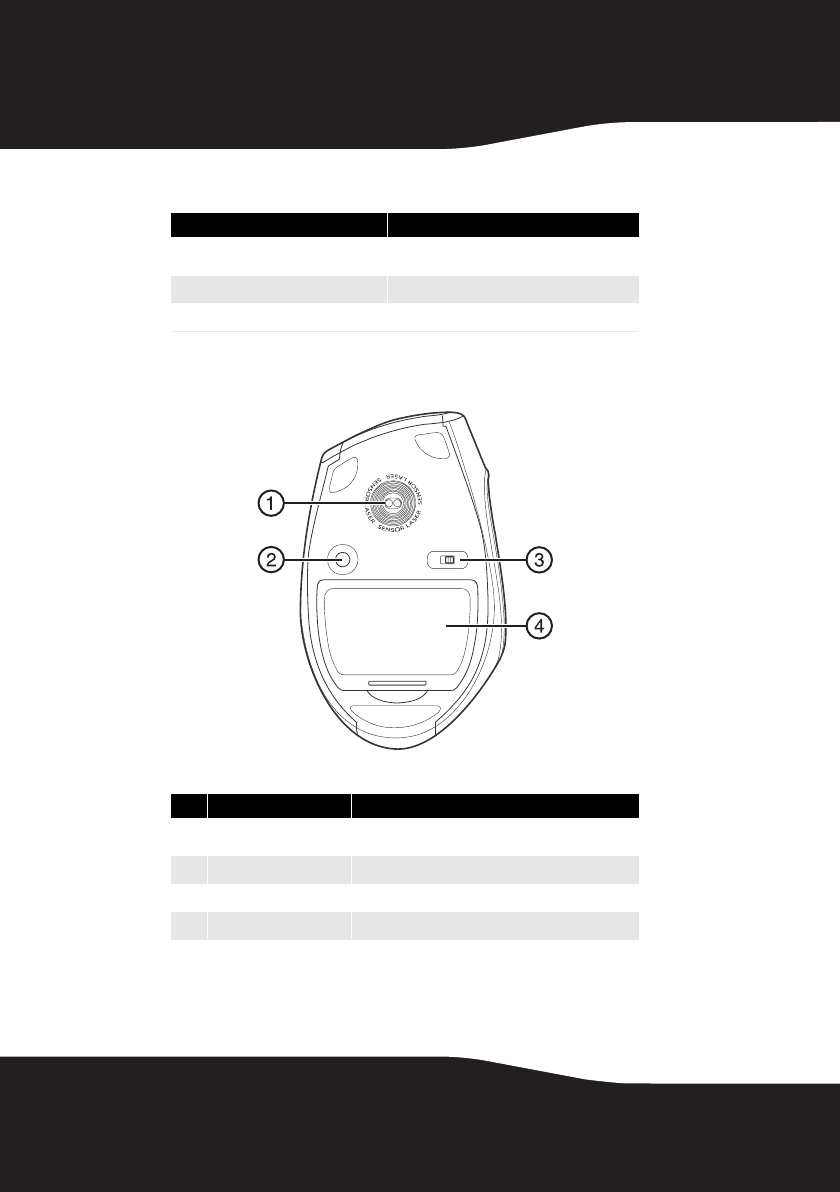

#Item Description
1Laser sensor Detects the mouse movements and sends signals to the
computer to move the mouse pointer on the screen.
2CONNECT button Press to put the mouse in pre-pairing mode.
3OFF ON switch Slide to turn the mouse on or off.
4Battery compartment Provides storage for the batteries and receiver.
CONNECT
OFF ON
11RF-BTCMB02
Setting up the keyboard and mouse
Installing keyboard batteries
To install keyboard batteries:
1Remove the battery compartment cover.
2Insert two AA batteries into the battery compartment. Make sure that
the + and – symbols on the batteries align with the + and – symbols in
the battery compartment.
3Replace the battery compartment cover.
12
Installing the mouse batteries
To install mouse batteries:

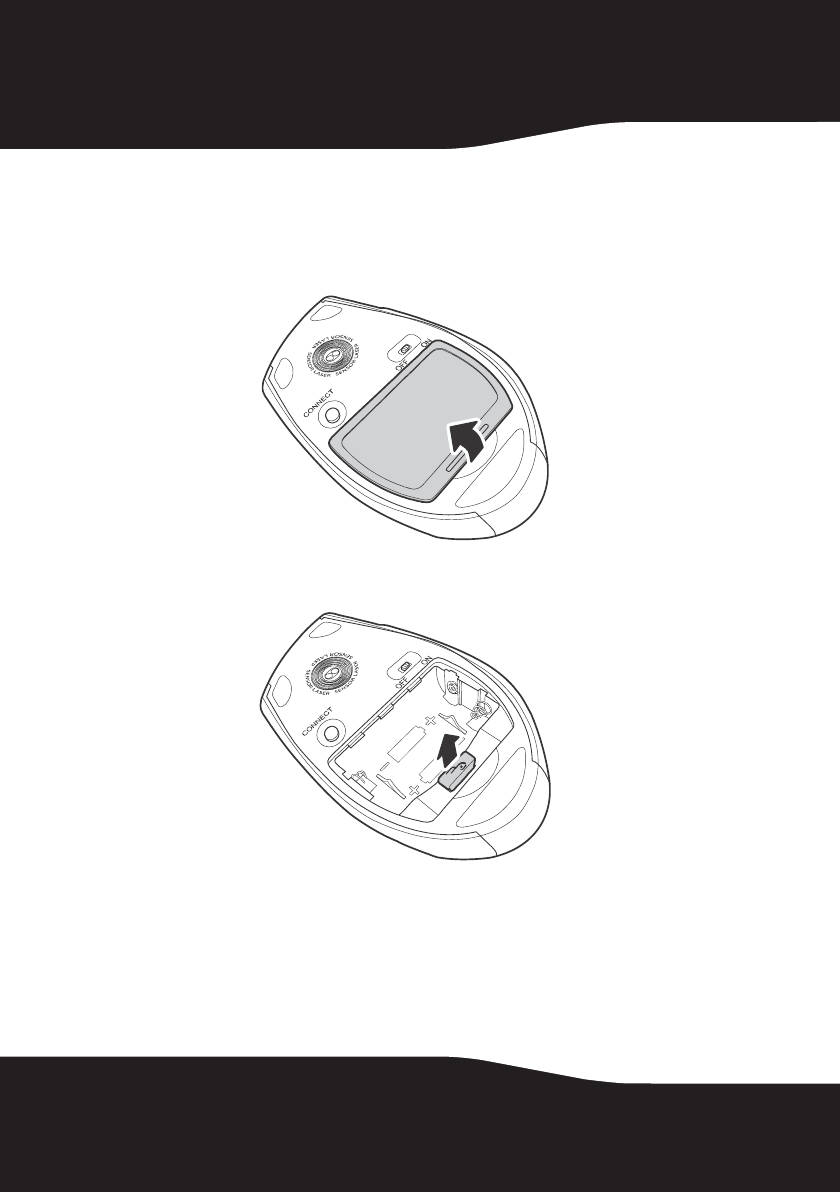

1Press the tab to release the battery compartment cover, then remove the
cover.
2Pull the receiver out of the battery compartment.
13RF-BTCMB02
3Insert two AA batteries into the battery compartment. Make sure that
the + and – symbols on the batteries align with the + and – symbols in
the battery compartment.
4Replace the battery compartment cover.
14
Pairing the keyboard and mouse
There are three methods for pairing the keyboard and mouse:
• “Automatic pairing in boot mode” on page 14.
• “Pairing by using the WIDCOMM Bluetooth stack” on page 15
Automatic pairing in boot mode
To pair automatically in boot mode:
1With your computer turned off, plug the USB Bluetooth receiver into an
available USB port.
2Slide the power switch of the mouse to turn the mouse on.
3Turn on the computer and use the keyboard to enter the BIOS setup.
4Use the keyboard and mouse to view the menu and configure the
settings.
2
OFF
ON
1
15RF-BTCMB02
Turning on the USB keyboard and mouse settings in BIOS
If pairing in boot mode did not work, you may need to turn on the
USB keyboard and mouse settings in the BIOS.
To turn on the USB keyboard and mouse settings in BIOS:
1Make sure that the Bluetooth connection has been established before
turning on your computer.
Note: If the keyboard did not automatically connect, you need to use a different
keyboard for this task.
2Turn on your computer, then follow the on-screen instructions to enter
the BIOS Setup utility.
3Use the cursor keys on the keyboard to navigate through the menu
items and enable the USB keyboard and mouse. (In some BIOS settings,
you can use the Bluetooth mouse to navigate through the items.)
Note: Some older computers do not support the USB keyboard and mouse in BIOS or a
DOS environment.
Pairing by using the WIDCOMM Bluetooth stack
Before using the Bluetooth stack for keyboard and mouse pairing,
make sure of the following:
• The WIDCOMM Bluetooth stack is installed and set up. See “Installing the
software” on page 18.
• The batteries are inserted properly and fully charged.
• The USB Bluetooth receiver is plugged into a USB port on your computer.
• The mouse is turned on.
Note: To start the Bluetooth stack for the first time, see “Using the Bluetooth stack for
the first time in Windows XP” on page 19.
16
To pair using the Bluetooth stack:

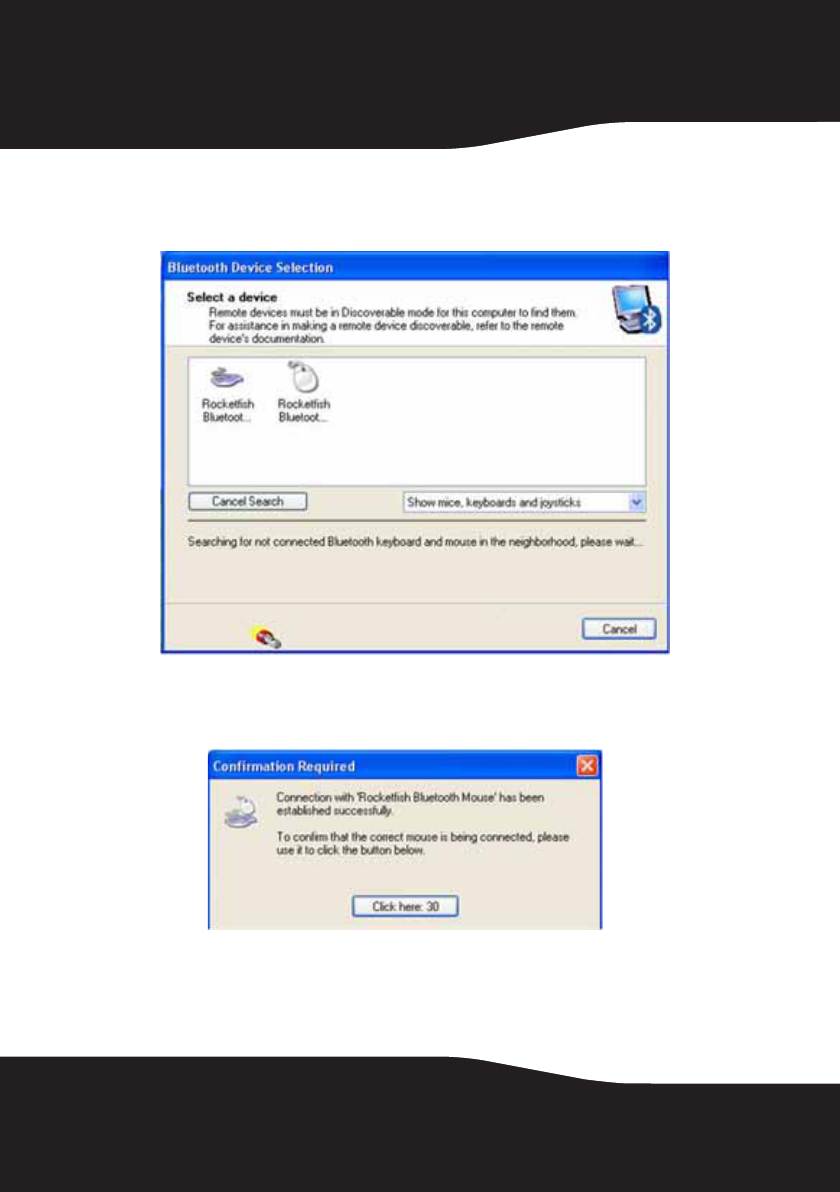

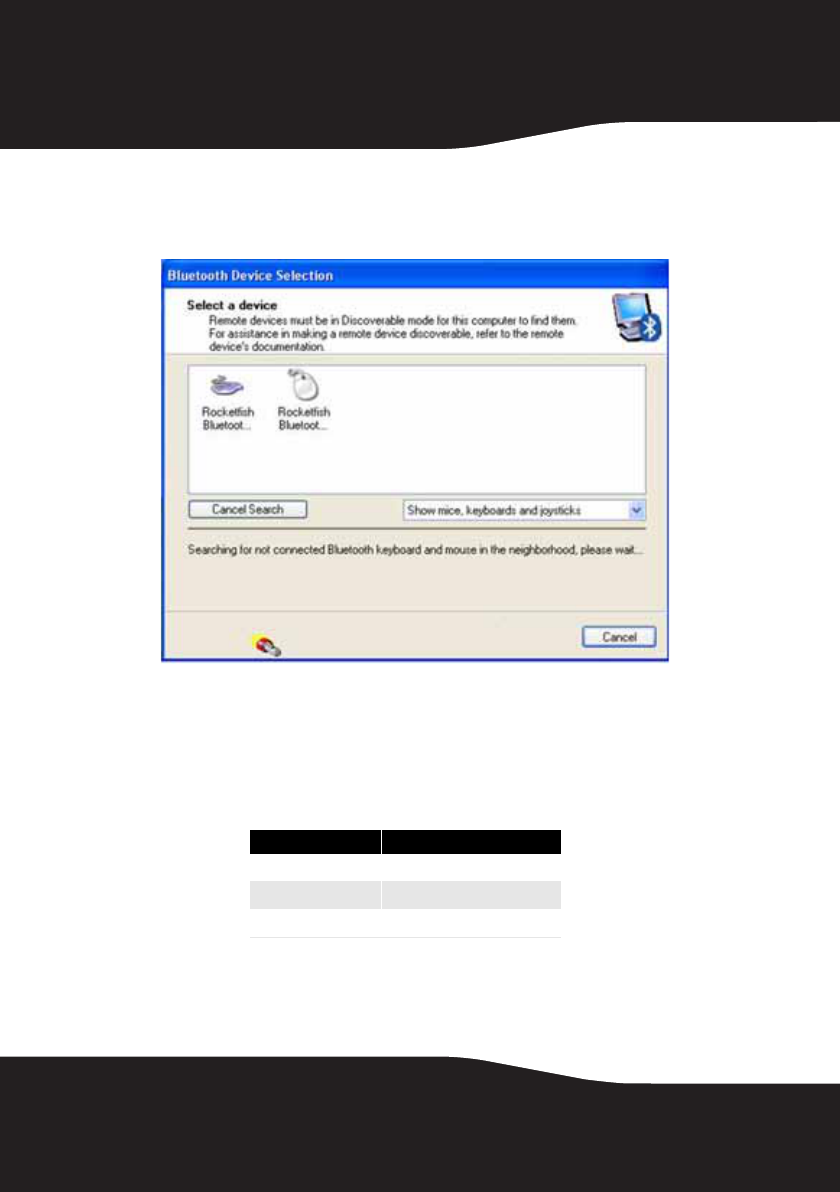

1Press the CONNECT buttons on the mouse and keyboard to start pairing.
Your computer starts to search for all Bluetooth devices.
When the mouse is connected, the Confirmation Required message
appears.
17RF-BTCMB02
2Click to confirm that the mouse is connected. When the keyboard is
connected, the Bluetooth Security Setup dialog box appears.
3Use the paired keyboard to type the digits shown on the screen, then
press Enter. The keyboard is connected.
Note: The keyboard and mouse enter the power saving mode when not used for a
period of time.
18
Installing and using software
Installing the software
To use the keyboard and mouse hotkey buttons, you must install the
software on the included CD.
To install the software:
1Plug the USB Bluetooth receiver into a USB port on your computer.
2Insert the included CD in the disc drive. The introductory screen appears
automatically. If the screen does not appear automatically, double-click
the autorun.exe file on the CD.
3Click Install Driver. The Welcome screen appears.
4Follow the on-screen instructions to complete the software installation.
Note: If the “Bluetooth device not found” message appears, plug the USB Bluetooth
receiver into a USB port on your computer, then click OK. The Found New Hardware
Wizard starts installing the software.
5When the installation is complete, click Finish.
To uninstall the Bluetooth stack:
1Remove the USB Bluetooth receiver.
2In Windows Vista or Windows 7, click Start, Control Panel, then click Programs
and Features.
Or
In Windows XP, click Start, Settings, Control Panel, then click Add/Remove
Programs.
3Click WIDCOMM Bluetooth Software in the program list, then click Uninstall
(Windows Vista or Windows 7) or Remove (Windows XP). A confirmation
message appears.
4Click Yes to uninstall or No to cancel. When the program has been
removed, a prompt tells you to restart the computer.
5Click Yes to restart your computer now or No to restart later.
19RF-BTCMB02
To uninstall the Rocketfish Bluetooth Combo software:
1Remove the USB Bluetooth receiver.
2In Windows Vista or Windows 7, click Start, Control Panel, then click Programs
and Features.
Or
In Windows XP, click Start, Settings, Control Panel, then click Add/Remove
Programs.
3Click Rocketfish Bluetooth Combo in the program list, then click Uninstall
(Windows Vista or Windows 7)or Remove (Windows XP). A confirmation
message appears.
4Click Yes to uninstall or No to cancel.
Using the Bluetooth stack for the first time in
Windows XP
To use the Bluetooth stack for the first time in Windows XP:
1Double-click the Bluetooth icon in the system tray. The Initial
Bluetooth Configuration Wizard opens.
20
2Follow the on-screen instructions to complete the configuration. When
the Bluetooth configuration is complete, the Bluetooth Device Selection
dialog box appears and the computer starts searching for Bluetooth
devices.
3Click on the device you want to connect with, then follow the on-screen
instructions to enable the selected device.
Interpreting the Bluetooth icon
The Bluetooth icon acts as an indicator for receiver status.
Icon Color Indicates
Red No receiver inserted
White Receiver plugged in
Green Receiver has detected the devices
21RF-BTCMB02
Connecting to other Bluetooth devices in Windows XP
Note: You must install the software on the included CD in order to connect to other
Bluetooth devices.
To connect to other Bluetooth devices:
1Make sure that the USB Bluetooth receiver has been plugged in to your
computer.
2Put Bluetooth devices, such as printers, modems, and PDAs, into
search/pair mode so the Bluetooth receiver will recognize and connect
to them (see the device’s documentation for instructions). The Bluetooth
Device Selection dialog box opens.
3Click the device list to open the list of Bluetooth devices, then click the
type of device you want to search for. The detected devices are
displayed.
4Click a device, then follow the on-screen instructions to connect to the
device.
22
Setting up Bluetooth in Windows Vista or Windows 7
To set up Bluetooth stack in Windows Vista or Windows 7:
1Double-click the Bluetooth icon in the system tray. The Bluetooth
Settings screen opens.
2Click the Devices tab, then click Add. The Add Bluetooth Device Wizard
starts.
3Click My device is set and ready to be found, then click Next.
4Select the device(s) you want to enable, then click Next.
5Set a passkey yourself or let the setup wizard choose one for you.
6Click Next to continue. Setup is complete.
7Click Finish to exit the setup wizard.
23RF-BTCMB02
Using the keyboard and mouse
Checking battery status
Note: You must install the software on the included CD and pair the keyboard and
mouse before you can check battery status.
To check the keyboard battery status:

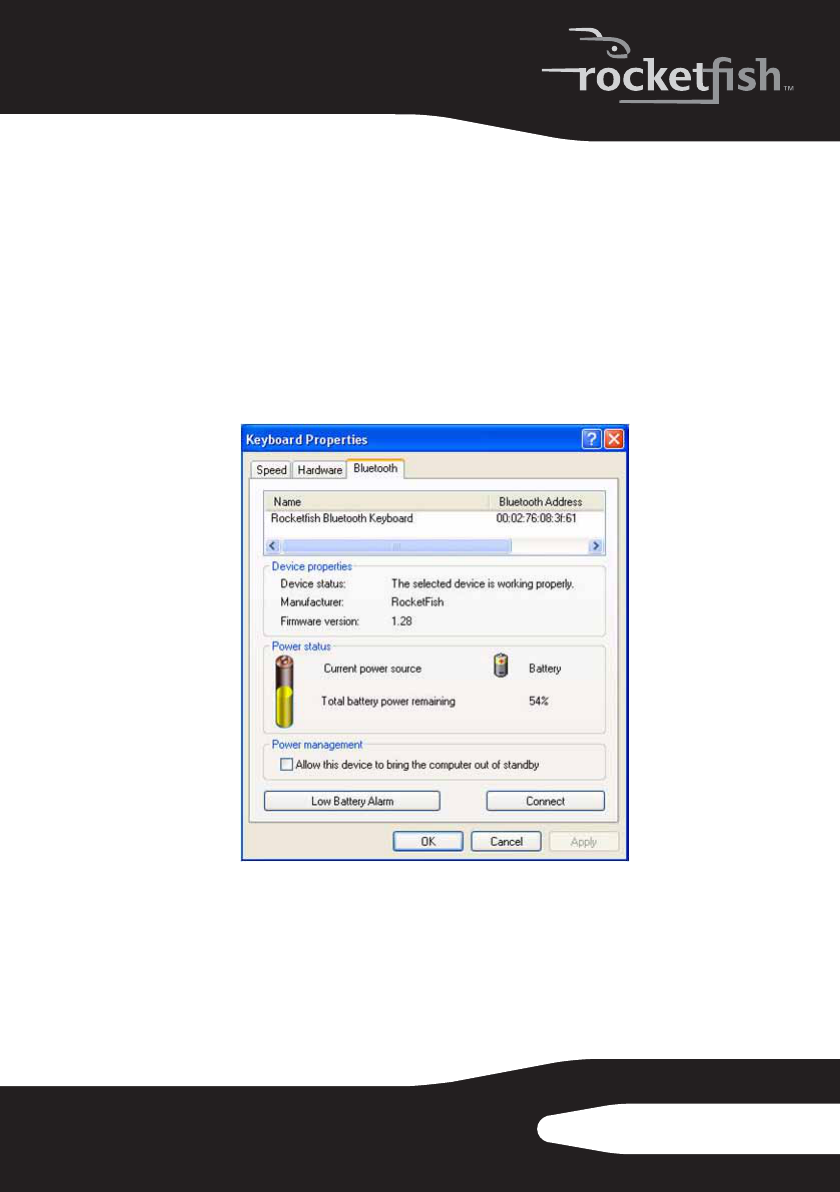

•Click Start, Control Panel, Keyboard, then click Bluetooth. The Keyboard
Properties dialog box opens with the Bluetooth tab on top. The remaining
battery power level is shown.
24
To check the mouse battery status:
•Click Start, Control Panel, Mouse, then click Bluetooth. The Mouse
Properties dialog box opens with the Bluetooth tab on top. The
remaining battery power level is shown.
25RF-BTCMB02
Changing the low battery alarm settings
To change the low battery alarm settings:
1Open the Keyboard Properties dialog box or the Mouse Properties dialog
box. For instructions, see “Checking battery status” on page 23.
2Click Low Battery Alarm. The Low Battery Alarm dialog box opens.
3Change the settings you want, then click OK. You can change the level at
which you want the alarm to occur and turn the audio and visual
notifications on or off.
26
Adjusting the tilt/scroll wheel
Your mouse comes with an advanced scroll wheel that lets you scroll
horizontally as well as vertically.
27RF-BTCMB02
To adjust the tilt/scroll wheel:

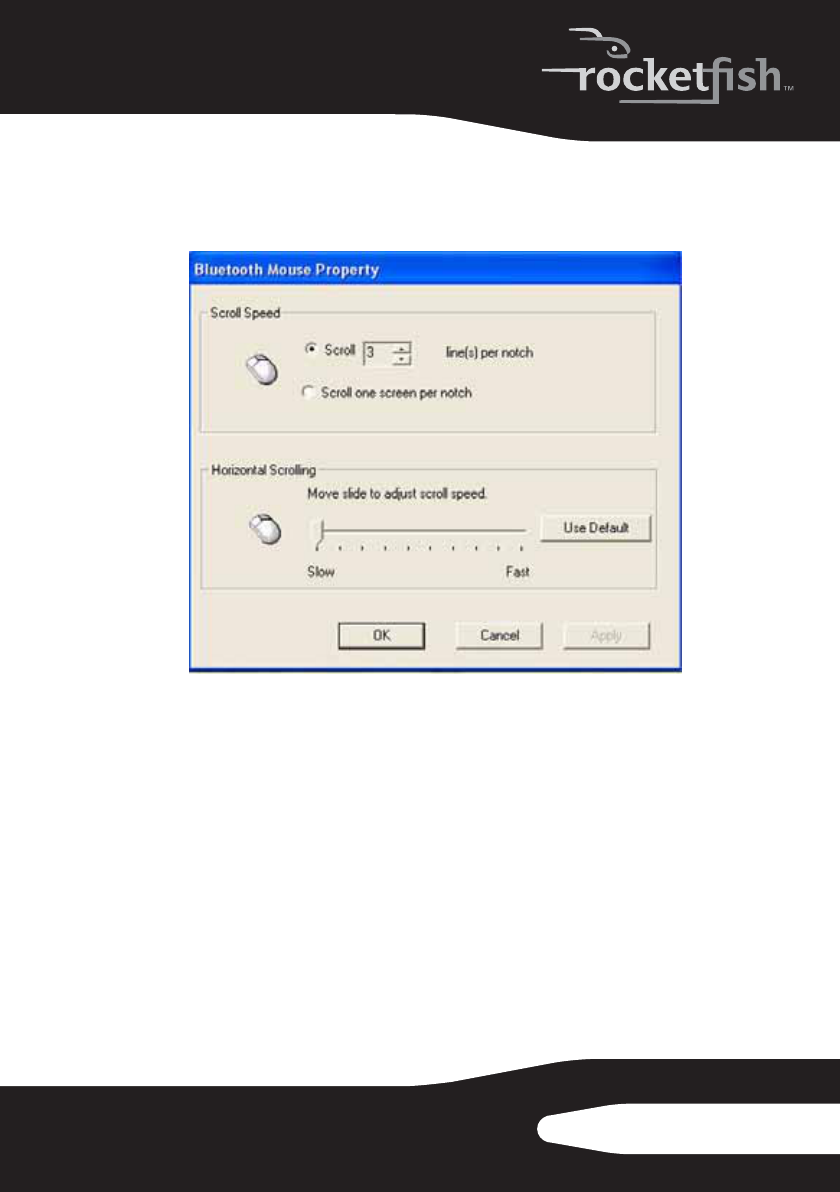

1Right-click the Mouse icon in the system tray, then click Adjust Property. The
Bluetooth Mouse Property dialog box opens.
2To set the vertical scroll speed, click one of the following, then click OK.
•Scroll x line(s) per notch—Sets the number of lines to scroll when the
scroll wheel is moved one notch. Specify the number of lines with the
up and down arrows.
•Scroll one screen per notch—Scrolls the entire window when the scroll
wheel is moved one notch.
3To set the horizontal scroll speed, move the Horizontal Scroll slider toward
Slow or Fast, or click Use Default to restore the factory settings.
4Click OK.
28
Maintaining
To clean your Bluetooth keyboard and mouse, wipe them with a soft,
lint-free cloth slightly moistened with water.
Troubleshooting
If you have any problems with your Bluetooth keyboard or mouse,
check the following:
• Make sure that your computer meets the system requirements.
• Make sure that the batteries in the keyboard and mouse are installed
correctly. Make sure that the + and – symbols on the batteries align with
the + and – symbols inside the keyboard and mouse battery
compartments.
• When the mouse LED is red, battery power is low. Replace the batteries
immediately.
• After the Bluetooth stack (see “Installing the software” on page 18) has
been installed on your computer, you can check the battery status of
keyboard and mouse by clicking Start, Control Panel, Keyboard or Mouse, then
clicking Bluetooth.
• If the keyboard and mouse do not work, check the USB keyboard and
mouse settings in your system's BIOS. The settings should be enabled for
the normal use of keyboard and mouse. See “Turning on the USB
keyboard and mouse settings in BIOS” on page 15.
• If your computer's BIOS setup has options for the keyboard or mouse,
make sure that they are set to default settings. If you are not familiar with
the BIOS, see your the documentation that came with your computer.
• Only use the mouse on a clean, flat surface in order to ensure smooth
and accurate cursor movement. If you use a mousepad, choose a
light-colored one, not a dark one, to use less battery power. Also, do not
use the mouse on a reflective surface such as metal, glass, or polished
wood.
29RF-BTCMB02
Specifications
Mouse Keyboard
Dimensions
H × L × W
Mouse: 1.7 × 4.9 × 2.88 inches
(43.28 x 124.57 x 73.2 mm)
Dongle: 0.18 × 0.75 × 0.53 inches
(4.5 x 19.15 x 13.55 mm)
1.14 × 19.8 × 8.35 inches
(29 x 503 x 212 mm)
Resolution 1200 DPI @ 10 inch/sec n/a
Tracking speed Maximum 30 inch/sec (76.2 cm/sec) n/a
Weight Mouse (without battery): 3.17 oz. (90 g)
Dongle: 0.1 oz. (3 g)
31.75 oz. (900 g) (without battery)
Buttons 4 buttons with tilt scroll wheel 104-key standard key with
18-multimedia hot keys
Compatibility
Windows XP Service Pack 3
Windows Vista 32-bit or 64-bit
Windows 7 32-bit or 64-bit
Operating temperature 32ºF to 104ºF (0ºC to 40ºC)
Storage temperature -40ºF to 140ºF (-40ºC to 60ºC)
Operating humidity 90% RH or less
Storage humidity 95% RH or less
Battery AA x 2 AA x 2
Regulations and
certifications EMI, ESD, RS, EFT, FCC, IC, BQB, WHQL
30
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of this
product is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply within the
limits for a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC warning
Changes or modifications not expressly approved by the party
responsible for compliance with the FCC Rules could void the user’s
authority to operate this equipment.
32
33RF-BTCMB02
One-year limited warranty
Rocketfish Products (“Rocketfish”) warrants to you, the original purchaser of this new
RF-BTCMBO2 (“Product”), that the Product shall be free of defects in the original manufacture
of the material or workmanship for one (1) year from the purchase of the Product (“Warranty
Period”). This Product must be purchased from an authorized dealer of Rocketfish brand
products and packaged with this warranty statement. This warranty does not cover refurbished
Product. If you notify Rocketfish during the Warranty Period of a defect covered by this
warranty that requires service, terms of this warranty apply.
How long does the coverage last?
The Warranty Period lasts for one year (365 days), beginning on the date you purchased the
Product. The purchase date is printed on the receipt you received with the product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Rocketfish repair center or store
personnel, Rocketfish will (at its sole option): (1) repair the Product with new or rebuilt parts; or
(2) replace the Product at no charge with new or rebuilt comparable products or parts. Products
and parts replaced under this warranty become the property of Rocketfish and are not returned
to you. If service of Products and parts are required after the Warranty Period expires, you must
pay all labor and parts charges. This warranty lasts as long as you own your Rocketfish Product
during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the
Product.
How to obtain warranty service?
If you purchased the Product at a retail store location, take your original receipt and the Product
to the store you purchased it from. Make sure that you place the Product in its original
packaging or packaging that provides the same amount of protection as the original
packaging. If you purchased the Product from an online web site, mail your original receipt and
the Product to the address listed on the web site. Make sure that you put the Product in its
original packaging or packaging that provides the same amount of protection as the original
packaging.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the Product in the United States, Canada,
and Mexico.
What does the warranty not cover?
This warranty does not cover:
•Customer instruction
•Installation
•Set up adjustments
•Cosmetic damage
34
• Damage due to acts of God, such as lightning strikes
•Accident
•Misuse
•Abuse
•Negligence
•Commercial use
• Modification of any part of the Product, including the antenna
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Rocketfish to service the
Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY.
ROCKETFISH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST
PROFITS. ROCKETFISH PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO
THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD
SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER
THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Rocketfish:
For customer service please call 1-800-620-2790
www.rocketfishproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645
© 2009 Best Buy Enterprise Services, Inc.
All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. Registered in
some countries. All other products and brand names are trademarks of their respective owners.
09-0511
ENGLISH
www.rocketfishproducts.com (800) 620-2790
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN 55423-3645 USA
© 2009 Best Buy Enterprise Services, Inc.
All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc.
All other products and brand names are trademarks of their respective owners.
