Package Contents │ 5
Package Contents
Setup
System Requirements
• USB port (for the USB receiver)
• Microsoft Windows 10/8/7/XP/Vista/Server 2003/Server 2008/Server
2012,Linux 6.x, Ubuntu, Neokylin, Free DOS, Chrome and Android

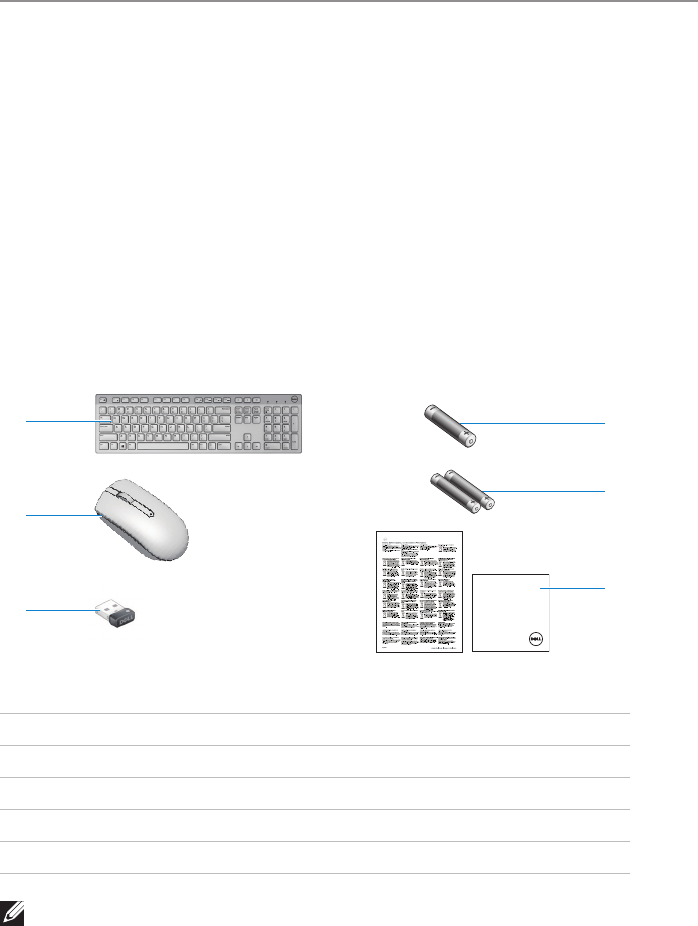

Contents of the Box
1 Wireless Keyboard
2 Wireless Mouse
3 USB Receiver
4 AA-type battery for the Mouse
5 AAA-type batteries for the Keyboard (2)
6 Documents
NOTE: The documents that shipped with the keyboard and mouse may
vary based on your region.
Dell KM636
Wireless Keyboard and Mouse
Quick Start Guide
4
5
6
1
2
3
AA A
AAA
AA
6 │ Identifying Parts and Controls (Keyboard Features)
Identifying Parts and Controls (Keyboard
Features)
Top View
1
1
2
2
3
3
4
4
7
7
5
5
8
8
6
6
9
9

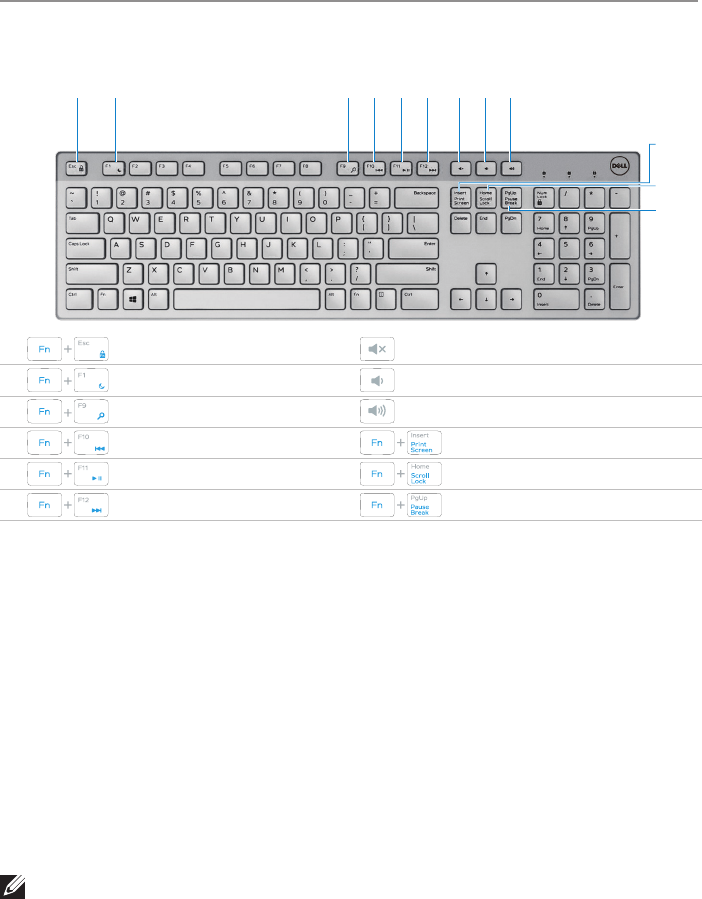

Locking/Unlocking the Function Keys
The function keys provide convenient, secondary functions. These functions
are marked in blue on the function keys and are listed in the table above.
When the keyboard is powered up, all keys are in their primary functions. To
activate the blue function keys, you should hold down the Fn key and press
the desired function key.
The secondary functions for keys F1, F9, F10, F11 and F12 can be locked.
You can lock the function keys by holding down the Fn key and by pressing
the Esc key. When the function keys are locked, you can activate each
function by pressing the key without holding down Fn.
NOTE: When the function keys are locked, their primary functions are
disabled. To unlock the function keys, hold down the Fn key and press
the Esc key. This returns all keys to their primary functions.
12
12
11
11
10
10
Toggle Fn-key lock Mute
Sleep Decrease volume
Search Increase volume
Play previous track/chapter Print Screen
Play/Pause Scroll Lock
Play next track/chapter Pause Break
Identifying Parts and Controls (Keyboard Features) │ 7
Side View

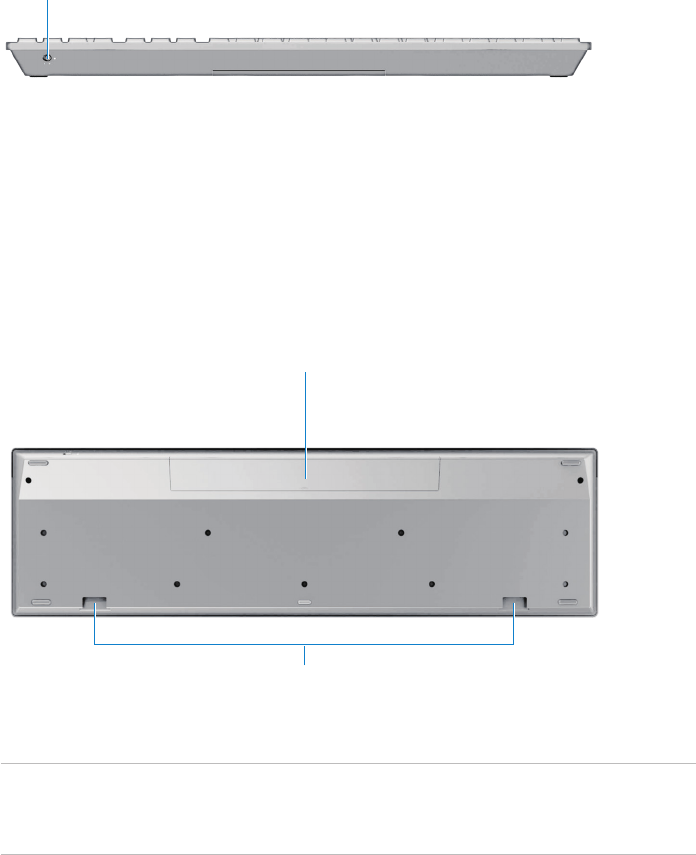

Battery status light – Indicates the status of the batteries installed in
your keyboard.
• Solid white – Appears for about 15 seconds after the batteries are
installed then turns off.
• Blinking amber – Battery level is low. Replace the batteries.
Bottom View
1 Battery compartment – The battery compartment holds two AAA
batteries to power the keyboard.
2 Palm rest attachment slots – Attach the Dell keyboard
palm rest PR216 to the keyboard by inserting the two latches on
the palm rest into these two slots.
1
1
2
1
8 │ Identifying Parts and Controls (Mouse Features)
Identifying Parts and Controls (Mouse
Features)
Top View

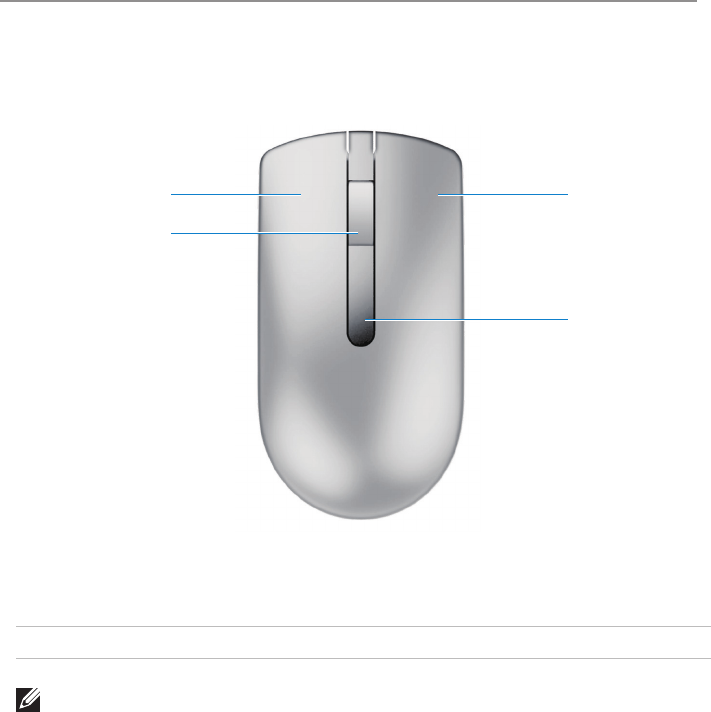

1 Left button 3 Right button
2 Middle / Scroll button 4 Battery status light
NOTE: Blinking amber indicates that the battery level is low. Replace
the battery.
1
2
3
4
Identifying Parts and Controls (Mouse Features) │ 9
1
2

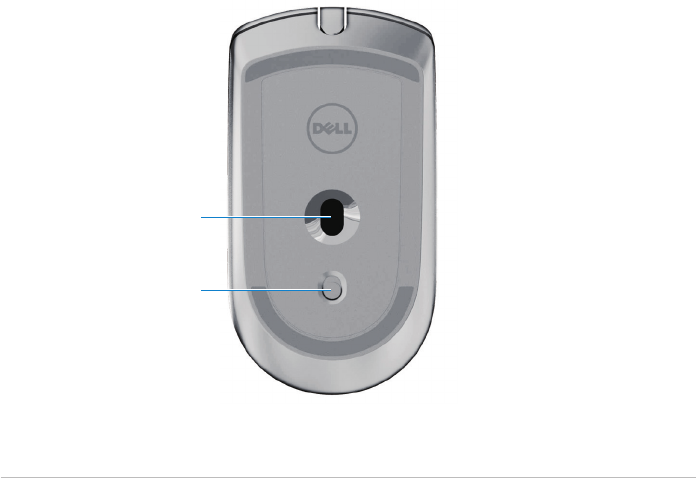

Bottom View
1 Optical sensor 2 Power button
10 │ Setting Up Your Wireless Keyboard and Mouse
1 2
AAA
AA
1 2 3 4 5
Setting Up Your Wireless Keyboard and
Mouse

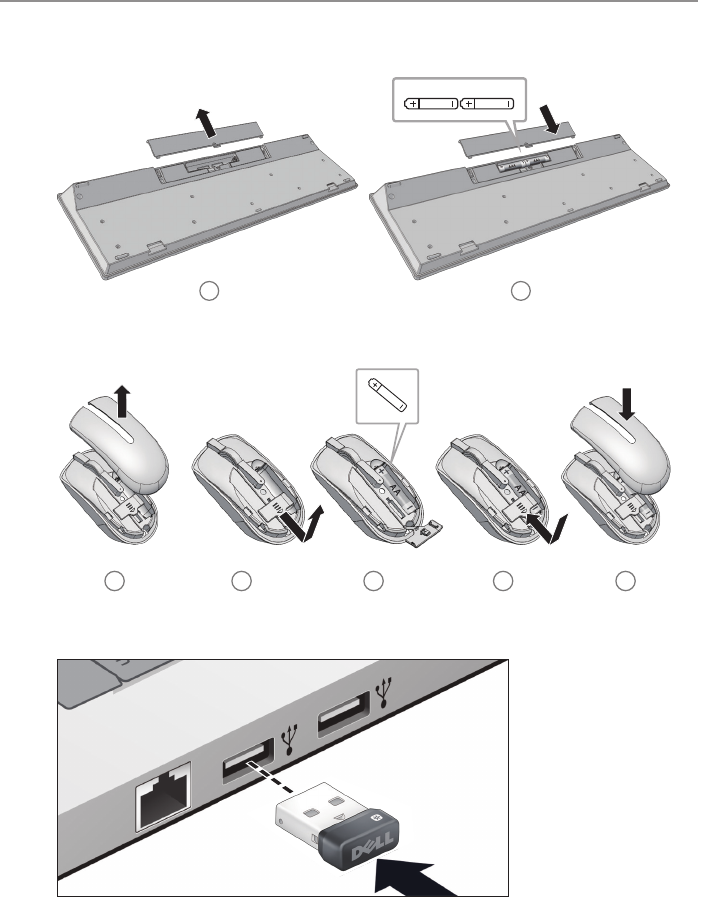

1. Install the two AAA batteries in your keyboard.
2. Install the AA battery in your mouse.
3. Connect the USB receiver to the computer.
If your keyboard or mouse is not working, see the Troubleshooting section.
Unifying Pairing Features for Windows and Chrome │ 11
Unifying Pairing Features for Windows
and Chrome

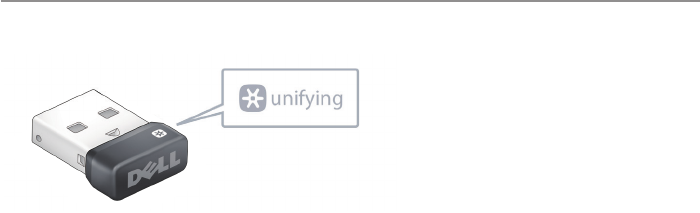

The USB unifying receiver is a wireless receiver that can stay plugged into
your computer’s USB port, allowing you to easily connect your wireless
mouse and keyboard to your computer. Up to four additional unifying-
compatible wireless devices can be connected at the same time, for a total
of six devices.
The receiver, mouse and keyboard shipped with your system are paired at
the factory. No installation is required. However, if the original receiver is lost
or misplaced, the wireless devices must be re-paired with the new receiver.
Re-pairing Devices with the New Receiver
To re-pair devices with a new wireless receiver:
1. Download and install the unifying software in your system. If the
Unifying software is not installed on your Windows system, it can be
downloaded from dell.com/support/unifying. Chrome book users can
download the Unifying application from the Chrome web store. Follow
the installation instructions on the download page to install and run the
downloaded file.
2. Run the unifying software to pair each device.To connect unifying
devices to your unifying USB receiver:

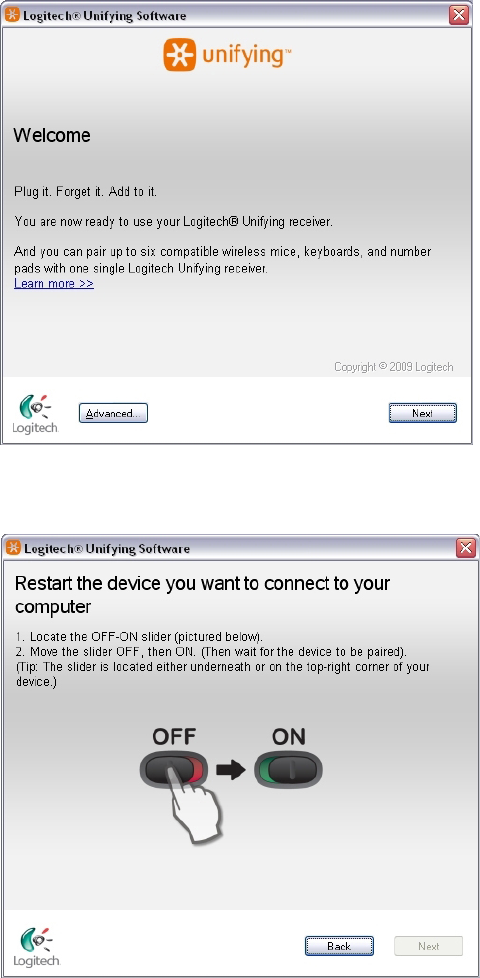

a) Launch the unifying software.
12 │ Unifying Pairing Features for Windows and Chrome
b) At the bottom of the Welcome screen, click Next.
c) When you see the “Restart the device…” screen, follow the on-screen
instructions to turn your device off and then back on.
Unifying Pairing Features for Windows and Chrome │ 13
d) When your device is detected, you’ll see a confirmation screen opens.
If you connected a:
• Keyboard: Type a test message in the field provided to make sure it
works.
• Mouse: Move the mouse around to see if the cursor moves with it.
e) If your device connected successfully, click Yes and then Next.
If your device does not work right away, wait a few minutes to see if it
connects. If it doesn’t, select No and then click Next to restart the pairing
process from step a).
f) Click Finish to exit the unifying software (or Pair Another Device to pair
additional devices). Your devices should now be connected.
14 │ Increasing the Battery Life of Your Mouse
Increasing the Battery Life of Your Mouse
The mouse has three operating modes built in to conserve battery power:
1. Sleep mode: When the mouse has been inactive for 5 seconds.
To wake the mouse: Move or click.
2. Deep sleep mode: When the mouse has been inactive for 5 minutes.
To wake the mouse: Move or click.
3. Cut-o mode: When the mouse has been carried around or left facing
upwards for 5 minutes or when the mouse has been inactive for 4
hours.
To wake the mouse: Switch the power button o and then on again.
Troubleshooting │ 15
Troubleshooting
Common Symptoms
The following table contains information about common issues you might
encounter and the possible solutions.
Common
Symptoms
What You
Experience Possible Solutions
Unable to use the
keyboard
No response
when operating
your keyboard
1. Check if the batteries are
inserted in the correct
orientation.
• Batteries + and - ends
should follow those
indicated on the battery
compartment label.
2. Check if the keyboard’s
power switch is set to On.
3. Remove and reinstall the
batteries. The power status
light turns on (solid white) for
about 15 seconds and turns
o.
4. Remove and reconnect
the USB receiver on your
computer.
5. Connect the USB receiver
into another USB port on
your computer.
6. Restart your computer.
16 │ Keyboard Specifications
Keyboard Specifications
General
Model Number
Connection Type 2.4 GHz wireless technology
Supported Operating Systems Microsoft Windows 10/8/7/XP/Vista/Server
2003/Server 2008/Server 2012
Linux 6.x, Ubuntu, Neokylin, Free DOS,
Chrome and Android
Key Mechanism Plunger
Electrical
Operating Voltage 2.05V to 3.2V
Battery Required AAA Alkaline (2)
Physical Characteristics
Height 25.5mm (± 0.5mm)
Length 442.0mm (± 0.7mm)
Width 127.5mm (± 0.5mm)
Weight 425g, without batteries
Environmental
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 65°C
Operating Humidity 90% maximum Relative Humidity, non
condensing.
Storage Humidity 95% maximum Relative Humidity, non
condensing
2.4 GHz Wireless
Radio Transmission Bi-directional communication
(Transceiver)
Range Up to 10 meters
WK636p
Mouse Specifications │ 17
Mouse Specifications
General
Model Number
Connection Type 2.4 GHz wireless technology
Supported Operating Systems Microsoft Windows 10/8/7/XP/Vista/Server
2003/Server 2008/Server 2012
Linux 6.x, Ubuntu, Neokylin, Free DOS,
Chrome and Android
Electrical
Operating Voltage 0.95 V to 1.8 V
Battery Required One AA Alkaline
Physical Characteristics
Height 36.0mm( ± 0.3 mm)
Width 61.0mm(± 0.3 mm)
Length 113.6mm( ± 0.5 mm)
Weight 65g, without battery
Environmental
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 65°C
Operating Humidity 90% maximum Relative Humidity, non
condensing.
Storage Humidity 95% maximum Relative Humidity, non
condensing
2.4 GHz Wireless
Radio Transmission Bi-directional communication
(Transceiver)
Range Up to 10 meters
WM116p
18 │ Statutory Information
Statutory Information
Warranty
Limited Warranty and Return Policies
Dell-branded products carry a 1-year limited hardware warranty. If
purchased together with Dell system, it will follow the system warranty.
For U.S. customers:
This purchase and your use of this product are subject to Dell’s end user
agreement, which you can find at www.dell.com/terms. This document
contains a binding arbitration clause.
For European, Middle Eastern and African customers:
Dell-branded products that are sold and used are subject to applicable
national consumer legal rights, the terms of any retailer sale agreement that
you have entered into (which will apply between you and the retailer) and
Dell’s end user contract terms.
Dell may also provide an additional hardware warranty – full details of the
Dell end user contract and warranty terms can be found by going to
www.dell.com, selecting your country from the list at the bottom of the
“home” page and then clicking the “terms and conditions” link for the end
user terms or the “support” link for the warranty terms.
For non-U.S. customers:
Dell-branded products that are sold and used are subject to applicable
national consumer legal rights, the terms of any retailer sale agreement that
you have entered into (which will apply between you and the retailer) and
Dell’s warranty terms. Dell may also provide an additional hardware warranty
– full details of Dell’s warranty terms can be found by going to
www.dell.com, selecting your country from the list at the bottom of the
“home” page and then clicking the “terms and conditions” link or the
“support” link for the warranty terms.
Regulatory │ 19
Regulatory
Regulatory Information
These devices comply with Part 15 of the FCC Rules. Operation of the
devices is subject to the following two conditions : a) The devices may not
cause harmful interference, and b) The devices must accept any interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy. If the equipment is not installed and used in accordance
with the instructions, the equipment may cause harmful interference
to radio communications. There is no guarantee, however, that such
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception (which can be determined by turning the equipment off and on),
the user is encouraged to try to correct the interference by taking one or
more of the following measures:
• Relocate this device.
• Increase the separation between the device and the receiver.
• Connect the device into an outlet on a circuit different from that of
other electronics.
• Consult the dealer or an experienced radio technician for help.
Keyboard Regulatory Model: WK636p
Mouse Regulatory Model: WM116p
Dongle Regulatory Model: DGRFEO
20 │ Certifications
Certifications
Microsoft WHQL Logo
testing by Microsoft Windows Hardware Quality Labs.
WHQL Logo is a certification scheme operated by Microsoft Windows
Hardware Quality Labs. In this case it ensures that hardware is compatible
with Microsoft Operating Systems. The keyboard and mouse are qualified
through the use of WHQL test kits and have been included in the Microsoft
Hardware Compatibility List.
The Dell KM636p Wireless Keyboard and Mouse have passed WHQL logo
