Primax Electronics M7AU01 Bluetooth Wireless Mouse User Manual
Primax Electronics Ltd Bluetooth Wireless Mouse Users Manual
Users Manual
VGP-BMS30 2-653-693-11(1)
English
WARNING
To prevent fire or shock hazard, do not expose the unit
to rain or moisture.
Owner’s Record
The model number and the serial number are located on the bottom of the
mouse. Record the serial number in the space provided below. Refer to this
number whenever you call your Sony dealer regarding this product.
Model No. VGP-BMS30
Serial No. ____________________
For customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
The shielded interface cable recommended in this manual must be used with this
equipment in order to comply with the limits for a digital device pursuant to
subpart B of Part 15 of the FCC Rules.
You are cautioned that any changes or modifications not expressly approved in
this manual could void your authority to operate this equipment.
For questions regarding your product or for the Sony Service Center nearest you,
call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada.
The number below is for FCC related matters only.
Declaration of Conformity
Trade Name: SONY
Model No.: VGP-BMS30
Responsible Party: Sony Electronics Inc.
Address: 16450 W. Bernardo Dr., San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
These products comply with FCC radiation exposure limits set forth for
uncontrolled equipment and meet the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. These products have very low levels
of RF energy that it is deemed to comply without testing of specific
absorption ratio (SAR).
For customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
The term “IC:” before the radio certification number only signifies that the
Industry Canada technical specifications were met.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received,
including interference that may cause undesired operation of the device.
To prevent radio interference to the licensed service, this device is intended
to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
IC Exposure of Humans to RF Fields
The installer of this radio equipment must ensure that the antenna is
located or pointed such that it does not emit RF field in excess of Health
Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada’s website:
www.hc-sc.gc.ca/rpb.
•VAIO and are trademarks of Sony Corporation.
•Microsoft and Windows are registered trademarks of Microsoft Corporation
in the United States and/or other countries.
•The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and
any use of such marks by Sony Corporation is under license. Other
trademarks and Trade names are those of their respective owners.
•All other names of systems, products, and services are trademarks of their
respective owners. In this manual, the ™ or ® marks are not specified.
In this manual, Microsoft® Windows® XP Home Edition and Microsoft®
Windows® XP Professional are referred to as Windows XP.
Before Use
This product is a wireless mouse equipped with Bluetooth* technology.
The Bluetooth® Wireless Mouse can be used with the following notebook
computers (as of September 2005):
•Sony VIAO® notebook computers** equipped with the Bluetooth function
and pre-installed with Windows XP
•Sony VIAO® notebook computers with the PCGA-BA2 Bluetooth
Adaptor (not supplied) connected
* Bluetooth® technology
Bluetooth wireless technology provides instant short-range connectivity
without the need for cumbersome cabling. For details, refer to the
manuals included with your notebook computer or the operating
instructions for your Bluetooth adaptor.
** Windows Service Pack 2 must be installed. Check the OS you are using
and update accordingly.
Note
Depending on the notebook computer, Bluetooth adaptor, or version of software
you are using, the mouse may not operate correctly.
Consult your nearest Sony dealer about proper operating environments and
information about Sony VIAO® and Bluetooth compatibility.
Checking to see if Windows XP Service Pack 2 is
installed
1Click “Start” in Windows and select “Control Panel”.
2In the “Control Panel”, click “Performance and
Maintenance” and then click “System”.
3Click the “General” tab in the “System Properties”
screen.
If “Service Pack 2” is displayed, Windows XP Service Pack 2 is
installed in your computer.
Installing Windows XP Service Pack 2
If Windows XP Service Pack 2 is not installed on your computer, download
it from the Microsoft website (http://www.microsoft.com).

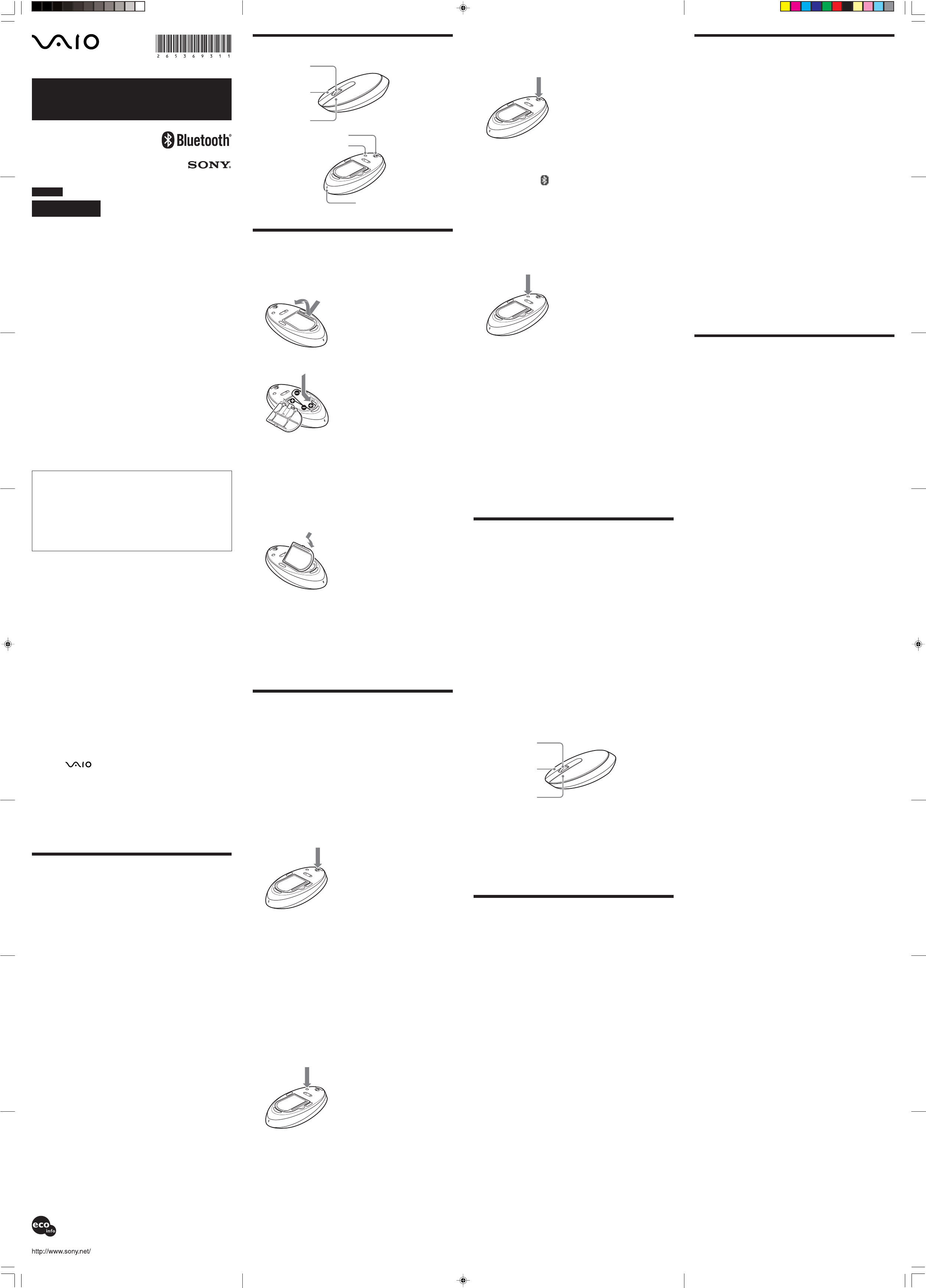

Names of Parts
Inserting batteries into the
mouse
1Set the power switch located on the bottom of the
mouse to OFF.
2Open the battery compartment cover.
3Insert the two supplied IEC R6 (size AA) batteries with
the correct + - orientation.
Note
To prevent battery fluid leaks and damage, observe the following
precautions.
•Insert the batteries with the correct + - orientation.
•Do not charge dry cell batteries.
•Do not mix old and new batteries, or batteries of a different type.
•If the mouse has not been used for a long time, remove the batteries.
•If a battery fluid leak occurs, carefully wipe the battery compartment,
and insert new batteries.
•To prevent accidental operation, be careful not to press any buttons or
move the Scroll Pointer when replacing the batteries.
4Close the battery compartment cover.
z
Under normal operating conditions, a set of alkaline batteries lasts about
three months. When cursor movement becomes sluggish and the
communication distance between the mouse and your notebook computer
decreases, check the low battery lamp on the mouse. Replace the batteries if
the low battery lamp is flashing red.
When not using the mouse, set the power switch to OFF. This will make the
batteries last longer.
Replacing the batteries
The low battery lamp flashing red indicates that the battery life is running
low. Replace the batteries when this occurs.
Enabling communication
between the mouse and your
notebook computer
The Bluetooth function in Windows XP is used to enable communication
between the mouse and your notebook computer. If your notebook
computer is provided with the Bluetooth Utilities software, you can use the
software to enable communication as well.
z Hint
Operation of the Bluetooth Utilities software may vary depending on your
notebook computer. For details on how to use the software, refer to the manuals
included with your notebook computer.
Using the function in Windows XP to
enable communication
1Turn your notebook computer on.
2Set the power switch on the bottom of the mouse to ON.
3Activate the wireless function on your notebook
computer.
For details, refer to the operating instructions and manuals included
with your notebook computer.
4Click the “Start” button in Windows and select “Control
Panel”.
5Click “Network and Internet Connections”, and click
“Bluetooth Devices”.
6Click “Add” under the “Devices” tab.
The “Add Bluetooth Device Wizard” appears.
7Select the “My device is set up and ready to be found.”
check box.
8Click “Next”.
Search for Bluetooth devices begins.
9Depending on your notebook computer, press the
CONNECT button on the bottom of the mouse while the
computer searches for Bluetooth devices.
10 Select “IRX-9213 Mouse” from the “Select the Bluetooth
device that you want to add.” list, and click “Next”.
11 Select “Don’t use passkey”, and click “Next”.
12 Click “Finish”.
Try moving the mouse. If the pointer displayed on your screen moves
in the same direction, the connection is complete.
Disconnecting
Set the power switch of the mouse to OFF.
Using the Bluetooth® Utilities software to
enable communication
1Turn your notebook computer on.
2Set the power switch on the bottom of the mouse to ON.
3Activate the wireless function on your notebook
computer.
For details, refer to the operating instructions and manuals included
with your notebook computer.
4Double-click the icon in the notification area on the
bottom right corner of your computer’s desktop.
The Bluetooth Utilities software starts up, and the “Bluetooth Settings”
screen displays.
5Click “New Connection”.
The “Add New Device Wizard” screen appears.
6Select “Express Mode”, and click “Next”.
Search for Bluetooth devices begins.
7Depending on your notebook computer, press the
CONNECT button on the bottom of the mouse while the
computer searches for Bluetooth devices.
“IRX-9213 Mouse” appears in the device list.
8Select “IRX-9213 Mouse”, and click “Next”.
9Press the CONNECT button again.
10 Verify the contents of the screen displayed, and click
“Next”.
11 Click “Finish”.
Try moving the mouse. If the pointer displayed on your screen moves
in the same direction, the connection is complete.
Disconnecting
Right click the headset icon displayed in the “Bluetooth Settings” screen,
and click “Disconnect” in the displayed menu.
Operating distance of the mouse
The mouse can normally be operated within about a 32 ft. (10 m) radius
around the computer. Depending on the usage environment, sometimes the
usable distance may be notably shorter, preventing normal operation.
In such a case, take the following measures:
•Use the mouse as far away from other wireless devices as possible.
•Use the mouse closer to the computer.
•Use a mouse pad.
Using the USB Mouse
When you move the mouse, the pointer displayed on your screen moves in
the same direction.
This section describes basic mouse operations and how to use the wheel
button.
Notes
•An optical mouse senses mouse movement by using the optical sensor to
detect the shadows caused by the red light on the bottom of the mouse. The
optical mouse may not operate correctly on the following surfaces:
–Transparent surfaces (such as glass)
–Surfaces that reflect light (such as highly polished veneers or mirrors)
–Surfaces with a repetitive pattern, such as screening (like that used for
printing photos in magazines and newspapers)
– Surfaces that are striped or have another distinct, high contrast pattern
If the mouse pointer does not move smoothly across the screen, make sure
you are not using the mouse on one of the above mentioned surfaces.
•The fluoropolymer used for the soles of the mouse (PTFE, or
polytetrafluoroethylene) is designed for low frictional resistance, but the
mouse may slide differently depending on what material your desk or
mousepad is made of.
z
If necessary, you can adjust the mouse pointer speed under “Mouse Properties”.
To display “Mouse Properties”, double-click “Mouse” in the “Control Panel”
(with the Windows XP operating system, select “Printers“ and “Other
Hardware” in the “Control Panel”, then select “Mouse”).
Basic operations
1
3
2
1Wheel button
Use the wheel button to easily scroll up and down in a window. You can
also use auto scroll by pressing the wheel button.
2Left button
Use to open saved documents, pictures and other files and to run programs.
Most mouse functions are performed using this button.
3Right button
Use this button to display shortcut menus that allow you to copy saved
documents, pictures and other files, view file details, and access various
commands and settings.
Precautions
Safety If any solid object or liquid falls onto the mouse, disconnect
it and have it checked by qualified personnel before
continuing its use.
Location Do not place the mouse in a location where it is:
•On an unstable surface
•In very humid areas or where there is no ventilation
•Subject to excessive dust
•Subject to direct sunlight or extreme heat
•Extremely cold
Operation If the mouse is brought directly from a cold to a warm
location or is placed in a very damp room, moisture may
condense on the inside of the mouse. If this occurs, the
mouse may not work properly.
In this case, wait about 30 minutes for the moisture to
evaporate. If the mouse does not work properly after one
hour, consult your nearest Sony dealer.
Bluetooth communications
•The 2.4 GHz band used by Bluetooth and wireless LAN devices is also
used by various other devices. Bluetooth devices incorporate technology
that minimizes interference from other devices using the same
wavelength. However, communication speed and achievable distances
may be reduced. Interference from other devices can also stop
communications altogether.
•The data transfer rate will vary depending on distance and obstacles
between devices, device configuration, radio interference, operating
system, software application, and so on. In some cases, communication
may be interrupted.
•Communication range will vary according to whether walls or other
obstacles are located between devices, the material used in walls, the
presence of radio frequency interference and other environmental
conditions, and the type of software being used.
• If wireless LAN and Bluetooth functionality are used at the same time on
the same computer, communication speed may be reduced due to
electromagnetic interference, and other unwanted effects may occur.
•Please note that due to limitations of the Bluetooth standard, large files
may occasionally be corrupted during continuous transfer due to
electromagnetic interference from the environment.
Cleaning the outside of the mouse
Clean the mouse with a soft, dry cloth or a soft cloth lightly moistened with
a mild detergent solution. Do not use any type of abrasive pad, scouring
powder, or solvent such as alcohol or benzine.
Bluetooth® Wireless Mouse
VGP-BMS30
Operating Instructions
Mode d’emploi
© 2005 Sony Corporation Printed in Japan
2-653-693-11(1)
Specifications
Communication method Bluetooth Standard Ver. 1.2
Position tracking principle Optical sensor
Sensor resolution 800 counts per inch
Wireless principle/frequency band
RF 2.4 GHz
Power requirements 3 V DC (two manganese IEC R6 [size AA]
batteries)
Transmission distance 32 ft. (10 m) max. line of sight*1
Dimensions Approx. 2.8 × 1.5 × 4.6 in.
(53.4 × 31.5 × 124.6 mm) (w × h × d)
Mass Approx. 4.3 oz. (120 g) (including batteries)
Supported models Sony VAIO computers with the Windows XP
operating system.
Operating temperature 41°F to 95°F (5°C to 35°C)
(temperature gradient less than 18°F (10°C)/
hour)
Operating humidity 20% to 80% (not condensed), provided that
humidity is less than 65% at 95°F (35°C)
(hygrometer reading of less than 84°F (29°C))
Storage temperature –4°F to 140°F (–20°C to 60°C)
(temperature gradient less than 18°F (10°C)/
hour)
Storage humidity 10% to 90% (not condensed), provided that
humidity is less than 20% at 140°F (60°C)
(hygrometer reading of less than 95°F (35°C)
Accessories Manganese IEC R6 (size AA) batteries*2 (2)
Operating Instructions (this document) (1)
Warranty Card (1)
*1Communication range will vary according to whether walls or other
obstacles are located between devices, the material used in walls, the
presence of radio frequency interference and other environmental
conditions, and the type of software being used.
*2The supplied batteries are for testing purposes only. You can use the
mouse longer by using alkaline batteries.
Design and specifications are subject to change without notice.
Troubleshooting
If you experience any of the following difficulties while using the mouse,
use this troubleshooting guide to solve the problem. If a problem persists,
consult your nearest Sony dealer.
Nothing happens when I press a mouse button.
❒If you are using a Bluetooth adaptor, the Bluetooth adaptor is not
connected properly to the USB port.
cClose all programs, and then reconnect the Bluetooth adaptor to your
computer.
❒The operating system is not compatible.
cUse a supported operating system.
❒The mouse batteries are exhausted.
cReplace the batteries. For details, see “Inserting batteries into the mouse”.
❒The mouse and the notebook computer are not communicating.
c Perform the steps in “Enabling communication between the mouse and
your notebook computer” to ensure that proper communication is
possible.
c In some operating environments, the usable distance may be notably
shorter, preventing normal operation. Ensure that your notebook
computer is not closer than 8 in. (20 cm) to another computer, the display,
and other electronic devices.
c If the mouse is too far from your notebook computer, communication is
not possible. Bring the mouse and your notebook computer closer
together.
❒The mouse is being used on an unsuitable surface.
c When used on a mirror, glass, or other shiny surface, or on a transparent
or strongly patterned surface, the sensor on the bottom of the mouse may
not be able to correctly detect the mouse movements. On such surfaces,
use a mouse pad.
❒The mouse may have difficulty communicating in an environment with
2.4 GHz wireless LAN or other Bluetooth communication.
c It is best to use the mouse in a location with low interference from
wireless devices.
Pressing the CONNECT button does not establish a connection.
cCheck whether batteries are inserted in the mouse. For details, see
“Inserting batteries into the mouse”.
cIf the power switch on the mouse is set to OFF, communication with the
notebook computer is not possible. Check the power switch setting on the
bottom of the mouse.
cIf the power does not come on when the power switch is set to ON, the
batteries may be exhausted. Under normal operating conditions, a set of
alkaline batteries lasts about three months. Replace the batteries. For
details, see “Inserting batteries into the mouse”.
cCommunication between the mouse and your notbook computer may not
have been properly established. If the CONNECT button on the mouse is
not pressed within 30 seconds after the Bluetooth device search begins,
mouse communication is cancelled. In such a case, perform the procedure
again to enable communication. For details, see “Enabling
communication between the mouse and your notebook computer”.
cIf the mouse and notebook computer are too far apart, communication is
not possible. The maximum communication distance between the mouse
and notebook computer is about 32 ft. (10m). If used on a metal table or if
obstacles lie between the mouse and notebook computer, the usable
distance may be less.
The scrolling features do not work.
❒The operating system is not compatible.
cUse a supported operating system.
❒The program you are using is not compatible with the scrolling
features.
cThe scrolling features only work with programs that use a scroll function.
cSome programs do not support the scrolling features.
❒If you are using a Bluetooth adaptor, after the adaptor was installed
while in the power-saving mode, the computer was returned to normal
mode.
cTurn off the mouse, wait a few seconds, and then reestablish
communication.
The pointer does not move when I move the mouse.
cProcessing performed by Windows or other software may temporarily
disable the mouse. Wait a few moments for the processing to finish
before using the mouse.
cYou may find some useful solutions in your computer’s operating
instructions. Refer to the manuals provided with your computer.
❒The mouse batteries are exhausted.
cIf the power does not come on when the power switch is set to ON,
replace the batteries. For details, see “Inserting batteries into the mouse”.
❒The mouse is not set to ON.
c Set the power switch on the bottom of the mouse to ON.
❒The mouse and your notebook computer are not communicating.
c Perform the steps in “Enabling communication between the mouse and
your notebook computer” to ensure that proper communication is
possible.
c In some operating environments, the usable distance may be notably
shorter, preventing normal operation. Ensure that the receiver is not
closer than 8 in. (20 cm) to another computer, the display, and other
electronic devices.
c If the mouse is too far from your notebook computer, communication is
not possible. Bring the mouse and your notebook computer closer
together.
❒The mouse is being used on an unsuitable surface.
cWhen used on a mirror, glass, or other shiny surface, or on a transparent
or strongly patterned surface, the sensor on the bottom of the mouse may
not be able to correctly detect the mouse movements. On such surfaces,
use a mouse pad.
When I am using the mouse, the display goes dark or the computer
enters power-saving mode.
❒The computer enters power-saving mode even while a USB device is in
use.
cChange the power management settings for the computer to prevent it
from entering power-saving mode. For details, refer to the manuals
provided with your computer.
cTouch the touchpad or press any key on the keyboard to exit power-
saving mode.
The computer does not return from Standby mode.
cTouch the touchpad or press any key on the keyboard to exit this mode.
The mouse pointer does not move smoothly across the screen.
cThe optical mouse distinguishes movement by reflecting the red light
from its base off surfaces and detecting shadows with an optical sensor.
The optical mouse may not operate correctly on the following surfaces:
-Transparent surfaces (such as glass)
-Surfaces that reflect light (such as glossy plastics or mirrors)
- Surfaces with a repetitive pattern, such as screening (like those used for
printing photos in magazines and newspapers)
- Surfaces that are striped or have another distinct, high-contrast pattern
If the mouse pointer does not move smoothly across the screen, make
sure you are not using the mouse on one of the surfaces listed above.
Exiting power-saving mode with the mouse takes a long time or is not
possible.
cPress any key or the power button on the keyboard.
The mouse does not move smoothly after returning from the power-
saving mode.
cDeactivate the Bluetooth connection, wait a few seconds, and then
reestablish connection.
The mouse is not found when the Bluetooth device search is
performed.
❒The mouse is unable to be detected.
cPress the CONNECT button on the mouse, and then try the search again.
Printed on 100% recycled paper using VOC (Volatile Organic
Compound)-free vegetable oil based ink.
Imprimé sur papier 100 % recyclé avec de l’encre à base
d’huile végétale sans COV (composés organiques volatils).
Right button
Left button
Wheel button
CONNECT button
Power switch
Low battery lamp
