Bluetooth Mouse Set
User Manual
Bluetooth Mouse Set
About this manual
Thank you for your purchase of this Bluetooth mouse set. This topics
covered in this manual are listed as following.
FIntroduction
FInstalling and the Batteries
FInstalling and Uninstalling the WIDCOMM
Bluetooth Stack
FSetting up the Optical Mouse
FUsing the Optical Mouse
FUsing the WIDCOMM Bluetooth Stack
FTroubleshooting
Bluetooth Mouse Set
Contents
Introduction ................................................ 1
Package List .....................................................................1
Features ...........................................................................2
Installing the Batteries ................................... 3
Installing and Uninstalling the WIDCOMM Bluetooth
Stack ......................................................... 4
Installing the WIDCOMM Bluetooth Stack ........................4
Uninstalling the WIDCOMM Bluetooth Stack ...................7
Setting up the Optical Mouse ........................... 8
Quick Pairing in Windows .................................................8
Pairing on WIDCOMM Bluetooth Stack ..........................10
Using the Optical Mouse ................................ 11
Power Status of the Optical Mouse ................................11
Using the WIDCOMM Bluetooth Stack .................12
Using the Stack for the First Time ..................................12
Connecting to the other HID Devices .............................13
Troubleshooting .......................................... 14
FCC/ Industry Canada Notice .......................... 15
Bluetooth Mouse Set
1
1 Introduction
1.1 Package List
Before you start using the set, check the following contents in your
package. If anything is missing, contact your retailer.

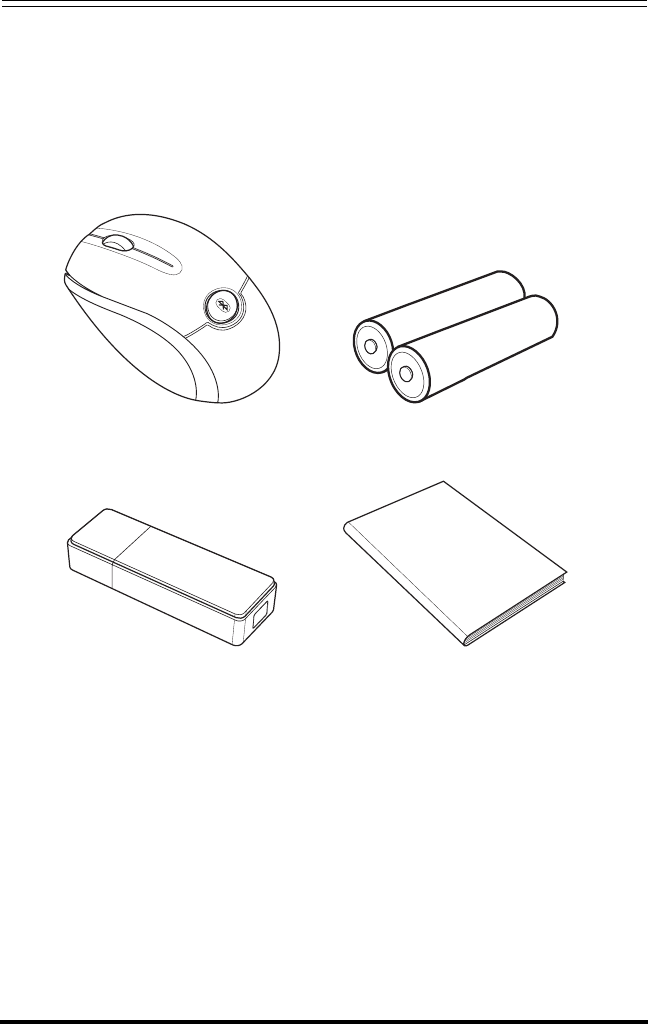

Optical Mouse AA Batteries x 2
USB Bluetooth dongle User’s Manual
User's Manual
Bluetooth Mouse Set
2
1.2 Features
Optical Mouse Features
• With scroll wheel and two buttons
• Power saving mode
• LED indicator
a. Red: dead battery
b. Flashing red and green: mouse is pairing
USB Bluetooth Dongle Features
• Bluetooth specification v1.2 and v2.0 compliant
• Supports mouse
• Supports additional Bluetooth devices
System Requirements
• Bluetooth / USB mouse supported computer
• Microsoft Windows 98/ME/2000/XP or later
Bluetooth Mouse Set
3
2 Installing the Batteries
The mouse needs two AA size batteries. Follow the steps below to
install the batteries.
1. Press the button and the
battery cover pops out.
2. Install two "AA" batteries while
observing the polarity (+ and -)
indicated inside the mouse.
3. Replace the battery cover.
p
Bluetooth Mouse Set
4
3 Installing and Uninstalling the
WIDCOMM Bluetooth Stack
3.1 Installing the WIDCOMM Bluetooth Stack
Before installing the WIDCOMM Bluetooth stack, plug the USB
Bluetooth dongle into a USB port of your computer.
1. Insert the provided Installation CD in the CD ROM drive.
2. The installation stack loads automatically. If not, click the
Setup.exe in the bin folder of the CD ROM.
3. The welcome screen introduces you to the installation process.
Click Next to continue.
Bluetooth Mouse Set
5
4. Read the agreement and select “I accept he terms in the license
agreement”. Click Next to continue.
5. The program will be installed in the folder as shown. Click Change
to install in a different location. Click Next to continue.
Bluetooth Mouse Set
6
6. Click Install to start the installation. The installation may need
some time to complete.
7. The following screen appears to indicate the installation is
complete.
8. Remove the dongle and plug it back in, the mouse will pair
automatically. Click Finish to exit the installation.
Bluetooth Mouse Set
7
The following prompt requires you to restart the computer so that the
Bluetooth stack takes effect. Click Yes to restart your computer now
or No to restart later.
3.2 Uninstalling the WIDCOMM Bluetooth Stack
Follow the steps below to uninstall the WIDCOMM Bluetooth stack
from your computer.
1. Remove the USB Bluetooth dongle.
2. Click Start > Settings > Control Panel > Add/Remove
Programs.
3. Select WIDCOMM Bluetooth Software from the program list and
click Remove.
4. The system starts to remove the program, it may take some time
to uninstall.
5. When the program has been removed, a prompt requires you to
restart the computer. Click Yes to restart your computer now or No
to restart later.
Bluetooth Mouse Set
8
4 Setting up the Optical Mouse
4.1 Quick Pairing in Windows
The Bluetooth mouse has been set to a pre-pairing mode as the
factory default. For quick pairing, enable the pre-pairing mode
following the steps below.
1. Plug the USB Bluetooth dongle into a USB port of your computer.

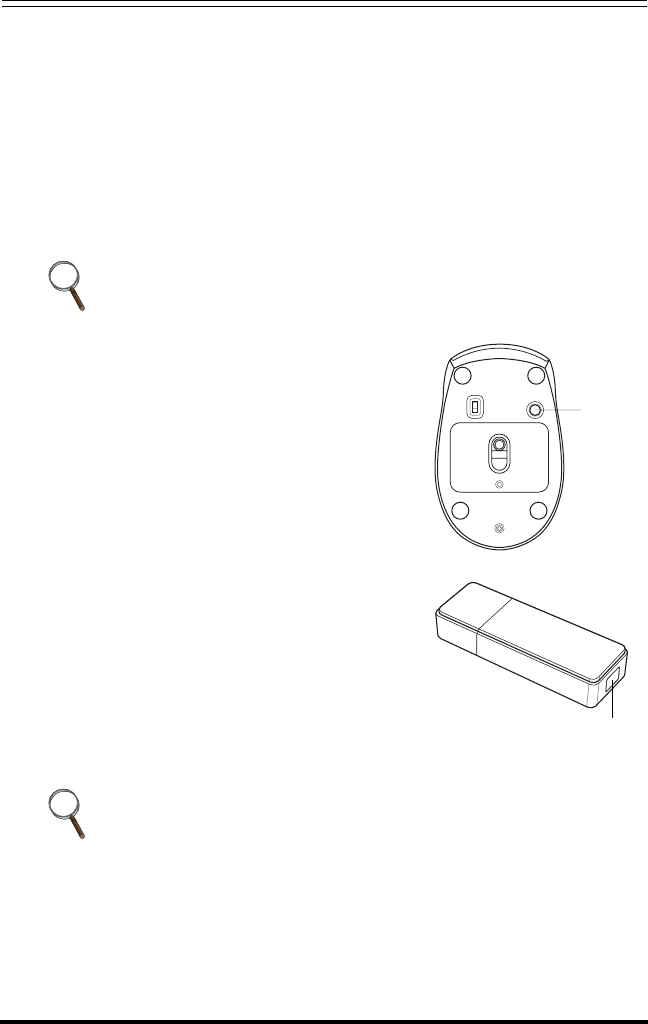

2. For the mouse, press the pairing button
at its bottom.
3. Press the button on the bottom of the
USB Bluetooth dongle until the LED
begins to flash once every second. This
indicates the Bluetooth dongle has
started to search for device to be paired.
The first time you connect the mouse to your computer, the Found
New Hardware Wizard will automatically launch. Cancel the
Wizard and follow the steps below.
• When pairing, the mouse LED lights red and green in turn.
• The pairing settings will be cancelled if you press the mouse
pairing button. To reconnect the mouse, press the USB
Bluetooth dongle button again (Refer to the step3 above).
Pairing
button
USB Bluetooth
dongle button
Bluetooth Mouse Set
9
4. Move your mouse to ensure they are connected.
Enabling the function of USB mouse in BIOS
If the mouse failed to work (refer to “7 Troubleshooting” on page 14
for more probable conditions), check that the USB function of the
mouse has been enabled in the BIOS setup.
Each time you turn on your computer, the mouse will be
automatically detected.
Some old PC systems do not support the USB keyboard/mouse in
BIOS/DOS environment.
Bluetooth Mouse Set
10
4.2 Pairing on WIDCOMM Bluetooth Stack
Before using the Bluetooth stack for mouse pairing, install the stack
as instructed in “3 Installing and Uninstalling the WIDCOMM
Bluetooth Stack” on page 4. Then follow the steps below.
1. Press the USB Bluetooth dongle button until the following Human
Interface Device (HID) screen appears.
2. When the mouse is connected, the following confirmation
message appears. Click to confirm that the correct mouse is
connected.
To start the Bluetooth stack for the first time, see “6 Using the
Stack for the First Time” on page 12 for more information.
Bluetooth Mouse Set
11
5 Using the Optical Mouse
After plugging in the USB Bluetooth dongle and setting the mouse in
the Bluetooth connection environment as described in “4 Setting up
the Optical Mouse” on page 8, you can begin using the mouse
immediately.
5.1 Power Status of the Optical Mouse
The Bluetooth mouse has a battery status
LED. When the battery runs out, the LED
turns red. You should change the batteries
immediately.
To view more detailed information
on the mouse battery status, go to
the Control panel > Mouse >
Bluetooth.
• The scroll wheel on the mouse is disabled when the mouse is
pairing automatically in both boot mode and Window mode.
• The mouse will enter power saving mode when not used for a
period of the time.
LED
Bluetooth Mouse Set
12
6 Using the WIDCOMM Bluetooth Stack
6.1 Using the Stack for the First Time
To start using the Bluetooth Stack, double click the Bluetooth icon in
the system tray.
1. The Initial Bluetooth Configuration Wizard will launch. Follow the
instructions on screen to complete the configuration.
2. When the Bluetooth Configuration is complete, the following HID
screen appears and starts to search for Bluetooth devices.
3. Click on the HID device you want to connect with. Then follow the
instructions on-screen to enable the selected device.
Bluetooth Mouse Set
13
About the Bluetooth icon
The Bluetooth icon acts as an indicator for dongle status.
1. A red icon indicates there is no dongle inserted.
2. A white icon indicates the dongle is plugged in.
3. A green icon indicates the dongle has detected the HID devices.
6.2 Connecting to the other HID Devices
Besides the mouse, the Bluetooth Stack also allows you to connect to
other Bluetooth devices.
1. Make sure the USB Bluetooth dongle has been plugged onto your
computer.
2. Set the Bluetooth devices, such as printers, modems, and PDAs,
you want to connect to the Bluetooth stack.

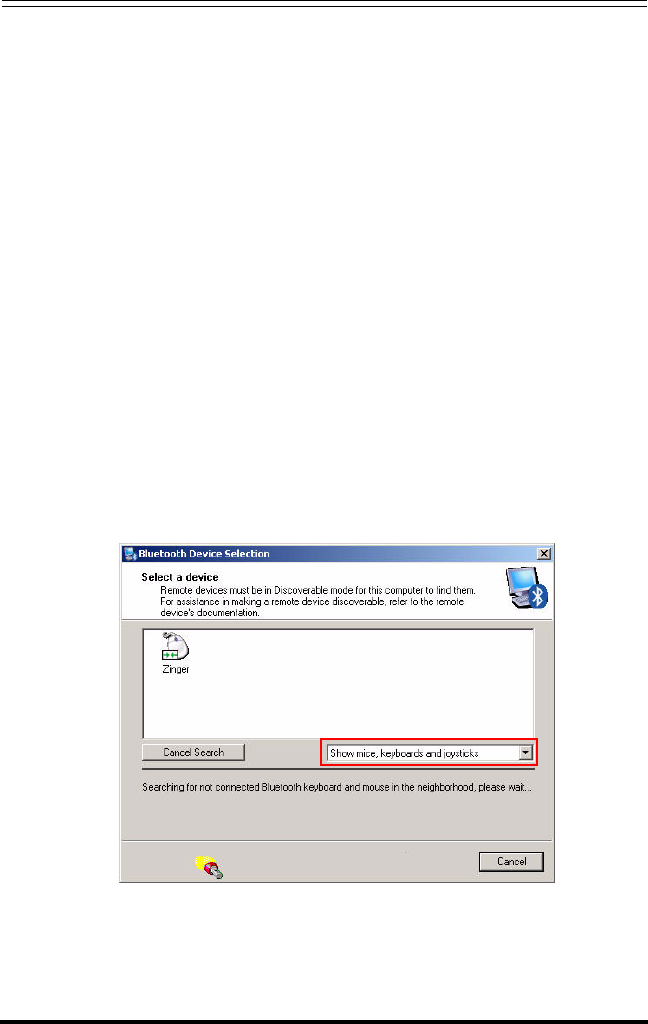

3. Press the USB Bluetooth dongle button until the following HID
screen appears.
4. Select the type of devices to search for from the drop-down menu.
5. The detected devices will be displayed. Click on a device and the
stack will instruct you to enable the connection.
Bluetooth Mouse Set
14
7 Troubleshooting
If you have any problems with your Bluetooth mouse, please check
the following:
• Check the system requirements to make sure that your system
is compatible.
• Check to see if the batteries in the mouse are installed
correctly. Make sure the polarity of the batteries corresponds
with the polarity signs inside the mouse battery compartments.
• When the mouse LED is lit red, it indicates battery power low.
Replace them with new batteries immediately.
• Once the Bluetooth stack (see “Installing the WIDCOMM
Bluetooth Stack” on page 4) has been installed in your
computer, you can check the battery status of mouse from
Control Panel > Mouse > Bluetooth.
• If the mouse fail to work, check the USB mouse function in your
system’s BIOS. The function should be enabled for the normal
use of mouse.
• If your PC system’s BIOS setup has options for the mouse,
make sure they are set to default settings. If you are not
familiar with the BIOS, refer to your PC’s manual for more
information.
• Only use the mouse on a clean, flat, non-slippery surface in
order to ensure smooth and accurate cursor action. If you use
a mouse-pad, choose a light-colored one, not a dark one, to
use less battery power.
For further assistance with any other questions you may have, please
contact your dealer for technical support.
Bluetooth Mouse Set
15
8 FCC/ Industry Canada Notice
If you have any problems with your Bluetooth mouse, please check
the following:
• Check the system requirements to make sure that your system
is compatible.
• Check to see if the batteries in the mouse are installed
correctly. Make sure the polarity of the batteries corresponds
with the polarity signs inside the mouse battery compartments.
• When the mouse LED is lit red, it indicates battery power low.
Replace them with new batteries immediately.
• Once the Bluetooth stack (see “Installing the WIDCOMM
Bluetooth Stack” on page 4) has been installed in your
computer, you can check the battery status of mouse from
Control Panel > Mouse > Bluetooth.
• If the mouse fail to work, check the USB mouse function in your
system’s BIOS. The function should be enabled for the normal
use of mouse.
•f your PC system’s BIOS setup has options for the mouse,
make sure they are set to default settings. If you are not
familiar with the BIOS, refer to your PC’s manual for more
information.
• Only use the mouse on a clean, flat, non-slippery surface in
order to ensure smooth and accurate cursor action. If you use
a mouse-pad, choose a light-colored one, not a dark one, to
use less battery power.
For further assistance with any other questions you may have, please
contact your dealer for technical support.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IC RSS-210:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
IMPORTANT NOTE:
FCC/ IC Radiation Exposure Statement:
This equipment complies with FCC / IC RSS-210 radiation exposure limits
set forth for an uncontrolled environment. End users must follow the
specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
