User’s Manual
Version 1.0
Mouse User’s Manual
Contents
Preface ......................................................... 1
About This Manual ...................................................1
Safety .................................................................1
Introducing your Mouse...................................... 2
System Requirements................................................2
Features ...............................................................2
Resolution .............................................................2
Battery .................................................................2
Package Contents ....................................................3
Product Views.........................................................4
LED Status ...................................................... 5
Installing the Battery......................................... 6
Installing and Uninstalling Mouse Suite ................... 7
Installing the Mouse Suite...........................................7
Uninstalling the Mouse Suite .......................................9
Setting Up your Mouse ..................................... 10
Adjusting the Tilt Scroll Wheel Speed .................. 11
Tilt Scroll Wheel.................................................... 11
Adjusting Speed .................................................... 11
Troubleshooting ............................................. 13
Specifications ................................................ 14
1
Mouse User’s Manual
Preface
Thank you for your purchase of this mouse. Read this
manual carefully and keep it in a safe place for future
reference.
About This Manual
Every effort has been made to ensure that the contents of
this manual are correct and up to date. However, no
guarantee is made regarding the accuracy of the contents,
and the manufacturer reserves the right to make changes
without notice.
Safety
Before getting started, read these instructions and save
them for future reference.
• Do not drop or hit your mouse.
• Do not use your mouse in a location that is subject to
strong vibrations because vibration may damage your
mouse.
• Do not disassemble or modify the product in any way.
Disassembly or modification may void your warranty
and could damage your mouse leading to a fire or
electric shock.
• Do not use or store your mouse in damp locations.
Liquid entering the product may cause damage or lead
to fires or electric shock.
• Do not insert metal objects, such as coins or paper
clips, into your mouse.
• The mouse is a Laser product. Do not directly look the
Laser component while using. It may harm your eyes.
• Your mouse is for general computer use. Do not use
your mouse with a computer that requires exceptional
reliability, especially if a breakdown or malfunction of
might jeopardize life or health, such as aerospace
equipment, atomic power control systems, traffic-
related equipment, transportation equipment,
Mouse User’s Manual
2
industrial robotics, combustion equipment, safety
devices, and life-support systems.
1 Introducing your Mouse
Read this section to learn about the features and functions
of your mouse. This chapter also covers system
requirements, package contents, and front and rear
views.
1.1 System Requirements
Your computer must meet these requirements:
•Microsoft
® Windows XP/Vista/7 operating system
• Mac OS 10.5 or above
• Windows Logo Program 3.1 or above
• Microsoft WHQL PC99 Mouse Specification 1.2 or higher
1.2 Features
• Advanced tilt scroll wheel for added functionality
•Optical sensor
• Low battery consumption
1.3 Resolution
• 1000 DPI
1.4 Battery
• AA Alkaline batteries X 1
3
Mouse User’s Manual
1.5 Package Contents
All the following items should be present when you
receive your mouse package. If any item is missing or
appears damaged, contact your dealer immediately.
CD AA Batteries x 1
Mouse Dongle
Mouse User’s Manual
4
1.6 Product Views
1 Left button
2 Right button
3 Tilt scroll wheel
4Pairing button
5LED
6 Battery cover
7Power switch
8Optical sensor
3
5
21
4
7
8
6
Front Back
5
Mouse User’s Manual
2 LED Status
The following table lists the status of the mouse LED and
its descriptions:
1 Forward button
2 Backward button
LED Color Description
Mouse
LED
Green The green LED lights for 5 seconds
when the power is switched on.
Red When the battery is low, the red LED:
• Lights for 5 seconds when the power
is switched on.
• Lights for 1 minute every time the
mouse is idle.
1
2
Left
Mouse User’s Manual
6

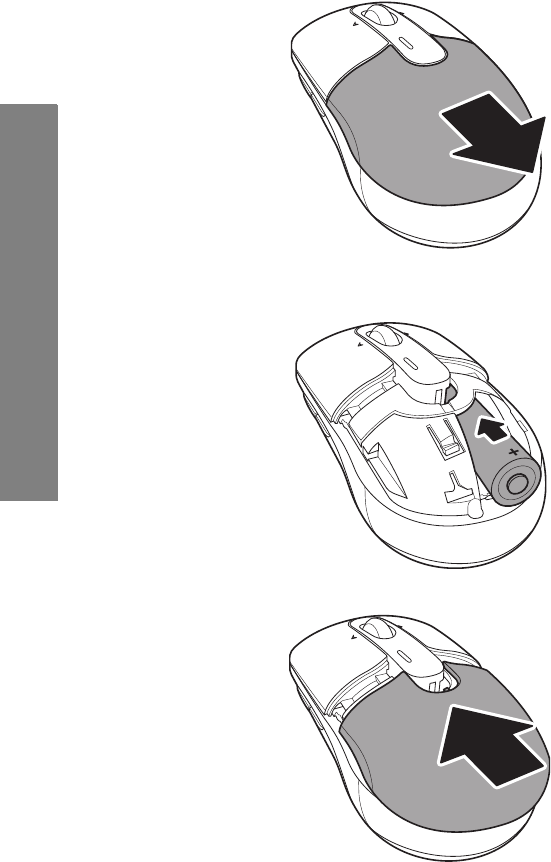

3 Installing the Battery
The mouse needs one AA size battery. Follow the steps
below to install the battery:
1. Slide down the battery cover as shown.
2. Install the battery observing the polarity (+ and -)
indicated inside the housing.
3. Replace the battery cover.
7
Mouse User’s Manual
4 Installing and Uninstalling Mouse
Suite
4.1 Installing the Mouse Suite
1. Insert the provided Installation CD in the CD ROM drive.
2. The software starts automatically. If not, browse your
CD ROM drive and double click the Setup.exe file.
3. The welcome screen introduces the installation
process. Click Next to continue.
4. Review a summary of items to be installed, and then
click Next to continue.
Mouse User’s Manual
8
5. The program has installed successfully and requires you
to reboot your computer before using the Mouse Suite.
9
Mouse User’s Manual
4.2 Uninstalling the Mouse Suite
Follow the steps below to uninstall the Mouse Suite from
your computer:
1. Click Start > All programs > V7 BTN Wireless Optical
Mouse > Uninstall V7 BTN Wireless Optical Mouse
Driver. The following screen displays. Click Yes to
uninstall the Mouse Suite or No to cancel.
2. The program starts automatically to uninstall the
Mouse Suite. When finished, click OK.
3. When the program has been removed, you will be
required to reboot your computer. Then click Finish to
exit.
Mouse User’s Manual
10
5 Setting Up your Mouse
1. Slide downward to remove the dongle from the mouse.
2. Plug the dongle into the USB port of your computer (a).
3. Press the dongle button.
4. Press the pairing button of your mouse once (b). The
optical sensor lights red to indicate successful pairing.
a
b
11
Mouse User’s Manual
6 Adjusting the Tilt Scroll Wheel Speed

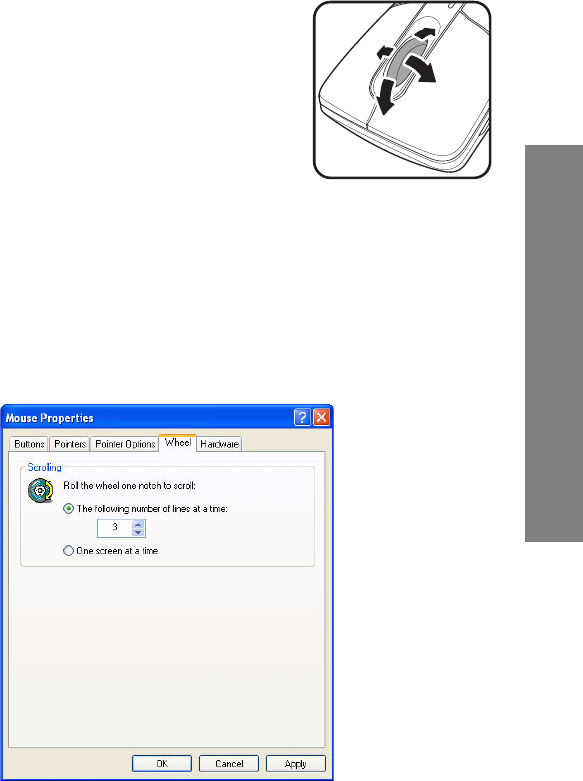

6.1 Tilt Scroll Wheel
Your mouse comes with an advanced
scroll wheel that enables horizontal
window scrolling as well as vertical.
Use the tilt scroll wheel to scroll the
screen horizontally and vertically.
You can also press and hold the scroll
button inwards. A four-way icon
appears. Then move the mouse up/down or left/right to
scroll the screen in four different directions.
6.2 Adjusting Speed
To adjust the scrolling wheel speed, click Start > Control
Panel > Mouse. Click the Wheel tab, the following screen
appears.
Scroll Speed
You can specify the speed at which the screen will scroll
when using the scroll wheel function.
Mouse User’s Manual
12
1. Select Scroll x lines per notch or Scroll one screen
per notch.
2. Click OK to have your changes take effect.
Scroll x lines
per notch
Select to set the number of lines to
scroll when the scroll wheel is moved
one notch. Specify the number of lines
with the up and down arrows.
Scroll one
screen per
notch
Select to scroll the entire window when
the scroll wheel is moved one notch
(i.e. page up/down).
13
Mouse User’s Manual
7 Troubleshooting
If you have any problems with your mouse, please check
the following:
• Check the system requirements to make sure that your
system is compatible.
• Check to see if the battery in the mouse is installed
correctly. Make sure the polarity of the battery
corresponds with the polarity signs inside the mouse
battery compartment.
• When the mouse LED lights red, it indicates battery
power is low. Replace the battery with a new one
immediately.
• If the mouse fails to work, check if the LED flashes red
(see “LED Status” on page 5). Check if the polarity of
the battery is correct.
• Only use the mouse on a clean, flat, non-slippery
surface in order to ensure smooth and accurate cursor
action. If you use a mouse-pad, choose a light-colored
one; a dark mouse-pad consumes more battery power.
For further assistance with any other questions you may
have, please contact your dealer for technical support.
Mouse User’s Manual
14
8 Specifications
9 Legal Notices
9.1 FCC Statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to pro-vide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may
Dimensions 34.9 (H) x 100 (L) x 58 (W) mm
Resolution 1000 DPI
Buttons 5 buttons with 1 tilt scroll wheel
Interface USB dongle
Compatibility Windows XP / Vista / 7
Mac OS 10.5 or above
Windows Logo Program Requirement
3.1 or higher
Operating
Temperature 0°C ~ 40°C
Operating Humidity 85% RH or less
Storage
Temperature -15°C ~ 60°C
Storage Humidity 85% RH or less
RF frequency 27.045 Mhz
RF output power -5dBm
15
Mouse User’s Manual
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV
technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
9.2 Canada ICES-003 Statement
This Category II radiocommunication device complieswith
Industry Canada Standard RSS-310.Ce dispositif de
radiocommunication de catégorie II respecte la norme
CNR-310 d’Industrie Canada.
Copyright
© Copyright 2009. All rights reserved.
