User Manual
Wireless Mouse USRE MANUAL
User’s Quick Guide
This guide will take you through all the functions of the mouse and explain how to configure them using the
mouse.
Introduction
Congratulations on your purchase of the 2.4G Optical Mouse.
This mouse is the latest in a wide range of computer peripherals and is designed to provide you with the
highest level of comfort available while also allowing for maximum functionality.
The RF Mouse is a simple yet innovative package that allows you to configure your mouse to best meet your
needs.
Safety Guidelines
Physical discomfort and injury can be caused by the incorrect use of your mouse. Follow these guidelines to
ensure such problems are avoided:
Sit up straight in your chair, with your elbows by your side.
Adjust the height of your chair so your arm bends at a 90-degree angle respective to your desk.
Position your mouse in front you, to the side of your keyboard.
Do not slouch or hunch over your workspace. It is important to keep your wrists, arms and shoulders
relaxed.
If necessary, use a wrist rest or a palm rest to alleviate extra stress placed on your joints when typing
or using the mouse, especially for long periods of time.
If you experience any feelings numbness, cramp, swelling or stiffness in your wrist, arms, neck or shoulders,
consult your local doctor or nearest health institution immediately.
Navigating Wireless Mouse
The simple and straightforward interface makes it easy for you to customize each function of your mouse.
Different settings are indicated by the tabs on the top of the screen. Click on the links to enter each settings
screen.
Changing Button Settings
You can configure each of the five mouse buttons through the button settings screen.
The 'Select Button' list displays the list of buttons and their current function. The 'Select Task' list displays a
list of actions you can take to configure the button highlighted in the 'Select Button' list.
Move your mouse over the 'Select Button' list and click each item to view more information.
Restore Defaults
Each setting screen has a Restore Defaults button. Click to restore all settings
to their original defaults.
The Left and Right Click Buttons
By default, the left mouse button is set to operate as a standard left click button. The right mouse button is set to
operate as a standard right click button.
If you want to swap these two button functions, check the Swap Buttons checkbox. Click to
save all changes.
Wireless Mouse USRE MANUAL
The Middle Mouse Button
By default, the mouse wheel is set to operate as Middle Button when pressed.
Select the function you wish to assign to the middle button by checking the radio buttons in the Select Task list.
Click to save all changes.
Move your mouse over and click any of the Select Task list options for more detailed information.
Side Button 1
By default, the button is set to operate as Backward when pressed.
Select the function you wish to assign to the button by checking the radio buttons in the Select Task list.
Click to save all changes.
Move your mouse over and click any of the Select Task list options for more detailed information.
Side Button 2
By default, the button is set to operate as Forward when pressed.
Select the function you wish to assign to the button by checking the radio buttons in the Select Task list.
Click to save all changes.
Move your mouse over and click any of the Select Task list options for more detailed information.
Middle Mouse Button
Select to assign the button to Middle Mouse Button by checking the radio buttons in the Select Task list.
Click to save all changes.
Move your mouse over and click any of the Select Task list options for more detailed information.
3D Flip
Select to switch between running programs when you click the mouse wheel. An application list appears
Windows XP:
Windows Vista:
Roll the mouse wheel to scroll up and down the list.
Click any mouse button to switch to the selected application.
Forward
When you press the button, the page you visited before you pressed the Backward button is displayed in your
browser.
Click to save all changes.
Backward
When you press the button, the last page you visited in your browser is displayed.
Click to save all changes.
Wireless Mouse USRE MANUAL
Others
Select to execute one of a set of other pre-defined functions when you press the button.
A drop down menu will appear. Select an application from the following list:
Click to save all changes.
Change Wheel Settings
You can configure the wheel settings in the wheel settings screen.
The 'Scrolling Speed' section allows you to adjust the scroll speed when you scroll the wheel vertically.
The 'Horizontal Scrolling' section allows you to adjust the scroll speed when you scroll the wheel horizontally
(tilt left/right).
Mouse Wheel
Select the scrolling speed you want by clicking the Scrolling Speed options:
Scroll: Click the radio button and use the up/down arrows to increase/decrease the speed.
Scroll one screen per notch: Click the radio button to choose scroll down by screen when you move the
mouse wheel.
Click to save all changes.
Wireless Mouse USRE MANUAL
Horizontal Scrolling
Move the slider to the left/right to decrease/increase the horizontal scrolling speed.
Click to save all changes.
Double-Click Speed
Move the slider to set the pointer movement speed.
Move the point in the Test Area to test your new setting.
Test Area
Click to save all changes.
Wireless Mouse USRE MANUAL
Page
5
of
9

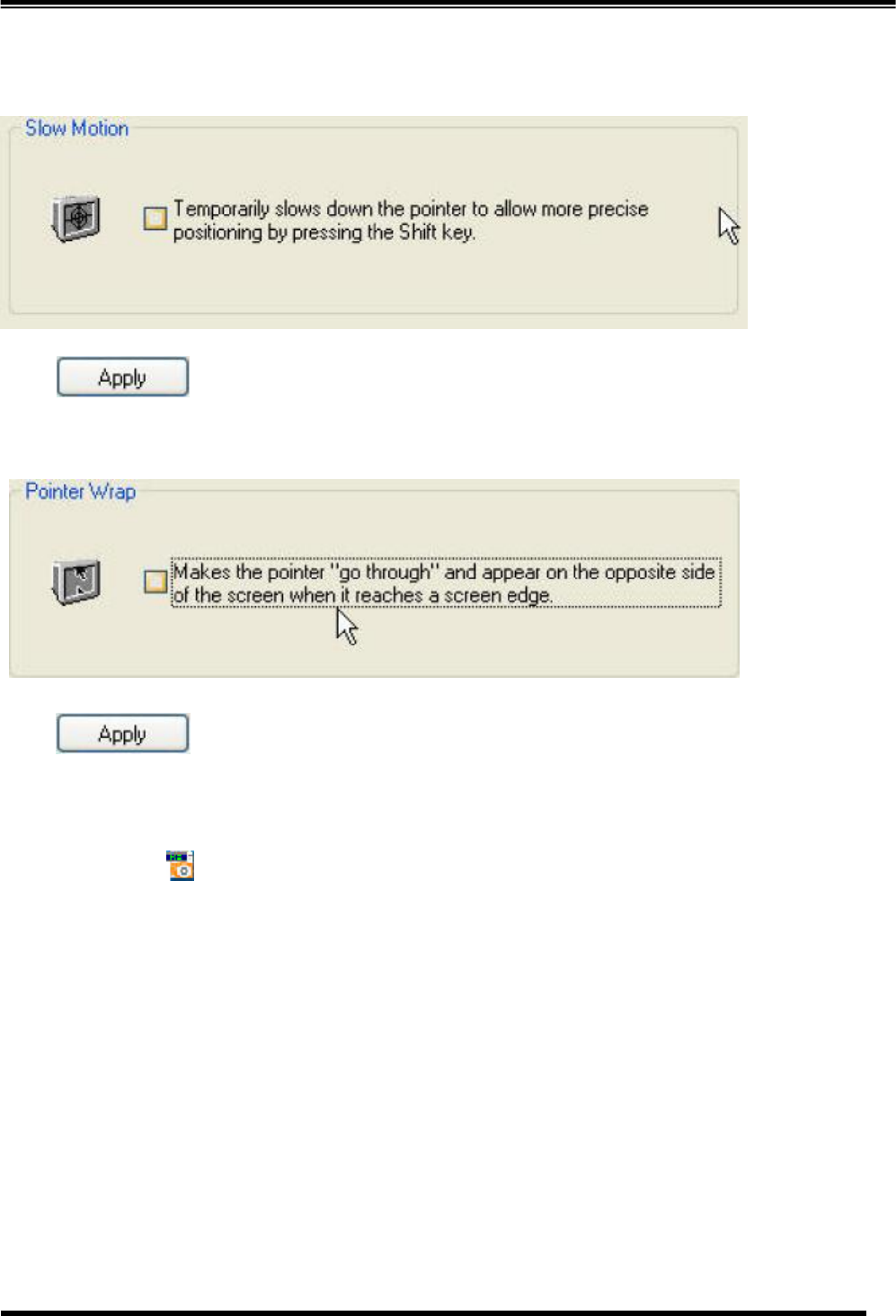

Slow Motion
Check to enable the slow motion function by pressing the Shift key.
Click to save all changes.Pointer Wrap
Check to enable the "go through" function.
Click to save all changes.
Show icon in the system tray
Click to display the icon in the system tray when the Mouse Suite software is running. Click this icon to
bring up the main screen
Wireless Mouse USRE MANUAL
Page
6
of
9
Troubleshooting
Question: My mouse is not working. What should I do?
Answer: Check if the receiver is plugged in correctly to your computer's USB port. A loose connection may
result in the computer not being able to detect the device.
If your mouse is connected to a hub or multi-port USB connector, unplug the device and plug it directly into
your computer's USB port, ensuring there is no interference caused by these devices.
Other system devices, such as PC cards, may cause conflicts that prevent your mouse from working properly.
Check the settings of these devices and make any changes as necessary. Reboot your computer and
re-attach the mouse.
Question: The mouse pointer is not moving. What should I do?
Answer: Ensure all setup procedures have been followed correctly. If software and drivers have already been
installed, remove these, reboot your computer and re-install.
Clean the mouse lens with a cotton swab. Do not use any other materials or solvents to clean the mouse lens
as this may result in damage to the lens.
As this is an optical device, it is important to use it on an appropriate surface. If the surface you are using your
mouse on is red in color or highly reflective, the surface may be the source of the problem. Use either a
mouse mat or change to a more neutral-colored surface.
Ensure that batteries are not out of power. Replace batteries if necessary.
Question: The mouse pointer is moving abnormally. What should I do?
Answer: The likely cause of this problem is debris around or on the lens which is interfering with the optical
signal. Clean the mouse lens with a cotton swab. Do not use any other materials or solvents to clean the
mouse lens as this may result in damage to the lens.
If the mouse pointer continues to move abnormally after cleaning, re-install the drivers and software.
Wireless Mouse USRE MANUAL
Page
7
of
9
Low Battery Notification
When the mouse is running out of power, a Notification window will pop up on the screen.
Replace the batteries to continue to use the mouse.
Battery Notice:
· Press any button to wake up the mouse while the mouse is in the standby mode.
· CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Wireless Mouse USRE MANUAL
Page
8
of
9
FCC Statement
Federal Communications Commission (FCC) requirements, Part 15. This equipment has been tested and
found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes of modifications not expressly approved by the grantee of this device could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
The product comply with the US/Canada portable RF exposure limit set forth for an uncontrolled environment
and are safe for intended operation as described in this manual. The further RF exposure reduction can be
achieved if the product can be kept as far as possible from the user body or reduce output power if it doesn't
affect the transmission/receiving quality.
NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE
USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
Wireless Mouse USRE MANUAL
Page
9
of
9
CE Statement
CE Declaration Of Conformity Hereby, the manufacturer, declares that this is a Wirelss in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. Essential requirements
-- Article 3 Protection requirements for health and safety - Article 3.1a
--Testing for electric safety according to EN 60950 has been conducted. These are considered relevant and
sufficient. Protection requirements for electromagnetic compatibility - Article 3.1b
--Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489-3 has been conducted.
These are considered relevant and sufficient Effective use of the radio spectrum -Article 3.2
--Testing for radio test suites according to EN 300 440-2 has been conducted. These are considered relevant
and sufficient.
IC Statement
Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this
device must accept any interference, including interference that may cause undesired operation of the device.
