Primax Electronics MVGP-BMS55 BLUETOOTH LASER MOUSE User Manual VGP BMS33
Primax Electronics Ltd BLUETOOTH LASER MOUSE VGP BMS33
Manual
English
WARNING
To prevent fire or shock hazard, do not expose the unit
to rain or moisture.
The equipment is classified as a CLASS 1 LASER PRODUCT and complies
with the Laser Products Safety Standard IEC/EN 60825-1. You can find the
following sticker on the bottom of this equipment.
•VAIO and are trademarks of Sony Corporation.
•Microsoft, Windows, and Windows Vista are registered trademarks of
Microsoft Corporation in the United States and/or other countries.
•The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and
any use of such marks by Sony Corporation is under license. Other
trademarks and Trade names are those of their respective owners.
•All other names of systems, products, and services are trademarks of their
respective owners. In this manual, the ™ or ® marks are not specified.
•In this manual, Microsoft® Windows® XP Home Edition and Microsoft®
Windows® XP Professional are referred to as Windows XP.
• In this manual, Windows Vista® Home Basic, Windows Vista® Home
Premium, Windows Vista® Business and Windows Vista® Ultimate are
referred to as Windows Vista.
Before Use
This product is a laser mouse equipped with Bluetooth* technology.
The Bluetooth Laser Mouse can be used with the following personal
computers (as of September 2007):
•Sony VAIO personal computers equipped with Bluetooth technology and
pre-installed with Windows XP or Windows Vista.
(SP2 must be installed on your personal computer if it is
pre-installed with Windows XP.)
*Bluetooth technology
Bluetooth wireless technology provides instant short-range connectivity
without the need for cumbersome cabling. For details, refer to the
manuals included with your personal computer.
Note
Depending on the personal computer or version of software you are using, the
mouse may not operate correctly.
Consult your nearest Sony dealer about proper operating environments and
information about Sony VAIO and Bluetooth compatibility.
Names of Parts
Inserting Batteries into the
Mouse
1Set the power switch located on the bottom of the
mouse to OFF.
2Open the battery compartment cover and insert the two
supplied IEC R6 (size AA) batteries with the correct + -
orientation.
Note
To prevent battery fluid leaks and damage, observe the following
precautions.
•Insert the batteries with the correct + - orientation.
•Do not charge dry cell batteries.
•Do not mix old and new batteries, or batteries of a different type.
•If the mouse has not been used for a long time, remove the batteries.
•If a battery fluid leak occurs, carefully wipe the battery compartment,
and insert new batteries.
• To prevent accidental operation, be careful not to press any buttons
when replacing the batteries.
3Close the battery compartment cover.
z
Under normal operating conditions, a set of alkaline batteries lasts about
three months. When cursor movement becomes sluggish and the
communication distance between the mouse and your personal computer
decreases, check the low battery lamp on the mouse. Replace the batteries if
the low battery lamp is flashing red.
When not using the mouse, set the power switch to OFF. This will make the
batteries last longer.
Replacing the batteries
The low battery lamp flashing red indicates that the battery life is running
low. Replace the batteries when this occurs.
Enabling Communication
between the Mouse and Your
Personal Computer
Use the Bluetooth Utility or WIDCOMM Bluetooth Software installed on
your personal computer to enable communication between the mouse and
your personal computer.
Note
Make sure that the Bluetooth function on your personal computer is activated.
For details, refer to the manuals provided with your personal computer.
Before you start
Note
Operation of the Bluetooth Utility or WIDCOMM Bluetooth Software may vary
depending on your personal computer. For details on how to use the software,
refer to the manuals provided with your personal computer.
If your personal computer is pre-installed with Windows XP:
Go to “Using the Bluetooth Utility software to enable communication”.
If your personal computer is pre-installed with Windows Vista:
Follow the steps below.
1Click (Start), then “Control Panel”.
2Click the “Hardware and Sound” icon.
3If the “Bluetooth Devices” icon is in the “Hardware and
Sound” dialog:
Go to “Using the WIDCOMM Bluetooth Software to enable communication”.
If the “Bluetooth Devices” icon is in not the “Hardware
and Sound” dialog:
Close the “Control Panel” and go to “Using the Bluetooth Utility software to
enable communication”.
Using the WIDCOMM Bluetooth Software
to enable communication
1Set the power switch located on the bottom of the
mouse to ON.
2Click the “Bluetooth Devices” icon in the “Control
Panel.”
3Select the “Devices” tab and click “Add.”
The “Add Bluetooth Device Wizard” appears.
4Press the CONNECT button on the bottom of the mouse.
The low battery lamp flashes green.
5Check the “My device is set up and ready to be found”
check box and click “Next.”
6 In the device list, select “VGP-BMS55”, and click “Next.”
7Select “Don’t use a passkey” and click “Next.”
8Click “Finish.”
9Click “OK.”
10Try moving the mouse. If the pointer displayed on your
screen moves in the same direction, the connection is
complete.
Using the Bluetooth Utility software to
enable communication
1Set the power switch located on the bottom of the
mouse to ON.
2Double-click the icon in the notification area on the
bottom right corner of your personal computer’s
desktop.
The Bluetooth Utility software starts up, and the “Bluetooth Settings”
screen appears.
3Click “New Connection”.
The “Add New Connection” wizard screen appears.
4Press the CONNECT button on the bottom of the mouse.
The low battery lamp flashes green.
5Select “Express Mode”, and click “Next”.
The search for Bluetooth devices begins.
6 In the device list, select “VGP-BMS55”, and click “Next”.
7If the “Add New Connection” wizard disappears,
connection is complete. Go to step 10.
8If the prompt to connect the HID device, click “OK.”
9Verify the contents of the window displayed, and click
“Next”.
10Try moving the mouse. If the pointer displayed on your
screen moves in the same direction, the connection is
complete.
Disconnecting
Set the power switch of the mouse to OFF.
Operating distance of the mouse
The mouse can normally be operated within about a 32 ft. (10 m) radius around
the personal computer. Depending on the usage environment, sometimes the
usable distance may be notably shorter, preventing normal operation.
In such a case, take the following measures:
•Use the mouse as far away from other wireless devices as possible.
•Use the mouse closer to the personal computer.
•Use a mouse pad.
Using the Mouse
When you move the mouse, the pointer displayed on your screen moves in
the same direction. This section describes basic mouse operations.
Notes
• Due to the characteristics of the laser sensor, the mouse may not work
properly on transparent surfaces or on a mouse pad that has a clear surface.
Avoid using on such materials, or use a commercially-available mouse pad
that is compatible with a laser sensor mouse.
•The fluoropolymer used for the soles of the mouse (PTFE, or
polytetrafluoroethylene) is designed for low frictional resistance, but the
mouse may slide differently depending on what material your desk or
mousepad is made of.
z
If necessary, you can adjust the mouse pointer speed under “Mouse Properties”. To
display “Mouse Properties”, with the Windows Vista operating system, double-
click “Mouse” in the “Control Panel” (with the Windows XP operating system,
select “Printers and Other Hardware” in the “Control Panel”, then select “Mouse”).
Basic operations
See the “Name of Parts” section for the location of the buttons.
1Wheel button
Use the wheel button to easily scroll up and down in a window. You can
also use auto scroll by pressing the wheel button.
2Left button
Use to open saved documents, pictures and other files and to run programs.
Most mouse functions are performed using this button.
3Right button
Use this button to display shortcut menus that allow you to copy saved
documents, pictures and other files, view file details, and access various
commands and settings.
Precautions
Safety If any solid object or liquid falls onto the mouse, disconnect
it and have it checked by qualified personnel before
continuing its use.
Location Do not place the mouse in a location where it is:
•On an unstable surface
• In very humid areas or where there is no ventilation
•Subject to excessive dust
•Subject to direct sunlight or extreme heat
•Extremely cold
Operation If the mouse is brought directly from a cold to a warm
location or is placed in a very damp room, moisture may
condense on the inside of the mouse. If this occurs, the
mouse may not work properly.
In this case, wait about 30 minutes for the moisture to
evaporate. If the mouse does not work properly after one
hour, consult your nearest Sony dealer.
Bluetooth communications
•The 2.4 GHz band used by Bluetooth and wireless LAN devices is also
used by various other devices. Bluetooth devices incorporate technology
that minimizes interference from other devices using the same
wavelength. However, communication speed and achievable distances
may be reduced. Interference from other devices can also stop
communications altogether.
•The data transfer rate will vary depending on distance and obstacles
between devices, device configuration, radio interference, operating
system, software application, and so on. In some cases, communication
may be interrupted.
•Communication range will vary according to whether walls or other
obstacles are located between devices, the material used in walls, the
presence of radio frequency interference and other environmental
conditions, and the type of software being used.
• If wireless LAN and Bluetooth functionality are used at the same time on
the same personal computer, communication speed may be reduced due
to electromagnetic interference, and other unwanted effects may occur.
Cleaning the outside of the mouse
Clean the mouse with a soft, dry cloth or a soft cloth lightly moistened with
a mild detergent solution. Do not use any type of abrasive pad, scouring
powder, or solvent such as alcohol or benzine.
Specifications
Communication method Bluetooth Standard Ver. 2.0+EDR
Position tracking principle Laser sensor
Resolution 800 counts per inch
Frequency band RF 2.4 GHz (Bluetooth)
Power requirements Chinese model: 3 V DC (two manganese IEC
R6 [size AA] batteries)
Other models: 3 V DC (two alkaline IEC R6
[size AA] batteries)
Transmission distance 32 ft. (10 m) max. line of sight*1
Dimensions Approx. 2.1 × 1.2 × 4.9 in.
(53.4 × 31.5 × 124.6 mm) (w × h × d)
Mass Approx. 3.9 oz. (110 g) (including batteries)
Supported models Sony VAIO personal computers with the
Windows XP or Windows Vista operating
system
Operating temperature 41°F to 95°F (5°C to 35°C)
(temperature gradient less than 18°F (10°C)/
hour)
Operating humidity 20% to 80% (not condensed), provided that
humidity is less than 65% at 95°F (35°C)
(hygrometer reading of less than 84°F (29°C))
Storage temperature –4°F to 140°F (–20°C to 60°C)
(temperature gradient less than 18°F (10°C)/
hour)
Storage humidity 10% to 90% (not condensed), provided that
humidity is less than 20% at 140°F (60°C)
(hygrometer reading of less than 95°F (35°C)
Accessories Chinese model: Manganese IEC R6 (size AA)
batteries*2 (2)
Other models: Alkaline IEC R6 (size AA)
batteries (2)
Operating Instructions (this document) (1)
Warranty Card (1)
*1Communication range will vary according to whether walls or other
obstacles are located between devices, the material used in walls, the
presence of radio frequency interference and other environmental
conditions, and the type of software being used.
*2The supplied batteries are for testing purposes only. You can use the
mouse longer by using alkaline batteries.
Design and specifications are subject to change without notice.
Troubleshooting
If you experience any of the following difficulties while using the mouse,
use this troubleshooting guide to solve the problem. If a problem persists,
consult your nearest Sony dealer.
The mouse does not turn on when I set the power switch to ON.
❒Other mouse buttons are being pressed while the power switch is set to
ON.
cIf the power switch is set to ON while other mouse buttons are being
pressed, the mouse will not turn on. Be sure not to press any other
buttons when setting the power switch to ON.
Nothing happens when I press a mouse button.
❒The software is not compatible.
cUse a supported software.
❒The mouse batteries are exhausted.
cReplace the batteries. For details, see “Inserting Batteries into the Mouse”.
❒The mouse and the personal computer are not communicating.
c Perform the steps in “Enabling Communication between the Mouse and
Your Personal Computer” to ensure that proper communication is
possible.
cTurn off the mouse, wait a few seconds, turn on the mouse, and then
reestablish communication.
c In some operating environments, the usable distance may be notably
shorter, preventing normal operation. In such case, use the mouse farther
away from other electronic devices such as other computers and displays.
c If the mouse is too far from your personal computer, communication is
not possible. Bring the mouse and your personal computer closer
together.
❒The mouse is being used on an unsuitable surface.
c Due to the characteristics of the laser sensor, the mouse may not work
properly on transparent surfaces or on a mouse pad that has a clear
surface. Avoid using on such materials, or use a commercially-available
mouse pad that is compatible with a laser sensor mouse.
❒The CONNECT button is pressed while operating the mouse.
c When the CONNECT button is pressed while operating the mouse, the
mouse goes into a standby state for about 1 minute and cannot be
operated during this time. If you press the CONNECT button, wait a few
minutes before beginning operation.
❒The mouse may have difficulty communicating in an environment with
2.4 GHz wireless LAN or other Bluetooth communication.
c It is best to use the mouse in a location with low interference from
wireless devices.

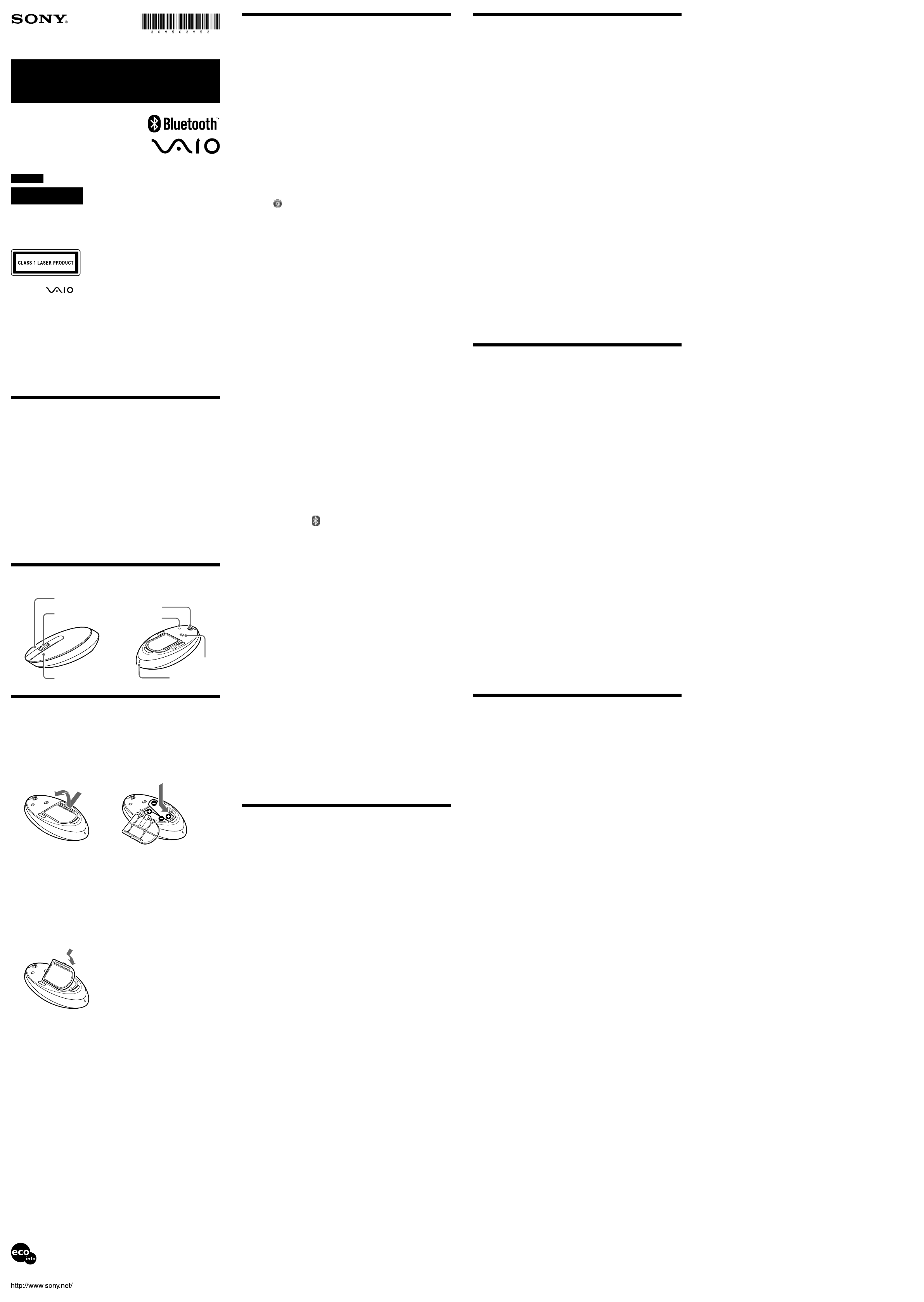

Bluetooth™ Laser Mouse
VGP-BMS55
Operating Instructions
操作說明
© 2007 Sony Corporation Printed in Japan
3-095-039-53(1)
Pressing the CONNECT button does not establish a connection.
cCheck whether batteries are inserted in the mouse. For details, see
“Inserting Batteries into the Mouse”.
cIf the power switch on the mouse is set to OFF, communication with
the personal computer is not possible. Check the power switch setting
on the bottom of the mouse.
cIf the power does not come on when the power switch is set to ON, the
batteries may be exhausted. Under normal operating conditions, a set
of alkaline batteries lasts about three months. Replace the batteries. For
details, see “Inserting Batteries into the Mouse”.
cCommunication between the mouse and your personal computer may
not have been properly established. If the CONNECT button on the
mouse is not pressed within 30 seconds after the Bluetooth device
search begins, mouse communication is canceled. In such a case,
perform the procedure again to enable communication. For details, see
“Enabling Communication between the Mouse and Your Personal
Computer”.
cIf the mouse and personal computer are too far apart, communication
is not possible. The maximum communication distance between the
mouse and personal computer is about 32 ft. (10m). If used on a metal
table or if obstacles lie between the mouse and personal computer, the
usable distance may be less.
cMake sure that the Bluetooth function on your computer is activated.
For details, refer to the manuals provided with your personal
computer.
The scrolling features do not work.
❒The operating system is not compatible.
cUse a supported operating system.
❒The program you are using is not compatible with the scrolling
features.
cThe scrolling features only work with programs that use a scroll function.
cSome programs do not support the scrolling features.
The pointer does not move when I move the mouse.
cProcessing performed by Windows or other software may temporarily
disable the mouse. Wait a few moments for the processing to finish
before using the mouse.
cYou may find some useful solutions in your personal computer’s
operating instructions. Refer to the manuals provided with your
personal computer.
❒The mouse batteries are exhausted.
cIf the power does not come on when the power switch is set to ON,
replace the batteries. For details, see “Inserting Batteries into the Mouse”.
❒The mouse is not set to ON.
c Set the power switch on the bottom of the mouse to ON.
❒The mouse and your personal computer are not communicating.
c Perform the steps in “Enabling Communication between the Mouse and
Your Personal Computer” to ensure that proper communication is
possible.
c In some operating environments, the usable distance may be notably
shorter, preventing normal operation. In such case, use the mouse farther
away from other electronic devices such as other computers and displays.
c If the mouse is too far from your personal computer, communication is
not possible. Bring the mouse and your personal computer closer
together.
❒The mouse is being used on an unsuitable surface.
cDue to the characteristics of the laser sensor, the mouse may not work
properly on transparent surfaces or on a mouse pad that has a clear
surface. Avoid using on such materials, or use a commercially-available
mouse pad that is compatible with a laser sensor mouse.
When I am using the mouse, the display goes dark or the personal
computer enters power-saving mode.
❒The personal computer enters power-saving mode even while the
mouse is in use.
cChange the power management settings for the personal computer to
prevent it from entering power-saving mode. For details, refer to the
manuals provided with your personal computer.
cTouch the touchpad or press any key on the keyboard to exit power-
saving mode.
The personal computer does not return from Standby mode.
cTouch the touchpad or press any key on the keyboard to exit this mode.
The mouse pointer does not move smoothly across the screen.
cDue to the characteristics of the laser sensor, the mouse may not work
properly on transparent surfaces or on a mouse pad that has a clear
surface. Avoid using on such materials, or use a commercially-available
mouse pad that is compatible with a laser sensor mouse.
Exiting power-saving mode with the mouse takes a long time or is not
possible.
cPress any key or the power button on the keyboard.
The mouse does not move smoothly after returning from the power-
saving mode.
cDeactivate the Bluetooth connection, wait a few seconds, and then
reestablish connection.
The mouse is not found when the Bluetooth device search is
performed.
❒The mouse is unable to be detected.
cPress the CONNECT button located on the bottom of the mouse, and
then try the search again.
❒The power switch on the mouse is set to OFF.
cCheck the power switch setting on the bottom of the mouse.
❒The Bluetooth function on your computer is not activated.
cMake sure that the Bluetooth function is activated. For details, refer to
the manuals provided with your personal computer.
I am asked to input a key at the time of authentication.
cInput “0000” as the key.
Printed on 70% or more recycled paper using VOC (Volatile
Organic Compound)-free vegetable oil based ink.
使用基於不含有 VOC（揮發性有機成分）的植物油的油墨在
70% 以上再生紙上印刷。
Low battery lamp
Left button
CONNECT button
Power switch
Right button
Wheel button
Lens
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Industry Canada Conformity
Operation is subject to the following two conditions: 1) this device may
not cause interference and 2) this device must accept any interference,
including interference that may cause undesired operation of the device.
