Quick start guide/
MTE-450
快速安裝指南
1
Contents
Introduction ................................... 2
Safety Precautions ....................... 3
1 Unpacking Your Bamboo .......... 8
Check Package Contents ....................8
Part names and functions ....................9
Connecting to the PC ........................10
2 Installing tablet drivers ............ 11
3 How to Use your Bamboo ...... 13
Using the pen ....................................13
The active area ..................................15
Basic pen operations .........................16
Using ExpressKeys and the Touch Ring
.....23
4
Customizing tablet and pen functions
... 25
Opening the control panel .................25
Customizing functions .......................26
Opening the online manual ................28
5 Caring for your tablet .............. 29
Care ...................................................29
Replacing the pen nib ........................30
6 Support ................................... 31
Contents
wacom_APModel_Eng_new.indd 2-Sec1:1wacom_APModel_Eng_new.indd 2-Sec1:1 07.1.26 4:53:48 PM07.1.26 4:53:48 PM
2 3
Introduction
Thank you for purchasing Bamboo. This pen tablet allows you to write and draw on a compu-
ter screen much as you would on a piece of paper. The Bamboo’s pressure-sensitivity also
allows you to vary line width and color depth making it an effective tool for handwriting and
drawing. Be sure to read through this manual carefully to familiarize yourself with the Bamboo’s
functions. Further information on customizing this pen tablet can be found on the driver CD.
Trademarks
•
Wacom, the Wacom logo and Bamboo are trademarks or registered trademarks of Wacom
Company, Limited.
• Windows is a registered trademark of Microsoft Corporation in the United States and other
countries.
• Macintosh is a registered trademark of Apple Computer in the United States.
•
Other product names are trademarks or registered trademarks of their respective companies.
Note
• The copyright of the tablet drivers belongs to Wacom Company, Limited.
• Copying the tablet driver software and this manual either wholly or in part without prior
permission is prohibited.
• The specifi cations of the tablet driver software and the tablet as well as the content of this
manual are subject to change without prior notice.
•
Operations and the screens that appear may differ with the operating system and PC setup.
Safety Precautions
This manual uses the following symbols to ensure that Bamboo (“this product” below) is used
correctly. Be sure to read and observe the Safety Precautions.
[Symbol description]
WARNING This symbol indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION This symbol indicates a potentially hazardous situation which,
if not avoided, may result in minor injury or property damage.
[Meaning of Symbols]
Indicates a safety alert.
Indicates a prohibition.
Indicates a mandatory action.
Introduction
Safety Precautions
wacom_APModel_Eng_new.indd Sec1:2-Sec1:3wacom_APModel_Eng_new.indd Sec1:2-Sec1:3 07.1.29 0:32:52 PM07.1.29 0:32:52 PM
4 5

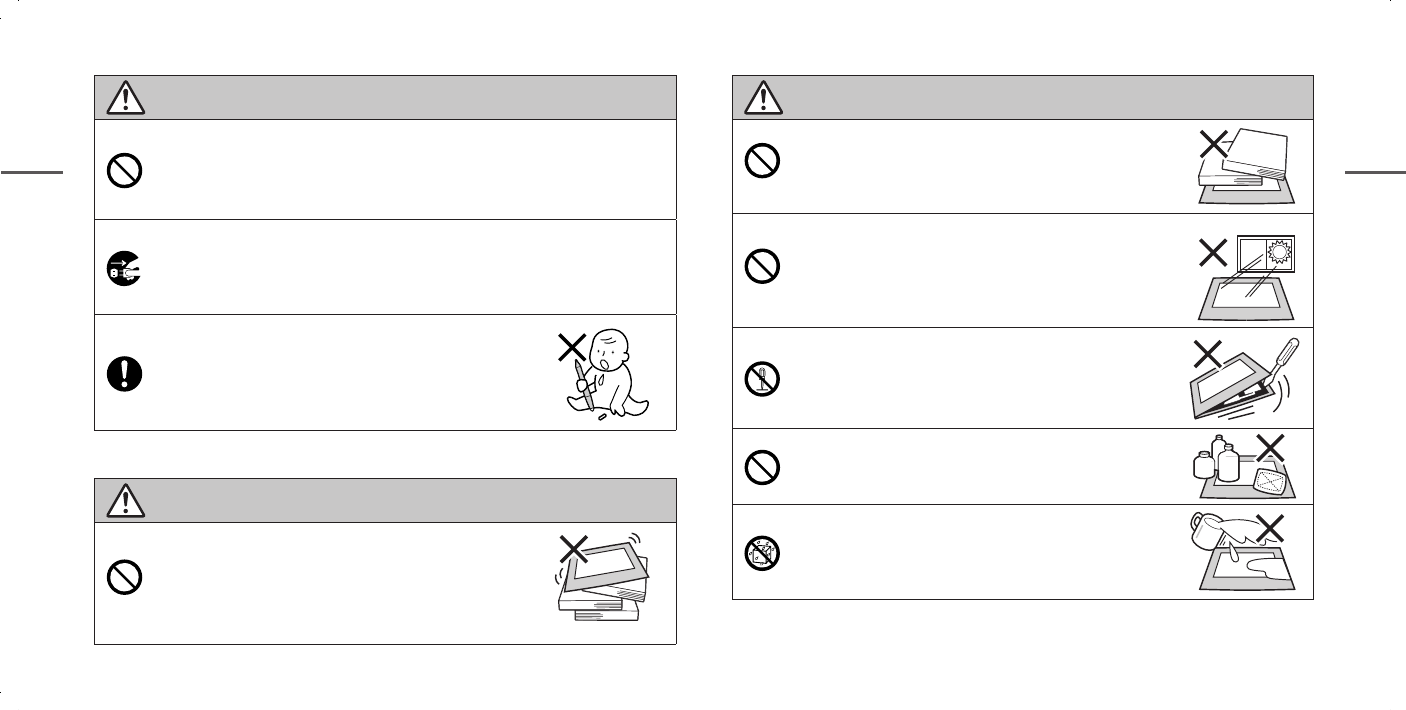

CAUTION
Do not place heavy objects on top of this product.
Do not step or place heavy objects on this product as this
could damage it.
Avoid high or low-temperature locations for storage.
Do not store this product in a location where the temperature
drops below 5°C or goes above 40°C and in locations subject
to excessive temperature fl uctuations. Failure to heed this cau-
tion could result in damage to the product and its components.
Do not disassemble
Do not disassemble or modify this product as this could
expose you to heat, fi re, electric shock and injury. Disassem-
bling the product will also void your warranty.
Do not use alcohol for cleaning.
Never use alcohol, thinner, benzine or other mineral solvents
as they could discolor or cause deterioration to the product.
Do not expose to water
Do not place glasses or vases filled with water or other
liquids near this product. Exposure to water or liquid could
damage the product.
WARNING
Do not use this product in a control system that requires a high degree of
safety and reliability.
In such a system, this product could negatively affect other electronic devices and
could malfunction due to the effect of these devices.
Turn the power off in areas where use of electronic devices is prohibited.
Onboard an aircraft or in any other location where use of electronic devices is
prohibited, this product, if left on, could negatively affect other electronic devices.
Unplug the USB connector from this product and turn the power off.
Do not use this product in a location frequented by small
children.
Make sure that a child does not put the pen or pen tip in
his/her mouth. The pen tip or side switch cover could be de-
tached and be accidentally swallowed.
CAUTION
Do not place this product on an unstable surface.
Placing this product on an unstable or tilted surface or in a
location exposed to excessive vibrations could cause it to fall
off resulting in injury.
Safety Precautions
Safety Precautions
thinner
benzine
wacom_APModel_Eng_new.indd 4-5wacom_APModel_Eng_new.indd 4-5 07.1.24 6:32:10 PM07.1.24 6:32:10 PM
6 7
Take the following precautions to maintain the health of your eyes.
■
Use this product in a well-lit room and make sure you are seated at an adequate distance
from your PC monitor.
■
Take regular breaks during prolonged work periods.
Limitation of Liability
■
Wacom shall in no event be liable for damages resulting from fi res or earthquakes, those
caused by third parties and those arising from user misuse, abuse or neglect.
■
Wacom shall in no event be liable for incidental damages – including but not limited to loss
of business income, interruption of business activities, corruption or loss of data – that
arise out of the use or failure to use this product.
■
Wacom shall in no event be liable for damages resulting from uses not documented in this
manual.
■
Wacom shall in no event be liable for damages from malfunction caused by connection to
other devices or use of third party software.
Limited Warranty
Wacom Co., Ltd. warrants the product, to the original consumer purchaser, including the main
unit and accessories such as the AC adapter and cables, to be free from defects in materials
and workmanship under normal use and service for a period of one (1) year, from the date of
original retail purchase, as evidenced by a copy of the receipt (proof of purchase). Wacom’s
Limited Warranty Policy for Asia Pacifi c can be found on the Asia Pacifi c website at:
www.wacom-asia.com/technical/warranty/img/Limited_Warranty_AP.pdf
Radio Frequency Interference
This product has been classifi ed as a Class B computing device according to the standards
of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI).
This device has been designed for home use but may cause interference when used close to
a radio or TV set. Observe the instructions in this manual to ensure correct handling.

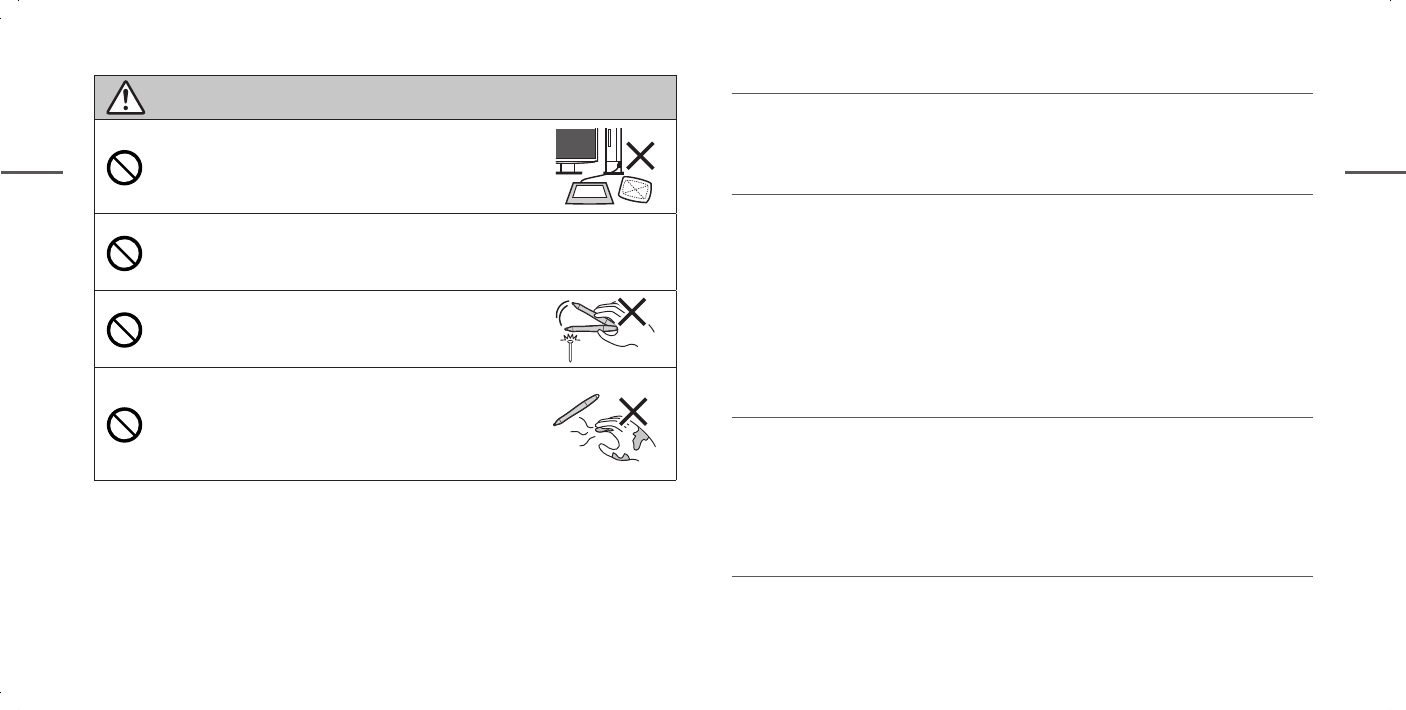

CAUTION
Unplug the USB connector prior to cleaning.
Disconnect the USB connector from the USB port on the PC
before cleaning to eliminate the risk of electrical shock.
Do not place metal objects on this product during operation.
Placing metal objects on this product during operation could cause it to malfunc-
tion or damage it.
Do not strike the pen against hard objects.
Striking the pen against hard object could damage it.
Do not handle the pen with soiled hands.
The pen is a high-precision instrument. Handling it with
soiled hands or using it in locations exposed to dust or strong
odors may cause the entry of foreign matter resulting in a
breakdown.
Safety Precautions
Safety Precautions
wacom_APModel_Eng_new.indd 6-7wacom_APModel_Eng_new.indd 6-7 07.1.24 6:32:11 PM07.1.24 6:32:11 PM
8 9
1
Unpacking Your Bamboo
Open the package, make sure all items have been provided before connecting them
to your PC.

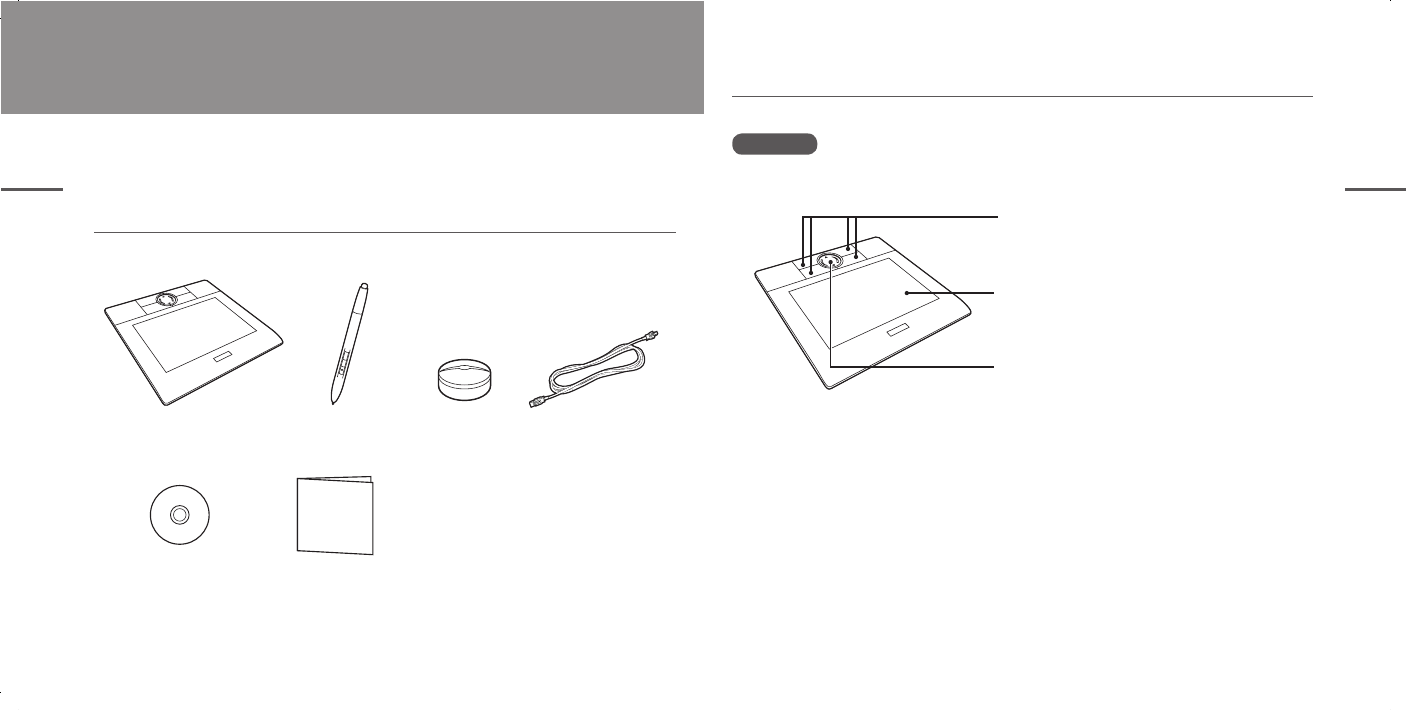

Check Package Contents
Open the package and make sure the tablet and all accessories have been provided.
Part names and functions
This section lists tablet and accessory parts and describes their functions.
Tablet
1 Unpacking Your Bamboo
1 Unpacking Your Bamboo
Tablet Pen Pen stand USB cable
Quick start guide
(this document)
CD-ROM×2
(contains the tablet driver and
application software)
FN1
FN2
＜＞
Active area
Use the pen in this rectangular area.
ExpressKeys
Customizable shortcut keys.
The characters will light up in blue when the power
is turn on.
Touch Ring
Slide your finger over the
Touch Ring to zoom and scroll.
FN1
FN2
＜＞
wacom_APModel_Eng_new.indd Sec1:8-Sec1:9wacom_APModel_Eng_new.indd Sec1:8-Sec1:9 07.1.26 4:58:21 PM07.1.26 4:58:21 PM
2
Installing tablet drivers
Driver installation for Windows Vista/XP/2000
❶ Insert the Tablet Drivers CD-ROM into the CD-ROM drive.
❷ Click on Install Tablet.
❸ Read the End User License Agreement and click Accept.
•
Installation of the Tablet Drivers will begin.
❹ Click OK after the installation has fi nished.
❺ Click the Technical Notes after the installation screen reappears.
❻ Click the on the installation screen.
To uninstall the Tablet Driver
When uninstalling the Tablet Driver from your PC follow the instruction.
* Users with system administrator settings in place (administrator or ad-
ministrator account) should log in with the administrator user name to
uninstall the drivers.
1. Click the START button in Windows to open the CONTROL PANEL.
2. Double-click on PROGRAM AND FEATURES or ADD OR REMOVE PROGRAMS.
3. Click on TABLET.
4. Click on UNINSTALL or REMOVE and follow the prompts to complete un-
installing the Tablet Drivers.
5. Restart the PC.
10 11

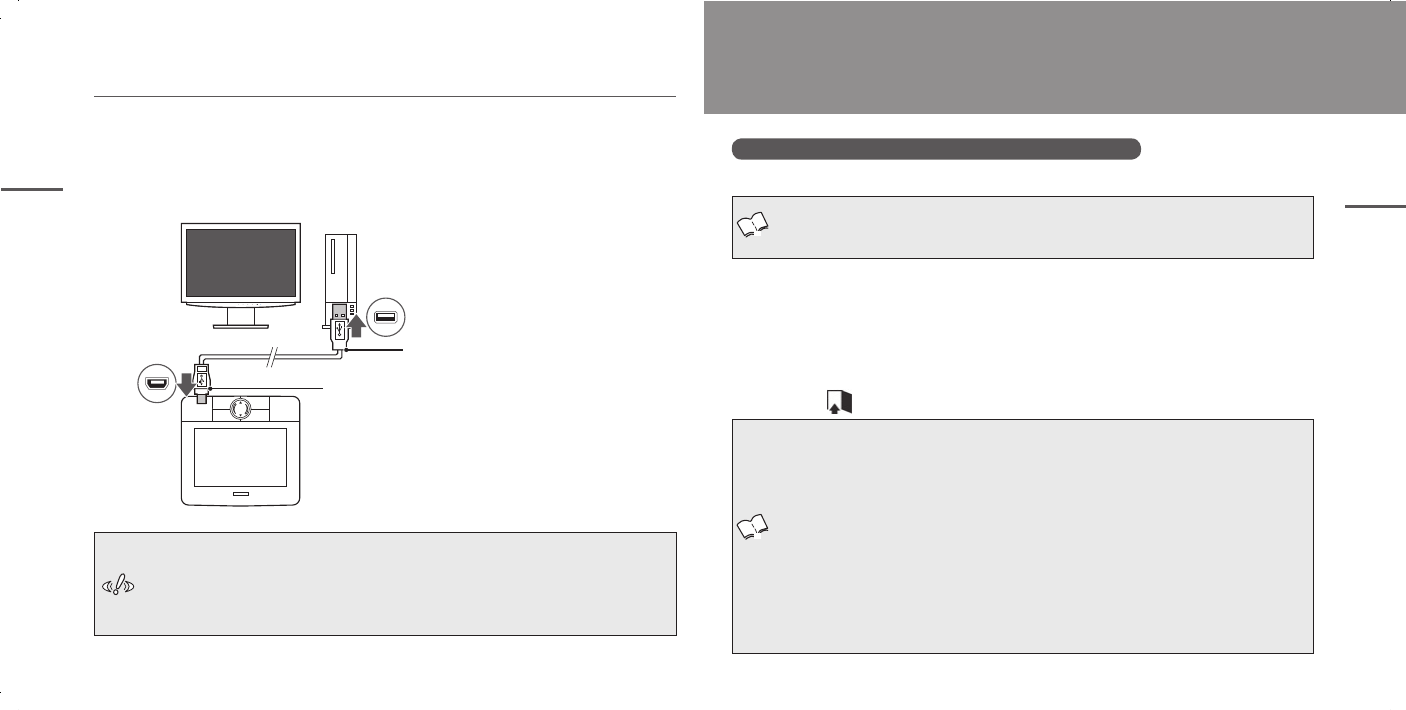

Connecting to the PC
To connect the pen tablet to your PC:
Plug the USB connector into the USB port on your PC.
Plug the USB miniB connector (small connector) into the USB mini port on this
product.
USB connection
Connect the USB connector directly to the USB port on your PC and not
to the USB port on a monitor or keyboard as the tablet may not work nor-
mally then.
1 Unpacking Your Bamboo
2 Installing tablet drivers
If the installation screen does not appear, double-click the CD-ROM icon
or open the CD-ROM drive and double-click INSTALL.EXE (or INSTALL).
Note
FN1 FN2
＜＞
AUTO ENTERSIGNAL
USB miniB port
USB miniB connector
(small connector)
USB port
USB connector
Att.
Note
wacom_APModel_Eng_new.indd 10-11wacom_APModel_Eng_new.indd 10-11 07.1.24 6:32:11 PM07.1.24 6:32:11 PM
For Mac OS X 10.3 or later users
❶ Insert the Tablet Drivers CD-ROM into the CD-ROM drive.
If the installation screen does not appear, double-click the TABLET CD and
double-click INSTALL.
❷ Click on Install Tablet.
• Password verifi cation screen appears.
❸ Enter the password and click OK.
❹ Follow the prompts to install the driver.
❺ Click the on the installation screen after installing the driver.
To uninstall the Tablet Driver
When uninstalling the Tablet Driver from your computer follow the instruc-
tions below.
1. Click APPLICATIONS in the GO menu, and double-click TABLET.
2. Double-click REMOVE TABLET and select the method for uninstalling (only
one option may be displayed).
• REMOVE ALL PREFERENCE FILES:
Deletes all user Tablet preferences including the user initiating the
uninstall.
• REMOVE TABLET SOFTWARE:
Deletes Tablet Drivers and related software.
3. Enter the password and click OK.
• A dialog will appear after uninstalling is completed.
4. Click OK.
12 13
3
How to Use your Bamboo
This section describes how to use the pen supplied with this product.

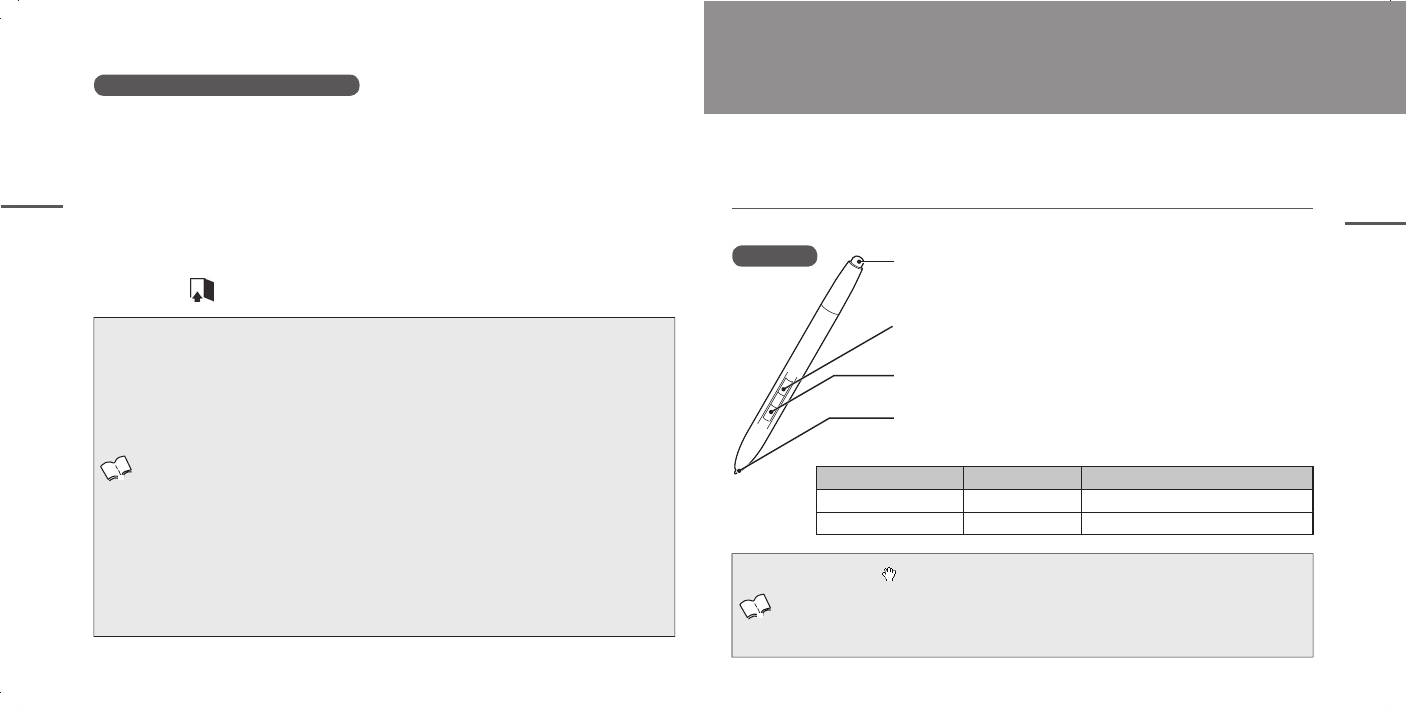

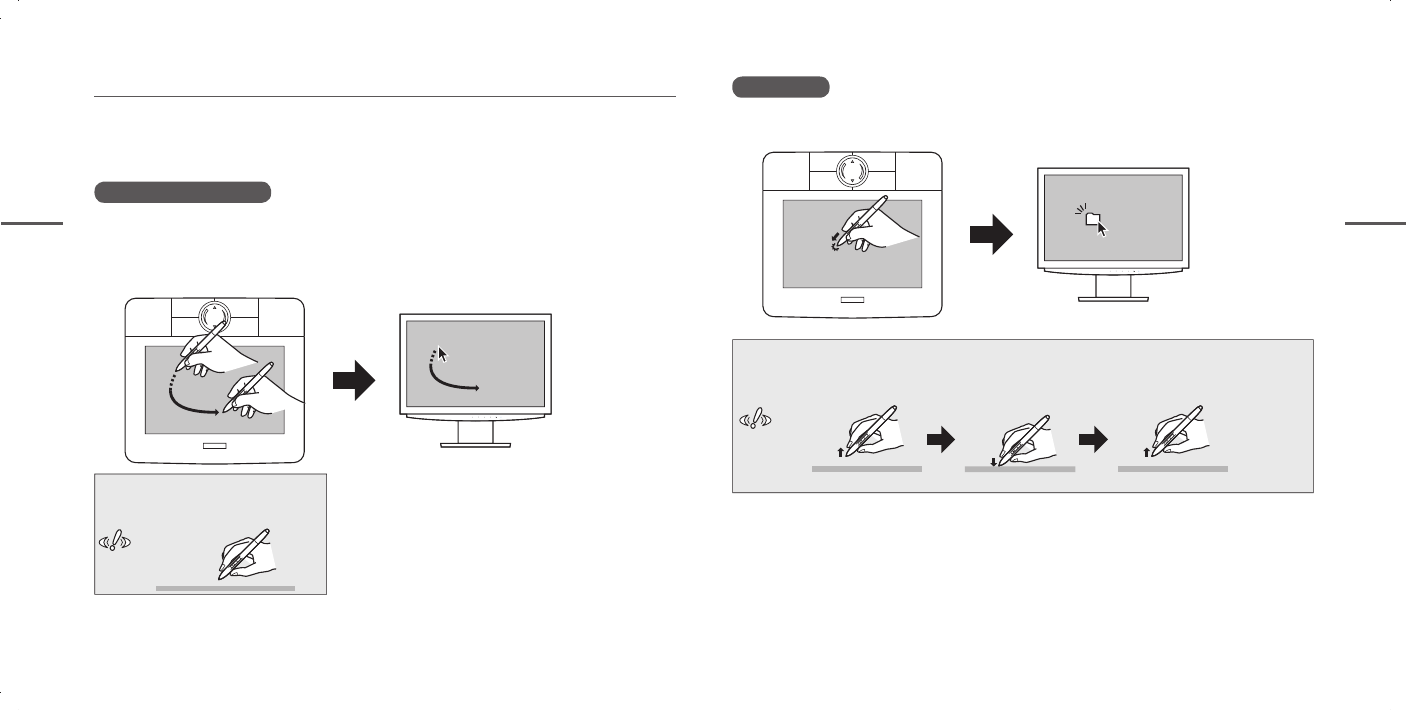

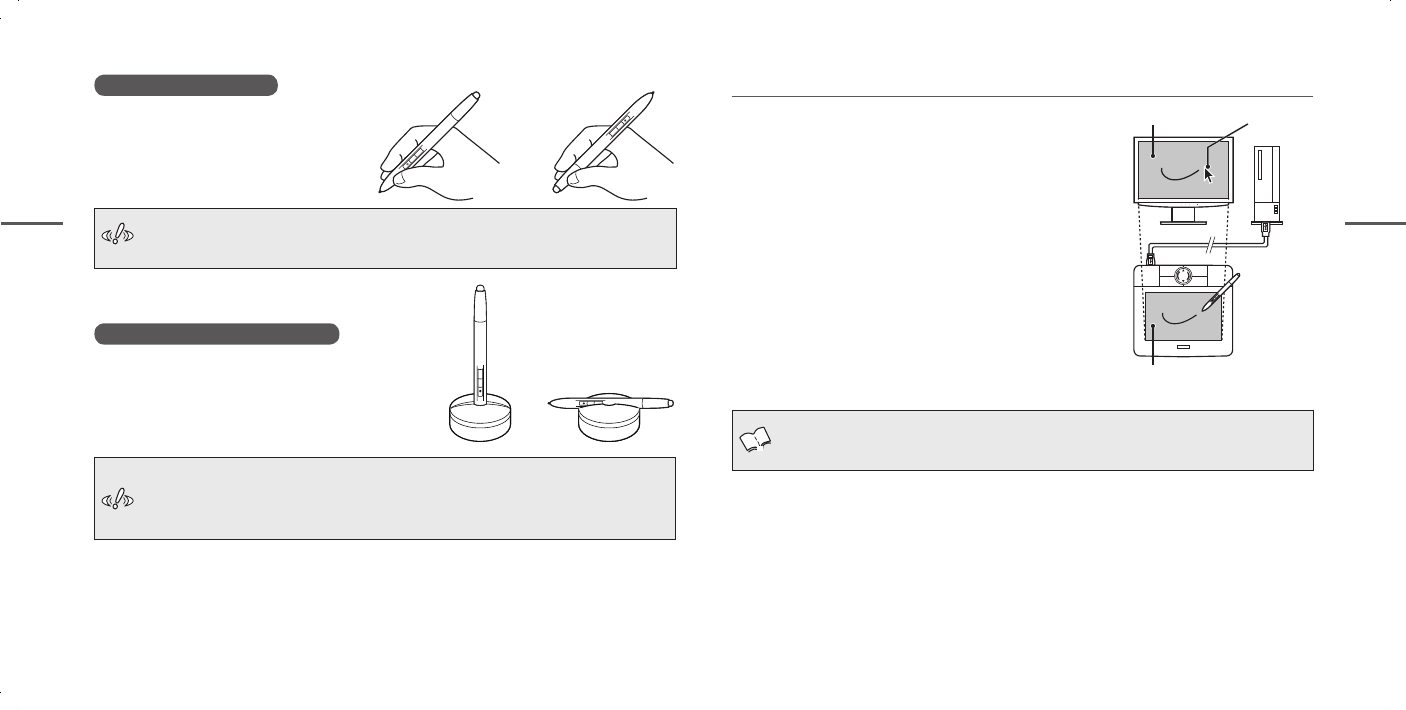

Using the pen
Pen functions are listed and described below.
Function
Scroll/Move
In applications that support it, the move function allows you to move open
images in a window. In applications that do not support it, it becomes a
scroll function. Some applications may not support vertical scrolling.
2 Installing tablet drivers
3 How to Use your Bamboo
Second Side Switch:
A single press activates whatever function has been programmed.
Eraser:
Erases illustrations and text like an ordinary eraser (➡page 20~21).
Pen tip
Side Switch
A single press activates whatever function has been programmed.
<Switch functions (default settings)>
Windows Macintosh
Side Switch Scroll/move Scroll/move
Second Side Switch Right Click (control key + click)Right Click
Note
Note
wacom_APModel_Eng_new.indd 12-13wacom_APModel_Eng_new.indd 12-13 07.1.24 6:32:12 PM07.1.24 6:32:12 PM
14 15
Holding the pen
Hold the pen like you would hold
an ordinary pen or pencil.
To use the eraser, reverse your
hold.
Hold the pen in a position that is comfortable and where you do not acci-
dentally press the side switches.
Putting the pen away
When the pen is not in use, place it in the
supplied pen stand.
Leaving the pen on the active area of the tablet will interfere with the op-
eration of a mouse and other input devices. Therefore place the pen in the
pen stand or outside the active area when it is not being used.
The active area
This section describes the active area of the tablet.
The ACTIVE AREA is the area of the tablet that senses
pen movement while the SCREEN AREA is the
corresponding area on the screen.
The pointer in the screen area indicates pen position
and the pointer follows the movements of the pen.
In the default setting, the active area is a direct representation of the
screen area (a one-to-one relationship) and uses the entire screen.
3 How to Use your Bamboo
3 How to Use your Bamboo
Position for
using the eraser
Normal position
Att.
Att.
Active area
PointerScreen area
AUTO ENTERSIGNAL
FN1 FN2
＜＞
Note
wacom_APModel_Eng_new.indd Sec1:14-Sec1:15wacom_APModel_Eng_new.indd Sec1:14-Sec1:15 07.1.26 7:13:19 PM07.1.26 7:13:19 PM
16 17
Clicking
Tap the pen tip against the active area and gently move the pen away.
Perform a click as shown below.
Hold the pen just above
the active area Tap the active area Move the pen off the
active area
Basic pen operations
This section describes clicking, how to move the pointer and other basic pen
operations.
Pointer movement
Hold and move the pen tip slightly above the active area to move the screen cursor.
Place the pen tip on the active area to select an object on the screen.
Then slide the pen to drag the object.
To select icons and folders, move the pen tip while viewing screen to place the
pointer on an icon or folder.
Place the pen tip slightly
above the active area
3 How to Use your Bamboo
3 How to Use your Bamboo
AUTO ENTERSIGNAL
FN1 FN2
＜ ＞
Att.
AUTO ENTERSIGNAL
FN1 FN2
＜ ＞
Att.
wacom_APModel_Eng_new.indd 16-17wacom_APModel_Eng_new.indd 16-17 07.1.24 6:32:14 PM07.1.24 6:32:14 PM
18 19
Dragging
Press the pen tip against the active area and slide it across the screen. The selected
icon and folder will move across the screen. When the objects have been relocated,
move the pen off the active area.
Scroll / Move function
Hold down the side switch while dragging.
Right clicking
Hold the pen slightly above the active area and press the second side switch. This is
the default setting.
Double-clicking
Use the pen tip to tap the same place of the active area twice in succession.
3 How to Use your Bamboo
3 How to Use your Bamboo
AUTO ENTERSIGNAL
AUTO ENTERSIGNAL
FN1 FN2
＜ ＞
AUTO ENTERSIGNAL
FN1 FN2
＜ ＞
AUTO ENTERSIGNAL
FN1 FN2
＜ ＞
AUTO ENTERSIGNAL
FN1 FN2
＜ ＞
wacom_APModel_Eng_new.indd 18-19wacom_APModel_Eng_new.indd 18-19 07.1.24 6:32:16 PM07.1.24 6:32:16 PM
20 21

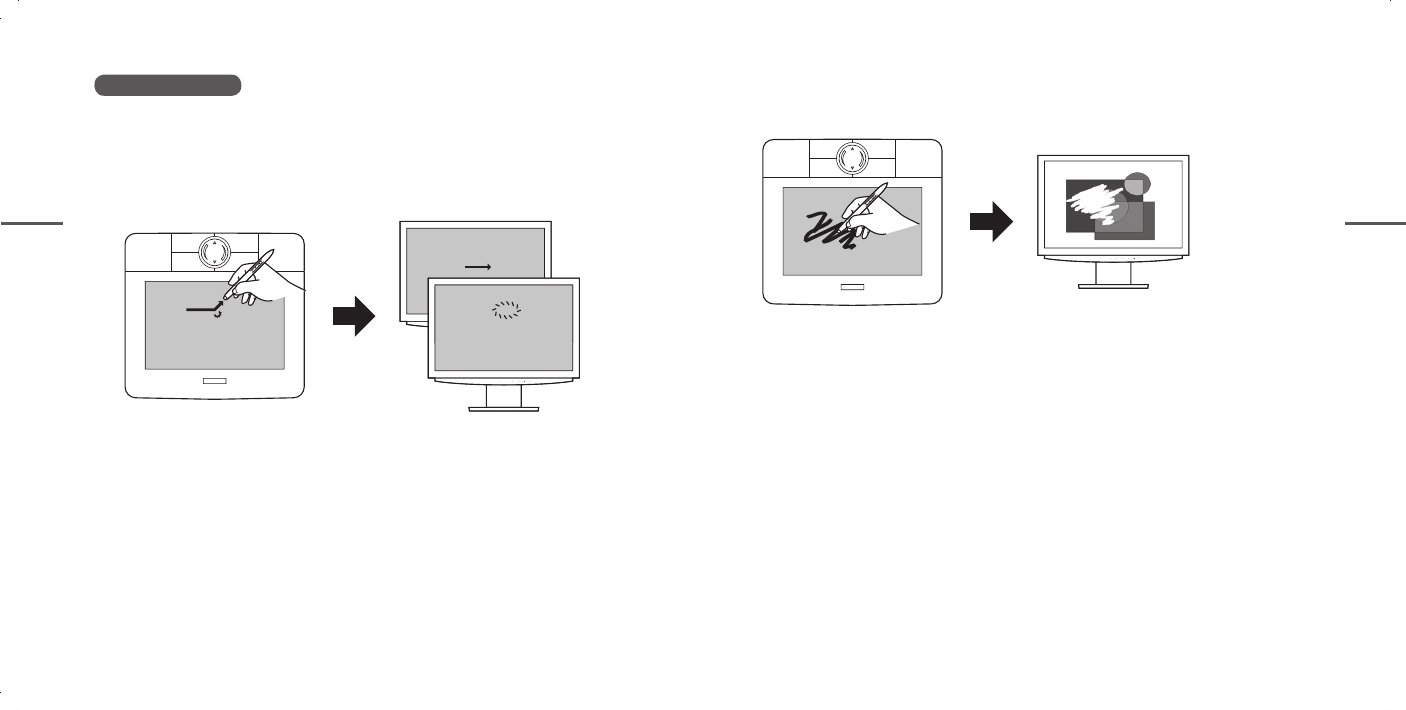

• When a picture and/or handwritten character on the active area are skimmed by
the eraser, the corresponding area on the screen will be deleted.
Eraser function
Use the eraser to erase text and illustrations.
• Select a portion of text data on the active area and press the eraser to erase it.
This function works only in Windows.
3 How to Use your Bamboo
3 How to Use your Bamboo
AUTO ENTERSIGNAL
FN1 FN2
＜ ＞
FN1 FN2
＜ ＞
AUTO ENTERSIGNAL
AUTO ENTERSIGNAL
ABCDE
ABC
wacom_APModel_Eng_new.indd 20-21wacom_APModel_Eng_new.indd 20-21 07.1.24 6:32:18 PM07.1.24 6:32:18 PM
22 23

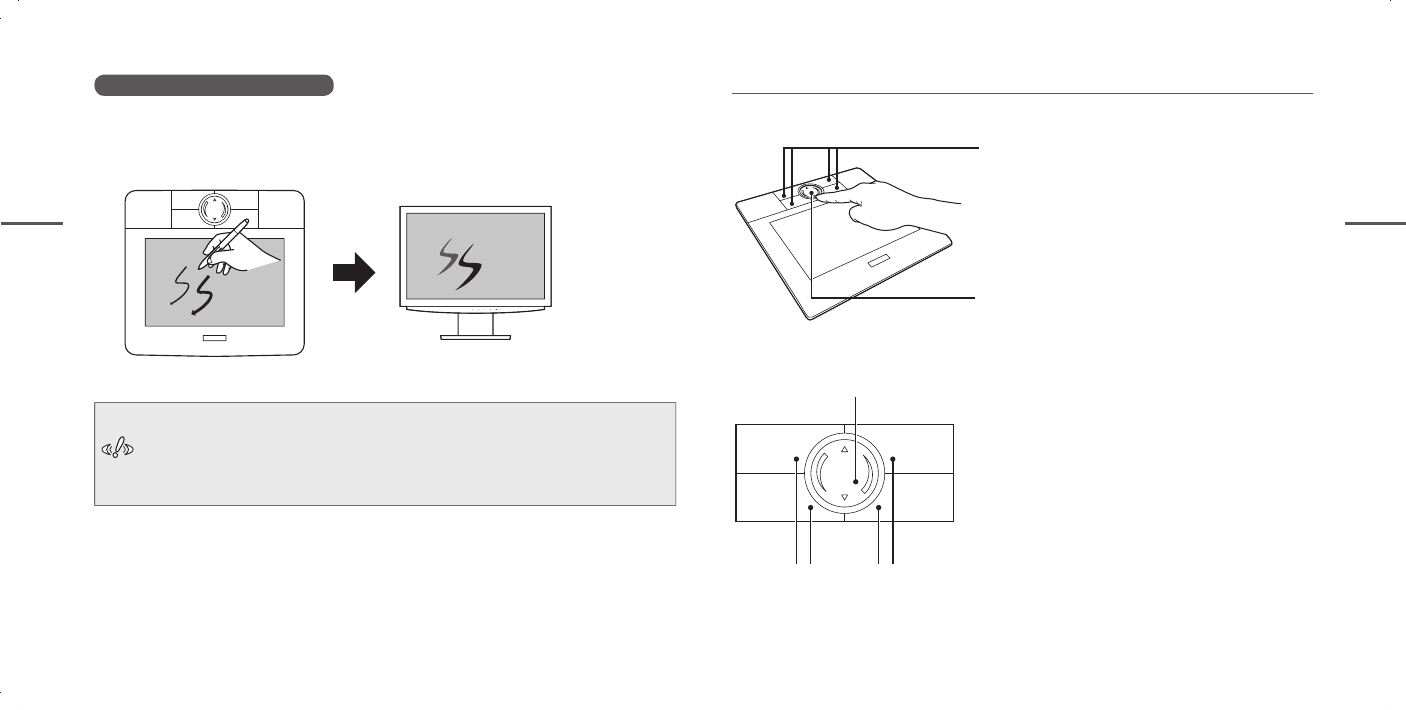

Pressure-sensitive drawing
Pressure-sensitivity allows you to adjust line thickness and color depth.
• Vary the pressure applied to the pen tip to change line thickness and color depth.
These functions are only available in applications that support pen pres-
sure-sensitivity and the eraser function. Visit the website listed below to
fi nd software that supports them.
http://www.wacom-asia.com/faq/penfunction.html
Using ExpressKeys and the Touch Ring
This section describes how to use the ExpressKeys and the Touch Ring.
ExpressKeys
The ExpressKeys allow you to program
shortcut keys that can be accessed with
a single key press.
Touch Ring
In applications that support it,
the Touch Ring operates as a zoom function,
in other applications, it operates as a scroll
function.
FN1
FN2
＜＞
Touch Ring
ExpressKeys
FN1 FN2
＜＞
3 How to Use your Bamboo
3 How to Use your Bamboo
Att.
FN1 FN2
＜ ＞
AUTO ENTERSIGNAL
wacom_APModel_Eng_new.indd Sec1:22-Sec1:23wacom_APModel_Eng_new.indd Sec1:22-Sec1:23 07.1.26 4:58:28 PM07.1.26 4:58:28 PM
24 25
4
Customizing tablet and pen functions
Use the control panel to change or customize pen and tablet functions.
Opening the control panel
Follow the steps below to open the control panel.
The Windows and Macintosh control panels are broadly similar, with some
minor differences.
For Windows
Click the START button and choose ALL PROGRAMS (or Programs) ⇒TABLET ⇒PEN
TABLET.
This opens the PEN TABLET (control panel).
For Macintosh
Click the GO menu and select APPLICATIONS. Then double click SYSTEM
PREFERENCES ⇒ PEN TABLET.
This opens the PEN TABLET window (control panel).
ExpressKeys (factory default settings)
Setting Description
< (Top left) Set to operate as the BACK button (previous function) in
an Internet browser.
> (Top right)
Set to operate as the FORWARD button (returns you to
pages displayed before clicking the BACK button) in an
Internet browser.
FN1 (Bottom left)
In an operating system where Windows Journal is
installed:
Starts Windows Journal
In other operating systems:
Minimizes all open windows
FN2 (Bottom right)
In Windows:
Operates as an application switcher
In Macintosh:
Exposé function (tiles all open windows)
Touch ring (factory default setting)
Function Description
Zoom
Magnifi es or shrinks document or image fi le screens.
Clockwise: Zooms out your current document
Counterclockwise: Zooms in your current document
▲
▼Touch to scroll
3 How to Use your Bamboo
4 Customizing tablet and pen functions
Note
wacom_APModel_Eng_new.indd 24-25wacom_APModel_Eng_new.indd 24-25 07.1.24 6:32:20 PM07.1.24 6:32:20 PM
26 27

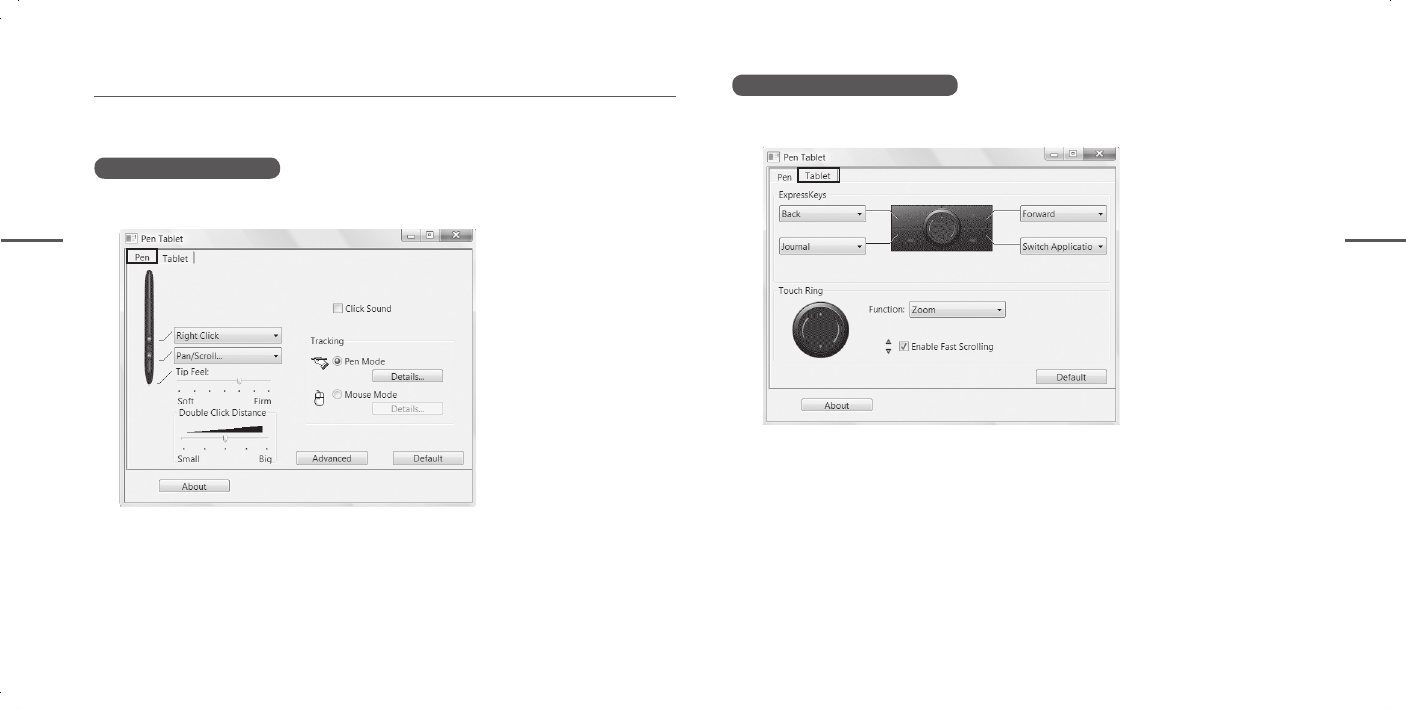

Customizing the tablet
Click the TABLET tab to change or customize pen functions.
Customizing functions
Use the PEN tab and TABLET tab to change or customize assigned functions.
Customizing the pen
Click the PEN tab to change or customize pen functions.
4 Customizing tablet and pen functions
4 Customizing tablet and pen functions
Windows Vista window
Windows Vista window
wacom_APModel_Eng_new.indd 26-27wacom_APModel_Eng_new.indd 26-27 07.1.24 6:32:20 PM07.1.24 6:32:20 PM
28 29
5
Caring for your tablet
This section describes how to care for your tablet and pen and how to replace the
pen nib.
Care
Use a soft dry cloth for cleaning the tablet and the pen.
To remove more stubborn dirt, use a clean soft cloth that has been dampened in a
neutral detergent solution and been thoroughly wrung out.
Never use alcohol, thinner, benzine or other mineral solvents as they could
discolor or cause deterioration to the product.
Opening the online manual
The CD-ROM that stores the tablet driver also contains a manual in the PDF format.
Use Adobe Reader to open the PDF fi le. Use the steps below to open the online
manual.
For Windows
Choose ALL PROGRAMS ⇒ TABLET ⇒ MANUAL.
For Macintosh
Select the Go menu in the FINDER and choose APPLICATIONS ⇒ TABLET ⇒ USER’S
MANUAL
-
EN.pdf.
4 Customizing tablet and pen functions
5 Caring for your tablet
Att.
wacom_APModel_Eng_new.indd 28-29wacom_APModel_Eng_new.indd 28-29 07.1.24 6:32:21 PM07.1.24 6:32:21 PM
30 31
Replacing the pen nib
Replace the pen nib when it becomes worn (shorter than 1 mm).
The Wacom Authorized Online Store carries replacement pen nibs. Visit
www.wacom-asia.com to fi nd the online store in your country.
6
Support
If you experience a problem with Bamboo that cannot be solved by referring to this
guide or the manual included with your driver CD, please refer to our online FAQ or
contact our support staff.
Online FAQ: http://www.wacom-asia.com/faq/faq_index.html
To contact support staff by email:
http://www.wacom-asia.com/contact/contact_index.html
Support staff phone number in Japan:
(Tel) +81-3-5309-1588, (Fax) +81-3-5309-1514
(International calling fees differ depending on your region.)
Use a pair of tweezers to
remove a worn pen nib.
Push the pen nib into the barrel of
the pen to seat it.
5 Caring for your tablet
6 Support
Note
Pen nib
1 mm or less
wacom_APModel_Eng_new.indd 30-31wacom_APModel_Eng_new.indd 30-31 07.1.24 6:32:21 PM07.1.24 6:32:21 PM
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
You can determine whether the equipment is causing interference by disconnecting
it from your computer. If the interference stops, it was probably caused by the
equipment.
If the equipment does cause interference to radio or television reception, you may
be able to correct the interference by using one or more of the following measures:
• Rotate the television or radio antenna until the interference stops.
• Move the tablet farther away from the television or radio.
• Plug the tablet and computer into an outlet that is on a different circuit from the
television or radio.
If necessary, consult your Wacom dealer or an experienced radio/television
technician for help.
Changes or modifications to this product not authorized by Wacom could void the
FCC Certification and negate your authority to operate the product.
Industry Canada (Canada only)
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
