User's Manual
© 2005 All rights reserved
081705-510910-(05)
510910.qxd 9/26/2005 2:32 PM Page i
ii
Notices: The information in this document is subject to change without notice. NO
WARRANTY OF ANY KIND IS MADE WITH REGARD TO THIS MATERIAL, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. No liability is assumed for errors contained herein
or for incidental or consequential damages in connection with the furnishing, performance, or
use of this material. This document contains proprietary information which is protected by
copyright. All rights are reserved. No part of this document may be photocopied, reproduced,
or translated into another language without prior written consent.
Trademark Acknowledgments: IBM is a registered trademark of International Business
Machines Corporation. Windows is a trademark of Microsoft Corporation. All other trademarks
are the property of their respective owners. CandelaColor® Charged by Pictographics is a
registered trademark of Pictographics International Corporation.
Printing History
Edition 5.0, #081705, © Copyright 2004, All rights reserved.
FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
For Users in the United States: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Re-orient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Use of a shielded cable is required to comply with the Class B limits of Part 15 of the FCC Rules.
You are cautioned that any changes or modifications not expressly approved in this manual
could void your authority to operate and/or obtain warranty service for this equipment. Within
the U.S., this product is intended to be supplied by a UL Listed Direct Plug-in Power Unit
marked Class 2 and rated 30 Vdc, 830 mA or 1.0A.
For Users in Canada: This digital apparatus does not exceed the Class B limits for radio noise
for digital apparatus set out on the Radio Interference Regulations of the Canadian Department
of Communications. Le present appareil numerique n'emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la class B prescrites dans le
Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du
Canada.
CAUTION!
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR
MOISTURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE EXTERIOR
PANELS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL. OPERATE THE UNIT WITH ONLY THE PROPER ELECTRICAL
SPECIFICATIONS AS LABELED ON THE PRINTER AND AC ADAPTER
WARNING.
Hazardous moving parts. Keep fingers and other body parts away from the paper-feed gears.
WARNING.
Sharp Edges. Keep fingers and other body parts away from the tear-off bar.
510910.qxd 9/26/2005 2:32 PM Page ii
iii
Table of Contents
Section 1: Getting Started...............................................................................1
A. Choosing a Good Location ................................................................1
B. Unpacking and Inspection.................................................................2
C. Identifying the Parts ...........................................................................3
D. Minimum PC Specifications..............................................................4
E. Minimum MAC Specifications..........................................................4
F. Applying Power ..................................................................................5
G. Installing the Driver and Software...................................................5
Section 2: Supplies and Driver Settings......................................................8
A. About Ink Cartridges and Label Material.......................................8
B. Installing Label Stock .........................................................................8
C. Installing Ink Cartridges..................................................................13
D. Printer Driver Settings .....................................................................15
Section 3: Using the Printer..........................................................................22
A. Using NiceLabel................................................................................22
B. Creating Barcodes in NiceLabel .....................................................29
C. Printing on a MAC from Adobe Illustrator ..................................33
D. Creating Barcodes on a Mac............................................................38
E. Printing From Other Applications .................................................38
Section 4: Troubleshooting and Maintenance ..........................................39
A. Cleaning the Printer..........................................................................39
B. Basic Troubleshooting ......................................................................39
C. Technical Support..............................................................................40
Section 5: Label Specifications ....................................................................41
Section 6: Technical Specifications .............................................................42
Index..................................................................................................................44
510910.qxd 9/26/2005 2:32 PM Page iii
INDEX
iv
Interactive Feature in this
PDF Document
There are interactive features that will allow you to
jump to different locations within the document. Each
listing in the Table of Contents is interactive. Place the
cursor on either the words or the page number. A
small hand with a pointing finger icon appears. Click
on the line with the icon and the document will jump to
that page. If you want to return to the Table of
Contents, move the icon to the top of the page and
click on the arrow marked TOC. Navigating through
the Index is similar. Place the icon on one of the
listings or page numbers, click on it, and it will move to
that page. The text relating to the Index listing will
appear in red. Returning to the Index can be done by
clicking on the arrow marked Index.
510119pdf.qxd 5/29/2002 11:14 AM Page iv
Getting Started 1
Section 1: Getting Started
THANK YOU…
...for choosing an LX800 Color Label Printer. This printer is
the perfect way for you to create customized, full color labels
quickly, easily, and with a touch of class. The LX800 Printer
will print razor-sharp text and barcodes, vibrant colors, and
even stunning photo-realistic photographs directly onto rolls of
labels and card stocks. Operation is simple, quality is high,
and printed images are durable and highly smudge-resistant.
To begin using the printer, please refer to the remainder of this
manual. This User's Manual is your complete step-by-step
guide to quickly and easily setting up and printing with your
new Color Label Printer!
A. CHOOSING A GOOD LOCATION
•Place the printer on a flat surface in a location with
adequate air circulation to prevent internal heat build up.
•Do not place the printer near heat sources such as radiators
or air ducts, or in a place subject to direct sun light,
excessive dust, mechanical vibration or shock.
•Allow for adequate clearance in front of the printer to
accommodate the printed label stock as it is leaving the
printer to avoid the possibility of binding or jamming of
the label stock. Automated re-winders are recommended
for larger production jobs.
•Allow for adequate overhead clearance for opening the
top cover to allow easy access to the label stock and ink
cartridges.
510910.qxd 9/26/2005 2:32 PM Page 1
TOC
INDEX
2 Getting Started

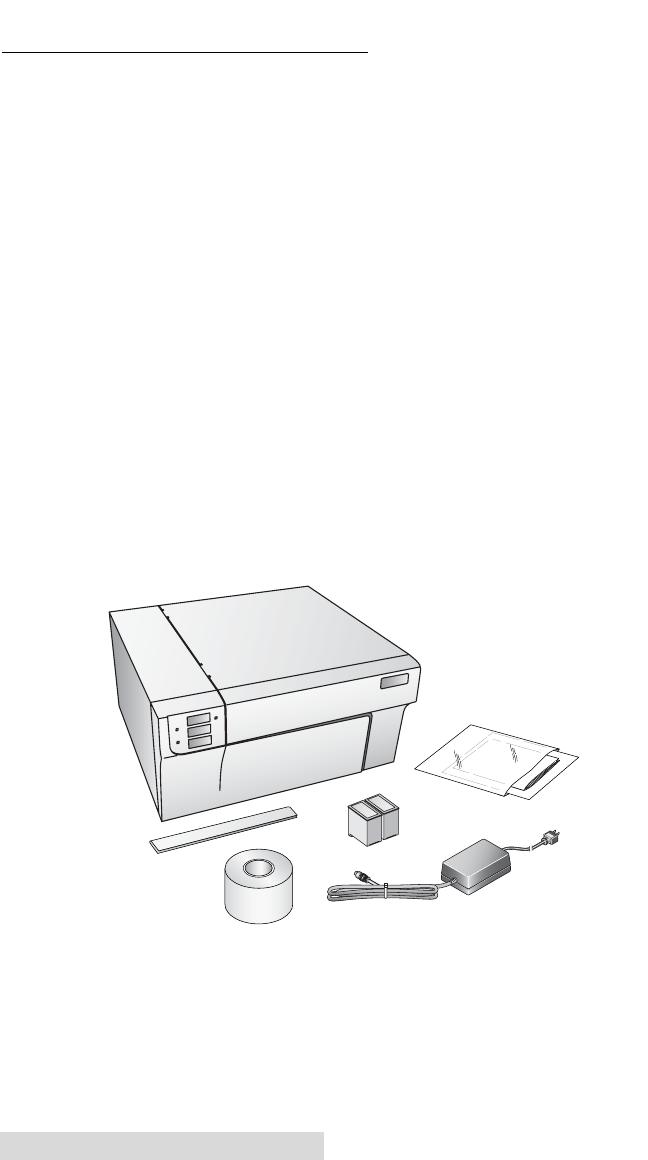

B. UNPACKING AND INSPECTION
While unpacking your printer, inspect the carton to ensure
that no damage has occurred during shipping. Make sure
that all supplied accessories are included with your unit. The
following items should be included:
•Printer
•Power Adapter
•Separate Power Cord
•Software Installer CD
•Color Ink Cartridge
•Dye-Based Black Ink Cartridge
•Starter roll of label stock 6" x 4" High-Gloss
•Tear Bar Guard (This is a white plastic shield attached to
the Tear Bar for shipping and can be simply pulled from
the tear bar to reveal the serrated edge. This guard is
recommended for use when using pre-perforated label
material.)
•Warranty Statement and Registration Card
•This manual and other printed information
Save the carton and packing materials. They will come in handy when
transporting the printer.
510910.qxd 9/26/2005 2:32 PM Page 2
TOC
INDEX
C. IDENTIFYING THE PARTS
This illustration shows the front of the printer with its control
buttons and LED indicator lights.
The Pause Button pauses the printer AFTER the printing of the
current label has finished to allow for loading of label stock
and ink cartridges.
The Pause LED is lit when the printer is paused. Press the
Pause Button to resume printing.
The Power LED indicates that the printer is on and ready to
receive print jobs.
The Load/Feed Button is pressed in order to load label stock or
form feed the label stock through the printer.
The Ink Low LED will illuminate when a cartridge has 10% or
less of its ink remaining.
The Unload Button will unload the installed label stock by
reversing it through the printer. Make sure to tear off the print-
ed labels before pressing the Unload Button.
NOTE: Always use this procedure to unload label material. DO NOT
ALLOW THE END OF THE ROLL TO FEED THROUGH THE
MACHINE!
The Label Tear Bar is a serrated edge for conveniently tearing
your finished labels from the printer.
WARNING. Sharp Edges. Keep fingers and other body parts away from the
tear-off bar.
Unload Button
Pause Button
Pause LED
Power LED
Load/Feed
Button
Ink Low LED
Label Tear Bar
Top Cover
Getting Started 3
510910.qxd 9/26/2005 2:32 PM Page 3
TOC
INDEX
4 Getting Started
This illustration shows the input ports and power switch found
on the rear panel of the printer.
D. MINIMUM PC SPECIFICATIONS
For optimal printing speed you must have a PC with the
following minimum specifications:
• Pentium IV Processor
• 512 MB of RAM
• 5 GB of Free Hard Drive Space
E. MINIMUM MAC SPECIFICATIONS
Before getting started, it is important for you to verify that
your computer meets the recommended system requirements.
Here's what you need in order to successfully print:
• G4 PowerPC 700MHz or higher running OS X version 10.2
or higher
• 256MB RAM
• Free hard drive space of at least 5 GB
• Available USB Port
• Do not connect the printer to any USB hubs or the USB
port on your keyboard. It should be connected directly to
an onboard USB port.
If your computer does not have at least these minimum system
requirements, system performance may not be acceptable.
USB Port
Power Switch
Power Input Port
510910.qxd 9/27/2005 9:01 AM Page 4
TOC
INDEX
Getting Started 5
F. APPLYING POWER
1. Locate the power adapter supplied with your printer.
2. Place one end
of the adapter
cord into the
power port on
the rear panel
of the printer.
3. Plug the power
cord of the
adapter into an
available wall
outlet or surge
protecting
power strip.
Once the power cord is connected, the printer can be
switched on and off using the power switch.
G. INSTALLING THE DRIVER AND SOFTWARE
The Color Label Printer is designed to be used with nearly
any IBM-PC® or compatible running Windows 2000/XP or a
Macintosh running OS 10.2 or higher. The printer is equipped
with a USB 1.0/2.0 port. This port is the means through which
it receives data from your computer. To connect the printer to
your computer, use the included shielded USB cable. The soft-
ware installs as follows:
PC Installation
1. Insert the Installation CD into your computer. In a few
moments the installer program should launch
automatically. If not, perform the following steps:
a. Double click My Computer Icon, then double click
the icon of the appropriate CD drive containing the
software installer disc.
b. Double click INSTALL.exe then click the Quick Start
Install Button.
2. Follow the on screen instructions to install the software.
These steps are illustrated below:
a. Apply power
510910.qxd 9/26/2005 2:32 PM Page 5
TOC
INDEX
6 Getting Started
b. Plug in USB Cable
i. After a few moments Windows will detect the
printer and attempt to install the printer driver.
You will be prompted with a dialog box like the
one shown here:
Click “Continue Anyway”.
ii. Once installed the "Color Label Printer" icon
will appear in the printers folder.
3. Once the printer driver is properly installed, the installer
application will prompt you to install label stock and
the ink cartridges. You will also be asked to complete a
cartridge calibration procedure. Follow the on screen
instructions to complete this install. More information on
installing the label stock and ink cartridges is available
in Section 2 of this manual.
4. Next the installer will install NiceLabel. NiceLabel is an
easy-to-use software application for making your labels
and creating barcodes.
5. Click Finish to complete the install.
Note: For optimal printing speed you MUST reboot the PC after installing
the software!
510910.qxd 9/26/2005 2:32 PM Page 6
TOC
INDEX
Getting Started 7
Mac Installation
1. Insert the Installation CD into your computer. In a few
moments the Color Label Printer Icon should appear on your
desktop.
2. Double click on the Color Label Printer Icon.
3. To run the installation, click on the ColorLabelSeries.pkg file.
4. Follow the on screen instructions to install the software.
5. Apply power and plug in the USB cable. Wait for the printer
to initialize (lights will stop flashing) before moving to the
next step.

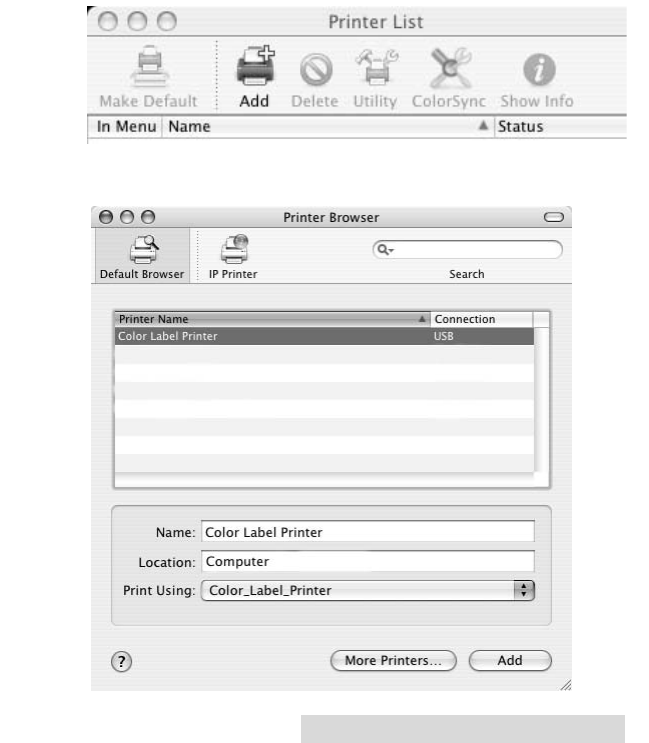

6. After the software is installed you will need to add the
printer. Open the Printer Setup Utility located in the
Applications - Utilities folder.
7. Click Add. Select the Color Label Printer from the list of
available printers. Click Add again.
510910.qxd 9/26/2005 2:32 PM Page 7
TOC
INDEX
8Supplies and Driver Settings
Section 2: Supplies and Driver
Settings
A. ABOUT INK CARTRIDGES AND LABEL MATERIAL
(PIGMENT-BASED VS. DYE-BASED INKS,
GLOSS VS. PLAIN PAPER)
For full-color printing, a 3-color ink cartridge is available. This
cartridge contains the three process-color inks of yellow,
magenta, and cyan, which combine to produce up to 16.7
million printable colors and works very well on all label
stocks.
Two different Monochrome ink cartridges are available for
the printer. First is the Pigment-Based Monochrome Black.
Pigment-Based inks are for use with plain paper stock. Plain
paper stocks are desirable because of their low cost but offer
little resistance to water. The second type of black cartridge
available is the Dye-Based Monochrome Black. Dye-Based
inks are formulated for high-gloss and semi-gloss label stock.
Ink Recommended Label Stock
Pigment-Based Monochrome Plain Paper Label Stock
Black PN 53020
Dye-Based Monochrome Semi-Gloss and High-Gloss
Black PN 53336 Paper Label Stock
Mono Ink/ Label Compatibility
NOTE:If you are printing barcodes on your labels it is recommended that
you test your combination of label stock and cartridge to make sure
the barcodes can be read accurately prior to committing to a large
purchase of supplies.
B. INSTALLING LABEL STOCK
Your printer will utilize a wide variety of paper label stock. As
long as the label stock is paper and can receive ink jet printing
and is within the allotted size, it will work in the printer.
Primera carries a large variety of paper label stock that has
been converted and ready for use with your printer.
510910.qxd 9/26/2005 2:32 PM Page 8
TOC
INDEX
Supplies and Driver Settings 9
NOTE: All the stock listed on Primera's supply order sheet is semi-gloss or
gloss and is meant for use with the Dye-Based Black Ink. You can
use other stock if you like. If using plain paper stock, you will
most likely have success with the Pigment-Based Black Ink. It is
recommended that you test your stock and ink combinations before
committing to a large supply purchase.
Other paper label stock may also work properly as long as it is
in specification. Use the following table to identify if a certain
stock is within specification:
Max Roll Core Minimum Maximum Minimum Maximum
Outside Inside Label Label Label Label
Diameter Diameter Width Width Height Height
Inches 6 3 1.5 8.25 .75 24
Millimeters 152.4 76.2 38.1 203.2 19.05 609.6
Label Stock Compatibility Chart

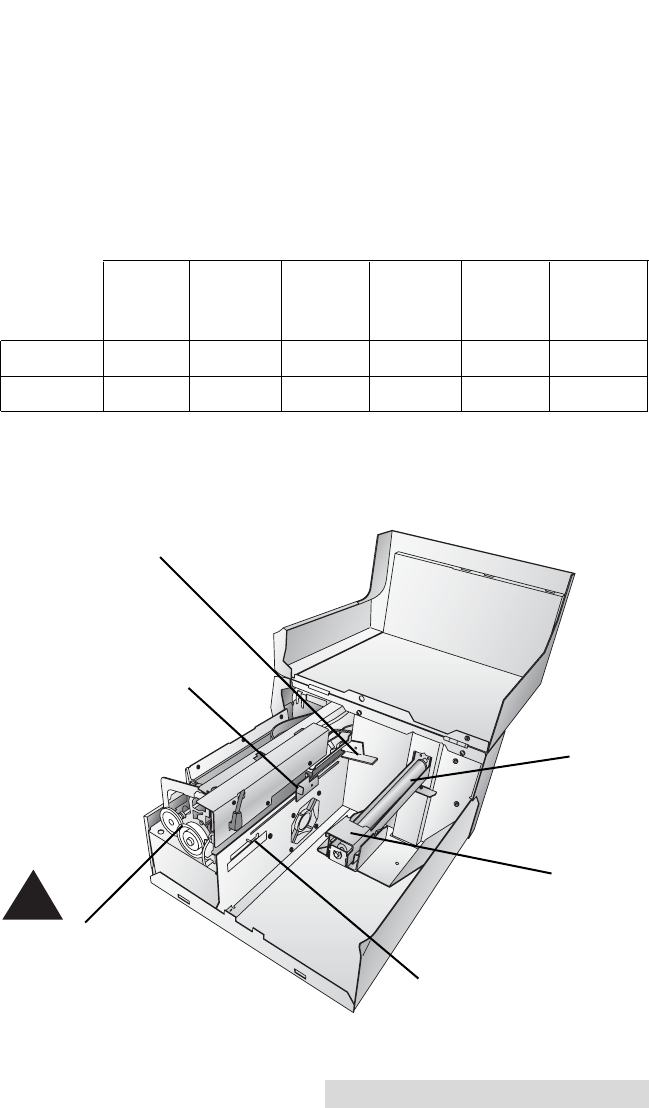

The following illustration shows the internal parts you should
be familiar with when loading stock into your printer:
Roll Arm
Movable Throat Guide
Sensor Position Adjustment
Roll Guide
Fixed Throat Guide
WARNING.
Hazardous moving parts.
Keep fingers and other
body parts away from the
paper-feed gears.
!
510910.qxd 9/26/2005 2:32 PM Page 9
TOC
INDEX
10 Supplies and Driver Settings
Installing Label Stock

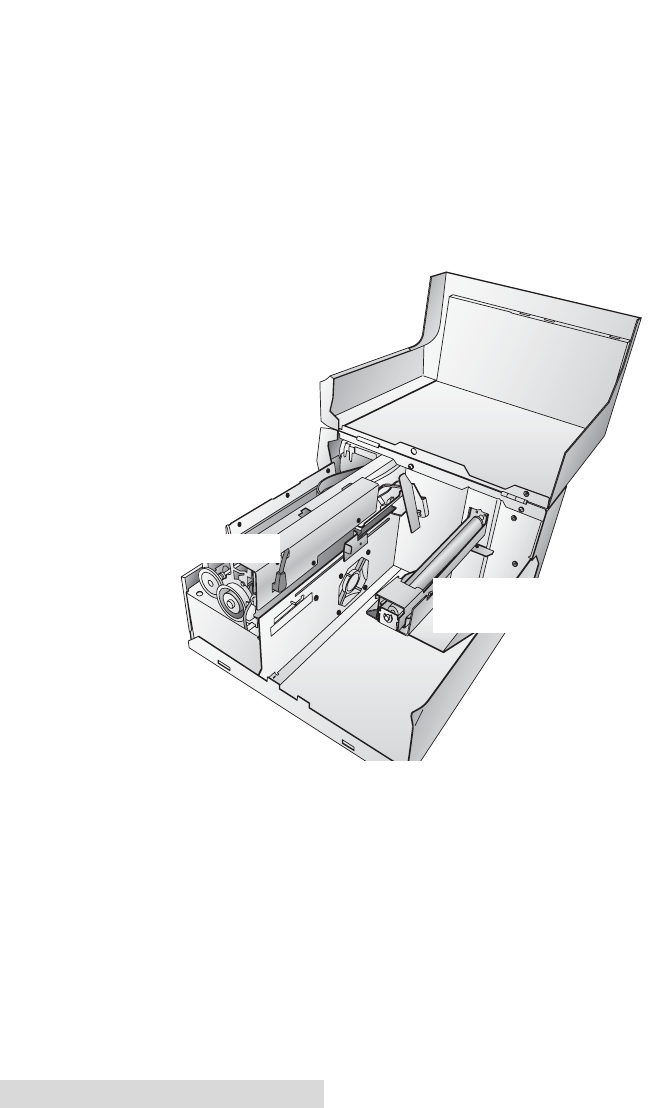

The following steps will guide you through loading label stock
in your printer:
Make sure power is connected and printer is on.
1. Open the Top Cover.
2. Lower the Roll Guide and pull it outward to make room
for your label stock.
3. Pull the Movable Throat Guide outward to make room for
the label stock.
4. Remove any shipping tape from your label stock roll to
ensure that it can unroll freely, making certain that no
adhesive portion is exposed. It is important to note that
any exposed adhesive surface can attach itself the the inner
workings of the print mechanism and cause a media jam.
5. Place your roll of label stock on the Roll Arm and push it
inward until it touches the stop.
6. Flip up the Roll Guide and slide it inward until it touches
the label stock. (The Roll Guide will automatically pull
back slightly to the correct position)
2. Lower the Roll Guide
and Pull it Outward.
1. Open Cover.
3. Pull Throat Guide Out.
510910.qxd 9/26/2005 2:32 PM Page 10
TOC
INDEX
Supplies and Driver Settings 11
7. Place the leading edge of label stock under the
"label stock" symbols on the Throat Guides.
The label stock should be placed far enough into the throat
of the printer to correctly position the Movable Throat
Guide but not yet into the printer itself. The label stock
should be biased against the Fixed Throat Guide.
8. Slide the Movable Throat Guide inward until it almost
touches the label stock. There must be slightly more space
between the Throat Guides than the width of the label
stock. If the label stock is pinched by the guides, poor print
quality or even feeding problems could result.
9. Feed the label stock further into the printer until it senses
the label and automatically feeds it through the printer.
If the printer fails to feed the label stock, press the Feed
button on the front panel while continuing to guide the
label stock into the printer. The printer can sense through-
hole stock as well. If you are using label stock that has a
hole punch to identify a transition from backing to label,
you can adjust the Sensor Position Adjust tab to position it
5. Place label stock
on Roll Arm.
6 Slide Roll Guide
assembly inward.
7. Place the leading edge of the
label stock just past the Throat
Guides, but not into the printer
itself.
8. Slide Throat
Guide inward
until it almost
touches the
label stock.
Label Stock
9. Feed the label stock further
into the printer until it senses
the label and automatically
feeds it through the printer.
510910.qxd 9/26/2005 2:32 PM Page 11
TOC
INDEX
12 Supplies and Driver Settings
over the identifying mark. The Sensor Position Adjust tab
has a guide in inches and milimeters that will help you
identify where to set the tab to align the sensor over any
identifying mark. To do this, simply measure from the cen-
ter of the hole or mark to the edge of the label stock. For
instance, if you have a 1/2 inch hole, which starts 1/4 inch
from the edge of the label stock set the guide to 1/2 inch to
make sure the sensor is in the middle of the through hole.
NOTE: If you are using black stripe sensing label material you will need to
identify this in the printer driver under the Sensor Type setting.
Please refer to section D later in this chapter for more information
on changing driver settings.
12. Now your stock is installed. Please read the following
section to install your cartridges.
1/2”
1”
1/2”
1”
2.5 2.0 1.5 1.0 0.5 0.0 in.
(63.5) (50.8) (38.1) (25.4) (12.7) (0.0) (mm)
Sensor Position Adjustment
Through-hole
Black Stripe
510910.qxd 9/26/2005 2:32 PM Page 12
TOC
INDEX
Supplies and Driver Settings 13
C. INSTALLING INK CARTRIDGES
Your printer has a built-in ink tracking system. This system is
designed to warn you if your ink cartridges are low on ink.
This ensures your labels will print properly and that the
printer can create large batches of labels unattended and
worry-free.
In order to make this system work properly, the cartridges
must be changed using the procedure listed below. Failure
to follow this procedure could result in inaccurate ink level
tracking and could cause your print quality to suffer.
Ink cartridges are changed as follows:
If using a PC:
1. Click Start>Printers and Faxes
2. Right-click on the Color Label Printer Icon
3. Click on Printing Preferences from the drop-down menu
4. Find the option labeled "Clean/Change Cartridges &
Check Ink…" and click "Properties"
5. Click "Change Cartridge(s)"
If using a Mac:
1. Open the Applications - Utilities folder
2 Click on the Printer Setup Utility.
3. Select the Color Label Printer.
4. Click the Utility button on the menu bar.
5. Click the Change Cartridge button.
For Macintosh and PC:
6. Open the Top Cover of the printer
7. The Cartridge Carrier will align itself to the center of the
print area.
8. Press the Cartridge Cover Release to open the Cartridge
Holder
9. Replace/install the cartridge
10. Push cartridge cover downward until it snaps in place.
510910.qxd 9/26/2005 2:32 PM Page 13
TOC
INDEX
14 Supplies and Driver Settings
11. Click OK on your screen to indicate the new cartridge is
now installed. Once you click OK you will be prompted to
align the cartridge. The printer will automatically align the
cartridge for you as follows:
a. For Alignment you will need to have installed label
stock that is equal to or larger than 4" x 4"
(101.6 mm x 101.6 mm). If your stock meets this
requirement, skip to step d.
b. If your installed stock is smaller than 4" x 4", unload
your current stock by pressing the Unload button. The
printer will reverse the label stock so that it can be
removed from the printer.
c. Load a sheet of paper, not to exceed 8.25 inches or 209
millimeters in width, by first pulling the Throat Guide
all the way out, then placing it In the feed area, once
the printer senses the page it will pull it into place.
d. Click OK.
123
510910.qxd 9/26/2005 2:32 PM Page 14
TOC
INDEX
Supplies and Driver Settings 15
e. The printer will print the alignment test and scan it
into memory. Once the alignment is complete you will
see a confirmation dialogue box on your monitor.
Click OK. You have successfully installed the ink
cartridges.
D. PRINTER DRIVER SETTINGS
Once the printer driver has been successfully installed, you
will need to set the driver up with the appropriate print
options. Refer to the following steps to change or verify your
printer driver options:
To find Driver Settings on a PC:
1. Click the Start button, then click Printers and Faxes.
Right-click on the Color Label Printer Icon and select
Printing Preferences from the drop-down menu.
510910.qxd 9/26/2005 2:32 PM Page 15
TOC
INDEX
16 Supplies and Driver Settings
NOTE on PC Settings:
Most applications allow you to change these same printer driver
options from their "Print" and/or "Printer Setup" screens. This
means that you don't have to go back to the main printer setup
window each time you want to change a setting or option in the
printer driver. These applications will usually give you the same
choices and options, but in a slightly altered format. Most applica-
tions do not save your printer driver option changes, but instead
only use your changes for the current image.
To find Driver Settings on a Mac:
Click Print from within any printing application. The
following screen will appear:
Click the Copies and Pages drop down arrow. Choose Label
Printer Settings.
510910.qxd 9/26/2005 2:32 PM Page 16
TOC
INDEX
Supplies and Driver Settings 17
The following options are present in both the PC and
Mac drivers:
Label Size
This option is set to Custom as a default. Even though you can
click Properties and key in the dimensions of your label, this is
best done from your labeling software. It is recommended that
the Label Size setting is left to "Custom".
Orientation
There are two settings for orientation, Portrait and Landscape.
If your text and graphics print left to right or as shown on the
screen, select portrait . If you wish your printing to rotate 90
degrees from what you see on the screen so it is printing
horizontally, select landscape as your orientation.
Portrait Landscape
Print Quality
There are 6 levels of print quality in the driver. The lower the
Quality, the faster the print. Quality 1 provides the fastest
print available while Quality 6 provides the best photo quality.
It is recommended that you experiment with the different
levels when designing your label to find a good balance
between print quality and print speed.
Color Matching.
Best for Graphics mode is best used for graphical images
where accurate color reproduction is not as essential. Images
printed in this mode will look more vibrant because more ink
is being used to produce them. However, printing images of
people may produce skin tones that have a reddish tint.
510910.qxd 9/26/2005 2:32 PM Page 17
TOC
INDEX
18 Supplies and Driver Settings
Best for Photos mode is best used for photographic images
where accurate color reproduction is very essential. Images
printed in this mode will look lighter than those printed in
Photo mode. Skin tones especially will look more natural in
this mode.
NOTE: Exact color matching of the printed labels to the screen may never be
possible since there are factors that affect this out of the drivers con-
trol. The surface of the label reacts with the ink in the cartridge to
produce the color. For this reason, when printing the same image to
different types of labels with different surfaces the printed output can
look entirely different.
Ink Saturation
This option controls the amount of ink used when printing an
image. The default setting is 100%, which will provide the
most accurate color matching. If the ink is not drying fast
enough or bleeding, you can decrease the Ink Saturation to
lessen the amount of ink that is applied to the label.
Left Margin Offset
This will be factory calibrated. If fine tuning is needed, increase
this setting to move the image right on the label; decrease this
setting to move the image to the left on the label. The unit of
measure is 0.1mm.
On a Mac the following settings can be found by clicking
the Config. Utility button.
Cartridge Alignment
Cartridge alignment will align the Black Cartridge to the Color
Cartridge. You will automatically be prompted to perform this
alignment each time you install a new cartridge. If you find
that the black objects are not aligning properly with color
objects on your label you can run the alignment procedure
from the printer driver. Click on Cartridge Alignment and
you will see a Properties button. Press this button to start the
Alignment procedure. You will be prompted to have label
stock of 4"x4" (101.6mm x 101.6mm) or larger. If the loaded
stock does not meet this requirement it can be unloaded by
pressing the Unload button. Insert larger stock or feed a
510910.qxd 9/26/2005 2:32 PM Page 18
TOC
INDEX
Supplies and Driver Settings 19
sheet of paper (no wider than 8.25 inches or 209mm) into the
print area then click OK to continue. The printer will print an
alignment pattern then scan that pattern into memory auto-
matically. Once it has finished you will see a dialog box
stating that alignment values have been saved.
Clean/Change Cartridges & Check Ink Levels
Click this setting and you will see a Properties button. Click
Properties and you will see the ink levels as well as buttons
allowing you to either clean or change your ink cartridges.
Clean/Purge
If it has been more than 48 hours since your last print or if your
print quality has deteriorated with bands or lines it is
recommended that you clean the cartridges. This is done by
clicking the Clean/Purge button. The Clean Purge is done
as follows:
a. You will be prompted to load label stock of 4"x 4"
(101.6 mm x 101.6mm) or larger, into the printer. If you
have stock of this size or larger, simply click OK.
b. If not, press the Unload button found on the front of
the printer simultaneously to reverse the stock out of
the print feed mechanism. Load a sheet of paper, not
to exceed 8.25 inches or 209 millimeters in width, into
the feed mechanism by pulling the Throat Guide all
the way out to make room for the paper then
inserting a sheet into the print feed area.
510910.qxd 9/26/2005 2:32 PM Page 19
TOC
INDEX
20 Supplies and Driver Settings
Once the sensor "sees" the paper it will automatically
feed it into position and will begin to print.
c. The printer will print a purge pattern where swaths of
each color are printed to clean the jets of the cartridge.
A series of diagonal lines are printed in each color of
both cartridges. By examining this pattern you can tell
if the cartridge is firing all jets or if the cartridge is
dirty and requires further cleaning. While the blocks
of color may not print solidly, it is important that the
diagonal lines be continuous. Repeat this process until
all diagonal lines print without breaks.
Change Cartridge(s)
Click the Change Cartridge(s) button to move the cartridges
into position for easy access for replacement. For more
information on this see Section 2-C. When installing
cartridges you will be prompted to align your cartridges
as described earlier in this section.
Sensor Type
Sensor Type refers to the method the printer will use to center
the print image on your label material. If you are using
standard die-cut labels or Through-hole label material where a
hole is punched through each label for alignment purposes use
the Through-hole/Die-Cut setting. Use Reflective for black
stripe sensing label material where a pre-printed line indicates
the break between labels. If you have continuous stock with
no die-cut or reflective mark, set the sensor type to
Continuous.
Rewinder Mode
This defaults to No. When set t no, the printer will align your
labels with the tear off bar for easy removal. This mode can be
set to Yes when using the printer with an automatic rewinder.
510910.qxd 9/26/2005 2:32 PM Page 20
TOC
INDEX
Supplies and Driver Settings 21
TOF Offset
TOF stands for Top of Form and this setting allows you to fine
tune the alignment of your printing on your label stock. This
will be factory calibrated. If fine tuning is needed, increase this
setting to move the image down on the label. The unit of
measure is 0.1mm.
Tear Off Offset
If Rewinder Mode (described earlier in this section) is set to No,
the printer will present your labels over the Tear Bar for easy
removal. This is set at the factory. If fine tuning is needed to
align the break in your label stock over the Tear Bar, increase
this setting to eject the label further; decrease this setting to
eject the label stock less. The unit of measure is 0.1 mm.
510910.qxd 9/26/2005 2:32 PM Page 21
TOC
INDEX
22 Using the Printer
Section 3: Using the Printer
A. USING NICELABEL
Your printer ships with a basic version of Niceware's NiceLabel
software. This easy-to-use software is designed to allow you
to create full color labels with text and barcodes quickly and
simply. The following is a tutorial to guide you through
creating and printing a sample label.
Launch NiceLabel from your computer's Start Menu. Take a
moment to familiarize yourself with the NiceLabel Main
Application Window. This will help you navigate the features
of this program.
Main Application Window
Creating a label
1. Click the New Label Icon from Main Tool Bar
2. You will see the Label Setup Wizard. This will guide you
through setting up your label
Main Menu Bar
Document Window
Tool Box Bar
Main Tool Bar
510910.qxd 9/26/2005 2:32 PM Page 22
TOC
INDEX
Using the Printer 23
a. Set the dimensions of your label and unit of measure
and click Next.
b. Select your printer. This should be the Color Label
Printer. Click Finish.
510910.qxd 9/26/2005 2:32 PM Page 23
TOC
INDEX
24 Using the Printer
3. Now you will see your label in the Document Window.
You can start to design your label using Tools from the
Tool Box. First, we will use the Text Tool.
Text Tool Icon Text Cursor
a. Click the Text Tool Icon in your Toolbox, then move the
text cursor over the Document Window and click in
the location where you want to enter text. There is no
need to be exact, once you enter your text it can easily
be resized and/or moved about the label. Upon click-
ing in the Document Window, you will see a prompt to
start typing your text.
b. When finished typing, click anywhere in the
Document Window and you will see the text appear in
a box with "edit handles". You can drag and resize the
text anywhere in the document window. If the text is
dragged off of the printable area, NiceLabel will turn
the text red as a warning. This will not change the
color the text prints out as when sent to the printer but
is only used as a warning to let you know you may not
be printing the full text on your label.
510910.qxd 9/26/2005 2:32 PM Page 24
TOC
INDEX
Using the Printer 25
4. Now, insert a barcode.
BarcodeTool Icon Barcode Cursor
a. Click the Barcode Tool Icon from the Toolbox. You will
now have a Barcode Cursor that can be positioned
anywhere within the Document Window. Position
your cursor in the general area where you wish your
barcode to print and click to start entering your
barcode information. There is no need to be exact,
once you create your barcode it can easily be moved
and/or resized. Once clicked, you will see the Barcode
Wizard.
b. The first screen in the Barcode Wizard will allow you
to select the type of Barcode you wish to print. You
can also enter the data to be used in the barcode. For
this we are doing a simple UPC-A barcode. For more
information on other types of barcodes, please see
Section 3-B. Creating Barcodes in NiceLabel.
510910.qxd 9/26/2005 2:32 PM Page 25
TOC
INDEX
26 Using the Printer

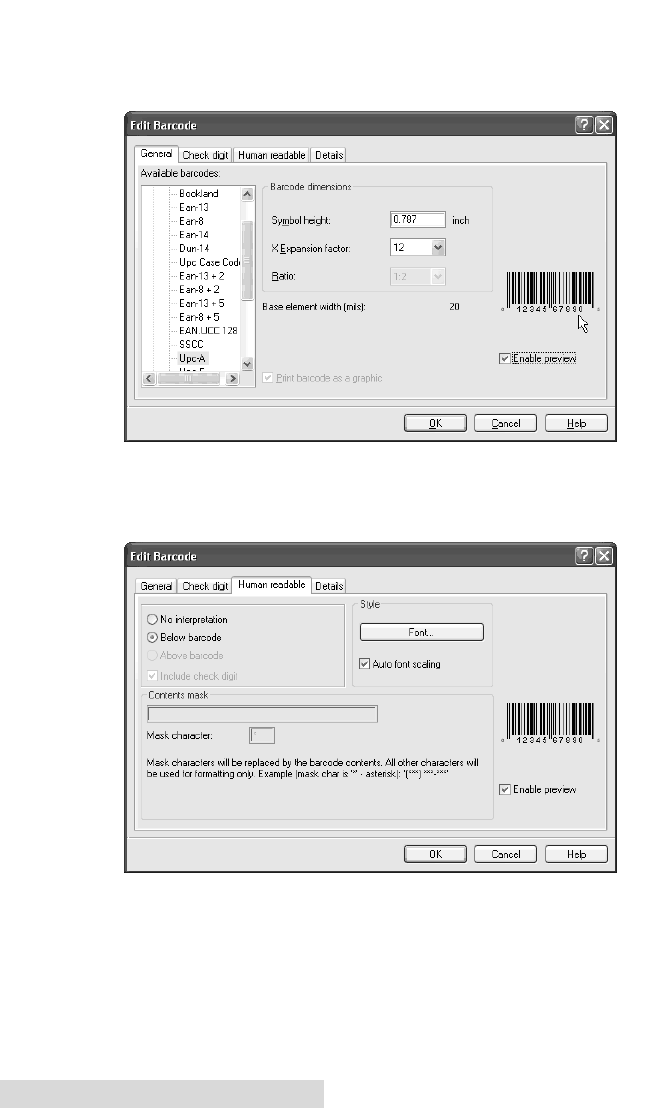

c. Click Define to change the type of Barcode or to make
changes to the options associated with your particular
type of barcode. You will also want to set the Symbol
Height and X Expansion Factor
d. Click the Human Readable tab to change the font that
prints under your barcode
510910.qxd 9/26/2005 2:32 PM Page 26
TOC
INDEX
Using the Printer 27
e. Click OK, then click Finish and your Barcode will be
placed on your label with "Edit Handles" to allow you
to move and resize your barcode.
Graphics Tool Icon Graphics Cursor
5. Now insert a graphic. Click on the Graphics Tool Icon in
the toolbox. You will now see a Graphics Cursor. Drag the
cursor to the general area where you wish to place the
graphic and click to get an Open dialog box. You will be
prompted to browse for graphic files. NiceLabel will
accept bitmap graphics formatted as BMP, JPG, TIF, WMF,
PNG and many more.
510910.qxd 9/26/2005 2:32 PM Page 27
TOC
INDEX
28 Using the Printer
a. Click Open and the graphic will be imported with
edit handles so you can easily move and resize your
graphic.
b. There are other tools at your disposal to align the
object or add shapes. On the right side of the screen
you will see alignment tools so you can align the
objects on your label in relation to each other. Select
objects by clicking on them or clicking and dragging
a "lasso" around multiple objects or by holding
down the SHIFT key and clicking on each object
individually. You can also center these objects by right
clicking on a selected object and choosing Align from
the drop-down menu. If you wish to center your object
on the label choose the appropriate centering options
and check the Align to Label checkbox.
510910.qxd 9/26/2005 2:32 PM Page 28
TOC
INDEX
Using the Printer 29
c. You are now ready to print your label. Click File then
Print from the main menu. Choose your number of
copies and click OK.
Congratulations! You have successfully created and printed
your first label. The rest of this section will explain in more
detail how to use barcode labels. Also, you can find more tips
and hints by simply clicking Help then Contents in the main
menu.
B. CREATING BARCODES IN NICELABEL
Barcode Tool Icon Barcode Cursor
a. Click the Barcode Tool Icon from the Toolbox.
b. You will now have a Barcode Cursor that can be posi-
tioned anywhere within the Document Window. Position
your cursor in the general area where you wish your bar-
code to print and click to start entering your barcode infor-
mation. Once clicked, you will see the Barcode Wizard.
i. The first screen in the Barcode Wizard will allow you
to select the type of Barcode you wish to print. You
can also enter the data to be used in the barcode.
510910.qxd 9/26/2005 2:33 PM Page 29
TOC
INDEX
30 Using the Printer
ii. Click Define to change the type of Barcode.
iii. This contains four tabs, General, Check Digit, Human
Readable and Details.
iv. The General Tab (shown on page 27) allows you to
choose the appropriate barcode type from the
Available barcodes: menu. You can choose one- or
two-dimensional barcodes. Note that different
barcode types have different requirements - some of
them only allow numbers to be encoded, while others
only allow upper case characters. For the further help
on the barcode types contact your supplier
510910.qxd 9/26/2005 2:33 PM Page 30
TOC
INDEX
Using the Printer 31
Available barcode types are listed here:
EAN and UPC EAN-8, EAN-8 + 2-digit supplement, EAN-8 + 5-digit
supplement, EAN-13, EAN-13 + 2-digit supplement,
EAN-13 + 5-digit supplement, EAN-14, DUN-14, UPC
Case Code, UPC-A, UPC-A + 2-digit supplement,
UPC-A + 5-digit supplement, UPC-E, UPC-E + 2-digit
supplement, UPC-E + 5-digit supplement, EAN.UCC
128, SSCC, Bookland, Addon 2, Addon 5
Linear Interleaved 2 of 5, ITF 14, ITF 16, Code 39, Code 39 Tri
Optic, Code 39 Full ASCII, Code 32, Code 93, CODE 128
(A, B and C subsets), MSI, Codabar, Postnet-32,
Postnet-37, Postnet-52, Postnest-62, Kix, Pharmacode
RSS Linear RSS symbologies
RSS14, RSS14 Truncated,
RSS14Stacked, RSS14 Stacked Omnidirectional, RSS
Limited, RSS Expanded
Composite RSS
symbologiesRSS14, RSS14 Truncated, RSS14 Stacked,
RSS14 Stacked Omnidirectional, RSS Limited, RSS
Expanded, UPC-A, UPC-E, EAN-8, EAN-13, EAN.UCC
128 & CC-A/B, EAN.UCC 128 & CC-C
2D Barcodes 2D-Pharmacode, PDF-417, DataMatrix, MaxiCode,
Aztec, QR, Micro QR, Codablock F, MicroPDF
Define the barcode dimensions in the Barcode Dimensions
Field. The height is set in cm by entering the appropriate
number in the Symbol Height Field. The width of the barcode is
set as the X Expansion factor. Note that the width can be set
only in pre-defined standard steps.
When you change the barcode dimension directly from the
screen by moving the drag handle, the changed dimension will
also appear in this dialog box.
Some of the barcode types also allow the definition of Narrow-
to-wide bar ratio. It can only be set from the predefined steps in
the pull-down menu - 1:2, 1:3 or 2:5.
Base element width (mils) is calculated automatically from the X
expansion factor.
v. The Check Digit Tab will allow you to include a system
automated check digits or enter your own. Check digits can
be disabled on some barcodes from this tab as well.
510910.qxd 9/26/2005 2:33 PM Page 31
TOC
INDEX
32 Using the Printer
vi. The Human Readable Tab allows you to manipulate the
human readable text printed with your barcode. Here you
can disable Human Readable, select position (above or
below the barcode), include a check digit, and choose your
font type and scaling.
vii. The Details Tab allows you to set some further details of
the barcode presentations on the printer. These settings are
listed here:
Include Quiet Zones will enable the software to automati-
cally create the necessary amount of free space before and
after the barcode symbol by drawing an unprintable buffer
area around the barcode symbol on the screen.
Descender Bars allows EAN 13, EAN 8, UPC A and UPC E
to print longer first, middle and last bars when this option
is selected.
Mirror Horizontally will allow the barcode to be printed
as a graphic and will so it can be mirrored over the
horizontal axis.
Mirror Vertically allows the barcode to be printed as a
graphic so it can be mirrored over the vertical axis.
Intercharacter Gap: Some barcodes allow you to change
the gap between characters in the barcode (e. g. Code-39).
The barcode prints as a graphic.
Include EAN white space: A special character is inserted
before and/or after the barcode. It indicates the width of
the barcode. If you place any other object in the extent of
the barcode, it will reduce the readability of the barcode.
This option is valid for EAN barcode types.
510910.qxd 9/26/2005 2:33 PM Page 32
TOC
INDEX
Using the Printer 33
C. PRINTING ON A MAC FROM ADOBE ILLUSTRATOR
1. Create your document using the File - New command. Set
your Width and Height to correspond with the label stock
installed in the Printer.
2. Once your document is created and ready to print go to
File - Print. The following screen will appear. Before doing
anything else, click the Printer button to change the print
quality settings for this print. Click here for more informa-
tion on Print Settings.
510910.qxd 9/26/2005 2:33 PM Page 33
TOC
INDEX
34 Using the Printer
3. The printer settings screen defaults to Copies and Pages.
Click the drop down arrow to change the screen to Label
Printer Settings.
4. Change your printer settings to the desired quality.
510910.qxd 9/26/2005 2:33 PM Page 34
TOC
INDEX
Using the Printer 35
5. Click Print to return to the print preview screen. Now click
Page Setup to change the label size set in the printer driver.
6. The paper/label size defaults to 4x6 or whatever was
last used.
510910.qxd 9/26/2005 2:33 PM Page 35
TOC
INDEX
36 Using the Printer
7. Click on the drop down arrow to select a predefined label
size or create a custom size by clicking Manage Custom
Sizes. For this example there is no 5.5 x 4 label predefined
so the following step will explain how to create a custom
size.
8. To create a custom size click the + below the list of
custom sizes already created. Change the page size to
correspond with the stock installed in the printer. Set the
Printer Margins to Color Label Printer or modify them
accordingly. Click OK.
510910.qxd 9/26/2005 2:33 PM Page 36
TOC
INDEX
Using the Printer 37
9. If you have created a custom size you will need to choose
it again here by clicking the drop down arrow and
choosing the custom size. Click OK.
10. You are now ready to print your label. Make sure the
number of copies is set. Also, check the orientation. The
label shown on the preview screen is how your label will
print. Make sure there is no white space around the label.
If there is white space you may have to change the
orientation. Click Print to print your label.
510910.qxd 9/26/2005 2:33 PM Page 37
TOC
INDEX
38 Using the Printer
NOTE: You must set the Printer and Page Setup by clicking on these
buttons each time you print. You must perform these steps each
time you print even if what you see on the preview screen appears
correct.
D. CREATING BARCODES ON A MAC
You can integrate barcode printing into any application that
can print to the printer by using Mac Barcode Maker. Mac
Barcode Maker can be purchased from their website at
www.barcodeformac.com
This application was tested using Adobe Illustrator. Follow
the instructions that are included with the application to use
it with your program. Their website does offer a fully func-
tional trial version which integrates an "EVAL" stamp into all
of the barcodes it produces. Buying the application will cause
the "EVAL" stamp to be removed.
Other barcode integration software is available but was not
tested for compatibility with the printer.
E. PRINTING FROM OTHER APPLICATIONS
Because the printer installs as a standard Windows or
Macintosh printer driver, it will print from virtually any
Windows 2000/XP or Macintosh OS 10.x application. All you
will need to do is create a custom page size the equivalent of
your label stock size with margins set to "0". Then create
your label and click File > Print. Select the Color Label
Printer as your printer and select the number of copies. Click
OK and your printer will print your labels.
510910.qxd 9/26/2005 2:33 PM Page 38
TOC
INDEX
Troubleshooting and Maintenance 39
Section 4: Troubleshooting and
Maintenance
A. CLEANING THE PRINTER
It may be necessary to clean the ink cartridge nozzles if the your
labels are printing with horizontal banding or if you suspect an
ink cartridge nozzle has become slightly dried out or clogged.
Refer to the cleaning procedure explained within the Clean/
Purge description of Section 2-D to clean the cartridge nozzles.
If any ink has gotten on to the printer casing itself, the case of the
printer can be cleaned with an ammonia based window cleaner
and a lint-free cloth.
Over time, ink overspray may gather at the base of the printer.
The printer is designed using a vacuum system to gather most of
this ink on a series of saturation pads. Eventually, these pads
may need to be replaced. Contact tech support to determine if
pad replacement is necessary. An ink pad replacement kit is
available. (Part Number 074220)
B. BASIC TROUBLESHOOTING
Generally, when a malfunction or an abnormal condition occurs,
the "PAUSE " LED will keep blinking repeatedly and printing and
communication between the host PC and the
printer will cease.
After the problems have been solved, press PAUSE to clear the
error and continue printing. Here is a general guide to some
common error conditions:
Possible
Problems Indicator Solutions Remarks
Missing gap Printer ejects media • Check Media Path Refer to section 2-B
or can not find the • Check Position of for proper installation
start of the label, sensor of label stock
then times out with
flashing "PAUSE" LED
Image printing Label is not feeding • Check media path Refer to section 2-B
off center or off straight, images • Check throat guide for proper installation
the edge of the look misaligned and roll guide of label stock
label
510910.qxd 9/26/2005 2:33 PM Page 39
TOC
INDEX
40 Troubleshooting and Maintenance
Possible
Problems Indicator Solutions Remarks
Out of label Fast flashing • Install new label Refer to section 2-B
stock "PAUSE" LED · stock/media for proper installation
of label stock
Out of ink Steady lit "LOW INK" • Replace ink · Refer to section 2-C
and "PAUSE" LED cartridges for proper installation
and/or poor print • Perform alignment · of ink cartridges
quality • Perform cleaning
Media/label Printer stalls, labels • Press UNLOAD to Refer to section 2-B
stock jam appear damaged, reverse media for proper installation
and "PAUSE" flashes • Be sure to clear and of label stock
quickly labels from inside of
printer especially in
the print path
• Load new media
C. TECHNICAL SUPPORT
If you have difficulty operating your Color Label Printer, the
procedures in this manual should, in most cases, solve the
problem. If you still have difficulty, contact Primera's Technical
Support Department. You can reach tech support by phone,
fax, email or mail at the following:
Primera Technology
Technical Support Department
Two Carlson Parkway North
Suite 375
Plymouth, MN 55447-4446
Phone: 763-475-6669
Fax: 763-475-6998
Email: support@primera.com
Web: www.primera.com
Live phone support is available Monday through Friday, 8 AM to
6 PM, Central Standard Time. Email support is available 7 days a
week. A Knowledge Base containing answers to many common
problems is also available for free 24 hours a day at
www.primera.com/knowledgebase.html
510910.qxd 9/26/2005 2:33 PM Page 40
TOC
INDEX

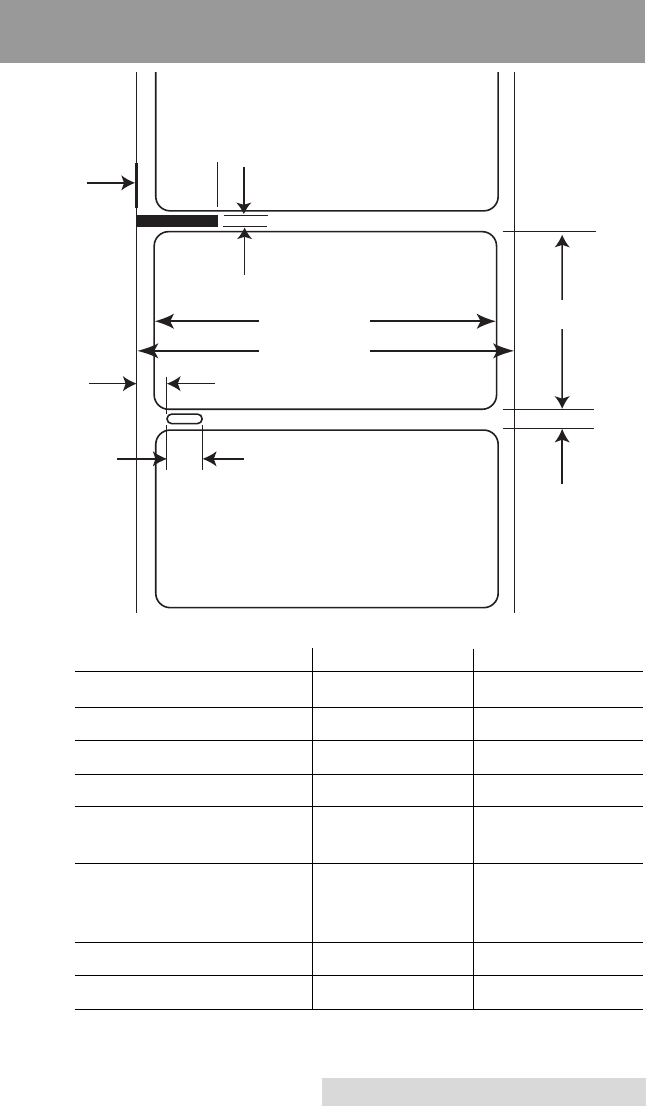

Label Specifications 41
Media Width
Distance from edge of Media
Label Height
Gap
Between
Labels
Width of Opening
Label Width
Through-
hole
(Optional)
Stripe Width
Stripe
Length
Black Stripe
Section 5 : Label Specifications
Max Min
Label width 8.25" (210mm) 0.75" (19mm)
Media width 8.5" (215mm) 1.5" (38mm)
Label height/length 24" (609.6mm) 0.75" (19mm)
Gap between labels 10" (253mm) 0.10 (2.5mm)
Width of through-hole 0.5" (12.65mm) 0.25" (6.325mm)
opening
Distance from edge of 2.25" (57mm) 0.20" (5.06mm)
media to edge of
through-hole
Stripe/Eyemark Width* 0.1" (2.54mm)
Stripe/Eyemark Length 8.25 (210mm) 0.425(10.8mm)
*The Stripe/Eyemark should be opaque to infared light.
510910.qxd 9/26/2005 2:33 PM Page 41
TOC
INDEX
42 Technical Specifications
Section 6 : Technical Specifications
Print Method: Inkjet
Print Resolutions: 4800 x 1200 dpi, 1200 x 1200 dpi, 600 x 600 dpi
Print Speeds: Approximately 2" (51mm) per second
for black
Approximately 1.5" (38mm) per second for
color + black
Approximately 10" per second feed rate
Ink Cartridges: #53335 Color (CMY)
#53336 Black Dye-Based (Kd)
#53020 Black Pigment-Based (Kp)
Colors: 16.7 million
Media Types: Roll-fed pressure-sensitive labels, roll-fed tags
Media Sensing: Moveable see-through sensor for die-cut
labels and reflective for tags with black
stripe sensing
Supply Roll: 6" (152mm) maximum diameter on
3" (76mm) core
Ink Level Warning: Calculates actual number of prints remaining
based upon ink usage of graphics being
printed (patent-pending)
Indicator Lights: Power, Pause, Ink
Controls: Pause, Load/Feed, Unload
Operating Systems: Windows XP/2000
Data Interface: USB 1.1/2.0
Minimum System: Pentium® IV computer or better, 512MB
RAM, 5GB free hard drive space,
USB 1.1/2.0 port
510910.qxd 9/26/2005 2:33 PM Page 42
TOC
INDEX
Technical Specifications 43
Label Design NiceLabel™ ME Primera Edition included.
Software: Can also be used with most other popular
Windows-based label design software
programs
Electrical Rating: 12VDC, 3.0A
Power Requirements: 100-240VAC, 50/60 Hz, 60 watts
Certifications: UL, UL-C, CE, FCC Class B
Weight: 29 lbs. (13.2 Kg)
Dimensions: 17"W x 9.1'H x 15.5"D
(432mmW x 231mmH x 394mmD)
Warranty: One year, parts and labor
510910.qxd 9/26/2005 2:33 PM Page 43
TOC
INDEX
44 Index
Index
Alignment Tool...............................................................................28
Applying Power................................................................................5
Available Barcode Types in NiceLabel ......................................31
Barcode Wizard ........................................................................25, 29
Cartridge Alignment .....................................................................18
Check Digit Tab..............................................................................31
Clean/Purge Ink Cartridges .........................................................19
Details Tab.......................................................................................32
Dye-Based Monochrome Black.....................................................8
Dye-Based Ink ..................................................................................8
General Tab .....................................................................................30
Gloss/Semi-Gloss Label Stock ......................................................8
Human Readable Tab..............................................................26, 32
Importing Graphics .......................................................................27
Ink Low LED.....................................................................................3
Ink Saturation.................................................................................18
Installing Ink Cartridges..............................................................13
Installing Label Stock...............................................................8, 10
Installing the Driver and Software ..............................................5
Label Size ........................................................................................17
Label Stock Compatibility .............................................................9
Label Tear Bar ...................................................................................3
Left Margin Offset.........................................................................18
Load/Feed Button .............................................................................3
Movable Throat Guide .................................................................10
Orientation ......................................................................................17
Pause LED..........................................................................................3
Pigment-Based Monochrome Black .............................................8
Pigment-Based Ink ..........................................................................8
Power LED.........................................................................................3
Print Quality ...................................................................................17
Printer Driver Settings..................................................................15
Printing ......................................................................................33, 38
Roll Arm ..........................................................................................10
Roll Guide .......................................................................................10
510910.qxd 9/26/2005 2:33 PM Page 44
TOC
Index 45
Sensor Position Adjustment ........................................................11
Sensor Type .....................................................................................20
Rewinder Mode..............................................................................20
Tear Off Offset................................................................................21
TOF Offset.......................................................................................21
Troubleshooting .............................................................................39
Unload Button ..................................................................................3
Using NiceLabel.............................................................................22
510910.qxd 9/26/2005 2:33 PM Page 45
INDEX
Printed in the United States of America
P/N 510910
510910.qxd 9/26/2005 2:33 PM Page 48

Navigation menu
