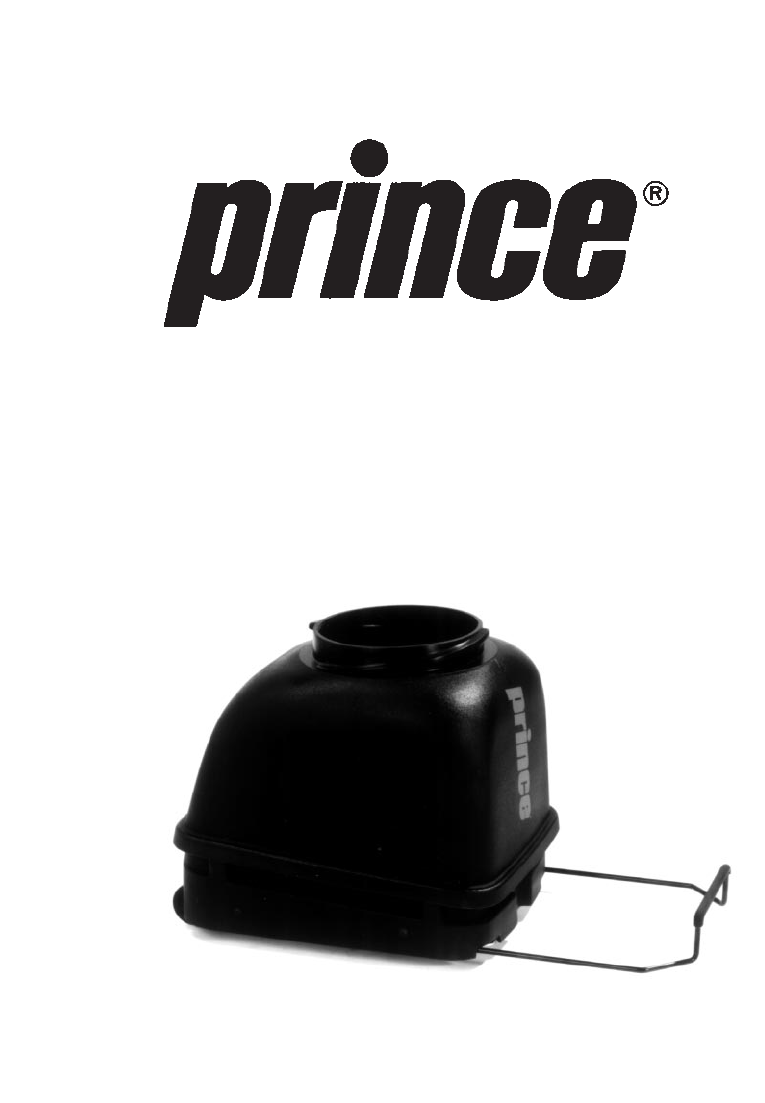

Portable Tennis Ball Machine

Owner’s Manual

OWNER’SMANUAL FOR YOUR

PRINCE®TENNIS BALL MACHINE

Table of Contents

General Overview.......................................................................1

Important Safety Information .....................................................1

Important Instructions Before First Use......................................2

Battery Preparation .................................................2

Ball Hopper Preparation..........................................2

Alignment................................................................3

Ball Feed Instructions..............................................3

Operation (Model #1).................................................................4

Operation (Model #2).................................................................5

Operation (Model #3).................................................................6

Operation (Model #4).................................................................7

Battery Instructions.....................................................................8

Practice Settings.........................................................................8

Transporting ...............................................................................9

Storage.......................................................................................9

Maintenance...............................................................................9

Troubleshooting .......................................................................10

Optional Accessories................................................................11

Court Equipment......................................................................12

Warranty Registration...............................................................13

Warranty Information................................................................13

GENERAL

OVERVIEW OF THE

PRINCE®TENNIS

BALL MACHINE

The Prince®ball machine manufactured

by Master Sports is a portable, compact,

self-contained unit designed to be

easily handled, transported and stored.

Manufactured from the same material

used in high grade luggage, the Prince®

ball machine is virtually indestructible. The

exterior is weather and corrosion resistant.

Scientifically engineered and designed,

the Prince®ball machine was developed

and tested through the combined efforts

of some of the worlds foremost interna-

tional tennis authorities.

TESTING PROCEDURES:

To ensure customer satisfaction every

Prince®Tennis Ball Machine is tested as

follows:

• Battery is checked and tested to

ensure superior quality.

• Three hoppers of balls are run through

the machine.

• The machine is cleaned and boxed.

Note:

There may be some residual ball

fuzz in your machine as a result of testing.

IMPORTANT

SAFETY

INFORMATION

The Prince®ball machine is specifically

designed to throw tennis balls at a high

rate of speed. To avoid any bodily harm,

please observe the following precautions

at all times:



!

WARNING:

Do not reach or look into

the ball throwing opening without first

turning main power off and only after

all wheels come to a complete stop.



!

WARNING:

Do not place hands or

foreign objects into the ball hopper

while power is on.



!

WARNING:

Never stand closer than

35 feet in front of the ball machine when

power is on. Balls exit at various angles,

0-45 degrees vertical, 14 degrees left,

and 14 degrees right.



!

WARNING:

Use caution with small

children in the area.



!

WARNING:

Only use regulation-sized

tennis balls with this unit. Do not use

oversized tennis balls.



!

WARNING:

Do not use this machine in

the rain or standing water on the court.

1

IMPORTANT INSTRUCTIONS BEFORE

FIRST USE

Battery Preparation

Before first use, the internal battery should be fully charged. Please refer to page 8 for

battery charging instructions.

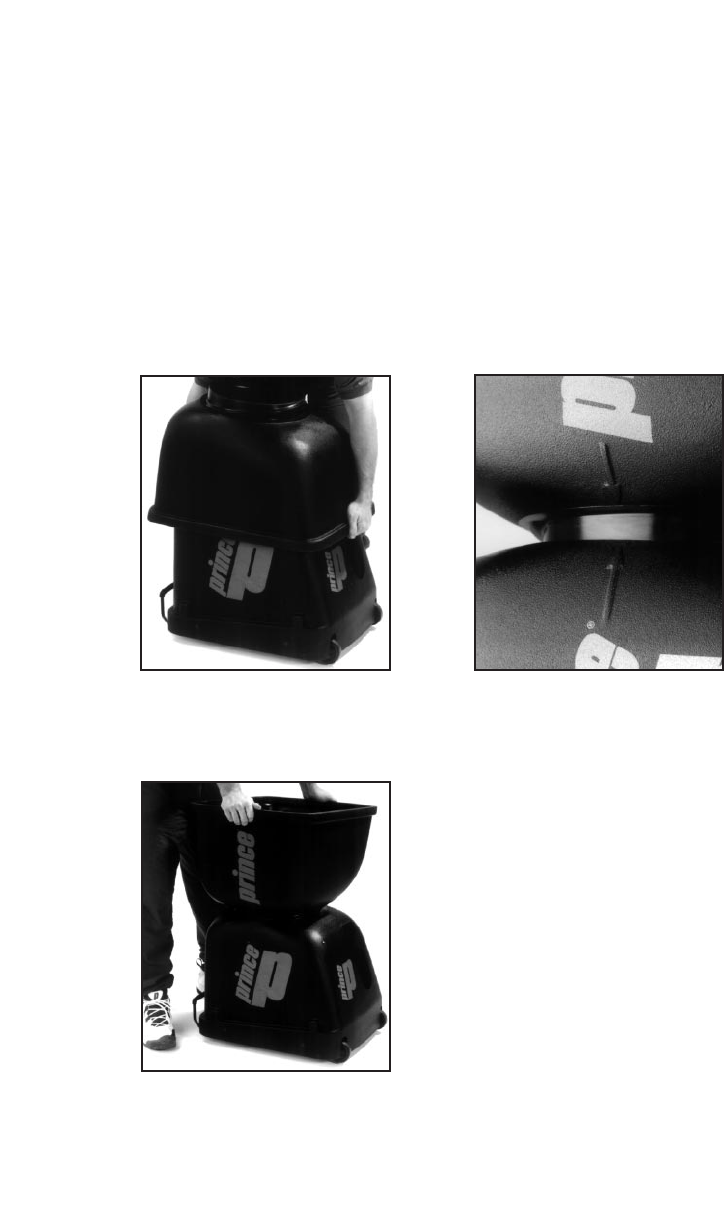

Ball Hopper Preparation

The ball hopper slides over the machine for compact storage. Follow these steps to

prepare the Prince®ball machine for play.

Remove the hopper.

1.

3. 4.

Turn the hopper over and

engage threads. Align arrow

on hopper with arrow on base.

2.

Fill the Prince® ball machine with

tennis balls. Making sure no

one is standing in front of the

machine, press the power switch

on. Adjust the feed, elevation,

sweep or spin to the desired

positions (see your Model

operation instructions for more

information).

Turn hopper 90° to lock in place

(clockwise).

2

Alignment

To align machine so that it is centered

to shoot equal distance to forehand

and backhand:

• Lift handle and look on underside

of machine.

• Turn sweep on until lines match.

• Set machine in position on serving

line with ball exit hole directly over

center line.

Ball Feed Instructions

For safety reasons the ball feed will

not activate when the machine is first

powered on.

MODEL #1, 2, & 3:

After the

machine is powered up for 15 seconds,

the feed control knob must be turned to

the O (off) position and then back on to

the desired feed rate (the ball feed will

start immediately).

These lines need to be matched up.

3

NOTE:

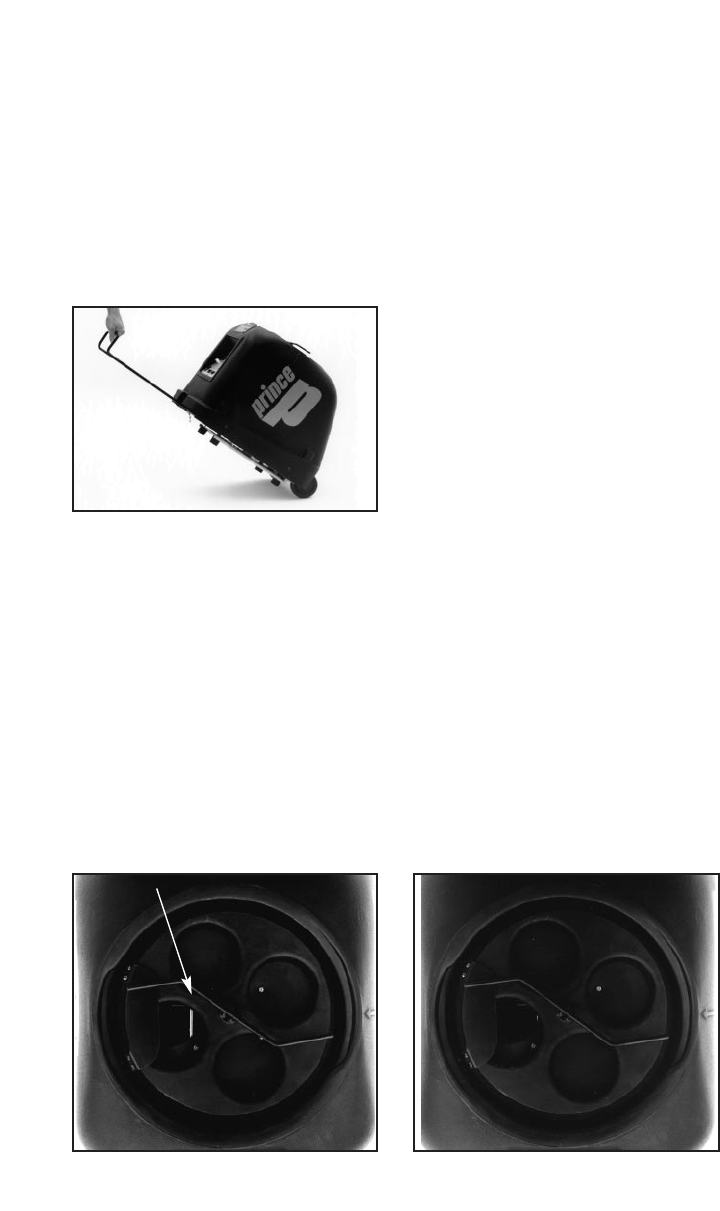

There is a chain beneath

the machine which helps prevent

static electricity build up. If machine is

operated on carpeting or wood floors

for an extended period of time, static

build up is probable and could cause

the machine to not operate properly.

Incorrect Correct

MODEL #4:

Has a built in delay that

starts the ball feed ten seconds after

turning the feed switch on (to allow the

operator to reach the opposite side of

the court).

OPERATION

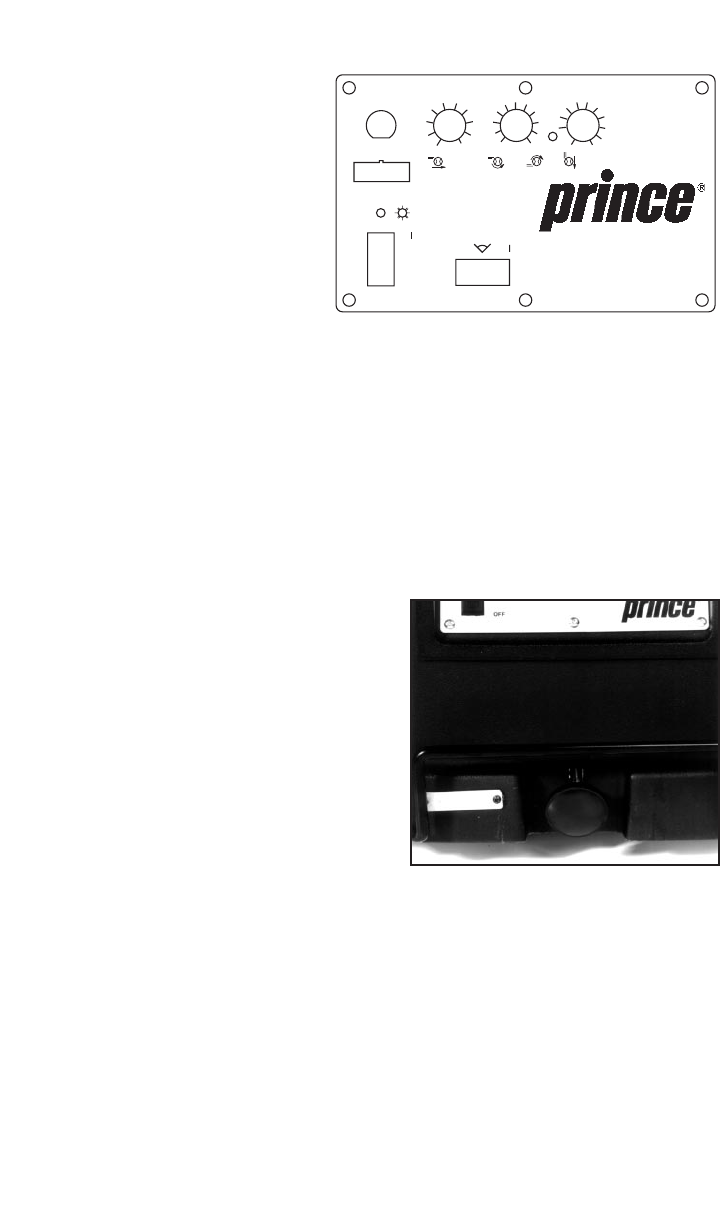

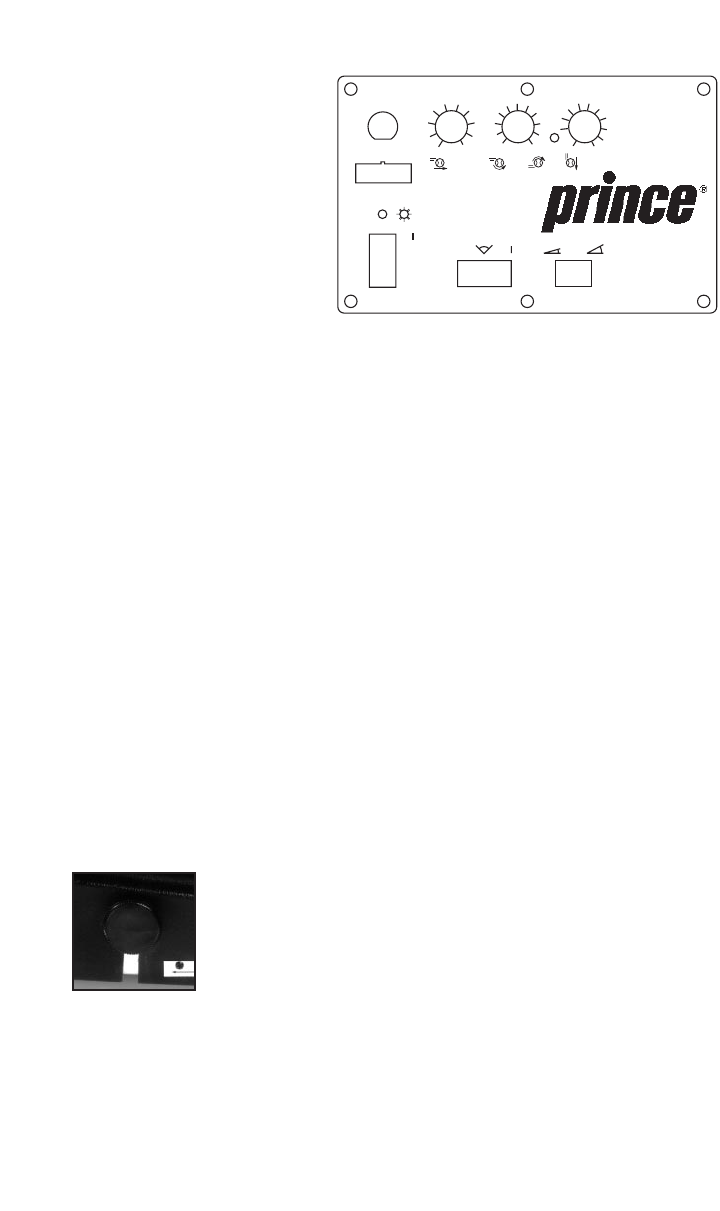

Control Panel:

Model #1

POWER:

The power switch

turns on the unit and enables

the other functions.

SPEED:

The speed control knob

regulates the ball velocity from

10 to 70 m.p.h.

SPIN:

The spin control knob adds top-

spin (clockwise adjustment) or backspin

(counterclockwise adjustment) to the

ejected ball.

FEED:

The feed control knob regulates

the time between balls from 2 to 13 sec-

onds. Important: After the machine has

been on for 15 seconds, this control

must be reset by turning it to the 0

(off) position and then back on to begin

feeding balls.

SWEEP:

The sweep switch turns the

unit’s side-to-side motion on and off.

Ball delivery will be random, depending

on how fast the feed is set.

SWEEP ADJUSTMENT:

The sweep

width is pre-set at the factory on the

Model #1.

STATUS INDICATOR:

This light

will indicate the reason for an automatic

shutdown should one occur. It will flash

approximately once per second for

shutdown due to “low battery”. This

light can either remain on or off during

normal machine operation.

RESET:

The reset switch protects the

internal controls and motors. When acti-

vated, this switch pops out about 1⁄4of

an

inch. In the event the reset is activated,

turn off the main power, depress the reset

switch, turn on the main power, and

resume operation. If the switch is acti-

vated shortly thereafter, check for balls

jammed inside machine. If this does not

solve problem, follow directions outlined

in the maintenance section (page 9).

ELEVATION:

The elevation control

knob adjusts the ball trajectory height

from a ground stroke to a lob. Turning

the knob clockwise will raise the height

of the ball over the net.

BATTERY OPERATION PLUG:

For proper machine operation, this plug

must

be inserted into the accessory recep-

tacle

located just above the control panel.

The plug

is attached to the control panel

via a chain.

FEEDSPINSPEED

RESET

EXTERNAL 12 VOC

OR CHARGER

0

0

SWEEPPOWER

1

2

3

4

56

7

8

9

10 5

4

3

2

101

2

3

4

50

1

2

3

45

6

7

8

9

10

4

OPERATION

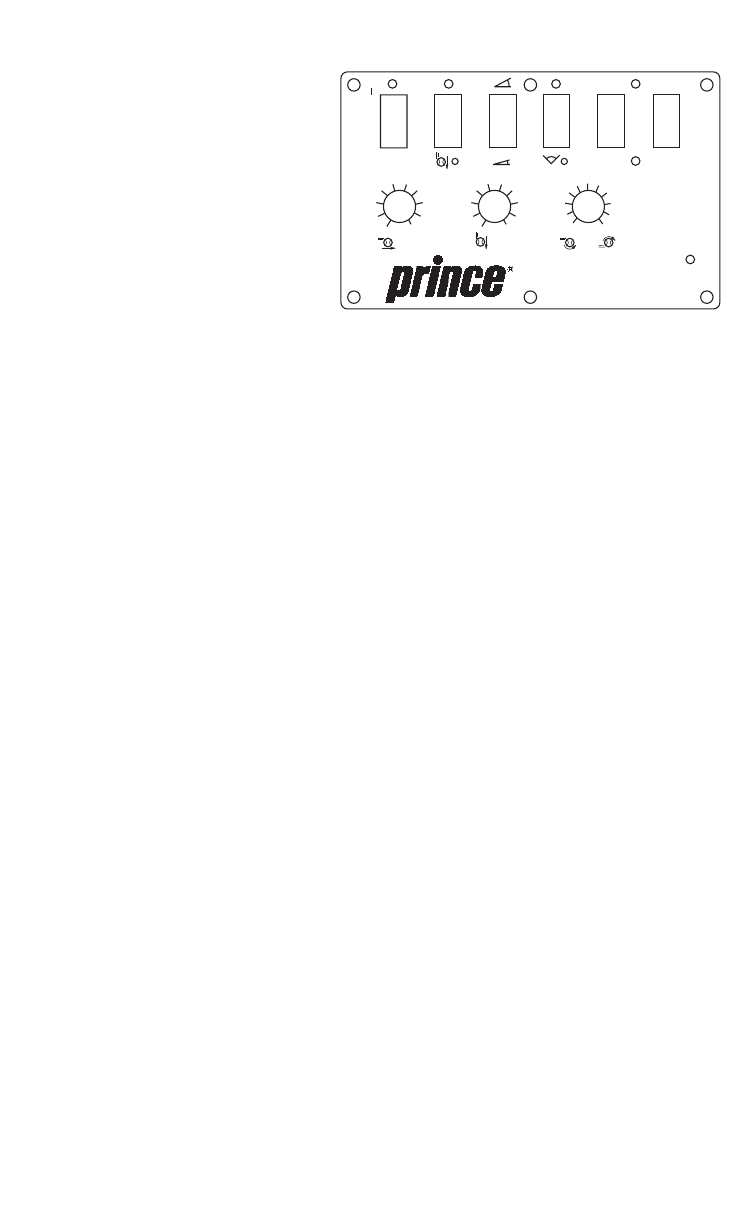

Control Panel:

Model #2

POWER:

The power switch

turns on the unit and enables

the other functions.

SPEED:

The speed control knob

regulates the ball velocity from

10 to 70 m.p.h.

SPIN:

The spin control knob adds top-

spin (clockwise adjustment) or backspin

(counterclockwise adjustment) to the

ejected ball.

FEED:

The feed control knob regulates

the time between balls from 2 to 13 sec-

onds.

Important: After the power is on

for 15 seconds, this control must be

reset by turning it to the 0 (off) position

and then back on to begin feeding balls.

SWEEP:

The sweep switch turns the

unit’s side-to-side motion on and off. Ball

delivery will be random, depending on

how fast the feed is set.

ELEVATION ADJUSTMENT:

The

elevation switch adjusts the height of the

ball delivery from a ground stroke to a

lob. To adjust, depress switch and hold

until desired height is reached.

SWEEP ADJUSTMENT:

The sweep

adjustment knob controls the width of

the sweep. This unit

has a manual adjust-

ment for the sweep

width. The sweep

adjustment knob is on

the side of the unit.

Simply turn the knob clockwise to widen

or counterclockwise to narrow the sweep

range. It takes forty complete turns to go

from wide to narrow. The knob will stop

turning once you have achieved the limit.

STATUS INDICATOR:

This light will

indicate the reason for an automatic

shutdown should one occur. It will flash

approximately once per second for shut-

down due to “low battery”. This light

can either remain on or off during normal

machine operation.

RESET:

The reset switch protects the

internal controls and motors. When

activated, this switch pops out about 1⁄4

of an inch. In the event the reset is acti-

vated,

turn off the main power, depress

the reset

switch, turn on the main power,

and resume operation. If the switch is

activated shortly thereafter, check for balls

jammed inside machine. If this does not

solve problem, follow directions outlined

in the maintenance section (page 9).

BATTERY OPERATION PLUG:

For proper machine operation, this plug

must

be inserted into the accessory recep-

tacle

located just above the control panel.

The plug

is attached to the control panel

via a chain.

FEEDSPINSPEED

RESET

EXTERNAL 12 VOC

OR CHARGER

0

0

SWEEPPOWER

1

2

3

4

56

7

8

9

10 5

4

3

2

101

2

3

4

50

1

2

3

45

6

7

8

9

10

ELEVATION

5

OPERATION

Control Panel:

Model #3

POWER:

The power switch turns

on the unit and enables the other

functions.

SPEED:

The speed control knob

regulates the ball velocity from 10

to 70 m.p.h.

SPIN:

The spin control knob adds

topspin (clockwise adjustment) or back-

spin (counterclockwise adjustment) to the

ejected ball.

FEED:

The feed control knob regulates

the time between balls from 2 to 13 sec-

onds. Important: After the power is

on for 15 seconds, this control must

be reset by turning it to the 0 (off)

position and then back on to begin

feeding balls.

SWEEP:

The sweep switch turns the

unit’s side-to-side motion on and off. Ball

delivery will be random, depending on

how fast the feed is set.

ELEVATION ADJUSTMENT:

The

elevation switch adjusts the height of the

ball delivery from a ground stroke to a

lob. To adjust, depress switch and hold

until desired height is reached.

SWEEP ADJUSTMENT:

The sweep

adjustment knob controls the width of the

sweep. This unit has a

manual adjustment for

the sweep width. The

sweep adjustment knob

is on the side of the

wheel base. Simply

turn the knob clockwise to widen or coun-

terclockwise to narrow the sweep range.

It takes forty complete turns to go from

full wide to full narrow. The knob will stop

turning once you have achieved the limit.

STATUS INDICATOR:

This light

will indicate the reason for an automatic

shutdown should one occur. It will flash

approximately once per second for shut-

down due to “low battery”. This light can

either remain on or off during normal

machine operation.

RESET:

The reset switch protects the

internal controls and motors. When acti-

vated, this switch pops out about 1⁄4of an

inch. In the event the reset is activated,

turn off the main power, depress the reset

switch, turn on the main power, and

resume operation. If the switch is activat-

ed shortly thereafter, check for balls

jammed inside machine. If this does not

solve problem, follow directions outlined

in the maintenance section (page 9).

REMOTE CONTROL:

The single

function remote control for this model

allows the operator to turn the ball feed

system on and off. An audible alarm will

indicate a transition of the feed system.

See feed section above for initial start up

of the ball-feed as the remote will not

function until feed control has been reset.

BATTERY OPERATION PLUG:

For

proper machine operation, this plug must

be

inserted into the accessory receptacle

locat-

ed just above the control panel. The plug

is

attached to the control panel via a chain.

FEEDSPINSPEED

RESET

EXTERNAL 12 VOC

OR CHARGER

0

0

SWEEPPOWER

1

2

3

4

56

7

8

9

10 5

4

3

2

101

2

3

4

50

1

2

3

45

6

7

8

9

10

ELEVATION

6

O

PERATION

Control Panel:

Model #4

POWER:

The power switch turns

on the unit and enables the other

functions.

SPEED ADJUSTMENT:

The

speed control knob regulates the

ball velocity from 10 to 70 m.p.h.

FEED:

The feed switch turns on the rotor

that dispenses balls to the drive wheels.

Note: The feed will start 10 seconds after

the switch is turned on to allow the opera-

tor to reach the opposite side of the court.

FEED ADJUSTMENT:

The feed con-

trol knob regulates the time between balls

from 2 to 13 seconds.

ELEVATION:

The elevation switch

adjusts the height of the ball delivery from

a ground stroke to a lob. To adjust, depress

switch and hold until desired height is

reached.

SPIN ADJUSTMENT:

The spin

control knob adds topspin (clockwise

adjustment) or backspin (counterclockwise

adjustment) to the ejected ball.

SWEEP:

The sweep switch varies the

position of delivery by turning on the unit’s

side-to-side motion. Ball delivery will be

random, depending on how fast the feed

is set. Random is the default position.

TWO LINE DRILL:

The machine

moves from side-to-side in a pre-pro-

grammed setting, delivering balls to two

specific points on the court. This allows for

the placement of two lines of students or two

students hitting balls. The two positions can

be adjusted by changing the width of the

sweep. There is a six second delay between

shots, to allow coaching between shots. This

feature will only work at ball speeds above

setting #6. The unit senses when a ball is

shot, and then moves to the other side.

WIDE & NARROW ADJUSTMENT

:

The wide and narrow switch controls the

width of the sweep. To adjust depress and

hold until desired width is reached.

STATUS INDICATOR:

The low bat-

tery light will illuminate when the battery is

in need of charging.

RESET:

If your model #4 does not have a

reset switch, all resets are internal and

are

automatically triggered. If your machine

is

equipped with a reset switch, it will pop

out about

1

⁄

4

of an inch when activated. In

the event the reset is activated, turn off the

main power, depress the reset switch, turn

on the main power, and resume operation.

If the switch is activated shortly thereafter,

check for balls jammed inside machine. If

this does not solve problems, follow direc-

tions outlined in the maintenance section.

REMOTE:

The remote for this model

is a ten function remote that controls the

sweep (on/off, wide/narrow, and random/

two-line), elevation (up/down), speed (fast/

slow), feed (fast/slow, on/off and one shot),

pause, and the spin (back/top). Pause will

stop all motors at point of play. When pause

is pressed a second time, the machine will

start up again at the same point at which it

was paused. The most efficient way to use

the remote is to adjust the settings on the

control panel as close to the settings desired

and then use the remote control to make

minor adjustments. Once the remote is used

the settings changed are held in memory

and are kept there until a setting is changed

directly on the control panel and then all set-

tings go back to the control panel settings.

BATTERY OPERATION PLUG:

For

proper machine operation, this plug must

be

inserted into the accessory receptacle

locat-

ed just above the control panel. The plug

is

attached to the control panel via a chain.

WIDE

P

O

W

E

R

33

SPEED SPIN

5

4

2

101

2

4

5

FEED

1

2

3

4

56

7

8

9

10 1

2

3

4

56

7

8

9

10

LOW BATTERY

0

F

E

E

D

E

L

E

V

A

T

I

O

N

S

W

E

E

P

S

W

E

E

P

S

W

E

E

P

NARROW

RANDOM

2 LINE

7

BATTERY

INSTRUCTIONS

One can expect to get approximately

four hours of continuous use (no breaks).

However by using lower speeds and

turning the machine off during reloading

tennis balls, playing time may be extend-

ed to as much as six hours. Please see

accessories for options to extend playing

time.

The following are requirements to ensure

proper performance of sealed lead acid

batteries and should be followed precisely

:

• Charge battery as soon as possible

after use.

• Do not store battery in discharged

state.

• Do not store for longer than 30 days

without charging.

BATTERY REPLACEMENT:

After

removing housing (please refer to page

9 for housing removal), remove battery

wires, strap screws, and the battery. When

reinstalling the battery, connect the red

battery wire to the red battery terminal,

and the white battery wire to the oppo-

site battery terminal. Disposal: See

instructions on battery.

STANDARD CHARGER:

To charge

the battery, insert the charger plug into

the receptacle labeled “charger recepta-

cle” on the control panel (insert into the

“Accessories Plug” on the Model #4). The

power switch must be off at this time. Be

sure to plug the charger into the machine

first and then into the outlet. If the stan-

dard charger is plugged in for longer than

48 hours the charger will cause perma-

nent damage to the battery.

FLOAT CHARGER (OPTIONAL):

The optional float charger can be pur-

chased as an accessory. The float charger

is designed to allow continuous charging

without causing damage to the battery.

A red light will illuminate on the charger

indicating that it is charging. A green light

will come on when the battery is 100%

charged. At this point, the charger enters

a float charge, to prevent the possibility

of overcharging. It is recommended to

leave the charger plugged into the

machine and plugged into the outlet

when the machine is not in use.

PRACTICE

SETTINGS

Ground Strokes

or Volleys:

BEGINNER:

To practice the proper

form for ground strokes or volleys, raise

the elevation height three feet above the

net. Turn speed and feed knobs to “4”

with spin dial in the “0” position. To prac-

tice forehand and backhand, turn sweep

switch to the “On” position.

INTERMEDIATE:

For intermediate

play, raise the elevation height approxi-

mately two feet above the net. Turn on

the speed and feed knobs to “5” with the

spin dial turned to “3” either way (back-

spin or topspin). To practice forehand or

backhand, turn sweep switch to the “On”

position.

ADVANCED:

For deep and hard ground

strokes or volley, raise the elevation height

six to twelve inches above the net. Turn the

speed and spin dial fully clockwise. At full

speed you will have to bring the machine

back a couple of feet past the baseline

similar to the positioning of a higher level

player. For intense workout, turn sweep

switch to the “On” position.

OVERHEADS:

Position the ball machine

to throw balls down the center of court.

Adjust the elevation height up for lobs

(or use attachable lob enhancer) and turn

down the ball feed. Practice hitting lobs

at each corner.

8

TRANSPORTING

For ease of transport, the Prince®Portable

Ball Machine has a handle that pulls out,

and wheels on the front of the machine

that are durable enough to handle almost

any terrain. It is not a good

idea to try to

pull the machine up or down

stairs as the

base plate can be bent and cause the

machine to be unable to roll.

STORAGE

Store the Prince®Portable Ball Machine

in a clean dry place. Charge the battery

before storage. Be sure to read the battery

section for more information about long

term storage. Avoid extreme temperatures.

MAINTENANCE

HOUSING REMOVAL:

Using a 5⁄32”

Allen wrench, remove the four Allen screws,

two on each side of housing. Carefully lift

and tip housing towards control panel side

of machine. You cannot lift the housing

straight up due to wires that are attached

,

but you can tilt it backwards. This gives

you plenty of access to look inside the

machine. When putting the housing back

on, be sure the motor support column is

behind the alignment screw (see picture

below). You should be able to feel the tip

of the alignment screw with

your finger

and the support column behind

it. If you

can’t feel the alignment screw, pick the

housing up 3 inches and realign.

PERIODIC INTERNAL

CLEANING:

The frequency of cleaning

will depend on the use of the machine.

For casual use (less than once a week),

the cleaning procedure should be per-

formed once every six months. For

extensive use (more than twice a week),

the cleaning procedure should be per-

formed every three months.

INTERNAL CLEANING

PROCEDURE:

Step 1: Remove hous-

ing following steps in Housing Removal

section. Step 2: Brush or vacuum off ball

felt and any other foreign materials that

have accumulated on the unit’s interior.

Step 3

:

Complete,

in reverse order, the

Housing

Removal steps. Caution: Be

sure to connect the red battery wire to

the red battery terminal and the white

battery wire to the opposite battery

terminal.

Incorrect Correct

9

Q.

Every once in a while the

machine shoots out two to

three balls at a time. What

is the problem?

A.

If the wheels are unable to handle

a ball, the balls back up and push

the errant ball through. This

causes all balls that have dropped

through the hopper to exit back to

back. First, check for any foreign

material in the ball chute that

would cause a ball jam. Second,

check the surface of the throwing

wheels. If they appear dirty or

have a wax build-up, remove the

housing and clean the wheels with

a wire brush. With the machine in

the off position (and unplugged),

clean the wheels with a side to

side motion. Occasionally wet ten-

nis balls may cause this problem

as well. Extra felt or heavy duty

tennis balls are slightly larger than

normal tennis balls and multiple

firing may occur more frequently

when these types of balls are used.

Q.

The machine turns on, but

instantly shuts down or gives

low battery indication. What

is wrong?

A.

This could mean that either the

battery is low or something is pro-

hibiting the machine from going

through its normal power up pro-

cedure. With machine off, check

behind ball throwing wheels to

make sure there is no ball jam. If

wheels turn freely, recharge battery

.

Q.

The machine is only shooting to

the right or left of the court

when it is adjusted to the

widest oscillation angle. What

is the problem?

A.

The oscillation base must be

facing forward for the machine

to oscillate properly. Be sure

to align lines (see alignment

on page 3).

Q.

My remote is not working.

What do I do?

A.

Check the batteries in the remote.

If this does not help, follow the

Housing Removal steps on page

9. Then locate the receiver and

make sure that all wires are con-

nected and clean with soft brush

or vacuum.

10

TROUBLESHOOTING GUIDE

To order any

replacement parts,

or for customer service

contact Master Sports at

1-800-837-1002 ext. 3307

OPTIONAL ACCESSORIES

Converter:

The converter comes in either 110v or

220v capabilities. The converter enables

the machine to be run from any standard

electrical outlet. The converter also

works

as a fast charger when the machine

is off.

Note: The converter utilizes the battery

to assist in the start up of the machine.

It is recommended to leave the converter

plugged into the machine while the

machine is not in use. The converter is

silver in color. This is a great option for

anyone interested in using the machine

for hours at a time.

Cover:

The cover is designed specifically for

the machine. To cover the machine for

storage with balls in the hopper, use

cover fully unfolded. To cover the

machine for storage with the hopper in

storage position (see photo #1 on pg. 2),

fold the bottom of the cover and attach

to the inside via Velcro.

Lob Enhancer:

This attachment produces game perfect

lobs. This attaches to the two holes

located on the front of the housing. To

use, raise the elevation so that the ball

deflects off the top of the lob enhancer.

11

Extended Life Battery:

The extended life battery is an option

that allows the machine to run an addi-

tional eight to ten hours. It weighs 30

lbs., comes with a custom carrying case,

fast charger, and connecting cable. To

charge

the extended life battery, plug the

charger

into the plastic receptacle on the

battery and plug the other end of the

charger into an electrical outlet. The red

light on the charger will show that it is

charging, and the green light will illumi-

nate when the battery is 90% charged.

The time required for a full charge on the

extended life battery is approximately 8

hours.

To use the extended life battery, unplug

the charger and plug one end of the bat-

tery cable into the extended life battery

and the other end into the machine.

When attaching the cable on the Model

#4, please verify that the proper ends of

the cable are attached to the correct

receptacle. The cables are color coded

for your convenience.

To order any of the

accessories,

contact Master Sports

at 1-800-837-1002

or contact your

local dealer.

For these and other exciting products, you may visit us online at

www.mastersports.com. For more information, write us at

6206 Discount Drive, Ft. Wayne, IN 46818 or call (800) 837-1002.

COURT EQUIPMENT

12

Prince®Sure FirePrince®Hot Shot

Water Broom

CS 100

Sponge Roller

PCA 400

Baskets

(L to R) PCA 075/101/085

Ball Tubes

PCA 018

Stadium Seat

PCA 102

Net

PCA 110/112

Prince®Ball Retriever

PCA 100

WARRANTY REGISTRATION

Date of Purchase__________________________________________________________

Model/Serial Number _____________________________________________________

Source of Original Information______________________________________________

Purchased from (name of dealer, rep, pro, etc.) _______________________________

_________________________________________________________________________

Your Name _______________________________________________________________

Address__________________________________________________________________

City ____________________________________State __________Zip ______________

Phone __________________________________Fax______________________________

LIMITED WARRANTY

Master Sports warrants its products to be free from defect in materials and workman

ship

for a period of one year from date of original purchase except for the battery, which is

warranted for 6 months. Master Sports will repair or replace defective products at its

option, without charge. Evidence showing the date of purchase and serial number

must be submitted at the time any warranty claim is made. This warranty is void if the

serial number has been altered or removed and shall not apply to damage caused by

unauthorized repairs or alterations.

If any defect should occur, contact Master Sports Technical Assistance at 1-800-837-1002

ext 3307,

please have your serial number ready. It is found next to the sweep knob on

the Model #2 & 3 and below the control panel on the Model #1 & 4. Newer machines

have the serial number on the bottom of the machine. If we are unable to resolve

the

problem by telephone, an R.A. number will be issued and must be clearly evidenced

on

the outside of the box in order to be received at Master Sports. Return the unit in

its

original carton & packing, freight prepaid. Master Sports will pay the freight to return the

repaired merchandise to the customer. No C.O.D. shipments will be accepted.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES

OF QUALITY AND PERFORMANCE WRITTEN, ORAL OR IMPLIED, AND ALL OTHER

WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. IN NO EVENT

SHALL MASTER SPORTS BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CON-

SEQUENTIAL DAMAGES WHETHER IN CONTRACT, TORT, NEGLIGENCE, STRICT

LIABILITY OR OTHERWISE. Some states do not allow limitations on how long an

implied warranty lasts and/or the exclusion or limitation of incidental or consequential

damages, so the above limitation and exclusion may not apply to you.

Place

Stamp

Here

Portable Tennis Ball Machines

6206 Discount Drive

Fort Wayne, IN 46818

6206 Discount Drive

Fort Wayne, IN 46818

800-837-1002

www.mastersports.com
