Software License Agreement
CAREFULLY READ THE FOLLOWING TERMS AND
CONDITIONS BEFORE USING THIS PRINTER. USING THIS
PRINTER INDICATES YOUR ACCEPTANCE OF THESE TERMS
AND CONDITIONS. IF YOU DO NOT AGREE TO THESE TERMS
AND CONDITIONS, PROMPTLY RETURN THE PRINTER AND
ALL ACCOMPANYING HARDWARE AND WRITTEN MATERIALS
TO THE PLACE YOU OBTAINED THEM, AND YOUR MONEY
WILL BE REFUNDED.
Definitions
“Software” shall mean the digitally encoded, machine-readable
data and program. The term “Software Product” includes the
Software resident in the printer and its documentation. The
Software Product is licensed (not sold) to you, and Printronix, Inc.
either owns or licenses from other vendors who own, all copyright,
trade secret, patent and other proprietary rights in the Software
Product.
License
1. Authorized Use. You agree to accept a non-exclusive license
to use the Software resident in the printer solely for your own
customary business or personal purposes.
2. Restrictions.
a. To protect the proprietary rights of Printronix, Inc., you
agree to maintain the Software Product and other
proprietary information concerning the typefaces in
strict confidence.
b. You agree not to duplicate or copy the Software
Product.
c. You shall not sublicense, sell, lease, or otherwise
transfer all or any portion of the Software Product
separate from the printer, without the prior written
consent of Printronix, Inc.
d. You may not modify or prepare derivative works of the
Software Product.
e. You may not transmit the Software Product over a
network, by telephone, or electronically using any
means; or reverse engineer, decompile or disassemble
the Software.
f. You agree to keep confidential and use your best
efforts to prevent and protect the contents of the
Software Product from unauthorized disclosure or use.
3. Transfer. You may transfer the Software Product with the
printer, but only if the recipient agrees to accept the terms
and conditions of this Agreement. Your license is
automatically terminated if you transfer the Software Product
and printer.
Limited Software Product Warranty
Printronix, Inc. warrants that for ninety (90) days after delivery, the
Software will perform in accordance with specifications published
by Printronix, Inc. Printronix, Inc. does not warrant that the
Software is free from all bugs, errors and omissions.
Remedy
Your exclusive remedy and the sole liability of Printronix, Inc. in
connection with the Software is replacement of defective software
with a copy of the same version and revision level.
Disclaimer of Warranties and Limitation of Remedies
1. THE PARTIES AGREE THAT ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE AND
MERCHANTABILITY ARE EXCLUDED.
Printronix, Inc. does not warrant that the functions contained
in the Software will meet your requirements or that the
operation of the Software will be uninterrupted or error free.
Printronix, Inc. reserves the right to make changes and/or
improvements in the Software without notice at any time.
2. IN NO EVENT WILL PRINTRONIX, INC. BE LIABLE FOR
LOST PROFITS, LOST DATA, BUSINESS
INTERRUPTIONS, OR ANY OTHER DIRECT, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OF OR INABILITY TO USE THIS
PRODUCT, EVEN IF HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, OR ANY DAMAGES
CAUSED BY THE ABUSE OR MANIPULATION OF THE
SOFTWARE. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
3. Printronix, Inc. will not be liable for any loss or damage
caused by delay in furnishing a Software Product or any other
performance under this Agreement.
4. Our entire liability and your exclusive remedies for our liability
of any kind (including liability for negligence except liability for
personal injury caused solely by our negligence) for the
Software Product covered by this Agreement and all other
performance or nonperformance by us under or related to this
Agreement are limited to the remedies specified by this
Agreement.
5. California law governs this Agreement.
Termination of License Agreement
This License shall continue until terminated. This license may be
terminated by agreement between you and Printronix, Inc. or by
Printronix, Inc. if you fail to comply with the terms of this License
and such failure is not corrected within thirty (30) days after notice.
When this License is terminated, you shall return to the place you
obtained them, the printer and all copies of the Software and
documentation.
U.S. Government Restricted Rights
Use, duplication or disclosure by the Government is subject to
restrictions as set forth in the Rights in Technical Data and
Computer Software clause at FAR 242.227-7013, subdivision (b)
(3) (ii) or subparagraph (c) (1) (ii), as appropriate. Further use,
duplication or disclosure is subject to restrictions applicable to
restricted rights software as set forth in FAR 52.227-19 (c) (2).
Acknowledgement of Terms and Conditions
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS
AGREEMENT, UNDERSTAND IT, AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. NEITHER PARTY SHALL BE
BOUND BY ANY STATEMENT OR REPRESENTATION NOT
CONTAINED IN THIS AGREEMENT. NO CHANGE IN THIS
AGREEMENT IS EFFECTIVE UNLESS WRITTEN AND SIGNED
BY PROPERLY AUTHORIZED REPRESENTATIVES OF EACH
PARTY. BY USING THIS PRINTER, YOU AGREE TO ACCEPT
THE TERMS AND CONDITIONS OF THIS AGREEMENT.
READ THIS SOFTWARE LICENSE AGREEMENT BEFORE USING THIS PRINTER
Network Interface Card
User’s Manual
This document contains proprietary information protected by copyright.
No part of this document may be reproduced, copied, translated or
incorporated in any other material in any form or by any means, whether
manual, graphic, electronic, mechanical or otherwise, without the prior
written consent of Printronix®.
Printronix makes no representations or warranties of any kind regarding
this material, including, but not limited to, implied warranties of
merchantability and fitness for a particular purpose. Printronix shall not be
held responsible for errors contained herein or any omissions from this
material or for any damages, whether direct or indirect, incidental or
consequential, in connection with the furnishing, distribution,
performance, or use of this material. The information in this manual is
subject to change without notice.
Copyright 2005, Printronix, Inc. All rights reserved.
Trademark Acknowledgements
Portions of this manual used by permission of Wyndham Technologies,
Inc. Copyright 1991-1999 Wyndham Technologies Inc.
IGP, LinePrinter Plus, PGL, Network Interface Card, and Printronix are
registered trademarks of Printronix, Inc.
AIX, AS/400, NetView, and OS/2 are registered trademarks, and
AFP, Intelligent Printer Data Stream, IPDS, Print Services Facility,
and PSF are trademarks of International Business Machines
Corporation.
Netscape, Netscape Navigator, and the Netscape Communications logo
are trademarks of Netscape Communications Corporation.
Code V is a trademark of Quality Micro Systems, Inc.
Unix is a registered trademark of X/Open Company Limited.
Microsoft, MS-DOS, Windows, Windows 95, Windows 98, Windows Me,
WIndows NT and Windows 2000 are registered trademarks of Microsoft
Corporation.
Novell and NetWare are registered trademarks of Novell, Inc.
PostScript is a registered trademark of Adobe Systems Inc.
FTP Software and OnNet are trademarks or registered trademarks of
FTP Software, Inc.
NetManage and Chameleon are trademarks or registered trademarks of
NetManage, Inc.
Frontier Technologies and SuperTCP are trademarks or registered
trademarks of Frontier Technologies Corporation.
Solaris is a registered trademark of Sun Microsystems, Inc.
HP-UX is a registered trademark of Hewlett-Packard Company.
DG/UX is a registered trademark of Data General Corporation.
LINUX is a registered trademark of Linus Torvalds.
Ultrix is a registered trademark of Digital Equipment Corporation.
IRIX is a registered trademark of Silicon Graphics, Inc.
Table of Contents
1 Introduction .............................................. 17
Overview ...............................................................................17
What Is The NIC?.............................................................17
What Special Features Are Available?.............................18
Logical Printer Architecture ...................................................19
Destinations/Queues........................................................21
Models..............................................................................21
Interfaces...............................................................................23
10/100Base-T...................................................................24
Speed Setting for 10/100Base-T......................................29
Conventions Used In This Manual ........................................30
Notes And Notices.................................................................31
Printronix Customer Support Center .....................................31
2 Installation And Configuration .................. 33
Installation .............................................................................33
Connecting To The Network ............................................33
Configuration Tools ...............................................................34
Configuration Using The Control Panel............................34
NIC Verification ................................................................39
Wireless NIC Configuration Using
The Control Panel ............................................................40
Kerberos Enabled Wireless NIC Configuration ................49
HTML Forms ....................................................................51
Configuration Alternatives ................................................54
Table of Contents
3 Embedded NIC Web Page ....................... 55
Overview ...............................................................................55
Configuration.........................................................................56
Network Configuration...........................................................57
TCP/IP Network ...............................................................57
802.11b ............................................................................59
Windows Network (NetBIOS TCP/IP) ..............................61
Novell Network.................................................................62
Print Path Configuration ........................................................64
Destination Settings .........................................................64
Current Model Settings ....................................................66
Current Log Path Settings................................................67
Print Model Configuration......................................................68
Log Path Configuration .........................................................71
TN5250/3270 Configuration ..................................................73
SNMP Configuration .............................................................77
Administration Configuration .................................................85
System Information ..........................................................85
Passwords .......................................................................88
System Configuration............................................................89
Security Configuration...........................................................89
Kerberos Configuration ....................................................89
Credentials Information....................................................91
Status ....................................................................................91
Status - I/O Port ....................................................................91
Status - Network....................................................................92
Table of Contents
4 Windows Configuration ............................ 93
Overview ...............................................................................93
Windows Environment Description........................................93
Windows NIC Configuration ..................................................94
Mandatory ........................................................................94
Optional............................................................................94
Configuration Using ARP .................................................94
Communicating Across Routers.......................................96
Changing Workgroup Names...........................................97
Changing Destination Names ..........................................98
Windows Host Configuration ...............................................100
Windows NT 4.0 Host Setup ..........................................100
Windows XP/2000 Host Setup .......................................104
Windows NT 3.51 Host Setup ........................................114
Windows Me or 9x Host Setup.......................................116
Printronix Printing System (PPS) Host Setup ................117
Windows 3.1 Host Setup................................................118
Windows Troubleshooting Tips ...........................................119
Technical Support ..........................................................119
NIC Cannot Be Found On The Network.........................120
HTML Configuration Forms Will Not Display..................120
Errors Occur When Defining An LPR Printer .................121
Cannot Browse The NIC On The Network .....................121
Printer Errors When Printing Or No Output....................122
TCP/IP Access Problem.................................................122
Web Browser/HTTP Problem.........................................124
Windows NT 4.0 Or 2000 Host Setup Problems............125
Table of Contents
5 Unix Configuration.................................. 127
Overview .............................................................................127
Unix Environment Description .............................................127
Unix NIC Configuration .......................................................128
Mandatory ......................................................................128
Optional..........................................................................128
Using ARP .....................................................................128
Using RARP...................................................................130
Using BOOTP ................................................................131
Communicating Across Routers.....................................132
Unix Host Configuration ......................................................133
Manual System V Host Setup ........................................133
NIC Installation on HP-UX...................................................134
Solaris 2.6 – 7 NIC Setup....................................................135
SCO Setup ..........................................................................136
Manual LPR/LPD Host Setup.........................................143
NIC Configuration for AIX 4............................................144
AIX Remote Queue Time–Out Setting...........................146
Printing From AIX...........................................................147
Printing With FTP...........................................................147
Direct Socket Printing.....................................................148
Unix Troubleshooting Tips ..................................................149
NIC Cannot Be Found On The Network.........................149
Nothing Prints ................................................................150
Stair-Stepped Output .....................................................151
No Form Feed Or Extra Page Comes Out.....................152
TCP/IP Access Problem.................................................152
Front Panel Message – Dynamically Set Params
Read Only ......................................................................154
Table of Contents
6 Novell Configuration............................... 155
Overview .............................................................................155
Novell Environment Description ..........................................155
Novell NIC Configuration.....................................................156
Using HTML Forms ........................................................157
Novell Host Configuration....................................................158
NetWare Version 3.x PSERVER Setup .........................158
NetWare Version 3.x RPRINTER Setup ........................160
NetWare Version 4.x and 5.x PSERVER Setup.............163
NetWare Version 4.x and 5.x RPRINTER Setup ...........166
Novell Troubleshooting Tips................................................168
NetWare 3.x – No PSERVER Connection .....................169
NetWare 4.x and 5.x- No PSERVER Connection ..........170
7 Novell Configuration For
10/100Base-T IntT6(ll)-80(ion)7.5(uia)-6.3(s)-2m......................... 5
Table of Contents
Referencing A Bindery Queue In NDS
(Netware 3.x, Netware 4.x, And Netware 5.x)................188
RPRINTER/NPRINTER Setup
(Netware 3.x, Netware 4.x, And Netware 5.x)................188
NDPS Configuration (Netware 4.11 And Above) ...........191
Troubleshooting (10/100Base-T) ........................................194
PSERVER Setup ...........................................................194
RPRINTER/NPRINTER Setup .......................................197
Printing Related .............................................................199
8 OS/2 Configuration................................. 203
Overview .............................................................................203
Configuring The NIC TCP/IP Settings.................................203
Mandatory Settings ........................................................204
Optional Settings............................................................204
OS/2 Workstation Configuration..........................................204
Using The LPR Command .............................................204
Using An OS/2 LPR Print Queue ...................................205
TCP/IP Access Problem.................................................208
9 z/OS Configuration, IPDS Printer ........... 211
Overview .............................................................................211
Requirements.................................................................211
Configuration Checklist ..................................................212
Configuring PSF for z/OS to Print IPDS Files .....................213
Configuration Procedure ................................................213
Verifying a TCP/IP-Attached Printer on z/OS.................223
Sharing Line Matrix Printers on z/OS ..................................224
JES Spool Printer Sharing .............................................224
Port Switching Printer Sharing .......................................226
Handling z/OS Connectivity Problems ................................226
Ping is Not Successful ...................................................226
Ping is Successful ..........................................................227
Table of Contents
10 AS/400 Configuration, ASCII Printer ...... 229
Overview .............................................................................229
Configuring AS/400 For ASCII Using TCP/IP......................231
Configuring With ADDTCPIFC .......................................231
Configuring A Router Definition With ADDTCPRTE ......233
Configuring A Local Domain And Hostname..................233
Configuring A TCP/IP Host Table Entry .........................233
Configuring The AS/400 For Printing ..................................234
Setting Up Printing For ASCII Files................................234
Verify Printing On AS/400 ...................................................240
AS/400 ASCII Troubleshooting ...........................................241
TCP/IP Access Problem.................................................242
Web Browser/HTTP Problem.........................................244
11 AS/400 Configuration, IPDS Printer ....... 245
Configuring On AS/400 As An IPDS Printer........................245
Printing AFP, IPDS, And SCS Files ...............................245
Requirements.................................................................246
Configuration Checklist ..................................................246
Configuring An AS/400 TCP/IP Interface With
ADDTCPIFC...................................................................248
Configuring PSF/400 For IPDS On V3R2 ......................250
Configuring PSF/400 For IPDS On V3R7 And Above....256
Configuring PSF for IPDS On V4R2 And Above............261
Configuring AFP with CRTPSFCFG on V4R3 and
Above (Optional) ............................................................262
Configuring PSF with CRTDEVPRT On V4R2 and
Above .............................................................................264
Verifying The IPDS Configuration On AS/400.....................268
Sharing The AS/400 Printer On The Network .....................269
Printer Sharing Parameters............................................270
Table of Contents
AS/400 Troubleshooting......................................................273
Cannot PING The Printer...............................................273
PSF/400 Terminates When Initialized............................273
Spooled Print File Remains In PND Status....................274
Spooled Files Disappear Without Printing......................274
Data Is Being Clipped ....................................................274
12 z/OS Configuration, TN3270E................ 275
z/OS Configuration For A TN3270E Printer ........................275
Coax Printer Support FMID.................................................275
Program Materials ...............................................................276
VTAM Definitions For SCS and DSE TN3270E .............277
TCPIP Configuration With TN3270E..............................279
Printer Inventory Manager As Defined With TN3270E...280
Configuration Screens.........................................................289
13 AS/400 Configuration, TN5250 .............. 293
Setting Up TN5250 Print Queues On AS/400 .....................293
Setting Up A TN5250 Connection/Device Via A
Telnet Session ....................................................................294
User Supplied Values ....................................................295
Using Telnet Commands for TN5250..................................295
Command List................................................................295
Getting Started...............................................................296
TN5250 Job Formatting ......................................................297
Font Identifier (FONT) - Help ..............................................299
Table of Contents
14 Monitoring Printers ................................. 301
Implementing Printer Management .....................................301
Agent/Manager Model....................................................301
MIB.................................................................................302
SNMP.............................................................................303
Monitoring Tools..................................................................303
OS/2 TCP/IP ..................................................................303
Monitoring With AIX NetView/6000 ................................304
The Remote Management Software ..............................304
Setting The SNMP Community Name............................304
15 Commands............................................. 305
Command Shell Overview...................................................305
npsh Access Methods ....................................................305
Main npsh Command Prefixes .......................................305
Getting Command Help..................................................306
Complete Command List.....................................................307
Store Commands ...........................................................307
Set Commands ..............................................................322
List Commands ..............................................................335
Miscellaneous Commands .............................................339
16 Extra Features........................................ 343
NIC Security ........................................................................343
Users And Passwords....................................................343
Reset The NIC Password...............................................345
TCP Access Lists ...........................................................347
Printer Monitoring And Logging...........................................349
Printer And Print Job Monitoring ....................................349
Printer Logging Through Logpaths.................................350
Table of Contents
Downloading Software Through The
Network Interface Card (NIC)..............................................351
NIC Naming Schemes.........................................................354
Periodic Ping .......................................................................355
Glossary ................................................. 357
17
1Introduction
Overview
This chapter introduces you to the Network Interface Card (NIC)
architecture and special features, as well as providing information
on installation and configuration tools.
What Is The NIC?
The NIC allows you to attach printers on a local area network (LAN)
rather than attaching them directly to a host system. Following
simple configuration steps, these peripherals can be
simultaneously shared with users on the network whether you are
using TCP/IP, NetBIOS over TCP/IP, or IPX (Novell ).
The NIC package contains an Ethernet Interface to attach itself and
the printer to the network. The NIC is supplied in one of four forms:
•an Ethernet adapter attached to the printer parallel port
•a wireless Ethernet adapter
•an integrated Ethernet card
•an integrated wireless Ethernet card.
Throughout this manual, features specific to each NIC type will be
indicated by the sideheads ADAPTER, WLAN ADAPTER,
ETHERNET, and WLAN.
Chapter 1 Overview
18
What Special Features Are Available?
NIC offers an extensive list of features including:
•built-in HTML forms for easy cross-platform configuration
•availability of remote management software
•a detailed and easy-to-use command shell built-in to the
firmware
•multi-level configuration security through passwords,
permission levels, and access lists
•WAN-wide communication access
•numerous printer logging methods (e.g., automatic email) to
record printer errors and usage
•remote management through HTML forms, Telnet sessions,
rsh/rcmd/remsh commands, SNMP, and pre-defined log
methods
•extensive built-in troubleshooting tools
•built-in telnet and ping clients
•configurable memory usage by disabling protocols and
destination services
•multiple destinations/queues for versatile printer manipulation
and distinct print setups
•header and trailer strings to instruct printers on font, pitch,
printing, etc.
•flexible naming conventions
•automatic network connection and frame type sensing
•simultaneous printing across all I/O ports and all supported
protocols
•multiple network protocol support
What Special Features Are Available?
19
Logical Printer Architecture
The NIC implements a logical printer architecture which gives the
system administrator the possibility to configure the print server to
handle and act upon the print data in several ways. When a print
job comes through the print server, there is a certain logical print
path that it follows before it gets to the printer. Each logical print
path consists of a sequence of logical steps where extra processing
may be performed on the print data before it is sent to the printer.
This ability to preprocess the print data before it is sent to the
printer allows elimination of certain printing problems, or
implementation of printer enhancements that may be difficult and
time consuming to solve or introduce at the system, spool or queue
level. The preprocess ability is also simplistic to perform at the print
server level.
The logical print path for a print job going through NIC consists of
three different phases:
•Phase 1 - the host sends the job to a destination or queue on
NIC (e.g. d1prn).
•Phase 2 - the print job passes through the associated “model”
(e.g. model “m1”) on NIC for any extra processing associated
with the model.
•Phase 3 - the processed print job is directed to the printer for
output.
Logical Printer Architecture
Chapter 1 Logical Printer Architecture
20
Figure 1. Print Path
Phase 1 Phase 2 Phase 3
Host
Destination 4
(d4prn)
Destination 2
(d2prn)
Destination 3
(d3prn)
Destination 1
(d1prn)
Model 1
(m1)
Model 2
(m2)
Model 3
(m3)
Model 4
(m4)
Printer
Destination 8
(d8prn)
Destination 6
(d6prn)
Destination 7
(d7prn)
Destination 5
(d5prn)
Model 5
(m5)
Model 6
(m6)
Model 7
(m7)
Model 8
(m8)
Destinations/Queues
21
Destinations/Queues
For every I/O port on NIC, there is at least one pre-defined logical
print queue or destination to accept print jobs destined for it. This
includes print jobs that are sent directly to the I/O port, such as port
9100. These queue or destination names are pre-defined but can
be changed by the user.
Models
For every destination or queue, there is a pre-defined model
associated with it. The model defines how the print job will be
processed as it passes through to the printer. Models are a set of
mini filters that can be used to modify the print data stream. The
functions available for each model are as follows:
Chapter 1 Logical Printer Architecture
22
5. Log one or all of the following information as each print job
passes through the model
•Job ID and username
•User ID and three messages per job about the start and
finish
•Checksum value of the data transferred
•Miscellaneous messages from the printer
•Status of the printer based on the port interface signals
6. Load a specific printer configuration before processing a print
job
•Specify a printer configuration to be associated with a print
queue.
•When a job is set to that print queue, the associated printer
configuration will be loaded before the job is processed.
•Feature allows you to define up to eight unique and
independent printer personalities in a single printer.
•Allows you to effectively have eight different printers in one.
Models
23
Interfaces
The NIC interfaces with your printer through an Ethernet
10/100Base-T interface connector.
Two NIC interfaces are available, depending on the type of
controller board the printer contains. Some printers use NICs with
dip switches and LEDs. Other printers use NICs that plug into the
Peripheral Component Interface (PCI) controller boards that have
no dip switches or LEDs.
NOTE: If both cards are present, you will see two sets of front
panel options under network parameter, E-Net Adapter and
Ethernet. The two NICs are two separate interfaces and
are networked. You can autoswitch between the two.
If your NIC does not have dip switches or LEDs refer to
“Speed Setting for 10/100Base-T” on page 29.
Interfaces
Chapter 1 Interfaces
24
10/100Base-T
ADAPTER
The NIC at the rear of the printer for the 10/100Base-T interface
has two indicator lights and two DIP switches, as shown in Figure 2.
NOTE: The Wireless NIC DIP switch functionality is the same as
the 10/100Base-T NIC.
Figure 2. Status Indicator Lights and DIP Switches
12
STAT (System Status)
NET (Data to Network)
DIP Switches
10/100Base-T
25
Run and Auto Reset Modes
Run mode is the normal operating state of the NIC. Auto Reset
mode is entered when the watchdog timer is triggered and the Print
Server resets itself. In either mode, the STAT LED flashes at a
varying rate, depending on whether the unit IP address is
configured. The Run Mode and Auto Reset Mode indicator
descriptions are given in Table 1.
Network Indicator
The NET LED displays the status of the network link. When the
NET LED is on, link integrity is confirmed. The NET LED flashes off
for 1/3 second when a data packet is being transferred. When the
NET LED is off, the network connection has been severed.
Table 1. Run Mode and Auto Reset Mode Indicator Descriptions
STAT Indication Description
OFF flashes on once per second Normal Mode, IP address configured
OFF flashes on two times per
second
IP address not configured
ON flashes off once per second Download (MOS)
ON flashes off twice per second Error
Table 2. NET LED Indicator
NET Indication Description
ON constantly Indicates link integrity
ON flashes off 1/3 second Flashes off 1/3 second each time a
packet is transmitted
Chapter 1 Interfaces
26
ETHERNET
Integrated NIC Card LED:
Wireless Network Indicator
WLAN
ADAPTER
The wireless NIC has 2 bi-color LEDs which can produce three
colors each: green, red, and yellow (green and red combined).
Table 4 shows the STAT LED states for various sytem conditions:
Table 5 shows the NET LED states for various network conditions
when a WLAN card is inserted into the wireless NIC. The NIC
(wired) interface will not affect the NET LED while a WLAN card is
present.
Table 3. Integrated NIC LED Indicator
NET Indication Description
ON flashes Indicates activity
ON constant Indicates that the link is good at 10 Mbps
ON constant Indicates that the link is good at 100 Mbps
Table 4. Wireless NIC STAT LED States
System Condition STAT LED
System is running without an IP
address.
Green, 2 Hz flash
System is running with an IP address. Green, 1 Hz flash
System error. Red 2Hz flash
System is in upgrade mode with an IP
address.
Yellow, 1 Hz flash
System is in upgrade mode without an
IP address.
Yellow, 2 Hz flash
10/100Base-T
27
Table 6 shows the NET LED states for various network conditions
when no WLAN card is found or present.
Table 5. Wireless NIC NET LED States
WLAN Network Condition NET LED
Network-link quality is good Green
Network-link quality is fair Yellow
Network-link quality is bad Red
Network-link not present Off
Network-link present and transmitting Link quality + blink
Table 6. Wireless NIC NET LED States (No WLAN)
Wired Ethernet Network Condition
(No WLAN) NET LED
Network-link is present Green
Network-link is not present Off
Network-link present and transmitting Blink
Wireless Network Indicator
Chapter 1 Interfaces
28
DIP Switches
ADAPTER,
WLAN
ADAPTER
On the back of the printer, you will find a small window where you
can access two DIP switches labeled 1 and 2 (see Figure 2 on
page 24). The functions of the DIP switches are explained in
Table 7.
NOTE: The DIP switches are not marked with “on” or “off” labels.
Instead, the status of the switch is indicated by its position,
up or down. If the interface card has been installed upside
down (i.e., the DIP switches are to the left of the cable
connector), your DIP switch positions will be reversed and
the settings inverted.
Table 7. 10/100Base-T DIP Switch Settings
DIP Switch
Comments
12
up up Normal operation. With both DIP switches in the “off” position, the
NIC boots up using the settings in flash memory rather than the
default settings.
down up Factory default. With the DIP switches in this configuration, the NIC
boots up and all settings stored in flash memory are erased except
the Ethernet address and key value.
up down Default IP. With the DIP switches in this configuration, the NIC boots
up with factory default settings. However, the stored settings in flash
memory are intact. Setting DIP switch 2 to “on” does not clear any
settings stored in flash memory; it boots the unit in a different state
with the settings in flash memory temporarily ignored.
down down Reserved. This DIP switch configuration is not for customer use.
Speed Setting for 10/100Base-T
29
Speed Setting for 10/100Base-T
When the router is set to auto-negotiation enable, the following is
the correct behavior of the NIC with each setting:
1. 10mbps Half Duplex
Use parallel detection because the NIC is using force mode
and thus has auto-negotiation disabled.
PORs to 10mbps Half Duplex. Resets to 10mbps Half Duplex.
Reconnection at switch maintains 10mbps Half Duplex.
2. 10mbps Full Duplex
Use parallel detection because the NIC is using force mode
and thus has auto-negotiation disabled.
PORs to 10mbps Full Duplex. Resets to 10mbps Full Duplex.
Reconnection at switch maintains 10mbps Full Duplex.
3. 100mbps Half Duplex
Use parallel detection because the NIC is using force mode
and thus has auto-negotiation disabled.
PORs to 100mbps Half Duplex. Resets to 100mbps Half
Duplex. Reconnection at switch results in 100mbps Half
Duplex.
4. 100mbps Full Duplex
Use parallel detection because the NIC is using force mode
and thus has auto-negotiation disabled.
PORs to 100mbps Full Duplex. Resets to 100mbps Full
Duplex. Reconnection at switch results in 100mbps Full
Duplex.
5. NIC in Auto mode in 100mbps FD environment
Use auto negotiation to the highest common local and remote
capability, i.e. 100FD in this case.
PORs to 100/FD. Resets to 100/FD. Reconnection at switch
remains 100/FD.
Chapter 1 Conventions Used In This Manual
30
6. NIC in Auto mode in 10mbps HD environment (determined
using 10hd hub)
Use auto-negotiation to the highest common local and remote
capability, i.e. 100FD in this case.
PORs to 10HD. Resets to 10HD. Reconnection at switch
maintains 10HD.
NOTE: With parallel detection, only speed can be determined. The
duplex mode sets to half duplex.
Conventions Used In This Manual
All uppercase print indicates control panel keys.
Example: Press the CLEAR key, then press the ONLINE key.
Quotation marks (“ “) indicate messages on the Liquid Crystal
Display (LCD).
Example: Press the ONLINE key. “OFFLINE” appears on the LCD.
Command syntax and examples are formatted as follows:
•The Courier font in boldface indicates commands that you
type. For example:
At the prompt, type:
ping ftp.CompanyWebsite.com
•Regular Courier font indicates references to command syntax
and output. For example:
The ftp.CompanyWebsite.com site is working properly.
•Variable values are shown in
italics
in command syntax, output,
and in text. For example:
ping ipname
The
ipname is working properly.
Speed Setting for 10/100Base-T
31
Notes And Notices
For your safety and to protect valuable equipment, read and comply
with the notes included in this manual. A description follows:
NOTE: A Note gives you helpful information and tips about printer
operation and maintenance.
Printronix Customer Support Center
The Printronix Customer Support Center offers technical support
with:
•Installation
•Configuration and setup
•Operation and supplies loading
•Specifications of the proper print media, ink transport
assemblies, and ink cartridges
•Answers to post-sale service support questions
Call the Printronix Customer Support Center at:
1-714-368-2686 in the Americas
31-24-6489410 in Europe, Middle East, and Africa
65-65484114 in Asia Pacific
or visit the Printronix web page at www.printronix.com
http://www.printronix.com/public/servicessupport/
default.aspx
Notes And Notices
Chapter 1 Printronix Customer Support Center
32
33
2Installation And
Configuration
Installation
The NIC provides an RJ-45 connector for 10/100Base-T (UTP)
networks.
Connecting To The Network
To attach the NIC to a network, plug the network cable into the NIC
connector.
ADAPTER,
WLAN
ADAPTER
Watch the LEDs in the rear of the printer as they cycle through the
power-on self-test. When the test is complete, the STAT LED will
begin to flash.
Chapter 2 Configuration Tools
34
Configuration Tools
There are two parts to a NIC setup:
•Configuring the NIC so it can be seen on the network. This
involves network-related settings (e.g., an IP address within
TCP/IP environments) configured through the built-in command
shell, npsh, or from the control panel.
•Configuring a host with a new printer so it knows how to send
data to the NIC. Just being able to see the printer on the
network does not mean you can automatically print to it. A host
has to be told where to send the data.
NOTE: Some network environments do not require any network
settings to be configured on the NIC. However, all network
setups require configuration on the host end.
Configuration Using The Control Panel
You can set NIC settings from the printer control panel.
CAUTION
When the printer is first powered on, the message “E-NET
INIT.” displays on the control panel. To prevent a loss of NIC
configuration information, do not change the NIC settings
while this message displays. When the initialization is
complete, the message “E-NET READY” displays, and you can
safely change the NIC settings from the control panel.
1. You can set any of three listed parameters from the printer
control panel. These parameters are located in the Ethernet
Address, Adapter Address, or Wireless Address menu.
2. Power on the printer. The message “E-NET INIT.” appears
when the printer is powered on. Configuration can be done
after the “E-NET READY” message appears.
3. Disable the Power Saver mode before starting this procedure.
Configuration Using The Control Panel
35
4. Always print an E-NET test page before performing any
updates or network configuration using the following steps:
•For P7000 printers:
a. Take the printer offline. When the printer LCD reads
“OFFLINE /QUICK SETUP,” press the up and down arrow
keys simultaneously to unlock the control panel.
b. Press the left arrow until “Diagnostics” appears.
c. Press the down arrow until “Printer Tests” appears.
d. Press the down arrow until “Shift Recycle” appears.
e. Press the left arrow until the following appears for each
type of NIC:
•Adapter Test – External NIC
•Ethernet Test – Integrated NIC
f. Press Enter.
•For P5000 printers:
a. Take the printer offline. When the printer LCD reads
“OFFLINE / CONFIG. CONTROL,” press the up and down
arrow keys simultaneously to unlock the control panel.
b. Press the left arrow until “Diagnostics” appears.
c. Press the down arrow until “Printer Tests” appears.
d. Press the down arrow until “Shift Recycle” appears.
e. Press the left arrow until the following appears for each
type of NIC:
•E-Net Test Page or Adapter Test – External NIC
•Ethernet Test – Integrated NIC
f. Press Enter.
Chapter 2 Configuration Tools
36
•For T5000e/SL5000e
printers:
a. Take the printer offline. When the printer LCD reads
“OFFLINE,” press the down arrow and ENTER keys
simultaneously to unlock the control panel.
b. Press the “+” key until “Printer Tests” appears. Continue
pressing the “+” key until “Printer Tests/E-Net Test Page”
appears. Press ENTER.
•For T5000r/SL5000r printers:
a. Take the printer offline. When the printer LCD reads
“OFFLINE,” press the down arrow and ENTER keys
simultaneously to unlock the control panel.
b. Press the “+” key until “Printer Tests” appears. Continue
pressing the “+” key until “Printer Tests/Ethernet Test”
appears. Press ENTER.
•For T4
xxx
printers:
a. Take the printer offline. When the printer LCD reads
“OFFLINE,” press the down arrow and ENTER keys
simultaneously to unlock the control panel.
b. Press the NEXT key until “DIAGNOSTICS” appears.
Continue pressing the NEXT key until “Printer Tests/
E-Net Test Page” appears. Press ENTER.
•For Laser printers:
a. Take the printer offline. When the printer LCD reads
“OFFLINE/CONFIG. CONTROL,” press the up and down
arrow keys simultaneously to unlock the control panel.
b. For L5520 and L5535 printers, press the right arrow until
“TEST PRINT” appears.
For the L1524 printer model, press the right arrow until
“DIAGNOSTICS” appears.
c. Press the down arrow until “Test Patterns” appears.
d. Press PREV to display “E-Net Test Page.” Press ENTER.
Configuration Using The Control Panel
37
5. Verify the current NIC firmware version number.
NOTE: Firmware exists within the NIC and the printer itself. Each
firmware is a separate entity with its own version number.
Please pay close attention to the type of firmware
referenced in the remaining sections of this document.
The NIC version should be 1.1.3 or higher for 10/100Base-T
Ethernet adapters. If the NIC version is current, skip to step 6
below. If the NIC version is not current, you need to update
both the NIC and printer firmware.
If you need to update the printer firmware, you must do so now.
After the update is complete, you must restart this instruction
from the beginning. Your printer’s
User Manual
includes
instructions for upgrading the printer firmware. The process of
upgrading the printer firmware will automatically upgrade the
NIC firmware to the appropriate level.
IMPORTANT
The NIC firmware is updated only when the current printer
firmware is loaded via the network interface. The serial
interface may be used if the NIC adapter was previously
installed. Loading the printer firmware via the printer’s parallel
port will not update the NIC firmware.
CAUTION
Turning off the printer before the firmware update is complete
may permanently damage the NIC adapter.
Updating the printer firmware takes time. Please be patient
and wait for the “E-NET READY” message to display on the
LCD. Do not turn off the printer before it has completed the
firmware download procedure. The LCD will display
“ONLINE / E-NET READY” when the download is complete.
Wait for this message before turning off the printer.
6. From the front panel, navigate to the IP Address and Netmask
(Subnet Mask) menu options and enter the appropriate values.
Do not enter the Gateway Address at this point. You must
press ENTER after inputting each segment of the IP Address
and Netmask.
Chapter 2 Configuration Tools
38
7. Put the printer online and wait for the “E-NET READY”
message to display on the front panel. Placing the printer
online starts the NIC IP Address and Netmask update process.
This process will take several minutes.
NOTE: If you do not put the printer online, the setting you just
entered will not take effect. Do not turn the printer off until
you see the “E-NET READY” message. If you turn the
printer off before the new values are written to memory in
the NIC adapter, you will need to repower the printer and
repeat steps 6 and 7 above immediately.
8. Once the “E-NET READY” message displays, you may enter
the Gateway Address by repeating front panel steps 6 and 7
above. This will ensure the correct Netmask becomes
associated with the Gateway value you enter. From the front
panel navigate to the Gateway Address and enter the
appropriate value. You must press ENTER after inputting each
segment of the Gateway Address.
9. Put the printer online and wait for the “E-NET READY”
message to display on the front panel.
10. Enable the Power Saver mode if desired.
NOTE: When the printer is moved from one network to another,
the software cannot find the printer. To solve this problem,
reset the NIC using the dip switches on the back of the
NIC. After resetting the NIC, the software can find the
printer, and the IP address can also be set in the NIC.
See Table 7 on page 28.
NIC Verification
39
NIC Verification
Before performing the verification, you must connect the NIC card
to the network.
1. Print an E-NET test page (following the steps on page 34) to
verify the settings you made.
2. Verify the Netmask is correct in two locations on the E-NET test
page:
•NETWORK INTERFACES
•TCP/IP ROUTING TABLE
The Netmask must be the same in both locations. For example,
if the Netmask is listed as 255.255.255.0 in NETWORK
INTERFACES and is listed as 255.255.255.255 in the TCP/IP
ROUTING TABLE, they do not match and you must correct it
for the Gateway. Also, if a Gateway Address was entered,
verify that “
xxx.xxx.xxx.xxx
is alive” is printed under the Default
Gateway Ping Test, where
xxx.xxx.xxx.xxx
is the Gateway
Address. If a Gateway Address was not entered, the Default
Gateway Ping test is not required and will not display on the
page.
If the Netmask does not match, complete the following steps:
a. Place the printer offline.
b. Using the front panel, modify the Gateway value to 0.0.0.0.
(non-configured).
c. Place the printer online and wait for the “E-NET READY”
message to display.
d. Place the printer offline and enter the Gateway Address
you desire.
e. Place the printer online and wait for the “E-NET READY”
message. This saves the new Gateway Address.
Your NIC is now configured and connected to your network.
Chapter 2 Configuration Tools
40
WLAN
ADAPTER,
WLAN
Wireless NIC Configuration Using
The Control Panel
NOTE: The Access Point must be configured according to the
manufacturer's installation guide.
To configure Wireless NIC card, configure the ethernet and
wireless IP addresses so they can be seen on the network. This
includes several network-related settings (e.g., an IP address within
TCP/IP environments) configured through the built-in command
shell, npsh, or from the control panel.
IP Address Configuration
You can set the wireless NIC IP settings from the printer control
panel.
CAUTION
When the printer is first powered on, the message “E-NET
INIT” displays on the control panel. This process takes
approximately 1 to 2 minutes. To prevent a loss of NIC
configuration information, do not change the NIC settings
while this message displays. When the initialization is
complete, “E-NET READY” displays, and you can safely
change the NIC settings from the control panel.
You need to set both the ethernet and wireless network IP
addresses according to the TCP/IP environment that the printer is
connected to. There are four parameters accessed from the printer
control panel that are IP address related. These parameters are
located in the "Ethernet Address" menu and the "Wireless Address"
menu:
•IP Address
This is the host for IP addresses that have four segments. They are
displayed as SEG1, SEG2, SEG3, and SEG4 which can be set to
any value in the range of 0 to 255.
•Subnet Mask
This is the subnet mask for the host IP that has four segments.
They are displayed as SEG1, SEG2, SEG3, and SEG4 which can
be set to any value in the range of of 0 to 255.
Wireless NIC Configuration Using The Control Panel
41
•Gateway Address
This is the gateway IP addresses that have four segments. They
are displayed as SEG1, SEG2, SEG3, and SEG4 which can be set
to any value in the range of 0 to 255.
•DHCP
The DHCP option allows you to obtain host server IP addresses
when powering onto the network. The DHCP can be configured to:
•Enable – each time you power on, the host server
automatically assigns you a different address (if the IP address
has not been previously assigned).
•Disable – You choose the host server IP address. After the
selection, the IP Address remains fixed even after you reboot.
Wireless Parameter Configuration
Certain "WIRELESS PARAMS" must be configured to match the
Access Point settings:
NOTE: The "ETHERNET PARAMS" are configured the same way
as the 10/100 Ethernet external NIC. Please refer to the
NETWORK SETUP menu in the User’s Manual.
•Signal Strength
This menu displays the strength of the wireless signal.
NOTE: This is a display value only and cannot be changed.
Chapter 2 Configuration Tools
42
•Operation Mode
This is the operation mode of the wireless network. The options
include “Infrastructure” and “Ad Hoc” modes. This must match the
Access Point's configuration.
•SSID Name
This is the Service Set Identifier which must be identical to the
Access Point's SSID name. The SSID name can be configured to a
maximum of 32 alphanumeric characters. The SSID name and
alphanumeric characters are divided into three parts in the control
panel menu as "SSID Name (01-15)", "SSID Name (16-30)" and
"SSID Name (31-32)".
NOTE: When two or more consecutive space characters are used
in the SSID, enclose it in a double quoted string;otherwise
upon resetting the NIC, the SSID Name wil be saved in the
Wireless NIC with only one space.
•Min Xfer Rate
Allows you to set the minimum speed at which the Wireless Option
will accept a connection (in million bits per second).
This is the wireless transfer rate, and can be set to either “enable”
or “disable.” It is set to “enable” when the operation mode is
"Infrastructure" so that the NIC can automatically detect the optimal
transfer rate. If the operation mode is "Ad Hoc" and the transfer rate
is known, the user can enable or disable the corresponding transfer
rate in the menus "Xfer Rate 1Mb", "Xfer Rate 2Mb", "Xfer Rate
5.5Mb" or "Xfer Rate 11Mb".
•Channel
This is the frequency used for wireless communication. The
2.4GHz band spectrum is divided into different channels (1-15). It is
set to "Default" so that the NIC can detect the correct channel to
communicate with the Access Point in infrastructure mode. If the
operation mode is "Ad Hoc" and the channel is known, the user can
set the corresponding channel in this menu.
Wireless NIC Configuration Using The Control Panel
43
•Ant. Diversity
This is used to select the antenna for communication. It is
recommended to set to "Diverse" for the NIC to detect for optimal
communication. It can also be set to "Primary" or "Auxiliary".
•Preamble
This is the preamble used in the wireless packets. It is
recommended to set to "Default" so that the NIC can detect the
correct preamble. The preamble is approximately 8 bytes of the
packet header generated by the AP is and attached to the packet
prior to transmission. The preamble length is transmission data rate
dependent. The "short" preamble is 50% shorter than the "long"
preamble. Transmit power is 0–100%. It must match the Access
Point's preamble configuration.
•Power Mgmt
This option allows you to set power-save mode and sleep time. A
value specifying the sleep time in milliseconds will be provided. If
set to zero, power-save mode will be disabled.
•Transmit Power
This option allows you to specify the power level used by the
wireless card to send network packets to the access point. Transmit
power is specified as a percentage of full pwer (0 – 100%).
•Internat. Mode
When enabled, the Wireless option adapts to international
frequency requirements in Europe.
•Auth Method
This feature allows the user to select the authentication method
used for the wireless network interface. The options include Open,
Shared, Kerberos, and LEAP.
Chapter 2 Configuration Tools
44
•Default WEP Key
The default key must match the Access Point's configuration. If the
Access Point is configured to use "Open System", the default key
should be set to 0. If the Access Point is configured to use 40-bit or
128-bit WEP encryption key, the encryption key must be set to the
same setting as the Access Point's setting. See the following
section on how to set up the encryption key. In addition, there are
four keys (1-4) that an Access Point can use. If the Access Point is
set to use key 1, the default key must be set to 1 to correspond to
the Access Point's setting.
Encryption Key Configuration
As previously mentioned, there are four encryption keys that can be
configured through the control panel. For each encryption key x
(where x can be 1 to 4), the following control menu can be used to
configure the key:
•WEP Key x Format
This is the format of the key. It can be set to either ASCII or
Hexadecimal.
•WEP Key x Width
This is the number of bits used for encryption. This can be set to
either 40 Bits or 128 Bits and must match the Access Point's
configuration.
•WEP Key x
This is the key value. If the "WEP Key x Width" is set to 40 Bits, the
key values can be entered in the following 5 sub menus
(BYTE 1, …, BYTE 5). If the "WEP Key x Width" is set to 128 Bits,
the key values can be entered in the following 13 sub menus
(BYTE 1, …, BYTE 13). The key values must configure to match
the corresponding key in the Access Point's key configuration.
Wireless NIC Configuration Using The Control Panel
45
LEAP Parameters
LEAP is a Cisco wireless security scheme. The Cisco LEAP allows
for a WEP key timeout that forces re-authentication, resulting in the
derivation of a new WEP key for the session.
•Auth Method. This feature allows the user to select the
authentication method used for the wireless network interface.
•Open (the default). Selects open authentication.
•Shared. Selects shared key authentication.
•Kerberos. Selects Kerberos authentication (for use when a
Symbol RF card is installed).
•LEAP. Selects LEAP authentication (for use with a Cisco
RF card installed).
•LEAP Username
•LEAP Username (01-15). The first 15 characters of the
LEAP user name (maximum number of characters is 32).
•LEAP Username (16-30). Characters 16 to 30 of the LEAP
user name (maximum number of characters is 32).
•LEAP User (31-32). Characters 31 to 32 of the LEAP user
name (maximum number of characters is 32).
•Reset LEAP User. Resets the LEAP user name to an empty
string.
•LEAP Password
•LEAP Password (01-15). The first 15 characters of the
LEAP password (maximum number of characters is 32).
•LEAP Password (16-30). Characters 16 to 30 of the LEAP
password (maximum number of characters is 32).
•LEAP Password (31-32). Characters 31 to 32 of the LEAP
password (maximum number of characters is 32).
•Reset LEAP Pswd. Resets the LEAP password to an empty
string.
Chapter 2 Configuration Tools
46
Kerberos Parameters
Kerberos Enable
•Enable. Enable Kerberos authentication in the wireless
network interface.
•Disable (default). Disable Kerberos authentication in the
wireless network interface.
Kerb. Pwd (01–15)
First 15 characters of the Kerberos password (maximum number of
characters is 40).
Kerb. Pwd (16–30)
Characters 31 to 40 of the Kerberos password (maximum numer of
characters is 40).
Kerb. Pwd (31–40)
Characters 31 to 40 of the Kerberos password (maximum number
of characters is 40).
Reset Kerb. Pwd.
Reset Kerberos password to an empty string.
KDC Port Number
KDC (Key Distribution Center) port number is the 2-byte UDP/TCP
port used for Kerberos Communication.
•88 (default)
•0–65535
Clock Skew Units
•Seconds (default)
•Minutes
Wireless NIC Configuration Using The Control Panel
47
Clock Skew (SEC)
Sets the maximum allowable amount of time in seconds (SEC) or
minutes (MIN), as specified by the Clock Skew Units, that Kerberos
authentication will tolerate before assuming that a Kerberos
message is invalid.
•Seconds: The range is 60-900, and the default is 300.
•Minutes: The range is 1-15, and the default is 5.
NOTE: Whatever submenu is selected in Clock Skew Units will
display on the Clock Skew (SEC) menu. For example, if
you select Minutes, the Clock Skew (SEC) menu name will
change to Clock Skew (MIN).
Tckt Life Units
Ticket lifetime unit in either seconds, minutes, hours, or days.
•Seconds (default)
•Minutes
•Hours
•Days
Tckt Life (SEC)
Sets the maximum allowable amount of time in seconds (SEC),
minutes (MIN), hours (HR), or days (DAY), as specified by the Tckt
Life Units, that a ticket obtained from the Kerberos server is valid
before getting a new one.
•Seconds: The range is 300-259200, and the default is 43200.
•Minutes: The range is 5-4320, and the default is 720.
•Hours: The range is 1-72, and the default is 12.
•Days: The range is 1-3, and the default is 1.
NOTE: Whatever submenu is selected in Tckt Life Units will
display on the Tckt Life (SEC) menu. For example, if you
select Hours, the Tckt Life (SEC) menu name will change
to Tckt Life (HR).
Chapter 2 Configuration Tools
48
Renew Life Units
Renew lifetime unit in either seconds, minutes, hours, or days.
•Seconds (default)
•Minutes
•Hours
•Days
Renew Life (SEC)
Sets the maximum allowable amount of time in seconds (SEC),
minutes (MIN), hours (HR) or days (DAY), as specified by the
Renew Life Units, before warning for a new Kerberos password.
•Seconds: The range is 0-604800, and the default is 0.
•Minutes: The range is 0-10080, and the default is 0.
•Hours: The range is 0-168, and the default is 0.
•Days: The range is 0-7, and the default is 0.
The selected submenu is in Renew Life Units will display on the
Renew Life (SEC) menu. For example, if you select Days, the
Renew Life (SEC) menu name will change to Renew Life (DAY).
Equivalent Wireless NIC Configuration Using The
Telnet Command
store ifc 2 wlan ssid <network-name>
store ifc 2 wlan mode adhoc|pseudo|managed
store ifc 2 wlan speed auto|(1 2 5 11)
store ifc 2 wlan channel default|(1-15)
store ifc 2 wlan antenna diverse|primary|aux
store ifc 2 wlan preamble default|long|short
store ifc 2 wlan pmm on|off
store ifc 2 wlan txpwr (0-100)
store ifc 2 wlan opts [[-]openauth][[-]intnl]
Kerberos Enabled Wireless NIC Configuration
49
store ifc 2 wlan defkey disable|(1-4)
store ifc 2 wlan key <key-num> <key-sequence>
store ifc 2 wlan auth <AUTH-METHOD>
store ifc 2 wlan user <AUTH-USER-NAME>
store ifc 2 wlan pass <AUTH-PASSWORD>
Refer to page 307 for the complete command set.
WLAN
ADAPTER,
WLAN
Kerberos Enabled Wireless NIC Configuration
This section provides an example of how a user configures the
Print Server to use the Kerberos authentication via the wired Telnet
session.
This example assumes Symbol’s Access Point and RF card is used
and the Print Server has not been configured for Kerberos
authentication. It also assumes that the KDC, Access Point and the
Print Server are in the same realm.
To set up the Print Server for Kerberos authentication, the
administrator first has to enable Kerberos in the Access Point
according to Symbol’s instructions. Symbol’s Access Point must
have its Network time set up with the correct time server. Once the
Access Point is configured, the Print Server is ready to be
configured for Kerberos authentication.
Configuring the Print Server for Kerberos
Authentication
1. Create a user in the Windows 2000 server that identifies the
Print Server.
NOTE: The user name should be the Print Server’s name. The
password selected will be used as the Kerberos password
and should be set with no expiration.
2. In a secure networked environment, log in as a root user via
Telnet in the wired LAN.
Chapter 2 Configuration Tools
50
3. Once logged in, use the Telnet commands to set up the
wireless LAN parameters (e.g. SSID = 103, operating mode =
Infra Structure mode, etc.) that match the Access Point
configuration.
In addition to the normal wireless LAN parameter settings, use
the following commands to enable Kerberos on the wireless
LAN interface and Kerberos for authentication (minimum
settings):
4. Set the wireless LAN interface parameters to enable Kerberos.
store kerberos opts auth
5. Set the Kerberos parameters to enable Kerberos
authentication.
The Kerberos password must match the Windows 2000 user
password for the Print Server. The administrator should choose
at least 9 alphanumeric characters with a combination of upper
and lower case.
The following is a suggestion for creating strong password for
computer security. Make sure the password:
•is at least seven characters long. The most secure
passwords are seven to 14 characters long.
•contains characters from each of the following groups:
letters (uppercase and lowercase), numerals, and symbols (all
characters not defined as letters or numerals, i.e., ! @ # $ % ^
& *, etc.)
The kname is default to “krbtgt” which is the default name used in
Windows 2000 KDC. It must be configured to match with the KDC if
the default is changed. The krealm is case sensitive; it must match
the Access Point’s realm.
HTML Forms
51
The SSID of the Print Server must be configured to match the
Access Point’s SSID which also has Kerberos enabled. For
example, if a Windows 2000 user created the password
aBcd-12345 and the Access Point’s realm is set to
REALM.PRINTRONIX.COM, the following telnet commands are
used:
store kerberos password aBcd-12345
store kerberos config krealm REALM.PRINTRONIX.COM
NOTE: If the Kerberos authentication fails, the user will not be able
to Telnet to the Print Server via the wireless LAN interface.
In this case, Telnet to the Print Server via the wired LAN
interface. It should display an error message indicating the
reason for the Kerberos authenticaion failure.
HTML Forms
The NIC settings can be configured over TCP/IP through a
standard Web browser. The NIC Web pages provide a way to
access some of the commands built into the print server.
NOTE: If a router is used, make sure a Gateway value is
configured.
To access the NIC home page:
1. Make sure the print server has an IP address and Subnet Mask
so it is recognizable on your TCP/IP network.
2. Make sure your network station can successfully ping the NIC
over the network.
3. Direct your Web browser to the URL:
http://IPaddress
(e.g., http://192.75.11.9)
where IPaddress is the IP address of your NIC.
NOTE: If you cannot access the web page, refer to “Web Browser/
HTTP Problem” on page 124
Chapter 2 Configuration Tools
52
The NIC HTML structure is divided into several menus as shown in
Figure 3.
Figure 3. NIC HTML Structure
NOTE: Online help is available for all HTML pages.
Index/Home
Configuration
I/O Port
Network
TCP/IP
802.11b
Windows
Novell
d1prn
d2prn
d3prn
d4prn
d5prn
d6prn
d7prn
d8prn
m1
m2
m3
m4
m5
m6
m7
m8
Alert Config 1
Alert Config 2
Alert Config 3
Alert Config 4
Alert Config 5
Alert Config 6
Alert Config 7
Alert Config 8
Alert Config 9
Alert Config 10
Status Help About
Administration
SNMP
Print ModelPrint PathNetwork Log Path
l1
l2
l3
l4
l5
l6
l7
l8
System
TN5250/
3270
d1prn
d2prn
d3prn
d4prn
d5prn
d6prn
d7prn
d8prn
Security 1
1 = Applies only to the Wireless NIC with
Symbol RF cards. It is intended to be used
in infrastructure mode with Kerberos
enabled Symbol Access Point.
HTML Forms
53
Printer Status Screen
Using the printer IP Address and any standard Web browser, you
can check the status of the printer. Figure 4 shows the exact state
of the printer by showing the printer LCD message. (This screen
automatically refreshes every minute.)
Figure 4. Printer Status Screen
Chapter 2 Configuration Tools
54
Configuration Alternatives
Besides the HTML forms and software provided, the NIC internal
command shell, npsh, can also be reached using Telnet, Remote
Shell, and FTP:
Telnet
A TCP/IP command that helps configure NIC settings remotely. A
TCP/IP host starts a Telnet session with the print server and logs
into the device command shell to alter and view settings.
Example:
telnet 192.75.11.9
Remote Shell
A TCP/IP command that helps configure print server settings
remotely. A TCP/IP host uses this command to remotely execute a
single command on the NIC.
Example:
rsh spike list prn
This command remotely executes the npsh command list prn
on the NIC named
spike
.
FTP
FTP can also be used to configure print server settings remotely. A
TCP/IP host uses FTP to store a file containing 1 or more NPSH
commands on the FTP file system. The configuration file must be
FTP ‘put’ to the /config/default/defaultCfg file. The configuration file
can later be executed on demand using the ‘load oem’ command
during a telnet (NPSH) session. The configuration file is also
executed automatically during the power-up sequence when DIP
switch 1 is closed.
55
3Embedded NIC
Web Page
Overview
The NIC comes with an extremely powerful printer management
tool that allows you to monitor, configure, and manage both the
printer and its print job. The NIC comes with an embedded web
server that allows System Administrators and users access to its
printer management capabilities from a standard web browser.
The NIC printer’s IP address is used as a URL, similar to the URL
of an Internet web page. When a web browser is activated and the
printer’s IP address is entered, the printer’s embedded web server
displays its home page, with links to the printer’s status and
configuration settings.
All of NIC's configuration settings are protected by a password so
unauthorized users cannot make changes. When you try to open
any of the NIC 's configuration pages, you are asked for your user
name and password. At the prompt, you need to enter root
(unless you have another user configured with root privileges)
followed by the associated password. If there is no password, just
press ENTER. For more information on setting passwords, refer to
“NIC Security” on page 343.
After you configure the NIC settings, and click the SUBMIT button
on the related form, re-power the NIC to ensure the latest settings
are in use. To reset the NIC, go to the System form under the
Configuration Menu and click the REBOOT button.
Chapter 3 Configuration
56
The embedded NIC Web server gives you the ability to configure
the network adapter, monitor printer status, and to manage print
jobs. The NIC Web page structure is divided into several menus, as
shown in Figure 3 on page 52
Configuration
The Configuration menu items allow you to configure the settings
for the following items:
•Network - this menu item allows you to change the network
setting for each protocol: TCP/IP, 802.11b, NetBIOS over
TCP/IP, and Netware.
•Print Path - this menu item allows you to change the name of
the destination queues, and define how the print job will be
preprocessed before printing. It allows you to select what
information to log, and to specify the SMTP server’s IP
address.
•
TCP/IP Network
57
•Administration - this menu item allows you to define or change
the printer name, location, description, etc.. It also allows you to
change the root and guest user passwords.
•System - this menu item allows you to reboot the NIC, or
restore its settings to the factory default.
Network Configuration
The network configuration allows you to specify the setting for each
network protocol. Beside each protocol name is a checkbox which
allows you to enable or disable each protocol depending on your
network printing needs.
NOTE: TCP/IP is the only supported protocol which is always
enabled.
TCP/IP Network
Figure 5. TCP/IP Network Configuration
Chapter 3 Network Configuration
58
Interface
The two edit fields contain the NIC's IP address and subnet mask.
The check boxes enable the RARP, BOOTP, DHCP, DNS, and
Persistent DHCP protocols, which are alternate methods of
assigning IP addresses. On most networks, you want to enter a
permanent IP address and subnet mask and disable RARP,
BOOTP, and DHCP. However, if your network requires one of
these, you should clear the IP address (and possibly the subnet
mask) fields and ensure that the appropriate check box is selected.
Routing
The routing table tells the NIC which router or gateway to use to
access other subnets or hosts. In most situations, you can simply
add your router's IP address as the default router. All packets
destined for other subnets will be forwarded to the default router for
delivery to the destination host. If you have more complex routing
requirements, add static routing entries for specific hosts or
networks in the remaining Routing rows. Packets with IP addresses
that match a given Destination and Mask (from the first two fields in
a Routing row) will be routed to the router/gateway named in the
third field. Packets which do not match any of the listed
Destinations and Masks will be routed to the default router if one is
set.
802.11b
59
802.11b
Network Name
Enter the wireless network name. Maximum length of 32
characters.
Mode
Set the mode of operation for the wireless device. Pseudo, Adhoc,
and Managed are the available settings.
Chapter 3 Network Configuration
60
Speed
Change the selected bit-rates. Choosing "auto" will select auto
settings even if some or all of the checkboxes are selected. To
manually choose bit-rates, change speed option to "user" and
check the appropriate checkboxes. If "user" is selected, and no
checkboxes are checked, then the automatic setting is used.
Channel
Set the RF Channel for the wireless device. Selecting "Default" will
ignore user entered value in field, and set the RF Channel to the
default setting.
Antenna
Choose the antenna type. Diverse, Primary, and Aux are the
available settings.
Preamble
Change the preamble length. Default, Short, and Long are the
available settings.
Power Management Mode
Change the power management mode and adjust the power-save
sleep time (milliseconds). Selecting "Off" will turn the Power
Management Mode off and set the power-save sleep time to zero.
Transmit Power
Adjust RF transmit power in percent of full power.
Options – Internation Mode
Set the International Mode option
Key
Change the key used for WEP encryption. Ascii-Hex Format.
Ex: 01234-56789-abcd-ef01-2345-6789
Windows Network (NetBIOS TCP/IP)
61
Default Key
Change the default key number used for WEP encryption.
Authentication Method
Select the desired authentication method to be used when
communicating with an access point.
User
Enter a user name to be used when authenticating with an access
point. Currently only used for LEAP authentication.
Password
Enter the password to be used when authenticating with an access
point. Currently only used for LEAP authentication.
Windows Network (NetBIOS TCP/IP)
TCP/IP is used for Windows (i.e. Windows NT, Windows 95, and
Windows for Workgroups) printing unless another protocol like IPX
is available. Therefore, mandatory TCP/IP settings (i.e. IP address
and subnet mask) are necessary on the NIC. Go to "TCP/IP
Network" on this form to fill in these settings if you haven't done so
already.
Chapter 3 Network Configuration
62
Workgroup Name
This name specifies which Windows workgroup the NIC will reside
in.
Novell Network
ADAPTER,
WLAN
ADAPTER
Novell configuration is supported only on the Ethernet Adapter and
Wireless Adapter.
Figure 6. Novell Network Configuration
Protocol
Defines the packet structure of transmitted data or the control
commands that manage the session, or both.
Novell Network
63
FrameType
This option determines which framing scheme will be used in
processing Novell signals. The different types of Ethernet packet
formats include:
•Auto Sensing (the default)
•Ethernet II
•Ethernet 802.3
•Ethernet 802.2
•802.2 Snap
Service Type
Allows you to change the Nest Server. The options are:
•Bindery
•NDS
•Auto
File Server
Define a Novell file server for the NIC to service as either a
PSERVER or an RPRINTER.
NDS
NDS (Novell Directory Services) is a distributed database of
network information. An NDS contains information that defines
every object on the network. For more information please see your
Novell administrator.
Pserver
Define a password for the NIC to use when logging in to the file
server as a PSERVER. This is an optional file server security
feature.
Chapter 3 Print Path Configuration
64
Rprinter
Define an RPRINTER setup so the NIC knows to service a
PSERVER.NLM on a Novell file server. Define the PSERVER.NLM
name, the number of the printer serviced by the NIC within this
PSERVER.NLM, and the destination on the NIC you want the print
jobs to pass through.
Print Path Configuration
The NIC print path is the path a print job takes when it reaches the
network adapter. First the job goes to a destination/queue (e.g.
d1prn) where it then passes through an associated model (e.g. m1)
for extra processing and logpath (e.g. l1) for job and printer logging.
Finally the job reaches the NIC's I/O port (e.g. PRN) where it
passes through to the attached printer. The "Print Path" form
displays one destination's settings at a time. From here, you can
then select another destination or you can go directly to an I/O port
to configure port settings.
Destination Settings
Figure 7. Print Path Configuration, Destination Settings
Destination Settings
65
Name
Name of the destination. The default destination queue names are
d1prn, d2prn, d3prn, d4prn, d5prn, d6prn, d7prn, and d8prn.
Back Channel
I/O port to receive printer feedback when a print job passes through
this destination. By default, all of the print queues start with no
backchannel.
Services
Define what type(s) of print services the destination will support. By
default all services enabled.
Parameter
socket Printing to a TCP port number (e.g. 9100) on the
NIC
lpd Remote printing using the Line Printer Daemon
lpsched System V printing using the "lp" command
ADAPTER,
WLAN
ADAPTER
rprinter Novell's remote printer setup
ADAPTER,
WLAN
ADAPTER
pserver Novell's PSERVER setup
netbios Printing from Windows stations relying on
NetBIOS over TCP/IP
ftpd printing using the File Transfer Protocol (FTP)
tn5250/3270 configuration print path using tn5250/3270
sessions
Chapter 3 Print Path Configuration
66
Selected Model
Defines the model configuration that is to be associated with the
current destination. The default model names are m1, m2, m3, m4,
m5, m6, m7, and m8.
Current Model Settings
Figure 8. Print Path Configuration, Current Model Settings
Model Type
The option is available on the Print Model web page. For a
description, see page 68.
Banner Page
The option is available on the Print Model web page. For a
description, see page 69.
Filter
The option is available on the Print Model web page. For a
description, see page 69.
Current Log Path Settings
67
Header String
The option is available on the Print Model web page. For a
description, see page 69.
Trailer String
The option is available on the on the Print Model web page. For a
description, see page 69.
Printer Configuration
The option is available on the Print Model web page. For a
description, see page 70.
Selected Log Path
This option defines the log path configuration that is to be
associated with the current destination.
Current Log Path Settings
Figure 9. Print Path Configuration, Current Log Path Settings
Log Path Type
The option is available on the Log Path web page. For a
description, see page 71.
Log Path Port
The option is available on the Log Path web page. For a
description, see page 72.
Chapter 3 Print Model Configuration
68
Print Model Configuration
Figure 10. Print Model Configuration
Name
Name of the model. The default model names are m1, m2, m3, m4,
m5, m6, m7, and m8.
Model Type
Define what processing (if any) will be performed on print jobs
passing through the associated destination. If set to "raw", the job
will not be touched by the network adapter.
Current Log Path Settings
69
Banner Page
Tells the Ethernet Interface to produce a banner page with each
print job. The type of banner page data can be text. You can also
specify whether the banner page should come at the front or the
end of a print job.
Filter
Specify whether the Ethernet Interface is to add carriage returns to
print jobs passing through that contain solitary linefeeds. This is
common with Unix text jobs resulting in stair-stepped output.
Header String
Define an escape sequence to be sent to the printer before each
print job. For example, you may want to send a sequence to print
the job in landscape mode or to a certain tray on the printer. You
can specify up to four separate sequences per header string. The
Ethernet Interface will execute them in order from top to bottom. If
specifying fewer than four sequences, be sure to start at the top
leaving undefined fields at the bottom.
The most common sequences are listed on the form:
•Print landscape - tells the printer to print in landscape mode.
•Print portrait - tells the printer to print in portrait mode.
Trailer String
Define an escape sequence to be sent to the printer after each print
job. For example, you may want to send a sequence to add a
formfeed so you don't have to manually press the formfeed button
on the printer. You may also want to tell the printer to reset itself in
case you have set a header string which tells the printer to do
something special with the job. You can specify up to three
separate sequences per trailer string. The Ethernet Interface
executes them in order from top to bottom. If specifying fewer than
four sequences, be sure to start at the top leaving undefined fields
at the bottom.
Print Model Configuration
Chapter 3 Print Model Configuration
70
The most common sequences are listed on the form:
•PCL Reset - tells the printer to reset itself once the data
completes
•End of Transmission (EOT) - tells the printer to force the end of
the job
•Formfeed - tells the printer to do a formfeed at the end of the
data.
Printer Configuration
Specify a printer configuration number to be loaded before
processing the print job. This ability to associate a printer
configurations to a logical printer model allows you to define up to
eight unique and independent printer personalities in a single
printer. Using this feature, you effectively have eight different
printers in one.
To associate a printer configuration to the currently selected
destination queue, just select the desired printer configuration
number from the drop down list. Once a printer configuration has
been associated with a destination queue, any print job sent to that
destination queue name will cause the printer to load the
associated printer configuration before processing the print job.
Current Log Path Settings
71
Log Path Configuration
Figure 11. Log Path Configuration
Name
Name of the log path. The default names are l1, l2, l3, l4, l5, l6, l7,
and l8.
Logpath Type
Define what type of log information will be tracked for each print job
passing through the associated destination. The types are:
•job - job ID, username, etc.
•user - user ID and three messages per job about the start and
finish
•checksum - value used when troubleshooting integrity of data
transferred
•printer - miscellaneous messages from the printer
•i/o port - status of the printer based on the port interface
signals.
Log Path Configuration
Chapter 3 Log Path Configuration
72
Logpath Port
Define where logging information for print jobs passing through the
associated destination will be reported. The choices are:
•prn - reported to the PRN port
•none - don't report any logging information
•TCP/IP port - to a TCP port number (specified in the edit field)
•syslog - to a host (specified by the IP address in the edit field)
running a SYSLOG daemon
•email - to an e-mail address (specified by the e-mail address
and the SMTP server IP address edit fields). You can set the
option on the Administration web page.
Default:
no logging turned on.
Current Log Path Settings
73
TN5250/3270 Configuration
The TN5250/3270 configuration form allows you to specify settings
for up to eight different TN5250/3270 sessions.
NOTE: The standard Printronix NIC module does not support
TN5250/3270 protocol. However, the TN5250/3270
software is available as an option you can order or as
factory installed.
Figure 12. TN5250/3270 Configuration, TN5250 Mode
TN5250/3270 Configuration
Chapter 3 TN5250/3270 Configuration
74
Figure 13. TN5250/3270 Configuration, TN3270 Mode
Mode
Specifies the TN protocol mode for the current configuration.
Default:
TN5250
Host IP
Specifies the IP address or domain name of the host (AS/400 for
TN5250) for the current configuration.
Default:
Unconfigured (empty) host.
Port
Specifies the UDP port number of the TN5250 or TN3270 server for
the current configuration.
Default:
23
Current Log Path Settings
75
Resource Name
(TN3270 mode) Specifies the name of the AS/400 LU session for
the current configuration. The resource name entered will be the
name of the printer device created on the AS/400 host for the
current session. The name is limited to 10 characters in length,
must start with an alpha character (a-z, A-Z), and contain only
alphanumeric characters and underscores.
Default:
Unconfigured (empty) resource name
Device Description
(TN5250 mode) Specifies the name of the printer device for the
current configuration. The description entered will be the name of
the printer device created on the AS/400 host for the current
session. The name is limited to 10 characters in length, must start
with an alpha character (a-z, A-Z), and contain only alphanumeric
characters and underscores.
Default:
Unconfigured (empty) description
Message Queue Name
(TN5250 mode) Specifies the queue name to which system
messages will be logged.
Default:
QSYSOPR
Message Queue Library
(TN5250 mode) Specifies the queue library to which system
messages will be logged.
Default: *LIBL
TN5250/3270 Configuration
Chapter 3 TN5250/3270 Configuration
76
Device Type
By default, the device type is always set to IBM.
WSCST Name
(TN5250 mode) As declared on the AS/400 host for the created
printer device.
Default: *NONE
WSCST Library
(TN5250 mode) As declared on the AS/400 host for the created
printer device.
Auto Connect
Specifies whether the NIC will automatically connect to the host.
Default: Disabled
Start/Stop Auto Connect
Specifies whether the NIC should retry automatic connection to the
host.
Default: 'Start' if Auto Connect is currently stopped, 'Stop' if Auto
Connect is currently started.
Current Log Path Settings
77
SNMP Configuration
The SNMP Configuration form allows you to configure SNMP trap
managers and the e-mail alert features of NIC. It allows you to
configure how SNMP alerts are processed by a SNMP trap
manager, a Unix syslog logging daemon, and/or have e-mail
notifications sent. Up to 10 SNMP trap managers and e-mail
recipients may be specified. Individual alerts fall into one of 14 alert
group categories, providing the ability to filter alert notices as
desired.
SNMP Manager Alert Posting Settings
Figure 14. SNMP Manager Alert Posting Configuration
Specifies whether alerts from the enabled alert group categories for
this configuration will be sent to the SNMP manager. If this option
is enabled, the following information must be entered:
•SNMP Manager IP Address - specifies the IP address of the
SNMP trap manager
•UDP Port - specifies the UDP port number used by the SNMP
trap manager for receiving trap messages. Acceptable values
are 162, and 49152 through 65535
•Community Name - up to 15 character string specifying the trap
community name.
SNMP Configuration
Chapter 3 SNMP Configuration
78
Syslog Alert Posting Settings
Figure 15. SNMP Syslog Alert Posting Configuration
Specifies whether alerts from the enabled alert group categories for
this configuration will be sent to the Unix syslog daemon. If this
option is enabled, the syslog daemon IP address must be entered
in the syslog field in the System Information section of the
Administration Configuration form.
Default: Disabled
E-mail Alert Posting Settings
Figure 16. SNMP Email Alert Posting Configuration
Current Log Path Settings
79
Specifies whether alerts from the enabled alert group categories for
this configuration will be sent to the specified e-mail address. If this
option is enabled, the following information must be entered:
•E-mail Address - specifies an e-mail address to which alert
information will be sent
•Short E-mail Format - specifies whether a short (15-80
character) alert e-mail message should be sent.
If enabled, the message will contain the alert description, the
severity level, device description, and device name (unless the
length of the message exceeds the Short E-mail Message
Length, in which case the message will be truncated).
If disabled, the message will contain additional information
including the device description, device name and location,
alert description, alert group, alert severity level, and printer
status.
Default:
Disabled
•Short E-mail Message Length - Specifies the maximum size of
the short e-mail message. Acceptable values are 15 to 80
characters.
Default:
80 characters
•Send Test Message - Provides a way to test the validity of the
e-mail address/SMTP server address. If checked, a test
message will be sent to the specified e-mail address when the
submit button is pressed.
Default:
All alert groups are disabled by default.
If the alert message is to be sent to a cellular phone or pager, the
Short E-mail Format option should be enabled. Once this option is
enabled, you may specify the maximum e-mail message length
(15-80 characters). When enabled, the message will contain the
alert description, the severity level, device description, and device
name (unless the length of the message exceeds the Short E-mail
Message Length, in which case the message will be truncated).
SNMP Configuration
Chapter 3 SNMP Configuration
80
If the Short E-mail format is disabled, the message will contain
additional information including the device name and location, alert
description, alert group, alert severity level, and printer status.
To test the validity of the e-mail address and the SMTP server
address, enable the Send Test Message option. If the Send Test
Message box is checked, a test message will be sent to the
specified e-mail address when the submit button is pressed.
Alert Groups
Figure 17. SNMP Alert Groups Configuration
Specifies which alert groups are enabled for reporting for this
configuration. When an alert occurs that is contained in one of the
enabled alert groups, it will be posted to the specified SNMP
manager, Unix syslog daemon, and/or e-mail address. The
following table describes which printer events belongs to which
Alert Group.
Default:
All alert groups are disabled by default.
Current Log Path Settings
81
Table 8. Alert Groups and Printer Events
Alert Group Printer Events
Offline Printer is Offline
Hold Print Time Out
Warning COMM Check
Invalid Address
CU Time Out
CU Not Enabled
File System Full
File Exist
Hex Dump Mode
Half Speed Mode
Printer Warm
Print Head Warm
2B-Toner Density Too High
2C-Toner Density Too Low
Media Input Load Paper
Paper Out Time Out
Fanfold Paper Empty
No Fanfold Paper
63-CutSheet Feeder Fail
Cutsheet Pick Miss
No Paper Tray
Paper Jam at Entrance
Cutsheet Cover Open
Cutsheet Paper Empty
Tray Mismatch
SNMP Configuration
Chapter 3 SNMP Configuration
82
Media Output Stacker Full
Stacker Jam Time Out
Stacker Full Time Out
Stacker Fault Time Out
Stacker Jam
Stacker Fault
Stack Over Flow
Stack Under Flow
Stacker Fail
Stacker Interlock Fail
Stacker Not Ready
Media Path Clear Paper Jam
Paper Jam Time Out
Paper Jam Fuser
Paper Jam Exit
Cutsheet Path Open
Paper Jam at Drum
Paper Jam at Fuser
Paper Jam at Exit
Tractor MTR FWD Speed Error
Tracker MTR BKWD Speed Error
Paper Jam at Entrance
Cutsheet Motor Fail
Cutsheet Feeder Fail
Clear Jam at Fuser Input
Clear Jam at Fuser Exit
Clear Jam Near TOF Lever
Table 8. Alert Groups and Printer Events
Alert Group Printer Events
Current Log Path Settings
83
Marker Ribbon Stall Time Out
Ribbon Ink Out
Ribbon Stall
Ribbon Drive
Shuttle Over Speed
Ribbon Fault
Ribbon Detected
Print Head Up
Ribbon Broken
Ribbon Load Bad
Ribbon Take-up Full
2A-t
Cot(er)77511.7Cot(er)48.7nFaColt
Chapter 3 SNMP Configuration
84
NOTE: Not all of the alerts are available on all of the printers. The
alerts available for monitoring will depend on the printer
type and the options installed on the printer.
Power Cart Recharge Battery
Batt High Volt
Batt Low Volt
RFID RFID Tag Failed
RFID Max Retry
RFID Comm Error
RFID Read-Only Tag
Table 8. Alert Groups and Printer Events
Alert Group Printer Events
System Information
85
Administration Configuration
The Administration Configuration form is broken down into general
print server-related settings and password security.
System Information
Figure 18. Administration Configuration, System Information
The System Information form allows you to specify the following
information about the printer:
Chapter 3 Administration Configuration
86
System Information
87
Email
Defines the user email address to receive printer and job logging
information from log paths on the NIC.
Default: Unconfigured (empty).
SMTP Server
Specifies the IP address or domain name of the SMTP server to be
used for processing email messages generated by the NIC.
Default: Unconfigured (empty).
DNS Server
Specifies the IP address of the domain name server to be used for
resolving host names (e.g. host.domain.com) to IP addresses
(e.g. 192.168.0.42).
Default: Unconfigured (empty).
NOTE: If the DNS server field is initially blank, the NIC will
automatically use the IP address of the DNS server and
enter it in the DNS server field when DHCP is enabled.
Chapter 3 Administration Configuration
88
Passwords
Figure 19. Administration Configuration, Passwords
Only a user with root privileges can alter the NIC's settings. Guest
users can only view settings but cannot alter them. Both types of
users can be assigned passwords. To change a password, type in
the old password in the "Old" field. Then type the new password
twice: once in the "New" field, and once in the "Confirm" field.
Default
: No passwords for root or guest users.
Kerberos Configuration
89
System Configuration
Figure 20. System Configuration
The System Configuration form allows you to change the NIC 's
operation mode. Select "Reboot" to re-power the print server.
Select "Default" to reset the print server and have it come up with
factory default settings.
Security Configuration
WLAN
ADAPTER,
WLAN
The Security Configuration form allows you to configure the NIC’s
Kerberos authentication settings and to obtain the authenticated
information.
Kerberos Configuration
This section covers the configuration of Kerberos related settings.
The two configuration settings include:
•Print Server Settings – Used to configure Kerberos settings
related to the Print Server.
•Key Distribution Center (KDC) Settings – Used to configure
the Kerberos settings related to the Kerberos server.
System Configuration
Chapter 3 Security Configuration
90
Print Server Settings
•Print Server Name – The Print Server name is used in the
KDC database and can be configured in the Administration
page. If this name is changed, the corresponding name in the
KDC database must be changed accordingly to match it.
Default: “<prod>_xxxxxx” where “xxxxxx” is the serial number
or the last six digits of the network adapter’s Ethernet address.
“<prod>” is the product model number (e.g. M302_01234).
•Renew Lifetime – The maximum time allowed before a new
Kerberos password is needed. If the password has not been
changed within the renew lifetime, a warning message displays
in the next logon. If the renew lifetime is zero, there is no time
limit imposed on the password.
Default: 0 seconds (no limit).
•Enable Kerberos Authentication – This check box is used to
enable/disable the Kerberos authentication within the Print
Server. If it is selected, the Print Server uses Kerberos to
authenticate with the Access Point during its boot up process.
Default: disabled (i.e. the check box is not selected).
Key Distribution Center (KDC) Settings
•KDC Port – The TCP port of the Kerberos server.
Default: 88.
•KDC Name – The Kerberos server name.
Default: krbtgt
•KDC Realm – The Kerberos realm in which the Kerberos
server, the Access Point, and the Print Server are operating.
Default: LOCALREALM
•Clock Skew – The maximum time difference allowed between
the Kerberos server and the Print Server. This has to be the
same setting in the Access Point.
Default: 300 seconds.
Credentials Information
91
•Ticket Lifetime – The maximum time allowed before the Print
Server is required to get a new ticket.
Default: 43200 seconds
Credentials Information
This section displays the Print Server’s principal and its Kerberos
ticket credentials after the Print Server has authenticated with the
Access Point.
Status
The Status menu items allow you to view the current status of both
the printer and the network. The submenu items available are as
follows:
•I/O Port - this menu item allows you to view the current status
of the printer, including the print jobs that are queued or are
currently active.
•Network - this menu item allows you to view the current status
of the network connection.
Status - I/O Port
The I/O Port Status form allows you to remotely see what is
happening on the NIC I/O port. The port's status and a list of active
and queued jobs will be displayed. You can cancel a job (as long as
you have permission) by clicking the Cancel icon beside the
desired job. If you see "waiting" in the "Status" line, this indicates
the network adapter is either waiting for data from the host or for
feedback from the printer. If you see "blocked" in this line, this
indicates the printer is not allowing the NIC to send any more data.
The printer could be busy processing data it has already received
or it could be in an error state.
The printer status display is automatically refreshed every minute.
Chapter 3 Status - Network
92
NOTE: You cannot cancel a print job with an IPDS Emulation. Do
not click the Cancel icon.
The printer’s buffer size may not allow you to monitor the
real time status of the printer and the print job at the same
time. The status feedback to the host usually reads “printer
idle” unless the print job is significantly large.
Status - Network
This form allows you to view the current status of the network. The
statistical data provided is broken down by network protocol. You
can use this form to troubleshoot network-related problems.
93
4Windows
Configuration
Overview
This chapter details a complete Windows configuration setup
including:
•Identifying the NIC on the network using TCP/IP as the
underlying protocol
•Configuring the NIC with its mandatory TCP/IP settings
(IP address and subnet mask)
•Configuring a new printer on the Windows station
Windows Environment Description
The NIC supports network printing under Windows environments
by using TCP/IP. In a Windows NT setup, pure TCP/IP is used as
the network protocol whereas with Windows 95/98 or Windows
Me , NetBIOS is used over TCP/IP.
The ideal configuration is a network printer defined on the NT/2000
server to be shared by Windows 95/98/Me clients. However, any
Windows station can also go directly to the NIC.
Chapter 4 Windows NIC Configuration
94
Windows NIC Configuration
The IP address and subnet mask are mandatory TCP/IP settings
and are needed before the print server can be detected on the
network. There are also additional optional settings. This section
offers alternative methods for configuring your NIC in a Windows
environment and describes some of the more common optional
settings available.
Mandatory
Since TCP/IP is used for Windows printing, the NIC must be
configured with a minimum of an IP address and subnet mask
before it can be seen on the network.
Optional
Additional settings, like routing entries, can be configured. This
allows communication across subnets when no other router exists.
You can configure the NIC done from the printer control panel, Web
browser, host commands, or other Printronix utility software. To
configure these options, see “Configuration Tools” on page 34.
Configuration Using ARP
To configure the NIC with its IP settings using a manual arp
command:
1. Log on to a Windows station with TCP/IP loaded and located
on the same subnet as the NIC.
2. Find the Ethernet address for the NIC on the configuration
printout. It must be entered as part of this procedure.
Configuration Using ARP
95
3. Use the arp command to add an entry into the Windows
station ARP table for the NIC. This is the most common syntax
for this command:
Syntax:
arp -s ipaddress ethernetaddress
Example for Microsoft TCP stacks:
arp -s 192.75.11.9 00-80-72-07-00-60
This example specifies a NIC using IP address 192.75.11.9
and Ethernet address 00-80-72-07-00-60.
4. Check if the ARP entry was accepted.
arp -a
You should see an entry in the listed ARP table with the IP
address and Ethernet address specified in Step 3.
5. Ping this IP address to see if the NIC can be seen on your
network.
At this point, you should be able to communicate with the NIC
Chapter 4
Changing Workgroup Names
97
3. Click on the SUBMIT button when done and physically repower
the print server to make the new settings take effect.
Changing Workgroup Names
Windows environments define groups of related computers as
“workgroups.” By default, “WORKGROUP” is the name that is
assigned to the NIC workgroup. However, you may want to change
this to suit your network better. To do this:
1. Load a Web browser on your Windows station and direct it to
the URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a “User ID” and password first, type in root
for the ID and press ENTER at the password prompt (since
there is no password by default).
2. At the “Network Configuration” HTML form that displays,
search for the “Windows (NetBIOS TCP/IP)” section and
highlight the “Workgroup Name” field.
3. Type in the new workgroup name for the NIC.
4. Click on the SUBMIT button when done and physically repower
the print server to make the new settings take effect.
Chapter 4 Windows NIC Configuration
98
Changing Destination Names
When defining some printers within Windows environments, the
NIC requires that you specify a predefined destination rather than
any name you would like. For example, when creating a new printer
under Windows NT, a screen similar to Figure 21 displays.
Figure 21. Windows NT Print Setup Dialogue Box
The first field requires the IP address for the NIC, and the second
field must be filled in with a valid destination from the print server
(e.g., d1prn). Otherwise, LPR will not be able to access the printer.
Table 9 outlines the default destinations to choose from.
Table 9. NIC Default Destinations
Destination Mapped I/O Port
d1prn PRN
d2prn PRN
d3prn PRN
d4prn PRN
d5prn PRN
d6prn PRN
d7prn PRN
d8prn PRN
Changing Destination Names
99
This name can be changed to something more meaningful using
the built-in HTML forms. To do this:
1. Load a Web browser on your Windows station and direct it to
the URL:
http://NICIPaddress/destConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a “User ID” and password first, type in root
for the ID and press ENTER at the password prompt (since
there is no password by default).
2. At the “Print Path Configuration” HTML form that displays,
select a destination link from the top of the page to bring up the
appropriate destination form. By default, you should see a line
near the top of the form showing the destinations listed in
Table 9.
3. Once the desired destination HTML form displays, highlight the
“Name” field and type in the new name for this destination.
4. Click on the SUBMIT button when done and physically repower
the print server to make the new setting take effect.
Chapter 4 Windows Host Configuration
100
Windows Host Configuration
This section covers Windows 2000, Windows NT, Windows
Millennium, Windows 95/98, Windows 3.1, and Printronix Printing
System (PPS) new printer setups.
Windows NT 4.0 Host Setup
This installation procedure assumes that the NIC adapter is
configured with the correct IP address, subnet mask and gateway
(if required). In addition, the administrator can “ping” and Telnet to
the NIC adapter from the server console. If this is not the case, use
the printer front panel to configure the NIC adapter before
proceeding.
1. Click the Start > Settings > Printers.
2. Double-click the Add Printer icon. The Add Printer Wizard
window displays.
3. If necessary, select My Computer and click Next.
4. Click Add Port.
Windows NT 4.0 Host Setup
101
5. Double-click LPR Port. If LPR Port is not listed, the Microsoft
TCP/IP Printing service is not installed. To install the Microsoft
TCP/IP Printing service, refer to “Installing Microsoft TCP/IP
Printing” on page 125.
6. Enter the IP address of the NIC in the Name or address of
server providing lpd field.
7. Enter the name of the print queue in the Name of printer or
print queue on that server field.
NOTE: The name must be a name of an existing destination/queue
on the NIC, and must be lowercase by default. You will
most likely use d1prn.
Chapter 4
Windows NT 4.0 Host Setup
103
12. Determine if the printer is shared with other network users. If it
is shared, select the share name and operating system(s) of
the other workstations that may use this printer.
13. Click Next.
14. Click Finish. Printing a test page is recommended. If you have
any problems during or after installation, see “Windows NT 4.0
Or 2000 Host Setup Problems” on page 125.
Chapter 4 Windows Host Configuration
104
Windows XP/2000 Host Setup
This installation procedure assumes that the NIC adapter is
configured with the correct IP address, subnet mask and gateway
(if required). In addition, the administrator can “ping” and Telnet to
the NIC adapter from the server console. If this is not the case, use
the printer front panel to configure the NIC adapter before
proceeding.
1. For Windows 2000: select Start Settings Printers.
For Windows XP: select Start Printers and Faxes.
2. For Windows 2000: double click the Add Printer icon.
For Windows XP: click Add A Printer.
The Add Printer Wizard window displays.
3. Click Next.
4. If necessary, uncheck the Automatically detect and install
my Plug and Play printer box.
5. Click Next.
Windows XP/2000 Host Setup
105
6. Click Create a new port and select Standard TCP/IP Port
from the pull down menu.
7. Click Next. The Add Standard TCP/IP Printer Port Wizard
displays.
8. Click Next.
Chapter 4 Windows Host Configuration
106
9. Input the printer name or IP address in the “Printer Name or IP
Address” field. Click Next.
NOTE: By default, the Port Name value is identical to the Printer
Name or IP Address.
10. Select Custom and click Settings....The Configure Standard
TCP/IP Port Monitor dialog box opens.
Windows XP/2000 Host Setup
107
11. Complete the Port Settings tab as desired:
•Raw. (The default.) Make sure “Raw” is selected in the
“Protocol” field. Leave the setting at 9100 (the default) in
the “Raw Settings Port Number” field.
•LPR. To select the LPR setting, click LPR in the “Protocol”
field. In lowercase characters, type the desired queue
name of d1prn through d8prn in the “LPR Settings Queue
Name” field.
•SNMP Status Enabled. Check the SNMP Status Enabled
box if you want the status returned using SNMP. You must
also enter the appropriate information in the “Community
Name” and “SNMP Device Index” fields.
Upon completion, click OK. The Port Settings text box
disappears and the Additional Port Information Required text
box reappears.
Chapter 4 Windows Host Configuration
108
12. Click Next.
13. Click Finish. The Add Printer Wizard window appears.
Windows XP/2000 Host Setup
109
14. Click Have Disk.
NOTE: If you do not have the printer driver files, go to
www.printronix.com to download the files.
15. Click Browse and locate the files.
NOTE: The figure above shows the installation of the P5000
printer driver.
Chapter 4 Windows Host Configuration
110
16. Click the necessary printer under Printers.
NOTE: By default, the printer you selected appears as the printer
name.
17. Click Next.
Windows XP/2000 Host Setup
111
18. Click Share as, then Next.
19. Enter information in the Location and Comment fields as
necessary, then click Next.
20. Click Next to print a test page.
Chapter 4 Windows Host Configuration
112
21. Click Finish. If you have any problems during or after
installation, see “Windows NT 4.0 Or 2000 Host Setup
Problems” on page 125.
Windows XP/2000 Host Setup
113
22. If the Digital Signature Not Found dialog box opens, click Yes
to continue the installation. The Current Emulation dialog box
opens.
23. If necessary, select the emulation you want to install and click
OK.
24. Click OK to confirm correct printing.
Chapter 4 Windows Host Configuration
114
Windows NT 3.51 Host Setup
To configure a new printer on a Windows NT 3.51 station:
1. Open the Control Panel.
2. Double click Printers.
3. Select Create a Printer from the Printer menu to display the
dialogue box in Figure 22.
Figure 22. Create a Printer Dialogue Box
4. Define a name to represent this print setup and select the
appropriate driver for the printer that will be used in this setup.
For printer driver, choose generic text, Epson FX1050, or
Proprinter.
5. Under the Print To field, select Other....
Windows NT 3.51 Host Setup
115
6. Select LPR Port from the list that displays, and click OK to
bring up a dialogue box similar to the one in Figure 23.
Figure 23. Add LPR Compatible Printer Dialogue Box
7. Type in the IP address or host name of the NIC in the first field.
8. Type in the name of a predefined destination/queue on the NIC
in the second field.
NOTE: This name must be a name of an existing destination/
queue on the NIC, and it must be lowercase by default.
You will probably use d1prn.
9. Click OK when you have specified these two fields.
You now have a new network printer which relies on the standard
TCP/IP print protocol, LPD, to print remotely to a printer with the
NIC.
Chapter 4 Windows Host Configuration
116
Windows Me or 9x Host Setup
To configure a new printer on a Windows 9x station:
1. Select Start Settings Printers.
2. Double click the Add Printer icon.
3. Select Network Printer from the second window of the Add
Printer wizard that loaded.
4. At the next window, click Browse to help fill in the network path
of this printer. The Browse for Printer dialog box displays.
5. Double click on the appropriate workgroup containing the NIC.
By default, the print server falls under Workgroup.
6. Continue searching the network until you see the NIC name,
“P_xxxxxx” or “M_xxxxxx”, where “xxxxxx” equals the last six
digits of the print server Ethernet address found when a
configuration is printed.
7. Once you see the NIC, double click on it to display a list of
predefined destinations/queues from which to choose.
8. Select a destination/queue that will use d1prn.
9. Click OK once you have selected a destination.
10. Back at the network path window, select Next since this path
should now be filled in for you.
11. At the next window, select the appropriate print driver and click
Next.
12. Fill in a name for this new network printer at the next window
and decide if you want this to be the default printer. This printer
name can be anything you would like as long as it is unique.
13. When prompted for a test page, select either Yes or No
depending on the state of the attached printer, and click Finish.
NOTE: Windows may ask for a disk or CD-ROM to load the
appropriate printer driver to complete this new printer
setup.
Printronix Printing System (PPS) Host Setup
117
There should now be a new printer icon within the Printers folder.
This new network printer relies on NetBIOS over TCP/IP as the
underlying protocol to print to the NIC.
Printronix Printing System (PPS) Host Setup
Printronix Printing System is a direct socket printer port for
Windows 9x/Me/NT
perating systems. It allows hosts to print
directly to a TCP port number on NIC. PPS is not required for
Windows 2000.
To configure a PPS port for a printer on a Windows station, you will
need to:
1. Insert the software starter kit CD into the CD drive.
2. Load the File Manager or WinFile and look on the CD for a
PPS.ZIP file.
3. Double click PPS.ZIP to extract all files within it to a directory
on the Windows station.
4. Once extracted to a directory, find the Setup file and double
click it to load the InstallShield Wizard.
5. Answer the prompts throughout the Wizard and select Yes to
restart your computer at the end.
6. Once your computer is rebooted, open the
Settings Printers folder to view your existing printers.
NOTE: PPS will only work with an existing printer. Therefore, if you
do not have an existing printer that you can alter, create
one now using any port settings you would like. These will
be changed in the following steps.
7. Select the printer you want to use with PPS and click the right
mouse button to bring up a sub-menu.
8. Select Properties from this menu to display the current
settings for this printer.
9. Click the Details tab to display the printer port settings.
10. Click the Add Port button. The Add Port dialog box opens.
Chapter 4 Windows Host Configuration
118
11. Click the Other button.
12. Click TCP/IP Printer Port within the Other list.
13. At the next dialog box that displays, fill in the host name or IP
address of the NIC in the first field.
14. Fill in a valid TCP port number on the NIC in the second field.
The choice is 4400 or 9100 for PRN.
15. Click OK when done to return to the Details window. You
should now see something relating to PPS Port within the Print
to the following port: field.
16. Click OK to close this printer properties window.
You now have a new network printer which relies on PPS to print
remotely to a printer off of the NIC.
Windows 3.1 Host Setup
If you are running Windows 3.1 stations on your network, you will
need to rely on either TCP/IP or IPX to print to the NIC. If IPX is
used, you will have a print queue defined on a Novell file server to
which your Windows 3.1 stations will send their print jobs. The NIC
will then service this print queue as either a PSERVER or an
RPRINTER. Please see Chapter 5, “Novell Configuration” for
further details.
If you want to rely on TCP/IP, you will need a third party TCP stack
loaded onto your Windows station since TCP/IP support did not
automatically come with Windows until the introduction of Windows
NT and Windows 95. You may also be running a third party stack if
you decided not to use a Microsoft operating system.
Some common TCP stacks are FTP Software's OnNet ,
NetManager's Chameleon , and Frontier Technologies'
SuperTCP . In each case, they allow your Windows 3.1 station to
communicate with other TCP/IP devices. This means you can send
print jobs to the NIC as well.
Technical Support
119
The most common print method offered with Windows TCP stacks
is LPR/LPD, a multi-platform remote printing protocol used on
everything from PCs to mainframes. The LPR print setup is very
simplistic, involving only two parameters:
1. NIC IP address. The IP address or host name of the print
server to which you want to print.
2. NIC destination/queue. A pre-defined name on the print
server telling the device to which I/O port to send the jobs. The
standard name for the PRN port is d1prn.
NOTE: This destination name is case sensitive and, by default, all
names are lowercase.
Windows Troubleshooting Tips
This section provides information on possible solutions to some
standard Windows and NIC configuration errors.
Technical Support
If you require technical support, please have the following
information available when you call:
1. What level of software are you running?
2. What type of attachment do you have?
3. What is your host operating system?
4. Give a detailed description of the problem.
5. How often, and when, does the problem occur?
6. Give a detailed description of your network and the
components attached.
Chapter 4 Windows Troubleshooting Tips
120
NIC Cannot Be Found On The Network
Please follow these tips to determine what the problem may be with
your NIC configuration.
•Have you assigned the NIC a unique and valid IP address
which corresponds with the other IP addresses on your
network? For example, are you sure no other device is using
this IP address?
•Are you sure you are trying to talk to the NIC from a Windows
station on the same subnet? Currently, the print server can only
be seen locally unless you configured a routing entry earlier.
•If you look at the back of the printer, is the STAT LED flashing
once a second, or is it quicker than that? A slower, once-a-
second rate indicates that the print server is in fact configured
with an IP address. A faster rate means it knows nothing about
this, so you may need to try the configuration process again.
•Have you confirmed that the network connection to the NIC is
working correctly? Trying different network cables and
locations will help narrow down the problem.
•For wireless NIC, is the SSID correct? Is the operation mode
correct?
HTML Configuration Forms Will Not Display
•Can you ping NIC from the Windows station? If not, refer to
“NIC Cannot Be Found On The Network” on page 120.
•Have you used the correct URL for the NIC home page? It
should be http://NICIPaddress
(e.g., http://192.75.11.9).
•Is HTTP support enabled? If not, refer to “Web Browser/HTTP
Problem” on page 124.
Errors Occur When Defining An LPR Printer
121
Errors Occur When Defining An LPR Printer
•Can you ping the NIC from your Windows NT station? If not,
please refer to “NIC Cannot Be Found On The Network” on
page 120.
•Did you specify the correct IP address or host name for the NIC
in the first field of the “Add LPR Compatible Printer” box?
•Did you specify a valid destination/queue on the NIC in the
second field of the “Add LPR Compatible Printer” dialogue box?
If so, did you also enter it in lowercase letters?
Cannot Browse The NIC On The Network
•Have you looked under the right Windows workgroup? By
default, the NIC will be found under “WORKGROUP.”
•Are you able to browse other Windows stations and devices on
the network from this same station?
•Has this Windows station been given enough time to update its
registry so it can see this newly added workgroup device?
Sometimes Windows stations can take considerable time,
depending on the size of the network.
Chapter 4 Windows Troubleshooting Tips
122
Printer Errors When Printing Or No Output
•Is there a large job currently printing which is taking up all of the
printer resources? Usually when printing from Windows 95/98
stations, a busy printer can cause Windows to display a printer
error message. This is because it demands immediate printer
attention rather than holding the data until the printer is ready
again. The best way around this is to use a central spooling
station like an NT server.
•Have you tried restarting the spooler under “Control
Panel:Services”? Sometimes this is needed to get printing
started.
NOTE: As a last resort, you may want to reboot the Windows
station. Sometimes this is the only option to completely
clear this situation. The NIC usually has nothing to do with
this problem.
TCP/IP Access Problem
If you can
ping
the printer from a workstation, but you cannot Web
browse, Telnet, or print to the printer through the NIC, there may be
an incorrect entry in the TCP access list. In order for this
workstation to use the NIC interface in this case, one of two things
must happen.
•The TCP list must have an entry added to grant access to this
workstation, or
•All entries must be deleted from the TCP list to grant all
workstations/hosts access to the above TCP services.
To view the current access list, use the printer control panel to
access the configuration menu (see the
User's Manual
for
configuration menu information). From the DIAGNOSTICS/Printer
Tests menu choose the E-Net Test Page. When the page prints,
look under the “TCP ACCESS TABLE” section for the TCP access
list entries.
TCP/IP Access Problem
123
To add/delete a TCP access list entry, refer to “TCP Access Lists”
on page 347.
NOTE: When the following procedure is used, the TCP access list
will be cleared, but all IP addresses will need to be entered
again after the procedure is complete.
ADAPTER,
WLAN
ADAPTER
To reset all Adapter or Wireless NIC TCP/IP values to the factory
defaults when access is impossible:
1. Obtain a printer configuration printout using the control panel.
See the
User's Manual
for configuration menu information.
2. Power off the printer.
3. On the NIC Interface, place SWITCH 1 in the down position.
4. Power on the printer and wait for the ONLINE state.
5. On the Adapter or Wireless NIC Interface, place SWITCH 1 in
the up position.
6. From a workstation attached to this network segment, create
an ARP entry. The NIC IP address and hardware Machine
Address Code (MAC) addresses are needed. At the
workstation enter:
arp -s <ipaddress> <MACaddress>
ping <ipaddress>
7. Try to
ping
this IP address to see if the NIC can be seen on
your network. If the interface does not respond, verify you are
on the same network segment as the printer and that the ARP
entry was created.
8. Telnet into the NIC using the same IP address as above. Log
in as root. There is no password by default.
9. At the system prompt, enter:
store tcpip from default
config http on
save
reset
NOTE: This will reset all TCP/IP settings to factory default and
reset the NIC.
Chapter 4 Windows Troubleshooting Tips
124
10. Power the printer off and then back on.
11. Set the IP address, subnet mask, and default gateway
parameters to the desired values.
ETHERNET,
WLAN
To reset all Integrated NIC TCP/IP values to the factory defaults
when access is impossible, contact your Printronix service
representative for assistance.
If you are still experiencing difficulty accessing or browsing the
printer, contact the Customer Solutions Center for further
assistance.
Web Browser/HTTP Problem
In some cases, you may not be able to browse the printer Web
page simply because the NIC HTTP may be turned off.
If you cannot
ping
the NIC IP address, make sure the IP Address,
subnet mask, and default gateway are set correctly by checking the
Ethernet Parameters menu from the operator panel. See the
User's
Manual
for configuration menu information.
If you can
ping
the NIC IP address but cannot access the Web
pages, perform the following procedure to verify the NIC HTTP is
turned on.
1. Telnet into the NIC and log in as root. There is no password
by default.
2. At the system prompt, enter the following commands:
config http on
save
reset
3. After approximately 30 seconds, point your browser to the NIC
IP address. The printer Web pages should now be accessible.
If you are still experiencing difficulty accessing or browsing the
printer, contact the Customer Solutions Center for further
assistance.
Windows NT 4.0 Or 2000 Host Setup Problems
125
Windows NT 4.0 Or 2000 Host Setup Problems
The installation procedure covered earlier in this chapter assumes
that the NIC adapter is configured with the correct IP address,
subnet mask and gateway (if required), and that the administrator
can
ping
and telnet to the NIC adapter from the server console.
If this is not the case, use the printer front panel to configure the
NIC adapter before proceeding.
Installing Microsoft TCP/IP Printing
The NIC installation for Windows NT 4.0/2000 also requires the
“Microsoft TCP/IP Printing” service on the server. To install this
service, click the Network icon in the Control Panel and click the
Services tab. Click Add Service and select Microsoft TCP/IP
printing.
•Do you have administrative privileges?
This installation requires administrator privileges.
•“LPR port” is not listed in step 6 on page 101.
Cancel the installation and install the Microsoft TCP/IP printing
service on the server.
•LPR configuration warning during step 7 on page 101.
Chapter 4 Windows Troubleshooting Tips
126
The Ethernet cable is not plugged in or the printer is not turned
on. This message is a communication failure between the
NT/2000 server and the NIC. Check cabling, IP address
settings, gateway, etc.
•Test page does not print or prints incorrectly:
1.Is the printer online? Re-send test page.
2.The print queue name in step 6 on page -101 should be
d1prn; however, the name can be changed. To verify the
queue names, print an E-Net Test Page. Refer to your
User's Manual
for information.
3.The Printronix NT print driver requires P-Series emulation
active on the printer. The Generic/Text driver should print in
any printer emulation.
4.Delete then re-install the Microsoft TCP/IP Print service on
the server.
If you are still experiencing difficulty accessing or browsing the
printer, contact the Customer Solutions Center for further
assistance.
127
5Unix Configuration
Overview
This chapter details a complete Unix setup including:
•Configuring the NIC with its mandatory TCP/IP settings
(e.g., IP address and subnet mask).
•Configuring the Unix host station with a new printer.
Unix Environment Description
The NIC supports network printing under various TCP/IP
environments including all variations of Unix. Printing can come
from multiple hosts directly or through central spooling machines.
Chapter 5 Unix NIC Configuration
128
Unix NIC Configuration
There are mandatory settings needed before the print server can
be detected on the network, as well as some additional optional
settings. This section offers alternative methods for configuring
your NIC and mentions some of the more common optional settings
available.
Mandatory
Since TCP/IP is used, the NIC must be configured with a minimum
of an IP address and subnet mask before it can be seen on the
network. To configure these options, see “Configuration Tools” on
page 34.
Optional
Additional settings, like routing entries, can be configured allowing
for communication across subnets.
Configuration of the NIC can be done from the control panel or
through host commands. To configure these options, see
“Configuration Tools” on page 34.
Using ARP
To configure the Ethernet Interface with its TCP/IP settings using a
manual arp command, the syntax is:
arp -s ipaddress ethernetaddress
For the aix command, the syntax is:
aix -s ether ipaddress Mac_address
To use either of these commands:
1. Log on to a Unix station as superuser or root. This station
must be located on the same subnet as the NIC since ARP is
limited to subnets.
Using ARP
129
2. Find the Ethernet address for the NIC by printing a
configuration or reading it from the control panel. It must be
entered as part of this procedure.
3. Use the arp command to add an entry into the Unix station
ARP table for this NIC. Here is the most common syntax for this
command:
arp -s ipaddress ethernetaddress
Example for Microsoft TCP stacks:
arp -s 192.75.11.9 00:80:72:07:00:60
This example specifies a NIC using IP address 192.75.11.9
and Ethernet address 00:80:72:07:00:60.
4. Verify that the ARP entry was properly applied.
arp -a
You should see an entry in the listed ARP table with the IP
address and Ethernet address specified in step 3.
5. Try to ping this IP address to see if the NIC can be seen on
your network.
At this point, you should be able to communicate with the NIC from
your local Unix station. This means the printer knows about an IP
address and subnet mask and has these settings in its current
memory. However, if the NIC is shut off, these settings will be lost
unless you store them in flash memory, as follows:
1. Load a Web browser on your Windows station and direct it to
the URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a “User ID” and password first, type in
root for the ID and press ENTER at the password prompt
(since there is no default password).
2. At the “Network Configuration” HTML form that displays, click in
the field below the “IP Address” heading and type in the IP
address for the NIC.
Chapter 5 Unix NIC Configuration
130
3. Under the Subnet Mask heading, enter the NIC subnet mask.
NOTE: If you would like to communicate with the NIC from across
routers, you will need to fill in an entry within the “Routing”
section. Please see “Communicating Across Routers” on
page 132 for further details.
4. Click the Submit button when done and physically repower the
print server to make sure the new settings are in effect.
Using RARP
RARP allows you to dynamically assign an IP address to the NIC
upon bootup. To configure the NIC with its TCP/IP settings using
RARP:
1. On your RARP server, make an entry in the /etc/ethers file for
the NIC.
Syntax:
ethernetaddress NICIPaddress
Example:
00:80:72:07:00:60 192.75.11.9
2. Start the RARP daemon on the RARP server if not already
running. If it is running, send an HUP signal to it with the kill
command:
Syntax:
kill -HUP pid
where pid is the process ID of the RARP daemon.
3. Power on the NIC so that it immediately sends out an RARP
request. Wait one minute to allow the address assignment
process to complete. You should see the STAT LED on the NIC
interface slow down, indicating it knows about an IP address to
use.
Using BOOTP
131
4. Try to ping the NIC IP address from a local Unix station to see
if it can be seen on your network.
NOTE: You will only be able to communicate with the NIC from a
network station on the same subnet as the print server. The
NIC needs to be told about a default router/gateway so any
packets that come in from a different subnet can be
returned via this gateway. Please see “Communicating
Across Routers” on page 132 to set this up.
Using BOOTP
BOOTP allows you to dynamically assign an IP address to the NIC
upon bootup. In addition, the BOOTP server can provide additional
details like a default router/gateway address. To configure the NIC
with its TCP/IP settings using BOOTP:
1. On your BOOTP server, make an entry in the /etc/bootptab file
for the NIC.
Syntax:
NICIPname:\
:sm=netmask:\
:hd=homedirectory:\
:bf=null:\
:gw=defaultgateway:\
:ht=ethernet:\
:ha=ethernetaddress:\
:ip=ipaddress:\
:ts=timeserver:\
:to=timezone:
Example:
spike:\
:sm=255.255.255.0:\
:hd=/usr/null:\
:bf=null:\
:gw=192.75.11.1:\
:ht=ethernet:\
:ha=008072070060:\
:ip=192.75.11.9:\
:ts=192.75.11.7:\
:to=25200:
Chapter 5 Unix NIC Configuration
132
2. Turn the NIC on so that it immediately sends out a BOOTP
request. Wait one minute to allow the IP address assignment
process to complete. You should see the STAT LED (on the
NIC interface) slow down, indicating it knows about an IP
address to use.
3. Try to ping the NIC IP address from a network station to see if
it can be seen on your network.
NOTE: You will be able to communicate with the NIC from network
stations on different subnets if the print server has been
told about its default router/gateway in the BOOTP
response from the BOOTP server.
Communicating Across Routers
Since Unix environments rely on TCP/IP to communicate with the
NIC, crossing routers becomes an issue.
After you have followed one of the NIC configuration methods
mentioned (other than the BOOTP method), most likely, you will
only be able to communicate with the print server from the same
subnet. This means any host across a router will not be able to see
your NIC. In order to communicate across a router, store a default
router/gateway within the print server so that any packets destined
for another subnet get forwarded to this router automatically. The
router (or series of routers) can then take over the process of
ensuring the packets get to their final destination on another subnet
on your network.
To configure a default router/gateway within the NIC:
1. Load a Web browser on your Windows station and direct it to
the URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password first, type in
root
for the ID and press ENTER at the password prompt (since
there is no default password).
Manual System V Host Setup
133
2. At the Network Configuration HTML form that displays, click
the first field below Gateway and type in the IP address of the
default router/gateway for the NIC subnet.
3. Click Submit when done and physically repower the print
server to make sure the new setting is in effect.
Unix Host Configuration
There may be times when you would prefer or have to perform the
manual setup steps for a new printer definition. There may also be
times when you require a less common print solution such as direct
socket capabilities. This section covers these additional setups.
Manual System V Host Setup
This setup involves any Unix operating system using System V
print spooling (e.g., SCO, Solaris , HP-UX , DG/UX , etc.). This
means an interface file is used for each defined printer and, in the
case of any System V print setup involving a NIC, the RSHD
protocol is used to transfer data from the host to the print server.
To manually configure a new System V printer on a Unix station,
create a dummy device file that acts as a locking mechanism
between contending print jobs.
Syntax:
touch /dev/NICname.portname
where
NICname
is the host or IP name of the print server and
portname
is one of its four I/O ports.
Example:
touch /dev/spike.prn
Chapter 5 NIC Installation on HP-UX
134
NIC Installation on HP-UX
LPR is supported in HP/UX Version 9.0 and greater. To configure a
print queue using LPR, issue the following commands.
NOTE: Requires root privilege. The default BSD interface file
“rmodel” will be used.
Syntax:
lpshut
lpadmin -pqueue_name -mrmodel -v/dev/null
-orm[printer_ip] -orpd1prn -ob3
lpsched
accept queue_name
enable queue_name
queue_name = any unique printer name
[printer_ip] = IP address of the printer or the DNS name (without
brackets)
d1prn = NIC remote printer name*
Explanation of command line:
-m indicates the model rmodel
-v indicates the use of /dev/null as a file interlock to avoid
contention
-orm is the name of remote Print Server
-orp is the name of the remote printer on the remote Print Server
-ob3 declares that the remote Print Server is a BSD type
NOTE: The “lpshut” command stops the HP spooling system; do
not perform when print jobs are active.
The default NIC destination name is d1prn, however, this name can
be changed. To verify the queue name, print an Ethernet Test Page
or telnet to the adapter and run a “list dest” command.
To print to this queue, use normal lp syntax:
# lp -dqueue_name filename
Manual System V Host Setup
135
Solaris 2.6 – 7 NIC Setup
NOTE: Requires Superuser privilege in the borne shell. Assume
that you can ping and Telnet to the adapter.
The IP address of the NIC adapter must be placed in the /etc/hosts
file.
Syntax:
lpadmin -p [queue_name] -v /dev/null
lpadmin -p [queue_name] -i /usr/lib/lp/model/
netstandard
lpadmin -p [queue_name] -o dest=[host_name] -o
protocol=bsd -o timeout=60
lpadmin -p [queue_name] -s [host_name]!d1prn -I any
enable {queue_name]
accept [queue_name]
where
[queue _name] = any name, but not the name in the etc/hosts file or
d1prn
[host_name] = name in etc/hosts file
Troubleshooting
This installation procedure assumes that the NIC adapter is
configured with the correct IP address, subnet mask, and gateway
(if required). You can also ping and telnet to the NIC adapter.
Print an E-Net Test Page to verify the Ethernet settings.
(P5000, T5000e/SL5000e, T4000) DIAGNOSTICS Printer
Tests E-Net Test PageEnter.
(P7000, T5000r/SL5000r) DIAGNOSTICS Printer Tests
Ethernet TestEnter.
(L55xx, L1524) DIAGNOSTICSTest Pattern E-Net Test
PageEnter.
Solaris 2.6 – 7 NIC Setup
Chapter 5 SCO Setup
136
The default NIC queue name is d1prn, however, the name can be
changed. To verify the queue name, print an E-Net Test Page or
telnet to the adapter and run a “list dest” command.
NOTE: Depending on the shell, preceed the ! character with a \ to
avoid shell script errors.
SCO Setup
1. Login as a root or administrator privileges user.
2. Acquire an unused Internet address (IP) from your Network
Administrator and choose a unique name for the NIC adapter.
3. Add your NIC Internet address and host name to your system
host table by appending the following line to the /etc/hosts file:
<Internet address> <host name>
Example:
199.230.23.76 salesdept
4. If you have not installed the SCO RLP (BSD lpd) package
which is part of the TCP/IP package, run mkdev to invoke the
RLP installation script:
#mkdev rip
The following screen displays:
Remote printing configuration
Do you want to install or delete remote printing (i/d/q)?
Manual System V Host Setup
137
Type i to install and press Enter or Return. The additional
prompts display.
Now type y and press Enter or Return. y allows you to
configure an LPD printer. Type n and press Enter or Return.
n will exit.
5. Run rlpconf as root user. The following prompts display:
Remote printing configuration
Do you want to install or delete remote printing (i/d/q)? i
Installing Remote Line Printing
Remote line printing working directory already exists.
Remote printing configuration
Enter information for remote printers or local printers accepting
remote printing requests
Please enter the printer name (q to quit):
SCO Setup
Chapter 5 SCO Setup
138
Type in the name you wish to call this printer within SCO and
press Enter or Return. The following prompt displays:
Type r for a remote printer and press Enter or Return. The
following prompt displays:
Remote printing configuration
Enter information for remote printers or local printers accepting
remote printing requests
Please enter the printer name (q to quit): d1prn
Is d1prn a remote printer or a local printer (r/l)?
Remote printing configuration
Enter information for remote printers or local printers accepting
remote printing requests
Please enter the printer name (q to quit): d1prn
Is d1prn a remote printer or a local printer (r/l)? r
Please enter the name of the remote host that d1prn is attached
to:
Manual System V Host Setup
139
Type in the host name as configured in teh /etc/hosts file. Press
Enter or Return. The following prompt displays:
Remote printing configuration
Enter information for remote printers or local printers accepting
remote printing requests
Please enter the printer name (q to quit): d1prn
Is d1prn a remote printer or a local printer (r/l)? r
Please enter the name of the remote host that d1prn is attached
to:
salesdept
Printer d1prn is connected to host salesdept
Is this correct (y/n)?
SCO Setup
Chapter 5 SCO Setup
140
Type y and press Enter or Return. The following prompt
displays:
Remote printing configuration
Enter information for remote printers or local printers accepting
remote printing requests
Please enter the printer name (q to quit): d1prn
Is d1prn a remote printer or a local printer (r/l)? r
Please enter the name of the remote host that d1prn is attached
to:
salesdept
Printer d1prn is connected to host salesdept
Is this correct (y/n)? y
If ‘salesdept’ currently runs SCO OpenServer Release 5 or
above, it can support the extended remote printer protocol.
Do you want to turn on the “extended RLP protocol” support flag.
If you’re not sure, answer ‘n’? (y/n) [n]:
Manual System V Host Setup
141
Type n and press Enter or Return. The following prompt
displays:
Remote printing configuration
Enter information for remote printers or local printers accepting
remote printing requests
Please enter the printer name (q to quit): d1prn
Is d1prn a remote printer or a local printer (r/l)? r
Please enter the name of the remote host that d1prn is attached
to:
salesdept
Printer d1prn is connected to host salesdept
Is this correct (y/n)? y
If ‘salesdept’ currently runs SCO OpenServer Release 5 or
above, it can support the extended remote printer protocol.
Do you want to turn on the “extended RLP protocol” support flag.
If you’re not sure, answer ‘n’? (y/n) [n]: n
Would you like this to be teh system default printer? (y/n):
SCO Setup
Chapter 5 SCO Setup
142
If it is the system default, then all jobs submitted without a
printer name will go to this printer. If it is not the system default,
it must be specified when printing. Type y or n and press Enter
or Return.
The printer is now installed and ready to print.
6. From a shell prompt, use this command to test the printer:
#lp -dprint_name file_name
where print_name is the name of the printer you created and
file_name is the name of an appropriate file to test print.
Troubleshooting
This installation procedure assumes that the NIC adapter is
configured with the correct IP address, subnet mask and gateway
(if required). In addition, the administrator can ping and telnet to the
NIC adapter from the server console.
NOTE: If this is not the case, use the printer front panel or the
IPAssign utility to configure the NIC adapter before
proceeding.
Manual LPR/LPD Host Setup
143
Manual LPR/LPD Host Setup
The NIC also supports Unix operating systems which follow a BSD
print system (e.g., SunOS 4.1.x). This means a printcap file is used
to define all printers available on the host, and interface scripts are
not commonly used. Instead, LPR/LPD printers are defined.
To manually configure an LPR/LPD printer on a BSD Unix system:
1. Define an entry for this new printer within the printcap file, /etc/
printcap.
Syntax:
printername:
:sh:pw#80:mx#0:\
:rm=NICname:\
:rp=NICdestination:\
:lp=:\
:sd=/usr/spool/lpd/printername:\
:lf=/usr/spool/lpd/printername/log:\
:af=/usr/spool/lpd/printername/acct:
where printername is any name you would like to give to this
new printer, NICname is the host or IP name of the print
server, and NICdestination
is one of the pre-defined
destinations/queues on the device.
Example:
P5000:
:sh:pw#80:mx#0:\
:rm=spike:\
:rp=d1prn:\
:lp=:\
:sd=/usr/spool/lpd/ P5000:\
:lf=/usr/spool/lpd/ P5000/log:\
:af=/usr/spool/lpd/ P5000/acct:
2. Create the spool directory specified by the sd= entry in the
printcap entry for this printer.
Example:
touch /usr/spool/lpd/ P5000
3. Create the log and account files specified by the
lf=
and
af=
entries in the printcap entry for this printer.
NIC Configuration for AIX 4
145
6. Enter the following Remote printer settings:
Local Filtering
1. Enter smitty mkvirprt.
2. Add a Remote Print Queue.
3. Set the type of Remote Printing to Local Filtering...
4. Set the Printer Manufacturer to IBM.
5. Set the Printer Type to IBM4202.
IMPORTANT
You must change the printer emulation to Proprinter.
6. Enter the following Remote Print Queue with Local Filtering
settings:
Name of queue any_name, user selectable
Host Name of Remote Server name in /etc/hosts file or the
NIC IP address
Name of Queue on Remote
Server
d1prn
Type of Print Spooler BSD (Press the list button and
choose BSD)
Name of queue any_name, user selectable
Host Name of Remote Server name in /etc/hosts file or the
NIC IP address
Name of Queue on Remote
Server
d1prn
Type of Print Spooler BSD (Press the list button and
choose BSD)
Leave Pass-Through Flag Yes
Chapter 5 SCO Setup
146
Troubleshooting
This installation procedure assumes that the NIC adapter is
configured with the correct IP address, subnet mask, and gateway
(if required). In addition you can also ping and telnet to the NIC
adapter.
To verify the NIC settings, print an E-net Test Page by doing the
following:
•(P5000, T5000e/SL5000e) DIAGNOSTICS Printer
Tests E-Net Test Page Enter.
•(P7000, T5000r/SL5000r) DIAGNOSTICS Printer Tests
Ethernet TestEnter.
•(L55xx, L1524) DIAGNOSTICS Test Pattern E-Net Test
Page Enter.
The default NIC queue name is d1prn (in lower case), however the
name can be changed. To verify the queue name, print an E-Net
Test Page or telnet to the adapter and do a “list dest” command.
AIX Remote Queue Time–Out Setting
Symptoms: Print jobs restart or queue goes down.
If the queue is set up for standard processing (not local filtering),
add -T50 flag to rembak to the queue device stanza for the queue
in /etc/qconfig
backend = /usr/lib/lpd/rembak -T50
If the queue was set up for local filtering edit the file
/usr/lib/lpd/pio/etc/piorlfb and change the line;
typeset piorlfb_rbflags=’’’’
to
typeset priorlfb_rbflags=”-T50”
Printing From AIX
147
Printing From AIX
Version 4.0 and higher of AIX offers LPR/LPD support for network
printing. This means, to set up a new printer under this operating
system, you only need to define these two parameters:
1. NIC IP address. The IP address or host name of the print
server to which you want to print.
2. NIC destination/queue. A pre-defined name on the print
server telling the device to which I/O port to send the jobs. Most
likely, you will use d1prn for the PRN.
Printing With FTP
Print jobs can also be sent to the NIC using the File Transfer
Protocol (FTP). To do this:
1. On your network station, change to the directory containing the
file you want to print.
2. Open an FTP session with the NIC.
Syntax:
ftp NICIPaddress
3. Log in as root.
4. At the password prompt, press ENTER (since there is no
default password).
5. Change to the
dest
directory.
Syntax:
cd dest
6. List the contents of this directory using the dir command and
determine which destination/queue you would like to send the
print job through. Most likely, you will select d1prn for the PRN
port.
7. Change to this destination directory.
Example:
cd d1prn
Chapter 5 SCO Setup
148
8. Change the mode to correspond with the type of file you are
going to print. By default, ASCII is set for text-only files, but if
you need to print both text and graphics, select binary using the
bin command.
9. Place the file to be printed within this directory on the NIC, so it
can be spooled and printed.
Syntax:
put filename
10. Close the FTP session, unless you have more jobs to print.
Syntax:
quit
Direct Socket Printing
Within TCP/IP environments, there are some setups which require
the host to print directly to a TCP port number on the NIC,
bypassing all of the higher level destination/queue names. If you
run into a setup which requires this, you will need to define two
parameters for a new print setup:
1. NIC IP address. The IP address or host name of the print
server to which you want to print.
2. NIC TCP port number. A pre-defined number for the I/O port
on the print server. 9100 is the default port number.
Though the host will be sending directly to a TCP port number on
the NIC, the port numbers are still mapped to destinations/queues
in case there is some type of special processing or logging to be
done to the job. However, the destination name is of no concern in
this type of printer definition. Only the two parameters mentioned
above need to be defined for printing to work.
NIC Cannot Be Found On The Network
149
Unix Troubleshooting Tips
This section provides information on possible solutions to some
standard configuration errors. If you require technical support,
please have as much of the following information available when
you call:
1. What level of software are you running?
2. What type of attachment do you have?
3. What is your host operating system?
4. How often, and when, does the problem occur?
5. Give a detailed description of the problem.
6. Give a detailed description of your network and the
components attached.
NIC Cannot Be Found On The Network
•Have you configured the NIC with a unique and valid IP
address which corresponds with the other IP addresses on
your network? For example, are you sure no other device is
using this IP address?
•Are you sure you are trying to talk to the NIC from a Unix
station on the same subnet? Currently, the print server can only
be seen locally unless you configured it with a routing entry.
•If you look at the back of the printer, is the STAT LED flashing
once a second or is it quicker than that? A slower, once-a-
second rate tells you that the print server is in fact configured
with an IP address. A faster rate indicates it knows nothing
about this, so you may need to try the configuration process
again.
•Have you confirmed that the network connection to the NIC is
working correctly? Trying different network cables and
locations will help narrow down the problem.
Chapter 5 Unix Troubleshooting Tips
150
Nothing Prints
•Can you ping the NIC from your Unix station? If not, please
refer to “NIC Cannot Be Found On The Network” shown above.
•Is the NIC able to communicate with the attached printer? To
test this, you can:
1.Telnet to the print server (e.g., telnet 192.75.11.9)
and log in as root.
2.Enter the command start fox prn.
3.Execute stop prn right after starting the test.
4.This test will send the same text line over and over to the
attached printer.
•Is the job getting stuck in the Unix host queue? If so, check that
the printer is online. If it is, there is a configuration error on the
Unix station, so creating a new print setup may be needed.
•Is the control panel showing any activity to indicate it is
receiving data? If so, but there is nothing printing, check if a
manual form feed is needed. Also, ensure that the printer can
support the type of job coming through.
•Do all jobs fail or just certain ones? For example, is it possible
that jobs from a certain application are the only ones to fail? If
so, check the type of data it sends to make sure it matches the
printer emulation. Check the application printer configuration
for mistakes.
•If you are using System V, was the spooler restarted?
Stair-Stepped Output
151
Stair-Stepped Output
Stair-stepped output is print which starts at the top left of the page
but every line thereafter starts a little further over to the right. It also
refers to Unix jobs that print one line of text at the top of a page
followed by a series of blank pages.
This kind of output happens only with Unix text jobs if carriage
return insertion is not incorporated into the print setup. The printer
may be told to do a linefeed, but the Unix job does not specify
anything about a carriage return to follow this.
To fix this, carriage return insertion must be enabled somewhere in
the print setup. The easiest and most common location is on the
NIC itself within the appropriate model. The feature is called “onlcr”
and the command syntax is:
set model modelname stty onlcr
save
For example, if printing to the destination, d1prn, the associated
model is m1. Therefore, the command is:
set model m1 stty onlcr
save
Chapter 5 Unix Troubleshooting Tips
152
No Form Feed Or Extra Page Comes Out
Unix text jobs may also have problems outputting the last page of a
job especially when the BSD Remote (LPD) print method is used.
This means the form feed button has to be pressed on the printer to
get this last page out.
To make this process automatic, tell the NIC to handle this task by
setting this feature “on” in the appropriate model. The command
syntax is:
set model modelname trailer $FF
save
For example, if printing to the destination, d2prn, the associated
model is m2. Therefore, the command is:
set model m2 trailer $FF
save
For default destination model mappings of the NIC, please see
“NIC Naming Schemes” on page 354.
TCP/IP Access Problem
If you can
ping
the printer from a workstation, but you cannot Web
browse, Telnet, or print to the printer through the NIC, there may be
an incorrect entry in the TCP access list. In order for this
workstation to use the NIC in this case, one of two things must
happen:
•the TCP list must have an entry added to grant access to this
workstation, or
•all entries must be deleted from the TCP list to grant all
workstations/hosts access to the above TCP services.
To view the current access list, use the printer control panel to
access the configuration menu (see the
User's Manual
for
configuration menu information). From the DIAGNOSTICS/Printer
Tests menu choose the E-Net Test Page. When the page prints,
look under the TCP Access Table section for the TCP access list
entries.
TCP/IP Access Problem
153
To add/delete a TCP access list entry, refer to “TCP Access Lists”
on page 347.
NOTE: When the following procedure is used, the TCP access list
will be cleared, but all IP addresses will need to be entered
again after the procedure is complete.
ADAPTER,
WLAN
ADAPTER
To reset all Adapter or Wireless NIC TCP/IP values to the factory
defaults when access is impossible:
1. Obtain a configuration printout using the control panel. See the
User's Manual
for configuration menu information.
2. Power off the printer.
3. On the Adapter or Wireless NIC, place SWITCH 1 in the down
position.
4. Power on the printer and wait for the ONLINE state.
5. On the Adapter or Wireless NIC, place SWITCH 1 in the up
position.
6. From a workstation attached to this network segment, create
an ARP entry. The NIC IP address and hardware or MAC
address are needed. At the workstation enter:
arp -s <ipaddress> <MACaddress>
ping <ipaddress>
7. Try to
ping
this IP address to see if the NIC can be seen on
your network. If the interface does not respond, verify you are
on the same network segment as the printer and that the ARP
entry was created.
8. Telnet into the NIC using the same IP address as above. Log
in as root with no password.
Chapter 5 Unix Troubleshooting Tips
154
9. At the system prompt, enter:
store tcpip from default
config http on
reset
NOTE: This will reset all TCP/IP settings to factory default and
reset the NIC.
10. Power the printer off and then back on.
11. Set the IP address, subnet mask, and default gateway
parameters to the desired values.
ETHERNET,
WLAN
To reset all Integrated NIC TCP/IP values to the factory defaults
when access is impossible, contact your Printronix service
representative for assistance.
12. If the Web browser access does not work, telnet into the NIC
as root. Enter the following command:
config http on
If you are still experiencing difficulty accessing or browsing the
printer, contact the Customer Solutions Center for further
assistance.
Front Panel Message – Dynamically Set Params
Read Only
This is not an error. It is an informational message warning that the
IP address has been dynamically set by either dhcp, rarp, or bootp.
To assign a static IP address, turn off the rarp, bootp, and dhcp on
the adapter. Use the following procedure:
1. Telnet to the adapter. Login = root, password = (Enter key)
Telnet commands are:
store tcpip 1 opts -rarp -bootp -dhcp
save
reset
Wait two minutes for the adapter to reset.
2. Program the IP address, Subnet Mask and Gateway (if
required) from the front panel.
155
6Novell Configuration
Overview
ADAPTER,
WLAN
ADAPTER
This chapter applies to the Adapter and WLAN Adapter NIC and
details a complete Novell setup, including:
•Identifying the NIC on the network.
•Configuring the NIC with its mandatory print setup settings.
•Configuring a new print queue on the file server.
For information about additional options available with the 10/100
Base-T interface, see “Novell Configuration For 10/100Base-T
Interfaces” on page 171.
Novell Environment Description
The NIC supports network printing under Novell environments by
using IPX. It supports all 3.
x
versions of NetWare. Version 4.
x
and
5.
x
is supported under bindery emulation only.
Chapter 6 Novell NIC Configuration
156
Novell NIC Configuration
ADAPTER,
WLAN
ADAPTER
Mandatory
Under all Novell environments, the NIC does not require any
network settings to make it visible on the network. Simply plug it in
to your network and power it on. However, with a new print queue
setup on a Novell file server, there can be mandatory settings
needed on the NIC.
Optional
Additional settings are available to fine-tune the NIC’s Novell
functionality. These options include:
•NDS Context. The NDS context in which the print server object
was created. If you create the printer server object in a different
file server object from the file server you logged into, then to
ensure the absolute path, you must activate the NDS context.
•NDS Tree. The NDS tree the print server object was created in.
This is only needed if your environment uses more than one
NDS tree.
•Mode. The mode the NIC will run in. This can be auto, bindery,
or NDS. The default is auto so that the NIC can autosense
which mode it should run in. See “NetWare Version 4.x and 5.x
RPRINTER Setup” on page 166 for information on what to do
when using both bindery and NDS file servers at the same
time.
Using HTML Forms
157
•Preferred File Server. In a bindery setup, this specifies the file
server that the print server object was created on. In an NDS
setup, this specifies a file server(s) that the print server object
resides on. Since NDS is distributed, most administrators will
not know which file server(s) the print server object is actually
stored on, so in most NDS environments this option is not used.
For additional information about these options, see “Novell
Configuration For 10/100Base-T Interfaces” on page 171.
Using HTML Forms
ADAPTER,
WLAN
ADAPTER
When defining a new print queue on a Novell file server, a new print
server must be defined to represent the NIC. This name must
match the predefined name given to the print server.
The default is M_xxxxxx or M302_xxxxx for the Wireless Adapter,
where xxxxxx represents the last six digits of the Ethernet address
found on the configuration printout or control panel settings under
Ethernet Parameters, MAC address (e.g., M_091C1A or
M302_00008).
To use the HTML forms to define a print queue, do the following:
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP. The command
to change the print server name is:
Syntax:
store pserver name newname
Example to change the name to micro1:
store pserver name micro1
2. Direct your Web browser to URL:
http://NICIPaddress/adminConf.html
(e.g., http://192.75.11.9/adminConf.html).
NOTE: If prompted for a “User ID” and password first, type in root
for the ID and press ENTER at the password prompt (since
there is no password by default).
Chapter 6 Novell Host Configuration
158
3. At the “Administration Configuration” HTML form that displays,
highlight the field beside the “Name” heading and type in the
new name of the print server.
4. Click Submit when done and physically repower the printer to
make the new setting take effect.
Novell Host Configuration
ADAPTER,
WLAN
ADAPTER
Under all versions of NetWare, both PSERVER and RPRINTER
setups are supported by the NIC. Since a PSERVER setup is the
most common, you will find the necessary steps to configure the
NIC as a PSERVER shown first. Configuration for RPRINTER and
NPRINTER setup follow the PSERVER information.
NOTE: The NIC can service up to four printers on one file server. It
cannot service multiple file servers at one time.
NetWare Version 3.
x
PSERVER Setup
To configure a print queue on a NetWare 3.
x
network:
1. Log on to the Novell file server as supervisor.
2. Enter PCONSOLE.
3. Select “Print Queue Information” from the PCONSOLE Main
Menu.
4. Click INSERT to add a new queue to the list of currently
defined queues showing.
5. Type in the name of this new queue when prompted and press
ENTER. This can be any name you would like.
6. Press ESCAPE to return to the Main Menu.
7. Select “Print Server Information” and press ENTER.
8. Click INSERT when the list of existing print servers displays.
NetWare Version 3.x PSERVER Setup
159
9. Type the name of the NIC when prompted for a print server
name, and press ENTER when done. The default is M_xxxxxx
or M302_xxxxx for the Wireless Adapter, where xxxxxx
represents the last six digits of the NIC address found on the
configuration printout or control panel settings under Ethernet
Parameters, MAC address (e.g., M_091C1A or M302_00008).
10. Back at the print server list, select this newly defined NIC and
press ENTER.
11. Select Print Server Configuration from the menu that
displays.
12. Select Printer Configuration from the next menu to display a
list of configured printers.
13. Select Not Installed as the first item and press ENTER.
14. At the printer configuration window, type in the name for this
new printer. The name must be one of the predefined
destinations/queues on the NIC, normally d1prn.
15. Go to the Type field and press ENTER to see the possible
choices.
16. Select Defined Elsewhere from this list.
17. When done, press Escape and select Yes to save the changes
to this new printer.
18. Press Escape again to return to the Print Server Configuration
menu.
19. Select Queues Serviced by Printer.
20. Select this new printer from the printer list that displays and
press ENTER.
21. Click Insert at the empty queue list that displays.
22. Select the queue created in step 5 and press ENTER.
23. When prompted for the priority, press ENTER to select the
default or select a priority.
24. Press ESCAPE until you are back at the PCONSOLE Main
Menu.
Chapter 6 Novell Host Configuration
160
25. Repower the printer.
26. Wait two minutes and then select Print Queue Information
from the PCONSOLE Main Menu.
27. Select this new queue from the menu that displays.
28. Select Currently Attached Servers to see which print server is
servicing this queue.
At this point, the NIC name (e.g., M_091C1A) should show within
this window. This means the NIC knows about this new Novell print
queue it must service as a PSERVER. Therefore, it will poll this
queue regularly looking for jobs to print.
NOTE: The NIC can service up to four printers on one file server. It
cannot service multiple file servers at one time.
NetWare Version 3.
x
RPRINTER Setup
These steps are for Novell environments with Netware 3.
x
(or
earlier) file servers.
To configure a new RPRINTER on a NetWare 3.
x
network:
1. Log in to the NIC command shell, npsh, as root.
If you have TCP/IP available and this print server already has
an IP address stored within it, you can use the built-in HTML
configuration forms or a Telnet session. Please see
“Configuration Tools” on page 34 for further details. If you have
only Novell available, you will need to use a PC, laptop, or
terminal.
NOTE: If you use HTML configuration, you will need to go to the
“Network Configuration” HTML form
(i.e., http://IPaddress/networkConf.html;
e.g., http://192.75.11.9/networkConf.html)
and look under the “Novell” section. The settings in the
following step are found there. If using a Telnet session,
you will need to manually execute the commands listed in
the next step.
NetWare Version 3.x RPRINTER Setup
161
2. Store the RPRINTER settings on the NIC. This will refer to an
existing PSERVER.NLM on the file server or to one that you
will create later in these steps.
Syntax:
store rprinter add PSERVERname printernumber
NICdestination
An example for an RPRINTER servicing printer 0 of the
PSERVER.NLM called pserver1 and sending jobs to the
NIC destination d1prn is:
store rprinter add pserver1 0 d1prn
3. Leave this NIC login session and log on to the NetWare 3.
x
file
server as “Supervisor.”
4. Load a PSERVER.NLM if one is not already loaded. This will
be the PSERVER that the NIC services as an RPRINTER, so it
must match the PSERVER name given in step 2.
5. Enter PCONSOLE.
6. Select Print Queue Information from the PCONSOLE Main
Menu.
7. Click Insert to add a new queue to the list of currently defined
queues.
8. Type in the name of this new queue when prompted, and press
ENTER. This can be any name you would like.
9. Click Escape to return to the Main Menu.
10. Select Print Server Information and press ENTER.
11. Click Insert when the list of existing print servers displays.
12. Select the print server that you want the NIC to service as an
RPRINTER. This is the PSERVER.NLM loaded in step 4.
13. Select Print Server Configuration from the menu that
displays.
14. Select Printer Configuration from the next menu to display a
list of configured printers.
15. Select an item from the list (e.g., an existing printer name or
“Not Installed”) to display the printer configuration window.
Chapter 6 Novell Host Configuration
162
16. Assign a name (if not an existing printer) to this printer.
17. Select Remote Other/Unknown at the Type field.
18. Click Escape to save the changes.
19. Click Escape until you are back at the Print Server
Configuration menu.
20. Select Queues Serviced by Printer to display a list of defined
printers.
21. Select the printer you just defined and press ENTER.
22. At the list of queues that displays, click Insert to add a queue to
the list.
23. Select the queue defined and press ENTER.
24. When prompted for a priority, press ENTER to select the
default or select a priority.
25. Click Escape until you have exited PCONSOLE.
26. Reload the PSERVER.NLM that the NIC is to service as an
RPRINTER.
27. Repower the NIC by turning the printer off and then back on.
28. Wait two minutes and then check your PSERVER to see if the
appropriate printer is being serviced. The PSERVER should
indicate that the printer is “Waiting for job.”
At this point, the NIC knows to receive any jobs this
PSERVER.NLM has to send to it through the defined printer.
NetWare Version 4.x and 5.x PSERVER Setup
163
NetWare Version 4.
x
and 5
.x
PSERVER Setup
NIC destinations are case sensitive and will not be recognized if
they are typed incorrectly. By default, they are all lower case. If you
are setting up a NetWare 4 or 5 environment, the destination must
be renamed to uppercase to match the PCONSOLE entry.
The NIC can be used in a NetWare 4 or 5 environment with either
of the following options:
•Set the NIC up as a PSERVER, replacing a dedicated printer.
•Set the NIC up as an RPRINTER, interacting with an existing
PSERVER (see page -166).
NOTE: Following a PSERVER setup, bindery emulation is
required.
To configure the NIC as a PSERVER in a NetWare 4 or 5
environment:
1. Log in to the Novell as supervisor.
2. Enter PCONSOLE.
3. Press F4.
4. Select Print Queues.
5. Click Insert to add a queue.
6. Type in a new queue name and press ENTER.
7. Press Escape.
8. Select Print Servers.
9. Click Insert to add the new print server.
10. Type the name of the NIC. The default is M_xxxxxx or
M302_xxxxx for the Wireless Adapter where, xxxxxx
represents the last six digits of the NIC address found on the
configuration printout or control panel settings under Ethernet
Parameters, MAC address (e.g., M_091C1A or M302_00008).
11. Select this new print server and press ENTER.
12. Select Printers.
13. Click Insert to add a printer to the list.
Chapter 6 Novell Host Configuration
164
14. Type in the name of one of the default destinations on the unit
for the Name field, and go to the Type field.
15. Press ENTER at this field and select Defined Elsewhere. If
Defined Elsewhere is not available, choose Parallel.
16. Press ENTER on the Print Queues Assigned field.
17. Click Insert to display all queues; select the one you defined in
step 5 and press ENTER.
18. Select a priority and press ENTER. Priority 1 should be
sufficient.
19. Press Escape until you are back to Main Menu.
20. Reboot the Print Server by repowering the printer.
21. Check the Currently Attached Servers and verify the print
server is active.
22. Press Escape until you are out of the PCONSOLE.
Even though the entire print set up is done through PCONSOLE,
you may want to communicate directly with the print server in order
to modify settings, monitor the unit, etc. To communicate with the
print server, the optional host software, npsh.exe, is included.
npsh.exe is a DOS executable program that can be run from a
DOS prompt on a NetWare workstation.
npsh.exe performs the following:
•npsh nvplist
Lists all of the NIC devices on the network; each name is in the
default format. For the integrated NIC, the default is P_xxxxxx,
For the external (E-Net) Adapter, the default is M_xxxxxx,
where xxxxxx represents the last six digits of the NIC address
found on the configuration printout or control panel settings
under Ethernet Parameters, MAC address.This is regardless of
whether it is configured as a PSERVER or as an RPRINTER.
NetWare Version 4.x and 5.x PSERVER Setup
165
npsh unitname
Starts a Telnet-like session with the named print server, allowing
you to configure, monitor, and troubleshoot the unit with the built-in
command set.
npsh unitname command
Initiates a single command with guest access only to the unit
instead of entering into a complete session.
To communicate with the unit using npsh.exe:
1. From a DOS prompt on a Novell workstation, begin an npsh
session with the unit:
npsh unitname
Starts a Telnet-like session with the named print server with
guest access only.
2. To obtain root access to the unit, type:
supervisor
A standard login screen displays prompting you for the login
name and password.
3. Log in to the unit as root user:
root
NOTE: Root users require the use of a password as configured in
the unit user list.
4. Enter the password. If this password is not yet set, press
ENTER at the password prompt. Otherwise, enter the
password that is already stored in the unit:
password
You are now logged in to the unit as a root user and can access
any npsh command on the unit.
NOTE: Because npsh.exe makes use of broadcasts, you may
have problems communicating across a router.
Chapter 6 Novell Host Configuration
166
NetWare Version 4.
x
and 5
.x
RPRINTER Setup
NIC can be configured to service both RPRINTER, NDS mode, and
PSERVER, bindery mode.
Use the following procedure to set up an RPRINTER form of
attachment on a
4.
x
or 5
.x
server:
1. NIC requires a bindery server login on the
4.
x
or 5
.x
as the first
step to servicing RPRINTER. This bindery login is necessary
for registering the NIC Pserver name; no bindery queues or
printers are set up. Using PCONSOLE, bindery mode, create a
bindery printer server object whose name matches that of the
NIC at the root context of the
4.
x
or 5
.x
box (e.g., M_03092B).
After creating the bindery PrintServer on the
4.
x
or 5
.x
server,
reboot NIC and use the
debug Novell pserver
command via
a Telnet or npsh session, or print out the E-NET Test Page to
make sure there is a successful server login.
2. Using either PCONSOLE in NDS mode or NWADMIN:
a. Create an NDS queue (any name you want), or simply use
an existing one
b. Create a print server to use (any valid name, or choose one
already in existence)
c. Create a printer object to use with the print server object
you chose or created, and attach it to the chosen queue
NOTE: The
4.
x
or 5
.x
queue name, print server name, and printer
object do not have to match any NIC name; multiple
printers can be defined, but only one print server can be
attached to.
Example:
NDS queue name: Finance
NDS print server name: Fin_Q
NDS printer name: Fin_Prt_1
NDS printer name: Accounting_Prt_1
NetWare Version 4.x and 5.x RPRINTER Setup
167
3. At a
4.
x
or 5
.x
console session, if a pserver.nlm session is
already running for Fin_Q, first unload it, then reload it to find
the new objects, or simply issue
load pserver Fin_Q
.
If you are successful, the print server console screen will show
a “printer status” option. In the “printer status” window, note the
numbers assigned to the printers you created. Assume for our
example that one printer previously existed (number 0), and we
are adding two more whose numbers became 1 and 2.
NOTE: On the load command, you must strictly follow the case of
the name (this is not required on NIC).
4. Via a Telnet or npsh session, create RPRINTER attachments:
store rprinter add Fin_Q 1 d1prn
This command assigns destination d1prn as the RPRINTER 1
service path.
store rprinter add Fin_Q 2 d4prn
This command assigns destination d4prn as the RPRINTER 2
service path.
For NIC entries, case does not have to be observed. Also, if
you want to change the destination names from d
x
prn, do so
first with the
set dest <dest> name <new name>
command,
being sure to use the save command so these reappear after a
reboot.
5. Reboot the NIC adapter (power the printer off and on, or use
the
reset
command) so the new RPRINTER service names
are broadcast.
6. Open a Telnet or npsh session and log into NIC. Wait a minute
or two, then use the
list rprinter
command, and you should
see your entries. You could also do this by looking at the
connection status on the
4.
x
or 5
.x
PSERVER printer status
entries.
Chapter 6 Novell Troubleshooting Tips
168
7. If you add, delete, or change RPRINTER entries on NIC or
4.
x
or 5
.x
console, you should always unload and reload the
pserver.nlm module to register the changes. The NIC can be
configured and ready before the pserver.nlm is reloaded, or
NIC can be reset after pserver.nlm is reloaded.
8. A Web browser can also be used to see the RPRINTER
attachments and status.
Novell Troubleshooting Tips
This section provides information on possible solutions to some
standard configuration errors. If you require technical support,
please have as much of the following information available when
you call:
1. What level of software are you running?
2. What type of attachment do you have?
3. What is your host operating system?
4. Give a detailed description of the problem.
5. When and how often does the problem occur?
6. Give a detailed description of your network and the
components attached.
Please follow these tips to determine what the problem may be with
your NIC configuration.
NetWare 3.x – No PSERVER Connection
169
NetWare 3.
x
– No PSERVER Connection
•Was the NIC power cycled after the PCONSOLE steps were
completed? This will make the print server boot up and realize
which print queue and file server it needs to service.
•Is the NIC already servicing a queue on another file server? If
so, it cannot service another file server at the same time.
•When defining a new print server within PCONSOLE, did
you use the correct name for the NIC (e.g., M_091C1A)? By
default, it only recognizes itself as M_xxxxxx or M302_xxxxx for
the Wireless Adapter where xxxxxx equals the last six digits of
its Ethernet address found on the configuration printout or
control panel settings under Ethernet Parameters, MAC
address.
•When defining a new printer name within PCONSOLE, did
you use a predefined destination/queue rather than a name of
your own? By default, the NIC only recognizes names like
d1prn. All other names will be ignored by the device.
•Is the NIC in Bindery mode as seen under the list
pserver output on the device? If servicing only a NetWare 3.
x
file server, it must be set to handle Bindery services. The
default setting is Bindery.
•Is there an available NetWare user license for the NIC to use
while it acts as a PSERVER? Every PSERVER takes up one
user license since it logs into the Novell file server.
•Have you given the connection process some time after
repowering the NIC? In larger Novell environments, the file
server identification and connection process can take several
minutes.
If you are still experiencing difficulty accessing or browsing the
printer, contact the Customer Solutions Center for further
assistance.
Chapter 6 Novell Troubleshooting Tips
170
NetWare 4.
x
and 5.
x
- No PSERVER Connection
•Was the NIC power cycled after the PCONSOLE steps were
completed? This will make the print server boot up and realize
which print queue and file server it needs to service.
•Is the NIC already servicing a queue on another file server? If
so, it cannot service another file server at the same time.
•When defining a new print server within PCONSOLE, did
you use the correct name for the NIC (e.g., M_091C1A)? By
default, it only recognizes itself as M_xxxxxx or M302_xxxxx for
the Wireless Adapter, where xxxxxx equals the last six digits of
its Ethernet address found on the configuration printout or
control panel settings under Ethernet Parameters, MAC
address.
•When defining a new printer name within PCONSOLE, did
you use a predefined destination/queue rather than a name of
your own? By default, the NIC only recognizes names like
d1prn. All other names will be ignored by the device.
•Is the NIC in Bindery mode as seen under the list
pserver output on the device? If servicing only a NetWare 4.
x
or 5.
x
file server, it must be set to handle Bindery services. The
default setting is Bindery.
•Is there an available NetWare user license for the NIC to use
while it acts as a PSERVER? Every PSERVER takes up one
user license since it logs into the Novell file server.
•Have you given the connection process some time after
repowering the NIC? In larger Novell environments, the file
server identification and connection process can take several
minutes.
If you are still experiencing difficulty accessing or browsing the
printer, contact the Customer Solutions Center for further
assistance.
171
7Novell Configuration
For 10/100Base-T
Interfaces
Overview
ADAPTER,
WLAN
ADAPTER
This chapter applies to the Adapter and WLAN Adapter NIC, and
provides additional information for Novell environments using the
10/100Base-T interface, including:
•NIC Configuration. This section includes setting the preferred
file server, setting password security, adjusting polling time,
changing the NIC name, changing the NIC frame type,
changing the NIC mode, setting the NIC NDS context, and
setting the NIC preferred NDS tree.
•Host Configuration. This section includes NDS PSERVER
setup, Bindery PSERVER setup, referencing a Bindery queue
in NDS, and RPRINTER/NPRINTER setups.
•Troubleshooting tips. This section covers PSERVER setups,
RPRINTER/NPRINTER setups, and printing related problems.
Chapter 7 Novell NIC Configuration (10/100Base-T)
172
Novell NIC Configuration (10/100Base-T)
ADAPTER,
WLAN
ADAPTER
There are no mandatory Novell settings needed before the print
server can be detected on the network. However, there can be
some mandatory settings needed before a Novell print queue can
be serviced by the NIC. These mandatory settings are covered
separately for Netware 3.
x
, 4.
x
and 5.
x
under the Host
Configuration heading.
The print server setup in a Novell environment is much simpler than
that required in a TCP/IP one. No addresses, masks, or router
entries are necessary and, in most cases, the NIC can simply be
connected to the network, turned on, and then configured for
printing from a Novell station through PCONSOLE or Netware
Administrator.
However, there are some optional parameters you may wish to
change, such as the preferred file server(s), print server password,
polling time, frame type, print server name, NDS context, and NDS
preferred tree. The following sections describe these optional
parameters.
Preferred File Server (NDS and Bindery Setups)
In a bindery setup, the preferred file server specifies the file server
on which the print server object was created. In an NDS setup, it
specifies a file server on which the print server object resides.
Since NDS is distributed, most administrators will not know which
file server(s) the print server object is actually stored on, so in most
NDS environments this option is not used. This feature is useful in a
large Novell network, so that the NIC does not ignore important file
servers. If you are setting up the NIC to work with a Bindery file
server, it is a good idea to set a preferred server on the NIC.
To view which file servers the NIC does acknowledge at a given
time, use the
debug nest fserver
command. For more
information, see “Complete Command List” on page 307.
Preferred File Server (NDS and Bindery Setups)
173
Adding Preferred File Server
HTML Method
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
2. Direct your Web browser to URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password first, type in
root
for the ID and press ENTER at the password prompt (since
there is no password by default).
3. Look under the Novell section and add the name of the
preferred file server in the File Server field.
4. Click SUBMIT when done and physically repower the print
server to make the new settings take effect.
Manual (Telnet) Method
1. Telnet to the print server. This will bring up a login screen:
telnet ipaddress
NOTE: If prompted for a User ID and password first, type in
root
for the ID and press ENTER at the password prompt (since
there is no password by default).
2. You should see a prompt with the NIC IP address:
ipaddress:root>
3. At the prompt, enter:
store pserver novell fserver add fservername
where
fservername
is the name of the Novell file server you
want to add as a preferred file server. This adds the specified
file server as a preferred file server on the NIC.
4. Reset the unit to ensure the changes take effect.
reset
Chapter 7 Novell NIC Configuration (10/100Base-T)
174
Removing Preferred File Server
HTML Method
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
2. Direct your Web browser to URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password first, type in
root
for the ID and press ENTER at the password prompt (since
there is no password by default).
3. Look under the Novell section and remove the name of the
preferred file server from the File Server field.
4. Click SUBMIT when done and physically repower the print
server to make the new settings take effect.
Manual (Telnet) Method
1. Telnet to the print server:
telnet ipaddress
NOTE: If prompted for a User ID and password first, type in
root
for the ID and press ENTER at the password prompt (since
there is no password by default).
2. You should see a prompt with the NIC IP address:
ipaddress:root>
3. At the prompt, enter:
store pserver novell fserver del fservername
where
fservername
is the name of the Novell file server you
want to remove as a preferred file server.
4. Reset the unit to ensure the changes take effect.
reset
Setting Password Security (NDS And Bindery Setups)
175
Setting Password Security
(NDS And Bindery Setups)
Besides the general security measures, a Novell setup provides
further password security. A password can be set on the NIC and
within your PCONSOLE or Netware Administrator setup so that
when the NIC tries to login to the file server, the passwords are
compared.
To set the password on the Novell host for use in a PSERVER
setup, you will need to:
Netware 4.
x
and 5.
x
1. Log in to Netware Administrator on your Novell host as a user
with security equal to Admin.
2. Double click on the print server object you are using for your
setup. This will bring up the print server objects details page.
3. Click the Change Password... on the Identification page.
4. At the prompts, type and retype the new password. Press OK
when you are finished.
5. Proceed to the next section to store the password on the NIC.
Netware 3.
x
1. Log in to PCONSOLE on your Novell host as supervisor.
2. Select Print Server Information from the main menu.
3. Select the appropriate printer and press ENTER.
4. Select Change Password.
5. At the prompts, type and retype the new password.
Press ENTER when you are finished.
6. Proceed to the next section to store the password on the NIC.
Chapter 7 Novell NIC Configuration (10/100Base-T)
176
Print Server Setup - HTML Method
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
2. Direct your Web browser to URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
3. Look under the Novell section and add the new password to the
Pserver Password field.
NOTE: The passwords entered in Netware Administrator or
PCONSOLE must match the password set on the unit.
4. Click SUBMIT when done and physically repower the printer to
make the new settings take effect.
Print Server Setup - Manual (Telnet) Method
1. Telnet to the print server:
telnet ipaddress
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt since
there is no password by default.
2. You should see a prompt with the NIC IP address:
ipaddress:root>
3. At the prompt, enter:
store pserver novell passwd password
NOTE: The passwords entered in Netware Administrator or
PCONSOLE must match the password set on the unit.
4. Reset the unit to ensure the changes take effect:
reset
Adjusting Polling Time (NDS And Bindery Setups)
177
Adjusting Polling Time
(NDS And Bindery Setups)
To set the poll time the NIC will use when checking for new jobs
under a PSERVER setup:
Netware 4.
x
and 5.
x
1. Log in to Netware Administrator as a user with security equal to
Admin on your Novell host.
2. Double click on the printer object for which you wish to change
the poll time. This will bring up the printer object detail pages.
3. Click Configuration to display the configuration page.
4. Change the Service Interval to the desired number (in
seconds).
NOTE: You may also want to change the “Service mode for forms”
to “Change forms as needed.” If you do not do this, the NIC
will need to poll the file server twice as much to get all the
information it needs.
5. Repower the NIC by turning the printer off and on to make the
changes take effect.
Netware 3.
x
1. Log in to PCONSOLE on your Novell host as supervisor.
2. Select Print Server Information from the main menu and
press ENTER.
3. Select the print server you have been using for your PSERVER
setup and press ENTER. By default, this will be “M_xxxxxx”
where “xxxxxx” equals the last six digits of the print server’s
Ethernet address found on the bottom of the device
(e.g., “M_091C1A”).
4. Select Print Server Configuration from the menu that
displays.
5. Select Printer Configuration from the next menu to display a
list of configured printers.
Chapter 7 Novell NIC Configuration (10/100Base-T)
178
6. Select the printer for which you wish to alter the poll time, and
press ENTER.
7. Change the Sampling Interval to the desired number (in
seconds).
NOTE: You may also want to change the “Service mode for forms”
to “Change forms as needed.” If you do not do this, the NIC
will need to poll the file server twice as much to get all the
information it needs.
8. Press ESCAPE and select Yes to save the changes to this new
printer.
9. Repower the NIC by turning the printer off and on to make the
changes take effect.
Changing The NIC Name
(NDS And Bindery Setups)
When defining a new print queue on a Novell file server, you must
define a new print server to represent the NIC. This name must
match the predefined name given to the print server. By default,
this name is in the format “M_xxxxxx” where “xxxxxx” equals the
last six digits of the NIC’s Ethernet address found on the bottom of
the device (e.g., “M_091C1A”). Make sure that the print server
object you are using for your PSERVER setup has the same name
as that stored on the NIC. If you need to rename the print server
object in Netware Administrator, delete the object and re-create it
with the new name. Netware Administrator seems to have some
problems with renaming objects.
NOTE: Changing the name will affect all of the protocols that are
running on the NIC.
Changing The NIC Name (NDS And Bindery Setups)
179
HTML Method
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
2. Direct your Web browser to URL:
http://NICIPaddress/adminConf.html
(e.g., http://192.75.11.9/adminConf.html).
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
3. Look under the System Information section and enter the new
name into the Name field.
4. Click SUBMIT when done and physically repower the printer to
make the new settings take effect.
Manual (Telnet) Method
1. Telnet to the print server:
telnet ipaddress
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
2. You should see a prompt with the NIC IP address:
ipaddress:root>
3. At the prompt, enter:
store pserver name name
4. Reset the unit to ensure the changes take effect.
reset
Chapter 7 Novell NIC Configuration (10/100Base-T)
180
Changing The NIC Frame Type
(NDS And Bindery Setups)
The NIC allows you to store a particular frame type for the unit to
adhere to in a Novell environment.
HTML Method
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
2. Direct your Web browser to URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
3. Look under the Novell section and go to the Frame Type field to
select the appropriate frametype.
4. Click SUBMIT when done and physically repower the printer to
make the new settings take effect.
Manual (Telnet) Method
1. Telnet to the print server. This will bring up a login screen:
telnet ipaddress
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
2. You should see a prompt with the NIC IP address:
ipaddress:root>
3. At the prompt, enter:
store pserver novell frametype [ethernet2 | 802.3
|802.2 |802.2snap | autosense]
4. Reset the unit to make the changes take effect:
reset
Changing The NIC Mode (NDS And Bindery Setups)
181
Changing The NIC Mode
(NDS And Bindery Setups)
The NIC allows you to store a particular mode for the unit to
operate in. This will be either NDS, Bindery, or autosense. If you
use autosense, the NIC will first attempt to log in to an NDS file
server and, if it fails, will try to log in to a Bindery file server.
NOTE: If you are using both NDS and Bindery file servers in your
setup, set the mode to auto.
HTML Method
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
2. Direct your Web browser to URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
3. Look under the Novell section and go to the Service Type field
to select the appropriate mode.
4. Click SUBMIT when done and physically repower the printer to
make the new settings take effect.
Chapter 7 Novell NIC Configuration (10/100Base-T)
182
Manual (Telnet) Method
1. Telnet to the print server:
telnet ipaddress
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
2. You should see a prompt with the NIC IP address:
ipaddress:root>
3. At the prompt, enter:
store pserver novell mode [nds | bindery | auto]
4. Reset the unit to make the changes take effect:
reset
Setting The NIC NDS Context (NDS Setups)
The NIC allows you to store the print server object in any context
within the NDS tree you choose. By default the NIC will look for the
print server object in the same context as the file server object it
connects to is stored in.
HTML Method
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
2. Direct your Web browser to URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
3. Look under the Novell section and enter the new context in the
NDS Context field.
4. Click SUBMIT when done and physically repower the printer to
make the new settings take effect.
Setting The NIC Preferred NDS Tree (NDS Setups)
183
Manual (Telnet) Method
1. Telnet to the print server:
telnet ipaddress
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
2. You should see a prompt with the NIC IP address:
ipaddress:root>
3. At the prompt, enter:
store pserver novell context context
4. Reset the unit to make the changes take effect:
reset
Setting The NIC Preferred NDS Tree
(NDS Setups)
The NIC supports Novell environments that have multiple trees. If
your environment has more than one tree you may want to set a
preferred tree. By default, the NIC will try to log in to each tree it
finds until it is successful.
HTML Method
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
2. Direct your Web browser to URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
3. Look under the Novell section and enter the preferred tree in
the NDS Preferred Tree field.
4. Click SUBMIT when done and physically repower the printer to
make the new settings take effect.
Chapter 7 Novell Host Configuration (10/100Base-T)
184
Manual (Telnet) Method
1. Telnet to the print server:
telnet ipaddress
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
2. You should see a prompt with the NIC IP address:
ipaddress:root>
3. At the prompt, enter:
store pserver novell tree tree
4. Reset the unit to make the changes take effect.
reset
Novell Host Configuration (10/100Base-T)
ADAPTER,
WLAN
ADAPTER
This section covers PSERVER and RPRINTER/NPRINTER setups
on the NIC. The NIC can handle up to eight RPRINTER/
NPPRINTER setups.
Although the entire print setup is done through Netware
Administrator or PCONSOLE, you may need to communicate
directly with the print server in order to modify settings, monitor the
unit, etc.
For Netware 4.
x
and Netware 5.
x
environments, you can obtain a
NWAdmn3
x
snap-in program called MPAdmin. This snap-in can be
used to configure PSERVER setups as well as additional settings
on the NIC.
NOTE: NWAdmn3
x
is only included with Netware 4.11 and higher
releases. If you are using Netware 4.10, you can either
upgrade to Netware 4.11 or go to Novell’s Web site and get
the patches to upgrade the Nwadmin program for Netware
4.10 to Nwadmn3
x
for Netware 4.11. Alternatively, you can
perform the setup without using MPAdmin.
NDS PSERVER Setup (Netware 4.x/5.x)
185
NDS PSERVER Setup (Netware 4.
x
/5.
x
)
There are a number of ways to configure the NIC for use in a Novell
NDS PSERVER setup. These include using the MPAdmin snap-in
for Netware Administrator, using generic print server objects in
Netware Administrator, or by using PCONSOLE. The following
steps describe a setup using a generic print server object in
Netware Administrator. Setups using PCONSOLE are less
common and will not be discussed.
To create a printer/print queue in an NDS environment using
Netware Administrator print server objects:
1. Log in to Netware Administrator as a user with security equal to
Admin on your Novell host.
2. Click the right mouse button on a branch in the tree in which
you would like to create a print queue object.
3. Select Create... from the pop-up menu. The New Object
dialogue displays.
4. Select Print Queue from the Class of new object list, and
click OK.
5. Select Directory Service Queue and type the name of the
queue into the Print Queue name field.
6. Fill in the Print Queue Volume field by typing in a volume or
browsing for one. Click Create.
7. Click the right mouse button on a branch in the tree in which
you would like to create a printer object.
8. Select Create... from the pop-up menu. The New Object
dialogue displays.
9. Select Printer from the Class of new object list and click OK.
10. Type the name of the printer in the Printer name field.
NOTE: The Printer object name must match one of the destination
names on the NIC. Most likely, this will be d1prn.
Chapter 7 Novell Host Configuration (10/100Base-T)
186
In NDS, a printer object can only be attached to one print server
object at a given time, because Novell uses the printer object to
represent a physical printer. A physical printer can only be attached
to one parallel or serial port at a time. Thus, if you assign a printer
object to another print server object, the new print server object will
take it from the old one (this also happens with non-NIC print server
objects).
To properly process print jobs sent to the NIC, the printer object
created in Novell must refer to the destination on this server and not
to the actual physical printer. On the NIC, print jobs must pass
through an extra layer (a “destination”) before being sent on to the
printer.
If you are using multiple print servers, you will have to either
rename all your destinations to ensure that no printer object names
conflict or keep all the printer objects for one print server in a
different context than those for the other print server.
11. Select Define additional properties and click Create.
12. Click Assignments in the dialogue that pops up and click
Add....
13. Select the queue you defined earlier or browse for a different
one.
14. Click OK to assign the queue to the printer.
15. Click OK to close the Printers Details dialog and make the
changes permanent.
16. Click on a branch in the tree (i.e., a12.2( .2(.e)-12.2(.59 -1.8072(ows)c6cwc)-7((e t)s0.08)n2(ows)c6cwc)-0 -1.8(5(c)4.4n)32.6(tera2.8(-1( )]TJ1.8072 -1.3012 TD-7.0014 Tc8.0012 T2(e s)3.7(i)30n)-13Tw[( t9-13.Nc[(A6(I-7((8(C2.3(e )-5.7(6)-8.31n)0.4(t )-11.7e)-0.1)-5.73s)3.7(i-0.1)-6.3( ob6)-8.9t )-t -5.7(6)-8.31n.7.8( )]TJ/F2 1]TJ-1.8072 -1.807 TD-3.0031 Tc0 NOTE)t )-:e
Bindery PSERVER Setup (Netware 3.x, Netware 4.x, And Netware 5.x)
187
19. Type the name for the print server in the Print Server name
field. By default, the name is “M_xxxxxx”
where “xxxxxx”
equals the last six digits of the print server’s Ethernet address
(e.g., “M_091C1A”).
NOTE: The name you use here must match the name stored on
the NIC. This name can be found by using the
list
pserver
command. See “List Commands” on page 335 for
more information.
20. Select Define additional properties and click Create.
21. Click Assignments in the dialog that opens and then click
Add....
22. Select the printer you created earlier.
23. Click OK to assign this printer to this print server.
24. Click OK to close the Printer Servers Details dialog and make
the changes permanent.
25. Physically repower the printer to make the new settings take
effect.
Bindery PSERVER Setup
(Netware 3.
x
, Netware 4.
x
, And Netware 5.
x
)
A Bindery PSERVER setup is possible under both Netware 3.
x
,
Netware 4.
x
and Netware 5.
x
. If you are using Netware 4.
x
or
Netware 5.x, Bindery emulation is required. Please consult your
Novell manual on how to set up Bindery emulation. A Bindery set
up using PCONSOLE in Netware 3.x is described in “NetWare
Version 3.x RPRINTER Setup” on page -160. The setup using
PCONSOLE in Netware 4.
x
or Netware 5.
x
is described in
“NetWare Version 4.x and 5.x RPRINTER Setup” on page -166.
Chapter 7 Novell Host Configuration (10/100Base-T)
188
Referencing A Bindery Queue In NDS
(Netware 3.
x
, Netware 4.
x
, And Netware 5.
x
)
If you would like to reference a Bindery queue when you perform
your PSERVER setup in NDS, you must create a PSERVER object
for the NIC on the file server where the Bindery queue resides. This
is important because, in order to service the queue, the NIC must
log in to the queue’s file server. Since the queue is not an NDS
queue, the NIC cannot log in under NDS, so it must log in under
Bindery.
This will only work if there is a valid PSERVER object on the file
server. This PSERVER object must have the same name that was
used for the NDS setup. By default this will be “M_xxxxxx” where
“xxxxxx” equals the last six digits of the print server’s Ethernet
address (found on the bottom of the device, e.g., “M_091C1A”).
This PSERVER object does not need any printers or queues
assigned to it. Also, when referencing a Bindery queue in NDS, set
the Novell Mode on the NIC to “auto” so that both NDS and Bindery
logins are possible. See “Setting The NIC NDS Context (NDS
Setups)” on page 182.
RPRINTER/NPRINTER Setup
(Netware 3.
x
, Netware 4.
x
, And Netware 5.
x
)
This procedure associates an existing PSERVER with a remote
NIC acting as a RPRINTER/NPRINTER in a Netware 3.
x
, Netware
4.
x
, or Netware 5.
x
environment. It is the PSERVER’s responsibility
to get jobs from the queue and to pass them off to the NIC acting as
the remote printer. Unlike a PSERVER setup, the NIC does not
deal directly with the queues.
NOTE: As a RPRINTER/NPRINTER, the print server does not use
a login ID. A non-NIC print server such as PSERVER.NLM
or PSERVER.EXE must be running for RPRINTER to
operate. Also, if the NIC loses a connection to a
PSERVER, it will automatically reconnect when that server
becomes available again.
RPRINTER/NPRINTER Setup (Netware 3.x, Netware 4.x, And Netware 5.x)
189
The following steps assume that you have created a PSERVER
object in Netware 3.
x
, Netware 4.
x
, or Netware 5.
x
and have
assigned printers and queues to it. If you have not already done
this, do it now. The setup is similar to creating a PSERVER setup
for the NIC, except that there are no restrictions about which names
may be used for the print server and printer objects.
NOTE: Write down the printer number(s) assigned to the printer(s)
you are going to be using for this setup. You will need them
in a later step.
HTML Method
1. Load a PSERVER on your Netware 3.
x
, Netware 4.
x
, or
Netware 5.
x
file server (i.e., issue a
load pserver
pservername
command on the file server).
NOTE: If it is an NDS PSERVER on a Netware 4.
x
/5.
x
file server,
you must specify the PSERVER name and context for
pservername
. For example:
load pserver .sales_ps.sales.microplex
2. Load a Web browser on a network station that can
communicate with the print server over TCP/IP.
3. Direct your Web browser to URL:
http://NICIPaddress/networkConf.html
(e.g., http://192.75.11.9/networkConf.html).
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
4. Look under the Novell section and find a row in the RPRINTER
category.
5. Click Enabled and enter the name used with the
PSERVER.NLM into the Print Server Name field.
NOTE: If it is an NDS pserver, enter only the PSERVER name and
not the context (e.g.,
sales_ps
).
6. Enter the printer number of the printer you would like serviced
into the Printer Number field, and then select the destination on
the NIC you would like to use for output.
Chapter 7 Novell Host Configuration (10/100Base-T)
190
7. Repeat steps 4 through 6 for each additional printer you would
like to have serviced.
8. Click SUBMIT when done and physically repower the printer to
make the new settings take effect.
Manual (Telnet) Method
1. Load a PSERVER on your Netware 3.
x
, Netware 4.
x
, or
Netware 5.
x
file server (i.e., issue a
load pserver
pservername
command on the file server).
NOTE: If it is an NDS PSERVER on a Netware 4.
x
/5.
x
file server,
you must specify the pserver name and context for
pservername
. For example:
load pserver .sales_ps.sales.printronix
2. Telnet to the print server:
telnet ipaddress
NOTE: If prompted for a User ID and password, type in
root
for
the ID and press ENTER at the password prompt (since
there is no password by default).
3. You should see a prompt with the NIC’s IP address:
ipaddress:root>
4. At the prompt,
store
the RPRINTER settings on the NIC. The
pservername
refers to the existing PSERVER.NLM on the file
server created in step 1.
Syntax:
store rprinter add pservername printernumber
NICdestination
An example of an RPRINTER servicing printer
0
of the
PSERVER.NLM called
pserver1
and sending jobs to the NIC
destination
d1prn
is
:
store rprinter add pserver1 0 d1prn
NOTE: If it is an NDS pserver, enter only the PSERVER name and
not the context (e.g.,
sales_ps
).
5. Physically repower the printer to make the new settings take
effect.
NDPS Configuration (Netware 4.11 And Above)
191
Wait two minutes and then check your PSERVER to see if the
appropriate printer is being serviced. The printer should display a
message such as Waiting for job. At this point, the NIC knows to
receive any jobs this PSERVER.NLM has to send to it through the
defined printer.
NDPS Configuration (Netware 4.11 And Above)
Overview
In 1998, Novell released a new printing system designed to make
network administration of printers easier and more fully functional.
This system is called Novell Distributed Print Services (NDPS), and
can be used with Novell Netware 4.11 and above along with the
supporting software on clients. This section gives high-level
instructions to install and use NDPS with the printer. These
instructions assume that you understand NDPS architecture well
enough to be able to use these instructions along with Novell's
instructions to install NIC into NDPS. See Novell’s documentation
to understand terms not defined here.
The drivers used with the Printronix printer can be found at
www.printronix.com. For a driver to be automatically downloaded to
a Windows machine when an NDPS printer is installed, the driver
must be installed into the NDPS Broker Resource Management
Service. See Novell’s documentation for more information.
The NIC can be installed into NDPS using the Novell Printer
Gateway feature of NDPS. Within this Novell Printer Gateway,
various printer connection modes can be used to install the printer
into NDPS. The ones described here are:
•Setup using Forward Jobs to a Queue Mode
•Setup using LPR Mode
•Setup using RPRINTER Mode
Chapter 7 Novell Host Configuration (10/100Base-T)
192
Setup using Forward Jobs to a Queue Mode
In this mode, an NDPS printer agent receives jobs from an NDPS
client, then forwards these jobs to an existing Netware queue. The
Netware queue would then be serviced by the printer in some
manner.
1. The printer must first be set up to service some Netware queue,
either by doing a PSERVER or RPRINTER mode setup from
previous chapters.
2. When setting up the NDPS printer agent, use the Novell
Printer Gateway.
3. Select ((NONE)) for Novell PDS.
4. Select Forward Jobs to a Queue for Port Handler, then
choose the queue used in step 1 above, and note the Caution
statement about the Queue User Name.
5. Select no driver in the Select Printer Drivers dialog, unless you
have a driver installed into the Broker's RMS which is to be
used with the printer.
Any jobs sent to this printer agent will then be forwarded to the
specified queue.
Setup using LPR Mode
In this mode, an NDPS printer agent receives jobs from an NDPS
client, then forwards these jobs to a printer using the LPR protocol.
1. The printer must first be set up with IP connectivity and be able
to receive jobs using the LPR protocol.
2. Use Novelle Printer Gateway when setting up the NDPS printer
agent.
3. Select ((NONE)) for Novell PDS.
4. Select Remote (LPR on IP) for Port Handler, then enter the
hostname/ipaddress and printer name
(d1prn – d8prn by default) in the next dialog.
NOTE: When the IPDS feature is installed, queue name d4prn is
not available.
NDPS Configuration (Netware 4.11 And Above)
193
5. Select no driver in the Select Printer Drivers dialog, unless you
have a driver installed into the Broker's RMS which is to be
used with the printer.
Setup Using RPRINTER Mode
In this mode, an NDPS printer agent receives jobs from an NDPS
client, then forwards these jobs to a printer using the RPRINTER
IPX protocol.
1. The printer must first be set up to function in RPRINTER mode,
selecting any desired Print Server Name and Printer Number.
2. Use Novell Printer Gateway when setting up the NDPS printer
agent.
3. Select ((NONE)) for Novell PDS.
4. Select Remote (rprinter on IPX) for Port Handler.
5. Enter the Print Server Name and Printer Number from step 1
for the SAP Name.
6. Select no drivers in the Select Printer Drivers dialog unless you
have a driver installed into the Broker's RMS which is to be
used with the printer.
The printer will need to be rebooted to attach to the NDPS printer
agent in this mode.
Chapter 7 Troubleshooting (10/100Base-T)
194
Troubleshooting (10/100Base-T)
PSERVER Setup
If you cannot get a connection with the NIC after completing the
print setup, confirm the following:
•Have you tried repowering the NIC? Wait about a minute
before checking if it has logged in and attached to a queue.
•Is the network connector fastened tightly to the unit?
•Is the NIC already servicing a queue on another file server? If
so, it cannot service another file server at the same time.
•Is there an available Netware user license for the NIC to utilize
while it acts as a PSERVER? Every PSERVER takes up one
user license since it logs in to the Novell file server.
•When going through the PSERVER setup steps, did you name
the NIC “M_xxxxxx” where “xxxxxx” represents the last six
digits of the Ethernet address? This is the default format of the
unit’s name when it is acting as a PSERVER.
NOTE: “M_xxxxxx” must have six digits after the “_” so, if
necessary, pad out each byte with a zero (0).
•Has the NIC’s name been changed from its default of
“M_xxxxxx” and, if so, have you incorporated this new name
into your PSERVER setup?
•Is there a password set for the print server to utilize when it is
logging in to the file server? Make sure the NIC’s PSERVER
password matches that of the PSERVER setup, or set both
places to no password.
PSERVER Setup
195
•When setting the NIC up as a PSERVER, did you specify a
destination on the NIC (e.g.,
d1prn
) for the printer name, and
did you remember this name is case sensitive?
NOTE: NIC destinations are case sensitive, so they will not be
recognized if they are typed incorrectly. By default, they are
all in lowercase. If you are setting up in a Netware 4.
x
or
Netware 5.
x
environment, the destination must be renamed
to uppercase to match the PCONSOLE or Netware
Administrator entry. Please see “set dest <dest>
name <new_name>” on page -322 for information on
changing names.
•Does the destination you used in your PSERVER setup have
the Novell service enabled? Please see “Commands” on page
305 for information on enabling/disabling services.
NOTE: The debug information that follows can be found by trying
to
telnet
the NIC and issuing the commands given or
launching a browser to the Novell status page on the NIC
(e.g.,
http://192.168.11.9/
networkNovellStatus.html
).
•Try doing a
debug nest ipx
telnet command on the NIC (or
find the “IPX Layer” section on the Novell HTML status page).
Check that a board has been bound to the NIC and that the
network number is correct for your network. If not, you may
want to set a specific frame type for the NIC to use. You can
find out what frame type is bound to which board number using
the
debug nest odi
command (or from the “ODI Layer”
section on the Novell HTML status page).
•Try a
debug nest fserver
telnet command (or find the “File
Servers” section on the Novell HTML status page). If no file
servers show up, then there is probably a problem with the
network connection, or the NIC is not on a Novell network. Try
a
debug nest sap
telnet command (or find the “SAP” section
on the Novell HTML status page) to see if the NIC is seeing any
network activity.
Chapter 7 Troubleshooting (10/100Base-T)
196
•Try a
debug nest pserver
telnet command (or find the
“PSERVER” section on the Novell HTML status page). Look for
a valid queue under the “EPS QUEUES” section. If the printer
field contains a number, and there is a valid file server but no
queue, then you probably made an error in the setup. At this
point try again. If it is an NDS PSERVER setup, look for a line
with the following type of message: “Could not login to NDS
Tree <TREE> as <PSERVER.<CONTEXT>”. This indicates
one of the following: the tree is wrong; the context stored on the
NIC for the print server object is wrong; the print server object
password is wrong; or the print server object name is wrong.
•Try a
debug nest rprinter
telnet command (or find the
“RPRINTER” section on the Novell HTML status page). Look
for the following type of line: “(0:ENPReadConfig):[0:213]
Destination = <
X
>”, where <
X
> is between 0 and 3. If they all
read: “Destination = 65536,” then the PSERVER setup did not
complete properly. If there was a valid queue under “EPS
QUEUES” in the
debug nest pserver
command, then the
printer name probably does not match an existing destination
name on the NIC, or Novell has been disabled for that
destination. If there is a valid “Destination =” line, then double
check that there is an entry for this number under the “ENP
INFO” section.
NOTE: Debug messages for the PSERVER setup are in the
RPRINTER section here because the PSERVER setup on
the NIC shares some code with the RPRINTER setup.
•Try a
debug nest logs
telnet command (or find the “General
Messages” section on the Novell HTML status page). Look for
a valid entry for the printer. It will look something like this:
“(0:InitSinglePrinter): printer=<
X
> name=<NAME>”. Then look
for the following lines: “(0:Printf): RemoteMonitor(<
X
>); printer
is” and “(0:Printf): WAITING_FOR_JOB”. If you see these lines,
the NIC is set up properly, and the problem points to a setup
issue on the workstation.
RPRINTER/NPRINTER Setup
197
•If the NIC has logged in to the file server but has not attached
to the queue, there may be a permission problem. Make sure
the appropriate users have rights to this queue (they should be
in the group “everyone”). Also, you may have to assign the
queue to root so it is available to everyone.
•Did you rename any objects in Netware Administrator during
your setup? Netware Administrator seems to have a problems
renaming objects. If so, delete everything and start over.
If none of these solutions help your situation, try the whole setup
again. Completely delete the setup that is giving you trouble and go
through the setup again, following each step carefully.
NOTE: After completing a PSERVER setup and before beginning
a new setup, be sure to reboot the printer. Wait at least a
minute for the Print Server to login and attach to a queue.
RPRINTER/NPRINTER Setup
If you cannot get a connection with the NIC after completing the
print setup, confirm the following:
•Have you tried repowering the printer? Wait about a minute
before checking to see if it has logged in and attached to a
queue.
•Is the network connector fastened tightly to the unit?
•Is the NIC already servicing a queue on another file server? If
so, it cannot service another file server at the same time.
•Is an entry produced when a
list rprinter
telnet command
is done on the NIC (not found on the Novell HTML status
page)? When the NIC is configured as an RPRINTER, this
command should produce the appropriate entry.
•If the NIC has logged in to the file server but has not attached
to the queue, there may be a permission problem. Make sure
the appropriate users have rights to this queue (they should be
in the group “everyone”). Also, you may have to assign the
queue to root so it is available to everyone.
Chapter 7 Troubleshooting (10/100Base-T)
198
•Does the destination you used in your RPRINTER setup have
the Novell service enabled? Please see “Commands” on page
305 for information on enabling/disabling services.
NOTE: The debug information that is mentioned in the following
section can be found by either
telnet
-ing to the NIC and
issuing the commands given, or launching a browser to the
Novell status page on the NIC (e.g.,
http://
192.168.11.9/networkNovellStatus.html
)
•Try doing a
debug nest ipx
telnet command on the NIC (or
find the “IPX Layer” section on the Novell HTML status page).
Check that a board has been bound to the NIC and that the
network number is correct for your network. If not, set a specific
frame type for the NIC to use. You can find out what frame type
is bound to which board number using the
debug nest odi
command (or from the “ODI Layer” section on the Novell HTML
status page).
•Try a
debug nest sap
telnet command (or find the “SAP”
section on the Novell HTML status page) to see if the NIC is
seeing any network activity.
•Try a
debug nest rprinter
telnet command (or find the
“RPRINTER” section on the Novell HTML status page). Look
for an entry for one of the numbers 4 to 7 under “ENP INFO.”
The “dest” field should match the destination used on the NIC.
If no entry is found, check that the destination has the Novell
service enabled. If the “ERROR-CODE” field has an error of
308, make sure no other RPRINTER setup is servicing this
printer object at the same time. Only one RPRINTER
connection is allowed to service a PSERVER.NLM printer.
•If the NIC has logged in to the file server but has not attached
to the queue, there may be a permission problem. Make sure
the appropriate users have rights to this queue (they should be
in the group “everyone”). Also, you may have to assign the
queue to root so it is available to everyone.
Printing Related
199
If none of these help your situation, try the whole setup again.
Completely delete the setup that is giving you trouble and go
through the setup again following each step carefully.
NOTE: After completing a PSERVER set up and before beginning
a new set up, be sure to reboot the printer. Wait at least a
minute for the Print Server to login and attach to a queue.
Printing Related
The Job Goes To The Queue But Nothing Prints
If nothing is printing, first make sure you have a connection to the
NIC. Please see “RPRINTER/NPRINTER Setup” on page 197 if
you are having connection-related problems. Otherwise, consider
these points when trying to solve printing problems in a Novell
environment:
•Does the job leave the queue or is it stuck there indefinitely? If
it leaves properly, the problem points to the actual printing
mechanism on your Novell system (e.g., CAPTURE, NPRINT,
etc.), to the print job format, or to the printer itself. Otherwise,
review the configuration steps you have already followed.
•Have you confirmed that you can print from the NIC to the
printer and ignore the Novell setup altogether? Please see
“start fox|tts|loopb prn” on page -340 for a good test.
•Is anything happening on the printer when the print job is sent?
Sometimes, the print job may have arrived at the printer but
might be waiting for a manual form feed. If so see “Set
Commands” on page 322 for information on trailer strings.
•Is the printing mechanism you are using (e.g., CAPTURE,
NPRINT, etc.) configured to service the appropriate queue?
•Is the NIC configured as the queue’s “Currently Attached
Server”? If not, make sure you have associated the queue and
the printer. See “Novell Host Configuration” on page 158.
•Is there a hold on the print job? If you select the job from
PCONSOLE’s CURRENT PRINT JOB ENTRIES, change the
User Hold or Operator Hold to “no.”
Chapter 7 Troubleshooting (10/100Base-T)
200
•If you look in PCONSOLE’s CURRENT QUEUE STATUS
within the PRINT QUEUE INFORMATION menu, is the server
configured to service entries in this queue? It is possible to turn
servicing off here.
If you have followed the suggestions above and are still having
printing problems, try rebooting the NIC. Then either review every
step you took when configuring the NIC or try redoing the setup,
paying special attention to each step explained in “Novell Host
Configuration” on page 158.
The Job Prints Incorrectly
This category can be broken down into several sub-categories such
as lost characters, garbled data, extra banner pages, or blank
pages at the end of a job. However, the reason for these mishaps
can generally be traced back to the printing mechanism used on
your Novell system. Consider these points when configuring your
print method (e.g., CAPTURE, NPRINT, etc.):
•Did you include the “No Tabs” option?
•Did you specify “No Banner” with PostScript printers?
•Did you turn off banner pages and form feeds if this is already
taken care of within an application or on the NIC? Doubling up
these types of print features is easy to do since these options
are provided both on the NIC (in a model) and within the print
command.
•Are you running the latest version of PSERVER (later than
1.22)? If not, upgrade the PSERVER software.
•In a PSERVER setup, did you ensure that the printer name
(e.g.,
d1prn
) was set up as “Defined Elsewhere”?
•Is the timeout option in the CAPTURE command set high
enough so the printer does not time out before the print
processing has had a chance to complete? This can be a
problem with graphic jobs.
Printing Related
201
•When garbled data persists, consider the following:
•tab expansion (
xtab
) set on (in a model) with graphic jobs
•the correct driver for the printer if printing from within
Windows
For additional information on these suggestions, please refer to
your Netware user manuals.
Chapter 7 Troubleshooting (10/100Base-T)
202
203
8OS/2 Configuration
Overview
This chapter details a complete OS/2 configuration setup including:
•configuring the NIC Interface with its TCP/IP settings, and
•configuring a new printer on an OS/2 workstation. The
procedure given is from an OS/2 Warp 4 system, but the setup
is similar to OS/2 Warp 3 and v2.11.
OS/2 must have TCP/IP installed on it and be configured with the
correct IP parameters. See OS/2 documentation/help and your
network administrator.
Configuring The NIC TCP/IP Settings
There are mandatory TCP/IP settings (e.g., an IP address and
subnet mask) needed before the print server can be detected on
the network. There are also some optional settings for configuring
your NIC within an OS/2 environment. This section mentions some
of the more common optional settings available.
Chapter 8 OS/2 Workstation Configuration
204
Mandatory Settings
The NIC must be configured with an IP address and subnet mask,
at a minimum. Consult your network administrator to obtain the
proper values for these parameters.
Optional Settings
One additional setting, the gateway address, is necessary if the
OS/2 workstations must communicate with the NIC across a router.
Consult your network administrator to obtain the proper value for
this parameter. To configure these options, see “Configuration
Tools” on page 34.
OS/2 Workstation Configuration
OS/2 must use the TCP/IP LPR protocol in order to send print jobs
to the NIC. This section explains how to use the LPR command and
how to set up an OS/2 print queue (which will forward jobs to the
printer using the LPR protocol).
Using The LPR Command
At an OS/2 command prompt, enter:
lpr -s ip_address -p NIC_queue filename
where NIC_queue is the name of an existing destination/queue on
the NIC, and it must be lowercase by default. You will most likely
use d1prn. If the IPDS feature is installed, queue name d4prn is
not available.
Troubleshooting
Check the IP information on both the NIC and the OS/2 station for
correctness. Make sure the
NIC_queue
is actually defined on the
NIC and that you are spelling it correctly.
Using An OS/2 LPR Print Queue
205
Using An OS/2 LPR Print Queue
This section describes how to set up an OS/2 Warp 4 print queue to
print to the NIC using the LPR protocol. TCP/IP for OS/2 must be
installed on your OS/2 workstation. This procedure is similar to OS/
2 Warp 3 and v2.11.
To set up the printer queue:
1. Find the Printer template icon. It may be in the Printers folder or
the Templates folder.
2. Right click on the icon, then select “Install.” The “Create a
printer” dialog box displays.
3. Enter any desired name for the printer. This will be the name of
the printer queue.
4. In the “Default printer driver” list, select the desired driver. If the
desired driver does not appear in the list, click on “Install new
printer driver...” and follow the instructions to install the desired
driver.
5. In the “Output port” list, double click on an unshaded \PIPE\
LPD
x
port. If all are shaded, double click on a shaded port and
change the parameters. If no \PIPE\LPD
x
ports displays, follow
these steps to install them:
a. Right click on a port and select “Install.”
b. Select the “New port drivers” radio button.
c. In the “Directory” field, type d:\TCPIP\DLL where
d
: is the
drive where the TCPIP subdirectory exists.
d. Click on “Refresh.” Several \PIPE\LPD
x
port icons should
appear in the “Output port” list. If none appear, type
d:\MPTN\DLL and repeat this step again.
NOTE: If no ports appear after completing step d, search your
drives for the LPRPDRVR.PDR and type the path to this
file, not including the file name (in step c). The final step
available is to ask OS/2 support to install these ports.
Chapter 8 OS/2 Workstation Configuration
206
e. Select all the ports with the mouse pointer and click on
“Install.” The \PIPE\LPD
x
ports should now show in the
“Output port” list.
6. The “\PIPE\LPD
x
- Setting” dialog box displays.
7. In the “LPD server” field, type the IP address of the NIC.
8. In the “LPD printer” field, type the name of the defined
destination/queue on the NIC.
NOTE: This name must be the name of an existing destination/
queue on the NIC, and it must be lowercase by default.
Most likely you will most likely use d1prn. If the IPDS
feature is installed, queue name d4prn is not available.
9. Optionally, click on “Help” to understand the other parameters
and enter those values.
10. Click “OK.”
11. Click on “Create.” The print queue is created and placed in the
Printers folder or on the OS/2 desktop.
12. Make sure LPRPORTD is running. Press
Ctrl-Esc
and check the
list for a line that contains “LPRPORTD.” If it is running, this
process is complete. If it is not running, enter the following at
the OS/2 command prompt:
start lprportd
You will probably want to put this command in your
“STARTUP.CMD” file, or use the TCP/IP Configuration tool to
set it to autostart on bootup.
Any print jobs sent to this queue will now be forwarded to the
NIC.
Using An OS/2 LPR Print Queue
207
Starting The LPR Port Daemon
The LPR Port Daemon must be started to enable TCP/IP printing.
To start the LPR Port Daemon:
1. Open the TCP/IP folder, which is in the OS/2 System folder for
Warp 3.0.
2. Open TCP/IP Configuration.
3. Select the “Autostart” tab on the notebook.
4. In “Services to Autostart,” select “lprportd.”
5. Select “Foreground Session” and “Minimized.”
6. Close the notebook by double clicking the system icon, which is
located in the upper left corner.
7. Select “Save.”
8. If prompted, press “
Yes”
to save the configuration changes.
9. At the OS/2 command prompt, enter
tcpstart
to restart TCP.
Troubleshooting
Check the IP information on both the NIC and OS/2 station for
correctness.
Make sure the value in step 8 of “Using An OS/2 LPR Print Queue”
is actually defined on the NIC. See “Configuration Tools” on page
34 to determine how to verify this. Also verify that you are spelling
the printer name correctly, and verify that LPRPORTD is running.
Chapter 8 OS/2 Workstation Configuration
208
TCP/IP Access Problem
If you can ping the printer from a workstation, but you cannot Web
browse, Telnet, or print to the printer through the NIC, there may be
an incorrect entry in the TCP access list. So the workstation can
use the NIC, one of two things must happen.
•the TCP list must have an entry added to grant access to this
workstation, or
•all entries must be deleted from the TCP list to grant all
workstations/hosts access to the above TCP services.
To view the current access list, use the printer control panel to
access the configuration menu (see the
User's Manual
for
configuration menu information). From the DIAGNOSTICS/Printer
Tests menu, choose the E-NET Test Page. When the page prints,
look under the “TCP ACCESS TABLE” section for the TCP access
list entries.
To add/delete a TCP access list entry, refer to “TCP Access Lists”
on page 347.
NOTE: When the following procedure is used, the TCP access list
will be cleared, but all IP addresses will need to be entered
again after the procedure is complete.
ADAPTER,
WLAN
ADAPTER
To reset all Adapter or WLAN Adapter NIC TCP/IP values to the
factory defaults when access is impossible:
1. Obtain a printer configuration printout using the control panel.
See the
User's Manual
for configuration menu information.
2. Power off the printer.
3. On the Adapter or Wireless NIC, place SWITCH 1 in the down
position.
4. Power on the printer and wait for the ONLINE state.
5. On the Adapter or Wireless NIC, place SWITCH 1 in the up
position.
TCP/IP Access Problem
209
6. From a workstation attached to this network segment, create
an ARP entry. The NIC IP address and hardware or MAC
address are needed. At the workstation enter:
arp -s <ipaddress> <MACaddress>
ping <ipaddress>
7. Try to ping this IP address to see if the NIC can be seen on
your network. If the interface does not respond, verify you are
on the same network segment as the printer and that the ARP
entry was created.
8. Telnet into the NIC using the same IP address as above. Log in
as root with no password.
9. At the system prompt, enter:
store tcpip from default
config http on
reset
NOTE: This will reset all TCP/IP settings to factory default and
reset the NIC.
10. Power the printer off and then back on.
11. Set the IP address, subnet mask, and default gateway
parameters to the desired values.
12. If Web browser access does not work, telnet into the NIC as
root. Enter the following command:
config http on
If you still experience difficulty accessing or browsing the printer,
contact the Customer Solutions Center for further assistance.
Chapter 8 OS/2 Workstation Configuration
210
211
9z/OS Configuration,
IPDS Printer
Overview
Use this chapter to configure z/OS to print IPDS files on your line
matrix network printer.
To print IPDS files, you must have the IPDS option on the printer.
Requirements
Verify that you have the following required software:
•PSF Version 2.2.0 with APAR OW15599 (for TCP/IP support)
•z/OS Scheduler with APAR OW12236 to support two new
PRINTDEV keywords: IPADDR and PORTNO
•TCP/IP Version 3 Release 1, or higher, installed and configured
on z/OS
To obtain the PTFs associated with these APARs, contact the
support center.
Chapter 9 Overview
212
Configuration Checklist
All of the following configuration steps carried out on z/OS require
appropriate RACF authority.
1. Using the printer operator panel, set up the IPDS printer
emulation to 6408/6412.
2. Set TCP/IP addresses for the printer, such as IP address,
gateway address, or subnet mask. See “Configuration Tools”
on page 34.
3. Configure the host environment.
See “Configuring PSF for z/OS to Print IPDS Files” on
page 213.
4. Verify the configuration. See “Verifying a TCP/IP-Attached
Printer on z/OS” on page 223.
5. If you want to share the printer, do the procedure in “Sharing
Line Matrix Printers on z/OS” on page 224.
6. If you have problems, refer to “Handling z/OS Connectivity
Problems” on page 226.
Configuration Procedure
213
Configuring PSF for z/OS to Print IPDS Files
To perform this procedure, you need the IP address of the
Ethernet.
Configuration Procedure
Configuring PSF to print IPDS files includes the following steps:
1. Define the z/OS communications control unit to z/OS. See
“Define the Communications Control Unit to z/OS” on page
214.
2. Modify the TCP/IP profile on your z/OS system, if necessary.
See “Modify the TCP/IP Profile in z/OS” on page 214.
3. “
Ping
” the printer. See “Verify the Printer Connection” on page
217.
4. Define the printer as a writer-controlled printer to JES. See
“Define the Printer to JES” on page 218.
5. Define the printer to PSF with a PRINTDEV statement,
including the IP address. See “Define the Printer to PSF” on
page 219.
This section does not provide all the information you need to install
and configure TCP/IP on your z/OS system. For more information
on installing TCP/IP, refer to
TCP/IP for z/OS: Customization and
Administration Guide
.
The routing of information is determined on the basis of the IP
address, and is performed by IP gateways. After the network is
configured correctly, the z/OS host appears to be communicating
directly with the TCP/IP-attached printer.
Chapter 9 Configuring PSF for z/OS to Print IPDS Files
214
Define the Communications Control Unit to z/OS
If you have not already done so, define the communications control
unit for the z/OS host, such as the 3172 or the 3745 control unit, to
z/OS. Use either an z/OS configuration program (MVSCP) or a
hardware configuration definition (HCD), depending on the version
of your z/OS system:
•When using a version earlier than z/OS 4.1.0, use an MVSCP.
•When using a version of z/OS 4.1.0 or later, use an HCD or an
MVSCP.
For more information about using these methods, refer to:
•MVS/ESA* Migration Planning: Dynamic I/O Configuration
•MVS/ESA Hardware Configuration: Using the Dialog
Modify the TCP/IP Profile in z/OS
The TCP/IP profile contains system configuration statements used
to initialize the TCP/IP address space. Of those statements, the
following are subject to special considerations when you are
printing from PSF on TCP/IP-attached printers. Samples of these
statements are printed in bold in the example shown in Figure 24.
Configuration Procedure
215
Figure 24. Modifying TCP/IP Profile
This section contains information about the statements, the special
considerations that apply to them, and the changes they may make
necessary. If you change any of the values in the TCP/IP profile,
restart TCP/IP to pick up the changes.
ACBPOOLSIZE 1000
ADDRESSTRANSLATIONPOOLSIZE 1500
CCBPOOLSIZE 150
DATABUFFERPOOLSIZE 160 32768
ENVELOPEPOOLSIZE 750
IPROUTEPOOLSIZE 300
LARGEENVELOPEPOOLSIZE 50
RCBPOOLSIZE 50
SCBPOOLSIZE 256
SKCBPOOLSIZE 256
SMALLDATABUFFERPOOLSIZE 256
TCBPOOLSIZE 512
TINYDATABUFFERPOOLSIZE 256
UCBPOOLSIZE 100
KEEPALIVEOPTIONS INTERVAL 10 SENDGARBAGE FALSE ENDKEEPALIVEOPTIONS
GATEWAY
; * Network First hop Linkname Packet Size Subnet mask Subnet value
9 = BPCLAN 2000 0.255.255.0 0.99.12.0
DEFAULTNET 9.99.12.254 BPCLAN 2000 0.255.255.0 0
Chapter 9 Configuring PSF for z/OS to Print IPDS Files
216
DATABUFFERPOOLSIZE
The DATABUFFERPOOLSIZE statement defines the number and
size of the data buffers. For printing on TCP/IP-attached printers, it
is recommended that you specify at least 160 data buffers, 32768
buffer size.
SMALLDATABUFFERPOOLSIZE
The SMALLDATABUFFERPOOLSIZE statement defines the
number of small data buffers. For printing on TCP/IP-attached
printers, it is recommended that you specify at least 256 small data
buffers.
TINYDATABUFFERPOOLSIZE
The TINYDATABUFFERPOOLSIZE statement defines the number
of tiny data buffers. For printing on TCP/IP-attached printers, it is
recommended that you specify at least 256 tiny data buffers.
KEEPALIVEOPTIONS
PSF relies on TCP to detect when a connection with a TCP/IP-
attached printer is no longer usable. When no data has been
exchanged between PSF and its connection partner, TCP sends
keep-alive probes to the connection partner periodically. These
periodic probes, called keep-alive transmissions, enable TCP to
discover when a connection is no longer usable even if the
connection partner is abruptly powered off or is no longer
accessible through the network.
The frequency of keep-alive transmissions is controlled by the
INTERVAL parameter on the KEEPALIVEOPTIONS statement.
The frequency applies to all TCP applications that direct TCP to
send keep-alive transmissions. The default frequency is after about
two hours of inactivity.
For printing on TCP/IP-attached printers, it is recommended that
you specify a shorter interval than the default, such as 10 minutes,
for the interval between keep-alive transmissions.
Configuration Procedure
217
Also, if any target host requires that the keep-alive packet contain
data, specify SENDGARBAGE TRUE. For example:
KEEPALIVEOPTIONS INTERVAL 5 SENDGARBAGE TRUE
ENDKEEPALIVEOPTIONS
GATEWAY
The Packet Size parameter of the GATEWAY statement defines
the maximum transmission unit (MTU) for the z/OS host. For
10/100Base-T Ethernet Interface printers, the MTU size is fixed at
1024 bytes. The value cannot be adjusted.
Verify the Printer Connection
To verify that the z/OS system can establish a connection with the
TCP/IP-attached printer, “
ping
” the printer from the MVS system.
From a TSO session, enter the following command:
TSO PING ip_address
In JES2, enter the following command from the System Display and
Search Facility (SDSF) menu 6:
ping ip_address
ip_address
specifies the IP address of the Ethernet.
Here is an example of a successful “
ping
” command:
EZA0458I Ping V3R1: Pinging host 9.99.12.33
(Use ATTN to interrupt.)
EZA0463I PING: Ping #1 response took 0.084 seconds.
Successes so far = 1.
Here is an example of an unsuccessful “
ping
” command:
EZA0458I Ping V3R1: Pinging host 9.99.12.33
(Use ATTN to interrupt.)
EZA0464I PING: Ping #1 timed out
NOTE: If you have problems “
ping
”-ing a printer, refer to “Handling
z/OS Connectivity Problems” on page 226.
Chapter 9 Configuring PSF for z/OS to Print IPDS Files
218
Define the Printer to JES
When a TCP/IP-attached printer is to be used with JES, it must be
defined for deferred printing mode with JES.
JES2 Printer Definitions
Below is an example of the JES2 printer definition initialization
member, located in the system PARMLIB:
FSS(FSS1),PROC=PSFPROC,HASPFSSM=HASPFSSM
PRT1 FSS=FSS1,MODE=FSS,PRMODE=(LINE,PAGE,SOSI1),
CLASS=C,UCS=0,SEP,NOSEPDS,CKPTPAGE=100,
DRAIN,MARK,TRKCELL=YES
The above example is correct for JES2 3.11 and above. For earlier
versions of JES2, the statement is named FSSDEF and would be
stated as FSSDEF FSSNAME=FSS1.
The value you specify for the PROC parameter must match the
name on the PSF Startup procedure.
JES3 Printer Definitions
Below is an example JES3 printer definition. This example is not
executable, but it is intended to help the JES3 systems programmer
define the printer to the z/OS host.
FSSDEF,TYPE=WTR,FSSNAME=FSS1,PNAME=PSFPROC,SYSTEM=SYS1,
TERM=NO DEVICE,JNAME=PRT1,JUNIT=(,SYS1,,OFF),
FSSNAME=FSS1, MODE=FSS,PM=(LINE,PAGE,SOSI1),
CHARS=(YES,GT12),
The value you specify for the JNAME parameter must match the
name of the printer in the PSF Startup procedure.
The value you specify for the PNAME parameter must match the
name on the PSF Startup procedure.
Configuration Procedure
219
Define the Printer to PSF
Each TCP/IP-attached printer must be defined to PSF with a
PRINTDEV statement in the PSF startup procedure.
Figure 25 shows a sample PSFPROC procedure that you can
modify to suit your installation. The PRINTDEV statement shows
the required IPADDR keyword.
No line matrix printer-specific writer procedure is currently supplied.
You can, however, copy the APSWPROT sample from the APAR
medium and modify it for the line matrix printer.
NOTE: The line matrix printer supports only resident symbol sets.
//PSFPROC PROC
//**************** NETWORK PRINTERS WRITER PROCEDURE ****************
//*
//*01* MODULE-NAME = PSFPROC
//*
//*01* DESCRIPTIVE-NAME = START PROCEDURE FOR PSF:
//*TCP/IP ATTACHED NETWORK PRINTERS
//*
//*01* NOTES = THE FULL NAME OF THE DEFAULT PAGEDEF IS
//*P1A06462.
//*THE FULL NAME OF THE DEFAULT FORMDEF IS
//*F1A10110.
//*THE FULL NAMES OF THE DEFAULT FONTS ARE
//*X0GF10, X0GS10, X0TU10, AND X0GU10.
//*THE FULL NAME OF THE SEPARATOR PAGE PAGEDEF IS
//*P1V06483.
//*THE FULL NAME OF THE SEPARATOR PAGE FONT IS
Chapter 9 Configuring PSF for z/OS to Print IPDS Files
220
//*X0GT15.
//*
//*
//*01* CHANGE-ACTIVITY:
//*
//**** END OF SPECIFICATIONS ***/
//STEP01EXEC PGM=APSPPIEP,REGION=4096K
//JOBHDR OUTPUT PAGEDEF=V06483,/* JOB SEPARATOR PAGEDEF*/
//FORMDEF=A10110,CHARS=GT15/* JOB SEPARATOR FORMDEF*/
//JOBLTR OUTPUT PAGEDEF=V06483,/* JOB SEPARATOR PAGEDEF*/
//FORMDEF=A10110,CHARS=GT15/* JOB SEPARATOR FORMDEF*/
//DSHDR OUTPUT PAGEDEF=V06483,/* DS SEPARATOR PAGEDEF*/
//FORMDEF=A10110,CHARS=GT15/* DS SEPARATOR FORMDEF*/
//MSGDS OUTPUT PAGEDEF=A06462,/* MESSAGE DATASET PAGEDEF*/
//FORMDEF=A10110/* MESSAGE DATASET FORMDEF*/
//FONT300DDDSN=SYS1.FONT300,/* SYSTEM FONTS - 300 PEL*/
//DISP=SHR
//PSEG01DDDSN=SYS1.PSEGLIB,/* SYSTEM PAGE SEGMENTS*/
//DISP=SHR
//OLAY01DDDSN=SYS1.OVERLIB,/* SYSTEM MEDIUM OVERLAYS*/
//DISP=SHR/*
//PDEF01DDDSN=SYS1.PDEFLIB,/* SYSTEM PAGEDEFS*/
//DISP=SHR
//FDEF01DDDSN=SYS1.FDEFLIB,/* SYSTEM FORMDEFS*/
//DISP=SHR
//* ******************************************************************************************/
Configuration Procedure
221
//*PRINTDEV
//* ******************************************************************************************/
//PRT1CNTL
//PRT1PRINTDEV FONTDD=*.FONT300,/* 300 PEL FONT LIBRARY DD*/
//OVLYDD=*.OLAY01,/* OVERLAY LIBRARY DD*/
//PSEGDD=*.PSEG01,/* SEGMENT LIBRARY DD*/
//PDEFDD=*.PDEF01,/* PAGEDEF LIBRARY DD*/
//FDEFDD=*.FDEF01,/* FORMDEF LIBRARY DD*/
//JOBHDR=*.JOBHDR,/* JOB HEADER SEPARATOR*/
//*/* OUTPUT*/
//JOBTRLR=*.JOBTLR,/* JOB TRAILER SEPARATOR*/
//*/* OUTPUT*/
//DSHDR=*.DSHDR,/* DATA SET HEADER*/
//*/* SEPARATOR*/
//MESSAGE=*.MSGDS,/* MESSAGE DATA SET OUTPUT*/
//BUFNO=5,/* NUMBER OF WRITE DATA BUFFERS*/
//PAGEDEF=A06462,/* DEVICE PAGEDEF DEFAULT*/
//FORMDEF=A10110,/* DEVICE FORMDEF DEFAULT*/
//CHARS=(GF10,/* DEVICE*/
//GS10,TU10,GU10),/* DEFAULT FONT SET*/
//PIMSG=YES,/* ACCUMULATE DATA SET*/
//*/* MESSAGES*/
//DATACK=BLOCK,/* REPORT ALL DATA-CHECK*/
//*/* ERRORS*/
//TRACE=NO,/* CREATE INTERNAL TRACE*/
//FAILURE=WCONNECT,/* PSF ACTION ON PRINTER*/
Chapter 9 Configuring PSF for z/OS to Print IPDS Files
222
Figure 25. Sample PSFPROC procedure
NOTE: To specify a TCP/IP address space name other than the
default, TCPIP, code the following exec statement in the
writer procedure:
//STEP01EXEC PGM=ASPPIEP,REGION=4096K,
PARM=(,,,,tcpip_name)
where tcpip_name is the name of the TCP/IP address
space. If this parameter is not coded, PSF uses the default
name, TCPIP.
The IP address is the only required parameter. Other parameters
may be set to facilitate printer sharing as described in “Sharing Line
Matrix Printers on z/OS” on page 224. For a description of the
PRINTDEV statement, which is not given here, see the PSF
System Programming Guide
.
IPADDR
Specifies the IP address for the printer or attachment, in dotted-
decimal notation. Do not specify a hostname in place of the dotted-
decimal address.
//*/* FAILURE*/
//TIMEOUT=REDRIVE/* PSF ACTION ON TIMEOUT*/
//MGMTMODE=OUTAVAIL,/* PRINTER MANAGEMENT MODE*/
//DISCINTV=15,/* DISCONNECT INTERVAL IN*/
//*/* SECONDS*/
//IPADDR=’xxx.xxx.xxx.xxx’/* IP ADDRESS FOR TCP/IP*/
//PRT1ENDCNTL
Verifying a TCP/IP-Attached Printer on z/OS
223
Verifying a TCP/IP-Attached Printer on z/OS
To operate a TCP/IP-attached printer, use JES operator
commands.
Starting a TCP/IP-attached Printer
To start a TCP/IP-attached printer, do the following:
1. Start TCP/IP.
2. Power on the printer.
3. Start the printer FSA.
•On JES2, the command is:
$Sprinter_name
•On JES3, the command is:
*VARY printer_name,ON
Stopping a TCP/IP-attached Printer
You can stop a TCP/IP-attached printer in several ways:
•The preferred method is to first stop the PSF FSA for the printer
by entering the following command from the z/OS console:
JES2:
$Pprinter_name
JES3:
*VARY printer_name,OFF
*CANCEL printer_name
where printer_name specifies the name of the printer FSA.
Then you can turn off power to the printer.
•To end the PSF FSA for the printer, use the JES commands. If
you are unable to purge or cancel the printer by use of the JES
commands, enter the following command:
MODIFY FSSname,FORCE,printer_name
Chapter 9 Sharing Line Matrix Printers on z/OS
224
Resolving IPDS Printing Problems
If you have problems printing, do the following:
•Print an Ethernet Test Page. Refer to your
User’s Manual
.
•Verify that the IPDS service is enabled.
•Verify the service name.
•Verify that port number 5001 is being used.
If you are still unable to print IPDS files, contact the support center.
Sharing Line Matrix Printers on z/OS
Line matrix printers can be shared on PSF in one of two ways:
•By using the MGMTMODE and DISCINTV parameters via the
JES spool.
•By port switching on the printer.
JES Spool Printer Sharing
JES spool printer sharing is valid for TCP/IP attached network
printers. A session with the printer is maintained while there is
output on the JES spool and the printer is available. When there is
no more output on the spool and the disconnect interval expires,
PSF ends the session with the printer. PSF attempts to restart the
session when there is more work on the spool for the printer. After
the session is restarted, PSF must reload the resources required
for the print jobs. When using this method of network printer
sharing, PSF cannot determine if another print driver is active.
You can request this method of network printer sharing by
specifying the following parameters in the PSF Startup Proc.
MGMTMODE=OUTAVAIL
FAILURE=WCONNECT
TIMEOUT=REDRIVE
DISCINTV=n
JES Spool Printer Sharing
225
MGMTMODE
Set to OUTAVAIL. OUTAVAIL requests that PSF start a
communications session with the printer only when output is
available on the JES spool.
FAILURE
Specifies the action PSF is to take after a printer failure or a TCP/IP
network failure. If FAILURE=WCONNECT and the printer is
connected to another host when PSF attempts to establish a
connection on TCP/IP, PSF continuously retries (up to the limit
specified by CONNINTV) until the printer becomes available.
FAILURE=STOP stops the attempt to connect to the printer.
TIMEOUT
Specifies the action that PSF is to take after a timeout when no
output is available on JES. The DISCINTV parameter specifies the
timeout interval. TIMEOUT=REDRIVE requests that PSF redrive
the printer FSA using the value of the MGMTMODE parameter.
TIMEOUT=STOP requests that PSF stop the printer FSA, which
can then be restarted only by an operator command.
DISCINTV
Specifies the disconnect interval in seconds. The value can range
from zero through 86400. It is recommended that you set the value
to 15. When no output is available from JES for this time period,
PSF ends the session with the network printer. If the value is set to
zero, PSF does not end the session because of lack of output.
NOTE: PSF supports two other methods of printer sharing, which
are not applicable to 10/100Base-T Ethernet Interface
printers. VTAM RELREQ is available for printer sharing
under SNA. Port switching is available for SNA- and TCP/
IP-attached printers when a printer can support multiple
active ports.
Chapter 9 Handling z/OS Connectivity Problems
226
Port Switching Printer Sharing
To support printer sharing, 10/100Base-T Ethernet Interface
printers automatically switch among all attached ports (serial port,
the twinax or coax port, or the Ethernet network port). Basically, the
printer prints jobs for one port until no new jobs appear and the port
“times out”. The printer then switches to the next port and does the
same thing.
To change the default “time out” value for a port, update the
TIMEOUT value for the port on the appropriate menu (Serial
Interface, Ethernet, Twinax Interface, or Coax Interface).
Handling z/OS Connectivity Problems
If you encounter problems when “
ping
”-ing a network printer from
z/OS, here is how to resolve them.
Ping is Not Successful
If the “
ping
” is not successful, verify the following:
•The printer is powered on.
•The IP address is unique in the TCP/IP network.
If the IP address of the z/OS system is not unique, see your
network administrator to resolve the IP address problem.
•The Maximum Transmission Unit (MTU) size of the IP packet
for the z/OS system is equal to the MTU size of the printer. For
information about the values recommended for the z/OS
system, see “Modify the TCP/IP Profile in z/OS” on page 214.
To change the MTU size for the z/OS system, change the
GATEWAY statement in the z/OS TCP/IP profile, and restart
TCP/IP to pick up the changes.
You cannot change the MTU size on a 10/100Base-T Ethernet
Interface printer. The MTU size is fixed at 1024 bytes.
If these items are all in order, consult your TCP/IP network
administrator about a possible network problem.
Ping is Successful
227
Ping is Successful
A successful “
ping
” usually indicates that the z/OS system can
communicate with the printer; however, you might receive a
successful “
ping
” even though the IP address of the TCP/IP-
attached printer is a duplicate of another IP address.
If PSF is unable to establish a network connection with the TCP/IP-
attached printer or if PSF output for this printer prints elsewhere,
follow these steps to determine whether the IP address of the
printer is unique:
1. Turn the printer off.
2. Wait at least 5 minutes for TCP/IP to clear the Address
Resolution Protocol (ARP) tables. (If your installation specified
a longer interval on the ARPAGE configuration statement in the
TCP/IP profile, you may need to wait longer. For information
about the ARPAGE statement, refer to the
TCP/IP z/OS
Customization and Administration Guide
.)
3. Enter the “
ping
” command again from the z/OS system.
NOTE: If you receive a successful response to the “
ping
”
command, there is a duplicate IP address. Consult your
TCP/IP network administrator.
Chapter 9 Handling z/OS Connectivity Problems
228
229
10 AS/400 Configuration,
ASCII Printer
Overview
This chapter details a complete AS/400 configuration setup
including:
•Developing Line Descriptions with CRTLINETH
•Configuring the AS/400 for TCP/IP
•Configuring the AS/400 for Printing
•Verifying Printing from the AS/400
This document assumes no AS/400 printer configuration has been
done. If any configuration has been done, please follow the
procedure to the point at which continued configuration is required.
Developing Line Descriptions With CRTLINETH
For each LAN adapter on the AS/400, a line description needs to be
created for the NIC. This is required for Release V3R2 and V3R7.
If a line description already exists, make sure the SSAP list
includes default options “AA” and “12.” You must also know the
LAN speed for the AS/400 LAN adapter.
NOTE: To change a line description, you need to vary the line off
before making the change. After making the change, you
need to vary the line back on.
To change an existing line description, use the CHGLINETH
command. To create a line description, use CRTLINETH.
Chapter 10 Overview
230
NOTE: SSAPS of “AA” and “12” are automatically set as default
values in the line description when “*CALC” is used in
creating new line descriptions. You do not need to set
these values unless they have been changed.
To create a line description, enter the following command:
CRTLINETH LIND(ETHLAN) RSRCNAME(LIN041)
Your completed screen should look like Figure 26.
Figure 26. Example NIC Line Description
Configuring With ADDTCPIFC
231
The following three parameters must be specified:
Line Description (LIND)
The line description name is the user's name for the AS/400
adapter. This name must be identical to the name entered when the
TCP/IP is configured on the AS/400.
Resource Name (RSRCNAME)
The system-assigned name for the interface (for example, LIN041).
SSAP
When *CALC is used, the values of “12” and “AA” are entered
automatically as defaults. Verify that those SSAP values have not
been changed.
Configuring AS/400 For ASCII Using TCP/IP
The next step is to configure the interface on the AS/400 for
TCP/IP.
NOTE: The AS/400 interface is not the NIC. Do not set the AS/400
interface address to the same address as the NIC IP
address. Also, do not add the NIC to the AS/400 TCP/IP
interface list.
Configuring With ADDTCPIFC
ADDTCPIFC is used to add a TCP/IP interface to the AS/400. This
step configures the AS/400 for attachments to a TCP/IP network.
At the AS/400 command line, enter the following command:
ADDTCPIFC INTNETADR ('9.99.15.188') LIND(ETHLAN)
SUBNETMASK('255.255.255.0')
Your completed screen should look like Figure 27.
Chapter 10 Configuring AS/400 For ASCII Using TCP/IP
232
Figure 27. Example of ADDTCPIFC Interface
The following parameters must be specified:
Internet Address
Internet address of the AS/400 LAN adapter.
NOTE: Do not use the IP address of the NIC.
Subnet Mask
The Subnet Mask for this AS/400 TCP/IP interface (for example,
255.255.255.0).
Line Description
The name assigned to the AS/400 line description as described in
“Developing Line Descriptions With CRTLINETH” on page 229.
NOTE: Each AS/400 LAN adapter will have its own line
description.
System: BLDD6
Internet address: 9.99.15.188
Subnet mask: 255.255.255.0
Line description: ETHLAN
Line type: *Elan
Interface status: Inactive
Type of service: *Normal
Maximum transmission unit: *Lind
Automatic start: *Yes
Configuring A Router Definition With ADDTCPRTE
233
Configuring A Router Definition With
ADDTCPRTE
If necessary, use the ADDTCPRTE command to create a route
definition. This is required if the printer is somewhere other than on
a local segment and must cross bridges.
Configuring A Local Domain And Hostname
The AS/400 print commands, described in “Setting Up Printing For
ASCII Files” on page 234, require a local name and hostname. If
you have already configured LAN attached TCP/IP printers on the
AS/400 system, you will have a local domain name and hostname
configured on the system.
NOTE: If you already have a local domain name and hostname
configured on the system, do not change your setup.
If the local domain name and hostname file is empty, the file must
be set up. This control file information is used to determine if a print
request comes from an authorized host.
To configure the local domain and hostname, you will run the
CFGTCP command and select Option “12” from the menu. Enter a
local domain name, such as city.company.com. Enter a local
hostname, such as
as400-01
. This is the name of your AS/400
system and must match the hostname for your system in the host
entry table. Refer to “Configuring A TCP/IP Host Table Entry” for
more information.
NOTE: If the printer and AS/400 are not on the same local LAN
segment, use CFGTCP Option 2 to verify that there is a
route defined in the TCP/IP route list.
Configuring A TCP/IP Host Table Entry
Although creating a TCP/IP host table entry is optional, it is a good
idea to take this step. Add the AS/400 name and the IP address of
the LAN adapter to the “Host Table Entries.”
Chapter 10 Configuring The AS/400 For Printing
234
Configuring The AS/400 For Printing
To configure an AS/400 for printing, you must:
•set up the printing capability, and
•verify the setup with a print job.
You will need the following information:
Remote Printer Queue name
Set to ‘d1prn’ through ‘d8prn’.
NOTE: The Remote Printer Queue name must be in lowercase
letters. Do not use “PASS.”
NOTE: When the IPDS feature is installed, the queue name
‘d4prn’ is not available.
IP Address
The IP address for the NIC.
Setting Up Printing For ASCII Files
The next step is to set up the remote printing capability. There are
two ways to do this: you can either specify the LPR parameters
manually each time you send a file to the printer, or use Remote
Writer and a remote output queue for automatic printing to the
printer.
To Use LPR Manually
1. Start TCP/IP, if it is not already running, by entering the
command
STRTCP
.
2. At the AS/400 command line, enter
LPR
.
3. Figure 28 displays in bold the parameters you need to specify.
Setting Up Printing For ASCII Files
235
Figure 28. ASCII LPR Parameters
The following parameter values are required:
Remote System
Enter the hostname of your printer or *INTNETADR, which then
prompts you to specify the IP address of your printer.
Printer Queue (PRTQ)
Set to ‘d1prn’ through ‘d8prn’. The remote printer queue name
must be in lowercase letters, entered in single quotes.
NOTE: When the IPDS feature is installed, queue name ‘d4prn’
is not available.
Send TCP/IP Spooled File (LPR)
Type choices, press Enter.
Remote system RMTSYS > *INTNETADR
Printer queue PRTQ > ‘d1prn’
Job name JOB *
User
Number
Spooled file number SPLNMBR *ONLY
Destination type DESTTYP *OTHER
Transform SCS to ASCII TRANSFORM *YES
Manufacturer type and model MFRTYPMDL > *IBM6400EP
Internet address INTNETADR > ‘9.99.2.3’
Chapter 10 Configuring The AS/400 For Printing
236
Destination Type (DESTTYP)
Specify *OTHER for the DESTTYP parameter.
Transform (TRANSFORM)
Specify *YES.
Manufacturer Type and Model (MFRTYPMDL)
Select a manufacturer type and model. This is the name of the
WSCO. Select *IBM6400EP for Epson emulation or *IBM6400 or
*IBM42023 for Proprinter Emulation if you have AS/400 V3R2 and
above or V3R7 and above.
Internet Address (INTNETADR)
The IP address of the NIC.
NOTE: You may specify either *INTNETADR (and the NIC IP
address) or the hostname for the NIC (if you added the
printer to the host table entry as directed in “Configuring A
TCP/IP Host Table Entry” on page 233).
To Create An Automatic Remote Output Queue
1. From the AS/400 command line, enter
CRTOUTQ
.
2. Figure 29 displays in bold the parameters you need to specify.
Send TCP/IP Spooled File (LPR)
Type choices, press Enter.
Output queue OUTQ > USERNAME
Library *CURLIB
Maximum spooled file size: MAXPAGES
Number of pages *NONE
Staring time
Setting Up Printing For ASCII Files
237
Figure 29. Automatic Remote Output Queue Configuration
Ending time
+ for more values
Order of files on queue SEQ *FIFO
Remote system RMTSYS > *INTNETADR
Remote printer queue RMTPRTQ > ‘d1prn’
Writer to autostart AUTOSTRWTR 1
Queue for writer messages MSGQ QSYSOPR
Library *LIBL
Connection type CNNTYPE > *IP
Destination type DESTTYP *OTHER
Host print transform TRANSFORM *YES
Manufacturer type and model MFRTYPMDL > (See Note on
page 239)
Workstation Customizing Object WSCST > (See Note on
page 239)
Library
Internet address INTNETADR > ‘9.99.57.173’
Destination options DESTOPT *NONE
Print separator page SEPPAGE *YES
User defined option USRDFNOPT *NONE
Chapter 10 Configuring The AS/400 For Printing
238
3. Enter values for the following parameters:
Output Queue (OUTQ)
The name of the AS/400 output queue. The name can be
anything you would like. This name is not the same as the
printer internal queue name, ‘d1prn’.
Remote System (RMTSYS)
Internet address of the NIC on the printer (*INTNETADR
prompts you for this) or the hostname of the NIC.
Remote Printer Queue (RMTPRTQ)
Default name of the network printer. Set for any of ‘d1prn’
through ‘d8prn’. The remote printer queue name must be
lowercase, entered in single quotes.
NOTE:When the IPDS feature is installed, queue name
‘d4prn’ is not available.
Writer to Autostart (AUTOSRTWTR)
Set the value to 1. This will start the Remote Writer when the
queue is created, and it automatically starts the Remote Writer
after each IPL of the AS/400 and whenever STRTCP is started.
Connection Type (CNNTYPE)
Specify this value as *IP.
Destination Type (DESTTYP)
Specify *OTHER. *OTHER is a performance enhancement, in
which data is not required to be transformed again if the
connection is interrupted and allows printing of multiple copies.
Transform (TRANSFORM)
Specify this value as *YES.
Setting Up Printing For ASCII Files
239
Manufacturer Type (MFRTYPMDL)
Select a manufacturer type and model. This is the name of the
WSCO. Select *IBM6400EP for Epson emulation or
*IBM6400PR or *IBM42023 for Proprinter Emulation.
NOTE: Select the Manufacturer Type Model based on the data
type.
a. Report printing, text only, no IGP or barcodes.
Manufacturer Type Model = *IBM42023
Workstation customizing object = *NONE
Since IBM42023 is a Printronix XL emulation, the printer
emulation must also be switched to Proprinter emulation.
Be sure to save the printer emulation as the power-up
configuration.
Alternate selection:
Manufacturer Type Model = *IBM6400EP
Workstation Customizing Object = *NONE
Since IBM6400EP is an Epson emulation, the printer
emulation must be also switched to Epson emulation. Be
sure to save the printer emulation as the power-up
configuration.
b. PGL or VGL or PPI program.
Manufacturer Type Model = *WSCSTCONT132
Workstation Customizing Object = QWPDEFAULT
Library = QSYS
This selects a generic object that passes the data
unchanged without any escape codes to the printer. Text
files will print in the currently selected printer configuration,
cpi, lpi, and form length. OS/400 versions below V3R7 may
not have this selection and may require manual creation of
Chapter 10 Verify Printing On AS/400
240
Troubleshooting
This installation procedure assumes that the NIC adapter is
configured with the correct IP address, subnet mask, and gateway
(if required). In addition you can also ping and telnet to the NIC
adapter.
Print an E-net Test Page to verify the Ethernet settings.
(P5000, T5000e/SL5000e, T4000) DIAGNOSTICS Printer
Tests E-Net Test PageEnter.
(P7000, T5000r/SL5000r) DIAGNOSTICS Printer Tests
Ethernet TestEnter.
(L55xx, L1524) DIAGNOSTICSTest Pattern E-Net Test
PageEnter.
The default NIC queue name is d1prn, however, the name can be
changed. Substitute the changed name for the RMTPRTQ
parameter. To verify the queue name, print an E-Net Test Page or
telnet to the adapter and perform a “list dest” command.
Internet address (INTNETADR)
Specify the IP address of the printer.
Verify Printing On AS/400
This section verifies that the printer is capable of printing ASCII files
and that the printer can be pinged on the network.
To test ASCII printing:
1. Start TCP/IP, if it is not already running, by entering the
command
STRTCP
.
2. Verify that the AS/400 TCP/IP interface is active.
Setting Up Printing For ASCII Files
241
3. Ping the printer from an AS/400 workstation with the
command:
ping ip_address
.
Where ip_address
is the Internet address of the remote
system printer (the NIC) or the hostname of the printer (if you
put the hostname in the host entry table as directed in
“Configuring A TCP/IP Host Table Entry” on page 233).
4. If the printer cannot be pinged, proceed to “AS/400 ASCII
Troubleshooting” on page 241.
5. Use one of the following methods to send a spooled file to the
printer:
•Enter the LPR command on the AS/400 command line with
the appropriate parameters. See “To Use LPR Manually”
on page -234.
•Enter
STRRMTWTR name
on the AS/400 command line,
where
name
is the name of the AS/400 remote output
queue (not the printer Internet queue, as described on
“To Create An Automatic Remote Output Queue” on page
236).
•Use the
WRKOUTQ
command to send jobs.
AS/400 ASCII Troubleshooting
During power up, the printer performs an interface hardware test.
The presence of the ETHERNET PARAMS menu selection at the
printer control panel indicates that the NIC hardware is functioning
properly. See the
User's Manual
for configuration menu
information.
If you have trouble pinging the printer:
1. Verify the configuration of the AS/400, including the printer and
any intervening devices such as routers and bridges.
2. Verify that the AS/400 line description is varied on and the
printer is turned on and displays an ONLINE status.
Verify Printing On AS/400
Chapter 10 AS/400 ASCII Troubleshooting
242
3. Verify that the AS/400 TCP/IP is active.
TCP/IP Access Problem
If you can
ping
the printer from a workstation, but you cannot Web
browse, Telnet, or print to the printer through the NIC, there may be
an incorrect entry in the TCP access list. So that the workstation
can use the NIC in this case, one of two things must happen:
•the TCP list must have an entry added to grant access to this
workstation, or
•all entries must be deleted from the TCP list to grant all
workstations/hosts access to the above TCP services.
To view the current access list, use the printer control panel to
access the menu. See the
User's Manual
for configuration menu
information. From the Operator Print Test menu, choose the
Ethernet Test Page. When the page prints, look under the “TCP
ACCESS TABLE” section for the TCP access list entries.
To add/delete a TCP access list entry, refer to “TCP Access Lists”
on page 347.
NOTE: When the following procedure is used, the TCP access list
will be cleared, but all IP addresses will need to be entered
again after the procedure is complete.
ADAPTER,
WLAN
ADAPTER
To reset all Adapter or WLAN Adapter NIC TCP/IP values to the
factory defaults when access is impossible:
1. Obtain a printer configuration printout using the control panel.
See the
User's Manual
for configuration menu information.
2. Power off the printer.
3. On the Adapter or Wireless NIC, place SWITCH 1 in the down
position.
4. Power on the printer and wait for the ONLINE state.
5. On the Adapter or Wireless NIC, place SWITCH 1 in the up
position.
TCP/IP Access Problem
243
6. From a workstation attached to this network segment, create
an ARP entry. The NIC IP address and hardware or MAC
address are needed. At the workstation, enter:
arp -s <ipaddress> <MACaddress>
ping <ipaddress>
7. Try to
ping
this IP address to see if the NIC can be seen on
your network. If the interface does not respond, verify you are
on the same network segment as the printer and that the ARP
entry was created.
8. Telnet into the NIC using the same IP address as above. Log
in as root with no password.
9. At system prompt, enter:
store tcpip from default
config http on
reset
NOTE: This will reset all TCP/IP settings to factory default and
reset the NIC.
10. Wait five minutes for the NIC to reset.
11. Power the printer off and then back on.
12. Wait for the “E-NET READY” message to display.
13. Set the IP address, subnet mask, and default gateway
parameters to the desired values. (See “Configuration Tools”
on page 34.)
Chapter 10 AS/400 ASCII Troubleshooting
244
Web Browser/HTTP Problem
In some cases you may not be able to browse the printer Web page
simply because the NIC HTTP may be turned off.
If you cannot
ping
the NIC IP address, make sure the IP address,
subnet mask, and default gateway are set correctly by checking the
ETHERNET PARAMS menu from the control panel. See the
User's
Manual
for configuration menu information.
If you can
ping
the NIC IP address but cannot access the Web
pages, perform the following procedure to verify the NIC HTTP is
turned on:
1. Telnet into the NIC and log in as root with no password.
2. At the system prompt, enter the following commands:
config http on
save
reset
3. After approximately 5 minutes, point your browser to the NIC IP
address. The printer Web pages should now be accessible.
If you still experience difficulty accessing or browsing the printer,
contact the Customer Solutions Center for further assistance.
245
11 AS/400 Configuration,
IPDS Printer
Configuring On AS/400 As An IPDS Printer
NOTE: The IPDS emulation is not supported on the T4204 printer.
Use this chapter to configure your printer on AS/400 as an IPDS
printer. To print IPDS, you must install the IPDS option on your
printer. Once configured as an IPDS printer, the printer can also
print AFP™ and SCS, but these datastreams must be converted to
IPDS first.
NOTE: Do not cancel IPDS print jobs by using WebPage cancel.
Printing AFP, IPDS, And SCS Files
Printers configured as IPDS only print IPDS files. AFP and SCS
files can be printed, but they must be transformed to IPDS before
printing.
•APF files are transformed directly by Print Services Facility™
(PSF/400, an integrated feature of OS/400), which then sends
the transformed file to the printer.
•SCS files are transformed into IPDS by setting the
IPDSPASTHR parameter to YES (see Figure 32 on page 254
or Figure 33 on page 257). This path yields the best
performance by sending IPDS files directly to the printer with
no transform.
Chapter 11 Configuring On AS/400 As An IPDS Printer
246
Requirements
Contact technical support to obtain the latest PTFs for PSF/400.
For IPDS printing, you also need to install the IPDS option for the
printer.
Configuration Checklist
NOTE: All of the following configuration steps carried out on the
AS/400 may require “create” or “change” authority.
1. If you have not already done so, set up the printer and install
the NIC. See “Configuration Using The Control Panel” on
page 34.
2. Using the printer control panel, set up the printer for IPDS by
setting the parameters and values shown in Table 10.
3. Set TCP/IP addresses for the printer, such as an IP Address,
Gateway Address, or Subnet Mask. See “Configuration Tools”
on page 34.
4. If the printer and AS/400 are not on the same LAN segment,
verify there is a route defined in the TCP/IP route list. If
necessary, use the ADDTCPRTE command to create a route
definition. You need this if your printer is somewhere other than
on a local segment.
5. You need the IP address of the NIC to configure the NIC.
6. If you have not done so yet, create a line description for your
NIC. See “Developing Line Descriptions With CRTLINETH” on
page 229.
Table 10. Control Panel Settings
Menu Item Setting
C/T PORT Port Type Twinax
TWINAX
SETUP
Twinax Type IPDS 256 or IPDS 1024
Configuration Checklist
247
7. Create or verify the existence of an AS/400 TCP/IP interface for
NIC. See “Configuring An AS/400 TCP/IP Interface With
ADDTCPIFC” on page 248.
8. The next step depends on your AS/400 release. Configure your
printer with one of these procedures:
•“Configuring PSF/400 For IPDS On V3R2” on page 250.
•“Configuring PSF/400 For IPDS On V3R7 And Above” on
page 256.
9. Notice that when the IPDS feature is installed, the queue name
‘d4prn’ is not available.
10. Verify the printer is ON using the VFYCFG command.
11. Verify that TCP/IP has been started using the STRTCP
command.
12. Test your configuration. See “Verifying The IPDS Configuration
On AS/400” on page 268.
13. To share the printer on the network, verify that the necessary
parameters have been set correctly. See “Sharing The AS/400
Printer On The Network” on page 269.
14. If you have problems, refer to “AS/400 Troubleshooting” on
page 273.
Chapter 11 Configuring On AS/400 As An IPDS Printer
248
Configuring An AS/400 TCP/IP Interface With
ADDTCPIFC
NOTE: Do not enter the IP address of the NIC. Do not set the
AS/400 interface address to the same address as the NIC
IP address. Also, do not add the NIC to the AS/400 TCP/IP
interface list.
Configuring An Interface For Ethernet
ADDTCPIFC is used to add a TCP/IP interface to AS/400. This step
configures the AS/400 for attachments to a TCP/IP network.
1. At the AS/400 command line, enter the following command:
ADDTCPIFC INTNETADR ('9.99.15.188') LIND(ETHLAN)
SUBNETMASK('255.255.255.0')
2. Your completed screen should look like Figure 30.
Figure 30. Example ADDTCPIFC Interface
3. The following parameters must be specified:
a. Internet Address
Internet address of the AS/400 Ethernet LAN adapter.
NOTE: Do not use the IP address of the NIC.
System: BLDD60
Internet address: 9.99.15.188
Subnet mask: 255.255.255.0
Line description: ETHLAN
Line type: *ELAN
Interface status: Inactive
Type of service: *NORMAL
Maximum transmission unit: *LIND
Automatic start: *YES
Configuring An AS/400 TCP/IP Interface With ADDTCPIFC
249
b. Subnet Mask
The Subnet Mask for this AS/400 TCP/IP interface (for
example, 255.255.255.0).
c. Line Description
The name assigned to the AS/400 line description as
described in “Developing Line Descriptions With
CRTLINETH” on page 229. Each AS/400 LAN adapter will
have its own line description.
Configuring A TCP/IP Host Table Entry
Although optional, it is recommended that you create a TCP/IP host
table entry. Add the AS/400 name and the IP address of the LAN
adapter to the “Host Table Entries.” Also, add the hostname and IP
address of the printer to the list. You can access the host table
entries function by using the CFGTCP command, then selecting
option 10 from the menu.
You can also add entries to your host table for both the hostname
and the fully qualified network name for your system. The entry
name should match the name you configured for host and domain.
For example, if your hostname is “RCHASM03” and your domain
name is “RCHLAND.PTX.COM”, your fully qualified network name
is “RCHASM03.RCHLAND.PTX.COM”. In your host entry table,
enter both RCHASM03 and RCHASM03.RCHLAND.PTX.COM.
Chapter 11 Configuring On AS/400 As An IPDS Printer
250
Configuring PSF/400 For IPDS On V3R2
To configure IPDS on AS/400 V3R2, use the following commands:
•CRTDEVPRT
•CRTPSFCFG
Configuring PSF With CRTDEVPRT On V3R2
This section describes how to create a printer device description.
1. At the AS/400 command line, enter a command in the form:
CRTDEVPRT DEVD(printer_type) DEVCLS(*RMT) TYPE(*IPDS)
MODEL(0) AFP(*YES) AFPATTACH(*APPC)
FONT(11) RMTLOCNAME(TCPIP) FORMFEED(*CONT)
TEXT(‘printer_type NETWORK PRINTER’)
Where printer_type
(e.g., T5000, P5000, L5520) is the
model of your printer.
2. A completed screen looks like the example shown in Figure 31,
which starts on the next page.
Configuring PSF/400 For IPDS On V3R2
251
Display Device Description
Device Description: DEVD
printer_type
Option: OPTION *ALL
Category of device: *PRT
Automatically created: NO
Device class: DEVCLS *RMT
Device type: TYPE *IPDS
Device model: MODEL 0
Advanced function printing: AFP *YES
AFP attachment: AFPATTACH *APPC
Online at IPL: ONLINE *YES
Font: FONT
Identifier: 011
Point size: *NONE
Form feed: FORMFEED *CONT
Separator drawer: SEPDRAWER *FILE
Separator program: SEPPGM *NONE
Library:
Printer error message: PRTERRMSG *INQ
Message queue: MSGQ QSYSOPR
Library: *LIBL
Maximum pending requests: MAXPNDRQS 6
Print while converting: PRTCVT *YES
Chapter 11 Configuring On AS/400 As An IPDS Printer
252
Figure 31. Example of CRTDEVPRT Command (V3R2)
3. Values must be entered for the following parameters:
a. Device Description (DEVD)
The device description or name. This value must match the
value entered for the PSFCFG parameter in “Configuring
AFP With CRTPSFCFG On V3R2” on page 253.
b. Device Class (DEVCLS)
Specify *RMT.
c. Device Type (TYPE)
Specify *IPDS.
d. Device Model (MODEL)
Specify 0.
e. Advanced Function Printing (AFP)
Specify *YES.
f. AFP Attachment (AFPATTACH)
Specify *APPC. CRTPSFCFG overrides this value.
Print request timer: PRTRQSTMR *NOMAX
Form definition: FORMDF F1C10110
Library: *LIBL
Character identifier: CHRID *SYSVAL
Remote location: RMTLOCNAME TCPIP
Local location: LCLLOCNAME *NETATR
Remote network identifier: RMTNETID *NETATR
Mode: MODE QSPWTR
Dependent location name: DEPLOCNAME *NONE
Text: TEXT ‘
printer_type
Network
Printer’
Configuring PSF/400 For IPDS On V3R2
253
g. Font (FONT)
Enter an appropriate value.
h. Form Feed (FORMFEED)
Specify *CONT.
i. Remote Location (RMTLOCNAME)
Enter the remote location name.
Configuring AFP With CRTPSFCFG On V3R2
The PSF™ configuration object created with this command is used
by PSF/400 when printing IPDS files. The object is used by AS/400
V3R2 only if the object is in the QGPL library and has the same
name as the printer device description. This information overrides
the APPC configuration information specified in the printer device
description.
To configure AS/400 for IPDS printing on V3R2:
1. At the AS/400 command line, enter a command in the form:
CRTPSFCFG PSFCFG(printer_type IPDSPASTHR(*YES)
RLSTMR(*SEC15) TEXT(‘printer_type NETWORK
PRINTER’) RMTLOCNAME(‘128.99.12.134’)
PORT(5001)
where printer_type
(e.g., T5000, P5000, L5520) is the
model of your printer.
2. A completed screen looks like Figure 32.
PSF configuration:
printer_type
Library: QGPL
User resource library: *JOBLIBL
IPDS pass through: *YES
Activate release timer: *NORDYF
Release timer: *SEC15
Restart timer: *IMMED
SNA retry count: 2
Chapter 11 Configuring On AS/400 As An IPDS Printer
254
Figure 32. Example CRTPSFCFG Command (V3R2)
3. The following parameters are required:
a. PSF Configuration (PSFCFG)
The name of the printer device you are configuring.
b. Library
Specify QGPL.
c. IPDS pass through (IPDSPASTHR)
To print SCS files, specify *YES. PSF/400 transforms SCS
into IPDS before printing.
Delay time between retries: 0
Blank page: *YES
Page size control: *NO
Resident fonts: *YES
Resource retention: *YES
Edge orient: *NO
Remote location:
Name or address: 128.99.12.134
TCP/IP port: 5001
TCP/IP activation timer: 170
PSF defined options:
Text description:
printer_type
Network Printer
Device resource library list: *DFT
Configuring PSF/400 For IPDS On V3R2
255
d. Activate release timer (ACTRLSTMR)
Specifies the point at which the release timer (RLSTMR) is
activated. Set to *NORDYF. This means that the release
timer is activated when there are no spooled files in the
printer’s output queue with a status of RDY and the last
page of the last spooled file processed has printed.
*NORDYF is used so that all files with a status of RDY are
printed before releasing the session (which does not
terminate the writer, however).
e. Release timer (RLSTMR)
Specifies the amount of time to wait before a session or
dialog is released without terminating the writer. The
ACTRLSTMR parameter specifies when this timer is to be
activated. Set the parameter to a value at least equal to the
TIMEOUT value on the printer. The recommended value is
*SEC15.
f. Remote Location name or address (RMTLOCNAME)
Enter the IP address or hostname of the printer.
g. TCP/IP port (PORT)
Specify 5001.
h. TCP/IP activation time (ACTTMR)
This value specifies the number of seconds that PSF/400
waits for a printer to respond to an activation request. If
only one system is using the printer, use the default value
(170 seconds). If more than one system is using the printer,
specify *NOMAX, which causes PSF/400 to wait indefinitely
for a response to an activation request.
Chapter 11 Configuring On AS/400 As An IPDS Printer
256
Configuring PSF/400 For IPDS On V3R7 And
Above
To configure IPDS on AS/400 V3R7 and above, use the following
commands:
•CRTPSFCFG (Optional)
•CRTDEVPRT
Configuring AFP With CRTPSFCFG On V3R7 Or
V4R1 (Optional)
New for V3R7 is the ability to specify three TCP/IP-related
parameters for PSF in a printer device description: RMTLOCNAME,
PORT, and ACTTMR. In V3R2, CRTPSFCFG, which replaced
WRKAFP2, was used to specify these same parameters, along with
other parameters. In V3R7 and higher, these three parameters are
ignored when specified in a PSF configuration object, since they
are specified in a printer device description. However, you may
wish to use a PSF configuration object to specify other parameters,
such as IPDS passthrough and so on.
The PSF configuration object created with this command is used by
PSF/400 when printing IPDS files only if the object is specified with
the USRDFNOBJ parameter in the printer device description.
To configure AS/400 for IPDS printing on V3R7 or V4R1:
1. At the AS/400 command line, enter a command in the form:
CRTPSFCFG PSFCFG(AFP/printer_typeNETPRT)
IPDSPASTHR(*YES) RLSTMR(*SEC15)
TEXT(‘printer_type NETWORK PRINTER’)
where printer_type
(e.g., T5000, P5000, L5520) is the
model of your printer.
Configuring PSF/400 For IPDS On V3R7 And Above
257
2. A completed screen looks like Figure 33.
Figure 33. Example CRTPSFCFG Command (V3R7 or V4R1)
PSF Configuration Information
PSF configuration:
printer_type
NETPRT Library: AFP
User resource library: *JOBLIBL
IPDS pass through: *YES
Activate release timer: *NORDYF
Release timer: *SEC15
Restart timer: *IMMED
SNA retry count: 2
Delay time between retries: 0
Blank page: *YES
Page size control: *NO
Resident fonts: *YES
Resource retention: *YES
Edge orient: *NO
Remote location:
Name or address: *NONE
TCP/IP port: *NONE
TCP/IP activation timer: 170
PSF defined options:
*NONE
Text description:
printer_type
Network Printer
Device resource library list: *DFT
Chapter 11 Configuring On AS/400 As An IPDS Printer
258
NOTE: The lines in bold in Figure 33 are not used by PSF/400.
Instead, PSF/400 uses the information entered in the
device description screen.
3. The following parameters are recommended:
a. PSF configuration (PSFCFG)
The name used for this PSF configuration object. The
name must match the user-defined object name
(USRDFNOBJ) in the printer DEVD.
b. IPDS pass through (IPDSPASTHR)
To print SCS files, specify *YES, PSF/400 transforms SCS
into IPDS before printing.
c. Activate release timer (ACTRLSTMR)
Specifies the point at which the release timer (RLSTMR) is
activated. Set to *NORDYF.
d. Release timer (RLSTMR)
Specifies the amount of time to wait before a session or
dialog is released without terminating the writer. The
ACTRLSTMR parameter specifies when this timer is to be
activated. Set the parameter to a value at least equal to the
TIMEOUT value on the printer. The recommended value is
*SEC15.
Configuring PSF With CRTDEVPRT On V3R7 And
Above
This section describes how to create a printer device description.
1. At the AS/400 command line, enter a command in the form:
CRTDEVPRT DEVD(printer_type) DEVCLS(*LAN) TYPE(*IPDS)
MODEL(0) LANATTACH(*IP) AFP(*YES) PORT(5001)
FONT(11) FORMFEED(*CONT)
RMTLOCNAME(‘128.9.12.134’)
USRDFNOBJ(AFP/5000NETPRT *PSFCFG)
TEXT(‘printer_type NETWORK PRINTER’)
Where printer_type
(e.g., T5000, P5000, L5520)is the
model of your printer.
Configuring PSF/400 For IPDS On V3R7 And Above
259
NOTE: Only use the USRDFNOBJ parameter if it was defined in
the previous procedure. See “Configuring AFP With
CRTPSFCFG On V3R7 Or V4R1 (Optional)” on page 256.
2. A completed screen looks like the example shown in Figure 34.
Display Device Description
5716SS1 V3R7M0 961108 BLDRB1
Device Description: DEVD
printer_type
Option: OPTION *ALL
Category of device: *PRT
Device class: DEVCLS *LAN
Device type: TYPE *IPDS
Device model: MODEL 0
LAN attachment: LANATTACH *IP
User-defined object: USRDFNOBJ
printer_type
NETPRT
Library: AFP
Object type: *PSFCFG
Data transform program: USRDTATFM *NONE
User-defined driver program: USRDRVPGM *NONE
Advanced function printing: AFP *YES
Port number: PORT 5001
Online at IPL: ONLINE *YES
Font: FONT
Identifier: 011
Point size: *NONE
Form feed: FORMFEED *CONT
Chapter 11 Configuring On AS/400 As An IPDS Printer
260
Figure 34. Example CRTDEVPRT Command (V3R7 and above)
3. Values must be entered for the following parameters:
a. Device Description (DEVD)
The device description or name.
b. Device Class (DEVCLS)
Specify *LAN
c. Device Type (TYPE)
Specify *IPDS
Separator drawer: SEPDRAWER *FILE
Separator program: SEPPGM *NONE
Library:
Printer error message: PRTERRMSG *INQ
Message queue: MSGQ QSYSOPR
Library: *LIBL
Activation timer: ACTTMR 170
Maximum pending requests: MAXPNDRQS 6
Print while converting: PRTCVT *YES
Print request timer: PRTRQSTMR *NOMAX
Form definition: FORMDF F1C10110
Library: *LIBL
Remote location: RMTLOCNAME
Name or address: 128.9.12.134
Dependent location name: DEPLOCNAME *NONE
Te x t : T EX T
printer_type
Network
Printer
User-defined options: USRDFNOPT
Configuring PSF for IPDS On V4R2 And Above
261
d. Device Model (MODEL)
Specify 0
e. LAN Attachment (LANATTACH)
Specify *IP
f. Port Number (PORT)
Specify 5001
g. Font (FONT)
Enter an appropriate value.
h. Form Feed (FORMFEED)
Specify *CONT
i. Activation Timer (ACTTMR)
This value specifies the number of seconds that PSF/400
waits for a printer to respond to an activation request. If
only one system is using the printer, use the default value
(170 seconds). If more than one system is using the printer,
specify *NOMAX, which causes PSF/400 to wait indefinitely
for a response to an activation request.
j. Remote Location (RMTLOCNAME)
Enter the IP address or hostname of the printer.
k. User-Defined Object (USRDFNOBJ)
To use a PSF configuration object, specify its name and
library here. This object type must be *PSFCFG. For V3R7
and higher, a single PSF configuration object may be
referenced by multiple device descriptions, if required.
Configuring PSF for IPDS On V4R2 And Above
To configure IPDS on the iSeries V4R3, use the following
commands:
•CRTDEVPRT
•CRTPSFCFG (Optional)
Chapter 11 Configuring On AS/400 As An IPDS Printer
262
Configuring AFP with CRTPSFCFG on V4R3
and Above (Optional)
To configure the iSeries for IPDS printing on V4R3:
1. At the iSeries command line, enter a command in the form:
CRTPSFCFG PSFCFG(AFP/NETPRTP7000) IPDSPASTHR(*YES)
RLSTMR(*SEC15) TEXT(‘PRINTRONIX P7000 NETWORK ATTACHED
PRINTER’) PAGSIZCTL(*YES) ACTRLSTMR(*NORDYF)
2. A completed screen looks like Figure 35.
Create PSF Configuration (CRTPSFCFG)
PSF configuration .................... Name
Library ................................. >*CURLIB Name, *CURLIB
User resource library list ............ *JOBLIBL *JOBLIBL, *CURLIB, *NONE
Device resource library list ......... *DFT Name, *DFT
+ for more values
IPDS pass through ................... >*NO *NO, *YES
Activate release timer................. *NORDYF *NORDYF, *IMMED...
Release timer............................ >*NOMAX 1-1440, *NOMAX, *SEC15...
Restart timer............................... *IMMED 1-1440, *IMMED
APPC and TCP/IP retry count.... 15 1-99, *NOMAX
Delay between APPC retries...... 90 0-999
Acknowledgment frequency ....... 100 1-32767
Printer response timer *NOMAX 5-3600, *NOMAX
Generate PDF output *NONE *NONE, SPLF, *STMF, *MAIL
Text 'description' ...................... >*BLANK
Additional Parameters
Automatic session recovery:
Enabled ................................ *NO *NO, *YES
Message option .................... *INFO, *INQ
Blank page ................................. *YES *YES, *NO
Page size control..................... >*YES *NO, *YES
Resident fonts ........................... *YES *YES, *NO
Resource retention .................... *YES *YES, *NO
Configuring AFP with CRTPSFCFG on V4R3 and Above (Optional)
263
Figure 35. Example CRTPSFCFG Command (V4R2 and above)
3. The following parameters are recommended: PSF
configuration (PSFCFG)
The name used for this PSF configuration object. The name must
match the user-defined object name (USRDFNOBJ) in the printer
DEVD.
PSF configuration (PSFCFG)
The name used for this PSF configuration object. The name must
match the user-defined object name (USRDFNOBJ) in the printer
DEVD.
IPDS pass through (IPDSPASTHR)
To print SCS files, specify *YES, PSF transforms SCS into IPDS
before printing.
Edge orient ............................... *NO *YES, *NO
Use outline fonts....................... *NO *YES, *NO
PSF defined option................... *NONE
+ for more values
Font substitution messages...... *YES *YES, *NO
Capture host fonts at printer..... *NO *NO, *YES
Font resolution for formatting ... *SEARCH *SEARCH, 240, 300
Font mapping table................... *NONE Name, *NONE
Library.................................. Name
Cut sheet emulation mode ........ *NONE *NONE, *CHKFIRST, *CHKALL
Use DBCS simulation fonts *NO *YES, *NO
Replace ..................................... *YES *YES, *NO
Authority .................................... *LIBCRTAUT Name, *LIBCRTAUT,
*CHANGE...
Chapter 11 Configuring On AS/400 As An IPDS Printer
264
Release timer (RLSTMR)
Specifies the amount of time to wait before a session or dialog is
released without terminating the writer. The ACTRLSTMR
parameter specifies when this timer is to be activated. Set the
parameter to a value at least equal to the TIMEOUT value on the
printer. Printronix recommends *SEC15.
Page size control (PAGSIZCTL)
Specifies if the page size (forms) is set by PSF. Usually set to
*YES.
Remote Location name or address (RMTLOCNAME)
Enter the IP address or hostname of the printer.
Configuring PSF with CRTDEVPRT On V4R2
and Above
This section describes how to create a printer device description.
1. At the iSeries command line, enter a command in the form:
Only use the USRDFNOBJ parameter if it was defined in the
previous procedure.
A completed screen looks like the example shown in Figure 36.
CRTDEVPRT DEVD(P7000) DEVCLS(*LAN) TYPE(*IPDS) MODEL(0)
LANATTACH(*IP) AFP(*YES) PORT(5001) FONT(11)
FORMFEED(*CONT) RMTLOCNAME(‘128.9.12.134’)
USRDFNOBJ(AFP/NETPRTP7000 *PSFCFG)
TEXT(‘Printronix P7000 NETWORK PRINTER’)
Configuring PSF with CRTDEVPRT On V4R2 and Above
265
Create Device Desc (Printer) (CRTDEVPRT)
Device description......................... : >P7000 Name
Device class ...................................: >*LAN *LCL, *RMT, *VRT, *SNPT, *LAN
Device type.....................................: >*IPDS 3287, 3812, 4019, 4201...
Device model..................................: >0 0, 1, 2, 3, 4, 10, 13, 301...
LAN attachment .............................: >*IP *LEXLINK, *IP, *USRDFN
Advanced function printing .............. *YES *NO, *YES
Port number ...................................: >5001 0-65535
Online at IPL....................................: *YES *YES, *NO
Font:
Identifier .................................... >011 3, 5, 11, 12, 13, 18, 19...
Point size.................................... *NONE 000.1-999.9, *NONE
Form feed ........................................ *CONT *TYPE, *CONT, *CONT2, *CUT...
Separator drawer ............................. *FILE 1-255, *FILE
Separator program........................... *NONE Name, *NONE
Library ........................................ Name, *LIBL, *CURLIB
Printer error message ...................... *INQ *INQ, *INFO
Message queue ............................... *CTLD Name, *CTLD, *SYSOPR, QSYSOPR
Library ........................................ Name, LIBL, *CURLIB
Activation timer ................................ 170 1-2550, *NOMAX
Image configuration ......................... *NONE *NONE, *IMGA01, *IMGA02...
Maximum pending requests............. 6 1-31
Print while converting....................... *YES *NO, *YES
Print request timer ........................... *NOMAX 1-3600, *NOMAX
Form definition ................................. F1C10110 Name
Library ........................................ *LIBL Name, *LIBL, *CURLIB
Remote location:
Name or address ......................
User-defined options........................ *NONE Character value, *NONE
+ for more values
User-defined object:
Object ........................................ *NONE Name, *NONE
Library ................................. Name, *LIBL, *CURLIB
Object type................................ *DTAARA, *DTAQ, *FILE...
Data transform program................... *NONE Name, *NONE
Library ........................................ Name, *LIBL, *CURLIB
User-defined driver program............ *NONE Name, *NONE
Library ........................................ Name, *LIBL, *CURLIB
Secure connection........................... *NO *NO, *YES
Validation list.................................... *NONE Name, *NONE
Library ........................................ Name, *LIBL, *CURLIB
Chapter 11 Configuring On AS/400 As An IPDS Printer
266
Figure 36. Example CRTDEVPRT Command (V4R2 and above)
2. Values must be entered for the following parameters:
Device Description (DEVD)
The device description or name.
Device Class (DEVCLS)
Specify *LAN.
Device Type (TYPE)
Specify *IPDS.
Device Model (MODEL)
Specify 0.
LAN attachment (LANATTACH)
Specify *IP.
Port number (PORT)
Specify 5001.
Publishing information:
Support duplex........................... *UNKNOWN *UNKNOWN, *SIMPLEX, *DUPLEX
Support color.............................. *UNKNOWN *UNKNOWN, *NOCOLOR, *COLOR
Pages per minute black ............. *UNKNOWN 1-32767, *UNKNOWN
Pages per minute color .............. *UNKNOWN 1-32767, *UNKNOWN
Location ..................................... *BLANK
Data steams supported.............. *UNKNOWN *UNKNOWN, *PCL, *PS, *PDF
+ for more values
Text ‘description’ *BLANK
Additional Parameters
Remote network identifier................ *NETATR Name, *NETATR, *NONE
Workstation customizing object....... *NONE Name, *NONE
Library ........................................ Name, *LIBL, *CURLIB
Authority .......................................... *ALL Name, *LIBCRTAUT, *CHANGE...
Configuring PSF with CRTDEVPRT On V4R2 and Above
267
Font (FONT)
Enter an appropriate value.
Form Feed (FORMFEED)
Specify *CONT.
Activation timer (ACTTMR)
This value specifies the number of seconds that PSF waits for a
printer to respond to an activation request. If only one system is
using the printer, use the default value (170 seconds). If more than
one system is using the printer, specify *NOMAX, which causes
PSF to wait indefinitely for a response to an activation request.
Remote Location (RMTLOCNAME)
Enter the IP address or hostname of the printer.
User-Defined Object (USRDFNOBJ)
To use a PSF configuration object, specify its name and library
here. This object type must be *PSFCFG. For V3R7 and higher, a
single PSF configuration object may be referenced by multiple
device descriptions, if required.
Chapter 11 Verifying The IPDS Configuration On AS/400
268
Verifying The IPDS Configuration On AS/400
To test IPDS printing:
1. If it is not already on, vary on the line description:
VRYCFG CFGTYPE(*LIN)
2. To start TCP/IP, enter
STRTCP
.
3. Verify that the AS/400 TCP/IP interface is active. Use the
command:
WRKTCPSTS
and then select option 1.
4. Turn the printer on and wait until the printer control panel
displays “ETHERNET ADAPTER IS READY.”
5. To verify the printer is connected to AS/400,
ping
the printer
from an AS/400 workstation with one of the following
commands:
PING ip_address
or
PING hostname
where ip_address
is the Internet address of the remote
system printer (the NIC), and
hostname
is the hostname you
defined for the printer, if any.
•If the
ping
is not successful, refer to “Cannot PING The
Printer” on page 273.
•If the
ping
is successful, vary on the printer device
description with the command:
VRYCFG (printer_device) CFGTYPE(*DEV)
STATUS(*ON)
6. To use PSF/400 to send an IPDS file to the printer, enter:
STRPRTWTR DEV (printer_device)
where
printer_device
is the name of the printer.
Configuring PSF with CRTDEVPRT On V4R2 and Above
269
7. If you have problems printing, do the following:
•Print an Ethernet Test Page. Refer to your
User's Manual
.
•Verify that port number 5001 is being used.
8. If you are still unable to print IPDS files, contact technical
support.
Sharing The AS/400 Printer On The Network
To support printer sharing, your printer automatically switches
among all attached ports (serial, twinax/coax, LAN). Basically, the
printer prints jobs for one port until no new jobs appear and the port
“times out.” The printer then switches to the next port and does the
same thing.
To change the default “time out” value for a port, update the
TIMEOUT value for the port on the appropriate menu (Serial
Interface, Ethernet Parameters, Twinax Interface, or Coax
Interface).
Sharing The AS/400 Printer On The Network
Chapter 11 Sharing The AS/400 Printer On The Network
270
Printer Sharing Parameters
To set up AS/400 for printer sharing, set the following parameters.
Table 11. Printer Sharing
AS/400
Version Where Set Parameter Recommended
Value Description
V3R2 CRTPSFCFG
CHGPSFCFG
RLSTMR *NORDYF Specifies the point at
which the release timer
(RLSTMR) is activated.
Set to *NORDYF. This
means that the release
timer is activated when
there are no spooled
files in the printer’s
output queue with a
status of RDY and the
last page of the last
spooled file processed
has printed. *NORDYF
is used so that all files
with a status of RDY are
printed before releasing
the session (which does
not terminate the
writer).
V3R2 CRTPSFCFG
CHGPSFCFG
ACTRLSTMR *SEC15 Specifies the amount of
time to wait before a
session or dialog is
released without
terminating the writer.
The ACTRLSTMR
parameter specifies
when this timer is to be
activated. Set the
parameter to a value at
least equal to the
TIMEOUT value on the
printer. The
recommended value is
*SEC15.
Printer Sharing Parameters
271
V3R2 CRTPSFCFG
CHGPSFCFG
ACTTMR *NOMAX The value specifies the
number of seconds that
PSF/400 will wait for a
printer to respond to an
activation request. If
only one system will be
using the printer, use
the default value (170
seconds). If more than
one system will be
using the printer, set the
value to *NOMAX,
which causes PSF/400
to wait indefinitely for a
response to an
activation request.
V3R7
V4R1
CRTPSFCFG
CHGPSFCFG
ACTRLSTMR *NORDYF Specifies the point at
which the release timer
(RLSTMR) is activated.
Set to *NORDYF. This
means that the release
timer is activated when
there are no spooled
files in the printer’s
output queue with a
status of RDY and the
last page of the last
spooled file processed
has printed. *NORDYF
is used so that all files
with a status of RDY are
printed before releasing
the session (which does
not terminate the
writer).
Table 11. Printer Sharing (continued)
AS/400
Version Where Set Parameter Recommended
Value Description
Chapter 11 Sharing The AS/400 Printer On The Network
272
V3R7
V4R1
CRTPSFCFG
CHGPSFCFG
RLSTMR *SEC15 Specifies the amount of
time to wait before a
session or dialog is
released without
terminating the writer.
The ACTRLSTMR
parameter specifies
when this timer is to be
activated. Set the
parameter to a value at
least equal to the
TIMEOUT value on the
printer. The
recommended value is
*SEC15.
V3R7
V4R1
CRTDEVPRT
CHGDEVPRT
ACTTMR *NOMAX The value specifies the
number of seconds that
PSF/400 will wait for a
printer to respond to an
activation request. If
only one system will be
using the printer, use
the default value (170
seconds). If more than
one system will be
using the printer, set the
value to *NOMAX,
which causes PSF/400
to wait indefinitely for a
response to an
activation request.
Table 11. Printer Sharing (continued)
AS/400
Version Where Set Parameter Recommended
Value Description
Cannot PING The Printer
273
AS/400 Troubleshooting
Use this section to resolve problems configuring AS/400 on TCP/IP
networks.
Cannot PING The Printer
If you have problems trying to
ping
the printer:
•Verify the configuration of AS/400, including the printer and any
intervening devices such as routers and bridges.
•Verify that the AS/400 line description is varied on and the
printer is turned on and displays a status of ONLINE.
•Verify that the AS/400 TCP/IP interface is active.
PSF/400 Terminates When Initialized
If PSF/400 terminates when you initialize it for IPDS printing and
issues message PQT3603, check for the following error codes:
•Code 10 means an incorrect RMTSYS or RMTLOCNAME (V3R2,
V3R7, or V4R1) has been specified for the printer.
•Code 15 means that PSF/400 timed out waiting for the printer’s
response. Check the value you entered for Activation Timer
when using WRKAFP2, CRTPSFCFG (V3R2), or CRTDEVPRT
(V3R7 or V4R1).
•Codes 20-39 indicate a general communications failure. Make
sure all of the components in your network are operational,
such as routers. If necessary, call Printronix technical support.
•Codes 40-59 indicate a logic error between PSF and the printer
control unit. Contact Printronix technical support.
Chapter 11 AS/400 Troubleshooting
274
Spooled Print File Remains In PND Status
Check the output queue with the command:
WRKOUTQ queuename
This typically indicates that PSF/400 is waiting for a response from
the printer. This can be verified by displaying the QSPL subsystem,
WRKACTJOBSBS (QSPL). If the status of the PDJ job for the printer
is SELW, then PSF/400 is waiting for a response from the printer.
Make sure that the printer is in ONLINE mode and that all network
connections (for example, routers) between the AS/400 and the
printer are active.
Spooled Files Disappear Without Printing
To resolve this problem:
•Check that the correct printer queue name and correct IP
address have been used.
•
Ping
the IP address. If the
ping
is successful, disconnect the
network cable from the printer/print server, and
ping
the
address again. If the
ping
is still successful, there is another
printer with that IP address on the network.
Data Is Being Clipped
To resolve this problem, you may want to set the PSC (Page Size
Control) parameter to *YES in the CRTPSFCFG command (V3R2,
V3R7, or V4R1).
275
12 z/OS Configuration,
TN3270E
z/OS Configuration For A TN3270E Printer
The following configuration information shows how a line matrix
printer can be configured on z/OS and Info Print Server to print
TN3270E. Modtabs are provided for both an SCS and DSC printer.
The z/OS level is 1.3.
These basic configurations provided a starting point for users new
to printing in this manner.
NOTE: Since Info Print Server (IPS) treats the TN3270E printer as
a COAX attached printer, additional COAX feature for IPS
is required.
Coax Printer Support FMID
Coax Printer Support consists of the following FMID:
HPRT100
Chapter 12 Program Materials
276
Program Materials
A program is identified by a program number and a feature number.
The program number for Coax Printer Support is 5697-F51.
Additional information regarding the telnet server and Info Print
Server can be found in the following manuals.
•For z/OS V1R2 and above, the TCPIP information can be
found in SG24-5227-3, Communications Server for z/OS V1R2
TCP/IP Implementation Guide.
•InfoPrint Server Customization Guide, S544-5744-03.
•InfoPrint ServerOperation and Administration, S544-5745-03.
1. Look at the JES definition defining and associating printer,
PRINTER9 with INFOPRINT SERVER.
Figure 37. JES Definition Defining PRINTER9
Figure 38. Example Of Proc Used To Start INFOPRINT Server
/* PRT9 AND FSSDEF FOR LINE MATRX 06/27/97 MM */
PRINTER9 CLASS=K,SEP,NOMARK,MODE=FSS,FSS=PRINTWAY, X
PRMODE=(LINE,PAGE),WS=(W,Q),SETUP=NOHALT,START=NO
/* ASSOCIATE PRINTWAY WITH ITS START UP PROCEADURE */
FSS(PRINTWAY) PROC=COURWTR,AUTOSTOP=YES
//COURWTR PROC
//* -------------------------------------------------------------*
//IEFPROC EXEC PGM=ANFFIEP,REGION=3M,PARM='INV=AOP1' z/OS4 INV
//STEPLIB DD DSN=IPPW.PW311.SANFLOAD,DISP=SHR
//ANFQUEUE DD DSN=ANDREE.z/OS4.QUEUE,DISP=SHR
//ANFMMSG DD DSN=ANDREE.z/OS4.MSGFILE,DISP=SHR
//SYSPRINT DD SYSOUT=*
//SYSABEND DD SYSOUT=*
//SYSUDUMP DD SYSOUT=*
//
VTAM Definitions For SCS and DSE TN3270E
277
Figure 39. Example Of The APPLID That Represents A Copy Of IPDS
VTAM Definitions For SCS and DSE TN3270E
The following are VTAM definitions for SCS and DSE TN3270E
printers.
NOTE: These definitions are identical to those of COAX attached
printers.
Figure 40. MODTAB Entries
NETSPL1 VBUILD TYPE=APPL
*
* APPL REPRESENTING IPS
*
APIPP101 APPL MODETAB=MODETAB1,DLOGMOD=SCS,AUTH=(ACQ)
LUPRT101 APPL MODETAB=MODETAB1,DLOGMOD=SCS
******************************************************************
* JES2 TN3270E VTAM MAJOR NODE *
******************************************************************
*
* LU1 Printer
RMT2 APPL AUTH=(ACQ),EAS=1,PARSESS=NO,SESSLIM=YES, X
MODETAB=MODETAB1,DLOGMOD=SCS
*
* LU3 Printer
RMT3 APPL AUTH=(ACQ),EAS=1,PARSESS=NO,SESSLIM=YES, X
MODETAB=MODE4245,DLOGMOD=LU3PRT
Chapter 12 Program Materials
278
**********************************************************************
* *
* PRINTER WITH SNA CHARACTER SET (LU_1) @DA22961*
* *
**********************************************************************
SCS MODEENT
LOGMODE=SCS,FMPROF=X'03',TSPROF=X'03',PRIPROT=X'B1', *
SECPROT=X'90',COMPROT=X'3080',RUSIZES=X'87C6', *
PSERVIC=X'01000000E100000000000000', *
PSNDPAC=X'01',SRCVPAC=X'01'
TITLE 'DSC4K'
**********************************************************************
* *
* DSC PRINTER (LU_3) *
* *
**********************************************************************
LU3PRT MODEENT LOGMODE=LU3PRT,FMPROF=X'03',TSPROF=X'03', X
PRIPROT=X'B1',SECPROT=X'20',COMPROT=X'3080', X
SSNDPAC=X'00',SRCVPAC=X'00',RUSIZES=X'C7C7', X
PSNDPAC=X'80',PSERVIC=X'03800000000018502B507F00'
TCPIP Configuration With TN3270E
279
TCPIP Configuration With TN3270E
The following is the portion of the system’s TCPIP configuration
involved with TN3270E printers.
NOTE: Only additions required for the TN3270E printers are
shown.
;
; Define the VTAM parameters required for the Telnet server.
;
BeginVTAM
;
PRTGROUP PGRPLU1
RMT2
ENDPRTGROUP
PRTGROUP PGRPLU3
RMT3
ENDPRTGROUP
IPGROUP TESTPRT
9.99.98.62
ENDIPGROUP
IPGROUP TESTPRT3
9.99.98.67
ENDIPGROUP
PRTMAP PGRPLU1 TESTPRT GENERIC
PRTMAP PGRPLU3 TESTPRT3 GENERIC
; End telnet printer section
EndVTAM
Chapter 12 Program Materials
280
Printer Inventory Manager As Defined With
TN3270E
The following screens show areas of the Printer Inventory Manager
involved with the definition of the TN3270E printers.
1. At main panel, select option 4 to look at the FSS definition.
InfoPrint Server: Printer Inventory Manager
Option ===>
Printer Definitions
1 Add Add a printer definition
2 List List printer definitions
3 Select Select printer definitions to list
Other Functions
4 FSS/FSA/Pool Manage other inventory definitions
5 PrintWay Queue View IP PrintWay transmission queue
6 PrintWay Message View IP PrintWay message log
7 Configure Change panel configuration
Printer Definition List Row 17 of 23
Printer Inventory Manager As Defined With TN3270E
281
2. Select option 5 from this panel to list the FSSs.
3. From the panel below, browse the PRINTWAY FSS to see how
the TN3270E FSS was defined.
FSA, FSS, and Pool Management
Option ===>
FSA
1 Add Add an FSA
2 List List FSAs
3 Select Select FSAs to list
FSS
4 Add Add an FSS
5 List List FSSs
6 Select Select FSSs to list
Pool of Printer Definitions
7 Add Add a Pool
8 List List Pools
9 Select Select Pools to list
FSS List Row 1 of 3
Command ===> Scroll ===> HALF
Actions:
A-Add B-Browse C-Copy D-Delete E-Edit
A FSS Name Type Description
= ======== ====
==============================================================
B PRINTWAY IPPW APPLID for TN3270E Printers APIPP101
PRT10 IPPW Howard's PrintWay FSS
WTRES700 PSF Howard's FSS
******************************* Bottom of data ********************************
Chapter 12 Program Materials
282
The panel below shows how the FSS (PRINTWAY) is associated
with its VTAM Applid APIPP101.
4. Next look at the printer definition for the DSE (LU_3) printer in
the printer inventory.
5. Select option 2 from the Printer Inventory Manager main panel,
to list the printers.
Browse IP PrintWay FSS
Command ==>
FSS name. . . PRINTWAY
Description . APPLID for TN3270E Printers APIPP101 (extend)
Old-style translation
Hiperspace blocks . .
TCP/IP job name . . .
Document code page. .
Applid. . . . . . . . APIPP101
National language . . 1 1. English 2. Japanese
Trace mode. . . . . . 1 1. None 2. Internal 3. No printing 4. Full
Trace prompt
Trace table size .
Printer Inventory Manager As Defined With TN3270E
283
6. While browsing VTAM_DSE1, notice that the DSC printer is
defined to IPS as a COAX attached printer.
Command ===> Scroll ===> HALF
Actions:
A-Add B-Browse C-Copy D-Delete E-Edit X-Chg type
A Printer Name Type Description Location DEST C FORMS LU Name
= ================= ==== ============ ============ ======== =
======== ========
PRT717 PSF LINE MATRI X IPDS B5 lab PRT717 Y
B VTAM_DSE1 IPPW A TN327E Pri IMPACT LAB K
VTAM_SCS1 IPPW A TN327E Pri IMPACT LAB J
VTAM_SCS2 IPPW L
******************************* Bottom of data ********************************
Browse IP PrintWay Printer Definition
Command ==>
Printer definition name . VTAM_DSE1
Description . A TN327E Printer using the DSE (LU_3) Datastream. (extend)
Location. . . IMPACT LAB (extend)
Component name Custom values
Section (enter to browse) (enter to browse)
Allocation => => *
Chapter 12 Program Materials
284
Processing => => *
NetSpool options => =>
NetSpool end-of-file => =>
IP PrintWay options => => *
Protocol => => *
/ Use DEST, CLASS, and FORMS for IP PrintWay printer selection
NetSpool LU name . LU classes . . (extend)
Printer Inventory Manager As Defined With TN3270E
285
The following panel shows the Allocation section of the setup,
where the printer is associated with Class K jobs.
In the IP Printway options, retry time, retry limit, and response
timeout is already for the printer.
NOTE: The values of these settings are account specific. Other
values may best serve your printing environment.
Browse Allocation
Command ==>
Printer definition name . VTAM_DSE1
More: +
Spool allocation values:
CLASS . . . . K LINECT. . .
DEST. . . . . PRMODE. . .
JES node. . . PRTY. . . .
FCB . . . . . SEGMENT . .
FLASH count . THRESHLD. .
FLASH name. . UCS . . . .
FORMS . . . . WRITER. . .
GROUPID . . .
USERDATA
. . (extend)
BURST . . . . 1. Yes 2. No
HOLD. . . . . 1. Yes 2. No
OUTDISP . . . 1. Purge 2. Leave 3. Keep 4. Hold 5. Write
Values for Separator Pages:
Address
. . (extend)
Building . .
Chapter 12 Program Materials
286
Browse IP PrintWay Options
Command ==>
Printer definition name . VTAM_DSE1
More: +
Retention period:
Successful. . . . Failure . .
Retry time . . . . . 0000:05:00
Retry limit. . . . . 2
Connection timeout . 30
Response timeout . . 100
Exits:
Begin data set. . End data set. . Record. .
Document header . . (extend)
/ Translate document header
Document trailer . . (extend)
/ Translate document trailer
Dataset grouping . . 2 1. None 2. Job 3. Concatenate job
Formatting:
Line termination. . . .
Printer Inventory Manager As Defined With TN3270E
287
Browse IP PrintWay Options
Command ==>
Printer definition name . VTAM_DSE1
More: -
Document header . . (extend)
/ Translate document header
Document trailer . . (extend)
/ Translate document trailer
Dataset grouping . . 2 1. None 2. Job 3. Concatenate job
Formatting:
Line termination. . . .
Transparent data char . 35
Carriage control type . 2 1. None 2. Machine 3. ANSI
Delete form feed. . . . 4 1. None 2. Leading 3. Trailing 4. Both
Formatting. . . . . . . 1. None 2. Standard
3. Translate only 4. Use FCB
PostScript header . . . 1. Add 2. Ignore
3. Landscape 4. Always landscape
Omit line termination at EOF
Chapter 12 Program Materials
288
The following shows where the VTAM parameters were set for the
printer. For the DSE printer we chose RMT3 and the logmode of
LU3PRT.
The next panel shows these settings for the SCS printer.
Browse VTAM Protocol
Command ==>
Printer definition name . VTAM_DSE1
Printer LU name. . . RMT3
VTAM Processing Options:
Printer logmode. . . LU3PRT
Checkpoint pages . . 5
Send as transparent data
Browse VTAM Protocol
Command ==>
Printer definition name . VTAM_SCS1
Printer LU name. . . RMT2
VTAM Processing Options:
Printer logmode. . . SCS
Checkpoint pages . . 5
Send as transparent data
Printer Inventory Manager As Defined With TN3270E
289
The last thing you need to configure is the printer.
NOTE: A this time, InfoPrint Server and all related LUs should be
active.
Using the printer's web pages go to the configuration screen
Configuration Screens
1. To configure the line matrix printer, fill out and submit the forms
using the following links.
2. Select the TN5250/3270 section from the configuration screen.
NOTE: Changes will only take effect after you reset the line matrix
printer from the System page.
Table 12. Configuration Forms
Configuration HTML Forms
Network TCP/IP (including Windows) and Novell network settings
Print Path Destination, Model, Log Path, and I/O port configuration
Print Model Shortcut to the print path model configuration forms
Log Path Shortcut to the print path log path configurations form
TN5250/3270 TN5250/3270 configuration settings
SNMP SNMP configuration settings
Administration Names and passwords
System System operation modes (reboot, factory defaults)
Configuration Screens
Chapter 12 Configuration Screens
290
The following displays:
3. Select TN3270E Mode.
The following displays:
NOTE: Changes will only take effect after you reset the line matrix
printer from the System page.
4. Enter the address of your system for the host IP address
The port address is the port configured for your telnet server. It is
usualy port 23.
The Resource name will be the printer name defined in the VTAM
portion of your Telnet server configuration. For this example use
RMT3.
Mode: TN5250 Click here for TN3270 mode
Host ok (eg. 204.191.175.114 or
host.domain.com)
Port
Device Description
Message Queue Name
Message Queue Library
Device Type GENERIC PRINTER
WSCST Name
WSCST Library
Auto Connect
Start Auto Connect Click here
Configuration for Print Path d2prn
Mode: TN3270 Click here for TN5250 mode
Host ok (eg. 204.191.175.114 or
host.domain.com)
Port 23
Resource Name
Auto Connect
Stop Auto Connect Click here
Printer Inventory Manager As Defined With TN3270E
291
5. Select auto connect.
6. Go to the system page and reboot for the changes to take
effect.
7. After the printer reboots, enter the command /DTCPIP, T,
CONN from the SDSF console. The following messages show
that the printer is connected.
You are now ready to print.
D TCPIP,,T,CONN
EZZ6064I TELNET CONNECTION DISPLAY 044
EN TSP
CONN TY IPADDR..PORT LUNAME APPLID PTR LOGMODE
-------- -- ---------------------- -------- -------- --- --------
00000468 9.99.98.62..2000 RMT3 *PRINTER PPE LU3PRT
----- PORT: 23 ACTIVE PROF: CURR CONNS: 1
------------------------------------------------------------
3 OF 3 RECORDS DISPLAYED
Configuration Screens
Chapter 12 Configuration Screens
292
293
13 AS/400 Configuration,
TN5250
Setting Up TN5250 Print Queues On AS/400
Start with V3R7 or later and the most recent PTF level. The AS/400
should have tcpip installed, be fully configured, and functional. To
set up the TN5250 print queues, do the following:
1. Make sure the AS/400 has sufficient resources to add
additional virtual devices.
2. Establish the IP value (not the dns name) of the AS/400.
3. Set the IP, subnet mask, and default router on the NIC adapter.
4. Use a telnet session or web browser session to configure three
items per dest (logical NIC queue) for use as a logical network
connection to the AS/400.
NOTE: The three values (i.e., 192.168.168.34) represent the
AS/400 IP in dotted notation and are the entries for the
AS/400.
The newly created TN5250 device/queue (i.e. pallet form, first
chair is alpha, 10 char. max) assumes the new name
“devicedesc.”
5. Determine whether or not to autoconnect (initiate connection
on power up or through NIC reset) the TN5250 device/queue.
Chapter 13 Setting Up A TN5250 Connection/Device Via A Telnet Session
294
NOTE: It is not necessary to set up the devd or queue name on the
AS/400 manually or in advance. The configuration and
reset of the NIC adapter automatically sets up the devd or
queue name.
Setting Up A TN5250 Connection/Device Via A
Telnet Session
In a telnet session, the command “list TN5250” shows the
configured values. To set up a TN5250 connection/device via a
telnet session, use the commands “store TN5250...” and the
following:
NOTE: The NIC sessions can be configured either by a web
browser or by telnet.
1. Use cmd WRKCTLD *VWS, choice 5, display, enter to list the
number of virtual devices this controller.
2. Use cmd DSPSYSVAL QAUTOVRT. Note the number of auto-
configured virual devices permitted on the system. This number
must be greater than one.
3. Use cmd DSPYSYVAL QCHRID. This is the system language
(code page) available.
4. Use cmd WRKTCPSTS *IFC to deterimine the IP address of
the AS/400. This value is used in setting the NIC TN5250
devices.
User Supplied Values
295
User Supplied Values
Host: For this session, use the IP value from (step 4 above).
Device description: This is the name of the virtual device.
Auto connect:
•If true (enabled) then queue and device automatically attach.
•If not true (disabled) the command “tn dest dxprn start/stop”
allows individual sessions to start or stop.
NOTE: Leave other values at their default descriptions.
Example of telnet session commands:
store tn dest d8prn host 192.168.168.34
store tn dest d8prn devicedesc palletform
store tn dest d8prn autoconnect
reset
This example creates a device/queue named “palletform” on the
AS/400 host with IP 192.168.168.34. The NIC adapter initiates the
connection each time it is reset or the printer power is cycled.
Using Telnet Commands for TN5250
Command List
The following commands for TN5250 are available via a Telnet
session with the Network Interface Card (NIC).
Store Commands
store tn dest <dxprn>host<IPaddress>
store tn dest <dxprn>port<portnumber>
store tn dest <dxprn>devicedesc<devicename>
store tn dest <dxprn>msgqname<msgqname>msgqlib<msgqlib>
store tn dest
<dxprn>WSCSTname<WSCSTname>WSCSTlib<WSCSTlib>
store tn dest <dxprn>from default
store tn dest <dxprn>[-]autoconnect
Chapter 13 Using Telnet Commands for TN5250
296
store tn dest <dxprn>copytimeout<copytimeoutvalue>
See page 307 for store command descriptions.
List Commands
list tn
list stored tn
list default tn
See page 335 for list command descriptions.
TN5250 Auto Connect Command
tn dest <dxprn>start|stop
See page 342 for a detailed description.
Getting Started
Set the following items when first configuring the NIC for use with
an AS/400 running TN5250:
•The IP address of the AS/400 you are planning to use.
Example: store tn dest d1prn as400 192.75.11.1
•The device description or queue name you want built on the
AS/400 for the printer. This must be unique to the printer.
Example: store tn dest d1prn devicedesc MOCHA3812
•Enable the printer to autmatically connect to the AS/400 when it
is first powered up or automatically reconnect if the original
connection is lost.
Example: store tn dest d1prn autoconnect
In most circumstances, all other settings can be left as default.
The printer should be reset (powered off and on again) for the
settings to take effect.
If you do not wish the printer to connect automatically when
powered up then leave the autoconnect disabled and control
the connection manually with the following command:
Getting Started
297
Example: tn dest d1prn start
By using the manual method, time is allowed to properly
prepare the AS/400 after the printer is powered up but before a
connection is established. This method should only be used
during an initial installation until the printer and the AS/400 are
synchronized. The normal method is to have autoconnect
enabled.
The autoconnect feature has a cycle time of approximately one
minute. A little patience may be required when first turning on
the printer before the connection becomes visible on the
AS400.
TN5250 Job Formatting
Forms width, forms length, CPI and LPI are controlled by the
TN5250 data stream unless the front panel TN5250 Host Override
option is enabled. The CPI is controlled through TN5250 via the
font selection in the Change Device Description (CHGDEVPRT)
command.
A completed screen looks like the example shown in Figure 41.
Change Device Desc (Printer) (CHGDEVPRT)
Type choices, then press Enter.
Device description DEVD
Online at IPL ONLINE *NO
Font: FONT
Identifier 011
Point Size *NONE
Form Feed FORMFEED *CONT
Separator drawer SEPDRAWER *FILE
TN5250 Job Formatting
Chapter 13 TN5250 Job Formatting
298
Separator program SEPPGM *NONE
Library
Printer error message PRTERMSG *INFO
Library *LIBL
Host print transform TRANSFORM *NO
Manufacturer type and model MFRTYPMDL *SAME
Paper source 1 PPRSRC1 *MFRTYPMDL
Paper source 2 PPRSRC2 *MFRTYPMDL
Envelope source ENVELOPE *MFRTYPMDL
ASCII code page 899 support ASCII899 *NO
Image configuration IMGCFG *NONE
Character identifier: CHRID
Graphic character set *SAME
Code page
User-defined options USRDFNOPT *SAME
+ for more values
User-defined object: USRDTATFM
Object *NONE
Library
Object type
Data transform program USRDTATFM *NONE
Library
User-defined driver program USRDRVPGM *NONE
Library
Getting Started
299
Figure 41. Example of CHGDEVPRT Command
Font Identifier (FONT) - Help
The print quality/typeface setting in TN5250 mode is NOT set by
the TN5250 data stream. It is only set through the front panel. This
is true regardless of the front panel TN5250 Host Override setting.
Text ‘description’ TEXT ‘Device created for
S1045PXM.’
Workstation customizing object WSCST *NONE
Library
Specifies the font identifier used by the 3812, 3816, and 5219 printers (including ASCII
printers emulating the 5219 printer), and the IPDS printers.
The Printer Font Table (Font Parameter) in the CRTDEVPRT command lists the valid
font identifiers, the display values, the characters per inch value implied with each font
style, a description of each font style, and whether the font is supported on a particular
printer.
NOTE: Some fonts may be substituted by the printer. Consult the various printer
reference guides of details.
The possible values are:
•identifier. Specify the 3-, 4-, or 5-digit identifier associated with this printer.
•point-size. Specify a point size ranging from 0.1 through 999.9. If you do not
specify a point size, the system will set one.
•*SAME. This value does not change.
Font Identifier (FONT) - Help
Chapter 13 Font Identifier (FONT) - Help
300
301
14 Monitoring Printers
Implementing Printer Management
Printer management includes the following tasks:
•Monitoring the status of network printers
•Responding to alarms
•Gathering statistics on printer operations
The three elements of network printer monitoring and management
are:
•Agent/manager model
•The management information database (MIB)
•SNMP, the protocol used to get management information
Agent/Manager Model
The elements of a monitoring system, MIB and SNMP, are
implemented in an agent/manager model:
•The MANAGER is a console, workstation, or server on working
hubs or routers which has a global knowledge of NICs and
printers.
•AGENTS are utilities that reside on devices, such as a NIC,
that respond through SNMP to management requests for
information. The information is stored in an MIB.
Chapter 14 Implementing Printer Management
302
MIB
An MIB contains information a device makes available through
SNMP. The MIB is a management information base that describes
information about actual objects to be managed and controlled.
Standards Of Network Printer MIBs
The Printer MIB is based on the following standards:
•System and Interfaces Group MIB (RFC 1213 of March 1991)
•Host Resource MIB (RFC 1514 of September 1993)
•Printer MIB (RFC 1759 of March 1995)
•NIC contains the Standard Printer MIB per RFC 1759, available
from www.ietf.org.
Information Provided By The MIB
The printer MIB contains the following types of information about
network printers:
Descriptions. Printer configuration, location, and contact.
Status. Current operating status of printers.
Alerts. Reportable events from printers.
General Information About MIBs
For further information on SNMP and MIB, refer to the following:
•RFC 1155 — Structure and Identification of Management
Information for TCP/IP-based Internets (SMI)
•RFC 1156 — Management Information Base for Management
of TCP/IP Internets (MIB)
•RFC 1157 — A Simple Network Management Protocol (SNMP)
•The Simple Book: An Introduction to Management of
TCP/IP-based Internets
SNMP
303
Getting The Latest MIB Information
To obtain the latest copy of these and other RFCs, FTP the files
from one of the following two sources:
Internet:
ftp://ftp.isi.edu/internet-drafts
World Wide Web:
http://www.ietf.cnri.reston.va.us/lid-abstracts.html
SNMP
SNMP is the protocol used to communicate between manager and
agent. Managers request information, usually through automated
polling at specified intervals, and agents respond. Though used
primarily on TCP/IP networks, SNMP can be implemented on other
protocols, for example, IPX.
SNMP is a standard by which a network manager can get statistics
and configuration information from the NICs and other devices on
the network. This is done through a Network Management Station
(NMS) such as NetView .
Monitoring Tools
Many tools can be used to monitor printers with SNMP agents. One
of these tools is NetView. There are also other MIB browsers which
are not described here.
OS/2 TCP/IP
To get SNMP.EXE to work correctly to browse MIB items, you may
need to delete the following file:
d:\mptn\etc\mib2.tbl
Chapter 14 Monitoring Tools
304
Monitoring With AIX NetView/6000
The AIX NetView/6000 program can manage any IP-addressable
device with an SNMP agent.
NetView/6000 can be used to set a network topology, monitor a
network, diagnose problems, and measure network performance.
Through its MIB Browser, information about the resources affecting
an event (such as an alarm) can be obtained.
The Remote Management Software
The remote management software utility is a versatile and dynamic
program. It allows you to organize all of the printers in your office
remotely in a single database, download software and printer
settings from a host computer with a single mouse click, and use a
virtual operator's panel to configure printers in the same room or on
the other side of the world. Refer to
Remote Management Software
User’s Manual
or www.Printronix.com for more details on this tool.
Setting The SNMP Community Name
The default SNMP read-only community name is “public” and
cannot be changed.
Change the SNMP R/W community name with the command:
set user passwd snmp com_name
save
where
com_name
is the new SNMP R/W community name.
The default is no R/W community name.
NOTE: Changing SNMP community names or access rights may
hinder or disable applications that are monitoring your
printers.
305
15 Commands
Command Shell Overview
The NIC comes with an in-depth command shell called npsh. It
allows you to manipulate objects like destinations, I/O ports, and
models and provides monitoring and troubleshooting capabilities.
npsh Access Methods
There are many ways this command shell can be accessed:
•built in HTML forms
•a Telnet session from a TCP/IP host to the NIC
•a single remote shell command (e.g., rsh, rcmd, remsh) from
a TCP/IP host
Main npsh Command Prefixes
All configurable commands either start with store or set, and
view commands start with list.
NOTE: If the store prefix is used, the NIC must be repowered to
make the changes take effect. Since store affects flash
memory settings only, the print server must reset and read
the new settings now in flash memory.
Chapter 15 Command Shell Overview
306
NOTE: If the set prefix is used, a save command must be
executed as well so that the new settings are retained after
power cycles. Since set only affects the settings in
memory, they will be lost after a power cycle unless they
are saved to flash memory.
Getting Command Help
The NIC command shell provides several online help tools,
including:
“?” Command
Typing “?” when logged in to the command shell will produce a full
list of all available commands.
Command Prefixes
Typing in the first portion of a command will produce an error
message showing the correct syntax. For example, typing in store
tcpip will produce a list of all commands that start with this prefix.
Store Commands
307
Complete Command List
This section outlines the entire NIC command set including the
command syntax, a description, and in most cases, an example for
each command listed.
NOTE: If you see the word ifnum in any npsh commands, you
should substitute a 1 or 2 unless told otherwise. The 1
represents the one network interface (e.g., Ethernet)
supported. The 2 represents the wireless network interface
if it exists in the system.
Store Commands
These commands change the settings stored in flash memory and
do not affect the current or working settings in memory. A power
Chapter 15 Complete Command List
308
WLAN
ADAPTER,
WLAN
Defines the authentication scheme:
store ifc <ifnum> wlan auth <auth-method>
(eg. open, shared, leap, kerb)
•“Open” system authentication allows all devices that have the
authentication algorithm number for open system to
authenticate.
•“Shared” key authentication involves a four step process using
secure or encrypted text by means of WEP.
•“Leap” is to enable/disable LEAP operation.
•“Kerb” is for Kerberos.
WLAN
ADAPTER,
WLAN
Define a auth-user-name to be used in the LEAP operation:
store ifc <ifnum> wlan user <auth-user-name>J/F3 1 Tf9.96 0 0 9.96 243 ( a4“)-6.6 9•rn8( a)-1228(u)-0.1(th-)6228(u)-0.1scmeen the usn a be e(te)-12.2(r)5.8(e)-122(du)-0.1 .96c0 nu
the LEPEiceusis(.)]TJ/F2 1 Tf11.5355 0 0 12 190.8 0-6.64 Tm-0.0077 Tc0 Tw[(WLA)6.9(N)]TJ-2.0805 -1.17 TD-0.0146 Tc[(AD)-10.4(AP)-13.4(T)-7(E)-3(R,)]TJ2.0805 -1.17 TD-0.0077 Tc[(WLA)6.9(N)]TJ/F3 1 Tf9.96 0 0 9.96 243 0-6.64 Tm-0.0017 Tc0.0008 Tw[(Defi)-864(ne)-28( a au)-21(th-)61(p-0.1 a)-12(s)4.3(s)-7.7wnforu(s)-7.7ednthn APA( one)-28rtion:
Store Commands
309
WLAN
ADAPTER,
WLAN
Set transfer rate (speed):
store ifc <ifnum> wlan speed auto|<1 2 5 11>
<ifnum> is the interface number for the WLAN device.
<speed-flags> are the speeds being selected. They are
entered as a list of integers, separated by 'space' characters.
The following values are supported: 1 for 1Mbps, 2 for 2Mbps,
5 for 5.5Mbps, and 11 for 11Mbps. Using the word "auto"
instead of any number will set the card to use automatic
negotiation.
WLAN
ADAPTER,
WLAN
Set channel number:
store ifc <ifnum> wlan channel default <1-15>
<ifnum> is the interface number for the WLAN device.
<channel-num> selects the RF channel number (1 to 15) used
in ad-hoc mode. The word "default" will inform the device
driver to use the card's factory set default channel.
WLAN
ADAPTER,
WLAN
Set antenna type:
store ifc <ifnum> wlan antenna diverse|primary|aux
<antenna-type>
<ifnum> is the interface number for the WLAN device.
<antenna-type> is the type of antenna to be used: "primary",
"aux" (auxiliary or external) and "diverse". "diverse" allows the
WLAN card to decide on the optimal antenna during operation.
WLAN
ADAPTER,
WLAN
Set preamble length:
store ifc <ifnum> wlan preamble default|long|short
<len-type>
<ifnum> is the interface number for the WLAN device.
<len-type> is the type of preamble length required. It can be
"long", "short", or "default". "default" allows the card to use its
own factory-default.
WLAN
ADAPTER,
WLAN
Set power management mode:
store ifc <ifnum> wlan pmm on|off
<ifnum> is the interface number for the WLAN device.
The string "off" disables power-save mode. "on" enables
power-save mode with a default sleep-time of 100ms.
Chapter 15 Complete Command List
310
WLAN
ADAPTER,
WLAN
Set transmit power:
store ifc <ifnum> wlan txpwr <0-100>
<ifnum> is the interface number for the WLAN device.
<0-100> the power level as a percentage of full power .
WLAN
ADAPTER,
WLAN
Set options:
store ifc <ifnum> wlan opts [[-]openauth][[-]intnl]
<ifnum> is the interface number for the WLAN device.
An option is enabled by including it in the list and disabled by
preceding it with a '-' character in the list. Supported option is
"intnl", for international mode and “openauth” for open
authentication.
WLAN
ADAPTER,
WLAN
Set the default key for WLAN encryption:
store ifc <ifnum> wlan defkey disable|<1-4>
<ifnum> is the interface number for the WLAN device.
<1-4> is the number identifying one of the four keys (1-4). A
value of zero or the word "disable" disables encryption.
WLAN
ADAPTER,
WLAN
Set the key to a given value:
store ifc <ifnum> wlan key <key-num> <key-value>|
<$<string-key>{<length>]>
<ifnum> is the interface number for the WLAN interface.
<key-num> is the number identifying one of the four keys (1-4).
<key-value> is the encryption key value for <key-num>. The
value must consist of 5 or 13 double- or quad-digit HEX
numbers, separated by colon (':') or dash ('-') characters for
readability (e.g. D1C2-B3A4-9586-7768-594A-3B2C-1D).
Alpha characters are NOT case sensitive. All zero disables
encryption for <key-num>. If '$' is the first character the
remainder of the argument is treated as a literal string with all
alpha-numeric characters allowed except spaces). Key length
is inferred from the length of key-value so leading zeroes of
longer keys must be entered (not blanked).
Store Commands
311
WLAN
ADAPTER,
WLAN
Enables or disables Kerberos:
store kerberos opts [-]auth
Sets the maximum allowable amount of clock skew in seconds
or minutes that Kerberos authentication will tolerate before
assuming that a Kerberos message is invalid:
store kerberos config clockskew <clock_skew><s|m>
The time units cannot be mixed and there must at least be one
space between the <renew_life_time> value and the time unit
(s or m). The default is 300 seconds, (i.e. five minutes). The
minimum allowable value is 60 seconds (i.e. 1 minute). The
maximum allowable value is 900 seconds (i.e. 15 minutes).
NOTE: The Microsoft step-by-step Guide to Kerberos 5 (krb5 1.0)
Interoperability recommends that your system clock be
sychronized within two minutes to the KDC system’s clock.
Otherwise, clock skew errors will cause Kerberos
authentication to fail. If this is the case, the clock skew
default may need to scale down to two minutes.
WLAN
ADAPTER,
WLAN
Sets the maximum allowable ticket lifetime in seconds, minutes,
hours, or days:
store kerberos config tktlife <life_time> <s|m|h|d>
<life_time> is between 300 seconds and 259200 seconds (3
days). The time units cannot be mixed and there must be at
least one space between the <life_time> value and the time
units (s, m, h, or d). Default value is 43200 seconds.
WLAN
ADAPTER,
WLAN
Sets the maximum allowable renewable lifetime in seconds,
minutes, hours, or days:
store kerberos config renewlife <renew_life_time>
<s|m|h|d>
<renew_life_time> is 0 (i.e. no limit) or between 300 seconds
and 604800 seconds (7 days). The time units cannot be mixed
and there must be at least one space between the
<renew_life_time> value and the time unit (s, m, h, or d).
Default value is 0.
Chapter 15 Complete Command List
312
WLAN
ADAPTER,
WLAN
Configures the KDC port:
store kerberos config kport <kdc_port>
<kdc_port> is the 2-byte UPD/TCP port used for Kerberos
communication. Default is 88.
WLAN
ADAPTER,
WLAN
Configures the KDC name portion of the service principal:
store kerberos config kname <kdc_name>
<kdc_name> has a maximum of 127 characters excluding
“:” and “/”. Default is krbtgt.
WLAN
ADAPTER,
WLAN
Configures the KDC realm portion:
store kerberos config krealm <kdc_realm>
<kdc_realm> is usually set to the uppercase name of the
Windows 2000 KDC to which the Access Point is configured.
<kdc_realm> has 0 to 127 characters excluding “:” and “/”.
Default is localrealm.
WLAN
ADAPTER,
WLAN
Sets the Kerberos password that must match the Windows 2000
user password for the Print Server:
store kerberos password <kerberos_password>
<kerberos_password> is either a string without any space and
tab, or a double quoted string with a maximum of 40 alpha-
numeric characters or symbols. The administrator should
choose at least 9 alphanumeric characters with a combination
of upper and lower case characters and symbols. In the
Windows environment, this is the Windows 2000 user
password for the Print Server and they must be exactly the
same.
store pping opts [-]enable
Example:
store pping opts enable
Store the state of periodic ping flag. If the periodic ping flag is
enabled the NIC periodic ping client will attempt to ping its
default gateway on its active NIC interfaces.
Default: disabled
Store Commands
313
store pping packet <number of packets>
Example:
store pping packet 1
Store the value of the packet. It is the number of ICMP Echo
Request packets that will be sent by the periodic ping client on
each period.
Default: 1
store pping period <minutes>
Example:
store pping period 5
Store the value of the period. <minutes> is the amount of time
from 1 to 5 minutes defines the periodic ping sequence will be
repeated.
Default: 5
store pping from default
Example:
store pping from default
Store all the periodic ping default settings to flash memory so
taht they are retained after power up.
store pserver name
Example:
store pserver name NIC1234
Command to change the print server name.
store pserver opts [[-]jobsecurity]
[jobtimeout <seconds>] [jobcontrol[off|standard|
enhanced]]
Example:
store pserver opts [-]jobcontrol
If jobcontrol is disabled then the need for start of job / end of
job flow control with the printer is determined by the printer. Job
flow control is used for jobs requiring backchannel responses
such as IPDS, TN5250 and PJL jobs only. This is available as
a performance enhancement for LPR, TCP socket printing etc.
The job flow control has no affect on IPDS, TN5250, and PJL
jobs. These options perform their own control. When jobcontrol
is enabled all jobs will be supported with job flow control.
NOTE: When jobcontrol is disabled, dynamic config loading on a
model change is also disabled.
Chapter 15 Complete Command List
314
•off. no job control; no SOJ/EOJ commands. The printer prints
faster in off mode.
•standard. (the default) traditional job control with immediate
acknowledgements of SOJ/EOJ commands.
•enhanced. job control with EOJ acknowledgements held off by
the printer until job is fully printed. The printer prints slower in
enhanced mode.
To monitor the printer, use the telnet command “lpstat.” The normal
status reported on the first line of the lpstat response is the status of
the queue (LPQ) within the NIC. The status reported does not
reflect the state of the print job once it has been sent from the NIC
to the printer.
The new line at the bottom of the lpstate response labeled “printer
job:” can report one of two status values:
a. In Progress. A job in the printer is not yet finished.
b. Done. There are no jobs in the printer. All previous jobs are
finished.
Example:
store pserver opts jobsecurity jobtimeout 5
If jobsecurity is disabled, any user can cancel queued jobs
on the NIC including guest users. If jobtimeout is set to
some value other than 0, the NIC will only wait this amount of
seconds when getting printer feedback. This is only used if
you have a logpath port and type set on a particular destination.
store pserver tcpsocket <tcp-port> port <new-tcp-port>
Example:
store pserver tcpsocket 4000 port 5000
Change a pre-defined
TCP port number (<tcp-port>) on the
NIC to a new TCP port number (<new-tcp-port>). The default
number is 9100 for prn.
store pserver tcpsocket <tcp-port> dest <dest>
Example:
store pserver tcpsocket 5000 dest d1prn
Assign a pre-defined TCP port number (<tcp-port>) to a
particular destination (<dest>) on the NIC. Therefore, if you are
using a print method that sends jobs directly to a TCP port
number, you still have the option to process the job data
through this destination setting.
Store Commands
315
store pserver tcpsocket add <tcp-port> dest <dest>
Example:
store pserver tcpsocket add 9101 dest d2prn
Maps the port number to a destination.
store pserver tcpsocket del <tcp-port> dest <dest>
Example:
store pserver tcpsocket del 9101 dest d2prn
Deletes a mapped port number destination already defined by
listed commands.
ADAPTER,
WLAN
ADAPTER
store pserver novell passwd [<password>]
Example:
store pserver novell passwd ptnx
Store the password (<password>) for the NIC to use when
logging in to a Novell file server. This password would have to
match one set on the file server.
ADAPTER,
WLAN
ADAPTER
store pserver novell frametype [ethernet2|802.2|802.3|
802.2snap|autosense]
Sets the frame type for the Novell protocol.
ADAPTER,
WLAN
ADAPTER
store pserver novell mode [auto|bindery|nds]
Example:
store pserver novell mode [auto|bindery|nds]
Stores the mode for the unit to operate in either autosense,
Bindery, or NDS.
ADAPTER,
WLAN
ADAPTER
store pserver novell context [<context>]
Example:
store pserver novell context context
Stores the print server object in any context within the NDS tree
choosen.
ADAPTER,
WLAN
ADAPTER
store pserver novell tree [<tree>]
Example:
store pserver novell tree tree
Stores the print server object in a specified tree.
ADAPTER,
WLAN
ADAPTER
store pserver novell fserver add|del <fileserver>
Example:
store pserver novell fserver add fs1
Add or remove a server entry on the NIC for the Novell file
server it will be servicing.
Chapter 15 Complete Command List
316
store pserver smb workgrp <workgroup>
Example:
store pserver smb workgrp eng
Define a different Windows workgroup as defined by
<workgroup> for the NIC to be visible within (should be 14
characters or less). By default, the print server only comes up
within the group called “WORKGROUP.”
store pserver lpd [-]dest1default
Example:
store pserver lpd dest1default
If dest1default is disabled and upon verification, the printer
name supplied by the LPR protocol and the destination name
do not match, then an error message is returned and the
service is refused. If dest1default is enabled and upon
verification, the printer name supplied by the LPR protocol and
the destination name do not match, then the job is
automatically routed to the first destination and the service is
accepted.
Default: enabled
store pserver from default
Set all general print server settings back to factory defaults.
store pserver from current
Store all current general print server settings to flash memory
so they are retained after a power cycle. This ensures all
current settings match what is stored in flash memory.
ADAPTER,
WLAN
ADAPTER
store rprinter add <psname> <printer_num> <dest>
Example:
store rprinter add pserver1 0 d1prn
Add the RPRINTER settings on the NIC for a Novell
environment. <psname> must be the name of an existing
PSERVER.NLM on your Novell file server. <printer_num> is
the printer number within this PSERVER.NLM. <dest> is the
queue on the NIC where the print jobs will be sent to.
Store Commands
317
ADAPTER,
WLAN
ADAPTER
store rprinter del <psname> <printer_num>
Example:
store rprinter del pserver1 0
Delete the RPRINTER settings on the NIC for a Novell
environment. <psname> must be the name of an existing
PSERVER.NLM on your Novell file server. <printer_num> is
the printer number within this PSERVER.NLM.
store tcpip <ifnum> addr <address>
Example:
store tcpip 1 addr 192.75.11.9
Store the IP address for the NIC.
store tcpip <ifnum> mask <mask>
Example:
store tcpip 1 mask 255.255.255.0
Store the subnet mask for the NIC.
store tcpip <ifnum> opts [[-]rarp] [[-]bootp] [[-]dhcp]
[[-]persistdhcp] [[-]dns]
Example:
store tcpip 1 opts -rarp -bootp -dhcp
Enable or disable the automatic RARP, BOOTP, DHCP, DNS,
or persistent DHCP requests for IP addresses upon bootup. If
you are storing the NIC TCP/IP network settings within the
device, you will not need to rely on RARP, BOOTP, DHCP, or
DNS for new settings.
store tcpip ifnum frametype [[-]ethernet2]
[[-]802.2snap]
Example:
store tcpip 1 frametype ethernet2 802.2snap
Control which frame type(s) is supported with the TCP/IP
protocol. By default, both Ethernet 2 and 802.2snap are
enabled, but normal TCP/IP communications rely on Ethernet
2. This setting has no affect on other supported network
protocols (e.g., Novell).
store tcpip route add default[1|2] <router> <ifnum>
[<metric>]
Example:
store tcpip route add default1 192.75.11.1 1
Store a default router/gateway defined by router IP Address
(<router> <ifnum>) so the NIC knows where to direct packets
destined for another subnet. It is easier to store one default
entry rather than an entry per remote host or network as in the
previous command.
Chapter 15 Complete Command List
318
store tcpip del default [1|2]
Example:
store tcpip route del default1 192.75.11.1 1
Delete a default router/gateway defined by router IP Address
(<router> <ifnum>) so the NIC knows where to direct packets
destined for another subnet.
store tcpip route add [host|net] <network> [/mask>]
<router> <ifnum> [<metric>]
Example:
store tcpip route add net 192.75.12.0 1
Add a static route to a particular TCP/IP host or subnet
specified by <network> so the NIC knows how to communicate
with it. Normally one entry for a default router/gateway is all that
is needed for communications between different subnets.
Please see the next command for details.
store tcpip route del [host|net] <network>
Example:
store tcpip route add net 192.75.12.0 1
Delete a static route to a particular TCP/IP host or subnet
specified by <network> so the NIC knows how to communicate
with it. Normally one entry for a default router/gateway is all that
is needed for communications between different subnets.
Please see the next command for details.
store tcpip tcp rxwin <packets>
Example:
store tcpip tcp rxwin 2
Determine the receive window size for the NIC. Usually the
packets value ranges from 2 to 8, with the lower number
allowing for more simultaneous TCP connections with the print
server.
Store Commands
319
store tcpip tcp opts [-]keepalive [-]disbufmgmt
[-]zeroIPArp [-]keepalivedata
Example:
store tcpip tcp opts keepalive -disbufmgmt
Control whether the NIC maintains a connection with a host
when data cannot be accepted into its buffer. Normally the
keepalive feature is enabled so when the printer cannot
accept data, the print job connection is maintained and
continued once the situation clears. The keepalivedata option
controls whether the keepalive packet contains a data byte for
hosts that require it. If disbufmgmt is disabled (i.e., “-”), the
NIC will not buffer any data when there is a blocked situation
with the printer. Normally, it is best to have both keepalive
and disbufmgmt enabled.
If zeroIPArp is disabled then a NIC with an IP address of
0.0.0.0 will not allow IP access until the IP address is
configured. If zeroIPArp is enabled on a NIC with an IP address
of 0.0.0.0 then any attempted access with a valid IP address is
assumed for this NIC and an Arp lookup is performed.
Default: enabled
store tcpip tcp access [root] add|del <network>
[<netmask>]
Example:
store tcpip tcp access add 192.75.11.25
Add or remove an entry from the NIC TCP access list defined
by <network>. If the list has an entry, only this host can print to
and remotely interact with the print server.
store tcpip from default|current
Example:
store tcpip from default
Set all TCP/IP network settings back to factory defaults.
Example:
store tcpip from current
Store all current TCP/IP network settings to flash memory so
they are retained after a power cycle. This ensures all current
settings match what is stored in flash memory.
store tn dest <dxprn> mode 5250|3270
Example:
store tn dest d1prn mode 3270
Store the TN protocol mode.
Default: 5250
Chapter 15 Complete Command List
320
store tn dest <dxprn> host <IPaddress>
Example:
store tn dest d1prn host 192.75.11.1
Store the IP address of the TN5250/3270 host
Default: Unconfigured (empty) IP address
store tn dest <dxprn> port <portnum>
Example:
store tn dest d1prn port 27
Store the UDP port number of the TN server.
Default: 23
store tn dest <dxprn> devicedesc <devname>
Example:
store tn dest d1prn devicedesc MOCHA3812
Store the name of the printer device. The description entered
will be the name of the printer device created on the AS/400
host for the current session.
Default: Unconfigured (empty) description.
store tn dest <dxprn> connect <resourcename>
Example:
store tn dest d1prn connect MYRESNM
Store the resource name for the host session. The resource
name must be the same as the name of the printer device
created on the host for the session.
Default: Unconfigured (empty) resource name
store tn dest <dxprn> msgqname <msgqname>
Example:
store tn dest d1prn msqqname QSYSOPR
Store the queue name to which system messages will be
logged.
Default: QSYSOPR
store tn dest <dxprn> msgqlib <msgqlib>
Example:
store tn dest d1prn msgqlib *LIBL
Store the queue library to which system messages will be
logged.
Default: *LIBL
Store Commands
321
store tn dest <dxprn> WSCSTname <WSCSTname>
Example:
store tn dest d1prn WSCSTname *NONE
Store the queue name to which system messages will be
logged.
Default: *NONE
store tn dest <dxprn> WSCSTlib <WSCSTlib>
Example:
store tn dest d1prn WSCSTlib *LIBL
Store the queue library to which system messages will be
logged.
Default: *LIBL
store tn dest <dxprn> [-]autoconnect
Example:
store tn dest d1prn autoconnect
Store the state of the autoconnect flag. If the autoconnect flag
is enabled the NIC tn client will attempt a connection and
binding with the specified tn host automatically on power-up.
This connection sequence will be repeated every 60 seconds
until successful or the autoconnect flag is disabled.
See “tn dest <dxprn> start | stop” command.
Default: disabled
store tn dest <dxprn> copytimeout
Example:
store tn dest d1prn copytimeout 1000
Store the value of the copytimeout. When consecutive
TN5250/3270 jobs are sent to the NIC, they are treated
differently depending how soon they arrive. In an attempt to
provide a perception of collation when multiple copies are sent
from one host, if the time between jobs is less than the
copytimeout value then they are treated as copies and the job
is given precedence over other host documents. This keeps
documents, which are sent in rapid succession together as if
they were copies of the same document. A higher value
improves the likelihood of collation but impacts performance.
Default: 500
Chapter 15 Complete Command List
322
store tn from default|current
Example:
store tn from default
Store all tn default settings or current settings to flash memory
so that they are retained after power up.
Set Commands
These settings alter the current or working settings in memory only.
Therefore, they will be lost if the NIC is power cycled. To ensure
this does not happen, issue a save command so the current
settings get written to flash memory.
set dest <dest> name <new_name>
Example:
set dest d1prn name laser
Change the current name of the <dest> to a new name as
indicated by <new_name>. These names are case sensitive.
set dest <dest> backchannel [prn]
Example:
set dest d1prn backchannel prn
Establish a return path for printer feedback for a given
destination (<dest>). The NIC I/O port is bi-directional,
however, you will most likely use the same I/O port to which the
destination is currently sending jobs.
set dest <dest> alternate [<alt_dest>]
Example: set dest d1prn alternate d4prn
Sets an alternate destination for a queue other than itself.
set dest <dest> model <model>
Example:
set dest d1prn model m4
Associate a model with a destination. Jobs sent to the named
destination (<dest>) are processed according to the options
defined in the named model.
set dest <dest> logpath <logpath>
Example:
set dest d1prn logpath l4
Associate a logpath with a destination. Jobs sent to the named
destination (<dest>) are logged according to the settings
defined in the named logpath.
Set Commands
323
set dest <dest> service [[-]socket][[-]lpd]
[[-]lpsched] [[-]rprinter] [[-]pserver] [[-]netbios]
[[-]ftpd] [[-]tn]
Example:
set dest d1prn service -netbios
Set the destination (<dest>) to handle only certain print
services. To add a service, specify the service name. To
disable a service, use “
-
” before the name. The available
services are described in the following table.
set dest from default
Set all destination settings back to factory defaults.
set dest from stored
Set all current destination settings to the values stored in flash
memory.
Services
socket Direct socket printing via TCP/IP.
lpd LPR printing with TCP/IP, including LPR clients
on any platform.
lpsched LP or System V printing with TCP/IP.
ADAPTER,
WLAN
ADAPTER
rprinter Novell RPRINTER support.
ADAPTER,
WLAN
ADAPTER
pserver Novell PSERVER support.
netbios Windows 95 and Windows for Workgroups
printing.
ftpd Printing using the File Transfer Protocol (FTP)
via TCP/IP.
tn Printing using the TN5250/3270 session.
Chapter 15 Complete Command List
324
set ifc
Example: set ifc <ifnum> up|down
Set state of the specified network physical interface up or
down. <ifnum> is the interface number for the NIC device.
set logpath <logpath> name <new_name>
Example:
set logpath l1 name pagecount
Change the current name of the logpath (<logpath>) to a new
name as indicated by <new_name>. These names are case
sensitive.
set logpath <logpath> type [[-]job] [[-]user]
[[-]cksum] [[-]printer] [[-]ioport]
Example:
set logpath l2 type job user printer pgcnt
Establish the type of printer and print job logging to be done
within this <logpath>. The options are:
job Job ID, username, etc.
user User ID along with three messages per job
about start and finish.
cksum 16-bit checksum value to confirm integrity of
data printed.
printer For special printer feedback.
ioport Printer error messages determined through
the parallel port pins.
set logpath <logpath> port <TCP-port>|email|syslog
Example:
set logpath l3 port 2000
Determine where the log information should be sent for a print
job or attached printer. The choices are:
TCP-port TCP port number ranging from 1024 to
65000.
email Particular user's email address. This address
is set using the set sysinfo email
emailname@IPaddress or
emailname@domain.com command.
Set Commands
325
syslog A central TCP/IP host running the SYSLOG
daemon. This host is set using the set
sysinfo syslog IPaddress command.
set logpath from default
Set all logpath settings back to factory defaults.
set logpath from stored
Set all current logpath settings to the values stored in flash
memory.
set lpd
Example:
set lpd [-]bytecount
Set the job control on the file size of a Line Printer Daemon
(LPD). If bytecount is enabled, the printer does not allow the
LPD client to send a job with an unconventional file size.
Usually the unrecognized numeric operand in the LPD Receive
Data File command attributes to this behavior. The print job
stream is canceled and its TCP connection is closed.
Default: Disabled.
set model <model> name <new_name>
Example:
set model m1 name landscape
Change the current name of the model (<model>) to a new
name as indicated by <new_name>. These names are case
sensitive.
set model <model> type raw
Example:
set model m2 type raw
Set the model type to raw so that it does not process the data
passing through it in any way.
set model <model> banner [text][after]
Example:
set model m2 banner text
Determine whether a banner page should be added for print
jobs passing through the <model> mapped destination/queue.
By default, banner pages are added to the front of the job.
If after is set, the banner page will come at the end.
Chapter 15 Complete Command List
326
set model <model> stty [[-]onlcr] [[-]descramble]
[xtab <1-16>|none]
Example:
set model m3 stty onlcr
Control extra job processing done by the <model>. The
processing options are:
onlcr Carriage return insertion for Unix text jobs.
Adds carriage returns to text jobs with solitary
linefeeds. This will prevent stair-stepped
output or output running off the right side of
the page.
descramble Automatic descrambling of print jobs passing
through which have been scrambled using
Printronix proprietary Unix scramble utility,
npscramble.
xtab Tab expansion from 1 to 16 spaces.
set model <model> header [<string>]
Example:
set model m1 header 0x20
Set a header string to be sent to the printer at the start of any
print jobs passing through this <model>
.
The headerstring
(<string>) can consist of up to nine elements. An example
element is a hexadecimal code (e.g., 0x04) or a pre-defined
variable on the print server (e.g., $FF for a formfeed). Use
list var to see all available variables. To erase the header,
send the command with no
headerstring
value; for example ‘set
model m1 header’.
set model <model> trailer [<string>]
Example:
set model m7 trailer $FF
Set a trailer string to be sent to the printer at the end of any
print jobs passing through this <model>
.
The trailerstring
(<string>) can consist of up to nine elements. An example
element is a hexadecimal code (e.g., 0x04) or a pre-defined
variable on the print server (e.g., $FF for a formfeed). Use
list var to see all available variables. To erase the trailer,
send the command with no
trailerstring
value; for example ‘set
model m1 trailer’.
Set Commands
327
set model <model> config [config_num]
Set a printer configuration number config_num to be loaded
prior to printing a job on the specified model. If the command is
sent with config_num set to 0, the factory configuration is
loaded before the job prints. If config_num is in the range 1
through 8, the corresponding configuration number is loaded
before the job prints. To return to the default state where no
configuration is loaded, send the command with no config_num
value; for example ‘set model m1 config’. When no new
configuration is loaded, the current configuration settings will
be in effect for any jobs sent to model <model>. To see which
configuration, if any, will be loaded at the start of a job, use the
command ‘list model’ or ‘list model <model>’.
set model from default
Set all model settings back to factory defaults.
set model from stored
Set all current model settings to the values stored in flash
memory.
set prn [-]autofd
Example:
set prn -autofd
Assert or do not assert the AUTOFD line for carriage return
insertion. This only affects printers that support this function,
such as impact printers.
set prn flush
Flush the data in the parallel port input and output buffers.
set prn unlock
Release the access lock on the parallel port.
set prn timeout <int>|none
Example:
set prn timeout none
Terminate the print job sent to the parallel port if it is not printed
after the timeout period in minutes (<int>) expires. The <int>
value ranges from 0 though 255, with 0 indicating no timing out
to take place. This is the default setting and should be fine for
most print setups.
Chapter 15 Complete Command List
328
set prn [-]opost
Example:
set prn -opost
Allow or disallow output processing on the parallel port such as
carriage return insertion (e.g., onlcr).
set prn [-]onlcr
Example:
set prn -onlcr
Enable or disable carriage return insertion on the parallel port.
This may be needed for Unix text jobs coming through with
solitary linefeeds. This feature is almost always set at the
model level rather than the I/O port level.
set prn xtab <int>|none
Example:
set prn xtab none
Set the tabstop width as indicated by <int>. The range is 1
through 16 spaces.
set prn from default
Set all parallel port settings back to factory defaults.
set prn from stored
Set all current parallel port settings to the values stored in flash
memory.
set snmp
To add a user named
snmp
with root privileges, follow the steps
below:
1.Login to the NIC as a root user.
2.Add a user named snmp:
set user add snmp
3.Set the user type to root:
set user type snmp root
4.Set the password for the snmp user:
set user passwd snmp snmppassword
5.Save the changes:
save
The user
snmp
is now created and
snmppassword
is the only
community string which will allow write access.
Set Commands
329
set snmp manager <index> <ipaddress> <trap-community>
The NIC continuously generates traps. To set the NIC to send
traps to a particular SNMP manager, use this command to add
an SNMP manager to the trap table.
<index>
is the index number of the trap table. <ipaddress is the
IP address of the SNMP manager receiving traps. <trap-
community> is the community string sent along with the trap
information.
set snmp trapport <index> <udp_port>
Set the UDP port number in the SNMP trap manager table.
This value should correspond to the port number monitored by
the SNMP manager application running on the host at the IP
address specified in the ‘set snmp manager’ command.
<index> is the index number of the SNMP trap manager table.
<udp_port> is the desired UDP port number. Acceptable
values are 162, and 49152 through 65535.
set snmp trap <index> [-]active
Enable or disable an SNMP trap manager table entry.
The
index
is the index number of the SNMP trap manager
table. “active” enables the table entry, “-active” disables the
entry.
set snmp emailaddr <index> <emailaddress>
The NIC can also send SNMP alert messages to a desired
e-mail address. To specify an e-mail address to send alert
messages to, use this command to add the e-mail address to
the SNMP alert table.
<index> is the index number of the SNMP trap manager table.
The
emailaddress
is the desired e-mail address of the form
user@domain.com.
Chapter 15 Complete Command List
330
set snmp emailformat <index> [-]short
Enable or disable the short e-mail message format for an
SNMP alert table entry. When enabled, the short e-mail format
can be used when messages will be viewed on devices having
a limited display size (a cellular phone or pager, for example).
<index> is the index number of the SNMP alert table. “short”
enables the short e-mail format, “-short” disables it.
set snmp shortmsglen <index> <length>
Specify the length of the short e-mail message format for an
SNMP alert table entry. This command is effective only when
the short e-mail message format for an SNMP alert table entry
is enabled.
<index> is the index number of the SNMP alert table. “length”
specifies the length of the short e-mail message, and has an
acceptable range of 15 to 80 characters.
set snmp email <index> [-]active
Enable or disable sending e-mail alert messages for an SNMP
alert table entry.
<index> is the index number of the SNMP alert table. “active”
enables sending e-mail alert mesages, “-active” disables it.
set snmp alerts <index> [-]all | [[-]warning]
[[-]offline] [[-]mediainput] [[-]mediaoutput]
[[-]mediapath] [[-]marker] [[-]cutter] [[-]barcode]
[[-]scanner] [[-]intervention] [[-]consumable]
[[-]label][[-]powercart] [[-]rfid]
Example:
set snmp alerts 1 warning -cutter]
Specifies which alert groups are enabled for reporting via an
SNMP manager, e-mail alert message, and/or Unix syslog
daemon. See Table 8 on page 81 for a description of specific
printer events belonging to each group.
The
index
is the index number of the SNMP manager/alert
table.
Set Commands
331
“-all” disables and “all” enables reporting of alerts in all alert
groups. Individual alert groups can be selectively enabled or
disabled via combinations of alert group switches. For
example, to enable warning alerts and disable cutter alerts for
SNMP table entry 1, enter the following:
set snmp alerts 1 warning -cutter
set snmp syslog <index> [-]active
The NIC can also log SNMP alert messages to the defined
SYSLOG host (see the ‘set sysinfo syslog’ command
description). Use this command to enable or disable logging of
alert messages for an SNMP alert table entry.
<index> is the index number of the SNMP alert table. “active”
enables alert message logging, “-active” disables it.
set sysinfo label|name [<string>]
Example:
set sysinfo name salesprinter
Set a descriptive name defined by <string> for NIC
identification purposes. This is not used in the operation of the
print server in any way.
set sysinfo contact [<string>]
Example:
set sysinfo contact Paul_Harris
Set a person or department to contact in case of print server
trouble.
set sysinfo location [<string>]
Example:
set sysinfo location salesdept
Set the physical location of the NIC. This is for identification
purposes and is not used in the operation of the print server in
any way.
set sysinfo prnserial [<string>]
Example:
set sysinfo prnserial 000123456789
Sets the printer serial number.
Chapter 15 Complete Command List
332
set sysinfo loginfo [-]sys | [-]tcp | [-]ipx | [-]spx
Example:
set sysinfo loginfo -sys ipx
Set the NIC debugging information type. Usually this
information includes unexpected errors or exceptions from the
print server divided into these groups:
sys General system messages
tcp TCP stack messages
ipx IPX stack messages
spx SPX stack messages
NOTE: This is not printer or job logging information.
set sysinfo logport null|prn|syslog
Example:
set sysinfo logport null
Define to where the debugging information should be sent. This
can be sent to an output device off of the NIC I/O port or to a
central TCP/IP host running a SYSLOG daemon. To set this
host, use the command set sysinfo syslog
hostIPaddress.
set sysinfo smtp <IPaddress> [port <portnum>]
Example:
set sysinfo smtp 192.75.11.5 port 25
Define the SMTP (Simple Mail Transfer Protocol) server IP
address or domain name and port number where the mail is
stored on your network.
Default: Unconfigured, 25
set sysinfo email <email>
Example:
set sysinfo email JohnDoe@Printronix.com
Define the user email address to receive printer and job logging
information from a particular logpath on the NIC. Email name is
the host or IP name of the user.
Default: Unconfigured
set sysinfo email emailname@domain
Example:
set sysinfo email joe@printronix.com
Define the user email address to receive printer and job logging
information from a particular logpath on the NIC.
Set Commands
333
set sysinfo syslog hostIPaddress
Example:
set sysinfo syslog 192.75.11.30
Set the IP address of the host running the SYSLOG daemon.
NIC debugging or print job and printer logging information can
be sent to that IP address.
set sysinfo dns <IPaddress>
Example:
set sysinfo dns 192.75.11.2
Set your DNS server IP address so the NIC can resolve host
names when used with its built-in Telnet and ping clients.
set sysinfo domain <name>
Example:
set sysinfo domain printronix.com
Sets the domain name for the NIC, which when combined with
the print server name, forms the fully qualified domain name of
the NIC.
set sysinfo descramblekey <hexval>
Example:
set sysinfo descramblekey 1234
Set the key value used for descrambling print jobs that have
passed through Printronix npscramble utility on a TCP/IP host.
This key is a four-digit hexadecimal value obtained from the
host software, npscramble. Within the npscramble source
code, there is a variable called SR_KEY which contains the
default key value. This can be changed to any four-digit value
you would like.
set sysinfo module [[-]novell] [[-]netbios]
Example:
set sysinfo module -novell
Enable and disable certain network protocol stacks within the
NIC. Sometimes it helps to disable any protocols you are not
using on your network.
NOTE: [ - ] novell option is not available on the Integrated NIC.
set user add|del <name>
Example:
set user add eng
Add or remove a user on the NIC defined by <name>
.
IMPORTANT
Do not delete the root user, or you will be unable to configure
any further settings on the print server. You will have to go
back to factory defaults to correct this problem.
Chapter 15 Complete Command List
334
set user passwd <name> [<password>]
Example:
set user passwd eng mplex1
Assign a password to a defined user on the NIC.
set user type <name> root|guest
Example:
set user type eng root
Assign root or guest privileges to a particular user defined by
username. Guest permissions allow viewing of settings only.
Root permissions allow complete control of the NIC.
set user from default
Set all user settings back to factory defaults.
set user from stored
Set all current user settings to the values stored in flash
memory.
set user passwd snmp <com_name>
Set the new SNMP R/W community name as the <
com_name>
value.
set var <var> [<variable-string>]
Example:
set var LANDSCAPE 0x1b 0x26 0x6c 0x31 0x4f
Define a new variable to be used in header, trailer, or switch
strings on the NIC and call it <variable-string>
.
<variable-string> can be a space-separated list of words,
hexadecimal numbers (e.g., 0x04), or references to other
pre-defined variables. It is easiest to make up the
<variable-string> with hexadecimal values, as shown in
the example.
NOTE: One variable counts as one element within header and
trailer strings.
Defined variables are referenced in strings by placing a “$”
before the variable name (e.g., set model m1 trailer
$FF).
set var from default
Set all variable settings back to factory defaults.
set var from stored
Set all current variable settings to the values stored in flash
memory.
List Commands
335
List Commands
These commands list the current or working settings for a particular
section within the command shell. To view stored settings in flash
memory, insert stored after list. For example, list prn
shows the current printer settings but list stored prn shows
the settings in flash memory. Normally these should match. To view
default settings in flash memory, insert default after list.
list all
Lists all current settings.
list arp
List the current ARP table that the NIC adheres to in a TCP/IP
network.
list dest [destination]
List the current destination settings (e.g., names and mapped
I/O ports, models, and logpaths).
list diff
List the differences between the current settings and the stored
settings in flash memory. Normally, you want these values to
match, so issue a save command followed by a reset
command.
list ifc
Lists the current UTP interface settings (e.g., link integrity).
WLAN
ADAPTER,
WLAN
For the wireless NIC, the WLAN interface settings will also be
included. The WLAN parameters are displayed in the following
manner, after the interface list has been displayed:
WLAN
ifnum = <
ifnum
>
ssid = <
network name
>
mode = <
net-mode
>
channel = <
channel-num
>
antenna = <
antenna-type
>
speed = <
speed-flags
>
Chapter 15 Complete Command List
336
preamble = <
len-type
>
pmm = <
sleep-time
>
defkey = <
key-num
>
auth = <auth-method>
user = <auth-user-name>
pass = <auth-password>
txpwr = <
power
>
opts = <
option-list
>
Status = <
status
>
Quality = <
comms-quality
>
Where:
<
ifnum
> is the interface number for the WLAN device.
<
network name
> is a 1 to 32 ASCII character string.
<
net-mode
> is the type of network mode of operation: "adhoc",
"pseudo" or "managed".
<
channel-num
> is the RF channel being used for communication.
<
antenna-type
> is the type of antenna ("Primary", "Auxiliary" or
"Diverse").
<
speed-flags
> is the speeds being used for communication
([1 2 5 11], or "auto").
<
len-type
> indicates the selected preamble length ("long", "short"or
"default").
<
sleep-time
> indicates the power-save sleep-time in milliseconds.
If power-save is disabled (time is set to zero), "normal (power-save
off)" displayd.
<
key-num
> is the number identifying one of the four encryption
keys, starting from one. Encryption is disabled if "Encryption
disabled" displayd.
<auth-method>
is the authentication method e.g. open, shared,
kerb, leap.
List Commands
337
<auth-user-name>
is the authentication method user name.
<auth-password>
is the authentication method password.
<
power
> is a percentage indicating the approximate fraction of full
power.
<
option-list
> is a list of options that are enabled (disabled options
are not shown).
<
status
> is the current access point association status
(“disassociated” or “associated with <MAC address>”)
<
comms-quality
> indicates the strength or quality (in percent) of the
wireless signal.
NOTE: The "list stored ifc" command does not display the "Status"
or "Quality" lines.
list kerberos
For Wireless NIC with Symbol RF cards only.
list key
List the license details and license key number.
list logins
List any active user logins on the NIC.
list logpath [logpath]
List the current logpath settings (e.g., names and mapped
destinations).
list model [model]
List the current model settings (e.g., names and mapped
destinations). With no
model
parameter, a table of values for
name, type, banner, config and the size in bytes of header and
trailer are shown for all models m1 through m8. When the
model
parameter is supplied, the specific bytes used in the
header and trailer are shown, along with the banner type, data
type and configuration number for that specific model.
Chapter 15 Complete Command List
338
ADAPTER,
WLAN
ADAPTER
list mosinfo
List the MOS version.
list net
List all current TCP/IP network settings (e.g., IP address and
subnet mask).
list pping
List all the current periodic ping setting.
list pserver
List the current general print server settings (e.g., print server
name and Novell mode). Novell parameters are listed on
ADAPTER and WIRELESS NICs only.
list prn
List the current parallel port setting (e.g., mode).
ADAPTER,
WLAN
ADAPTER
list rprinter
List any current RPRINTER definitions.
list snmp
List the Trap Table containing SNMP Managers.
list sysinfo
List the current NIC system information (e.g., contact name and
protocol stacks enabled).
list tcpip
List all current TCP/IP network settings (e.g., IP address and
subnet mask).
list test
List the status of output tests on the I/O ports.
list tn
List all current tn protocol settings.
list uptime
Lists how long the NIC has been up and running from the last
reset.
list user
List the current user definitions (e.g., user names and types).
Miscellaneous Commands
339
list var
List all pre-defined variables including any newly created ones.
Any of these defined variables can be referenced in a string by
placing a “$” before the variable name (e.g.,
set model m1
trailer $FF
).
list dhcp
List all DHCP information for the NIC provided that DHCP is
enabled.
list lpd
List the Line Printer Daemon (LPD) information, such as
weahter the bytecount is enabled or disabled.
Miscellaneous Commands
These commands do not fall under any specific section of the
command shell, but they are used quite frequently.
save [default]
Save the current settings to flash memory so they are available
after power cycles. Sysinfo, destination, model, logpath,
variable, user, and I/O port settings will be saved. If default
is specified as well, factory settings will be saved, overwriting
any new settings you have configured.
reboot
Perform a warm boot or hardware reset to simulate a power-on
reset. This restores current settings to those stored in flash
memory, since the flash memory settings will be read and
loaded into memory upon bootup.
reset
Perform a warm boot or hardware reset to simulate a power-on
reset. This restores current settings to those stored in flash
memory, since the flash memory settings will be read and
loaded into memory upon bootup.
load [default]
Load the settings stored in flash memory and use them as the
current or working settings. If default is specified as well,
factory settings will be loaded.
Chapter 15 Complete Command List
340
lpstat [ioport] [jobID]
Example:
lpstat prn
Display active and queued jobs and I/O port status for a given
ioport
or jobID. Specifying one of these parameters will
shorten the output and focus on the particular I/O port or print
job specified.
cancel jobID
Example:
cancel d1prn-10
Remove a job from an I/O port queue. Use lpstat to find a
particular job ID first.
start fox|tts|loopb prn
Example:
start fox prn
Begin a debugging test on one of the I/O ports on the NIC. The
tests available are:
fox A continuous stream of text sent to the
attached printer. This is a good test for
troubleshooting hardware as long as the
attached printer supports text output.
tts A continuous stream of Gandalf 400C
TTS-compatible text sent to the attached
printer.
loopb Loopback test. Any input characters from the
device attached to the I/O port is echoed
back.
stop all|prn
Stop an output test on an I/O port.
disable ioport|destination
Example:
disable prn
Disable an I/O port so that queued jobs are not printed, or
disable a destination so jobs cannot be queued to it.
Miscellaneous Commands
341
enable ioport|destination|printer mgr
Example:
enable prn
Enable an
I/O port so that queued jobs are printed, or
enable a destination so jobs can be queued to it.
Example:
enable printermgr
Enables the printer debug port to allow remote printer
management software to function.
close tcp TCPindexnumber
Example:
close tcp 3
Close the a TCP/IP connection between a TCP/IP host and the
NIC. The TCPindexnumber can be retrieved from “debug tcp”
output.
ping [-s] hostIPaddress [datasize [packetnumber]]
Example:
ping 192.75.11.30
ping another TCP/IP host specified by hostIPaddress on
the NIC network. datasize is the datagram packet size which
defaults to 64 bytes if no size is included in the syntax and
packetnumber is the number of requests to be sent.
NOTE: To use a host or IP name instead of the address, you must
have set the DNS server on the NIC. Use the command
set sysinfo dns... to do this.
telnet hostIPaddress [escapecharacter]
Example:
telnet 192.75.11.35
Start a Telnet session with another TCP/IP host specified by
hostIPaddress on the NIC network. If escapecharacter is
used, it resets the key sequence used to exit the Telnet
session. It will return you to the telnet> prompt where you can
execute quit. Use the keycode command to find out exact
escape characters if needed. The default character is CTRL ].
NOTE: To use a host or IP name instead of the address, you must
have set the DNS server on the NIC. Use the command
set sysinfo dns... to do this.
Chapter 15 Complete Command List
342
tn dest destination start|stop
Example:
tn dest d1prn start
Set the tn autoconnect flag temporarily, to enable (start) or
disable (stop). See “store tn dest destination
[-]autoconnect” command for further definition.
chr <string>
Echo < string>
or redirect <string> to an I/O port using the
chr <string> ioport.
keycode
Determine the hexadecimal value for a key to be used as the
escape character with the NIC built-in telnet command.
?
(Help)
Lists all available commands.
343
16 Extra Features
NIC Security
There are TCP access lists available to restrict host connections
with the device.
Users And Passwords
The NIC supports two user types:
root Access to everything within the print server
including all configurable settings.
guest Ability to list settings only.
Passwords can be set for each user type. However, most often you
will just set a password for the root user to protect the NIC
configuration. Guest users cannot alter the print server
configuration in any way.
To configure a root password on your NIC:
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP. The
commands to set a root password are:
Syntax:
set user passwd username password
save
Example:
set user passwd root your_password_for_root
save
Chapter 16 NIC Security
344
2. Direct your Web browser to URL:
http://NICIPaddress/adminConf.html
(e.g., http://192.75.11.9/adminConf.html).
NOTE: If prompted for a “User ID” and password first, type in root
for the user ID and press ENTER at the password prompt
(since there is no password by default).
3. At the “Administration Configuration” HTML form that displays,
scroll down to the “Passwords” section.
4. Click within the “Old” field beside the “Root Password” heading
and enter the existing root password. By default, there is no
root password, so you can go to the next step without typing
anything in this field.
5. Within the “Root Password” section, click within the “New” field
and enter the new root password.
6. Within the “Root Password” section, click within the “Confirm”
field and enter the new root password again. Remember this is
case sensitive.
7. Click on the SUBMIT button when done and physically repower
the print server to make the new setting take effect.
From this point on, anytime you log in to the NIC as root, you will
need to specify this password or your login attempt will fail.
NOTE: To clear this password or change it, use the same
“Administration Configuration” HTML form. Just enter the
appropriate “Old” password and put in the new one (or
nothing if you do not want a root password any longer). The
commands directly on the NIC are:
set user from default
save
Reset The NIC Password
345
Reset The NIC Password
Occassionally a user will set a root user password on the NIC
adapter and then forget it. This is the procedure to reset the root
password back to the default (no password).
IMPORTANT
First determine the number of dip switches on the back of the
adapter, and the NIC version from the printer configuration
printout.
Do the appropriate procedure for the type of NIC contained in the
printer.
ADAPTER,
WLAN
ADAPTER
Procedure A
1. Turn the printer off.
2. Flip dip switch 1 down on the NIC adapter.
3. Turn the printer on, and wait about 1 minute for the adapter to
boot.
4. Flip dip switch 1 up.
5. Turn printer off, wait 15 seconds, then turn it back on.
6. Re-program the IP address information from the front panel.
NOTE: Steps 1 – 5 also clears the IP address information and
SSID and sets the adapter back to the factory default.
7. Type the following at the telnet prompt:
set user passwd root
save
reset
2 dip switches, Wireless NIC Procedure A, page 345
2 dip switches, Ethernet version greater than 1.1.20.0 Procedure A, page 345
2 dip switches, Ethernet version less than 1.1.20.0 Procedure B, page 346
3 dip switches, any ethernet version Procedure B, page 346
No dip switches, embedded NIC. Any version. Procedure C, page 347
Chapter 16 NIC Security
346
8. Wait about 1 minute for the adapter to reboot after the reset
command.
9. Turn the printer off, wait 15 seconds, and turn the printer back
on. Wait 1 minute for the adapter to boot.
10. Telnet back into the adapter, logging in as root with no
password, and pressing Enter.
Procedure B
1. Turn the printer off.
2. Flip dip switch 2 down on the NIC adapter.
3. Turn the printer on, and wait about 1 minute for the adapter to
boot.
4. Telenet to the adapter.
5. Login as root and press Enter for the password.
6. Flip dip switch 2 up.
7. Type the following at the telnet prompt:
set user passwd root
save
reset
8. Wait about 1 minute for the adapter to reboot after the reset
command.
9. Turn the printer off, wait 15 seconds, and turn the printer back
on. Wait 1 minute for the adapter to boot.
10. Telnet back into the adapter, logging in as root with no
password, and pressing Enter.
TCP Access Lists
347
Procedure C
1. Turn the printer on.
2. Take the printer offline and unlock the front panel by pressing
the up and down arrows keys at the same time, then releasing.
3. Press all four arrow keys (up, down, prev, next) at the same
time, and release.
4. Press the right (next) arrow until PRINTER MGMT appears.
5. Press the down arrow and then the right (next) arrow until “E-
NET To DEFAULT” appears.
6. Press Enter.
7. Re-program the IP address information from the front panel.
NOTE: Steps 1 – 5 also clears the IP address information and sets
the adapter back to the factory default.
TCP Access Lists
Within TCP/IP environments, the NIC can restrict host access to
destinations/queues and remote command (e.g., rsh, rcmd, remsh,
and telnet) execution services. This is done using an access list
similar in function to the Unix .rhosts file.
NOTE: Access list settings are not configurable through the HTML
forms provided with the NIC.
To view the current access list on the print server:
1. Start a Telnet session with the NIC.
Syntax:
telnet NICIPaddress
2. Log in as root and press ENTER at the password prompt
since there is no password by default (or your password for
your home set).
3. List the current access list.
Syntax:
list tcpip
Chapter 16 NIC Security
348
If the list is empty, all hosts have access to the NIC services. If
there are entries in the list, only those hosts specified have
access to printing and remote command execution.
To add and delete access list entries, the commands are:
Syntax:
store tcpip tcp access add|del hostIPaddress|
networkaddress
reset
where
hostIPaddress
is the IP address of a TCP/IP host on
your network and
networkaddress
is the address of a subnet on
your network.
Example:
store tcpip tcp access add 192.75.11.25
store tcpip tcp access add 192.75.12.0
store tcpip tcp access del 192.75.11.25
reset
NOTE: Although the maximum number of entries in the access list
is 10, each entry can refer to a network rather than a
specific host. This allows all hosts on that specified network
and any individual hosts specified in the list to have access.
Printer And Print Job Monitoring
349
Printer Monitoring And Logging
The NIC allows you to monitor printer status and log information
through its built-in HTML forms, command set, and logpaths.
Printer And Print Job Monitoring
To view the current status of an I/O port on the NIC, two methods
are available:
•select the desired I/O port on the “Status” HTML form
(i.e., http://NICIPaddress/indexStatus.html; e.g.,
http://192.75.11.9/indexStatus.html) that comes
with the NIC.
•enter the lpstat command directly on the print server once
logged in as guest or root.
In each case, you are given a description of each I/O port status
and a list of queued jobs. Table 13 describes some of the common
terms you may encounter.
Table 13. Key Printer Logging Terms
Term Description
idle There is no job queued for the NIC I/O port.
blocked The printer is not allowing the NIC to send data
to it. Check that there is not a printer error and it
is online and ready to go.
waiting The NIC knows about a print job but is waiting for
the host to send more data or to send an
expected packet.
Chapter 16 Printer Monitoring And Logging
350
Printer Logging Through Logpaths
In the NIC product manual, destinations are described as logical
queues with associated models and logpaths. Models determine if
any extra processing is needed with the print jobs passing through,
and logpaths determine whether any logging is needed for each
job.
Each logpath on the NIC consists of two parts:
TYPE The type of log information to be captured.
The choices are job for job ID and username,
user for user ID (and three messages per
job), cksum for file checksums, printer for
special printer feedback, and ioport for
parallel printer status messages.
PORT Where this log information will be sent to. The
choices are a TCP port number (e.g., 2000),
an email address (including an alias), or a
central host running a SYSLOG daemon.
To view the current logpath settings on the print server:
1. Load a Web browser on a network station that can
communicate with the print server over TCP/IP or using Telnet
(e.g. Telnet
ipaddress
). The command to view the logpath
settings is:
Syntax:
Printer Logging Through Logpaths
351
3. At the “Print Path Configuration” HTML form that displays,
select a destination link (e.g., d1prn) from the top of the page to
bring up the appropriate destination form.
4. Once the desired destination HTML form displays, scroll down
to the “Logpath Type” and “Logpath Port” sections to view the
current logpath settings for this particular destination.
At this point, you can alter any of these settings and then click on
the SUBMIT button to store them into the NIC. Remember to
repower the NIC to make the settings take effect.
Downloading Software Through The
Network Interface Card (NIC)
1. Make a printout of all saved configurations. (Installing new
software erases all saved configurations. You will use the
printouts to restore the printer configurations.)
2. Set the printer power switch to O (Off).
3. On the printer panel, press and hold down the appropriate keys
for your particular printer model, as described below:
Printer Series/Models Key Combination
P7000 ONLINE + PAPER ADVANCE
P5000 ONLINE + PAPER ADVANCE
T4000 PAUSE + FEED
T5000 + ↓
L1524 ONLINE + PAGE EJECT
L5000 ONLINE + CLEAR
.
.
.
Downloading Software Through The Network Interface Card (NIC)
Chapter 16 Downloading Software Through The Network Interface Card (NIC)
352
Without releasing the keys, power the printer on, and continue
holding the keys down until you see “TESTING HARDWARE
PLEASE WAIT” on the LCD. You may then release the keys.
4. Wait until you see “WAITING FOR PROGRAM DOWNLOAD”
on the LCD before proceeding. This can take up to 30 seconds
to appear, depending on the emulations and interfaces
installed in the printer.
5. Using Windows Explorer, create a directory named download
at the root level of your C: hard drive.
6. Insert the printer emulation software CD into your computer.

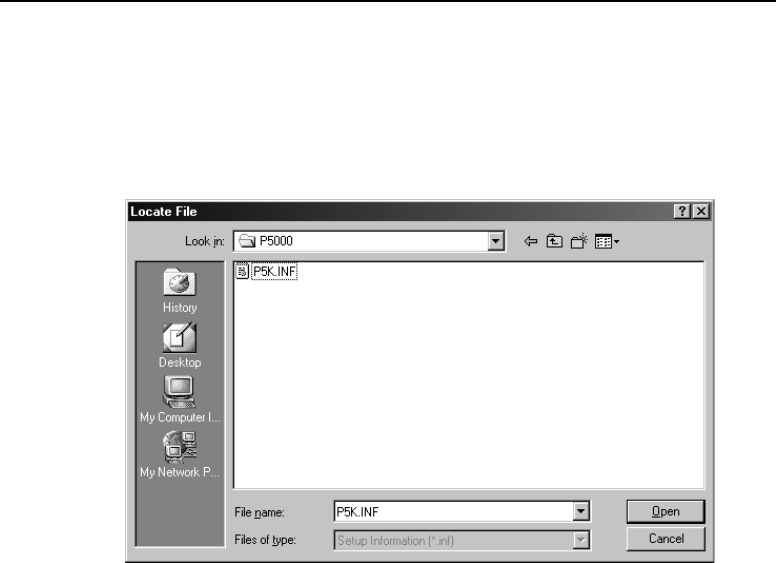

Figure 42. Navigating to the Appropriate Emulation File on the CD
Printer Logging Through Logpaths
353
7. Using Windows Explorer, navigate to the appropriate file on the
CD (using the Unzipped directory) based on the printer type,
and desired emulation, e.g., UnzippedT5000IGP.
(See Figure 42.)
IMPORTANT
You must use the Unzipped directory, since this contains the
uncompressed files necessary for NIC download.
8. Make note of the file name, which is a six digit number plus
.prg, e.g., 123456.prg.
This is the file you will download into the NIC.
9. Copy the file to the download directory.
10. Start a command prompt session. (The Start Menu icon is
usually labeled
MS-DOS Prompt or Command Prompt.)
11. At the command prompt type:
C:<Enter>
cd \download<Enter>
12. Start the FTP protocol by typing:
ftp xxx.xxx.xxx.xxx<Enter>
(where
xxx.xxx.xxx.xxx
represents the IP Address of the
printer.)
13. Log in to the printer by typing:
root<Enter>
You are given a password prompt.
NOTE: The default is no password. If the FTP program requires a
password, contact your system administrator.
14. At the password prompt, press <Enter>.
15. Once logged in, type the following sequence at the command
prompt to download the
filename
.prg file to the printer:
cd dest<Enter>
cd d1prn<Enter>
bin<Enter>
put filename.prg<Enter>
(where
filename
.prg is the file name you noted in step 8.)
Downloading Software Through The Network Interface Card (NIC)
Chapter 16 NIC Naming Schemes
354
CAUTION
Do not interrupt the downloading process once it has started.
Interrupting a download will damage the flash memory on the
controller board and NIC card.
16. As the file downloads, the FTP program shows the progress as
a percentage. Once the download is complete, exit out of the
FTP program by typing:
quit<Enter>
17. When the new program has successfully loaded into flash
memory and the printer has reset itself, set the printer power
switch to O (off).
18. Unplug the AC power cord from the printer.
19. Remove the CD from the host computer and store it with the
printer.
20. Using the configuration printout(s), reconfigure the printer and
reload any optional font files.
NIC Naming Schemes
A single I/O Port destination can be configured with a variety of
model and logpath combinations. For instance, once you set the
parameters for m1 and l1, you can assign the model and logpath to
more than one I/O port destination such as d1prn, d2prn, and
d8prn. You may now use the same set of model and logpath
parameters more than once without having to redefine those
parameters each time for another I/O Port destination.
Printer Logging Through Logpaths
355
Periodic Ping
This feature when enabled executes background ping from the print
server to its default gateway. The operation is executed on every
user defined period. This mechanism has no TCP traffic from the
print server to anything on the network to keep route information
alive. Since every member in the VLAN is subject to aging from
bridging cache, a switch or bridge in between may be forgotten in
the table at which port the printer was connected. If one ping is run
from printer server to its default gateway through the switch, the
switch learns again and the route is seen. The problem will not be
seen with TCP since the ACKs keep the bridge relearning in a
switch. Periodically send ICMP Echo Request between a print
server and its gateway that is typically situated in the same VLAN
and connected with the same switch or bridge.
The printer server allows a periodic group of ping packets [1 – 5] to
be issued by a set time [1– 5] minutes, to the gateway value the
NIC has from its routing table. This feature can be enabled or
disabled. The default is disable.
This periodic ping is different from the normal ping process. The
purpose of this ping is not an attempt at dead gateway detection.
There is no ping client created in the print server and the ICMP
Echo Reply packets received from the gateway are deleted without
being processed by the ping client. This reduces the processing
load on the print server. The data size of ICMP Echo Request
Message is set to 16 bytes such that the Ethernet frame is set to
64 bytes to minimize the impact of bandwidth on the network. This
process applies to all the active NIC interfaces.
Periodic Ping
Chapter 16 Periodic Ping
356
357
Glossary
ARP Address Resolution Protocol. Associates a
selected IP address with a network device
Ethernet address.
bps Bits per second.
Centronics Parallel port interface standard found on
most printers.
daemon A continuously running process that
handles system-wide functions like print
spooling.
default router Local device that forwards any IP packets
destined for another subnet.
destination Logical print queue on the NIC to which
hosts send their print jobs. There are eight
destinations by default.
DHCP Dynamic Host Configuration Protocol.
Allows a network device to discover its IP
address dynamically upon bootup. The IP
address does not need to be stored within
the device itself permanently.
Download Mode Refers to the condition of the NIC when in
a startup condition, downloading
configuration information.
DNS Domain Name Server. Host providing
responses to queries for a given host
name IP address.
358
EEPROM Electrically Erasable/Programmable Read-
Only Memory.
factory defaults Settings shipped with the NIC.
Factory Settings S2 jumper position stating all factory
default settings are to be used while the
NIC is up and running.
Firmware Panic Unrecoverable errors detected by the NIC
firmware force the Print Server into
Firmware Panic mode. Manually reset the
NIC to resume operation.
Flash Stores firmware code and configurable
settings. Allows for upgrades without
replacing hardware inside the NIC.
FTP File Transfer Protocol. Used for
transferring files from one TCP/IP host to
another and used in the upgrade process.
gateway Hardware device that translates data
between two incompatible networks.
gateway address The IP address of a gateway.
Hardware Exception Bus errors, address errors, and illegal
instructions force the NIC into this
NIC non-operational mode.
HTML HyperText Markup Language. Format
used for documents viewable on the World
Wide Web.
ifnum Interface Number. Represents the network
interface. With a NIC, this will always be
“1” for Ethernet.
interface script Unix host filter file that processes the print
job before it is sent over the network to the
NIC.
I/O port Port for attaching peripherals to. The NIC
provides four: PRN1, PRN2, COM1,
COM2.
359
IP Address The Internet Protocol Address. A numeric
address such as 123.45.61.23 which
identifies a printer or server in a LAN or
WAN.
LAN Local Area Network.
LED Light Emitting Diode. The printer has an
LED display which shows the status of the
printer to the operator.
logpath Determines the type of print job and printer
logging needed per job. One logpath is
associated with every destination.
LPD/LPR Line Printer Daemon. The most common
TCP/IP remote printing protocol that
crosses all hardware utilizing IP.
MAC Machine Address Code.
MIB Management Information Base. A set of
variables (database) managed by an
SNMP manager application.
model Defines how a print job should be
processed (e.g., banner pages added,
ASCII to PostScript conversion) as it
passes through the NIC. One model is
associated with every destination.
NetBIOS Network Basic Input Output System.
Common interface among PC networks.
Monitor Mode Refers to the condition of the NIC with no
configuration or IP address loaded.
npsh Extensive built-in command shell within
the NIC.
PDF Portable Document Format. Encodes
different types of documents enabling
them to be read across multiple platforms.
360
Persistent DHCP When this option is enabled, the IP
Address, Gateway, and Subnet Mask
obtained through DHSP is saved. If the
DHCP server does not provide an
address, the device will use the previously
saved DHCP IP address. This option only
works when DHCP is enabled. The default
disable.
ping Standard command to test a TCP/IP
connection. (e.g., ping 192.75.11.9)
print path Three-stage path a print job takes when it
is sent from a host to a printer through the
NIC.
protocol A set of rules or conventions governing the
exchange of information between
computer systems or between a printer
and a host computer. For computer
printers, a protocol is the coding
convention used to convey and print data.
A printer protocol includes codes for
printing text and graphics, as well as codes
instructing the printer to perform special
operations and machine-to-machine
communication codes.
PSERVER Print Server. A Novell print method where
the NIC continuously polls the Novell file
server print queue looking for print jobs.
RAM Random Access Memory. Volatile memory
within the NIC that contains current/
working settings. Settings are lost once the
power is removed.
RARP Reverse Address Resolution Protocol.
Allows a network device to discover its IP
address dynamically upon bootup. The IP
address does not need to be stored within
the device itself permanently.
361
ROM Read-Only Memory.
router A device that forwards IP packets to their
destination. Also called a gateway.
RPRINTER Remote Printer. A Novell print method
where the NIC waits for jobs to be sent to it
from a defined PSERVER.
SNMP Simple Network Management Protocol. A
standard protocol used to monitor network
devices called “SNMP agents.”
socket TCP connection between two hosts
consisting of a source and destination TCP
port number at each end.
subnet mask A binary value used to divide IP networks
into smaller sub-networks or subnets. This
mask is used to help determine whether IP
packets need to be forwarded to other
subnets.
TCP/IP Transmission Control Protocol/Internet
Protocol. Suite of protocols that act as the
base protocol for the Internet.
TCP port A logical connection point in the software
of a TCP host or device. When two IP
devices talk, they establish a socket which
consists of a source and destination TCP
port number on both ends.
telnet Command and protocol to establish a
terminal connection between two hosts on
an IP network.
UTP Unshielded Twisted Pair. A cable used for
telephone and computer-to-computer
connections.
WAN Wide Area Network.
362
363
Index
Symbols
(10/100Base-T) RPRINTER/NPRINTER
setup, troubleshooting, 197
? command, 306
Numerics
10/100Base-T
DIP Switches, 28
indicators, 24
Network Indicator, 25
Novell host configuration, 184
Novell NIC configuration, 172
Run and Auto Reset Modes, 25
speed setting, 29
troubleshooting, 194
Wireless Network Indicator, 26
10/100Base-T printing,
troubleshooting, 199
802.11b, 59
Antenna, 60
Authentication Method, 61
Channel, 60
Default Key, 61
Key, 60
Mode, 59
Network Name, 59
Options, 60
Password, 61
Power Management Mode, 60
Preamble, 60
Speed, 60
Transmit Power, 60
User, 61
A
Access lists, TCP, 347
Access methods, npsh, 305
Add preferred file server, 173
ADDTCPIFC, configuring with, 231
ADDTCPRTE, router definition, 233
Administration, configuration, 85
AFP file printing, 245
AFP with CRTPSFCFG on V3R2,
configuring, 253
Agent model, printer monitoring, 301
AIX 4, NIC configuration, 144
AIX NetView/6000, monitoring, 304
AIX printing, 147
AIX, remote queue time-out setting, 146
Alert groups, 80
Alternatives, configuration, 54
Antenna, 802.11b, 60
ARP, Unix, 128
AS/400
automatic remote output queue, 236
configuring as an IPDS printer, 245
configuring for ASCII, 231
configuring for printing, 234
CRTLINETH, 229
hostname, 233
Index
364
IPDS configuration checklist, 246
local domain, 233
network sharing, 269
printer sharing parameters, 270
printing AFP files, 245
printing IPDS files, 245
printing SCS files, 245
remote printer queue name, 234
TCP/IP access problem, 242
TCP/IP host table entry, 233
troubleshooting, 273
verify IPDS configuration, 268
verify printing, 240
AS/400 ASCII
HTTP problem, 244
troubleshooting, 241
AS/400 troubleshooting
cannot PING the printer, 273
clipped data, 274
PSF/400 terminates when
initialized, 273
spooled files disappear without
printing, 274
spooled print file remains in PND
status, 274
ASCII
configuring AS/400, 231
setting up for printing, 234
Authentication Method, 802.11b, 61
Auto Connect, TN5250/3270, 76
Auto reset mode, 25
Automatic remote output queue,
AS/400, 236
B
Back Channel, Print Path, 65
Banner Page, 69
Banner Page, Print Path, 66
Bindery PSERVER setup
NetWare 3.x, 187
NetWare 4.x, 187
NetWare 5.x, 187
Bindery setup
change NIC frame type, 180
change NIC mode, 181
change NIC name, 178
password security, 175
polling time, 177
preferred file server, 172
BOOTP, Unix, 131
Browse NIC, troubleshooting, 121
C
Change destination names, NIC, 98
Change NIC frame type
Bindery setup, 180
NDS setup, 180
Change NIC mode
Bindery setup, 181
NDS setup, 181
Change NIC name
Bindery setup, 178
NDS setup, 178
Index
365
Channel, 802.11b, 60
Coax Printer Support FMD, 275
Command list
List commands, 296
store commands, 295
TN5250, 295
TN5250 Auto Connect command, 296
Command prefixes, 306
npsh, 305
Command Shell, 305
ways to access, 51
Commands
?, 306
complete list, 307
getting help, 306
list, 335
miscellaneous, 339
set, 322
store, 307
Communcation routers, Windows, 96
Configuration
administration, 85
AFP with CRTPSFCFG on V3R2, 253
alternatives, 54
control panel, 34
Encryption Key, 44
Equivalent Wireless NIC, 48
IP Address, 40
Kerberos, 89
Log Path, 71
network, 57
NIC for AIX 4, 144
Print Model, 68
Print Path, 64
PSF for IPDS on V4R2 and above, 261
PSF/400 for IPDS on V3R2, 250
PSF/400 for IPDS on V3R7 and
above, 256
Security, 89
SNMP, 77
System, 89
TN5250/3270, 73
wireless NIC, 40
Wireless Parameter, 41
Configuration checklist, MVS, 212
Configuration menu, NIC, 56
Configuration Screens, TN3270E, 289
Configuration tools, 34
Connecting to the network, 33
Control panel message, Dynamically Set
Params Read Only, 154
Control panel, configuration, 34
Credentials Information, 91
CRTLINETH, line descriptions, 229
Customer Support Center, 31
D
Default Key, 802.11b, 61
Define LPR printer, error, 121
Destination settings, Print Path, 64
Destinations
models, 21
NIC, 21
Device Description, TN5250/3270, 75
Device Type, TN5250/3270, 76
Index
366
DIP Switches, 28
Direct socket printing, 148
Document conventions, 30
Downloading software, 351
Dynamically Set Params Read Only
message, 154
E
E-mail alert posting, 78
Encryption Key Configuration, 44
Equivalent Wireless NIC Configuration, 48
Errors, defining LPR printer, 121
F
File Server, Novell Network, 63
Filter, Print Model, 69
Filter, Print Path, 66
Font Identifier, TN5250, 299
FrameType, Novell Network, 63
FTP printing, 147
G
Getting Help command, 306
Getting started, NIC with AS400 running
TN5250, 296
Guest user, NIC, 343
H
Header String, Print Model, 69
Header String, Print Path, 67
Help command, getting, 306
Home page, URL, 51
Host configuration
Novell, 158
Unix, 133
Host IP, TN5250/3270, 74
Host setup
Printronix Printing System (PPS), 117
Windows 2000, 104
Windows 3.1, 118
Windows 9x, 116
Windows Me, 116
Windows NT 3.51, 114
Windows NT 4.0, 100
Windows XP, 104
HP-UX, 134
HTML
method print server setup, 176
NIC structure, 52
HTML forms, 51
Novell, 157
HTTP, troubleshooting, 124
I
I/O Port, status, 91
Indicators, 10/100Base-T, 24
Information, credentials, 91
Installation
HP-UX, 134
SCO, 136
Solaris 2.6, 135
Installation Solaris 7, 135
Installation, NIC, 33
Interface, TCP/IP Network, 58
IP Address Configuration, 40
Index
367
IPDS configuration
checklist, AS/400, 246
verify on AS/400, 268
IPDS file printing, 245
IPDS printer, configuring on AS/400, 245
J
Job formatting, TN5250, 297
K
Kerberos, 49
configuration, 89
Parameters, 46
Key, 802.11b, 60
L
LEAP Parameters, 45
Line descriptions, CRTLINETH, 229
List commands, 335
TN5250, 296
Log Path
configuration, 71
Logpath Port, 72
Logpath Type, 71
Name, 71
Log Path Port, Print Path, 67
Log Path Type, Print Path, 67
Logging, printer, 349
Logical printer architecture, 19
Logpath Port, Log Path, 72
Logpath Type, Log Path, 71
Logpaths, printer logging, 350
LPR
command, OS/2, 204
Port Daemon, OS/2, 207
print queue, OS/2, 205
LPR/LPD Host setup, 143
M
Manager model, printer monitoring, 301
Manual
notes, 31
notices, 31
Manual (Telnet) method, print server
setup, 176
Manual LPR/LPD Host setup, 143
Manual system, V Host setup, 133
Message Queue Library, TN5250/3270, 75
Message Queue Name, TN5250/3270, 75
MIB, 302
Microsoft TCP/IP printing, 125
Miscellaneous commands, 339
Mode
auto reset, 25
run, 25
Mode, 802.11b, 59
Mode, TN5250/3270, 74
Model Type, Print Model, 68
Model Type, Print Path, 66
Models, 21
setting a formfeed, 152
setting onlcr, 151
Index
368
Monitoring
print job, 349
printer, 349
MVS
configuration checklist, 212
define printer to JES, 218
JES spool printer sharing, 224
port switching printer sharing, 226
printer connection, 217
requirements, 211
N
Name
Log Path, 71
Print Model, 68
Print Path, 65
Naming schemes, NIC, 354
NDPS configuration, NetWare 4.11 and
above, 191
NDS PSERVER setup
NetWare 4.x, 185
NetWare 5.x, 185
NDS setup
change NIC frame type, 180
change NIC mode, 181
change NIC name, 178
NIC NDS content, 182
NIC preferred NDS tree, 183
password security, 175
Index
369
NetWare Version 5.x
PSERVER setup, 163
RPRINTER setup, 166
Network
configuration, 57
connection, 33
NIC cannot be found, 120
status, 92
TCP/IP, 57
Network Indicator, 25
Network Interface Card, 17
Network Name, 802.11b, 59
Network sharing, AS/400, 269
NIC, 17
cannot be found, 120
cannot be found on network,
troubleshooting, 149
change destination names, 98
configuration (10/100Base-T),
Novell, 172
configuration for AIX 4, 144
configuration menu, 56
configuration, Windows, 94
destinations, 21
guest user, 343
HTML structure, 52
installation, 33
naming schemes, 354
passwords, 343
queues, 21
reset password, 345
root user, 343
running AS400 with TN5250, 296
security, 343
Set NDS content, 182
Set preferred NDS tree, 183
special features, 18
users, 343
verification, 39
NIC NDS content, NDS setup, 182
NIC preferred NDS tree, NDS setup, 183
NIC TCP/IP settings, OS/2, 203
No extra page, troubleshooting, 152
No form feed, troubleshooting, 152
Notes, 31
Notices, 31
Novell
environment, 155
Host configuration, 158
host configuration, 10/100Base-T, 184
HTML forms, 157
NIC configuration, 156
NIC configuration (10/100Base-T), 172
troubleshooting, 168
Novell Network, 62
File Server, 63
FrameType, 63
NDS, 63
Protocol, 62
Pserver, 63
Rprinter, 64
Service Type, 63
Index
370
Npsh
access methods, 305
command prefixes, 305
O
Onlcr, 151
Options, 802.11b, 60
OS/2
LPR command, 204
LPR Port Daemon, 207
LPR print queue, 205
NIC TCP/IP settings, 203
TCP/IP access problem, 208
workstation configuration, 204
OS/2 TCP/IP, 303
P
Parameters
Kerberos, 46
LEAP, 45
Password security
Bindery setup, 175
NDS setup, 175
NetWare 3.x, 175
NetWare 4.x, 175
NetWare 5.x, 175
Passwords, 88
802.11b, 61
NIC, 343
reset, 345
Periodic Ping, 355
Polling time
adjusting, 177
Bindery setup, 177
NDS setup, 177
NetWare 3.x, 177
NetWare 4.x, 177
NetWare 5.x, 177
Port, TN5250/3270, 74
Power Management Mode, 802.11b, 60
Preamble, 802.11b, 60
Preferred file server
adding, 173
Bindery setup, 172
NDS setup, 172
removing, 174
Prefixes, command, 306
Print job monitoring, 349
Print Model, 69
Banner Page, 69
configuration, 68
Filter, 69
Header String, 69
Model Type, 68
Name, 68
Printer Configuration, 70
Trailer String, 69
Print Path
Back Channel, 65
Banner Page, 66
configuration, 64
destination settings, 64
Filter, 66
Index
371
Header String, 67
Log Path Port, 67
Log Path Type, 67
Model Type, 66
Name, 65
Printer Configuration, 67
Selected Log Path, 67
Selected Model, 66
Services, 65
Trailer String, 67
Print server setup
HTML method, 176
manual (Telnet) method, 176
Printer
errors, 122
logging, 349
logging through logpaths, 350
monitoring, 349
sharing parameters, AS/400, 270
status screen, 53
Printer Configuration
Print Model, 70
Print Path, 67
Printer Inventory Manager, TN3270E, 280
Printer management implementation, 301
Printer monitoring
Agent model, 301
Manager model, 301
MIB, 302
SNMP, 303
tools, 303
Printing
AIX, 147
ASCII, 234
configuration, AS/400, 234
direct socket, 148
FTP, 147
troubleshooting, 150
verification, AS/400, 240
Printronix Printing System (PPS), Host
setup, 117
Problem
AS/400 ASCII HTTP, 244
AS/400 ASCII Web browser, 244
Program materials, TN3270E, 276
Protocol, Novell Network, 62
PSERVER setup
NetWare Version 4.x, 163
NetWare Version 5.x, 163
troubleshooting, 194
Pserver setup, NetWare Version 3.x, 158
Pserver, Novell Network, 63
PSF for IPDS
on V4R2 and above, configuring, 261
PSF/400 for IPDS on V3R2,
configuring, 250
PSF/400 for IPDS on V3R7 and above,
configuring, 256
Q
Queues
models, 21
NIC, 21
Index
372
R
RARP, Unix, 130
Reference a Bindery queue in NDS
NetWare 3.x, 188
NetWare 4.x, 188
NetWare 5.x, 188
Remote management software, 304
Remote shell, 54
Remove preferred file server, 174
Resource Name, TN5250/3270, 75
Root user, NIC, 343
Routers, Unix, 132
Routing, TCP/IP Network, 58
RPRINTER setup
NetWare Version 3.x, 160
NetWare Version 4.x, 166
Netware Version 5.x, 166
Rprinter, Novell Network, 64
RPRINTER/NPRINTER setup
NetWare 3.x, 188
NetWare 4.x, 188
NetWare 5.x, 188
Run mode, 25
S
SCO setup, 136
SCS file printing, 245
Security
configuration, 89
Kerberos, 89
Security, NIC, 343
Selected Log Path, Print Path, 67
Selected Model, Print Path, 66
Service Type, Novell Network, 63
Services, Print Path, 65
Set commands, 322
Shell, command, 305
SNMP, 303
community name, 304
configuration, 77
manager alert posting, 77
Software, downloading, 351
Solaris 2.6, 135
Solaris 7, 135
Special features, NIC, 18
Speed setting, 10/100Base-T, 29
Speed, 802.11b, 60
Stair-stepped output, troubleshooting, 151
Start/Stop Auto Connect, TN5250/3270, 76
Status
I/O Port, 91
menu, 91
Network, 92
Status screen, printer, 53
Store commands, 307
TN5250, 295
Support, technical, 31
Syslog alert posting, 78
System
configuration, 89
information, 85
Index
373
T
TCP access lists, 347
TCP/IP
access, troubleshooting, 122
configuring AS/400 for ASCII, 231
TCP/IP access problem
AS/400, 242
OS/2, 208
Unix, 152
TCP/IP Network, 57
Interface, 58
Routing, 58
TCPIP Configuration, TN3270E, 279
Technical support, 31, 119
Telnet, 54
Telnet commands, TN5250, 295
TN3270E
Configuration Screens, 289
Printer Inventory Manager, 280
Programs materials, 276
TCPIP Configuration, 279
VTAM Definitions, 277
z/OS Configuration, 275
TN5250
Auto Connect command, 296
command list, 295
Font Identifier, 299
job formatting, 297
running AS400, 296
set up connection device via
telenet, 294
set up print queue on AS/400, 293
Telnet commands, 295
user supplied values, 295
TN5250/3270
Auto Connect, 76
configuration, 73
Device Description, 75
Device Type, 76
Host IP, 74
Message Queue Library, 75
Message Queue Name, 75
Mode, 74
Port, 74
Resource Name, 75
Start/Stop Auto Connect, 76
WSCST Library, 76
WSCST Name, 76
Tools, printer monitoring, 303
Trailer String
Print Model, 69
Print Path, 67
Transmit Power, 802.11b, 60
Troubleshooting
(10/100Base-T) RPRINTER/
NPRINTER, 197
10/100Base-T, 194
10/100Base-T printing, 199
AS/400, 273
AS/400 ASCII, 241
cannot browse NIC on Network, 121
defining LPR printer, 121
HTML configuration forms, 120
HTTP, 124
Index
374
NetWare 3.x, no PSERVER
connection, 169
NetWare 4.x, no PSERVER
connection, 170
NetWare 5.x, no PSERVER
connection, 170
NIC cannot be found, 120
NIC cannot be found on Network, 149
no extra page, 152
no form feed, 152
Novell, 168
printer errors, 122
printing, 150
PSERVER setup (10/100Base-T), 194
stair-stepped output, 151
TCP/IP access problem, 122
Unix, 149
Web browser, 124
Windows, 119
Windows 2000 Host setup, 125
Windows NT 4.0 Host setup, 125
U
Unix
crossing routers, 132
environment, 127
Host configuration, 133
manual system V Host setup, 133
NIC configuration, 128
TCP/IP access problem, 152
troubleshooting, 149
using ARP, 128
using BOOTP, 131
using RARP, 130
Unix troubleshooting
Dynamically Set Params Read Only
message, 154
URL, home page, 51
User, 802.11b, 61
Users, NIC, 343
Using ARP, Windows, 94
V
V Host setup, manual system, 133
Verification, NIC, 39
VTAM Definitions, TN3270E, 277
W
Web browser
problem, 244
troubleshooting, 124
Web server, overview, 55
Windows
communication routers, 96
configuration, 93
environment, description, 93
mandatory configuration, 94
NIC configuration, 94
optional configuration, 94
troubleshooting, 119
using ARP, 94
Windows 2000
Host setup, 104
Host setup troubleshooting, 125
Index
375
Windows 3.1, Host setup, 118
Windows 9x, Host setup, 116
Windows Me, Host setup, 116
Windows Network (NetBIOS TCP/IP), 61
Workgroup Name, 62
Windows NT 3.51, Host setup, 114
Windows NT 4.0
Host setup, 100
Host setup troubleshooting, 125
Windows XP, Host setup, 104
Wireless Kerberos, 49
Wireless Network Indicator, 26
Wireless NIC Configuration, 40
Wireless Parameter Configuration, 41
Workgroup Name, Windows Network
(NetBIOS TCP/IP), 62
WSCST Library, TN5250/3270, 76
WSCST Name, TN5250/3270, 76
Z
z/OS
communications control unit, 214
connectivity problems, 226
define printer to PSF, 219
printer sharing, 224
printing IPDS, 213
TCP/IP profile, 214
verifying TCP/IP-attached printer, 223
z/OS Configuration, TN3270E, 275
Index
376
For technical assistance, contact your
Distributor/VAR/Reseller for service.
For further assistance, contact the Printronix Customer Support Center.
Printronix Customer Support Center
Americas (714) 368-2686
Europe, Middle East, and Africa (31) 24 6489 410
Asia Pacific (65) 6548 4114
Web site: http://www.printronix.com/public/servicessupport/default.aspx
Printronix Supplier Center
Americas (800) 733-1900
Europe, Middle East, and Africa (33) 1 46 25 1900
Asia Pacific (65) 6548 4116 or (65) 6548 4182
Web site: http://www.printronix.com/public/supplies/default.aspx
Printronix, Inc.
14600 Myford Road
P.O. Box 19559
Irvine, CA 92623-9559
Phone: (714) 368-2300
Fax: (714) 368-2600
Printronix Schweiz Gmbh
42 Changi South Street 1
Changi South Industrial
Estate Singapore 486763
Phone: (65) 6542 0110
Fax: (65) 6543 0220
Printronix, Inc.
Nederland BV
P.O. Box 163 Nieuweweg 283
NI-6600 Ad Wijchen
The Netherlands
Phone: (31) 24 6489 489
Fax: (31) 24 6489 499
Or visit the Printronix web site at www.printronix.com
