User Manual
（1）
DTR920 Transceiver
Ⅰ.SUMMARY
DTR920 Wireless transceiver module adopt
high-performance RF IC ,adopt high-efficient forward correct
error by CRC , work steady and reliable while being at a high
speed. Industry grades of standard, small and easy to install.
Ⅱ.SPECIALITY
1．Miniature power: transmit power 70dBuv.
2. Carry frequency: 434MHz.
3. High anti-interference ability: adopt high-efficient
forward correct error and check error by CRC, when the channel
signals error code rates on the10 -2, can receive error code
rates of actual mistake 10-5-10-6.
4. Transparent data transmission of half duplexing
communication.
5. The wireless communication of high speed and big data
buffering area.
6. Flexible set up：RF frequency ,series rate ,product ID.
7. Transmit distance： <600m。
8. interface：RS232，TTL，RS485
9. Low consumption and sleep function :receiving current
<25mA ， transmitting current<35mA,sleep current<20uA （ baud
rate=9600bps）.
10. DC Power:+5V
12. High dependability, industry standard.
（2）
Ⅲ.TECHNICAL SPECIALITY
Parameter value unit
Frequency 434 MHz
Modulate Type FSK
Modulate Frequency Shift ±30 KHz
Bandwidth 200 KHz
Output Power 70 dBuv
Humorous <- 60 dB
Output Impedance 50 Ω
Sensitivity -113@1200bps dbm
RF Rate 1200-9600 bps
Series Rate 1200-9600 bps
Receive <25 mA
Current Transmit <35 mA
Temperature -40 -- +85 ℃
Shape Size 39*20*3 cm*cm
Communication Distance 600 m

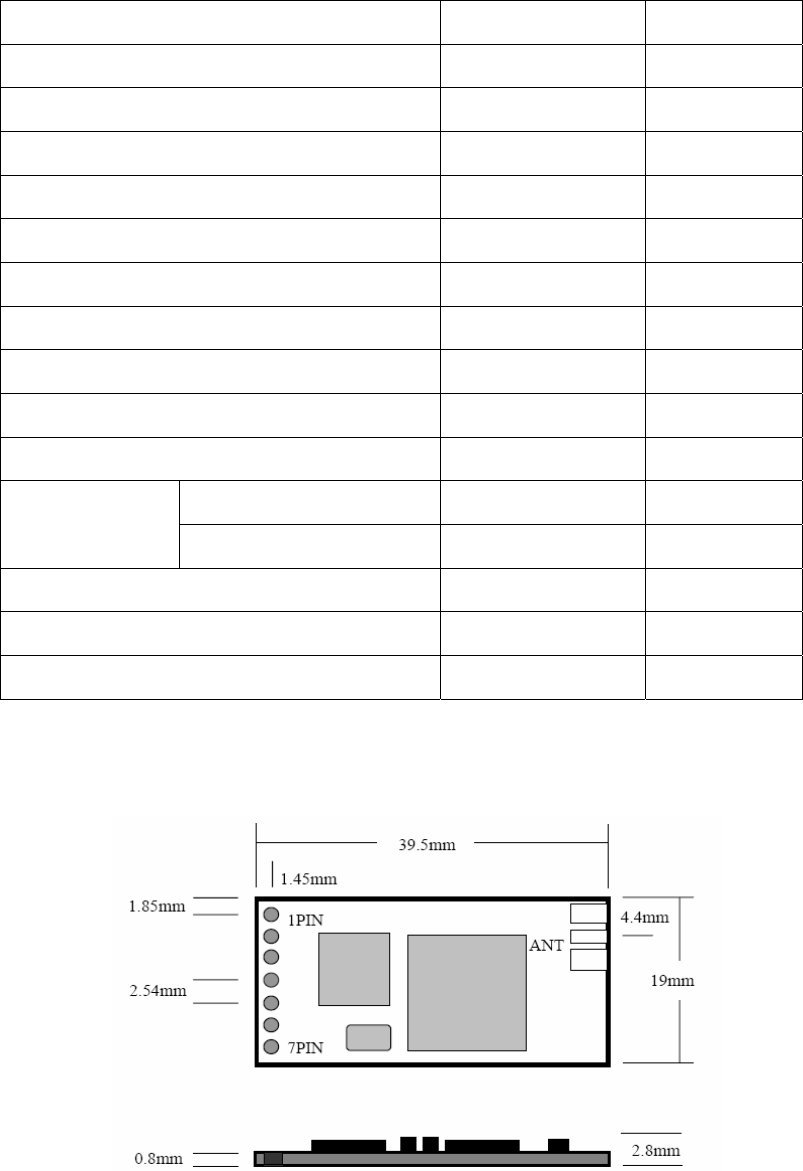

Ⅳ.PIN DEFI AND OUTSIZE
（3）
PIN
NAME
FUNCTION
1 GND GND
2 VCC 5V
3 EN LOW:SLEEP，
HIGH:NOM
4 RXD UART INPUT（TTL）
5 TXD UART OUTPUT（TTL）
6 B/RX 485 B/RS232 INPUT
7 A/TX 485 A/RS232 OUTPUT
Ⅴ：Application
Wireless Data Transceiver
■ Ammeter, watch meter, gas meter wireless read meter
■ Fire control, safe defend
■ Traffic, meteorological phenomena, environmental data are
gathered
■ Intellectual district, parking area vehicle managing
■ The controlling wirelessly of industrial automation and
intelligence instrument.
■ Logistics trail, the warehouse is patrolled and examined.
■ Oil field、gas field、water conservancy、mine data collect.
（4）
FCC Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
