ZF02-U Wireless Module
Operation Manual

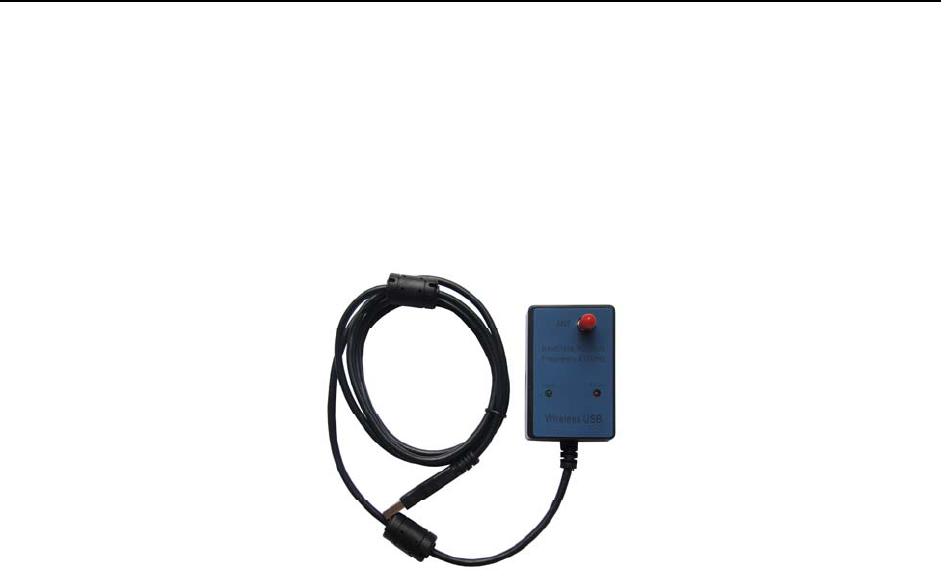

Figure 1. ZF02-U wireless module
z Features：
1．Providing USB interface，highly integrated，can connect with transceiver equipment
directly.
2. Low power RF transmission：Maximum transmit power 10mW
3. GFSK/FSK modulation mode
4. Crystal frequency stabilization.
5. High-efficiency forward error correction channel encoding technology is used.
z Main Application Areas：
1. AMR – Automatic Meter Reading
2. Wireless alarm and security systems
3. Wireless POS, PDA
4. Long-distance non-contact RF smart cards, RFID tags.
5. Wireless Field Bus、wireless conference voting system
NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD
ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO
TELEPHONE：0574 88046201 FAX：0574-88046202
z Main Technical Specifications：
RF channels 433.05MHz
modulation mode GFSK
baud rate 9600bps
output power 10mW
Interface data
format UART ,8E1/8N1 data format
Power supply DC 3.6V---5V
overall
dimensions 70 X 45 X 17 mm

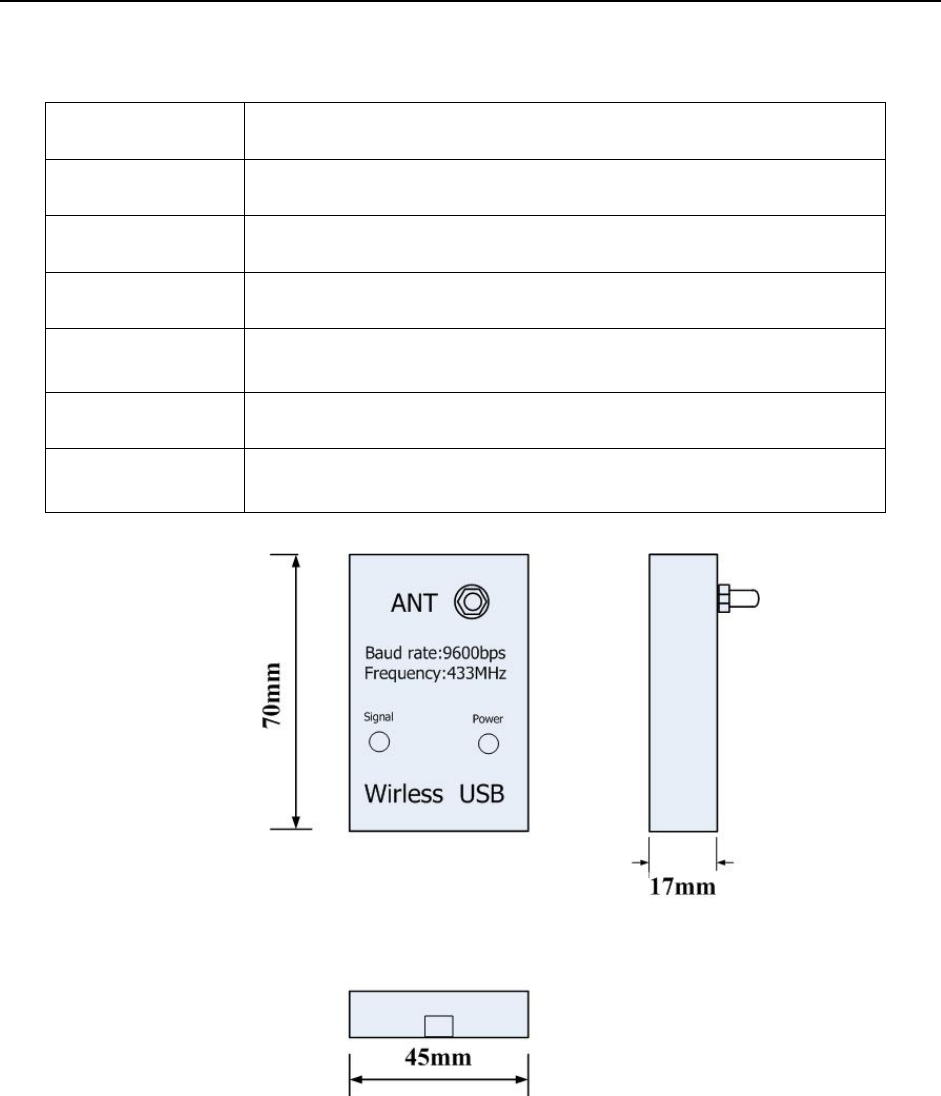

Figure2. interface and sizes
NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD
ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO
TELEPHONE：0574 88046201 FAX：0574-88046202
z Interface Description：
ZF02-U wireless module can be directly connected to PC computer by USB port, shown as Figure3.
A
B
PC
Wireless
communication
channel setting
RF
MCU
TTL
to
USB
USB
USB
A
B
PC
RF
MCU
TTL
to
USB
USB
USB

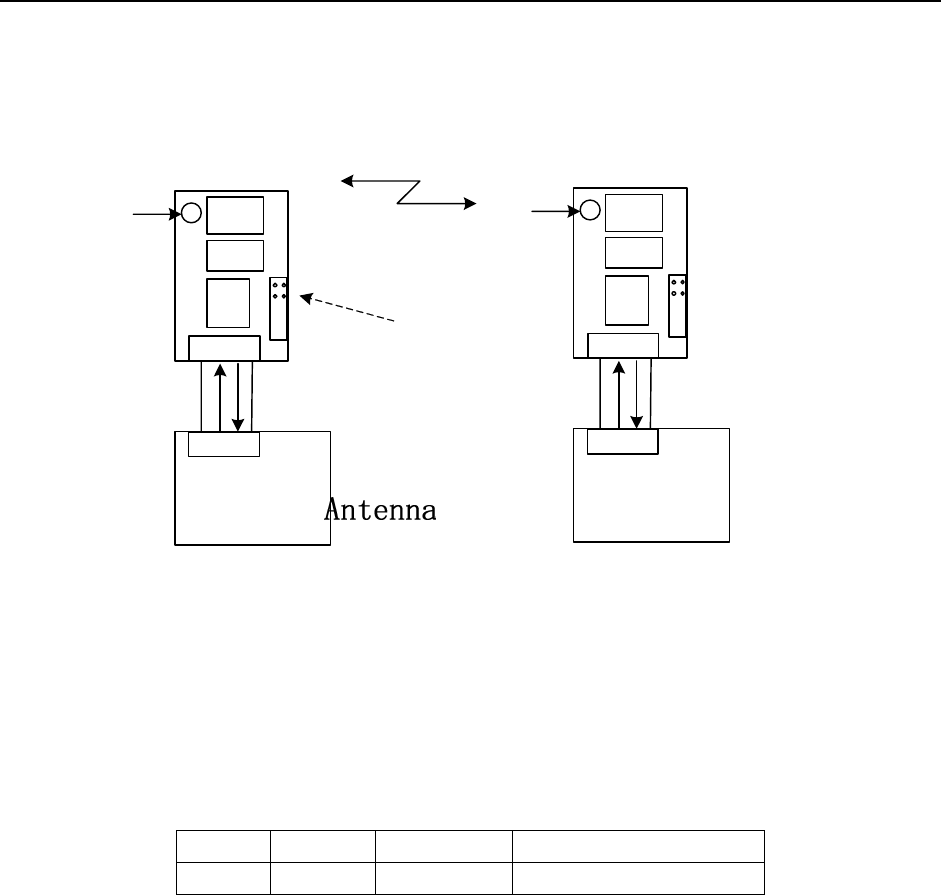

Figure3. ZF02-U wireless communication application diagram
z Channel setting
There is one group of 5-bit short-circuiter wire (JP2) as shown in Figure 2, defined as A、
B 、C、D、E respectively，A and B are used for setting channels，so there are 4 channels
can be set . “0”= short, “1”= open
A B channel frequency(MHz)
1 1 4 433.05
