1. Introduction
1.1 Introduction
This full rate Wireless ADSL2+ router is an all-in-one ADSL2+ router for Home and
SOHO applications. This gateway are with full-featured ADSL router that provides high-speed
Internet access, 4-port Ethernet switch direct connections to individual PCs or local area
network with 10/100 Base-T Ethernet and a 54Mbps IEEE802.11g wireless connectivity.
WAR25TC uses advanced ADSL chipset solution with complete set of industry standard
features for high-speed Internet access. Also built-in 54Mbps IEEE802.11g wireless service
can provide you easy and convenient way to connect the PCs and Internet. User can enjoy
higher quality multimedia and real-time applications such as online gaming, Video-on-Demand,
VoIP and other bandwidth consuming services. Also the feature-rich routing functions are
seamlessly integrated to ADSL service for existing corporate or home users. This product is
made in ISO9001 approved factory and complies with FCC part15 regulations and CE
approval.
1.2 Product Features

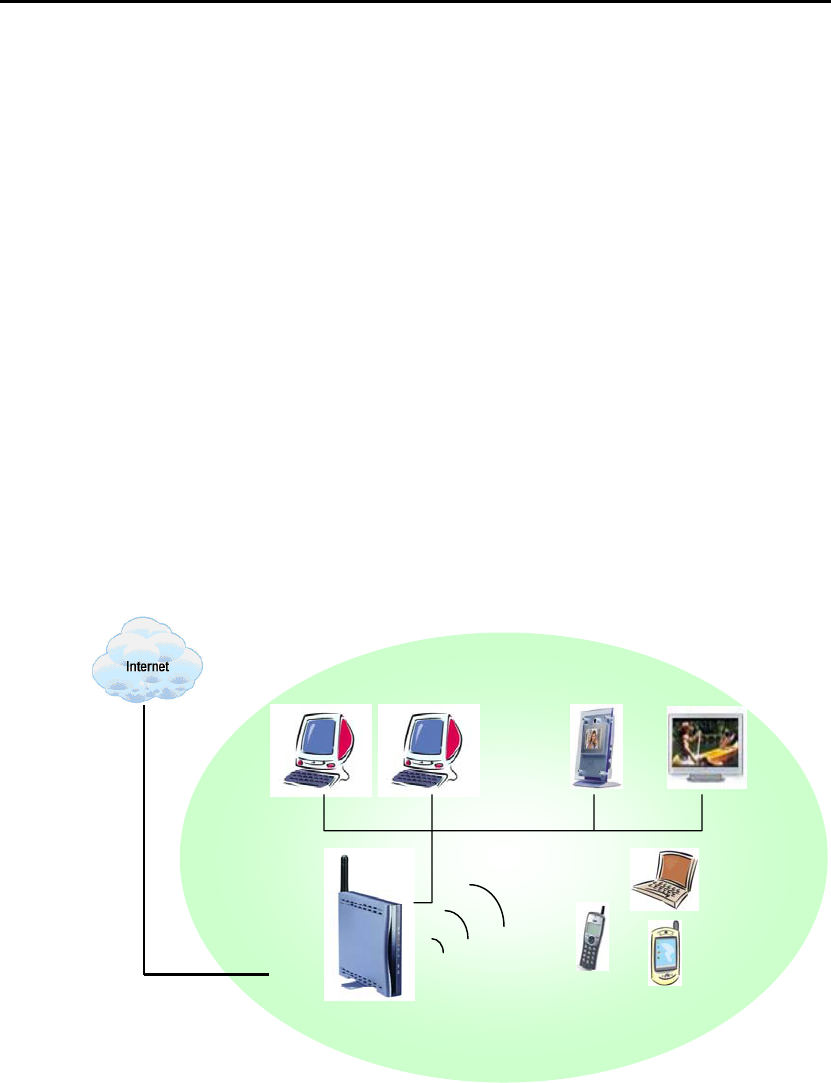

Application Diagram
High Speed Internet Access
This Wireless ADSL2+ router complies with ADSL / ADSL2 / ADSL2+ standards. It can
support downstream rates of up to 24Mbps and upstream rates of up to 1Mbps. This ADSL2+
router is compliant with the following standards.
WAR25TC
IP Phone / Video Phone
IP Phone / PDA / NB
6
ANSI T1.413 issue 2
ITU-T G.992.1 (G.dmt)
ITU-T G.992.2 (G.lite)
G.994.1 (G.hs, Multimode)
ITU-T G.992.3 (ADSL2 G.dmt.bis)
ITU-T G.992.4 (ADSL2 G.lite.bis)
ITU-T G.992.5 (ADSL2+; Annex A, B, I, J, L & M)
Reach Extended ADSL (RE ADSL)
Quick Setup Wizard
Support Quick Setup Wizard Web GUI to configure this Wireless ADSL2+ router easily
and quickly.
Multi-connection protocol support
Multi Protocol over AAL5 (RFC1483 / 2684)
Classical IP over ATM (RFC 1577)
VC and LLC Multiplexing
PPP over Ethernet (RFC 2516)
PPP over ATM (RFC 2364)

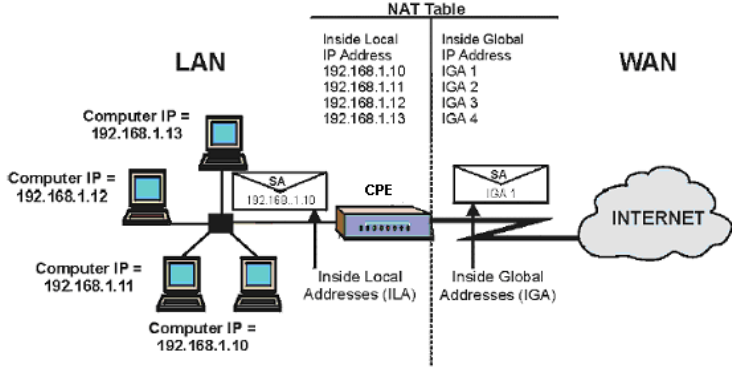

Network Address Translation (NAT)
Network Address Translation (NAT) allows the translation of an Internet protocol address
used within one network (for example a private IP address used in a local network) to a
different IP address known within another network (for example a public IP address used on
the Internet).
Universal Plug and Play (UPnP)
Universal Plug and Play is a standard that uses Internet and Web protocols to enable
devices such as PCs, peripherals, intelligent appliances, and wireless devices to be plugged
into a network and automatically know about each other. This protocol is used to enable
simple and robust connectivity among stand-alone devices and PCs.
Dynamic DNS Support
With Dynamic DNS support, you can have a static hostname alias for a dynamic IP
address, allowing the host to be more easily accessible from various locations on the Internet.
You must register for this service with a Dynamic DNS client.
7
DHCP Support
DHCP (Dynamic Host Configuration Protocol) allows individual clients to obtain TCP/IP
configuration at start-up from a centralized DHCP server. The ADSL router has built-in DHCP
server capability enabled by default. It can assign IP addresses, an IP default gateway and
DNS servers to DHCP clients. It can also act as a surrogate DHCP server (DHCP Relay)
where it relays IP address assignment from the actual real DHCP server to the clients.
Device Management
Web-based GUI Configuration / Management
Command-line Interpreter (CLI)
Telnet Remote Management
Firmware upgrade via FTP / TFTP (Web-based GUI)
Built-in Diagnostic tool and IP Ping
SNMP (Simple Network Management Protocol) Support
It’s an easy way to remote control the router via SNMP.
10/100M Auto-negotiation Fast Ethernet switch
This auto-negotiation feature allows the router to detect the speed of incoming
transmissions and adjust appropriately without manual intervention. It allows data transfer of
either 10 Mbps or 100 Mbps in either half-duplex or full-duplex mode depending on your
Ethernet network.
Multiple PVC (Permanent Virtual Circuits) Support
Support up to 8PVCs.
Supports OAM F4/F5 loop-back, AIS and RDI OAM cells.
ATM Forum UNI 3.1/4.0 PVC
Bridging / Routing support
Ethernet to ADSL self-learning Transparent Bridging (IEEE 802.1D)
IP routing-RIPv2 (backward compatible with RIPv1)
Static IP routing
Routing (TCP/IP/UDP/ARP/ICMP)
IP Multicast IGMP v1/v2
8
Security
PPP over PAP (Password Authentication Protocol; RFC1334)
PPP over CHAP (Challenge Authentication Protocol; RFC1994)
VPN (IPsec, PPTP, L2TP) pass through
Built-in NAT Firewall
IP-based Packet filtering
Password Protected System Management
9
2. Hardware Installation
2.1 System Requirements
Pentium III 266 MHz processor or higher
128 MB RAM minimum
20 MB of free disk space minimum
RJ45 Ethernet Port
2.2 Package Contents
Wireless ADSL2+ Ethernet Router
RJ-45 Ethernet cable
RJ-11 Phone cable
Power Adapter
Quick Installation Guide
2.3 Front Panel Indicators and Description

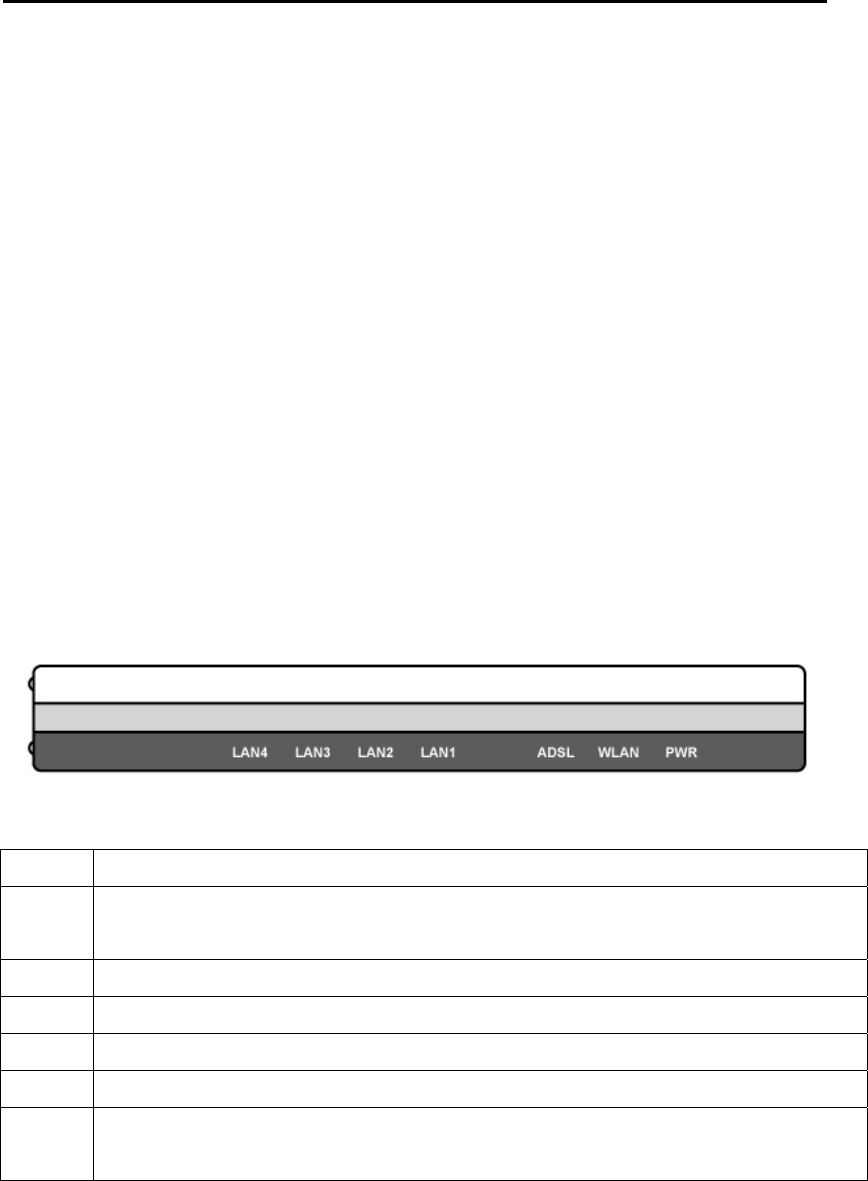

Front panel of this Wireless ADSL2+ router has LED indicators to display router’s
operating status.
Descriptions of LED status
PWR When an active power adapter is connected with this router, this LED will light up.
WLAN When connection with Internet (ADSL Connected) is established, this LED will light up.
The LED is flashing: Physical connection is sending the data.
4 When port 4 connection with end user is established, this LED will light up.
3 When port 3 connection with end user is established, this LED will light up.
2 When port 2 connection with end user is established, this LED will light up.
1 When port 1 connection with end user is established, this LED will light up.
ADSL When connection with Internet (ADSL Connected) is established, this LED will light up.
When this LED is flashing: NO ADSL physical connection
10

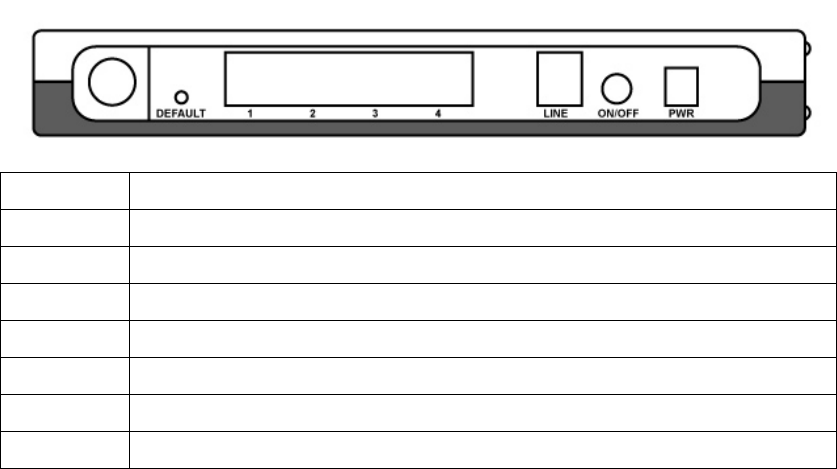

2.4 Back Panel
PWR Connect with power adapter
ON/OFF Power switch button
LINE Connect with phone cable
4 Connect with Ethernet Cable to Switch Hub or PC
3 Connect with Ethernet Cable to Switch Hub or PC
2 Connect with Ethernet Cable to Switch Hub or PC
1 Connect with Ethernet Cable to Switch Hub or PC
DEFAULT Reset button
2.5 Connect Related Devices
1) Connect Router to LINE
Plug the provided RJ-11 phone cable into LINE port on the back panel of the router
and insert the other end into splitter or wall phone jack.
2) Connect Router to LAN
Plug RJ-45 Ethernet Cable into LAN port on the back panel of the router and insert
the other end of the Ethernet cable on your PC’s Ethernet port or switch / hub.
3) Connect Router to Power Adapter
Plug Power Adapter to PWR port on the back panel of the router and the other end
to a power outlet.
4) Press ON/OFF button to start the router
Warning! Only use the power adapter provided in the package, otherwise it may cause
hardware damage.
11
3. Connecting Wireless ADSL2+ Router via Ethernet
Your router can be managed from anywhere with the embedded Web configuration using
a Web browser, such as Microsoft Internet Explorer or Netscape Navigator. Internet Explorer
6.0 and later or Netscape Navigator 7.0 and later versions with JavaScript enabled should be
used. A screen resolution of 1024 by 768 pixels is recommended.
3.1 Setup ADSL2+ router via Ethernet Cable
If there is an available LAN card present on your PC, you just simply connect ADSL
router and PC through the Ethernet cable. Once you establish Internet connection, you could
browse the Web through the Ethernet cable.
3.2 Configure TCP/IP
For Windows 98SE and ME
Step 1: Click Start then Settings and choose Control Panel
Step 2: Double click Network icon.

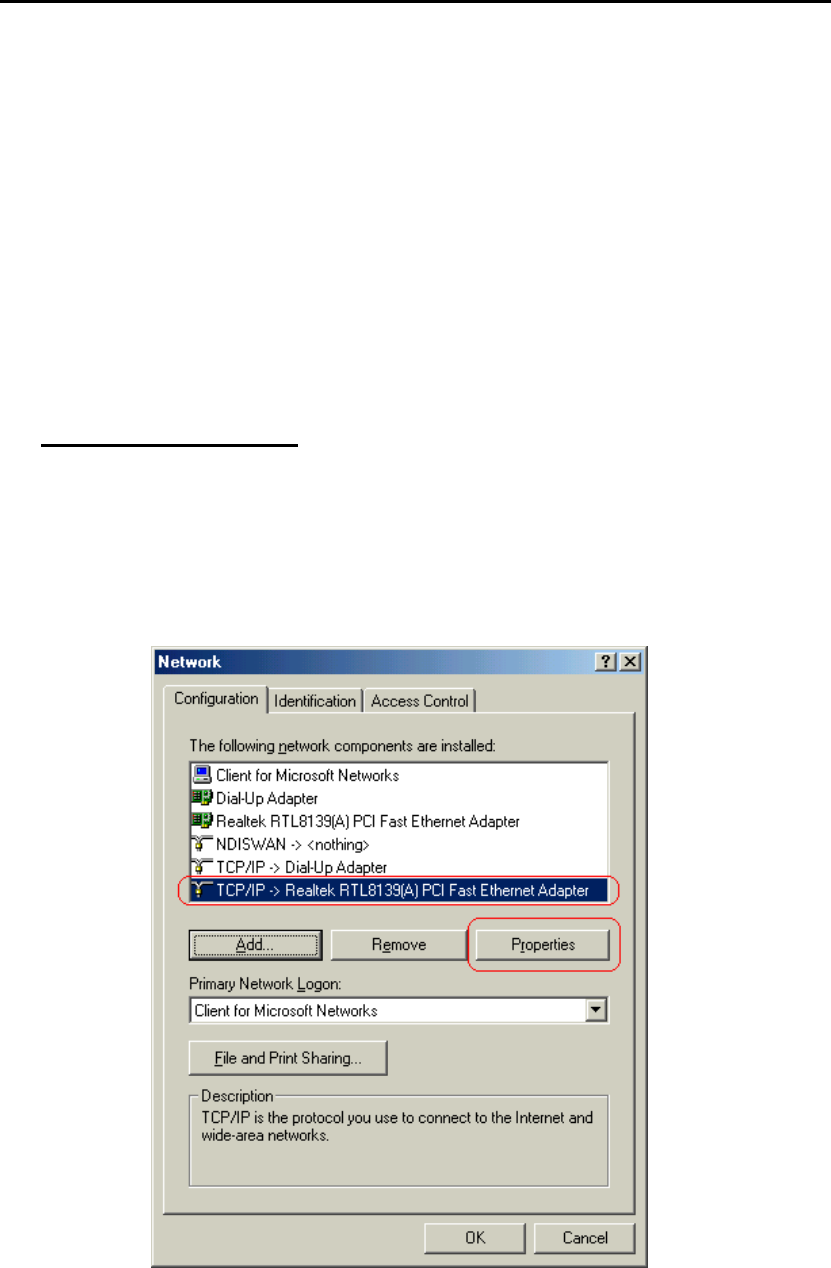

Step 3: Select Configuration tab, then choose TCP/IP from the list of installed network
Components and click Properties button.
Step 4: You can setup the following configurations in two methods:
12

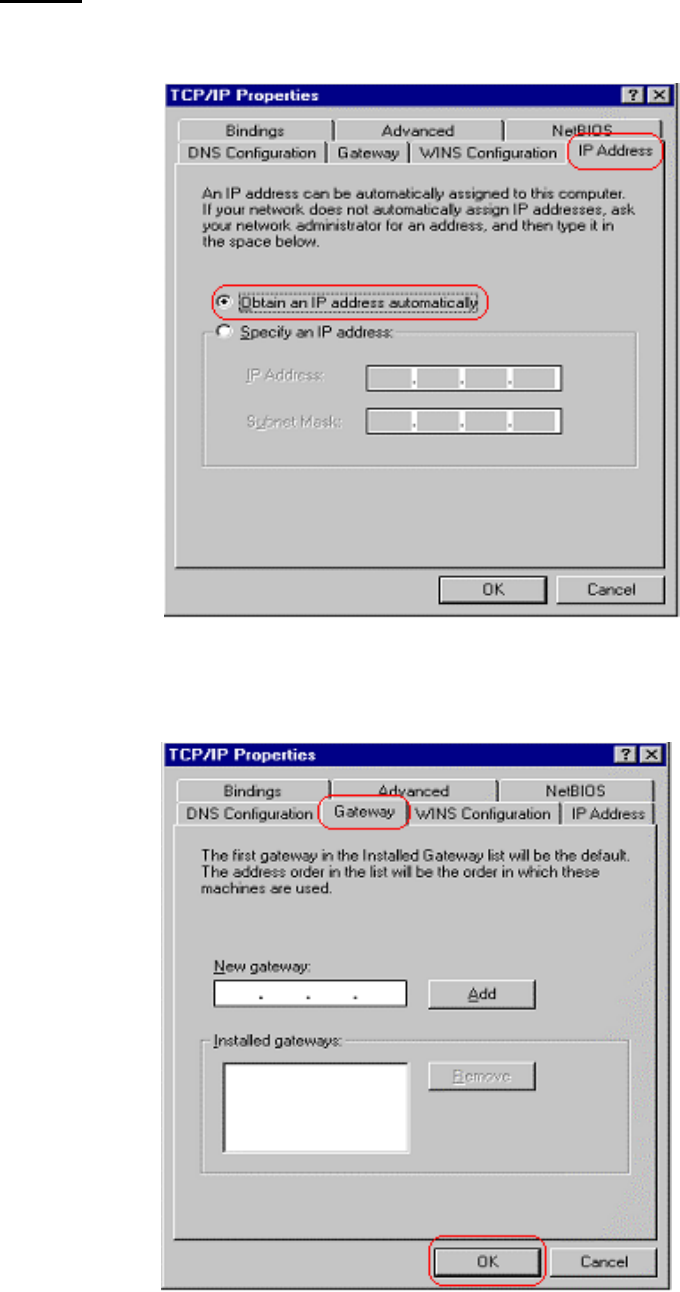

Option1: Get an IP from Router Automatically

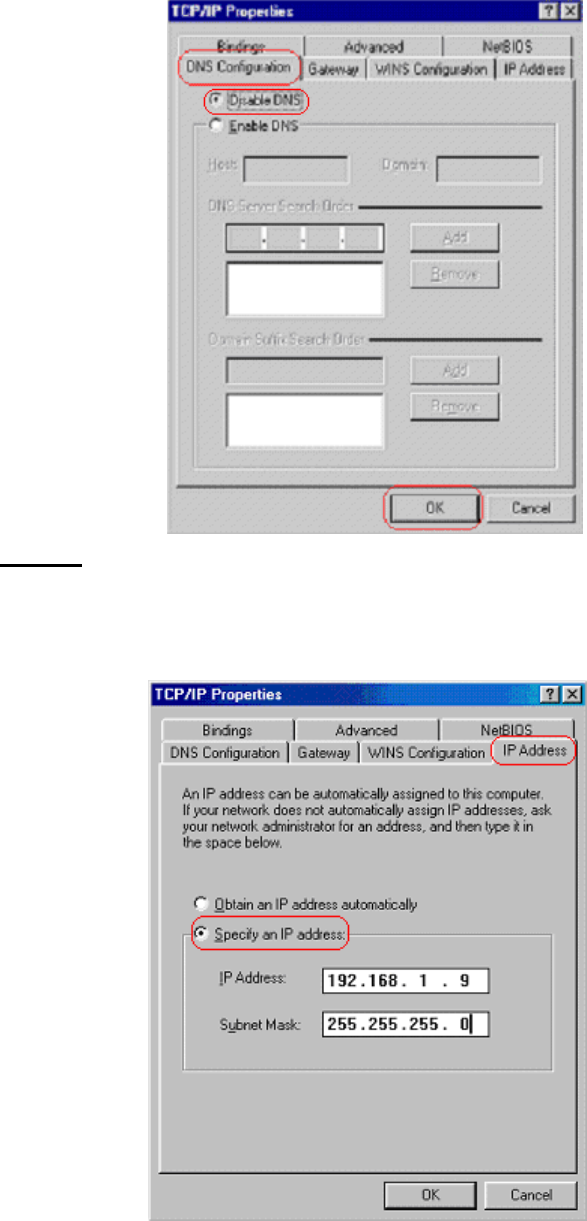

Select the IP Address tab.
In this page, click Obtain an IP address automatically radio button.
1) Select Gateway tab and click OK
13
2) Then, select DNS Configuration tab and select Disable DNS then click OK
to finish the configuration.
Option2: Configure IP Manually
1) At IP Address tab, select Specify an IP address, set default IP address for the
Router is 192.168.1.1, so use 192.168.1.X (X is a number between 2 to 254) for
IP Address field and 255.255.255.0 for Subnet Mask field.
14

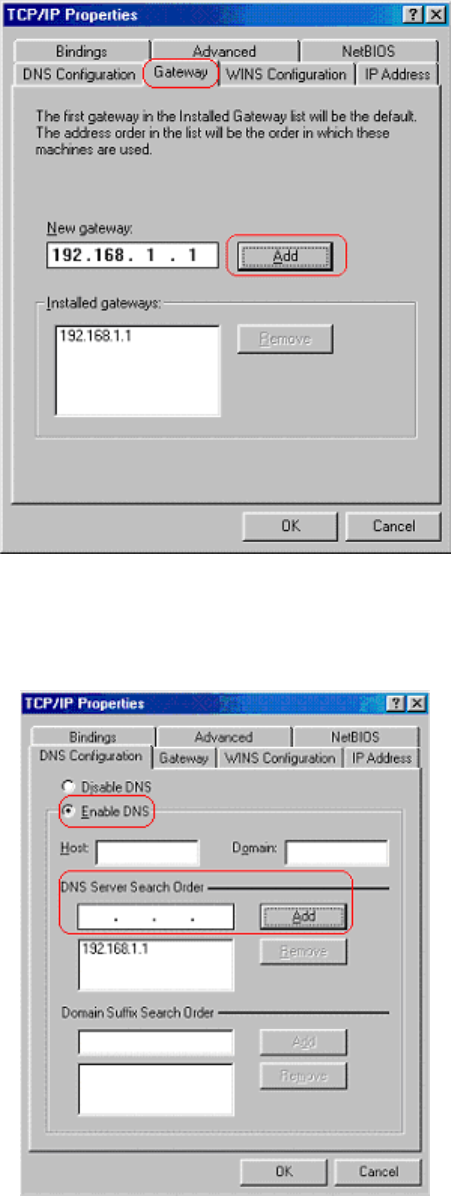

2) Select Gateway tab and add default Router IP Address “192.168.1.1” in the
New gateway field and click Add.
Under DNS Configuration tab, select Enable DNS and add DNS values
(192.168.1.1) in DNS Server Search Order field then click Add.
15
For Windows 2000

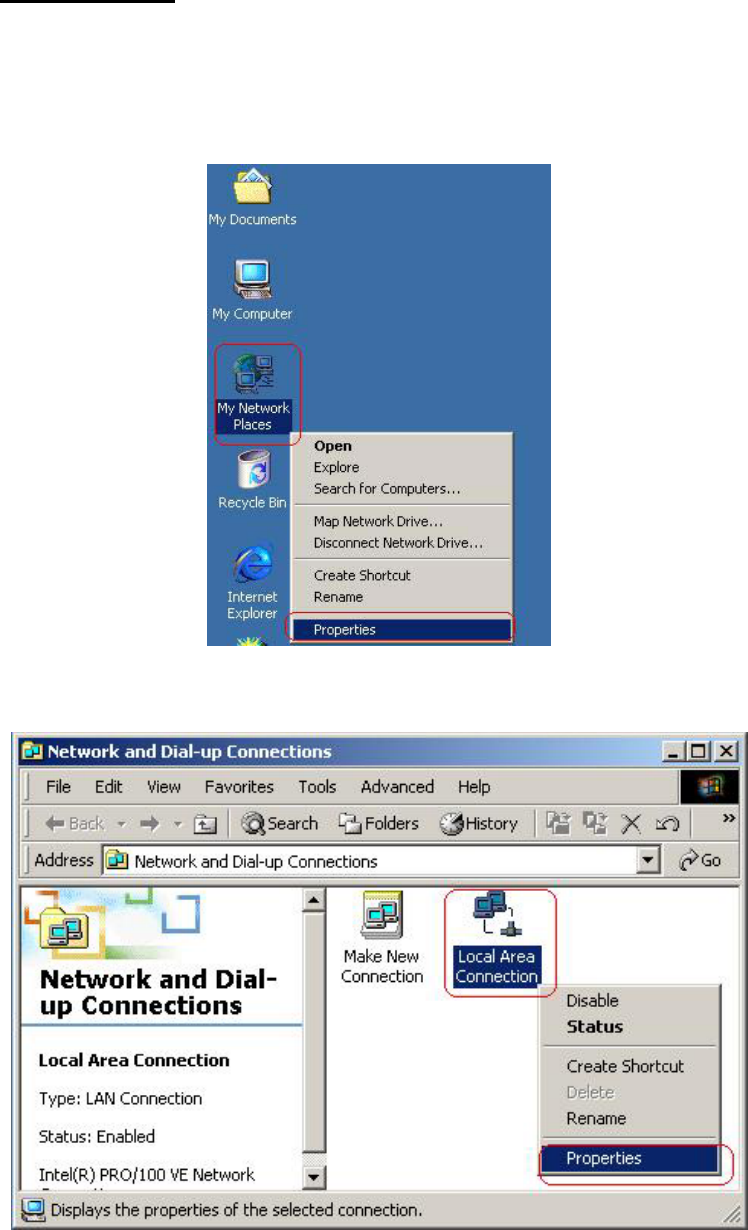

Step 1: (a) Right-click My Network Places and select Properties in the main window
screen
(b) Or, go to Start / Settings / Control Panel. In the Control Panel, double-click
on Network and Dial-up Connections.
Step 2: Right click Local Area Connection (your local network hooked up with ADSL
router) and select Properties:
16

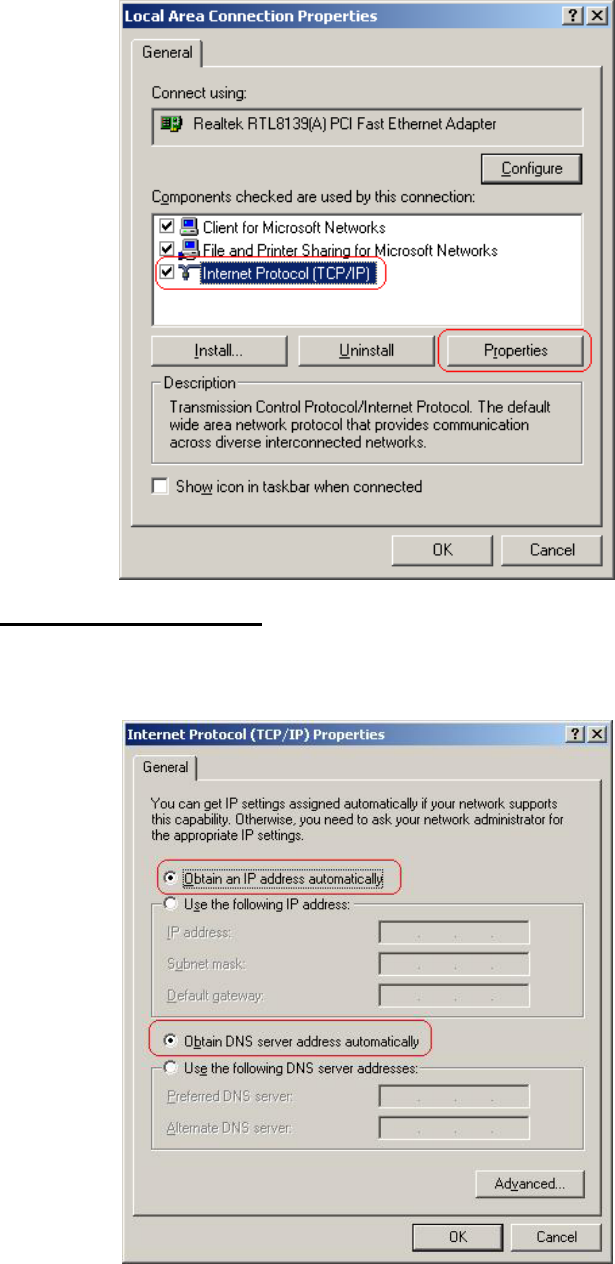

Step 3: Select Internet Protocol (TCP/IP) then click Properties:
Configure IP Automatically:
Step 4: Select Obtain an IP address automatically and Obtain DNS server address
automatically then click OK to complete IP configuring process.
17
Configure IP Manually:

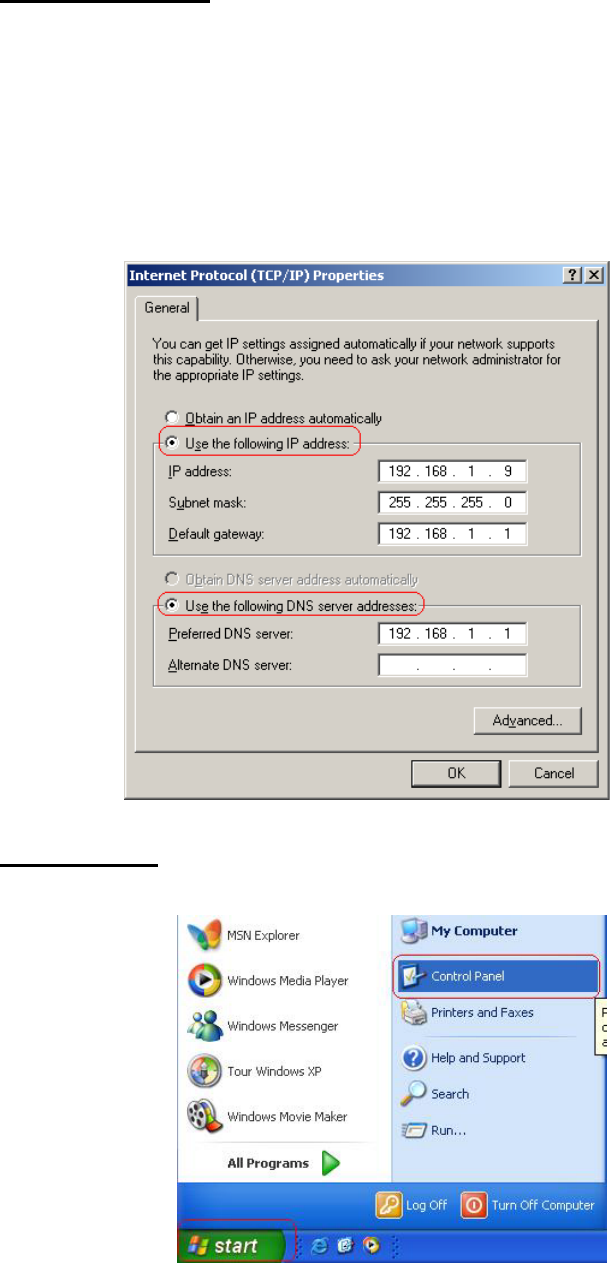

Step 4: Select Use the following IP address and Use the following DNS server
addresses.
IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254).
Subnet mask: Default value is 255.255.255.0.
Default gateway: Default value is 192.168.1.1.
Preferred DNS server: Fill in preferred DNS server IP address.
Alternate DNS server: Fill in alternate DNS server IP address.
For Windows XP
Step 1: Click Start then select Control Panel.
18

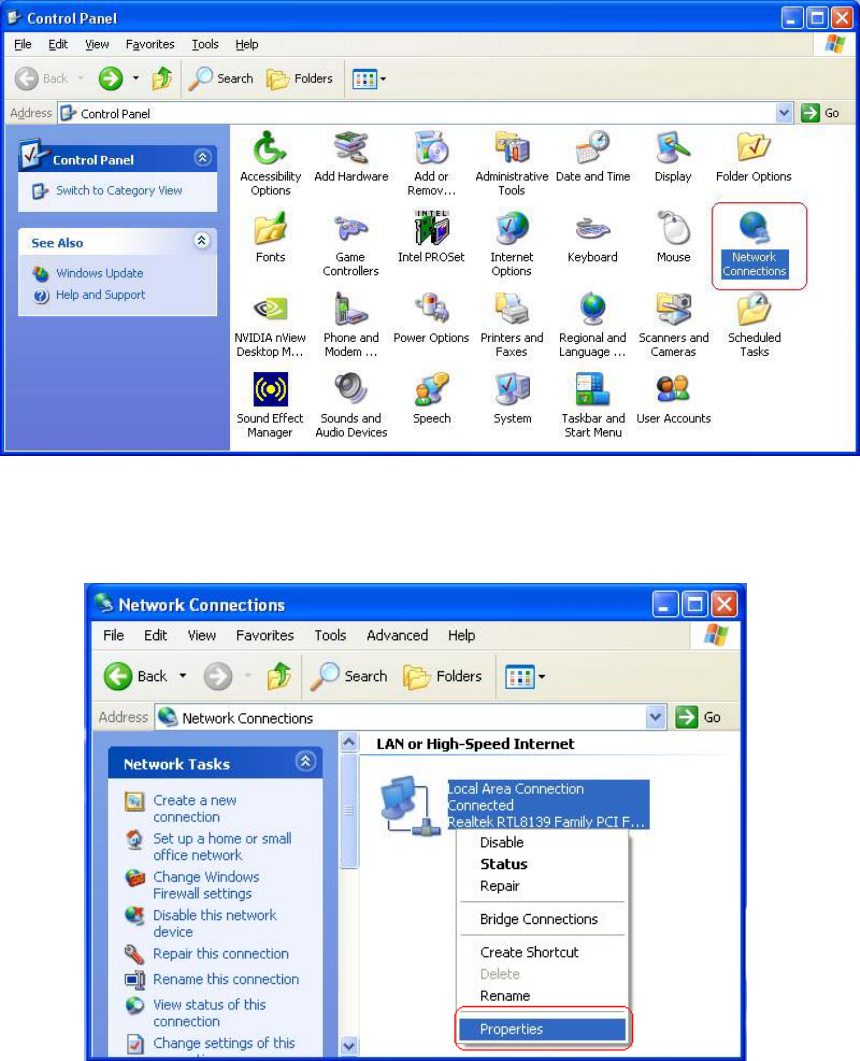

Step 2: Double-click Network Connections icon.
Step 3: Right-click Local Area Connection (local network your ADSL hooked up with)
and select Properties:
19

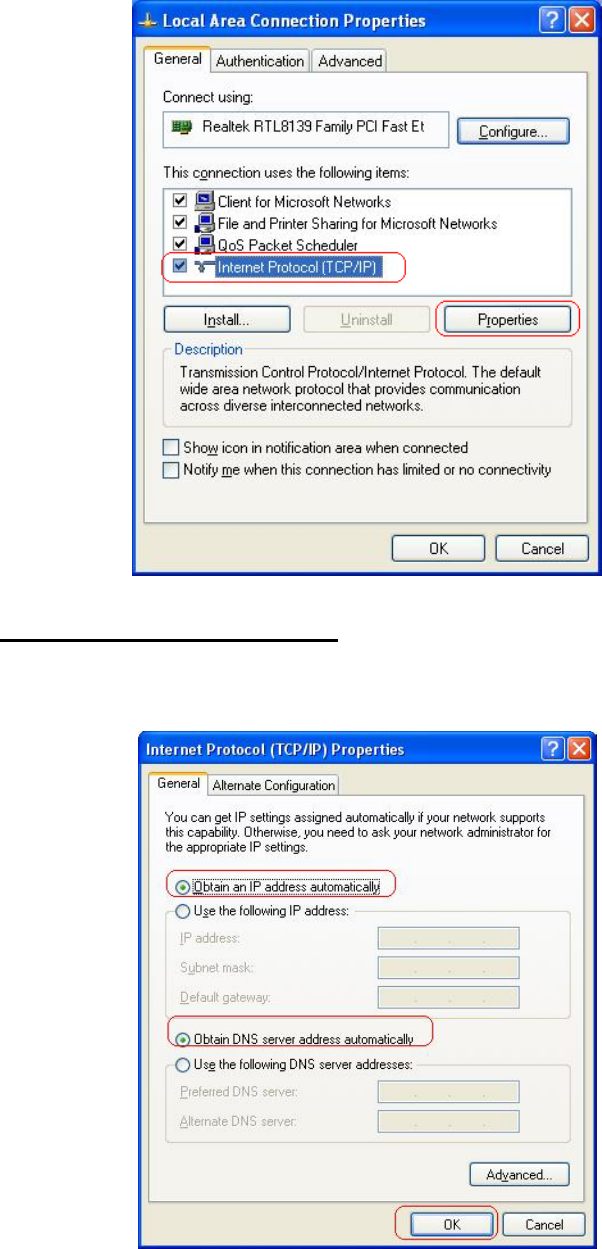

Step 4: Select Internet Protocol (TCP/IP) then click Properties:
Configure IP address Automatically:
Step 5: Select Obtain an IP address automatically and Obtain DNS server address
automatically. Click OK to finish the configuration.
20

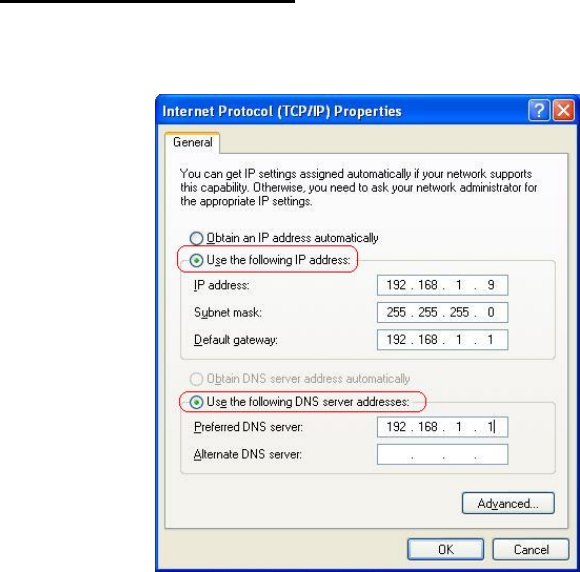

Configure IP Address Manually:
Step 5: Select Use the following IP address and Use the following DNS server
addresses.
IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254).
Subnet mask: Default value is 255.255.255.0.
Default gateway: Default value is 192.168.1.1.
Preferred DNS server: Fill in preferred DNS server IP address.
Alternate DNS server: Fill in alternate DNS server IP address.
You can use ping command under DOS prompt to check if you have setup TCP/IP
protocol correctly and if your computer has successfully connected to this router.
1) Type ping 192.168.1.1 under DOS prompt and the following messages will appear:
Pinging 192.168.1.1 with 32 bytes of data:
Reply from 192.168.1.1: bytes=32 times<2ms TTL=64
Reply from 192.168.1.1: bytes=32 times<1ms TTL=64
Reply from 192.168.1.1: bytes=32 times<10ms TTL=64
2) If the communication link between your computer and router is not setup correctly,
after you type ping 192.168.1.1 under DOS prompt following messages will appear:
Pinging 192.168.1.1 with 32 bytes of data:
Request timed out.
Request timed out.
Request timed out.
Cable issue or something wrong might cause this failure in configuration procedure.
21
4. Configure WLAN ADSL2+ Router via HTML Interface
This device supports a Web-based (HTML) GUI to allow users to configure Router
setting via Web browser.
4.1 Login

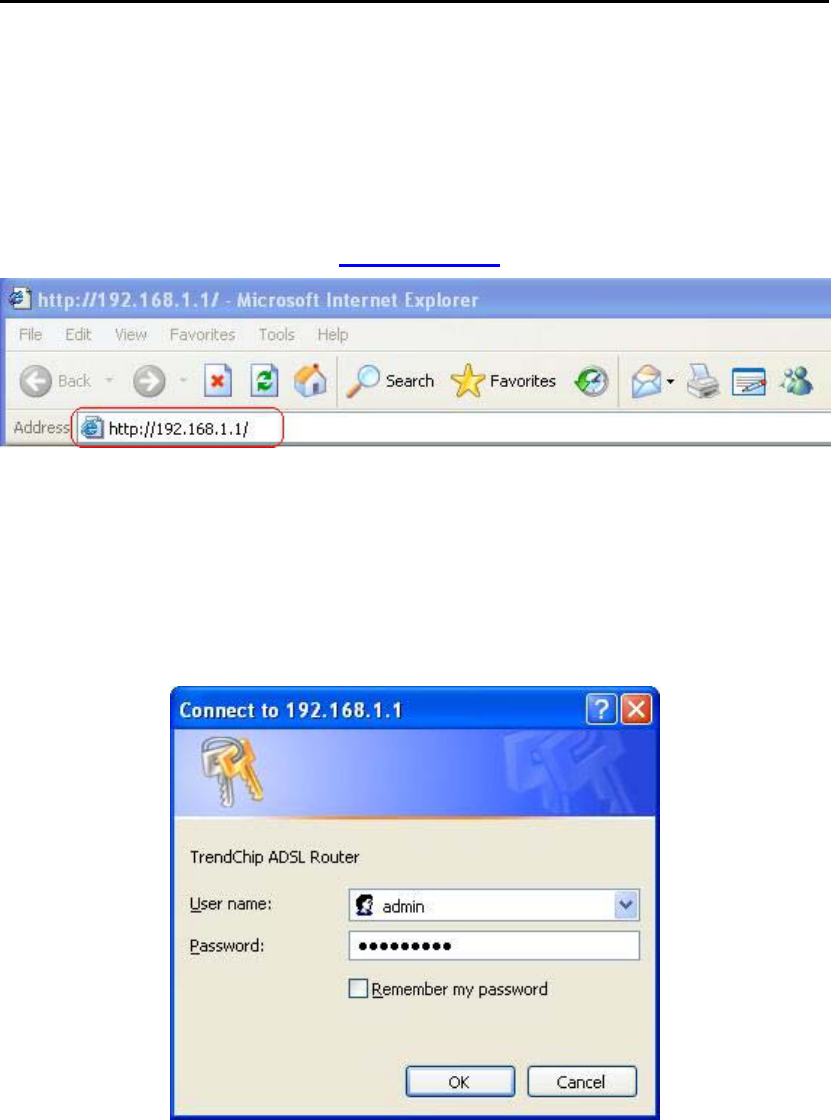

1) Launch the Web browser.
2) Enter the default IP address http://192.168.1.1
3) Entry of the username and password will be displayed. Enter the default login
User Name and Password:
The default login User Name of the administrator is admin, and the default
login password is trendchip.
22
4.2 Navigating the Web Configurator
Steps to navigate the Web configuration from the Site Map are summarized as below.
Steps to navigate the Web configuration from the Site Map are summarized below.
Click on Quick Start to begin a wizard that helps to configure your router.

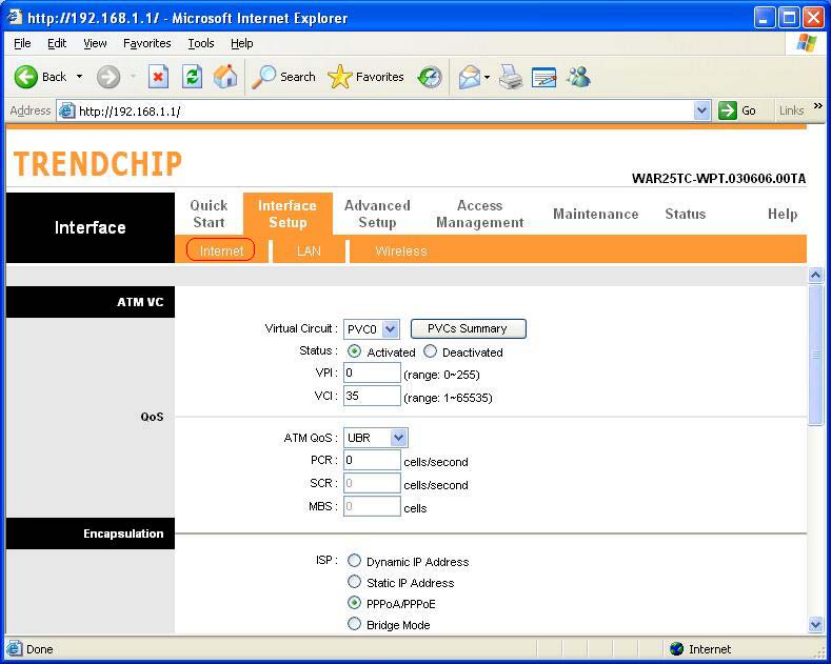

Click on Interface Setup to configure Internet and LAN functions.

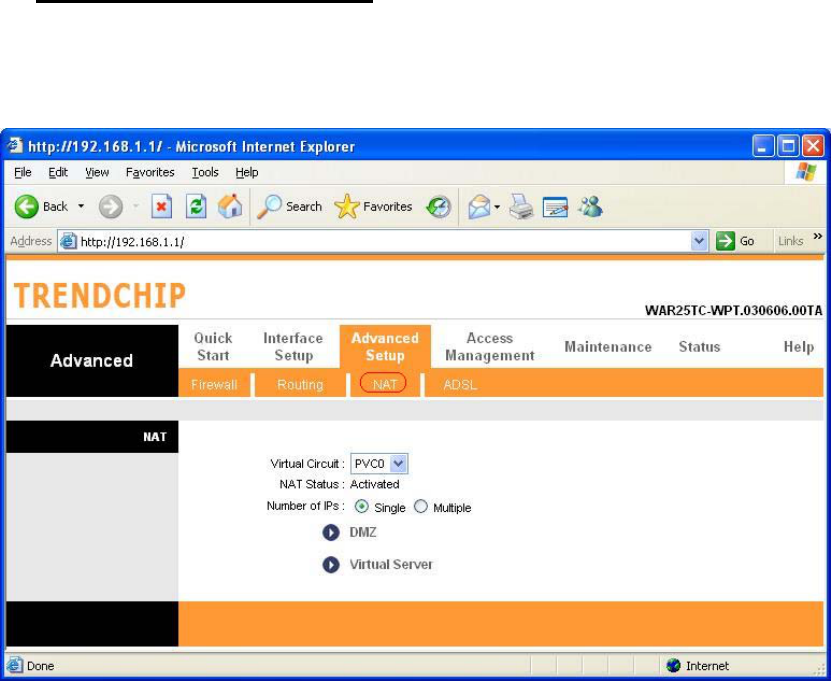

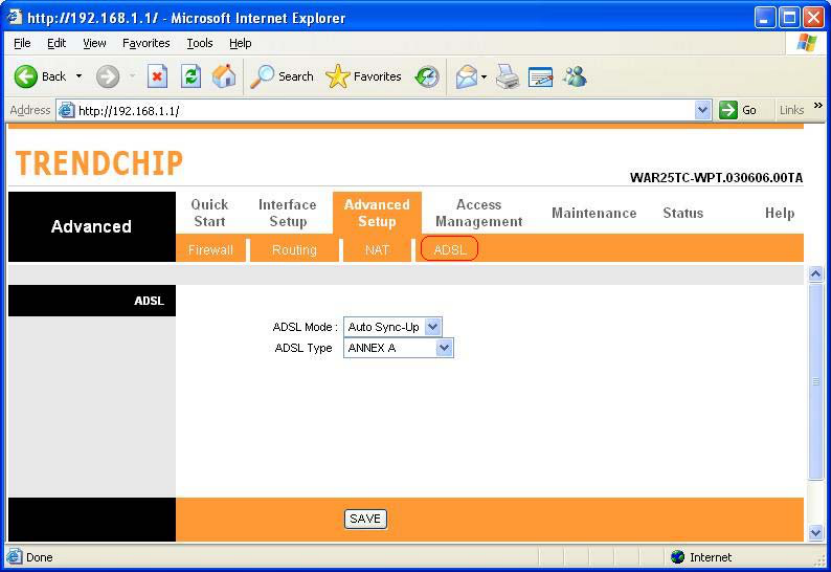

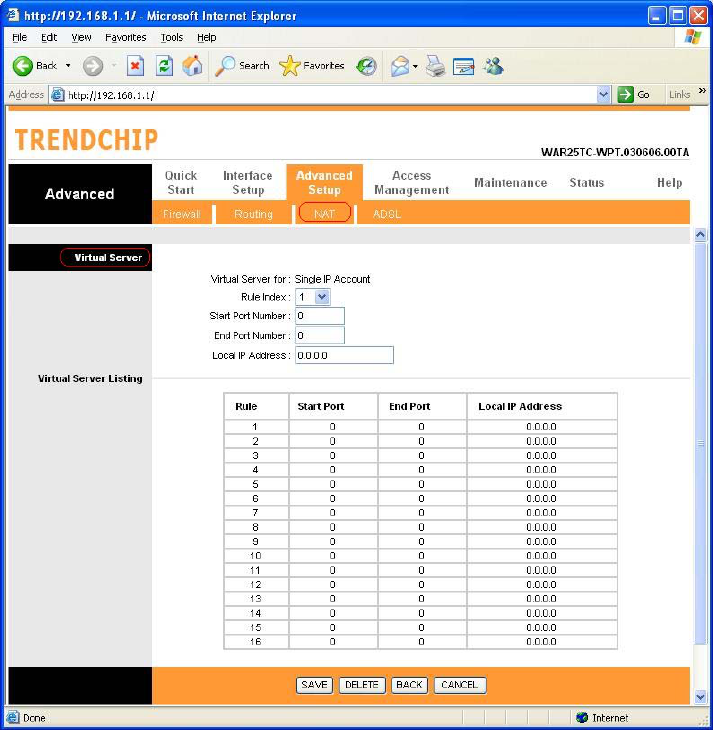

Click on Advanced Setup to configure advanced features.

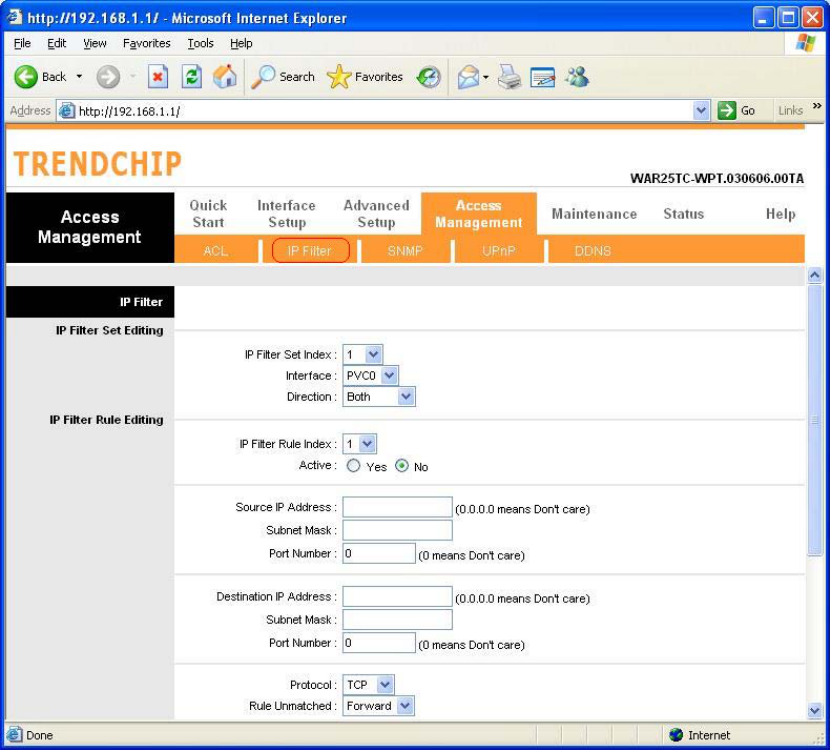

Click on Access Management to manage Internet access options.

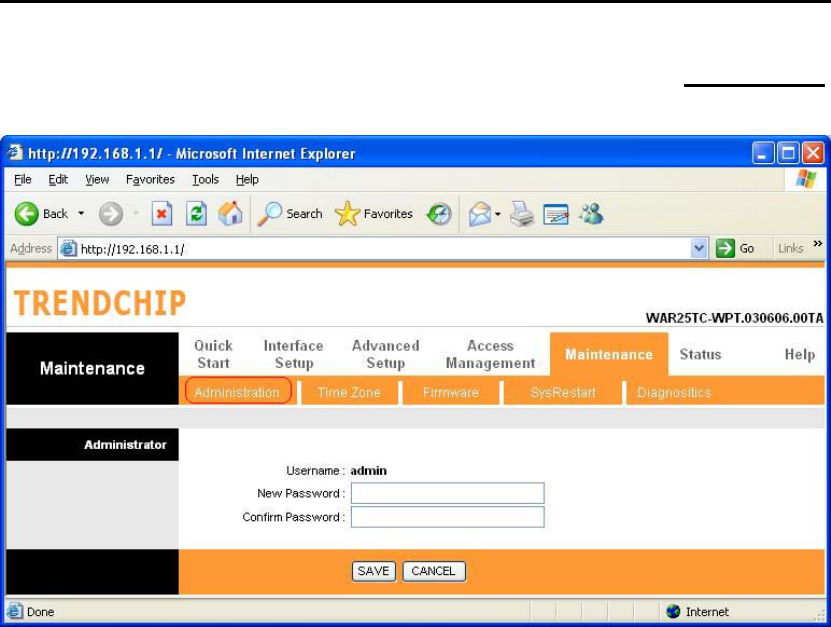

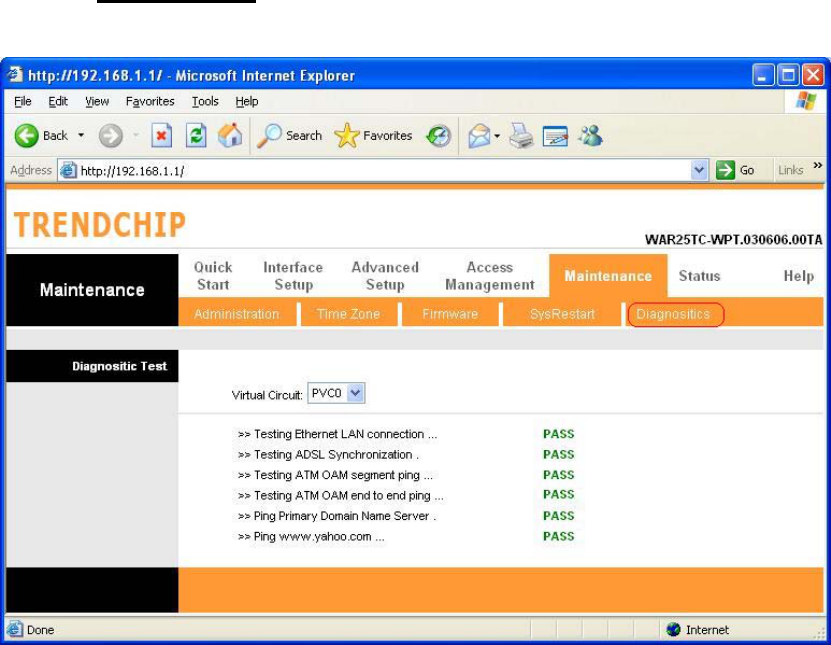

Click on Maintenance to set a new password, to set the time zone, to upgrade or reload
firmware and to run diagnostic tests on the router

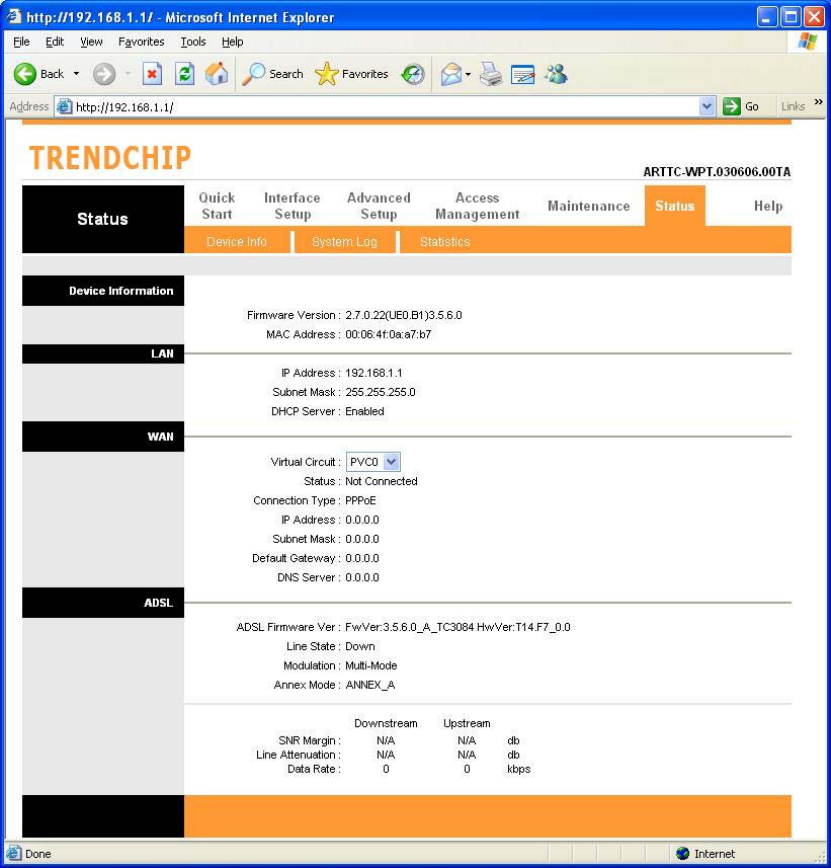

Click on Status to see router device information, system logs and performance statistics.
Click on Help to see available help topics.
23

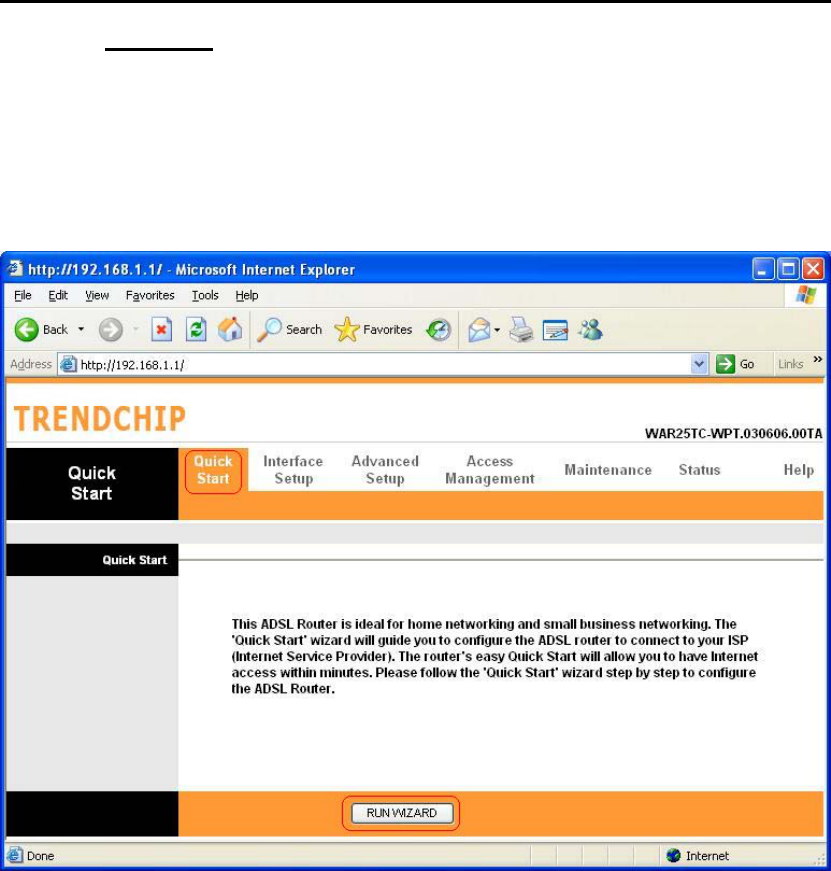

5. Quick Start Wizard
Click Quick Start to guide you to configure the device to connect your ISP and have
Internet access within minutes. This Quick Start will guide you step by step to configure the
password, time zone, and WAN settings of you device. This Wizard is a helpful guide for first
time uses to the device.
NOTE: It is a strong recommendation that using Quick Start to configure your ADSL settings.
Click on the RUN WIZARD button to start the Quick Start wizard. The Quick Start wizard
will open a new browser window with the following screen.
24
.
The Quick Start Setup Wizard includes four quick steps: 1) Set your new password. 2)
Choose your time zone. 3) Set your Internet connection. 4) Re-start your ADSL router.
Please follow the quick start step by step to configure the device.
Note: If your ISP doesn’t provide DNS, after you complete Quick Start configuration, please go
to Interface Setup Internet to configure your DNS settings.
Click on NEXT to continue, or on EXIT to exit the wizard without saving.
25
5.1 Setting a New Password

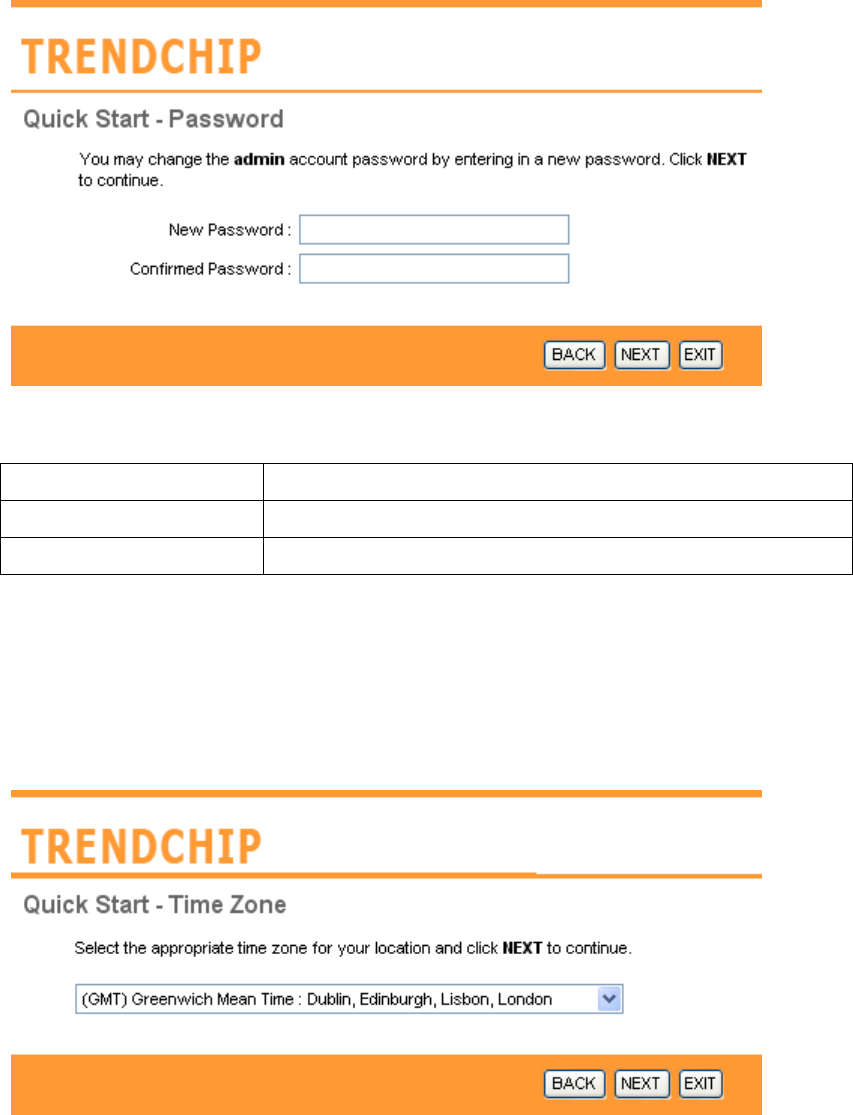

This screen helps you set a new password, replacing the default password.
The following table describes the labels in this screen.
LABEL DESCRIPTION
New Password Enter the password you wish to use here
Confirmed Password Enter the password again to confirm
Click on BACK to return to the previous screen, on NEXT to continue, or on EXIT to exit the
wizard without saving.
5.2 Choose your Time Zone
This screen helps you set the time zone for your ADSL2+ Router.
Select the appropriate time zone for your location from the dropdown list. Click on BACK to
return to the previous screen, on NEXT to continue, or on EXIT to exit the wizard without
saving.
26
5.3 Set your Internet Connection

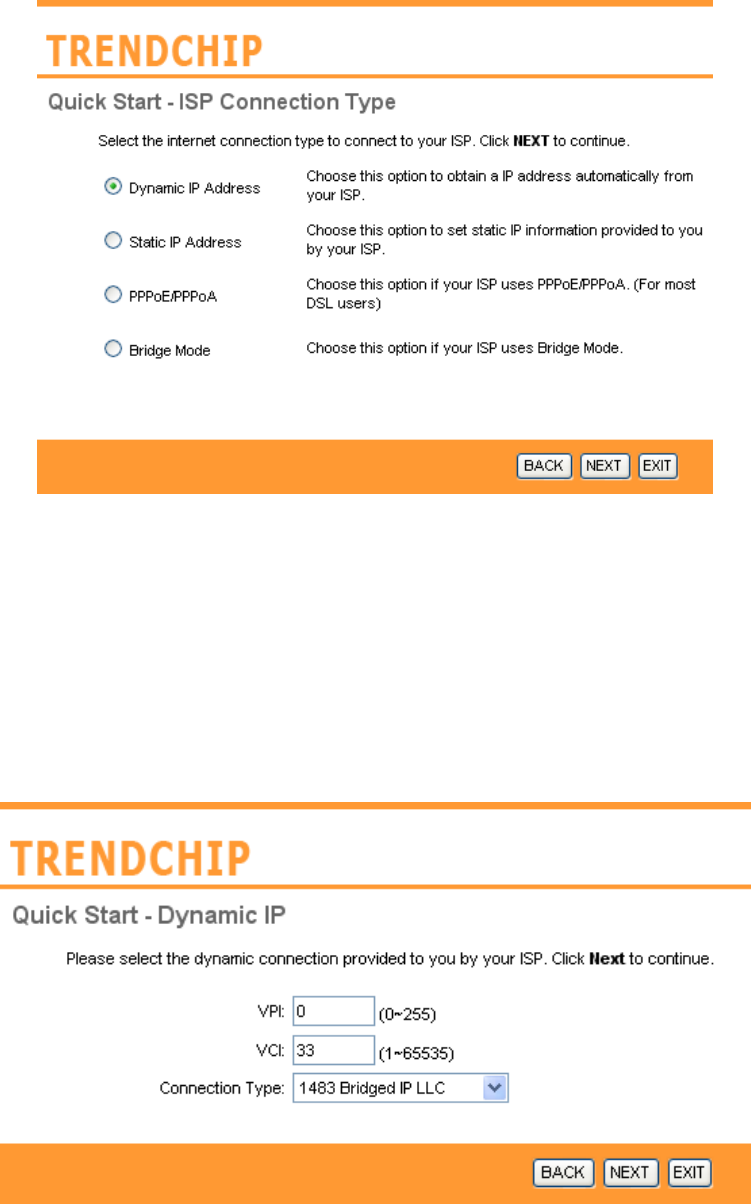

This screen helps you select, then configure, your ISP connection type.
Select the Internet connection type you use to connect to your ISP. Click on BACK to
return to the previous screen, on NEXT to continue, or on EXIT to exit the wizard. The
following screen will vary depending on which connection type you chose.
Each screen is explained below:
5.3.1 Configuring Dynamic IP Address
A dynamic IP address connection requests a new IP address from your ISP each time you
connect to it.
27
The following table describes the labels in this screen.
LABEL DESCRIPTION
VPI Enter the VPI here. VPI can range from 0 to 255.
VCI Enter the VCI here. VCI can range from 1 to 65535.
Connection Type Select your connection type from the dropdown list.
Your ISP should provide the above information. Click on BACK to return to the previous
screen, on NEXT to continue, or on EXIT to exit the wizard without saving.

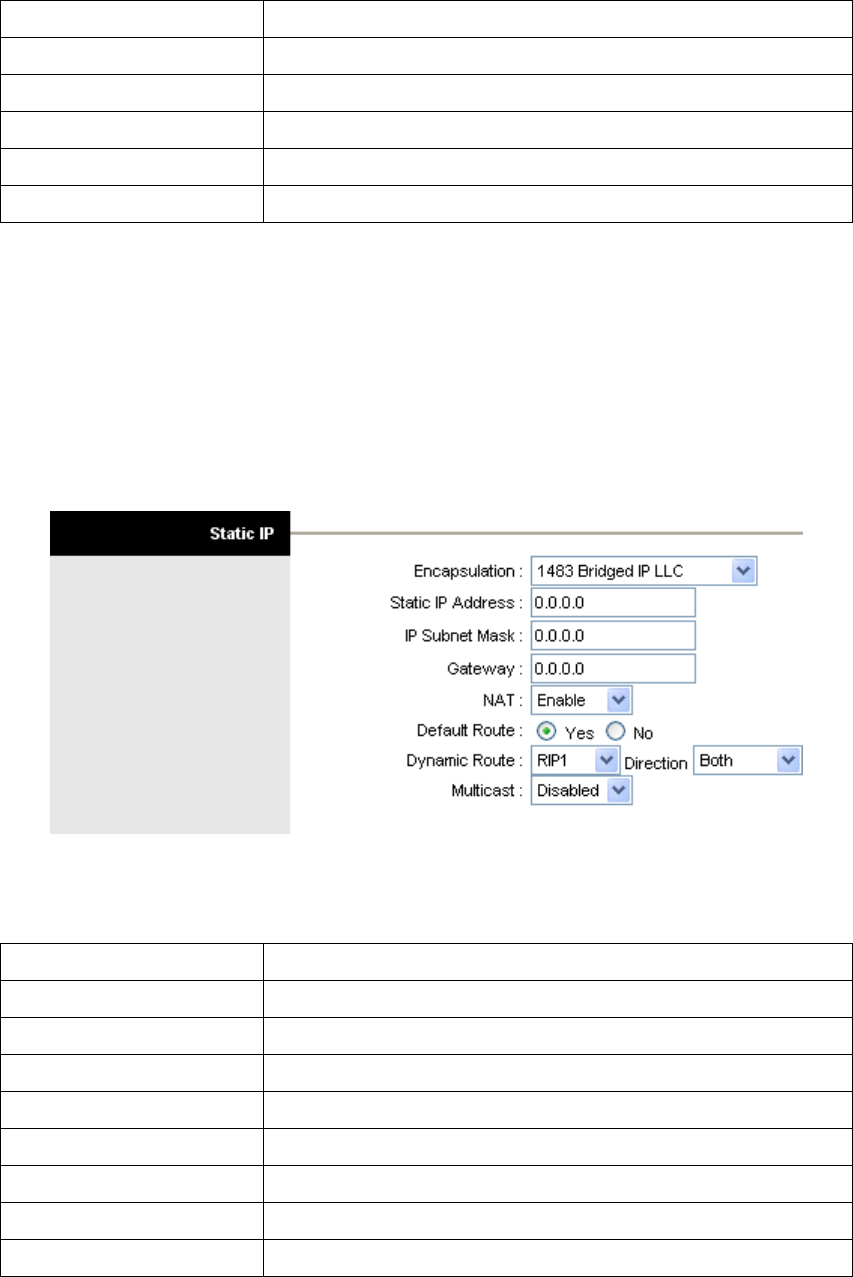

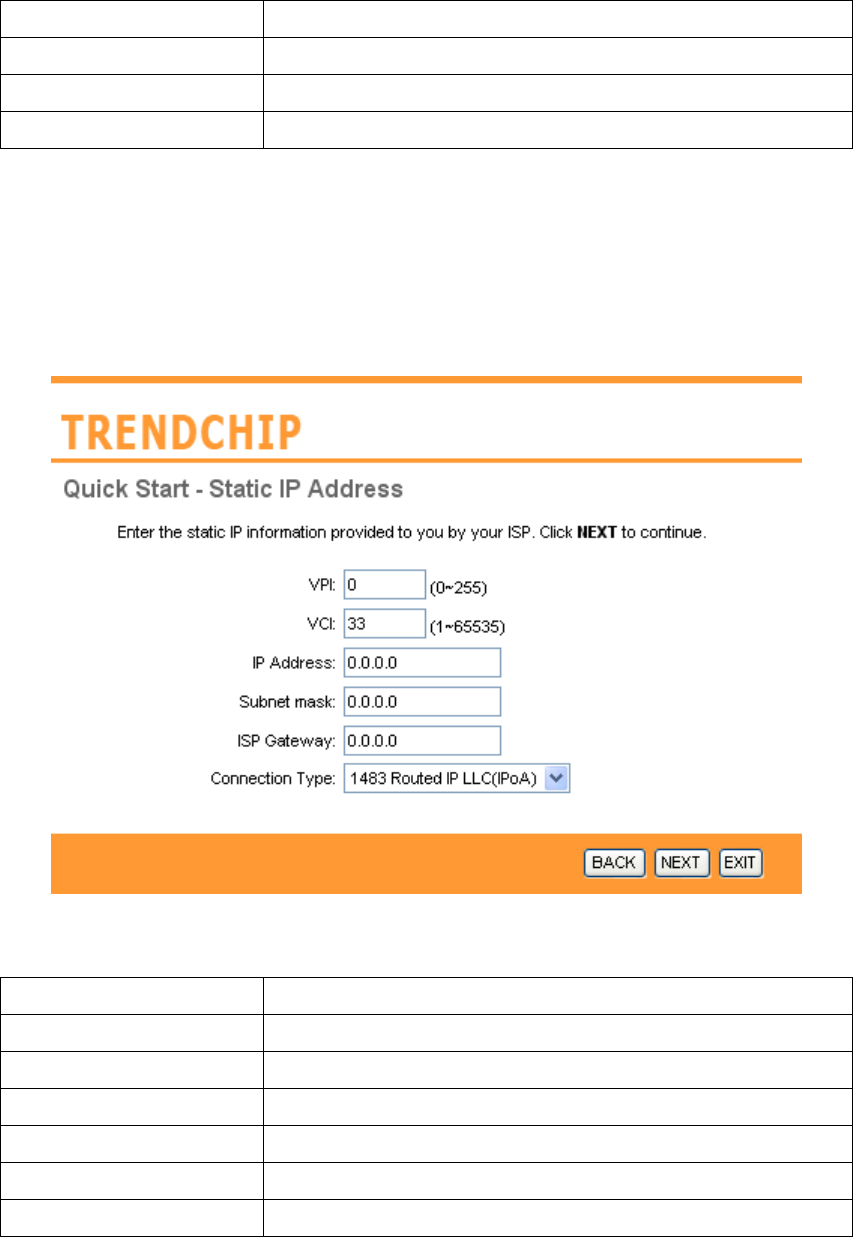

5.3.2 Configuring Static IP Address
A static IP address connection uses the same IP each time you connect to your ISP.
The following table describes the labels in this screen.
LABEL DESCRIPTION
VPI Enter the VPI here. VPI can range from 0 to 255.
VCI Enter the VCI here. VCI can range from 1 to 65535.
IP Address Enter the IP address here.
Subnet Mask Enter the Subnet Mask here.
ISP Gateway Enter the ISP Gateway here.
Connection Type Select your connection type from the dropdown list.
28
Your ISP should provide this information. Click on BACK to return to the previous screen,
on NEXT to continue, or on EXIT to exit the wizard without saving.
5.3.3 Configuring PPPoE
PPPoE provides access control and billing functionality in a manner similar to dial-up services
using PPP. The router bridges a PPP session over Ethernet (PPP over Ethernet, RFC 2516)
from your computer to an ATM Permanent Virtual Circuit (PVC) that connects to the ADSL
Access Concentrator, where the PPP session terminates. Single PVC can support any number
of PPP sessions from your LAN.
The following table describes the labels in this screen.
LABEL DESCRIPTION
Username Enter your username here.
Password Enter your password here.
VPI Enter the VPI here. VPI can range from 0 to 255.
VCI Enter the VCI here. VCI can range from 1 to 65535.
Connection Type Select your connection type from the dropdown list.
Your ISP should provide the above information. Note that you must enter the user name
exactly as your ISP assigned it. If the assigned name is in the form of user@domain where
domain identifies a service name, enter it exactly as given. Click on BACK to return to the
previous screen, on NEXT to continue, or on EXIT to exit the wizard without saving.
29
5.3.4 Configuring PPPoA
Point-to-Point Protocol over ATM Adaptation Layer 5 (AAL5) (PPPoA) provides access control
and billing functionality in a manner similar to dial-up services using PPP. The router
encapsulates the PPP session based on RFC1483 and sends it through ATM PVC to the ISP’s
DSLAM.
The following table describes the labels in this screen.
LABEL DESCRIPTION
Username Enter your username here.
Password Enter your password here.
VPI Enter the VPI here. VPI can range from 0 to 255.
VCI Enter the VCI here. VCI can range from 1 to 65535.
Connection Type Select your connection type from the dropdown list.
Your ISP should provide the above information. Note that you must enter the user name
exactly as your ISP assigned it. If the assigned name is in the form of user@domain where
domain identifies a service name, enter it exactly as given. Click on BACK to return to the
previous screen, on NEXT to continue, or on EXIT to exit the wizard without saving.
5.3.5 Configuring Bridge Mode
RFC 1483 explains two methods for Multi-protocol Encapsulation over AAL5. The first method
allows multiplexing of multiple protocols over just one ATM virtual circuit (LLC-based
multiplexing). The second method assumes that each individual protocol is carried over a
30
separate ATM virtual circuit (VC-based multiplexing). Please refer to RFC 1483 for more
information.
The following table describes the labels in this screen.
LABEL DESCRIPTION
VPI Enter the VPI here. VPI can range from 0 to 255.
VCI Enter the VCI here. VCI can range from 32 to 65535.
Connection Type Select your connection type from the dropdown list.
Your ISP should provide the above information. Click on BACK to return to the previous
screen, on NEXT to continue, or on EXIT to exit the wizard without saving.
5.3.6 Multiplexing
Two conventions identify what protocols a virtual circuit (VC) is carrying. Be sure to use the
multiplexing method your ISP requires.
(1) VC-Based Multiplexing
In VC-based multiplexing, by prior mutual agreement, each protocol is assigned to a
specific virtual circuit. For example, VC1 carries IP, etc. VC-based multiplexing may be
dominant in environments where dynamic creation of large numbers of ATM VCs is fast and
economical.
(2) LLC-Based Multiplexing
In LLC-based multiplexing, one VC carries multiple protocols with protocol-identifying
information contained in each packet header. While this method requires extra bandwidth and
processing overhead, this method may be advantageous if it is not practical to have a separate
VC for each carried protocol; for example, if charging heavily depends on the number of
31
simultaneous VCs.
5.3.7 VPI and VCI
Be sure to use the Virtual Path Identifier (VPI) and Virtual Channel Identifier (VCI) numbers
assigned to you. The valid range for the VPI is 0 to 255. The valid range for the VCI is 32 to
65535. 0 to 31 is reserved for local management of ATM traffic.
5.4 Finishing the Wizard

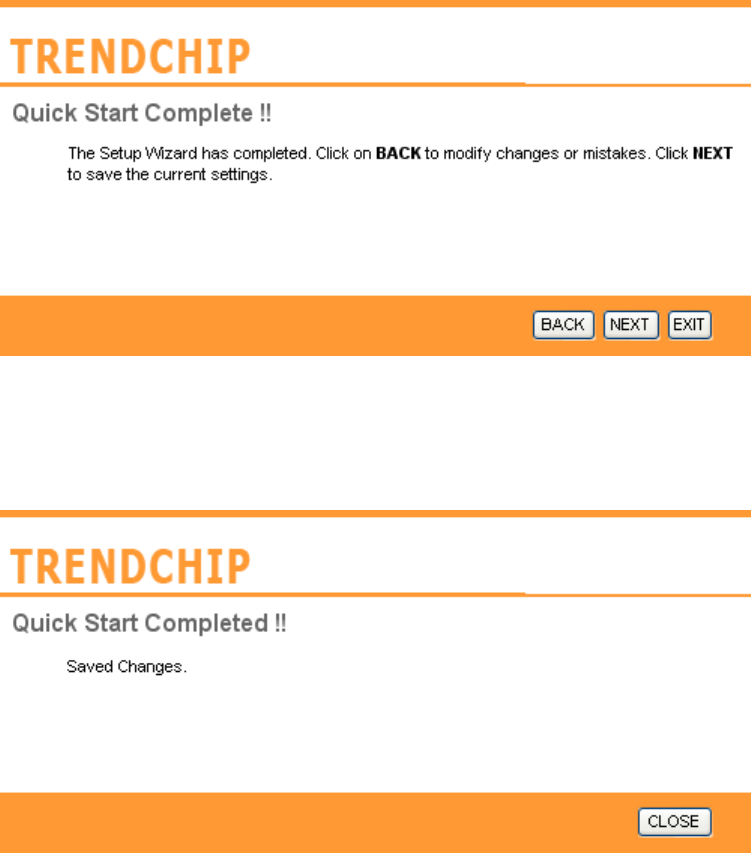

The Quick Start wizard now has all the information it needs. Click on BACK to make changes
or correct mistakes. Click on NEXT to save the current settings. Click on EXIT to exit the
wizard without saving.
Your changes have been saved. Click on CLOSE. The Quick Start wizard window will
close.
32
6. Interface Setup
The physical connections determine whether the router ports are local area network
(LAN) ports or wide area network (WAN) ports. There are two kinds of IP networks. The local,
private kind is the LAN network; the global, public kind is the WAN network. The following

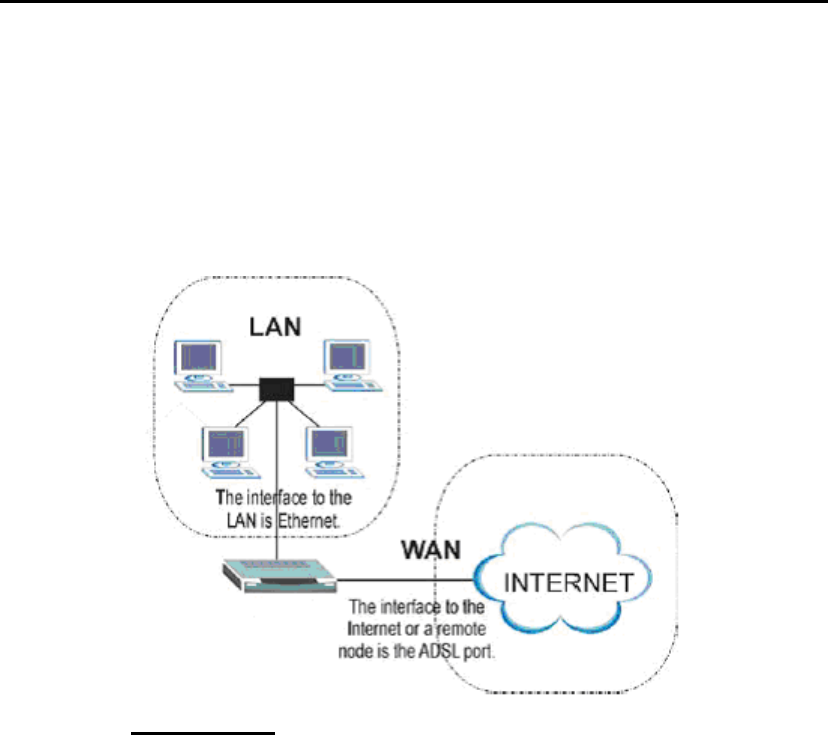

illustration shows the relationship between the router and the two different networks.
A LAN is a shared communication system to which many computers are attached. A LAN
is generally limited to the immediate area, usually the same building or floor of a building.
A WAN is an outside connection to another network or to the Internet.
Click an Interface Setup link to set ATM VC values, ISP Encapsulation, configure multi-
connection settings, and LAN configuration.
6.1 Internet
The Internet screen allows you to set up how your router connects to the Internet. If you
already ran the Quick Start wizard, the information you provided to the wizard should be
entered into the fields already. After you finish the changes, click on the SAVE button to save
your changes.
33
6.1.1 ATM VC & QoS
ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI, settings to you. In
this Device, you can totally setup 8 PVCs on different encapsulations if you apply 8 different
virtual circuits from your ISP. You need to activate the VC to take effect. For PVCs
management, you can use ATM QOS to setup each PVC traffic line’s priority.
Virtual Circuit: Select the VC number you want to setup.
VPI: Virtual Path Identifier. The valid range for the VPI is 0 to 255.
VCI: Virtual Channel Identifier. The valid range for the VCI is 1 to 65635 (0 to 31 is reserved for
local management of ATM traffic).
ATM QoS: Select the Quality of Service types for this Virtual Circuit. The ATM QoS types
include CBR(Constant Bit Rate), VBR(Variable Bit Rate) and UBR (Unspecified Bit Rate).
These QoS types are all controlled by the parameters specified below, including PCR, SCR,
and MBS.
PCR: Peak Cell Rate (PCR) is the maximum rate at which the sender can send cells. This
parameter may be lower (but not higher) than the maximum line speed. 1 ATM cell is 53 bytes
(424 bits), so a maximum speed of 832 Kbps gives a maximum PCR of 1962 cells/sec. This
34
rate is not guaranteed because it is dependent on the line speed.
SCR: Sustained Cell Rate (SCR) is the mean cell rate of a bursty, on-off traffic source that can
be sent at the peak rate, and a parameter for burst-type traffic. SCR may not be greater than
the PCR; the system default is 0 cells/sec.
MBS: Maximum Burst Size (MBS) is the maximum number of cells that can be sent at the
PCR. After MBS is reached, cell rates fall below SCR until cell rate averages to the SCR again.
At this time, more cells (up to the MBS) can be sent at the PCR again.
CBR is for connections that support constant rates of data transfer. The only parameter you
need to worry about in CBR is PCR.
UBR is for connections that have variable traffic. The only parameter you need to worry about
in UBR is PCR.
rtVBR is for connections that, while having variable traffic, require precise timing between
traffic source and destination. PCR, SCR and MBS must all be set for rtVBR.
nrtVBR is for connections that have variable traffic, do not require precise timing, but still
require a set bandwidth availability. PCR, SCR and MBS must all be set for nrtVBR.
6.1.2 Encapsulation
Select the encapsulation protocol your ISP uses. The following section will vary depending on
which encapsulation protocol you select.

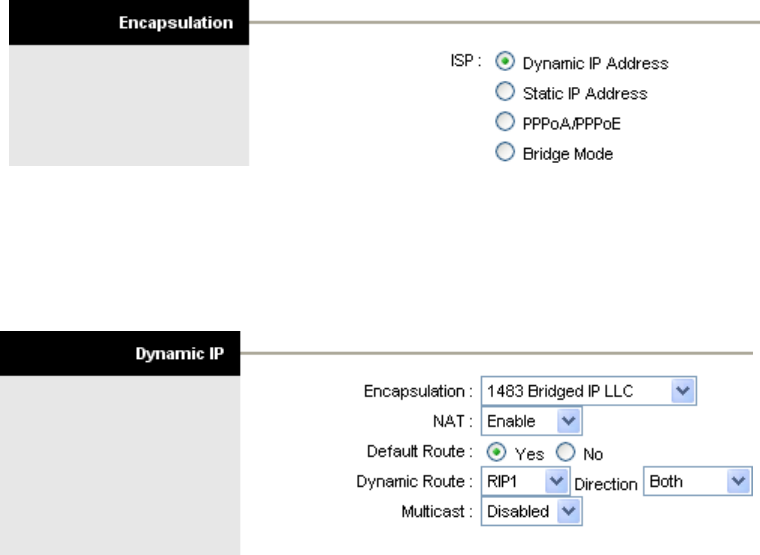

(1) Dynamic IP Address
Select this option if your ISP provides you an IP address automatically. Please enter the
Dynamic IP information accordingly.
35
The following table describes the labels in this screen.
LABEL DESCRIPTION
Encapsulation Select your encapsulation type from the dropdown list.
NAT Select whether NAT is Enabled or Disabled.
Default Route Select whether this PVC will be the default route for Internet data.
Dynamic Route Select the RIP type and direction from the dropdown lists.
Multicast Select the multicast protocol you wish to use from the dropdown list.
(2) Static IP Address
Select this option to set static IP information. You will need to enter in the encapsulation
type (1483 Bridged IP LLC, 1483 Bridged IP VC-Mux, 1483 Routed IP LLC (IPoA), 1483
Routed IP VC-Mux), IP address, subnet mask, and gateway address provided to you by your
ISP. Each IP address entered in the fields must be in the appropriate IP form, which is 4 IP
octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this
format.
The following table describes the labels in this screen.
LABEL DESCRIPTION
Encapsulation Select your encapsulation type from the dropdown list.
Static IP Address Enter the static IP Address here.
IP Subnet Mask Enter the IP Subnet Mask here.
Gateway Enter the Gateway address here.
NAT Select whether NAT is Enabled or Disabled.
Default Route Select whether this PVC will be the default route for Internet data.
Dynamic Route Select the RIP type and direction from the dropdown lists.
Multicast Select the multicast protocol you wish to use from the dropdown list.
36
(3) PPPoA/PPPoE
Select this option if your ISP requires you to use a PPPoE connection. This option is
typically used for DSL service. Select Dynamic PPPoE to obtain an IP address automatically
for your PPPoE connection. Selection Static PPPoE to use static IP address for your PPPoE
connection. Please enter the information accordingly.
LABEL DESCRIPTION
Username Enter your username for your PPPoE/PPPoA connection.
Password Enter your password for your PPPoE/PPPoA connection.
Encapsulation Select your encapsulation type from the dropdown list.
Connection Select whether your connection is always on or if it connects on demand. If on
demand, specify how many minutes the connection may be idle before it
disconnects.
TCP MSS Option Enter the TCP MSS you wish to use here.
Get IP Address Choose whether the ROUTER obtains the IP address statically or dynamically.
Static IP Address Enter the static IP address here. Only if you chose Static above.
IP Subnet Mask Enter the IP subnet mask here. Only if you chose Static above.
Gateway Enter the gateway here. Only if you chose Static above.
NAT Select whether NAT is Enabled or Disabled.
Default Route Select whether this PVC will be the default route for Internet data.
Dynamic Route Select the RIP type and direction from the dropdown lists.
Multicast Select the multicast protocol you wish to use from the dropdown list.
37
Connection Setting: For PPPoE/PPPoA connection, you can select Always on or Connect
on-demand. Connect on demand is dependent on the traffic. If there is no traffic (or Idle) for a
pre-specified period of time, the connection will tear down automatically. And once there is
traffic send or receive, the connection will be automatically on.
IP Address: For PPPoE/PPPoA connection, you need to specify the public IP address for this
ADSL Router. The IP address can be either dynamically (via DHCP) or given IP address
provide by your ISP. For Static IP, you need to specify the IP address, Subnet Mask and
Gateway IP address.
NAT: Select this option to Activate/Deactivated the NAT (Network Address Translation)
function for this VC. The NAT function can be activated or deactivated per PVC basis.
[Dynamic Route]
RIP (Routing Information Protocol): Select this option to specify the RIP version, including
RIP1, RIP2-B and RIP2-M. RIP2-B & RIP2-M are both sent in RIP-2 format, the difference is
that RIP2-M using Multicast and RIP2-B using Broadcast format.
RIP Direction: Select this option to specify the RIP direction. None is for disabling the RIP
function. Both means the ADSL Router will periodically send routing information and accept
routing information then incorporate into routing table. IN only means the ADSL router will only
accept but will not send RIP packet. OUT only means the ADSL router will only sent but will
not accept RIP packet.
[Multicast]
IGMP (Internet Group Multicast Protocol): It is a session-layer protocol used to establish
membership in a multicast group. The ADSL supports both IGMP version IGMP-v1 & IGMP-v2.
Select None to disable it.
Your ISP should provide the above information. Note that you must enter the user name
exactly as your ISP assigned it. If the assigned name is in the form of user@domain where
domain identifies a service name, enter it exactly as given.

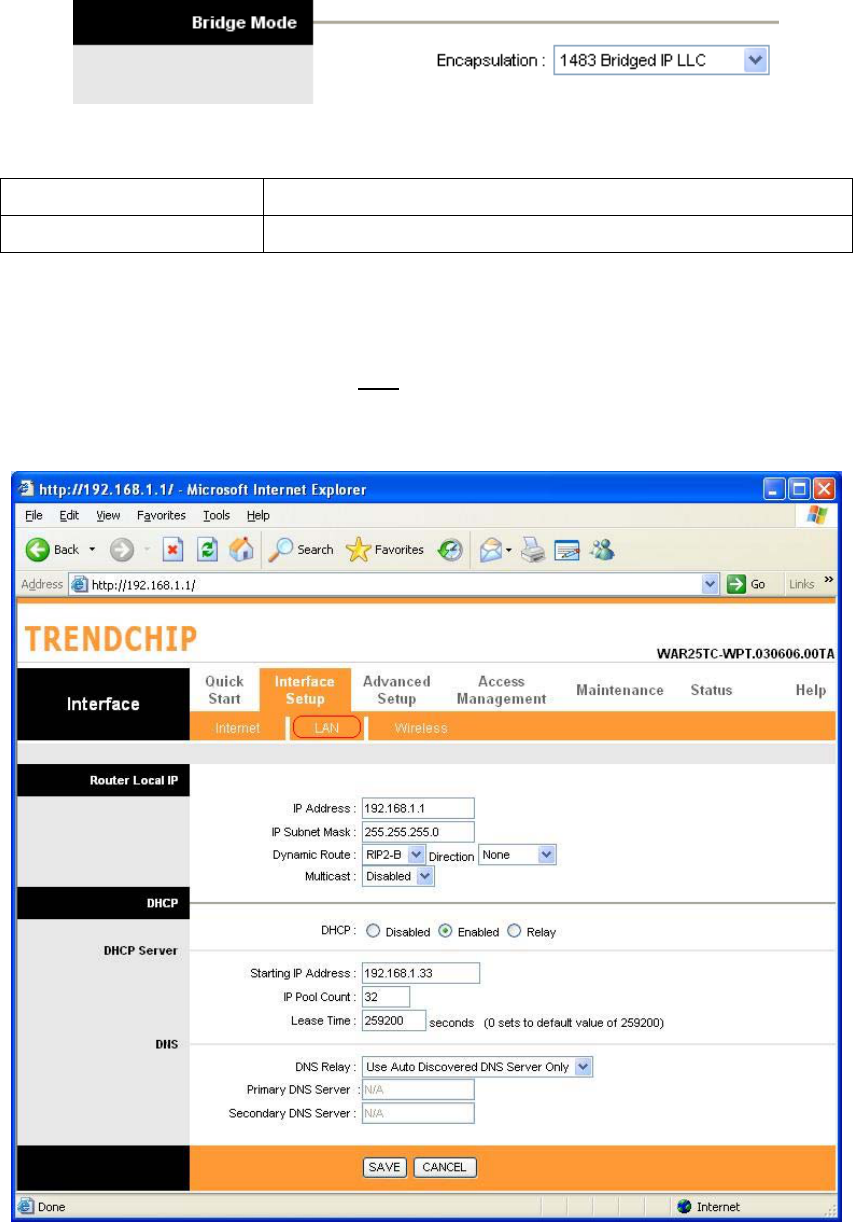

(4) Bridge Mode
The modem can be configured to act as a bridging device between your LAN and your ISP.
Bridges are devices that enable 2 or more networks to communicate as if they are 2 segments
of the same physical LAN. Please set the Connection type.
38
The following table describes the labels in this screen.
LABEL DESCRIPTION
Encapsulation Select your encapsulation type from the dropdown list.
6.2 LAN
There are the IP settings of the LAN Interface for the device. These settings may be
referred to as Private settings. You may change the LAN IP address if needed. The LAN IP
address is provided to your internal network and cannot be seen on the Internet.
39
6.2.1 Router Local IP
IP Address: Enter the IP address of your ADSL router in dotted decimal notation, for
example, 192.168.1.1 (default setting).
IP Subnet Mask: Your ADSL router will automatically calculate the subnet mask based on
the IP address that you assign. Unless you are implementing sub netting, use the subnet
mask computed by the ADSL router.
Dynamic Route: Select the Dynamic Route from RIP1, RIP2-B, and RIP2-M. Please refer
to Internet Dynamic Route. The only difference is the interface.
6.2.2 Explaining RIP Setup
Routing Information Protocol (RIP) allows a router to exchange routing information with
other routers. The RIP Direction field controls how RIP packets are allowed to enter and
leave the router. Selecting Both means the router will broadcast its routing table and
incorporate the RIP information that it receives. Selecting In Only means the router will
only accept RIP packets received, not send RIP packets. Selecting Out Only means
the router will only send RIP packets, not accept any RIP packets received.
Selecting None means the router will not send any RIP packets nor will it accept any RIP
packets received.
The Dynamic Route field controls the format and the broadcasting method of RIP
packets that the router sends. It recognizes both formats when receiving packets.
RIP-1 is universally supported, but RIP-2 carries more information. RIP-1 is adequate for
most networks. Only consider RIP-2 if your network has unusual topology.
Both RIP-2B and RIP-2M sends the routing data in RIP-2 format. RIP-2B uses subnet
broadcasting while RIP-2M uses multicasting.
Direction: Select the RIP direction from None, Both, In Only and Out Only.
Multicast: IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to
establish membership in a multicast group. The ADSL router supports both IGMP-v1 and
IGMP-v2. Select None to disable it. Please refer to Internet Multicast. The only
difference is the interface.

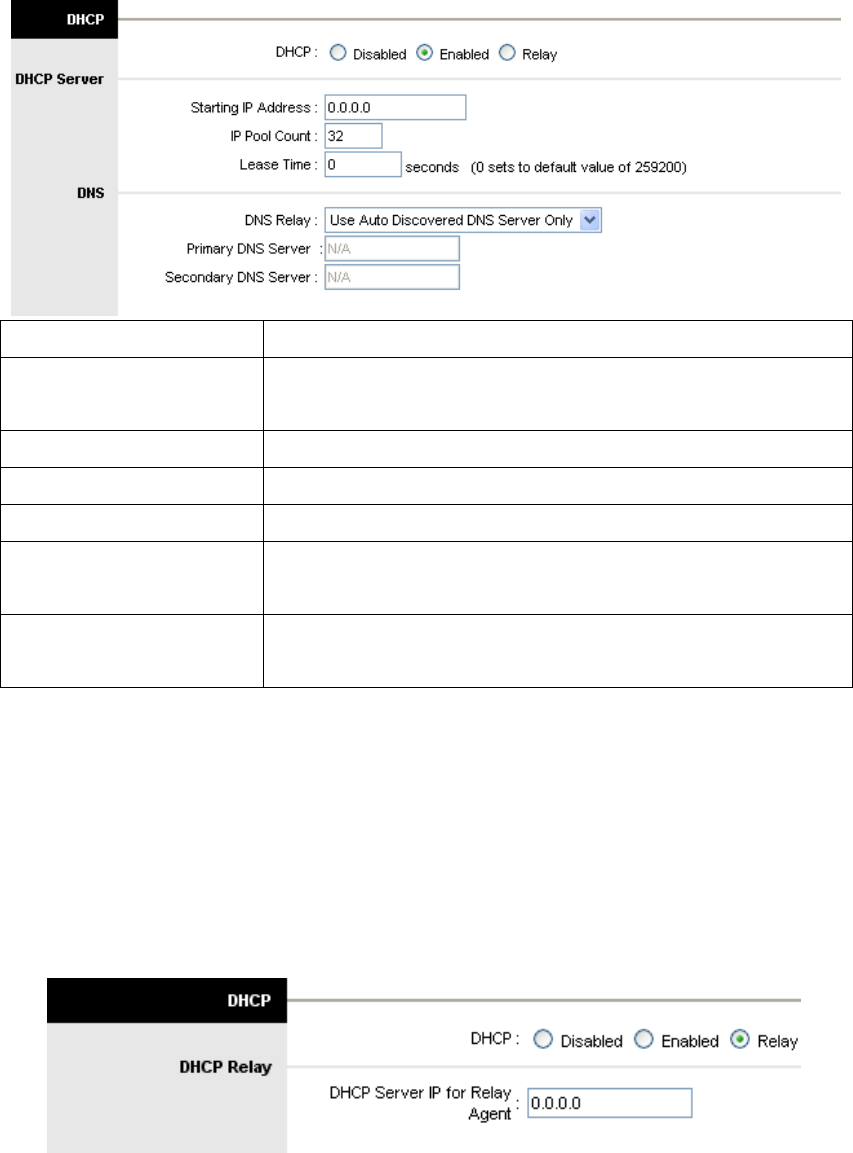

6.2.3 DHCP Server
The DHCP Server gives out IP addresses when a device is booting up and request an IP
to be logged on to the network. It must be set as a DHCP client to obtain the IP address
automatically. By default, the DHCP Server is enabled. The DHCP address pool contains
the range of the IP address that will automatically be assigned to the client on the network.
40
LABEL DESCRIPTION
Starting IP Address Enter the starting IP address you wish to use as the DHCP server's IP
assignment.
IP Pool Count Enter the maximum user pool size you wish to allow.
Lease Time Enter the amount of time you wish to lease out a given IP address.
DNS Relay Select the DNS relay option you wish to use from the dropdown list.
Primary DNS Server Enter the primary DNS server IP address you wish to use. For user
discovered DNS only.
Secondary DNS Server Enter the secondary DNS server IP address you wish to use. For user
discovered DNS only.
6.2.4 DHCP Relay
A DHCP relay is a computer that forwards DHCP data between computers that request IP
addresses and the DHCP server that assigns the addresses. Each of the device’s
interfaces can be configured as a DHCP relay. If it is enable, the DHCP requests from local
PCs will forward to the DHCP server runs on WAN side. To have this function working
properly, please run on router mode only, disable the DHCP server on the LAN port, and
make sure the routing table has the correct routing entry.
DHCP Server IP for relay agent: The DHCP server IP Address runs on WAN side.
6.2.5 DNS Relay
The DNS Configuration allows the user to set the configuration of DNS.
41
DNS Rely Selection: If user wants to disable this feature, he just needs to set both
Primary & Secondary DNS to 0.0.0.0. Using DNS relay, users can setup DNS server IP to
192.168.1.1 on their computer. If not, device will perform as NO DNS relay.
If you don’t want to use the DNS Relay option, set the DNS relay to “Use User
Discovered DNS Server Only” and set both Primary and Secondary DNS Servers to
“0.0.0.0”.
6.3 Wireless
42
6.3.1 Wireless LAN

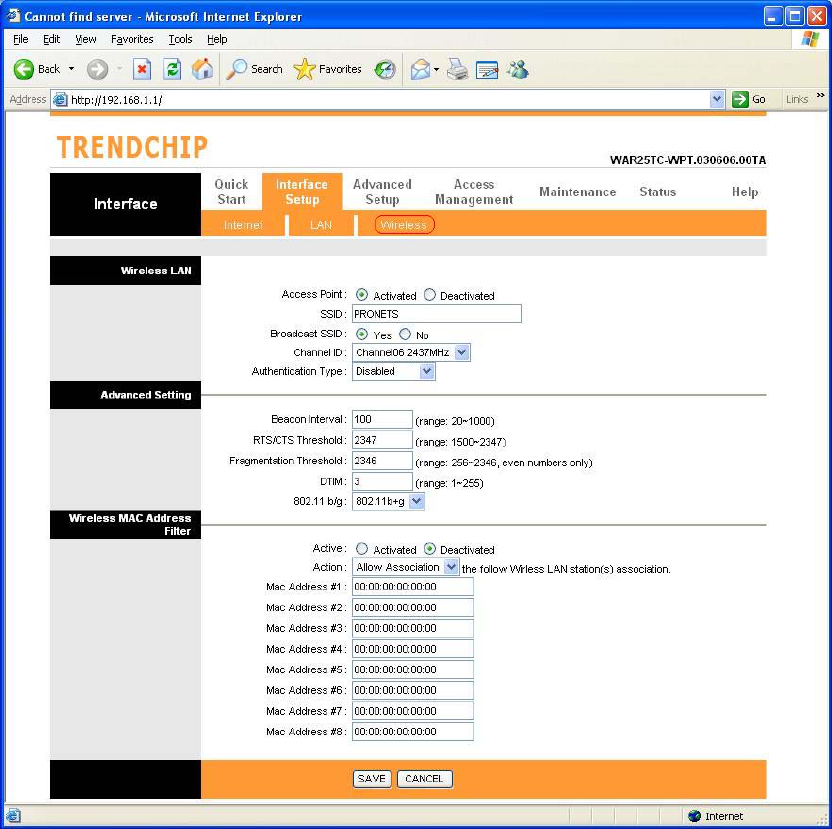

SSID: The SSID is a unique name to identify the ADSL Router in the Wireless LAN. Wireless
Clients associating to the ADSL Router must have the same SSID.
Broadcast SSID: Select No to hide the SSID such that a station can not obtain the SSID
through passive scanning. Select Yes to make the SSID visible so a station can obtain in the
SSID through Passive scanning.
Channel ID: The range of radio frequencies used by IEEE 802.11b/g wireless devices us
called a channel.
[Authentication Type]
WEP (Wired Equivalent Privacy) encrypts data frames before transmitting over the wireless
network. Select Disable to allow all wireless computers to communicate with the access points
without any data encryption. Select 64-bit WEP or 128-bit WEP to use data encryption.
Key#1~Key#4 The WEP keys are used to encrypt data. Both the ADSL Router and the
wireless clients must use the same WEP key for data transmission. If you chose 64-bit WEP,
then enter any 10 hexadecimal digits (“0-9”, “A-F”) preceded by 0x for each key (1-4). If you
choose 1280bit WEP, then enter 26 hexadecimal digits (“0-9”, “A-F”) preceded by 0x for each
key (1-4). The values must be set up exactly the same on the Access Points as they are on the
wireless client stations. The same value must be assigned to Key 1 on both access point (your
ADSL Router) and the client adapters, the same value must be assigned to Key 2 on both
access point and the client stations and so on, for all four WEP keys.
WPA-PSK Wi-Fi Protected Access, pre-shared key. Encrypts data frames before transmitting
over the wireless network.
Pre-shared Key is used to encrypt data. Both the ADSL Router and the wireless clients must
use the same WPA-PSK Key for data transmission.
6.3.2 Advanced Setting
Beacon Interval: The Beacon Interval value indicates the frequency interval of the beacon.
Enter a value between 20 and 1000. A beacon is a packet broadcast by the Router to
synchronize the wireless network.
RTS Threshold: The RTS (Request To Send) threshold (number of bytes) for enabling
RTS/CTS handshake. Data with its frame size larger than this value will perform the RTS/CTS
handshake. Set this attribute to be larger than the maximum MSDU (MAC Service Data Unit)
size TURNS OFF the RTS/CTS handshake. Set this attribute to ZERO TURNS ON the
RTS/CTS handshake. Enter a value between 0 and 2432.
Fragment Threshold: The threshold (number of bytes) for the fragmentation boundary for
directed messages. It is the maximum data fragment size that can be sent. Enter a value
43
between 256 and 2432.
DTIM: This value is between 1 and 255, indicates the interval of the Delivery Traffic Indication
Message (DTIM).
6.3.3 MAC Address Filter
You can allow or deny a lust of MAC addresses associated with the wireless stations access to
the ADSL Router.
Status: Use the drop down list box to enable or disable MAC address filtering.
Action: Select Deny Association to block access to the router, MAC addresses not listed will
be allowed to access the router. Select Allow Association to permit access to the router, MAC
addresses not lusted will be denied access to the router.
7 Advanced Setup
7.1 Firewall

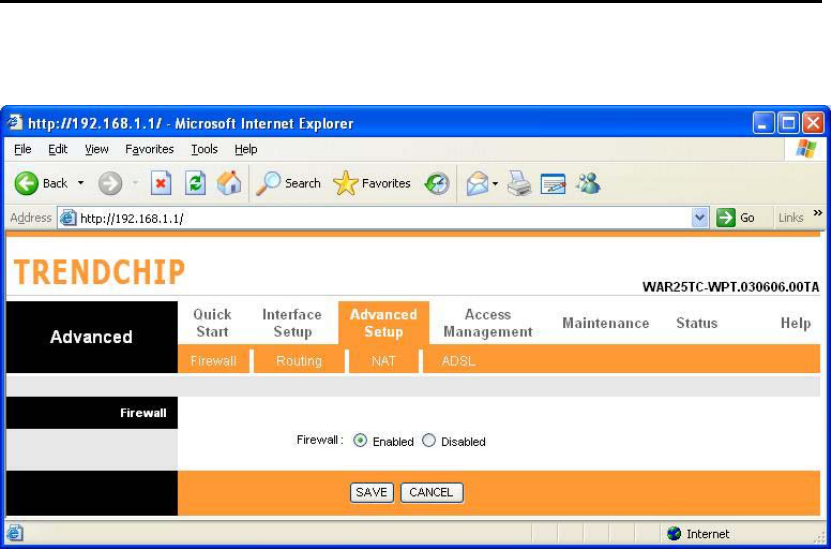

User can enable or disable firewall feature of the ADSL router in the page.
Firewall: Select this option to Enable or Disabled the firewall feature.
7.2 Routing
This table lists IP address of Internet destinations commonly accessed by your network.
When a computer requests to send data to a listed destination, the device uses the Gateway
IP to identify the first Internet router it should contact to route the data most efficiently. Select
44
this option will list the routing table information. You can press ADD ROUTE to edit the static
route. (As below screen)

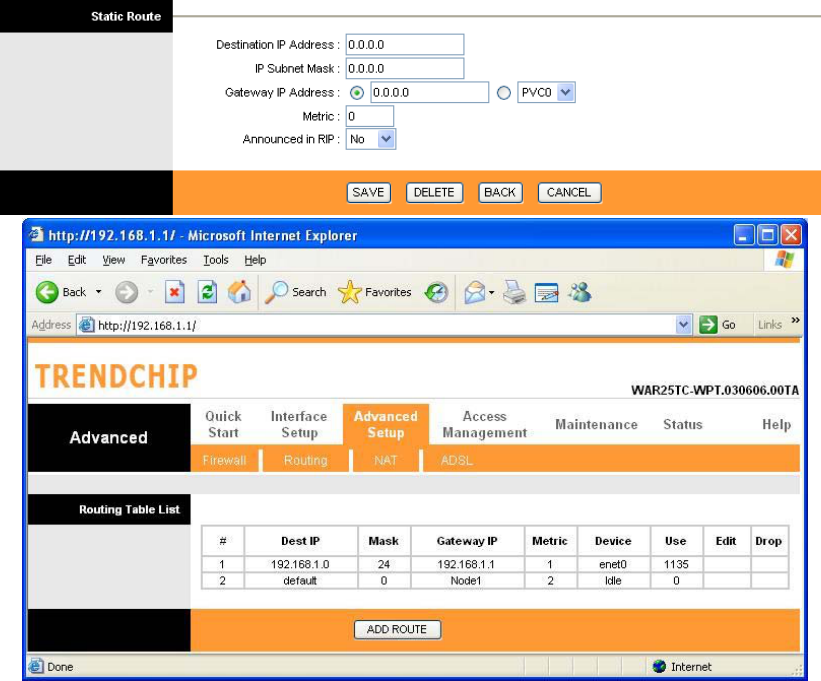

[Static Route]
Select this option to set Static Routing information.
Destination IP Address: This parameter specifies the IP network address of the final
destination of packets routed by this rule.
IP Subnet Mask: Enter the subnet mask for this destination.
Gateway IP Address: Enter the IP address of the gateway. A gateway does the actual
forwarding of the packets. Enter the gateway’s IP address in the field or select which PVC you
wish to act as a gateway.
The gateway is an immediate neighbor of your ADSL Router that will forward the packet to the
destination. On the LAN, the gateway must be a router on the same segment as your Router;
over Internet (WAN), the gateway must be the IP address of one of the remote nodes.
Metric: Metric represents the “cost” of transmission for routing purposes. IP Routing uses hop
count as the measurement of cost, with a minimum of 1 for directly connected networks. Enter
a number that approximates the cost for this link. The number need not to be precise, but it
must between 1 and 15. In practice, 2 or 3 is usually a good number.
45
Announced in RIP: This parameter determines if the ADSL router includes the router to this
remote node in its RIP broadcasts. If you choose Yes, the router in this remote node will be
propagated to other hosts through RIP broadcasts. If you choose No, this route is kept private
and is not included in the RIP broadcasts.
When you are done making changes, click on SAVE to save your changes, DELETE to delete
the rule with the parameters you set, BACK to return to the previous screen or CANCEL to
exit without saving.
7.3 NAT
Network Address Translation (NAT) is a method for disguising the private IP addresses
you use on your LAN as the public IP address you use on the Internet. You define NAT rules
that specify exactly how and when to translate between public and private IP addresses.
Simply select this option to setup the NAT function for your ADSL router.
Virtual Circuit (VC): The Virtual Circuit (VC) properties of the ATM VC interface identify a
unique path that your ADSL/Ethernet router uses to communicate via the ATM-based network
with the telephone company central office equipment.
NAT Status: This filed shows the current status of the NAT function for the current VC.
Number of IPs: This field is to specify how many IPs are provided by your ISP for current VC.
It can be single IP or multiple IPs.
46
Note: For VCs with single IP, they share the same DMZ & Virtual servers; for VCs with multiple
IPs, each VC cab set DMZ and Virtual servers. Furthermore, for VCs with multiple IPs, they
can define the Address Mapping rules; for VCs with single IP, since they have only one IP,
there is no need to individually define the Address Mapping rule.
7.3.1 What NAT Does
NAT changes the source IP address in a packet received from a subscriber (the inside local
address) to another (the inside global address) before forwarding the packet to the WAN side.
When the response comes back, NAT translates the destination address (the inside global
address) back to the inside local address before forwarding it to the original inside host. Note
that the IP address (either local or global) of an outside host is never changed.
The global IP addresses for the inside hosts can be either static or dynamically assigned by
the ISP. You may also designate servers, such as a Web server and a telnet server, on your
local network and make them accessible to the outside world. With no servers defined, your
ROUTER filters out all incoming inquiries, thus preventing intruders from probing your network.
For more information on IP address translation, refer to RFC 1631, The IP Network Address
Translator (NAT).
Inside/outside indicates where a host is located relative to the ROUTER. The computers hosts
of your LAN are inside, while the Web servers on the Internet are outside.
Global/local indicates the IP address of a host in a packet as the packet traverses a router.
The local address refers to the IP address of a host when the packet is in the local network,
while the global address refers to the IP address of the host when the same packet is traveling
in the WAN side.
Note that inside/outside refers to the location of a host, while global/local refers to the IP
address of a host used in a packet. Thus, an inside local address (ILA) is the IP address of an
inside host of a packet when the packet is still in the local network, while an inside global
address (IGA) is the IP address of the same inside host when the packet is on the WAN side.
The following table summarizes this information.
ITEM DESCRIPTION
Inside This refers to the host on the LAN.
Outside This refers to the host on the WAN.
Local This refers to the packet address (source or destination) as the packet
travels on the LAN.
Global This refers to the packet address (source or destination) as the packet
travels on the WAN.
47
7.3.2 How NAT Works
Each packet has two addresses – a source address and a destination address. For outgoing
packets, the ILA is the source address on the LAN, and the IGA is the source address on the
WAN. For incoming packets, the ILA is the destination address on the LAN, and the IGA is the
destination address on the WAN. NAT maps private (local) IP addresses to globally unique
ones required for communication with hosts on other networks. It replaces the original IP
source address (and TCP or UDP source port numbers for Many-to-One and Many-to-Many
Overload NAT mapping) in each packet and then forwards it to the Internet. The ROUTER
keeps track of the original addresses and port numbers so incoming reply packets can have
their original values restored.
The following figure illustrates this.
48

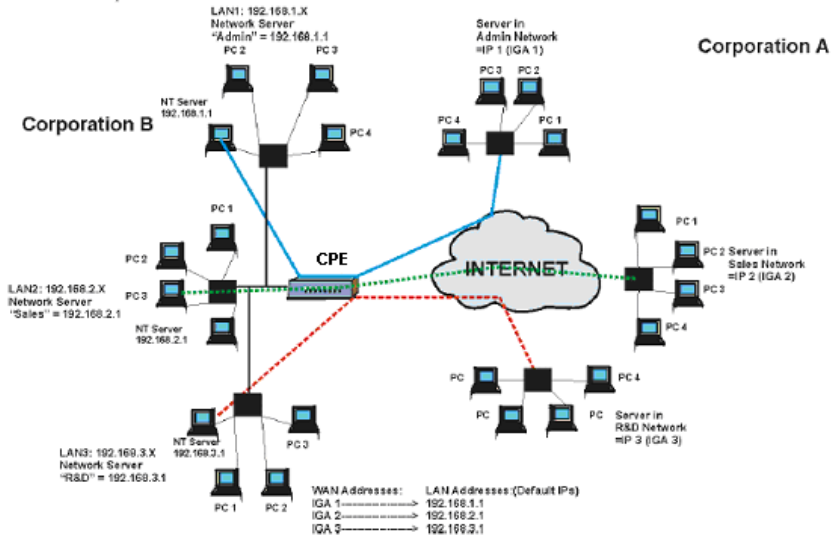

7.3.3 NAT Application
The following figure illustrates a possible NAT application, where three inside LANs (logical
LANs using IP Alias) behind the router can communicate with three distinct WAN networks.
More examples follow at the end of this chapter.
7.3.4 NAT Mapping Types
NAT supports five types of IP/port mapping. They are:
a. One-to-One: In One-to-One mode, the TC3162 EVM maps one local IP address to one
global IP address.
b. Many-to-One: In Many-to-One mode, the TC3162 EVM maps multiple local IP addresses to
one global IP address.
c. Many-to-Many Overload: In Many-to-Many Overload mode, the TC3162 EVM maps
multiple local IP addresses to shared global IP addresses.
d. Many-to-Many No Overload: In Many-to-Many No Overload mode, the TC3162 EVM maps
each local IP address to a unique global IP address.
e. Server: This type allows you to specify inside servers of different services behind the NAT
to be accessible to the outside world.
The following table summarizes these types.
49
TYPE IP MAPPING
One-to-One ILA1 IGA1
Many-to-One (SUA/PAT) ILA1 IGA1
ILA2 IGA1
…
Many-to-Many Overload ILA1 IGA1
ILA2 IGA2
ILA3 IGA1
ILA4 IGA2
…
Many-to-Many No Overload ILA1 IGA1
ILA2 IGA2
ILA3 IGA3
…
Server Server 1 IP IGA1
Server 2 IP IGA1
Server 3 IP IGA1
7.3.5 DMZ
A DMZ (de-militarized zone) is a host between a private local network and the outside public
network. It prevents outside users from getting direct access to s server that has company
50
data. Users of the public network outside the company can access only the DMZ host.

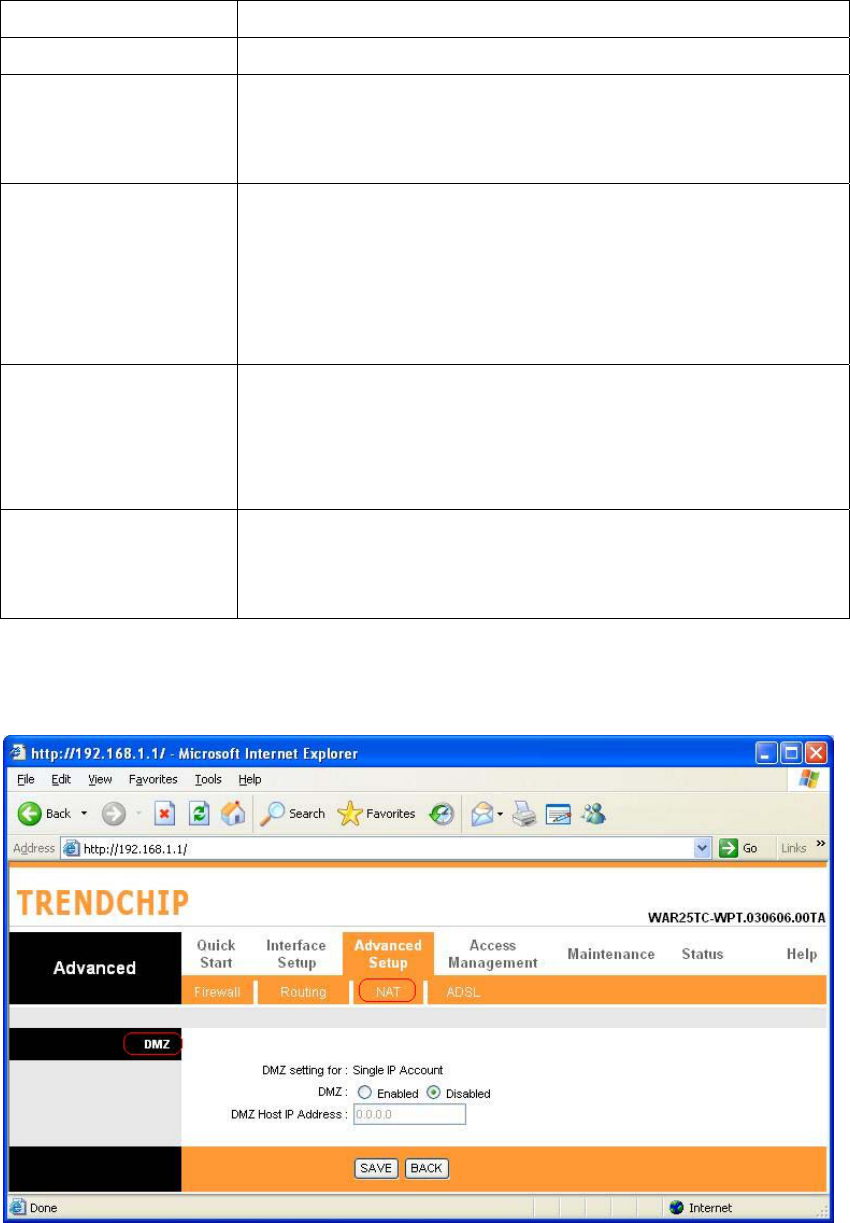

DMZ: Toggle the DMZ function Enabled or Disabled.
DMZ Host IP Address: Enter the specified IP Address for DMZ host on the LAN side
When you are done making changes, click on SAVE to save your changes or on BACK to
return to the previous screen.
7.3.6 Virtual Server
The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web
server or FTP server, that you can make visible to the outside world even though NAT makes
your whole inside network appear as a single machine to the outside world.
Rule Index: The Virtual server rule index for this VC. You can specify up to 10 rules. All the
VCs with single IP will use the same Virtual Server rules.
Start & End port number: Enter the specific Start and End Port number you want to forward.
If it is one port only, you can enter the End port number the same as Start port number. For
51
example, set the FTP Virtual server, you can set the start and end port number to 21.
Local IP Address: Enter the IP Address for the Virtual Server in LAN side.
Virtual Server Listing: This is a listing of all virtual servers your have set.
When you are done making changes, click on SAVE to save your changes, DELETE to delete
the rule with the parameters you set, BACK to return to the previous screen or CANCEL to
exit without saving.
7.3.7 IP Address Mapping

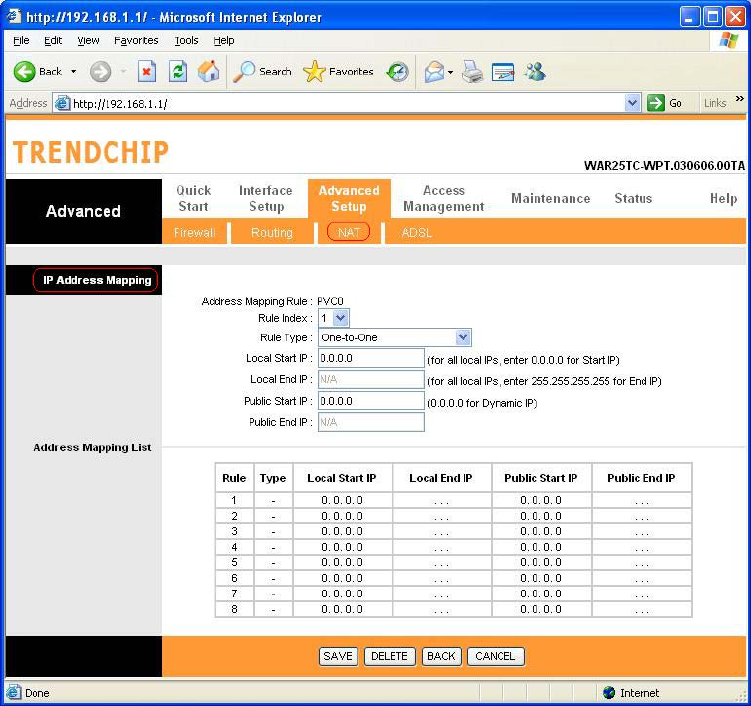

The IP Address Mapping is for those VCs that with multiple IPs. The IP Address Mapping rule
is per-VC based. (only for Multiple IPs’ VCs).
Rule Index: The Virtual server rule index for this VC. You can specify up to 10 rules. All the
VCs with single IP will use the same Virtual Server rules.
Rule Type: There are 4 types of One-to-One, Many-to-One, Many-to-Many Overload, and
Many-to Many No-Overload.
52
Local Start & End IP: Enter the local IP address you plan to map to. Local Start IP is the
starting local IP address & Local End IP is the ending local IP address. If the rule is for all local
IPs, then the Start IP is 0.0.0.0 and the End IP is 255.255.255.255.
Public Start & End IP: Enter the Public IP Address you want to do NAT. Public Start IP is the
starting Public IP Address and Public End IP is the ending Public IP Address. If you have a
Dynamic IP, enter 0.0.0.0 as the Public Start IP.
When you are done making changes, click on SAVE to save your changes, DELETE to delete
the rule with the parameters you set, BACK to return to the previous screen or CANCEL to
exit without saving.
7.4 ADSL
Select this option to set ADSL Mode and ADSL Type information.
ADSL Mode: Select which mode your ADSL connection uses from the dropdown list.
The option has Auto Sync-up, ADSL2+, ADSL2, G.DMT, T1.413, G.LITE
ADSL Type: Select the ADSL type you use from the dropdown list.
ANNEX A, ANNEX I, ANNEX A/L, ANNEX M, ANNEX A/I/J/L/M
When you are done making changes, click on SAVE to save your changes.
53
8. Access Management
8.1 ACL
Go to Access Management ACL to enable remote management. Access Control Listing
(ACL) is a management tool that acts as a filter for incoming or outgoing packets, based on
application. You may use telnet or Web to remotely manage the ADSL Router. User just needs
to enable Telnet or Web and give it an IP address that wants to access the ADSL Router. The
default IP 0.0.0.0 allows any client to use this service to remotely manage the ADSL Router.

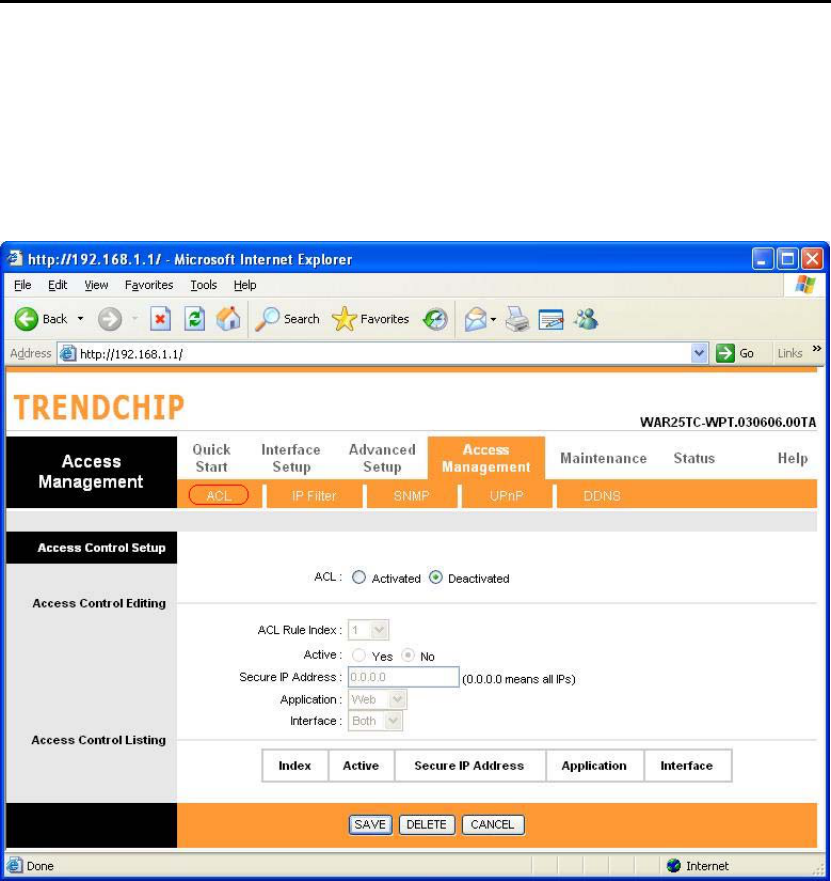

ACL: There has Activated & Deactivated option. The default setting is Deactivated which
means all IP can access via router. If you choose Activated, you only can access via router by
listed IP addresses.
ACL Rule Index: Index number from 1 and up to 16.
Active: Once you choose Yes then you can access the IP via router.
Application: Each of these labels denotes a service that you may use to remotely manage the
Router. Choices are Web, FTP, Telnet, SNMP, Ping, ALL.
Interface: Select the access interface. Choices are WAN, LAN and Both.
54

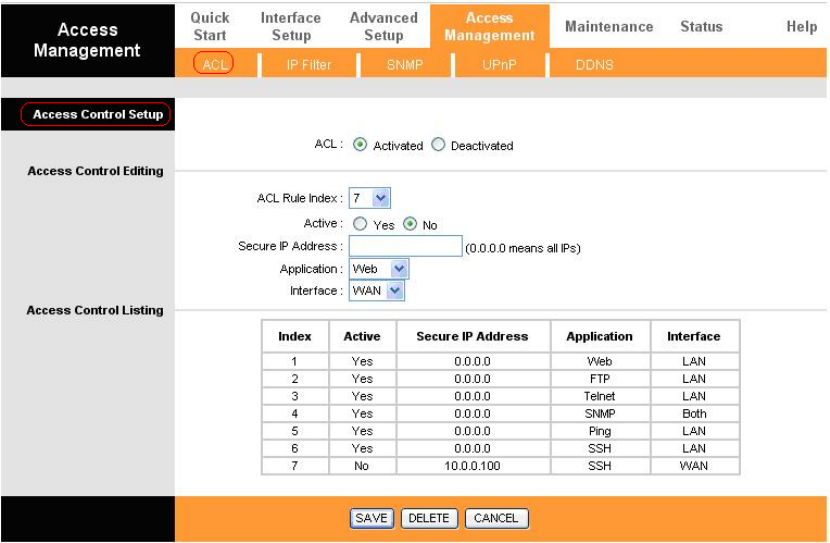

For Example:
How to set your ACL?
1. You must choose Activated to enable your ACL function.
2. Select the ACL Rule Index number (up to 16 number)
3. You can set the specific Secure IP address or set 0.0.0.0 for all IPs.
4. Choose the Application which you want to access for this ACL Rule index.
5. Select the Interface you want to access from.
6. After all settings are ready, click SAVE and continue next ACL Rule Index setting.
[Note]
1. You must set one ACL index to access your router via LAN interface. If you don’t, your
router cannot access other listed IP Address. (Refer to Index 1).
2. Remember! Once you active your ACL function, you only can access via router by
listed Secure IP Address.
55
8.2 IP Filter
The Router provides extensive firewall protection by restricting connection parameters to limit
the risk of intrusion and defending against a wide array of common hacker attackers. Go to
Access Management IP Filtering to set different IP filter rules of a given protocol (TCP,
UDP, or ICMP) and a specific direction (incoming, outgoing, or both) to filter the packets.
IP Filter is a more complex filtering tool, based more on IP and custom rules. Each of the
indices can hold six rules, and each interface can have four associated indices, allowing 24
rules per interface. If all six rules in an index are Next rules, the data will be sent to the next
index for filtering.
IP Filter Set Index: The IP Filter Set Index from 1 to 12 and each index can set up to 6 IP
Filter.
Interface: Choices from PVC0 to PVC7 and LAN.
Direction: Choices are Both, Incoming and Outgoing. Select which direction of data flow
you wish to apply the filters to. Note that Incoming and Outgoing are from the point of view of
56
your router, relative to the interface you select. For WAN, data coming from outside your
system is considered Incoming and data leaving your system is Outgoing. For LAN, data
leaving your system is considered Incoming and data entering your system is Outgoing.
IP Filter Rule Editing: Select the IP Filter Rule Index you wish to modify.
Active: Toggle this rule index on or off with Yes or No, respectively.
Source IP Address: Enter the source IP address you wish to deny access to your system.
Subnet Mask: Enter the subnet mask of the source IP address.
Port Number: Enter the port number of the source IP address. Note that 0 means all that ports
are allowed.
Destination IP Address: Enter the destination IP address that you wish to deny access to
your system.
Subnet Mask: Enter the subnet mask of the destination IP address
Port Number: Enter the port number of the destination IP address. Note that 0 means that all
ports are allowed
Protocol: Select the protocol to filter. Choices are TCP, UDP, and ICMP.
Rule Unmatched: Choices are Forward and Next. Select what happens to the data in
question if the rule you are currently editing is unmatched. Next means that the data is then
compared to the next IP filter rule. Forward means that the data will be allowed into your
system. Note that a Forward rule should be the last rule, as no data will be compared to rules
after a Forward rule.

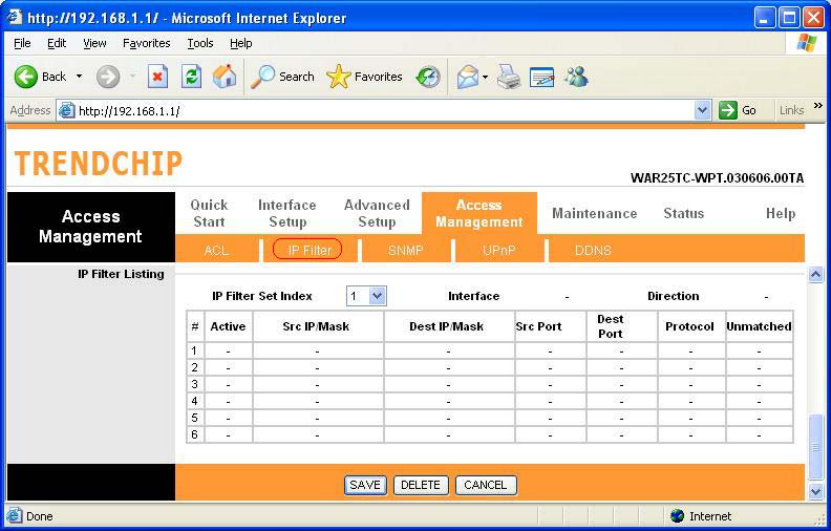

IP Filter Set Index: Select the IP filter set you wish to view.
57

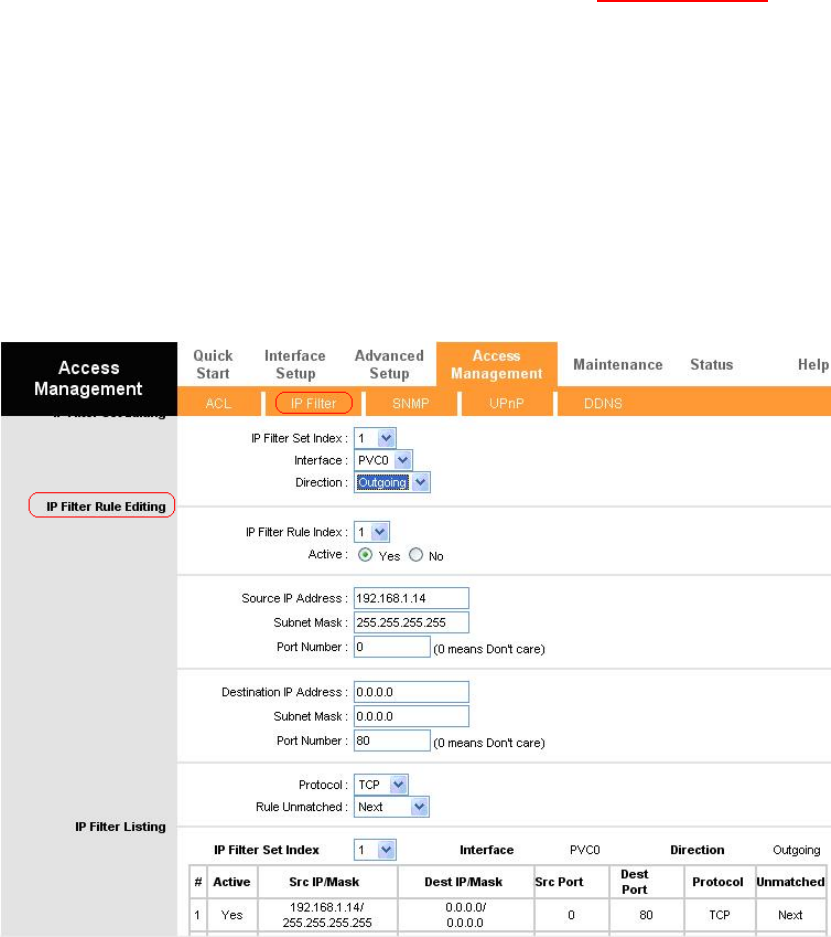

For Example
Please follow below steps to set your IP Filter:
1. IP Filter Set Editing: Choose your IP Filter Set Index, Interface and Direction options.
Remember, Interface and Direction functions are affected with IP Filter Set Index. EX: if
your 1st index set of IP filter set PVC0 as Interface and Outgoing as Direction, so the list of
1st IP Filter will be PVC0 and Outgoing as their settings.
2. IP Filter Rule Editing: Select the IP Filter Rule Index (up to 6 numbers for each set index)
and choose Active option. As below example, Source IP Address is 192.168.1.4,
Subnet Mask is 255.255.255.255, Destination IP Address & Subnet Mask is 0.0.0.0,
Port Number is 80. And, Protocol sets TCP. From this setting, it filters 192.168.1.14, so it
cannot access the web. Notice, each IP Filter Set Index can has up to 6 filters IP. At “Rule
Unmatched” option, you must choose NEXT until the last filter IP choose Forward.
3. After every setting is done, click SAVE to continue next IP Filter Editing.
58
8.3 SNMP
The Simple Network Management Protocol (SNMP) is used for exchanging information
between network devices. It enables a host computer to access configuration, performance,
and other system data that resides in a database on the modem. The host computer is called a
management station and the modem is called an SNMP agent. The data that can be accessed
via SNMP is stored in a Management Information Database (MIB) on the modem.

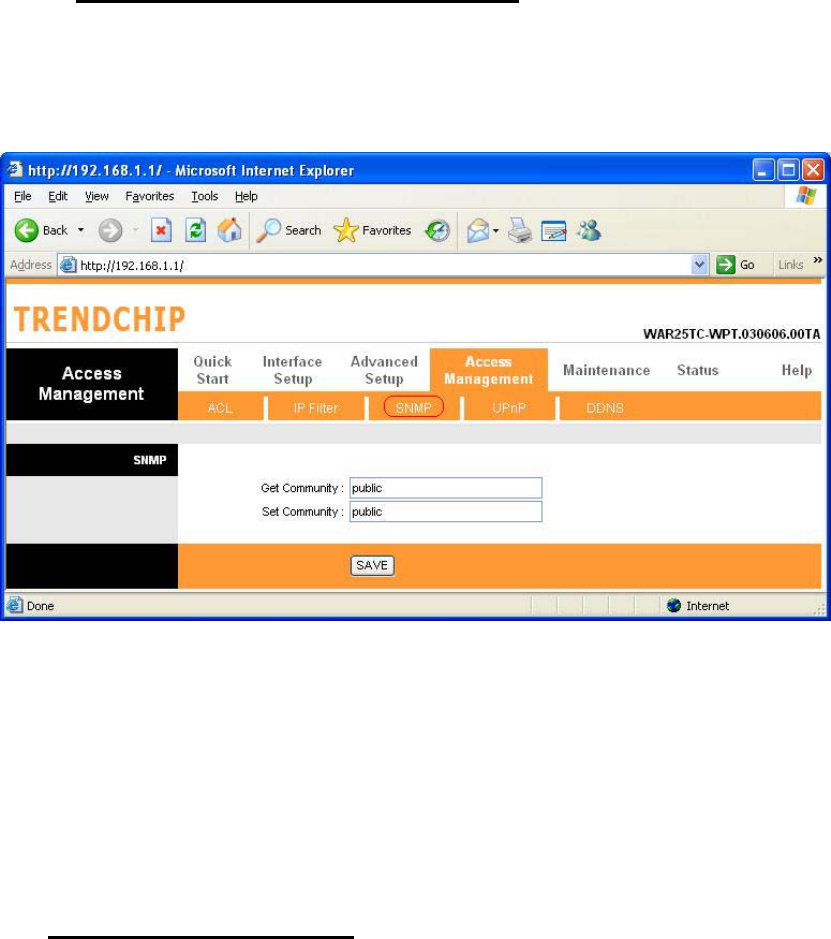

Get Community: Select to set the password for incoming Get- and GetNext request from
management station.
Set Community: Select to set the password for incoming Set request from management
station.
The default password is ‘public’. When you are done making changes, click on SAVE to save
your changes.
8.4 UPnP
UPnP (Universal Plug and Play) is a distributed, open networking standard that uses
TCP/IP for simple peer-to-peer network connectivity between devices. An UPnP device can
dynamically join a network, obtain an IP address, convey its capabilities and learn about other
devices on the network. In turn, a device can leave a network smoothly an automatically when
it is no longer in use. UPnP broadcasts are only allowed on the LAN.
How do I know if I'm using UPnP?
UPnP hardware is identified as an icon in the Network Connections folder (in Windows XP &
Windows ME). Each UPnP-compatible device that is installed on your network will appear as a
separate icon.
59

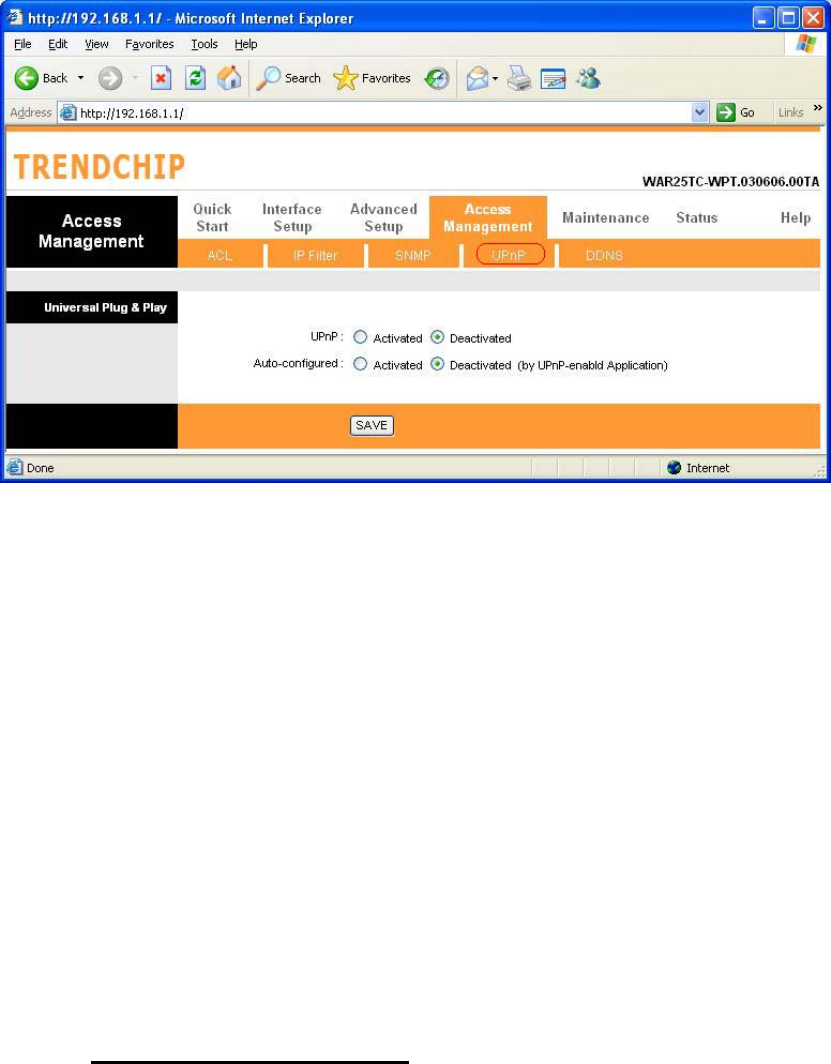

UPnP (Universal Plug and Play): You can choose “Activated” or “Deactivated” option from
this session.
Auto-Configured (by UPnP Application): UPnP network devices can automatically
configure network addressing, announce their presence in the network to other UPnP devices
and enable exchange of simple product and service descriptions. Choose “Activated” option
to allow UPnP-enabled applications to automatically configure the ADSL Router so that they
can communicate through the ADSL Router, for example by using NAT traversal, UPnP
applications automatically reserve a NAT forwarding port in order to communicate with another
UPnP enabled device; this eliminates the need to manually configure port forwarding for the
UPP enabled application. If you don’t want to make configuration changes through UPnP,
just choose “Deactivated”.
SAVE: Click SAVE to save the setting to the ADSL Router.
8.5 DDNS
The Dynamic Domain Name System allows you to update your current dynamic IP
address with one or many dynamic DNS services so that anyone can contact you (in
NetMeeting, CU-SeeMe, etc.). You can also access your FTP server or Web site on your own
computer using a DNS-like address (for instance myhost.dhs.org, where my host is a name of
your choice) that will never change instead of using an IP address that changes each time you
reconnect. Your friends or relatives will always be able to call you even if they don't know your
IP address. First of all, you need to have registered a dynamic DNS account with
60
www.dyndns.org. This is for people with a dynamic IP from their ISP or DHCP server that
would still like to have a DNS name. The Dynamic DNS service provider will give you a
password or key.

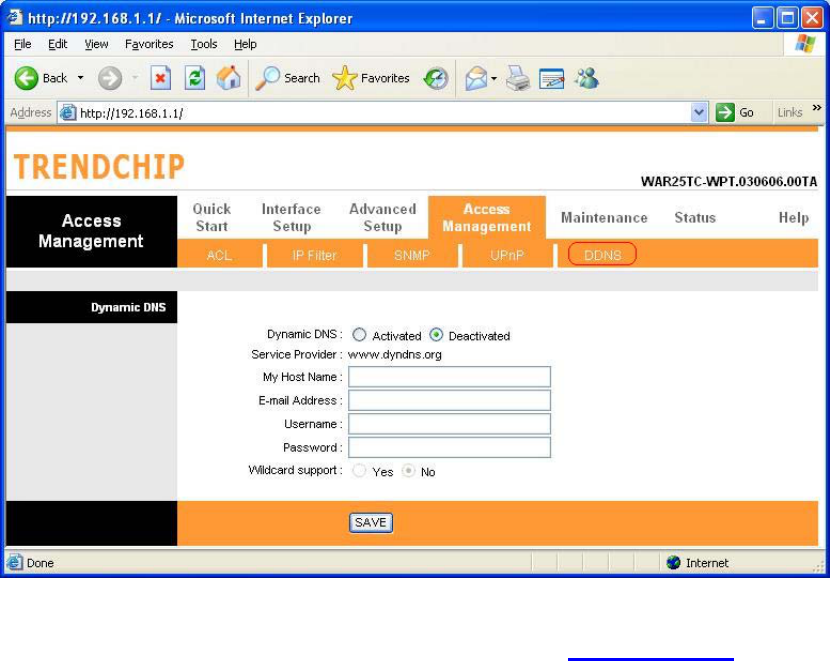

Dynamic DNS: Choose the option for Activated or Deactivated DDNS.
Service Provider: The default Dynamic DNS service provider is www.dyndns.org.
My Host Name: Type the domain name assigned to your ADSL by your Dynamic DNS
provider.
E-mail Address: Type your e-mail address.
Username: Type your user name.
Password: Type the password assigned to you.
Wildcard support: Select Yes or No to turn on DYNDNS Wildcard.
DYNDNS Wildcard --> Enabling the wildcard feature for your host causes
*.yourhost.dyndns.org to be aliased to the same IP address as yourhost.dyndns.org. This
feature is useful if you want to be able to use, for example, www.yourhost.dyndns.org and still
reach your hostname.
SAVE: Click SAVE to save your changes.
Note that you must enter the user name exactly as your ISP assigned it. If the assigned name
is in the form of user@domain where domain identifies a service name, enter it exactly as
given. When you are done making changes, click on SAVE to save your changes.
61
9. Maintenance
9.1 Administration
There is only one account that can access Web-Management interface-Administration.
Admin has read/write access privilege. In this web page, you can set new password for admin.
New Password: Type the new password in this field.
Confirm Password: Type the new password again in this field.
Note: If you ever forget the password to log in, you may press the RESET button up to 6
second to restore the factory default settings. The Factory Default Settings for User
Name & Password are admin & trendchip.
9.2 Time Zone
The system time is the time used by the device for scheduling services. You can
manually set the time or connect to a NTP (Network Time Protocol) server. If an NTP server is
set, you will only need to set the time zone. If you manually set the time, you may also set
Daylight Saving dates and the system time will automatically adjust on those dates.
62

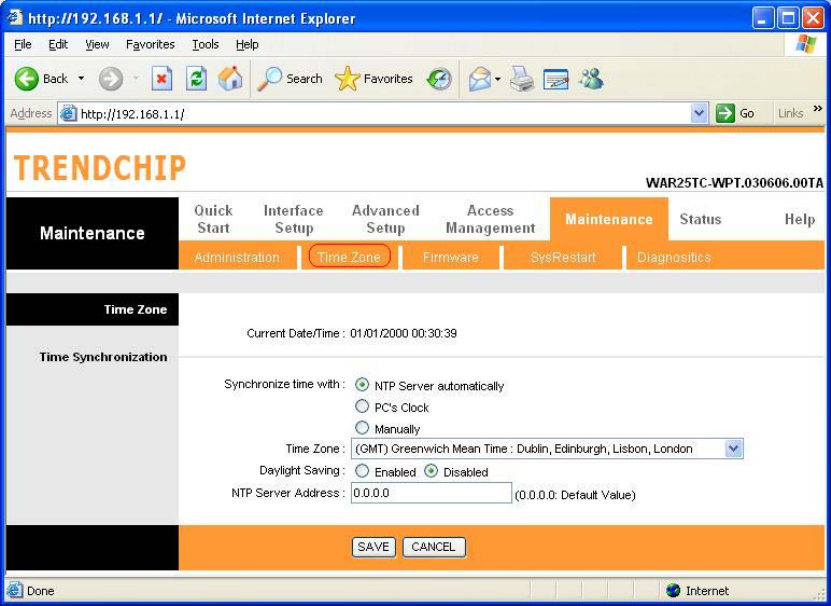

Current Date/Time: This field displays an updated Date and Time when you reenter this
menu.
[Time Synchronization]
Synchronize time with: You can choose “NTP Server automatically”, “PC’s Clock”, or
“Manually” to coordinate the time.
Time Zone: Choose the Time Zone of your location. This will set the time difference between
your time zone and Greenwich Mean Time (GMT).
Daylight Saving: Choose “Enabled” or “Disabled” to use daylight savings time.
NTP Server Address: Type the IP address or domain name of your timeserver. Check with
your ISP/network administrator if you are unsure of this information.
A Network Time Protocol (NTP) server can automatically set the router time for you. If you
use an NTP server, you will only need to select your time zone. If you manually set the time,
you can enable Daylight Saving. The router will automatically adjust when Daylight Saving
goes into effect.
When you are done making changes, click on SAVE to save your changes or on CANCEL to
exit without saving.
63
9.3 Firmware
You can upgrade the firmware of the router in this page. Make sure the firmware you want
to use is on the local hard drive of the computer. Click on Browse to browse the local had drive
and locate the firmware to be used for the update. Then press UPGRADE to upload new
Firmware. It might take several minutes, don’t power off it during upgrading. Device will
restart after the upgrade!!
After a success upload, the system automatically restarts. Please wait for the device to finish
restarting. This should take about 2 minutes or more. You need to log in again if you want to
access the device.

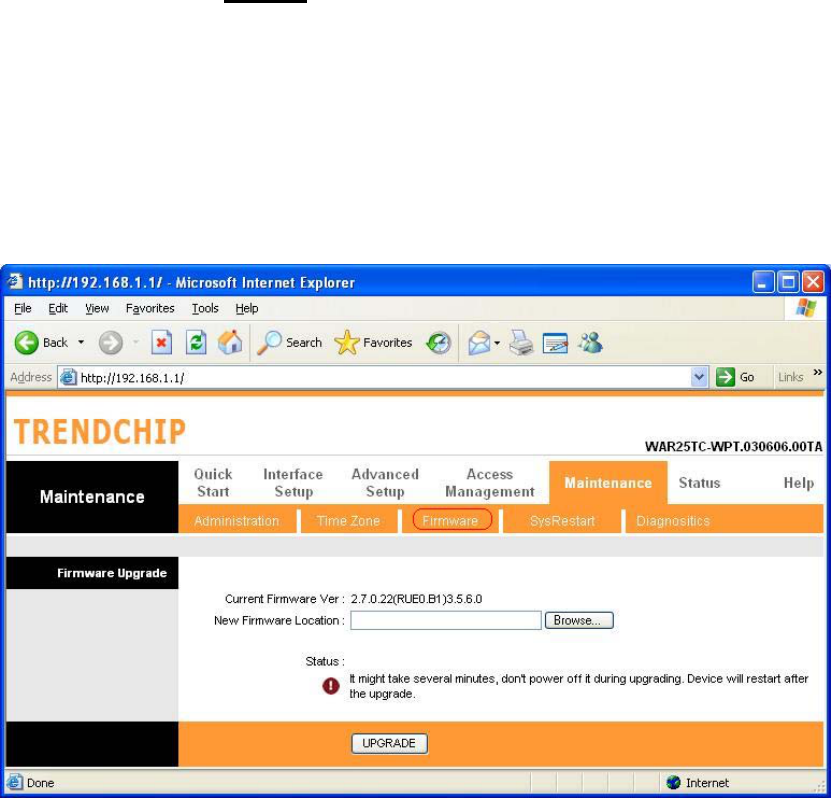

Current Firmware Ver.: This filed displays the current firmware version.
New Firmware Location: Type in the location of the file you want to upload in this field or click
Browse… to find it.
UPGRADE: Click UPGRADE to begin the upload process.
64
9.4 System Restart

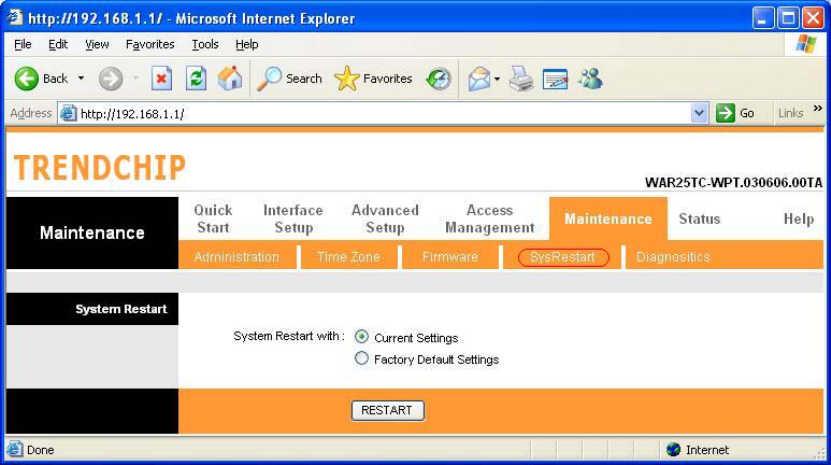

The SysRestart screen allows you to restart your router with either its current
settings still in place or the factory default settings.
If you wish to restart the router using the factory default settings (for example, after a firmware
upgrade or if you have saved an incorrect configuration), select Factory Default Settings to
reset to factory default settings. Otherwise, you can select Current Settings. You may also
reset your router to factory settings by holding the DEFAULT button on the back panel of your
router in for 10-12 second while the router is turned on.
65
9.5 Diagnostic
The Diagnostic Test page shows the test results for the connectivity of the physical
layer and protocol layer for LAN & WAN sides.
Select which PVC you wish to test from the dropdown list. The router will automatically run
diagnostic tests on that circuit. A green PASS means that the given test was passed, a red
FAIL means that the test was failed and a green SKIPPED means that the test was skipped.
Note: 1) User ONLY can view PVC0’s Diagnostic Test connection.
2) “Testing ADSL Synchronization” might take 30 sec to execute the Diagnostic Test.
66
10.Status
10.1 Device Info
The Device Info screen is a tool that you use to monitor your ADSL Router. It shows the
Firmware Version, WAN, LAN, and MAC address information. Note that these fields are
read-only and are not meant for diagnostic purposes. Except the Virtual Circuit, click the
drop-down list and select the name of the Virtual Circuit on which the system status is to be
shown.

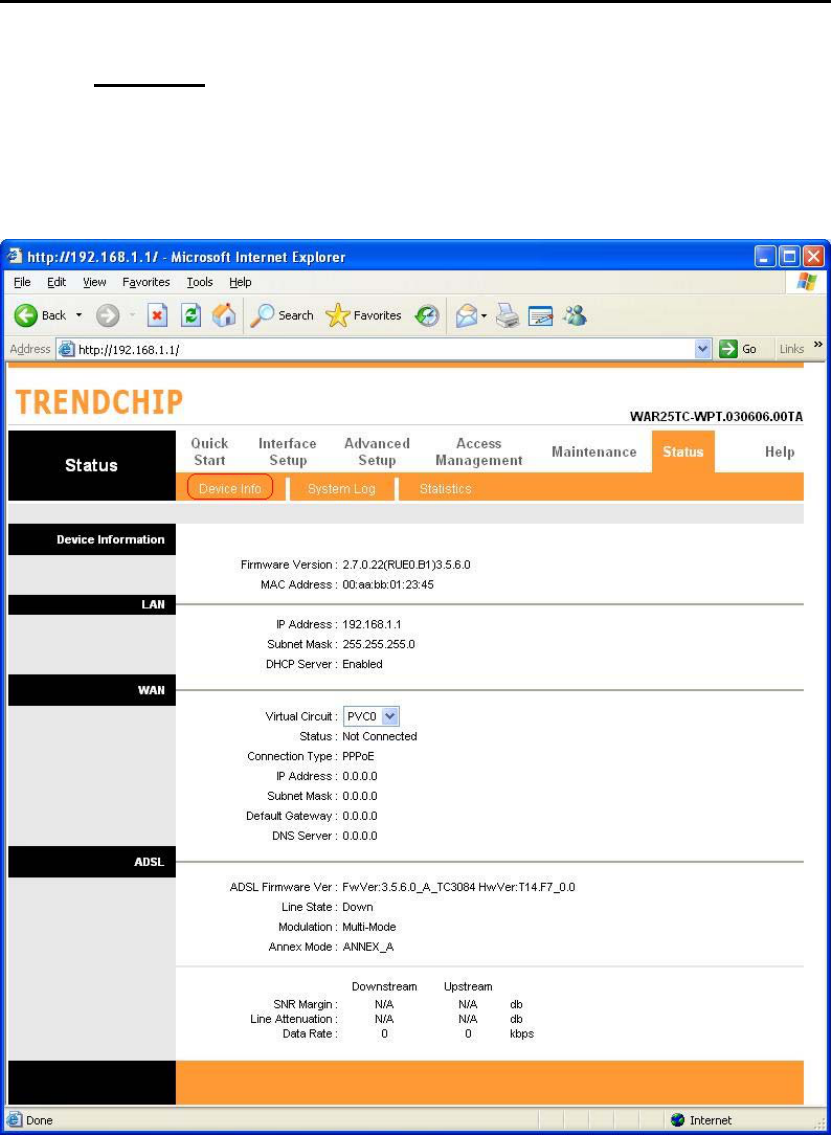

[Device Information]
Firmware Version: This filed displays current firmware version.
MAC Address: The MAC (Media Access Control) or Ethernet address unique to your modem.
67
[LAN]
IP Address: The LAN port IP address
Subnet Mask: The LAN port IP subnet mask.
DHCP Server: The status of DHCP Server (Enabled or Disabled)
[WAN]
Virtual Circuit: Click the drop-down list and select the name of the Virtual Circuit on which the
system status is to be shown.
Status: Connected or Not Connected
Connection Type: The WAN Connection Type.
IP Address: The WAN port IP address
Subnet Address: The WAN port IP subnet mask.
Default Gateway: The IP address of the default gateway, if applicable.
DNS Server: The IP address of the DNS Server
[ADSL]
ADSL Firmware Version: This field displays current ADSL firmware version.
Line States: This field displays the ADSL connection process and status.
Modulation: This field displays the ADSL modulation status for G.dmt or T1.413.
Annex Mode: This field displays the ADSL annex modes for Annex A or Annex B.
Downstream and Upstream: Status of SNR Margin, Line Attenuation and Data Rate
SNR Margin: Amount of increased noise that can be tolerated while maintaining the designed
BER (bit error rate). The SNR Margin is set by Central Office DSLAM. If the SNR Margin is
increased, bit error rate performance will improve, but the data rate will decrease. Conversely,
if the SNR Margin is decreased, bit error rate performance will decrease, but the data rate will
increase.
Line Attenuation: Attenuation is the decrease in magnitude of the ADSL line signal between
the transmitter (Central Office DSLAM) and the receiver (Client ADSL Modem), measured in
dB. It is measured by calculating the difference in dB between the signal power level received
at the Client ADSL Router and the reference signal power level transmitted from the Central
Office DSLAM.
Data Rate: This field displays the ADSL data rate.
68

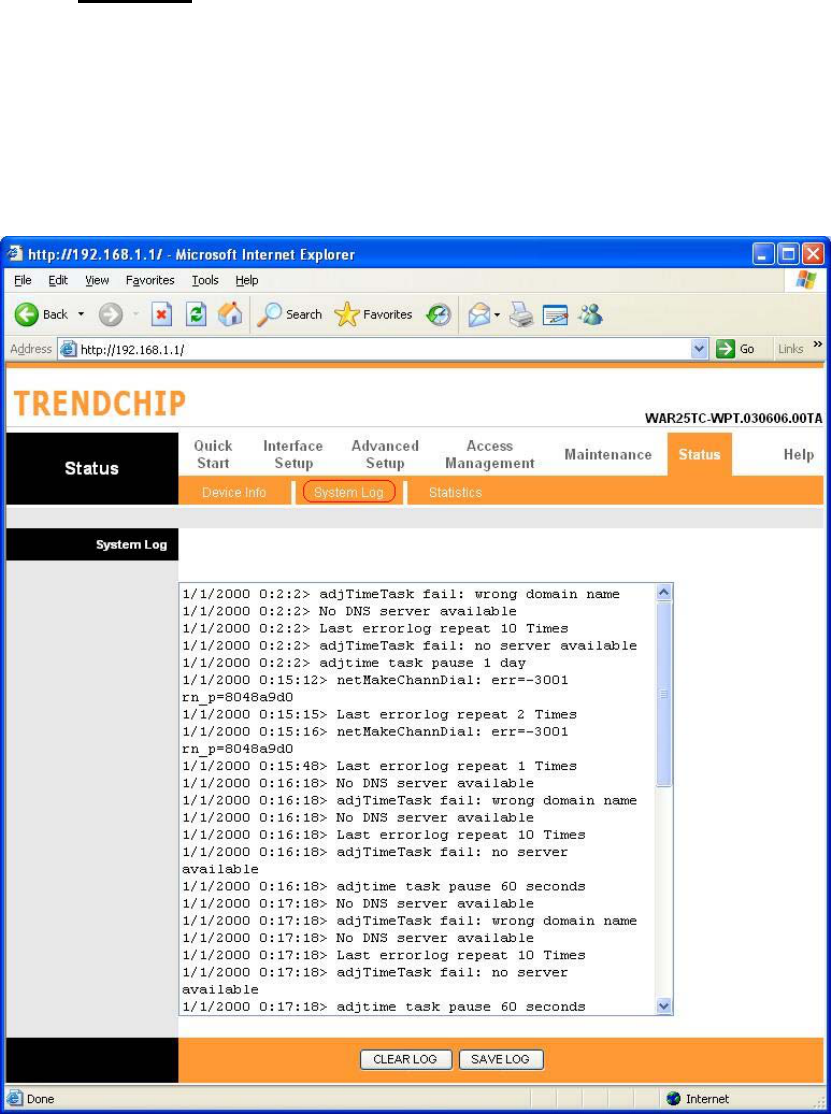

10.2 System Log
The System Log displays data generated or acquired by routine system communication
with other devices, such as the results of negotiations with the ISP's computers for DNS and
gateway IP addresses. The device keeps a running log of events and activities occurring on
the Router. You can click Save Log to display a Windows File Download dialog box that
enables opening or saving the contents of the log to your PC. To remove all entries from the list,
click Clear Log. New entries will begin accumulating. If the device is rebooted, the logs are
automatically cleared.
69
10.3 Statistics
The ADSL Router keeps statistic of traffic that passes through it. You are able to view
the amount of packets that passes through the Router on both the WAN port & the LAN port.
The traffic counter will reset if the device is rebooted. You can select Ethernet/ADSL to view
the statistics report of LAN/WAN.
[Ethernet]
The Ethernet screen gives you information on how much data your router has transmitted and
received across the Ethernet connection. Click on REFRESH to update the screen.
70

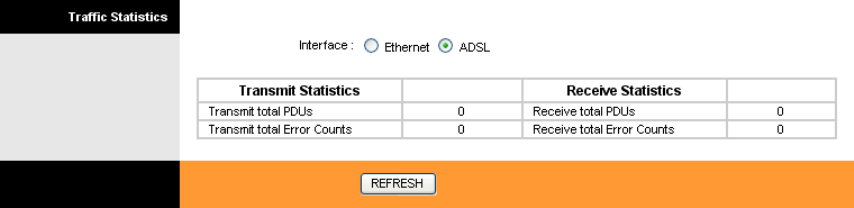

[ADSL]
The ADSL screen gives you information about how much data your router has transmitted or
received across the ADSL connection. Click on REFRESH to update the screen.
71
11. Troubleshooting
If the router is not function properly, first check this session for simple troubleshooting before
contacting your Internet service provider (ISP) for support.
11.1 Using LEDs to Diagnose Problems
The LEDs are useful aides for finding possible problem causes.
11.1.1 Power LED
The PWR LED on the front panel does not light up.
STEPS CORRECTIVE ACTION
1 Make sure that the power adaptor is connected to the router and plugged in to an
appropriate power source. Use only the supplied power adaptor.
2 Check that the router and the power source are both turned on and the router is
receiving sufficient power.
3 Turn the router off and on.
4 If the error persists, you may have a hardware problem. In this case, you should contact
your vendor.
11.1.2 LAN LED
The LAN LED on the front panel does not light up.
STEPS CORRECTIVE ACTION
1 Check the Ethernet cable connections between your router and the computer or hub.
2 Check for faulty Ethernet cables.
3 Make sure your computer’s Ethernet card is working properly.
4 If these steps fail to correct the problem, contact your local distributor for assistance.
11.1.3 ADSL LED
The ADSL LED on the front panel does not light up.
STEPS CORRECTIVE ACTION
1 Check the telephone wire and connections between the router ADSL port and the wall
jack.
2 Make sure that the telephone company has checked your phone line and set it up for
ADSL service.
3 Reset your ADSL line to reinitialize your link to the DSLAM.
4 If these steps fail to correct the problem, contact your local distributor for assistance.
72
11.2 Problems with the Web Interface
I cannot access the web Interface.
STEPS CORRECTIVE ACTION
1 Make sure you are using the correct IP address of the router. Check the IP address of
the router.
2 Make sure that there is not a console session running.
3 Check that you have enabled web service access. If you have configured a secured
client IP address, your computer’s IP address must match it. Refer to the chapter on
remote management for details.
4 For WAN access, you must configure remote management to allow server access from
the WAN (or all).
5 Your computer’s and the router’s IP addresses must be on the same subnet for LAN
access.
6 If you changed the router’s LAN IP address, then enter the new one as the URL.
7 Remove any filters in LAN or WAN that block web service.
The web Interface does not display properly.
STEPS CORRECTIVE ACTION
1 Make sure you are using Internet Explorer 5.0 and later versions.
2 Delete the temporary web files and log in again.
In Internet Explorer, click Tools, Internet Options and then click the Delete Files ...
button.
When a Delete Files window displays, select Delete all offline content and click OK.
(Steps may vary depending on the version of your Internet browser.)
11.3 Problems with the Login Username and Password
I forgot my login username and/or password.
STEPS CORRECTIVE ACTION
1 If you have changed the password and have now forgotten it, you will need to upload
the default configuration file. This will erase all custom configurations and restore all of
the factory defaults including the password.
2 Press the DEFAULT button for five seconds, and then release it. When the ADSL LED
begins to blink, the defaults have been restored and the router restarts.
3 The default username is “admin”. The default password is “trendchip”. The Password
and Username fields are case-sensitive. Make sure that you enter the correct password
and username using the proper casing.
4 It is highly recommended to change the default username and password. Make sure
you store the username and password in a save place.
73
11.4 Problems with LAN Interface
I cannot access the router from the LAN or ping any computer on the LAN.
STEPS CORRECTIVE ACTION
1 Check the Ethernet LEDs on the front panel. A LAN LED should be on for a port that has
a PC connected. If it is off, check the cables between your router and the PC. Make sure
you have uninstalled any software firewall for troubleshooting.
2 Make sure that the IP address and the subnet mask is consistent between the router
and the workstation.
11.5 Problems with WAN Interface
Initialization of the ADSL connection failed.
STEPS CORRECTIVE ACTION
1 Check the cable connections between the ADSL port and the wall jack. The ADSL LED
on the front panel of the router should be on.
2 Check that your VPI, VCI, type of encapsulation and type of multiplexing settings are the
same as what you collected from your telephone company and ISP.
3 Restart the router. If you still have problems, you may need to verify your VPI, VCI, type
of encapsulation and type of multiplexing settings with the telephone company and ISP.
I cannot get a WAN IP address from the ISP.
STEPS CORRECTIVE ACTION
1 Ensure that all other devices connected to the same telephone line as your router (e.g.
telephones, fax machines, analogue modems) have a line filter connected between
them and the wall socket (unless your are using a Central Splitter or Central Filter
installed by the qualified and licensed electrician), and ensure that all line filters are
correctly installed and right way around.
2 Missing line filters or line filters installed the wrong way around can cause problems with
your ADSL connection, including causing frequent disconnects.
Frequent loss of ADSL line sync (disconnections).
STEPS CORRECTIVE ACTION
1 The ISP provides the WAN IP address after authenticating you. Authentication may be
through the user name and password, the MAC address or the host name.
2 The username and password apply to PPPoE and PPoA encapsulation only. Make sure
that you have entered the correct Service Type, User Name and Password (be sure to
use the correct casing).
74
11.6 Problems with the Internet Access
I cannot access the Internet.
STEPS CORRECTIVE ACTION
1 Make sure the router is turned on and connected to the network.
2 If the ADSL LED is off, refer to Section 11.1.3 (Page 71).
3 Verify your WAN settings.
4 Make sure you entered the correct user name and password.
5 For wireless stations, check that both the router and wireless station(s) are using the
same ESSID, channel and WEP keys (if WEP encryption is activated).
Internet connection disconnects.
STEPS CORRECTIVE ACTION
1 Check the schedule rules.
2 If you use PPPoA or PPPoE encapsulation, check the idle time-out setting.
3 Contact your ISP.
If you have any troubles to configure or setup this ADSL Ethernet Router, please feel
free to contact us.
Before contacting us, make sure collect following information. Submit complete detailed
information of your problem will help us to provide you accurate answers.
Model Name:
Serial Number:
PC Settings:
Other:
75
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20 centimeters between
the radiator and your body.
