1. Introduction
Thank you for purchasing the Wireless 11g Broadband Router. This Wireless Broadband
Router, IEEE802.11g standard compliant, is a high quality and reliable Internet routing and
security device, enables multiple users to share the Broadband Internet connection with or
without wires through a Cable or DSL modem. Simply install the router, connect to Cable/DSL
modem, and surf Internet without extra efforts. Acting as a 10/100Mbps 4-port Ethernet
switch as well, the router, with all ports supporting MDI/MDIX, allows you to use CAT5 cable to
uplink to other routers/switches.

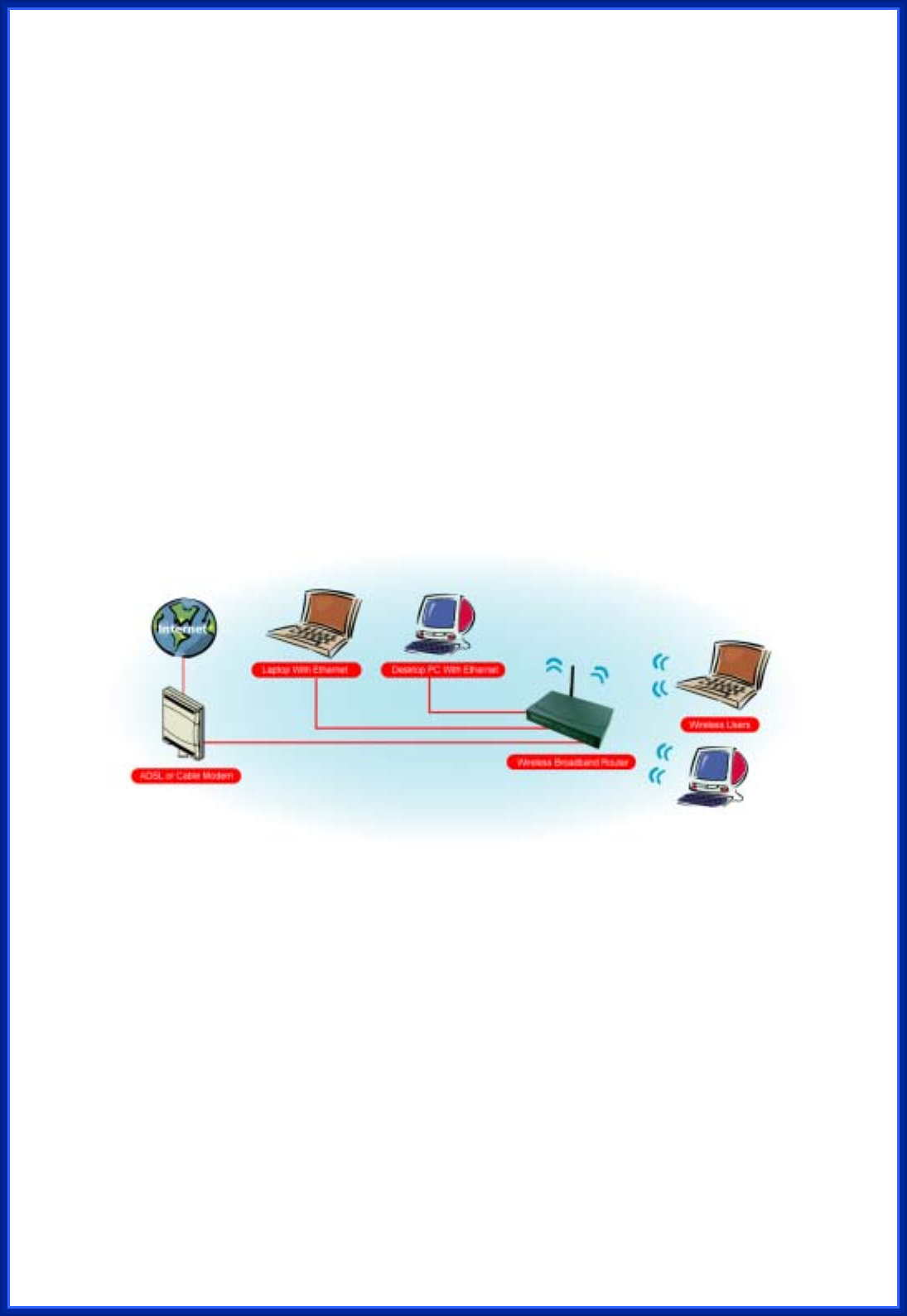

The Wireless 11g Broadband Router is featured with advanced security technology,
supporting WEP, WPA-PSK, WPA (Wi-Fi Protected Access) TKIP/AES and RADIUS. With
the router, your network is armed with the highest levels of protection. The Router provides a
total solution for the Small and Medium-sized Business (SMB) and the Small Office/Home
Office (SOHO) markets, giving you an instant network today, and the flexibility to handle
tomorrow's expansion and speed.
5
1.1 Features
Internet Access Features
• Shared Internet Access: All users on the LAN or WLAN can access the Internet
through the Wireless Router, using only a single external IP address. The local
(invalid) IP addresses are hidden from external sources. This process is called NAT
(Network Address Translation).
• DSL and cable modem Support: The Wireless Router has a 10/100BaseT Ethernet
WAN port for connecting a DSL or cable modem. All popular DSL and cable
modems are supported.
• PPPoE and PPTP Support: The Internet (WAN port) connection supports PPPoE
(PPP over Ethernet) and PPTP (Point-to-Point Tunneling Protocol), as well as “Direct
Connection” type services.
• Fixed or Dynamic IP Address: On the Internet (WAN port) connection, the Wireless
Router supports both Dynamic IP address (IP address is allocated on connection)
and Fixed IP address.
Advanced Internet Functions
• Conferencing & Telephony Applications: Internet Telephony and Conferencing
applications are supported.
• DMZ: One PC on your local LAN can be configured to allow unrestricted 2-way
communication with Servers or individual users on the Internet.
• URL Filter: Use the URL Filter to block access to undesirable Web sites by LAN users,
or Wireless LAN users.
• Internet Access Log: This feature is used to verify which Internet connections have
been made.
Wireless Features
• Compliant with IEEE 802.11g standard.
• Up to 54Mbps data transfer rates (wireless)
• Backward compatible with IEEE802.11b (at 11Mbps)
• WEP Support: Support 64/128 bit WEP (Wired Equivalent Privacy) encryption.
• WPA Support: Support WPA-PSK Pass Phrase, WPA G-Rekey and WPA TKIP/AES
Data Encryption.
• Access Control: This feature ensures that only access Wireless Stations that can
access your LAN.
• Simple Configuration: All default settings can be changed easily.
• Supports Wireless Distribution System (WDS)
6
LAN Features
• 4-Port Ethernet switch : The Wireless Router provides 4 10/100BaseT switching ports
• DHCP Server Support: This feature provides a dynamic IP address to PCs and other
devices upon request. The Wireless Router can act as a DHCP Server for devices
on your local LAN and WLAN.
• Multi Segment LAN Support: This feature is enabled through Wireless Router’s RIP
(Routing Information Protocol) and build-in static routing table.
Configuration and Management
• Easy Setup: Users allow to configure Wireless Router from anywhere on the LAN or
WLAN via WEB browser.
• Remote Management: The Wireless Router can be managed from any PC on the
LAN.
• UPnP Support: Universal Plug and Play feature. UPnP is supported by Windows ME
or later.
Security Features
• Password Protected Configuration: Optional password protection is provided to
prevent unauthorized users from modifying the configuration data and settings.
• Wireless LAN Security: Supports 64/128 bit WEP Encryption, WPA-PSK, WPA
TKIP/AES, RADIUS Server.
• NAT Protection: This feature allows all LAN users to share a single IP address and all
users’ IPs are hidden. From the external viewpoint, there is no network only
Wireless Router exists.
• Firewall: All incoming data packets are monitored and all incoming server requests
are filtered.
1.2 Package Contents
• One Wireless 11g Broadband Router
• One 9V AC Power Adapter
• One CD including user’s manual
• One RJ-45 Ethernet Cable
7

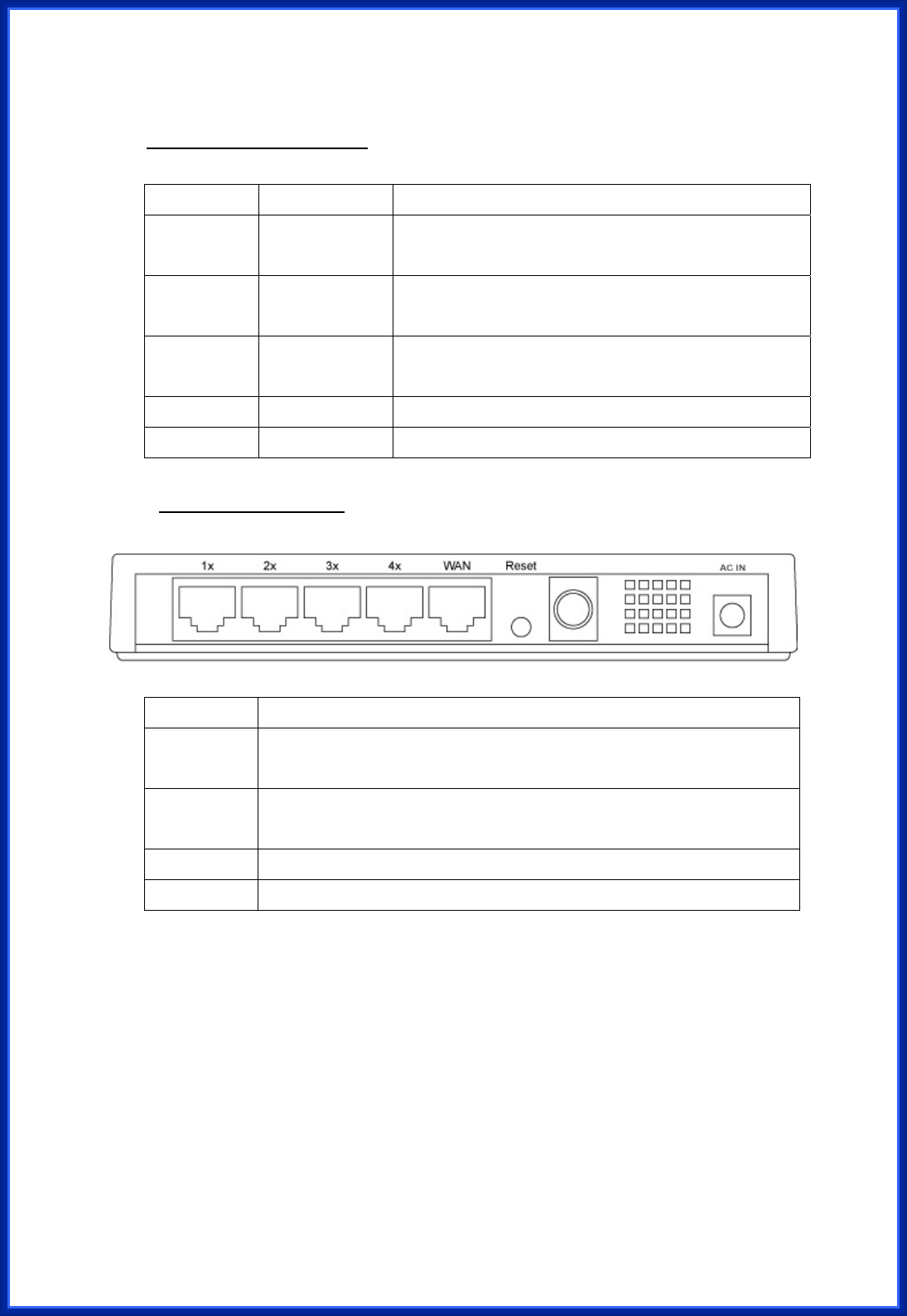

1.3 LEDs Indication & Connectors of Wireless Router
Front Panel LEDs Indication
LED Light Status Description
PWR On
Off
Wireless Router is powered on.
No power.
LAN
(1, 2, 3, 4)
On
Flashing
LAN port is successfully connected.
Data is being sent or received.
WAN On
Flashing
WAN port is successfully connected
Data is being sent or received.
ACT (WLAN) Flashing Data is being sent or received.
LINK (WLAN) On Wireless connection is ready.
Back Panel Connectors
Button/port Description
Reset Reset configurations to default. Press the button and hold for 10
seconds.
LAN
(1x, 2x, 3x, 4x)
Connect LAN systems with RJ-45 cable.
WAN Connect DSL or Cable modem.
DC IN Connect with AC Power Adapter.
8
1.4 System Requirements
• One or more PCs (desktop or notebook) with Ethernet interface.
• TCP/IP protocol must be installed on all PCs.
• Have valid Internet Access account and a DSL or cable modem.
• 10/100BaseT network cables with RJ-45 connectors.
• In case to use Wireless Access Point, all Wireless devices must be compliant with
IEEE 802.11b/g.
• System with MS Internet Explorer ver. 5.0 or later, or Netscape Navigator ver. 4.7 or
later.
1.5 Installation Instruction
1) Power off Wireless Router and DSL/cable modem.
2) Connect systems to the LAN ports on the Wireless Router with straight LAN cables.
3) Connect the DSL or cable modem to the WAN port on the Wireless Router.
4) Power on DSL or cable modem first, then connect power adapter to the power jack
on the Wireless Router and plug the power cable into an outlet.
5) Check LEDs.
a) Once power on Wireless Router, Power LED should be on.
b) LAN LED should be on for each active LAN connection.
c) The WAN LED should be on when the DSL or cable modem is connected.
Warning: Only use the power adapter is provided from this package, use other
power adapter may cause hardware damage
9
2 PC Configuration
User needs to configure TCP/IP network settings, Internet access configuration and
Wireless configuration for each system within Wireless Router’s LAN network.
By default, Wireless Router acts as a DHCP server for server version of Windows, it
automatically assigns IP address to each system when systems boot up. For all
non-server version of Windows, the default TCP/IP setting acts as a DHCP client. If user
chooses fixed IP addresses for client systems, the Gateway of the client system must be
set to the IP address of the Wireless Router and DNS of the client system should be set to
the address provided by your ISP.
2.1 TCP/IP Networking Setup
Checking TCP/IP Settings for Windows 9x/Me

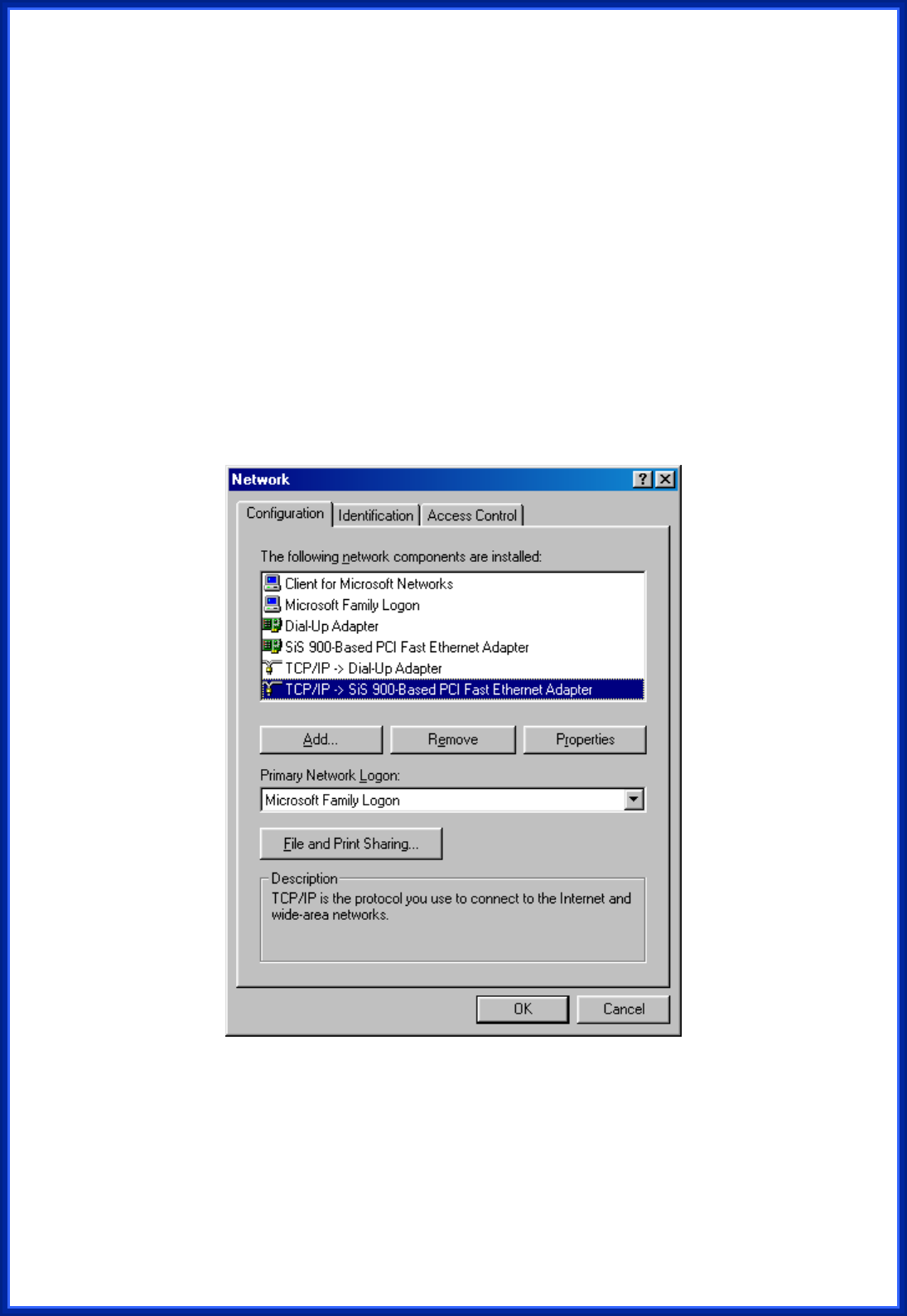

a) Select “Start Æ Control Panel Æ Network”, the window below will appear:
10

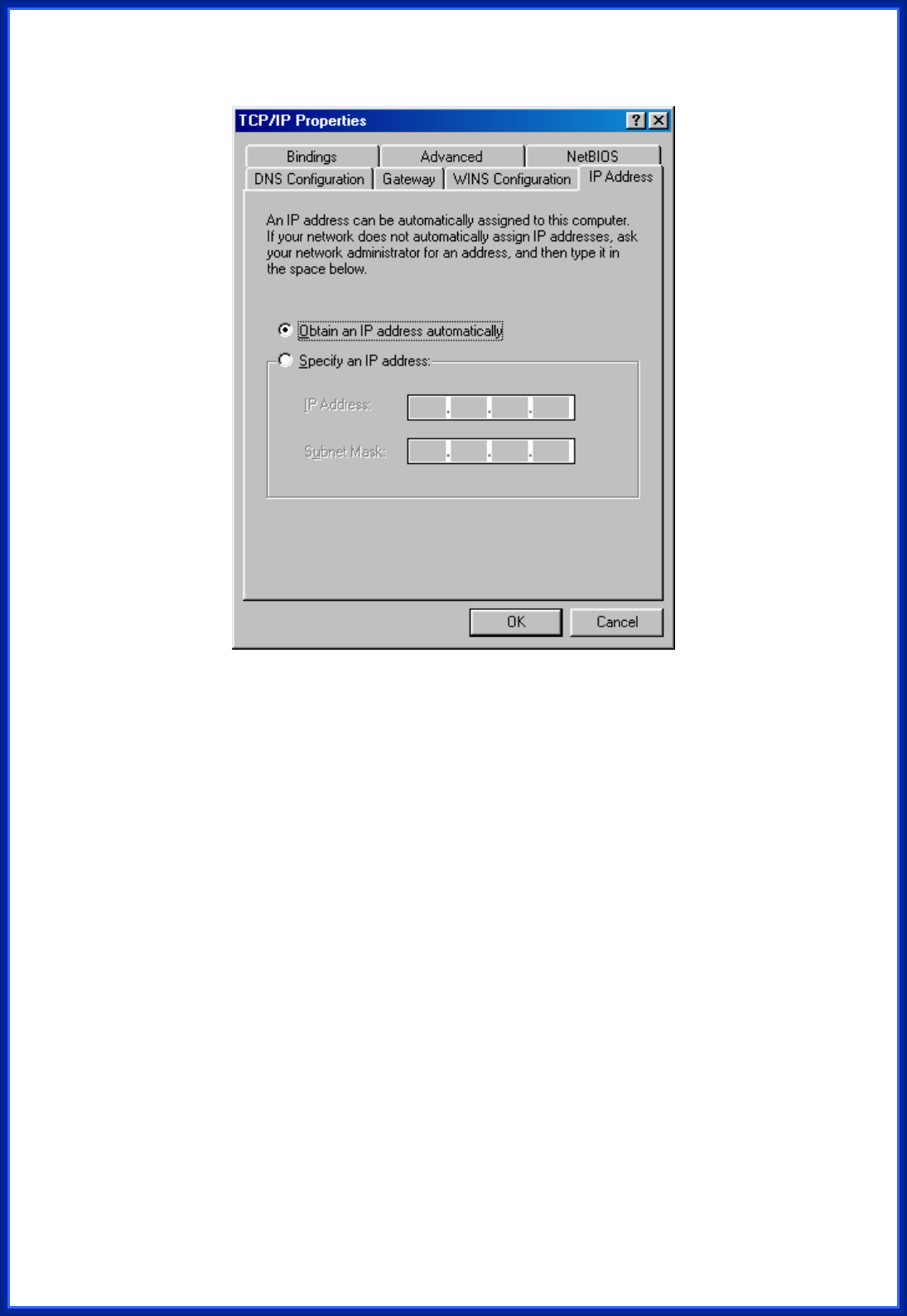

b) Click “Properties”, the window below will appear:
• If you decide to use DHCP, select “Obtain an IP address automatically”, then
click “OK” to confirm your settings. Once you restart your system, Wireless
Router will obtain an IP address for this system.
• If you decide to use fixed IP address for your system, select “Specify an IP
address”, and make sure that IP Address and Subnet Mask are correct.

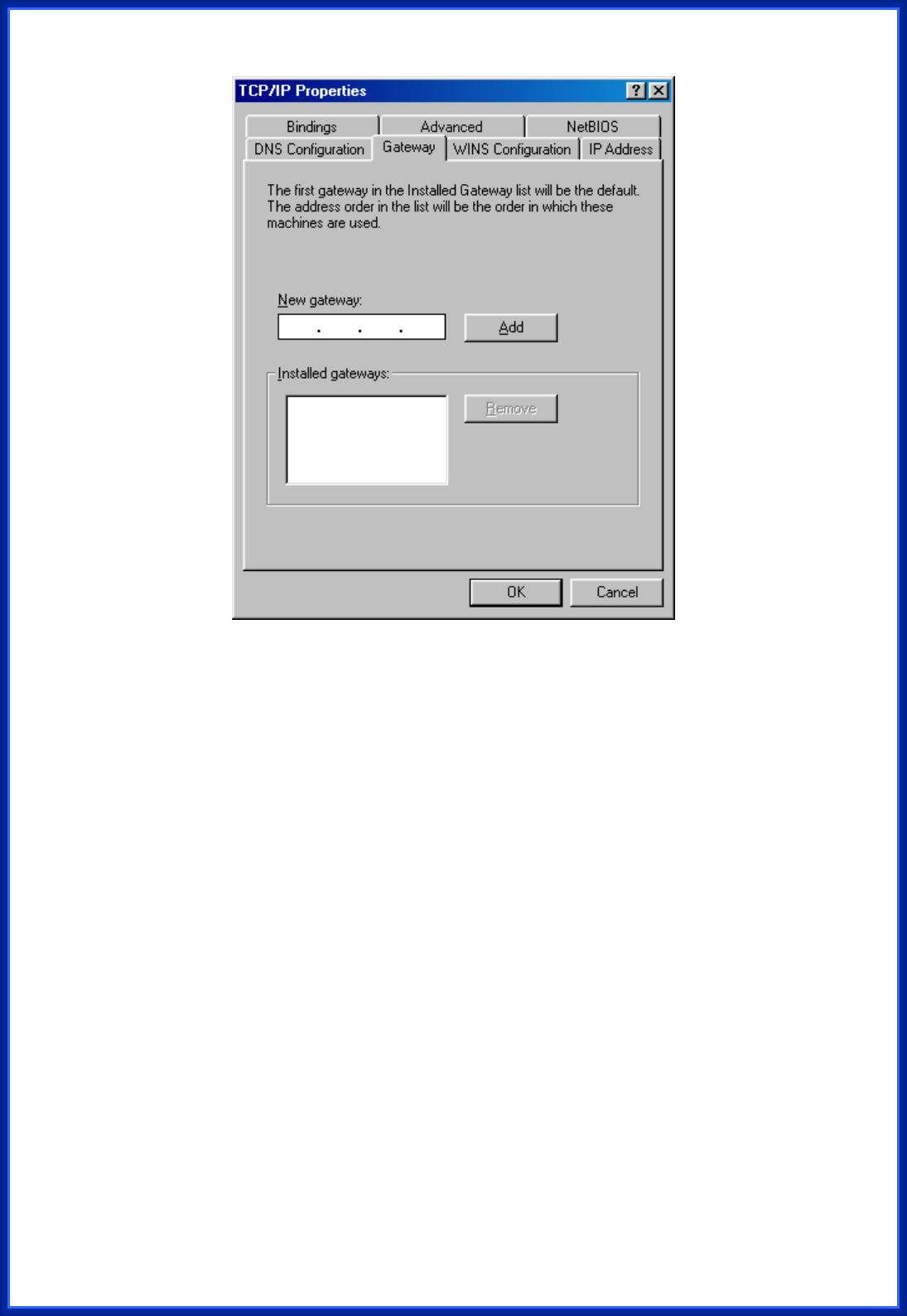

c) Select “Gateway” tab and enter correct gateway address in “New gateway” field,
then click “Add”:
11

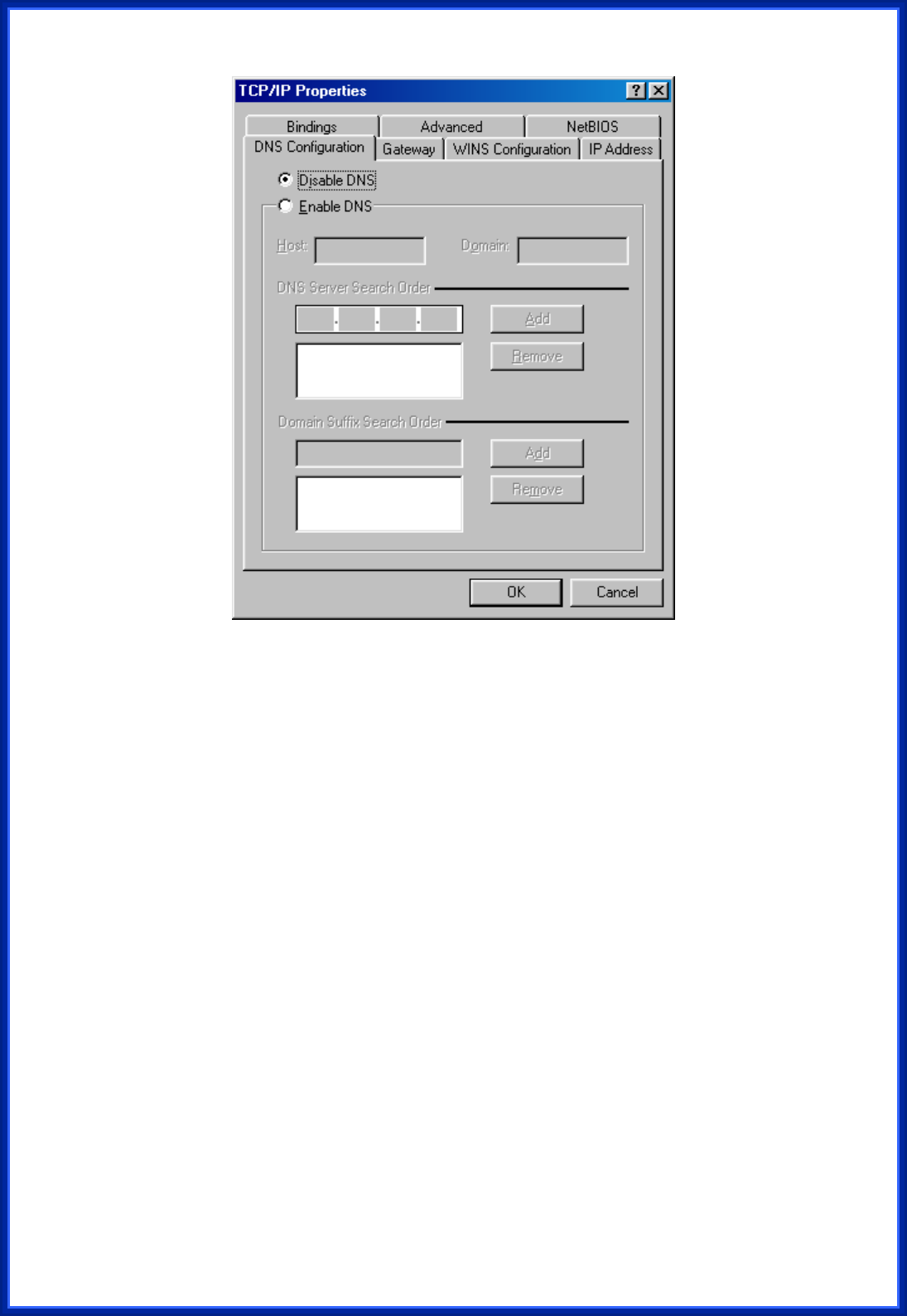

d) Select “DNS Configuration” tab and make sure select “Enable DNS”, enter the
DNS address provides from your ISP in the “DNS Server Search Order” field, then
click “Add”:
12
Checking TCI/IP Setting for Windows NT4.0
a) Select “Control Panel Æ Network”, click “Protocols” tab then select “TCP/IP
protocol”, window shown as below will appear:
