Model No. 831.150330
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal (under seat)
• Assembly
• Adjustments
•Part List and Drawing
_I_CAUTION
Read all precautions and instruc-
tions In this manual before using
this equipment. Save this manu-
al for future reference.
WEIGHT BENCH EXERCISER
User's Manual
Patent Pending
Sears, Roebuck and Co, Hoffman Estates, IL 60179
TABLE OF CONTENTS
WARNING DECAL PLACEMENT .......................................................... 2
IMPORTANT PRECAUTIONS ............................................................. 3
BEFORE YOU BEGIN ................................................................... 4
ASSEMBLY ........................................................................... 5
ADJUSTMENTS ...................................................................... 12

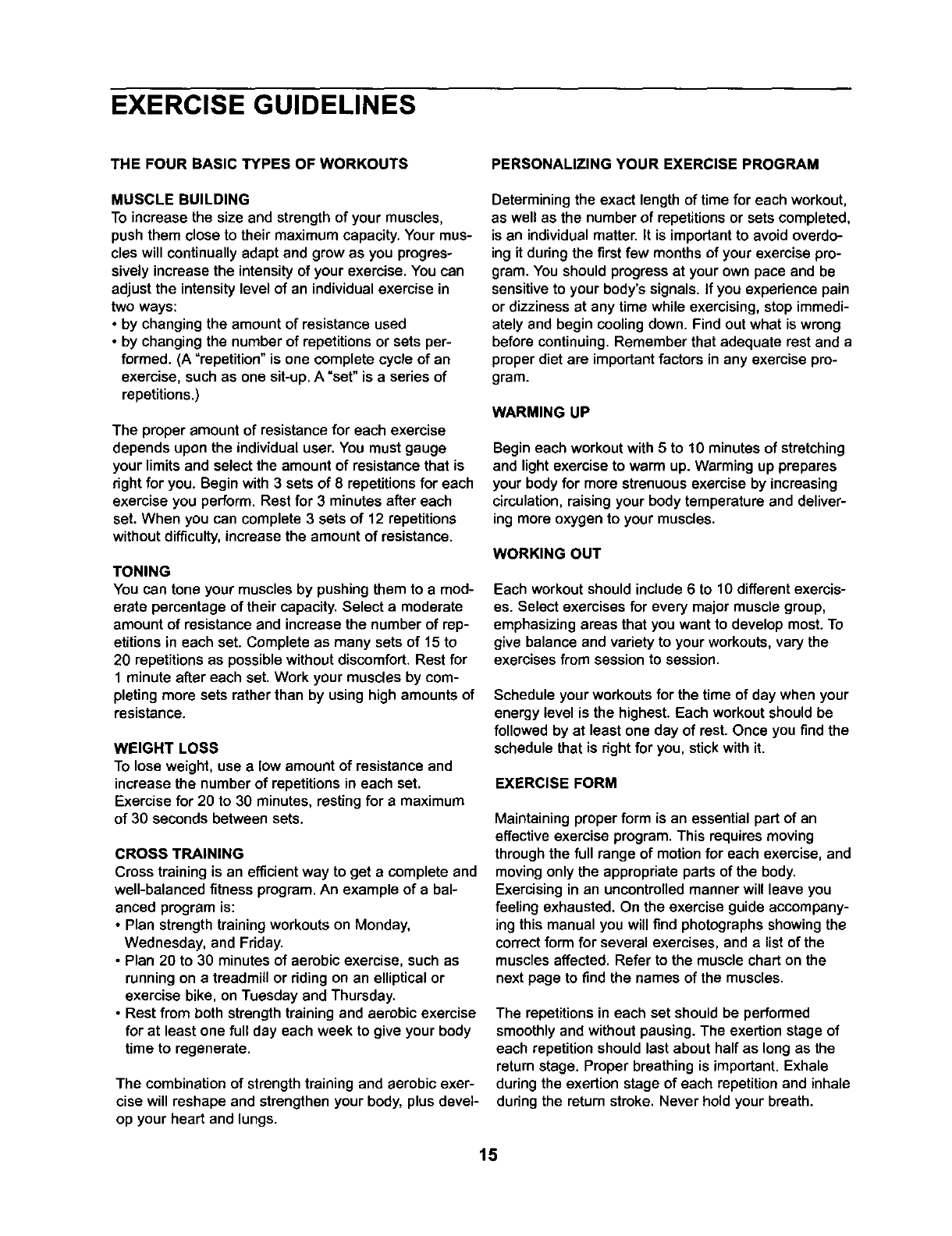

EXERCISE GUIDELINES ............................................................... 15
ORDERING REPLACEMENT PARTS ................................................ Back Cover

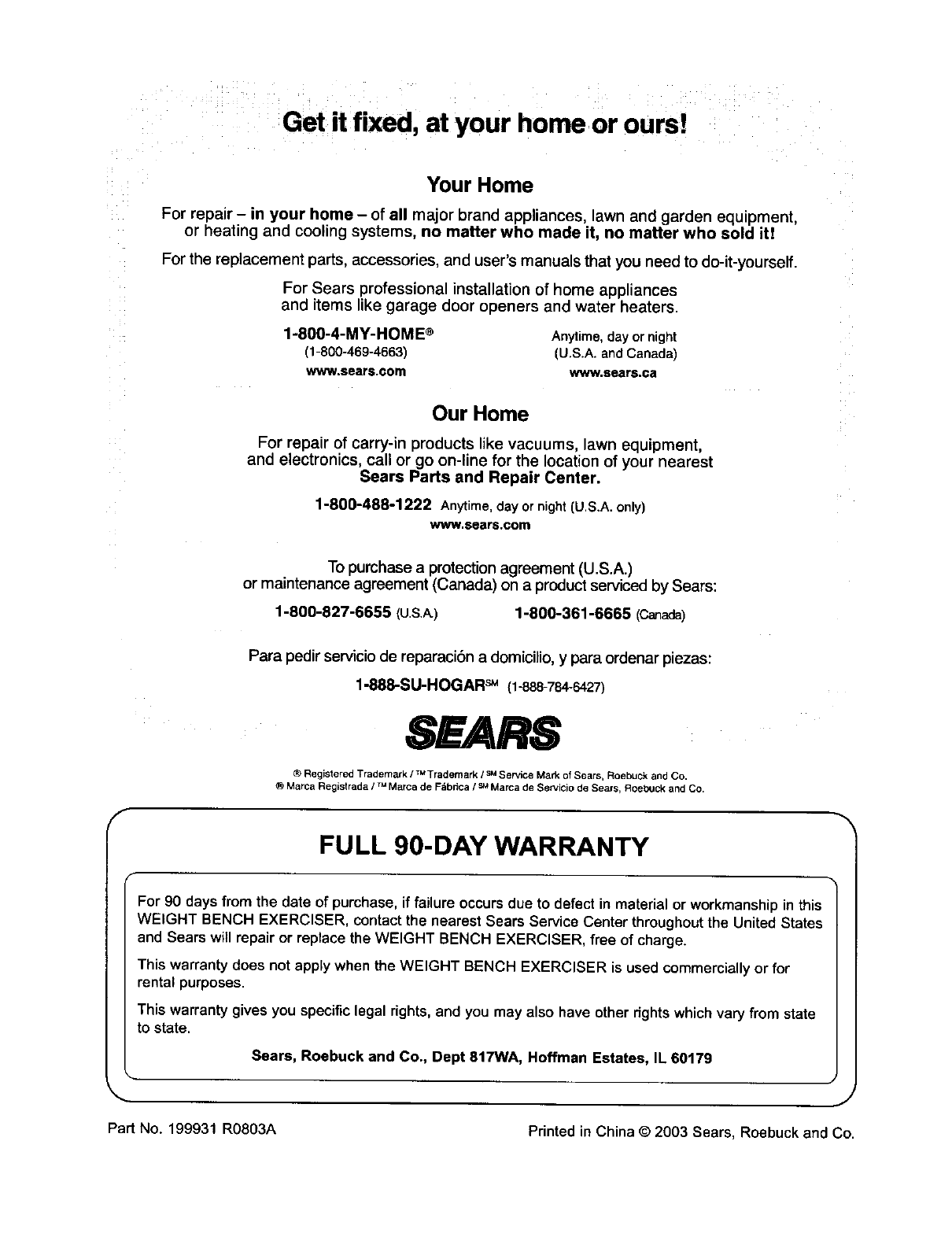

FULL 90-DAY WARRANTY ....................................................... Back Cover

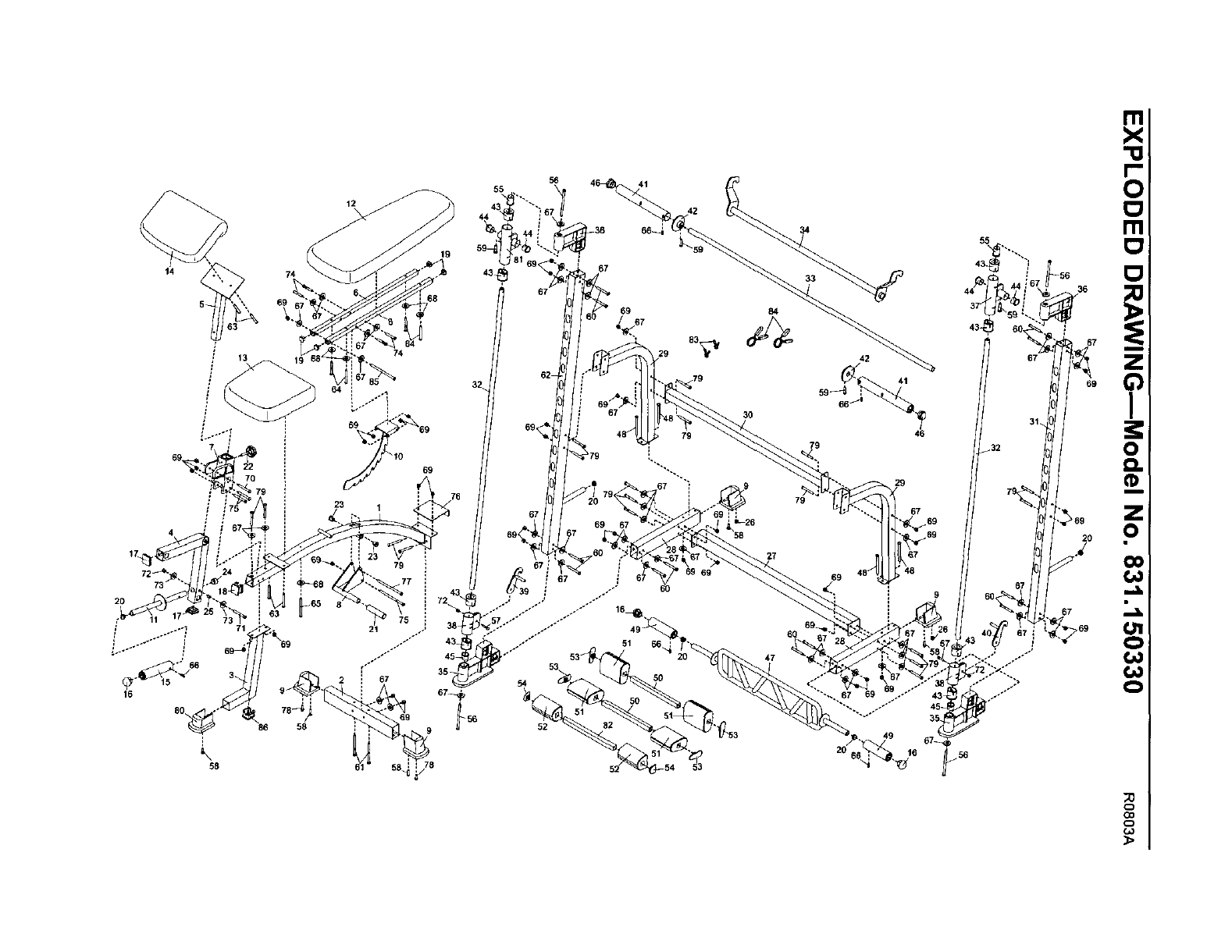

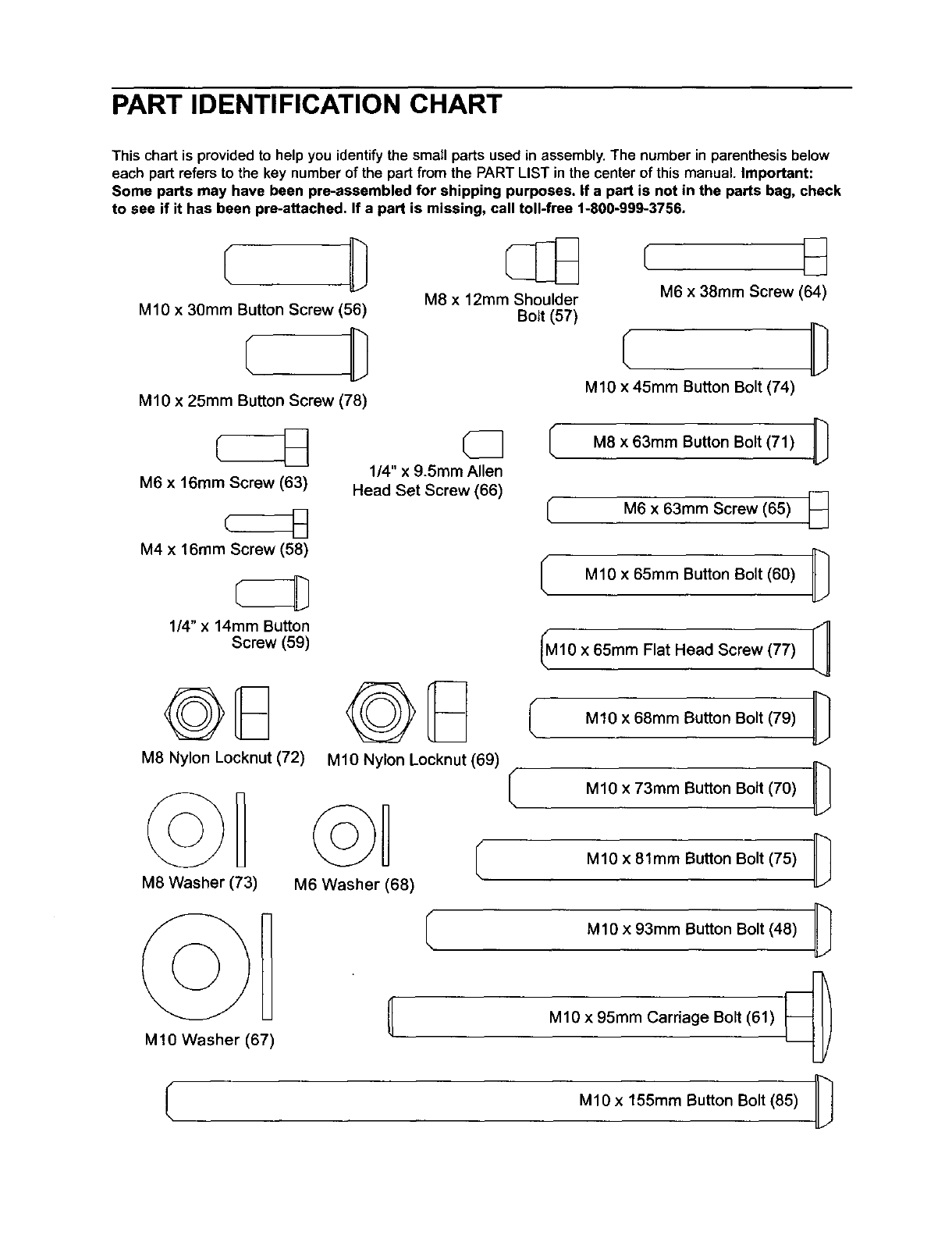

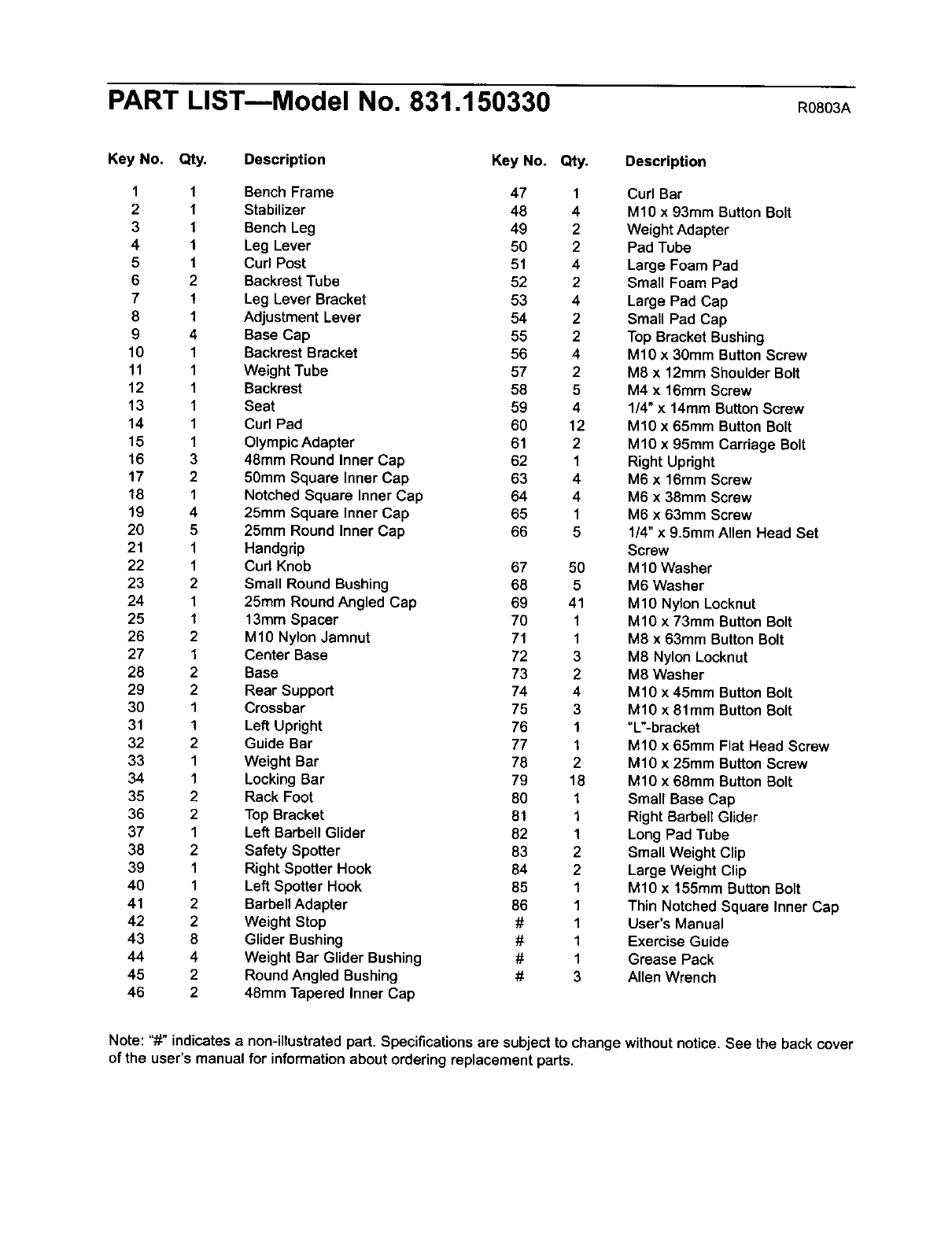

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING is attached in the center of
this manual Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-
ning assembly,
WARNING DECAL PLACEMENT
To prevent the risk of the rack tipping
or sliding, which may cause injury,
mount this bracket onto the rack base
before performing press exercises.
The warning decals shown
here have been placed on the
weight bench in the locations
shown. If a decal is missing or
illegible, please call toll-free
1-800-999-3756, Monday
through Friday, 6 a.m. until
6 p.m. Mountain Time, to order
a free replacement decal.
Place the decal on the weight
bench in the location shown.
• Misuse of this product may result In serious
injury,
• Read user's manual and follow all warnings
and operating instructions prior to use.
•Do not allow children on or around machine,
• Replace label if damaged, illegible, or removed

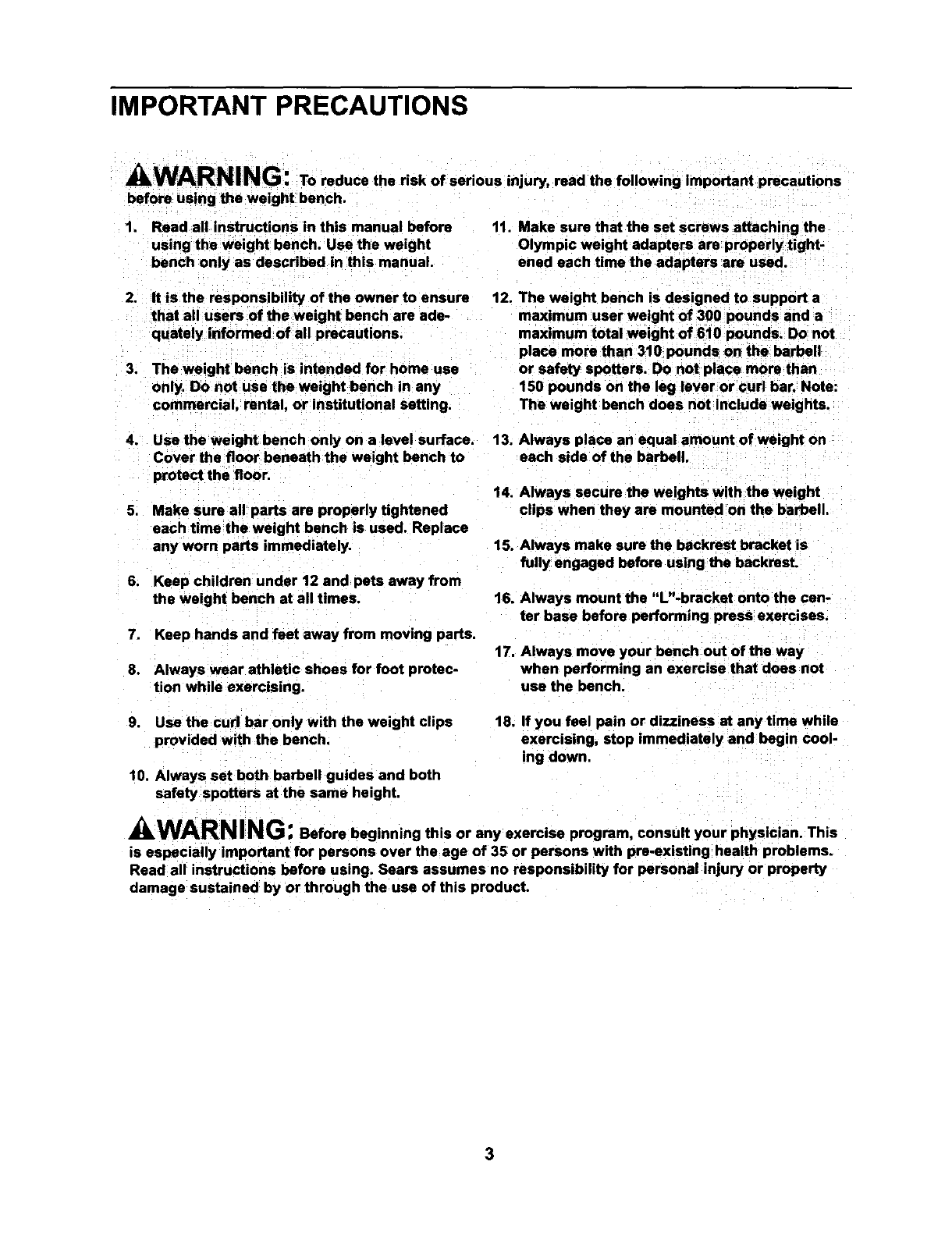

IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
11. Make sure that the set screws attaching the
Olympic weight adapters are properly tight-
ened each time the adapters are used.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are ade-
quately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
12. The weight bench is designed to support a
maximum user weight of 300 pounds and a
maximum total weight of 610 pounds. Do not
place more than 310 pounds on the barbell
or safety spotters. Do not place more than
150 pounds on the leg lever or curl bar. Note:
The weight bench does not include weights.
4. Use the weight bench only on a level surface. 13.
Cover the floor beneath the weight bench to
5.
6.
7.
8.
Always place an equal amount of weight on
each side of the barbell.
protect the floor.
Make sure all parts are properly tightened
each time the weight bench is used. Replace
any worn parts immediately.
Keep children under 12 and pets away from
the weight bench at all times.
Keep hands and feet away from moving parts.
Always wear athletic shoes for foot protec-
tion while exercising.
14. Always secure the weights with the weight
clips when they are mounted on the barbell.
15. Always make sure the backrest bracket is
fully engaged before using the backrest.
16. Always mount the "L".bracket onto the cen-
ter base before performing press exercises.
17. Always move your bench out of the way
when performing an exercise that does not
use the bench.
9. Use the curl bar only with the weight clips
provided with the bench.
10. Always set both barbell guides and both
safety spotters at the same height.
18. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
AWARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. Sears assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3

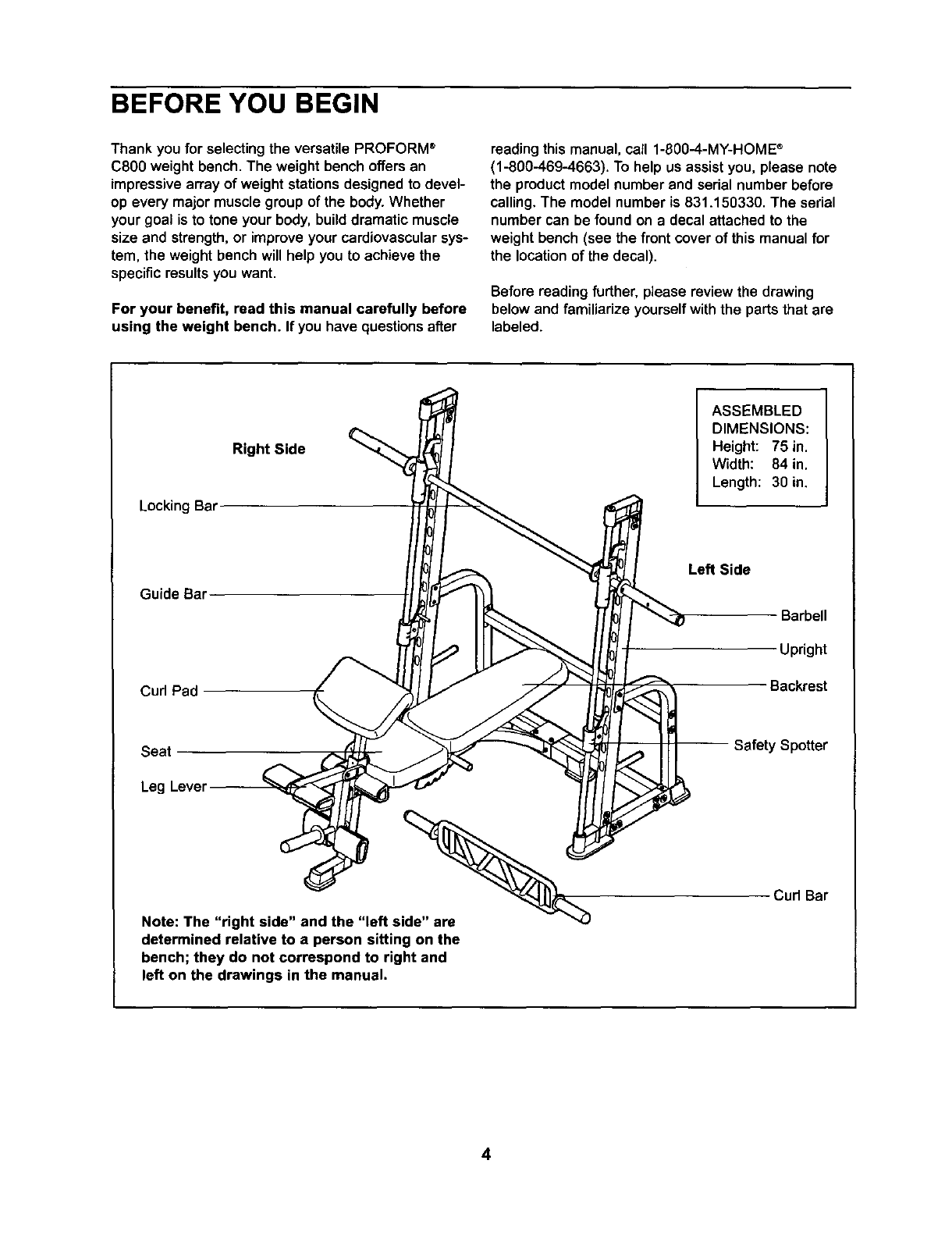

BEFORE YOU BEGIN
Thank you for selectingthe versatile PROFORM ®
C800 weight bench. The weight bench offers an
impressive array of weight stations designed to devel-
op every major muscle group of the body. Whether
your goal is to tone your body, build dramatic muscle
size and strength, or improve your cardiovascular sys-
tem, the weight bench will help you to achieve the
specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, call 1-80O-4-MY-HOME®
(1-800-469-4663). To help us assist you, please note
the product model number and serial number before
calling. The model number is 831.150330. The serial
number can be found on a decal attached to the
weight bench (see the front cover of this manual for
the location of the decal).
Before reading further, please review the drawing
below and familiarize yourselfwith the parts that are
labeled.
Locking Bar
Right Side
ASSEMBLED
DIMENSIONS:
Height: 75 in.
Width: 84 in.
Length: 30 in.
Guide Bar
Curl Pad
Seat
Leg Lever--
Note: The "right side" and the "left side" are
determined relative to a person sitting on the
bench; they do not correspond to right and
left on the drawings in the manual.
Left Side
Barbell
i_ Safety Spotter
Cud Bar
4

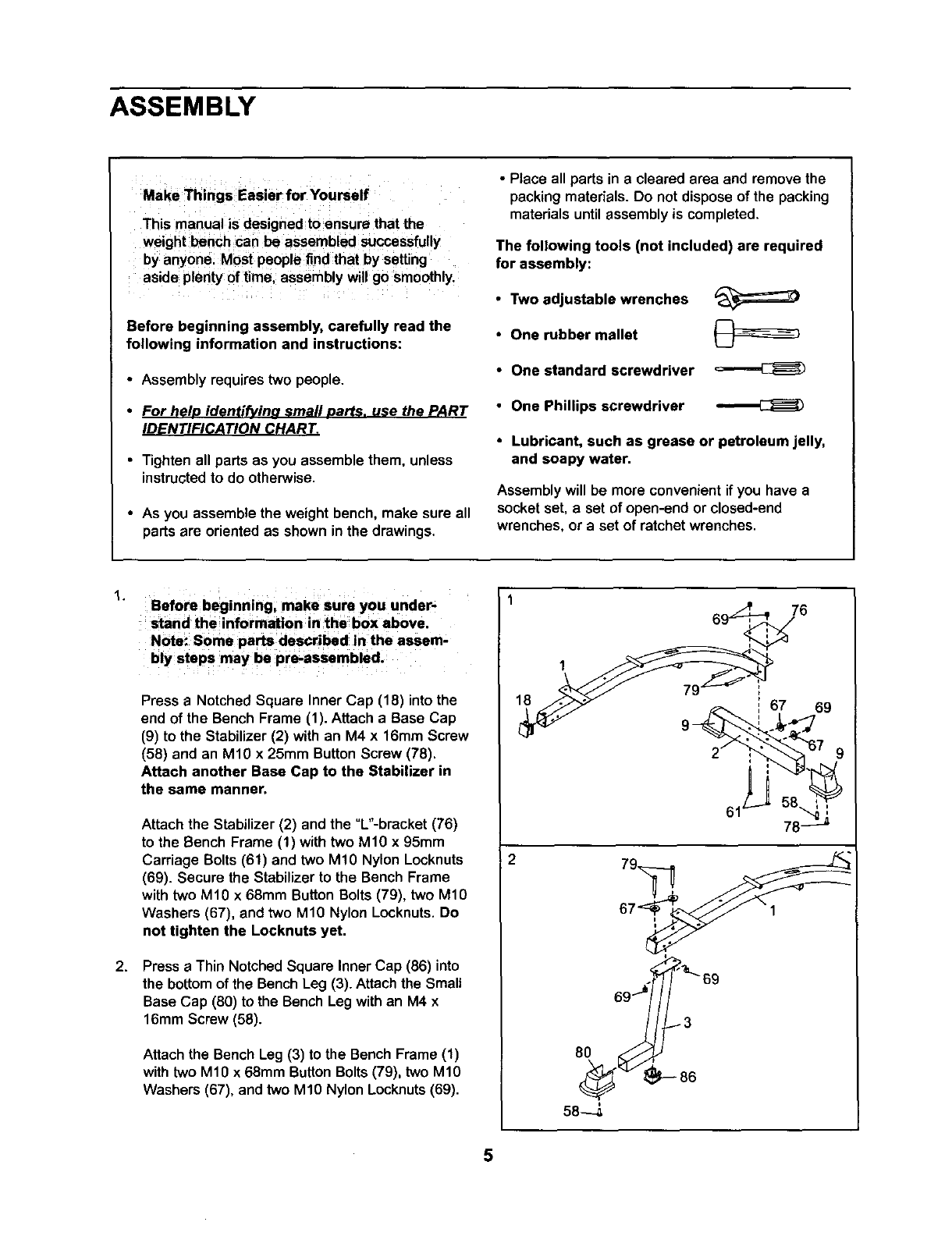

ASSEMBLY
Make Things Easier for Yourself
This manual is designed to ensure that the
weight bench can be assembled successfully
by anyone. Most people find that by setting
aside plenty of time, assemblywill go smoothly,
Before beginning assembly, carefully read the
following information and instructions:
•Assembly requires two people.
• ForhelD identifvino smalloarts, use the PART
IDENTIFICATION CHART.
•Tighten all parts as you assemble them, unless
instructedto do otherwise.
•As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
The following tools (not included) are required
for assembly:
•Two adjustable wrenches
•One rubber mallet
•One standard screwdriver
•One Phillips screwdriver
•Lubricant, such as grease or petroleum jelly,
and soapy water,
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1, Before beginning; make sure you under-
stand the informatlon in the box above.
Note: Some parts described in the assem-
biy steps maybe pre-assembled.
i
Press a Notched Square Inner Cap (18) into the
end of the Bench Frame (1). Attach a Base Cap
(9) to the Stabilizer (2) with an M4 x 16mm Screw
(58) and an M10 x 25mm Button Screw (78).
Attach another Base Cap to the Stabilizer in
the same manner.
Attach the Stabilizer (2) and the =L"-bracket (76)
to the Bench Frame (1) with two M1O x 95mm
Carriage Bolts(61) and two M10 Nylon Locknuts
(69). Secure the Stabilizerto the Bench Frame
withtwo M10 x 68mm ButtonBolts (79), two M10
Washers (67), and two M10 Nylon Locknuts, Do
not tighten the Locknuts yet.
2. Press a Thin Notched Square Inner Cap (86) into
the bottomof the Bench Leg (3). Attach the Small
Base Cap (80) to the Bench Leg withan M4 x
16mm Screw (58).
Attach the Bench Leg (3) to the Bench Frame (1)
with two M10 x68mm ButtonBolts(79), two M10
Washers (67), and two M10 Nylon Locknuts (69).
2
i
80
58--_
5

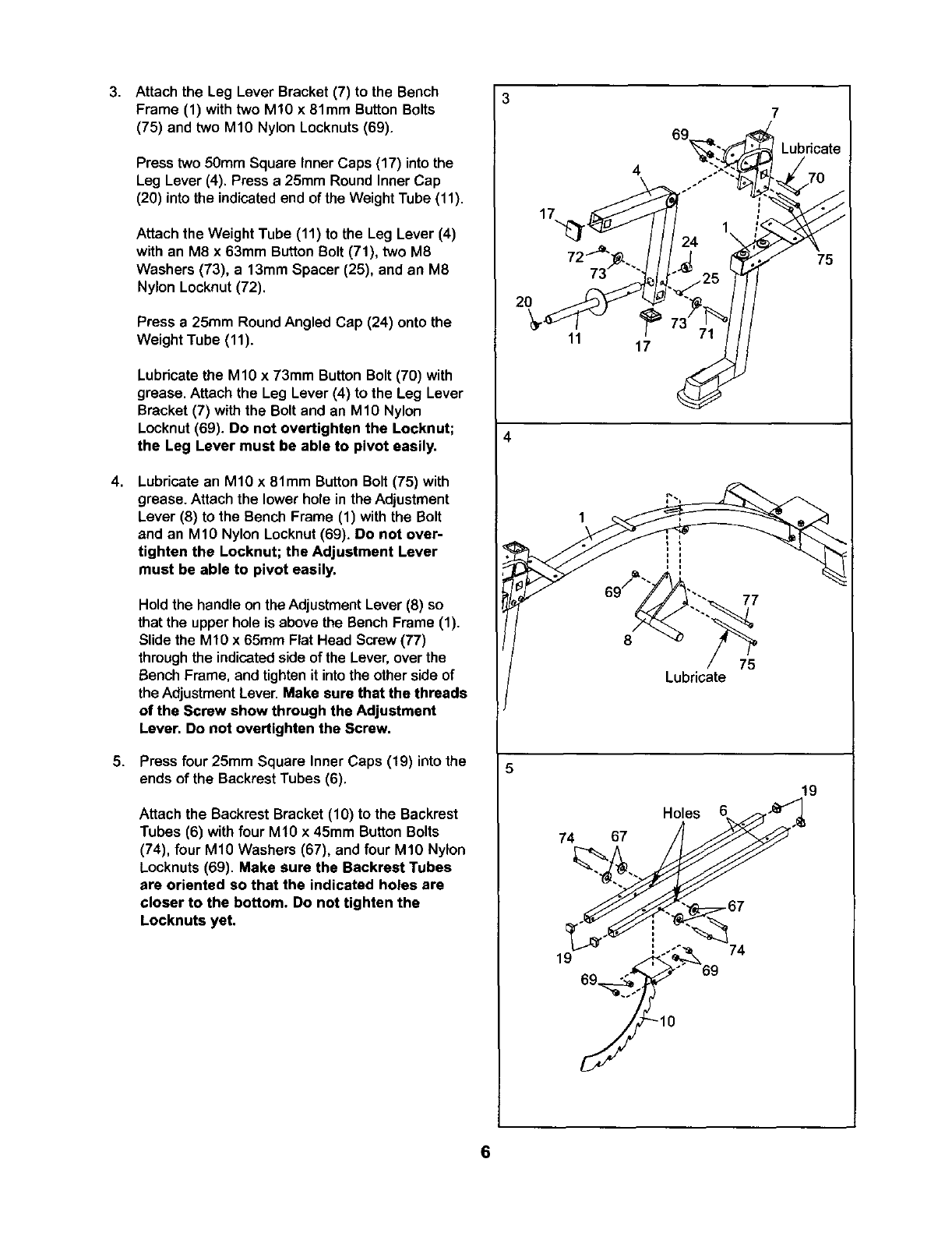

3. Attach the Leg Lever Bracket (7) to the Bench
Frame (1) withtwo M10 x 81mm Button Bolts
(75) and two M10 Nylon Locknuts(69).
Press two 50mm Square Inner Caps (17) into the
Leg Lever (4). Press a25mm Round Inner Cap
(20) into the indicatedend of the WeightTube (11).
Attach the Weight Tube (11) to the Leg Lever (4)
with an M8 x 63mm ButtonBolt (71), two M8
Washers (73), a 13ram Spacer (25), and an M8
Nylon Locknut(72).
Press a 25mm RoundAngled Cap (24) onto the
Weight Tube (11).
Lubricate the M10 x 73mm Button Bolt (70) with
grease. Attach the Leg Lever (4) to the Leg Lever
Bracket (7) with the Bolt and an M10 Nylon
Locknut(69). Do not overtighten the Locknut;
the Leg Lever must be able to pivot easily,
4. Lubricate an M10 x 81mm ButtonBolt (75) with
grease. Attach the lower hole in the Adjustment
Lever (8) to the Bench Frame (1) with the Bolt
and an M10 Nylon Locknut (69). Do not over-
tighten the Locknut; the Adjustment Lever
must be able to pivot easily.
Holdthe handle on the Adjustment Lever (8) so
that the upper hole is above the Bench Frame (1).
Slide the M10 x 65mm Flat Head Screw (77)
through the indicated side of the Lever, over the
Bench Frame, and tighten it into the other side of
the Adjustment Lever. Make sure that the threads
of the Screw show through the Adjustment
Lever. Do not overtighten the Screw.
5. Press four 25mm Square Inner Caps (19) into the
ends of the BackrestTubes (6).
Attach the Backrest Bracket (10) to the Backrest
Tubes (6) with four M10 x 45mm Button Bolts
(74), four M10 Washers (67), and four M10 Nylon
Locknuts (69). Make sure the Backrest Tubes
are oriented so that the indicated holes are
closer to the bottom. Do not tighten the
Locknuts yet.
3
2O
5
11
7
Lubricate
4
75
17
77
8
75
Lubricate
!9
7 Holes 6k_ "_.
67
19 74
--lO
6
Insert the Backrest Bracket (10) through the slot
in the Bench Frame (1) and under the Adjustment
Lever (8). Make sure that the M10 x 65mm Flat
Head Screw (77) is under the Backrest
Bracket arm.
Lubricate an M1O x155mm Button Bolt (85) with
grease. Attach the Backrest Tubes (6) to the
Bench Frame (1) withthe Bolt,two M10 Washers
(67), and an M10 Nylon Locknut(69). Do not
overtighten the Locknut; the Backrest Tubes
must be able to pivot easily.
7, Attach the Backrest(12) to the Backrest Tubes
(6) with four M6 x 38ram Screws (64) and four M6
Washers (68).
Tighten the four M1O Nylon Locknuts (69)
used in step 5.
8. Attach the Seat (13) to the Bench Frame (1) with
an M6 x 63mm Screw (65), an M6 Washer (68),
and two M6 x 16mm Screws (63).
69
6
67
10 Lubncate
12
68 64
64
7

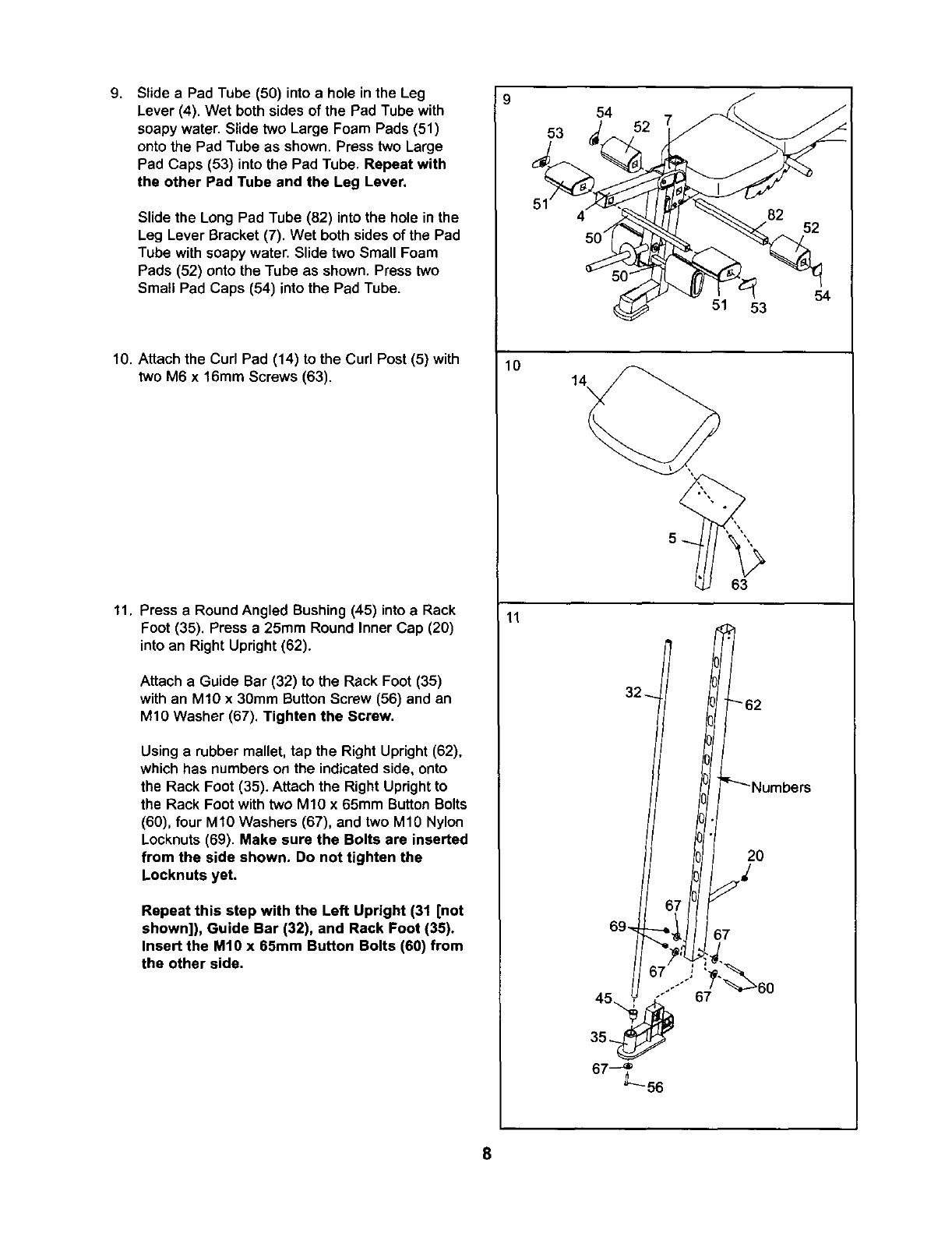

9. Slide a Pad Tube (50) into a hole in the Leg
Lever (4). Wet both sides of the Pad Tube with
soapy water. Slide two Large Foam Pads (51)
onto the Pad Tube as shown. Press two Large
Pad Caps (53) into the Pad Tube. Repeat with
the other Pad Tube and the Leg Lever.
Slide the Long Pad Tube (82) into the hole in the
Leg Lever Bracket (7). Wet both sides of the Pad
Tube with soapy water. Slide two Small Foam
Pads (52) onto the Tube as shown. Press two
Small Pad Caps (54) into the Pad Tube.
10. Attach the Curl Pad (14) to the Curl Post (5) with
two M6 x 16mm Screws (63).
11. Press aRound Angled Bushing (45) into aRack
Foot (35). Press a 25mm Round Inner Cap (20)
into an Right Upright (62).
Attach a Guide Bar (32) to the Rack Foot (35)
withan M10 x 30mm Button Screw (56) and an
M10 Washer (67). Tighten the Screw.
Using a rubber mallet, tap the Right Upright (62),
which has numbers on the indicated side, onto
the Rack Foot (35). Attach the Right Upright to
the Rack Foot with two M10 x 65mm Button Bolts
(60), four M10 Washers (67), and two M10 Nylon
Locknuts (69). Make sure the Bolts are inserted
from the side shown. Do not tighten the
Locknuts yet.
Repeat this step with the Left Upright (31 [not
shown]), Guide Bar (32), and Rack Foot (35).
Insert the MIO x 65mm Button Bolts (60) from
the other side.
10
11
54
53 52
482
50 /52
51 53
63
67
54
8

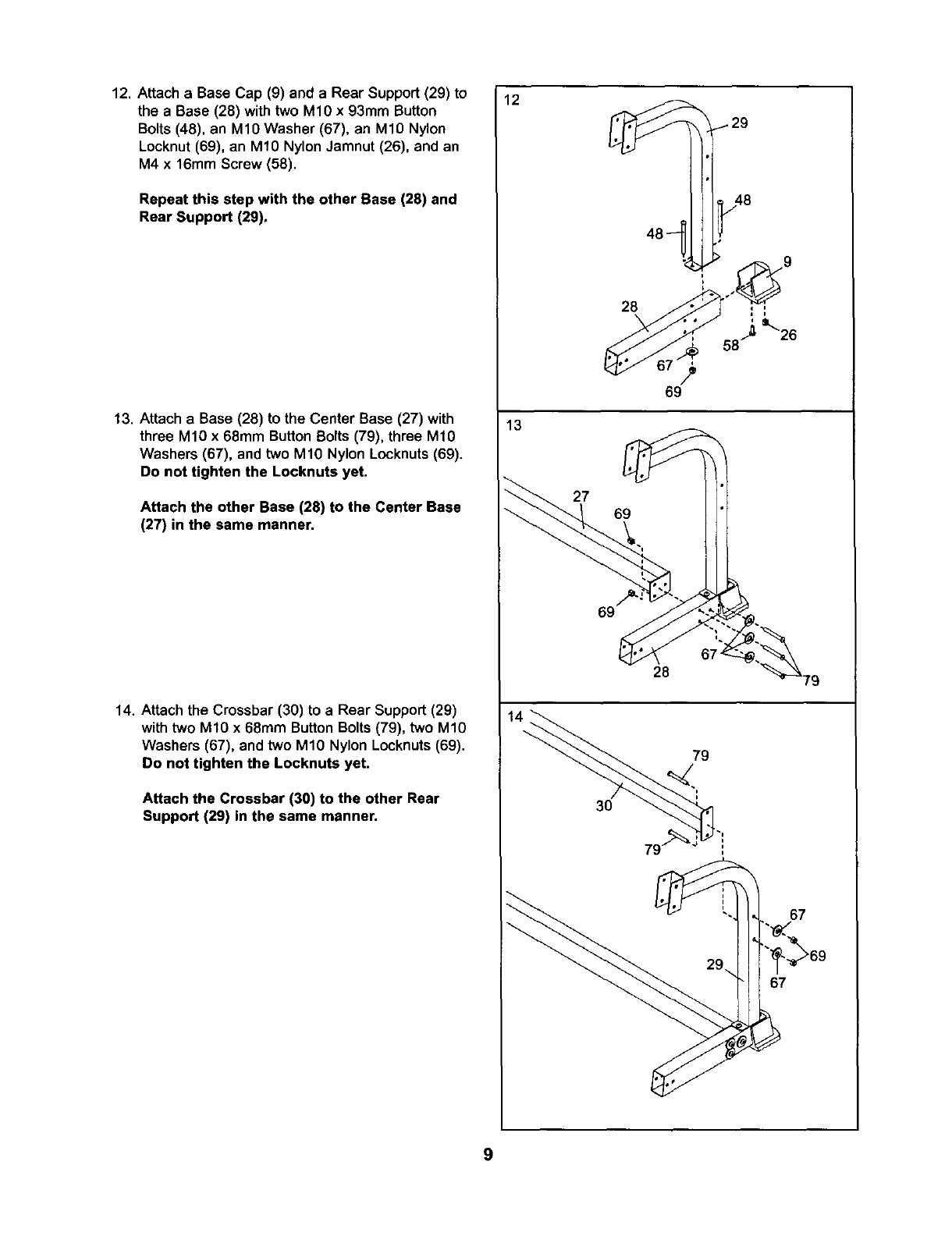

12. Attach a Base Cap (9) and a Rear Support (29) to
the a Base (28) with two M10 x 93mm Button
Bolts (48), an M10 Washer (67), an M10 Nylon
Locknut (69), an MI0 Nylon Jamnut (26), and an
M4 x 16mm Screw (58).
Repeat this step with the other Base (28) and
Rear Support (29).
13. Attach a Base (28) to the Center Base (27) with
three M10 x 68mm Button Bolts (79), three M10
Washers (67), and two M10 Nylon Locknuts (69).
Do not tighten the Locknuts yet.
Attach the other Base (28) to the Center Base
(27) in the same manner,
14. Attach the Crossbar (30) to a Rear Support (29)
with two M10 x 68ram Button Bolts (79), two M10
Washers (67), and two M10 Nylon Locknuts (69).
Do not tighten the Locknuts yet.
Attach the Crossbar (30) to the other Rear
Support (29) in the same manner,
12
13
69
27
28
67
67
9

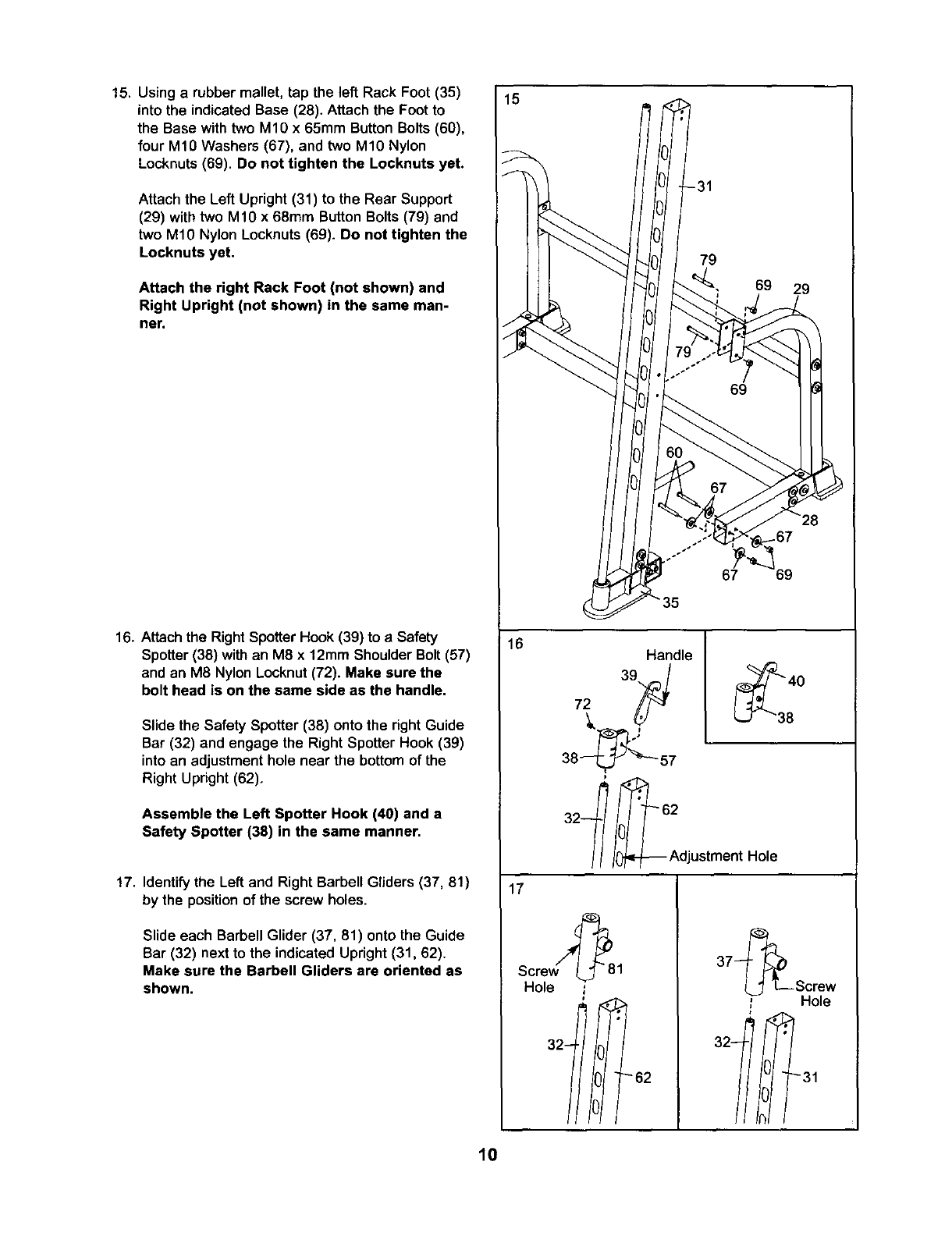

15. Using a rubber mallet, tap the left Rack Foot (35)
into the indicated Base (28). Attach the Foot to
the Base with two M1O x 65mm Button Bolts (60),
four M10 Washers (67), and two M10 Nylon
Locknuts (69). Do not tighten the Locknuts yet.
Attach the Left Upright (31) to the Rear Support
(29) with two M10 x 68mm Button Bolts (79) and
two M10 Nylon Locknuts (69). Do not tighten the
Locknuts yet.
Attach the right Rack Foot (not shown) and
Right Upright (not shown) in the same man-
ner.
16. Attach the RightSpotter Hook (39) to a Safety
Spotter (38) with an M8 x 12mm ShoulderBolt (57)
and an M8 Nylon Locknut (72). Make sure the
bolt head is on the same side as the handle.
Slide the Safety Spotter (38) onto the right Guide
Bar (32) and engage the Right Spotter Hook (39)
into an adjustment hole near the bottom of the
Right Upright (62),
Assemble the Left Spotter Hook (40) and a
Safety Spotter (38) in the same manner.
17. Identify the Left and Right Barbell Gliders (37, 81)
by the position of the screw holes.
Slide each Barbell Glider (37, 81) onto the Guide
Bar (32) next to the indicated Upright (31, 62).
Make sure the Barbell Gliders are oriented as
shown.
15
31
79
79 ,
"69
16 Handle
72_, 39,_
38-_57
JJ AdjustmentHo,e
17
SlClro_W_ 1 37--__._Scre w
Hole
("_31
10

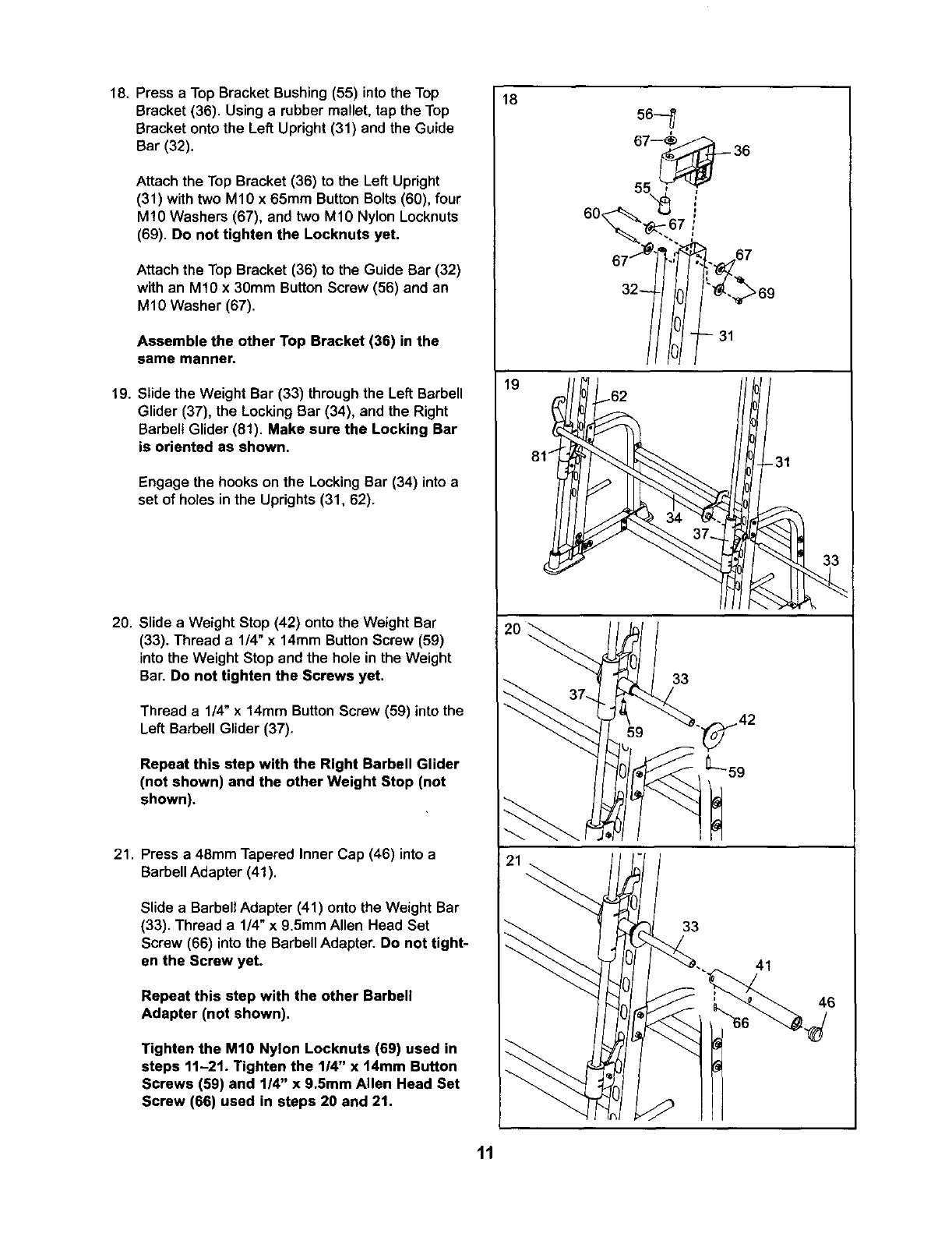

18. Press a Top Bracket Bushing (55) into the Top
Bracket (36). Using a rubber mallet, tap the Top
Bracket onto the Left Upright (31) and the Guide
Bar (32).
Attach the Top Bracket (36) to the Left Updght
(31) with two M10 x 65mm Button Bolts (60), four
M10 Washers (67), and two M10 Nylon Locknuts
(69). Do not tighten the Locknuts yet.
Attach the Top Bracket (36) to the Guide Bar (32)
with an Mt0 x 30ram Button Screw (56) and an
M10 Washer (67).
Assemble the other Top Bracket (36) in the
same manner.
19. Slide the Weight Bar (33) throughthe Left Barbell
Glider (37), the Locking Bar (34), and the Right
Barbell Glider (81). Make sure the Locking Bar
is oriented as shown.
Engage the hooks on the Locking Bar (34) into a
set of holes in the Uprights (31, 62).
20. Slide a Weight Stop (42) onto the Weight Bar
(33). Thread a 1/4" x 14ram Button Screw (59)
into the Weight Stop and the hole in the Weight
Bar. Do not tighten the Screws yet.
Thread a 1/4" x 14mm Button Screw (59) into the
Left Barbell Glider (37),
Repeat this step with the Right Barbell Glider
(not shown) and the other Weight Stop (not
shown).
21. Press a 48ram Tapered Inner Cap (46) into a
Barbell Adapter (41).
Slide a Barbell Adapter (41) onto the Weight Bar
(33). Thread a 1/4" x 9.5mm Allen Head Set
Screw (66) into the Barbell Adapter. Do not tight-
en the Screw yet.
Repeat this step with the other Barbell
Adapter (not shown).
Tighten the M10 Nylon Locknuts (69) used in
steps 11-2t. Tighten the 1/4" x 14mm Button
Screws (59) and 114"x 9.5mm Allen Head Set
Screw (66) used in steps 20 and 21,
18
19
20
21
q
81 _
56-
i
67--*_._ 36
67 "
H-/-31
31
33
.42
33
41
46
11
ADJUSTMENTS
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 15 for impor-
tant informationabout how to get the most benefit from your exercise program.Also, refer to the accompanying
exercise guide to see the correct formfor each exercise.
Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediate-
ly.The weight benchcan be cleaned witha damp clothand a mild,non-abrasivedetergent.Do notuse solvents.
ADJUSTING THE BACKREST
To adjust the position of the Backrest (12), hold the
upper end of the Backrest with one hand and lift the
Adjustment Lever (8) with the other hand, disengag-
ing the Backrest Bracket (10), Raise or lower the
Backrest to the desired position. Lower the Adjust-
ment Lever so that the M10 x 65mm Flat Head Screw
(77 [not shown]) engages one of the notches in the
Backrest Bracket.
WARNING: Alway,hold=e
Backrest (12) securely before disengaging the
Backrest Bracket (10). Always make sure the
Backrest Bracket is fully engaged before using
the Backrest,
ATTACHING THE CURL POST
For some exercises, the Curl Post (5) must be
attached to the weight bench. Slide the Curl Post into
the Leg Lever Bracket (7). Align the adjustment holes
in the Curl Post with the adjustment hole in the Leg
Lever Bracket. Tighten the Curl Knob (22) into the
adjustment hole in the Leg Lever Bracket. Fully tight-
en the Knob.
10
12
12

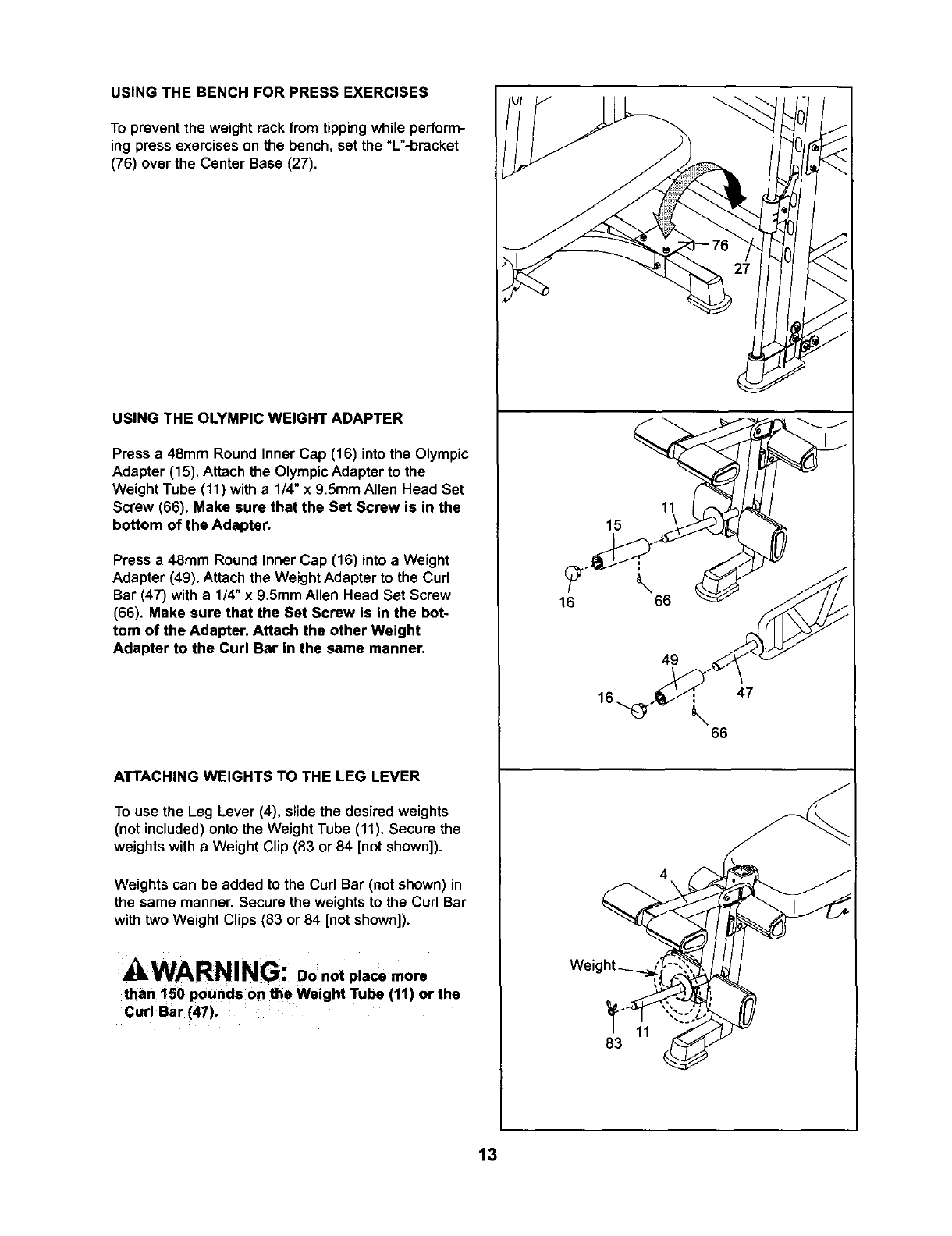

USING THE BENCH FOR PRESS EXERCISES
To prevent the weight rack from tipping while perform-
ing press exercises on the bench, set the "L"-bracket
(76) over the Center Base (27).
USING THE OLYMPIC WEIGHT ADAPTER
Press a48mm Round Inner Cap (16) into the Olympic
Adapter (15). Attach the Olympic Adapter to the
Weight Tube (11) with a 1/4" x 9.5ram Allen Head Set
Screw (66). Make sure that the Set Screw is in the
bottom of the Adapter.
Press a 48ram Round Inner Cap (16) into a Weight
Adapter (49). Attach the Weight Adapter to the Curl
Bar (47) with a 1/4" x 9.5mm Allen Head Set Screw
(66). Make sure that the Set Screw is in the bot-
tom of the Adapter. Attach the other Weight
Adapter to the Curl Bar in the same manner,
ATTACHING WEIGHTS TO THE LEG LEVER
To use the Leg Lever (4), slide the desired weights
(not included) onto the Weight Tube (11). Secure the
weights with a Weight Clip (83 or 84 [not shown]).
Weights can be added to the Curl Bar (not shown) in
the same manner. Secure the weights to the Curl Bar
with two Weight Clips (83 or 84 [not shown]).
WARNING: Donotp,acemore
than 150 pounds on the Weight Tube (11) or the
Curl Bar (47).
27
11
15
16 66
49
47
16..
66
4
11
83
J
13

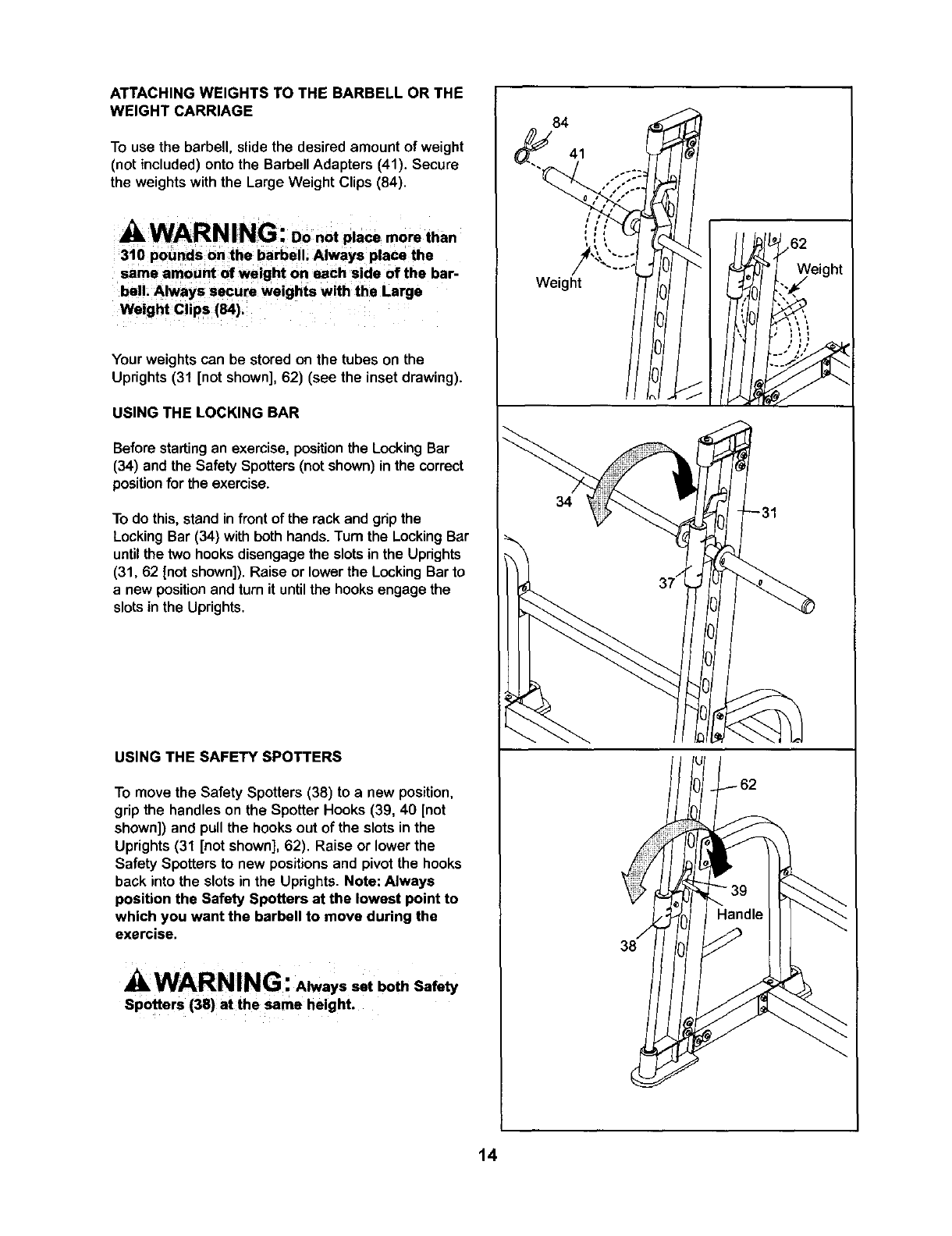

ATTACHING WEIGHTS TO THE BARBELL OR THE
WEIGHT CARRIAGE
To use the barbell, slide the desired amount of weight
(not included)onto the Barbell Adapters (41). Secure
the weights with the Large Weight Clips (84).
WARNING: Donotplace more than
310 pounds on the barbell. Always place the
same amount of weight on each side of the bar-
bell, Always secure weights with the Large
Weight Clips (84).
Your weights can be stored on the tubes on the
Uprights (31 [not shown],62) (see the inset drawing).
USING THE LOCKING BAR
Before starting an exercise, position the Locking Bar
(34) and the Safety Spotters (not shown) in the correct
position for the exercise.
To do this, stand infront of the rack and gdp the
Locking Bar (34) with both hands. Turnthe Locking Bar
until the two hooks disengage the slots in the Uprights
(31, 62 [not shown]). Raise or lower the Locking Bar to
a new positionand turn it until the hooks engage the
slotsin the Uprights.
USING THE SAFETY SPOTTERS
To move the Safety Spotters (38) to a new position,
grip the handles on the Spotter Hooks (39, 40 [not
shown]) and pull the hooks out of the slots in the
Uprights (31 [not shown], 62). Raise or lower the
Safety Spotters to new positions and pivot the hooks
back into the slots in the Uprights. Note: Always
position the Safety Spotters at the lowest point to
which you want the barbell to move during the
exercise.
WARNING: Always set both Safety
Spotters (38)at the same height.
84
41
Weight
,62
Weigh1
-31
14
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
MUSCLE BUILDING
To increase the size and strengthof your muscles,
push them close to their maximumcapacity. Your mus-
cles will continuallyadapt and grow as you progres÷
sively increase the intensityof your exercise. You can
adjust the intensitylevel of an individualexercise in
two ways:
• by changingthe amount of resistance used
•by changingthe number of repetitionsor sets per-
formed. (A "repetition" is one complete cycle of an
exercise, suchas one sit-up.A =set" is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individualuser. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
TONING
You can tone your musclesby pushing them to a mod-
erate percentage of their capacity.Select a moderate
amount of resistance and increase the number of rep-
etitionsin each set. Complete as many sets of 15 to
20 repetitionsas possiblewithoutdiscomfort.Rest for
1 minute after each set. Work your muscles by com-
pleting more sets rather than by using high amounts of
resistance.
WEIGHT LOSS
To lose weight, use a low amount of resistance and
increase the number of repetitionsin each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
CROSS TRAINING
Cross trainingis an efficientway to get a complete and
well-balanced fitness program.An example of a bal-
anced program is:
•Plan strengthtrainingworkoutson Monday,
Wednesday, and Fdday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an ellipticalor
exercise bike, on Tuesday and Thursday.
•Rest from both strengthtrainingand aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exer-
cise will reshape and strengthen your body, plus devel-
op your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determiningthe exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdo-
ing it during the first few months of your exercise pro-
gram. You should progress at your own pace and be
sensitive to your body's signals. If you experience pain
or dizziness at any time while exercising, stop immedi-
ately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise pro-
gram.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature end deliver-
ing more oxygen to your muscles.
WORKING OUT
Each workoutshould include 6 to 10 differentexercis-
es. Select exercisesfor every major musclegroup,
emphasizing areas that you want to develop most.To
give balance and variety to your workouts,vary the
exercises from session to session.
Schedule your workoutsfor the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program.This requiresmoving
throughthe full range of motionfor each exercise, and
movingonly the appropriate partsof the body.
Exercisingin an uncontrolledmanner will leave you
feeling exhausted. On the exercise guide accompany-
ing this manual you will find photographsshowingthe
correct form for several exercises, and a listof the
muscles affected. Refer to the musclechart on the
next page to find the names of the muscles.
The repetitions in each set should be performed
smoothlyand withoutpausing. The exertionstage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
15
Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for atoning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout.The
chart on pages 17-19 of this manual can be photo-
copied and used to schedule and record your work-
outs. List the date, the exercises performed, the resist-
ance used, and the numbers of sets and repetitions
completed. Record your weight and key body meas-
urements at the end of every month. Remember, the
key to achieving the greatest results is to make exer-
cise a regular and enjoyable part of your everyday life.
V
W

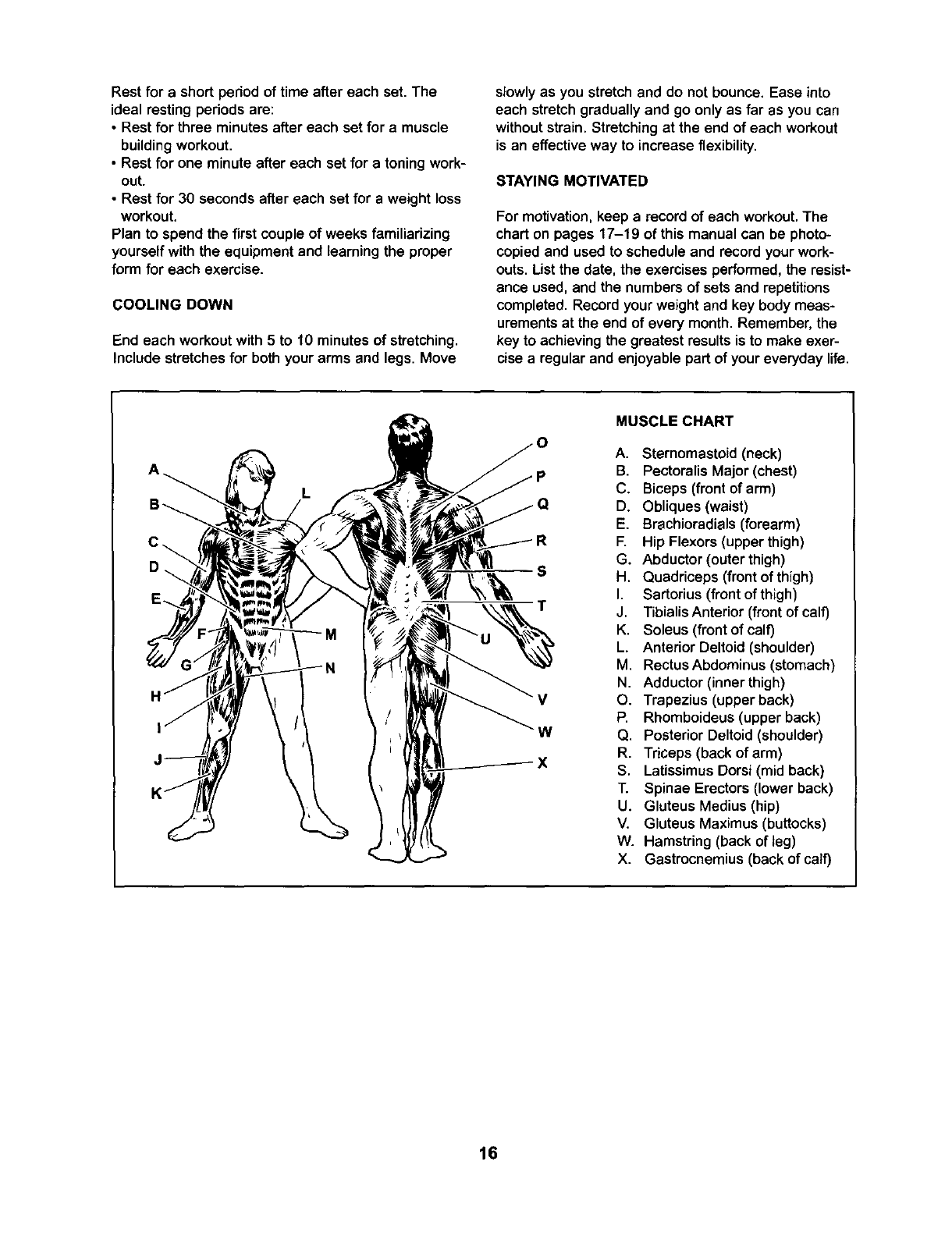

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectorelis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sertorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus(upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
16
MONDAY EXERCISE WEIGHT SETS REPS
Date:
/ /
TUESDAY
Date: ! /
AEROBIC EXERCISE
WEDNESDAY EXERCISE WEIGHT SETS REPS
Date:
/ /
THURSDAY AEROBIC EXERCISE
Date: / /
FRIDAY EXERCISE WEIGHT SETS REPS
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
17

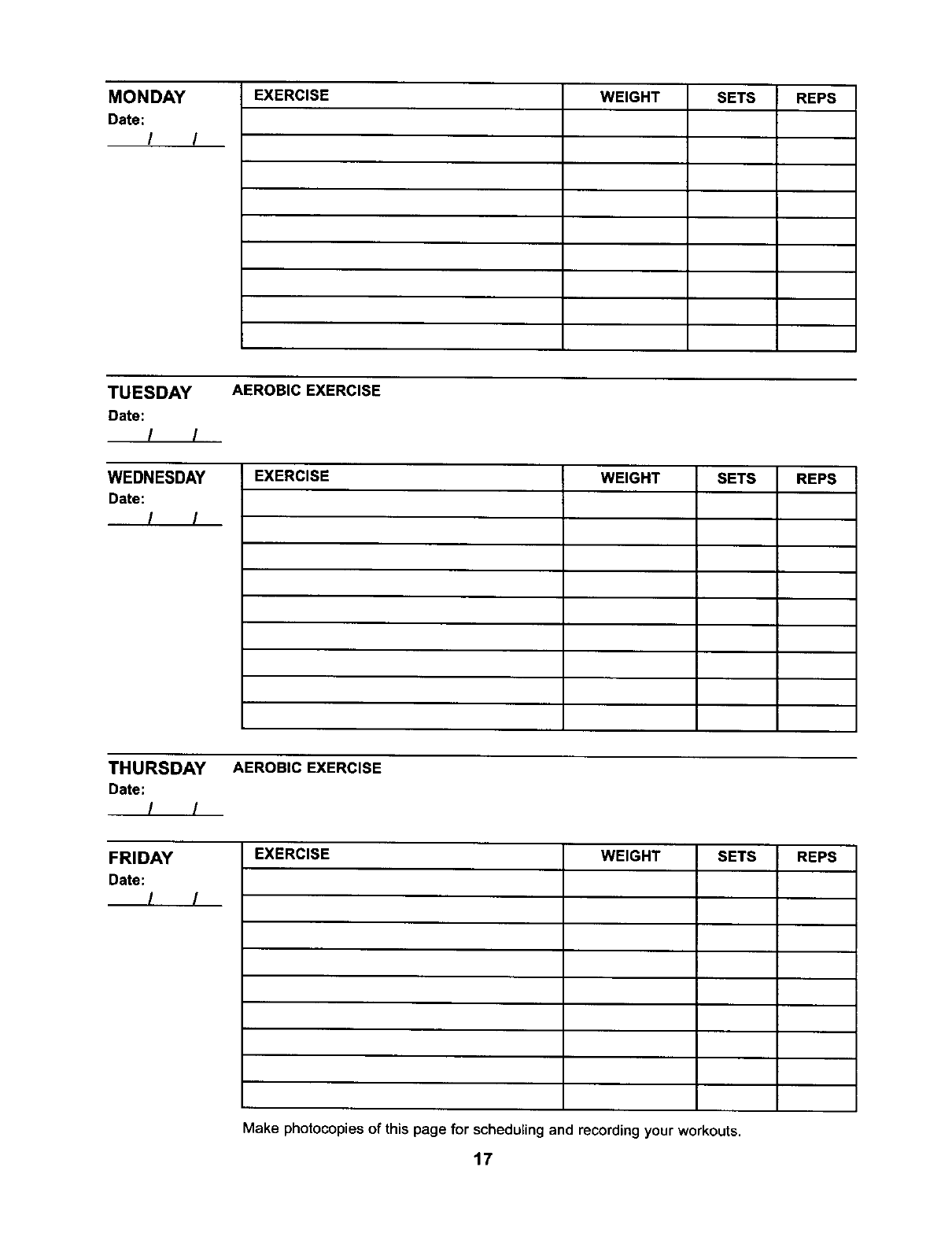

MONDAY EXERCISE WEIGHT SETS REPS
Date: / /
TUESDAY AEROBIC EXERCISE
Date: / /
WEDNESDAY EXERCISE WEIGHT SETS REPS
Date: / /
THURSDAY AEROBIC EXERCISE
Date: / /
FRIDAY EXERCISE WEIGHT SETS REPS
Date: //
Make photocopies of this page for schedulingand recording your workouts.
18

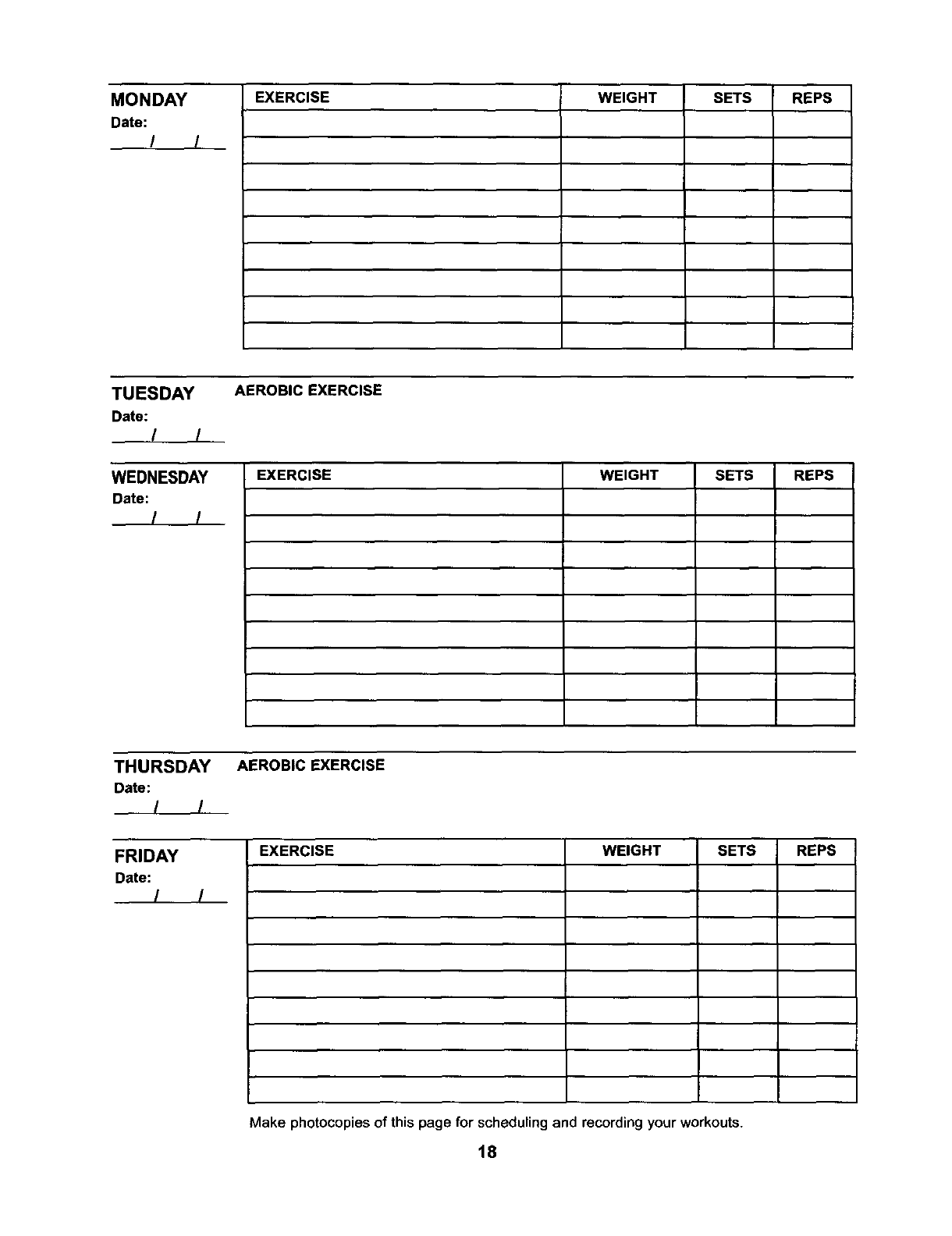

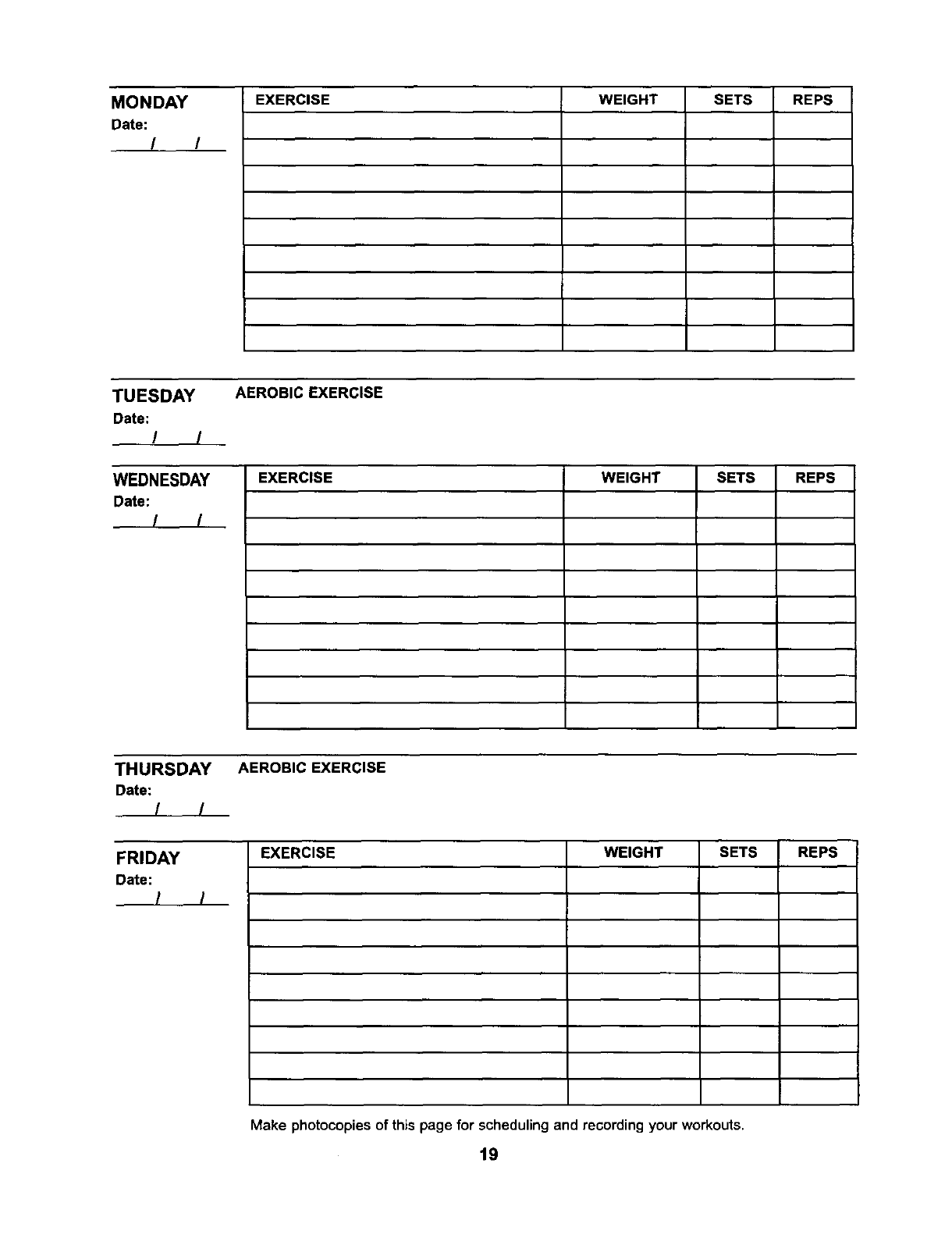

MONDAY EXERCISE WEIGHT SETS REPS
)ate: / /
TUESDAY AEROBIC EXERCISE
Date: / /
WEDNESDAY EXERCISE WEIGHT SETS REPS
Date: / /
THURSDAY
Date: / /
FRIDAY
Date: ! I
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
Make photocopies of this page for scheduling and recording your workouts.
t9
PART LISTmModel No. 831.150330 R0803A
Key No. Qty. Description Key No. Qty. Description
11 Bench Frame 47 1 Curl Bar
2 1 Stabilizer 48 4 M10 x 93mm Button Bolt
3 1 Bench Leg 49 2 Weight Adapter
4 1 Leg Lever 50 2 Pad Tube
51Curl Post 51 4 Large Foam Pad
6 2 Backrest Tube 52 2 Small Foam Pad
7 ! Leg Lever Bracket 53 4 Large Pad Cap
8 1 Adjustment Lever 54 2 Small Pad Cap
9 4 Base Cap 55 2 Top Bracket Bushing
10 1 Backrest Bracket 56 4 M10 x 30mm Button Screw
11 1 Weight Tube 57 2 M8 x 12mm Shoulder Bolt
12 1 Backrest 58 5 M4 x 16mm Screw
13 1 Seat 59 4 1/4" x 14mm Button Screw
14 1 Curl Pad 60 12 M10 x 65mm Button Bolt
15 1 Olympic Adapter 61 2 M10 x 95mm Carriage Bolt
16 3 48mm Round Inner Cap 62 1 Right Upright
17 2 50mm Square Inner Cap 63 4 M6 x 16mm Screw
18 1 Notched Square Inner Cap 64 4 M6 x 38mm Screw
19 4 25mm Square Inner Cap 65 1 M6 x 63mm Screw
20 5 25ram Round Inner Cap 66 5 1/4" x 9.5mm Allen Head Set
21 1 Handgrip Screw
22 1 Cud Knob 67 50 M10 Washer
23 2 Small Round Bushing 68 5 M6 Washer
24 1 25mm Round Angled Cap 69 41 MIO Nylon Locknut
25 1 13mm Spacer 70 1 M10 x 73mm Button Bolt
26 2 M1O Nylon Jamnut 71 1 M8 x 63mm Button Bolt
27 1 Center Base 72 3 M8 Nylon Locknut
28 2 Base 73 2 M8 Washer
29 2Rear Support 74 4 M10 x45mm Button Bolt
30 1 Crossbar 75 3 M10 x 81mm Button Bolt
31 1 Left Upright 76 1 "L"-bracket
32 2 Guide Bar 77 1 M10 x 65mm Flat Head Screw
33 1 Weight Bar 78 2 M1O x 25mm Button Screw
34 1 Locking Bar 79 18 M10 x 68ram Button Bolt
35 2 Rack Foot 80 1 Small Base Cap
36 2 Top Bracket 81 1 Right Barbell Glider
37 1 Left Barbell Glider 82 1 Long Pad Tube
38 2 Safety Spotter 83 2 Small Weight Clip
39 1 Right Spotter Hook 84 2 Large Weight Clip
40 1 Left Spotter Hook 85 1 M10 x155mm Button Bolt
41 2 Barbell Adapter 86 1 Thin Notched Square Inner Cap
42 2 Weight Stop # 1 User's Manual
43 8 Glider Bushing # 1 Exercise Guide
44 4 Weight Bar Glider Bushing # 1 Grease Pack
45 2 Round Angled Bushing # 3 Allen Wrench
46 2 48mm Tapered Inner Cap
Note: "#" indicates anon-illustrated part. Specifications are subject to change withoutnotice.See the back cover
of the user's manual for informationabout ordering replacement parts.
PART IDENTIFICATION CHART
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the PART LIST in the center of this manual. Important:
Some parts may have been pre-assembled for shipping purposes. If a part is not in the parts bag, check
to see if it has been pre-attached. If a part is missing, call toll-free 1-800-999-3756.
M8 x 12mm Shoulder M6 x 38ram Screw (64)
M 10 x 30mm Button Screw (56) Bolt (57)
M10 x 45mm Button Bolt (74)
M10 x 25mm Button Screw (78)
M6 x 16ram Screw (63)
cS
M4 x 16ram Screw (58)
1/4" x 9.5mm Allen
Head Set Screw (66)
I M8 x 63mm Button Bolt (71)
M6 x 63mm Screw (65)
M10 x 65mm Button Bolt (60)
D
1/4" x 14mm Button
Screw (59)
M8 Nylon Locknut (72) MIO Nylon Locknut (69)
©H
M8 Washer (73) M6 Washer (68)
M10 x 65mm Flat Head Screw (77)
M10 x 68mm Button Bolt (79)
l M10 x 73mm Button Bolt (70)
M10 x 81mm Button Bolt (75)
MIO Washer (67) [
I M10 x 93mm Button Bolt (48)
M10 x 95mm Carriage Bolt (61)
M10 x 155mm Button Bolt (85)
14
20
.÷....÷ .o--°_ 71
16
i
58
74
74
68
23 1
58
56
43_, 67
32
69
35 53
54
67_
_56 52
33
79
42
41
46
29
67
':;o
Co
Q
t..o
Get itfixed, at your home or ours!
Your Home
For repair - in your home - of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold it!
For the replacement par_s, accessones, and user's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage aoor openers and water heaters.
1-800-4-MY-HOME_ Anytime,dayornight
tl-800-469-4663) (U.S.A.andCanada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in products like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts and Repair Center.
1-800-488-1222 Anytime, day or night (U.S.A. only)
www, sears,com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n a domicilio, y para ordenar piezas:
1-888-SU-HOGAR s_ (1-888-7846427)
SEARS
®Registered Trademark /_MTrademark /sMService Mark of Sears, Roebuck and Co.
® Marca Registrada /TMMarca de Fdbbca /s_ Marca de Se_dcio de Sears, Roebuck and Co.
f
FULL 90-DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanshipin this
WEIGHT BENCH EXERCISER, contact the nearest Sears Service Center throughout the United States
and Sears will repair or replace the WEIGHT BENCH EXERCISER, free of charge.
This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for
rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears, Roebuck and Co., Dept 817WA, Hoffman Estates, IL 60179
Pa_ No. 199931R0803A
I
Printed in China © 2003 Sears, Roebuck and Co.

Navigation menu
