Model No. 831.24623.0

SeriaJ No.

Serial Number

Decal

oAssembly

Operation

• Maintenance

= Part List and Drawing

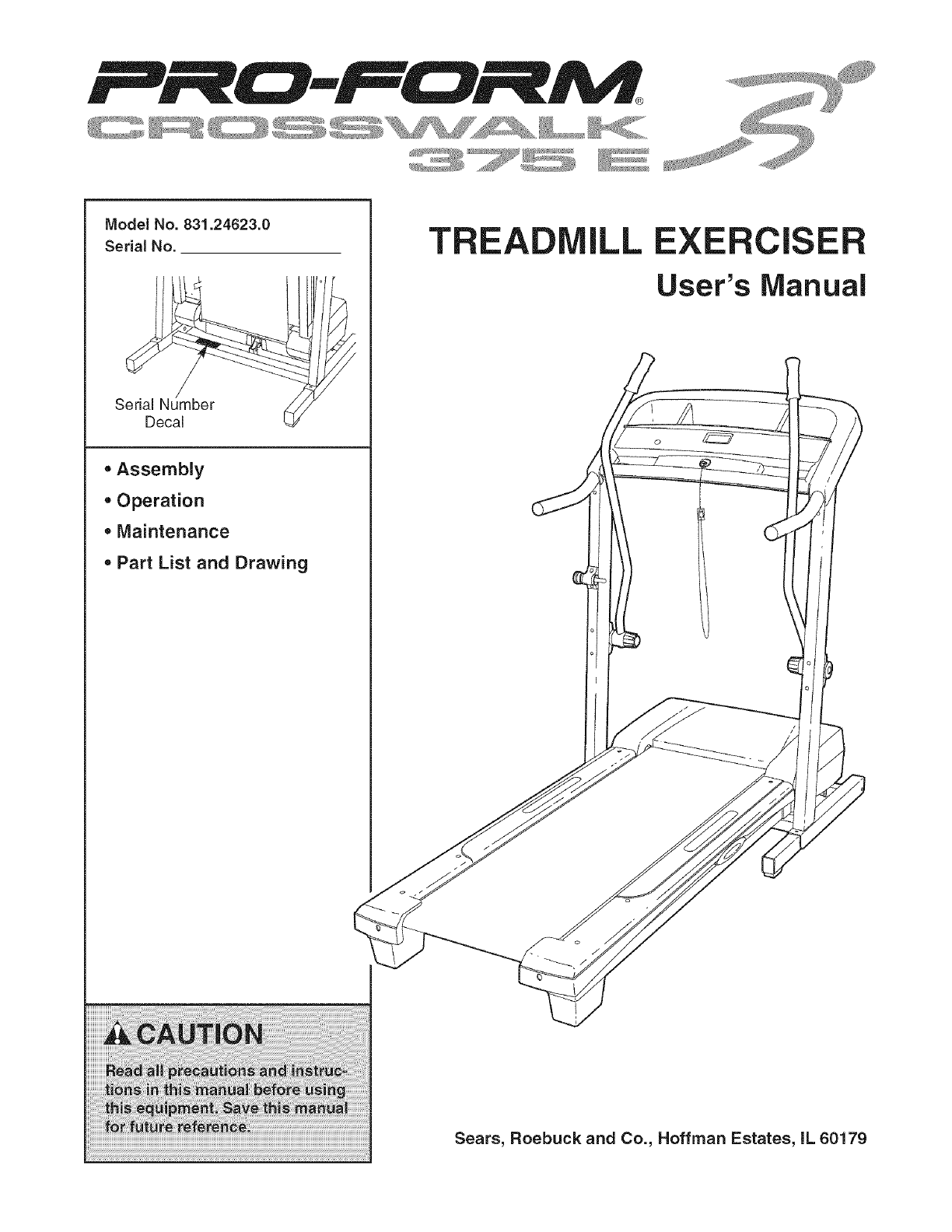

TR LL EXERClS

User's Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

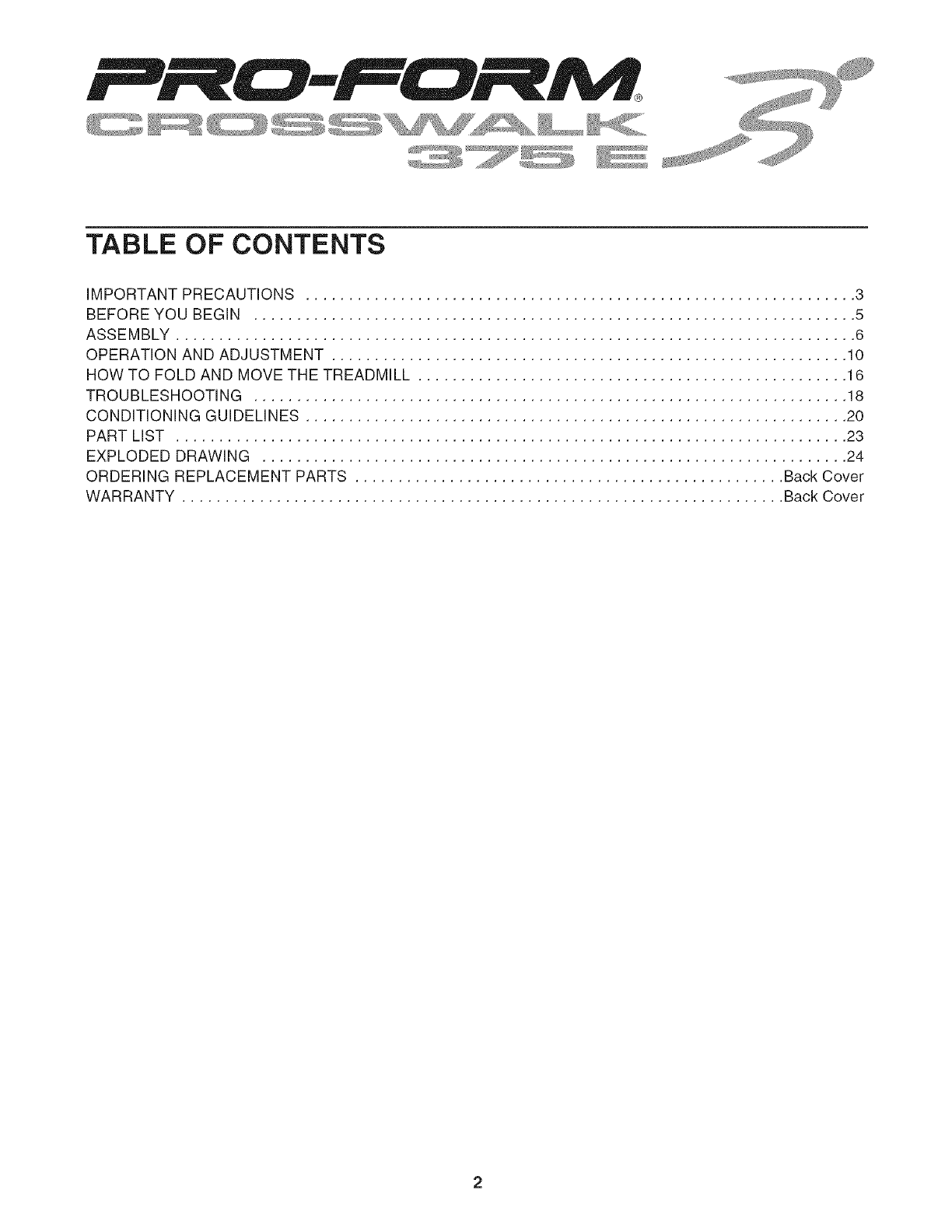

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 5

ASSEMBLY ............................................................................... 6

OPERATION AND ADJUSTMENT ............................................................ 10

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 16

TROUBLESHOOTING ..................................................................... 18

CONDITIONING GUIDELINES ............................................................... 20

PART LIST .............................................................................. 23

EXPLODED DRAWING .................................................................... 24

ORDERING REPLACEMENT PARTS .................................................. Back Cover

WARRANTY ...................................................................... Back Cover

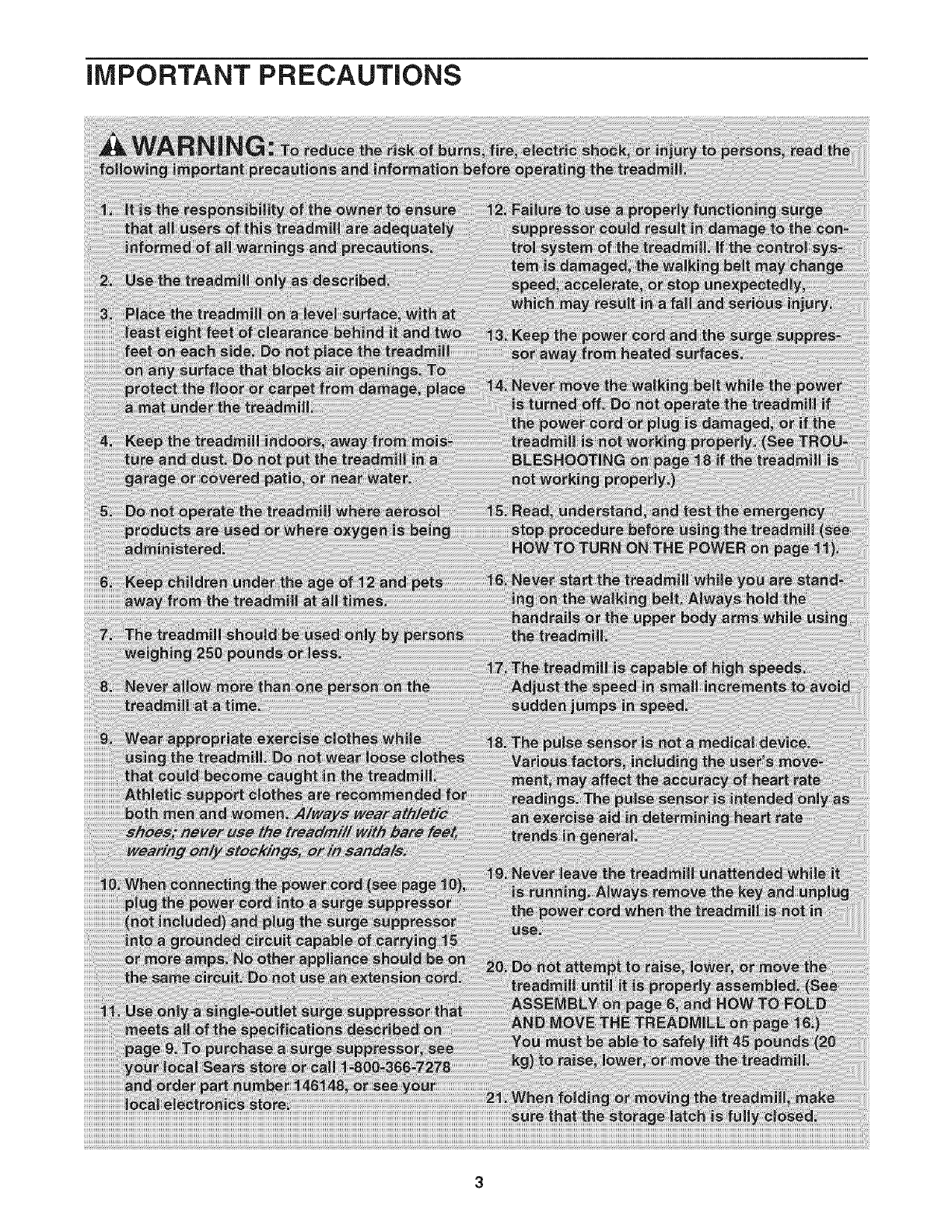

iMPORTANT PRECAUTIONS

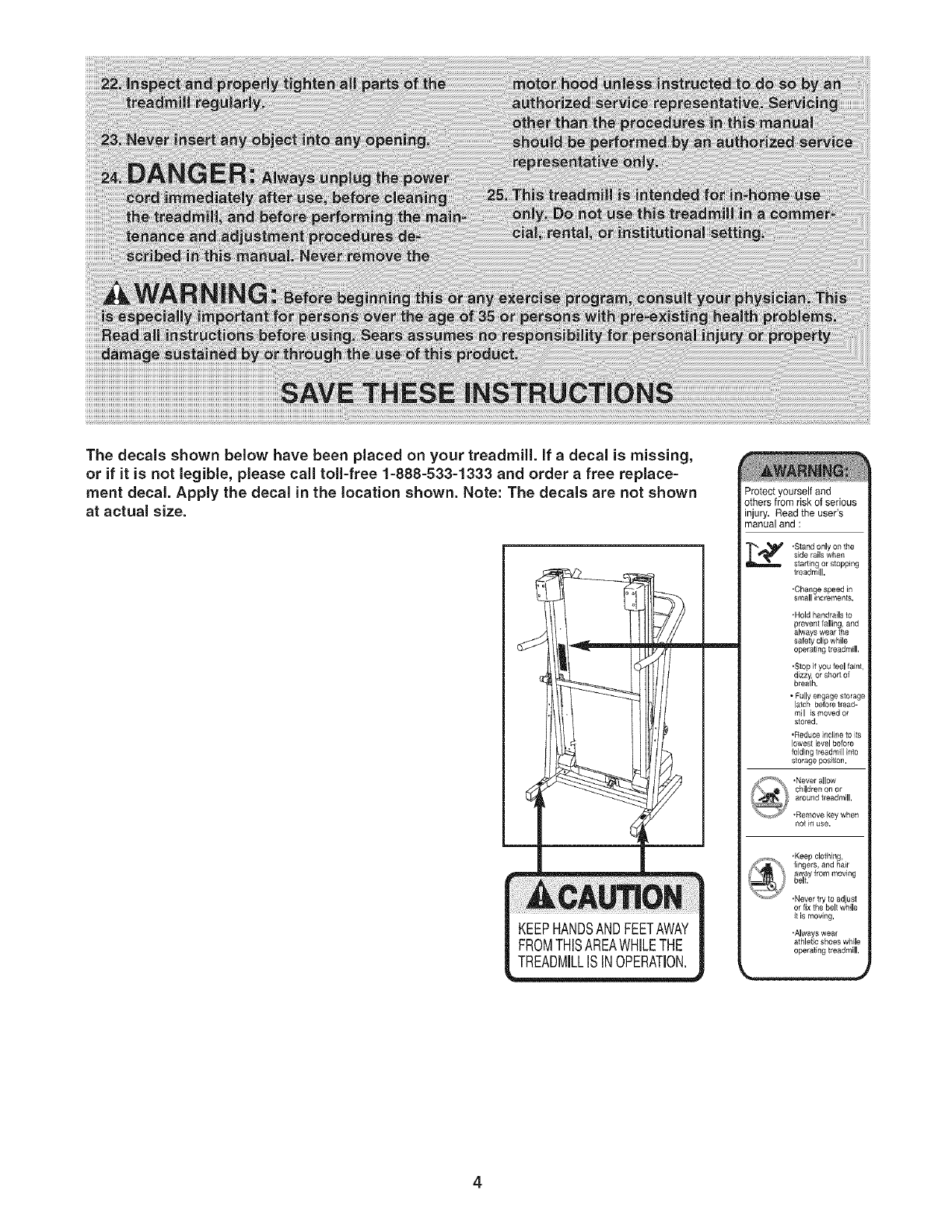

The decals shown below have been placed on your treadmill, if a decal is missing,

or if it is not legible, please call toll=free 1=888=533=1333 and order a free replace=

ment decal. Apply the decal in the location shown. Note: The decals are not shown

at actual size.

Protect yourself and

others from risk of serious

injury. Read the user's

manual and :

.Stand only on the

side rails when

starting or stopping

treadmill.

"ChaRge speed in

small increments.

.Hold handrails to

prevetrt falling, and

always wear the

safety clip while

operating treadmill,

,Stop if you feel faint,

dizzy, or short of

breath.

, Fully engage storage

latch before tread-

mill is moved o_

sto!ed.

•Reduce incline to ts

lowest level befote

fold ng treadmill into

storage position.

.Never allow

children on or

around treadmill.

,Remove key when

no_ in use.

,Keep clolhing,

fingers, and hair

away from moving

belt.

,Never try to adjust

or fix the belt while

it is moving.

"Always went

athletic shoes while

operating treadmill.

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM ®CROSS-

WALK 375E treadmill. The CROSSWALK 375E tread-

mill offers a selection of features designed to make your

workouts at home more effective and enjoyable. And

when you're not exercising, the CROSSWALK 375E

treadmill can be folded up, requiring less than half the

floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, call 1-800-4-MY-HOME ®(1-800-469-

4663).To help us assist you, please note the product

model number and serial number before calling. The

model number of the treadmill is 831.24623.0. The ser-

ial number can be found on a decal attached to the

treadmill (see the front cover of this manual for the lo-

cation).

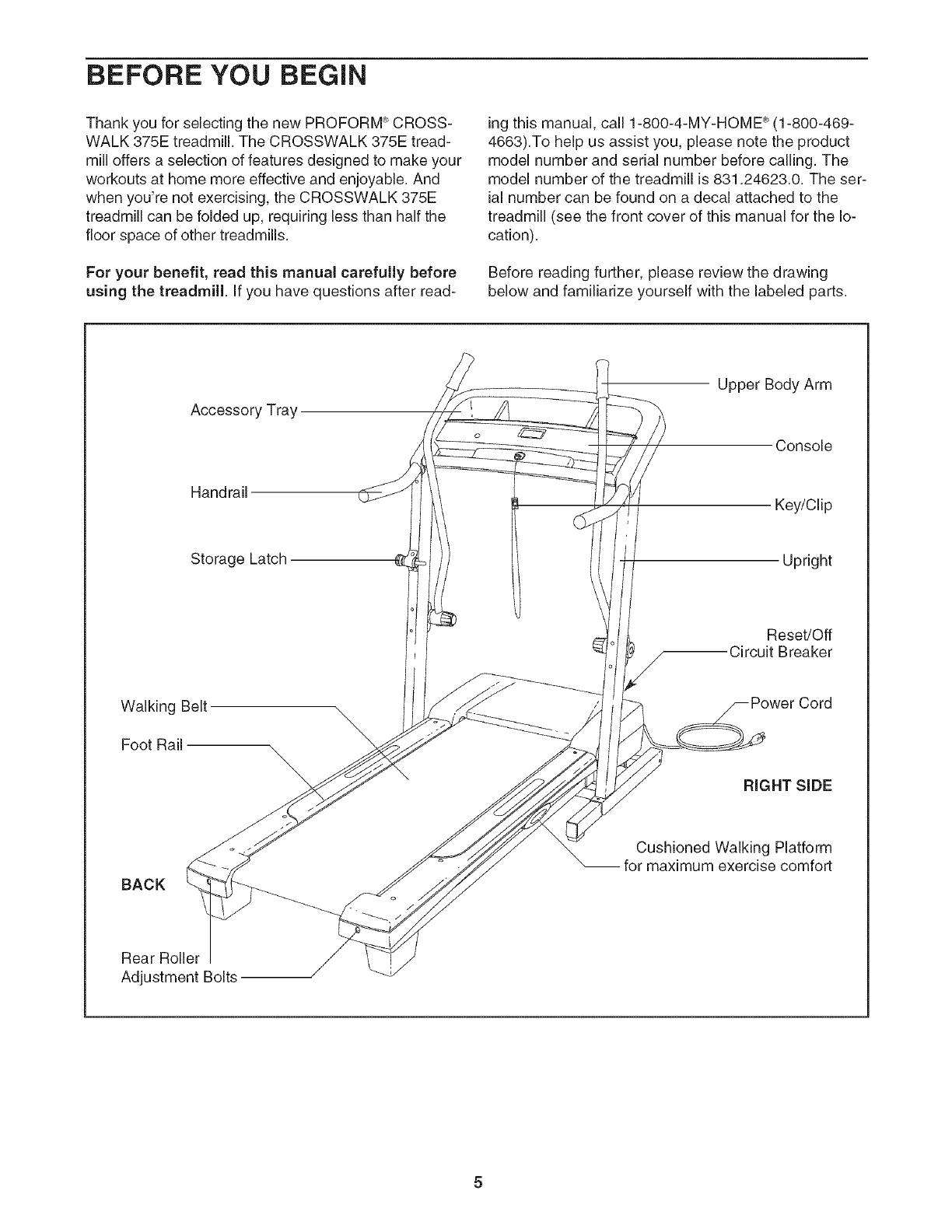

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

Accessory Tray

Handrail

Storage Latch

Upper Body Arm

Console

Key/Clip

Upright

Reset/Off

Circuit Breaker

Walking Belt

Foot Rail

RIGHT SiDE

BACK

Cushioned Walking Platform

-- for maximum exercise comfort

Rear Roller

Adjustment Bolts

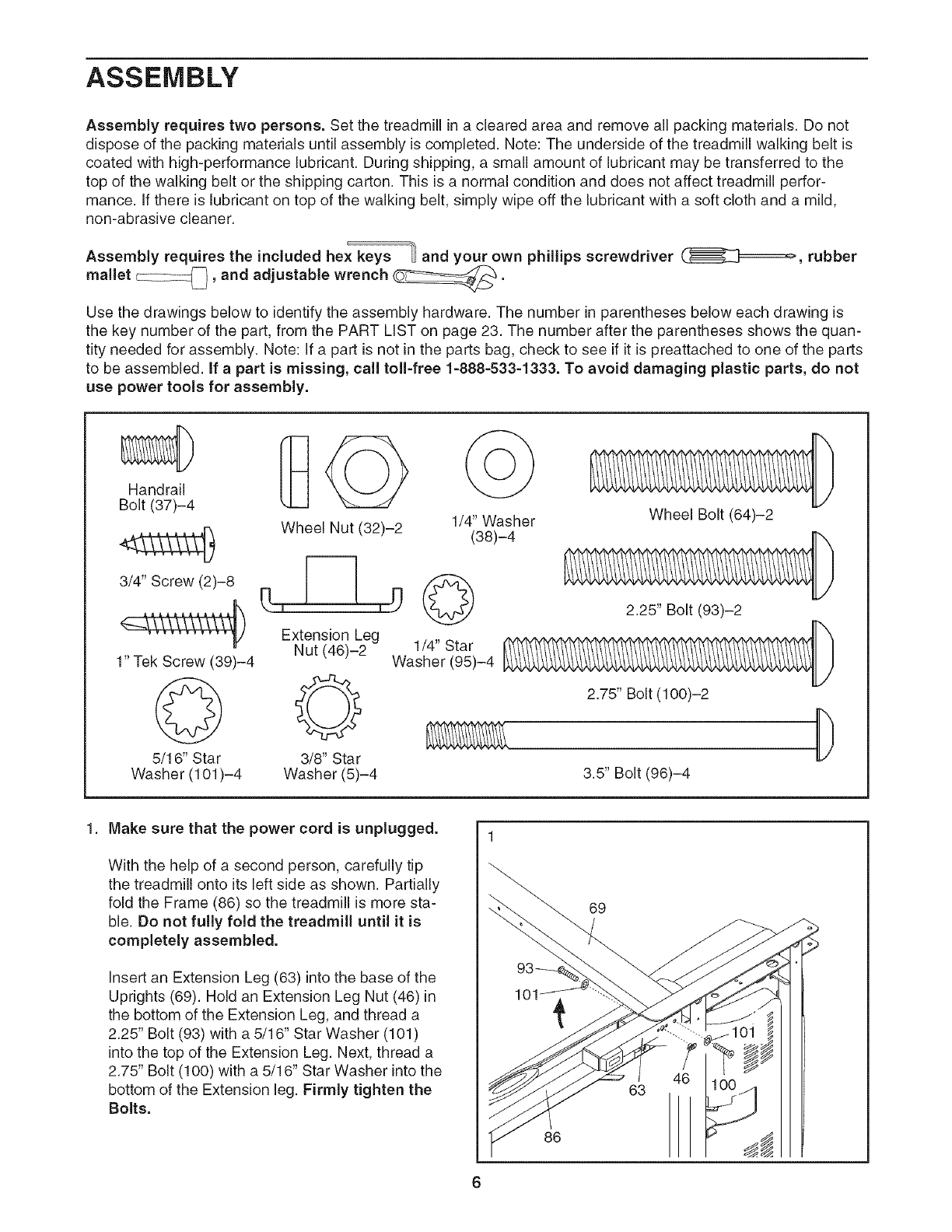

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is

coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the

top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-

mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,

non-abrasive cleaner.

Assembly requires the included hex keys _ and your own phillips screwdriver (_======_, rubber

mallet c::::::z:::_, and adjustable wrench _.

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST on page 23. The number after the parentheses shows the quan-

tity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to one of the parts

to be assembled, if apart is missing, call toll-free 1-888-533-1333. To avoid damaging plastic parts, do not

use power tools for assembly.

Handrail

Bolt (37)-4

3/4" Screw (2)-8

1" Tek Screw (39)-4

5/16" Star

Washer (101 )-4

Wheel Nut (32)-2 1/4" Washer

(38)-4

Extension Leg

Nut (46)-2 1/4" Star

Washer (95)-4

3/8" Star

Washer (5)-4

Wheel Bolt (64)-2

2.25" Bolt (93)-2

2.75" Bolt (100)-2

3.5" Bolt (96)-4

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its left side as shown. Partially

fold the Frame (86) so the treadmill is more sta-

ble. Do not fully fold the treadmill until it is

completely assembled.

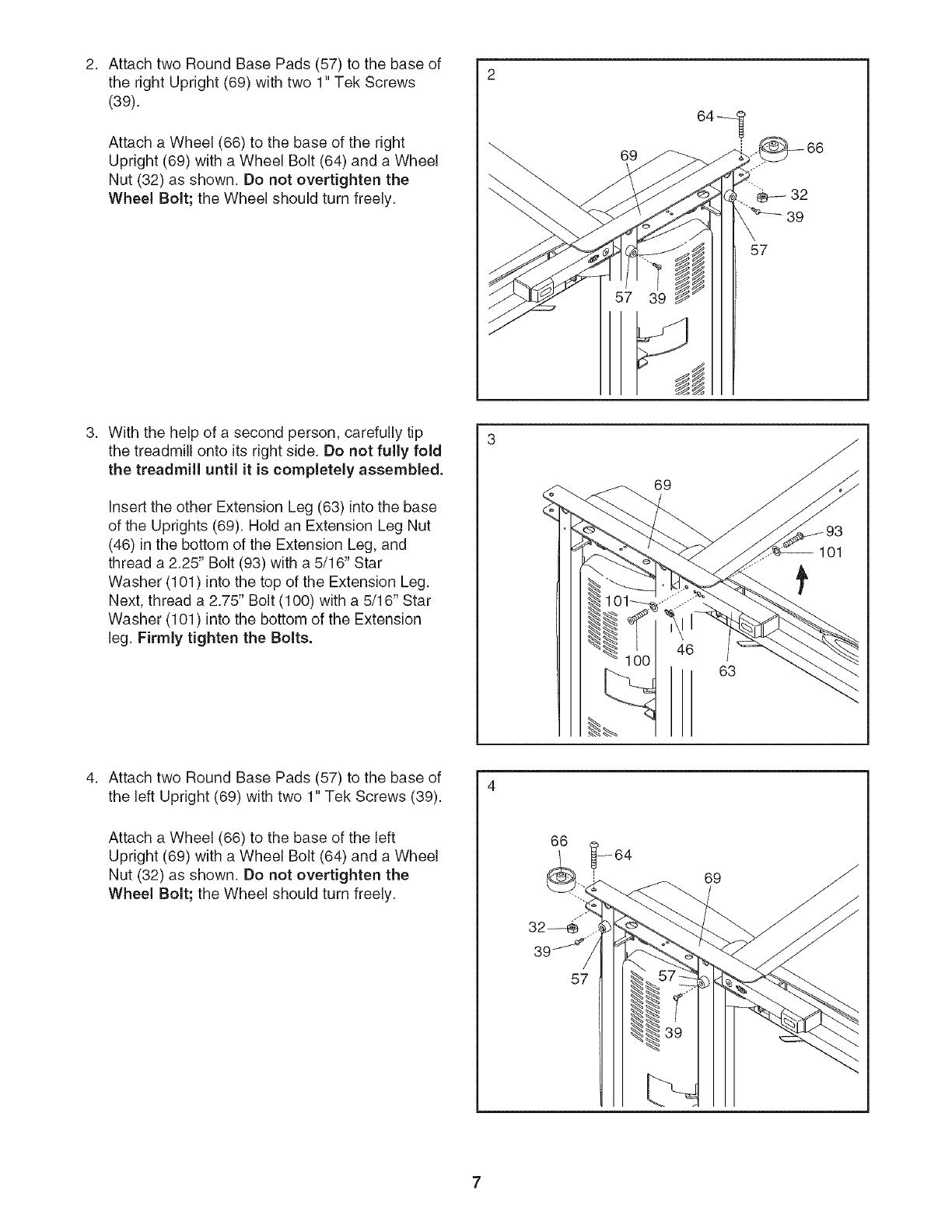

Insert an Extension Leg (63) into the base of the

Uprights (69). Hold an Extension Leg Nut (46) in

the bottom of the Extension Leg, and thread a

2.25" Bolt (93) with a 5/16" Star Washer (101 )

into the top of the Extension Leg. Next, thread a

2.75" Bolt (100) with a 5/16" Star Washer into the

bottom of the Extension leg. Firmly tighten the

Bolts.

101

63 46

2. 2

AttachtwoRoundBasePads(57)tothebaseof

therightUpright(69)withtwo1"TekScrews

(39).

Attacha Wheel(66)tothebaseoftheright

Upright(69)witha WheelBolt(64)andaWheel

Nut(32)asshown.Donotovertightenthe

WheelBolt;theWheelshouldturnfreely.

Withthehelpofa secondperson,carefullytip

thetreadmillontoits right side. Do not fully fold

the treadmill until it is completely assembled.

Insert the other Extension Leg (63) into the base

of the Uprights (69). Hold an Extension Leg Nut

(46) in the bottom of the Extension Leg, and

thread a 2.25" Bolt (93) with a 5/16" Star

Washer (101) into the top of the Extension Leg.

Next, thread a 2.75" Bolt (100) with a 5/16" Star

Washer (101) into the bottom of the Extension

leg. Firmly tighten the Bolts.

101

Attach two Round Base Pads (57) to the base of

the left Upright (69) with two 1" Tek Screws (39).

Attach a Wheel (66) to the base of the left

Upright (69) with a Wheel Bolt (64) and a Wheel

Nut (32) as shown. Do not overtighten the

Wheel Bolt; the Wheel should turn freely.

SettheConsole(43)facedownonasoftsurface

toavoidscratchingtheConsole.Next,setoneof

theHandrails(71)ontheConsoleasshown.

AttachtheHandrailwiththree3/4"Screws(2).

Make sure that the console wire is not

pinched. Start all three Screws before tight=

ening any of them. Do not overtighten the

Screws.

Then, attach the other Handrail (not shown) to

the other side of the Console (43) as described

above.

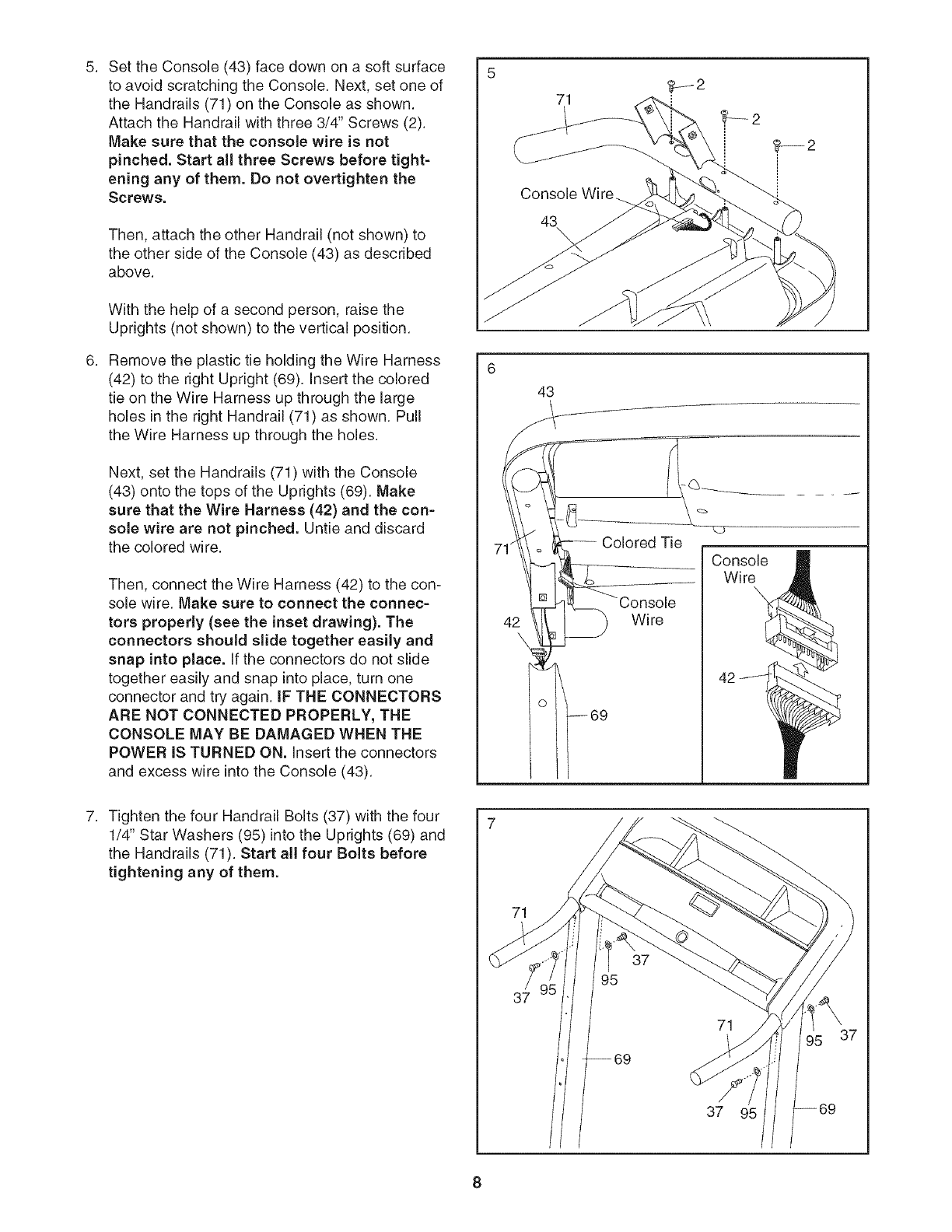

With the help of a second person, raise the

Uprights (not shown) to the vertical position.

Remove the plastic tie holding the Wire Harness

(42) to the right Upright (69). insert the colored

tie on the Wire Harness up through the large

holes in the right Handrail (71) as shown. Pull

the Wire Harness up through the holes.

Next, set the Handrails (71) with the Console

(43) onto the tops of the Uprights (69). Make

sure that the Wire Harness (42) and the con=

sole wire are not pinched. Untie and discard

the colored wire.

Then, connect the Wire Harness (42) to the con-

sole wire. Make sure to connect the connec=

tots properly (see the inset drawing). The

connectors should slide together easily and

snap into place. If the connectors do not slide

together easily and snap into place, turn one

connector and try again. IF THE CONNECTORS

ARE NOT CONNECTED PROPERLY, THE

CONSOLE MAY BE DAMAGED WHEN THE

POWER IS TURNED ON. Insert the connectors

and excess wire into the Console (43).

Colored Tie

W ire

Console

Wirc_

Tighten the four Handrail Bolts (37) with the four

1/4" Star Washers (95) into the Uprights (69) and

the Handrails (71). Start all four Bolts before

tightening any of them.

37 95

8. 8

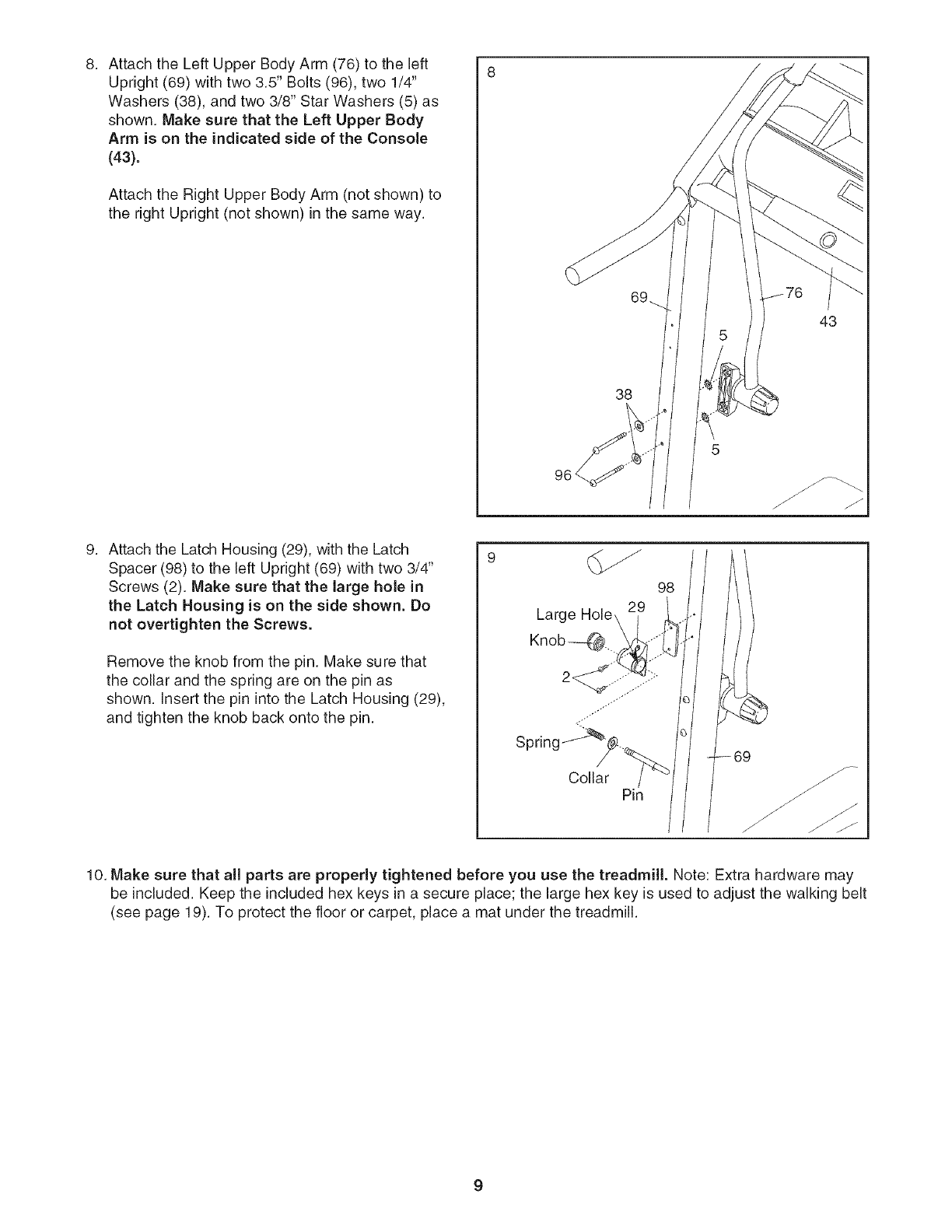

Attach the Left Upper Body Arm (76) to the left

Upright (69) with two 3.5" Bolts (96), two 1/4"

Washers (38), and two 3/8" Star Washers (5) as

shown. Make sure that the Left Upper Body

Arm is on the indicated side of the Console

(43).

Attach the Right Upper Body Arm (not shown) to

the right Upright (not shown) in the same way.

Attach the Latch Housing (29), with the Latch

Spacer (98) to the left Upright (69) with two 3/4"

Screws (2). Make sure that the large hole in

the Latch Housing is on the side shown. Do

not overtighten the Screws.

Remove the knob from the pin. Make sure that

the collar and the spring are on the pin as

shown. Insert the pin into the Latch Housing (29),

and tighten the knob back onto the pin.

Collar Pin

10. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may

be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt

(see page 19). To protect the floor or carpet, place a mat under the treadmill.

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with high-

performance lubricant, iMPORTANT: Never apply sil-

icone spray or other substances to the walking

belt or the walking platform. Such substances will

deteriorate the walking belt and cause excessive

wear.

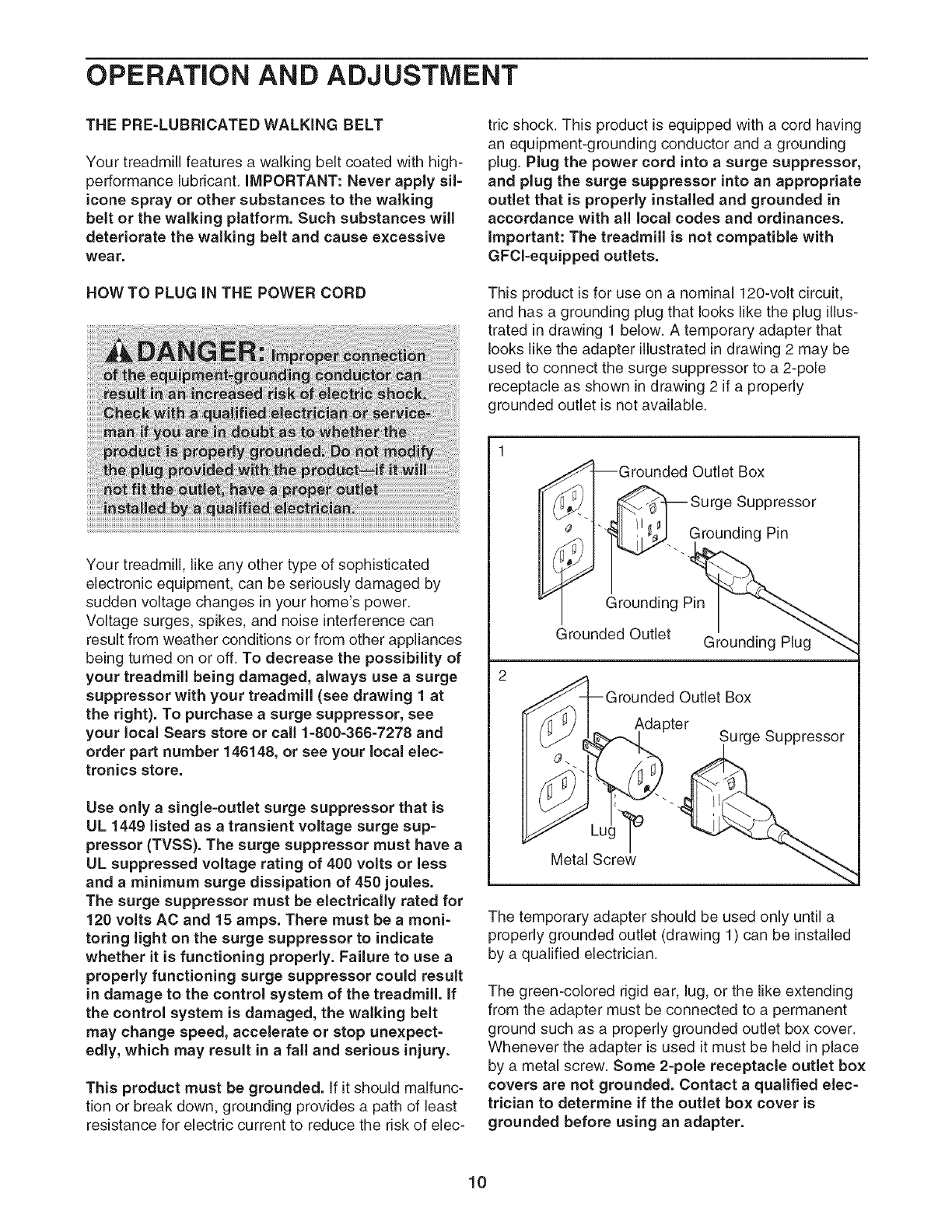

HOW TO PLUG IN THE POWER CORD

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCl-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase asurge suppressor, see

your local Sears store or call 1-800-366-7278 and

order part number 146148, or see your local elec-

tronics store.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be amoni-

toring light on the surge suppressor to indicate

whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill, if

the control system is damaged, the walking belt

may change speed, accelerate or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

I_]_Grounded Outlet Box

ur0oSu00ro or

_ _..GroundingPin

Grounding P_

_rounded Outlet Grounding Plug"_

_rounded Outlet Box

Adapter Surge Suppressor

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

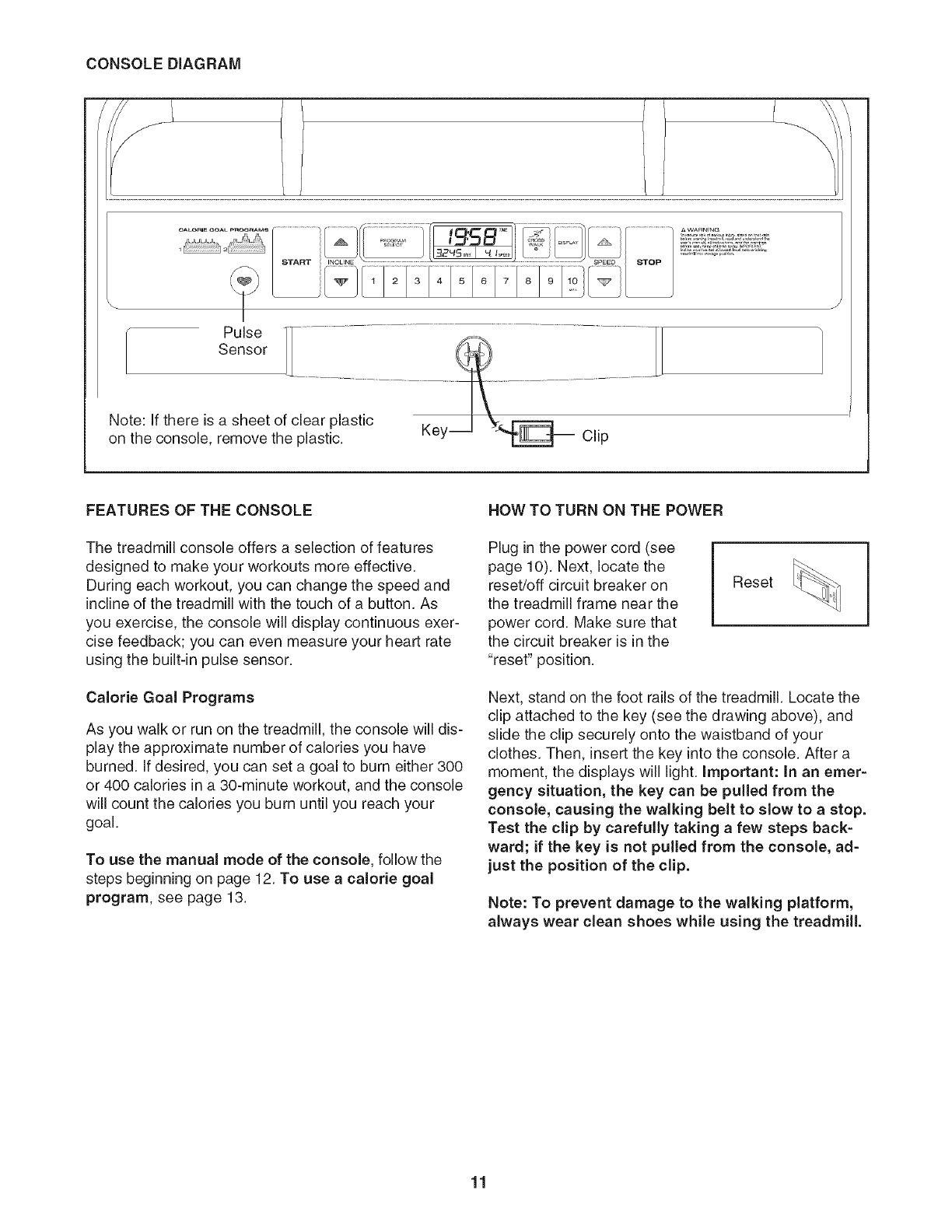

CONSOLEDIAGRAM

Sensor __ r=====_

Note: If there is a sheet of clear plastic .,

on the console, remove the plastic, r,,ey_ __ Clip

FEATURES OF THE CONSOLE

The treadmill console offers a selection of features

designed to make your workouts more effective.

During each workout, you can change the speed and

incline of the treadmill with the touch of a button. As

you exercise, the console will display continuous exer-

cise feedback; you can even measure your heart rate

using the built-in pulse sensor.

Calorie Goal Programs

As you walk or run on the treadmill, the console will dis-

play the approximate number of calories you have

burned. If desired, you can set a goal to burn either 300

or 400 calories in a 30-minute workout, and the console

will count the calories you burn until you reach your

goal.

To use the manual mode of the console, follow the

steps beginning on page 12. To use a calorie goal

program, see page 13.

HOW TO TURN ON THE POWER

Plug in the power cord (see

page 10). Next, locate the

reset/off circuit breaker on

the treadmill frame near the

power cord. Make sure that

the circuit breaker is in the

"reset" position.

Reset

Next, stand on the foot rails of the treadmill. Locate the

clip attached to the key (see the drawing above), and

slide the clip securely onto the waistband of your

clothes. Then, insert the key into the console. After a

moment, the displays will light. Important: In an emer-

gency situation, the key can be pulled from the

console, causing the walking belt to slow to astop.

Test the clip by carefully taking afew steps back=

ward; if the key is not pulled from the console, ad-

just the position of the clip.

Note: To prevent damage to the walking platform,

always wear clean shoes while using the treadmill.

HOWTO USETHE MANUALMODE

insert the key into the console.

See HOW TO TURN ON THE POWER on page

11.

Select the manual mode.

When the key is

inserted, the

manual mode will

be selected. If

you have se-

lected a pro-

gram, reselect

the manual mode by pressing the Program Select

button once or twice, until only zeros appear in the

displays.

Start the walking belt.

To start the walking belt, press the Start button,

the Speed increase button, or one of the ten num-

bered buttons.

If the Start button or the TIME

Speed increase button is

pressed, the walking belt

will begin to move at 1

mph. As you exercise,

change the speed of the

walking belt as desired by pressing the Speed in-

crease and decrease buttons. Each time a button

is pressed, the speed setting will change by 0.1

mph; if a button is held down, the speed setting

will change in increments of 0.5 mph. Note: After

the buttons are pressed, it may take a moment for

the walking belt to reach the selected speed setting.

if one of the ten numbered buttons is pressed, the

walking belt will gradually increase in speed until it

reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to flash in one of the displays.

To restart the walking belt, press the Start button,

the Speed increase button, or one of the ten num-

bered buttons.

Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button until the de-

sired incline level is reached.

Follow your progress with the displays.

The lower left

display--As you

exercise, the

lower left display

can show the

elapsed time and

the distance that

you have walked or run.

The lower right display--The lower right display

can show the speed of the walking belt and the

approximate number of calories that you have

burned. The display also shows your heart rate

when you use the pulse sensor (see step 6).

When you use the treadmill's upper body arms,

press the CROSS WALK button so the indicator

on the button is lit. The console will then include

your upper body exercise as it counts the approxi-

mate number of calories you have burned.

The upper display--The upper display can show

the elapsed time, the distance that you have

walked or run, the speed of the walking belt, or the

approximate number of calories you have burned.

Press the Display button repeatedly until the upper

display shows the information that you are most in-

terested in viewing.

Note: While information is shown in the upper dis-

play, the same information will not be shown in the

lower left or right display.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

Note: The console can

display speed and dis-

tance in either kilometers

or miles. To see which

unit of measurement is

selected, first remove the

key, hold down the Stop button, and then reinsert

the key into the console; after you hear a tone, re-

lease the Stop button. An "M" for metric kilometers

or an "E" for English miles will appear in the lower

right display. Press the Speed increase button to

change the unit of measurement if desired. When

the desired unit of measurement is selected, re-

move the key and then reinsert it.

Measure your heart rate if desired.

To measure your heart rate, stand on the foot

rails and place your left thumb on the pulse sen-

sor (see the drawing at the top of page 11). Do

not press too hard, or the circulation in your

thumb will be restricted and your pulse may

not be detected. When your pulse is detected, a

heart-shaped indicator in the lower right display

will flash each time your heart beats, one or two

dashes will appear, and then your heart rate will

be shown. For the most accurate heart rate

reading, hold your thumb on the pulse sensor

for at least 15 seconds.

If the displayed heart rate appears to be too high or

too low, or if your heart rate is not displayed, lift

your thumb for a few seconds, and then reposition

your thumb on the pulse sensor. Remember to

stand still while measuring your heart rate.

When you are finished, remove the key.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest setting

or the treadmill will become damaged when it is

folded to the storage position. Next, remove the

key from the console and put it in a secure place.

Note: If the displays remain lit, the console is in the

"demo" mode. See page 14 and turn off the demo

mode.

Switch the reset/off circuit breaker to the "off" posi-

tion and unplug the power cord.

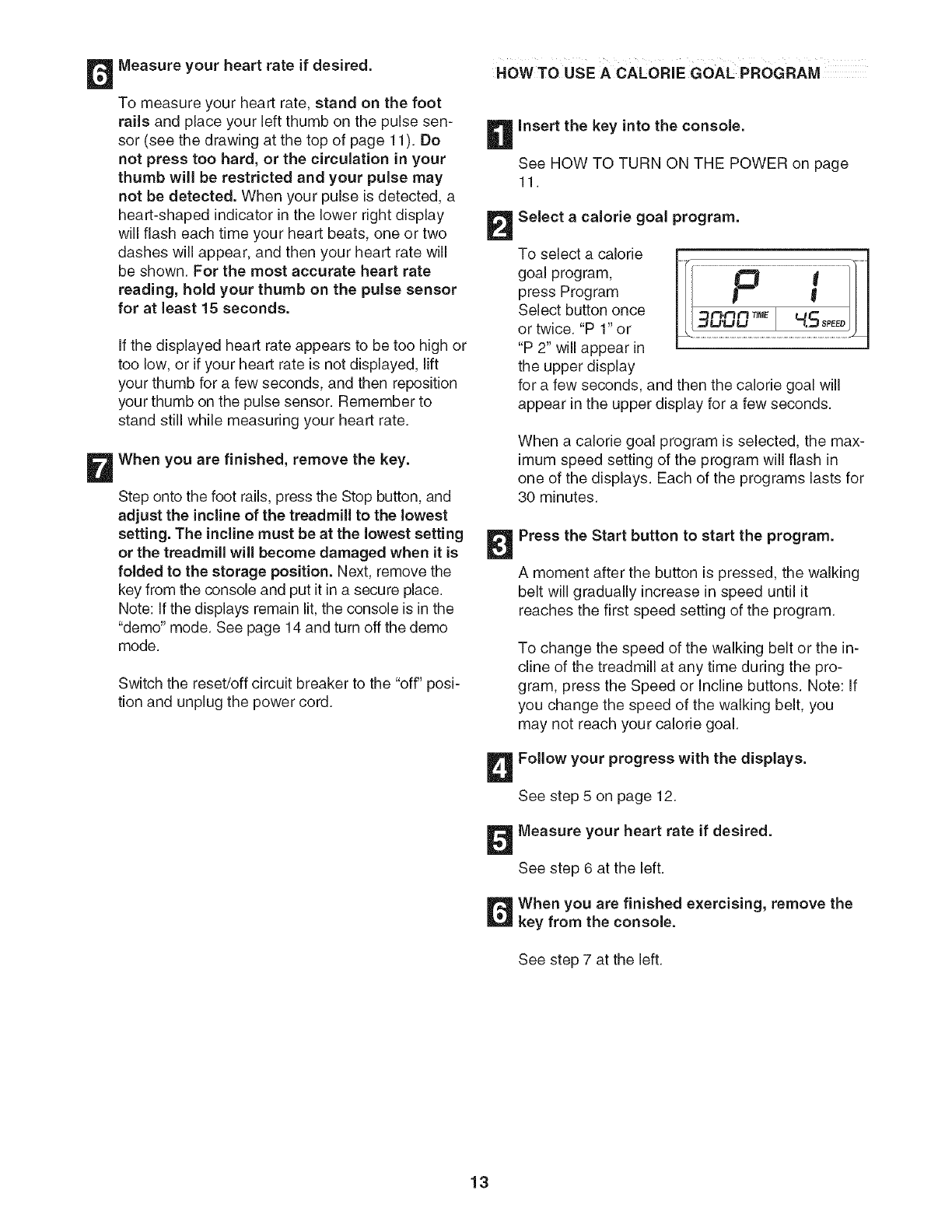

HOW TO USE ACALORIE GOAL PROGRAM

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

11.

Select a calorie goal program.

To select a calorie

goal program,

press Program

Select button once

or twice. "P 1" or

"P 2" will appear in

the upper display

for a few seconds, and then the calorie goal will

appear in the upper display for a few seconds.

When a calorie goal program is selected, the max-

imum speed setting of the program will flash in

one of the displays. Each of the programs lasts for

30 minutes.

Press the Start button to start the program.

A moment after the button is pressed, the walking

belt will gradually increase in speed until it

reaches the first speed setting of the program.

To change the speed of the walking belt or the in-

cline of the treadmill at any time during the pro-

gram, press the Speed or incline buttons. Note: If

you change the speed of the walking belt, you

may not reach your calorie goal.

Follow your progress with the displays.

See step 5 on page 12.

Measure your heart rate if desired.

See step 6 at the left.

When you are finished exercising, remove the

key from the console.

See step 7 at the left.

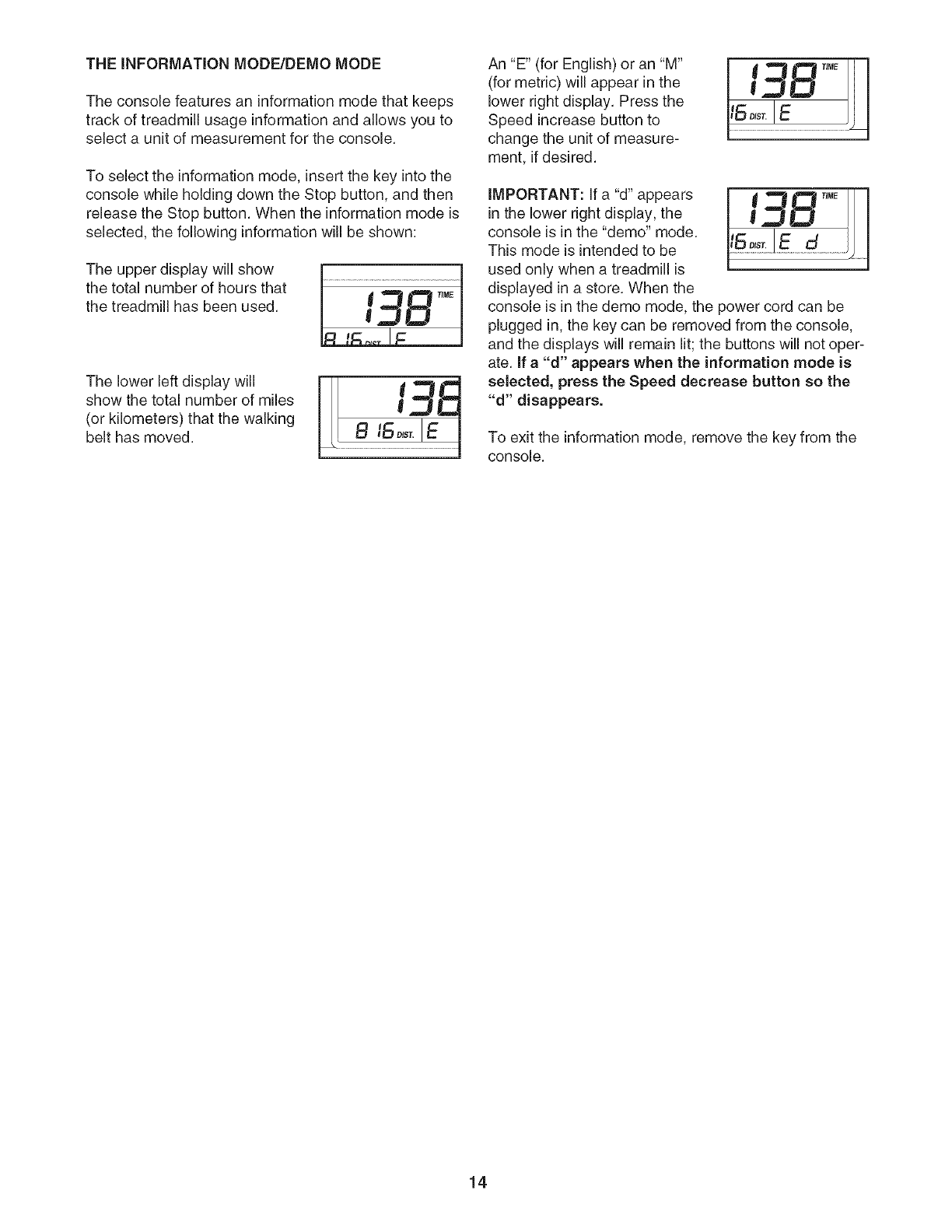

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps

track of treadmill usage information and allows you to

select a unit of measurement for the console.

To select the information mode, insert the key into the

console while holding down the Stop button, and then

release the Stop button. When the information mode is

selected, the following information will be shown:

The upper display will show

the total number of hours that

the treadmill has been used.

The lower left display will

show the total number of miles

(or kilometers) that the walking

belt has moved.

An "E" (for English) or an "M"

(for metric) will appear in the

lower right display. Press the

Speed increase button to

change the unit of measure-

ment, if desired.

IMPORTANT: If a "d" appears

in the lower right display, the

console is in the "demo" mode.

This mode is intended to be

used only when a treadmill is

displayed in a store. When the

console is in the demo mode, the power cord can be

plugged in, the key can be removed from the console,

and the displays will remain lit; the buttons will not oper-

ate. If a "d" appears when the information mode is

selected, press the Speed decrease button so the

"d" disappears.

To exit the information mode, remove the key from the

console.

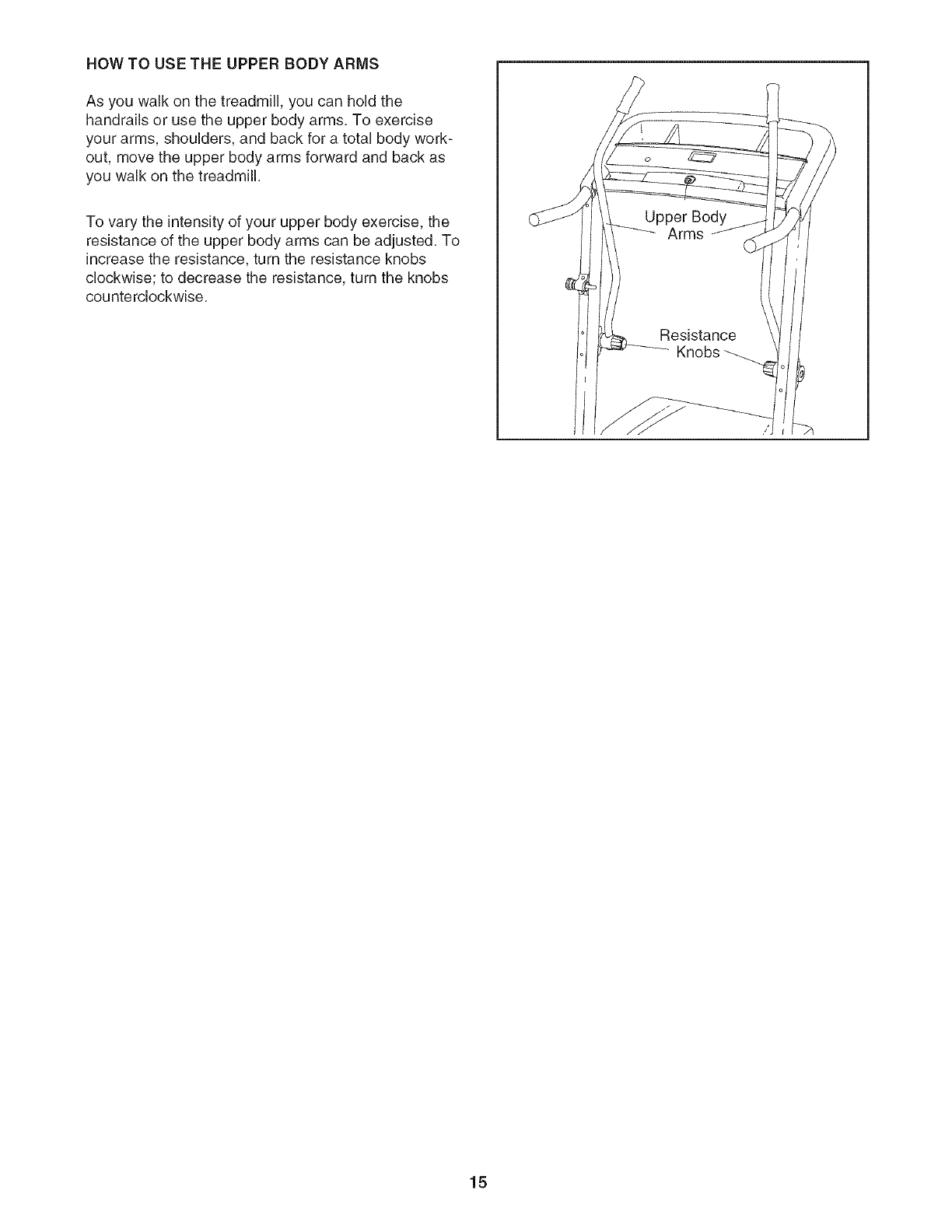

HOW TO USE THE UPPER BODY ARMS

As you walk on the treadmill, you can hold the

handrails or use the upper body arms. To exercise

your arms, shoulders, and back for a total body work-

out, move the upper body arms forward and back as

you walk on the treadmill.

To vary the intensity of your upper body exercise, the

resistance of the upper body arms can be adjusted. To

increase the resistance, turn the resistance knobs

clockwise; to decrease the resistance, turn the knobs

counterclockwise.

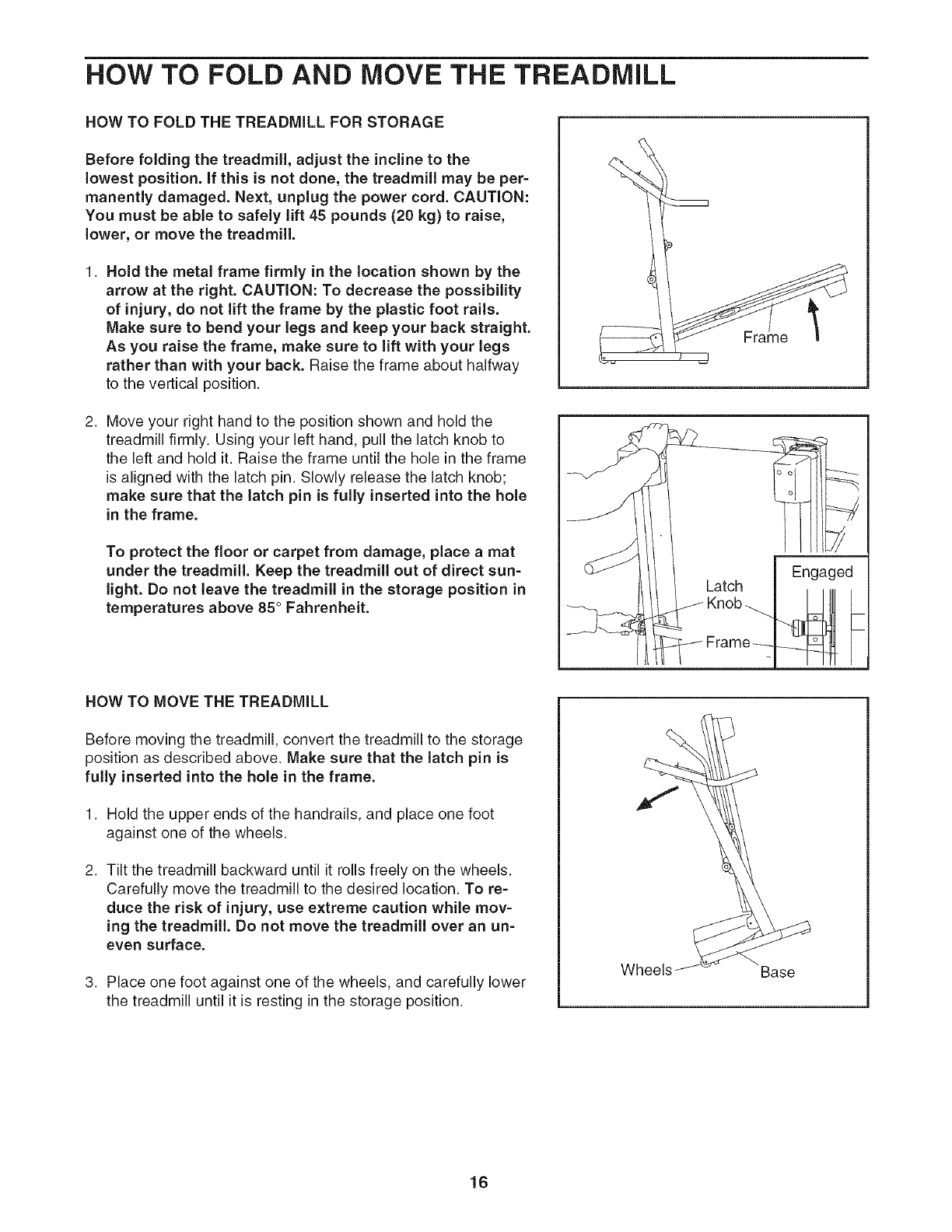

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

Jowest position. If this is not done, the treadmill may be per-

manently damaged. Next, unplug the power cord. CAUTION:

You must be able to safely lift 45 pounds (20 kg) to raise,

Jower, or move the treadmiJL

1. Hold the metal frame firmly in the location shown by the

arrow at the right. CAUTION: To decrease the possibility

of injury, do not lift the frame by the plastic foot rails.

Make sure to bend your legs and keep your back straight.

As you raise the frame, make sure to Jilt with your legs

rather than with your back. Raise the frame about halfway

to the vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Using your left hand, pull the latch knob to

the left and hold it. Raise the frame until the hole in the frame

is aligned with the latch pin. Slowly release the latch knob;

make sure that the latch pin is fully inserted into the hole

in the frame.

To protect the floor or carpet from damage, place a mat

under the treadmill. Keep the treadmill out of direct sun-

light. Do not leave the treadmill in the storage position in

temperatures above 85 ° Fahrenheit.

Frame

Engaged

Latch

Frame _

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage

position as described above. Make sure that the latch pin is

fully inserted into the hole in the frame.

1. Hold the upper ends of the handrails, and place one foot

against one of the wheels.

2. Tilt the treadmill backward until it rolls freely on the wheels.

Carefully move the treadmill to the desired location. To re-

duce the risk of injury, use extreme caution while mov-

ing the treadmill. Do not move the treadmill over an un-

even surface.

3. Place one foot against one of the wheels, and carefully lower

the treadmill until it is resting in the storage position.

Base

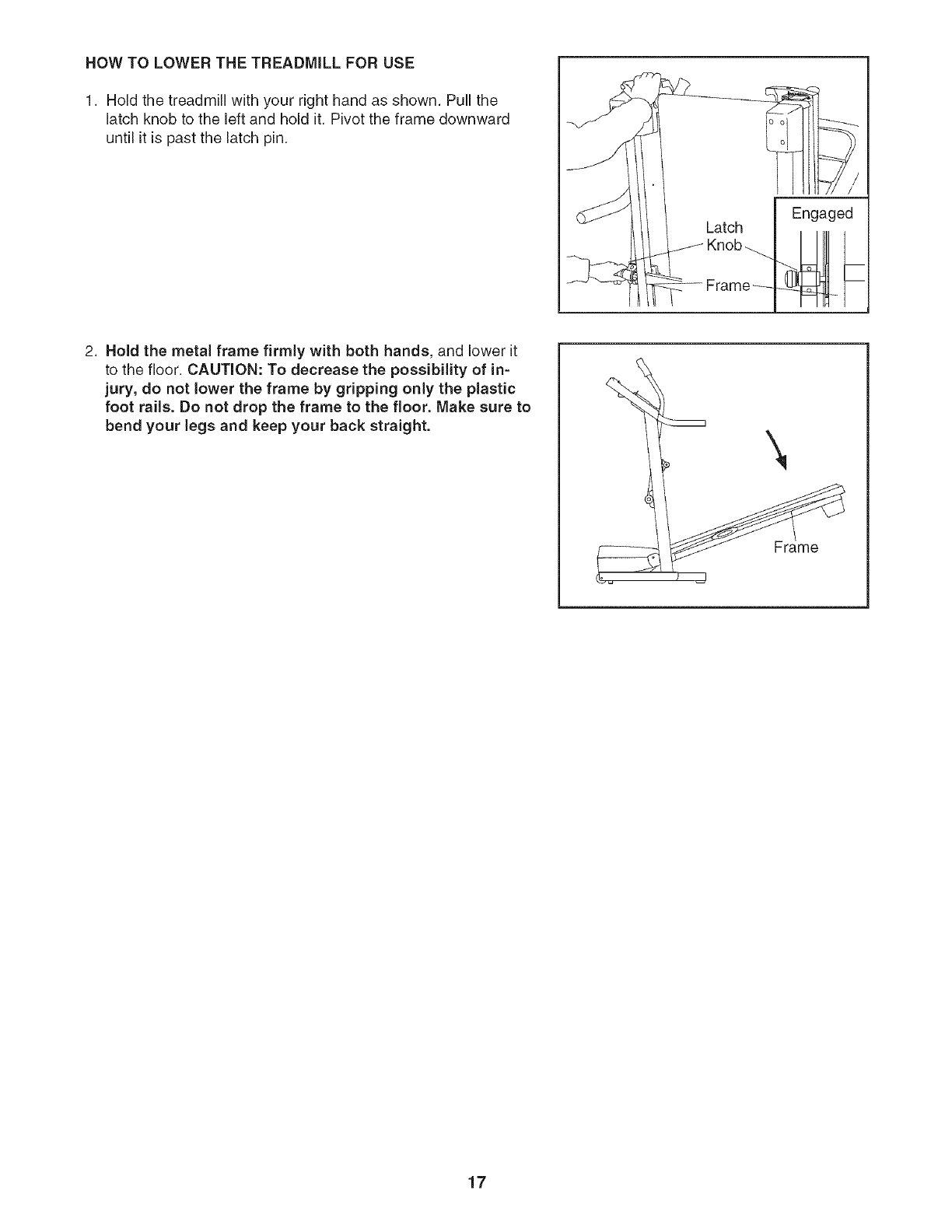

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the treadmill with your right hand as shown. Pull the

latch knob to the left and hold it. Pivot the frame downward

until it is past the latch pin.

Engaged

2. Hold the metal frame firmly with both hands, and lower it

to the floor. CAUTION: To decrease the possibility of in-

jury, do not lower the frame by gripping only the plastic

foot rails. Do not drop the frame to the floor. Make sure to

bend your legs and keep your back straight. \

Frame

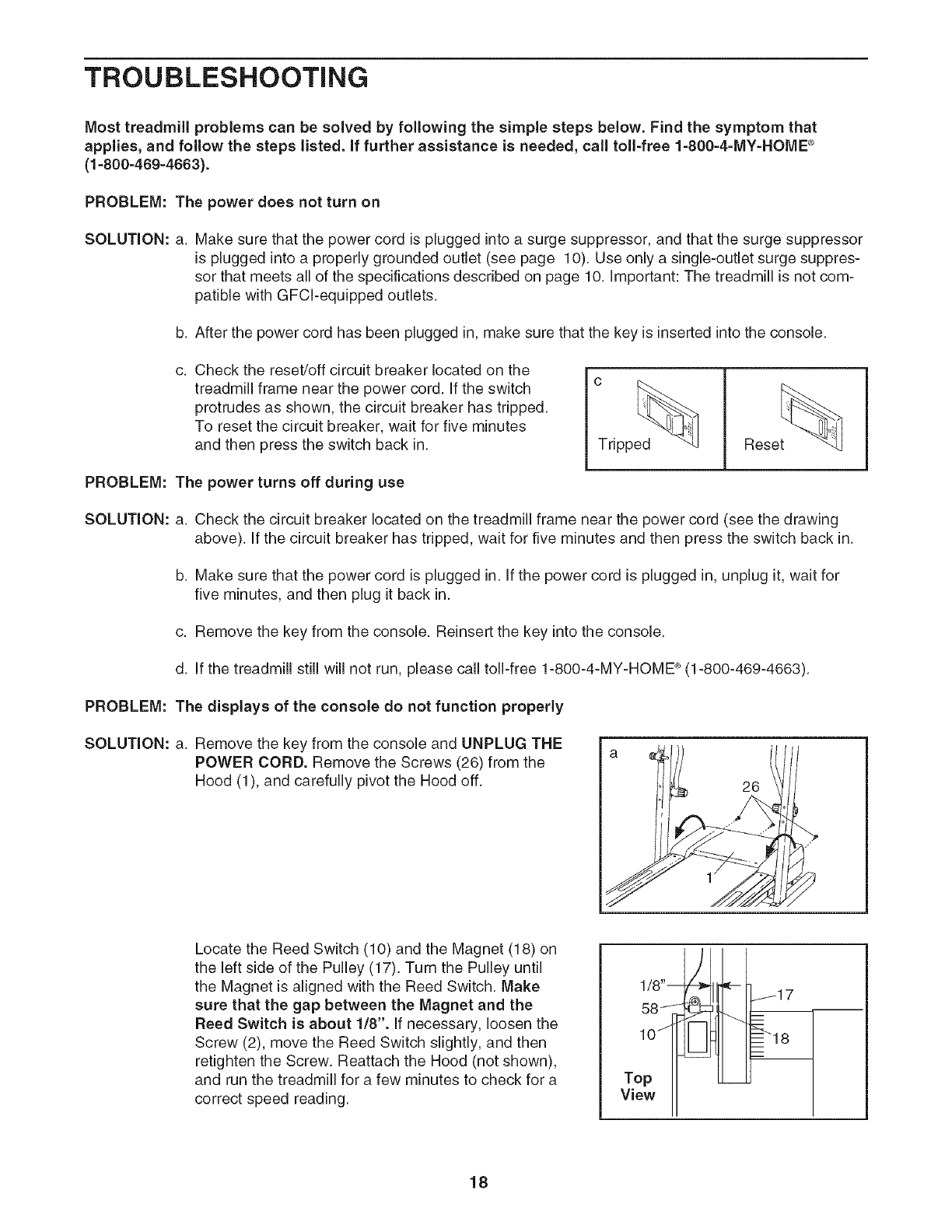

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assistance is needed, call toll-free 1-800-4-MY-HOME ®

(1-800-469-4663).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres-

sor that meets all of the specifications described on page 10. Important: The treadmill is not com-

patible with GFCl-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

Check the reset/off circuit breaker located on the

treadmill frame near the power cord. If the switch

protrudes as shown, the circuit breaker has tripped.

To reset the circuit breaker, wait for five minutes

and then press the switch back in.

PROBLEM: The power turns off during use

Rese_

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing

above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. If the treadmill still will not run, please call toll-free 1-800-4-MY-HOME ®(1-800-469-4663).

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG THE

POWER CORD. Remove the Screws (26) from the

Hood (1), and carefully pivot the Hood off. 26

Locate the Reed Switch (10) and the Magnet (18) on

the left side of the Pulley (17). Turn the Pulley until

the Magnet is aligned with the Reed Switch. Make

sure that the gap between the Magnet and the

Reed Switch is about 1/8". Jfnecessary, loosen the

Screw (2), move the Reed Switch slightly, and then

retJghten the Screw. Reattach the Hood (not shown),

and run the treadmill for a few minutes to check for a

correct speed reading.

1/8"dl

Top

View

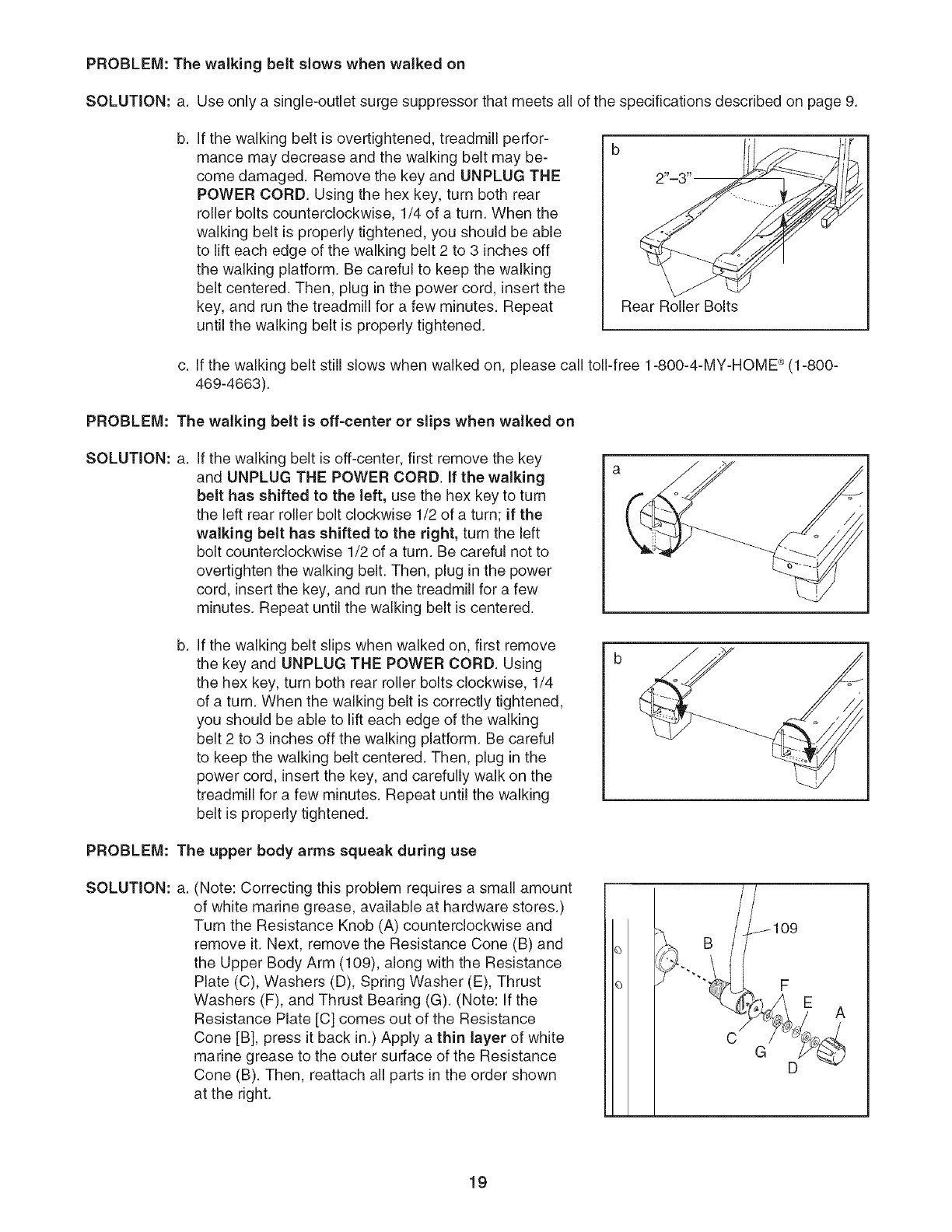

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD. Using the hex key, turn both rear

roller bolts counterclockwise, 1/4 of a turn. When the

walking belt is properly tightened, you should be able

to lift each edge of the walking belt 2 to 3 inches off

the walking platform. Be careful to keep the walking

belt centered. Then, plug in the power cord, insert the

key, and run the treadmill for a few minutes. Repeat

until the walking belt is properly tightened.

Rear Roller Bolts

c. If the walking belt still slows when walked on, please call toll-free 1-800-4-MY-HOME _ (1-800-

469-4663).

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key

and UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the hex key to turn

the left rear roller bolt clockwise 1/2 of a turn; if the

walking belt has shifted to the right, turn the left

bolt counterclockwise 1/2 of a turn. Be careful not to

overtighten the walking belt. Then, plug in the power

cord, insert the key, and run the treadmill for a few

minutes. Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using

the hex key, turn both rear roller bolts clockwise, 1/4

of a turn. When the walking belt is correctly tightened,

you should be able to lift each edge of the walking

belt 2 to 3 inches off the walking platform. Be careful

to keep the walking belt centered. Then, plug in the

power cord, insert the key, and carefully walk on the

treadmill for a few minutes. Repeat until the walking

belt is properly tightened.

PROBLEM: The upper body arms squeak during use

SOLUTION: a. (Note: Correcting this problem requires a small amount

of white marine grease, available at hardware stores.)

Turn the Resistance Knob (A) counterclockwise and

remove it. Next, remove the Resistance Cone (B) and

the Upper Body Arm (109), along with the Resistance

Plate (C), Washers (D), Spring Washer (E), Thrust

Washers (F), and Thrust Bearing (G). (Note: If the

Resistance Plate [C] comes out of the Resistance

Cone [B], press it back in.) Apply a thin layer of white

marine grease to the outer surface of the Resistance

Cone (B). Then, reattach all parts in the order shown

at the right.

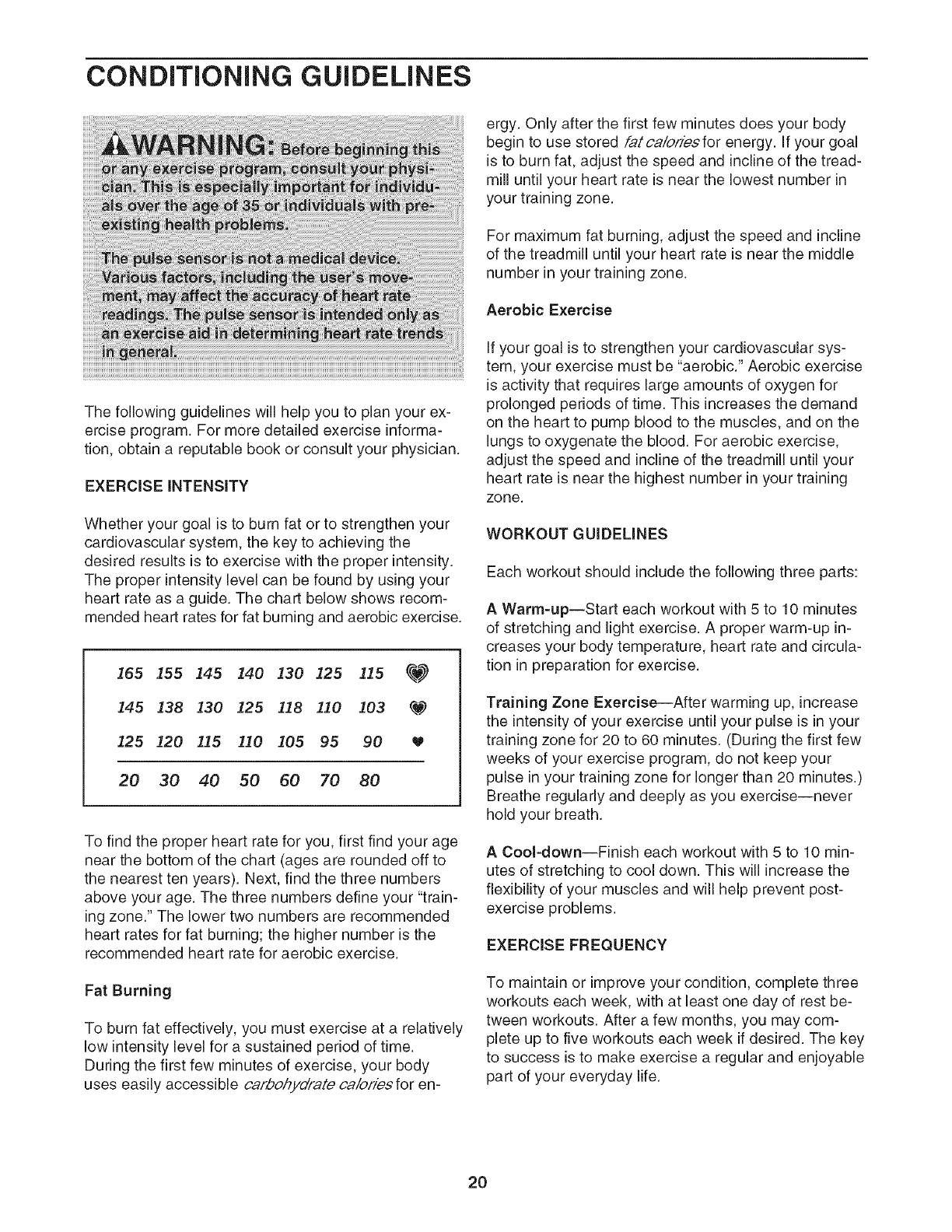

CONDiTiONiNG GUiDELiNES

ergy. Only after the first few minutes does your body

begin to use stored fat oa/ofies for energy. If your goal

is to burn fat, adjust the speed and incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISEINTENSITY

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone.

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

165 155 145 140 130 125 115 _

145 138 130 125 !18 110 103 q.w)

125 120 115 110 105 95 90

20 30 40 50 60 70 80

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your "train-

ing zone." The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

WORKOUT GUiDELiNES

Each workout should include the following three parts:

AWarm-up--Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise--After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise--never

hold your breath.

ACool-down--Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-

exercise problems.

EXERCISEFREQUENCY

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate oa/ories for en-

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired. The key

to success is to make exercise a regular and enjoyable

part of your everyday life.

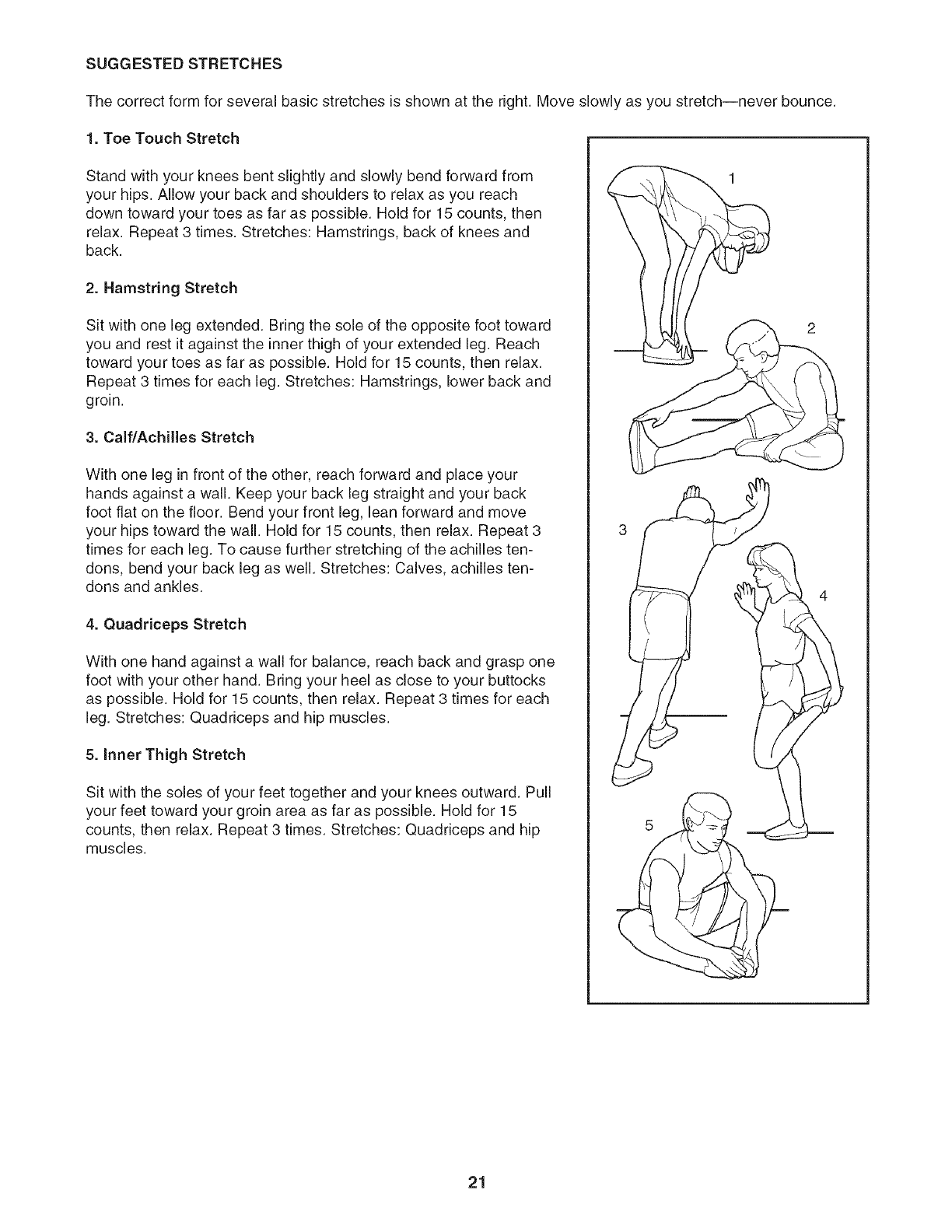

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch--never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts, then

relax. Repeat 3 times. Stretches: Hamstrings, back of knees and

back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat 3

times for each leg. To cause further stretching of the achilles ten-

dons, bend your back leg as well. Stretches: Calves, achilles ten-

dons and ankles.

4. Quadriceps Stretch

With one hand against a wail for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks

as possible. Hold for 15 counts, then relax. Repeat 3 times for each

leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull

your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

NOTES

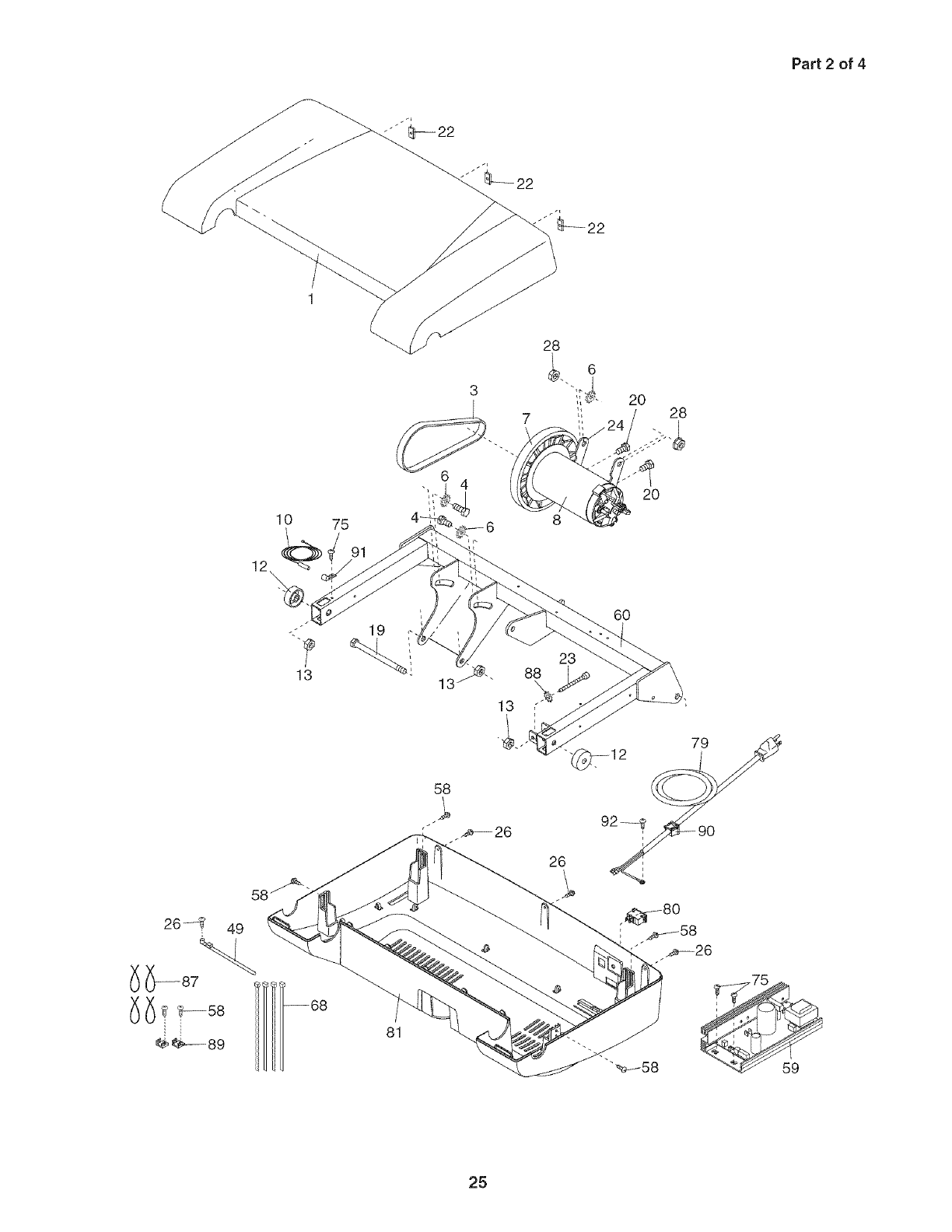

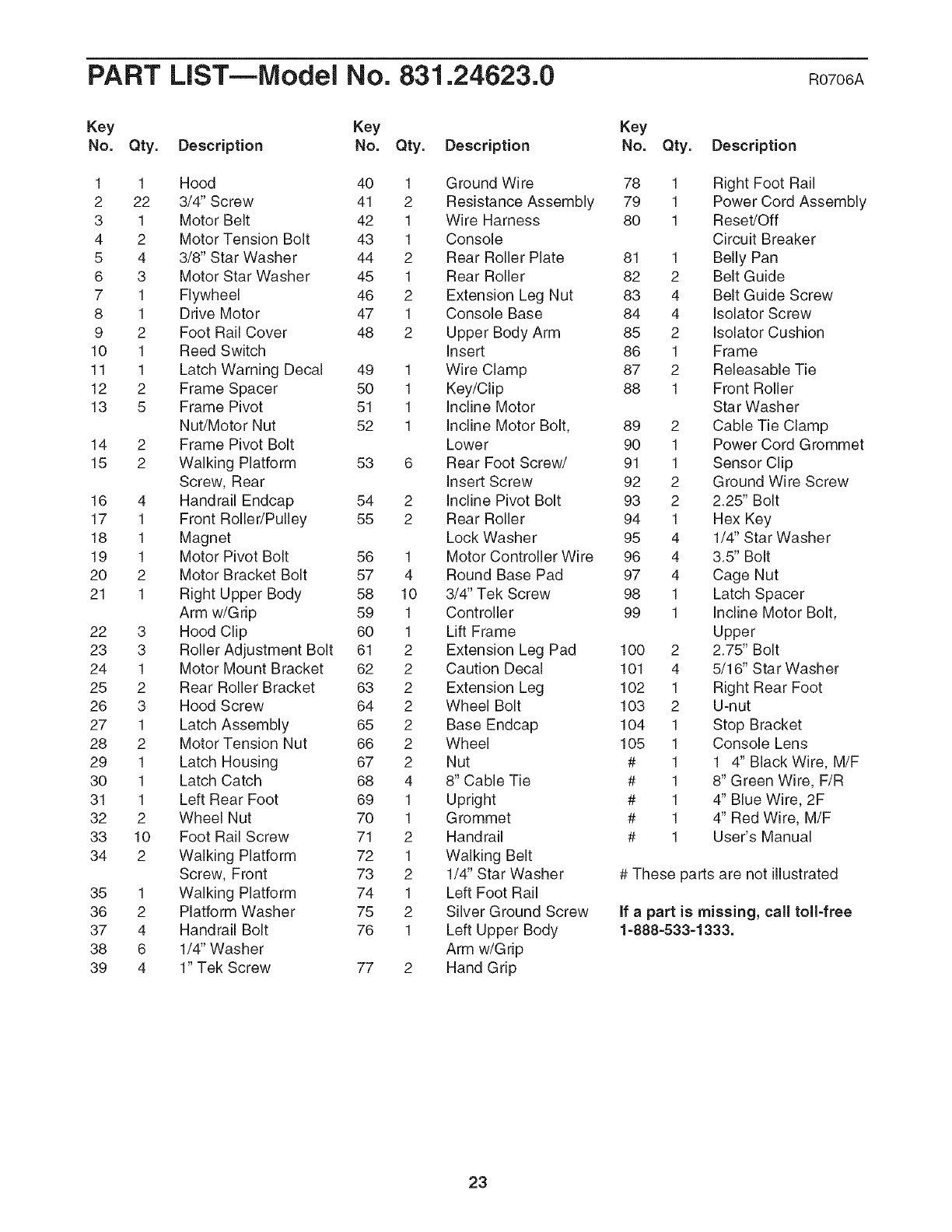

PART LIST--Model No. 831.24623.0 Ro7o6A

Key Key Key

No. Qty. Description No. Qty. Description No. Qty. Description

1 1 Hood 40 1

2 22 3/4" Screw 41 2

3 1 Motor Belt 42 1

4 2 Motor Tension Bolt 43 1

5 4 3/8" Star Washer 44 2

6 3 Motor Star Washer 45 1

7 1 Flywheel 46 2

8 1 Drive Motor 47 1

9 2 Foot Rail Cover 48 2

10 1 Reed Switch

11 1 Latch Warning Decal 49 1

12 2 Frame Spacer 50 1

13 5 Frame Pivot 51 1

Nut/Motor Nut 52 1

14 2 Frame Pivot Bolt

15 2 Walking Platform 53 6

Screw, Rear

16 4 Hand rail Endcap 54 2

17 1 Front Roller/Pulley 55 2

18 1 Magnet

19 1 Motor Pivot Bolt 56 1

20 2 Motor Bracket Bolt 57 4

21 1 Right Upper Body 58 10

Arm w/Grip 59 1

22 3 Hood Clip 60 1

23 3 Roller Adjustment Bolt 61 2

24 1 Motor Mount Bracket 62 2

25 2 Rear Roller Bracket 63 2

26 3 Hood Screw 64 2

27 1 Latch Assembly 65 2

28 2 Motor Tension Nut 66 2

29 1 Latch Housing 67 2

30 1 Latch Catch 68 4

31 1 Left Rear Foot 69 1

32 2 Wheel Nut 70 1

33 10 Foot Rail Screw 71 2

34 2 Walking Platform 72 1

Screw, Front 73 2

35 1 Walking Platform 74 1

36 2 Platform Washer 75 2

37 4 Handrail Bolt 76 1

38 6 1/4" Washer

39 4 1" Tek Screw 77 2

Ground Wire 78

Resistance Assembly 79

Wire Harness 80

Console

Rear Roller Plate 81

Rear Roller 82

Extension Leg Nut 83

Console Base 84

Upper Body Arm 85

Insert 86

Wire Clamp 87

Key/Clip 88

Incline Motor

Incline Motor Bolt, 89

Lower 90

Rear Foot Screw/ 91

Insert Screw 92

Incline Pivot Bolt 93

Rear Roller 94

Lock Washer 95

Motor Controller Wire 96

Round Base Pad 97

3/4" Tek Screw 98

Controller 99

Lift Frame

Extension Leg Pad 100

Caution Decal 101

Extension Leg 102

Wheel Bolt 103

Base Endcap 104

Wheel 105

Nut #

8" Cable Tie #

Upright #

Grommet #

Handrail #

Walking Belt

1/4" Star Washer

Left Foot Rail

Silver Ground Screw

Left Upper Body

Arm w/Grip

Hand Grip

1 Right Foot Rail

1 Power Cord Assembly

1 Reset/Off

Circuit Breaker

1 Belly Pan

2 Belt Guide

4 Belt Guide Screw

4 Isolator Screw

2 Isolator Cushion

1 Frame

2 Releasable Tie

1 Front Roller

Star Washer

2 Cable Tie Clamp

1 Power Cord Grommet

1 Sensor Clip

2 Ground Wire Screw

2 2.25" Bolt

1 Hex Key

4 1/4" Star Washer

4 3.5" Bolt

4 Cage Nut

1 Latch Spacer

1 Incline Motor Bolt,

Upper

2 2.75" Bolt

4 5/16" Star Washer

1 Right Rear Foot

2 U-nut

1 Stop Bracket

1 Console Lens

1 1 4" Black Wire, M/F

1 8" Green Wire, F/R

1 4" Blue Wire, 2F

1 4" Red Wire, M/F

1 User's Manual

# These parts are not illustrated

if apart is missing, call toll=free

1=888=533=1333.

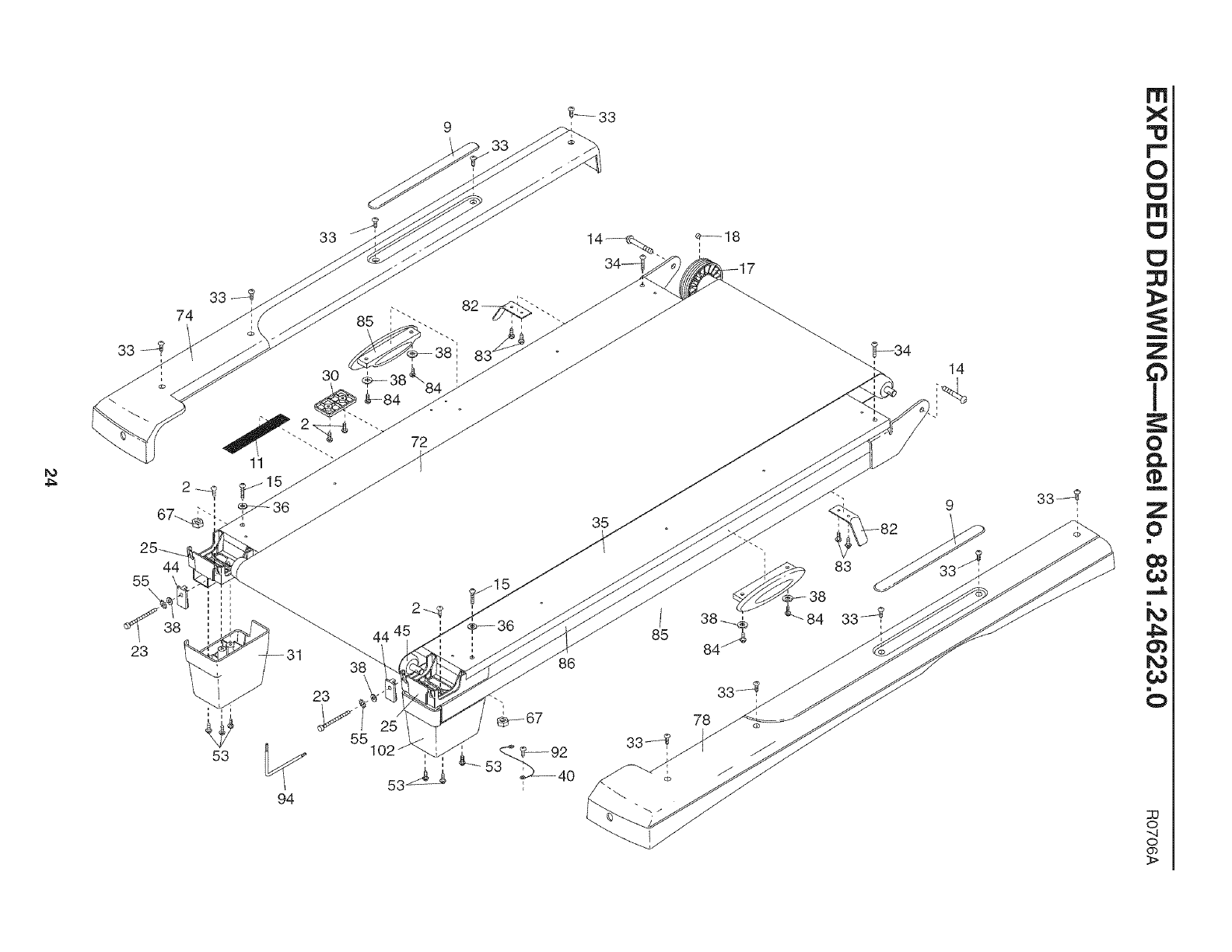

55\

38 ii_

53_

_33

33--4

I'N

[

...4

Part 2 of 4

20 28

10 75

19 6O

26--4 _ 49

_ __.87 _:_

_ _,_89 81

'_16

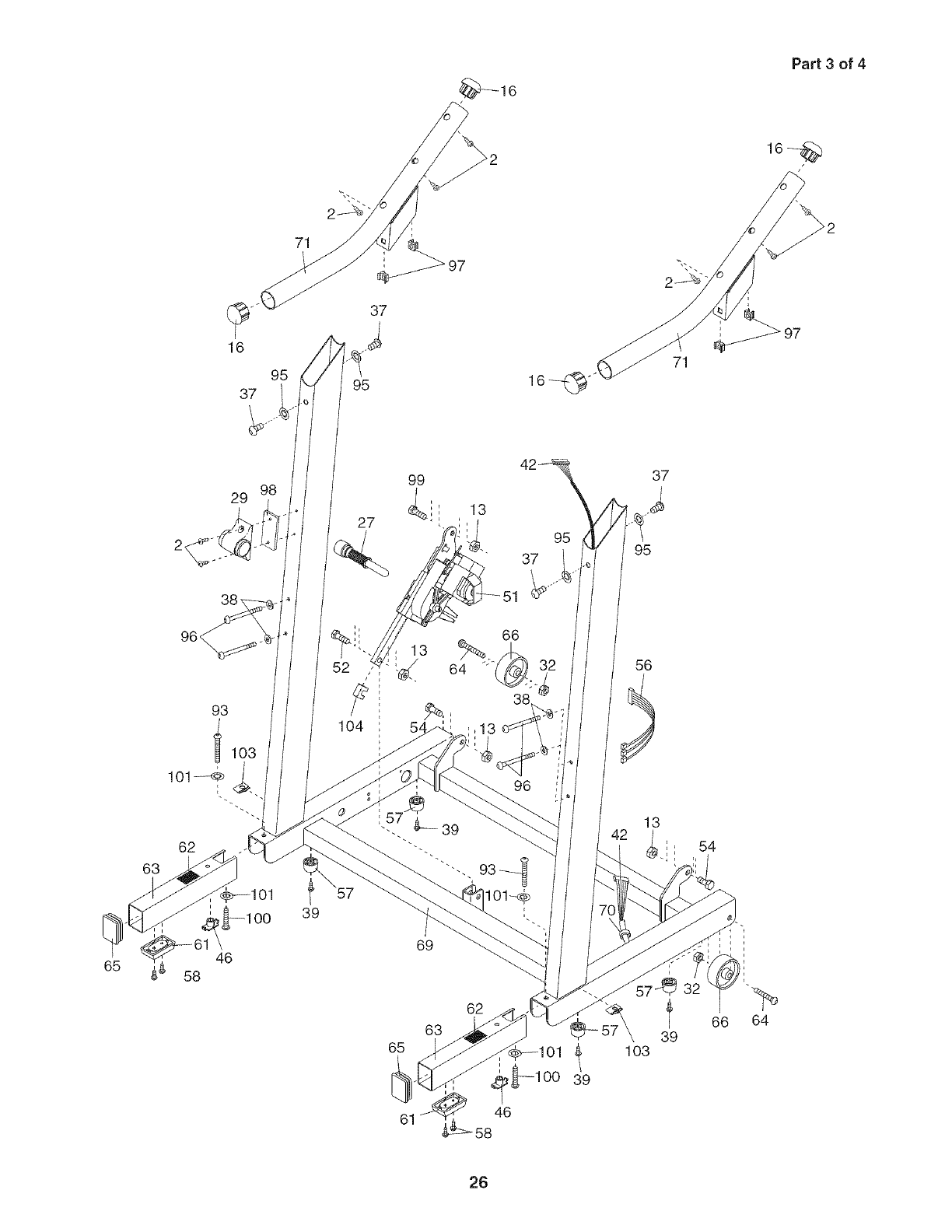

Part 3 of 4

104

27 _ii

103

66 64

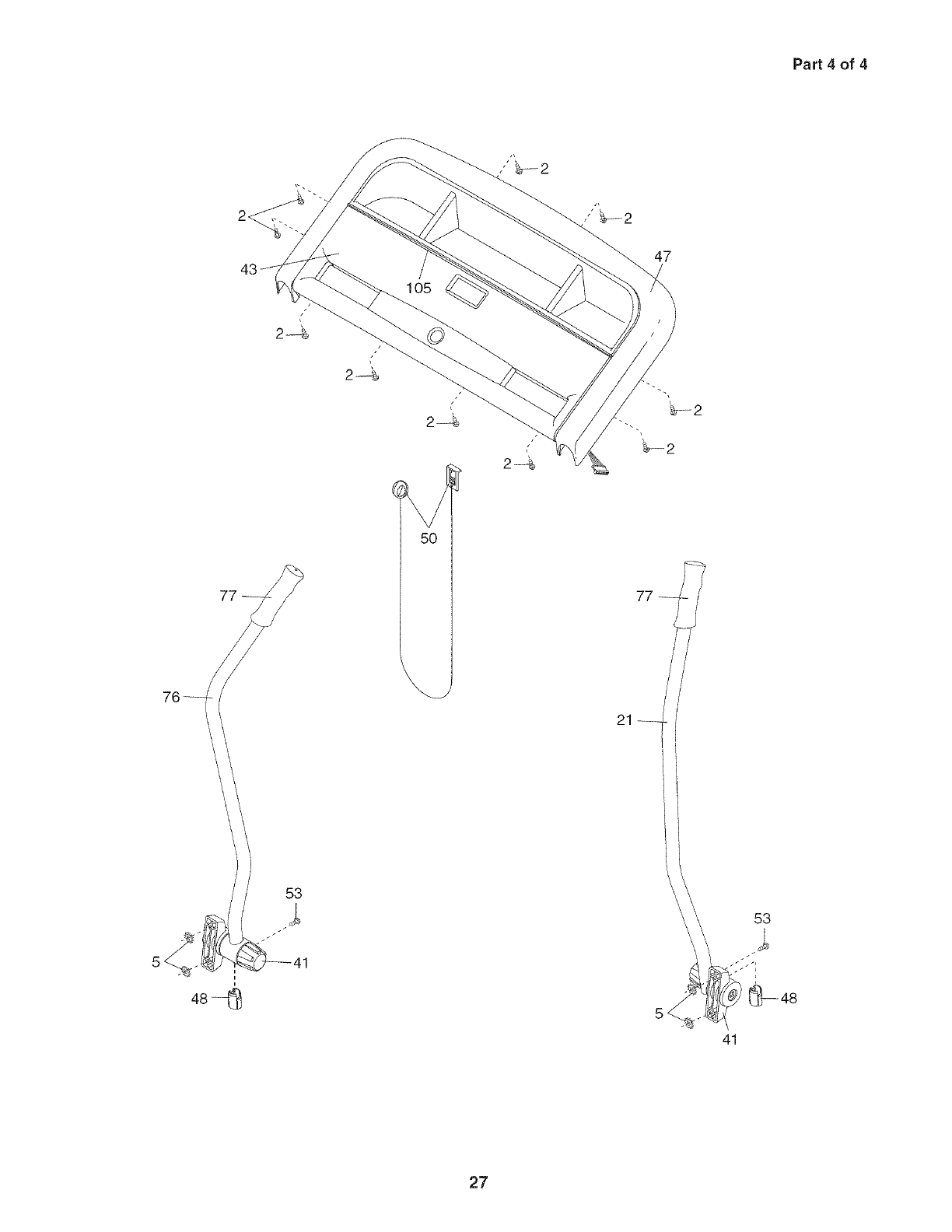

Part 4 of 4

77 77--

21--

5_ _-48

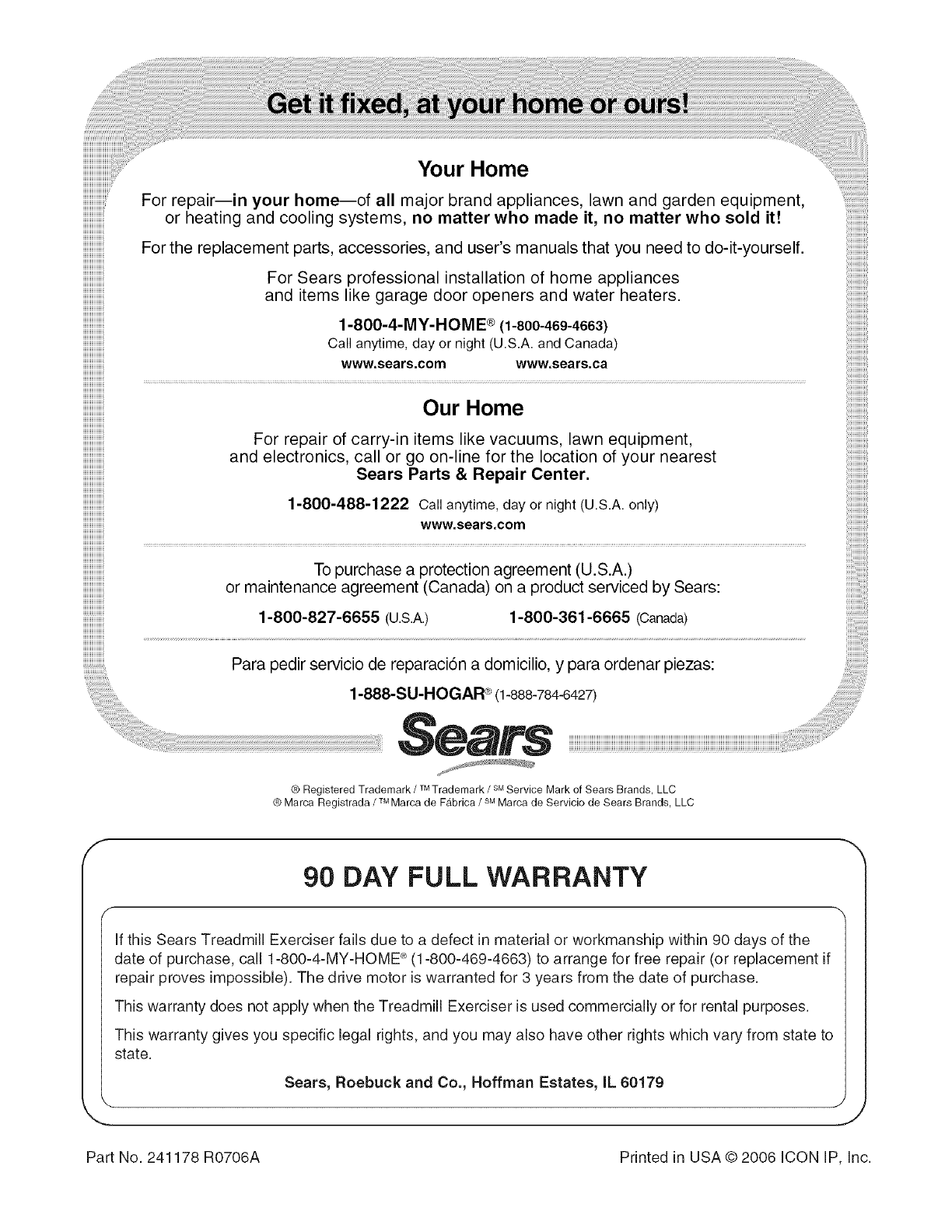

Your Home

For repair--in your home--of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

iiiiiiiiiiiiiii_

For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.

iiiiiiiiiiiiiiii For Sears professional installation of home appliances

and items like garage door openers and water heaters.

iiiiiiiiiiiiiii_

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.,eo,,.oomwww.,ear,.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

SearsParts,°pairCeoter.

HHHHHHHi_

1"800"488-1222 Call anytime, day or night (U.S.A. only)

www.sears.con,

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada) iiiiiiiiiiiiii

® Registered Trademark /TMTrademark /SMService Mark of Sears Brands, LLC

® Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears Brands, LLC

90 DAY FULL WARRANTY

If this Sears Treadmill Exerciser fails due to a defect in material or workmanship within 90 days of the

date of purchase, call 1-800-4-MY-HOME _ (1-800-469-4663) to arrange for free repair (or replacement if

repair proves impossible). The drive motor is warranted for 3 years from the date of purchase.

This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Proform 831246230 User Manual CROSSWALK 375e Manuals And Guides L0609256

PROFORM Treadmill Manual L0609256 PROFORM Treadmill Owner's Manual, PROFORM Treadmill installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
