Model No. 831.24745.3

Serial No.

Write the serial number in the

space above for future reference.

Assembly

, Operation

, Maintenance

,Part List and Drawing

TR LL EXERCIS

User's Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 5

ASSEMBLY ............................................................................... 6

OPERATION AND ADJUSTMENT ............................................................ 11

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 18

TROUBLESHOOTING ..................................................................... 19

EXERCISE GUIDELINES ................................................................... 22

PART LIST .............................................................................. 23

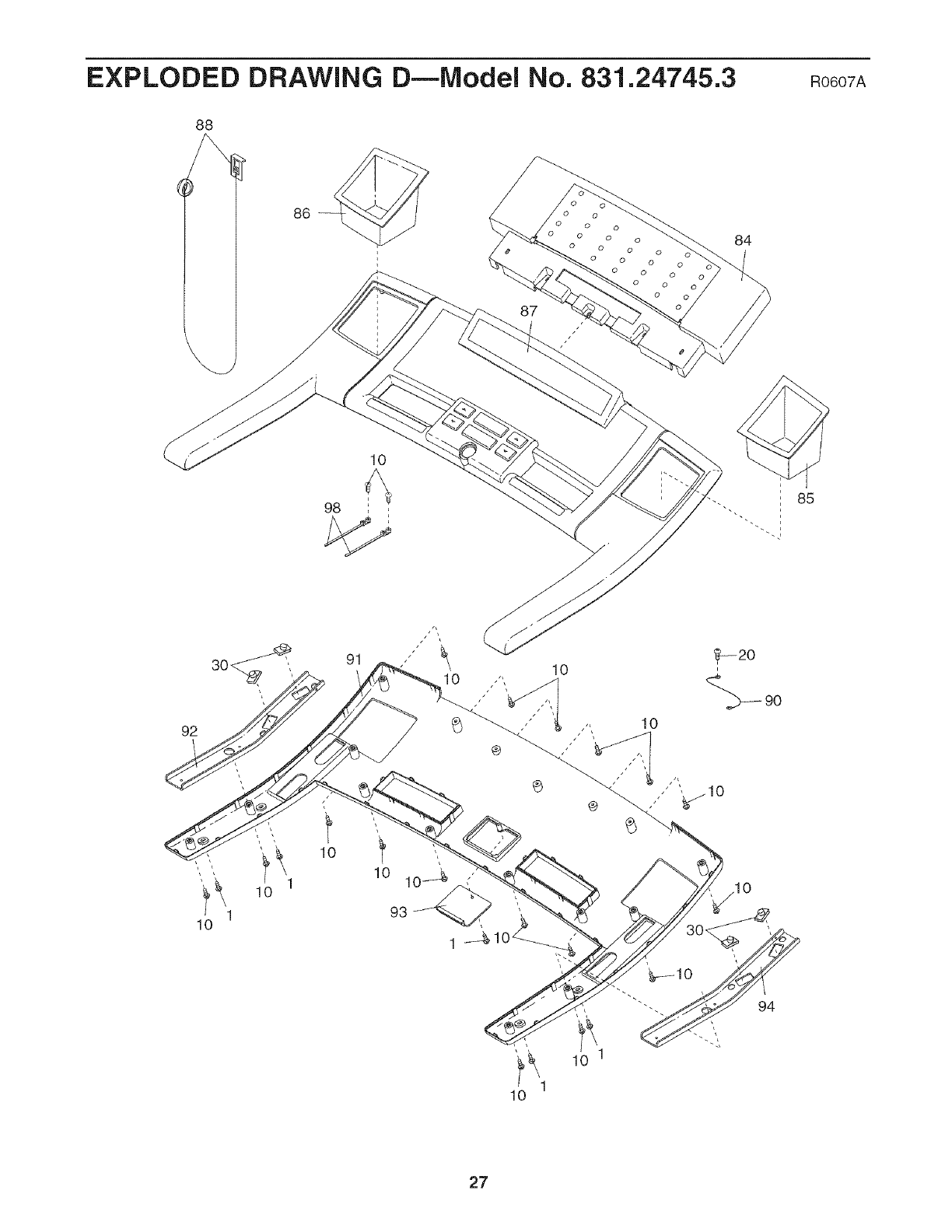

EXPLODED DRAWING .................................................................... 24

ONE YEAR FULL WARRANTY ....................................................... Back Cover

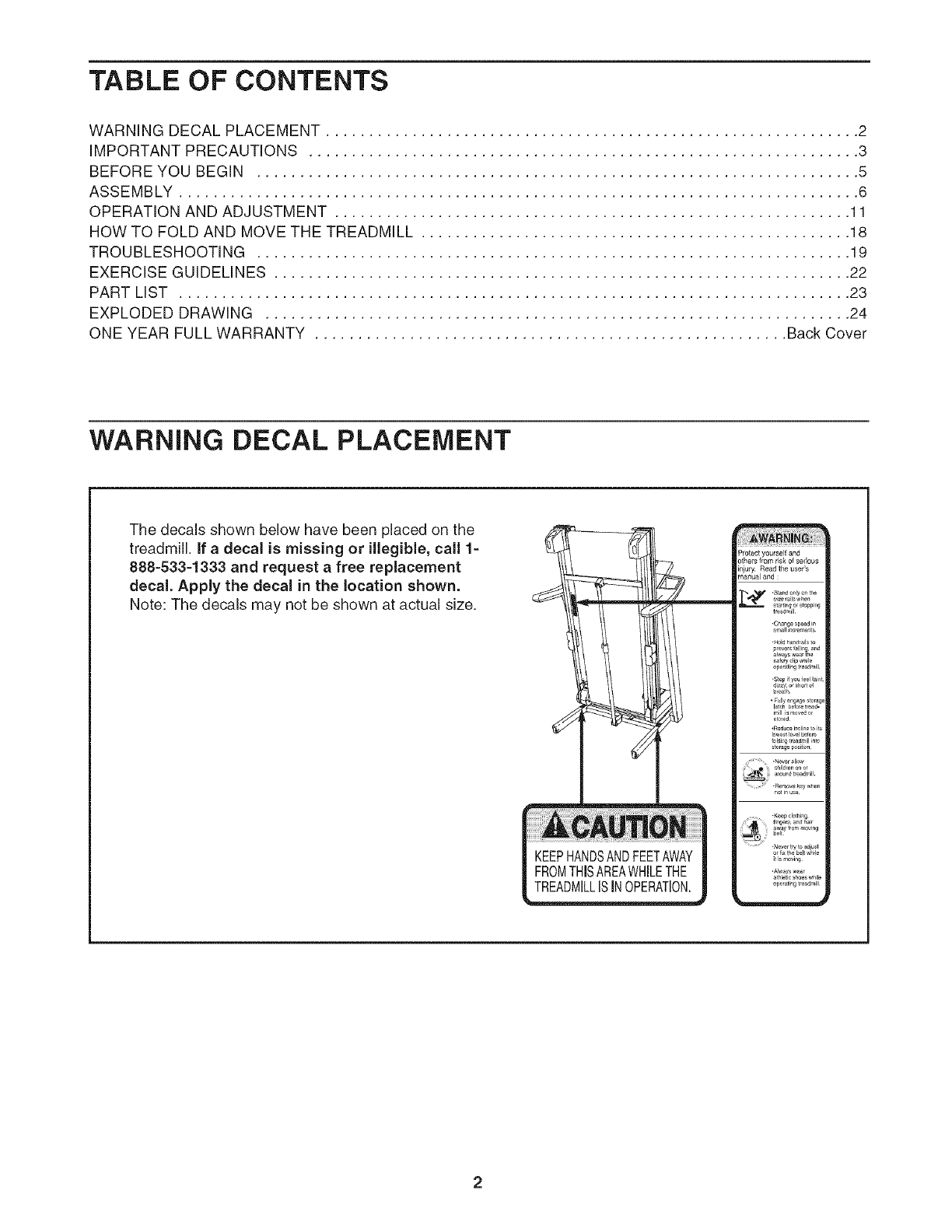

WARNING DECAL PLACEMENT

The decals shown below have been placed on the

treadmill. If a decal is missing or illegible, call 1-

888-533-1333 and request a free replacement

decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual size.

KEEPHANDSANDFEETAWAY

FROMTHISAREAWHILETHE

TREADMILLISINOPERATION.

=rotectyourselfand

)thefsfromdsk of serious

n uly. Readthe user's

_nua and:

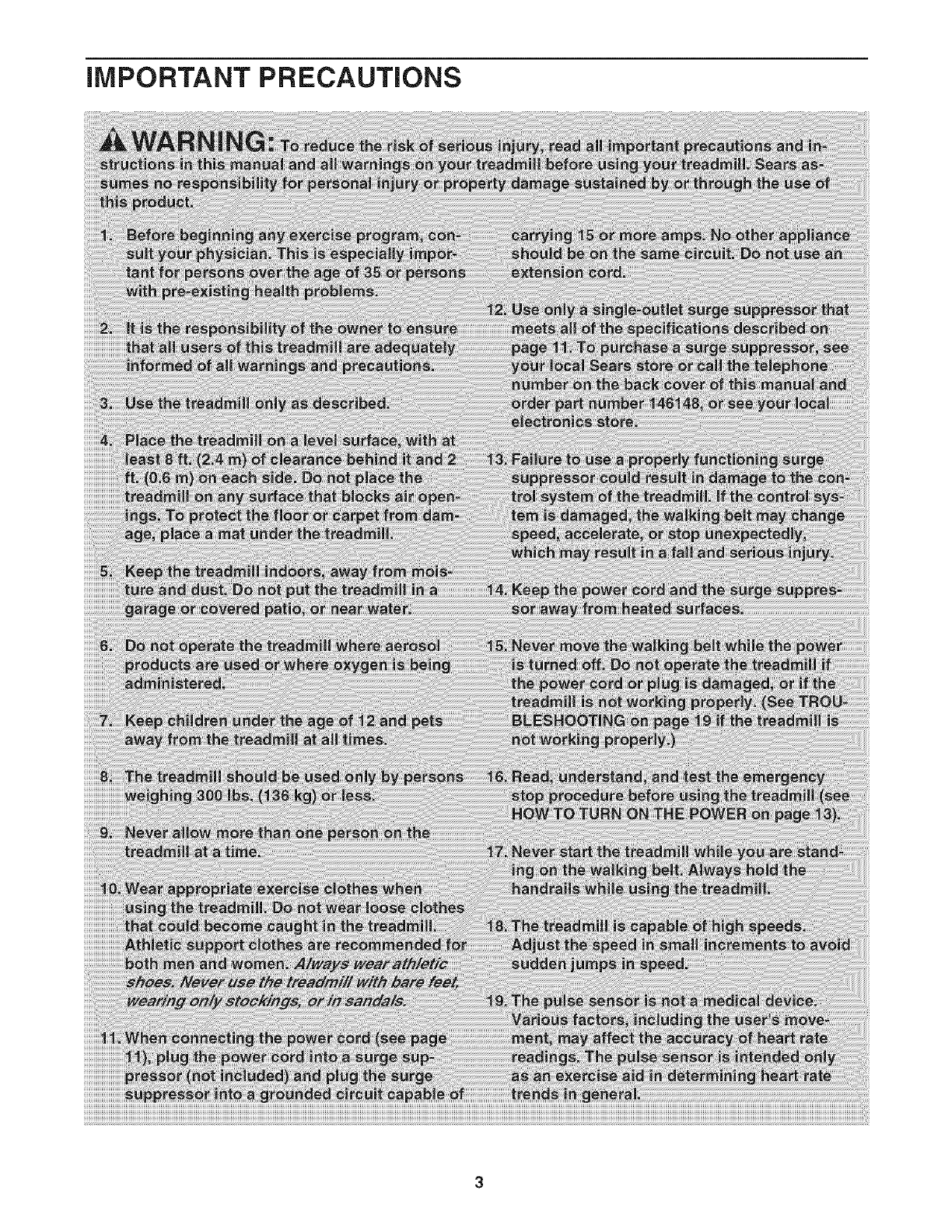

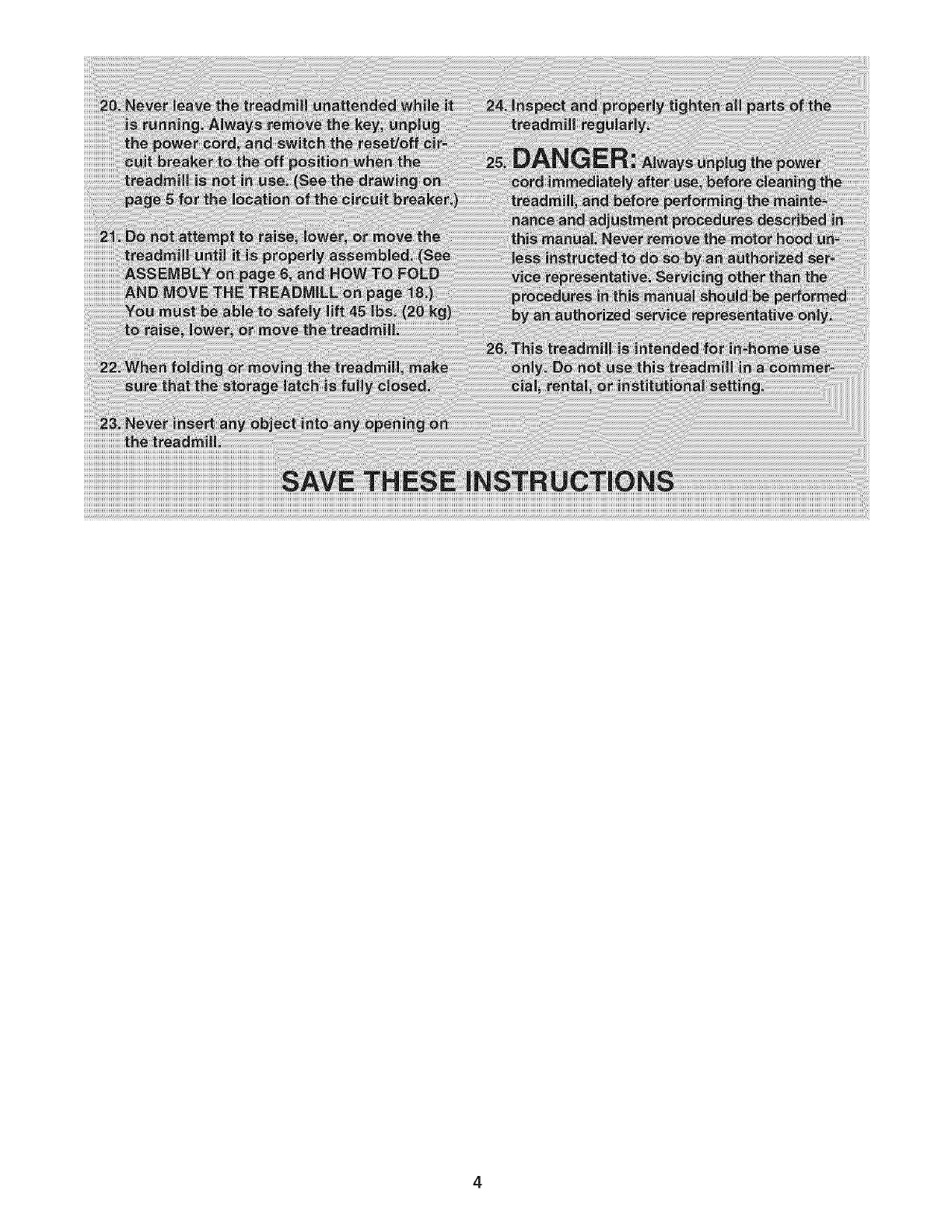

iMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM ®

XP 615 TRAINER treadmill. The XP 615 TRAINER

treadmill offers an impressive array of features de-

signed to make your workouts at home more enjoyable

and effective. And when you're not exercising, the

unique XP 615 TRAINER treadmill can be folded up,

requiring less than half the floor space of other tread-

mills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, call 1-800-4-MY-HOME ®(1-800-469-

4663).To help us assist you, please note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

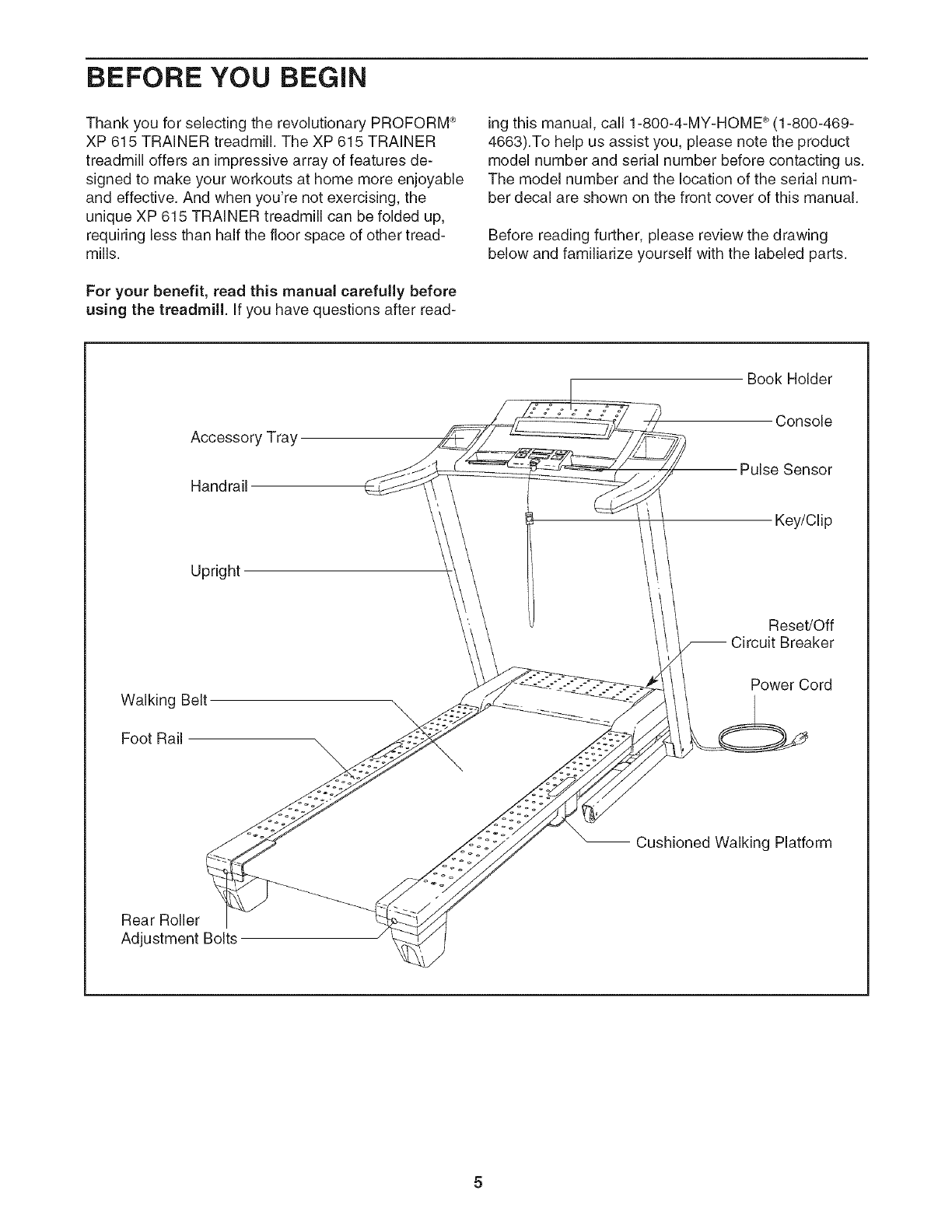

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

Accessory Tray

Handrail

Upright

Walking Belt

Foot Rail

Book Holder

Console

Pulse Sensor

Key/Clip

Reset/Off

-- Circuit Breaker

Power Cord

Cushioned Walking Platform

Rear Roller

Adjustment Bolts

ASSEMBLY

Make sure that the power cord is unplugged. Assembly requires two persons. Set the treadmill in a cleared

area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note:

The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small

amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal con-

dition and does not affect treadmill performance, if there is lubricant on top of the walking belt, simply wipe off the

lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included he× keys ;tand your own Phillips screwdriver (_ and

adjustab ewrench Q_:_ .

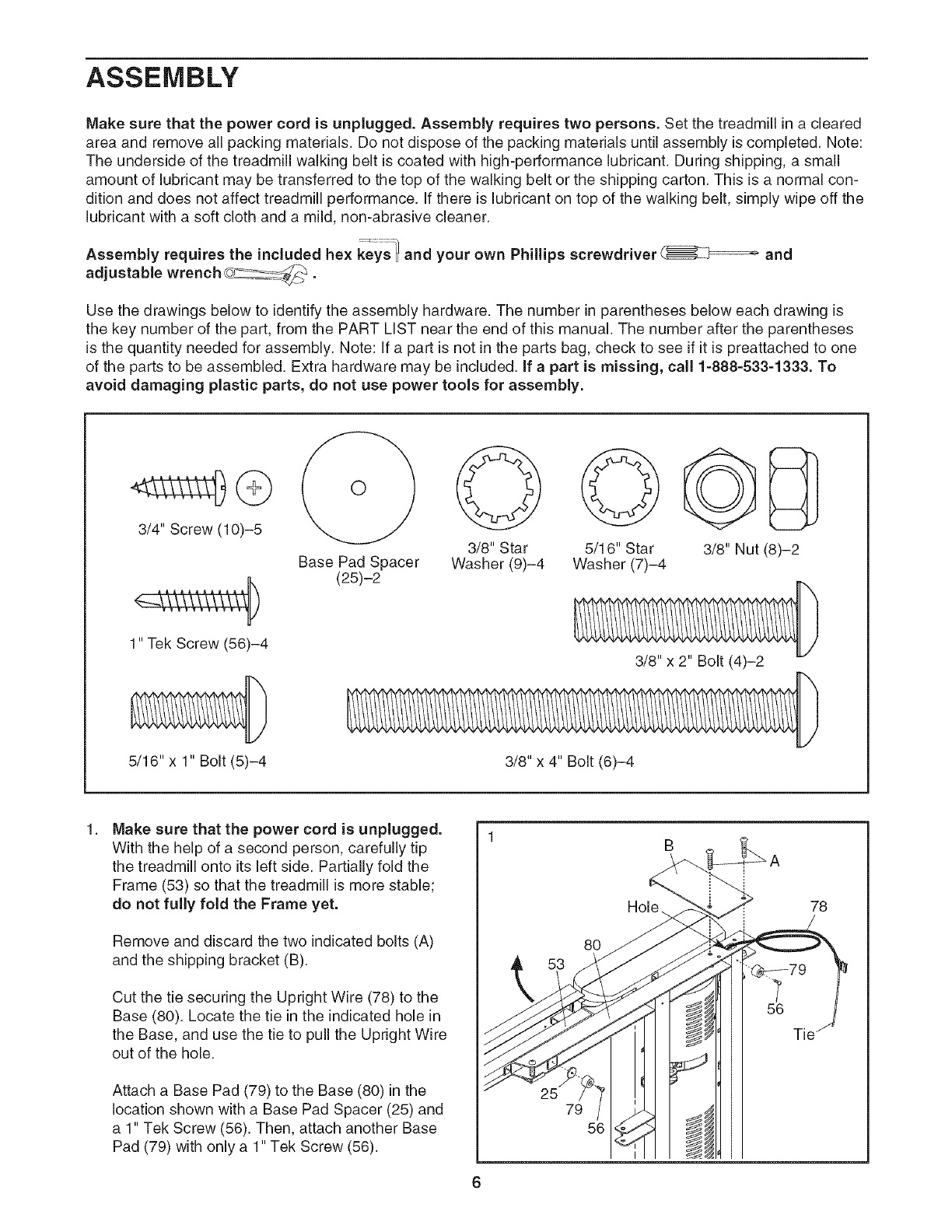

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LiST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: if a part is not in the parts bag, check to see if it is preattached to one

of the parts to be assembled. Extra hardware may be included. If apart is missing, call 1-888-533-1333. To

avoid damaging plastic parts, do not use power tools for assembly.

3/4" Screw (10)-5

1" Tek Screw (56)-4

3/8" Star 5/16" Star 3/8" Nut (8)-2

Base Pad Spacer Washer (9)-4 Washer (7)-4

(25)-2

5/16" x 1" Bolt (5)-4 3/8" x 4" Bolt (6)-4

Make sure that the power cord is unplugged.

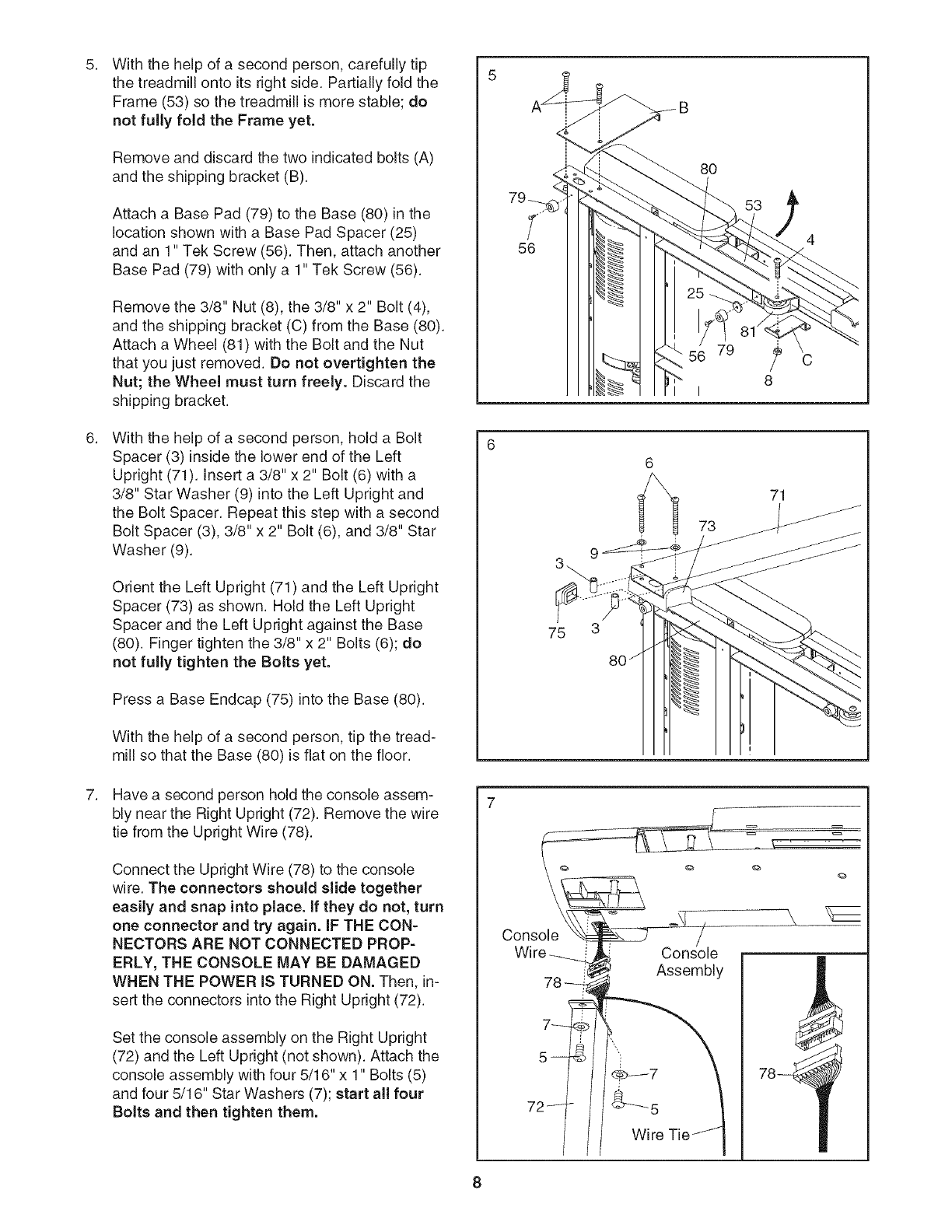

With the help of a second person, carefully tip

the treadmill onto its left side. Partially fold the

Frame (53) so that the treadmill is more stable;

do not fully fold the Frame yet.

Remove and discard the two indicated bolts (A)

and the shipping bracket (B).

Cut the tie securing the Upright Wire (78) to the

Base (80). Locate the tie in the indicated hole in

the Base, and use the tie to pull the Upright Wire

out of the hole.

Attach a Base Pad (79) to the Base (80) in the

location shown with a Base Pad Spacer (25) and

a 1" Tek Screw (56). Then, attach another Base

Pad (79) with only a 1" Tek Screw (56).

Hole.

2. 2

Removethe3/8"Nut(8),the3/8"x2" Bolt(4),

andtheshippingbracket(C)fromtheBase(80).

Attacha BaseWheel(81)withtheBoltandthe

Nutthatyoujustremoved.Donot overtighten

theNut;theWheelmustturnfreely.Discard

theshippingbracket.

CutthetieofftheUprightWire(78).

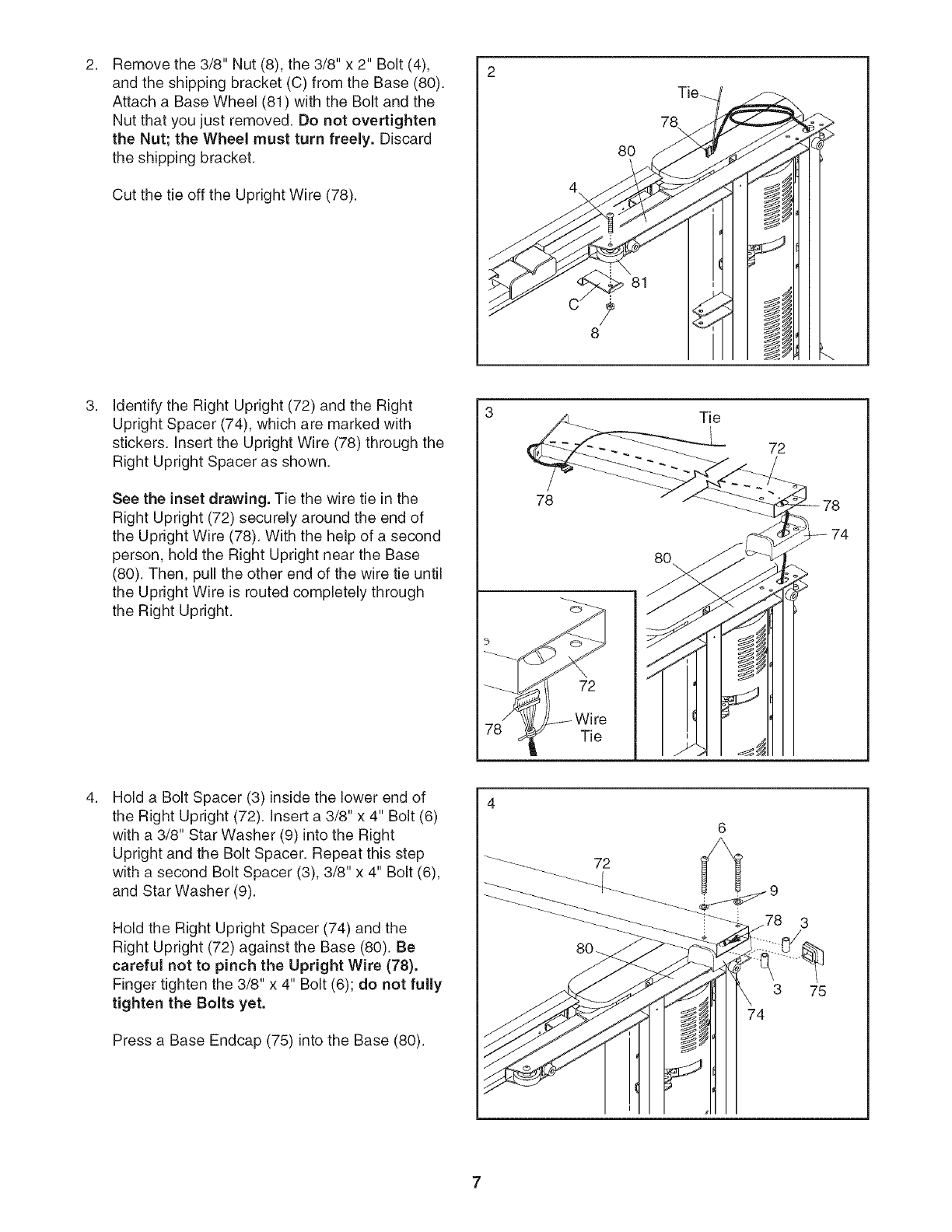

IdentifytheRightUpright(72)andtheRight

UprightSpacer(74),whicharemarkedwith

stickers.InserttheUprightWire(78)throughthe

RightUprightSpacerasshown.

Seetheinsetdrawing.Tiethewiretieinthe

RightUpright(72)securelyaroundtheendof

theUprightWire(78).Withthehelpofa second

person,holdtheRightUprightneartheBase

(80).Then,pulltheotherendof thewiretieuntil

theUprightWireisroutedcompletelythrough

theRightUpright.

3 Tie

Tie

Hold a Bolt Spacer (3) inside the lower end of

the Right Upright (72). Insert a 3/8" x 4" Bolt (6)

with a 3/8" Star Washer (9) into the Right

Upright and the Bolt Spacer. Repeat this step

with a second Bolt Spacer (3), 3/8" x 4" Bolt (6),

and Star Washer (9).

Hold the Right Upright Spacer (74) and the

Right Upright (72) against the Base (80). Be

careful not to pinch the Upright Wire (78).

Finger tighten the 3/8" x 4" Bolt (6); do not fully

tighten the Bolts yet.

Press a Base Endcap (75) into the Base (80).

5, 5

With the help of a second person, carefully tip

the treadmill onto its right side. Partially fold the

Frame (53) so the treadmill is more stable; do

not fully fold the Frame yet.

Remove and discard the two indicated bolts (A)

and the shipping bracket (B).

Attach a Base Pad (79) to the Base (80) in the

location shown with a Base Pad Spacer (25)

and an 1" Tek Screw (56). Then, attach another

Base Pad (79) with only a 1" Tek Screw (56).

Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),

and the shipping bracket (C) from the Base (80).

Attach a Wheel (81) with the Bolt and the Nut

that you just removed. Do not overtighten the

Nut; the Wheel must turn freely. Discard the

shipping bracket.

With the help of a second person, hold a Bolt

Spacer (3) inside the lower end of the Left

Upright (71). Insert a 3/8" x 2" Bolt (6) with a

3/8" Star Washer (9) into the Left Upright and

the Bolt Spacer. Repeat this step with a second

Bolt Spacer (3), 3/8" x 2" Bolt (6), and 3/8" Star

Washer (9).

Orient the Left Upright (71) and the Left Upright

Spacer (73) as shown. Hold the Left Upright

Spacer and the Left Upright against the Base

(80). Finger tighten the 3/8" x 2" Bolts (6); do

not fully tighten the Bolts yet.

Press a Base Endcap (75) into the Base (80).

With the help of a second person, tip the tread-

mill so that the Base (80) is flat on the floor.

Have a second person hold the console assem-

bly near the Right Upright (72). Remove the wire

tie from the Upright Wire (78).

Connect the Upright Wire (78) to the console

wire. The connectors should slide together

easily and snap into place. If they do not, turn

one connector and try again. IF THE CON-

NECTORS ARE NOT CONNECTED PROP-

ERLY, THE CONSOLE MAY BE DAMAGED

WHEN THE POWER IS TURNED ON. Then, in-

sert the connectors into the Right Upright (72).

Set the console assembly on the Right Upright

(72) and the Left Upright (not shown). Attach the

console assembly with four 5/16" x 1" Bolts (5)

and four 5/16" Star Washers (7); start all four

Bolts and then tighten them.

79 c

75 3

Console

Wire

Assembly

8. 8

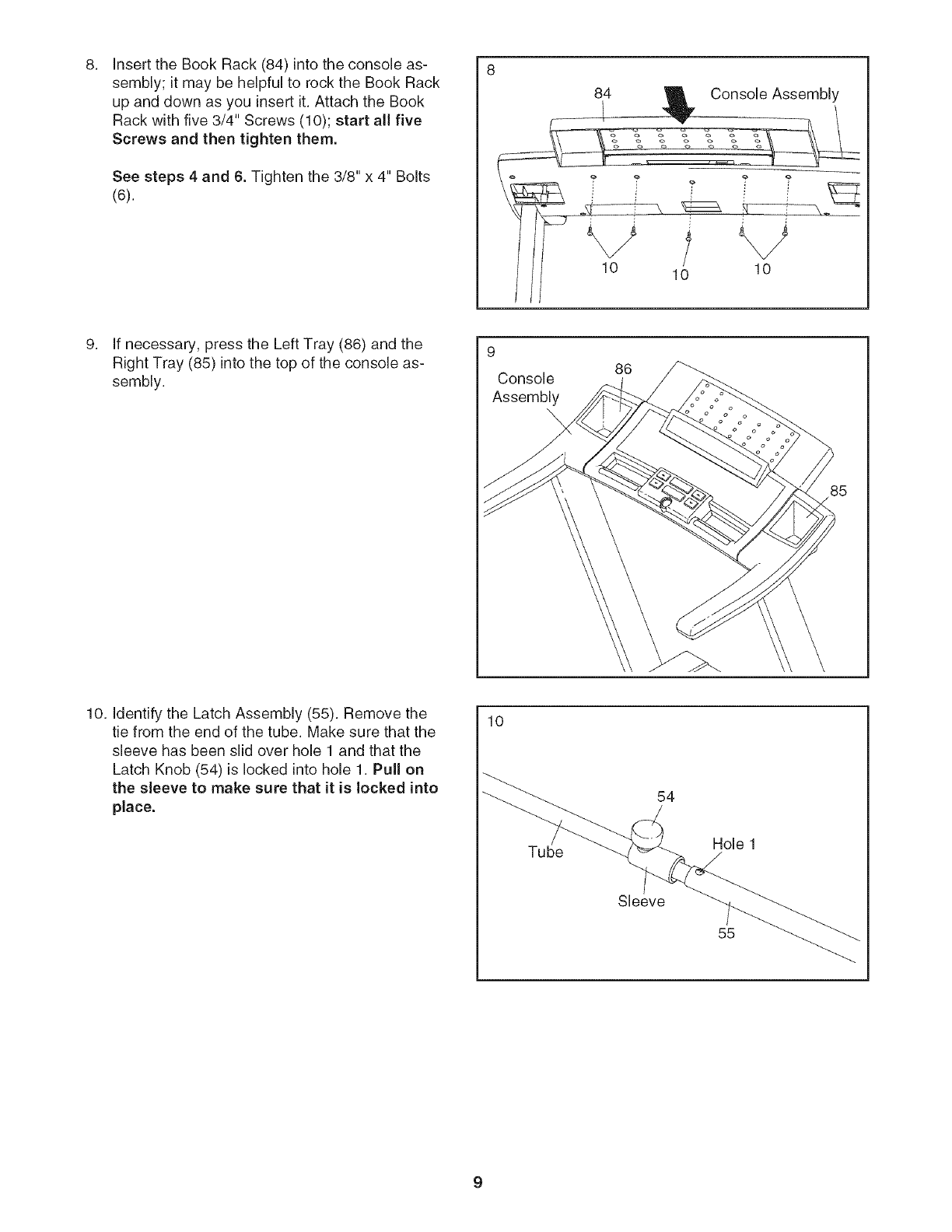

Insert the Book Rack (84) into the console as-

sembly; it may be helpful to rock the Book Rack

up and down as you insert it. Attach the Book

Rack with five 3/4" Screws (10); start all five

Screws and then tighten them.

See steps 4 and 6. Tighten the 3/8" x 4" Bolts

(6).

10 J

If necessary, press the Left Tray (86) and the

Right Tray (85) into the top of the console as-

sembly.

Console

Assembly

10. Identify the Latch Assembly (55). Remove the

tie from the end of the tube. Make sure that the

sleeve has been slid over hole 1 and that the

Latch Knob (54) is locked into hole 1. Pull on

the sleeve to make sure that it is locked into

place.

Tube

Sleeve

Hole 1

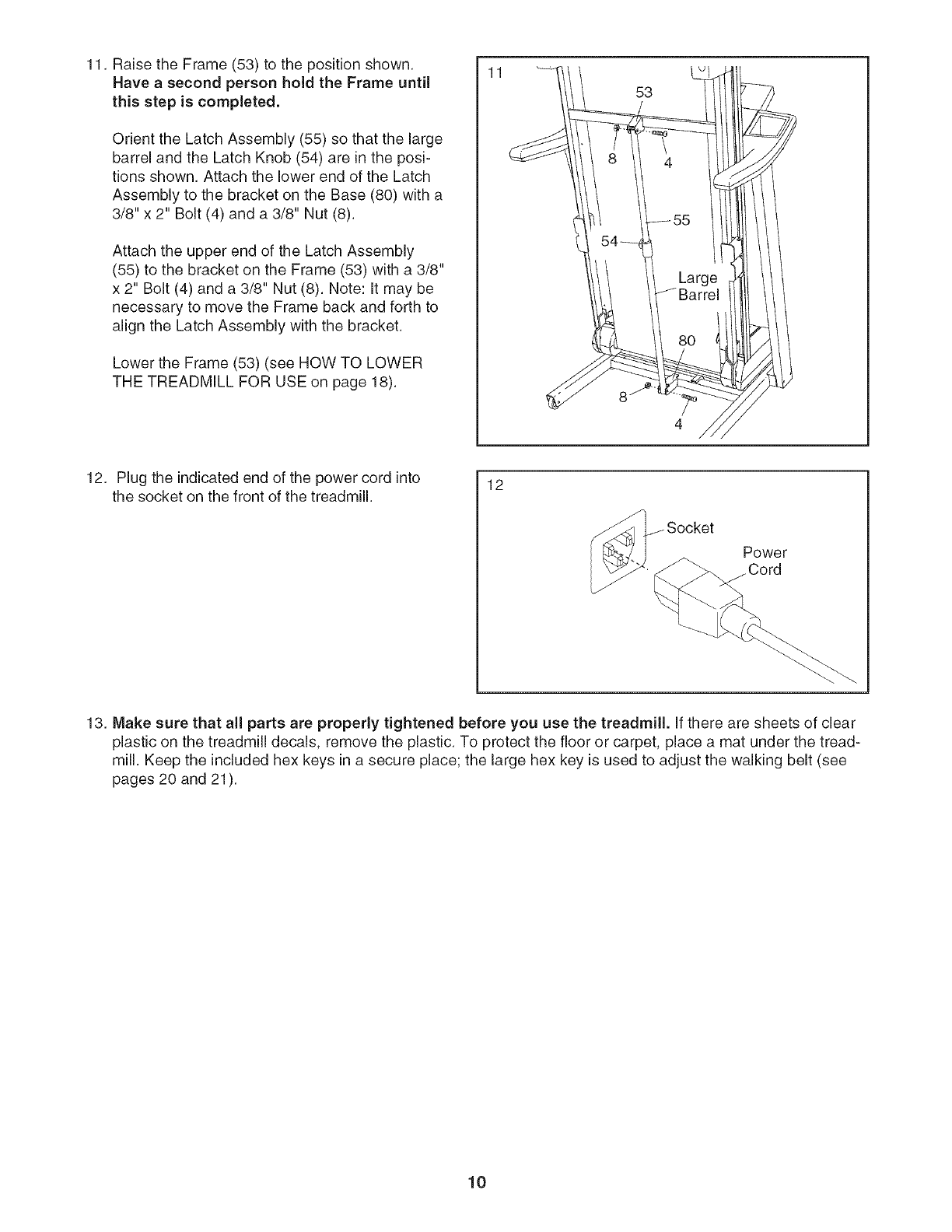

11.RaisetheFrame(53)tothepositionshown.

Haveasecond person hold the Frame until

this step is completed.

Orient the Latch Assembly (55) so that the large

barrel and the Latch Knob (54) are in the posi-

tions shown. Attach the lower end of the Latch

Assembly to the bracket on the Base (80) with a

3/8" x 2" Bolt (4) and a 3/8" Nut (8).

Attach the upper end of the Latch Assembly

(55) to the bracket on the Frame (53) with a 3/8"

x 2" Bolt (4) and a 3/8" Nut (8). Note: It may be

necessary to move the Frame back and forth to

align the Latch Assembly with the bracket.

Lower the Frame (53) (see HOW TO LOWER

THE TREADMILL FOR USE on page 18).

12. Plug the indicated end of the power cord into

the socket on the front of the treadmill. 12

Power

Cord

13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear

plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-

mill. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt (see

pages 20 and 21 ).

OPERATION AND ADJUSTMENT

THE PRE=LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with high-

performance lubricant, iMPORTANT: Never apply sil-

icone spray or other substances to the walking

belt or the walking platform. Such substances will

deteriorate the walking belt and cause excessive

wear.

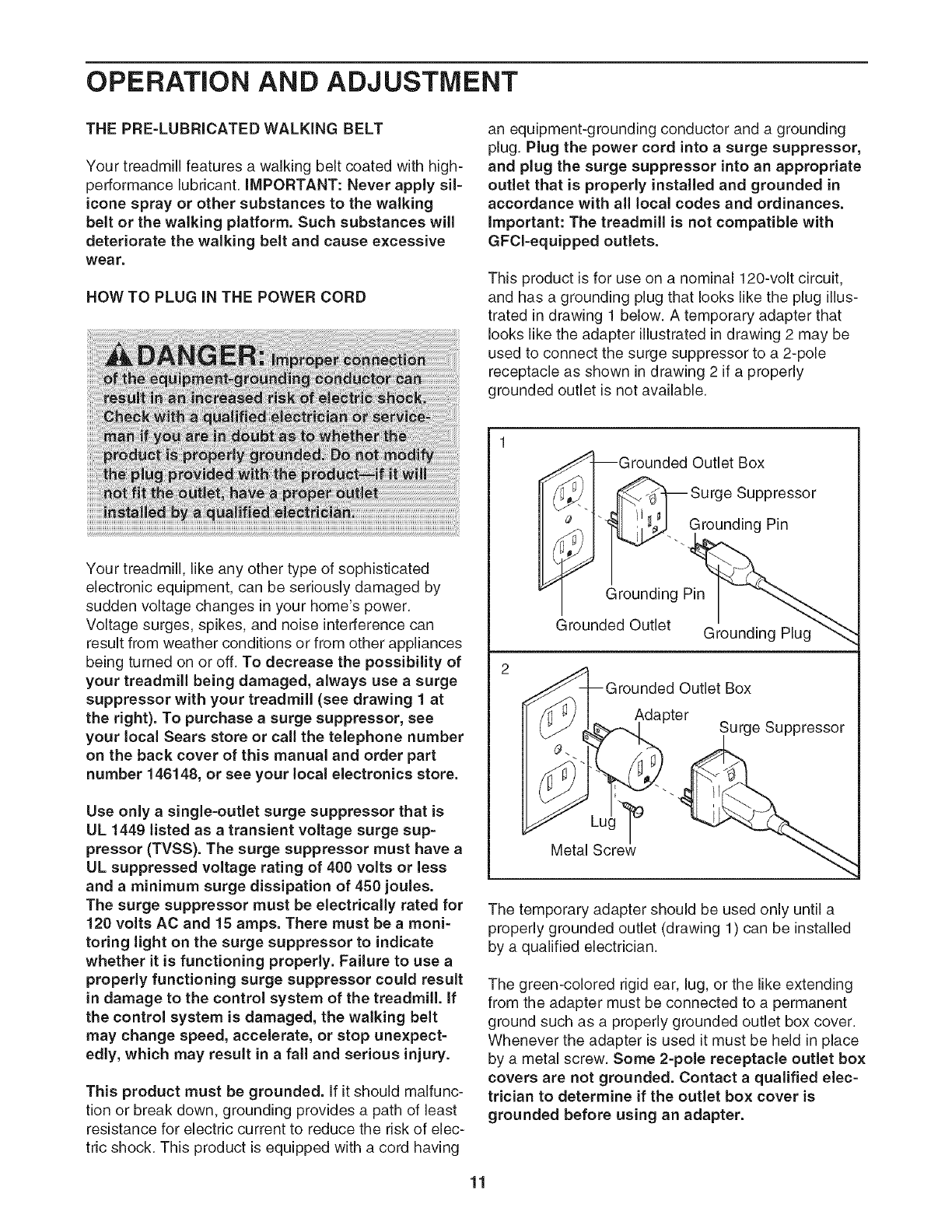

HOW TO PLUG IN THE POWER CORD

an equipment-grounding conductor and a grounding

plug. Plug the power cord into asurge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCl=equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local Sears store or call the telephone number

on the back cover of this manual and order part

number 146148, or see your local electronics store.

Use only a single=outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup=

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be amoni=

toting light on the surge suppressor to indicate

whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill, if

the control system is damaged, the walking belt

may change speed, accelerate, or stop unexpect=

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

I_l_Grounded Outlet Box

_-1 _ Surge Suppressor

_ _... Grounding Pin

Grounding P__,,

_rounded Outlet Grounding Plug"_

_rounded Outlet Box

Adapter

Metal Screw_ "

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2=pole receptacle outlet box

covers are not grounded. Contact a qualified elec=

trician to determine if the outlet box cover is

grounded before using an adapter.

WORKOUTS

E"-"-'3.2J}I

I _'E LI I LI

_B_m TIME DISTANCE CALORIES SPEED

_ELEOT _,. TIME '_

WORKOUT SET MIN _F SE T MAX

SPEED _ SpEE DGO

WEIGHT LOSS

WORKOUTS

258 Cals, Walk FIS "'7

,,*" 35DCals, WelkCirr b '*%8

_3,0 Cal_, J,_j q 9

f 450 Cals, Jog lat _t0

INCLINE

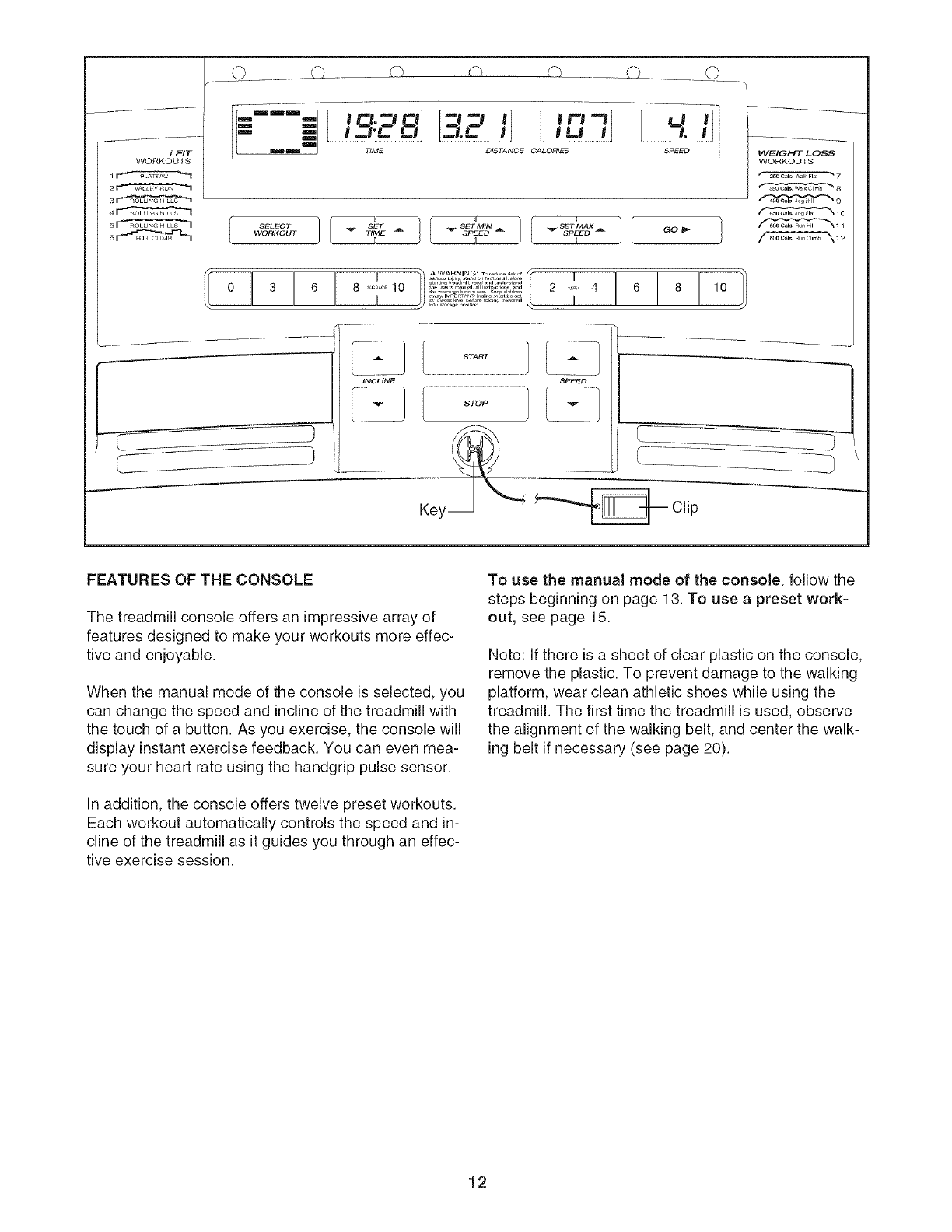

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable.

When the manual mode of the console is selected, you

can change the speed and incline of the treadmill with

the touch of a button. As you exercise, the console will

display instant exercise feedback. You can even mea-

sure your heart rate using the handgdp pulse sensor.

Inaddition, the console offers twelve preset workouts.

Each workout automatically controls the speed and in-

cline of the treadmill as it guides you through an effec-

tive exercise session.

To use the manual mode of the console, follow the

steps beginning on page t 3. To use a preset work=

out, see page 15.

Note: If there is a sheet of clear plastic on the console,

remove the plastic. To prevent damage to the walking

platform, wear clean athletic shoes while using the

treadmill. The first time the treadmill is used, observe

the alignment of the walking belt, and center the walk-

ing belt if necessary (see page 20).

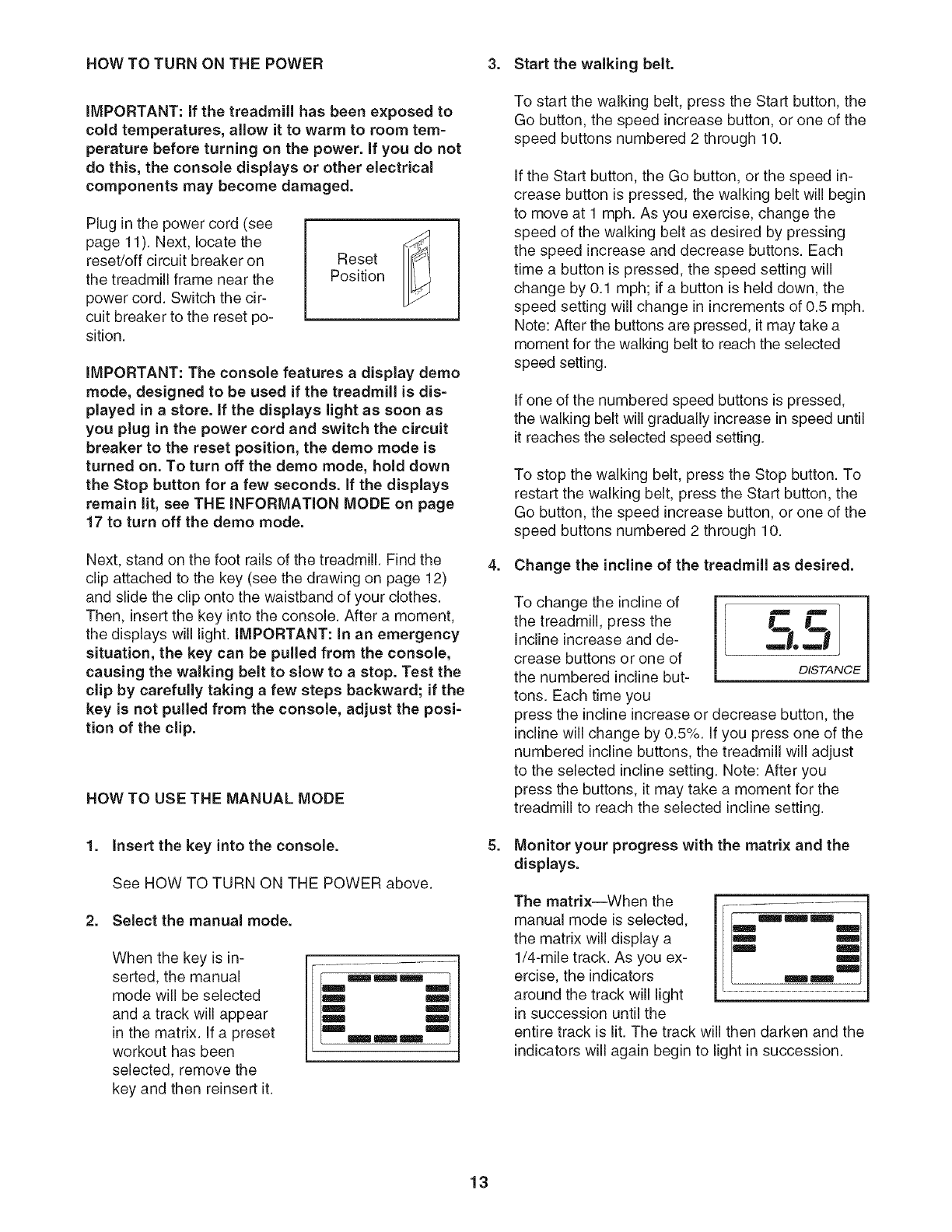

HOW TO TURN ON THE POWER

iMPORTANT: if the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, the console displays or other electrical

components may become damaged.

Plug in the power cord (see

page 11). Next, locate the

reset/off circuit breaker on

the treadmill frame near the

power cord. Switch the cir-

cuit breaker to the reset po-

sition.

Reset _1_

Position

iMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis=

played in astore, if the displays light as soon as

you plug in the power cord and switch the circuit

breaker to the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds, if the displays

remain lit, see THE iNFORMATiON MODE on page

17 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Find the

clip attached to the key (see the drawing on page 12)

and slide the clip onto the waistband of your clothes.

Then, insert the key into the console. After a moment,

the displays will light. IMPORTANT: In an emergency

situation, the key can be pulled from the console,

causing the walking belt to slow to a stop. Test the

clip by carefully taking a few steps backward; if the

key is not pulled from the console, adjust the posi-

tion of the clip.

HOW TO USE THE MANUAL MODE

1. insert the key into the console.

See HOW TO TURN ON THE POWER above.

2. Select the manual mode.

When the key is in-

serted, the manual

mode will be selected

and a track will appear

in the matrix. If a preset

workout has been

selected, remove the

key and then reinsert it.

B m

Z Z

mmm

3. Start the walking belt.

To start the walking belt, press the Start button, the

Go button, the speed increase button, or one of the

speed buttons numbered 2 through 10.

If the Start button, the Go button, or the speed in-

crease button is pressed, the walking belt will begin

to move at 1 mph. As you exercise, change the

speed of the walking belt as desired by pressing

the speed increase and decrease buttons. Each

time a button is pressed, the speed setting will

change by 0.1 mph; if a button is held down, the

speed setting will change in increments of 0.5 mph.

Note: After the buttons are pressed, it may take a

moment for the walking belt to reach the selected

speed setting.

If one of the numbered speed buttons is pressed,

the walking belt will gradually increase in speed until

it reaches the selected speed setting.

To stop the walking belt, press the Stop button. To

restart the walking belt, press the Start button, the

Go button, the speed increase button, or one of the

speed buttons numbered 2 through 10.

4. Change the incline of the treadmill as desired.

To change the incline of

the treadmill, press the

Incline increase and de-

crease buttons or one of

the numbered incline but-

tons. Each time you

£sl

DISTANCE

press the incline increase or decrease button, the

incline will change by 0.5%. If you press one of the

numbered incline buttons, the treadmill will adjust

to the selected incline setting. Note: After you

press the buttons, it may take a moment for the

treadmill to reach the selected incline setting.

Monitor your progress with the matrix and the

displays.

The matrix--When the

manual mode is selected,

the matrix will display a

1/4-mile track. As you ex-

ercise, the indicators

around the track will light

in succession until the

l........... ]

entire track is lit. The track will then darken and the

indicators will again begin to light in succession.

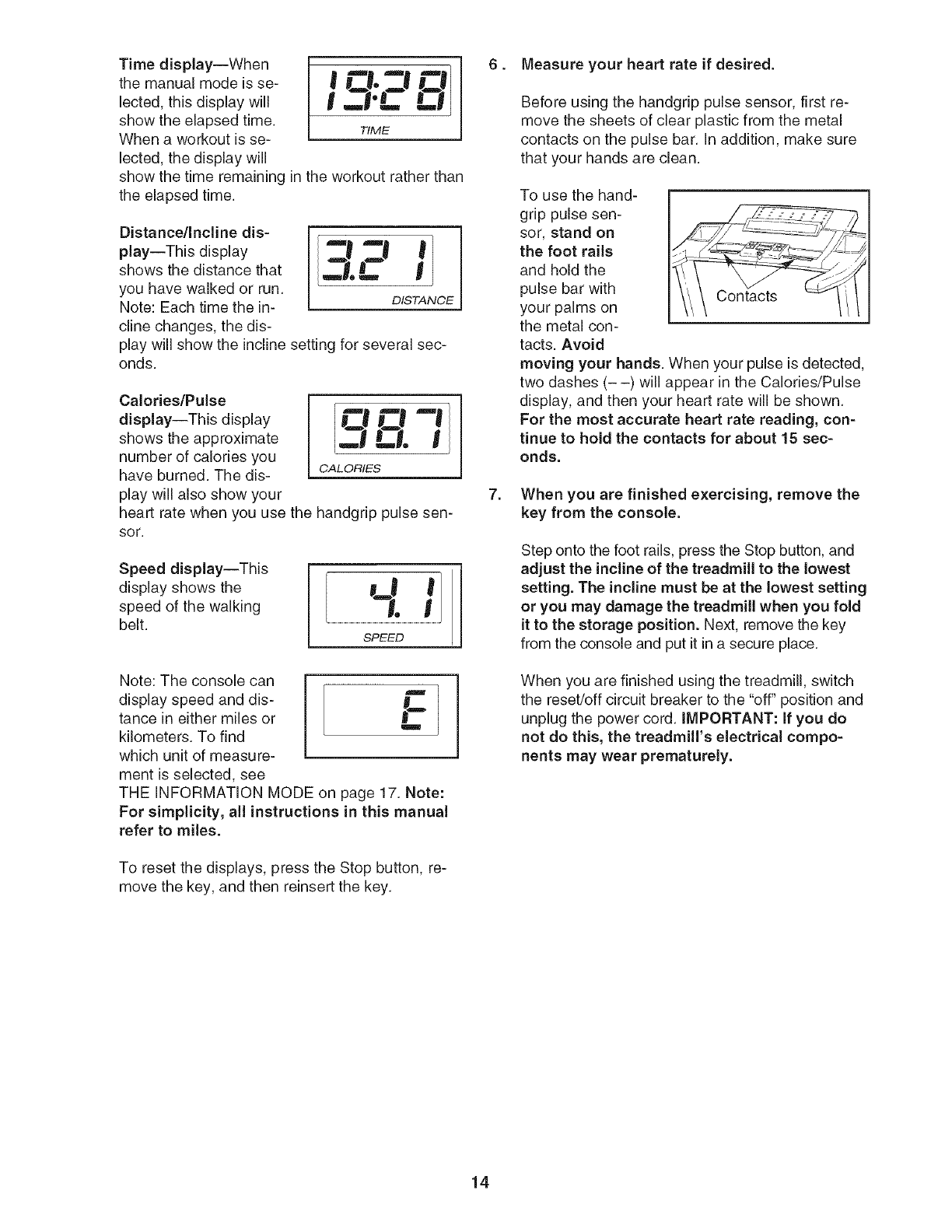

Time display--When

the manual mode is se-

lected, this display will

show the elapsed time.

When a workout is se-

lected, the display will

I :2 oI

rl]

TIME

show the time remaining in the workout rather than

the elapsed time.

Distance/Incline dis-

play--This display

shows the distance that

you have walked or run.

Note: Each time the in-

cline changes, the dis-

play will show the incline setting for several sec-

onds.

.,,.'&C

DISTANCE

Calories/Pulse

display--This display

shows the approximate

number of calories you

have burned. The dis-

play will also show your

I c!7

rl. I

CALORIES

heart rate when you use the handgrip pulse sen-

sor.

Speed display--This

display shows the

speed of the walking

belt. SPEED

Note: The console can

display speed and dis-

tance in either miles or

kilometers. To find

which unit of measure-

ment is selected, see

r-_

THE INFORMATION MODE on page 17. Note:

For simplicity, all instructions in this manual

refer to miles.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

6. Measure your heart rate if desired.

Before using the handgrip pulse sensor, first re-

move the sheets of clear plastic from the metal

contacts on the pulse bar. In addition, make sure

that your hands are clean.

To use the hand-

grip pulse sen-

sor, stand on

the foot rails

and hold the

pulse bar with

your palms on

the metal con-

tacts. Avoid

moving your hands. When your pulse is detected,

two dashes (- -) will appear in the Calories/Pulse

display, and then your heart rate will be shown.

For the most accurate heart rate reading, con-

tinue to hold the contacts for about 15 sec-

onds.

When you are finished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest setting

or you may damage the treadmill when you fold

it to the storage position. Next, remove the key

from the console and put it ina secure place.

When you are finished using the treadmill, switch

the reset/off circuit breaker to the "off" position and

unplug the power cord. IMPORTANT: If you do

not do this, the treadmilrs electrical compo-

nents may wear prematurely.

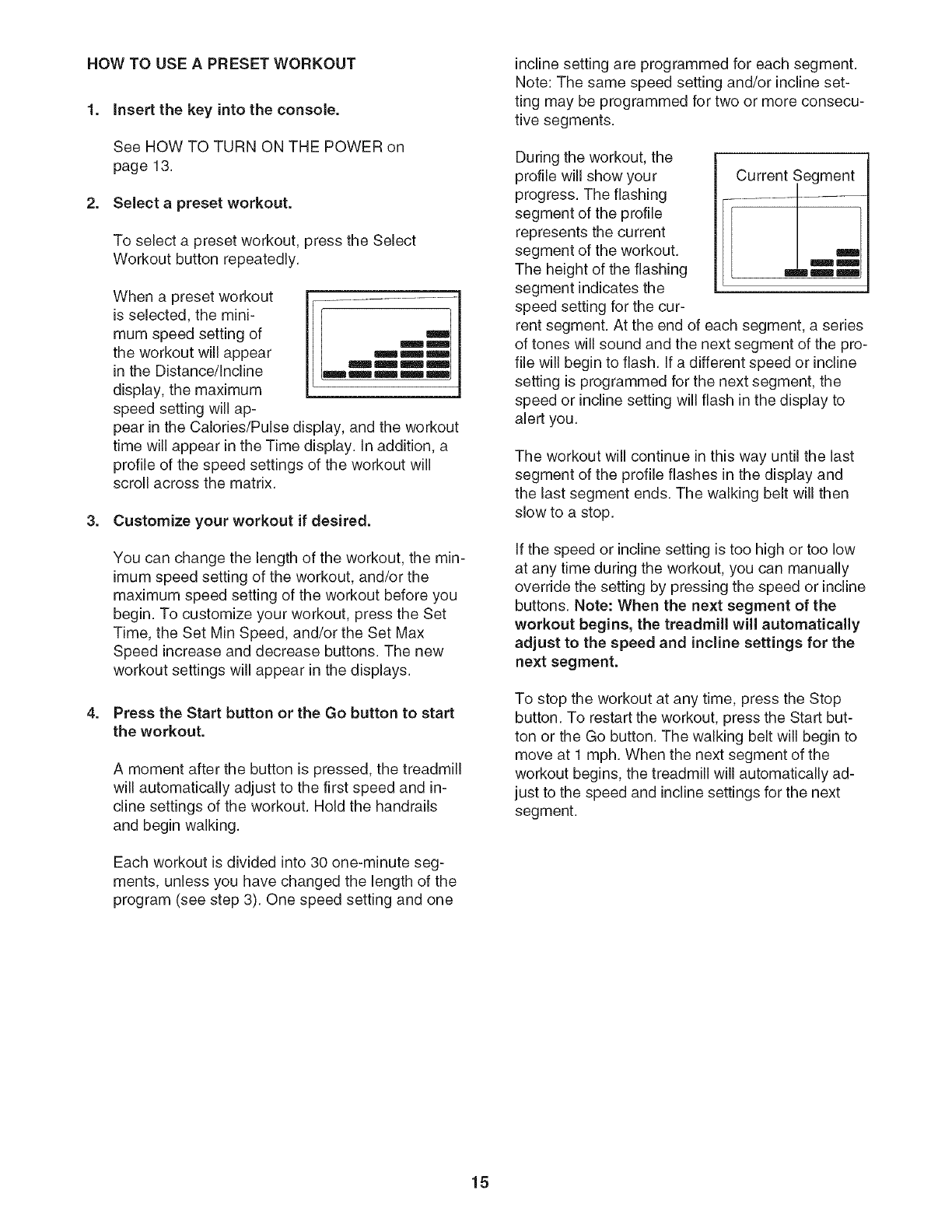

HOW TO USE A PRESET WORKOUT

1. insert the key into the console.

See HOW TO TURN ON THE POWER on

page 13.

2. Select a preset workout.

To select a preset workout, press the Select

Workout button repeatedly.

When a preset workout

is selected, the mini-

mum speed setting of

the workout will appear

in the Distance/Incline

display, the maximum

speed setting will ap-

____1

mm_l

Bmmm_j

pear in the Calories/Pulse display, and the workout

time will appear in the Time display. In addition, a

profile of the speed settings of the workout will

scroll across the matrix.

3. Customize your workout if desired.

You can change the length of the workout, the min-

imum speed setting of the workout, and/or the

maximum speed setting of the workout before you

begin. To customize your workout, press the Set

Time, the Set MJn Speed, and/or the Set Max

Speed increase and decrease buttons. The new

workout settings will appear in the displays.

Press the Start button or the Go button to start

the workout.

A moment after the button is pressed, the treadmill

will automatically adjust to the first speed and in-

cline settings of the workout. Hold the handrails

and begin walking.

Each workout is divided into 30 one-minute seg-

ments, unless you have changed the length of the

program (see step 3). One speed setting and one

incline setting are programmed for each segment.

Note: The same speed setting and/or incline set-

ting may be programmed for two or more consecu-

tive segments.

During the workout, the

profile will show your

progress. The flashing

segment of the profile

represents the current

segment of the workout.

The height of the flashing

segment indicates the

speed setting for the cur-

Current Segment

rent segment. At the end of each segment, a series

of tones will sound and the next segment of the pro-

file will begin to flash. If a different speed or incline

setting is programmed for the next segment, the

speed or incline setting will flash in the display to

alert you.

The workout will continue in this way until the last

segment of the profile flashes in the display and

the last segment ends. The walking belt will then

slow to a stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manually

override the setting by pressing the speed or incline

buttons. Note: When the next segment of the

workout begins, the treadmill will automatically

adjust to the speed and incline settings for the

next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start but-

ton or the Go button. The walking belt will begin to

move at 1 mph. When the next segment of the

workout begins, the treadmill will automatically ad-

just to the speed and incline settings for the next

segment.

5. Monitor your progress with the matrix and the

displays.

See step 5 on pages 13 and 14.

6. Measure your heart rate if desired.

See step 6 on page 14.

.When you are finished exercising, remove the

key from the console.

See step 7 on page 14.

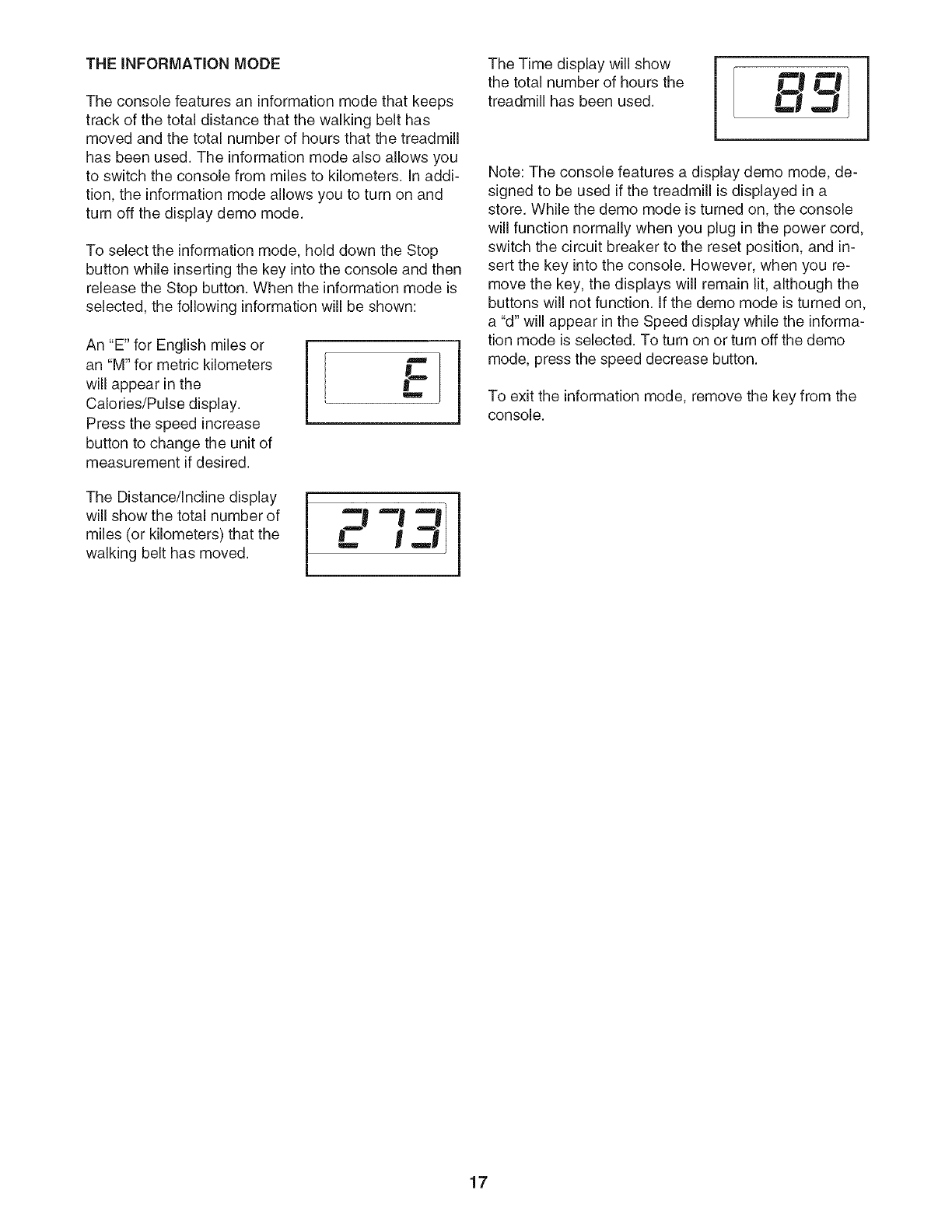

THE INFORMATION MODE

The console features an information mode that keeps

track of the total distance that the walking belt has

moved and the total number of hours that the treadmill

has been used. The information mode also allows you

to switch the console from miles to kilometers. In addi-

tion, the information mode allows you to turn on and

turn off the display demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console and then

release the Stop button. When the information mode is

selected, the following information will be shown:

An "E" for English miles or

an "M" for metric kilometers

will appear in the

Calories/Pulse display.

Press the speed increase

button to change the unit of

measurement if desired.

C I

The Distance/Incline display

will show the total number of

miles (or kilometers) that the

walking belt has moved.

The Time display will show

the total number of hours the

treadmill has been used.

Note: The console features a display demo mode, de-

signed to be used if the treadmill is displayed in a

store. While the demo mode is turned on, the console

will function normally when you plug in the power cord

switch the circuit breaker to the reset position, and in-

sert the key into the console. However, when you re-

move the key, the displays will remain lit, although the

buttons will not function. If the demo mode is turned on

a "d" will appear in the Speed display while the informa-

tion mode is selected. To turn on or turn off the demo

mode, press the speed decrease button.

To exit the information mode, remove the key from the

console.

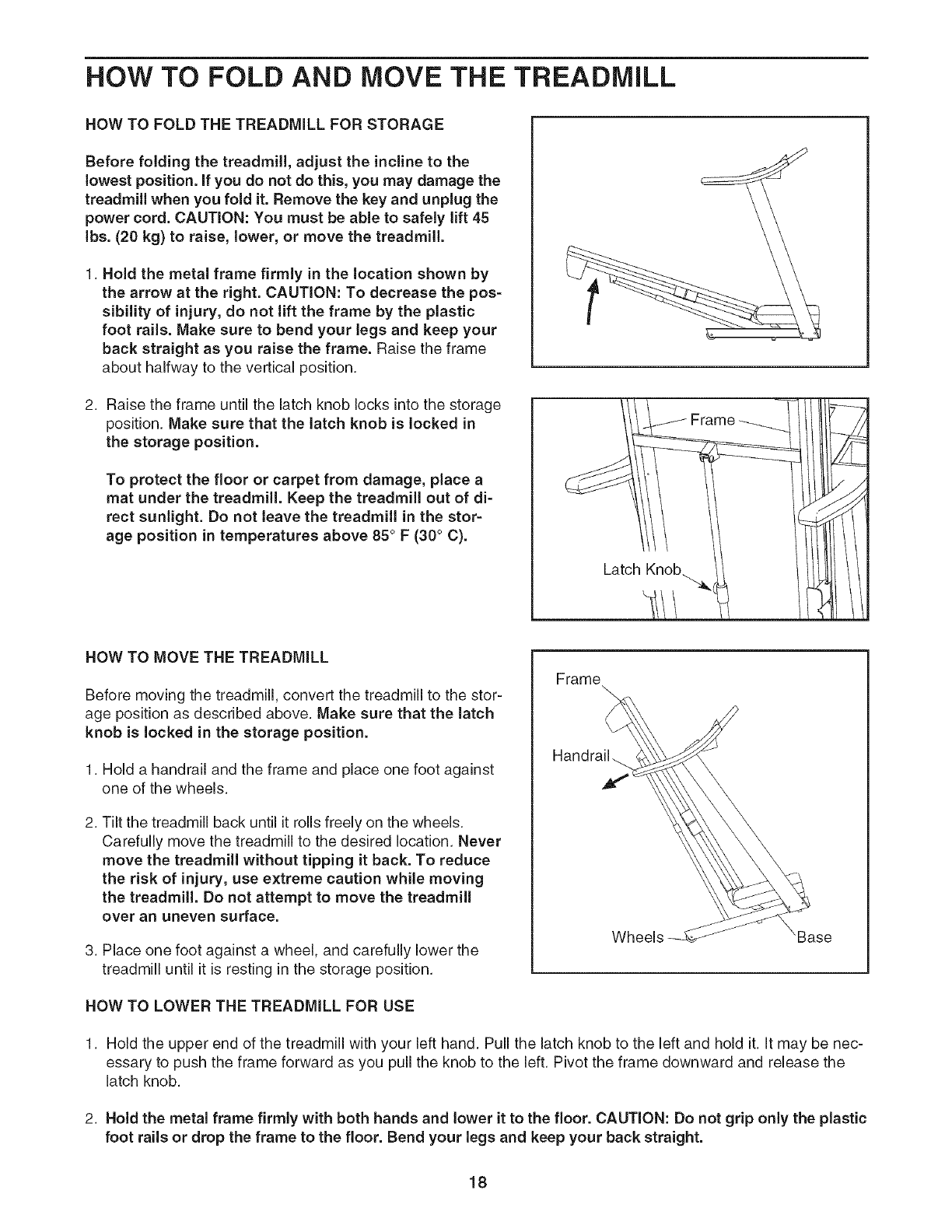

HOW TO FOLD AND MOVE THE TREADMILL

NOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If you do not do this, you may damage the

treadmill when you fold it. Remove the key and unplug the

power cord. CAUTION: You must be able to safely lift 45

Ibs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown by

the arrow at the right. CAUTION: To decrease the pos=

sibility of injury, do not lift the frame by the plastic

foot rails. Make sure to bend your legs and keep your

back straight as you raise the frame. Raise the frame

about halfway to the vertical position.

2. Raise the frame until the latch knob locks into the storage

position. Make sure that the latch knob is locked in

the storage position.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of di=

rect sunlight. Do not leave the treadmill in the stor=

age position in temperatures above 85° F (30° C).

Latch Knob

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the latch

knob is locked in the storage position.

1. Hold a handrail and the frame and place one foot against

one of the wheels.

2. Tilt the treadmill back until it rolls freely on the wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back. To reduce

the risk of injury, use extreme caution while moving

the treadmill. Do not attempt to move the treadmill

over an uneven surface.

3. Place one foot against a wheel, and carefully lower the

treadmill until it is resting in the storage position.

Frame

Wheels

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your left hand. Pull the latch knob to the left and hold it. It may be nec-

essary to push the frame forward as you pull the knob to the left. Pivot the frame downward and release the

latch knob.

2. Hold the metal frame firmly with both hands and lower it to the floor. CAUTION: Do not grip only the plastic

foot rails or drop the frame to the floor. Bend your legs and keep your back straight.

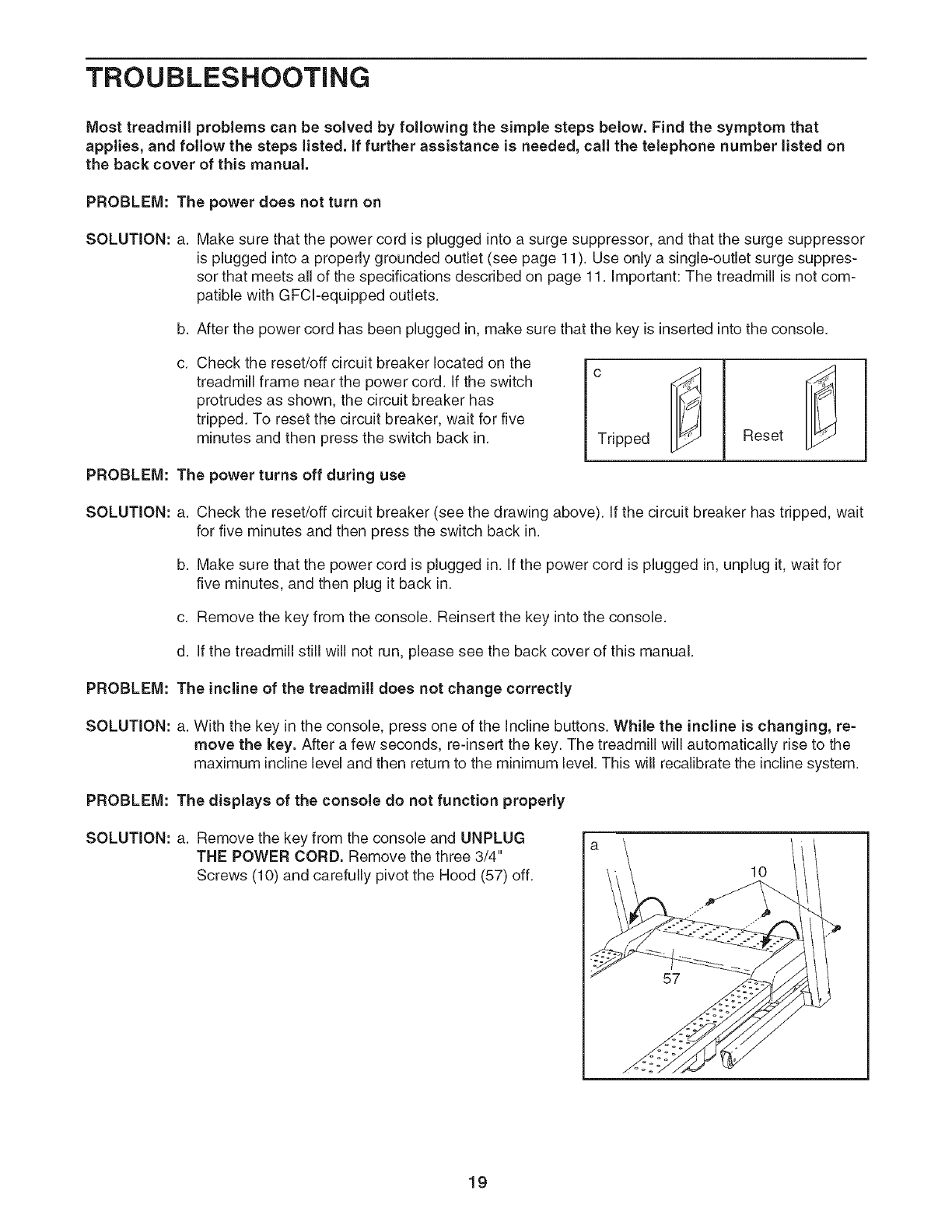

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that

applies, and follow the steps listed, if further assistance is needed, call the telephone number listed on

the back cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 11). Use only a single-outlet surge suppres-

sor that meets all of the specifications described on page 11. Important: The treadmill is not com-

patible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

C. Check the reset/off circuit breaker located on the

treadmill frame near the power cord. If the switch

protrudes as shown, the circuit breaker has

tripped. To reset the circuit breaker, wait for five

minutes and then press the switch back in. Tripped Reset

PROBLEM: The power turns off during use

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait

for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. If the treadmill still will not run, please see the back cover of this manual.

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-

move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the

maximum incline level and then return to the minimum level. This will recalibrate the incline system.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG

THE POWER CORD. Remove the three 3/4"

Screws (10) and carefully pivot the Hood (57) off. 10

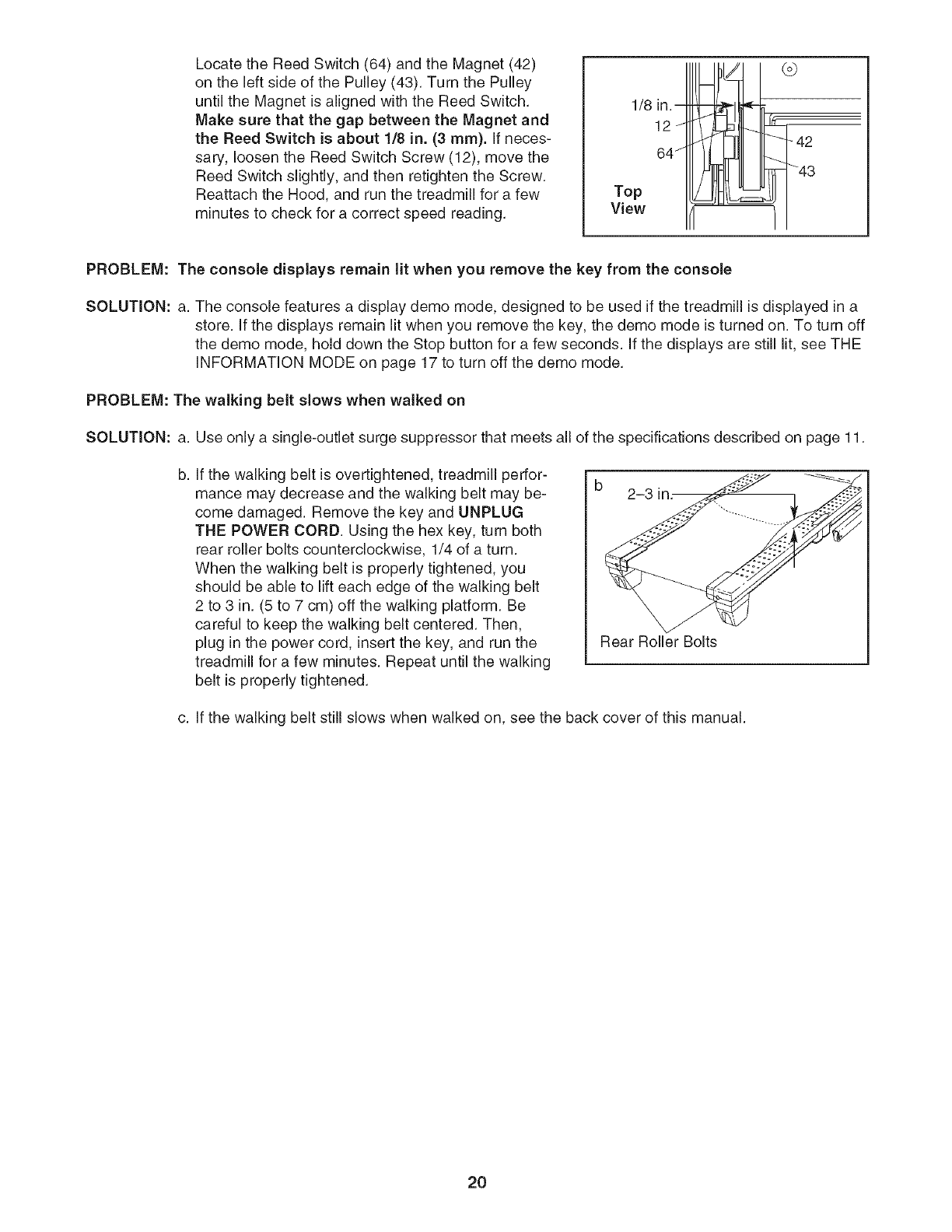

Locate the Reed Switch (64) and the Magnet (42)

on the left side of the Pulley (43). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet and

the Reed Switch is about 1/8 in. (3 mm). if neces-

sary, loosen the Reed Switch Screw (12), move the

Reed Switch slightly, and then retighten the Screw.

Reattach the Hood, and run the treadmill for a few

minutes to check for a correct speed reading.

1/8 in.-

12 f

64j

Top

View

-42

_J _43

PROBLEM: The console displays remain lit when you remove the key from the console

SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a

store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 17 to turn off the demo mode.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

rear roller bolts counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walking

belt is properly tightened.

Rear Roller Bolts

c. If the walking belt still slows when walked on, see the back cover of this manual.

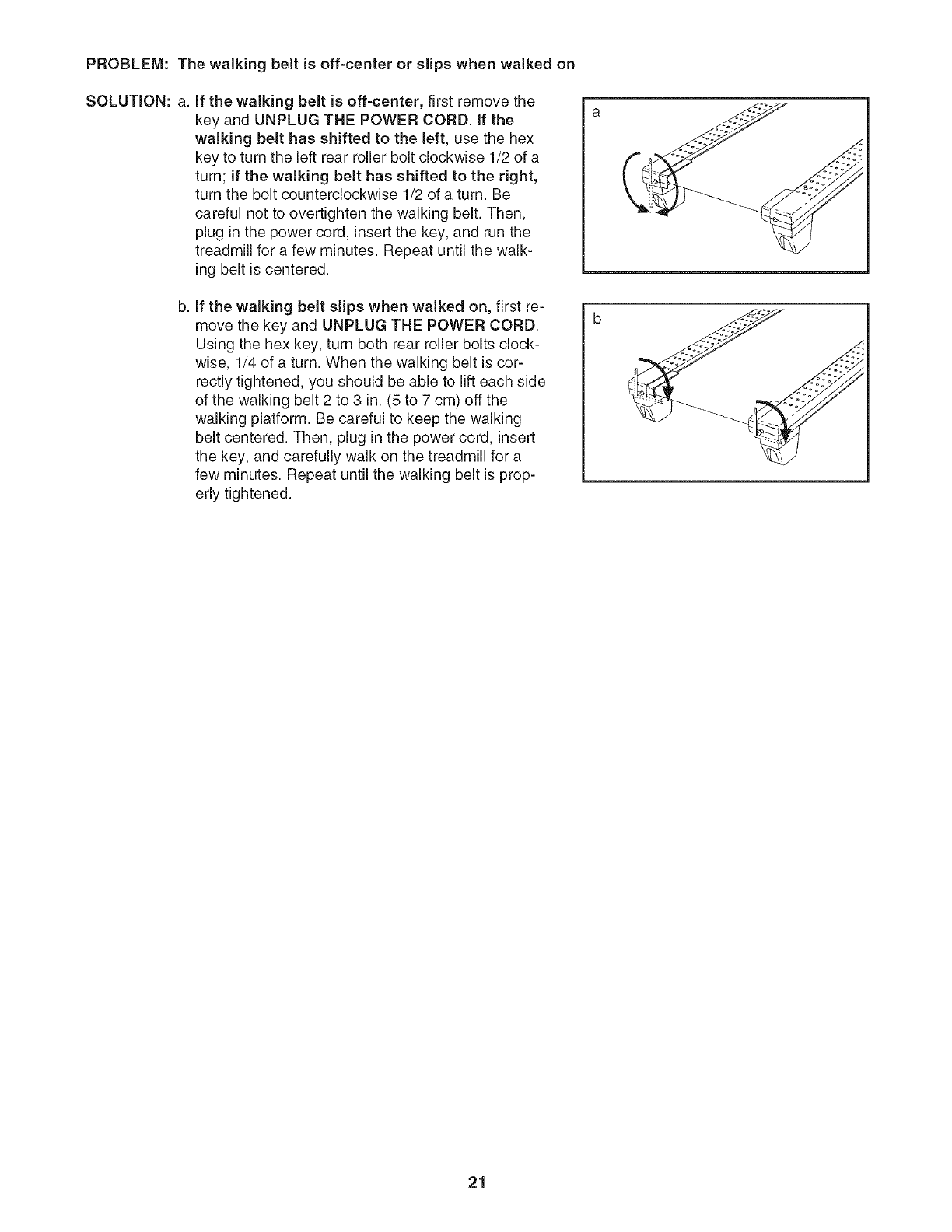

PROBLEM: The walking belt is off=center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left rear roller bolt clockwise 1/2 of a

turn; if the walking belt has shifted to the right,

turn the bolt counterclockwise 1/2 of a turn. Be

careful not to overtighten the walking belt. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is centered.

b. if the walking belt slips when walked on, first re-

move the key and UNPLUG THE POWER CORD.

Using the hex key, turn both rear roller bolts clock-

wise, 1/4 of a turn. When the walking belt is cor-

rectly tightened, you should be able to lift each side

of the walking belt 2 to 3 in. (5 to 7 cm) off the

walking platform. Be careful to keep the walking

belt centered. Then, plug in the power cord, insert

the key, and carefully walk on the treadmill for a

few minutes. Repeat until the walking belt is prop-

erly tightened.

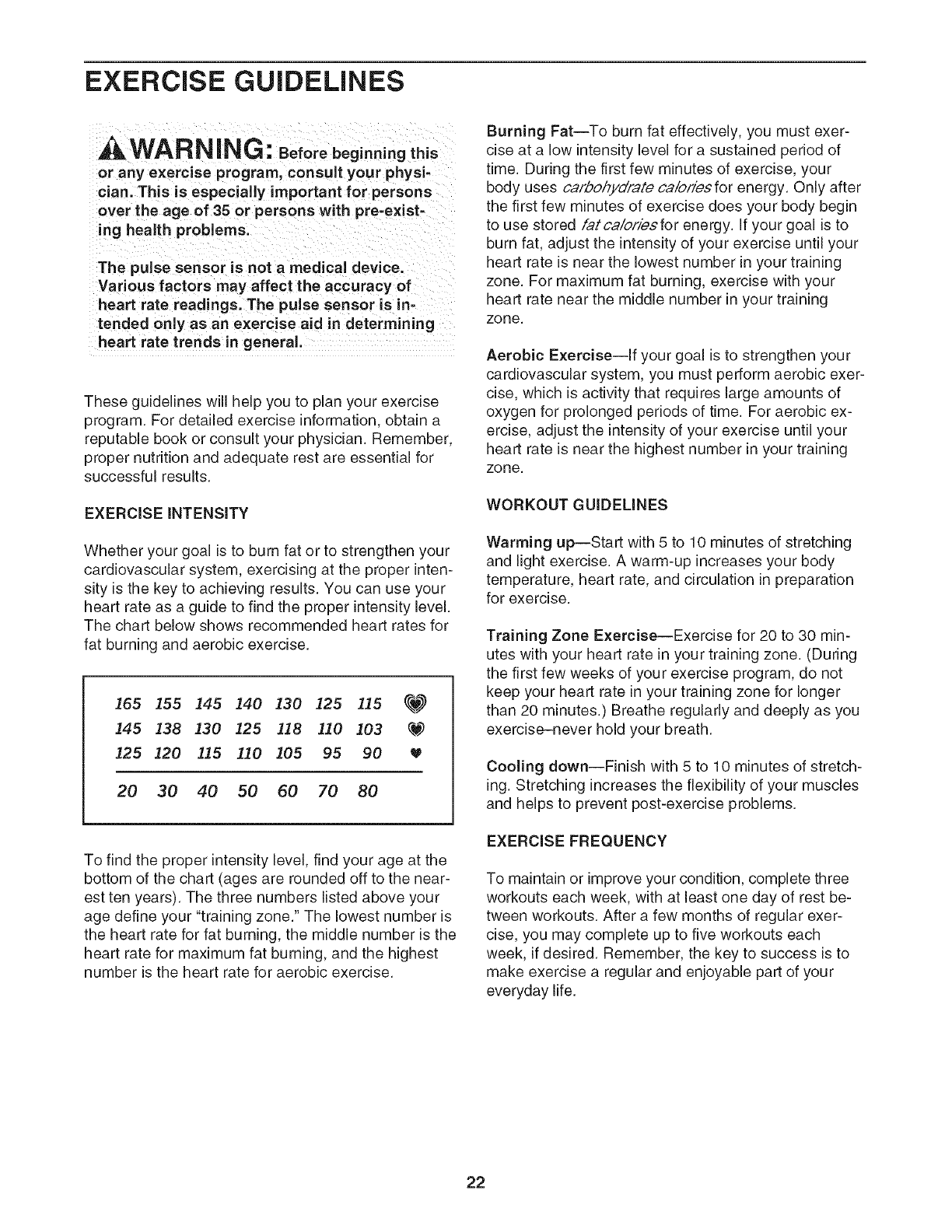

EXERCISE GUiDELiNES

WARN ING: Beforebeginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over the age of 35 or persons with pre-exist-

ing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is in-

tended only as an exercise aid in determining

heart rate trends in general.

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE iNTENSiTY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

165 155 145 140 130 125 115 (_

145 138 130 125 118 110 103 _

125 120 115 110 105 95 90

20 30 40 50 60 70 80

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your "training zone." The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat--To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate ca/ofiesfor energy. Only after

the first few minutes of exercise does your body begin

to use stored fatca/oriesfor energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise--If your goal is to strengthen your

cardiovascular system, you must perform aerobic exer-

cise, which is activity that requires large amounts of

oxygen for prolonged periods of time. For aerobic ex-

ercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDEUNES

Warming up--Start with 5 to 10 minutes of stretching

and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise--Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise-never hold your breath.

Cooling down--Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISEFREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months of regular exer-

cise, you may complete up to five workouts each

week, if desired. Remember, the key to success is to

make exercise a regular and enjoyable part of your

everyday life.

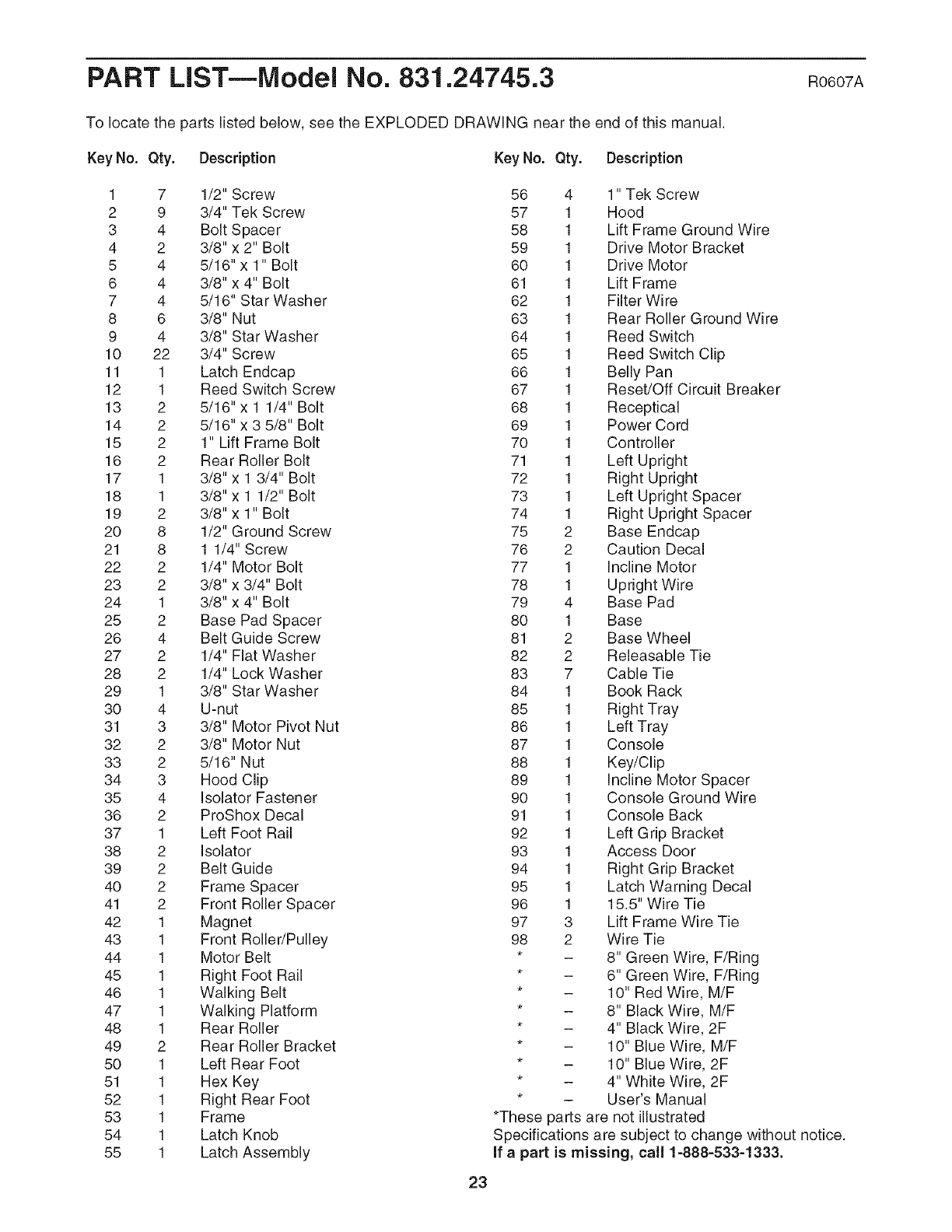

PART LiST--Model No. 831.24745.3 Ro6o7A

To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.

Key No. Qty. Description Key No. Qty. Description

1 7 1/2" Screw 56

2 9 3/4" Tek Screw 57

3 4 Bolt Spacer 58

4 2 3/8" x 2" Bolt 59

5 4 5/16"x 1" Bolt 60

6 4 3/8" x 4" Bolt 61

7 4 5/16" Star Washer 62

8 6 3/8" Nut 63

9 4 3/8" Star Washer 64

10 22 3/4" Screw 65

11 1 Latch Endcap 66

12 1 Reed Switch Screw 67

13 2 5/16" x 1 1/4" Bolt 68

14 2 5/16" x 3 5/8" Bolt 69

15 2 1" Lift Frame Bolt 70

16 2 Rear Roller Bolt 71

17 1 3/8" x 1 3/4" Bolt 72

18 1 3/8" x 1 1/2" Bolt 73

19 2 3/8" x 1" Bolt 74

20 8 1/2" Ground Screw 75

21 8 1 1/4" Screw 76

22 2 1/4" Motor Bolt 77

23 2 3/8" x 3/4" Bolt 78

24 1 3/8" x 4" Bolt 79

25 2 Base Pad Spacer 80

26 4 Belt Guide Screw 81

27 2 1/4" Flat Washer 82

28 2 1/4" Lock Washer 83

29 1 3/8" Star Washer 84

30 4 U-nut 85

31 3 3/8" Motor Pivot Nut 86

32 2 3/8" Motor Nut 87

33 2 5/16" Nut 88

34 3 Hood Clip 89

35 4 Isolator Fastener 90

36 2 ProShox Decal 91

37 1 Left Foot Rail 92

38 2 Isolator 93

39 2 Belt Guide 94

40 2 Frame Spacer 95

41 2 Front Roller Spacer 96

42 1 Magnet 97

43 1 Front Roller/Pulley 98

44 1 Motor Belt *

45 1 Right Foot Rail *

46 1 Walking Belt *

47 1 Walking Platform *

48 1 Rear Roller *

49 2 Rear Roller Bracket *

50 1 Left Rear Foot *

51 1 Hex Key *

52 1 Right Rear Foot *

53 1 Frame

54 1 Latch Knob

55 1 Latch Assembly

1" Tek Screw

Hood

Lift Frame Ground Wire

Drive Motor Bracket

Drive Motor

Lift Frame

Filter Wire

Rear Roller Ground Wire

Reed Switch

Reed Switch Clip

Belly Pan

Reset/Off Circuit Breaker

Receptical

Power Cord

Controller

Left Upright

Right Upright

Left Upright Spacer

Right Upright Spacer

Base Endcap

Caution Decal

Incline Motor

Upright Wire

Base Pad

Base

Base Wheel

Releasable Tie

Cable Tie

Book Rack

Right Tray

Left Tray

Console

Key/Clip

Incline Motor Spacer

Console Ground Wire

Console Back

Left Grip Bracket

Access Door

Right Grip Bracket

Latch Warning Decal

15.5" Wire Tie

Lift Frame Wire Tie

Wire Tie

8" Green Wire, F/Ring

6" Green Wire, F/Ring

10" Red Wire, M/F

8" Black Wire, M/F

4" Black Wire, 2F

10" Blue Wire, M/F

10" Blue Wire, 2F

4" White Wire, 2F

User's Manual

*These parts are not illustrated

Specifications are subject to change without notice.

If a part is missing, call 1-888-533-1333.

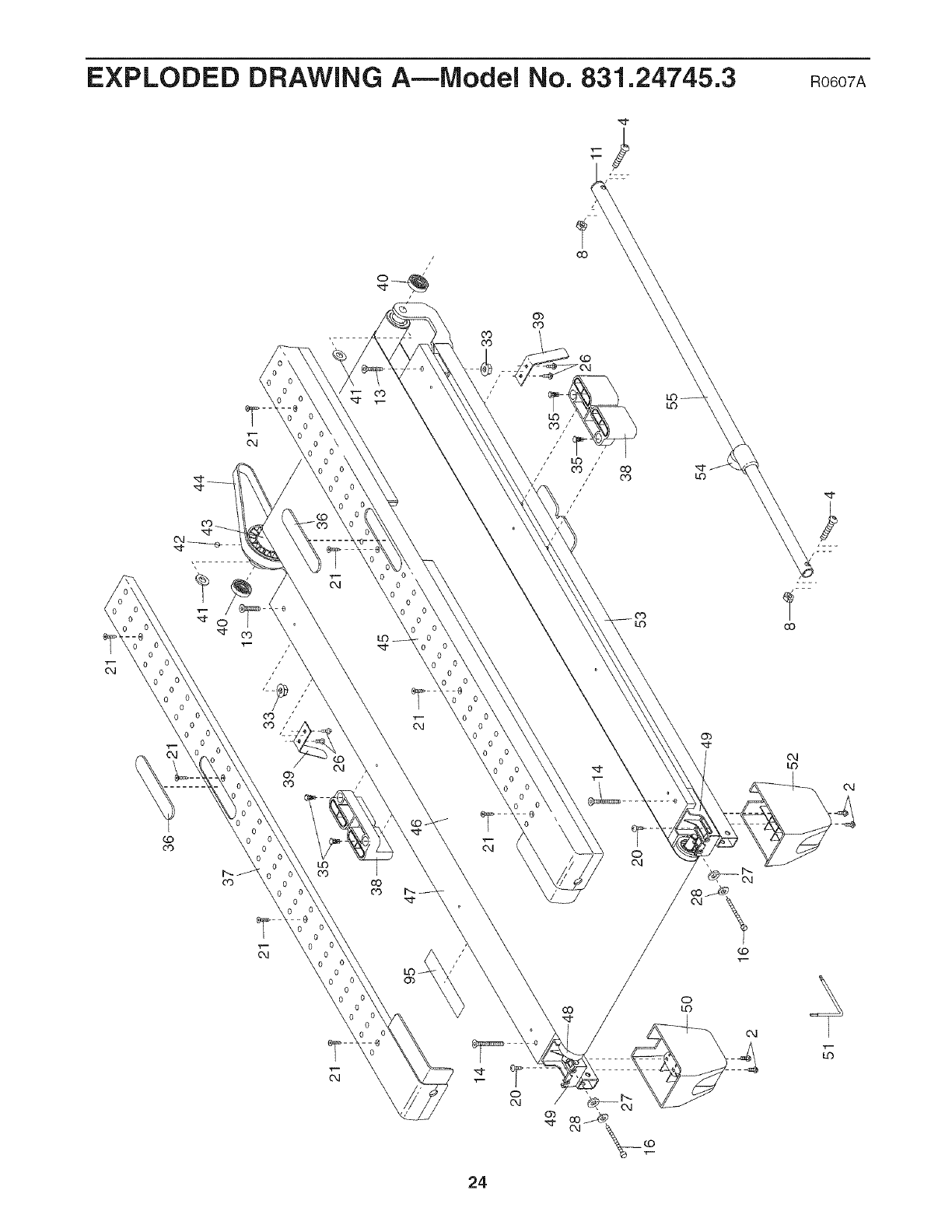

EXPLODED DRAWING A--IVlodei No. 831.24745.3 Ro6ozA

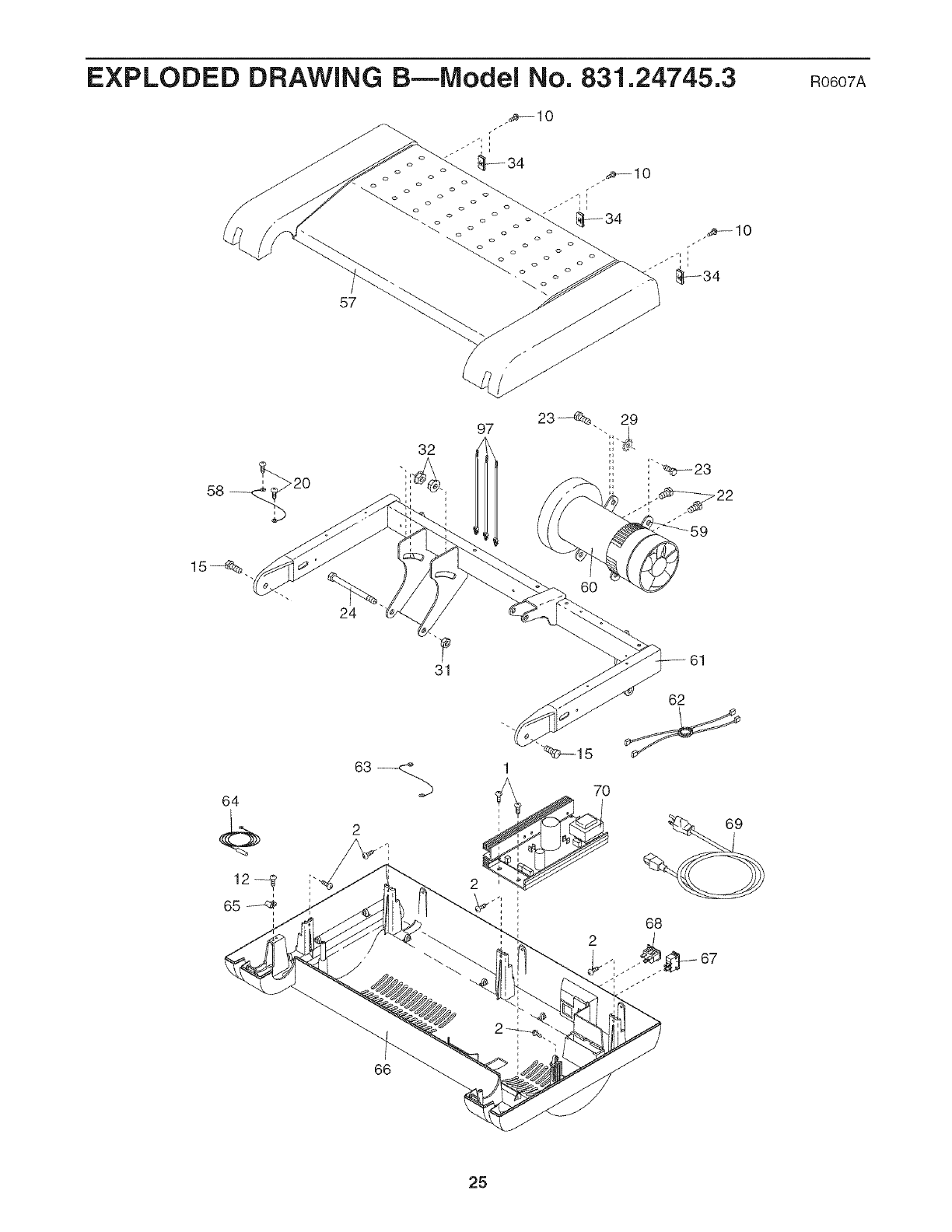

EXPLODED DRAWING B--IVlodei No. 831.24745.3

o°

RO607A

63 1

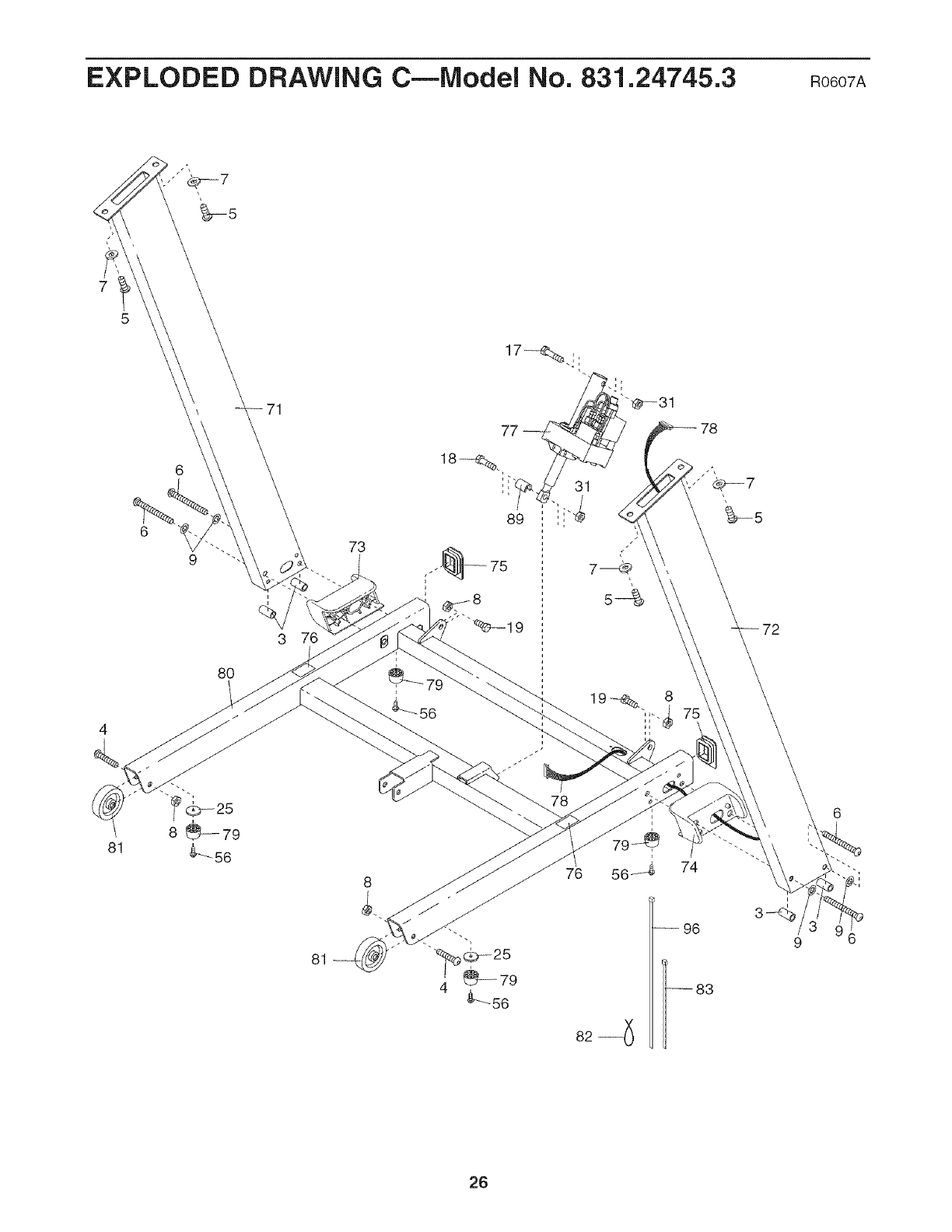

EXPLODED DRAWING C--lVlodei No. 831.24745.3 Ro6ozA

876 56 _ 74

EXPLODED DRAWING D--Model No. 831.24745.3 Ro6o7A

91 /10

Your Home

For repair--in your home--of all major brand appliances, lawn and garden equipment,

® Registered Trademark /TMTrademark /SMService Mark of Sears Brands, LLC

® Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears Brands, LLC

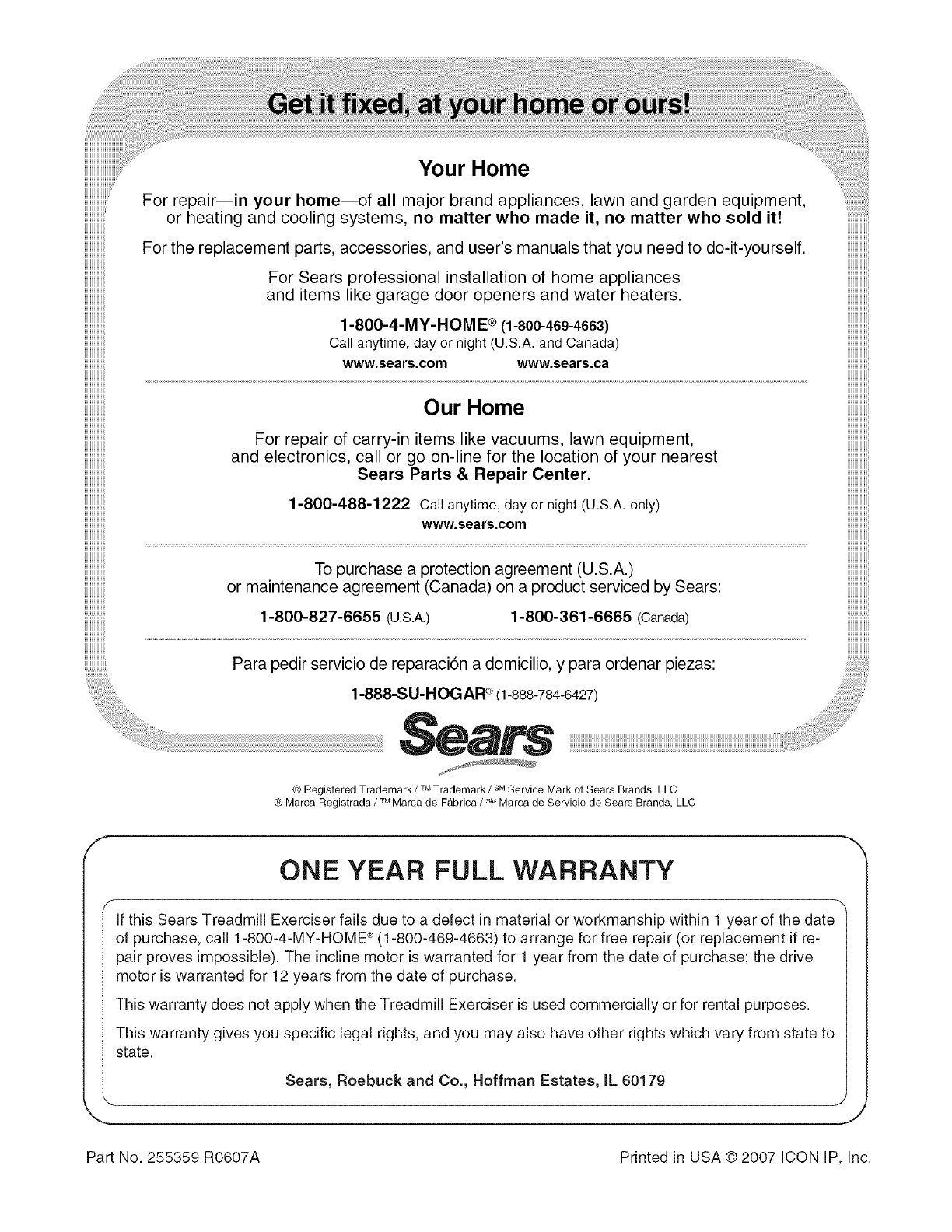

ONE YEAR FULL WARRANTY

If this Sears Treadmill Exerciser fails due to a defect in material or workmanship within 1 year of the date

of purchase, call 1-800-4-MY-HOME ®(1-800-469-4663) to arrange for free repair (or replacement if re-

pair proves impossible). The incline motor is warranted for 1 year from the date of purchase; the drive

motor is warranted for 12 years from the date of purchase.

This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Proform 831247453 User Manual TREADMILL Manuals And Guides L0712442

PROFORM Treadmill Manual L0712442 PROFORM Treadmill Owner's Manual, PROFORM Treadmill installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
