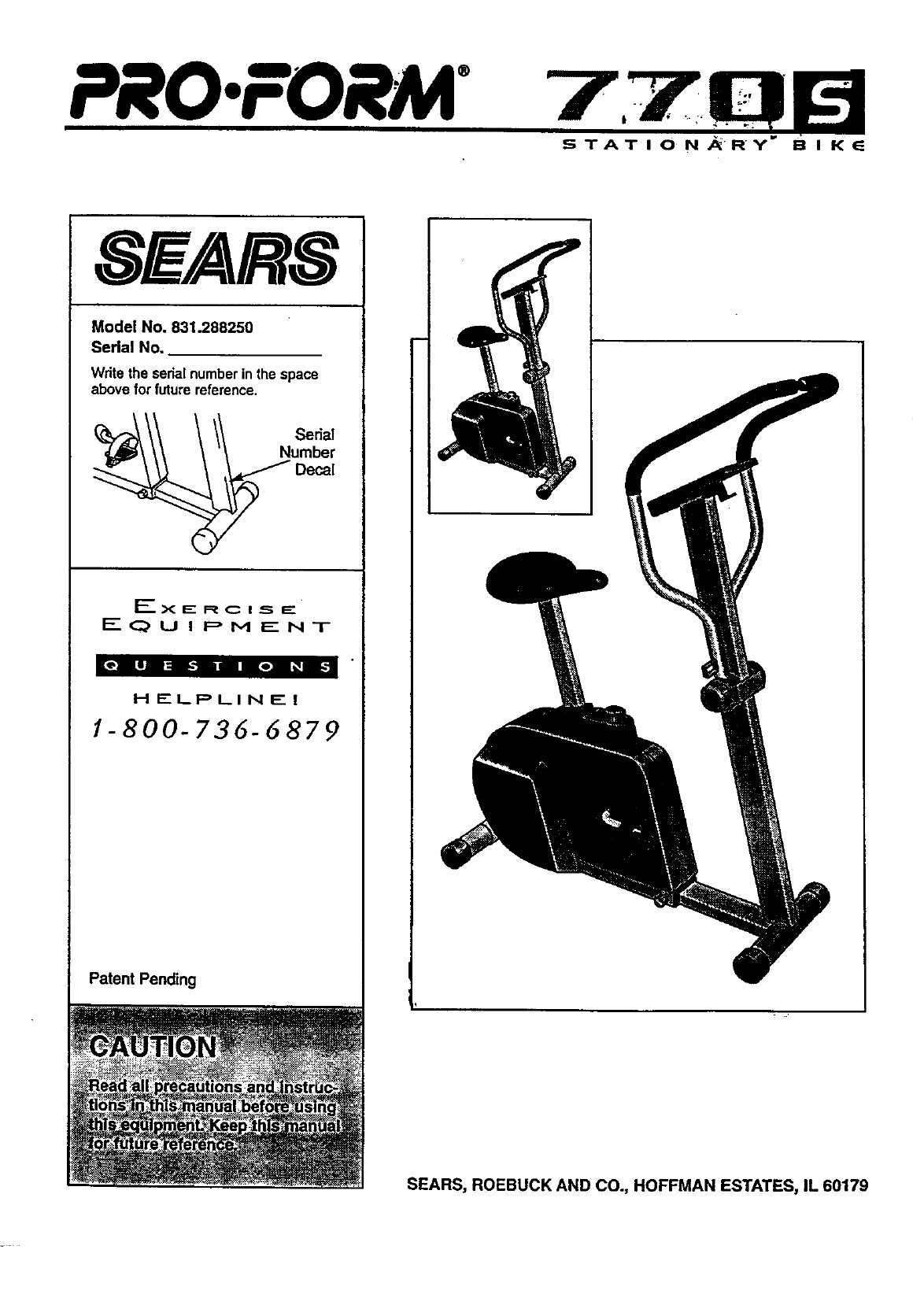

PRO fORM 7,7.BEI

S TAT I O N ._ R Y" B I K E

SWARS

Model No. 831.288250

Serial No.

Write the serialnumberin the space

abovefor futurereference.

Sedal

Number

't Decal

_--X E: R C I SE:

EQUIPMENT

HELPLINEI

1-800-72t6-6879

Patent Pending

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

PRO'FORM 77D

STATIONARY BIKE

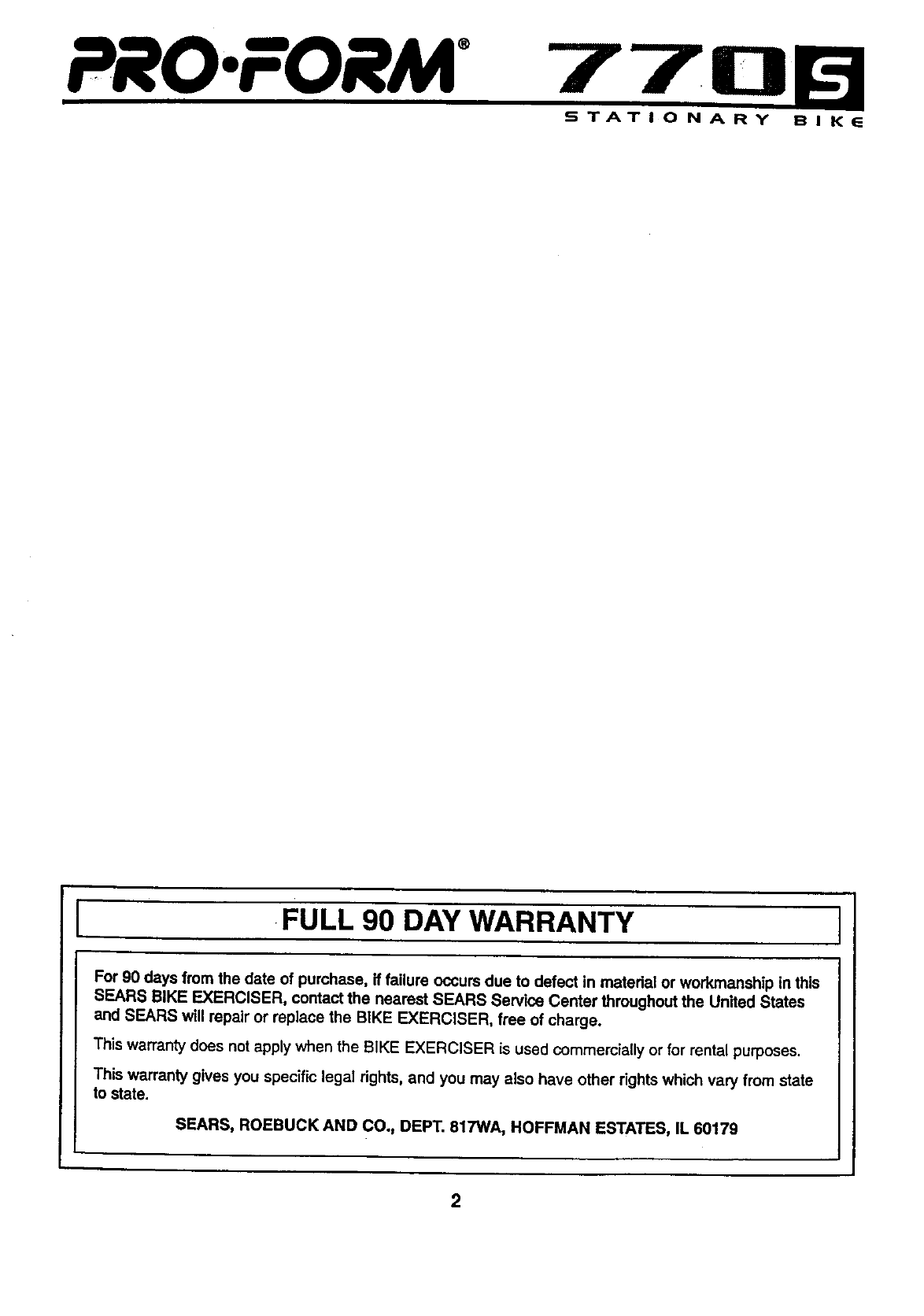

,FULL 90 DAY WARRANTY I

For 90 days from the date of purchase, if failure occurs due to defect in matedal or workmanship in this

SEARS BIKE EXERCISER, contact the nearest SEARS Service Center throughout the United States

and SEARS will repair or replace the BIKE EXERCISER, free of charge.

This warranty does not apply when the BIKE EXERCISER is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state,

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

TABLE OF CONTENTS

FULL 90 DAY WARRANTY .......................................... ";::..? _...'...:r.. _'..... .:.'

IMPORTANT PRECAUTIONS .......................................... _,................... 3

BEFORE YOU BEGIN ,.,>; ........ 4

•.o., . ..,.. *• • .... o , . ° °° ° o ° ° o . °.• ,, ° •

°.*o ,. ° * ° ° o,° °. *° • °, ,.

PART IDENTIFICATION CHART ..................................... '...................... 5

ASSEMBLY ........................................................................... 6

HOW TO USE THE PROFORM 770S ....................................................... 8

CONDITIONING GUIDELINES ............................................................ 10

MAINTENANCE AND STORAGE .......................................................... 12

NOTES ............................................................................. 13

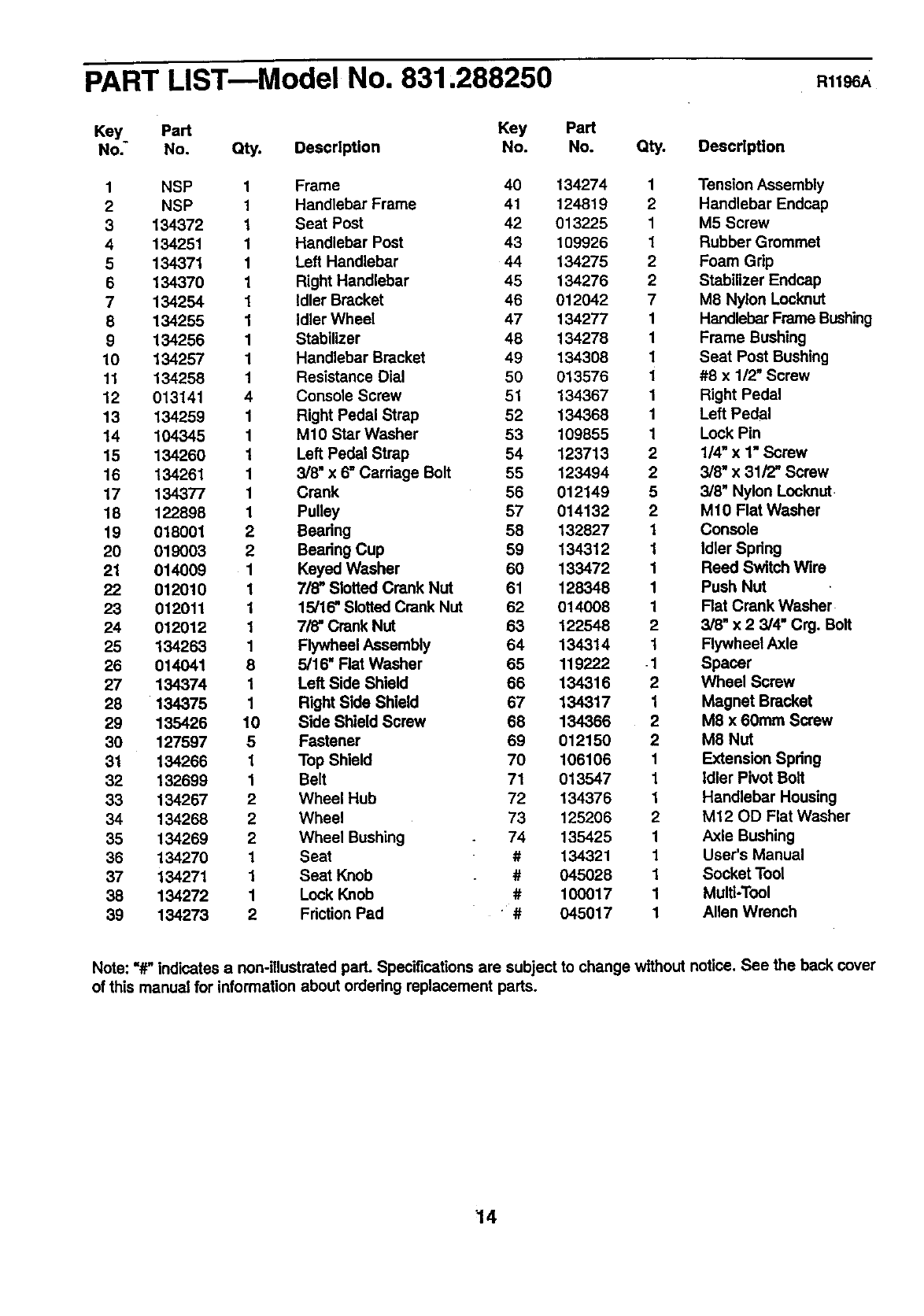

PART LIST ........................................................................... 14

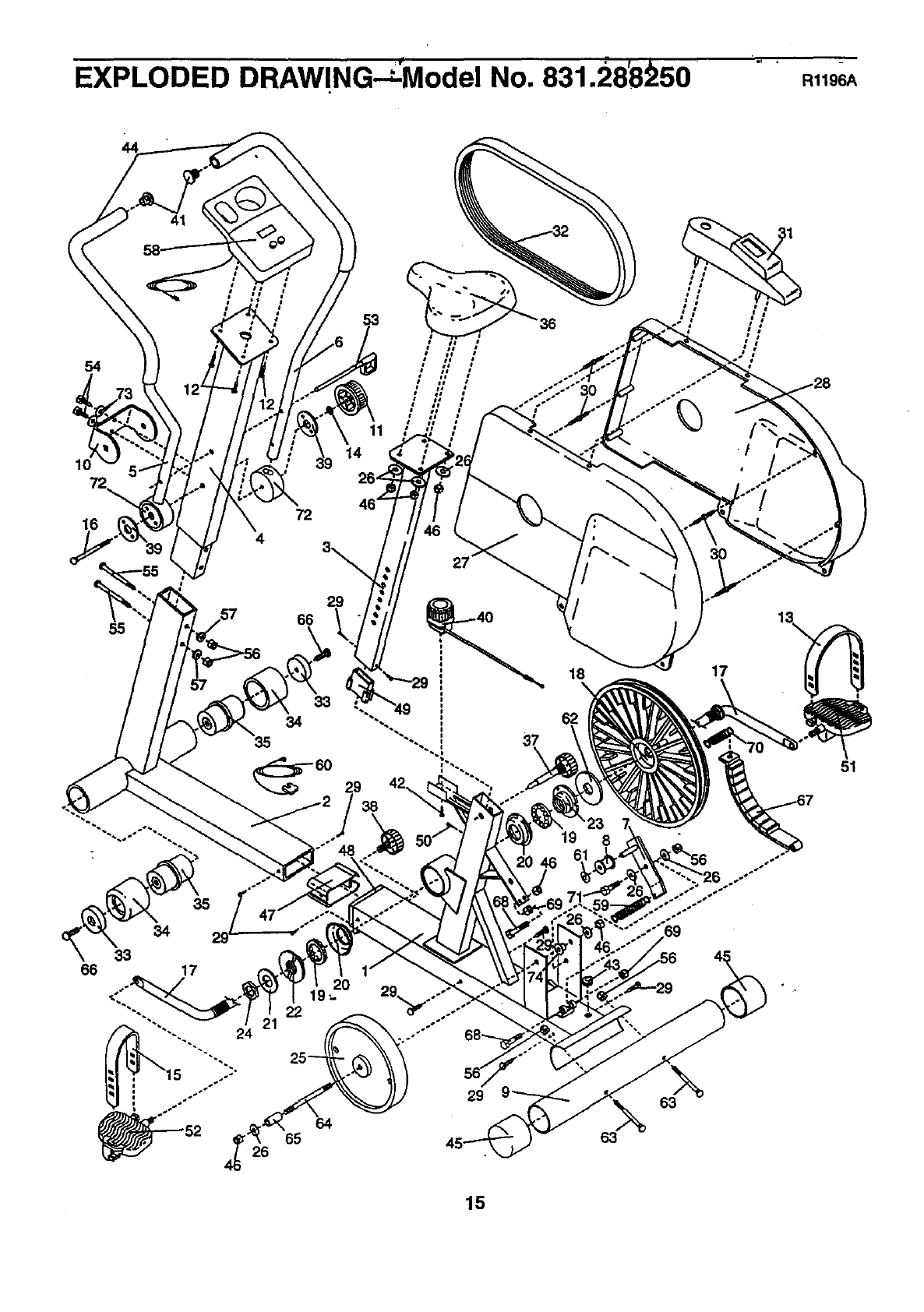

EXPLODED DRAWING .......................................................... ....... 15

ORDERING REPLACEMENT PARTS ................................................ Back Cover

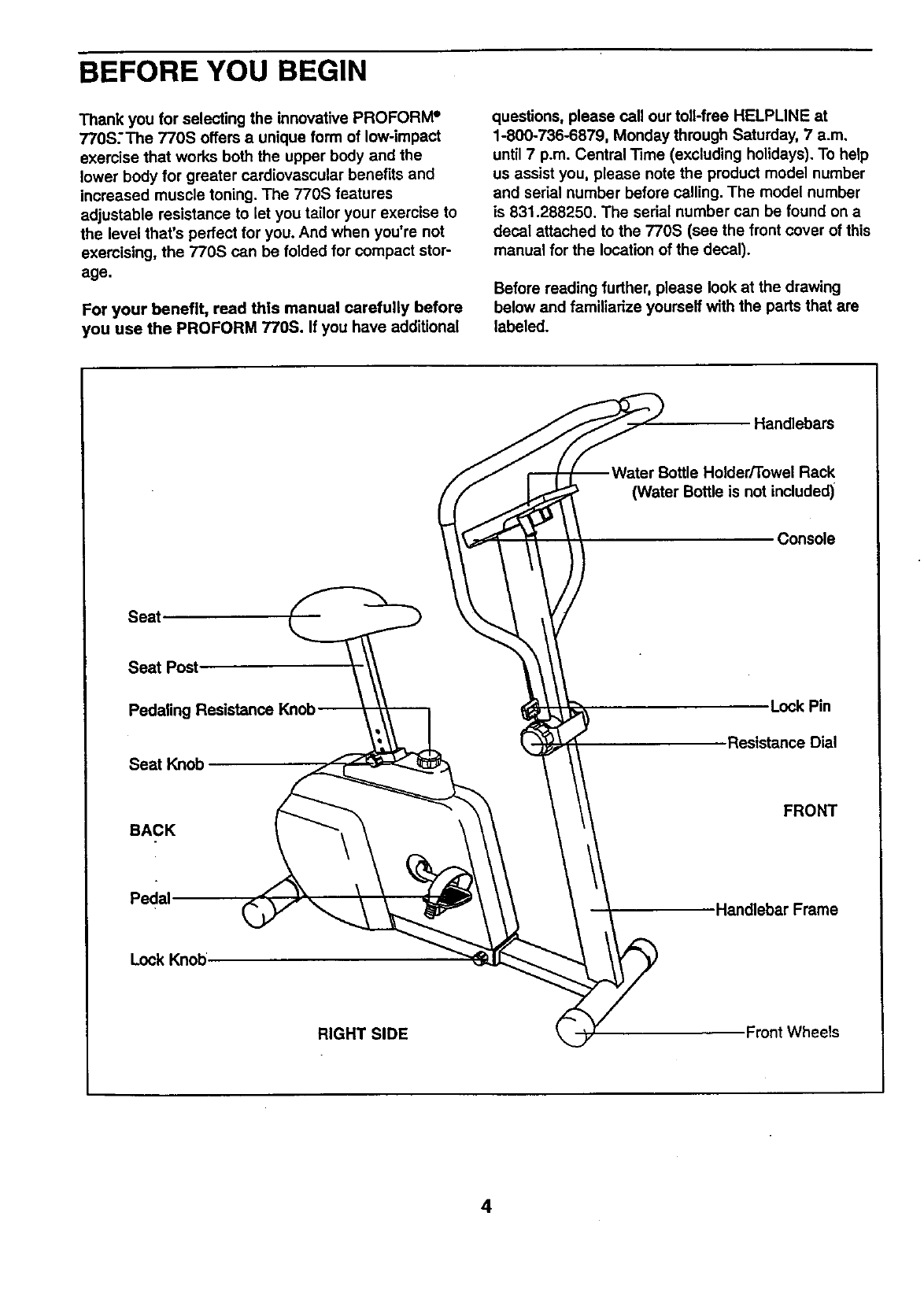

BEFORE YOU BEGIN

Thank you for selecting the innovative PROFORIVP

770S-The 770S offers a unique form of low-impact

exercise that works both the upper body and the

lower body for greater cardiovascular benefits end

increased muscle toning. The 770S features

adjustable resistance to let you tailor your exercise to

the level that's perfect for you. And when you're not

exemising, the 770S can be folded for compact stor-

age.

For your benefit, read this manual carefully before

you use the PROFORM 770S. If you have additional

questions, please call our toll-free HELPLINE at

1-800-736-6879, Monday through Saturday, 7 a.m.

until 7 p.m. Central Time (excluding holidays). To help

us assist you, please note the product model number

and serial number before calling. The model number

is 831.288250. The sedal number can be found on a

decal attached to the 770S (see the front cover of this

manual for the location of the decal).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Handlebars

Holder/Towel Rack

(Water Bottle is not included)

Console

Seat

Seat Post

Pedaling Resistance I

Seat Knob

Lock Pin

.Resistance Dial

BACK

FRONT

Pedal H_dle_rFmme

Lock Knob,

RIGHT SIDE •Front Wheels

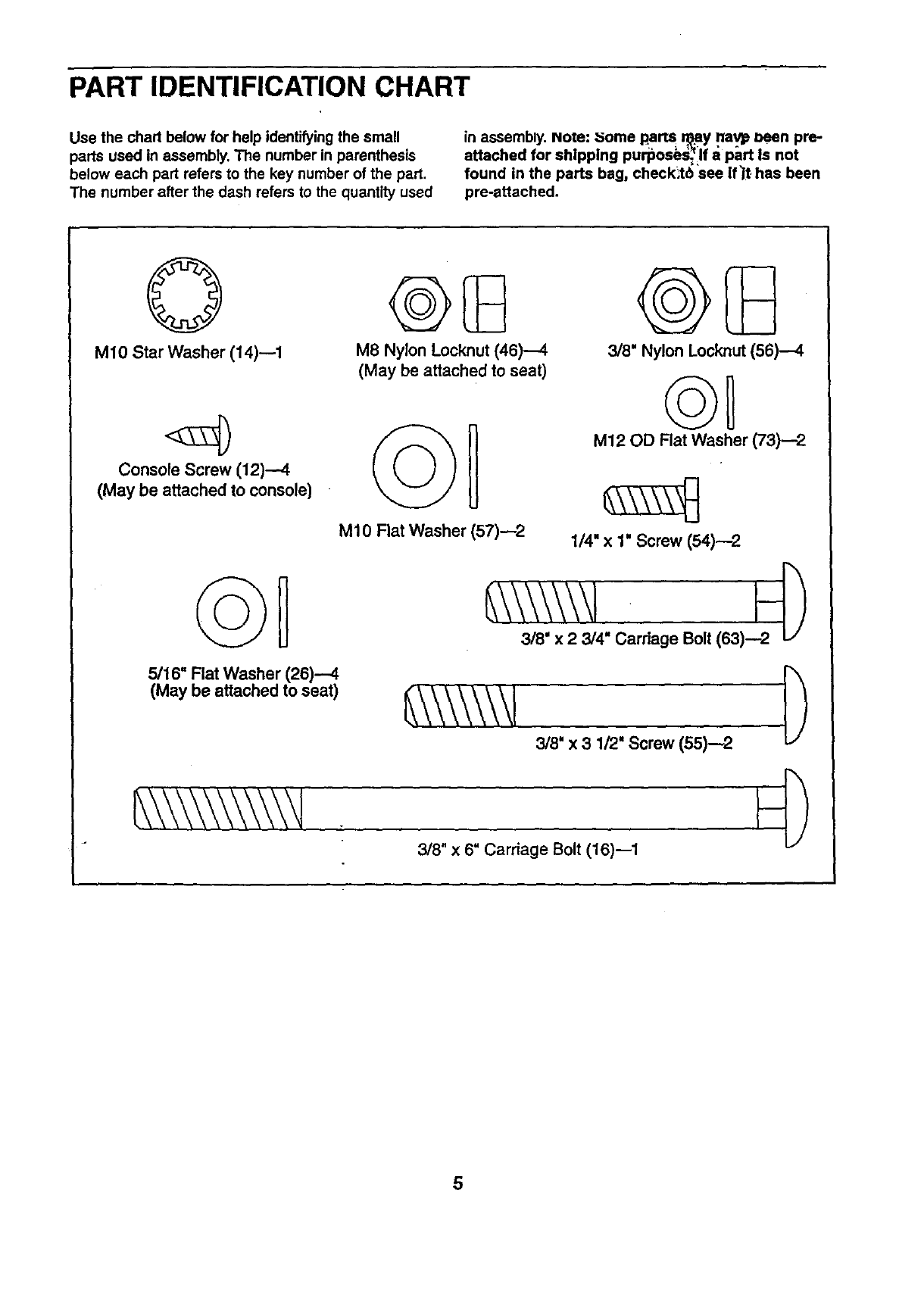

PART IDENTIFICATION CHART

Use the chart below for help identifying the small

parts used in assembly. The number in parenthesis

below each part refers to the key number of the part.

The number after the dash refers to the quantity used

in assembly. Note: :Some p.arts .K_a.y r/av# been pre-

attached for shipping purpos_:_ilf _;p;art is not

found in the parts bag, check;tt_ see If "Jr,has been

pre-sttached.

MIO Star Washer (14)--1

Console Screw (12)--4

(May be attached to console)

5/16" Flat Washer (26)--4

(May be attached to seat)

M8 Nylon Locknut (46)--4

(May be attached to seat)

M10 Flat Washer (57)--2

3/8' Nylon Locknut(56)--4

M12 OD Flat Washer (73)--2

1/4" x 1" Screw (54)--2

_\\\\\\\}3/8' x 23/4" carriage Bolt (63)--2_

3/8" x3 1/2" Screw (55)--2

3/8" x 6" Carriage Bolt (16)--1

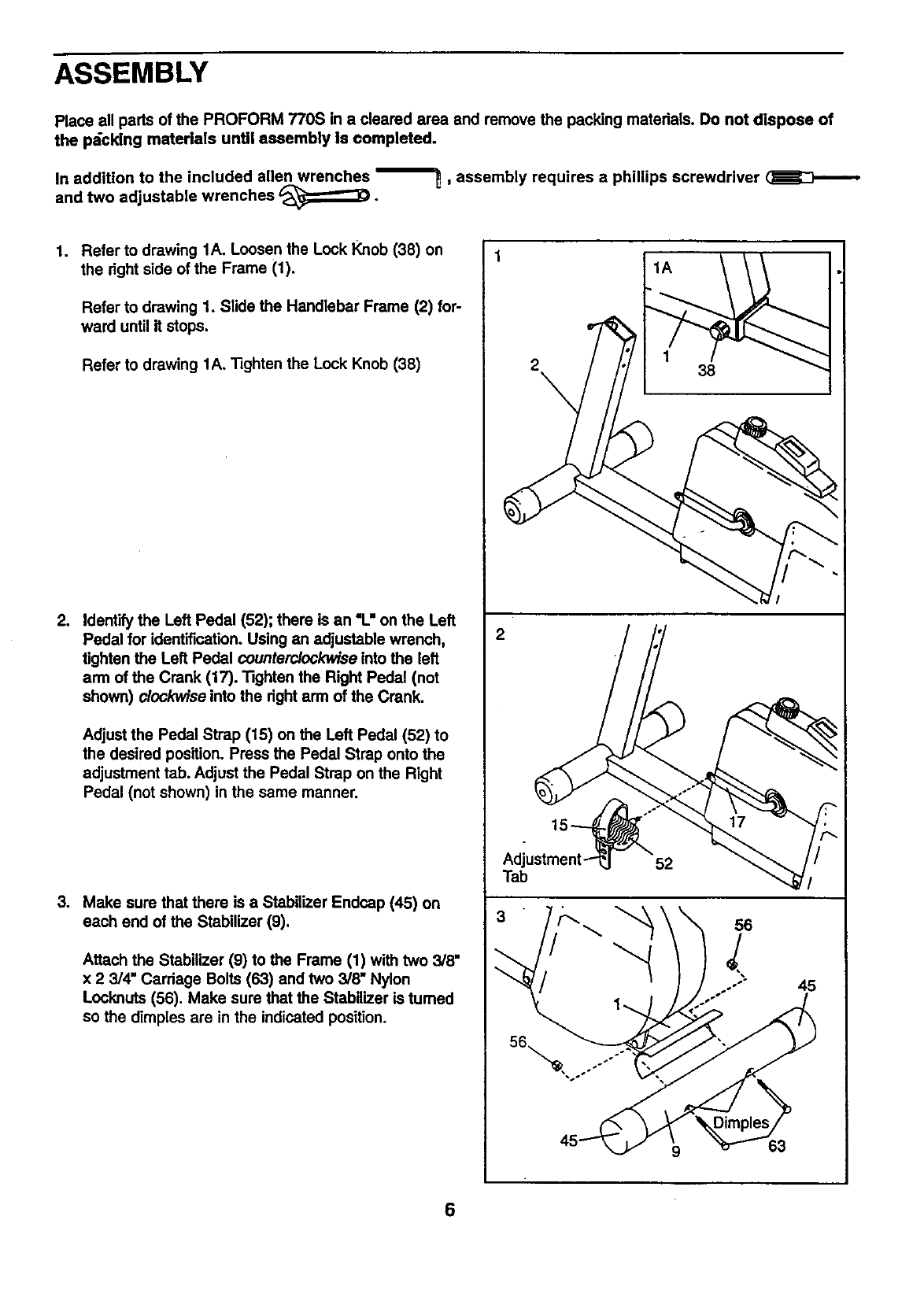

ASSEMBLY

Place all parts of the PROFORM 770S in a cleared area and remove the packing materials. Do not dispose of

the p_cidng materials until assembly Is completed.

In addition to the included allen wrenches _, assembly requires aphillips screwdriver

and two adjustable wrenches _;;=:::=::_3.

1. Refer to drawing 1A, Loosen the Lock Knob (38) on

the right side of the Frame (1).

Refer to drawing 1. Slide the Handlebar Frame (2) for-

ward until it stops.

Refer to drawing 1A. Tighten the Lock Knob (38)

2. Identify the Left Pedal (52); there is an %" on the Left

Pedal for identification. Using an adjustable wrench,

tighten the Left Pedal counterclockwise into the left

arm of the Crank (17). _ghten the Right Pedal (not

shown) clockwise into the right arm of the Crank.

Adjust the Pedal Strap (15) on the Left Pedal (52) to

the desired position. Press the Pedal Strap onto the

adjustment tab. Adjust the Pedal Strap on the Right

Pedal (not shown) in the same manner.

3, Make sure that there is a Stabilizer Endcap (45) on

each end of the Stabilizer (9).

Attach the Stabilizer (9) to the Frame (1) with two 3/8"

x 2 3/4" Carriage Bolts (63) and two 3/8" Nylon

Locknuts (56), Make sure that the Stabilizer is turned

so the dimples are in the indicated position.

Adj

Tab

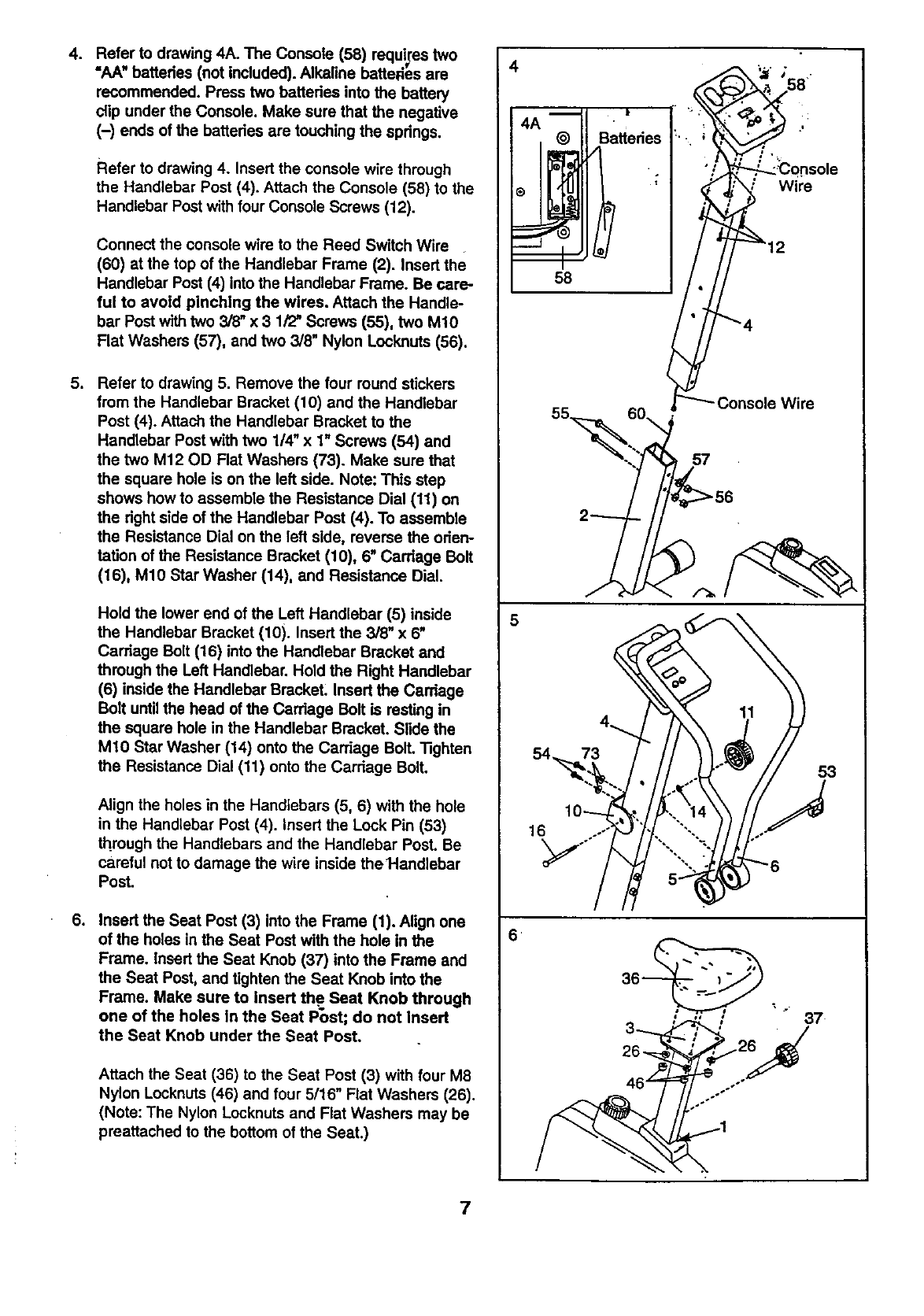

Refer to drawing 4A. The Console (58) requires two

"AA" batteries (not included). Alkaline batteries are

recommended. Press two battedes into the battery

clip under the Console. Make sure that the negative

(-) ends of the battedss are touching the epdngs.

Refer to drawing 4. Insert the console wire through

the Handlebar Post (4). Attach the Console (58) to the

Handlebar Post with four Console Screws (12).

Connect the console wire to the Reed Switch Wire

(60) at the top of the Handlebar Frame (2). Insert the

Handlebar Post (4) into the Handlebar Frame. Be care-

ful to avoid pinching the wires. Attach the Handle-

bar Post withtwo 3/8" x 3 1/2" Screws (55), two M10

Flat Washers (57), and two 3/8" Nylon Locknuts (56).

.Refer to drawing 5. Remove the four round stickers

from the Handlebar Bracket (10) and the Handlebar

Post (4). Attach the Handlebar Bracket to the

Handlebar Post with two 1/4" x 1" Screws (54) and

the two M12 OD Flat Washers (73). Make sure that

the square hole is on the left side. Note: This step

shows how to assemble the Resistance Dial (11) on

the dght side of the Handlebar Post (4). To assemble

the Resistance Dial on the left side, reverse the orien-

tation of the Resistance Bracket (10), 6" Carriage Bolt

(16), M10 Star Washer (14), and Resistance Dial.

Hold the lower end of the Left Handlebar (5) inside

the Handlebar Bracket (10). Insert the 3/8" x 6"

Carriage Bolt (16) into the Handlebar Bracket and

through the Left Handlebar. Hold the Right Handlebar

(6) inside the Handlebar Bracket_ Insert the Carriage

Bolt untilthe head of the Carriage Bolt is resting in

the square hole in the Handlebar Bracket. Slide the

M10 Star Washer (14) onto the Carriage Bolt. "13ghten

the Resistance Dial (11) onto the Carriage Bolt.

Align the holes in the Handlebars (5, 6) with the hole

in the Handlebar Post (4). Insert the Lock Pin (53)

through the Handlebars and the Handlebar Post. Be

careful not to damage the wire inside theHandlebar

Post.

6, Insert the Seat Post (3) into the Frame (1). Align one

of the holes in the Seat Post with the hole in the

Frame. Insert the Seat Knob (37) into the Frame and

the Seat Post, and tighten the Seat Knob into the

Frame. Make sure to Insert the Seat Knob through

one of the holes In the Seat P'ost; do not Insert

the Seat Knob under the Seat Post.

Attach the Seat (36) to the Seat Post (3) with four M8

Nylon Locknuts (46) and four 5/16" Flat Washers (26).

(Note: The Nylon Locknuts and Flat Washers may be

preattached to the bottom of the Seat.)

4A m

@Ba_edes

58 _"

wire

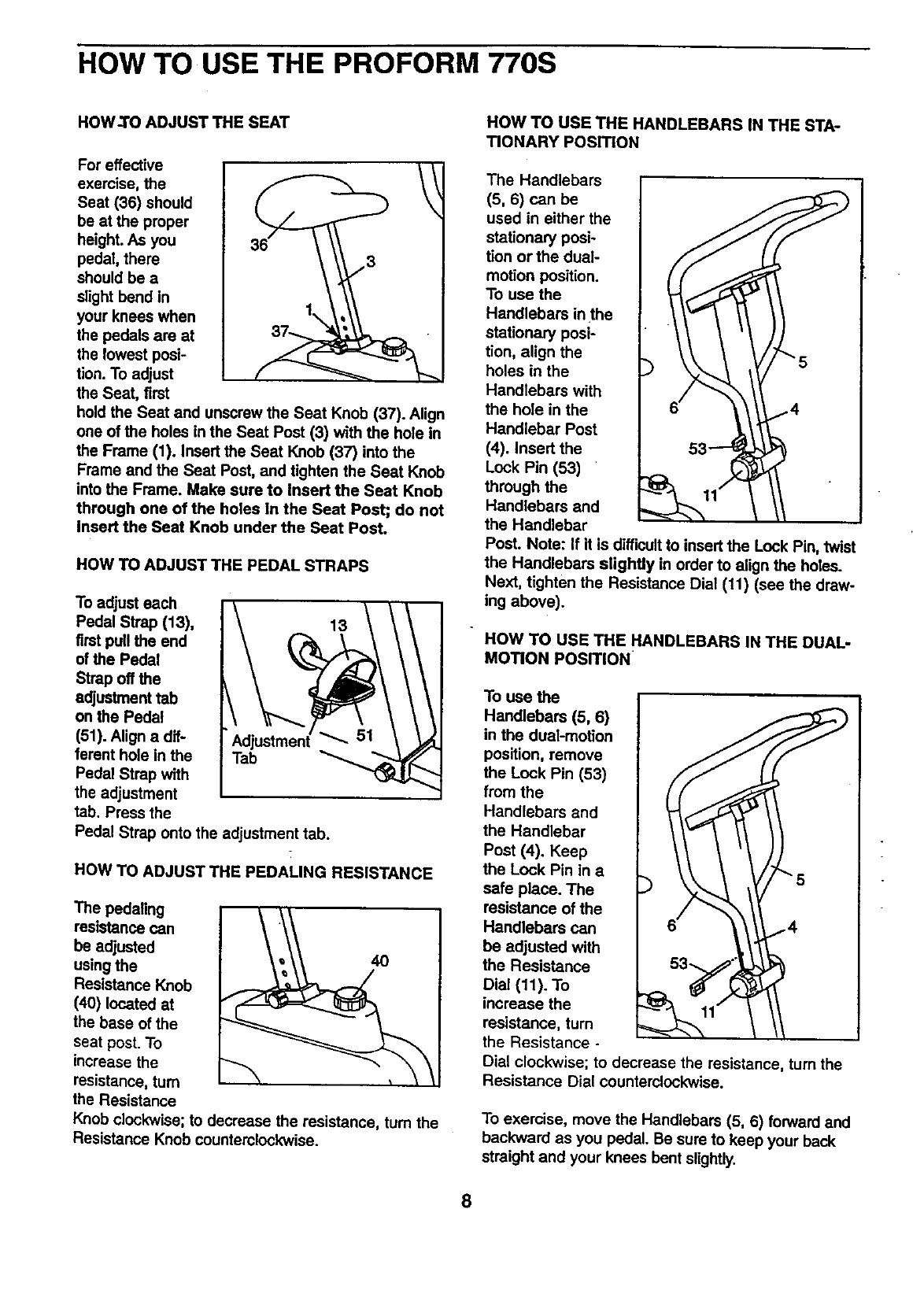

HOW TO USE THE PROFORM 770S

HOW-TO ADJUST THE SEAT

For effective

exercise, the

Seat (36) should

be at the proper

height. As you

pedal, there

should be a

slight bend In

your knees when

the pedals are at

the lowest posi-

tion. To adjust

the Seat, first

hold the Seat and unscrew the Seat Knob (37). Align

one of the holes in the Seat Post (3) with the hole in

the Frame (1). Insert the Seat Knob (37) into the

Frame and the Seat Post, and tighten the Seat Knob

into the Frame. Make sure to Insert the Seat Knob

through one of the holes in the Seat Post; do not

Insert the Seat Knob under the Seat Post.

HOW TO ADJUST THE PEDAL STRAPS

To adjust each

Pedal Strap (13), 13

first pull the end

of the Pedal

Strap off the

adjustment tab

on the Pedal

(51). Align a dif-

ferent hole in the Tab

Pedal Strap with

the adjustment

tab. Press the

Pedal Strap onto the adjustment tab.

HOW TO ADJUST THE PEDALING RESISTANCE

The pedaling

resistance can

be adjusted

using the

Resistance Knob

(40) located at

the base of the

seat post. To

increase the

resistance, turn

the Resistance

Knob clockwise; to decrease the resistance, turn the

Resistance Knob counterclockwise.

HOW TO USE THE HANDLEBARS IN THE STA-

TIONARY POSITION

The Handlebars

(5, 6) can be

used in either the

stationary posi-

tion or the dual-

motion position.

To use the

Handlebars in the

stationary posi-

tion, align the

holes in the _)

Handlebars with

the hole in the

Handlebar Post

(4). Insert the

Lock Pin (53)

through the

Handlebars and

the Handlebar

Post. Note: If it is difficult to insert the Lock Pin, twist

the Handlebars slightly in order to align the holes.

Next, tighten the Resistance Dial (11) (see the draw-

ing above).

HOW TO USE THE HANDLEBARS IN THE DUAL-

MOTION POSITION

To use the

Handlebars (5, 6)

in the dual-motion

position, remove

the Lock Pin (53)

from the

Handlebars and

the Handlebar

Post (4). Keep

the Lock Pin in a

safe place. The

resistance of the

Handlebars can

be adjusted with

the Resistance

Dial (11). To

increase the

resistance, turn

the Resistance -

Dial clockwise; to decrease the resistance, turn the

Resistance Dial counterclockwise.

To exercise, move the Handlebars (5, 6) forward and

backward as you pedal. Be sure to keep your back

straight and your knees bent slightly.

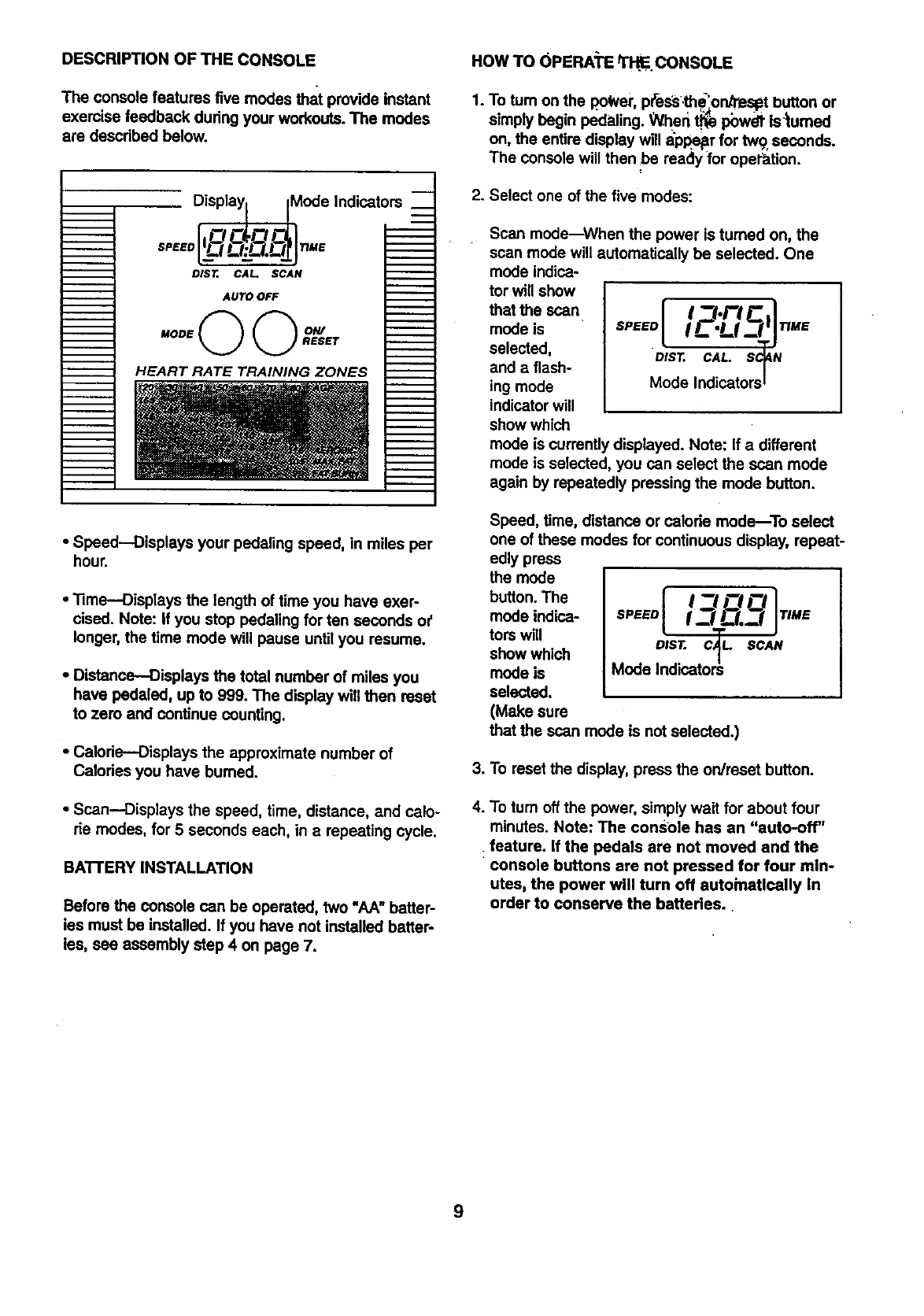

DESCRIPTION OF THE CONSOLE

The console features five modes that provide instant

exercise feedback during your workouts. The modes

are described below.

fDispla, !.ede,ndicato

DIST, CAL SCAN

AUTO OFF

HEART RATE TRAINING ZONES

• Speed_isplays your pedafing speed, in miles per

hour.

•"lime--Displays the length of time you have exer-

cised. Note: If you stop pedaling for ten seconds of

longer, the time mode will pause untilyou resume•

•Distance--Displays the total number of miles you

have pedaled, up to 999. The display will then reset

to zero and continue counting.

•Calorie---Displays the approximate number of

Calories you have bumed.

•Scan--Displays the speed, time, distance, and calo-

rie modes, for 5 seconds each, in arepeating cycle.

BATTERY INSTALLATION

Before the console can be operated, two "AA" batter-

ies must be installed. If you have not installed batter-

ies, see assembly step 4 on page 7.

HOW TO 0PERA:rE tI'HE.CONSOLE

1. To tum on the poWel', p{e_.the-'on/resl_t button or

atmply begin pedaling. When t_ powe'1"Is_umed

on, the entire display will e_ppe_rfor twq.seconds.

The consola will then be ready for operation.

2. Select one of the five modes:

Scan mode--When the power is turned on, the

scan mode will automaUcally be selected. One

mode indica-

tor wifl show

that the scan

mode is

selected,

and aflash-

ing mode

indicator will

show which

I/--t'FtCII

=,,eeo[IL-'LrJ J

mode is currently displayed. Note: If a different

mode is selected, you can select the scan mode

again by repeatedly pressing the mode button.

Speed, time, distance or calode mode--To select

one of these modes for continuous display, repeat-

edly press

the mode

button. The

mode indica-

tors will

show which

mode is

selected.

(Make sure

that the scan mode is not selected.)

3. To reset the display, press the on/reset button.

.To turn off the power, simply wait for about four

minutes. Note: The cone_olehas an "auto-off"

feature. If the pedals are not moved and the

console buttons are not pressed for four min-

utes, the power will turn off autoinaUcally In

order to conserve the batteries. •

CONDITIONING GUIDELINES

The following general guideUnes will help you to plan

your exercise program. Remember that proper nutri-

tion and adequate rest are essential for successful

results.

EXERCISEINTENSITY

Whether your goal is to burn fat or strengthen your

cardiovascular system, the key to achieving the

desi_d results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning, maximum fat

burning, and cardiovascular (aerobic) exercise.

HEART RATE TRAINING ZONES

To find the proper heart rate for you, first find your age

near the top of the chart (ages are rounded off to the

nearest ten years). Next, look below your age and

find the three numbers in grey boxes. The three num-

bers are your "training zone." The lowest number is

the recommended heart rate for fat burning; the mid-

dle number Is the recommended heart rate for maxi-

mum fat burning; the highest number is the recom-

mended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at arelative-

ly low intensity level for a sustained period of time.

Dudng the first few minutes of exercise, your body

uses easily accessible carbohydrate caiodes for ener-

gy. Only after the first few minutes of exercise does

your body begin to use stored fat calodes for energy.

If your goal is to bum fat, adjust the intensity of your

exercise until your heart rate is near the lowest num-

ber in your training zone as you exercise.

For maximum fat burning, adjust the intensity of your

exercise until your heart rate is near the middle num-

ber in your training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be "aerobic."Aerobic exer-

cise is activity that requires large amounts of oxygen

for prolonged periods of time. This increases the

demand on the heart to pump blood to the muscles,

and on the lungs to oxygenate the blood. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number In your

training zone.

HOW TO MEASURE YOUR HEART RATE

To measure your heart rate, first exercise for at least

four minutes. Then, stop exercising and pisce two fin-

gers on your

wdst as

shown. Take a

six-second

heartbeat

count, and

multiply the

result by 10 to

find your heart

rate. For

example, if

your six-sec-

ond heartbeat

count is 14, your heart rate is 140 beats per minute.

(A six-second count is used because your heart rate

will drop rapidly when you stoP exercising.)

Adjust the intensity of your exercise until your heart

rate is at the desired level. You can adjust the intensi-

ty of your exercise by changing your pedaling speed,

adjusting the pedaling resistance, or using the handle-

bars in the dual-motion position.

WORKOUT GUIDEUNES

Each workout should include the following three parts:

A warm-up, lasting 5 tO 10 minutes. Begin with slow,

controlled stretches, and progress to more rhythmic

stretches to increase the body temperature, heart

rate, and circulation in preparation for strenuous exer-

cise. (See SUGGESTED STRETCHES on page 11.)

Training zone exercise, consisting of 20 to 3_min-

utes of exercising with your heart rate in your training

zone.

A cool-down, with 5 to 10 minutes of stretching.

Thorough stretching helps to offset problems caused

when you stop exemising suddenly. Stretching for

increased flexibility is also most effective after exercis-

ing. A proper cool-down should leave you relaxed and

comfortably tired.

EXERCISE FREQI_IERC¥

To maintain or improve you_ Oond_!on;'pl_l}lthree

workouts each week_ with _t leas_ne da_ of'rest

between workouts. After a few mqnths of r_egularexer-

cise, you may completeup to five Workouts each

week, if desired.

Remember, the key to success is make exercise a

regular and enjoyable part of your everyday life.

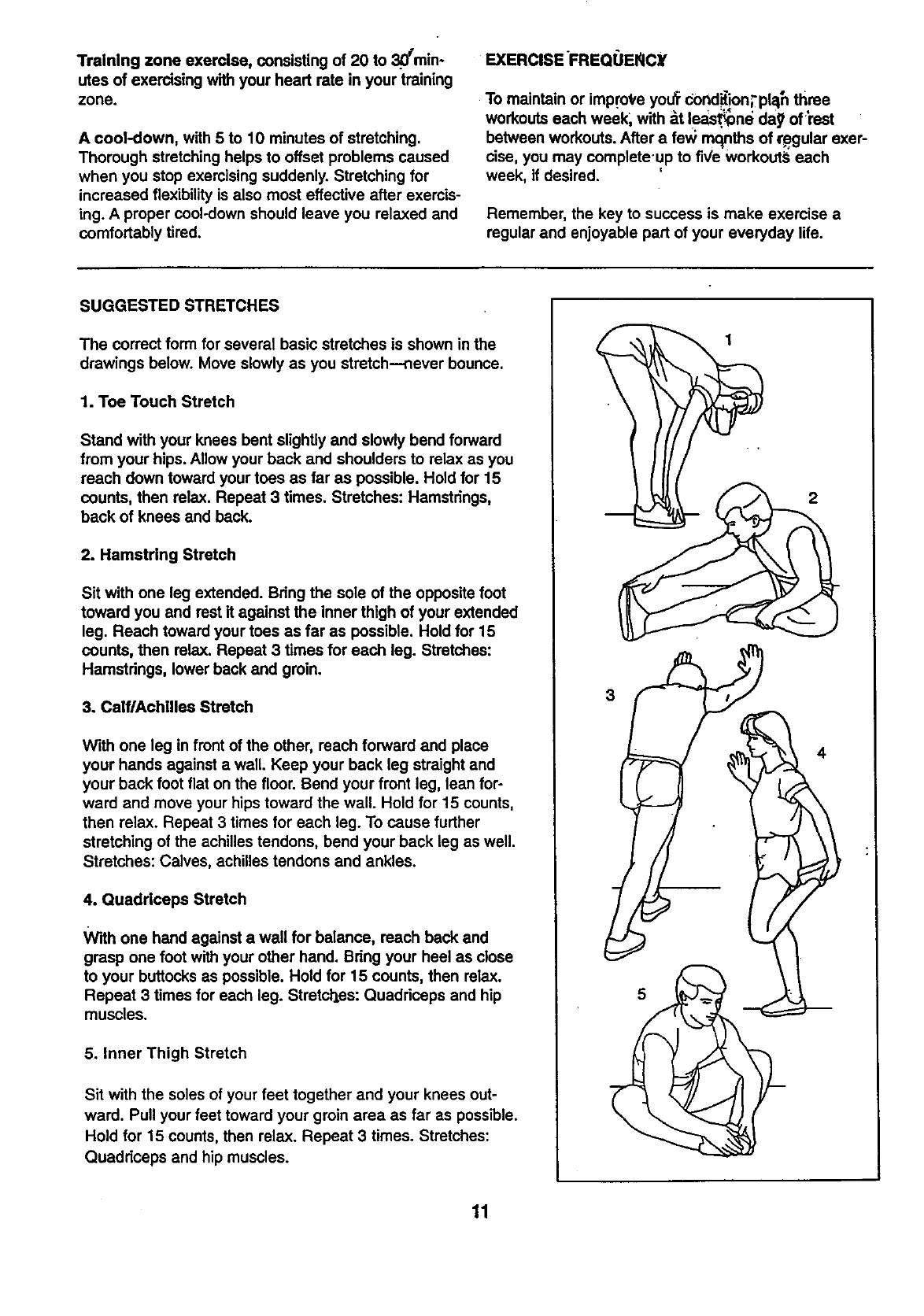

SUGGESTED STRETCHES

The correct form for several basic stretches is shown in the

drawings below. Move slowly as you stretch--never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward

from your hips. Allow your back and shoulders to relax as you

reach down toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Hamstrings,

back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot

toward you and rest it against the inner thigh of your extended

leg. Reach toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times for each leg. Stretches:

Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place

your hands against a wall. Keep your back leg straight and

your back foot fiat on the floor. Bend your front leg, lean for-

ward and move your hips toward the wall. Hold for 15 counts,

then relax. Repeat 3 times for each leg. To cause further

stretching of the achilles tendons, bend your back leg as well.

Stretches: Calves, achilles tendons and ankles.

4. Ouaddceps Stretch

With one hand against a wall for balance, reach back and

grasp one foot with your other hand. Bring your heel as close

to your buttocks as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Quadriceps and hip

muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees out-

ward. Pull your feet toward your groin area as far as possible.

Hold for 15 counts, then relax. Repeat 3 times. Stretches:

Quadriceps and hip muscles.

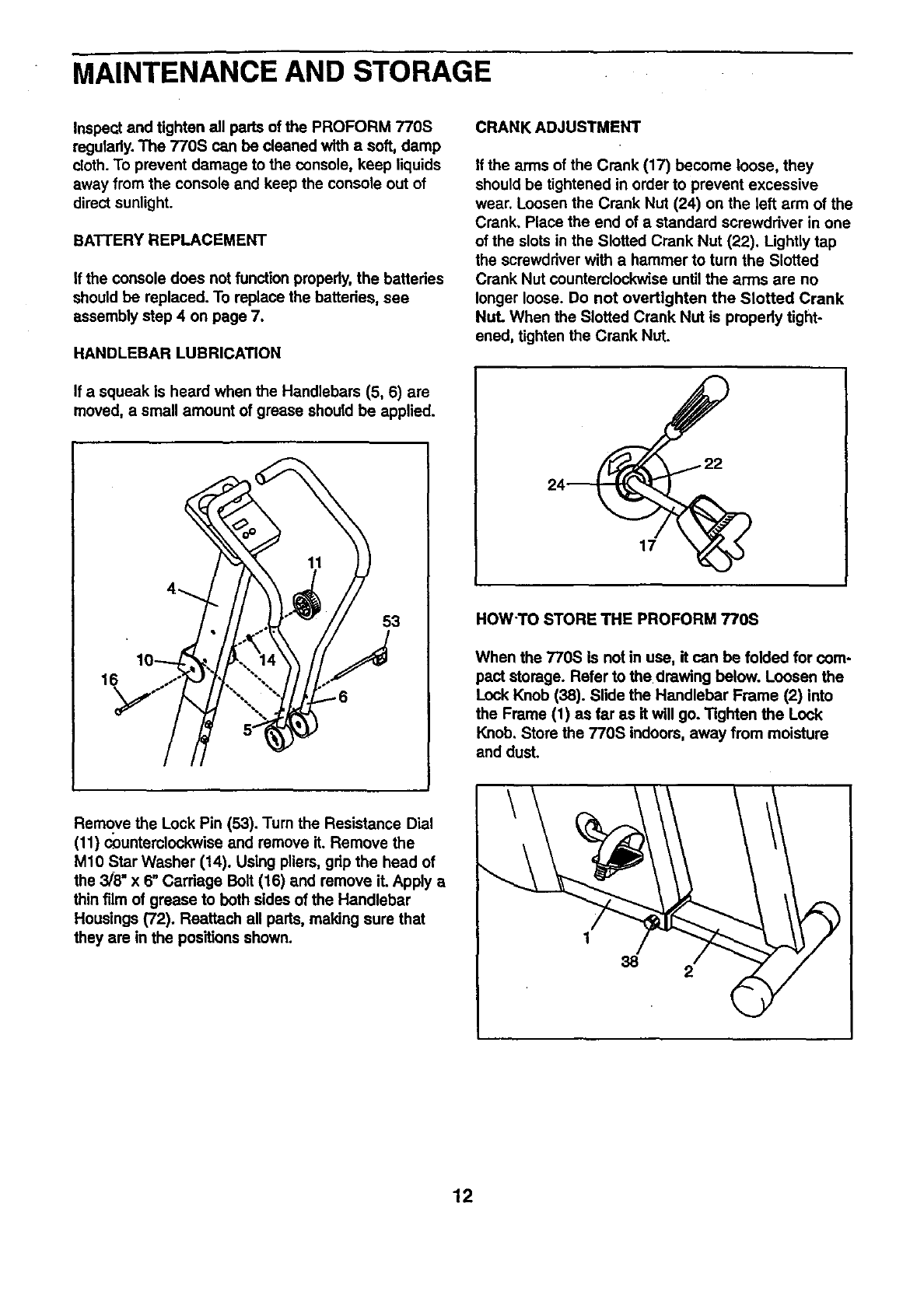

MAINTENANCE AND STORAGE

Inspe_ and tighten all parts of the PROFORM 770S

regularly. The 770S can be cleaned with a soft, damp

cloth. To prevent damage to the console, keep liquids

away from the console and keep the console out of

direct sunlight.

BATTERY REPLACEMENT

If the console does not function properly, the batteries

should be replaced. To replace the batteries, see

assembly step 4 on page 7.

HANDLEBAR LUBRICATION

If a squeak is heard when the Handlebars (5, 6) are

moved, a small amount of grease should be applied.

CRANKADJUSTMENT

If the arms of the Crank (17) become loose, they

should be tightened in order to prevent excessive

wear. Loosen the Crank Nut (24) on the left arm of the

Crank, Place the end of a standard screwdriver in one

of the slots in the Slotted Crank Nut (22). Ughtly tap

the screwdriver with a hammer to turn the Slotted

Crank Nut counterclockwise untilthe arms are no

longer loose. Do not overtighten the Slotted Crank

NuL When the Slotted Crank Nut is properly tight-

ened, tighten the Crank Nut.

53 HOW'TO STORE THE PROFORM 770S

When the 770S is not in use, it can be folded for com-

pact storage. Refer to the drawing below. Loosen the

Lock Knob (38). Slide the Handlebar Frame (2) into

the Frame (1) as far as it will go. "l]ghtan the Lock

Knob, Store the 770S indoors, away from moisture

and dust,

Remove the Lock Pin (53). Tum the Resistance Dial

(11) c_)unterclockwise and remove it. Remove the

M10 Star Washer (14). Using pliers, grip the head of

the 3/8" x 6" Carriage Bolt (16) and remove it. Apply a

thin film of grease to both sides of the Handlebar

Housings (72). Reattach all parts, making sure that

they are in the positions shown. 1

38 2

NOTES

PART LIST--Model No. 831,288250 R1196A

Key Part Key Part

No.- No. Qty. Description No. No. Qty. Description

1NSP 1Frame 40 134274 1 Tension Assembly

2 NSP 1 Handlebar Frame 41 124819 2 Handlebar Endcap

3 134372 1 Seat Post 42 013225 1 M5 Screw

4 134251 1 Handlebar Post 43 109926 1 Rubber Grommet

5 134371 1 Left Handlebar 44 134275 2 Foam Grip

6 134370 1 Right Handlebar 45 134276 2 Stabilizer Endcap

7 134254 1 Idler Bracket 46 012042 7 M8 Nylon Locknut

8 134255 1 Idler Wheel 47 134277 1 Handlebar Frame Bushing

9 134256 1 Stabilizer 48 134278 1 Frame Bushing

10 134257 1 Handlebar Bracket 49 134308 1 Seat Post Bushing

11 134258 1 Resistance Dial 50 013576 1 #8 x 1/2" Screw

12 013141 4 Console Screw 51 134367 1 Right Pedal

13 134259 1 Right Pedal Strap 52 134368 1 Left Pedal

14 104345 1 M10 Star Washer 53 109855 1 Lock Pin

15 134260 1 Left Pedal Strap 54 123713 2 114"x 1" Screw

16 134261 1 3/8" x 6" Cardage Bolt 55 123494 2 3/8" x 31/2" Screw

17 134377 1 Crank 56 012149 5 3/6" Nylon Locknut

16 122898 1 Pulley 57 014132 2 M10 Flat Washer

19 018001 2 Bearing 58 132827 1 Console

20 019003 2 Bearing Cup 59 134312 1 Idler Spring

21 014009 1 Keyed Washer 60 133472 1 Reed Switch Wire

22 012010 1 718"Slotted Crank NUt 61 128348 1 Push Nut

23 012011 1 15/16" Slotted Crank NUt 62 014008 1 Flat Crank Washer

24 012012 1 7/6" Crank NUt 63 122548 23/8" x 2 3/4" Crg. Bolt

25 134263 1 Rywheel Assembly 64 134314 1 Flywheel Axle

26 014041 8 5/16" Rat Washer 65 119222 1 Spacer

27 134374 1 Left Side Shield 66 134316 2 Wheel Screw

28 134375 1 Right Side Shield 67 134317 1 Magnet Bracket

29 135426 10 Side Shield Screw 68 134366 2 M8 x 60ram Screw

30 127597 5 Fastener 69 012150 2 M8 NUt

31 134266 1 Top Shield 70 106106 1 Extension Spring

32 132699 1 Belt 71 013547 1 Idler Pivot Bolt

33 134267 2 Wheel Hub 72 134376 1 Handlebar Housing

34 134268 2 Wheel 73 125206 2 M12 OD Flat Washer

35 134269 2 Wheel Bushing 74 135425 1 Axle Bushing

36 134270 1 Seat #134321 1 User's Manual

37 134271 1 Seat Knob #045028 1 Socket Tool

38 134272 1 Lock Knob #100017 1 Multi-Tool

39 134273 2 Friction Pad #045017 1 Allen Wrench

Note: =#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordedng replacement parts.

:_ rl r

EXPLODED DRAWING---_-ModelNo. 831.28_:_50 RllgSA

57 29

19 3

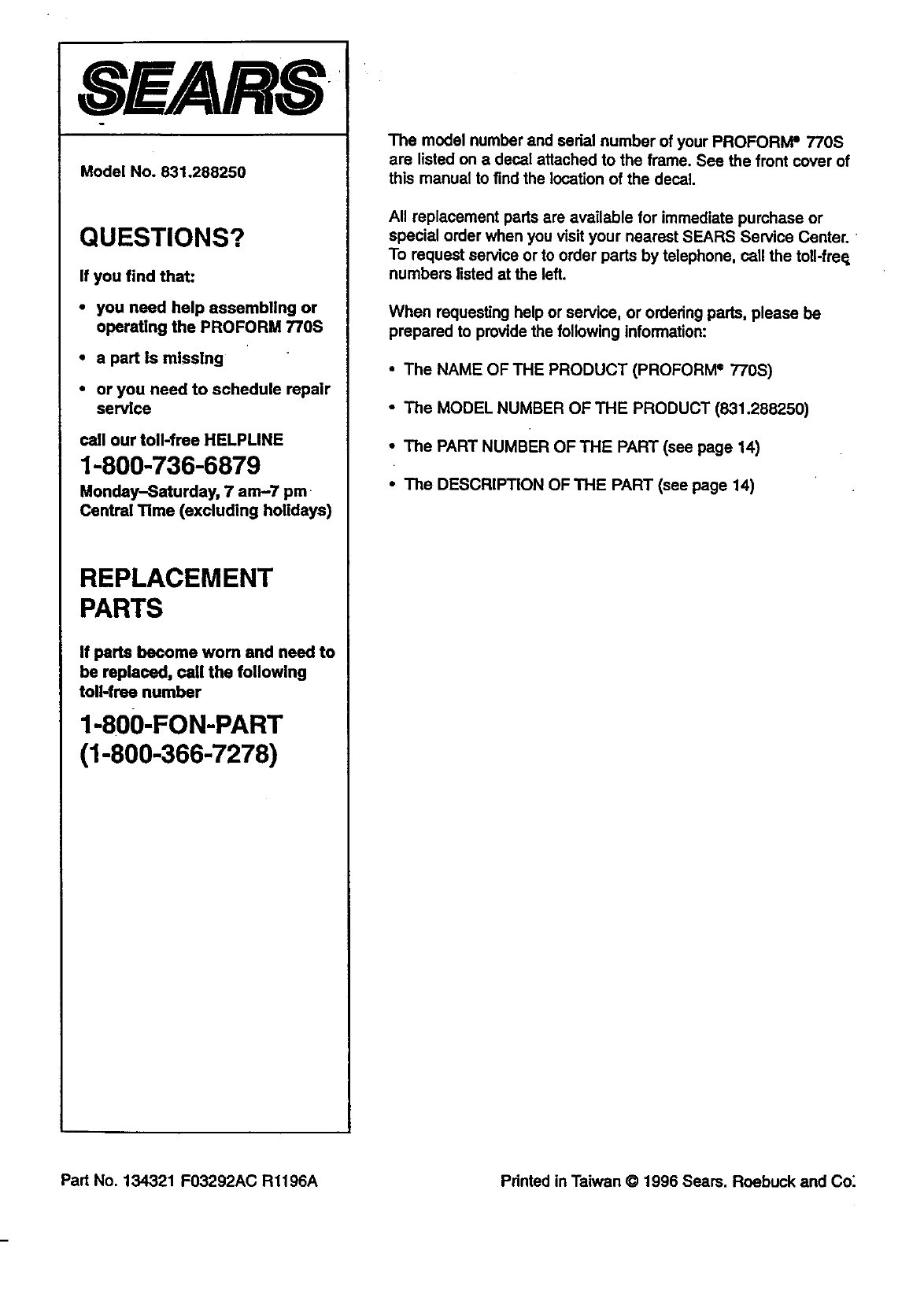

S£ARS

Mode[ No. 831.288250

QUESTIONS?

If you find that:

• you need help assembling or

operating the PROFORM 770S

•a part is missing

•or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday-Saturday, 7 am--7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need to

be replaced, call the following

toll-free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your PROFORM" 770S

are listed on a decal attached to the frame. See the front cover of

this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-fre(_

numbers listed at the left.

When requesting help or service, or ordering pads, please be

prepared to provide the following information:

•The NAME OF THE PRODUCT (PROFORM =770S)

• The MODEL NUMBER OF THE PRODUCT (831.288250)

• The PART NUMBER OF THE PART (see page 14)

•The DESCRIPTION OF THE PART (see page 14)

Proform 831288250 User Manual 770S BIKE Manuals And Guides 99020066

PROFORM Cycle Manual 99020066 PROFORM Cycle Owner's Manual, PROFORM Cycle installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
