TABLE OF CONTENTS

IMPORTANTPRECAUTIONS ....

BEFORE YOU BEGIN ....................................... o• ° o

ASSEMBLY ......................................................................

OPERATION AND ADJUSTMENT .................................. . . . .. . ,...........

HOW TO FOLD AND MOVE THE TREADMILL ..........................................

TROUBLE-SHOOTING ........................................................... .

CONDITIONING GUIDELINES ..................................................... ..

ORDERING REPLACEMENT PARTS ...................................... ... .... .... . BackCover

FULL 90 DAY WARRANTY ................................................... ......... Back Cover

o= e,.e° o.oo,4o o.,, oo,oQ= o..oopm.o ooooom.o, o°,o, °,o,._o,°_oee_*

...... .o.oo. ............... .4

...... ,..5

_e,eeeoee7

....... ,11

........ 12

........ 14

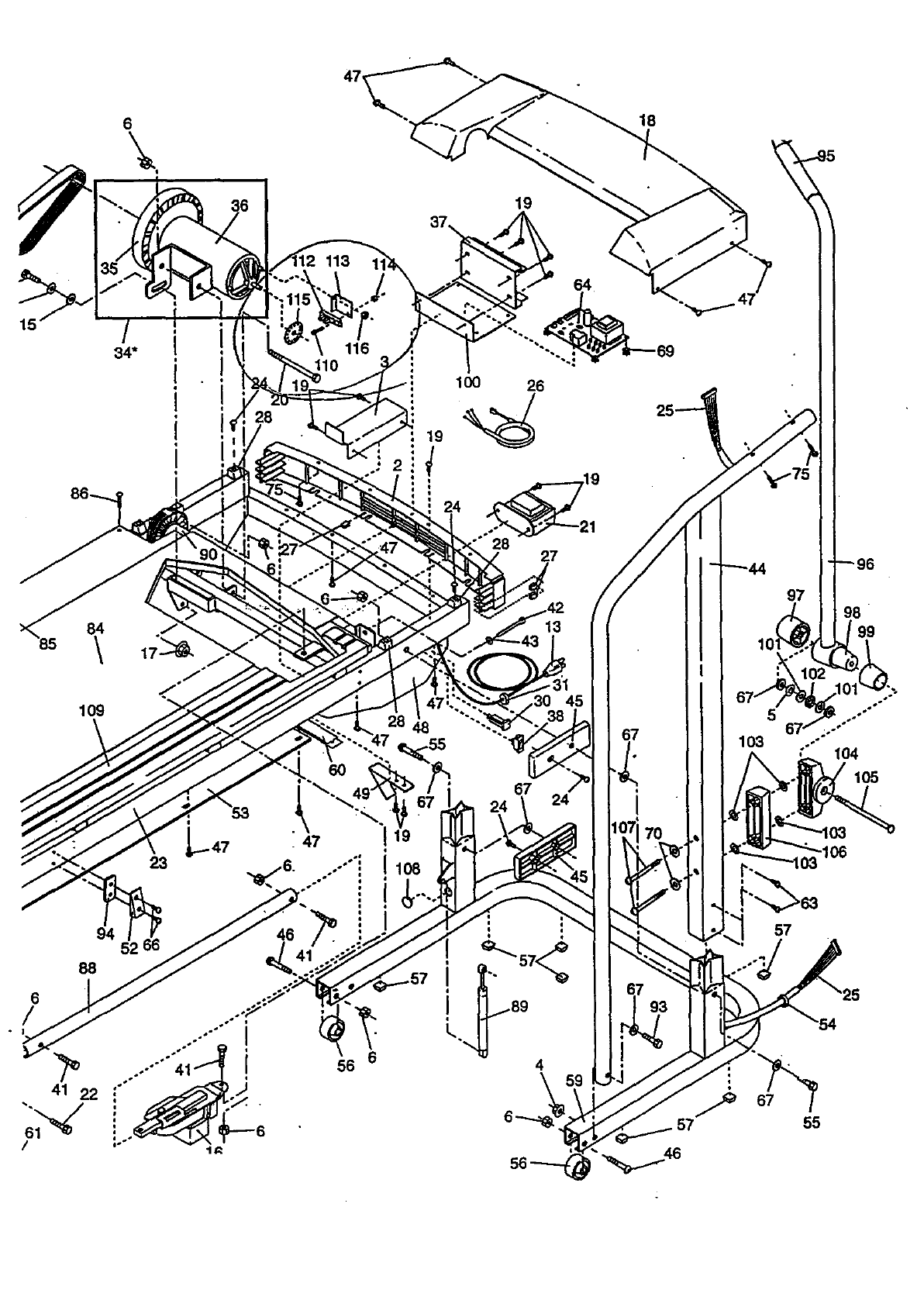

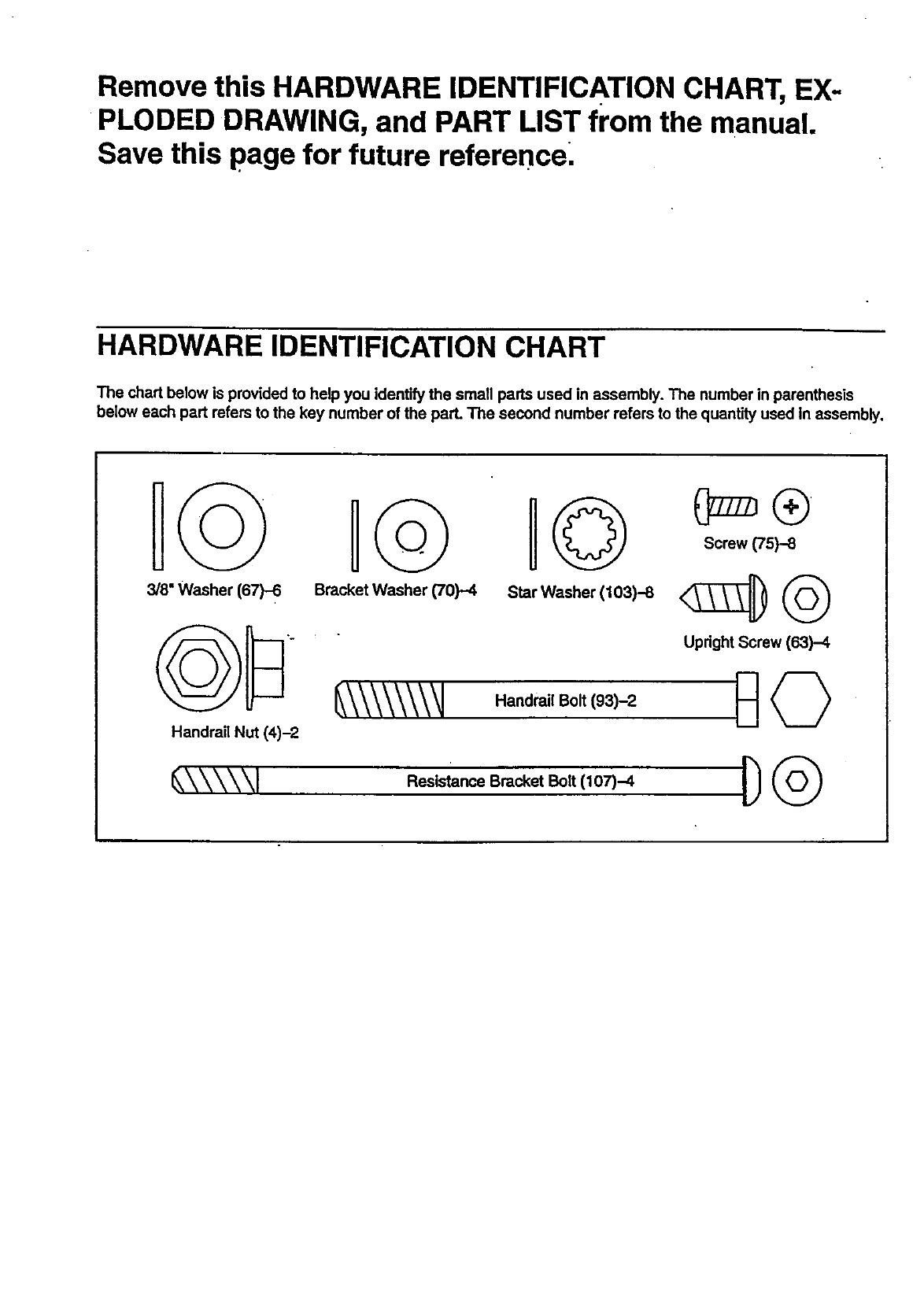

Note: A HARDWARE IDENTIFICATION CHART, aP F_,XPLODEDDRAWING, and a PART UST are attached to

the center of this manual. Please save them for future reference.

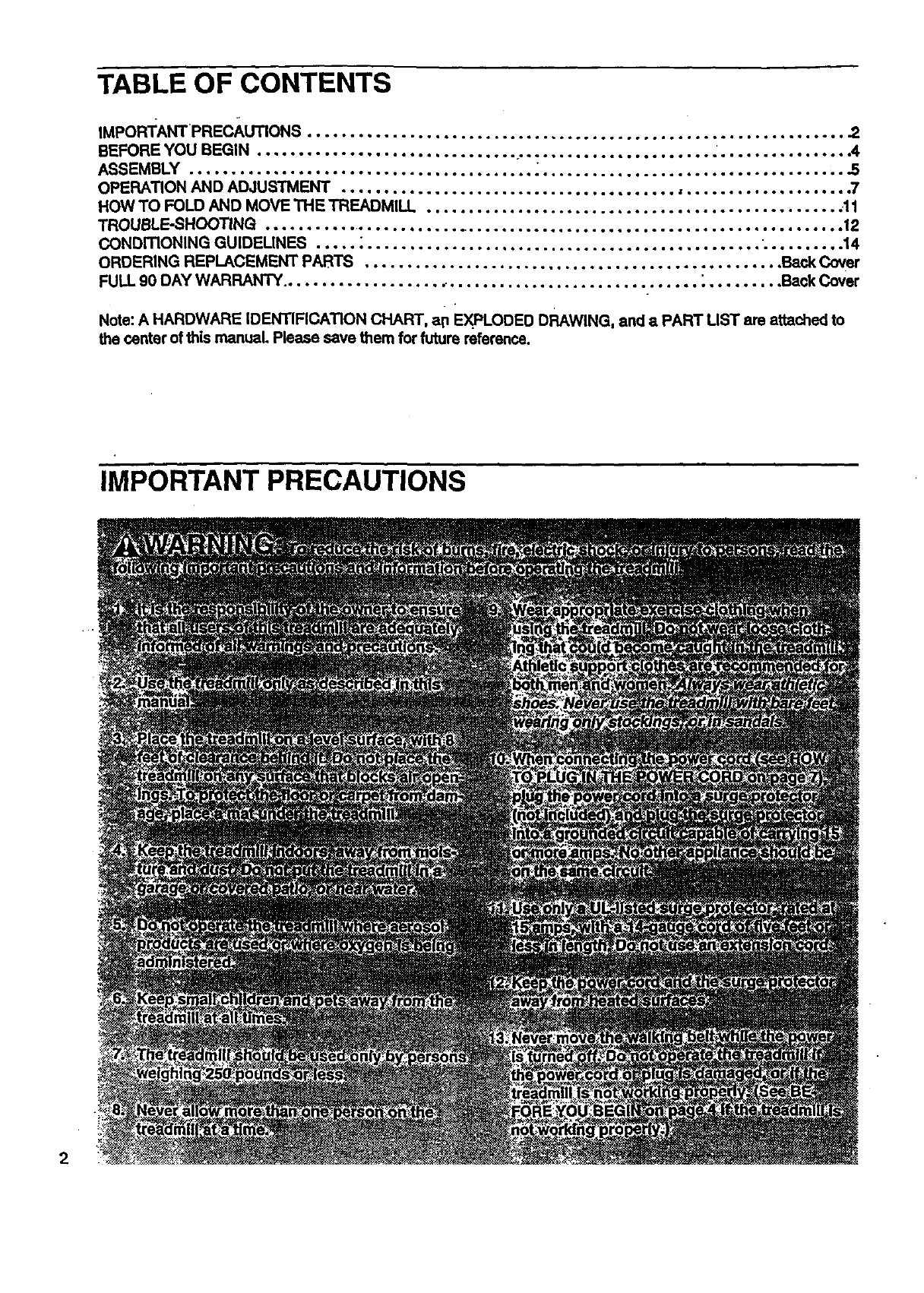

IMPORTANT PRECAUTIONS

The decal shown at the right has been

placed on your treadmill. If the decal Is

missing, or if it is not legible, please call

our toll-free HELPLINE to order afree re-

placement decal (see the back cover of

this manual). Apply the decal in the loca-

tion shown.

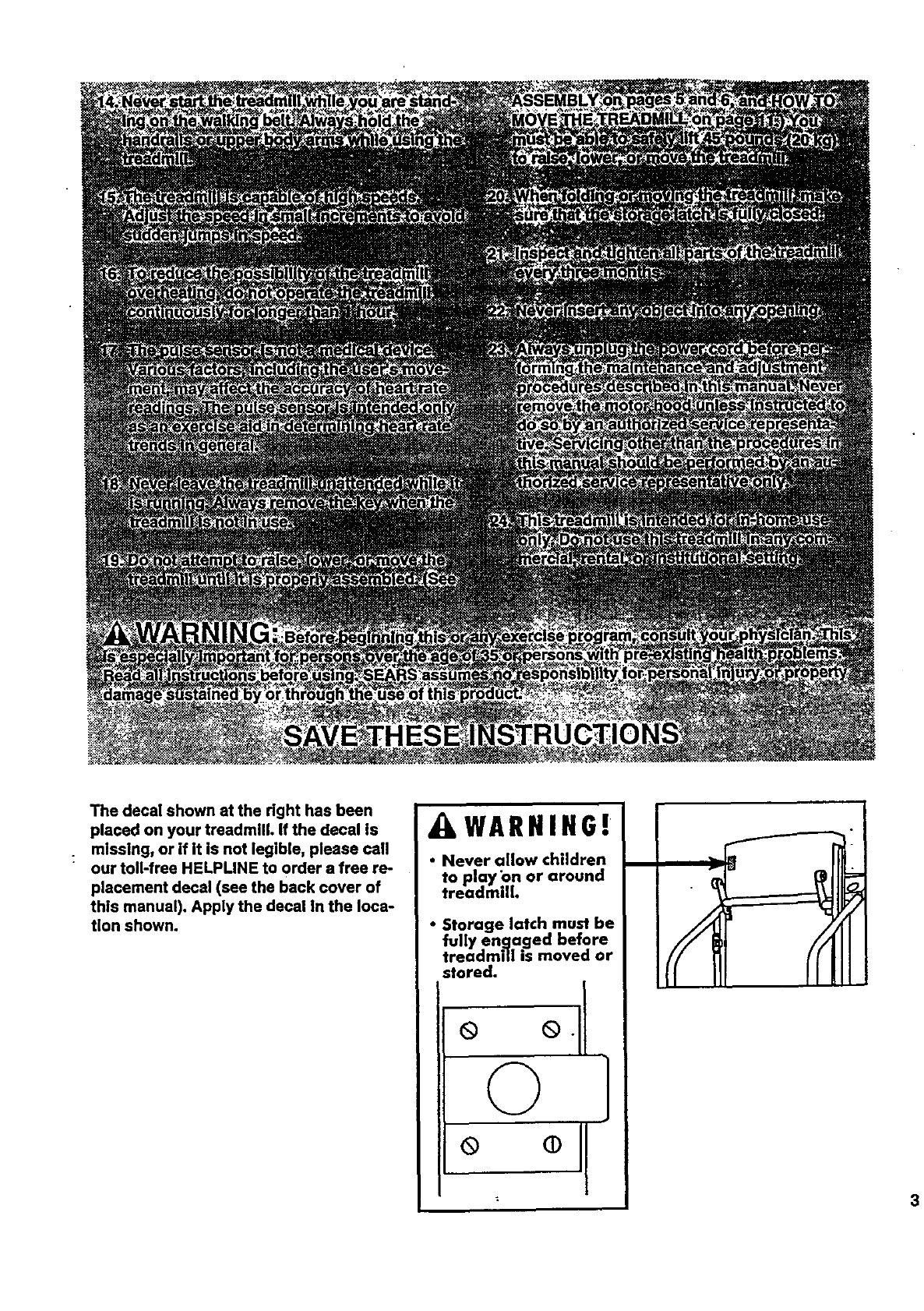

J_ WARNI..NG!

• Never allow ch,ldren

to play on or around

• treadmill.

5torage latch must be

fully en.qaged before

treadmill is moved or

stored.

o oII

o °11 3

BEFORE YOU BEGIN

Thank you for selecting the PROFORIVP CROSSWALK

PLUS treadmill. The CROSSWAIJ( PLUS treadmill

blends advanced technology with Innovative design to

let you enjoy an excellent form of cardiovascular exer-

cise in the convenience and privacy of your home.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our toll-free HELPL|NE .at1-800-736-6879,

Monday through Saturday, 7 a.m. until7 p.m. Central

Time (excluding holidays). To help us assist you,

please note the product model number and eadal num-

ber before calling. The model number of the treadmill

is 831.297480. The sedal number can be found on a

decal attached to the treadmill (see the front cover of

this manual for the location).

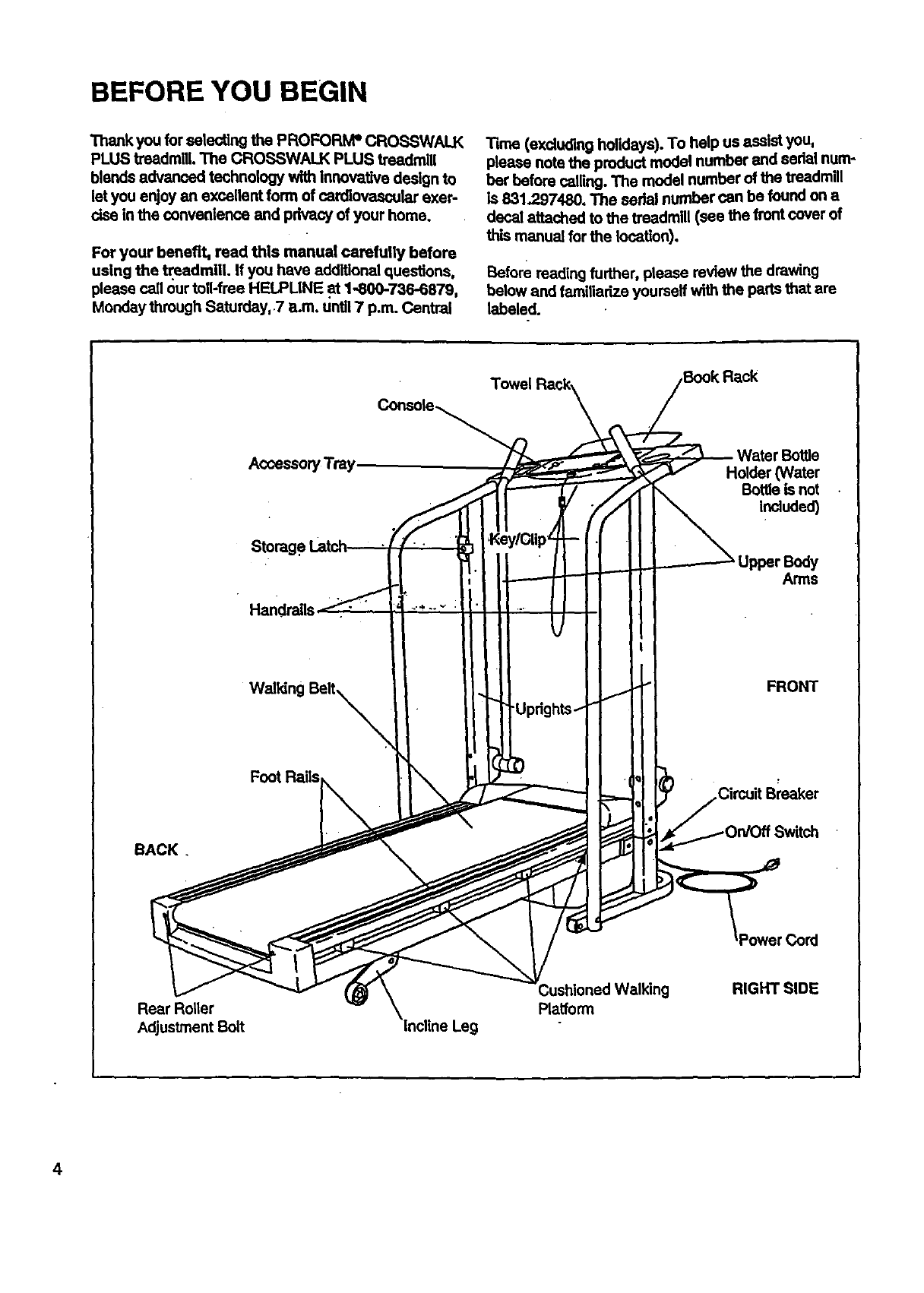

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Book Rack

BACK

Accesso_Trey Holder (Water

Bottle is not

Included)

Llpper Body

Arms

FRONT

Rear Roller

Adjustment Bolt

;ushloned Walking

Ptatform

RIGHT SIDE

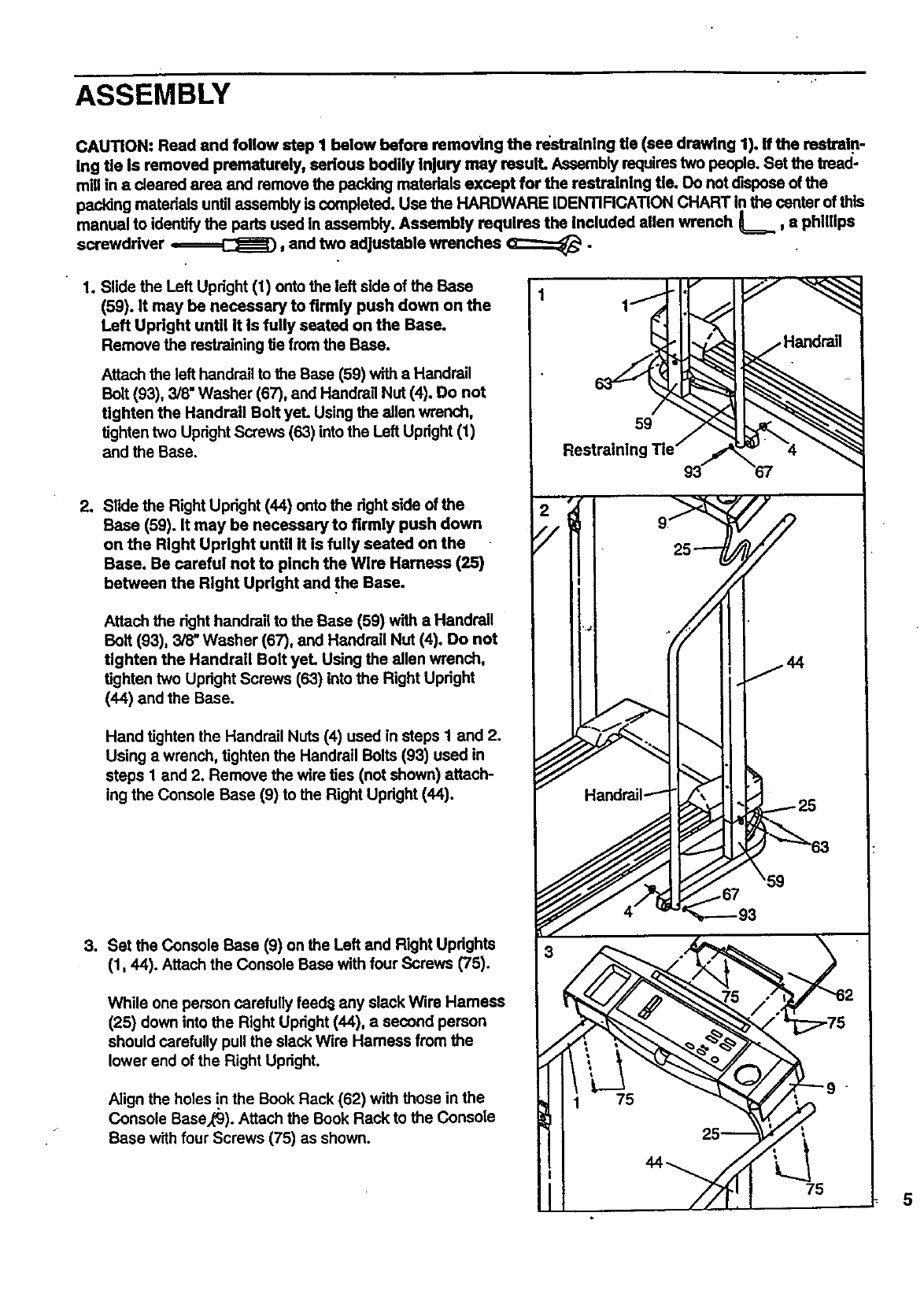

ASSEMBLY

CAUTION: Read and follow step I below before removing the r_lnlng fie (see drewlng 1). If the restral.n-

Ing fie is removed prematurely, esdous bodily Injury may result. Assembly requirestwo people. Set the tread-

mill in a cleared ares and remove the packing materials except for the restraining tie. Do not dispose of the

pacldng materials until assembly is completed. Use the HARDWARE IDENTIFICATION CHART in the center of this

manual to identifythe pads used in assembly. Assembly requires the Included allen wrench L, a phillips

screwdriver -=====_, and two adjustable wrenches €1:_=_.

1. Slide the Left Upright (1) onto the left side of the Base

(59). It may be necessary to firmly push down on the

Left Upright until it is fully seated on the Base.

Remove the restraining tie from the Base.

Attach the left handrail to the Base (59) with a Handrail

Bolt (93), 3/8" Washer (67), and Handrail Nut (4). Do not

tighten the Handrail Bolt yeL Using the allen wrench,

tighten two UprightScrews (63) into the Left Upright (1)

and the Base.

2. Slide the Right Upright (44) onto the right side of the

Base (59). It may be necessary to firmly push down

on the Right Upright until it is fully seated on the

Base. Be careful not to pinch the Wire Harness (25)

between the Right Upright and the Base.

Attach the right handrail to the Base (59) with a Handrail

Boll (93), 3/8" Washer (67), and Handrail Nut (4). Do not

tighten the Handrail Bolt yet. Using the allen wrench,

tighten two Upright Screws (63) into the Right Upright

(44) and the Base.

Hand tighten the Handrail Nuts (4) used in steps I and 2.

Using a wrench, tighten the Handrail Bolts (93) used in

steps 1 and 2. Remove the wire ties (not shown) attach-

ing the Console Base (9) to the Right Upright (44).

3. Set the Console Base (9) on the Left and Right Updghts

(1, 44). Attach the Console Base with four Screws (75).

While one person carefully feed= any slack Wire Hamess

(25) down into the Right Upright (44), a second person

should carefully pull the slack Wire Harness from the

lower end of the Right Upright.

Align the holes !n the Book Rack (62) with those in the

Console BaseJ'9). Attach the Book Rack to the Console

Base with four Screws (75) as shown.

Restraining

75 5

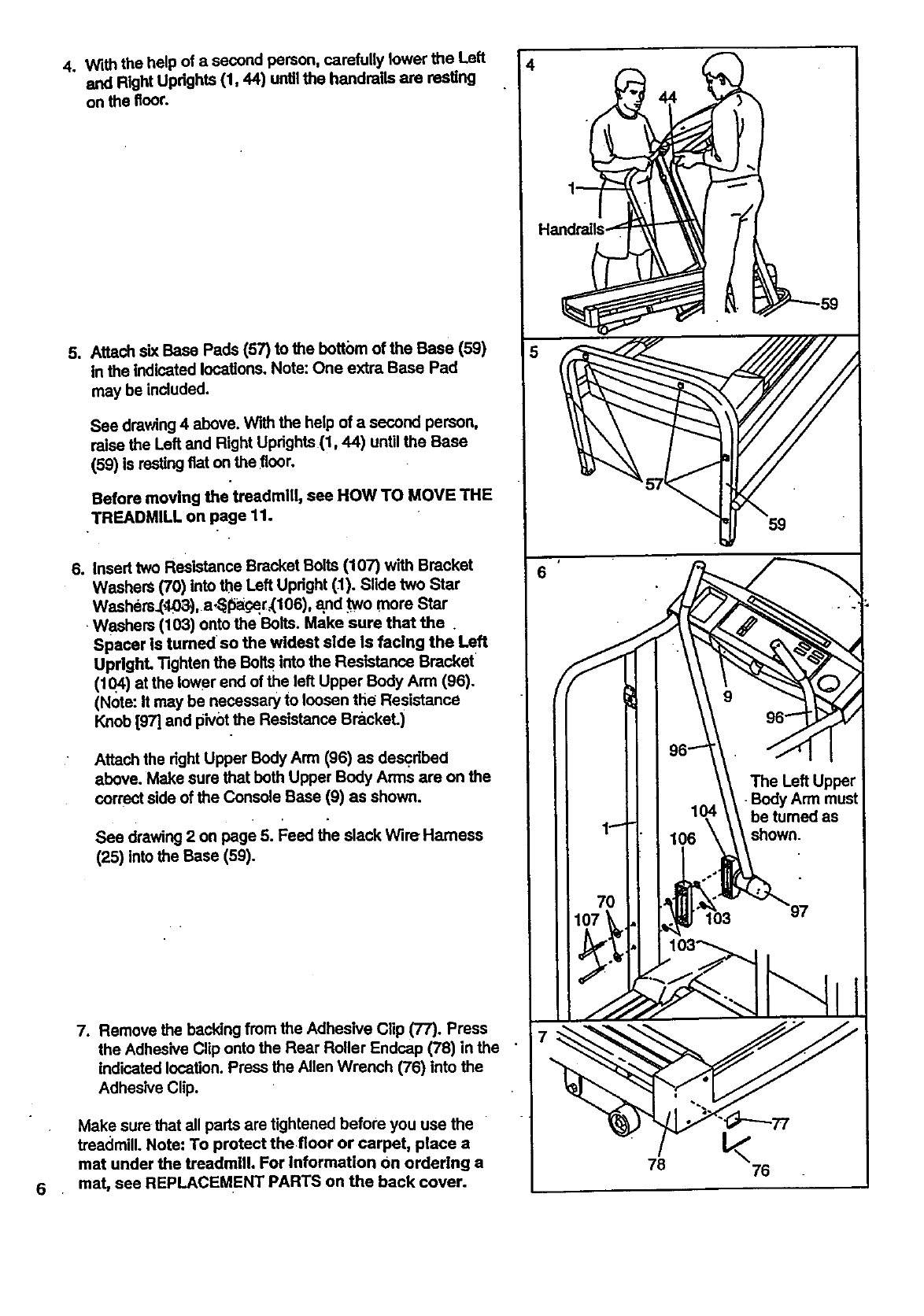

4. With the help of a second person, carefully lower the Left

and Right Uprights (1,44) untilthe handrails are resting

on the floor.

1Attach six Base Pads (57) to the bottom of the Base (59)

in the indicated locations. Note: One extra Base Pad

may be included.

See drawing 4 above. With the help of a second person,

raise the Left and Right Updghts (1,44) until the Base

(59) is restingfiat on the floor.

Before moving the treadmill, see HOW TO MOVE THE

TREADMILL on page 11.

6. Insed two Resistance Bracket Bolts (107) with Bracket

WasherS (70) into the Left Updght (.1). Slide two Star

Washers.(.€03), a_,p_.r..(106), ,andtwo more Star

•Washers (103) onto the Bolts. Make sure that the

Spacer is turned so the widest slde is facing the Left

UpdghL Tighten the Bolts into the Resistance Bracket

(104) at the lower end of the left Upper Body Arm (96).

(Note: It may be necessary to loosen the Resistance

Knob [97] and pivot the Resistance BmckeL)

Attach the right Upper Body Arm (96) as desqdbed

above. Make sure that both Upper Body Arms are on the

correct side of the Console Base (9) as shown.

See drawing 2 on page 5. Feed the slack Wire Hameas

(25) into the Base (59).

7. Remove the backing from the Adhesive Clip (7"/). Press

the Adhesive Clip onto the Rear Roller Endcap (78) in the "

indicated location. Press the Allen Wrench (76) into the

Adhesive Clip.

Make sure that all parts are tightened before you use the

treadmill. Note: To protect the floor or carpet, place a

mat under the treadmill. For Information On ordering a

mat, see REPLACEMENT PARTS on the back cover.

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBE TM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. They will deteriorate the walking belt and

cause excessive wear.

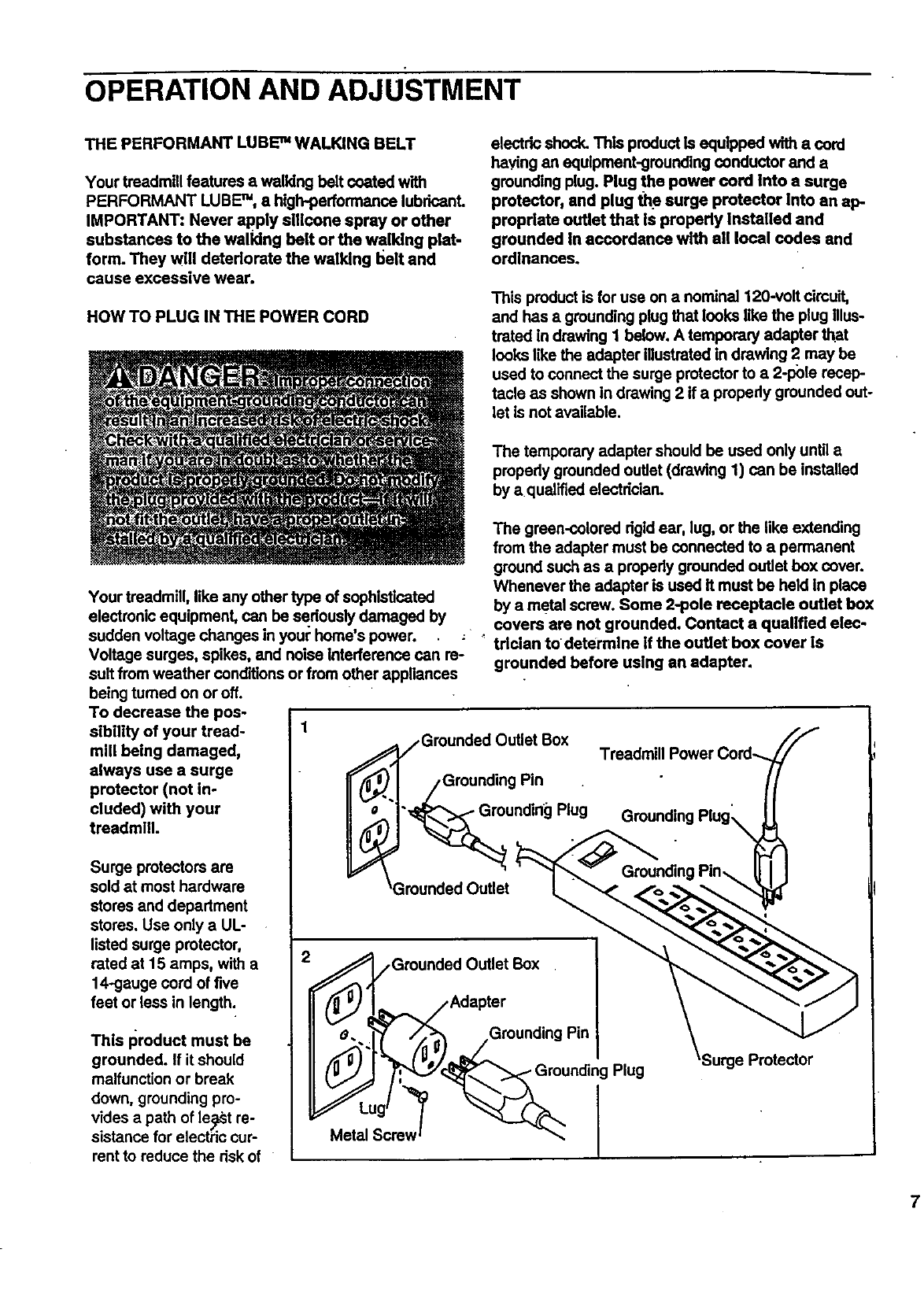

HOWTO PLUG IN THE POWER CORD

electric shock. This product is equipped with a cord

haying an equipment-grounding conductor and a

grounding plug. Plug the power cord into a surge

protector, and plug th.esurge protector into an ep-

propdate outlet that is properly Installed and

grounded In accordance with all local codes and

ordinances.

This product is for use on a nominal 120-volt circuit,

and has agrounding plugthat looks like the plug Hlus-

trated in drawing 1 below. A temporary adapter that

looks h'kethe adapter illustrated in drawing 2 may be

used to connect the surge protector to a 2-pore recep-

tacle as shown in drawing 2 if a propedy grounded out-

let is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by aqualified electrician.

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power. . _,

Voltage surges, spikes, and noise Intederance can re.

suit from weather conditions or from other appliances

being turned on or off.

To decrease the pos-

sibility of your tread- 1

mill being damaged,

always use a surge

protector (not in-

cluded) with your

treadmill.

Surge protectors are

sold at most hardware

stores and depadment

stores. Use only a UL-

listed surge protector,

rated at 15 amps, with a

14-gauge cord of five

feet or less in length.

This product must be

grounded. If it should

malfunction or break

down, grounding pro-

vides a path of le_t re-

sistance for electdc cur-

rent to reduce the Ask of

The green-colored dgid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a propedy grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers ere not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

/Grounded Outlet Box

Groundi.gplug

Grounding Pin +

Grounding

Grounded Outlet Box

Adapter

_. .Grounding Pin i

(_ , Grounding Plug

Metal Screw

Protector

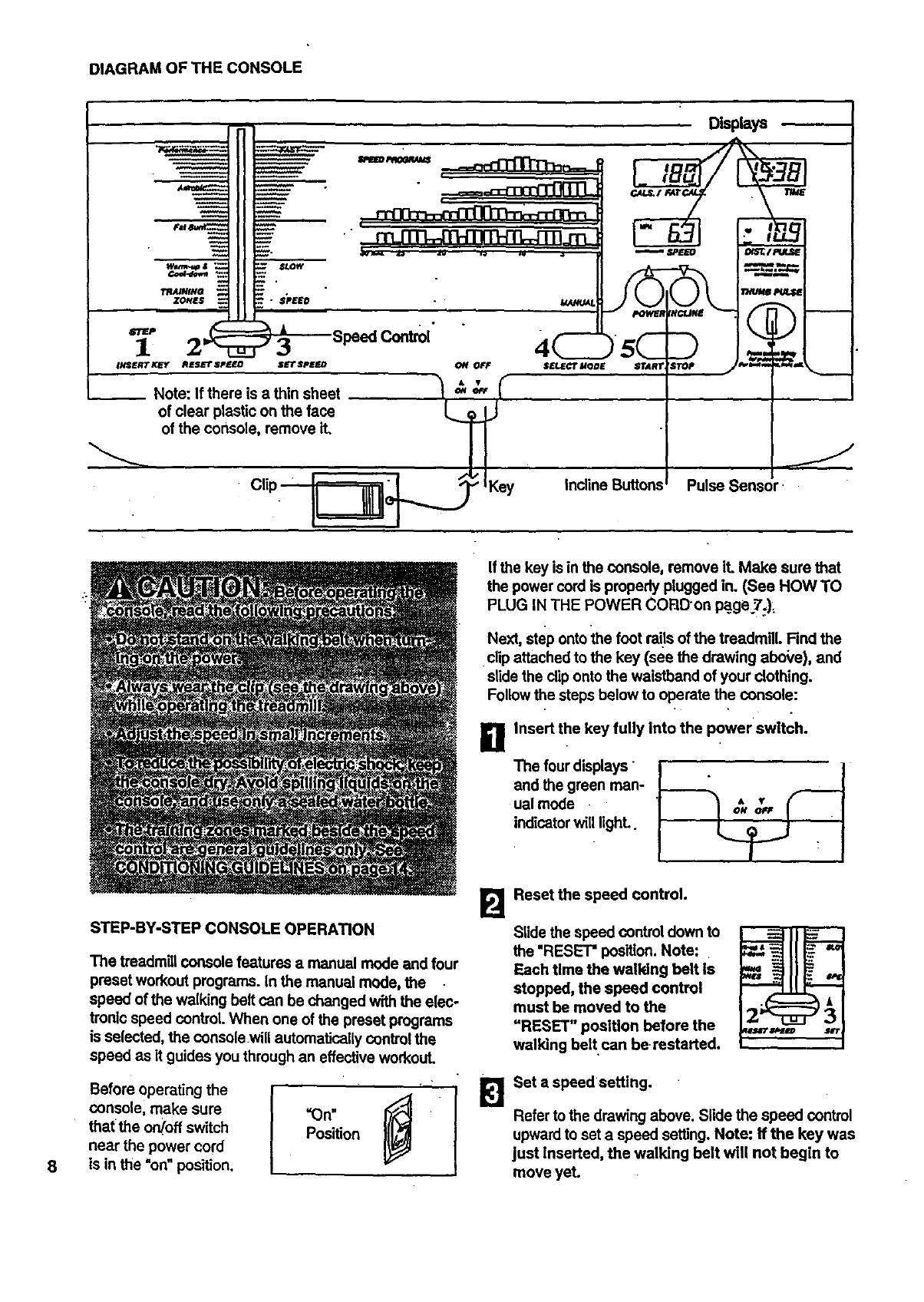

DIAGRAM OF THE CONSOLE

Displays

INSERT KEY RESE'r SPEED SE'I" SPEED ON OFF

Note: If there is a thin sheet "_ a_ _, _"

of clear plastic on the face L._9 J_J

of the console, remove it. 17

•Clip " __{Key Incline Buttons

_..-..=

Pulse Sensor •

If the key is in the console, remove it. Make sure that

the power cord is properly plugged in. (See HOW TO

PLUG IN THE POWER CORDon page-7:)_

Next, step onto the foot rails of the treadmill. Find the

.clip attached to the key (see the drawing abo_,e), and

slide the dip onto the waistband of your clothing.

Follow the steps below to operate the console:

BInsert the key fully into the power switch.

The four displays •

and the green man-

ual mode

indicatorwill light..

STEP-BY-STEP CONSOLE OPERATION

The treadmill console features a manual mode and four

preset workout programs. In the manual mode, the .

speed of the walking belt can be changed with the elec-

tronic speed control. When one of the preset programs

is selected, the console .willautomatically control the

speed as it guides you through an effective workout.

Before operating the

console, make sure

thatthe on/off switch

near the power cord

is in the =on" position.

•B

=On"

Position

Reset the speed control.

Slide the speed control down to

the "RESET=position. Note:

Each time the walldng belt Is

stopped, the speed control

must be moved to the

"RESET" position before the

walking belt can be.restarted.

Set a speedsetttng.

Refer to the drawing above. Slide the speed control

upwardto set a speed setting. Note: If the key was

just Inserted, the walking belt will not begin to

move yet.

B PresstheSELECTMODEbuttonto selectthe

desiredmode.

WhenthekeyisInserted,the console will be in the

manual mode. Note: If a preset program has been

selected, press the SELECT MODE button repeat-

edly to select the manual mode again.

If you want to select

one of the four preset

programs, press the

SELECT MODE but-

ton. The top red pro-

gram indicator will

light. To select one of the other three programs,

press the SELECT MODE button repeatedly.

Note: There are two twenty-minute programs and

two thirty-minute programs. The graphs in the can-

ter of the console show how the speed of the walk-

Ing belt will change dudng the programs. Dudng the

top program, for example, the speed will gradually

Increase dudng the first ten minutes, and then grad-

ually decrease during the last ten minutes. Each

program begins with a two-minute warm-up period,

and ends with a two-minute cool-down period.

I_ Press the START/STOP button.

START/STOP button

is pressed, the walk- - 5

ing belt will begin to sr,_3-/stop

move. Hold the

handrails and care-

fully begin walking on the walking belt.

If the console is in the manual mode, change the

speed of the walking belt as desired by sliding

the speed control. To stop the walking belt, slide the

speed control to the "RESET" position. The SPEED

display will begin to flash. "to restart the walking :

belt, slide the speed control upward. Note: The

• walking belt can also be stopped by pressing the

START/STOP button; however, this will reset the

displays. To restart the walking belt, slide the speed

control to the =RESET" position, slide It upward, and

then press the START/STOP button.

If a preset program is selected;, the speed of the

walking bell will change automatically dudng the pro-

gram as shown by the graphs in the center of the

console. The timeremaining in the program will be

shown in the TIME display. When the program is

completed, thewalking belt will slow to a stop. Note:

The positionof the speed control determines both the

speed range and the maximum speed setting for the

program. The higher the speed control is sot, the

greater the speed range will be and the faster the

walking belt will move dudng the program. If the

program is tco easy ortoo difficult' move the apeed

control to s_ect a new maximum speed setting; To

stopthe program temporarily, slide the speed co_ml

to the "RESET" position.The SPEED diaplaywill _,

begin to flash. To restartthe program, slide the speed

controlup to the dsstrad position.To end the program

before the program is completed, press the

START/STOP button. If you select a different pro-

gram whl!e a program is running, the walking belt

will slow to a stop.

r_ Follow your progress with the monitor displays.

The four displays provide instant exercise feedback,

The displays are explained below and on the next

page,

•CALS./FAT CALS.

display--Displays I F_IFI

the approximate I-- IL.tL-t I

numbers of both CALS./FATCALS.

calories and fat

calories you have

burned (see FAT BURNING on page 14 for an ex-

planation of fat calodes). Every seven seconds,

the display will change from one number to the

other. Arrows in the display will show which num-

bar is currently displayed.

When the console .

LSin the manual /_38

mode, the elapsed TIME

time will be shown.

When one of the

preset programs is selected, the time remaining in

the program will be displayed.

SPEEOdspay--II

Displays the speed =_

of the walking belt,

in miles per hour or -- SPEED

kilometers per ,

hour. An MPH or a

KPH will appear in the display to show.which unit

of measurement is selected.

To change the unit of measurement, hold down

the START/STOP button while inserting the key

into the console. An "_' (for English system*miles

per hour) or"M _(for Metric system--kilometers per

hour) will appear in the CAL/FAT CAL display.

Press the SELECT MODE button to change the -

unit of measurement. Remove and then reinsert

the key.

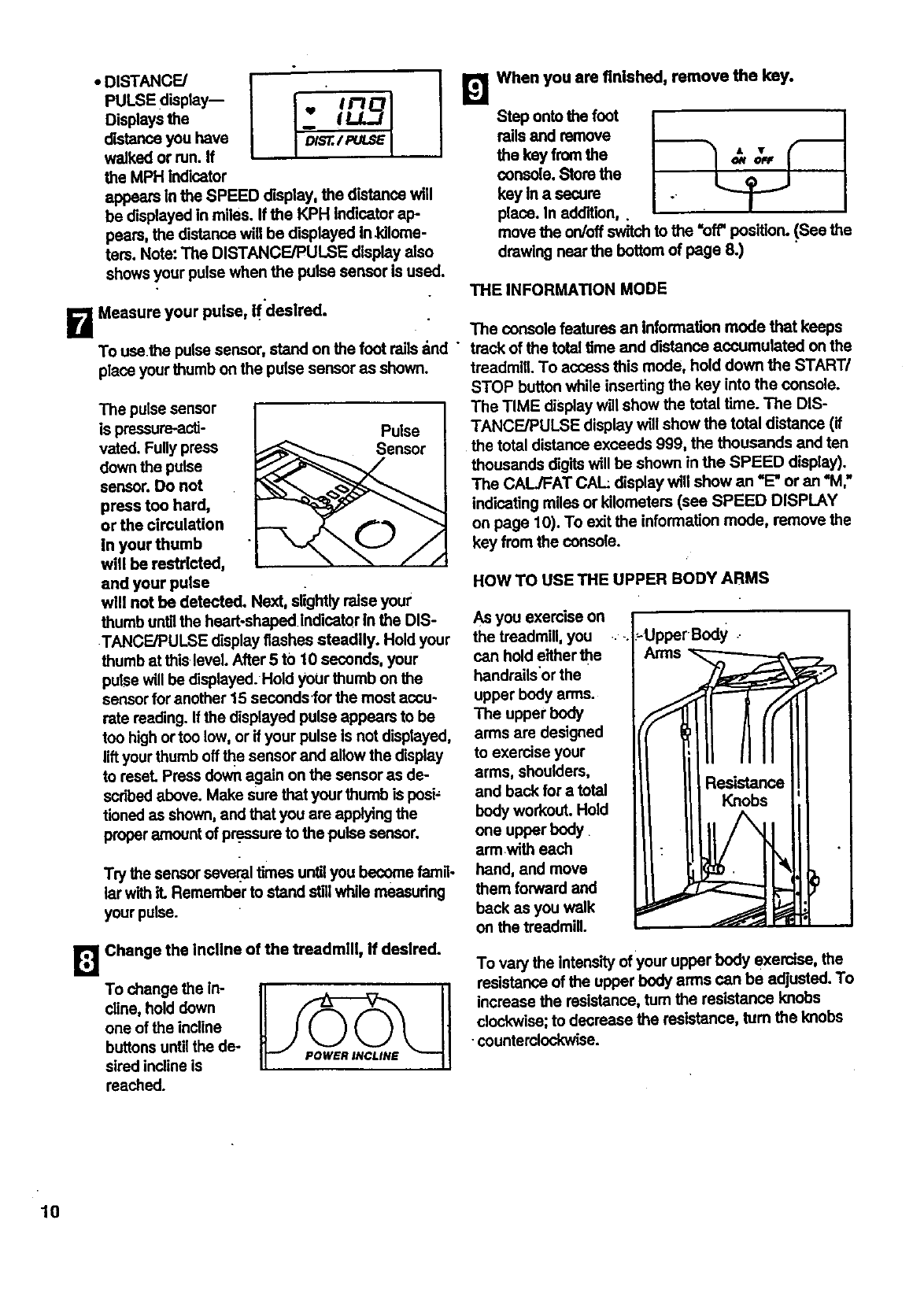

• DISTANCE/

PULSEdisplay-

Displaysthe

distanceyouhave

walkedorrun.If

the MPH indicator

appears in the SPEED display, the distance will

be displayed In miles. If the KPH Indicator ap-

pears, the distance will be displayed Inkilome-

ters. Note: The DISTANCE/PULSE display also

shows your pulse when the pulse sensor is used.

B Measure your pulse, If'desired.

To usethe pulsesensor, stand on the foot rails _nd "

place your thumb on the pulse sensor as shown.

The pulse sensor

is pressure-a_- Pulse

vated. Fullypress

down the pulse

sensor. Do not

press too hard,

or the circulation

in your thumb

will be restricted,

and your pulse

will not be detected. Next, slightly raise your

thumb until the hesrt-shaped Indicator In the DIS-

TANCE/PULSE display flashes steadily. Hold your

thumb at this level. After 5 to 10 seconds, your

pulse will be displayed.Hold your thumb on the

sensor for another 15 secondsfor the most accu-

rate reading. If the displayed pulse appears to be

too high or too low, or if your pulse is not displayed,

liftyour thumb off the sensor and allow the display

to reset. Press down again on the sensor as de-

scribed above. Make sure that your thumb is pusi_

tioned as shown, and that you are applyingthe

proper amount of pressure to the pulse sensor.

Try the sensor several times untilyou become famil-

Iar withit. Remember to stand _'11while measuring

your pulse.

BChange the Incline of the treadmill, If desired.

To change the in-

cline, hold down

one of the incline

buttonsuntil the de-

sired incline is

reached.

When you are finished, remove the key.

Step onto the foot

rails and remove

the key from the

console. Store the

key In a secure

place. In addition,.

move the on/offswitch to the "o_ position..(See the

drawing near the bottom of page 8.)

THE INFORMATION MODE

The console features an Information mode that keeps

track of the total time and distance accumulated on the

treadmill To access this mode, hold down the START/

STOP button while inserting the key into the console.

The TIME display will show the total time. The DIS-

TANCE/PULSE display will show the total distance (if

the total distance exceeds 999, the thousands and ten

thousands digitswill be shown in the SPEED display).

The CAL/FAT CAt.: display will show an "E" or an =M,"

indicating miles or kilometers (see SPEED DISPLAY

on page 10). To exit the information mode, remove the

key from the console.

HOW TO USE THE UPPER BODY ARMS

As you exercise on

the treadmill, you

can hold either the

handrailsor the

upper body arms.

The upper body

arms are designed

to exercise your

arms, shoulders,

and back for a total

body workout. Hold

one upper body

arm .with each

hand, and move

them forward and

back as you walk

on the treadmill.

..-.l:-UpperBody

To vary the intensity of your upper body exercise, the

resistance of the upper body arms can be adjusted. To

increase the resistance, turn the resistance knobs

clockwise; to decrease the resistance, turn the knobs

•counterclockwise.

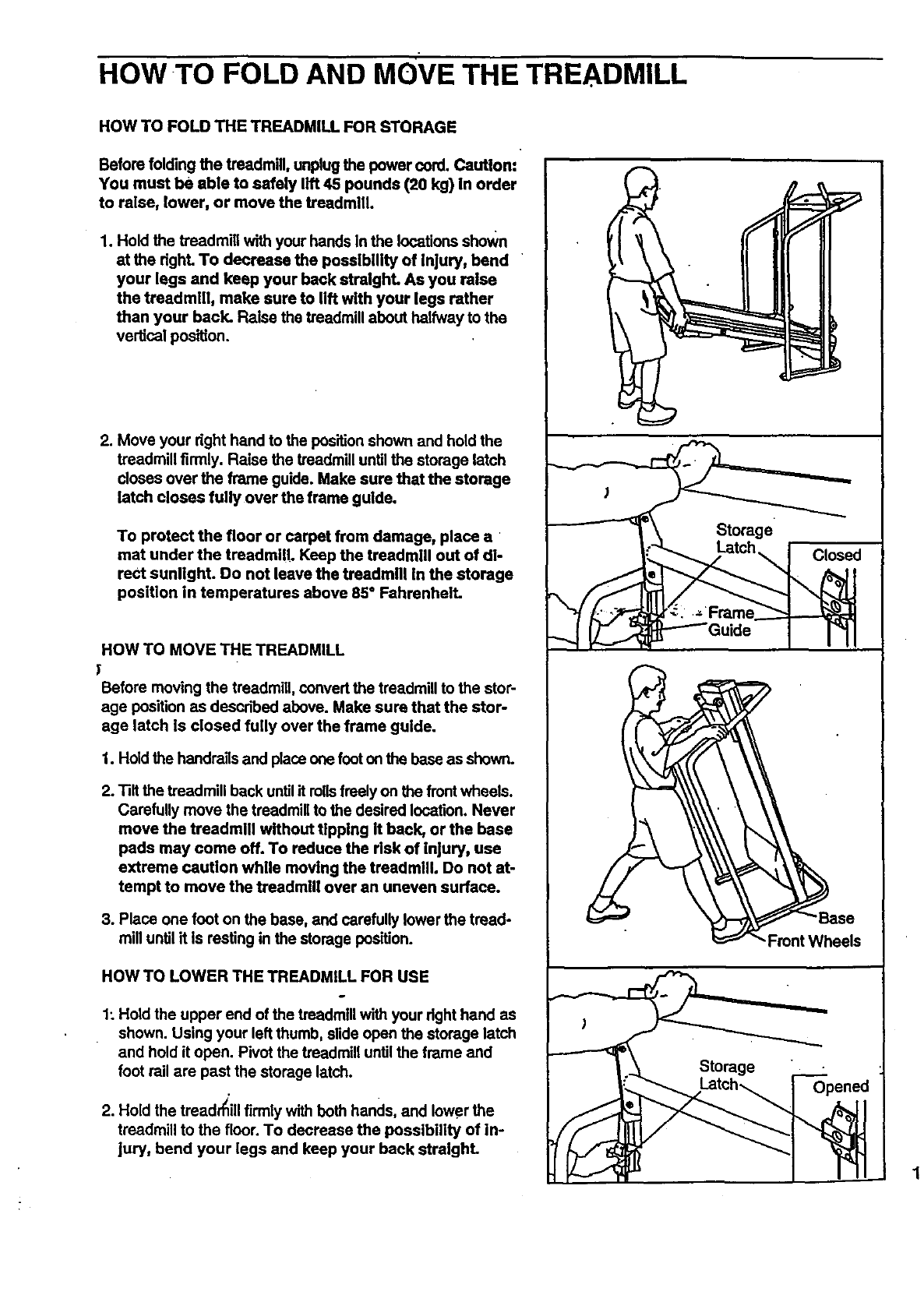

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord. Caution:

You must be able to safely lift 45 pounds (20 kg) in order

to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands In the locations shown

at the dghL To decrease the possibility of Injury, bend

your legs and keep your back streight- As you raise

the treadmill, make sure to rift with your legs rather

than your back. Raise the treadmill about halfway to the

vertical pos'_ion.

.Move your dght hand to the position shown and hold the

treadmill firmly. Raise the treadmill untilthe storage latch

closes over the frame guide. Make sure that the storage

latch closes fully over the frame guide.

To protect the floor or carpet from damage, place a

mat under the treadmill Keep the treadmill out of di-

rect sunlight. Do not leave the treadmill In the storage

position in temperatures above 85°Fahrenheit.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the stor-

age latch is closed fully over the frame guide.

1. Holdthe handmJlSand placeone footon the base as shown.

2. Tilt the treadmill back untilit mils freely on the front wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back, or the base

pads may come off. To reduce the risk of Injury, use

extreme caution while moving the treadmill. Do not at-

tempt to move the treadmill over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1" Hold the upper end of the treadmill with your dght hand as

shown. Using your left thumb, slide open the storage latch

and hold it open. Pivot the treadmill untilthe frame and

foot rail are past the storage latch.

2. Hold the treadmill firmly with both hands, and lower the

treadmill to the floor. To decrease the possibility of in-

jury, bend your legs and keep your back straight.

Closed

Front Wheels

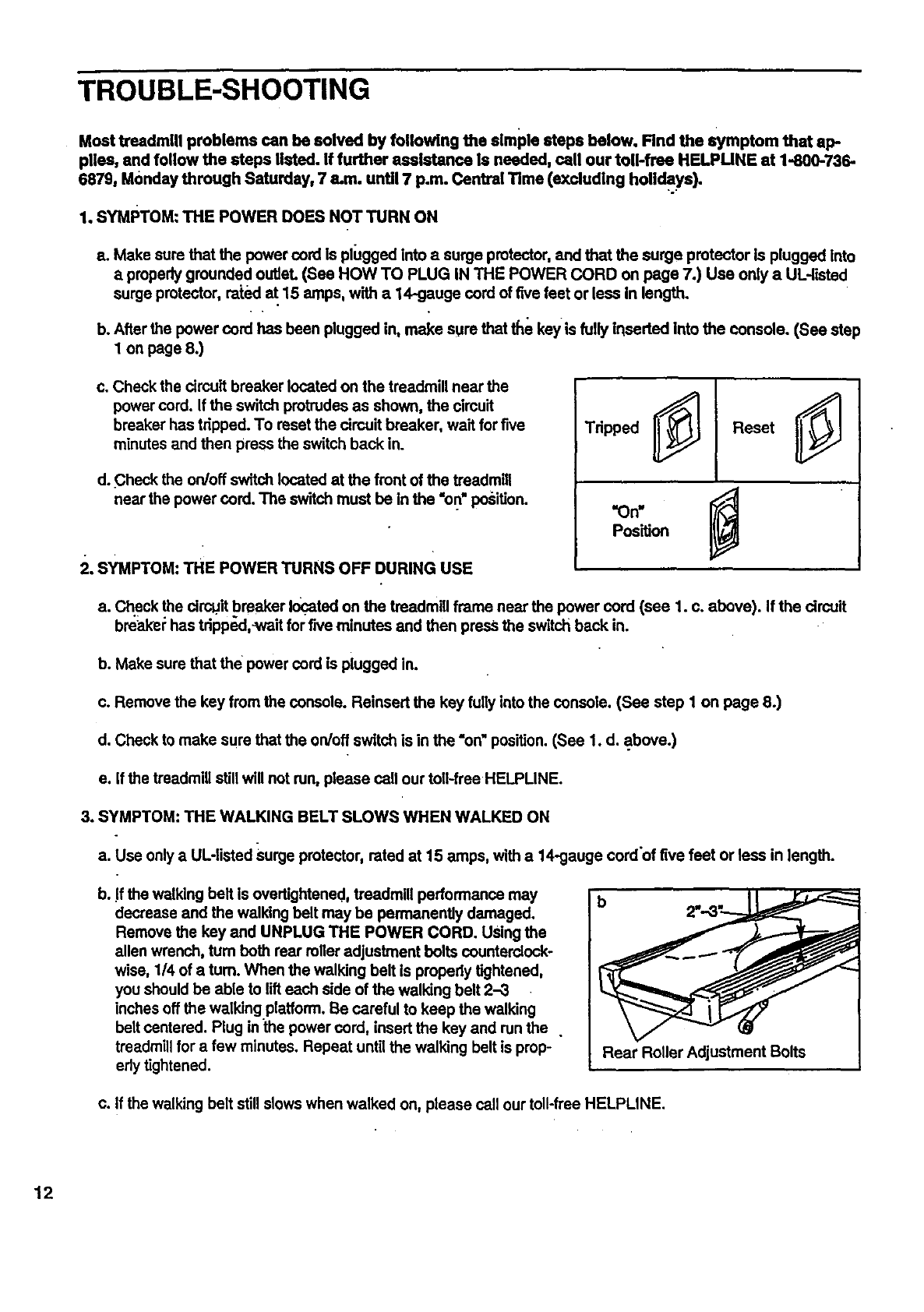

TROUBLE-SHOOTING

Most treadmill problems can be solved by following the simple steps below. Rnd the symptom that ap-

plies, and follow the steps listed. If further assistance Is needed, call our toil-fros HELPUNE at 1-800-736.

6879, Monday through Saturday, 7 am. until 7 p.m. Central Time (excluding holidays).

...

1. sYMPTOM: THE POWER DOES NOT TURN ON

a. Make sure that the power cord Is pl[Jgged into a surge protector, and that the surge protector is plugged into

aproperly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page 7.) Use only a UL.-listed

surge protector, ra|ed at 15 stops, with a14-gange cord of five feet or less in length.

b. After the power cord has been plugged in, make sure that the keyis fully Inserted into the console. (See step

1 on page 8.)

c. Check the cimuit breaker located on the treadmill near the

power cord. If the switch protrudes as shown, the circuit

breaker has tripped. To reset the circuit breaker, walt for five

minutes and then press the switch back in.

d. Check the on/off switch located at the front of the treadmill

near the power cord. The switch must be In the =on"position.

2. SYMPTOM: THE POWER TURNS OFF DURING USE

Tripped

"On"

Position

a. Check the circ=jitbreaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit

bre;ake_has tripp_l,_Nait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Remove the key from the console. Reinsert the key fully into the console. (See step I on page 8.)

d. Check to make sure that the on/off switch is in the "on" position. (See 1. d. above.)

e. If the treadmill still will not ran, please call our toll-free HELPLINE.

3. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON

a. Use only aUL-listed surge protector, rated at 15 amps, with a 14-gauge cord'of five feet or less in length.

b. !f the walking belt is overtightened, treadmill performance may

decrease and the walking belt may be permanently damaged.

Remove the key and UNPLUG THE POWER CORD. Using the

allen wrench, tum both rear miler adjustment belts counterclock-

wise, 114of a tum. When the walking belt is properly tightened,

you should be able to lifteach side of the walking belt 2-3

inches off the walking platform. Be careful to keep the walking

belt centered. Plug in the power cord, insert the key and run the .

treadmill for afew minutes. Repeat until the walking belt is prop-

edy tightened. Rear Roller Adjustment Bolts

c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.

4. SYMPTOM: THE WALKING BELT IS OFF-CENTER WHEN WALKED ON

a. If the walking bell has shifted to the left, first remove the key and

UNPLUG THE POWER CORD. Using the 3/16" end of the allen

wrench, tum the left rear roller adjustment bolt clockwise, and

the dght bolt counterclockwise, 1/4 of a turn each. Be careful not

to overtighten the walking belt. Plug in the power cord, insert the

key and run the treadmill for a few minutes. Repeat until the

walking belt is centered.

b. ff the walking belt has shifted to the right, first remove the key

and UNPLUG THE POWER CORD. Using the 3/16" end of the

alien wrench, tum the left rear roller adjustment bolt counter-

clockwise, and the dght bolt clockwise, 1/4 of a turn each. Be

careful not to overtighten the walking bell Plug in the power

cord, insert the key and run the treadmill for a few minutes.

Repeat untilthe walking belt is centered.

c. If the walking belt slips when walked on, first remove the key

and UNPLUG THE POWER CORD. Using the 3/16" end of the

allen wrench, turn both rear roller adjustment bolls clockwise,

1/4 of a turn. When the walking boll is correctly tightened, you

should be able to lift each side of the walldng belt 2-3 inches off

the walking platform. The center of the walking bolt should just

touch the walking platform. Be careful to keep the walking bell

centered. Plug in the power cord, Insert the key and run the

•treadmillfor a few minutes. Repeat until the walking belt is prop-

edy tightened.

5. SYMPTOM: THE TREADMILL SITS UNEVENLY ON THE FLOOR

a. Make sure that the six base pads are attached to the treadmill (see assembly step 5 on page 6).

6. SYMPTOM: ONE OF THE UPPER BODY ARMS SQUEAKS DURING USE

a. Correcting this problem requires a small amount of white madne grease, available at most hardware stores.

Turn the Resistance Knob (97) counterclockwise until ltcan be

removed. Remove the I_esistance Cone (98) and the Upper

Body Arm (96), along with the 3/8" Washers (67), Spdng

Washer (5), Thrust Washers (101 ), and Thrust Beadng (102).

(Note: If the Resistance Sleeve [99] comas out of the

Resistance Bracket [lo4], press It back In.) Apply a thin layer of

white rnadne grease to the outer surface of the Resistance Cone

(98). Reattach all parts in the order shown at the dghL

104

101

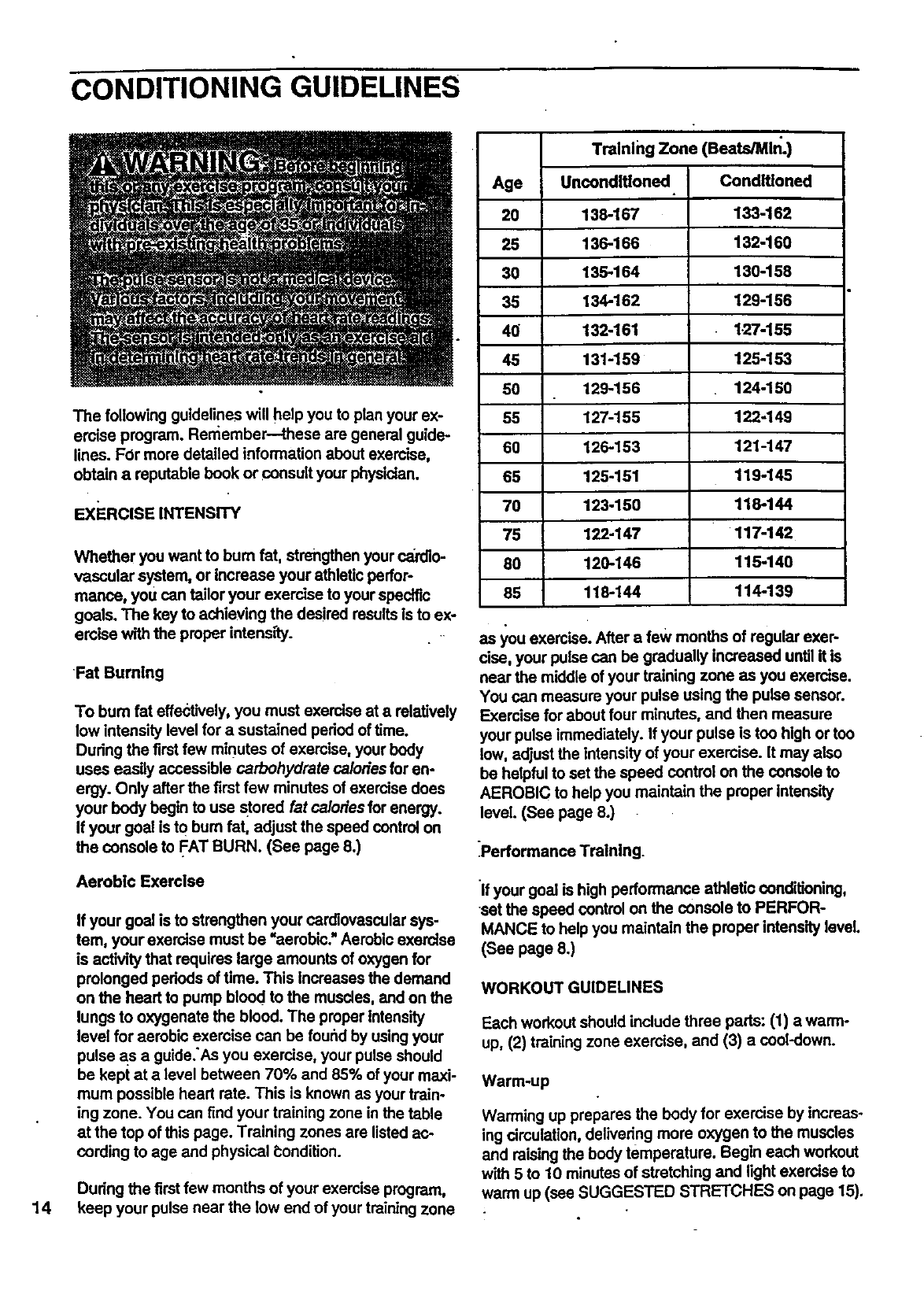

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. Remember--these are general guide-

lines. FOr more detailed information about exercise,

obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether you want to bum fat, strengthen your can:l]o-

vascular system, or increase your athletic perfor-

mance, you can tailor your exercise to your specific

goals. The key to achieving the desired results Is to ex-

ercise with the proper intens_y.

Fat Burning

To bum fat effectivaly, you must exerdse at a relatively

low intensity level for a sustained period of time.

Dudng the firstfew minutes of exercise, your body

uses easily accessible carbohydrate calories for en-

ergy. Only after the first few minutes of exercise does

your body begin to use stored fat calories for energy.

If your goal is to bum fat, adjust the speed control on

the console to FAT BURN. (See page 8.)

Aerobic Exercise

If your goal isto strengthen your cardiovascular sys-

tem, your exercise must be =aerobic." Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged pedods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. The proper intensity

level for aerobic exercise can be foudd by using your

pulse as a guide:As you exercise, your pulse should

be kept at alevel between 70% and 85% of your maxi-

mum possible heart rate. This is known as your train-

ing zone. You can find your training zone in the table

at the top of this page. Training zones are listed ac-

cording to age and physical _ondRion.

Dudng the first few months of your exercise program,

keep your pulse near the low end of your training zone

Training Zone (Beats/MIr_)

Age Unconditioned

20 138-167

25 136-166

30 135-164

35 134-162

40 132-161

45 131-159

50 129-156

55 127-155

6O 126-153

65 125-151

70 123-150

75 122-147

80 120-146

85 116-144

Conditioned

133-162

132-160

130-158

129-156

1.27-155

126-153

124-150

122-149

121-147

119-145

118-144

117-142

115-140

114-139

as you exercise. After a few months of regular exer-

cise, your pulse can be gradually increased until it is

near the middle of your training zone as you exercise.

You can measure your pulse using the pulse sensor.

Exercise for about four minutes, and then measure

your pulse immediately. If your pulse is too high or too

low, adjust the intensity of your exercise. It may also

be helpful to set the speed control on the console to

AEROBIC to help you maintain the proper intensity

level. (See page 8.)

_Performance Training.

if your goal is high performance athletic conditioning,

set the speed control on the console to PERFOR-

MANCE to help you maintain the proper intensity level.

(See page 8.)

WORKOUT GUIDELINES

Each workout should include three pads: (1) a warm-

up, (2) training zone exercise, and (3) a cool-down.

Warm-up

Warming up prepares the body for exercise by increas-

ing drculation, dalivedng more oxygen to the muscles

and raising the body temperature. Begin each workout

with 5 to 10 minutes of stretching and light exercise to

warm up (see SUGGESTED STRETCHES on page 15).

TrainingZoneExercise

Afterwarmingup,Increasetheintensityofyourexer-

cise until your pulse is in your trainingzone for 20 to

60 minutes. (Dudng the first few weeks of your exer-

cise program, do not keep your pulse in your training

zone for longer than 20 minutes.) Breathe regularly

and deeply as you exerolse--never hold your breath.

Cool-down

Finish each workout with 5 to 10 minutes of stretching

to cool down. This will increase the flexibility of your

muscles and _11 help to prevent post-exercise problems.

Exercise Frequency

To maintain or improve your condition, complete thr_-

workouts each week, with at least one day of rest be-

tween workouts. After afew months, you may com-

plete up to five workouts each week if desired.

The key to success is to make exerdse aregular and

enjoyable part of your everyday life.

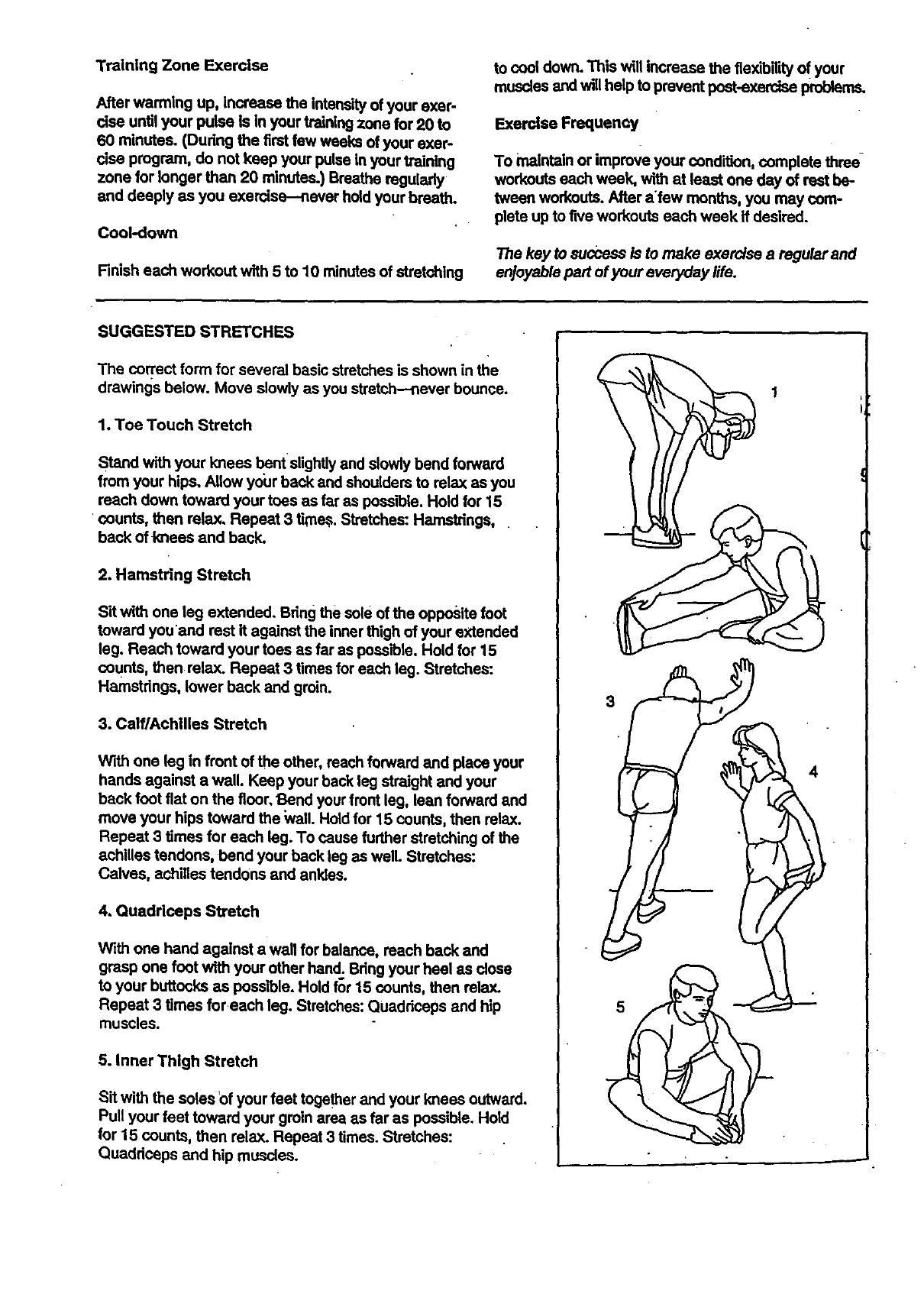

SUGGESTED STRETCHES

The correct form for several basic stretches is shown in the

drawings below. Move slowly as you stretch--never bounce.

1. Toe Touch Stretch

Stand with your knees bentslightly and slowly bend forward

from your hips. Allow your back and shoulders to relax as you

reach down toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 tirne_. Stretches: Hamstrings,

back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot

toward youand rest it against the inner thigh of your extended

leg. Reach toward your teas as far as possible. Hold for 15

counts, then relax. Repeat 3 times for each leg. Stretches:

Hamstdngs, lower back and groin.

3. Calf/Aehillas Stretch

With one leg In front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your

back foot flat on the floor. Bend your front leg, lean forward and

move your hips toward the _all. Hold for 15 counts, then relax.

Repeat 3 times for each leg. To cause further stretching of the

achilles tendons, bend your back leg as well. Stretches:

Calves, achilles tendons and ankles.

4, Quaddoeps Stretch

With one hand against a wall for balance, reach back and

grasp one foot with your other hand. Bdng your heel as close

to your buttocks as possible. Hold f_r 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Quaddceps and hip

muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold

for 15 counts, then relax. Repeat 3 times. Stretches:

Quaddceps and hip muscles.

Remove this HARDWARE IDENTIFICATION CHART, EX-

PLODED DRAWING, and PART LIST from the manual.

Save this page for future reference.

HARDWARE IDENTIFICATION CHART

The chart below is provided to help you identify the small parts used in assembly. The number in parenthesis

below each part refers to the key number of the part. The second number refers to the quantity used In assembly,

3/8" Washer (67)-6

Handrail Nut (4)-2

_\\\\\1

Bracket Washer (70)-4

U©

Star Washer (103)-8

Resistance Bracket Bolt (107)-4

Screw (75)-8

Upright Screw (63)-4

D®

EXPLODED DRAWING--Model No. 831.297480 Rl19_

107

6•

106 102 5

81*'%

.o J°

34*

\ 17

109

94 52 66

°° "

41 22

113

116

110

i56 6

100 26

67 24

103 f104

105

PART LIST--Model No. 831.297480 Rll A

Key No. Part No. Qty. Description

1 133O14

2 131882

3 135539

4 105477

5128005

6 119425

7 131161

8 128113

9 131606

10" 135192

11 119038

12 126134

13 124669

14 122812

15 014117

16 115523

17 120867

18 135194

19 120630

20 107503

21 130993

22 013307

23 NSP

24 013300

25 135195

26 134690

27 133333

28 125802

29 013322

30 109382

31 124695

32 102634

33 135197

34" 133966

35 126747

36 133413

_125198

119163

39 100498

40 016029

41 013601

42 112609

43 014127

44 133017

45 133685

46 130868

47 129168

48 131639

49 127098

50 131738

51 129734

52 130251

53 135199

54 129004

55 013430

56 129642

57 129740

53 013547

59 135726

60 130822

61 117806

62 131607

63 013484

Key No. Part No. Qty.

1 Left Updght 64 128903

1 Front Frame Cover 65 116927

1 Incline Motor Guard 66 013576

2 Handrail Nut 67 014132

2 Spring Washer 68 121576

8 3/8" Lock Nut 69 126819 -

1 Speed Knob 70 014068

1 Speed Potantiometer 71 133013

1Console Base 72 052012

1 Console 73 100606

1 Key/Clip 74 013342

1 MotorBelt 75 126996

1 Power Cord 76 128457

1 MotorTension Washer 77 016028

1 MotorTension Star Washer 78 131635

1 InclineW_OT_ 79 133845

1 MotorTension Nut 80 012056

1 Motor Hood 81 131605

23 Small Screw 82 129639

1 Motor PivotBolt 83 016857

1 • Choke 84 135201

2 Incline Belt 65 165200

1 Frame 86 101174

4 Anchor Screw 87 131751

1 Wire Harness 88 134510

1 Motor-ControUerWire 89 129814

8 Cover Clip 90 133598

4HoodAnchor 91 . 116926

4 Frame Cover Screw 92-- 131753

1 Circuit Breaker 93 124614

1 Grommet 94 132681

1 Ground Wire 95 105500

2 Foot Rail 96 131593

1 Motor/PuUey/Rywheel/Fan 97 126843

1 Pulley/Flywheel/Fan 98 126828

1 Motor 99 126827

1Controller 100 134650

1 On/Off Switch 101 102973

1 Magnet 102 106896

2 4" Cable Tie 103, 014149

3 InclineTube/Incline Motor Bolt 104 126773

1 FrontRoller Adj. Bolt 105 : 126644

3 AdjustmentWasher 106 132583

1 RightUpright 107 132637

2 UprightSpacer 108 126960

2 Base Wheel Bolt 109 125203

28 Belly Pan Screw 110 102959

1 Belly Pan _11"P 117882

2 Belt Guide 112 102955

1 Storage Latch 113 120668

2 Storage Latch Spdng 114 012152

4 Frame Guide 115 119070

1 Rear Frame Cover -11_ 122.125

1Wire Harness Grommet #112083

2 UprightPivot Belt #112083

2 Base Wheel #102246

7 Base Pad #107771

1 Motor Tension Bolt #130426

1Base #133025

1 Safety Cover Connector

2 Incline Leg Wheel Bolt

1 Book Rack

4 UprightScrew

DeecrlpUon

1 Lift Board

1Wire Tie Holder

8 Latch-Frame Guide Screw

10 3/8" Washer

2 Roller Endcap NUt

4 Plastic Stand-Off

6 Endcap/Bracket Washer

1 Incline Leg

2 Incline Leg Wheel

2 Rear Roller Endcap Screw

2 Adjustment Belt

18 Screw

1Alien Wrench

1 Adhesive Clip

1 Rear Roller Endcap

1 Rear Roller

4 Incline Leg Nut

1 Latch Decal

1 Battery Cover

4 8" Cable Tie

1 Walking Belt

1 Walking Platform

8 Platform Screw

8 isolator

1 Incline Tube

1 Shock

1 Front Roller/Pulley

1 Releasable Cable Tie

1 Storage Latch Bracket

2 Handrail Bolt

1 Frame Guide Spacer

•2 Foam Grip

2 Upper Body Arms w/Foam

2 Resistance Knob

2 Resistance Cone

2 Resistance Sleeve

1 Electronics Bracket

4 Thrust Washer

2Thrust Beadng

8 Star Washer

2 Resistance Bracket

2 Resistance Belt

2 Res'_tance Bracket Spacer

4 Resistance Bracket Boll

1 Base Plug

1 Right Foot Rail

1 Small Bolt

1 Reed Switch Wire

1 Optic Switch

1 Optic Switch Bracket

1 Small NUt

1 Optic Disk

1 Optic Switch Nut

1 8" Blue Wire, 2 Female

1 4" Blue Wire, 2 Female

1 8" White Wire, 2 Female

1 8" White Wire, Male/Female

1 6" Green Wire

1 User's Manual

* Includes all pads shown in the box

#These pads are notillustrated

8EAR8

Model No. 831.297480

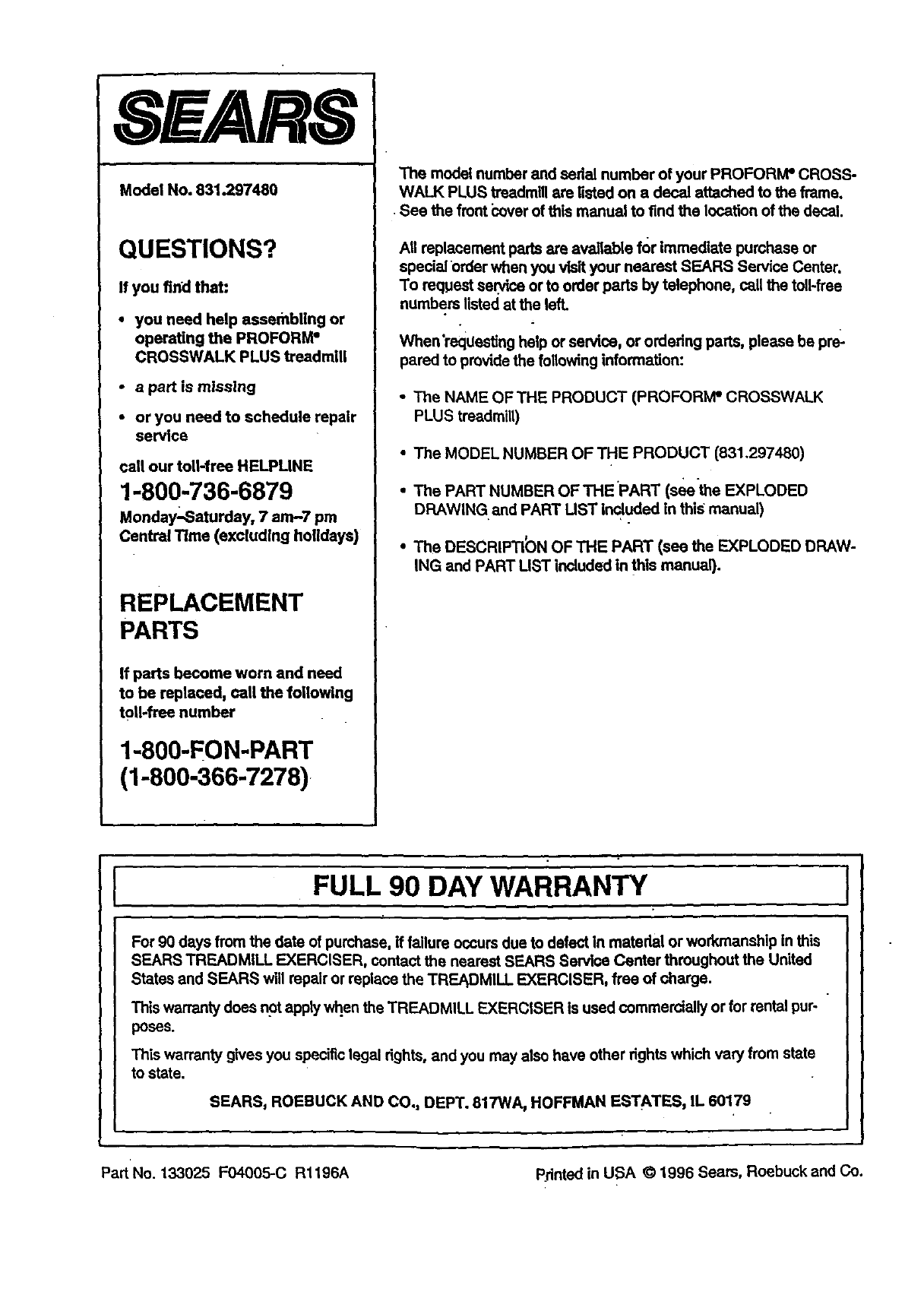

QUESTIONS?

If you find that:

•you need help assembling or

operating the PROFORM •

CROSSWALK PLUS treadmill

•apart is missing

•or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday-Saturday, 7 am-7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need

to be replaced, call the following

t011-free number

1-800-FON-PART

(1-800-366-7278)

The model number and sedal number of your PROFORIvP CROSS-

WALK PLUS treadmill are listed on a decal attached to the frame.

•See the front cover of this manual to find the location of the decal.

All replacement parts me available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To req!Jestservice or to order parts by telephone, cell the toll-free

numbers listed at the left.

When'requesting help or service, or ordering parts, please be pre-

pared to provide the following information:

•The NAME OF THE PRODUCT (PROFORbP CROSSWALK

PLUS treadmill)

• The MODEL NUMBER OF THE PRODUCT (831.297480)

• The PART NUMBER OF THE PART (s_ethe EXPLODED

DRAWING and PART UST included in this manual)

•The DESCRIPTI_3N OF THE PART (see the EXPLODED DRAW-

ING and PART UST included in this manual).

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in matadal or workmanship in this

SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United

States and SEARS will repair or replace the TRF_h,DMILL EXERCISER, free of charge.

This warranty does not apply wh.enthe TREADMILL EXERCISER is used commercially or for rental pur-

poses.

This warranty gives you specific legal dghts, and you may also have other dghts which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Proform 831297480 User Manual Treadmill Manuals And Guides 99020087

PROFORM Treadmill Manual 99020087 PROFORM Treadmill Owner's Manual, PROFORM Treadmill installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
