_®®@@@

=_®®@@@ PERFORMANCE TREADMILLS

SEARS

Model No. 831.297681

Serial No.

Write the serial number in the space

above for future reference.

Serial Number Decal

EXE F_C | S E

EO u i PM ENT

HELPLINE!

1-800-736-6879

ACAUTION

Read all precautions and in-

structions in this manual before

using this equipment. Save this

manual for future reference. EUAL

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 2

BEFORE YOU BEGIN ....................................................................... 4

ASSEMBLY ............................................................................... 5

OPERATION AND ADJUSTMENT ............................................................. 7

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 10

MAINTENANCE AND TROUBLE-SHOOTING ................................................... 12

CONDITIONING GUIDELINES ............................................................... 14

PART LIST ............................................................................... 15

ORDERING REPLACEMENT PARTS .................................................. Back Cover

FULL 90 DAY WARRANTY ........................................................... Back Cover

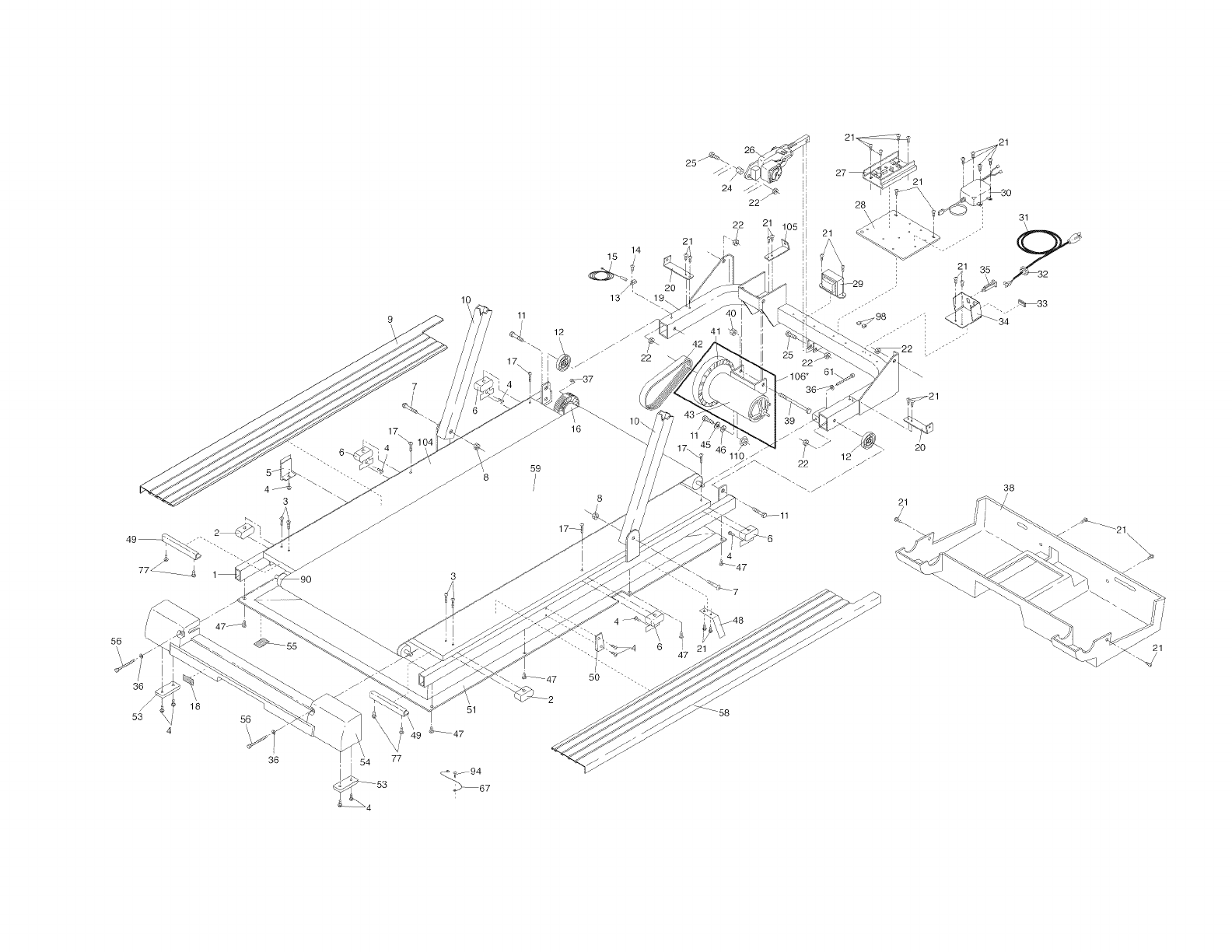

Note: An EXPLODED DRAWING is attached in the center of this manual. Please save the EXPLODED DRAWING

for future reference.

iMPORTANT PRECAUTIONS

WARNING: 7oreducether skofburns,f re,o ectr cshock,or njurytopersons,readthe

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure both men and women. Always wear athletic

that all users of this treadmill are adequately shoes. Never use the treadmill with bare feet,

informed of all warnings and precautions, wearing only stockings, or in sandals.

Use the treadmill only as described in this 10. When connecting the power cord (see page 7),

manual, plug the power cord into asurge suppressor

Place the treadmill on a level surface, with

eight feet of clearance behind it. Do not place

the treadmill on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

(not included) and plug the surge suppressor

into agrounded circuit capable of carrying 15

or more amps. No other appliance should be

on the same circuit. Do not use an extension

cord.

11. Use only a single-outlet surge suppressor

that is UL 1449 listed as a transient voJtage

ture and dust. Do not put the treadmill in a surge suppressor (TVSS). The surge suppres-

garage or covered patio, or near water, sot must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dis-

Do not operate the treadmill where aerosol sipation of 450 joules. The surge suppressor

products are used or where oxygen is being must be electrically rated for 120 volts AC and

administered. 15 drops.

6. Keep children under the age of 12 and pets 12. Keep the power cord and the surge suppres-

away from the treadmill at all times, sot away from heated surfaces.

7. The treadmill should not be used by persons

weighing more than 250 pounds.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothing when

using the treadmill. Do not wear loose cloth-

ing that could become caught in the treadmill.

Athletic support clothes are recommended for

13. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properJy. (See BE-

FORE YOU BEGIN on page 4if the treadmill is

not working properly.)

14. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

15. The treadmill is capable of high speeds, able to safely lift 45 pounds (20 kg) in order to

Adjust the speed in small increments to avoid raise, lower, or move the treadmill.

sudden jumps in speed.

16. To reduce the possibility of the treadmill

overheating, do not operate the treadmill

continuously for longer than 1 hour.

17.

20. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

21. Inspect and tighten all parts of the treadmill

every three months.

The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only 23.

as an exercise aid in determining heart rate

trends in general.

18. Never leave the treadmill unattended while it

is running. Always remove the key when the

treadmill is not in use.

19. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO MOVE

THE TREADMILL on page 10.) You must be

22. Never insert any object into any opening.

Always unplug the power cord before per-

forming the maintenance and adjustment

procedures described in this manual. Never

remove the motor hood unless instructed to

do so by an authorized service representa-

tive. Servicing other than the procedures in

this manual should be performed by an au-

thorized service representative only.

24. This treadmill is intended for in-home use

only. Do not use this treadmill in any com-

mercial, rental, or institutional setting.

AWARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. SEARS assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

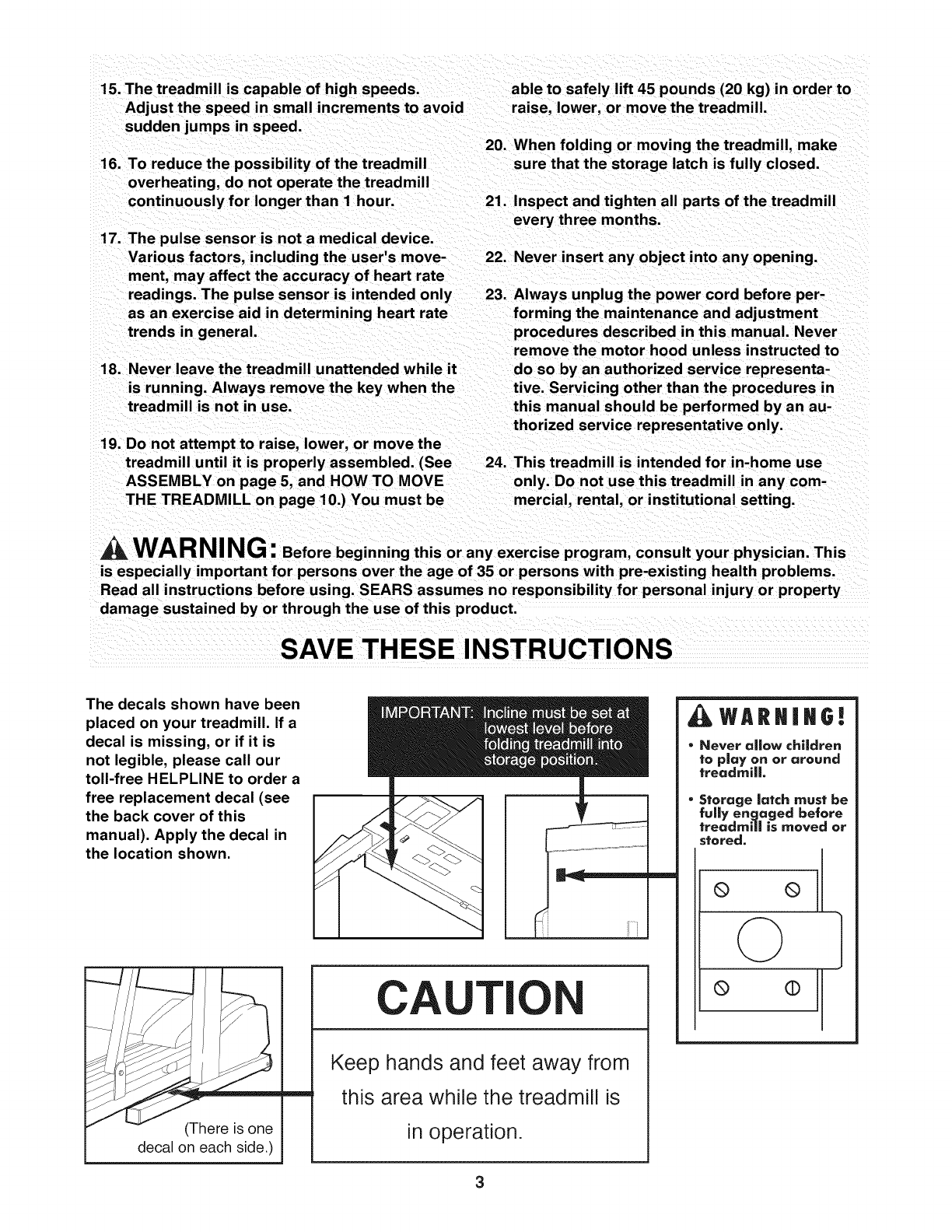

The decals shown have been

placed on your treadmill. If a

decal is missing, or if it is

not legible, please call our

toll-free HELPLINE to order a

free replacement decal (see

the back cover of this

manual). Apply the decal in

the location shown.

(There is one

decal on each side.)

CAUTI

Keep hands and feet away from

this area while the treadmill is

in operation.

WARH|NG!

" Never allow children

to play on or around

treadmill.

BEFORE YOU BEGIN

Thank you for selecting the innovative PROFORM _

585 treadmill. The 585 treadmill blends advanced

technology with innovative design to let you enjoy an

excellent form of cardiovascular exercise in the conve-

nience and privacy of your home.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing the manual, please call our toll-free HELPLINE at

1-800-736-6879, Monday through Saturday, 7 a.m.

until 7 p.m. Central Time (excluding holidays). To help

us assist you, please note the product model number

and serial number before calling. The model number of

the treadmill is 831.297681. The serial number can be

found on a decal attached to the treadmill (see the

front cover of this manual for the location).

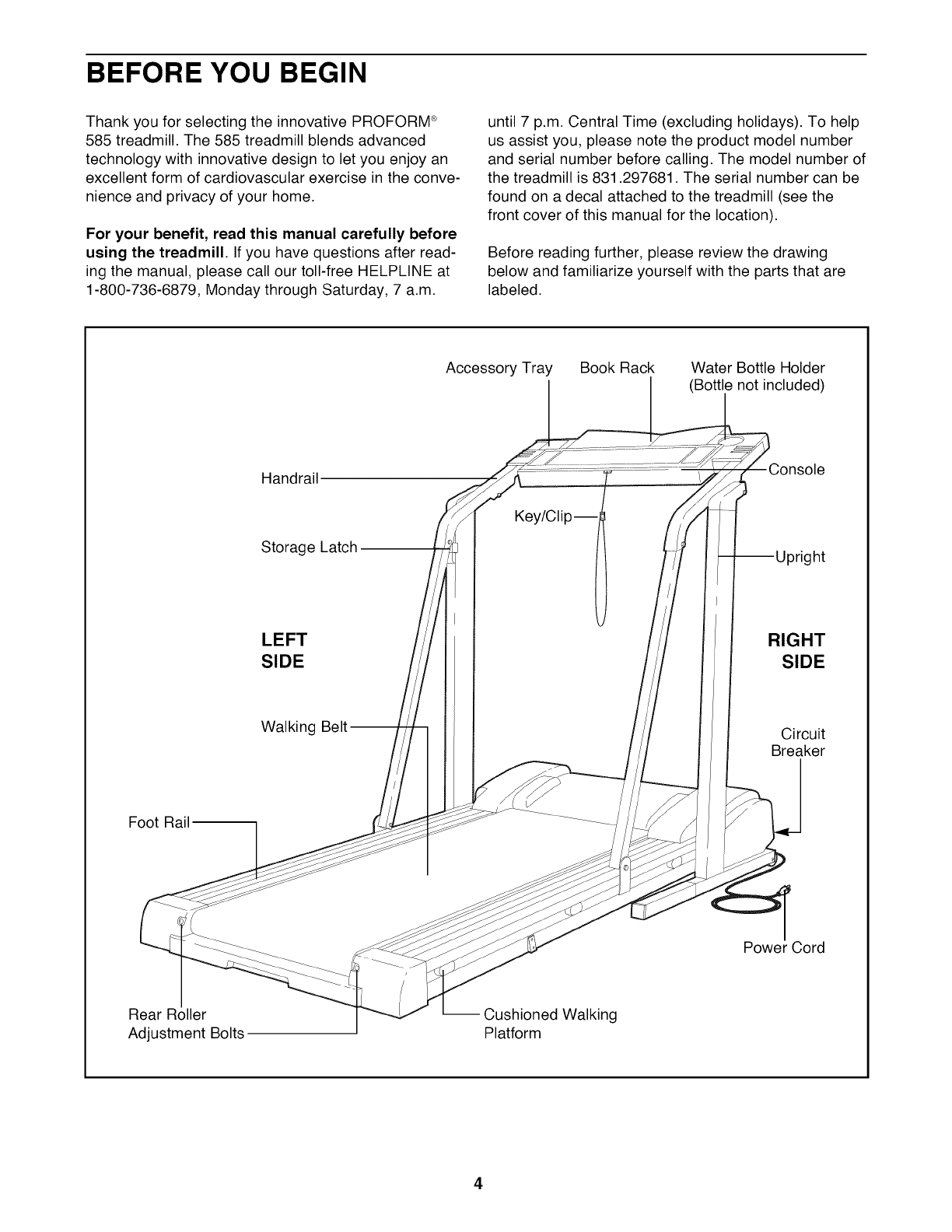

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Accessory Tray Book Rack Water Bottle Holder

(Bottle not included)

Handrail

Storage Latch

LEFT

SIDE

Walking

Key/Clip--

Console

RIGHT

SIDE

Circuit

Breaker

Foot Rail

Power Cord

Rear Roller

Adjustment Bolts

-- Cushioned Walking

Platform

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove the packing materials. Do not

dispose of the packing materials until assembly is completed.

Assembly requires the included allen wrenc_, and your own adjustable wrench

screwdriver _-_[Z_) , and scissors _. _, phillips

,Refer to the drawing on page 4 and identify the left

side of the treadmill. With the help of a second person,

carefully lay the treadmill on its left side.

Firmly slide an Extension Leg (99) into the Base (70) as

shown. Make sure that the Extension Leg is turned so

the Base Pad (89) is on the indicated side. Using the in-

cluded Allen Wrench (92), attach the Extension Leg with

an Extension Screw (93). While the treadmill is on its

side, attach the other Extension Leg (not shown) in the

same manner.

With the help of a second person, carefully raise the

treadmill to the vertical position so both Extension Legs

(99) are resting flat on the floor.

70 92 93

Remove the four Latch Screws (108) from the left

Upright (70).

Without removing the tape from the Latch Bracket (60)

and Latch Spacer (66), hold the Latch Spacer against

the left Upright (70) as shown. Attach the Latch Bracket

and the Latch Spacer with the four Screws. Make sure

that the Screws are tight, but do not overtighten

them; if the Screws are overtightened, the Storage

Latch (69) will not slide smoothly. After the Latch

Bracket is attached, remove any visible tape.

Note: The inset drawing shows how the Latch Bracket

(60), Latch Springs (68), Storage Latch (69), and Latch

Spacer (66) fit together.

Remove the indicated Screw (4) from the treadmill

Frame (1). Attach the plastic Catch (5) to the Frame with

the Screw. Note: It may be necessary to slide the

Storage Latch (69) to the left while attaching the Catch.

70_!

60, 66

_69

4. 4

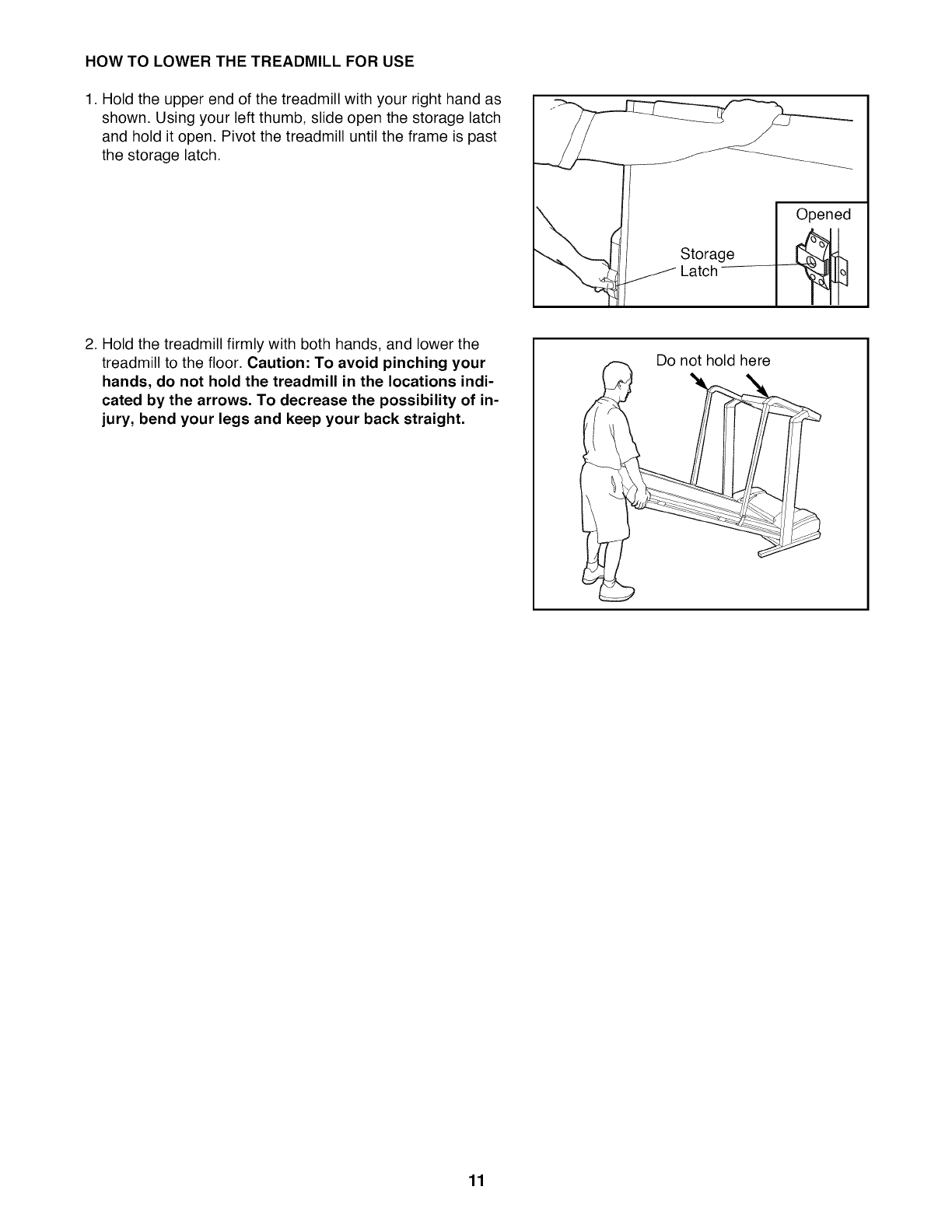

SeeHOWTOLOWERTHETREADMILLFORUSEon

page11.Followtheinstructionsonpage11to lowerthe

treadmill.

CutthetwoshippingtiesfromtheRightandLeft

Handrails(72,73).

_7 Shipping

,Align the hole in the lower end of the right Handrail Arm

(10) with the hole in the frame tab as shown. Attach the

Handrail Arm with a Handrail Bolt (7) and a Handrail Nut

(8).

Repeat this step on the left side.

Frame Tab

,Remove the backing from the Adhesive Clip (91). Press

the Adhesive Clip onto the Base (70) in the indicated

location. Press the Allen Wrench (92) into the Adhesive

Clip.

091 92

7. Make sure that all parts are tightened before you use the treadmill. To protect the floor or carpet, place a

mat under the treadmill. To order a mat, see the back cover of this manual.

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBE TM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

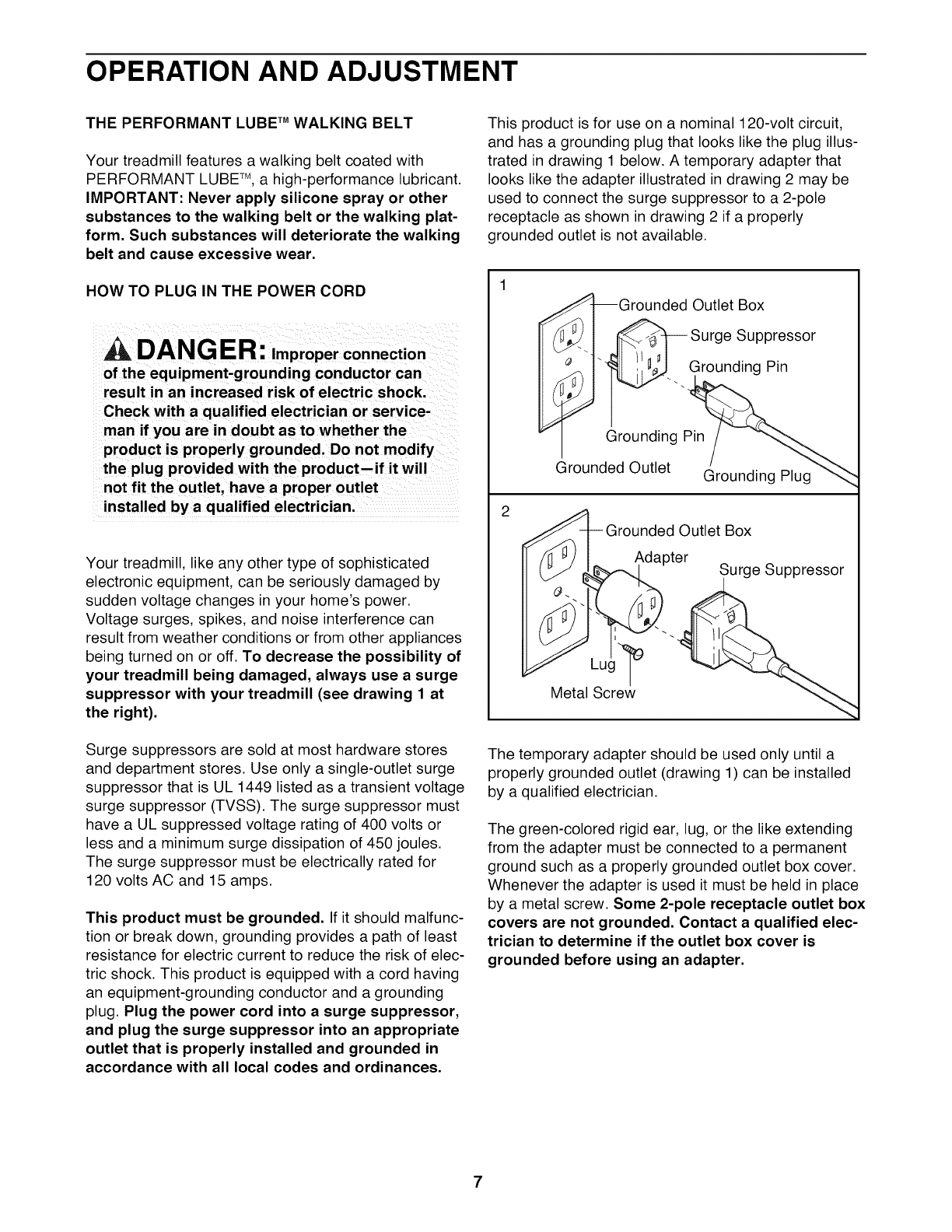

HOW TO PLUG IN THE POWER CORD

DANG ER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product--if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use asurge

suppressor with your treadmill (see drawing 1 at

the right).

Surge suppressors are sold at most hardware stores

and department stores. Use only a single-outlet surge

suppressor that is UL 1449 listed as a transient voltage

surge suppressor (TVSS). The surge suppressor must

have a UL suppressed voltage rating of 400 volts or

less and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into asurge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

_Grounded Outlet Box

[_. I _SurgeSupp ressor

__!_[IP_II_ t'_ll i;_J Grounding Pin

Grounded Outlet Grounding Plug"_

Grounded Outlet Box

Adapter _

_4_"___.._Surge suppressor

Metal Screw

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

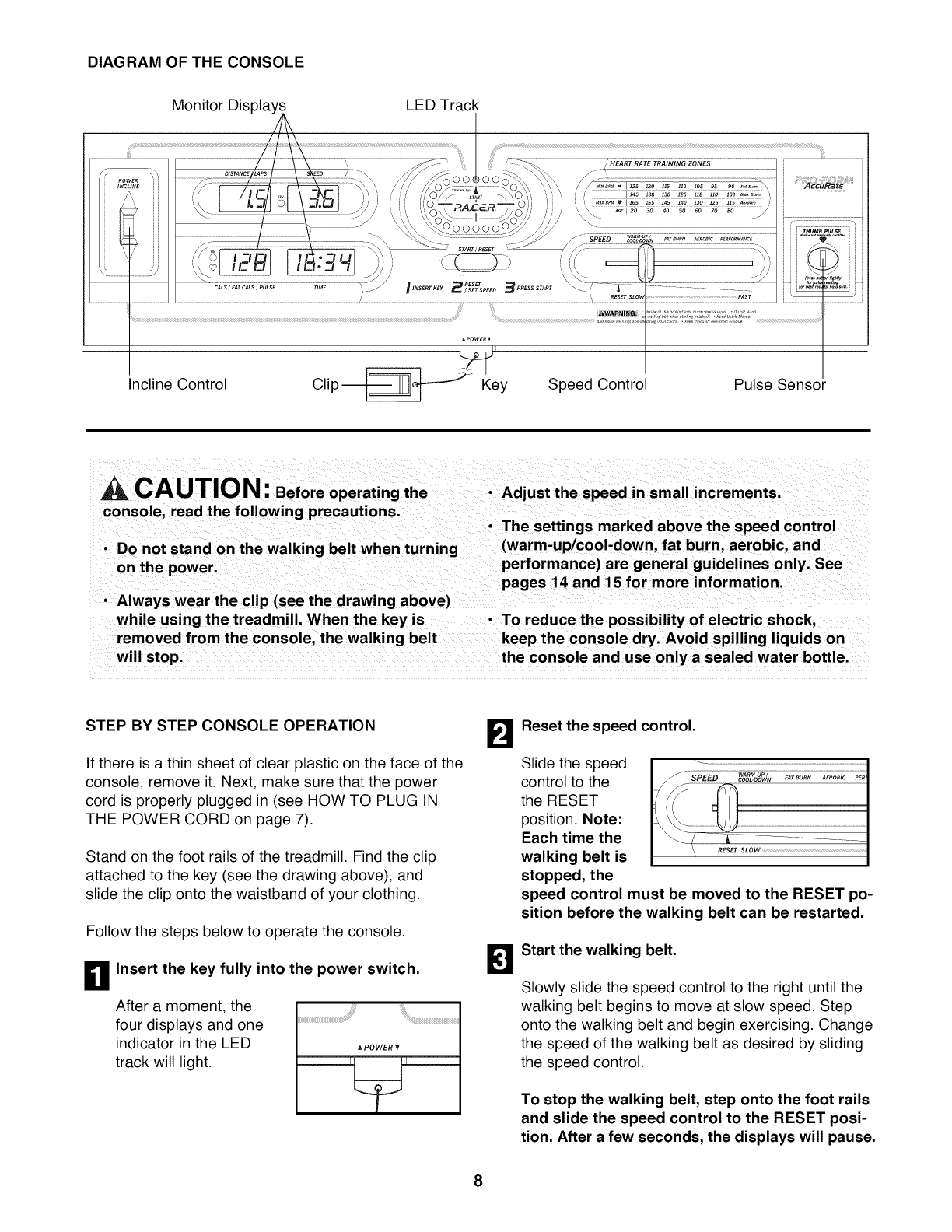

DIAGRAM OF THE CONSOLE

Monitor Dis LED Track

POWER

INCLINE

/ HEART RATE TRAINING ZONES

_POWER_

,nc,,neOontro,O,io ey Speed Control Pulse Sensor

CAUTION: Beforeoperating the

console, read the following precautions.

• Do not stand on the walking belt when turning

on the power.

• Always wear the clip (see the drawing above)

while using the treadmill. When the key is

• Adjust the speed in small increments.

The settings marked above the speed control

(warm-up/cool-down, fat burn, aerobic, and

performance) are general guidelines only. See

pages 14 and 15 for more information.

• To reduce the possibility of electric shock,

removed from the console, the walking belt keep the console dry. Avoid spilling liquids on

will stop. the console and use only a sealed water bottle.

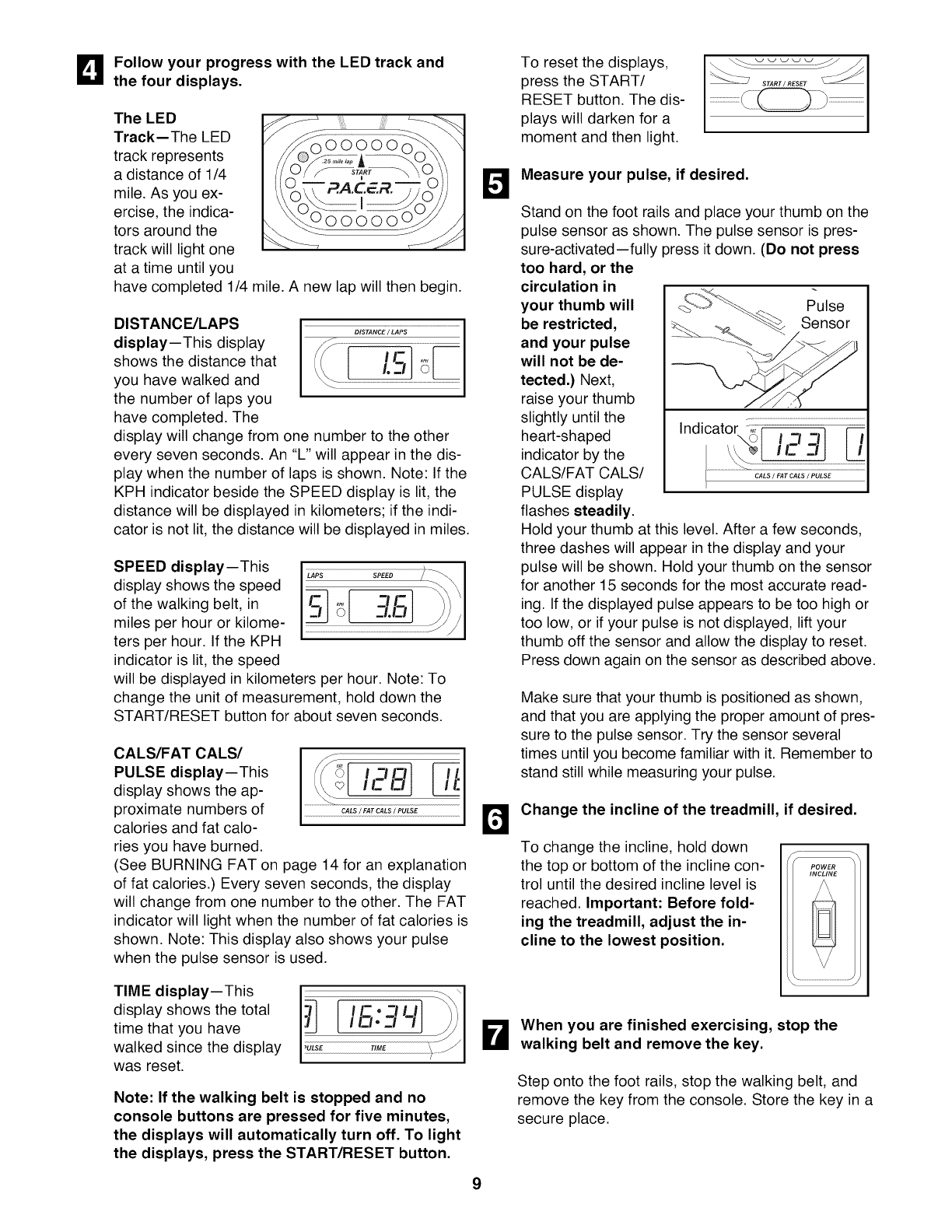

STEP BY STEP CONSOLE OPERATION

If there is a thin sheet of clear plastic on the face of the

console, remove it. Next, make sure that the power

cord is properly plugged in (see HOW TO PLUG IN

THE POWER CORD on page 7).

Stand on the foot rails of the treadmill. Find the clip

attached to the key (see the drawing above), and

slide the clip onto the waistband of your clothing.

Follow the steps below to operate the console.

[I Insert the key fully into the power switch.

After a moment, the

four displays and one

indicator in the LED

track will light.

POWER

Reset the speed control.

Slide the speed

control to the

the RESET

position. Note:

Each time the

walking belt is

stopped, the

speed control must be moved to the RESET po-

sition before the walking belt can be restarted.

Start the walking belt.

Slowly slide the speed control to the right until the

walking belt begins to move at slow speed. Step

onto the walking belt and begin exercising. Change

the speed of the walking belt as desired by sliding

the speed control.

To stop the walking belt, step onto the foot rails

and slide the speed control to the RESET post-

tion. After a few seconds, the displays will pause.

B ollow your progress with the LED track and

the four displays.

The LED

Track--The LED

track represents

a distance of 1/4

mile. As you ex-

ercise, the indica-

tors around the

track will light one

at a time until you

have completed 1/4 mile. A new lap will then begin.

DISTANCE/LAPS

display--This display

shows the distance that

you have walked and

the number of laps you

have completed. The

display will change from one number to the other

every seven seconds. An "L" will appear in the dis-

play when the number of laps is shown. Note: If the

KPH indicator beside the SPEED display is lit, the

distance will be displayed in kilometers; if the indi-

cator is not lit, the distance will be displayed in miles.

SPEED display--This

display shows the speed

of the walking belt, in

miles per hour or kilome-

ters per hour. If the KPH

indicator is lit, the speed

will be displayed in kilometers per hour. Note: To

change the unit of measurement, hold down the

START/RESET button for about seven seconds.

CALS/FAT CALS/

PULSE display--This

display shows the ap-

proximate numbers of CALSJ_ATCALSJPULSE

calories and fat calo-

ries you have burned.

(See BURNING FAT on page 14 for an explanation

of fat calories.) Every seven seconds, the display

will change from one number to the other. The FAT

indicator will light when the number of fat calories is

shown. Note: This display also shows your pulse

when the pulse sensor is used.

T,..Oi..,a.--Th,s

display shows the total II-. _-'l! I I

time that you have !L-I. El -JJ

walked since the display _E ,,,,_

was reset.

Note: If the walking belt is stopped and no

console buttons are pressed for five minutes,

the displays will automatically turn off. To light

the displays, press the START/RESET button.

To reset the displays,

press the START/

RESET button. The dis-

plays will darken for a

moment and then light.

Measure your pulse, if desired.

Stand on the foot rails and place your thumb on the

pulse sensor as shown. The pulse sensor is pres-

sure-activated-fully press it down. (Do not press

too hard, or the

circulation in

your thumb will Pulse

be restricted, Sensor

and your pulse

will not be de-

tected.) Next,

raise your thumb

slightly until the .....................................................................................................

Indicator ,,,, f _!_! _

heart-shaped _! !A!!f -f f

indicator by the

CALS/FAT CALS/ .............ii:i:: Ls _::::::

PULSE display

flashes steadily.

Hold your thumb at this level. After a few seconds,

three dashes will appear in the display and your

pulse will be shown. Hold your thumb on the sensor

for another 15 seconds for the most accurate read-

ing. If the displayed pulse appears to be too high or

too low, or if your pulse is not displayed, lift your

thumb off the sensor and allow the display to reset.

Press down again on the sensor as described above.

Make sure that your thumb is positioned as shown,

and that you are applying the proper amount of pres-

sure to the pulse sensor. Try the sensor several

times until you become familiar with it. Remember to

stand still while measuring your pulse.

Change the incline of the treadmill, if desired.

To change the incline, hold down

the top or bottom of the incline con-

trol until the desired incline level is

reached. Important: Before fold-

ing the treadmill, adjust the in-

cline to the lowest position.

POWER

INCLINE

B hen you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails, stop the walking belt, and

remove the key from the console. Store the key in a

secure place.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the lowest position. If the incline is not at the lowest position,

the treadmill will be permanently damaged. Next, unplug the power cord. Caution: You must be able to

safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown

at the right. Caution: To avoid pinching your hands, do

not hold the treadmill in the locations indicated by the

arrows. To decrease the possibility of injury, bend

your legs and keep your back straight. As you raise

the treadmill, make sure to lift with your legs rather

than your back. Raise the treadmill about halfway to the

vertical position.

Do not hold here

2. Move your right hand to the position shown and hold the

treadmill firmly. Raise the treadmill until the storage latch

closes over the latch catch. Make sure that the storage

latch closes fully over the latch catch.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of di-

rect sunlight. Do not leave the treadmill in the storage

position in temperatures above 85 ° Fahrenheit.

fStorage _^^.,

Latch __s_

Latch

Catch _1

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the

storage latch is closed fully over the latch catch.

1. Hold the upper ends of the treadmill. Place one foot on

the base as shown.

2. Tilt the treadmill back until it rolls freely on the wheels.

Carefully move the treadmill to the desired location. To

reduce the risk of injury, use extreme caution while

moving the treadmill. Do not attempt to move the

treadmill over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

J_q_--- Wheel

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand as

shown. Using your left thumb, slide open the storage latch

and hold it open. Pivot the treadmill until the frame is past

the storage latch.

Storage

Latch

2. Hold the treadmill firmly with both hands, and lower the

treadmill to the floor. Caution: To avoid pinching your

hands, do not hold the treadmill in the locations indi-

cated by the arrows. To decrease the possibility of in-

jury, bend your legs and keep your back straight.

Do not hold here

MAINTENANCE AND TROUBLE-SHOOTING

Most treadmill problems can be solved by following the simple steps below. If further assistance is

needed, call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m.

Central Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor

that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor

must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation

of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-

sole. (See step 1 on page 8.)

C, Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as

shown, the circuit breaker has tripped. To reset the

circuit breaker, wait for five minutes and then press

the switch back in.

Tripped Reset

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If

the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Remove the key from the console. Reinsert the key fully into the console. (See step 1 on page 8.)

d. If the treadmill still will not run, please call our toll-free HELPLINE.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the screws from the hood. Carefully remove

the hood. Locate the Reed Switch (15) and the

Magnet (37) on the left side of the Pulley (16). Turn

the Pulley until the Magnet is aligned with the Reed

Switch. Make sure that the gap between the

Magnet and the Reed Switch is about 1/8". If nec-

essary, loosen the Screw (14) and move the Reed

Switch slightly. Retighten the Screw. Re-attach the

hood, and run the treadmill for a few minutes to check

for a correct speed reading. I

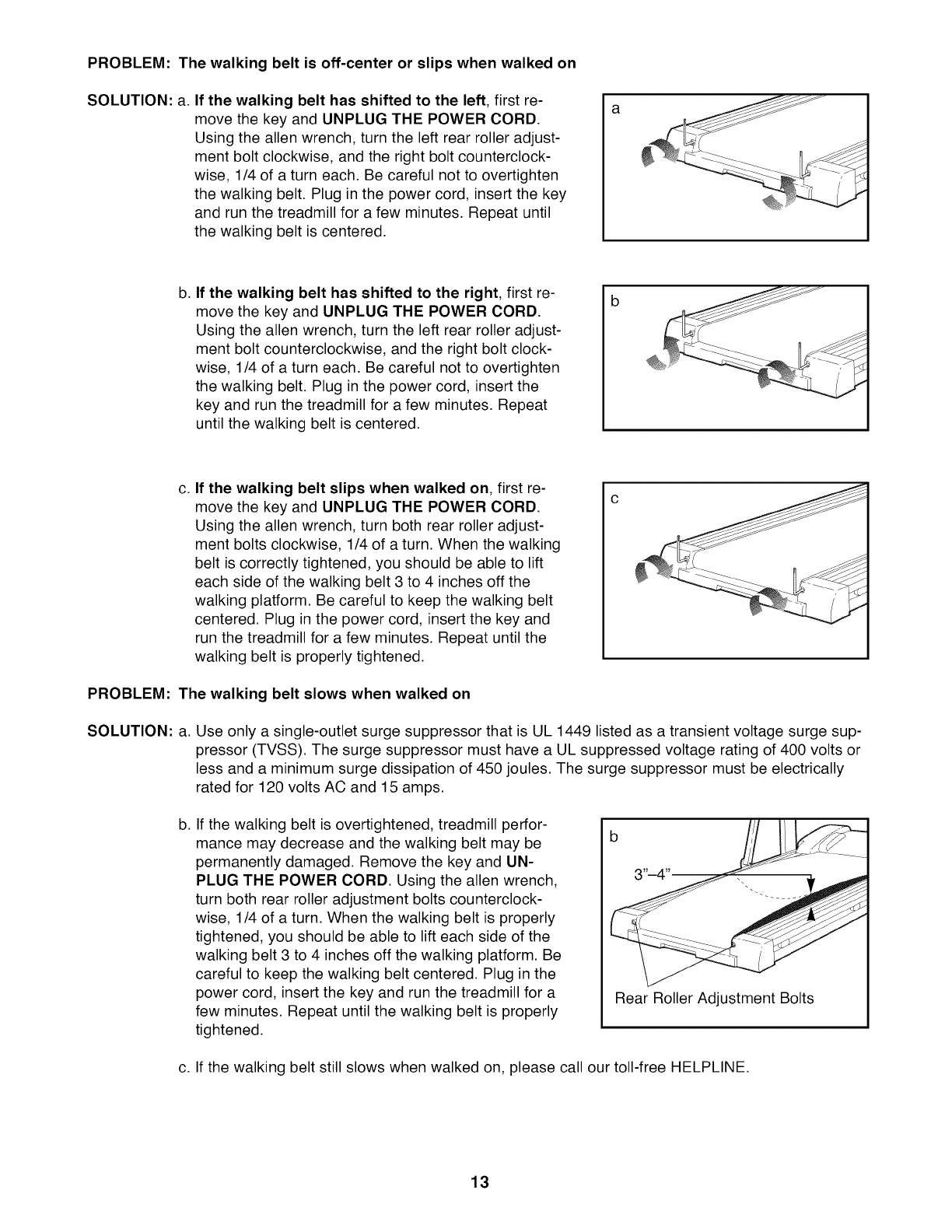

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt has shifted to the left, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn the left rear roller adjust-

ment bolt clockwise, and the right bolt counterclock-

wise, 1/4 of a turn each. Be careful not to overtighten

the walking belt. Plug in the power cord, insert the key

and run the treadmill for a few minutes. Repeat until

the walking belt is centered.

b, If the walking belt has shifted to the right, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn the left rear roller adjust-

ment bolt counterclockwise, and the right bolt clock-

wise, 1/4 of a turn each. Be careful not to overtighten

the walking belt. Plug in the power cord, insert the

key and run the treadmill for a few minutes. Repeat

until the walking belt is centered.

C, If the walking belt slips when walked on, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn both rear roller adjust-

ment bolts clockwise, 1/4 of a turn. When the walking

belt is correctly tightened, you should be able to lift

each side of the walking belt 3 to 4 inches off the

walking platform. Be careful to keep the walking belt

centered. Plug in the power cord, insert the key and

run the treadmill for a few minutes. Repeat until the

walking belt is properly tightened.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or

less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically

rated for 120 volts AC and 15 amps.

b, If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be

permanently damaged. Remove the key and UN-

PLUG THE POWER CORD. Using the allen wrench,

turn both rear roller adjustment bolts counterclock-

wise, 1/4 of a turn. When the walking belt is properly

tightened, you should be able to lift each side of the

walking belt 3 to 4 inches off the walking platform. Be

careful to keep the walking belt centered. Plug in the

power cord, insert the key and run the treadmill for a

few minutes. Repeat until the walking belt is properly

tightened.

Rear Roller Adjustment Bolts

c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.

CONDITIONING GUIDELINES

WARNING: Beforebeginning

this or any exercise program, consult your

physician. This is especially important for in-

dividuals over the age of 35 or individuals

with pre-existing health problems.

The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid

in determining heart rate trends in general.

The following guidelines will help you to plan your

exercise program. For more detailed exercise informa-

tion, obtain a book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the desired

results is to exercise with the proper intensity. The

proper intensity level can be found by using your heart

rate as a guide. The chart below shows recommended

heart rates for fat burning and aerobic exercise. (The

chart is also found on the treadmill console.)

MIN BPM _I125 120 115 I]0 105 95 90 Fat Bur,, X

XAGEI20 30 40 50 60 70 80 /

To find the proper heart rate for you, first find your age

at the bottom of the chart (ages are rounded off to the

nearest ten years). Next, find the three numbers above

your age. These numbers are your "training zone." The

smaller two numbers are recommended heart rates for

fat burning; the larger number is the recommended

heart rate for aerobic exercise. To measure your heart

rate during exercise, use the pulse sensor on the con-

sole. (See page 9.) If your heart rate is too high or too

low, adjust the speed or incline of the treadmill.

Burning Fat

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time. During

the first few minutes of exercise, your body uses easily

accessible carbohydrate calories for energy. Only after

the first few minutes does your body begin to use

stored fat calories for energy. If your goal is to burn fat,

adjust the speed and incline of the treadmill until your

heart rate is near one of the lower two numbers in your

training zone. It may also be helpful to set the speed

control on the console to FAT BURN to help you main-

tain the proper intensity level (see page 8).

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be "aerobic." Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the higher number in your training

zone. It may also be helpful to set the speed control on

the console to AEROBIC to help you maintain the

proper intensity level (see page 8).

High Performance Athletic Conditioning

If your goal is high performance athletic conditioning,

set the speed control on the console to PERFOR-

MANCE to help you maintain the proper intensity level

(see page 8). Note: During the first few weeks of your

exercise program, keep your heart rate near the low

end of your training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

AWarm-up--Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate, and circu-

lation in preparation for exercise.

Training Zone Exercise--After warming up, increase

the intensity of your exercise until your heart rate is in

your training zone for 20 to 60 minutes. (During the

first few weeks of your exercise program, do not keep

your heart rate in your training zone for longer than 20

minutes.)

A Cool-down--Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help to prevent post-

exercise problems.

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week

if desired. The key to success is to make exercise a

regular and enjoyable part of your everyday life.

PART LIST--Model No. 831.297681 R0198A

To identify the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.

Key Key Key

No. Qty. Description No. Qty. Description No. Qty. Description

1 1 Frame 51 1 Belly Pan

2 2 Rear Isolator 52 4 Handrail Washer

3 4 Rear Platform Screw 53 2 Rear Pad

4 23 Screw 54 1 Rear Endcap

5 1 Catch 55 1 Warning Decal

6 4 Isolator 56 2 Rear Roller Adj. Bolt

7 4 Handrail Bolt 57 1 Upright Plug

8 2 Handrail Arm Nut 58 1 Right Foot Rail

9 1 Left Foot Rail 59 1 Walking Belt

10 2 Handrail Arm 60 1 Storage Latch Bracket

11 5 Incline Pivot Bolt 61 1 Front Roller Adj. Bolt

12 2 Incline Pivot Spacer 62 2 Handrail Bolt

13 1 Reed Switch Clip 63 2 Handrail Pivot Spacer

14 1 Reed Switch Screw 64 2 Handrail Pivot Cap

15 1 Reed Switch 65 1 Key/Clip

16 1 Front Roller/Pulley 66 1 Latch Spacer

17 4 Platform Screw 67 1 Ground Wire

18 2 Incline Warning Decal 68 2 Latch Spring

19 1 Incline Frame 69 1 Storage Latch

20 2 Hood Bracket 70 1 Upright/Base

21 23 Small Screw 71 1 Book Holder

22 8 Incline Nut 72 1 Right Handrail

23 2 Base Endcap 73 1 Left Handrail

24 1 Incline Motor Spacer 74 4 Console Base Screw

25 2 Incline Motor Bolt 75 2 Wire Harness Grommet

26 1 Incline Motor 76 1 Upright Wire Harness

27 1 Controller 77 4 Endcap Spacer Screw

28 1 Electronics Plate 78 1 Console

29 1 Choke 79 1 Incline Control

30 1 Transformer 80 1 Speed Control Knob

31 1 Power Cord 81 1 Speed Potentiometer

32 1 Power Cord Grommet 82 1 Console Base

33 1 Plug 83 2 Handrail Cover

34 1 Outlet Bracket 84 1 Motor Hood

35 1 Circuit Breaker 85 1 Incline Motor Plate

36 7 Adjustment Washer 86 2 Plastic Spacer

37 1 Magnet 87 4 Incline Frame Bolt

38 1 Front Belly Pan 88 4 Handrail Nut

39 1 Motor Pivot Bolt 89 4 Base Pad

40 1 Motor Pivot Nut 90 1 Rear Roller

41 1 Pulley/Flywheel/Fan 91 1 Wrench Clip

42 1 Motor Belt 92 1 Allen Wrench

43 1 Motor 93 2 Extension Screw

44 1 Motor Tension Bolt 94 1 Ground Screw

45 1 Motor Tension Washer 95 1 Incline Motor Shield

46 1 Star Washer 96 2 Wheel Bolt

47 22 Belly Pan Fastener 97 2 Wheel

48 2 Belt Guide 98 2 Wire Clip

49 2 Endcap Spacer 99 2 Extension Leg

50 1 Frame Guide 100 1 Shock

101 1 8" Cable Tie

102 1 Cable Tie Clamp

103 1 Releasable Tie

104 1 Walking Platform

105 1 Front Hood Bracket

106" 1 Motor/Pulley/Fly./Fan

107 2 Handrail Spacer

108 8 Latch/Hood Screw

109 8 Endcap Screw

110 1 Motor Flange Nut

111 2 Caution Decal

112 2 23" Cable Tie

113 4 4" Cable Tie

114 1 Battery Cover

# 1 8" White Wire, Pigtail

# 1 6" Blue Wire, Pigtail

# 1 6" Blue Wire, 2 F/M

# 1 User's Manual

* Includes all parts in the box

# These parts are not illustrated

22 _

_106" 61\

6 _7 21

EXPLODED DRAWING--Model No. 831.297681 Ro_98A

109

108

68_ 6i9

"'-.

"'"-. _.

\\\\\\

,75 109

_91

108

114

1 \

108

Model No. 831.297681

QUESTIONS?

If you find that:

• you need help assembling or

operating the PROFORM °_585

treadmill

•a part is missing

•or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday-Saturday, 7 am-7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need

to be replaced, call the following

toll-free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your PROFORM R)585

treadmill are listed on a decal attached to the frame. See the front

cover of this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-free

numbers listed at the left.

When requesting help or service, or ordering parts, please be pre-

pared to provide the following information:

• The NAME OF THE PRODUCT (PROFORM R_'585 treadmill)

• The MODEL NUMBER OF THE PRODUCT (831.297681)

• The KEY NUMBER AND DISCRIPTION OF THE PART (see the

PART LIST on page 15 and the EXPLODED DRAWING attached

in the center of this manual)

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United

States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.

This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental pur-

poses.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Proform 831297681 User Manual 585 Manuals And Guides L0906457

PROFORM Treadmill Manual L0906457 PROFORM Treadmill Owner's Manual, PROFORM Treadmill installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
