QUICK GRIP PULSE
Model No. 831.297890
Serial No.
Serial
Number
Decal
QUESTIONS?
AS a manufacturer, we are com-
mitted to providing complete
customer satisfaction, if you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assistance
from our factory.
TO AVOID UNNECESSARY DE-
LAYS, PLEASE CALL DIRECT TO
OUR TOLL=FREE CUSTOMER
HOT LINE. The trained techni-
cians on our Customer Hot Line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-877-897-7493
Mon.=Fri., 6 a.m.=6 p.m. MST
VISIT OUR WEBSITE:
www.proformfitness.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
UER'S UAL
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

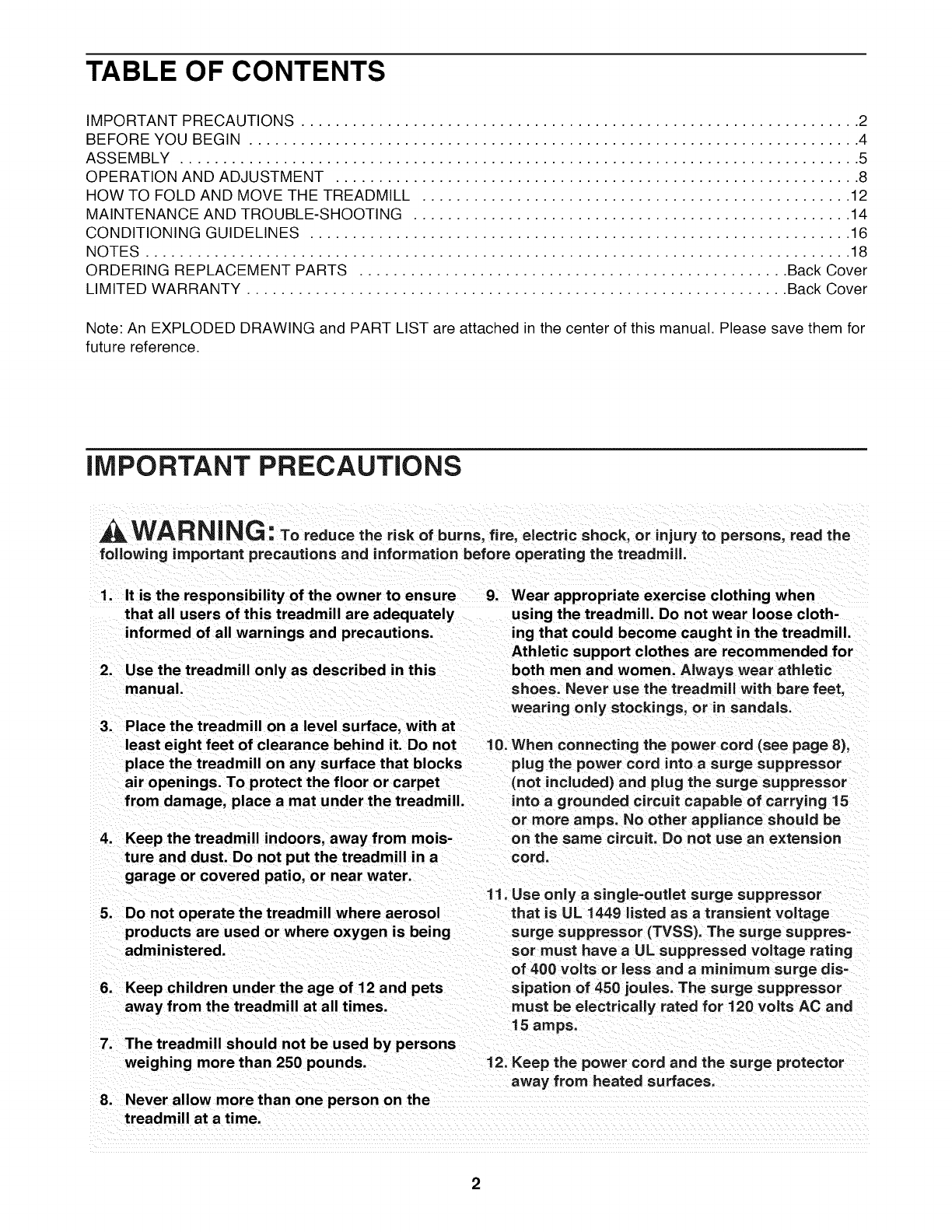

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................. 2
BEFORE YOU BEGIN ....................................................................... 4
ASSEMBLY ............................................................................... 5
OPERATION AND ADJUSTMENT ............................................................. 8
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 12
MAINTENANCE AND TROUBLE-SHOOTING ................................................... 14

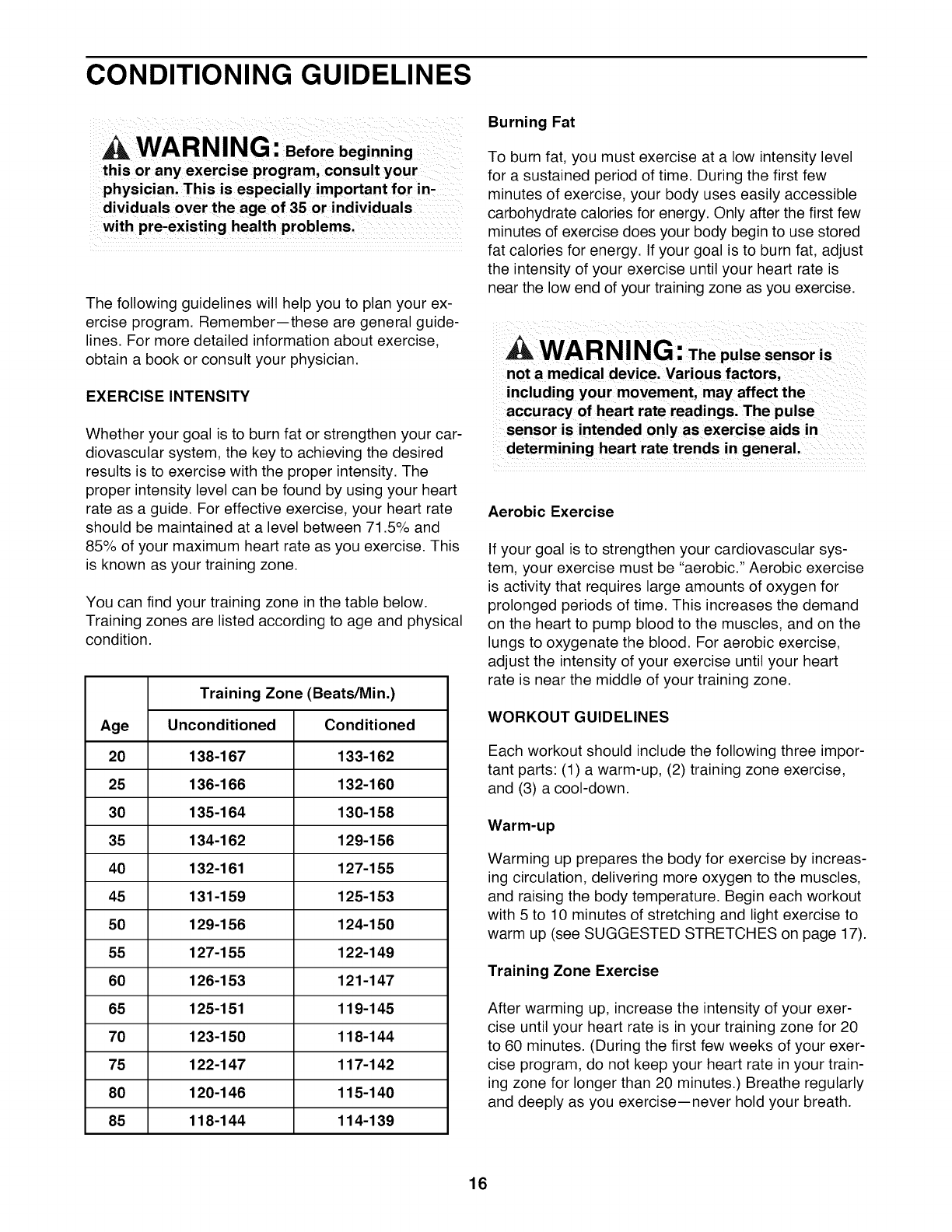

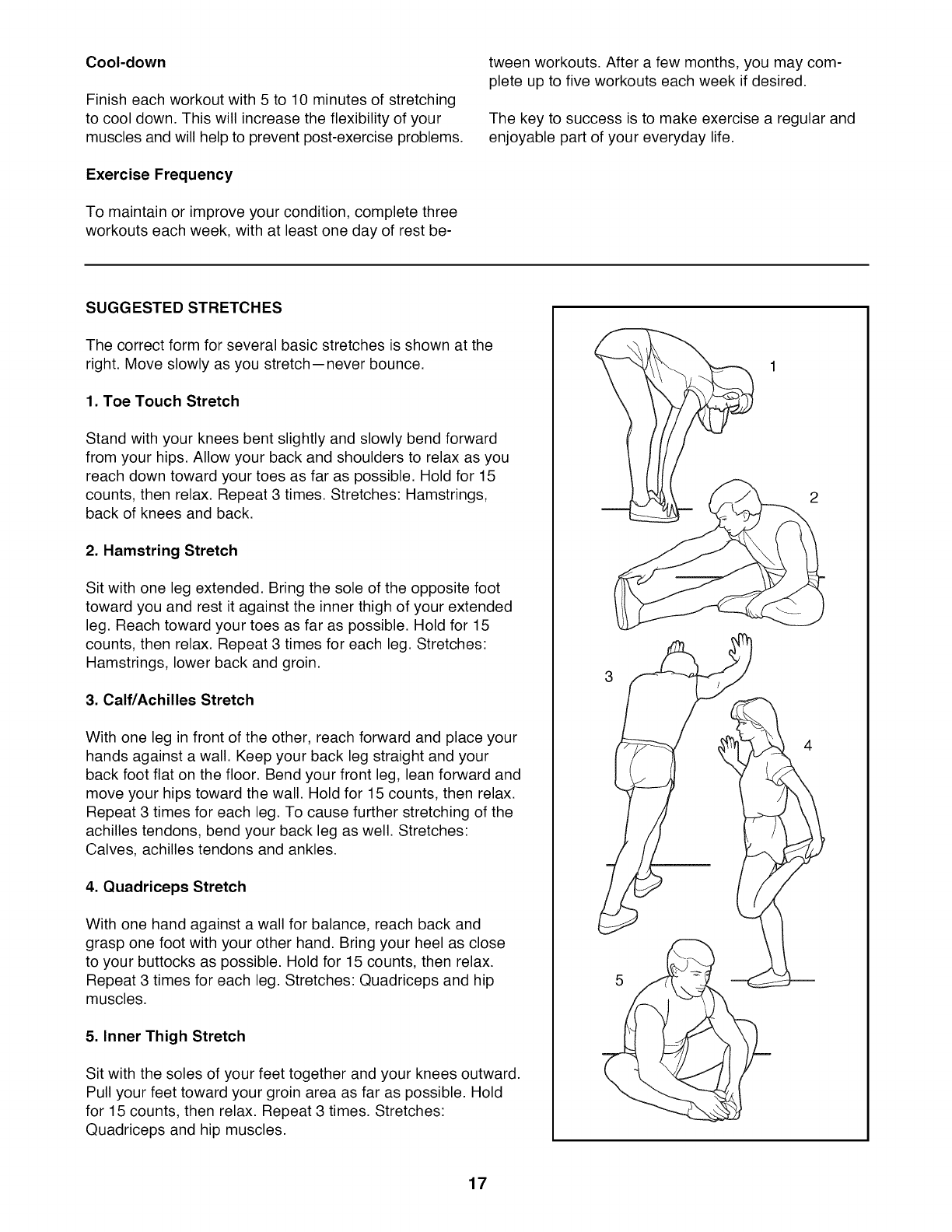

CONDITIONING GUIDELINES ............................................................... 16
NOTES .................................................................................. 18

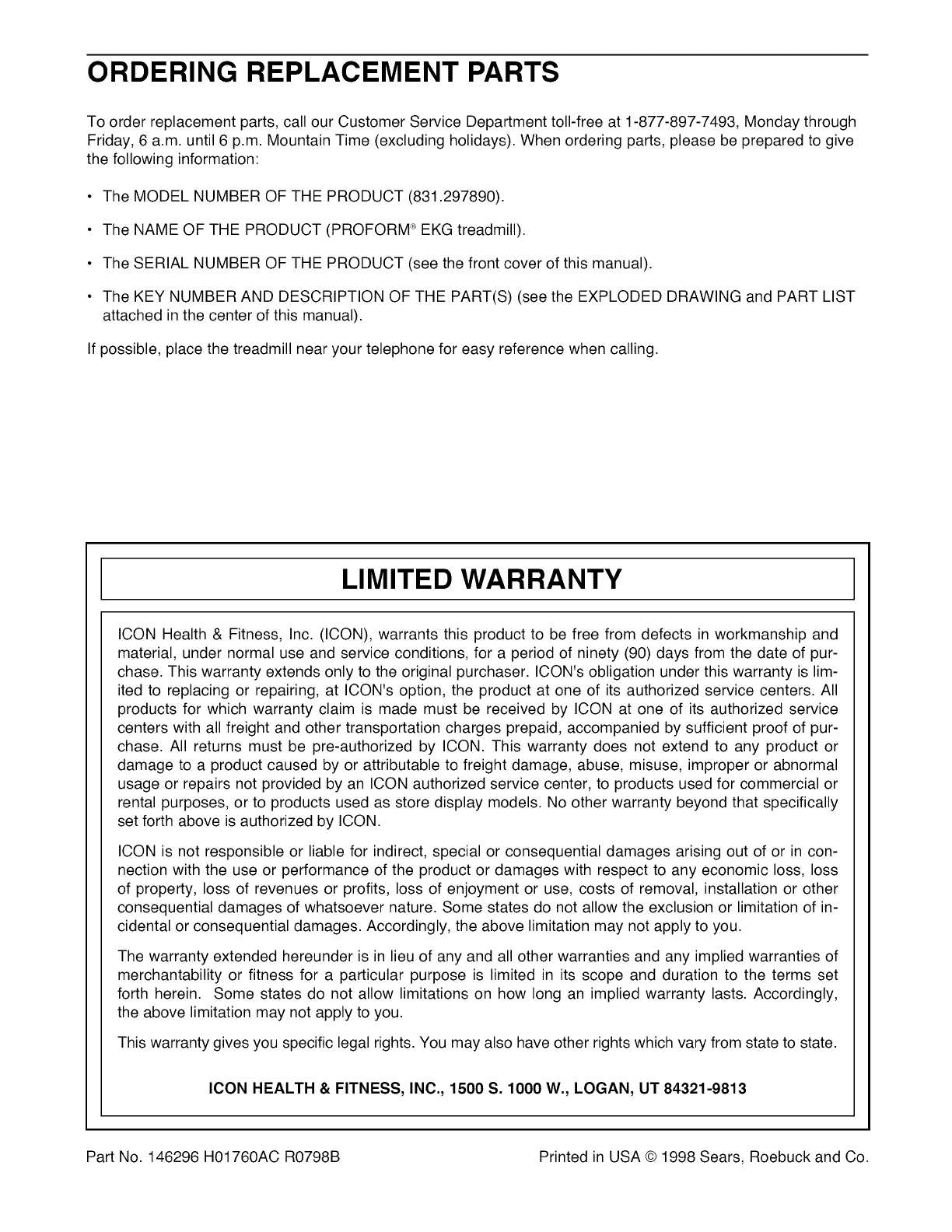

ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover

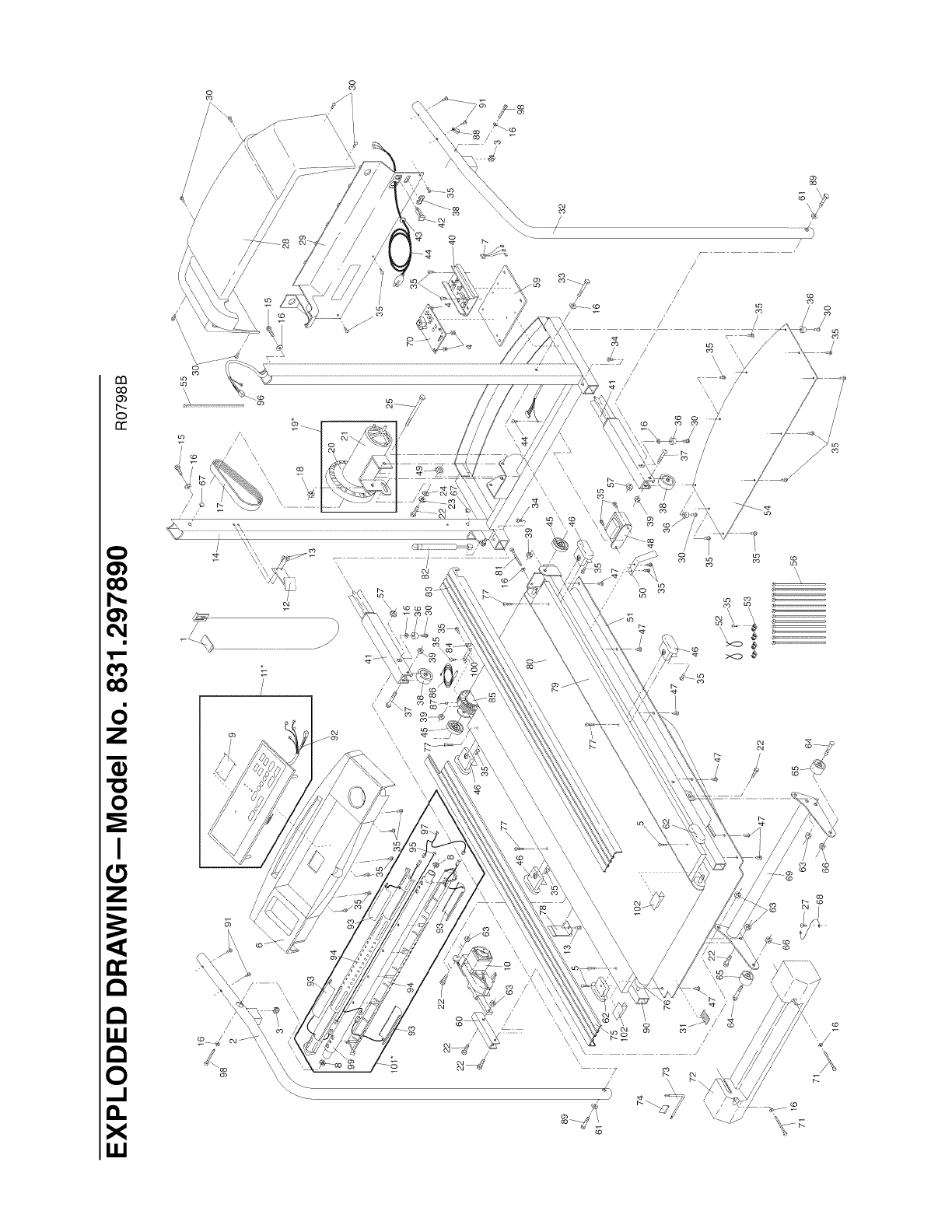

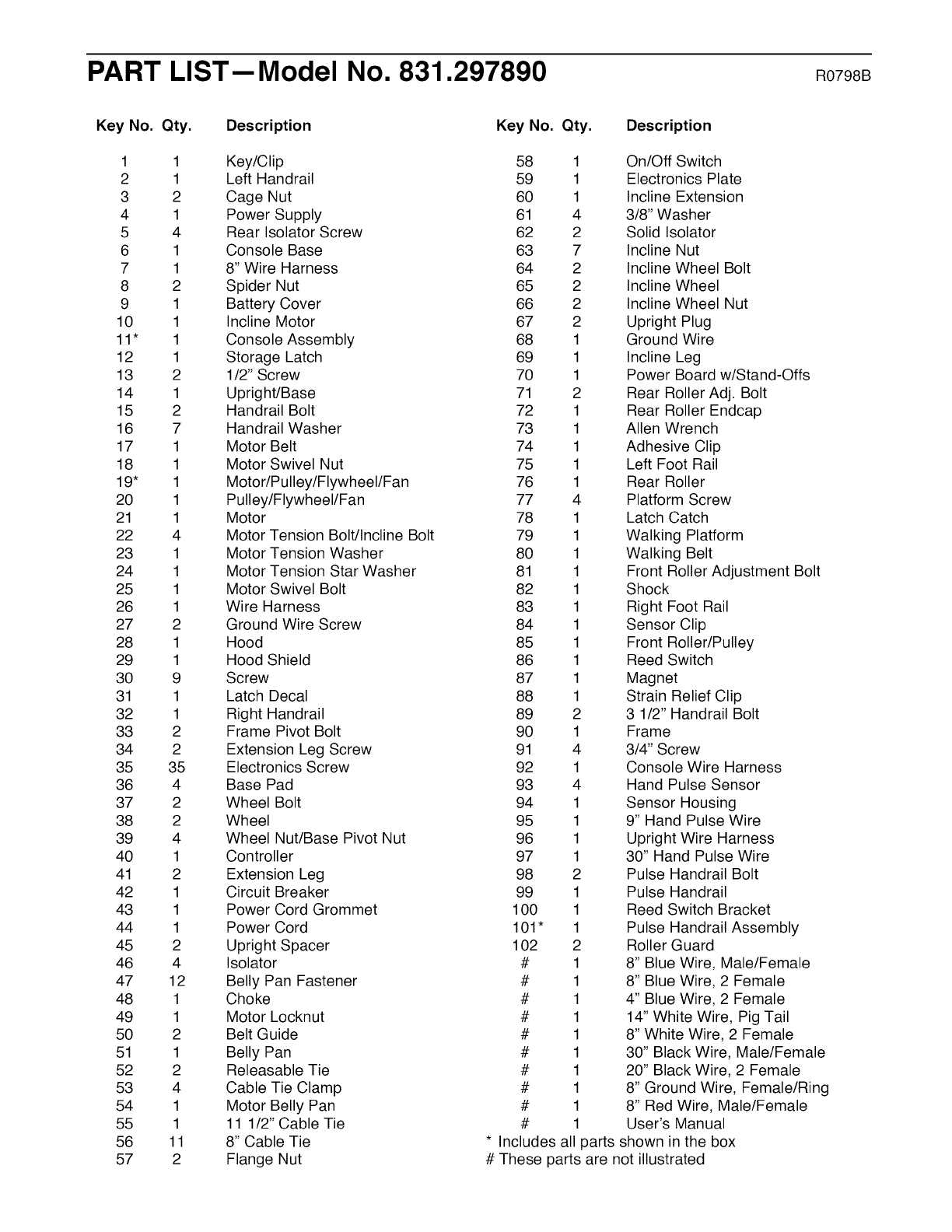

Note: An EXPLODED DRAWING and PART LIST are attached in the center of this manual. Please save them for
future reference.
iMPORTANT PRECAUTIONS
AWARNING: To,educetheriskofburns,f re,e ectr cshock,orinjurytopersons,readthe
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
.Place the treadmill on a level surface, with at
least eight feet of clearance behind it. Do not
place the treadmill on any surface that blocks
air openings. To protect the floor or carpet
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth-
ing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

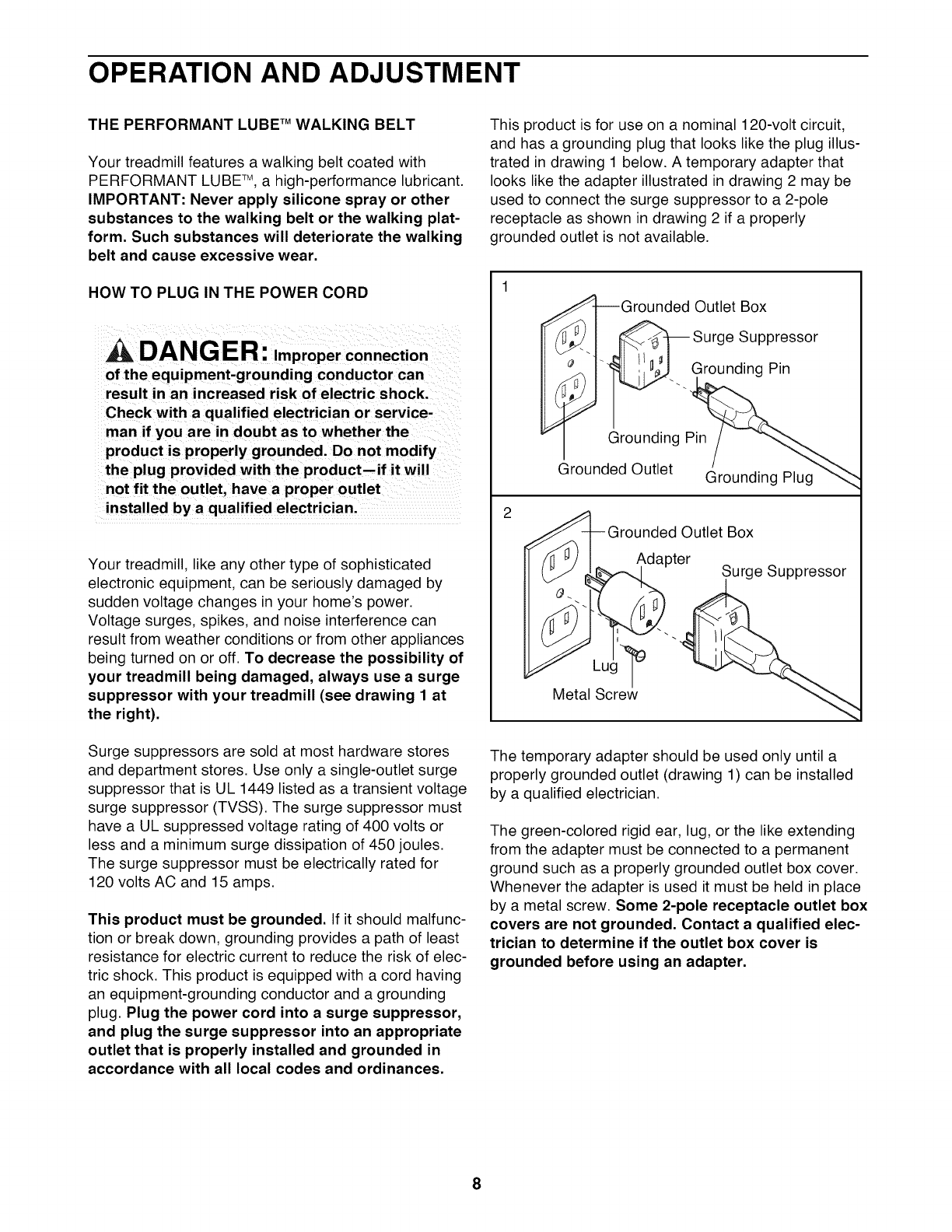

10. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
from damage, place a mat under the treadmill, into agrounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit. Do not use an extension
cord.
5. Do not operate the treadmill where aerosol
.
products are used or where oxygen is being
administered.
Keep children under the age of 12 and pets
away from the treadmill at all times.
11. Use only asingle-outlet surge suppressor
that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppres-
sor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dis-
sipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and
15 drops.
7. The treadmill should not be used by persons
weighing more than 250 pounds. 12. Keep the power cord and the surge protector
away from heated surfaces.
8. Never allow more than one person on the
treadmill at a time.
2

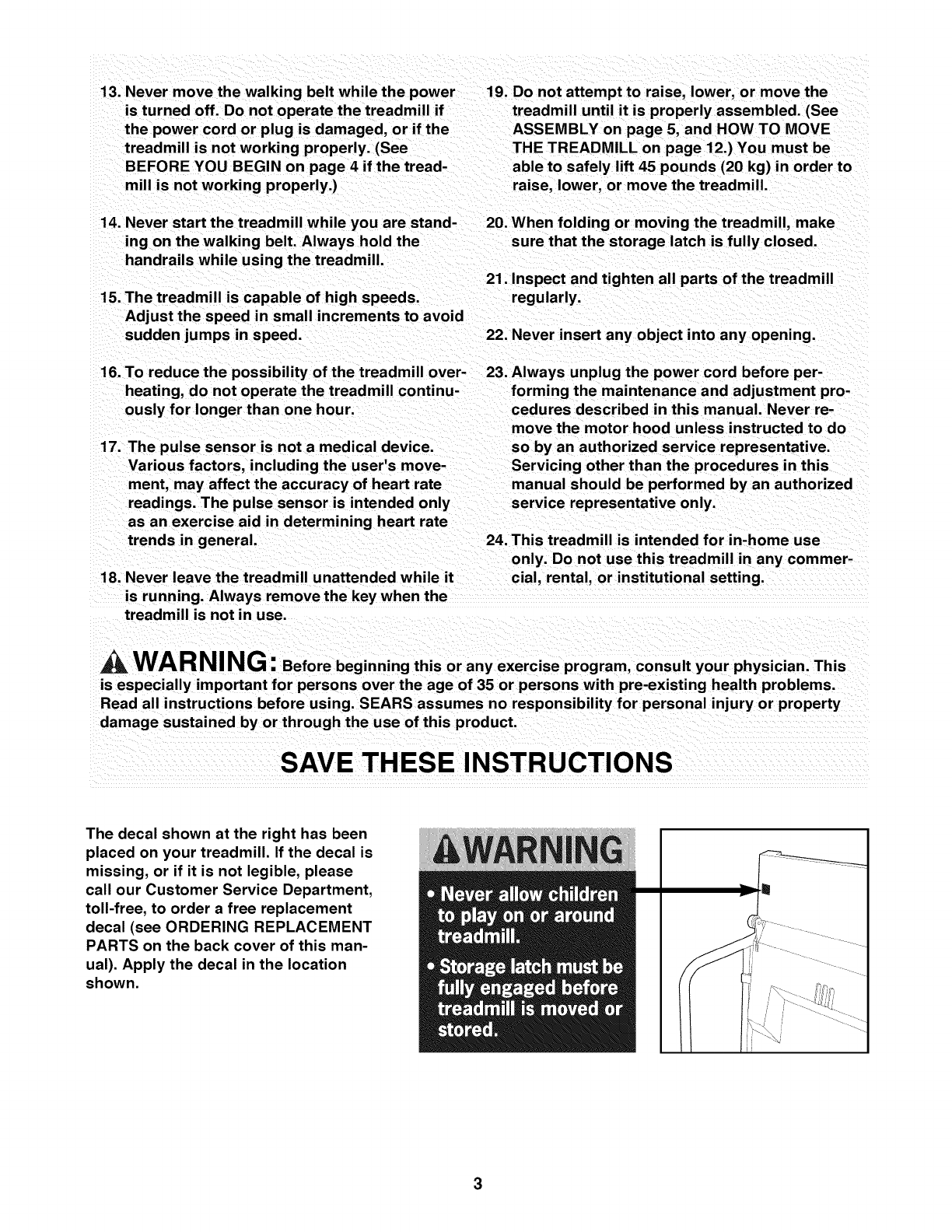

13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 4 if the tread-
mill is not working properly.)
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See

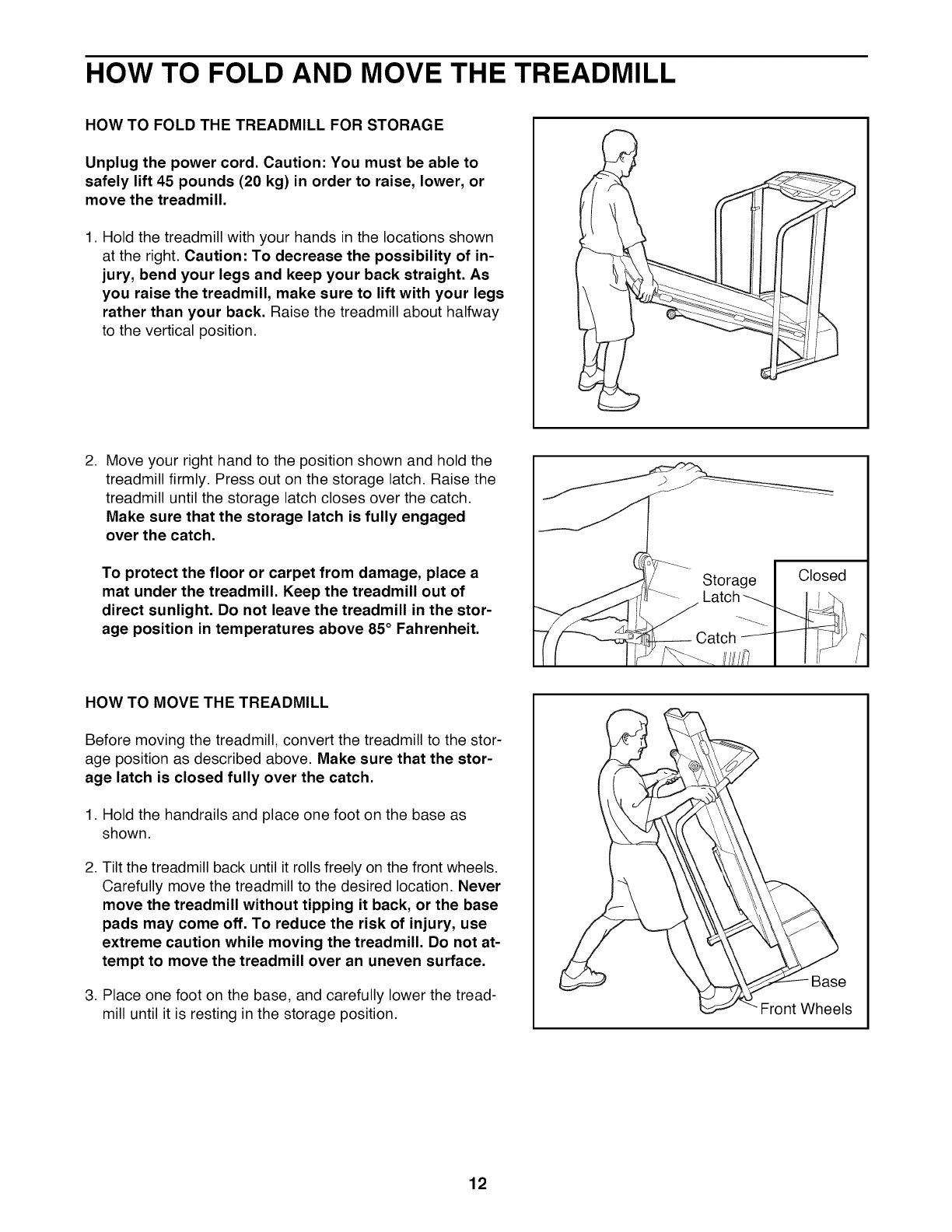

ASSEMBLY on page 5, and HOW TO MOVE
THE TREADMILL on page 12.) You must be
able to safely lift 45 pounds (20 kg) in order to
raise, lower, or move the treadmill.
14. Never start the treadmill while you are stand- 20. When folding or moving the treadmill, make
ing on the walking belt. Always hold the
handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
sure that the storage latch is fully closed.
21. Inspect and tighten all parts of the treadmill
regularly.
22. Never insert any object into any opening.
16. To reduce the possibility of the treadmill over-
heating, do not operate the treadmill continu-
ously for longer than one hour.
17. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
18. Never leave the treadmill unattended while it
is running. Always remove the key when the
treadmill is not in use.
23. Always unplug the power cord before per-
forming the maintenance and adjustment pro-
cedures described in this manual. Never re-
move the motor hood unless instructed to do
so by an authorized service representative.
Servicing other than the procedures in this
manual should be performed by an authorized
service representative only.
24. This treadmill is intended for in-home use
only. Do not use this treadmill in any commer-
cial, rental, or institutional setting.
A_ WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown at the right has been
placed on your treadmill. If the decal is
missing, or if it is not legible, please
call our Customer Service Department,
toll-free, to order a free replacement
decal (see ORDERING REPLACEMENT
PARTS on the back cover of this man-
ual). Apply the decal in the location
shown.
3
BEFORE YOU BEGIN
Congratulations for purchasing the new PROFORM ®
EKG treadmill. The PROFORM EKG treadmill com-
bines advanced technology with innovative design to
let you enjoy an excellent form of cardiovascular exer-
cise in the convenience and privacy of your home. And
when you're not exercising, the unique PROFORM
EKG can be folded up, requiring less than half the floor
space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-877-897-7493, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is 831.297890. The serial num-
ber can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Foot Rails
Accessory Tray
Pulse Sensor
Handrail
Storage Latch
LEFT SIDE
Walking Be
Towel Console
Water Bottle
(Bottle
not included)
Handrail
RIGHT SIDE
Hood
On/Off
Circuit
Breaker
Cord
Front Wheel
Rear Roller
Adjustment Bolts
ncline
Leg
Cushioned Walking
Platform

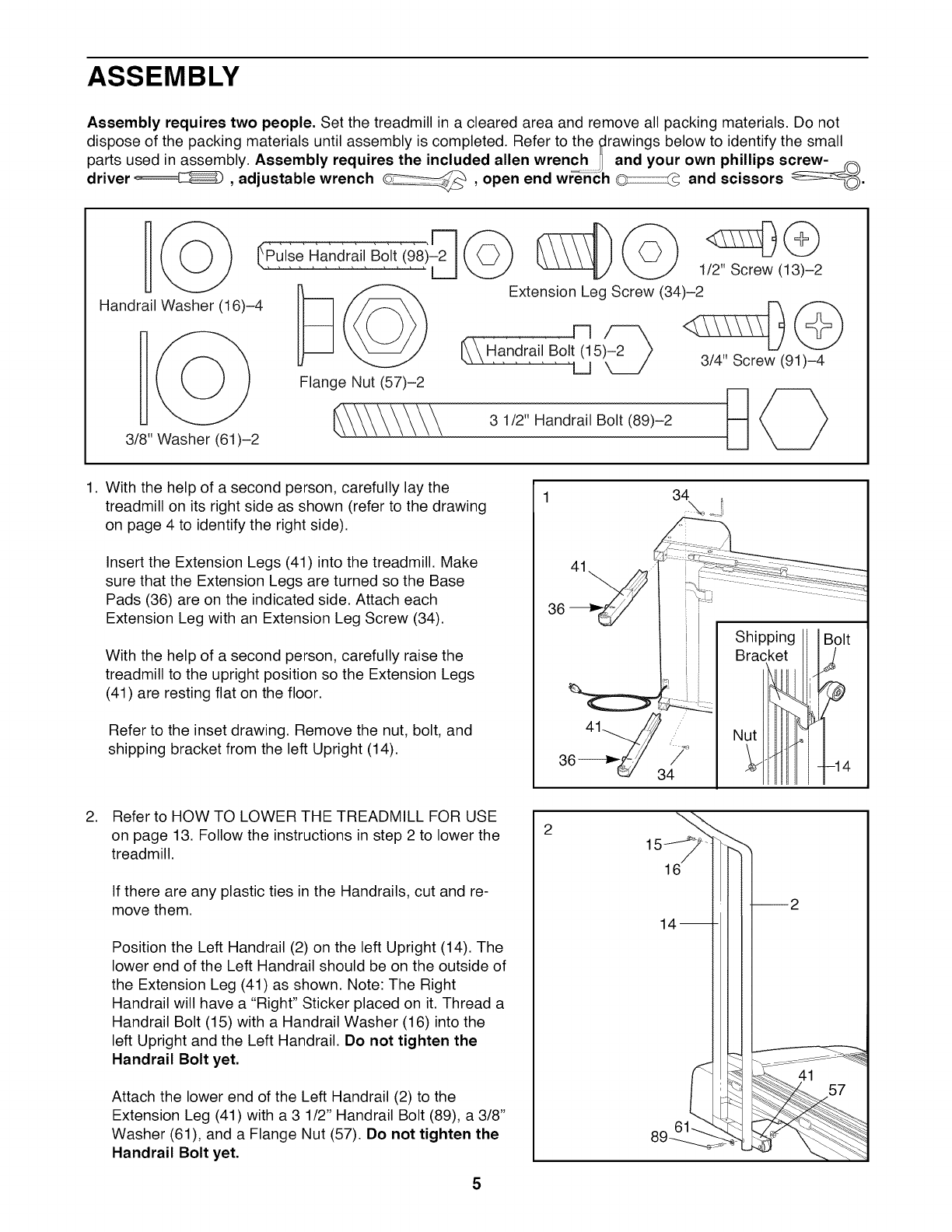

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Refer to the drawings below to identify the small
parts used in assembly. Assembly requires the included allen wrench _ and your own phillips screw-
driver _========E_D, adjustable wrench _ , open end w_en_h _and scissors _.
IPulse Handrail Bolt (98)_2[_ __>
Handrail Washer (16)-4
H
3/8" Washer (61)-2
1/2" Screw (13)-2
Extension Leg Screw (34)-2
Fq
_--_Hand rai, B0,tL_(15)_2_ _(_
Flange Nut (57)-2
3 1/2" Handrail Bolt (89)-2
3/4" Screw (91)-4
1. With the help of a second person, carefully lay the
treadmill on its right side as shown (refer to the drawing
on page 4 to identify the right side).
Insert the Extension Legs (41) into the treadmill. Make
sure that the Extension Legs are turned so the Base
Pads (36) are on the indicated side. Attach each
Extension Leg with an Extension Leg Screw (34).
With the help of a second person, carefully raise the
treadmill to the upright position so the Extension Legs
(41) are resting flat on the floor.
Refer to the inset drawing. Remove the nut, bolt, and
shipping bracket from the left Upright (14).

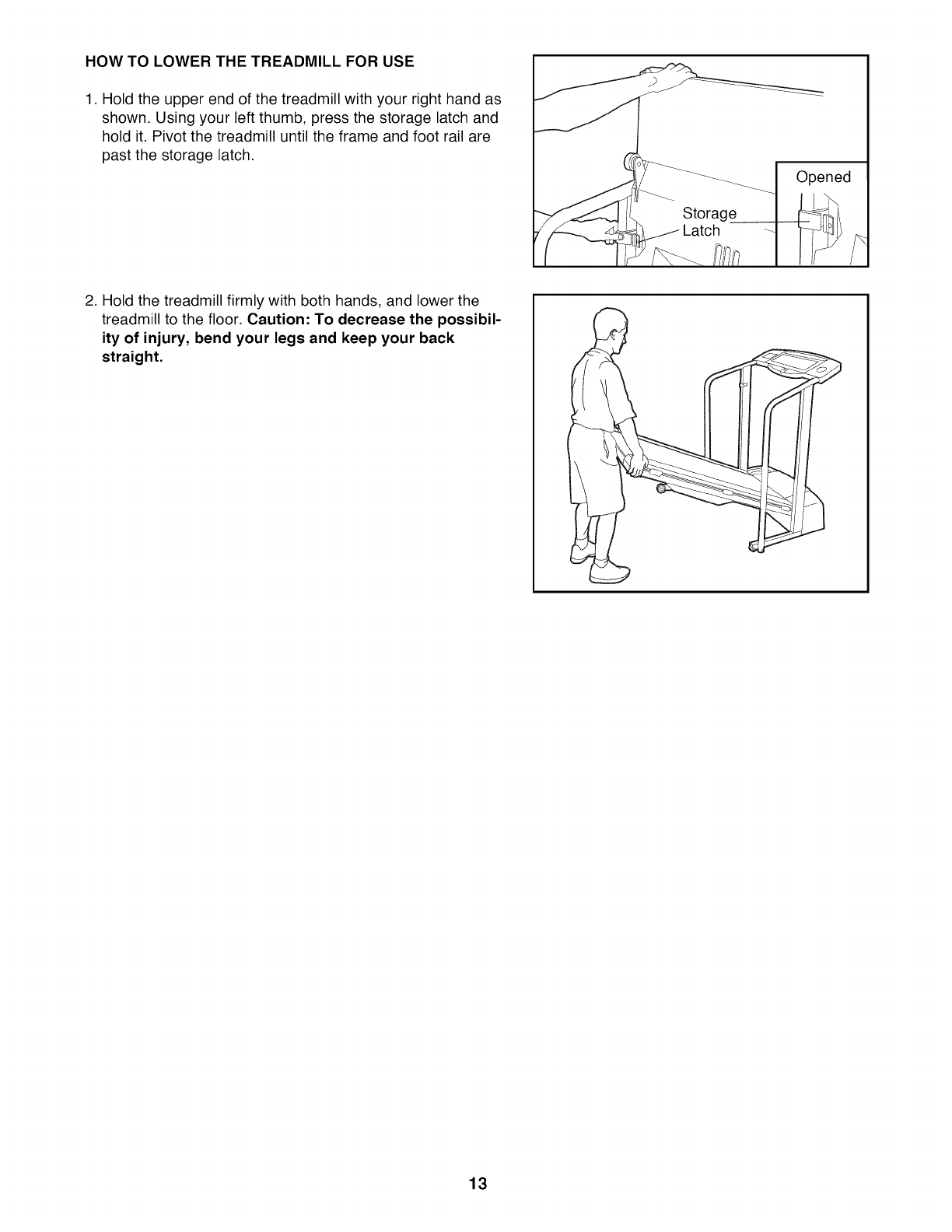

,Refer to HOW TO LOWER THE TREADMILL FOR USE
on page 13. Follow the instructions in step 2 to lower the
treadmill.
If there are any plastic ties in the Handrails, cut and re-
move them.
Position the Left Handrail (2) on the left Upright (14). The
lower end of the Left Handrail should be on the outside of
the Extension Leg (41) as shown. Note: The Right
Handrail will have a "Right" Sticker placed on it. Thread a
Handrail Bolt (15) with a Handrail Washer (16) into the
left Upright and the Left Handrail. Do not tighten the
Handrail Bolt yet.
Attach the lower end of the Left Handrail (2) to the
Extension Leg (41) with a 3 1/2" Handrail Bolt (89), a 3/8"
Washer (61), and a Flange Nut (57). Do not tighten the
Handrail Bolt yet.
34
36 41__ ¸¸¸_
36_ _<_ N_¢
34
Bolt
J
-14
16
,3

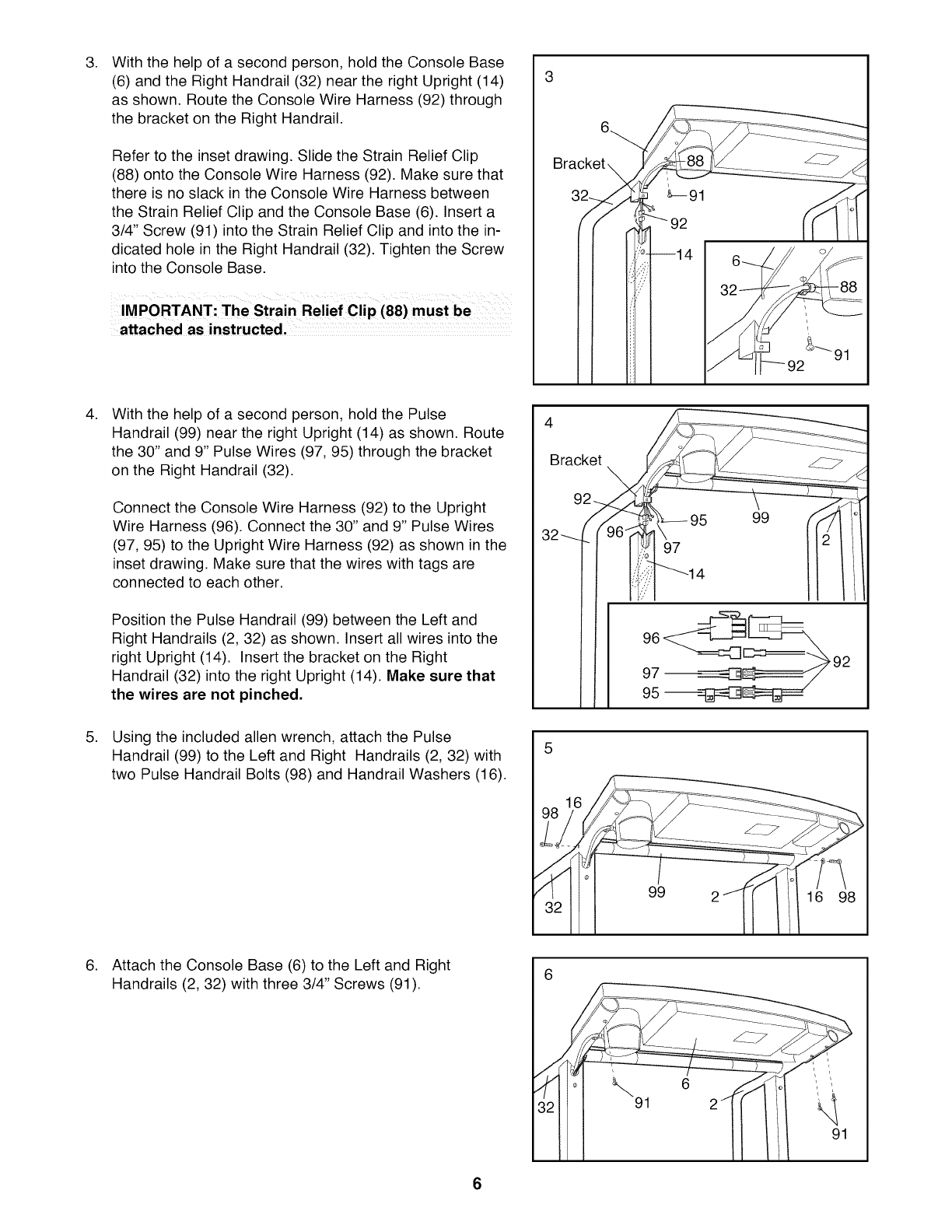

With the help of a second person, hold the Console Base
(6) and the Right Handrail (32) near the right Upright (14)
as shown. Route the Console Wire Harness (92) through
the bracket on the Right Handrail.
Refer to the inset drawing. Slide the Strain Relief Clip
(88) onto the Console Wire Harness (92). Make sure that
there is no slack in the Console Wire Harness between
the Strain Relief Clip and the Console Base (6). Insert a
3/4" Screw (91) into the Strain Relief Clip and into the in-
dicated hole in the Right Handrail (32). Tighten the Screw
into the Console Base.
IMPORTANT: The Strain Relief Clip (88)must be
attached as instructed.
Bracket\
,
,
,
With the help of a second person, hold the Pulse
Handrail (99) near the right Upright (14) as shown. Route
the 30" and 9" Pulse Wires (97, 95) through the bracket
on the Right Handrail (32).
Connect the Console Wire Harness (92) to the Upright
Wire Harness (96). Connect the 30" and 9" Pulse Wires
(97, 95) to the Upright Wire Harness (92) as shown in the
inset drawing. Make sure that the wires with tags are
connected to each other.
Position the Pulse Handrail (99) between the Left and
Right Handrails (2, 32) as shown. Insert all wires into the
right Upright (14). Insert the bracket on the Right
Handrail (32) into the right Upright (14). Make sure that
the wires are not pinched.
Using the included allen wrench, attach the Pulse
Handrail (99) to the Left and Right Handrails (2, 32) with
two Pulse Handrail Bolts (98) and Handrail Washers (16).
Attach the Console Base (6) to the Left and Right
Handrails (2, 32) with three 3/4" Screws (91).
Bracket
92 ----
96
5
91
,
,

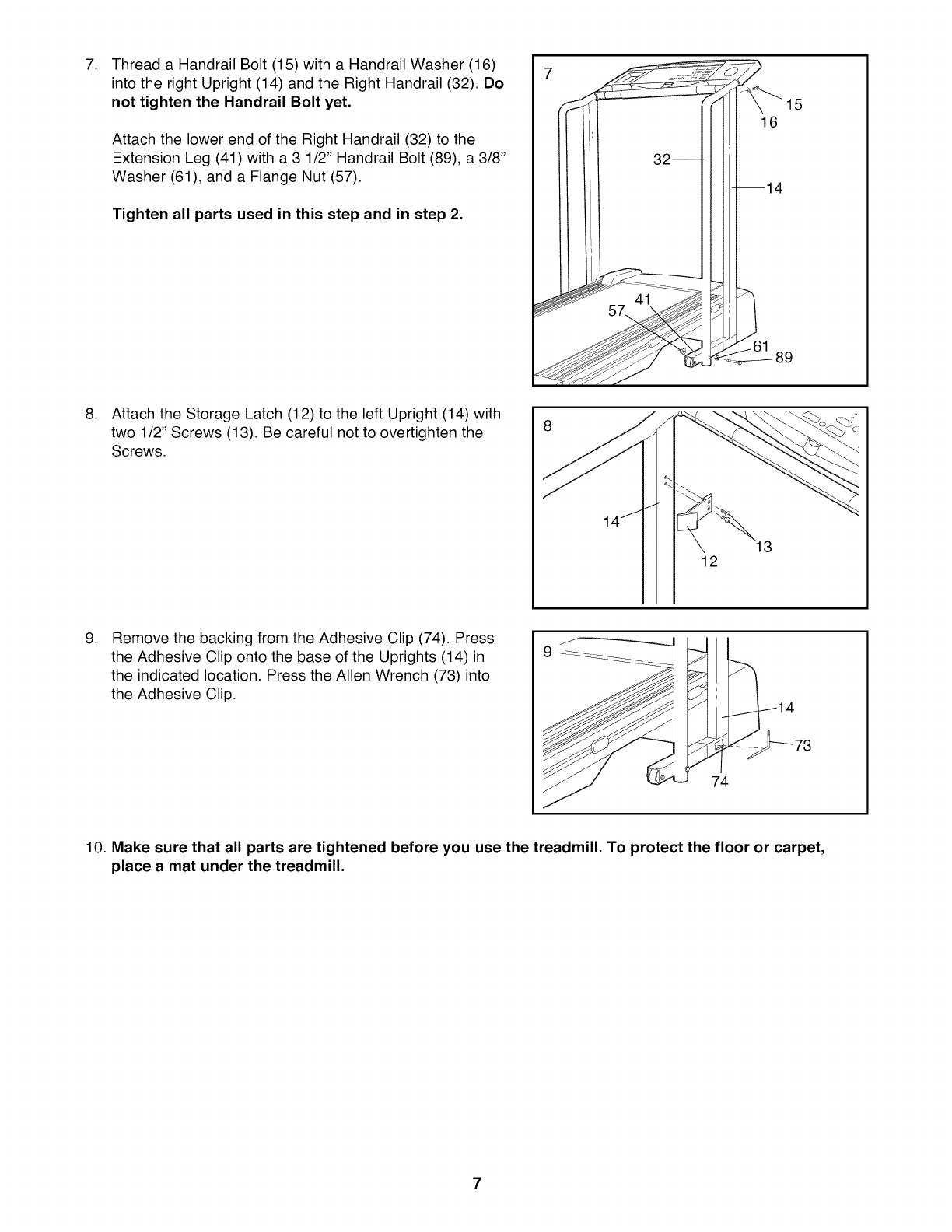

Thread a Handrail Bolt (15) with a Handrail Washer (16)
into the right Upright (14) and the Right Handrail (32). Do
not tighten the Handrail Bolt yet.
Attach the lower end of the Right Handrail (32) to the
Extension Leg (41) with a 3 1/2" Handrail Bolt (89), a 3/8"
Washer (61), and a Flange Nut (57).
Tighten all parts used in this step and in step 2.
Attach the Storage Latch (12) to the left Upright (14) with
two 1/2" Screws (13). Be careful not to overtighten the
Screws.
7d
14
J
_ 89
8
13
12
,Remove the backing from the Adhesive Clip (74). Press
the Adhesive Clip onto the base of the Uprights (14) in
the indicated location. Press the Allen Wrench (73) into
the Adhesive Clip.
9
74
10. Make sure that all parts are tightened before you use the treadmill. To protect the floor or carpet,
place a mat under the treadmill.
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBE TM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE TM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
DANG ER: mproperconnection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product--if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use asurge
suppressor with your treadmill (see drawing 1 at
the right).
Surge suppressors are sold at most hardware stores
and department stores. Use only a single-outlet surge
suppressor that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppressor must
have a UL suppressed voltage rating of 400 volts or
less and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into asurge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
_Grounded Outlet Box
_l_'-I _ Surge Suppressor
h_ __" G_I piGiounding Pin
Grounded OUtlet
Grounded Outlet Box
Adapter _
Q _'_,L_. surge suppressor
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.

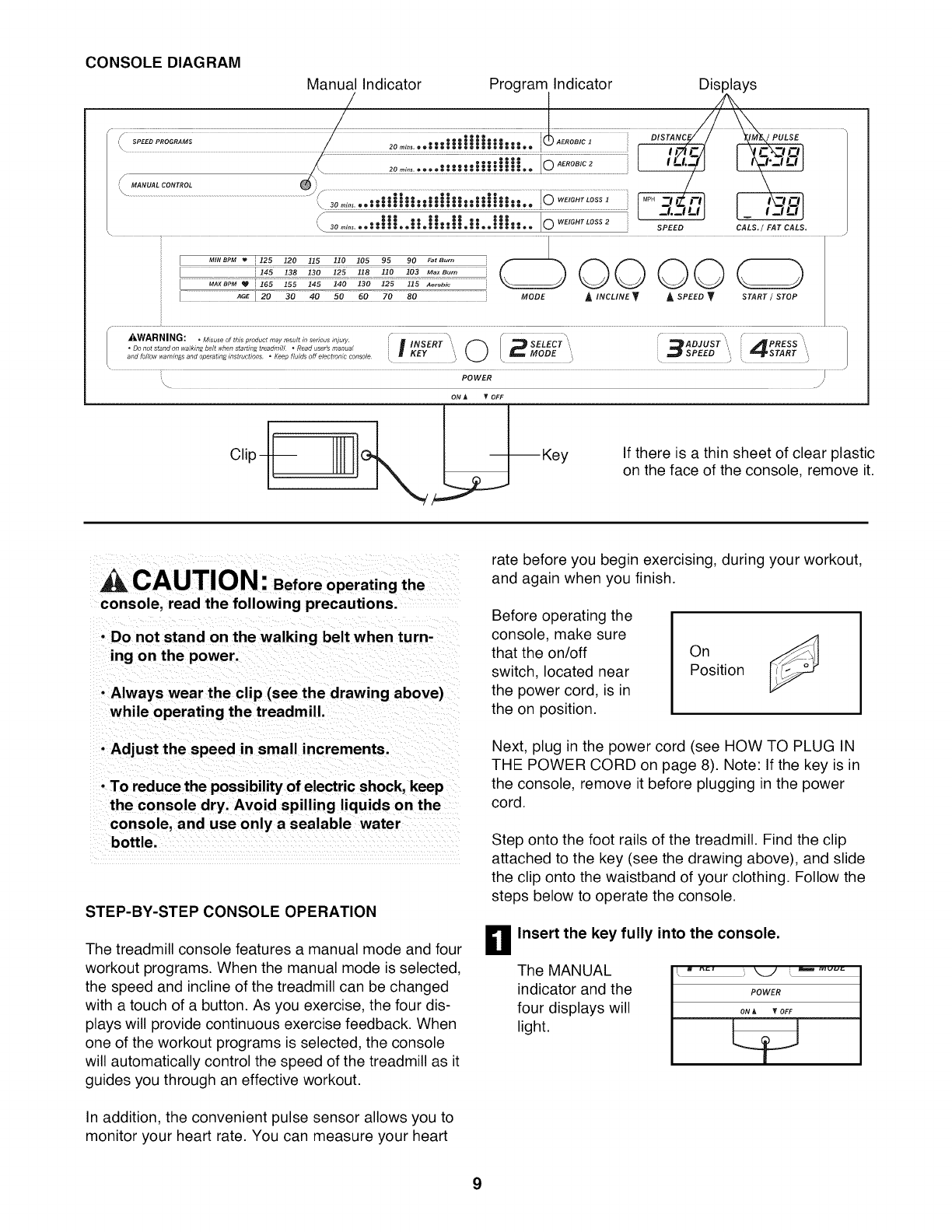

CONSOLEDIAGRAM
Manual Indicator Program Indicator Displays
i _ ;;EE;;_O;;;; : ;;;i:_::;; ] A_,;;;_I D,STANC ,ULSE '1
\ zu m_""'*l IS_= ==ZS_ I_ = I;= °* i ....
MANUALCONTROL _,' /\ I
I ..............................................................................................................................................................._/ ..==.= .._.. =.=s.. I0 WEIGHTLOSS, IMp,7,'/ml I I_lml I
I _ .........................................................................../ 7.7iII I i-_DI I
,e• ••WEIGHT LOSS 2 _ ...... )
I\ _ 30 ........=_|!l==ll=|!_s!l=|l=elil_=== I0 SPEED CALS./FATCALS. I
_,WARNING: .J'4isusedtbisprod ............ Itinsefiousbvuty _INSERTT" 0 _SELECT ::_ADJUST \', _PRESS ',,
Do not stand on walking belt whenstarting beadmifl *Read user's manual
andfo/Iowwamingsandoperatinginstructions .Keepfluidsoffelectronicconsole _KEY _, L L== MODE }, _SPEED ",, . m"_START '_
"POWER ]"
\
ON A ¥ OFF
Cli If there is a thin sheet of clear plastic
on the face of the console, remove it.
CAUTION: Beforeoperating the
console, read the following precautions.
• Do not stand on the walking belt when turn-
ing on the power.
• Always wear the clip (see the drawing above)
while operating the treadmill.
Adjust the speed in small increments.
To reduce the possibility of electric shock, keep
the console dry. Avoid spilling liquids on the
console, and use only a sealable water
bottle.
STEP-BY-STEP CONSOLE OPERATION
The treadmill console features a manual mode and four
workout programs. When the manual mode is selected,
the speed and incline of the treadmill can be changed
with a touch of a button. As you exercise, the four dis-
plays will provide continuous exercise feedback. When
one of the workout programs is selected, the console
will automatically control the speed of the treadmill as it
guides you through an effective workout.
In addition, the convenient pulse sensor allows you to
monitor your heart rate. You can measure your heart
rate before you begin exercising, during your workout,
and again when you finish.
Before operating the
console, make sure
that the on/off
switch, located near
the power cord, is in
the on position.
On
Position
Next, plug in the power cord (see HOW TO PLUG IN
THE POWER CORD on page 8). Note: If the key is in
the console, remove it before plugging in the power
cord.
Step onto the foot rails of the treadmill. Find the clip
attached to the key (see the drawing above), and slide
the clip onto the waistband of your clothing. Follow the
steps below to operate the console.
ElInsert the key fully into the console.
The MANUAL
indicator and the
four displays will
light.
,,.j, .......
POWER
ON _ ¥ OFF

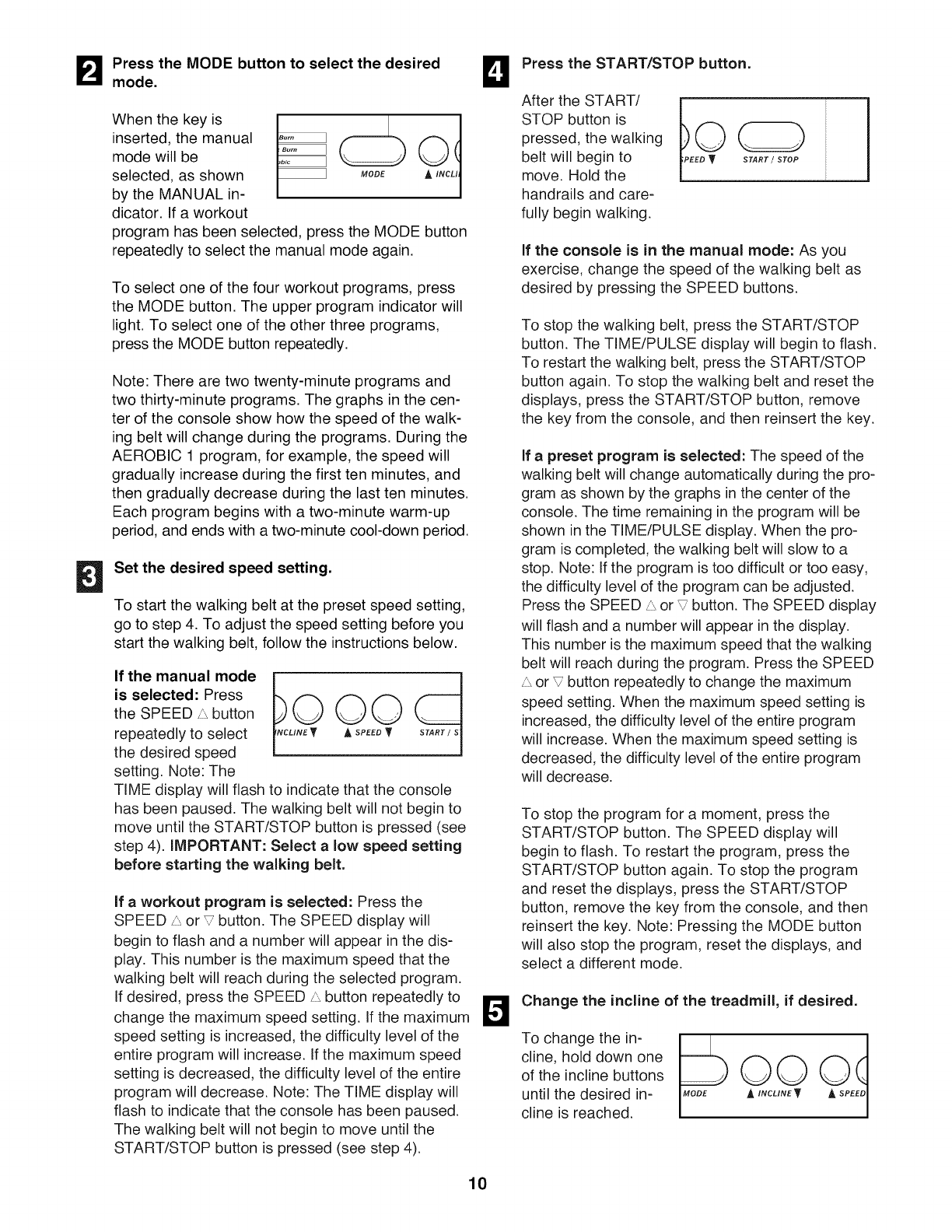

B ress the MODE button to select the desired
mode.
When the key is
inserted, the manual
mode will be
selected, as shown
by the MANUAL in-
dicator. If a workout
MODE L
program has been selected, press the MODE button
repeatedly to select the manual mode again.
To select one of the four workout programs, press
the MODE button. The upper program indicator will
light. To select one of the other three programs,
press the MODE button repeatedly.
Note: There are two twenty-minute programs and
two thirty-minute programs. The graphs in the cen-
ter of the console show how the speed of the walk-
ing belt will change during the programs. During the
AEROBIC 1 program, for example, the speed will
gradually increase during the first ten minutes, and
then gradually decrease during the last ten minutes.
Each program begins with a two-minute warm-up
period, and ends with a two-minute cool-down period.
Set the desired speed setting.
To start the walking belt at the preset speed setting,
go to step 4. To adjust the speed setting before you
start the walking belt, follow the instructions below.
If the manual mode
is selected: Press
the SPEED A button
repeatedly to select
the desired speed
setting. Note: The
ooASPEED ySTART /S:
TIME display will flash to indicate that the console
has been paused. The walking belt will not begin to
move until the START/STOP button is pressed (see
step 4). IMPORTANT: Select a low speed setting
before starting the walking belt.
If a workout program is selected: Press the
SPEED/'_ or V button. The SPEED display will
begin to flash and a number will appear in the dis-
play. This number is the maximum speed that the
walking belt will reach during the selected program.
If desired, press the SPEED/, button repeatedly to
change the maximum speed setting. If the maximum
speed setting is increased, the difficulty level of the
entire program will increase. If the maximum speed
setting is decreased, the difficulty level of the entire
program will decrease. Note: The TIME display will
flash to indicate that the console has been paused.
The walking belt will not begin to move until the
START/STOP button is pressed (see step 4).
B
D
Press the START/STOP button.
After the START/
STOP button is
pressed, the walking
belt will begin to
move. Hold the
handrails and care-
fully begin walking.
tooE START /STOP
If the console is in the manual mode: As you
exercise, change the speed of the walking belt as
desired by pressing the SPEED buttons.
To stop the walking belt, press the START/STOP
button. The TIME/PULSE display will begin to flash.
To restart the walking belt, press the START/STOP
button again. To stop the walking belt and reset the
displays, press the START/STOP button, remove
the key from the console, and then reinsert the key.
Ifapreset program is selected: The speed of the
walking belt will change automatically during the pro-
gram as shown by the graphs in the center of the
console. The time remaining in the program will be
shown in the TIME/PULSE display. When the pro-
gram is completed, the walking belt will slow to a
stop. Note: If the program is too difficult or too easy,
the difficulty level of the program can be adjusted.
Press the SPEED A or V button. The SPEED display
will flash and a number will appear in the display.
This number is the maximum speed that the walking
belt will reach during the program. Press the SPEED
/'_or V button repeatedly to change the maximum
speed setting. When the maximum speed setting is
increased, the difficulty level of the entire program
will increase. When the maximum speed setting is
decreased, the difficulty level of the entire program
will decrease.
To stop the program for a moment, press the
START/STOP button. The SPEED display will
begin to flash. To restart the program, press the
START/STOP button again. To stop the program
and reset the displays, press the START/STOP
button, remove the key from the console, and then
reinsert the key. Note: Pressing the MODE button
will also stop the program, reset the displays, and
select a different mode.
Change the incline of the treadmill, if desired.
To change the in-
cline, hold down one
of the incline buttons
until the desired in-
cline is reached.
INCLINE _E
10

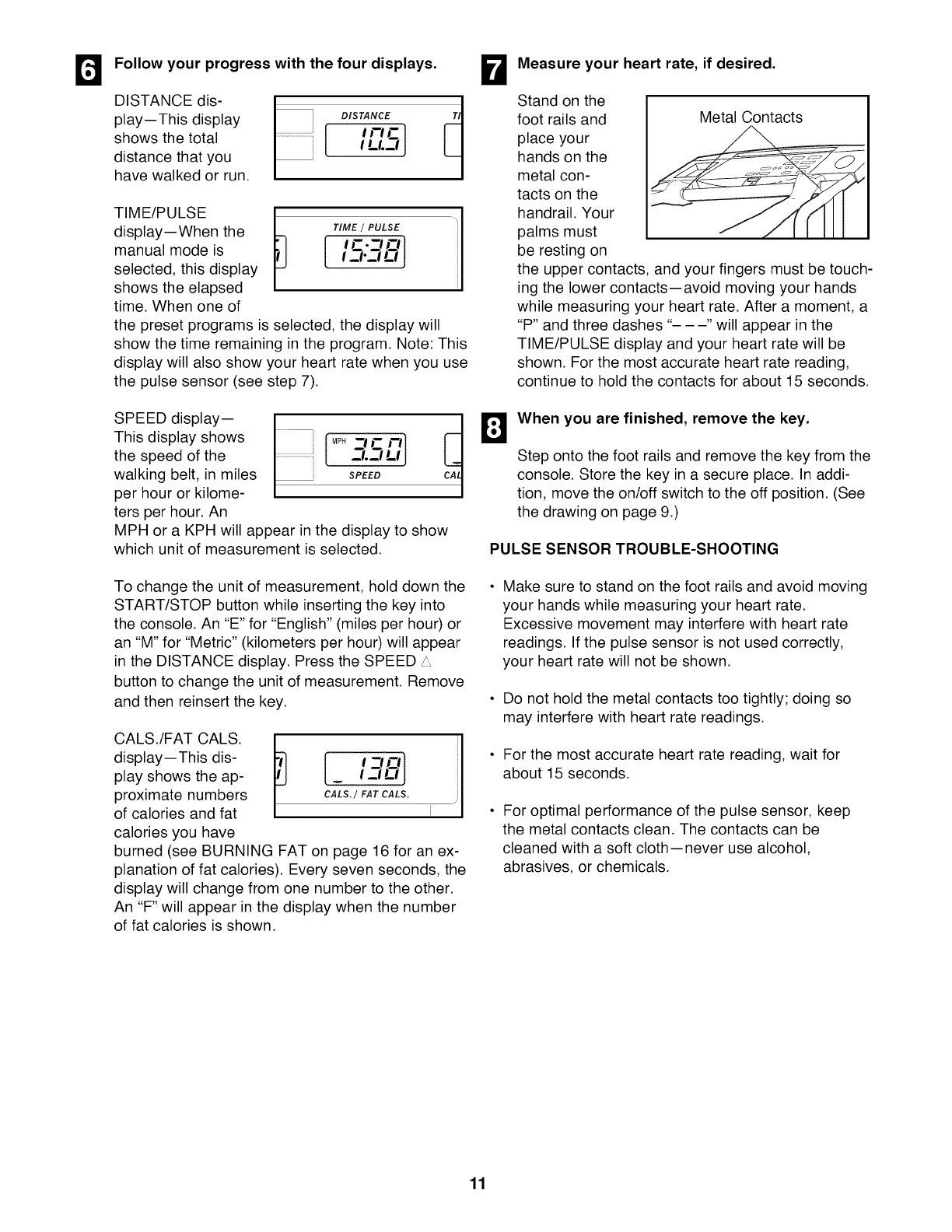

BFollow your progress with the four displays.
DISTANCE dis-
play--This display
shows the total
distance that you
have walked or run.
f:ii[ DISTANCE
............... lilt"
! 1._1._I
T,ME/PO,SEt I
display--When the TIME/PULSE
manual mode is 13"3L7 J
selected, this display
shows the elapsed
time. When one of
the preset programs is selected, the display will
show the time remaining in the program. Note: This
display will also show your heart rate when you use
the pulse sensor (see step 7).
SPEED display--
This display shows
the speed of the
walking belt, in miles
per hour or kilome-
ters per hour. An
fli [MPH-,,-,-,1
_7._7LI j
SPEED
MPH or a KPH will appear in the display to show
which unit of measurement is selected.
To change the unit of measurement, hold down the
START/STOP button while inserting the key into
the console. An "E" for "English" (miles per hour) or
an "M" for "Metric" (kilometers per hour) will appear
in the DISTANCE display. Press the SPEED/.,
button to change the unit of measurement. Remove
and then reinsert the key.
OALS/FATOALS1 I
display--This dis-
play shows the ap- _130J
proximate numbers CALS./ FAT CALS, _,
of calories and fat
calories you have
burned (see BURNING FAT on page 16 for an ex-
planation of fat calories). Every seven seconds, the
display will change from one number to the other.
An "F" will appear in the display when the number
of fat calories is shown.
B
0
Measure your heart rate, if desired.
Stand on the
foot rails and
place your
hands on the
metal con-
tacts on the
handrail. Your
palms must
be resting on
Metal Contacts
the upper contacts, and your fingers must be touch-
ing the lower contacts--avoid moving your hands
while measuring your heart rate. After a moment, a
"P" and three dashes "- --" will appear in the
TIME/PULSE display and your heart rate will be
shown. For the most accurate heart rate reading,
continue to hold the contacts for about 15 seconds.
When you are finished, remove the key.
Step onto the foot rails and remove the key from the
console. Store the key in a secure place. In addi-
tion, move the on/off switch to the off position. (See
the drawing on page 9.)
PULSE SENSOR TROUBLE-SHOOTING
Make sure to stand on the foot rails and avoid moving
your hands while measuring your heart rate.
Excessive movement may interfere with heart rate
readings. If the pulse sensor is not used correctly,
your heart rate will not be shown.
Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
For the most accurate heart rate reading, wait for
about 15 seconds.
For optimal performance of the pulse sensor, keep
the metal contacts clean. The contacts can be
cleaned with a soft cloth--never use alcohol,
abrasives, or chemicals.
11
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Unplug the power cord. Caution: You must be able to
safely lift 45 pounds (20 kg) in order to raise, lower, or
move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. Caution: To decrease the possibility of in-
jury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Press out on the storage latch. Raise the
treadmill until the storage latch closes over the catch.
Make sure that the storage latch is fully engaged
over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit.
I
Storage Closed
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the stor-
age latch is closed fully over the catch.
1. Hold the handrails and place one foot on the base as
shown.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back, or the base
pads may come off. To reduce the risk of injury, use
extreme caution while moving the treadmill. Do not at-
tempt to move the treadmill over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
12
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left thumb, press the storage latch and
hold it. Pivot the treadmill until the frame and foot rail are
past the storage latch.
Opened
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Caution: To decrease the possibil-
ity of injury, bend your legs and keep your back
straight.
13

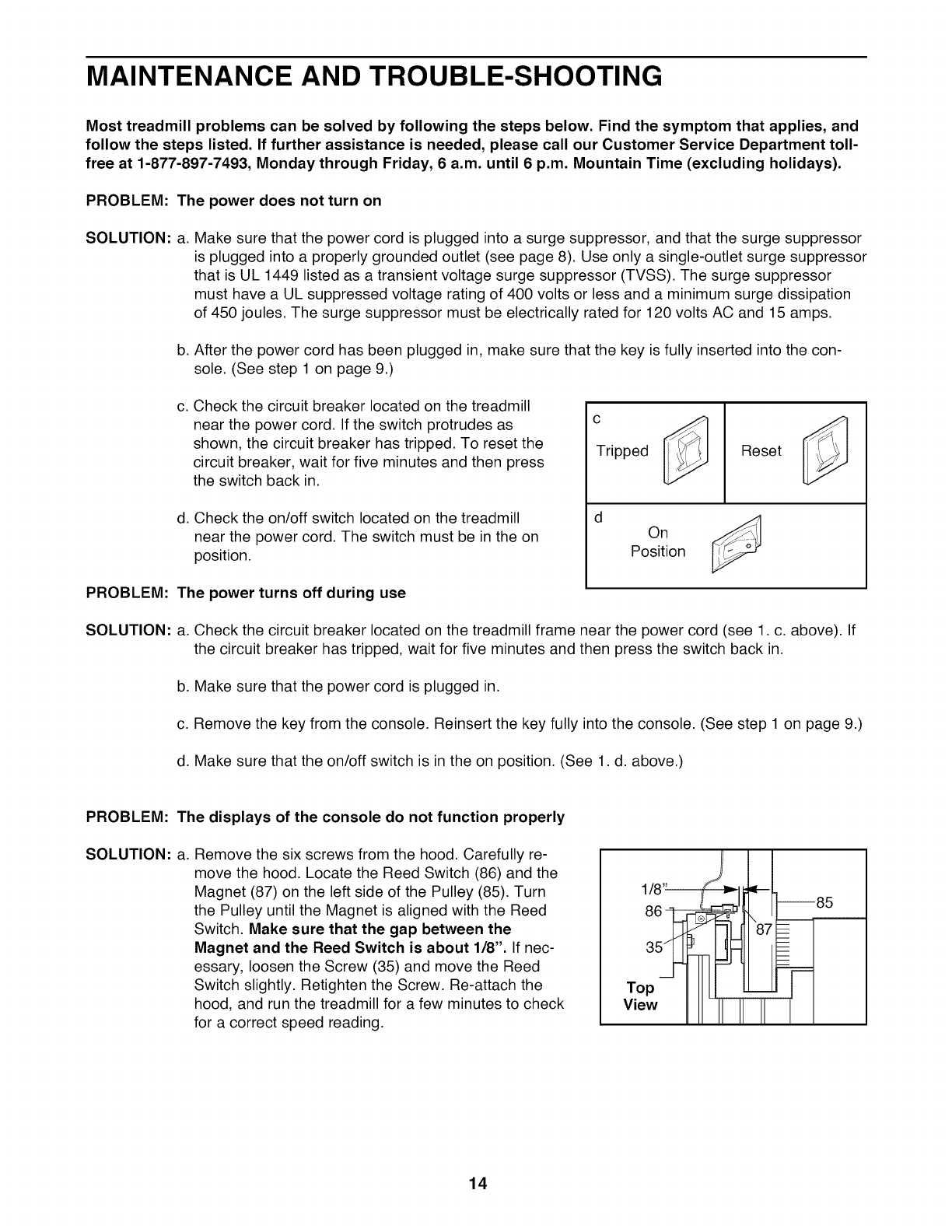

MAINTENANCE AND TROUBLE-SHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-
free at 1-877-897-7493, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor
must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation
of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-
sole. (See step 1 on page 9.)
PROBLEM:
C, Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
d. Check the on/off switch located on the treadmill
near the power cord. The switch must be in the on
position.
The power turns off during use
c
Tripped
d
Reset
on
Position
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If
the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console. (See step 1 on page 9.)
d. Make sure that the on/off switch is in the on position. (See 1. d. above.)
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the six screws from the hood. Carefully re-
move the hood. Locate the Reed Switch (86) and the
Magnet (87) on the left side of the Pulley (85). Turn
the Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 1/8". If nec-
essary, loosen the Screw (35) and move the Reed
Switch slightly. Retighten the Screw. Re-attach the
hood, and run the treadmill for a few minutes to check
for a correct speed reading.
14

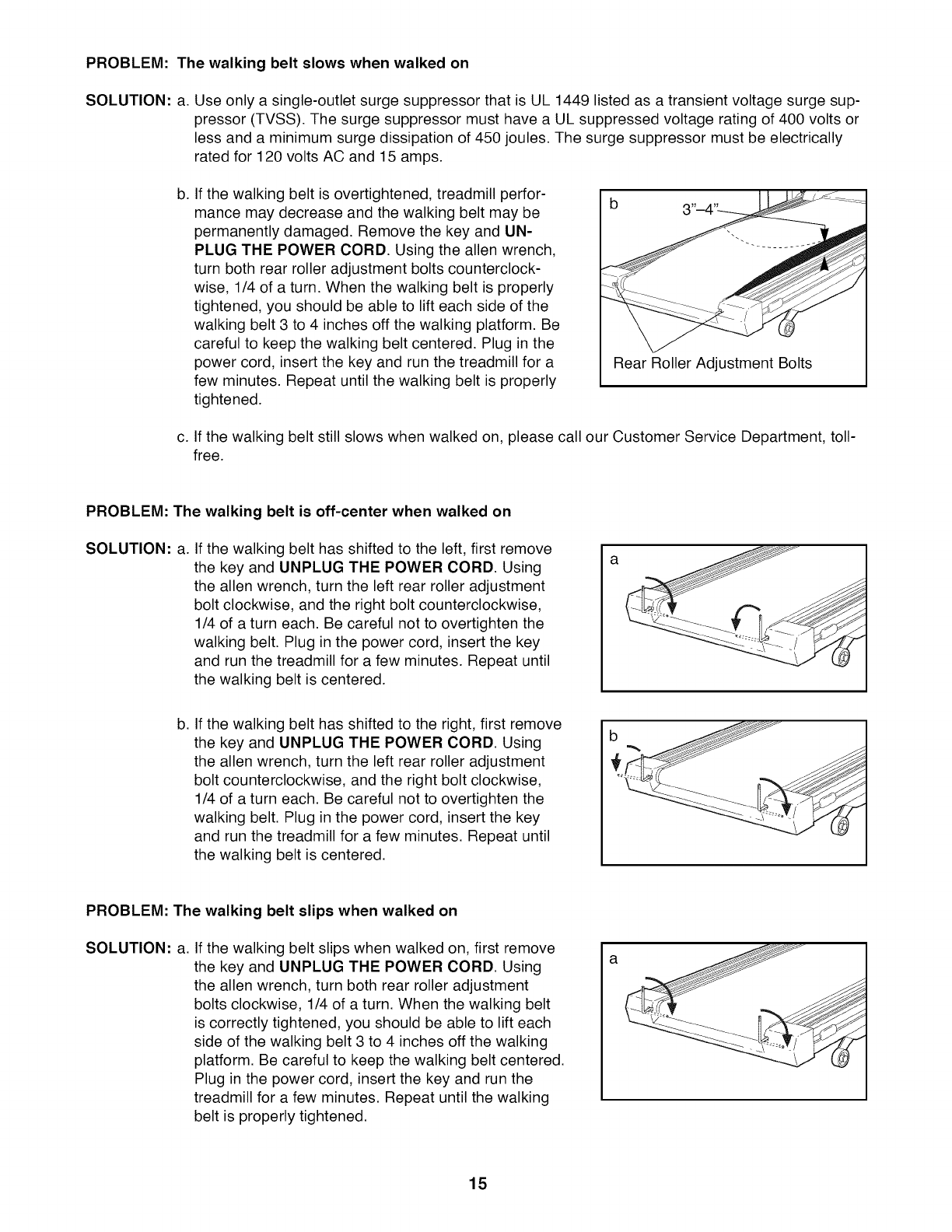

PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or
less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically
rated for 120 volts AC and 15 amps.
b, If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be
permanently damaged. Remove the key and UN-
PLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts counterclock-
wise, 1/4 of a turn. When the walking belt is properly
tightened, you should be able to lift each side of the
walking belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key and run the treadmill for a
few minutes. Repeat until the walking belt is properly
tightened.
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-
free.
PROBLEM: The walking belt is off-center when walked on
SOLUTION: a. If the walking belt has shifted to the left, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn the left rear roller adjustment
bolt clockwise, and the right bolt counterclockwise,
1/4 of a turn each. Be careful not to overtighten the
walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until
the walking belt is centered.
b, If the walking belt has shifted to the right, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn the left rear roller adjustment
bolt counterclockwise, and the right bolt clockwise,
1/4 of a turn each. Be careful not to overtighten the
walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until
the walking belt is centered.
PROBLEM: The walking belt slips when walked on
SOLUTION: a. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller adjustment
bolts clockwise, 1/4 of a turn. When the walking belt
is correctly tightened, you should be able to lift each
side of the walking belt 3 to 4 inches off the walking
platform. Be careful to keep the walking belt centered.
Plug in the power cord, insert the key and run the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
15
CONDITIONING GUIDELINES
this or any exercise program, consult your
physician, This is especially important for in-
dividuals over the age of 35 or individuals
The following guidelines will help you to plan your ex-
ercise program. Remember--these are general guide-
lines. For more detailed information about exercise,
obtain a book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or strengthen your car-
diovascular system, the key to achieving the desired
results is to exercise with the proper intensity. The
proper intensity level can be found by using your heart
rate as a guide. For effective exercise, your heart rate
should be maintained at a level between 71.5% and
85% of your maximum heart rate as you exercise. This
is known as your training zone.
You can find your training zone in the table below.
Training zones are listed according to age and physical
condition.
Training Zone(Beats/Min.)
Age Unconditioned Conditioned
20 138-167 133-162
25 136-166 132-160
30 135-164 130-158
35 134-162 129-156
40 132-161 127-155
45 131-159 125-153
50 129-156 124-150
55 127-155 122-149
60 126-153 121-147
65 125-151 119-145
70 123-150 118-144
75 122-147 117-142
80 120-146 115-140
85 118-144 114-139
Burning Fat
To burn fat, you must exercise at a low intensity level
for a sustained period of time. During the first few
minutes of exercise, your body uses easily accessible
carbohydrate calories for energy. Only after the first few
minutes of exercise does your body begin to use stored
fat calories for energy. If your goal is to burn fat, adjust
the intensity of your exercise until your heart rate is
near the low end of your training zone as you exercise.
WARNING: The pulse sensor is
not a medical device. Various factors,
including your movement, may affect the
accuracy of heart rate readings. The pulse
sensor is intended only as exercise aids in
determining heart rate trends in general.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the middle of your training zone.
WORKOUT GUIDELINES
Each workout should include the following three impor-
tant parts: (1) a warm-up, (2) training zone exercise,
and (3) a cool-down.
Warm-up
Warming up prepares the body for exercise by increas-
ing circulation, delivering more oxygen to the muscles,
and raising the body temperature. Begin each workout
with 5 to 10 minutes of stretching and light exercise to
warm up (see SUGGESTED STRETCHES on page 17).
Training Zone Exercise
After warming up, increase the intensity of your exer-
cise until your heart rate is in your training zone for 20
to 60 minutes. (During the first few weeks of your exer-
cise program, do not keep your heart rate in your train-
ing zone for longer than 20 minutes.) Breathe regularly
and deeply as you exercise--never hold your breath.
16
Cool-down
Finish each workout with 5 to 10 minutes of stretching
to cool down. This will increase the flexibility of your
muscles and will help to prevent post-exercise problems.
Exercise Frequency
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired.
The key to success is to make exercise a regular and
enjoyable part of your everyday life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
right. Move slowly as you stretch--never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause further stretching of the
achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
5 f
\
17
PART LIST--Model No. 831.297890 R0798B
Key No. Qty. Description
1 1
2 1
3 2
4 1
5 4
6 1
7 1
8 2
9 1
10 1
11" 1
12 1
13 2
14 1
15 2
16 7
17 1
18 1
19" 1
20 1
21 1
22 4
23 1
24 1
25 1
26 1
27 2
28 1
29 1
30 9
31 1
32 1
33 2
34 2
35 35
36 4
37 2
38 2
39 4
40 1
41 2
42 1
43 1
44 1
45 2
46 4
47 12
48 1
49 1
50 2
51 1
52 2
53 4
54 1
55 1
56 11
57 2
Key/Clip
Left Handrail
Cage Nut
Power Supply
Rear Isolator Screw
Console Base
8" Wire Harness
Spider Nut
Battery Cover
Incline Motor
Console Assembly
Storage Latch
1/2" Screw
Upright/Base
Handrail Bolt
Handrail Washer
Motor Belt
Motor Swivel Nut
Motor/Pulley/Flywheel/Fan
Pulley/Flywheel/Fan
Motor
Motor Tension Bolt/Incline Bolt
Motor Tension Washer
Motor Tension Star Washer
Motor Swivel Bolt
Wire Harness
Ground Wire Screw
Hood
Hood Shield
Screw
Latch Decal
Right Handrail
Frame Pivot Bolt
Extension Leg Screw
Electronics Screw
Base Pad
Wheel Bolt
Wheel
Wheel Nut/Base Pivot Nut
Controller
Extension Leg
Circuit Breaker
Power Cord Grommet
Power Cord
Upright Spacer
Isolator
Belly Pan Fastener
Choke
Motor Locknut
Belt Guide
Belly Pan
Releasable Tie
Cable Tie Clamp
Motor Belly Pan
11 1/2" Cable Tie
8" Cable Tie
Flange Nut
Key No. Qty. Description
58 1 On/Off Switch
59 1 Electronics Plate
60 1 Incline Extension
61 4 3/8" Washer
62 2 Solid Isolator
63 7 Incline Nut
64 2 Incline Wheel Bolt
65 2 Incline Wheel
66 2 Incline Wheel Nut
67 2 Upright Plug
68 1 Ground Wire
69 1 Incline Leg
70 1 Power Board w/Stand-Offs
71 2 Rear Roller Adj. Bolt
72 1 Rear Roller Endcap
73 1 Allen Wrench
74 1 Adhesive Clip
75 1 Left Foot Rail
76 1 Rear Roller
77 4 Platform Screw
78 1 Latch Catch
79 1 Walking Platform
80 1 Walking Belt
81 1 Front Roller Adjustment Bolt
82 1 Shock
83 1 Right Foot Rail
84 1 Sensor Clip
85 1 Front Roller/Pulley
86 1 Reed Switch
87 1 Magnet
88 1 Strain Relief Clip
89 2 3 1/2" Handrail Bolt
90 1 Frame
91 4 3/4" Screw
92 1 Console Wire Harness
93 4 Hand Pulse Sensor
94 1 Sensor Housing
95 1 9" Hand Pulse Wire
96 1 Upright Wire Harness
97 1 30" Hand Pulse Wire
98 2 Pulse Handrail Bolt
99 1 Pulse Handrail
100 1 Reed Switch Bracket
101" 1 Pulse Handrail Assembly
102 2 Roller Guard
# 1 8" Blue Wire, Male/Female
# 1 8" Blue Wire, 2 Female
# 1 4" Blue Wire, 2 Female
# 1 14" White Wire, Pig Tail
# 1 8" White Wire, 2 Female
# 1 30" Black Wire, Male/Female
# 1 20" Black Wire, 2 Female
# 1 8" Ground Wire, Female/Ring
# 1 8" Red Wire, Male/Female
# 1 User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
o
O0
oo
o_
o
G:
O_
oO
r,.
O_
oO
o;
I
Z
a
,,i
0
.J
D.
X
HJ
/
/
/
\\\
\ i
I/
<
r
/
/
/
/
/
/
/
\
\
\\
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-877-897-7493, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
The MODEL NUMBER OF THE PRODUCT (831.297890).
The NAME OF THE PRODUCT (PROFORM _ EKG treadmill).
The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual).
The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST
attached in the center of this manual).
If possible, place the treadmill near your telephone for easy reference when calling.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service
centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-
chase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
usage or repairs not provided by an ICON authorized service center, to products used for commercial or
rental purposes, or to products used as store display models. No other warranty beyond that specifically
set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 146296 H01760AC R0798B Printed in USA © 1998 Sears, Roebuck and Co.

Navigation menu
