Model No. 831.299371
Serial No.
The serial number is found in the location
shown below, Write the serial number in
the space above for future reference,
Serial
Number
Decal
EXERCISE
EO u I PM ENT
O O
HELPL|NE!
1-800-736-6879
SEARS, ROEBUCK AND CO,
HOFFMAN ESTATES, IL 60179
CAUTION
Read all precautions and in-
structions in this manual before
using this equipment. Save this
manual for future reference.
E K (_ ;_ G R I P P U L S; E
USE 'S AL
www.proform.com
new products, prizes,
fitness tips, and much more!

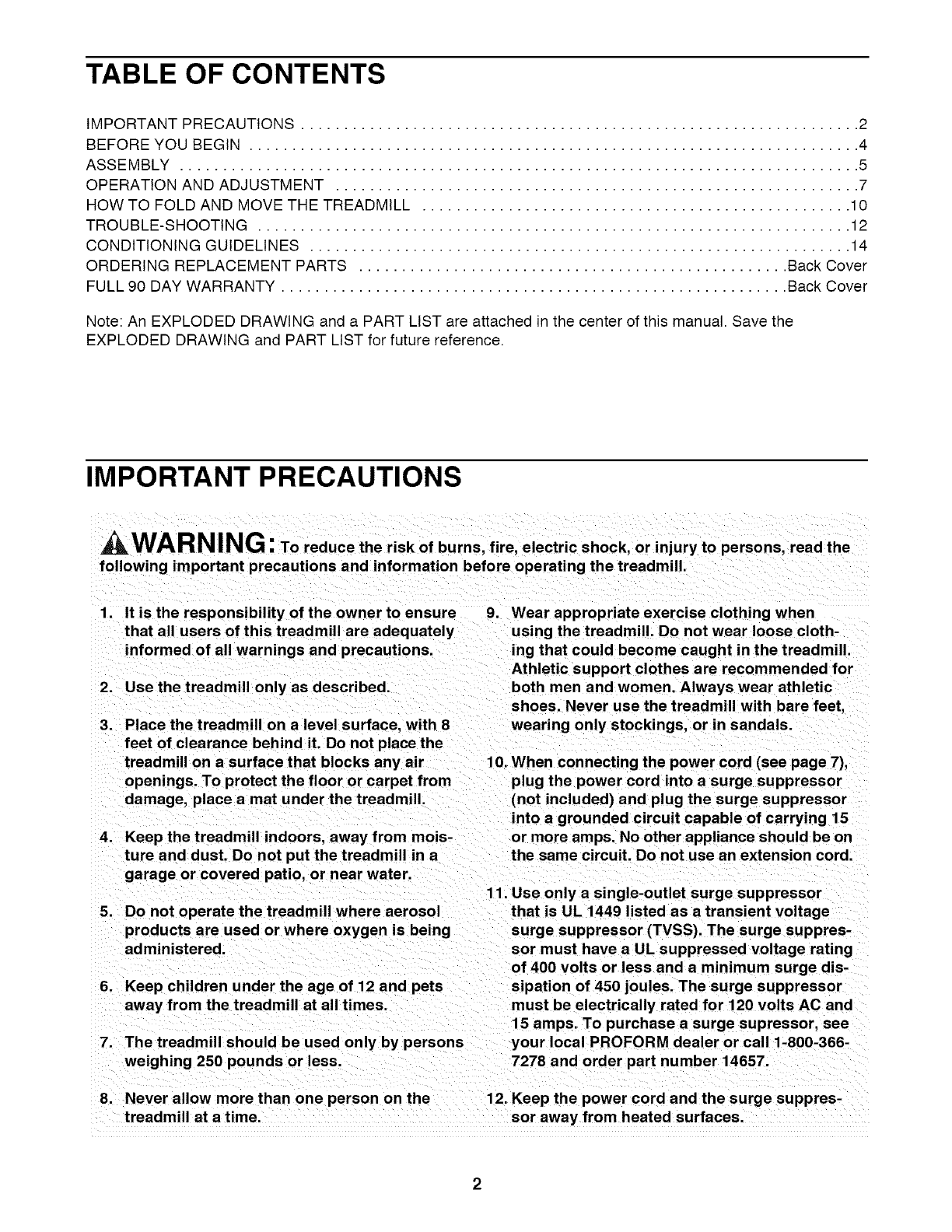

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................. 2
BEFORE YOU BEGIN ....................................................................... 4
ASSEMBLY ............................................................................... 5
OPERATION AND ADJUSTMENT ............................................................. 7
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 10
TROUBLE-SHOOTING ..................................................................... 12
CONDITIONING GUIDELINES ............................................................... 14
ORDERING REPLACEMENT PARTS .................................................. Back Cover
FULL 90 DAY WARRANTY ........................................................... Back Cover

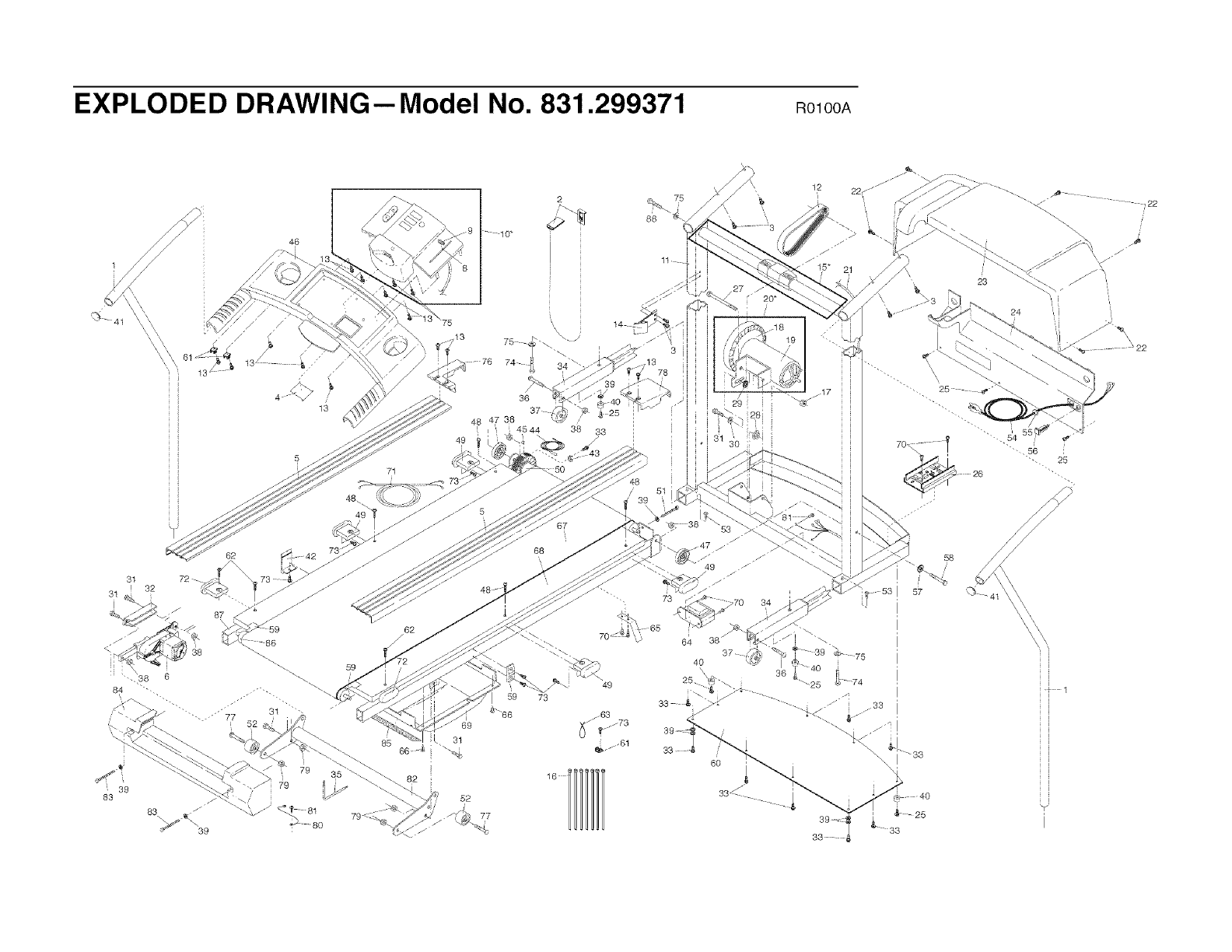

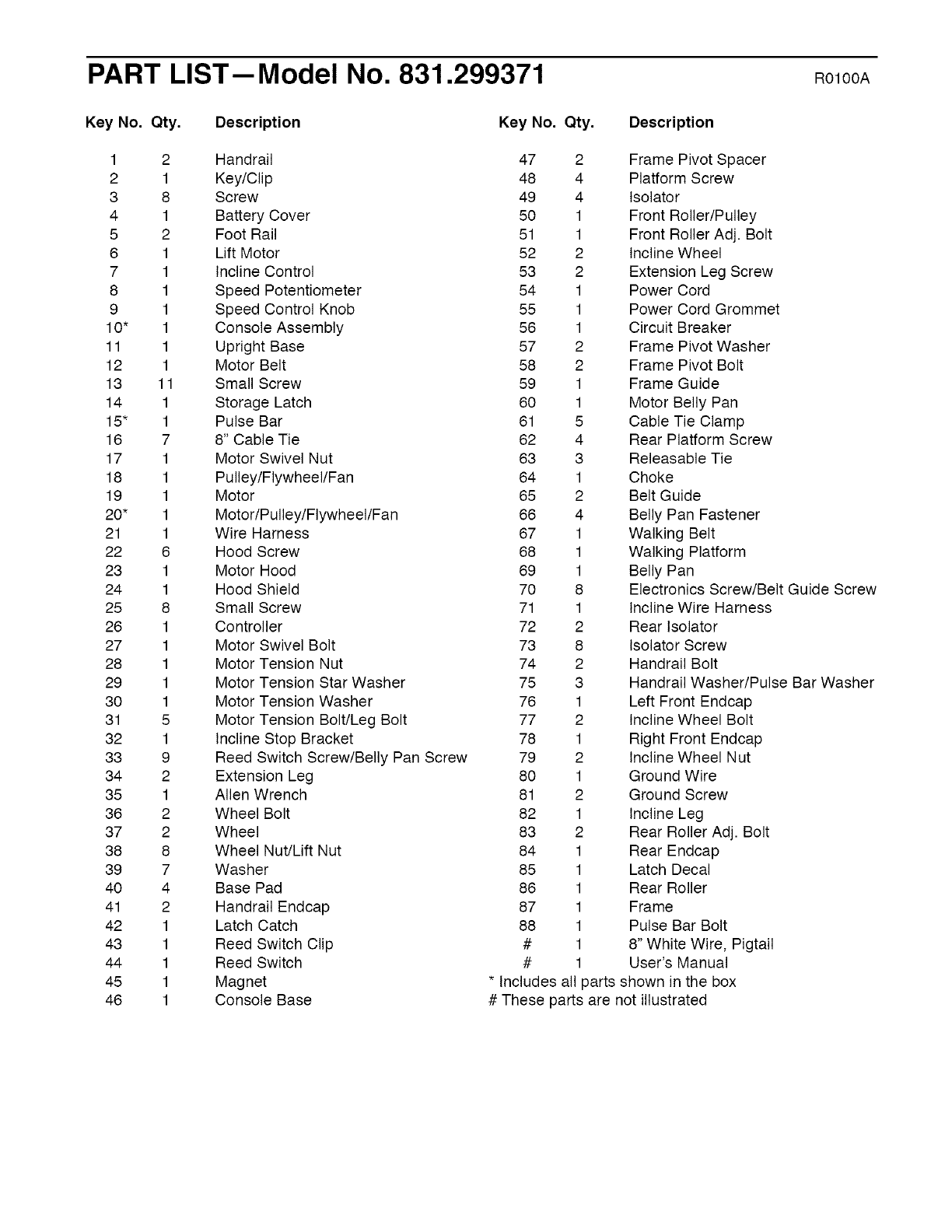

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. Save the
EXPLODED DRAWING and PART LIST for future reference.
IMPORTANT PRECAUTIONS
AWARN ING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all use rs of this treadm ill are adequately
informed of all warnings and precautions.
9.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with 8
feet of clearance behind it. Do not place the
treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 250 pounds or less.
Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth-
ing that could become caught in the treadm ill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet.
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 7),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more am ps. No other appliance should be on
.......................... an extension cord.
11. Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppres-
sor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dis-
sipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and
15 amps. To purchase a surge supressor, see
your local PROFORM dealer or call 1-800-366-
7278 and order part number 14657.
8. Never allow more than one person on the 12. Keep the power cord and the surge suppres-
treadmill at a time. sor away from heated surfaces.
2

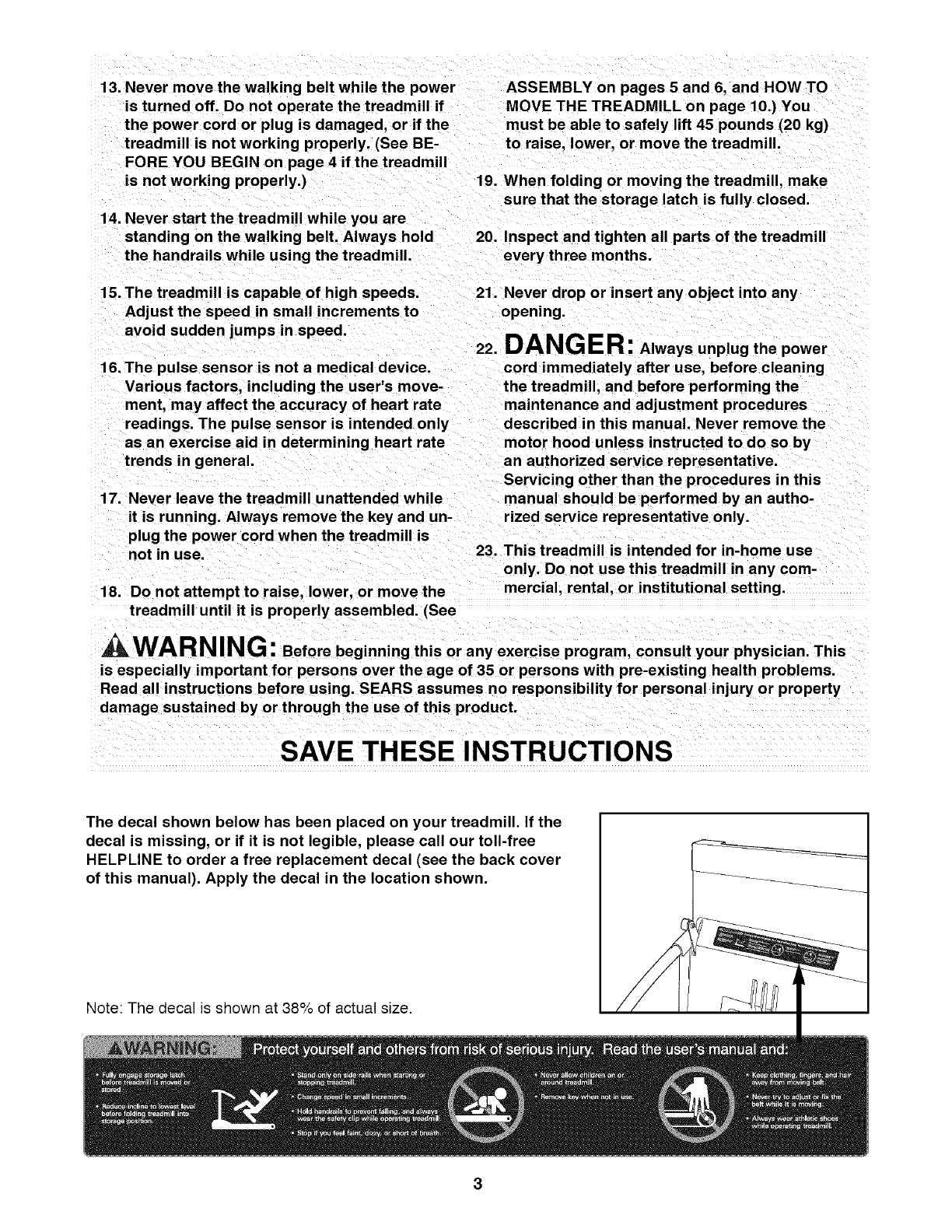

13. Never move the walking belt while the power ASSEMBLY on pages 5 and 6, and HOW TO
is turned off. Do not operate the treadmill if MOVE THE TREADMILL on page 10.) You
the power cord or plug is damaged, or if the must be able to safely lift 45 pounds (20 kg)
treadmill is not working properly. (See BE- to raise, lower, or move the treadmill.
FORE YOU BEGIN on page 4 if the treadmill
is not working properly.) 19. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
14. Never start the treadmill while you are
standing on the walking belt. Always hold 20. Inspect and tighten all parts of the treadmill
the handrails while using the treadmill, every three months.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
16. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
17. Never leave the treadmill unattended while
it is running. Always remove the key and un-
plug the power cord when the treadmill is
not in use.
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
21. Never drop or insert any object into any
opening.
22DANG ER: Alwaysu.plugthepower
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by
an authorized service representative.
Servicing other than the procedures in this
manual should be performed by an autho-
rized service representative only.
23. This treadmill is intended for in-home use
only. Do not use this treadmill in any com-
mercial, rental, or institutional setting.
_WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown below has been placed on your treadmill. If the
decal is missing, or if it is not legible, please call our toll-free
HELPLINE to order a free replacement decal (see the back cover
of this manual). Apply the decal in the location shown.
Note: The decal is shown at 38% of actual size.
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM ®490GS
treadmill. The 490GS treadmill combines advanced
technology with innovative design to let you enjoy an
excellent form of cardiovascular exercise in the conve-
nience and privacy of your home. And when you're not
exercising, the unique 490GS can be folded up, requir-
ing less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our toll-free HELPLINE at 1-800-736-6879,
Monday through Saturday, 7 a.m. until 7 p.m. Central
Time (excluding holidays). To help us assist you,
please note the product model number and serial num-
ber before calling. The model number of the treadmill
is 831.299371. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Console Water Bottle Holder
(Bottle not included)
Pulse Sensor
Storage Latch
Handrail
LEFT SIDE
Walking Belt
Upright
RIGHT SIDE
Circuit
Breaker
Power
Cord
Rear Roller
Adjustment Bolts BACK "Incline Leg
Cushioned Walking Platform
for maximum exercise comfort

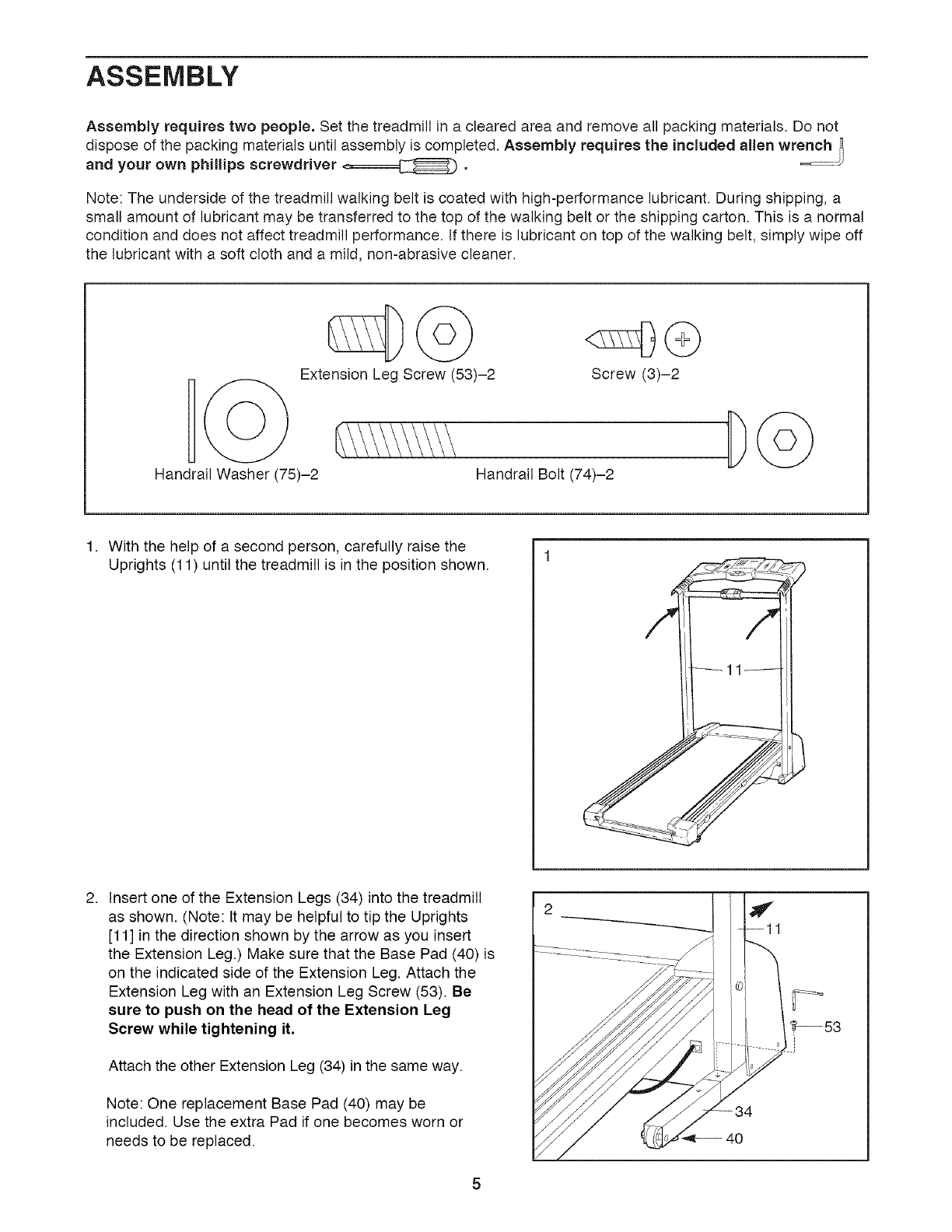

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included alien wre_[_
and your own phillips screwdriver _,
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Extension Leg Screw (53)-2
gG
Screw (3)-2
Handrail Washer (75)-2 Handrail Bolt (74)-2
With the help of a second person, carefully raise the
Uprights (11) until the treadmill is in the position shown.
2. Insert one of the Extension Legs (34) into the treadmill
as shown. (Note: It may be helpful to tip the Uprights
[11] in the direction shown by the arrow as you insert
the Extension Leg.) Make sure that the Base Pad (40) is
on the indicated side of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (53). Be
sure to push on the head of the Extension Leg
Screw while tightening it.
Attach the other Extension Leg (34) in the same way.
Note: One replacement Base Pad (40) may be
included. Use the extra Pad if one becomes worn or
needs to be replaced.
f_-- 53
I,
3, _--
3

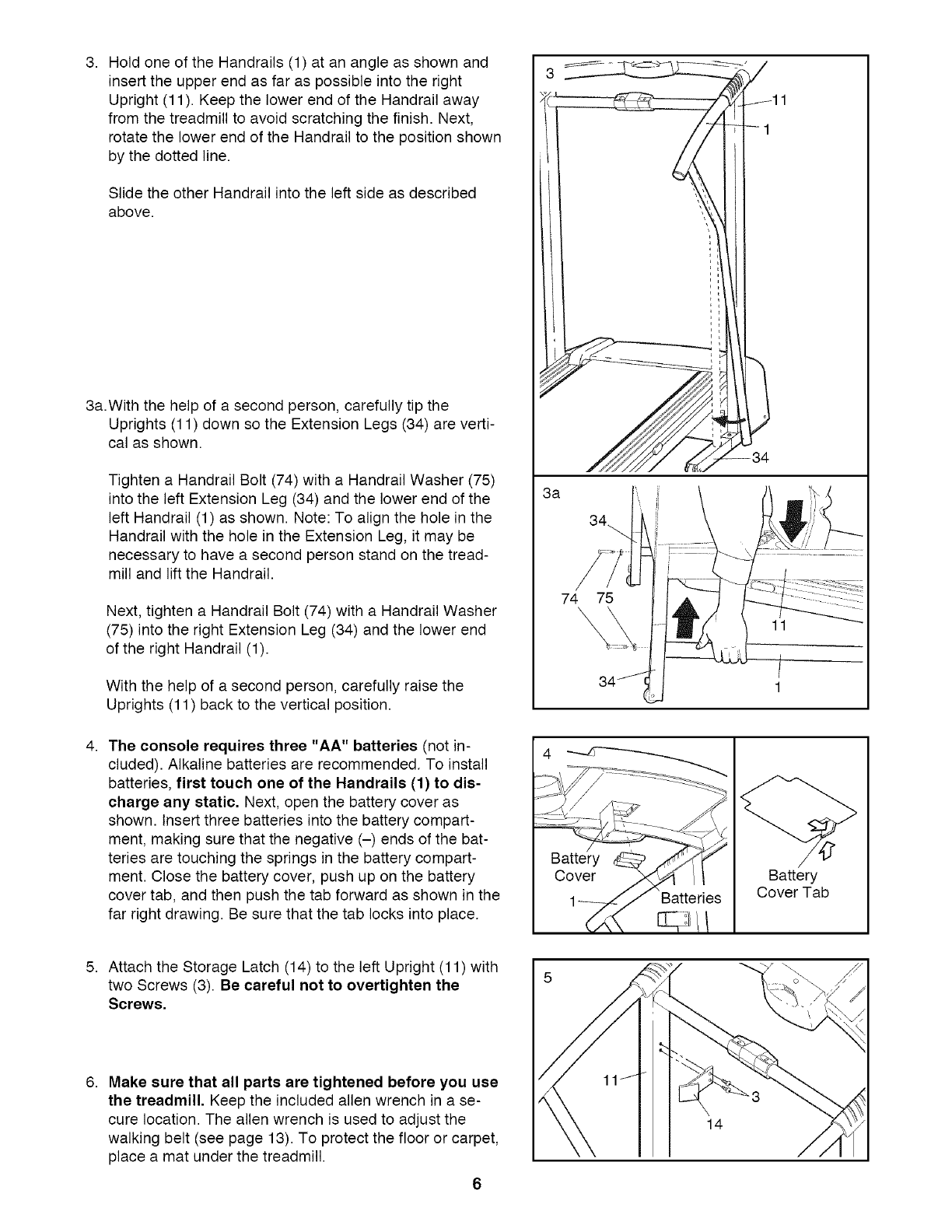

Hold one of the Handrails (1) at an angle as shown and
insert the upper end as far as possible into the right
Upright (11). Keep the lower end of the Handrail away
from the treadmill to avoid scratching the finish. Next,
rotate the lower end of the Handrail to the position shown
by the dotted line.
Slide the other Handrail into the left side as described
above.
3a.With the help of a second person, carefully tip the
Uprights (11) down so the Extension Legs (34) are verti-
cal as shown.
Tighten a Handrail Bolt (74) with a Handrail Washer (75)
into the left Extension Leg (34) and the lower end of the
left Handrail (1) as shown. Note: To align the hole in the
Handrail with the hole in the Extension Leg, it may be
necessary to have a second person stand on the tread-
mill and lift the Handrail.
Next, tighten a Handrail Bolt (74) with a Handrail Washer
(75) into the right Extension Leg (34) and the lower end
of the right Handrail (1).
With the help of a second person, carefully raise the
Uprights (11) back to the vertical position.
The console requires three "AA" batteries (not in-
cluded). Alkaline batteries are recommended. To install
batteries, first touch one of the Handrails (1) to dis-
charge any static, Next, open the battery cover as
shown. Insert three batteries into the battery compart-
ment, making sure that the negative (-) ends of the bat-
teries are touching the springs in the battery compart-
ment. Close the battery cover, push up on the battery
cover tab, and then push the tab forward as shown in the
far right drawing. Be sure that the tab locks into place.
/
74 75
\
I
Battery
Cover Tab
Attach the Storage Latch (14) to the left Upright (11) with
two Screws (3). Be careful not to overtighten the
Screws,
Make sure that all parts are tightened before you use
the treadmill. Keep the included allen wrench in a se-
cure location. The allen wrench is used to adjust the
walking belt (see page 13). To protect the floor or carpet,
place a mat under the treadmill.
6
14

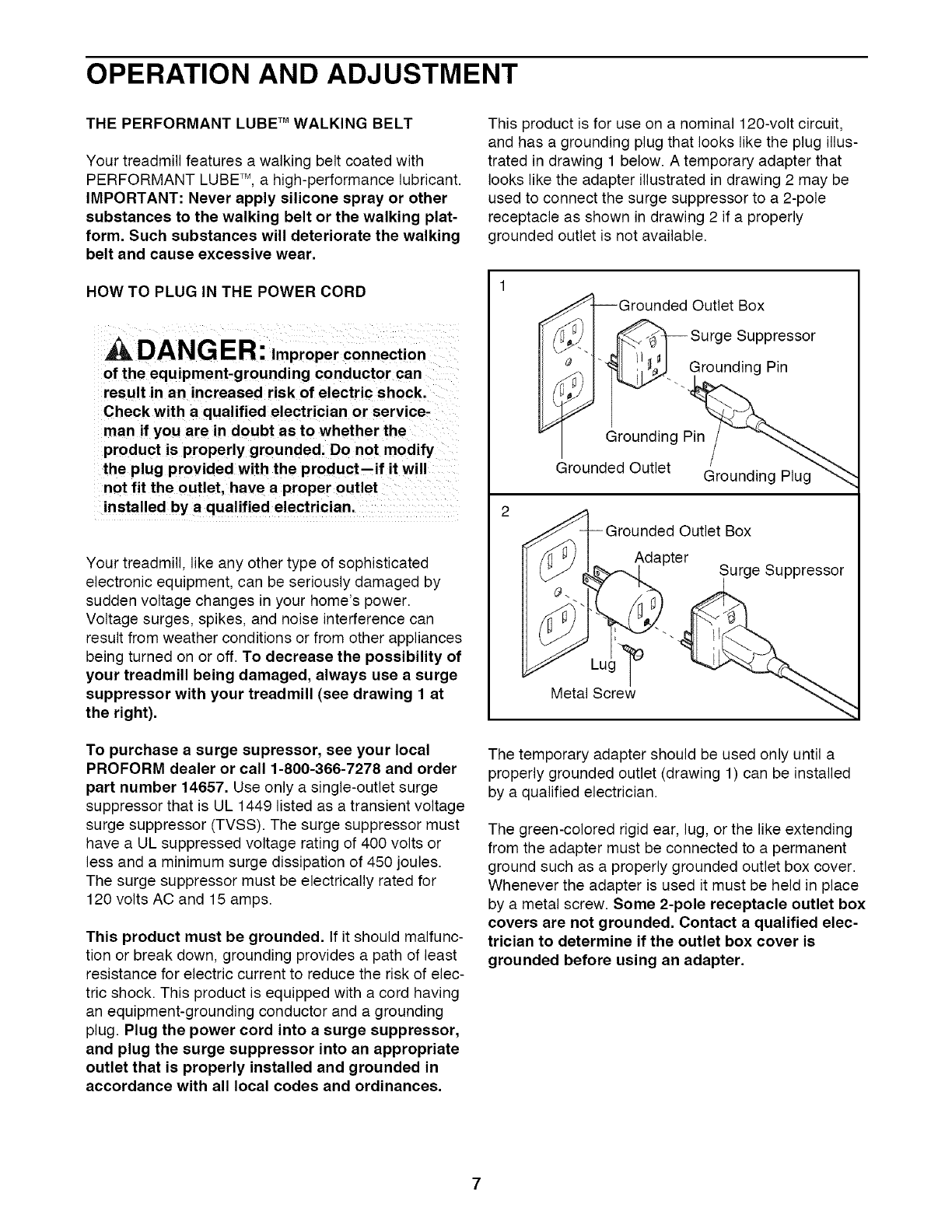

OPERATION AND ADJUSTMENT
THE PERFORMANT LUBE TM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE TM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear,
HOW TO PLUG IN THE POWER CORD
DANG ER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product--if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).
To purchase a surge supressor, see your local
PROFORM dealer or call 1-800-366-7278 and order
part number 14657. Use only a single-outlet surge
suppressor that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppressor must
have a UL suppressed voltage rating of 400 volts or
less and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances,
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
i-Grounded Outlet Box
_'-I -- =urge Suppressor
_'_ "-, Grounding Pin
Grounding Pin
Grounded Outlet Grounding Plug
Grounded Outlet Box
Adapter
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter,

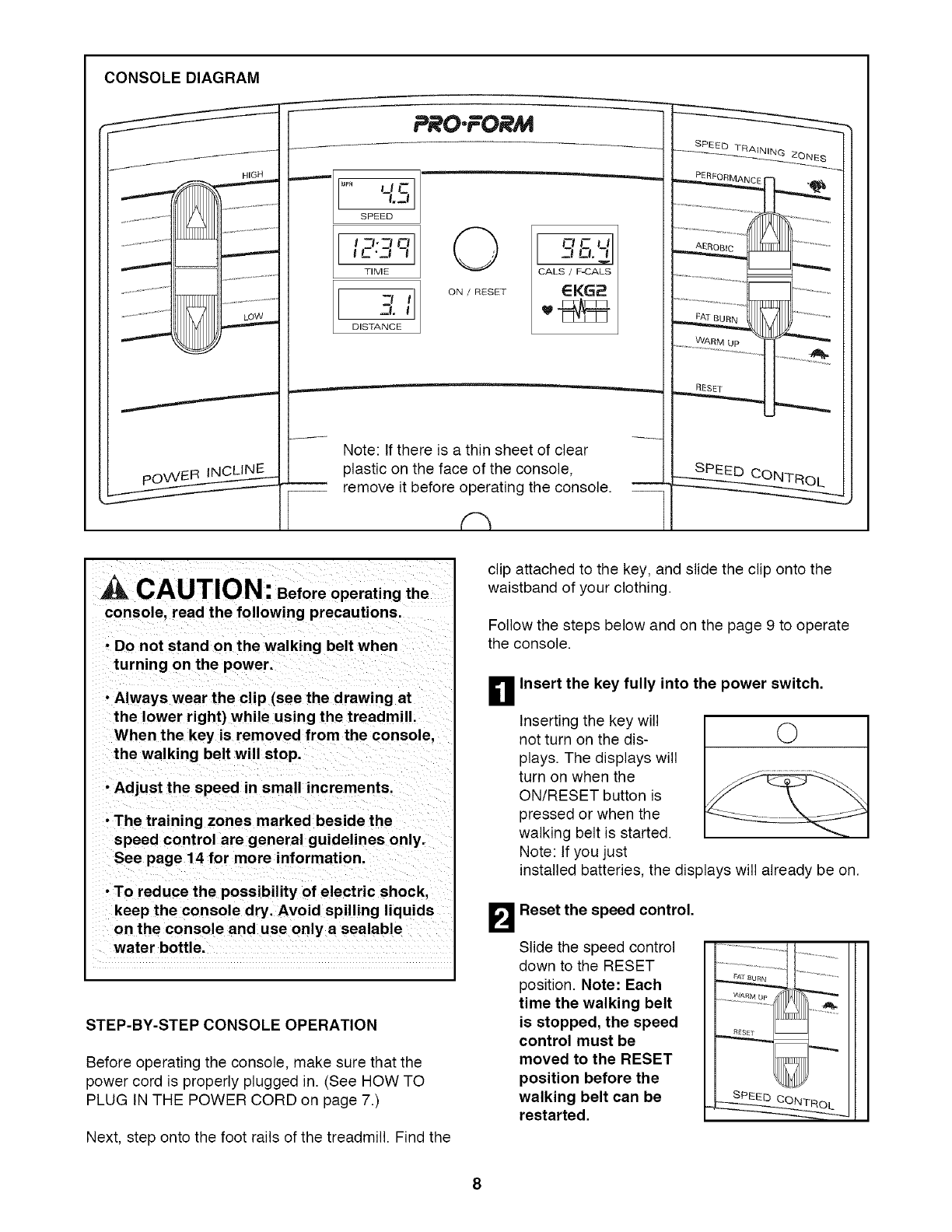

CONSOLEDIAGRAM
HIGH
!PRO.FORM
["_" U Ct=_# ]
SPEED
I --I.--I _l
IC'Z# 7
TIME
3./
DISTANCE
©
ON /RESET
:eo.2/
CALS /F-CALS
EKG2
Note: If there is a thin sheet of clear
plastic on the face of the console,
remove it before operating the console.
CAUTION: Beforeoperating the
console, read the following precautions.
• Do not stand on the walking belt when
turning on the power.
•Always wear the clip (see the drawing at
the lower right) while using the treadmill.
When the key is removed from the console,
the walking belt will stop.
•Adjust the speed in small increments.
•The training zones marked beside the
speed control are general guidelines only.
See page 14 for more information.
•To reduce the possibility of electric shock.
keep the console dry. Avoid spilling liquids
on the console and use on ly a sealable
water bottle.
STEP-BY-STEP CONSOLE OPERATION
Before operating the console, make sure that the
power cord is properly plugged in. (See HOW TO
PLUG IN THE POWER CORD on page 7.)
Next, step onto the foot rails of the treadmill. Find the
clip attached to the key, and slide the clip onto the
waistband of your clothing.
Follow the steps below and on the page 9 to operate
the console.
n
Inserting the key will
not turn on the dis-
plays. The displays will
turn on when the
ON/RESET button is
pressed or when the
walking belt is started.
Note: tf you just
Insert the key fully into the power switch,
©
installed batteries, the displays will already be on.
B Reset the speed control.
Slide the speed control
down to the RESET
position. Note: Each
time the walking belt
is stopped, the speed
control must be
moved to the RESET
position before the
walking belt can be
restarted,
8

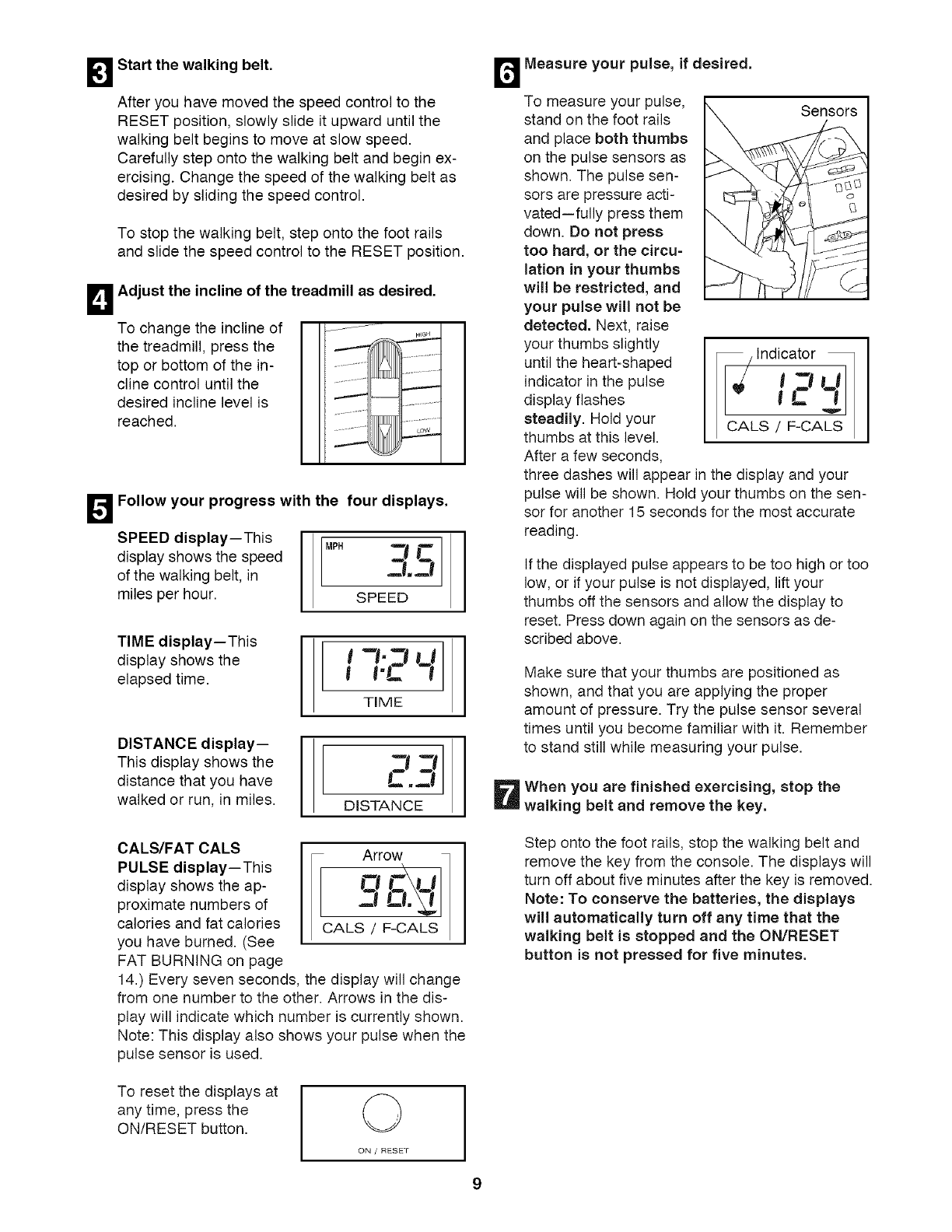

_1 Start the walking belt.
After you have moved the speed control to the
RESET position, slowly slide it upward until the
walking belt begins to move at slow speed.
Carefully step onto the walking belt and begin ex-
ercising. Change the speed of the walking belt as
desired by sliding the speed control.
To stop the walking belt, step onto the foot rails
and slide the speed control to the RESET position.
To change the incline of
the treadmill, press the
top or bottom of the in-
cline control until the
desired incline level is
reached.
B Adjust the incline of the treadmill as desired.
HIGH
[_,',_Follow your progress with the four displays.
SPEED display--This _p.
display shows the speed _ l_..
of the walking belt, in a_,._l
miles per hour. SPEED
TIME display--This
display shows the
elapsed time. 'q'E"4
t
TIME
DISTANCE display--
This display shows the
distance that you have
walked or run, in miles.
E..J
DISTANCE
DMeasure your pulse, if desired.
To measure your pulse,
stand on the foot rails
and place both thumbs
on the pulse sensors as
shown. The pulse sen-
sors are pressure acti-
vated-fully press them
down. Do not press
too hard, or the circu-
lation in your thumbs
will be restricted, and
your pulse will not be
detected. Next, raise
your thumbs slightly
until the heart-shaped
indicator in the pulse
display flashes
steadily. Hold your
thumbs at this level.
After a few seconds,
//Indicator
I" I": :Zl
CALS /F-CALS
three dashes will appear in the display and your
pulse will be shown. Hold your thumbs on the sen-
sor for another 15 seconds for the most accurate
reading.
If the displayed pulse appears to be too high or too
low, or if your pulse is not displayed, lift your
thumbs off the sensors and allow the display to
reset. Press down again on the sensors as de-
scribed above.
Make sure that your thumbs are positioned as
shown, and that you are applying the proper
amount of pressure. Try the pulse sensor several
times until you become familiar with it. Remember
to stand still while measuring your pulse.
When you are finished exercising, stop the
walking belt and remove the key.
CALS/FAT CALS
PULSE display--This
display shows the ap-
proximate numbers of
calories and fat calories
you have burned. (See
FAT BURNING on page
Arrow
H w: ul
H
_ALS /F-CALS|
14.) Every seven seconds, the display will change
from one number to the other. Arrows in the dis-
play will indicate which number is currently shown.
Note: This display also shows your pulse when the
pulse sensor is used.
Step onto the foot rails, stop the walking belt and
remove the key from the console. The displays will
turn off about five minutes after the key is removed.
Note: To conserve the batteries, the displays
will automatically turn off any time that the
walking belt is stopped and the ON/RESET
button is not pressed for five minutes.
To reset the displays at
any time, press the
ON/RESET button.
ON/RESEf
9

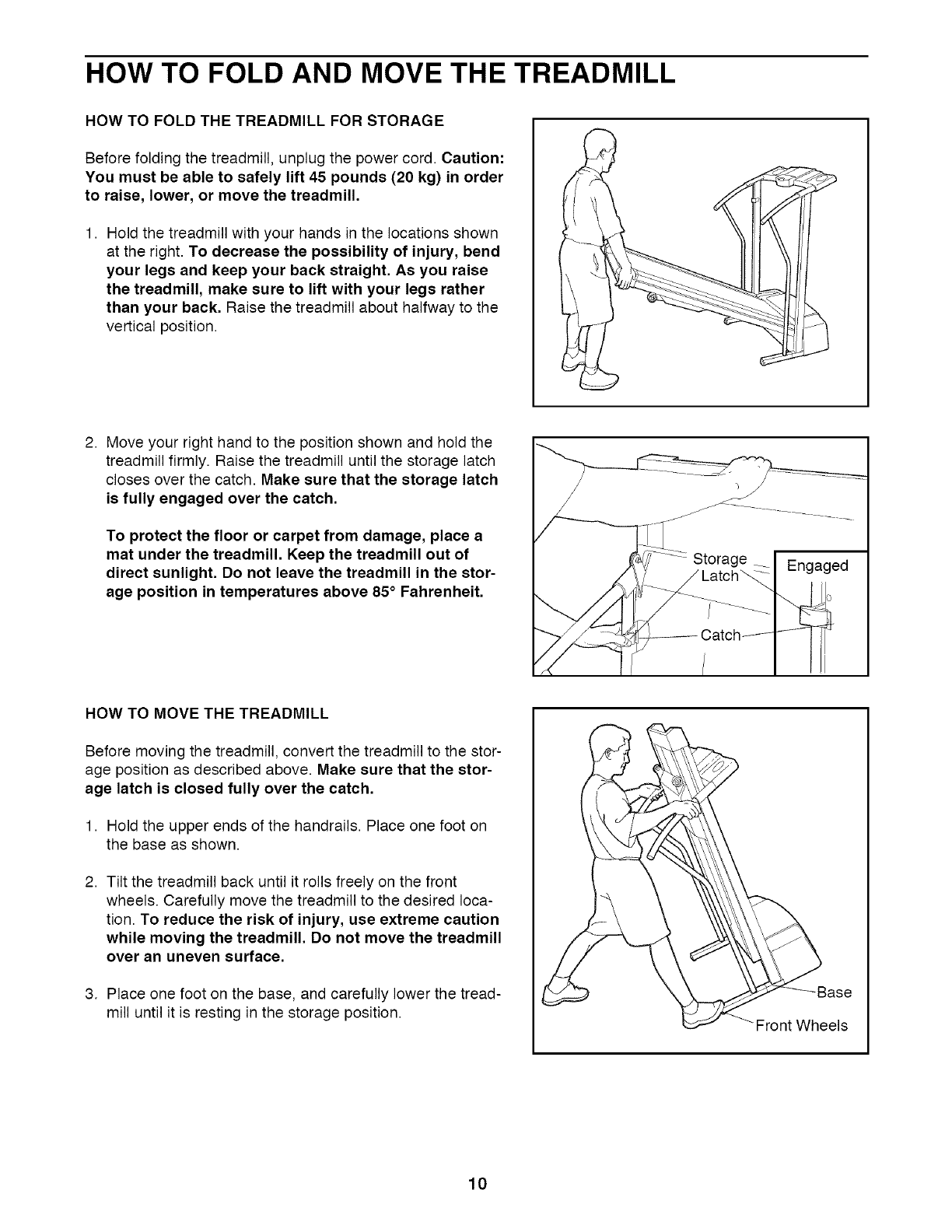

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord. Caution:
You must be able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill,
Hold the treadmill with your hands in the locations shown
at the right. To decrease the possibility of injury, bend
your legs and keep your back straight. As you raise
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the storage latch
closes over the catch. Make sure that the storage latch
is fully engaged over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the stor-
age latch is closed fully over the catch.
1. Hold the upper ends of the handrails. Place one foot on
the base as shown.
2. Tilt the treadmill back until it rolls freely on the front
wheels. Carefully move the treadmill to the desired loca-
tion. To reduce the risk of injury, use extreme caution
while moving the treadmill, Do not move the treadmill
over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position. Front Wheels
10

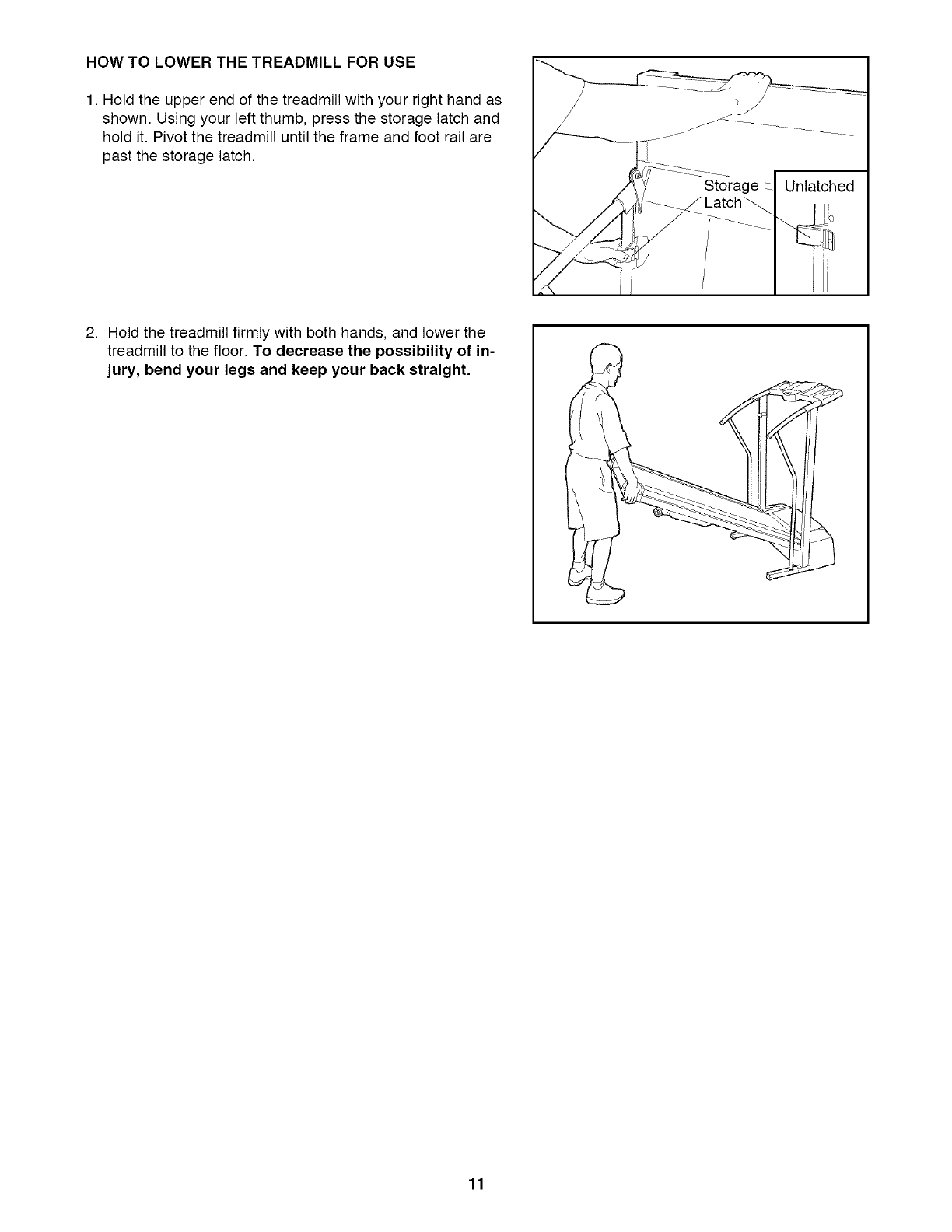

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left thumb, press the storage latch and
hold it. Pivot the treadmill until the frame and foot rail are
past the storage latch.
Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. To decrease the possibility of in-
jury, bend your legs and keep your back straight.
11

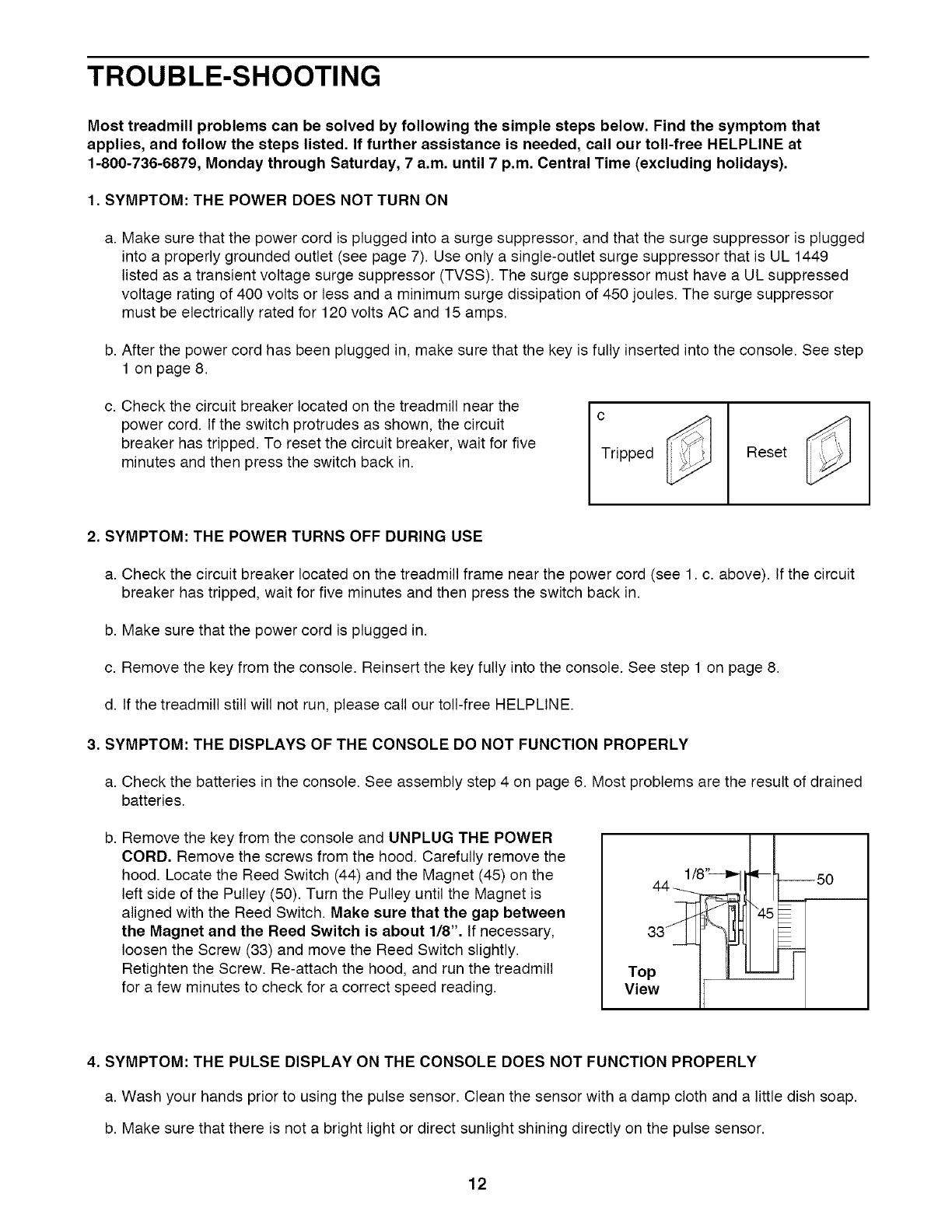

TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call our toll-free HELPLINE at
1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged
into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor that is UL 1449
listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed
voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and 15 amps.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. See step
1 on page 8.
c. Check the circuit breaker located on the treadmill near the
power cord. If the switch protrudes as shown, the circuit
breaker has tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
c
Tripped Reset
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit
breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console. See step 1 on page 8.
d. If the treadmill still will not run, please call our toll-free HELPLINE.
3. SYMPTOM: THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY
a. Check the batteries in the console. See assembly step 4 on page 6. Most problems are the result of drained
batteries.
b. Remove the key from the console and UNPLUG THE POWER
CORD, Remove the screws from the hood. Carefully remove the
hood. Locate the Reed Switch (44) and the Magnet (45) on the
left side of the Pulley (50). Turn the Pulley until the Magnet is
aligned with the Reed Switch. Make sure that the gap between
the Magnet and the Reed Switch is about 1/8". If necessary,
loosen the Screw (33) and move the Reed Switch slightly.
Retighten the Screw. Re-attach the hood, and run the treadmill
for a few minutes to check for a correct speed reading.
1/8'_-_'1
33
Top ---i-if _ _J"
V,ewII
_4_
4. SYMPTOM: THE PULSE DISPLAY ON THE CONSOLE DOES NOT FUNCTION PROPERLY
a. Wash your hands prior to using the pulse sensor. Clean the sensor with a damp cloth and a little dish soap.
b. Make sure that there is not a bright light or direct sunlight shining directly on the pulse sensor.
12

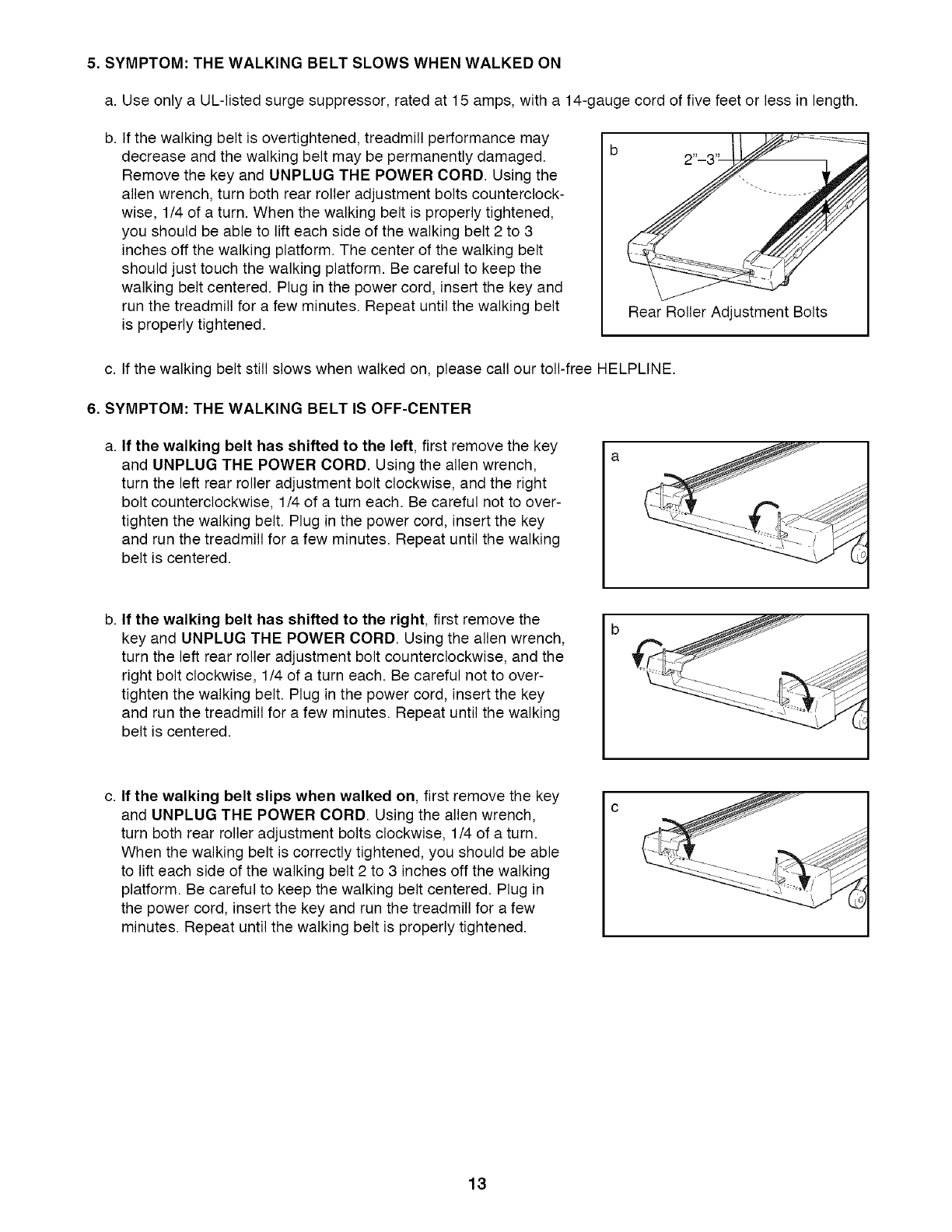

5. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Use only a UL-listed surge suppressor, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
b. If the walking belt is overtightened, treadmill performance may
decrease and the walking belt may be permanently damaged.
Remove the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts counterclock-
wise, 1/4 of a turn. When the walking belt is properly tightened,
you should be able to lift each side of the walking belt 2 to 3
inches off the walking platform. The center of the walking belt
should just touch the walking platform. Be careful to keep the
walking belt centered. Plug in the power cord, insert the key and
run the treadmill for a few minutes. Repeat until the walking belt
is properly tightened. Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.
6, SYMPTOM: THE WALKING BELT IS OFF-CENTER
a. If the walking belt has shifted to the left, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt clockwise, and the right
bolt counterclockwise, 1/4 of a turn each. Be careful not to over-
tighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
b. If the walking belt has shifted to the right, first remove the
key and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt counterclockwise, and the
right bolt clockwise, 1/4 of a turn each. Be careful not to over-
tighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
c. If the walking belt slips when walked on, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts clockwise, 1/4 of a turn.
When the walking belt is correctly tightened, you should be able
to lift each side of the walking belt 2 to 3 inches off the walking
platform. Be careful to keep the walking belt centered. Plug in
the power cord, insert the key and run the treadmill for a few
minutes. Repeat until the walking belt is properly tightened.
13

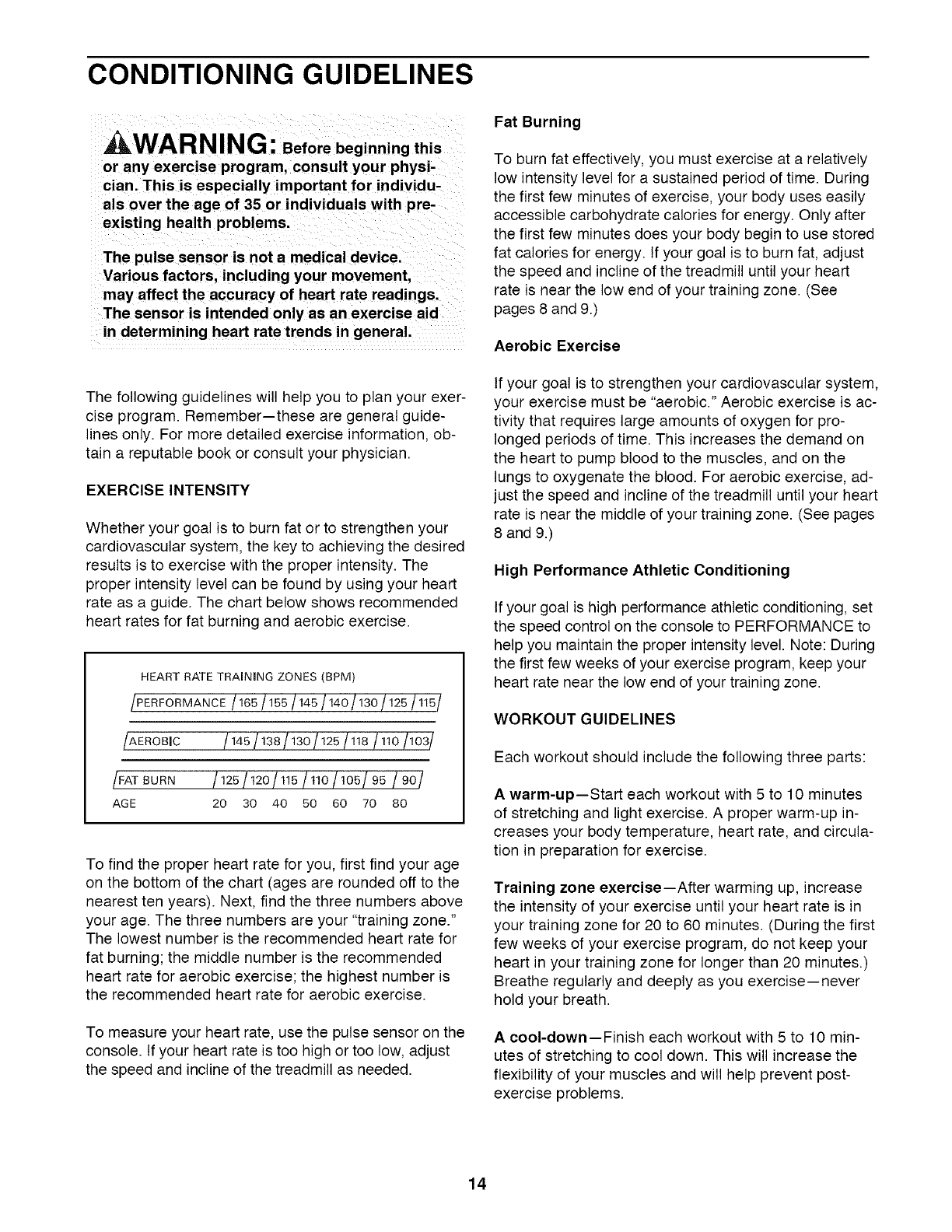

CONDITIONING GUIDELINES
,&WARN ING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for individu-
als over the age of 35 or individuals with pre-
existing health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your exer-
cise program. Remember--these are general guide-
lines only. For more detailed exercise information, ob-
tain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the desired
results is to exercise with the proper intensity. The
proper intensity level can be found by using your heart
rate as a guide. The chart below shows recommended
heart rates for fat burning and aerobic exercise.
HEART RATE TRAIMNG ZONES (BPM)
FAT BURN 125 I20 115 t10 105 95 90
AGE 20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
on the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your "training zone."
The lowest number is the recommended heart rate for
fat burning; the middle number is the recommended
heart rate for aerobic exercise; the highest number is
the recommended heart rate for aerobic exercise.
To measure your heart rate, use the pulse sensor on the
console. If your heart rate is too high or too low, adjust
the speed and incline of the treadmill as needed.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use stored
fat calories for energy. If your goal is to burn fat, adjust
the speed and incline of the treadmill until your heart
rate is near the low end of your training zone. (See
pages 8 and 9.)
Aerobic Exercise
If your goal is to strengthen your cardiovascular system,
your exercise must be "aerobic." Aerobic exercise is ac-
tivity that requires large amounts of oxygen for pro-
longed periods of time. This increases the demand on
the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise, ad-
just the speed and incline of the treadmill until your heart
rate is near the middle of your training zone. (See pages
8 and 9.)
High Performance Athletic Conditioning
If your goal is high performance athletic conditioning, set
the speed control on the console to PERFORMANCE to
help you maintain the proper intensity level. Note: During
the first few weeks of your exercise program, keep your
heart rate near the low end of your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate, and circula-
tion in preparation for exercise.
Training zone exercise--After warming up, increase
the intensity of your exercise until your heart rate is in
your training zone for 20 to 60 minutes. (During the first
few weeks of your exercise program, do not keep your
heart in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise--never
hold your breath.
Acool-down--Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-
exercise problems.
14

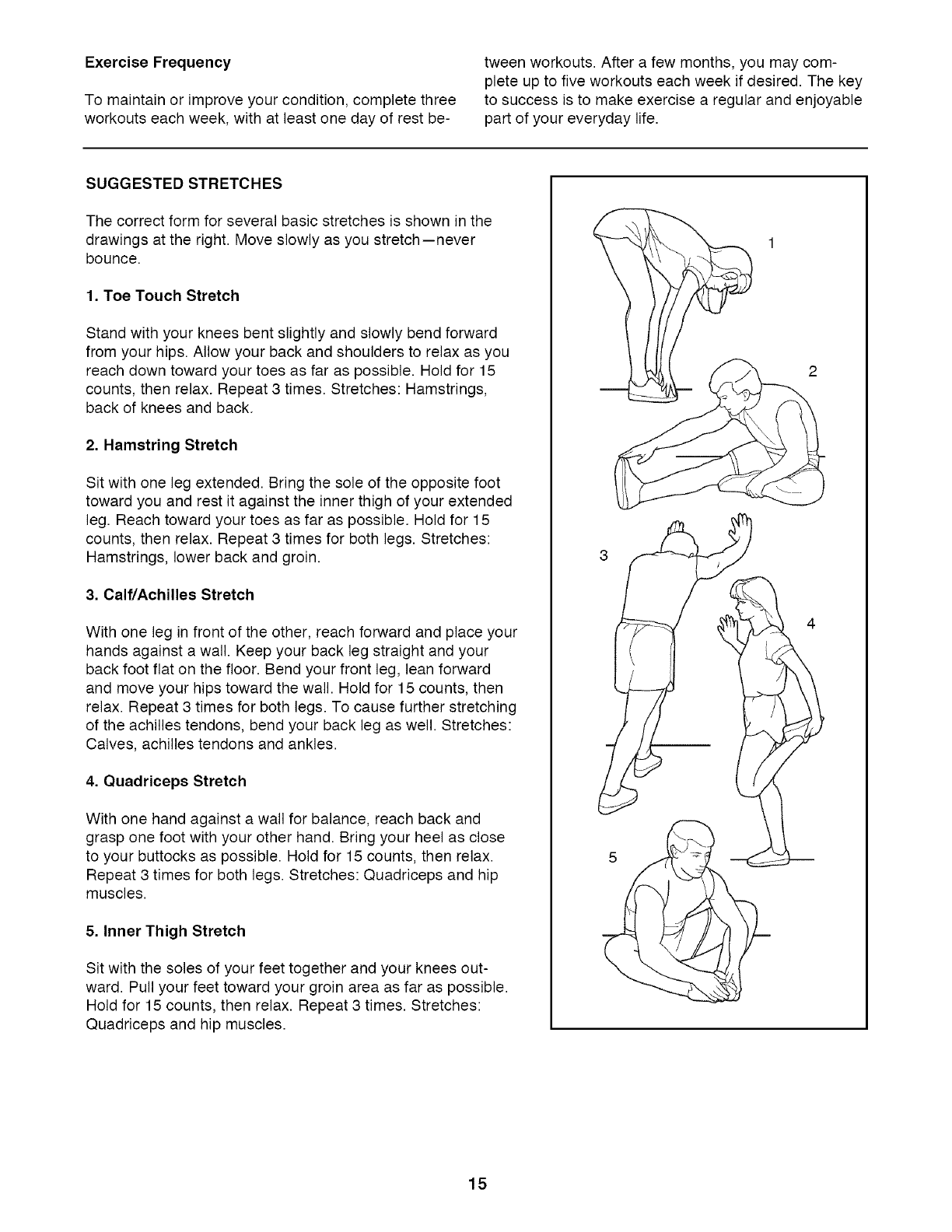

Exercise Frequency
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown in the
drawings at the right. Move slowly as you stretch--never
bounce.
1, Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2, Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for both legs. Stretches:
Hamstrings, lower back and groin.
3, Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward
and move your hips toward the wall. Hold for 15 counts, then
relax. Repeat 3 times for both legs. To cause further stretching
of the achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons and ankles.
4, Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for both legs. Stretches: Quadriceps and hip
muscles.
5, Inner Thigh Stretch
Sit with the soles of your feet together and your knees out-
ward. Pull your feet toward your groin area as far as possible.
Hold for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
15
PART LIST--Model No. 831.299371 RolooA
Key No. Qty. Description Key No, Qty, Description
1 2 Handrail 47
2 1 Key/Clip 48
3 8 Screw 49
4 1 Battery Cover 50
5 2 Foot Rail 51
6 1 Lift Motor 52
7 1 Incline Control 53
8 1 Speed Potentiometer 54
9 1 Speed Control Knob 55
10* 1 Console Assembly 56
11 1 Upright Base 57
12 1 Motor Belt 58
13 11 Small Screw 59
14 1 Storage Latch 60
15" 1 Pulse Bar 61
16 7 8" Cable Tie 62
17 1 Motor Swivel Nut 63
18 1 Pulley/Flywheel/Fan 64
19 1 Motor 65
20* 1 Motor/Pulley/Flywheel/Fan 66
21 1 Wire Harness 67
22 6 Hood Screw 68
23 1 Motor Hood 69
24 1 Hood Shield 70
25 8 Small Screw 71
26 1 Controller 72
27 1 Motor Swivel Bolt 73
28 1 Motor Tension Nut 74
29 1 Motor Tension Star Washer 75
30 1 Motor Tension Washer 76
31 5 Motor Tension Bolt/Leg Bolt 77
32 1 Incline Stop Bracket 78
33 9 Reed Switch Screw/Belly Pan Screw 79
34 2 Extension Leg 80
35 1 Allen Wrench 81
36 2 Wheel Bolt 82
37 2 Wheel 83
38 8 Wheel Nut/Lift Nut 84
39 7 Washer 85
40 4 Base Pad 86
41 2 Handrail Endcap 87
42 1 Latch Catch 88
43 1 Reed Switch Clip #
44 1 Reed Switch #
45 1 Magnet
46 1 Console Base
2
4
4
1
1
2
2
1
1
1
2
2
1
1
5
4
3
1
2
4
1
1
1
8
1
2
8
2
3
1
2
1
2
1
2
1
2
1
1
1
1
1
1
1
Frame Pivot Spacer
Platform Screw
Isolator
Front Roller/Pulley
Front Roller Adj. Bolt
Incline Wheel
Extension Leg Screw
Power Cord
Power Cord Grommet
Circuit Breaker
Frame Pivot Washer
Frame Pivot Bolt
Frame Guide
Motor Belly Pan
Cable Tie Clamp
Rear Platform Screw
Releasable Tie
Choke
Belt Guide
Belly Pan Fastener
Walking Belt
Walking Platform
Belly Pan
Electronics Screw/Belt Guide Screw
Incline Wire Harness
Rear Isolator
Isolator Screw
Handrail Bolt
Handrail Washer/Pulse Bar Washer
Left Front Endcap
Incline Wheel Bolt
Right Front Endcap
Incline Wheel Nut
Ground Wire
Ground Screw
Incline Leg
Rear Roller Adj. Bolt
Rear Endcap
Latch Decal
Rear Roller
Frame
Pulse Bar Bolt
8" White Wire, Pigtail
User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
EXPLODED DRAWING--Model No. 831.299371 RolooA
\,
\ '\
\\ \\
31
i 32
39
83
46
48.
49
87
59
49
71
69
66- L _iL
31
85
82
52
..... 10"
48 47 38
[ i _L
2
F_
o_r
i i
11 ....
sii
13
73
38 / "I
6O
24 i
58
57

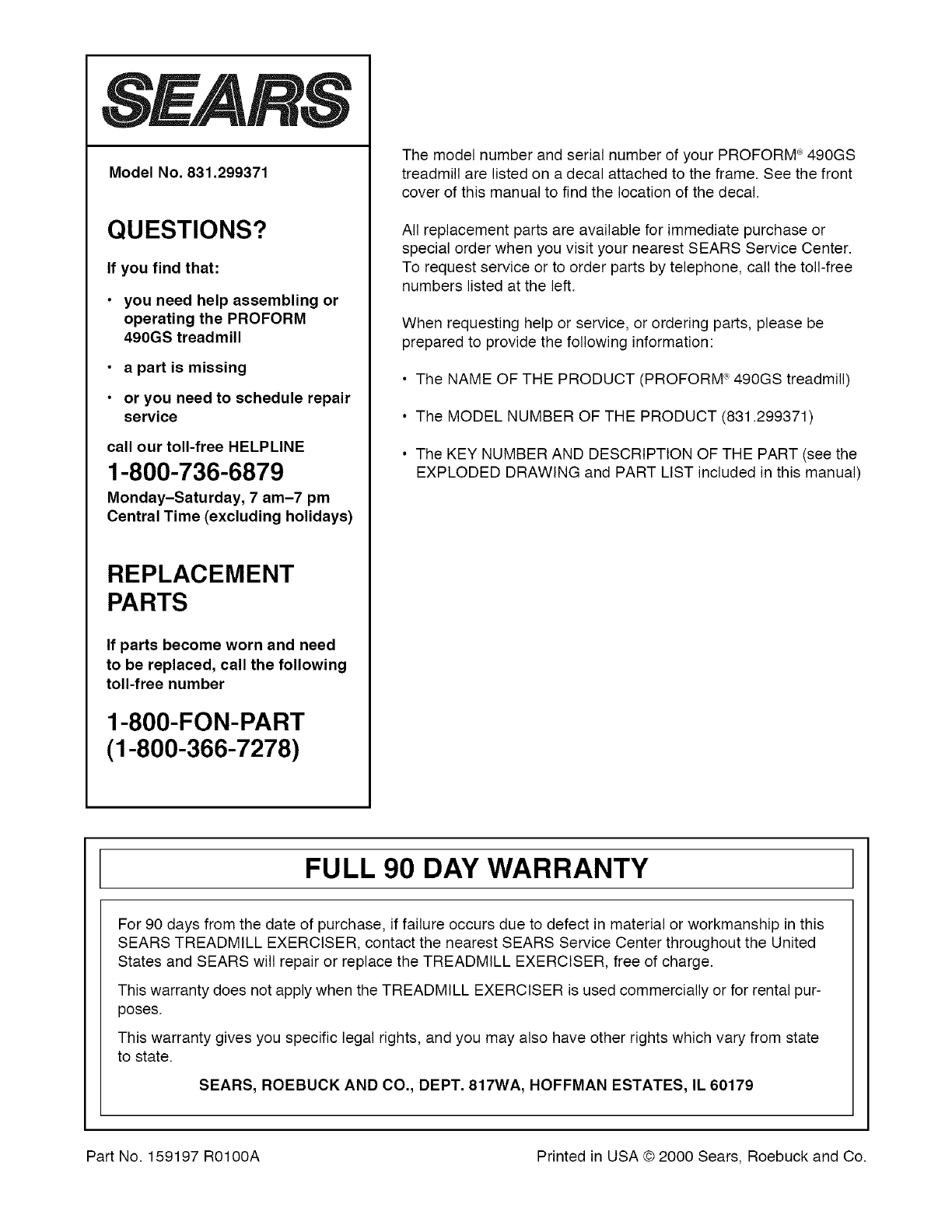

Model No, 831,299371
QUESTIONS?
If you find that:
you need help assembling or
operating the PROFORM
490GS treadmill
•a part is missing
•or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
Monday-Saturday, 7 am-7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need
to be replaced, call the following
toll-free number
1-800-FON-PART
(1-800-366-7278)
The model number and serial number of your PROFORM _"490GS
treadmill are listed on a decal attached to the frame. See the front
cover of this manual to find the location of the decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be
prepared to provide the following information:
• The NAME OF THE PRODUCT (PROFORM _ 490GS treadmill)
• The MODEL NUMBER OF THE PRODUCT (831.299371)
• The KEY NUMBER AND DESCRIPTION OF THE PART (see the
EXPLODED DRAWING and PART LIST included in this manual)
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.
This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental pur-
poses.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO,, DEPT, 817WA, HOFFMAN ESTATES, IL 60179
Part No. 159197 R0100A Printed in USA © 2000 Sears, Roebuck and Co.
