Patent Pending
USER'S MANUAL
A pH testing kit (not included) is required
for proper use and maintenance of this
product. A pH testing kit can be pur-
chased at any spa or pool supply store.
CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
QUESTIONS?
PLEASE CALL DIRECT TO OUR
TOLL-FREE CUSTOMER HOT
LINE. The trained technicians
on our customer hot line will
provide immediate assistance,
free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Hydrotherapy Spa
Model No. 831.210050
Serial No.
Write the serial number in the space
above for reference. The serial
number decal is on the frame behind
the access cover.
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
CHOOSING A LOCATION FOR THE HYDROTHERAPY SPA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
SET-UP AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
WIRING THE RESTORATION 5.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
USING THE HYDROTHERAPY SPA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
LIMITED ONE YEAR MASSAGE SPA WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of one (1) year from the date of purchase.
Specifically covered under this warranty are the spa shell, the plumbing, the components, and the wood
or tile exterior. This warranty extends only to the original purchaser. ICON's obligation under this warran-
ty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service cen-
ters. All products for which warranty claim is made must be received by ICON at one of its authorized ser-
vice centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of
purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
usage, or repairs not provided by ICON authorized service personnel, to products used for commercial or
rental purposes, or to products used as store display models. Specifically excluded are damages caused
by or attributable to the following incidents: any damage to the wood exterior resulting from improper
maintenance, or any damage to the wood or tile exterior attributable to freight mishandling; damage
resulting from improper winterization; damage to the spa shell resulting from improper chemical treatment,
damage to the spa shell resulting from exposure to extreme temperatures, or damage to the spa shell
resulting from exposure to direct sunlight and ultraviolet rays while the spa is empty; damage to the pump,
motor, plumbing, and components due to improper maintenance, chemical treatment, or exposure; dam-
age resulting from failure to properly follow userÕs manual installation, operating, or maintenance instruc-
tions. Also excluded are consumable components, including but not restricted to headrests, filter car-
tridges, and light bulbs. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of or damage to property including water damage, loss of revenues or profits, loss of enjoyment or use,
costs of removal, installation or other consequential damages of whatsoever nature. Some states do not
allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation
may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF DROWNING, ELECTRIC SHOCK, OR SERIOUS INJURY, READ
THE FOLLOWING IMPORTANT PRECAUTIONS BEFORE USING THE RESTORATION 5.1.
READ AND FOLLOW ALL INSTRUCTIONS
1. It is the responsibility of the owner to ensure
that all users of the hydrotherapy spa are
adequately informed of all precautions.
2. Use the hydrotherapy spa only as described
in this manual.
3. The hydrotherapy spa is intended for home
use only. Do not use this product in any
commercial, rental, or institutional setting.
4. Use the hydrotherapy spa only on a level
surface. Do not use the hydrotherapy spa on
carpet or other materials that could be dam-
aged by moisture. Do not use the hydrother-
apy spa on rough or sharp surfaces such as
gravel or wood chips.
5. The hydrotherapy spa will weigh approxi-
mately 2000 pounds when it is filled with
water. Be sure that the location you select for
the hydrotherapy spa will support this
weight, plus the weight of the occupants.
6. Inspect and tighten all parts often; replace
any worn or missing parts immediately.
7. DANGERÑRisk of injury: Do not remove or
alter the covers on the suction fittings. Never
operate the hydrotherapy spa if the suction
guard is missing or broken. If you need to
replace a suction fitting, be sure that the flow
rate of the replacement is compatible. Keep
hair and body away from the suction guard.
Do not allow long hair to float freely in the
water; long hair should be restrained with a
bathing cap.
8. IMPORTANT: Do not allow the hydrotherapy
spa to be exposed to direct sunlight when it
is empty. The surface of the spa shell can
reach temperatures as high as 150¡F in a
matter of minutes if exposed to the sun while
it is empty. These high temperatures can
cause significant damage, such as blistering
of the shell surface and warping of the spa
shell. Any damage caused by sun exposure
is not covered under warranty.
9. Do not bring any object into the hydrothera-
py spa that could damage the spa shell.
10. Never insert any object into any opening.
11. Do not use breakable containers near or in
the hydrotherapy spa.
12. Do not sit on the spa cover or place objects
on it. It is not designed to support weight.
13. Remove any water or debris which may col-
lect on the spa cover.
14. Keep children under 12 and pets away from
the hydrotherapy spa when it is not in use.
15. Keep all chemicals away from children and
pets.
16. The pH and chemical balance of the water
must be maintained as explained in this man-
ual (see pages 12 and 17). Failure to do so
may cause injury to users or damage to the
spa, and will void the warranty.
17. Individuals with infections and open sores or
wounds should not use the hydrotherapy
spa. Bacteria thrive in warm and hot water.
Always keep your spa disinfected and main-
tain the proper chemical balance.
18. Shower before and after using the hydrother-
apy spa. This will remove any deodorant,
perspiration, or body oils which could conta-
minate the water. Showering after will
remove any residual chemicals and will also
remove any residual bacteria which may
have been in the spa.
19. DANGERÑThe hydrotherapy spa must be
wired directly into a 240 volt power source
(see WIRING THE RESTORATION 5.1 on page
10). Only a qualified electrician can perform
this procedure. No other appliance should be
on the same circuit. Replace the power cord
immediately if damaged.
4
20. DANGERÑIf you will be using the hydrother-
apy spa outside, do not bury the power cord;
you should also keep the power cord away
from lawn mowers, hedge trimmers, and
other similar equipment.
21. WARNINGÑThe hydrotherapy spa must be
wired directly into a 240 volt power source
equipped with a Ground Fault Circuit
Interrupter (GFCI). The GFCI must be tested
before each use. To test the GFCI, press the
ÒtestÓ button while the spa is running. The
spa should shut off. Press the ÒresetÓ but-
ton. The spa should resume normal opera-
tion. If the spa continues to run after the
ÒtestÓ button is pressed, then the GFCI is
damaged. Do not use the hydrotherapy spa
until the GFCI has been repaired or replaced
by a qualified electrician.
22. Keep all electrical appliances such as radios,
telephones, televisions, and lights at least
five feet (1.52 meters) away from the water.
23. A wire connector is provided on the pump
motor of this unit to connect a minimum No.
8 AWG (804 mm2) solid copper conductor
between this unit and any metal equipment,
electrical enclosure made of metal, metal
water pipes, or conduit within five feet
(1.52m) of the unit.
24. DANGERÑRisk of electric shock: Do not set
up the hydrotherapy spa within five feet of
any metal objects or surfaces. As an alterna-
tive, you may use the hydrotherapy spa with-
in five feet of metal objects if each metal
object is permanently connected to the wire
connector on the pump motor of this unit by
a minimum No. 8 AWG (804 mm2) solid cop-
per conductor (see instruction 24).
25. Do not operate the pump motor when the spa
is empty. The pump motor may be seriously
damaged if it is operated without water circu-
lating. The cut-off valves must always be
open when using the spa (see step 2 on page
8).
26. DANGERÑTo reduce the risk of drowning:
¥ Never use the hydrotherapy spa alone;
¥ Children should not use the hydrotherapy
spa unless they are supervised by an adult;
¥ Keep pets away from the hydrotherapy spa
at all times;
¥ Always replace and lock the spa cover
when the hydrotherapy spa is not in use.
27. DANGERÑRisk of drowning: Exercise
extreme caution to prevent unauthorized and
unsupervised use of the hydrotherapy spa by
children. Children must always be super-
vised.
28. WARNINGÑTo reduce the risk of injury: The
water temperature should never exceed
104¡F (40¡C). Temperatures between 100¡F
(38¡C) and 104¡F (40¡C) are considered to be
safe for healthy adults. However, if you plan
to remain in the hydrotherapy spa for more
than 10 to 15 minutes, a lower temperature is
recommended. Lower temperatures are also
recommended for children. Children should
not be allowed to swim under the surface of
the water in the spa.
29. WARNINGÑTo reduce the risk of injury:
Always use an accurate thermometer to
determine the water temperature before
using the hydrotherapy spa.
30. WARNINGÑTo reduce the risk of injury:
Pregnant women should consult with their
physician before using the hydrotherapy spa.
Pregnant women should not use the
hydrotherapy spa if the water temperature is
above 100¡F (38¡C); the unborn child could
be seriously harmed. This is especially
important during the first 90 days of the
pregnancy.
31. DANGERÑTo reduce the risk of drowning:
Prolonged immersion in the hydrotherapy
spa may cause hyperthermia, a dangerous
condition which occurs when the internal
body temperature rises several degrees
above the normal body temperature of 98.6¡F.
The symptoms of hyperthermia are nausea,
dizziness, drowsiness, and fainting. Effects
include: a lack of awareness, inability to per-
ceive heat or danger, and a greater risk of
drowning due to a loss of consciousness.
Special note: Individuals suffering from
hyperthermia may be unable to realize that
they must exit the hydrotherapy spa, and
they also may be physically unable to do so.
32. WARNINGÑTo reduce the risk of drowning:
Do not use the hydrotherapy spa if you are
under the influence of alcohol or drugs. Heat
from the water, in conjunction with alcohol or
drugs can cause unconsciousness.
33. Do not use the hydrotherapy spa immediate-
ly after strenuous exercise.
5
34. WARNINGÑTo reduce the risk of injury or
drowning: Consult your physician about pos-
sible side-effects of any medications you
may be taking before using the hydrotherapy
spa. Heat from the water, in conjunction with
some medications may cause drowsiness
and increase the risk of drowning. Others
can effect blood pressure, heart rate, and cir-
culation.
35. WARNINGÑTo reduce the risk of injury: It is
especially important for persons over the age
of 35 or persons with pre-existing health
problems, such as obesity, heart disease,
high or low blood pressure, circulatory prob-
lems, or diabetes to consult their physician
before using this product.
36. If you feel pain or dizziness at any time while
using the hydrotherapy spa, discontinue use
and contact a physician.
37. The included warning sign must be posted
where all users of the spa can see and read it
(see POSTING THE WARNING SIGN on page
15).
38. Never use soft water when filling the
hydrotherapy spa. Soft water is extremely
corrosive to the metal parts within the spa
unit and can lead to pump and spa failure.

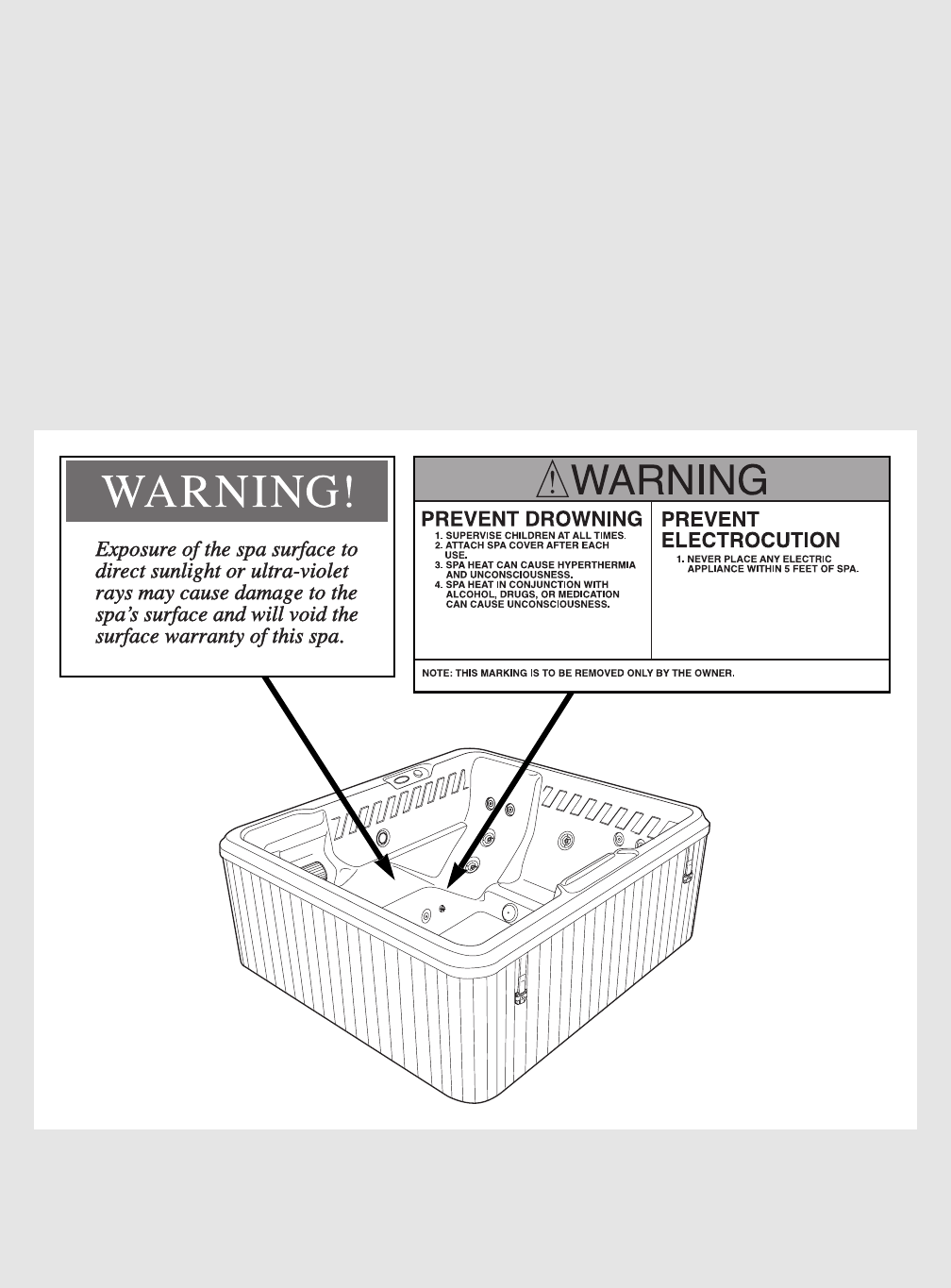

39. WARNING DECAL PLACEMENT: Locate the
decals shown below and familiarize yourself
with this information.
WARNING: Read all instructions before using the hydrotherapy spa. ICON assumes no responsibility
for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
6
BEFORE YOU BEGIN
Thank you for selecting the innovative PROFORM¨
RESTORATION 5.1 hydrotherapy spa. The
RESTORATION 5.1 hydrotherapy spa offers the fea-
tures and quality of a traditional hot tub at an afford-
able price. Best of all, the RESTORATION 5.1
hydrotherapy spa provides the benefits of hydrothera-
py in the comfort and privacy of your own home.
Hydrotherapy is a proven method for soothing tired
muscles after exercise or for relieving the stress of a
busy life. The warm environment stimulates blood flow
which is essential in the healing process. The powerful
massage action created by the jets further eases ten-
sion and stress throughout the body. The RESTORA-
TION 5.1 hydrotherapy spa gives you the specialized
treatment you need to feel your best.
For your safety and benefit, read this manual care-
fully before using the PROFORM¨RESTORATION
5.1. If you have additional questions, please call our
Customer Service Department toll-free at 1-800-999-
3756, Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time (excluding holidays). To help us assist
you, please note the product model number and serial
number before calling. The model number is
831.210050. The serial number can be found on a
decal attached to frame inside the spa (see the front
cover of this userÕs manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Spa Shell
Wood Panels
Cover Latch
Locking
Buckle
Console
Light
Filter
Spa Cover
Access
Cover
7
CHOOSING A LOCATION FOR THE HYDROTHERAPY SPA
There are many factors to consider when choosing a location to set up the hydrotherapy spa. These factors vary
depending on whether you use the hydrotherapy spa inside or outside. We have listed several factors you may
wish to consider as you decide where you want to use the hydrotherapy spa.
If you set up the hydrotherapy spa inside:
1. The hydrotherapy spa will increase the level of
humidity in your home. The location you choose
should be well ventilated. You may need to install
a ventilation fan or use a dehumidifier.
2. The hydrotherapy spa should be close to a source
of water.
3. Do not use the hydrotherapy spa on carpet or
other material that may be damaged by moisture.
We recommend that you place the hydrotherapy
spa on a water- and stain-resistant, non-slip sur-
face with a floor drain for any water that may
splash from the hydrotherapy spa.
4. Be sure that the location you choose is stable. It
must be able to support the weight of the hydro-
therapy spa when it is filled with water, plus the
weight of the occupants. The hydrotherapy spa
weighs approximately 2000 pounds when filled
with water.
5. Do not use the hydrotherapy spa above a finished
living area, due to the risk of water damage.
6. Be sure that there is room around the hydrothera-
py spa to permit servicing of the unit. The dimen-
sions of the spa are: 5Õ10ÓW x 6Õ4ÓL x 2Õ6ÓH. You
should allow for this size when choosing the loca-
tion.
7. The hydrotherapy spa is not designed for in-floor
installation. However, it is compatible with a deck
system that is built flush with the top of the spa,
provided you leave access to the motor for
service.
8. Be sure to note any other considerations, such as
aesthetics or privacy concerns, which may affect
the safety or enjoyment of using the hydrotherapy
spa.
If you set up the hydrotherapy spa outside:
1. You should check your local building codes con-
cerning the use of outdoor spas.
2. The hydrotherapy spa should be close to a source
of water.
3. We recommend that you place the hydrotherapy
spa on a water- and stain-resistant, non-slip sur-
face. Do not use the hydrotherapy spa on rough
or sharp surfaces such as gravel or wood chips.
4. Be sure that the location you choose is stable. It
must be able to support the weight of the
hydrotherapy spa when it is filled with water, plus
the weight of the occupants. The hydrotherapy
spa weighs approximately 2000 pounds when
filled with water.
5. Think about environmental factors, such as rain,
wind, shade, sunlight, and so forth.
6. You should be able to monitor the use of the
hydrotherapy spa from your home, to prevent
unauthorized use by children. You may want to
enclose the spa with a fence and self-latching
gate to prevent unauthorized use.
7. Be sure that there is room around the hydrothera-
py spa to permit servicing of the unit. The dimen-
sions of the spa are: 5Õ10ÓW x 6Õ4ÓL x 2Õ6ÓH. You
should allow for this size when choosing the
location.
8. The hydrotherapy spa is not designed for in-
ground installation. However, it is compatible with
a deck system that is built flush with the top of the
spa, provided you leave access to the motor for
service.
9. Be sure to note any other considerations, such as
aesthetics or privacy concerns, which may affect
the safety or enjoyment of using the hydrotherapy
spa.
8
SET-UP AND ASSEMBLY
Before beginning assembly, carefully read the
following information and instructions:
¥ Place all parts in a cleared area and remove the
packing materials from the spa shell; do not dis-
pose of the packing materials until assembly is
completed and the spa is in operation.
¥ Assembly requires two people.
¥ During assembly, make sure that all parts are ori-
ented as shown in the drawings.
¥ Read each assembly step before you begin.
¥Tighten all parts as you assemble them, unless
instructed to do otherwise.
ASSEMBLY REQUIRES THE FOLLOWING
TOOLS (not included):
¥ One (1) phillips screwdriver
¥ You may also need some soap or wax.
1. Before beginning assembly, be sure that you
have read and understand the information on
the previous two pages.
Remove the four access cover screws from the
access cover. Remove the access cover from the
Spa Unit (15) by sliding the access cover down and
pulling the bottom of access cover away from the
Spa Unit. Be careful not to damage the spa shell.

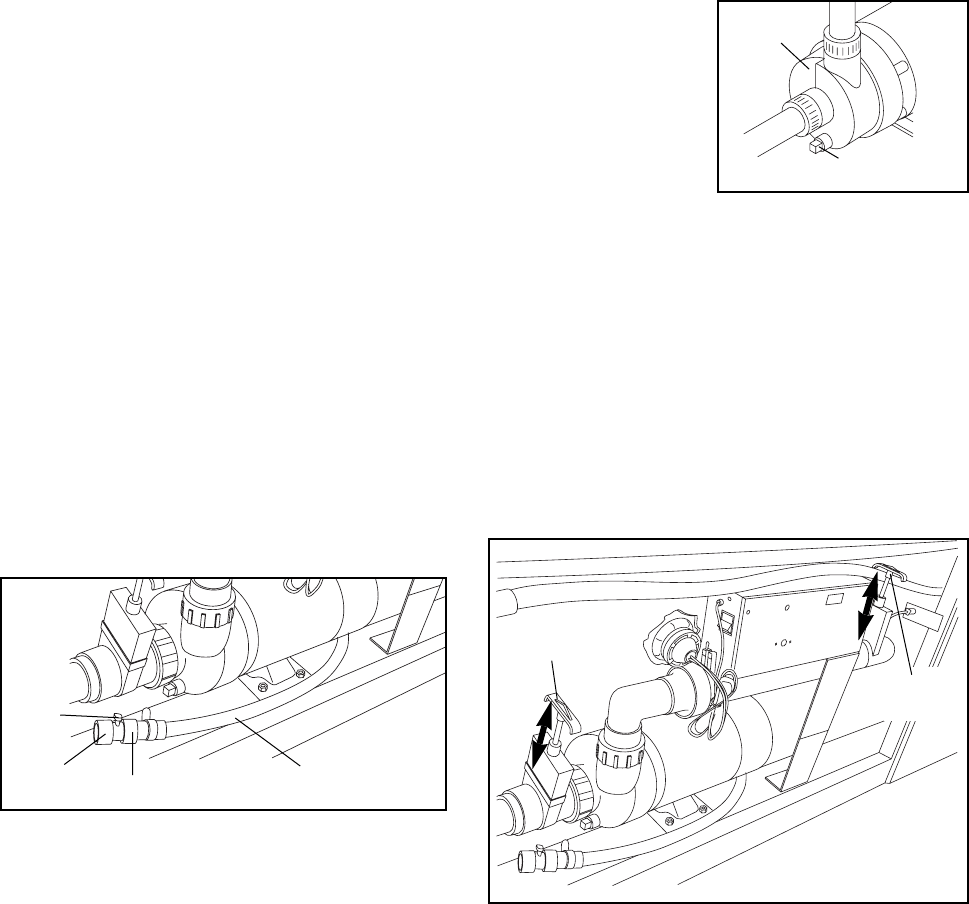

2. Locate and check the position of the cut-off valves.
Occasionally the valves will be closed at the factory
during manufacturing. The cut-off valves must be
open for proper spa operation. To open the valves,
hold one of the handles and turn the handle until
you can pull it out to the open position. Open the
other valve in the same manner. WARNING: THE
MOTOR WILL BE DAMAGED IF IT IS OPERATED
WITH THE CUT-OFF VALVES CLOSED.
Close the valve knob on the drain hose. Thread the
cap onto the drain hose. Thread the drain plug into
the Pump Motor (13). Tighten the pump fittings.
1
Access
Cover Access Cover
Screws
Spa
Shell 15
2Cut-off Valve
Pump
Fittings
Cut-off
Valve
Drain Hose
Valve
Knob
Cap
13
Drain
Plug
4. The RESTORATION 5.1 is designed to operate with a 240 volt power source and must be wired directly to a
240 volt ground fault circuit interrupter (GFCI) installed in your home. This procedure must be performed
by a qualified electrician. Before you have the spa wired, be sure that it is in the position you want, and
that it can be easily serviced, if needed.
The procedure is outlined (see WIRING THE RESTORATION 5.1 on page 10), as a reference for the quali-
fied electrician. Under no circumstances should this procedure be performed by someone other than
a qualified electrician.
9

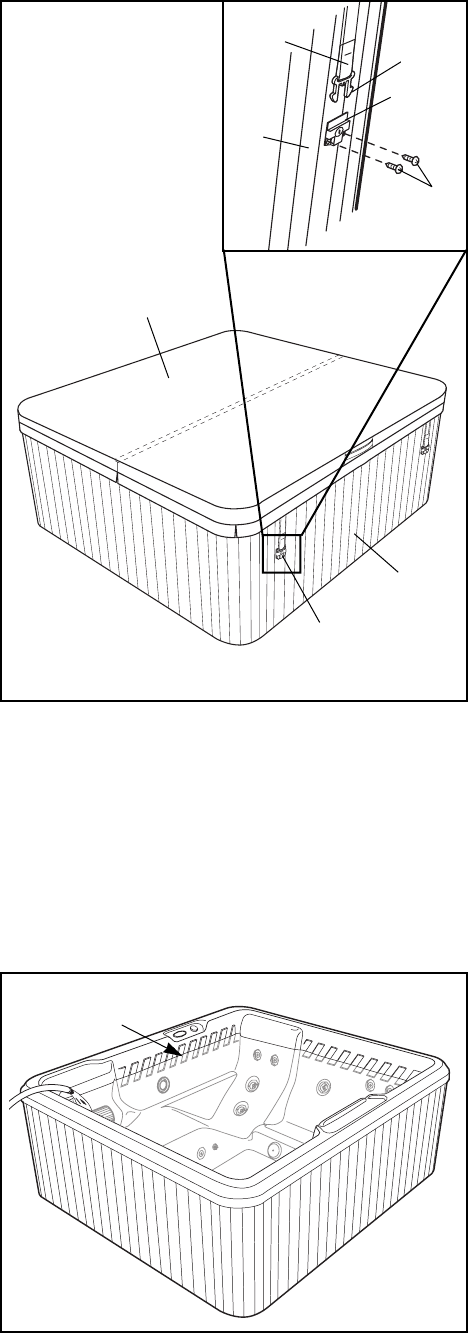

3. Place the Spa Cover (18) over the spa. Be sure
that the Spa Cover is properly centered.
Snap a Buckle (2) onto each of the four latches on
the Spa Cover (18).
See the inset drawing. Position one of the Buckles
(2) on the wood panels on the Spa Unit (15). Hold
the Buckle in place so the strap on the Spa Cover
(18) is tight. (Note: It may be easier to position the
Buckle if a second person holds the strap on the
opposite side of the Spa Cover tight.) The Spa
Cover must be tight. Do not place the Buckle
over one of the grooves in the wood panels.
Remove the latch. Attach the Buckle to the side of
the spa with two Buckle Screws (1). Note: It may
be helpful to use a drill with a 1/16Ó drill bit to
make starter holes in the wood panels. You may
also want to apply a little soap or wax to the
screw threads.
Attach the other three Buckles (2) to the Spa Unit
(15) in the same manner.
Remove the Spa Cover (18) from the Spa Unit (15).
3
18
15
15
2
2
1
Strap Latch
5. After a qualified electrician has wired the spa to a
240 volt power source, wipe out the spa shell using
a damp cloth. Remove the two warning decals (not
shown) from the spa shell. Before you fill the spa,
be sure that it is in the position you want, and that it
can be easily serviced, if needed. Once the spa is
filled with water, it must be drained to be moved.
Using a garden hose or other clean water source,
begin filling the spa. Do not use soft water. The
water temperature does not matter; however, if you
use warm or hot water, the spa will be ready to use
sooner. Fill the spa, until the water is about four
inches below the console. Do not overfill the spa.
Fill to Here
5

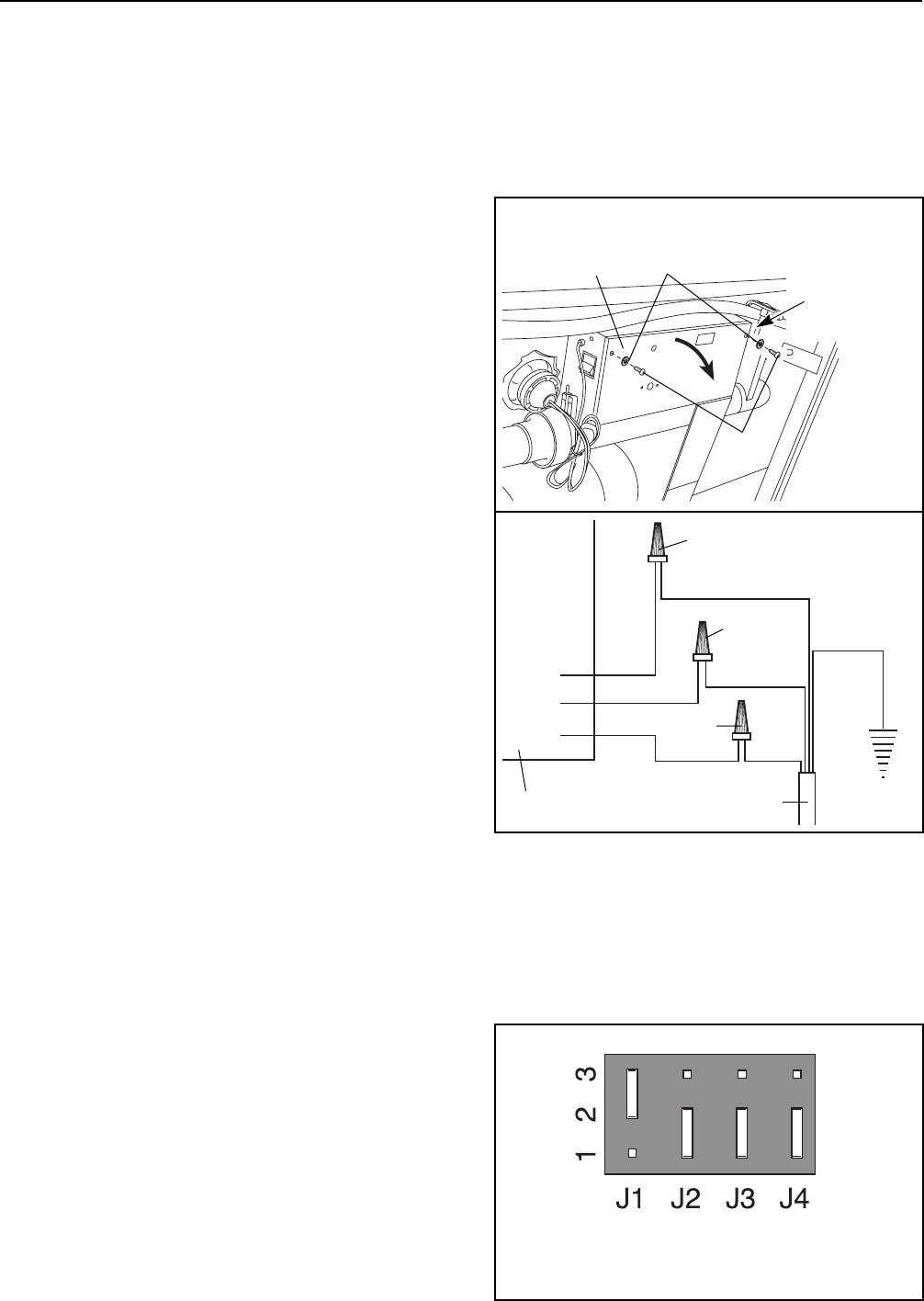

1. Remove the two indicated Control Unit Screws (19)
and the two Small Star Washers (8) from the cover
on the Control Unit (14). Fold the cover down.
Route the 240 volt AC power cord through the indi-
cated opening on the right side of the Control Unit
(14).
2. Attach the 240 volt AC power cord to the indicated
wires inside the Control Unit (14) as shown in the
diagram to the right.
3. Determine if the 240 volt AC power supply in the home is a 30 amp supply or a 40 amp supply.
If the home power supply is a 30 amp supply, go to step 4.
If the home power supply is a 40 amp supply, go to step 5.
4. For a 30 amp, 240 volt AC power supply, set the
jumper J1 to pins 2 and 3 on the power board and
leave the other jumpers at the factory settings, as
shown at the right. At 30 amps, there is not enough
amperage to operate the heater and the pump at
high speed simultaneously. Go to step 6.
1
2
NWhite
Blue
Black
Black
Green
Blue
White
Wire Nut
L1
L2
14
4
Jumper settings for a 240 volt AC,
30 amp power supply
10
WIRING THE RESTORATION 5.1
The RESTORATION 5.1 is designed to operate with a 240 volt AC power source; it must be wired by a qualified
electrician directly into a 240 volt AC GFCI in your home. The steps below are intended to be used as a reference
for the qualified electrician who wires your spa and installs the 240 volt AC GFCI in your home. WARNING: Only
a qualified electrician should perform this procedure.
14 8
19
Wire Nut
Wire
Nut
240 volt AC Power Cord
Feed the
power cord in
through this
opening
11
5. For a 40 amp 240 volt AC power supply, set the
jumper J1 to pins 1 and 2 on the power board and
leave the other jumpers at the factory settings, as
shown at the right. This will allow the heater and
the pump to operate at high speed simultaneously.
6. Secure the power cord by tightening the screws in
the wire clamp on the Control Unit (14).
11. Attach the access cover to the Spa Unit (15) by
inserting the top of the cover under the edge of the
spa shell. Be sure the 240 volt power cord is routed
through the notch in the cover. Slide the cover into
place and secure the cover with the four access
cover screws.
7. Close the cover on the Control Unit and secure the cover with the two Control Unit Screws and the two
Small Star Washers removed in step 1.
8. Install the 240 volt GFCI at the source voltage to conform with national electrical codes.
9. Attach the power cord to the 240 volt AC power source. Be sure that the 240 GFCI is in place.
10. Test the GFCI for proper operation.
5
14
Screws
Power Cord
Wire
Clamp
6
11
Jumper settings for a 240 volt AC,
40 amp power supply
Access
Cover
240 volt
Power Cord
Access Cover
Screws
Spa
Shell 15
12
USING THE HYDROTHERAPY SPA
The hydrotherapy spa is designed to seat five adults.
The fifteen thera-jets can be regulated to provide a
relaxing massage to sooth away stress, and the
strength of the water massage can be adjusted by the
air control. The hydrotherapy spa holds 200 gallons of
water and offers an automatic, programmable heating
(41¡F to 104¡F) and filtration system.
The guidelines below explain how to properly use the
hydrotherapy spa. Follow these guidelines to maintain
the hydrotherapy spa for your long-term enjoyment.
STARTING THE HYDROTHERAPY SPA
Start the hydrotherapy spa by pressing the pump but-
ton on the console; you should verify the water flow
from the pumping unit. Set the air control on the con-
sole to the lowest setting (see USING THE CON-
SOLE on page 14). The heat control unit will heat the
water as it is pumped. Cover the hydrotherapy spa
with the spa cover. The spa cover must be tight.
(See SECURING THE SPA COVER on this page.)
The water will heat at 6.0 to 8.0¡F an hour with the
cover on. If you are using the spa indoors, and the
room temperature is maintained at 70¡F, it will take
approximately 5 to 7 hours for the water to reach the
set temperature.
The temperature and water flow can be set or
changed by the controls on the console (see USING
THE CONSOLE on page 14).
TESTING AND TREATING THE WATER
The hydrotherapy spa comes with a starter chemical
pack for maintaining the water in the spa. Disregard
the directions on the individual packages of ÒQUICK
pHix It DOWNÓ and ÒQUICK pHix It UP.Ó However, the
directions on the bottle of ÒNon-chlorine ShoxÓ and
ÒBromine BaseÓ are correct. Always keep the chemi-
cals away from children and pets.
The first time you use the spa, you should test and
treat the water. You must also treat the water each
time you refill the spa. Once you have verified that
the spa is functioning properly, and the water has cir-
culated for a while, remove the spa cover and add 1/3
of the ÒBromine BaseÓ bottle, and 1/3 of the ÒNon-
chlorine ShoxÓ bottle to the water. Allow the water to
circulate for five minutes. You should now test the pH
of the water. You will need a pH test kit (not included),
which can be obtained at a pool and spa supply store.
The pH reading should be between 7.2 and 7.8.
If the level is too low, add half of one of the ÒQUICK
pHix It UPÓ packets to the water. Let the water circu-
late through the spa for five minutes. Test the pH level
again. Repeat until the pH level is correct.
If the level is too high, add half of one of the ÒQUICK
pHix It DOWNÓ packets to the water. Let the water cir-
culate through the spa for five minutes. Test the pH
level again. Repeat until the pH level is correct.
See WATER CHEMISTRY on page 17 for information
concerning proper water maintenance.

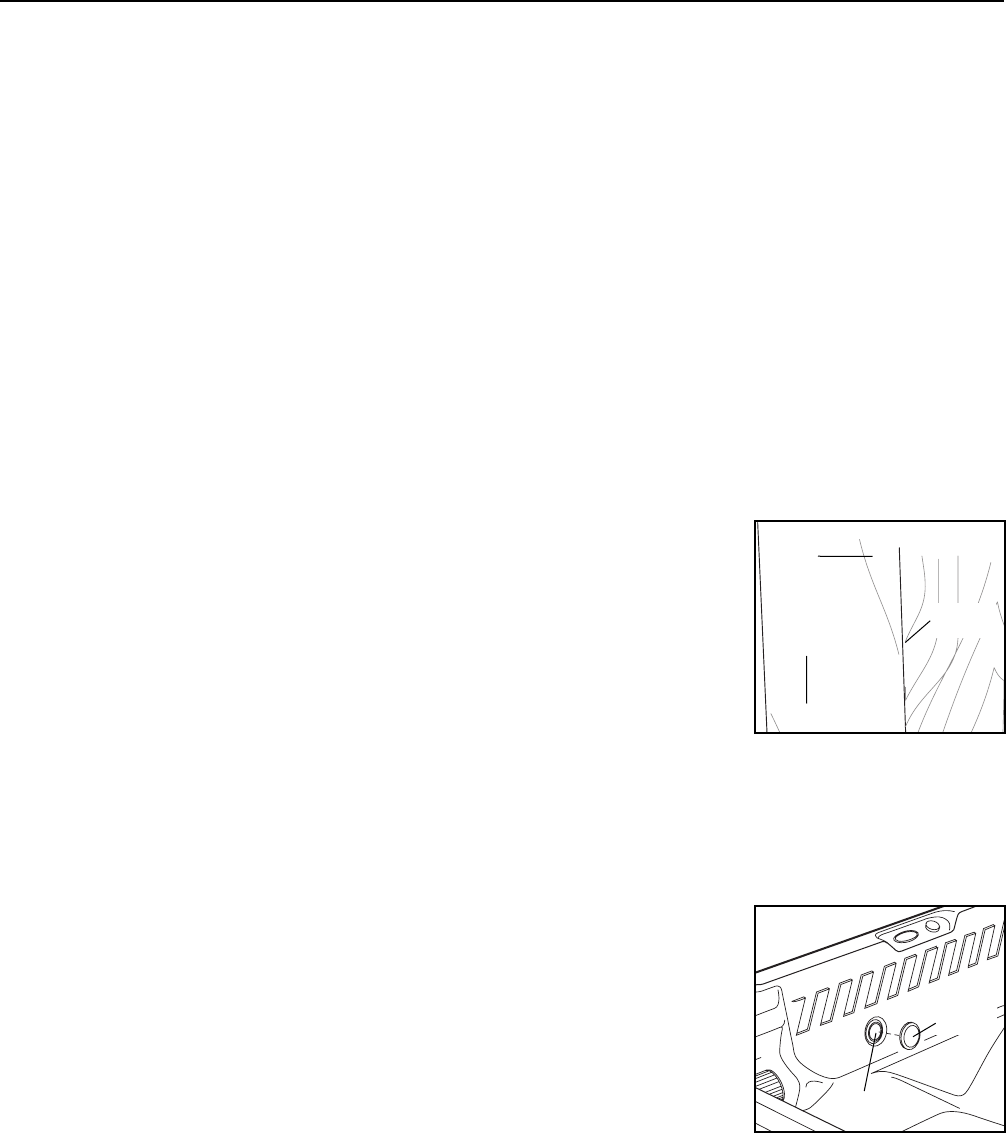

SECURING THE SPA COVER
The spa cover can be secured by snapping the latches
on the spa cover into the buckles on the side panels.
The buckles can be
locked by inserting the
key and turning it
clockwise a quarter
turn. To unlock the
buckles, insert the key
and turn it counter-
clockwise a quarter
turn.
Always keep the buckles locked when the spa is
not in use. Keep the keys in a safe place, out of
the reach of children.
ATTACHING THE RED AND BLUE LIGHT COVERS
The RESTORATION
5.1 comes with two
colored covers for the
spa light. To attach the
red or blue light cover
to the light, place the
desired cover over the
light and press the
cover into place on the
light.
Key
Latch
Buckle
Light
Cover
Light
13
A
A
B
B
D
C
A
E
A
D
A
B
SPA SHELL DIAGRAM
SPA OPERATION
Refer to the diagram above. The function of each
component is explained below:
The eight uni-directional thera-jets (A) are located
on both sides of the spa. Five jets focus the water
massage on your upper or lower back. The remaining
three jets provide a foot hydro-massage for three of
the seating positions.
The six multi-directional thera-jets (B) can be
adjusted for a custom hydro-massage. Each thera-jet
can also be shut off by being pressed in and turned
back on by pulling the jet back out. Two of the jets are
located on the reclining seat and focus the water
massage on your lower back. Two more jets are locat-
ed on each of the bench seats, and focus the water
massage on your lower or middle back.
The filter (C) can be removed for replacement and
cleaning (see CHECKING AND CLEANING THE FIL-
TER on page 16).
The suction vents (D) located near the floor of the
spa brings the water into the pump in order to operate
the system. The suction covers should always be in
place over the suction vents. Never operate the spa
without the suction covers in place.
This spa is ozone ready. An optional ozone generator
can be installed to utilize the ozone jet (E). Ozone
provides a way to help sanitize your spa with minimal
chemical treatment.
The temperature probe (F) reads the current water
temperature, which is displayed on the console.
The RESTORATION 5.1 also has a light (G) for your
safety and convenience during evening use.
The RESTORATION 5.1 features automatic freeze
protection. If the water temperature falls below 40¡F,
the pump will begin circulating and heating the water
to prevent the water from freezing.
F
G
14

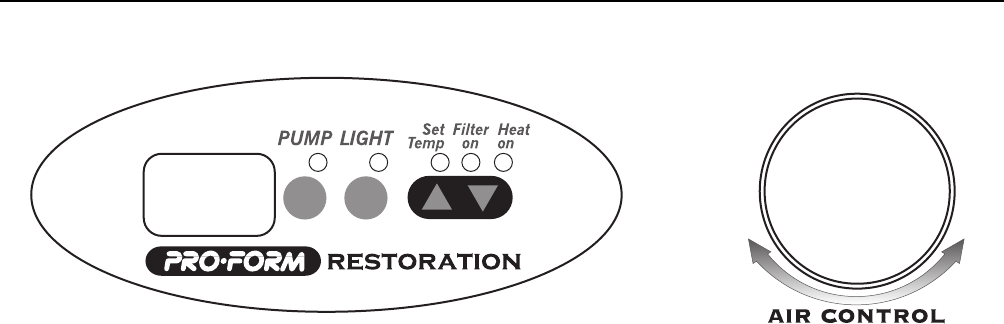

USING THE CONSOLE
Refer to the console diagram above. The function of
each console control is explained below:
Temperature Display: During normal use this display
shows the actual water temperature. When the Set
Temp indicator is lit, the display shows the set
temperature.
Light: This button turns the light on and off. When the
light is on, the indicator above the light button will be
lit. The light will automatically turn off after two hours.
Pump: This button turns the pump on and off. When
the pump is running, the LED indicator above the but-
ton will light. To turn the pump on high, press the but-
ton once. The thera-jets will operate at full speed. To
turn the pump on low, press the control twice. The
thera-jets will operate at low speed. After you press
the button a third time, the thera-jets will shut off,
unless it is time for the heat or filter cycles. If you turn
the pump off and it continues to operate, check if the
Heat On or Filter On indicators are lit to see if either
cycle is running.
Set Temp: This indicator will light when the tempera-
ture is adjusted by using the up and down buttons. To
adjust the temperature, press either the up or down
buttons to select a new temperature. The thermostat
can be set to heat the water from 41¡F to 104¡F.
While you are setting the temperature, the tempera-
ture display will show the new temperature. The new
temperature will remain in the display for five seconds
after you release the buttons. Then the Set Temp light
will turn off and the display will return to the actual
water temperature. The water heats at 6.0 to 8.0¡F
per hour with the cover on.
Heat On: This LED indicator is lit when the spa is run-
ning the heating cycle.
Filter On: This LED indicator is lit when the spa is
running the filter cycle.
Note: To keep the heat and filter cycles from run-
ning, shut off the circuit breaker or GFCI.
Air Control: Determines the amount of air that is in
the spa jet system during operation. If the control is
turned to the left, the amount of air flowing through
the jets will increase. If the control is turned to the
right, the amount will decrease.
Error Messages: When certain problems occur, the
Temperature Display will show an error code. The
error codes are explained below:
HL High temperature protection mode. If the water
temperature rises above 115¡F, the heater will
shut off. If the temperature rises above 122¡F,
the high temperature circuit will shut off the
entire system. In either case, once the water
has cooled to normal, you can press any button
to reset the system.
FrE Freeze protection mode. If the water tempera-
ture falls below 40¡F, the pump will begin
cycling the water through the heater to raise the
temperature. This cycle will run for one minute
and may be repeated as needed.
FLC Flow related problems. You will need to call our
customer service department.
FLO Flow related problems. You will need to call our
customer service department.
PrH High temperature probe problem. You will need
to call our customer service department.
Prr Temperature probe problem. You will need to
call our customer service department.
CONSOLE DIAGRAM
15
POSTING THE WARNING SIGN
The warning sign, shown below, must be posted on a wall or fence, where all users of the RESTORATION 5.1
will be able to see it. Whenever the spa is moved, the sign must also be moved and reposted near the spa.
ADJUSTING THE FILTER CYCLE
The spa filter cycle runs automatically to clean the
water in the spa. However, the number of times that
the filter cycle needs to run depends on how often the
spa is used.
If many different people use the spa regularly, then
the water will need to be filtered more often than if it
is only used occasionally by a few. The number of
daily cycles, as well as the length of the cycle can be
adjusted.
The pump can run one to three filter cycles daily. To
change the number of cycles, press the pump and up
buttons at the same time. The number of cycles will
appear in the temperature display. Use the up and
down buttons to select the desired number of cycles.
Each cycle can run for 60, 120, or 180 minutes. To
change the length of the cycle, press the light and up
buttons at the same time. The length of the cycle will
appear in the temperature display. Use the up and
down buttons to select the desired cycle length.
The pump or the light may turn on while you are
adjusting the filter cycle. If this happens, you can turn
the pump or light off once you have finished the
adjustment procedure.
16
The hydrotherapy spa is designed to provide you with
years of enjoyment. Please follow the guidelines
below to properly maintain your hydrotherapy spa.
MAINTENANCE SCHEDULE
DAILY
¥ Check the water level and refill the spa to the level
shown on page 9, step 5.
¥ Check the pH balance and sanitizer level. Adjust if
necessary (see WATER CHEMISTRY on page 17).
¥ Clean the surface of the water with a skimming net.
WEEKLY
¥ Clean the spa shell at the waterline.
¥ Check and thoroughly clean the filter (see CHECK-
ING AND CLEANING THE FILTER on this page).
¥ Replace the filter if needed (see ORDERING
REPLACEMENT PARTS on the back cover).
MONTHLY
¥ Clean the spa cover (see MAINTAINING THE SPA
COVER below).
¥ Soak the filter for two hours in a trisodium phos-
phate (TSP) solution. Rinse the filter in clean water.
¥ Replace the filter if needed (see ORDERING
REPLACEMENT PARTS on the back cover).
EVERY THREE MONTHS
¥ Drain the spa and refill with clean water. Sanitize
and test the pH of the water.
¥ Check for any leaks around the pump or joints in
the pipes. The seals will wear out over time; detect-
ing leaks early can reduce repair costs.
¥ Clean the interior of the spa. Do not use solvents or
waxes.
EVERY SIX MONTHS
¥ Treat the exterior with a wood sealant (see MAIN-
TAINING THE SPA EXTERIOR below).
MAINTAINING THE SPA EXTERIOR
The wood panel exterior has been treated with a
sealant at the factory to protect the wood from water
damage. We suggest that you treat the wood finish
twice a year with an additional coat of weather
sealant. Contact your local spa and pool supplier for
advice on which sealants work best in your climate.
CLEANING THE SPA SHELL
The spa shell should be cleaned with a mild soap
solution. Do not use solvents. The spa should always
be clean and dry before being moved or stored.
MAINTAINING THE SPA COVER
The spa cover should be cleaned monthly. To clean
the spa cover, use water and a non-abrasive cleaner
on the entire cover. Rinse the cover with a garden
hose to remove any cleaner residue. Dry the cover
entirely. You should also use a non-silicone based
vinyl conditioner on the cover after you clean it. This
will help protect the cover from sun damage.
CHECKING AND CLEANING THE FILTER
The filter should be checked periodically for build-up
of dirt and oil. If the filter needs to be cleaned, follow
the steps below:
1. Turn off the power.
2. Unscrew the filter from the filter housing in the
spa shell and remove it from the spa.
3. Check the filter for any dirt or debris. If the filter
needs to be cleaned, rinse the filter with a hose. If
the filter still is dirty, you will need to soak it in a
cleaning solution which can be obtained from a
pool and spa supply store.
4. Inspect the filter for damage. Replace the filter if
there are any signs of damage.
5. Re-insert the threaded end of the cleaned filter
into the filter housing. Screw the filter into place.

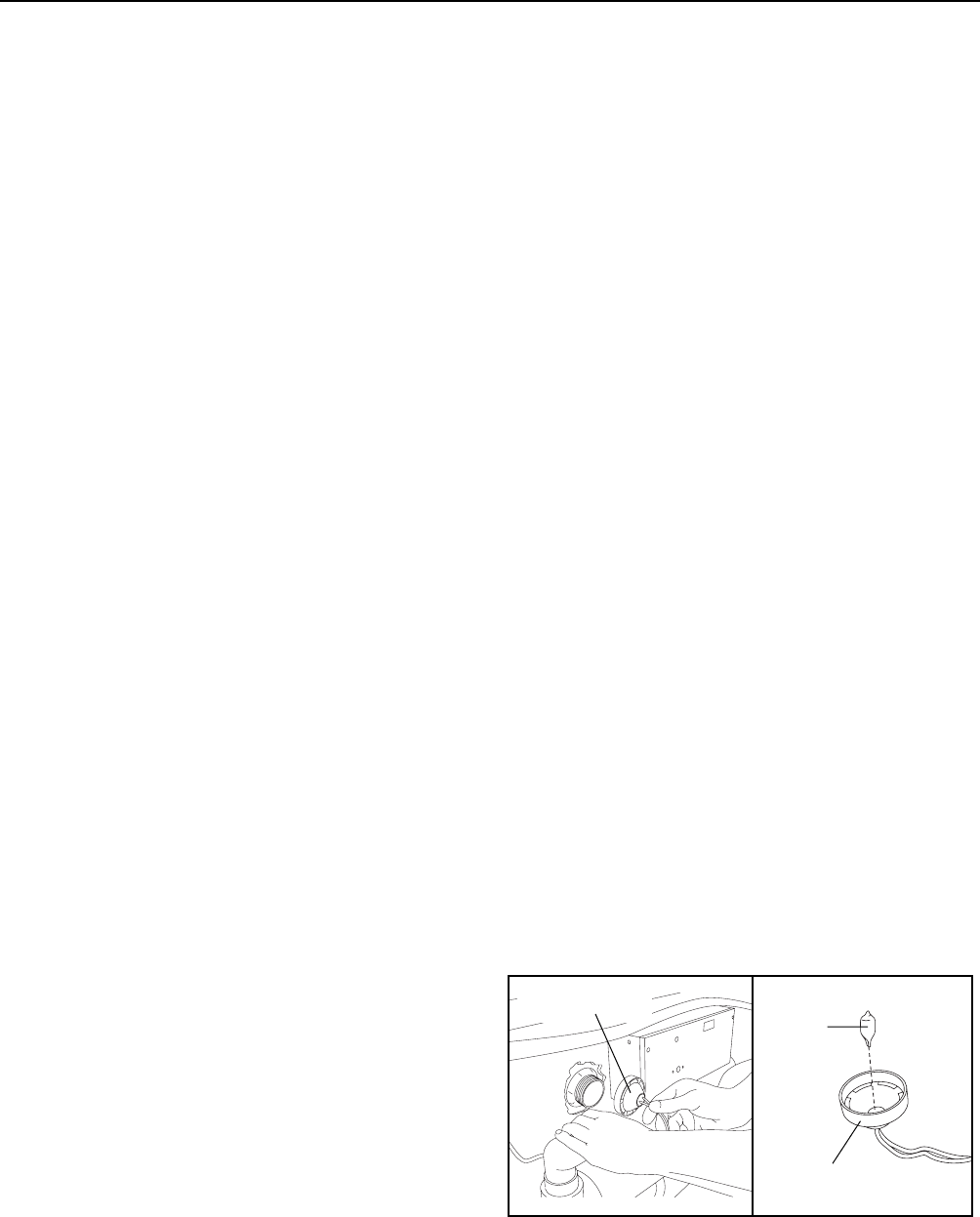

REPLACING THE LIGHT BULB
If the light in the spa shell burns out, you will need to
remove the access cover to replace it (see ATTACH-
ING AND REMOVING THE ACCESS COVER on
page 17).
Locate the light housing. Turn the housing counter-
clockwise and remove it from the spa shell.
To replace the light bulb, pull the old bulb out of the
housing and insert a new light bulb. Re-attach the
light housing to the spa shell. Re-attach the access
cover to the spa unit.
MAINTENANCE
Light Housing
Light
Housing
Light
Bulb
17
SANITIZING THE HYDROTHERAPY SPA
Please refer to your local pool and spa supplier for
information concerning which chemicals you should
use in your area to sanitize the spa.
The most common sanitizing agent is a solid bromine
concentrate. The amount required varies according to
several factors, such as user load, temperature, water
conditions, and so forth.
Proper water maintenance is a fairly complex process.
We recommend that you contact your local pool and
spa supplier for information on how you should best
accomplish this.
WATER CHEMISTRY
The hydrotherapy spa comes with a starter chemical
pack for maintaining the water in the spa. (See TEST-
ING AND TREATING THE WATER on page 12.)
Additional chemicals can be purchased at a pool and
spa supply store.
CAUTION: The chemicals used to maintain the pH
balance of the water and to sanitize the water can
be dangerous. Always follow these basic guide-
lines when handling the chemicals:
1. Always read and follow the directions on
the label, unless directed otherwise.
2. Never mix different chemicals.
3. Do not exceed the recommended amounts
of chemicalsÑfollow the directions on the
label closely.
4. Keep all chemicals out of the reach of chil-
dren and pets.
5. Keep all containers closed tightly when
not in use.
6. Never add water to the chemicalsÑalways
add the chemicals to the water as directed.
7. Always store chemicals in a cool, dry
place.
MAINTAINING THE PROPER PH BALANCE
The pH factor is a measure of relative acidity or alka-
linity in the water. It is measured on a scale of 1 to 14.
Pure water has a value of 7, which is neutral. Any
value above 7 is alkaline, and any value below 7 is
acidic. You should maintain a slightly alkaline pH
level, between 7.2 and 7.8, in the hydrotherapy spa.
Severe problems can occur when the pH balance is
not maintained within this range. If the pH level
exceeds 7.8, dissolved minerals can build-up and clog
the plumbing in the spa jet unit. If the pH level falls
below 7.2, the acid level in the water will begin to cor-
rode the metal parts in the spa jet unit. Also, the sani-
tation agents in the water will not be effective if the pH
level is not properly maintained. Damage caused by
improper pH levels is not covered under the warranty.
To maintain the proper pH level, you should test the
pH of the water regularly. You will need a pH test kit
(not included), which can be obtained at a pool and
spa supply store. The pH reading should be between
7.2 and 7.8. If the level is too low, add a pH increaser
(usually soda ash). If the level is too high, add a pH
reducer (usually sodium bisulfate). Test the water
again after five minutes. See the instructions with your
pH test kit for additional information about testing and
adjusting the pH.
ATTACHING AND REMOVING THE ACCESS
COVER
To remove the access cover, remove the four access
cover screws from the access cover. Slide the access
cover down and pull the bottom of the access cover
away from the Spa Unit. Be careful not to damage
the spa shell as you remove the cover.
To replace the access cover, insert the top of the
cover under the edge of the spa shell. Slide the cover
up until the bottom of the cover will clear the trim
along the bottom of the spa unit. Slide the cover into
place and re-attach the four cover screws.
If you will be storing the spa for any period of time, a
qualified electrician will need to disconnect the power
cord from the 240 volt power source. You should
place the power cord inside the spa unit before re-
attaching the access cover.
DRAINING THE HYDROTHERAPY SPA
The hydrotherapy spa should be drained at least four
times a year and refilled with clean water. You may
need to drain the spa more often, depending on the
user load. This must be done, because after repeated
chemical treatment, the water becomes chemically
saturated. Once this happens, additional chemical
treatment of the water is no longer effective. The spa
Cover
Screw
Power Cord
Access
Cover
Spa Unit
Spa
Shell
Access Cover
Screws
18
should also be drained if you will not be using it for
long periods of time. The spa must always be drained
before major repairs are made.
The hydrotherapy spa should always be covered
when it is empty. Direct sunlight can cause exten-
sive damage. The surface of the spa shell can
reach temperatures as high as 150¡F in a matter
of minutes if exposed to the sun while it is empty.
These high temperatures can cause significant
damage, such as blistering of the shell surface
and warping of the spa shell. Any damage caused
by sun exposure is not covered under warranty.
To drain the hydrotherapy spa, follow these steps:
1. Set the temperature control on the console to the
lowest setting.
2. Shut off the circuit breaker or GFCI.
3. Remove the access cover from the back of the
spa unit.
4. Remove the drainage hose from the clip and
attach a garden hose to the valve on the
drainage hose.
5. Open the valve by turning the knob counterclock-
wise. The water will begin to drain.
6. When the spa is empty, close the valve and
remove the garden hose. Return the drainage
hose to the clip and replace the access cover.
7. Refill the spa and treat the water with chemicals
(see pages 9, 12 and 17).
DRAINING THE PUMP
After the hydrotherapy spa is drained (see DRAINING
THE HYDROTHERAPY SPA on page 17), the pump
in the spa jet unit should also be drained if the hydro-
therapy spa will be stored for more than thirty days,
or if it may be exposed to freezing temperatures.
To drain the pump,
remove the access
cover from the spa
unit (see ATTACHING
AND REMOVING
THE ACCESS
COVER on page 17).
Locate the pump
inside the spa unit.
Remove the drain plug from the pump. Tip the spa jet
unit slightly, until all the water has drained from the
pump. Replace the drain plug.
OPENING AND CLOSING THE CUT-OFF VALVES
For minor repairs to the pump/motor, the cut-off
valves can be closed. To close the valves, remove
the access cover from the back of the spa unit.
Locate both cut-off valves. Push the handles into the
closed position and turn the handles until they lock
into place.
If you are planning to work on the pump/motor, you
will also need to drain the pump (see this page).
To open the valves, turn the handles until they are
unlocked, and pull the handles out to the open posi-
tion.
Drain Plug
Pump
Drain Hose
Valve
Knob
Cap
Cut-off
Valve
Cut-off
Valve
19
WINTER USE AND CARE
The hydrotherapy spa is designed for year-round use.
If you decide to store the hydrotherapy spa for the
winter, store it in a warm, dry location. Follow the
steps below to winterize the hydrotherapy spa.
1. Drain the spa (see DRAINING THE
HYDROTHERAPY SPA on pages 17 and 18).
2. Remove all remaining water from the spa shell.
Dry the spa shell with towels.
3. Set the air control on the console to the lowest
setting. Use a wet/dry vacuum to pull any remain-
ing water from the system. To do this, place the
vacuum nozzle over each thera-jet, starting with
the highest jet and finishing with the lowest one.
4. Set the air control on the console to the highest
setting and repeat step 3.
5. Drain the pump (see DRAINING THE PUMP on
page 18). Once the water has drained from the
pump, place the vacuum nozzle over the
drainage hole in the pump and vacuum any addi-
tional water from the pump. Note: For additional
protection you can remove the pump/motor
from the spa to store it in a climate controlled
room.
6. Clean the spa shell (see page 16).
7. Clean the filter (see page 16).
8. A qualified electrician should disconnect the
power cord from the 240 volt power source.
9. Re-attach the access cover and re-attach the spa
cover.
20
1. SYMPTOM: THE SPA WILL NOT OPERATE
a. Check to see if the GFCI breaker is tripped, or
was not turned on. Reset the GFCI breaker.
2. SYMPTOM: THE CIRCUIT BREAKER OR THE
GFCI TRIPS WHILE THE SPA IS OPERATING
a. Reset the circuit breaker or the GFCI. If the cir-
cuit breaker or the GFCI trips again, contact a
qualified electrician for service.
3. SYMPTOM: THE PUMP HUMS
a. The filter may be dirty or damaged. Remove
the filter housing from the spa jet unit and clean
or replace the filter.
b. The pump may have a foreign object stuck in
the impeller. Contact our customer service
department.
c. The pump may have a loose wire connection.
Contact our customer service department.
4. SYMPTOM: THE PUMP HUMS BUT DOES NOT
ROTATE
a. The pump may be jammed. Contact our cus-
tomer service department or, if your spa is no
longer under warranty, you may also contact a
local spa and pool service provider.
5. SYMPTOM: THE PUMP IS NOISY WHILE
OPERATING
a. There may be debris in the pump. Contact our
customer service department.
b. The pump may have a bad bearing. Contact
our customer service department.
6. SYMPTOM: THE WATER DOES NOT HEAT
a. Make sure that the hydrotherapy spa is fully
covered with the spa cover. The spa cover
must be tight for the water to heat. Set the
air control to low. Set the temperature to the
desired setting. The water will heat at 6.0 to
8.0¡F an hour. If you are using the spa indoors,
and the room temperature is maintained at
70¡F, it will take approximately 5 to 7 hours for
the water to reach the set temperature.
b. If you are using the HYDROTHERAPY SPA
outdoors, it may take longer for the water to
heat. See the chart below for the approximate
heating time.
Air Temperature Heating Time
70¡F +5 to 7 hours
50¡FÐ70¡F 7 to 10 hours
30¡FÐ50¡F 10 to 15 hours
b. If the water still has not heated after four days,
contact our customer service department.
c. If actual water temperature is lower that the set
temperature, and the Heat On LED indicator on
the console is not lit, contact our customer ser-
vice department.
7. SYMPTOM: THE WATER IS NOT BEING
CLEANED BY THE FILTER
a. Check to see if the filter is in place. Clean the
filter if it is dirty.
b. Check the chemical balance of the water. If the
pH is incorrect, the sanitizing agents will not
function properly.
8. SYMPTOM: THE WATER PULSATES OR
THERE IS MINIMUM WATER FLOW
a. Adjust the water level. This usually occurs only
when the water level is low. Add water until the
thera-jets are covered (see step 5 on page 9).
9. SYMPTOM: THE WATER LEVEL DROPS
a. Some water loss due to evaporation is normal.
If rapid water loss occurs, or if you notice wet-
ness on the floor around the hydrotherapy spa,
then the spa shell may have a leak. Contact
your local spa and pool service provider for
repairs.
b. A clamp or seal inside the pump compartment
may be loose. Check inside the pump compart-
TROUBLE-SHOOTING
Most problems can be solved by following the simple steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, call our Customer Service Department toll-free at
1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time.
21
ment for excess water, and watch the pump
unit while it is operating to see if water drips
from any of the plumbing. If you can identify the
location of the leak inside the spa jet unit, tight-
en the clamp or replace the damaged seal.
10. SYMPTOM: THE SPA CONTINUES TO RUN
AFTER IT HAS BEEN SHUT OFF
a. To turn the spa jets on high, press the Pump
button once. To turn the spa jets on low, press
the control twice. To turn the spa jets off, press
the control three times. The spa jets will remain
off for three hours, at which time they will begin
running the filter cycle. At any time after the
spa jets has been shut off, the pump will begin
cycling the water if the temperature falls below
the minimum setting. Note: If the water is
already below the minimum setting, the
pump will not shut off.
22
PART LISTÑModel No. 831.210050 R0498A
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice.
Key No. Qty. Description
1 8 Buckle Screw
2 4 Buckle
3 6 Motor Screw
4 4 Motor Washer
5 4 Rubber Insulator
6 1 Blue Lens
7 1 Heater Switch
8 4 Small Star Washer
9 1 Heat Sensor
10 1 Filter
11 1 Hose Cap
12 1 Rubber Damper
13 1 Pump Motor
14 1 Control Unit
15 1 Spa Unit
16 1 Console
17 1 Control Knob
18 1 Spa Cover
19 4 Control Unit Screw
20 2 Small Index Nut
21 2 Adjustment Bracket
22 2 1/4Ó x 1/2Ó Screw
Key No. Qty. Description
23 2 Small Bracket Screw
24 2 Sensor Fitting
25 6 Multidirectional Jet
26 1 Red Lens
27 2 Large Star Washer
28 1 Console Wire Harness
29 2 Wing Nut
30 1 Console Bracket
31 2 Cover Screw
32 2 Suction Cover
33 2 1/4Ó Nut
34 6 Rubber Washer
35 1 Rubber Gasket
36 1 1/2Ó Elbow Pipe
37 1 2Ó O-Ring
# 4 Access Cover Screw
# 1 Access Cover
# 2 Key
# 1 Starter Chemical Pack
# 1 UserÕs Manual
# 1 Light Bulb
EXPLODED DRAWINGÑModel No. 831.210050 R0498A
23
Part No. 142096 G03489BC R0498A Printed in USA © 1998 Sears, Roebuck and Co.
Model No. 831.210050
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or find that there are missing or
damaged parts, we will guarantee
complete satisfaction through direct
assistance from our factory.
TO AVOID UNNECESSARY DELAYS,
PLEASE CALL DIRECT TO OUR
TOLL-FREE CUSTOMER HOT LINE.
The trained technicians on our cus-
tomer hot line will provide immedi-
ate assistance, free of charge to
you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
ORDERING REPLACEMENT
PARTS
To order replacement parts, simply call our Customer Service
Department toll-free at 1-800-999-3756, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays). To help us
assist you, please be prepared to give the following information
when calling:
1. The MODEL NUMBER of the product (831.210050).
2. The NAME of the product (PROFORM¨RESTORATION 5.1).
3. The SERIAL NUMBER of the product (see the front cover of
this manual).
4. The KEY NUMBER and DESCRIPTION of the desired part(s)
(see the PART LIST on page 22 of this manual).
PROFORM¨is a registered trademark of ICON Health & Fitness, Inc. The RESTORATION 5.1 is sold by SEARS.

Navigation menu
