Serial

Number

Decal

Model No. 831.24755.1

Serial No.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

TREADMILL EXERCISER

User’s Manual

•Assembly

•Operation

•Maintenance

•Part List and Drawing

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Write the serial number in the

space above for future reference.

With Universal Dock for iPod®

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

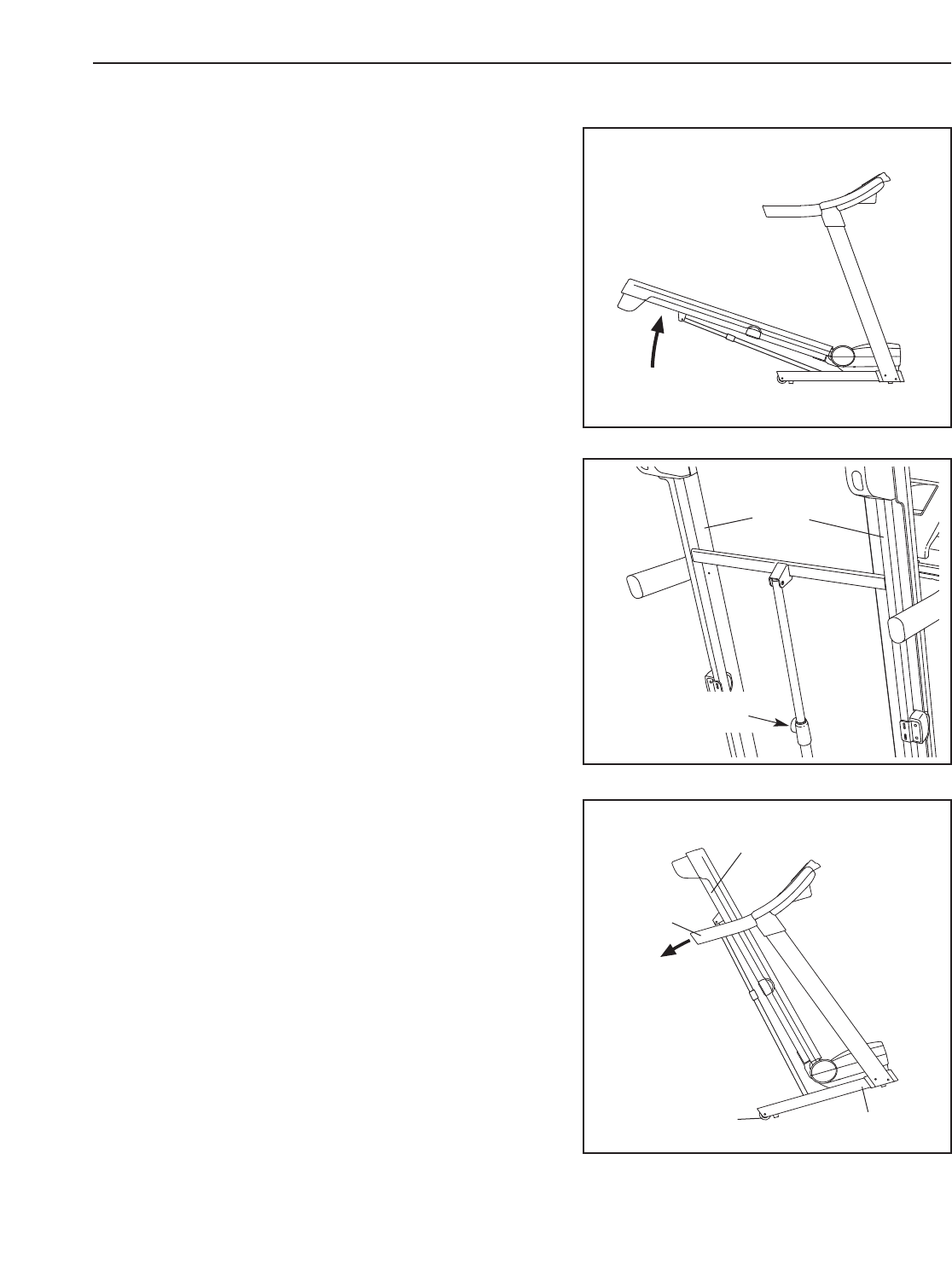

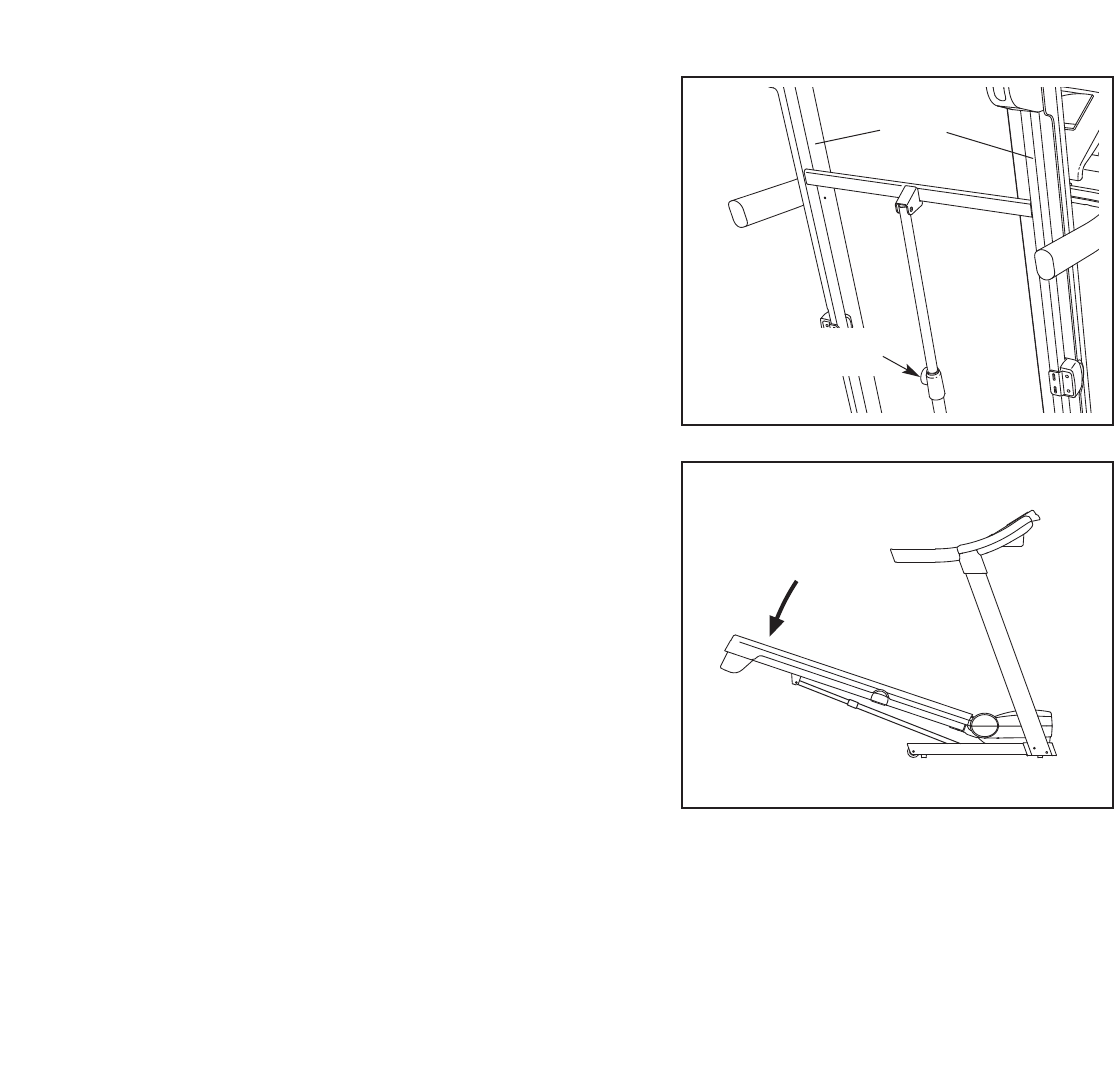

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

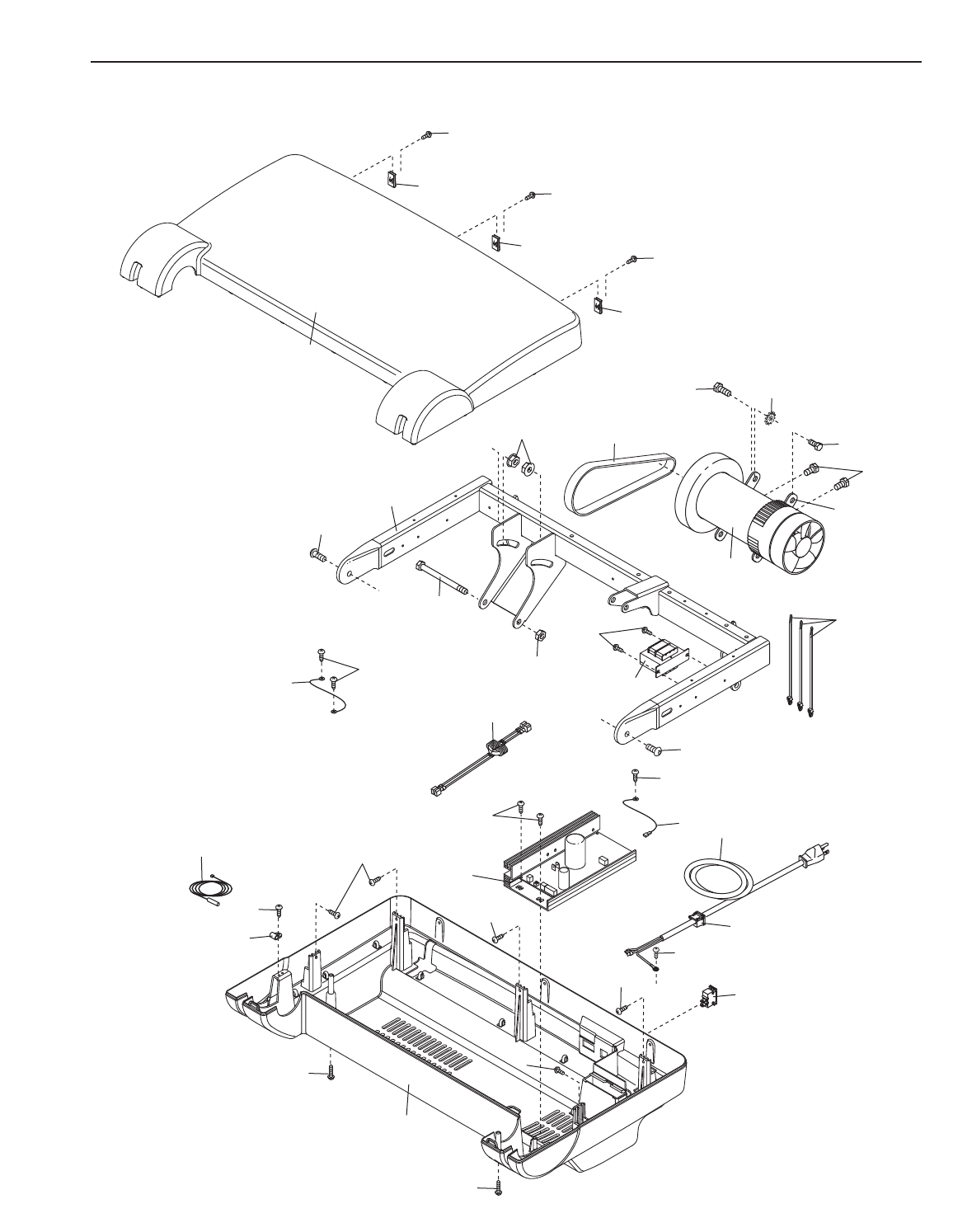

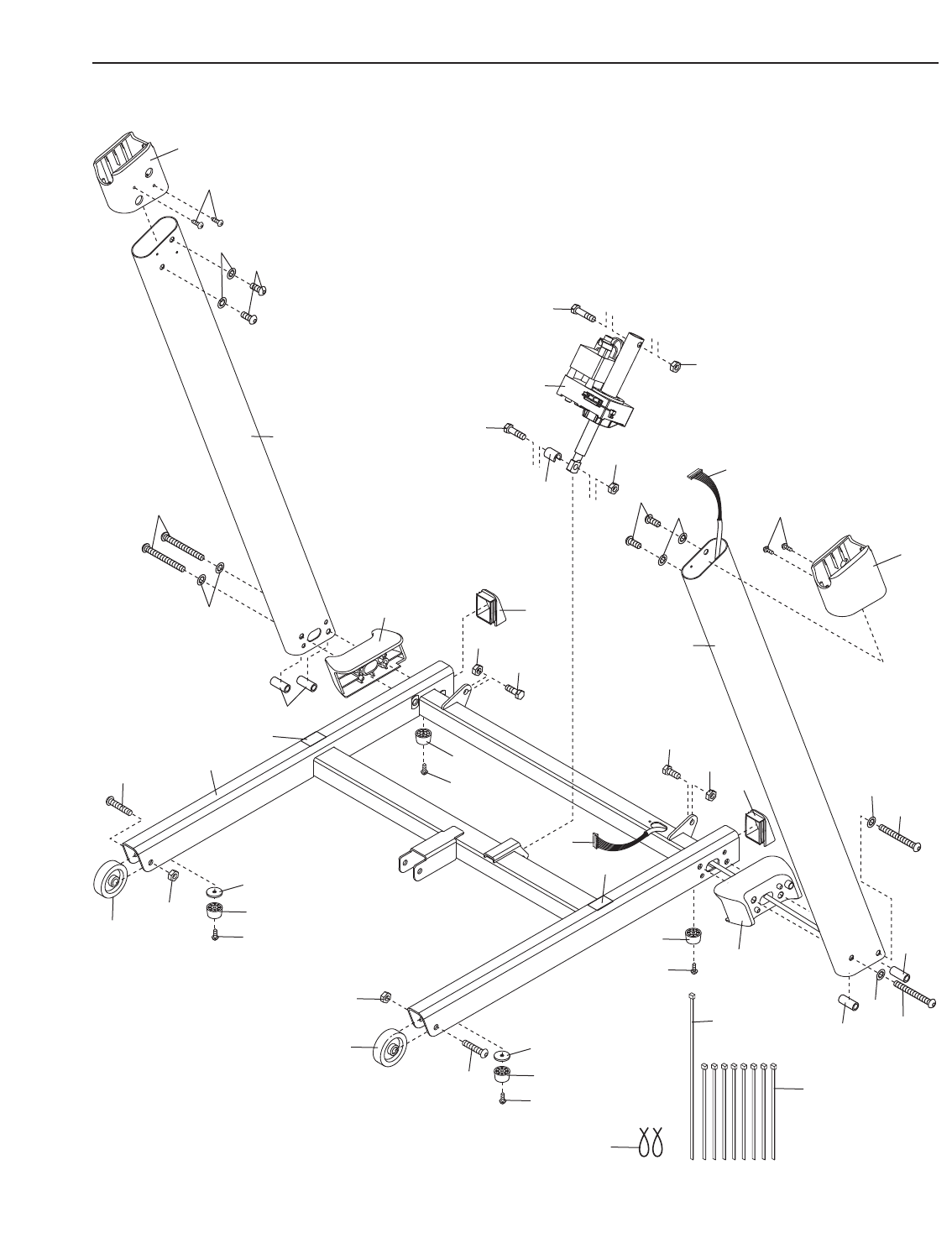

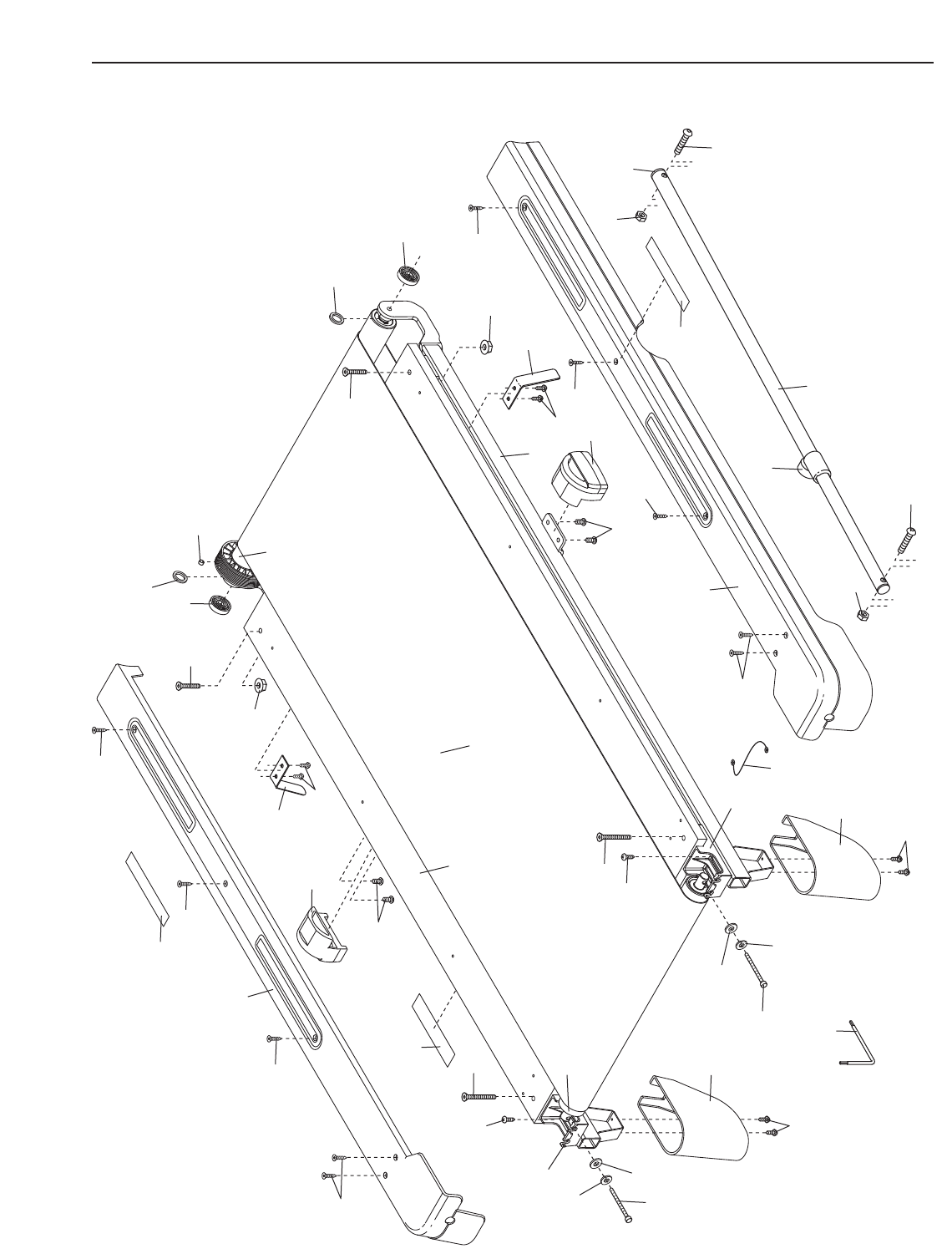

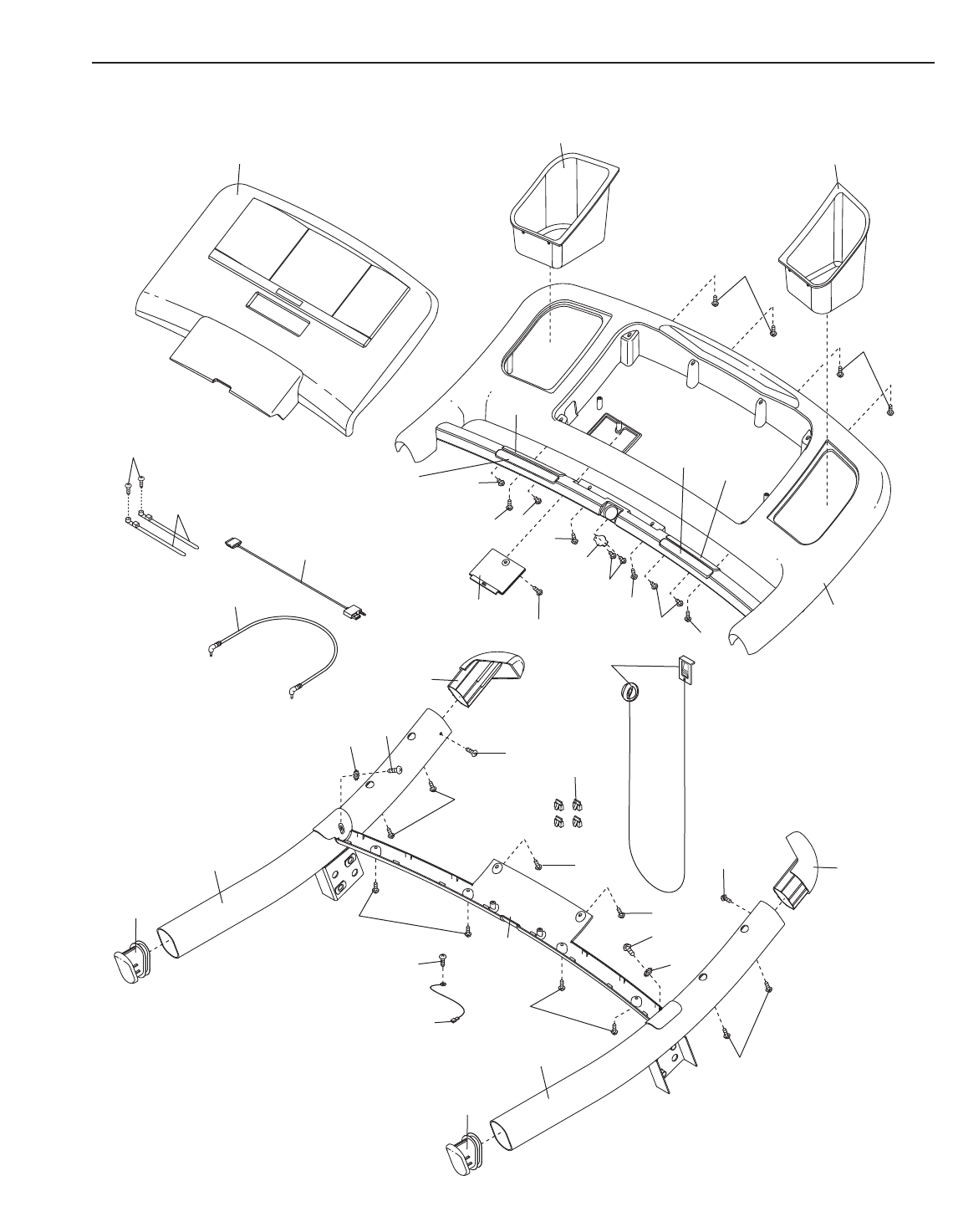

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ONE YEAR FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

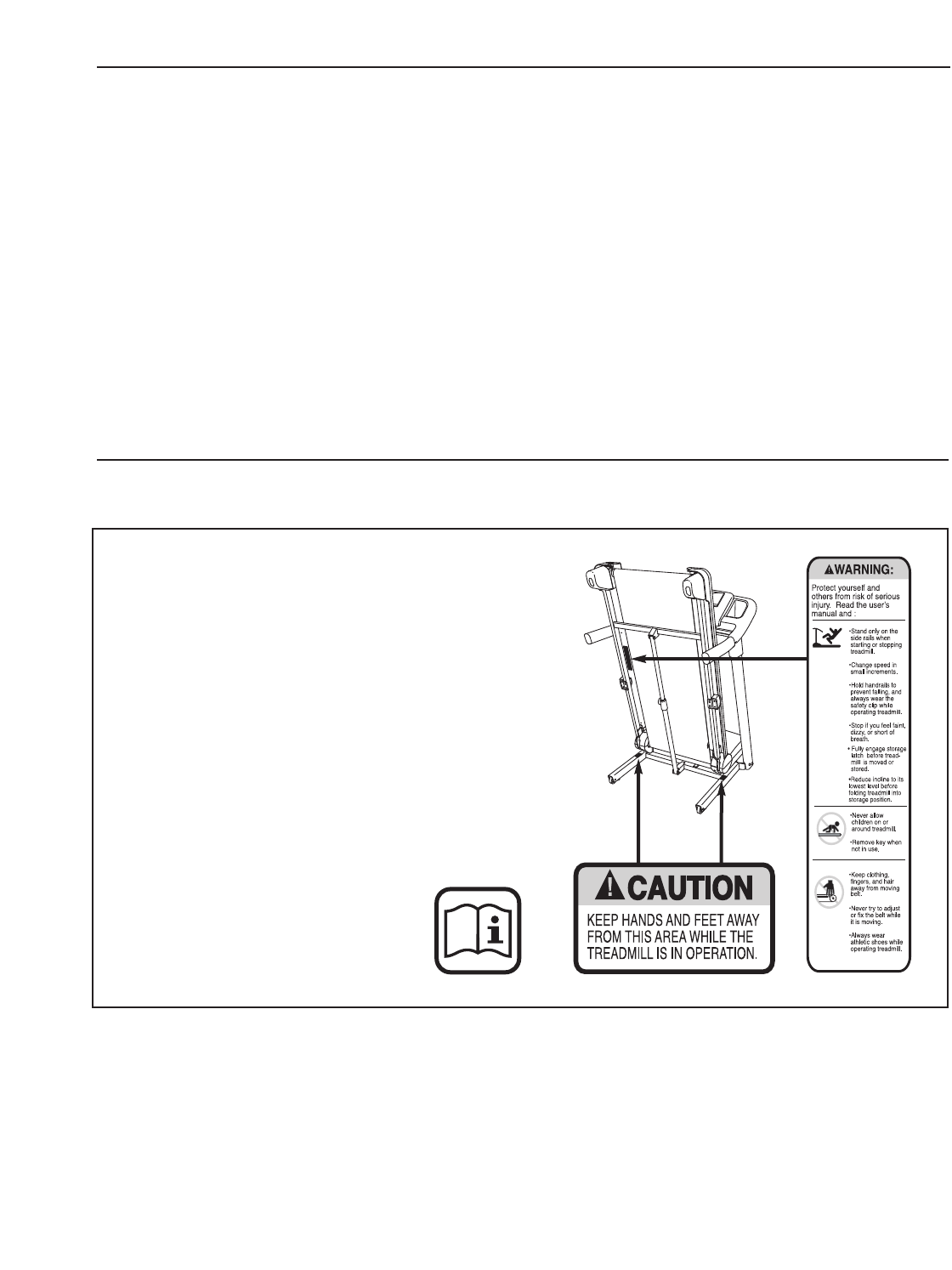

The decals shown below have been applied in the

locations shown. If a decal is missing or illegible,

call 1-888-533-1333 and request a free replace-

ment decal. Apply the decal in the location

shown. Note: The decals may not be shown at ac-

tual size.

WARNING DECAL PLACEMENT

iPod®is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over the age of 35 or persons

with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Place the treadmill on a level surface, with at

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open-

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under the age of 12 and pets

away from the treadmill at all times.

8. The treadmill should be used only by persons

weighing 300 lbs. (136 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended

for both men and women.

Always wear ath-

letic shoes. Never use the treadmill with bare

feet, wearing only stockings, or in sandals.

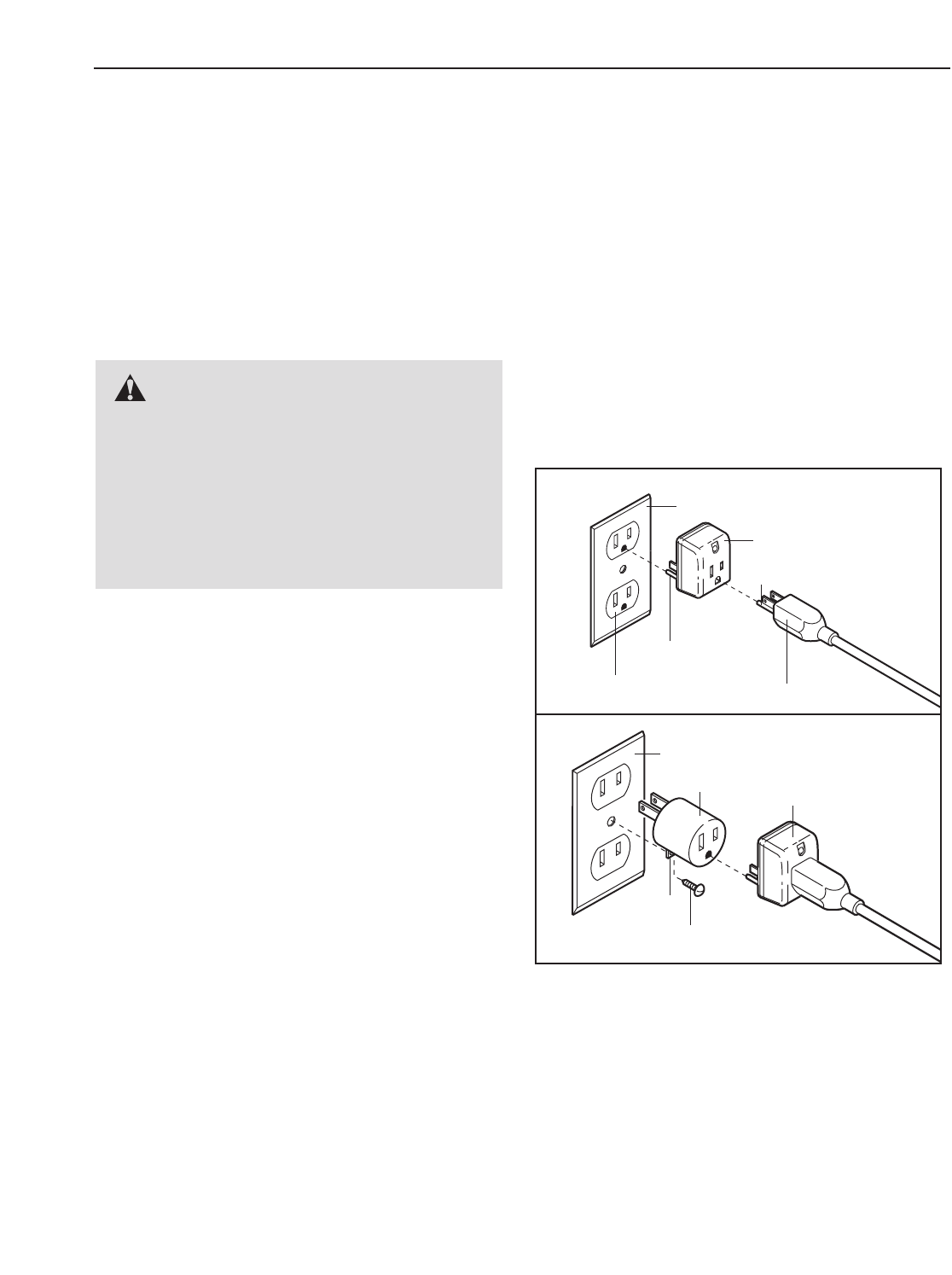

11. When connecting the power cord (see page

12), plug the power cord into a surge sup-

pressor (not included) and plug the surge

suppressor into a grounded circuit capable of

carrying 15 or more amps. No other appliance

should be on the same circuit. Do not use an

extension cord.

12. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 12. To purchase a surge suppressor, see

your local Sears store or call the telephone

number on the back cover of this manual and

order part number 146148, or see your local

electronics store.

13. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

speed, accelerate, or stop unexpectedly,

which may result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOTING on page 21 if the treadmill is

not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 14).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

18. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

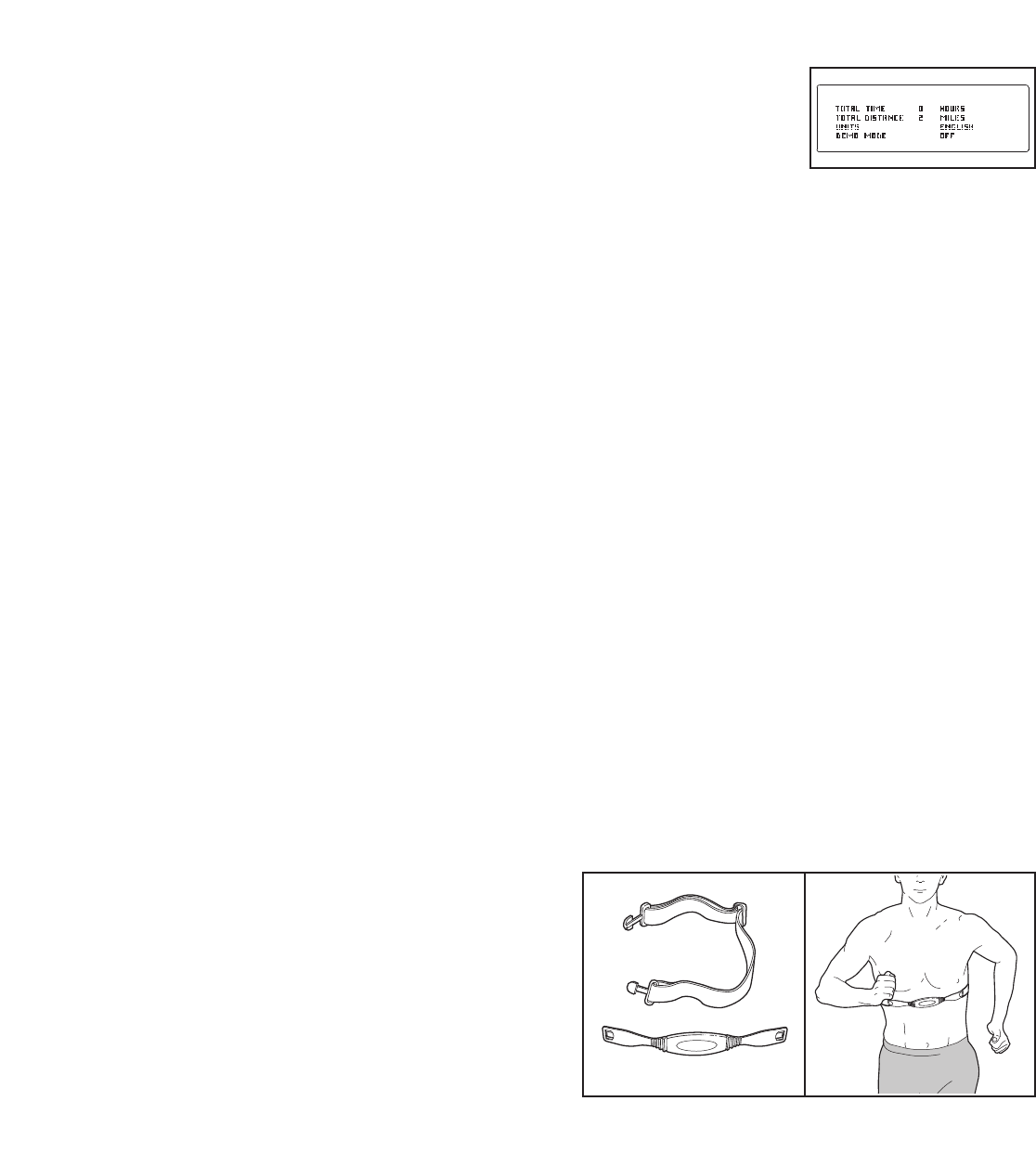

19. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

WARNING: Toreduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your treadmill before using your treadmill. Sears as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

IMPORTANT PRECAUTIONS

20. Never leave the treadmill unattended while it

isrunning. Always remove the key, unplug

the power cord, and switch the reset/off cir-

cuit breaker to the off position when the

treadmill is not in use. (See the drawing on

page 5 for the location of the circuit breaker.)

21. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 19.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

23. Never insert any object into any opening on

the treadmill.

24. Inspect and properly tighten all parts of the

treadmill regularly.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning the

treadmill, and before performing the mainte-

nance and adjustment procedures described in

this manual. Never remove the motor hood un-

less instructed to do so by an authorized ser-

vice representative. Servicing other than the

procedures in this manual should be performed

by an authorized service representative only.

26. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

SAVE THESE INSTRUCTIONS

Thank you for selecting the revolutionary PROFORM®

XPWEIGHT LOSS 620 treadmill with Universal Dock

for iPod. The XP WEIGHT LOSS 620 treadmill offers

an impressive array of features designed to make your

workouts at home more enjoyable and effective. And

when you’re not exercising, the unique XP WEIGHT

LOSS 620 treadmill can be folded up, requiring less

than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill.If you have questions after read-

ing this manual, call 1-800-4-MY-HOME®(1-800-469-

4663).To help us assist you, please note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

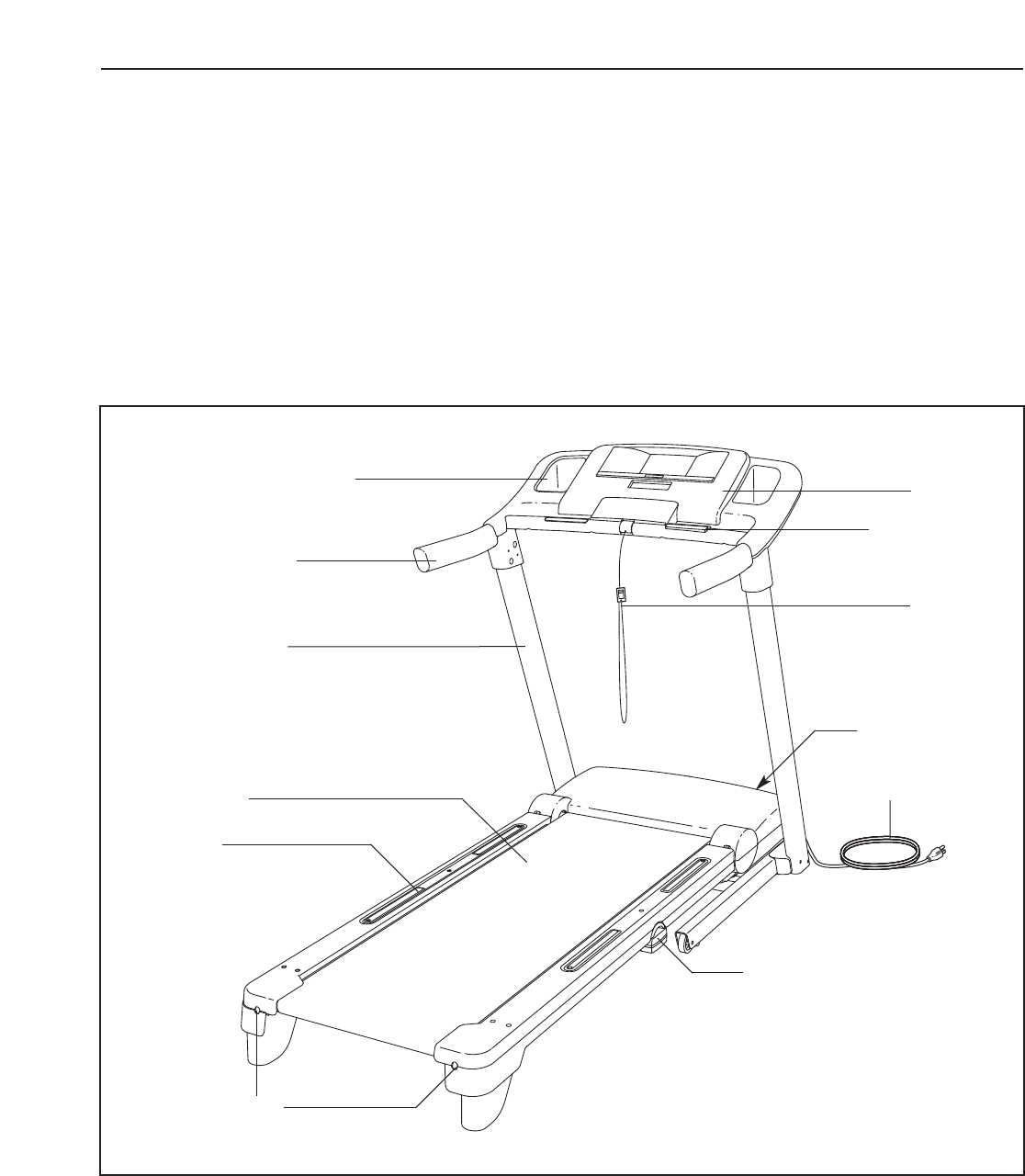

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Upright

Accessory Tray

Key/Clip

Reset/Off

Circuit Breaker

Walking Belt

Cushioned Walking Platform

Foot Rail

Power Cord

Rear Roller

Adjustment Bolts

Console

Pulse Sensor

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Donot

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to

the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-

mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,

non-abrasive cleaner.

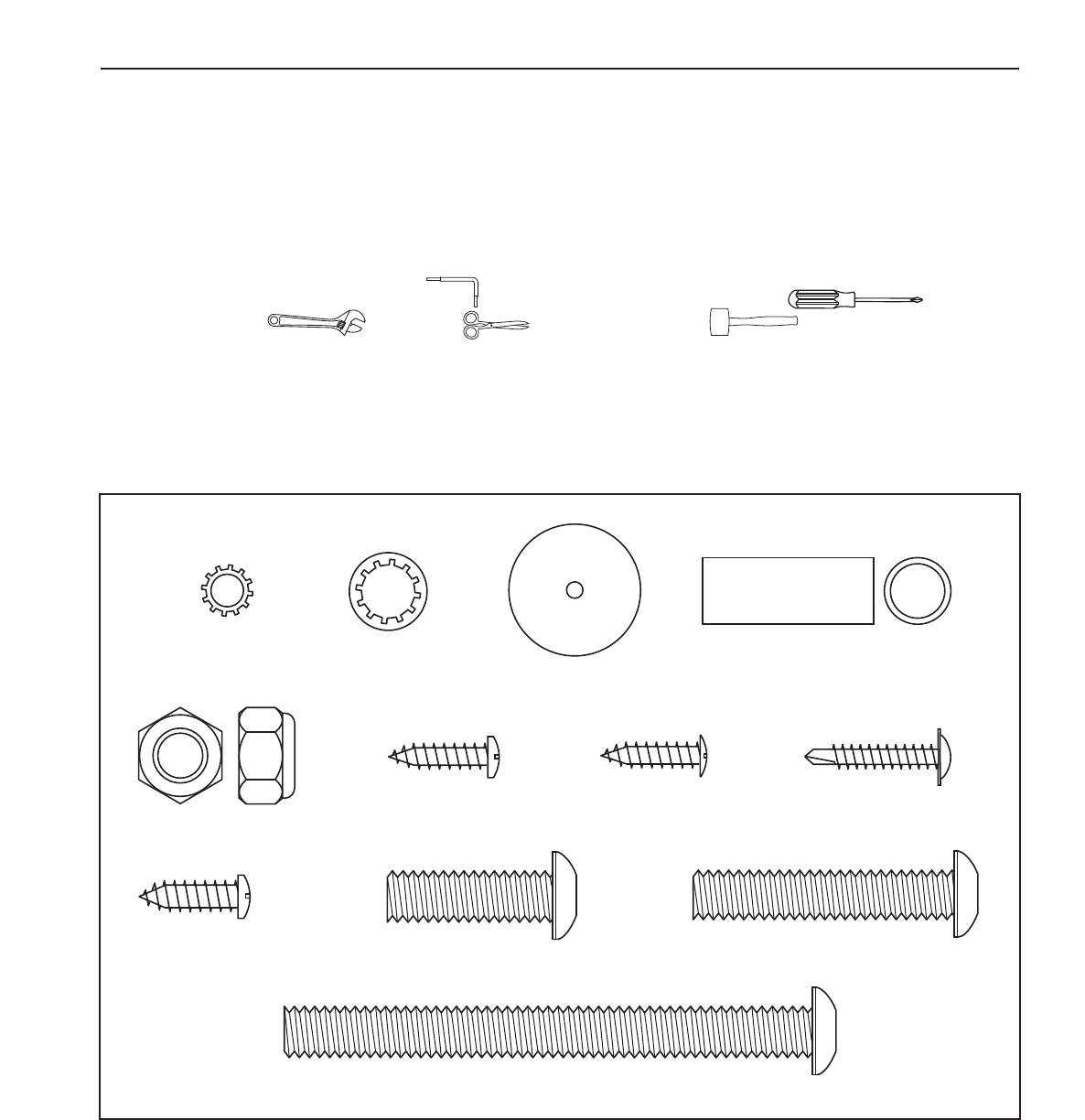

Assembly requires the included hex keys and your own Phillips screwdriver ,

adjustable wrench , scissors , and rubber mallet .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to one

of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra

hardware may be included. If a part is missing, call 1-888-533-1333.

3/8" Nut (8)–2

#8 x 1" Tek Screw (2)–4

Base Pad Spacer

(13)–2

3/8" Star

Washer (9)–8

#10 x 3/4"

Screw (5)–2

#8 x 3/4"

Screw (12)–14

#10 Star

Washer (27)–2

#8 x 3/4" Endcap

Screw (16)–2

3/8" x 1 1/4" Bolt (7)–4

3/8" x 4" Bolt (6)–4

3/8" x 2" Bolt (4)–2

Bolt Spacer (80)–4

3. Identify the Right Upright (78) and the Right

Upright Spacer (79), which are marked with

stickers. Insert the Upright Wire (38) through the

Right Upright Spacer as shown.

See the inset drawing. Tie the long tie in the

Right Upright (78) securely around the end of

the Upright Wire (38). With the help of a second

person, hold the Right Upright near the Base

(83). Then, pull the other end of the long tie until

the Upright Wire is routed completely through

the Right Upright.

79 38

2. Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),

and the shipping bracket (C) from the Base (83).

Attach a Wheel (84) with the Bolt and the Nut

that you just removed. Do not overtighten the

Nut; the Wheel must turn freely. Discard the

shipping bracket. 83

Long

Tie

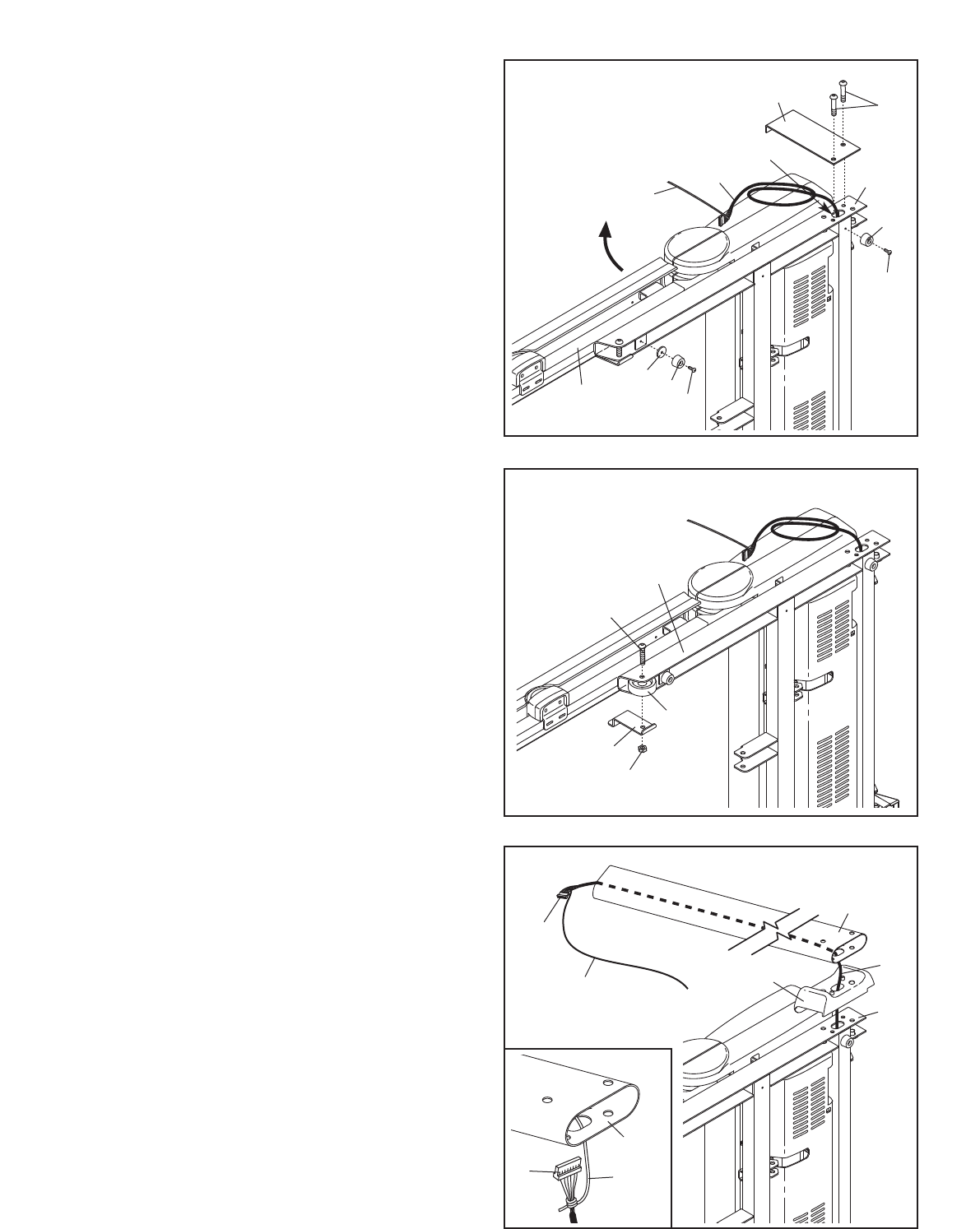

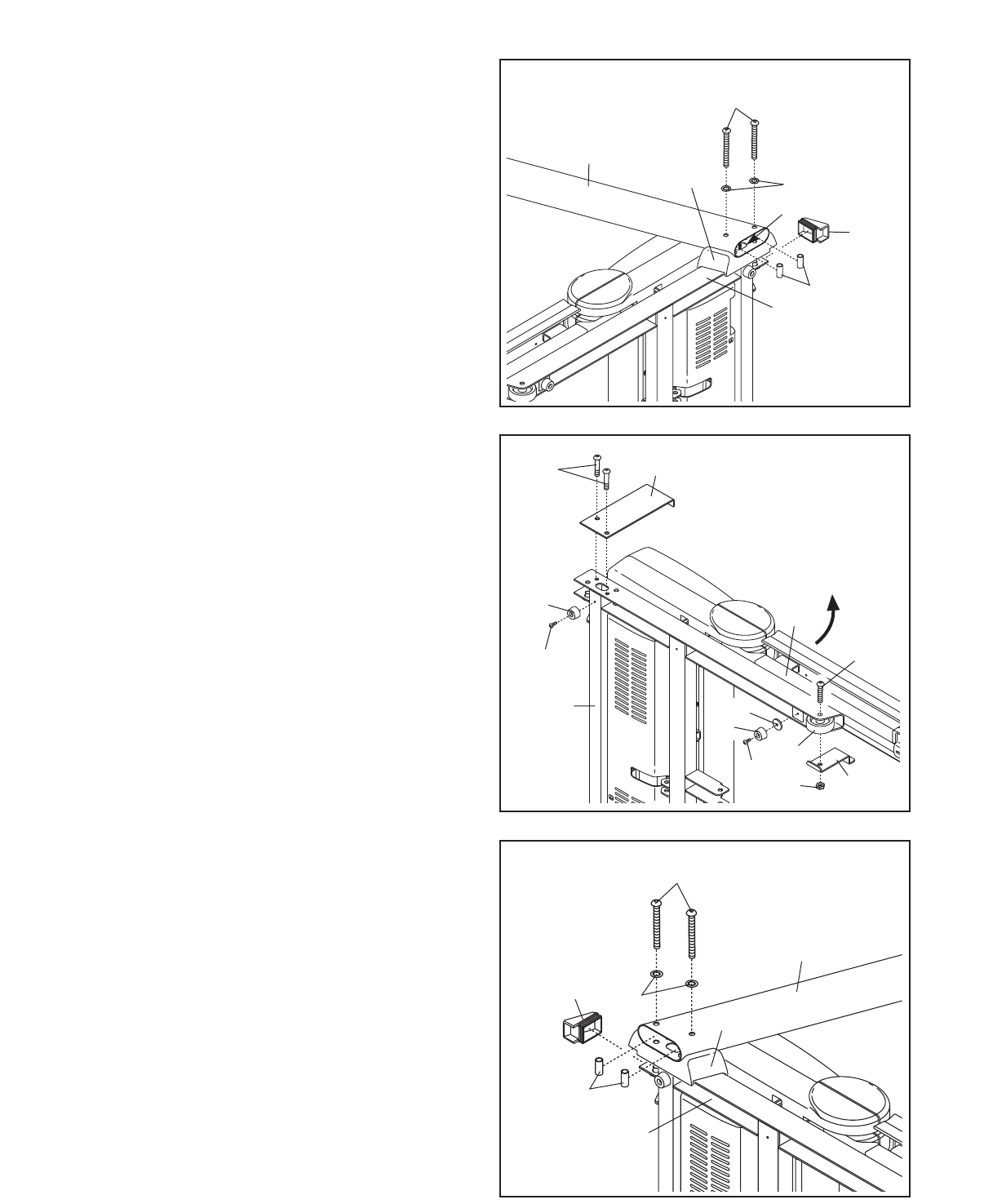

1.Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its left side. Partially fold the

Frame (56) so that the treadmill is more stable;

do not fully fold the Frame yet.

Remove and discard the two indicated bolts (A)

and the shipping bracket (B).

Cut the tie securing the Upright Wire (38) to the

Base (83). Use the indicated tie to pull the

Upright Wire out of the indicated hole.

Attach a Base Pad (81) to the Base (83) in the

location shown with a Base Pad Spacer (13) and

a#8 x 1" Tek Screw (2). Then, attach another

Base Pad (81) with only a #8 x 1" Tek Screw (2).

81 2

Tie

Hole

Long

Tie

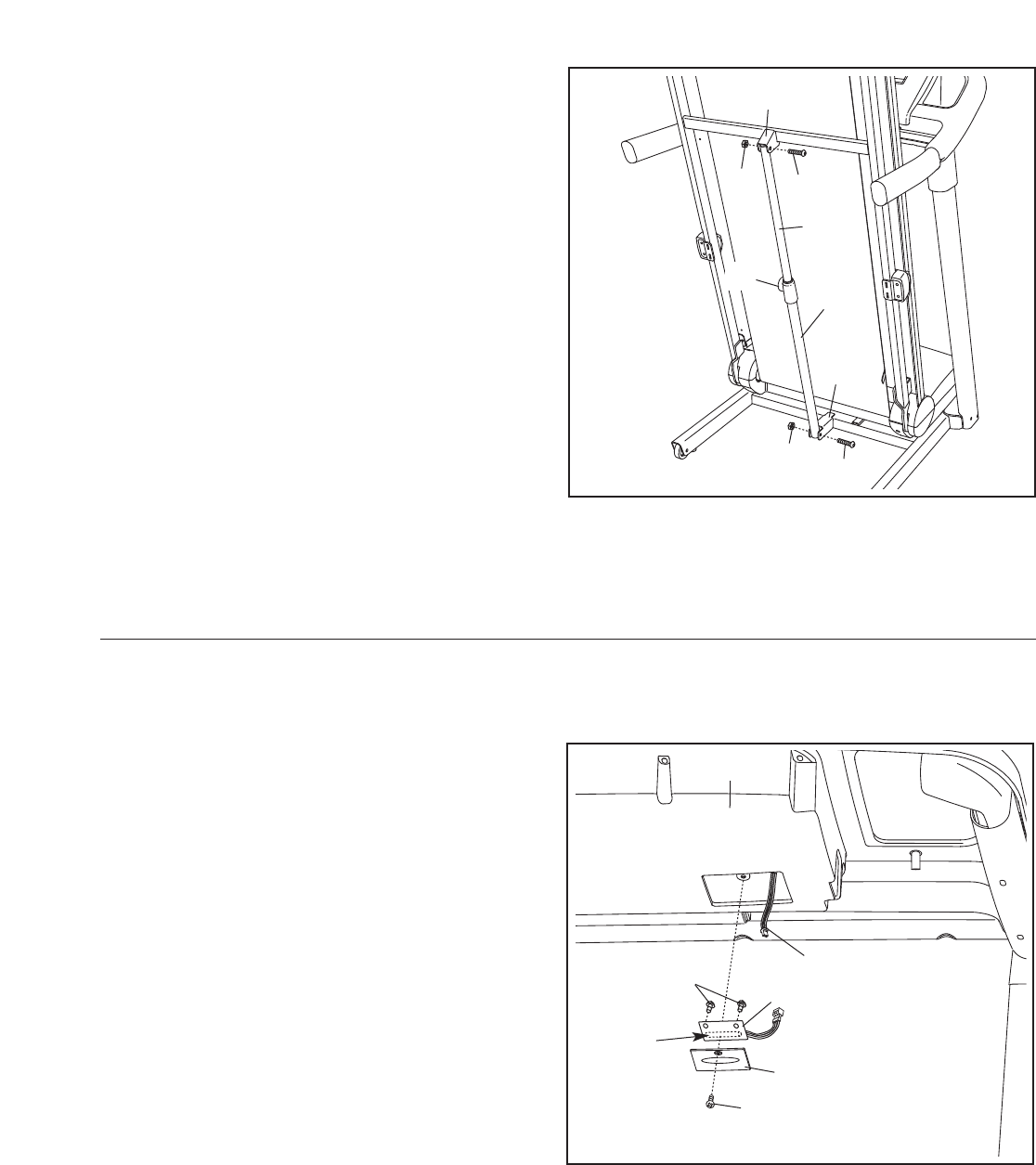

6. Set the Left Upright Spacer (76) on the Base

(83). With the help of a second person, hold a

Bolt Spacer (80) inside the lower end of the Left

Upright (74). Insert a 3/8" x 4" Bolt (6) with a

3/8" Star Washer (9) into the Left Upright and

the Bolt Spacer. Repeat this step with a sec-

ond Bolt Spacer (80), 3/8" x 4" Bolt (6), and

3/8" Star Washer (9). Set the Left Upright in the

Left Upright Spacer.

Partially tighten the 3/8" x 4" Bolts (6); do not

fully tighten the Bolts yet.

Press a Base Endcap (77) into the Base (83).

With the help of a second person, tip the tread-

mill so that the Base (83) is flat on the floor.

5. With the help of a second person, carefully tip

the treadmill onto its right side. Partially fold the

Frame (56) so the treadmill is more stable; do

not fully fold the Frame yet.

Remove and discard the two indicated bolts (A)

and the shipping bracket (B).

Attach a Base Pad (81) to the Base (83) in the

location shown with a #8 x 1" Tek Screw (2) and

aBase Pad Spacer (13). Then, attach another

Base Pad (81) with only a #8 x 1" Tek Screw (2).

Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),

and the shipping bracket (C) from the Base (83).

Attach a Wheel (84) with the Bolt and the Nut

that you just removed. Do not overtighten the

Nut; the Wheel must turn freely. Discard the

shipping bracket.

4. Set the Right Upright Spacer (79) on the Base

(83). Make sure the Upright Wire (38) is not

pinched. With the help of a second person, hold

aBolt Spacer (80) inside the lower end of the

Right Upright (78). Insert a 3/8" x 4" Bolt (6) with

a3/8" Star Washer (9) into the Right Upright

and the Bolt Spacer. Repeat this step with a

second Bolt Spacer (80), 3/8" x 4" Bolt (6),

and 3/8" Star Washer (9). Set the Right Upright

into the Right Upright Spacer.

Partially tighten the 3/8" x 4" Bolts (6); do not

fully tighten the Bolts yet.

Press a Base Endcap (77) into the Base (83).

9. Attach the Pulse Bar Bottom (95) to the Left

Handrail (33) and the Right Handrail (34) with

two #10 x 3/4" Screws (5) and two #10 Star

Washers (27).

Remove the long tie from the Upright Wire (38).

538

Long Tie

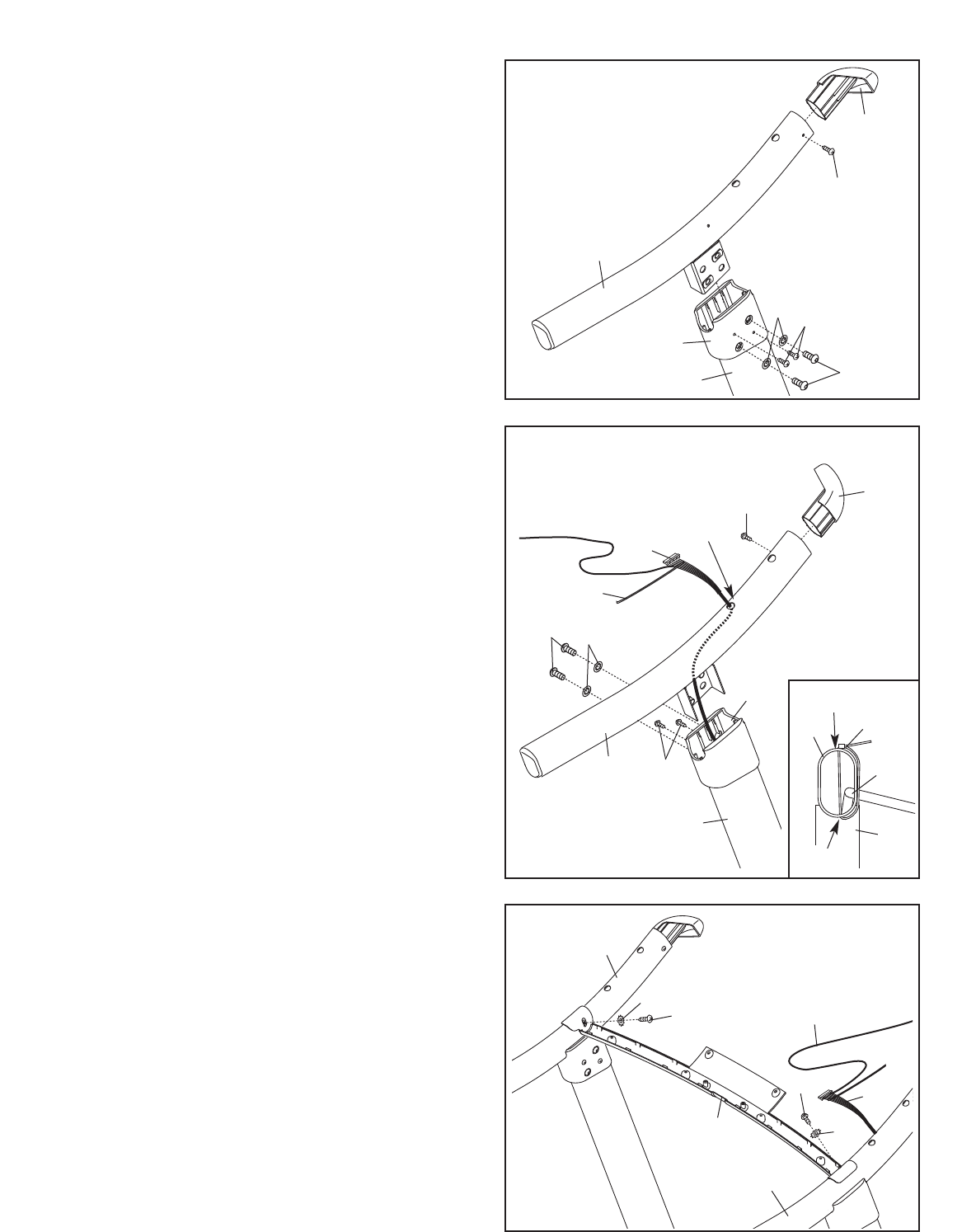

7. Press a Front Handrail Endcap (97) into the Left

Handrail (33). Attach the Front Handrail Endcap

with a #8 x 3/4" Endcap Screw (16).

Slide the Left Collar (47) onto the Left Upright

(74). Align the large holes in the Left Collar

with the large holes in the Left Upright. Set

the Left Handrail (33) on the Left Collar.

Attach the Left Handrail (33) with two 3/8" x

11/4" Bolts (7) and two 3/8" Star Washers (9).

Firmly tighten the Bolts.

Tighten two #8 x 3/4" Screws (12) into the Left

Collar (47).

8. Hold the Right Handrail (34) near the Right

Upright (78). Insert the Upright Wire (38)

through the Right Collar (60), into the hole in the

bottom of the Right Handrail, and out of the

large hole in the side of the Right Handrail.

See the inset drawing. Insert the included plas-

tic tie through the holes in the Right Handrail

(34) as shown. Look inside the Right Handrail.

Make sure that the plastic tie holds the

Upright Wire (38) to the side as shown in the

inset drawing. Tighten the plastic tie.

Press a Front Handrail Endcap (97) into the

Right Handrail (34). Attach the Front Handrail

Endcap with a #8 x 3/4" Endcap Screw (16).

Attach the Right Handrail (34) with two 3/8" x 1

1/4" Bolts (7) and two 3/8" Star Washers (9).

Firmly tighten the Bolts.

Tighten two #8 x 3/4" Screws (12) into the Right

Collar (60).

34 12

Plastic Tie

Large

Hole

912

34 Tie

Hole

12. Identify the Storage Latch (53). Remove the tie

from the end of the tube. Make sure that the

sleeve has been slid over the indicated hole and

that the Latch Knob (54) is locked into the hole.

Pull on the sleeve to make sure that it is

locked into place.

Sleeve

Hole

Tube

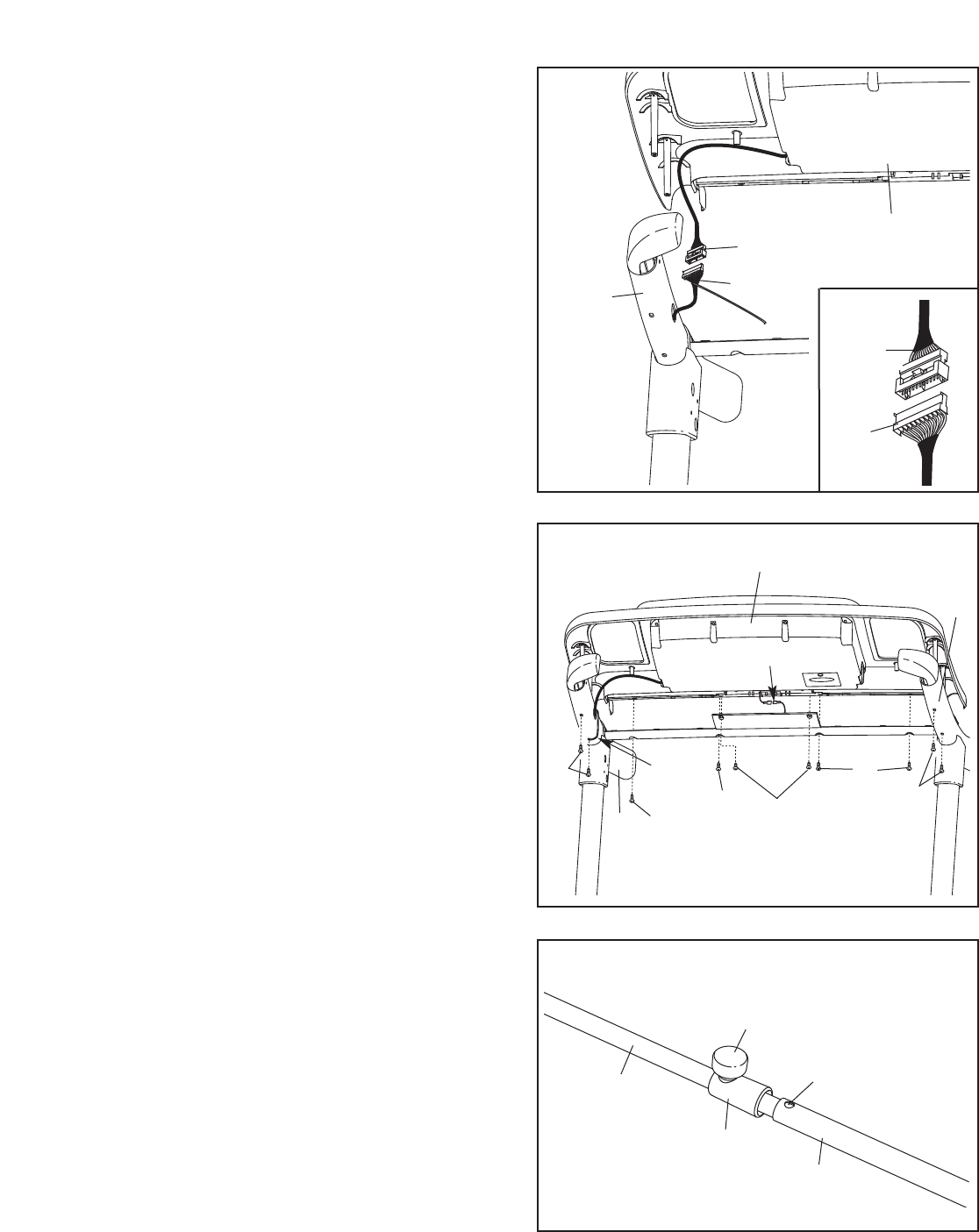

10. With the help of a second person, hold the con-

sole assembly near the Right Handrail (34) and

the Left Handrail (not shown).

Connect the Upright Wire (38) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF THE CONNECTORS ARE NOT CON-

NECTED PROPERLY, THE CONSOLE MAY

BE DAMAGED WHEN YOU TURN ON THE

POWER. Insert the connectors and the excess

wire into the Right Handrail (34).

Console

Assembly

11. Connect the console ground wire to the handrail

ground wire.

Set the console assembly on the Right Handrail

(34) and the Left Handrail (33). Make sure that

the wire harnesses are not pinched. Attach

the console assembly with ten #8 x 3/4" Screws

(12). Start all the Screws before tightening

any of them.

Cut the plastic tie off the Right Handrail (34).

Console Assembly

Ground Wires

Console

Wire

Console

Wire

Plastic

Tie

If you purchase the optional chest pulse sensor (see page 18), follow the steps below to install the re-

ceiver included with the chest pulse sensor.

1. Make sure that the power cord is unplugged.

Remove the indicated #8 x 3/4" Screw (12) and

the Access Door (87) from the Console Base

(93).

2. Connect the wire on the receiver (A) to the indi-

cated wire extending from the Console Base

(93). Hold the receiver so the small cylinder

is oriented as shown and is facing the

Console Base. Attach the receiver to the plastic

posts on the Access Door (87) with the two in-

cluded small screws.

3. Make sure that no wires are pinched.

Reattach the Access Door (87) with the #8 x

3/4" Screw (12). Discard the other wires in-

cluded with the receiver.

Small

Cylinder

Wire

Small

Screws

13. Raise the Frame (56) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (53) so that the large

barrel and the Latch Knob (54) are in the posi-

tions shown. Attach the lower end of the Storage

Latch to the bracket on the Base (83) with a 3/8"

x2" Bolt (4) and a 3/8" Nut (8).

Attach the upper end of the Storage Latch (53)

to the bracket on the Frame (56) with a 3/8" x 2"

Bolt (4) and a 3/8" Nut (8). Note: It may be nec-

essary to move the Frame back and forth to

align the Storage Latch with the bracket.

Lower the Frame (56) (see HOW TO LOWER

THE TREADMILL FOR USE on page 20).

Large

Barrel

14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear

plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-

mill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used

to adjust the walking belt (see pages 22 and 23).

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with high-

performance lubricant. IMPORTANT: Never apply sil-

icone spray or other substances to the walking

belt or the walking platform. Such substances will

deteriorate the walking belt and cause excessive

wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local Sears store or call the telephone number

on the back cover of this manual and order part

number 146148, or see your local electronics store.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be a moni-

toring light on the surge suppressor to indicate

whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill. If

the control system is damaged, the walking belt

may change speed, accelerate, or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

anequipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

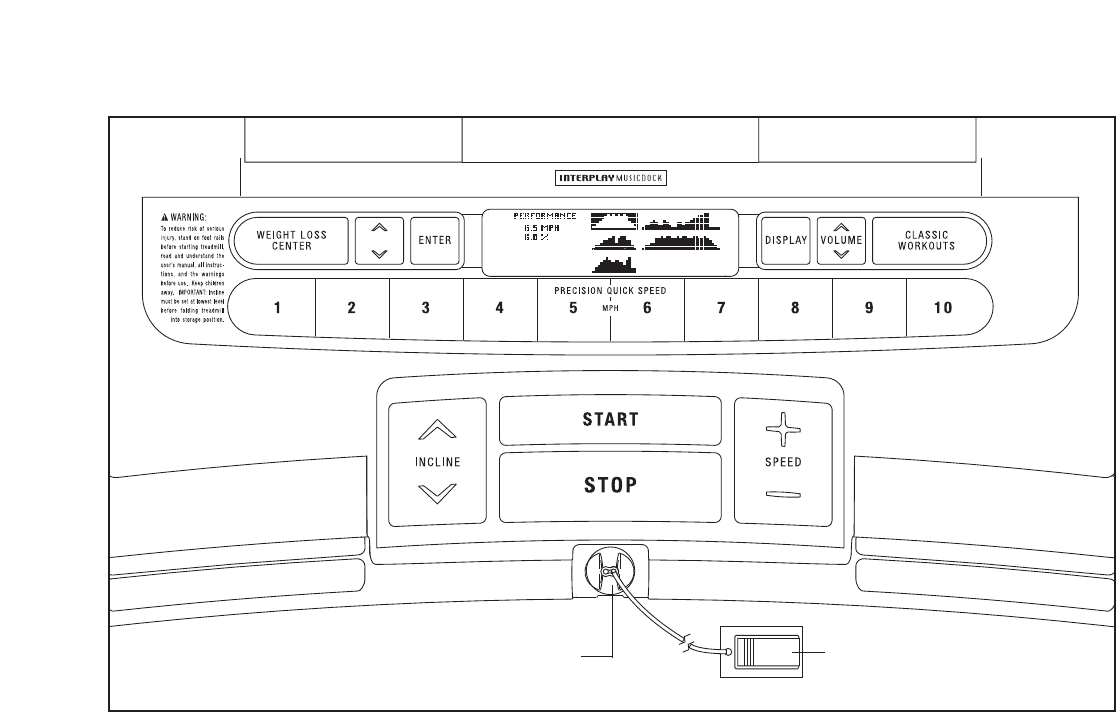

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable.

When you use the manual mode, you can change the

speed and incline of the treadmill with the touch of a

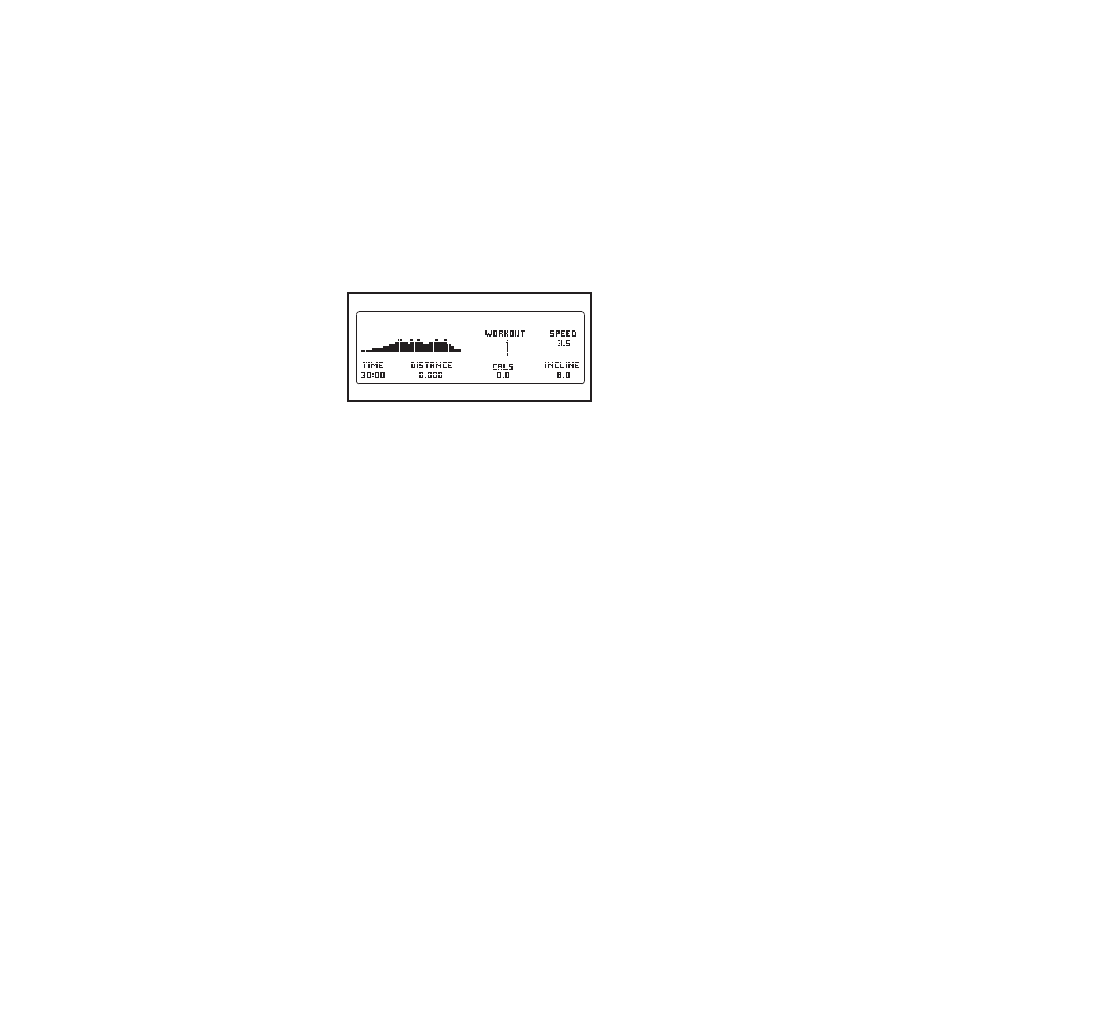

button. As you exercise, the console will display instant

exercise feedback. You can even measure your heart

rate using the handgrip pulse sensor or the optional

chest pulse sensor (see page 18).

In addition, the console features eight classic workouts.

Each workout automatically controls the speed and in-

cline of the treadmill as it guides you through an effec-

tive exercise session. You can also customize your

workout using the weight loss center.

You can even listen to your favorite workout music or

audio books with the console’s premium stereo sound

system while you get in shape. This product has been

designed specifically to work with iPod and has been

certified by the developer to meet Apple performance

standards.

To use the manual mode of the console,follow the

steps beginning on page 14. To use a classic work-

out, see page 16. To use the weight loss center, see

page 17. To use the stereo sound system,see page

18.

IMPORTANT: If there are sheets of clear plastic on

the console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The first time you use the

treadmill, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 23).

Note: The console can display speed and distance in

either miles or kilometers. To find out which unit of

measurement is selected or to change the unit of mea-

surement, see THE INFORMATION MODE on page

18. Note: For simplicity, all instructions in this section

refer to miles.

Key Clip

CONSOLE DIAGRAM

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, the console displays or other electrical

components may become damaged.

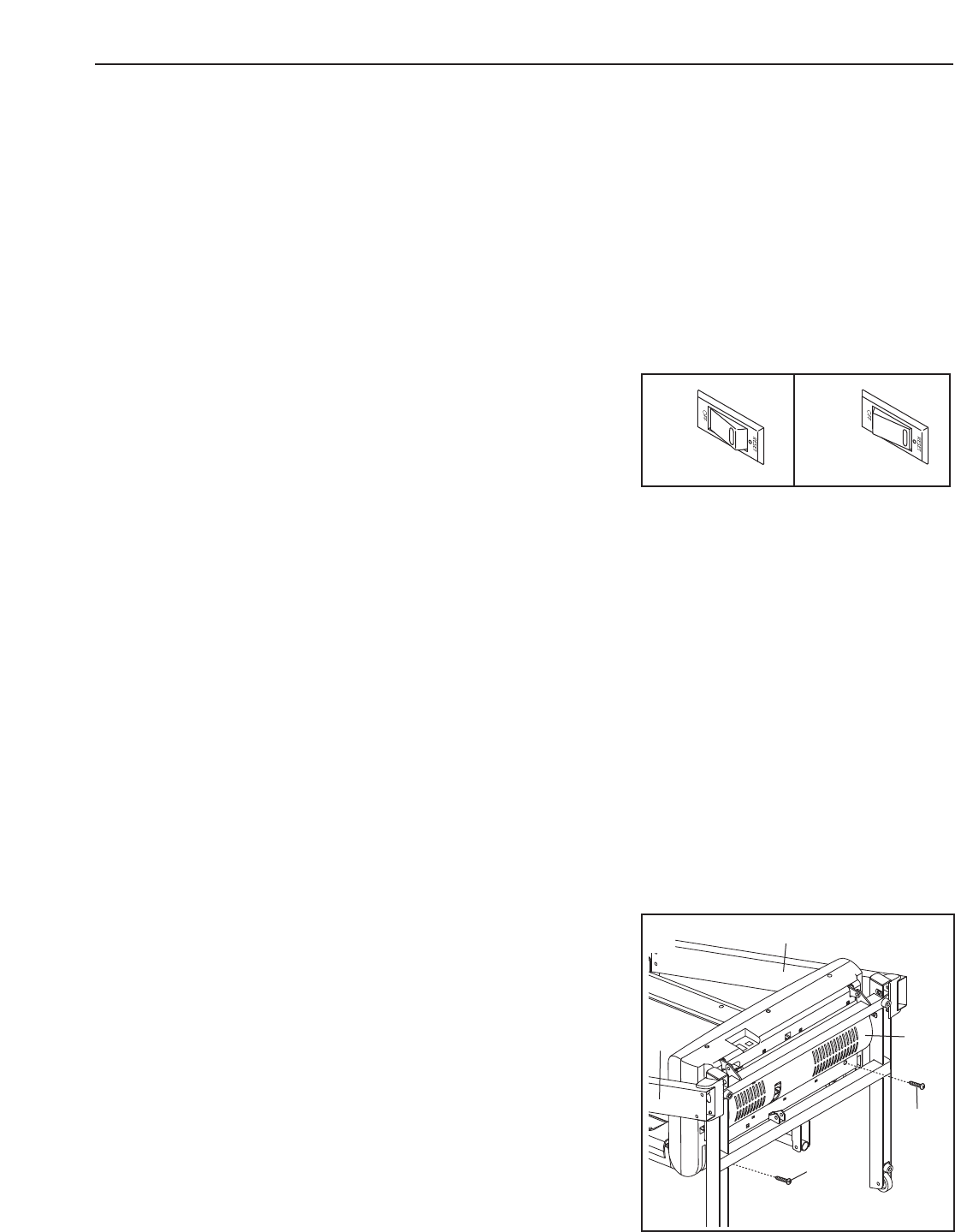

Plug in the power cord (see

page 12). Next, locate the

reset/off circuit breaker on

the treadmill frame near the

power cord. Switch the cir-

cuit breaker to the reset po-

sition.

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as

you plug in the power cord and switch the circuit

breaker to the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds. If the displays

remain lit, see THE INFORMATION MODE on page

18 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Find the

clip attached to the key (see the drawing on page 13)

and slide the clip onto the waistband of your clothes.

Then, insert the key into the console. After a moment,

the displays will light. IMPORTANT: In an emergency

situation, the key can be pulled from the console,

causing the walking belt to slow to a stop. Test the

clip by carefully taking a few steps backward; if the

key is not pulled from the console, adjust the posi-

tion of the clip.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER to the left.

2. Select the manual mode.

When the key is in-

serted, the manual

mode will be se-

lected. If a classic

workout or the

weight loss center

has been selected, remove the key and then rein-

sert it.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the speed buttons

numbered 1 through 10.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1 mph.

As you exercise, change the speed of the walking

belt as desired by pressing the Speed increase and

decrease buttons. Each time you press a button,

the speed setting will change by 0.1 mph; if you

hold down a button, the speed setting will change

in increments of 0.5 mph. Note: After you press a

button, it may take a moment for the walking belt to

reach the selected speed setting.

If you press one of the numbered speed buttons, the

walking belt will gradually increase in speed until it

reaches the selected speed setting.

To stop the walking belt, press the Stop button. To

restart the walking belt, press the Start button or the

Speed increase button.

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease buttons. Each time

you press the Incline increase or decrease button,

the incline will change by 0.5%. Note: After you

press an Incline button, it may take a moment for

the treadmill to reach the selected incline setting.

Reset

Position

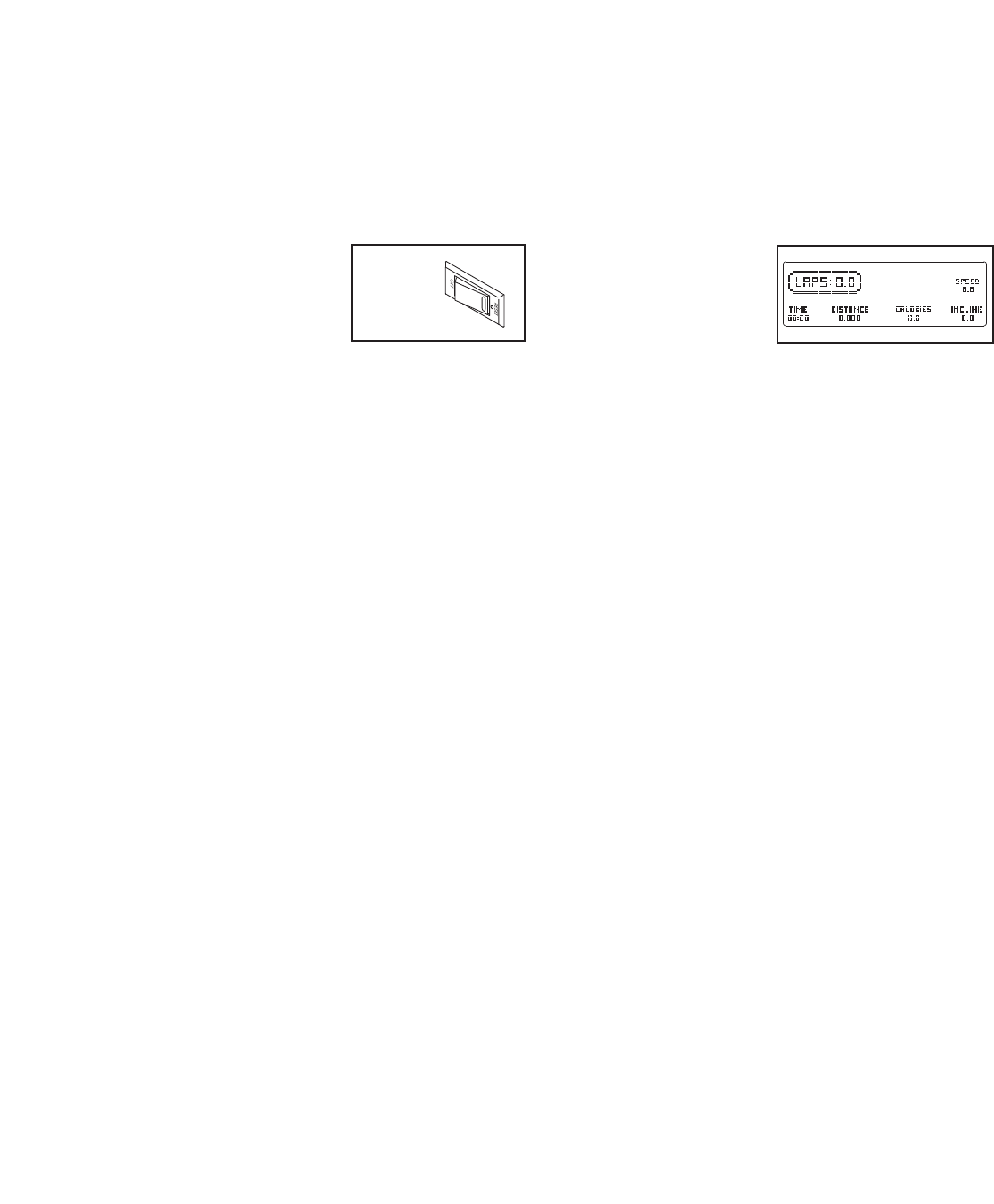

5. Select a display mode and monitor your

progress with the display.

As you walk or run on the treadmill, the display can

show the following workout information:

•A1/4-mile (400 meter) track.

•The approximate number of calories you have

burned.

•The elapsed time.

•The distance that you have walked or run.

•The incline level of the treadmill.

•The speed of the walking belt.

When the manual mode is selected, the console of-

fers two display modes. Press the Display button

repeatedly to select the desired display mode.

Regardless of which display mode you select, the

speed or incline setting will appear in the display for

afew seconds each time you change the setting. In

addition, your heart rate will appear in the display

each time you use the handgrip pulse sensor or the

optional chest pulse sensor.

To reset the console, press the Stop button, re-

move the key, and then reinsert the key.

6. Measure your heart rate if desired.

Note: If you use the handgrip pulse sensor and

the optional chest pulse sensor at the same

time, the display will not show your heart rate

accurately.

Before using the

handgrip pulse

sensor, remove

the sheets of

clear plastic from

the metal con-

tacts on the pulse

bar. In addition,

make sure that

your hands are clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on the

metal contacts. Avoid moving your hands.When

your pulse is detected, a heart symbol will flash in

the display each time your heart beats, one or two

dashes will appear, and then your heart rate will be

shown. For the most accurate heart rate reading,

continue to hold the contacts for about 15 sec-

onds.

7. When you are finished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest setting

or you may damage the treadmill when you fold

it to the storage position. Next, remove the key

from the console and put it in a secure place.

When you are finished using the treadmill,switch

the reset/off circuit breaker to the “off” position and

unplug the power cord. IMPORTANT: If you do

not do this, the treadmill’s electrical compo-

nents may wear prematurely.

Contacts

HOW TO USE A CLASSIC WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on

page 14.

2. Select a classic workout.

To select a classic

workout, press the

Classic Workouts

button repeatedly.

The duration, maxi-

mum speed set-

ting, and maximum incline setting of the workout

will appear in the display. In addition, a profile of

the speed settings for the workout will appear.

3. Press the Start button or the Speed increase

button to start the workout.

Amoment after you press the button, the treadmill

will automatically adjust to the first speed and in-

cline settings of the workout. Hold the handrails and

begin walking.

Each workout is divided into one-minute segments.

One speed setting and one incline setting are pro-

grammed for each segment. Note: The same

speed setting and/or incline setting may be pro-

grammed for consecutive segments.

A profile of the speed settings of the workout will ap-

pear in the display. A small arrow below the profile

will indicate your progress.

At the end of the first one-minute segment of the

workout, a series of tones will sound. If a different

speed setting and/or incline setting is programmed

for the second segment, the speed setting and/or

incline setting will flash in the display for a moment

toalert you. The treadmill will then automatically

adjust to the speed and incline settings for the sec-

ond segment. The arrow will then move one seg-

ment to the right.

The workout will continue in this way until the arrow

reaches the right end of the profile. The walking

belt will then slow to a stop.

If the speed or incline setting for the current seg-

ment is too high or too low, you can override the

setting by pressing the Speed or Incline buttons;

however, when the next segment begins, the

treadmill will automatically adjust to the speed

and incline settings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start but-

ton. The walking belt will begin to move at 1 mph.

When the next segment of the workout begins, the

treadmill will automatically adjust to the speed and

incline settings for the next segment.

4. Select a display mode and monitor your

progress with the display.

See step 5 on page 15.

5. Measure your heart rate if desired.

See step 6 on page 15.

6. When you are finished exercising, remove the

key from the console.

See step 7 on page 15.

HOW TO USE THE WEIGHT LOSS CENTER

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on

page 14.

2. Select a weight loss workout.

To use the weight loss center, press the Weight

Loss Center button.

Input your weight, the number of calories you wish

to burn, and the desired length of time for the work-

out by repeatedly pressing the increase and de-

crease buttons next to the Weight Loss Center but-

ton. Press the Enter button after each selection.

Note: Once you have entered your weight, it will be

saved in memory.

3. Press the Start button or the Speed increase

button to start the workout.

Amoment after you press the button, the treadmill

will automatically adjust to the first speed and in-

cline settings of the workout. Hold the handrails and

begin walking.

Each workout is divided into one-minute segments.

One speed setting and one incline setting are pro-

grammed for each segment. Note: The same

speed setting and/or incline setting may be pro-

grammed for consecutive segments.

Tones will sound at the end of each segment.

Three seconds before the speed and/or incline of

the treadmill is about to change, the speed setting

and/or incline setting will flash in the display for a

moment to alert you. The treadmill will then auto-

matically adjust to the speed and/or incline settings

for the next segment.

The workout will continue in this way until the last

segment ends. The walking belt will then slow to a

stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manually

override the setting by pressing the Speed or Incline

buttons; however, when the next segment be-

gins, the treadmill will automatically adjust to

the speed and incline settings for the next seg-

ment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start button

or the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

4. Select a display mode and monitor your

progress with the display.

See step 5 on page 15.

5. Measure your heart rate if desired.

See step 6 on page 15.

6. When you are finished exercising, remove the

key from the console.

See step 7 on page 15.

HOW TO USE THE STEREO SOUND SYSTEM

This product has been designed specifically to work

with iPod and has been certified by the developer to

meet Apple performance standards. To play music or

audio books through the console’s stereo speakers,

you must connect your iPod, CD player, or personal

audio player to the console through the audio jack or

through the Integrated Universal Dock for iPod.

To use the audio jack, locate the audio wire and plug it

into the audio jack near the Start button. Then, plug

the audio wire into a jack on your MP3 player, CD

player, or personal audio player. Make sure that the

audio wire is fully plugged in.

To use the Integrated Universal Dock for iPod, locate

the iFIT Universal iPod Connector. Plug one end into

the Integrated Universal Dock for iPod near the Start

button and the other end into your iPod. Make sure

that the iFIT Universal iPod Connector is fully

plugged in.

Next, press the Play button on your iPod, CD player, or

personal audio player. Adjust the volume on your iPod,

CD player, or personal audio player or press the

Volume increase and decrease buttons on the con-

sole.

If you are using a personal CD player and the CD

skips, set the CD player on the floor or another flat sur-

face instead of on the console.

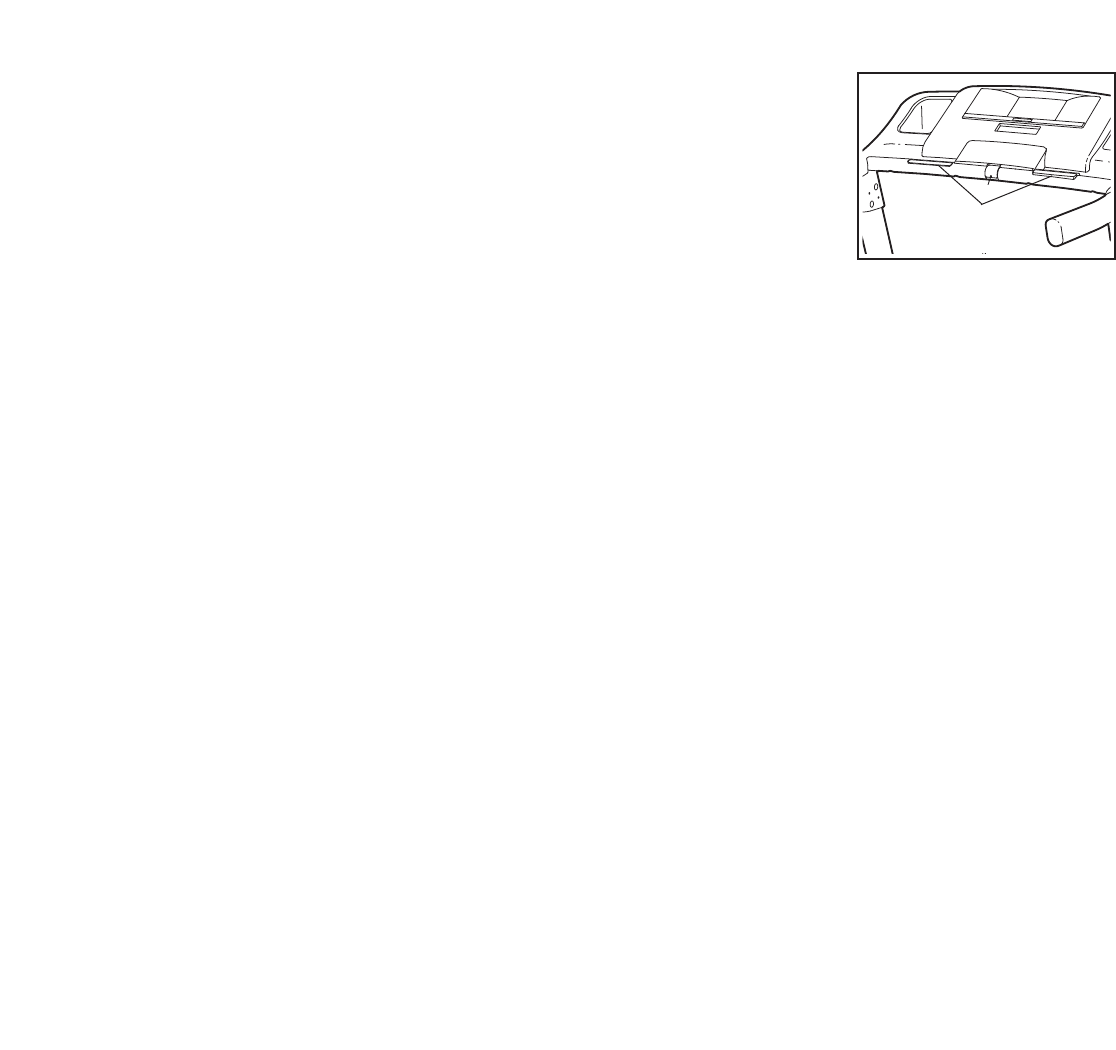

THE INFORMATION MODE

The console features an information mode that keeps

track of the total distance that the walking belt has

moved and the total number of hours that the treadmill

has been used. The information mode also allows you

to select a measurement system of miles or kilome-

ters, and to turn on and off the display demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console and then

release the Stop button. When the information mode is

selected, the following information will be shown:

The display will show

the total number of

hours the treadmill has

been used.

The display will also show the total number of miles (or

kilometers) that the walking belt has moved.

The word “English” for miles or “Metric” for kilometers

will appear in the display. Press the Speed increase

button to change the unit of measurement if desired.

Note: The console features a display demo mode, de-

signed to be used if the treadmill is displayed in a

store. While the demo mode is turned on, the console

will function normally when you plug in the power cord,

switch the reset/off circuit breaker to the reset position,

and insert the key into the console. However, when

you remove the key, the displays will remain lit, al-

though the buttons will not function. If the demo mode

is turned on, the word “On” will appear in the display

while the information mode is selected. To turn on or off

the demo mode, press the Speed decrease button.

To exit the information mode, remove the key from the

console.

THE OPTIONAL CHEST PULSE SENSOR

An optional chest pulse sensor offers hands-free oper-

ation as it tracks your heart rate during your workouts.

To purchase the optional chest pulse sensor, call

the 1-888-533-1333.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If you do not do this, you may damage the

treadmill when you fold it. Remove the key and unplug the

power cord. CAUTION: You must be able to safely lift 45

lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown by

the arrow at the right. CAUTION: To decrease the pos-

sibility of injury, do not lift the frame by the plastic

foot rails. Make sure to bend your legs and keep your

back straight as you raise the frame. Raise the frame

about halfway to the vertical position.

2. Raise the frame until the latch knob locks into the storage

position. Make sure that the latch knob is locked in

the storage position.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of di-

rect sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the latch

knob is locked in the storage position.

1. Hold a handrail and the frame and place one foot against

one of the wheels.

2. Tilt the treadmill back until it rolls freely on the wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back. To reduce

the risk of injury, use extreme caution while moving

the treadmill. Do not attempt to move the treadmill

over an uneven surface.

3. Place one foot against a wheel, and carefully lower the

treadmill until it is resting in the storage position.

Base

Handrail

Frame

Wheel

Latch Knob

Frame

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand.

Pull the latch knob to the left and hold it. It may be nec-

essary to push the frame forward as you pull the knob to

the left. Pivot the frame downward and release the latch

knob.

2. Hold the metal frame firmly with both hands and lower

it to the floor. CAUTION: Do not grip only the plastic

foot rails or drop the frame to the floor. Bend your legs

and keep your back straight.

Latch Knob

Frame

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assistance is needed, see the back cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 12). Use only a single-outlet surge suppres-

sor that meets all of the specifications described on page 12. Important: The treadmill is not com-

patible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the reset/off circuit breaker located on the

treadmill frame near the power cord. If the switch

protrudes as shown, the circuit breaker has

tripped. To reset the circuit breaker, wait for five

minutes and then press the switch back in.

PROBLEM: The power turns off during use

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait

for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. If the treadmill still will not run, please see the back cover of this manual.

PROBLEM: The console displays remain lit when you remove the key from the console

SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a

store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 18 to turn off the demo mode.

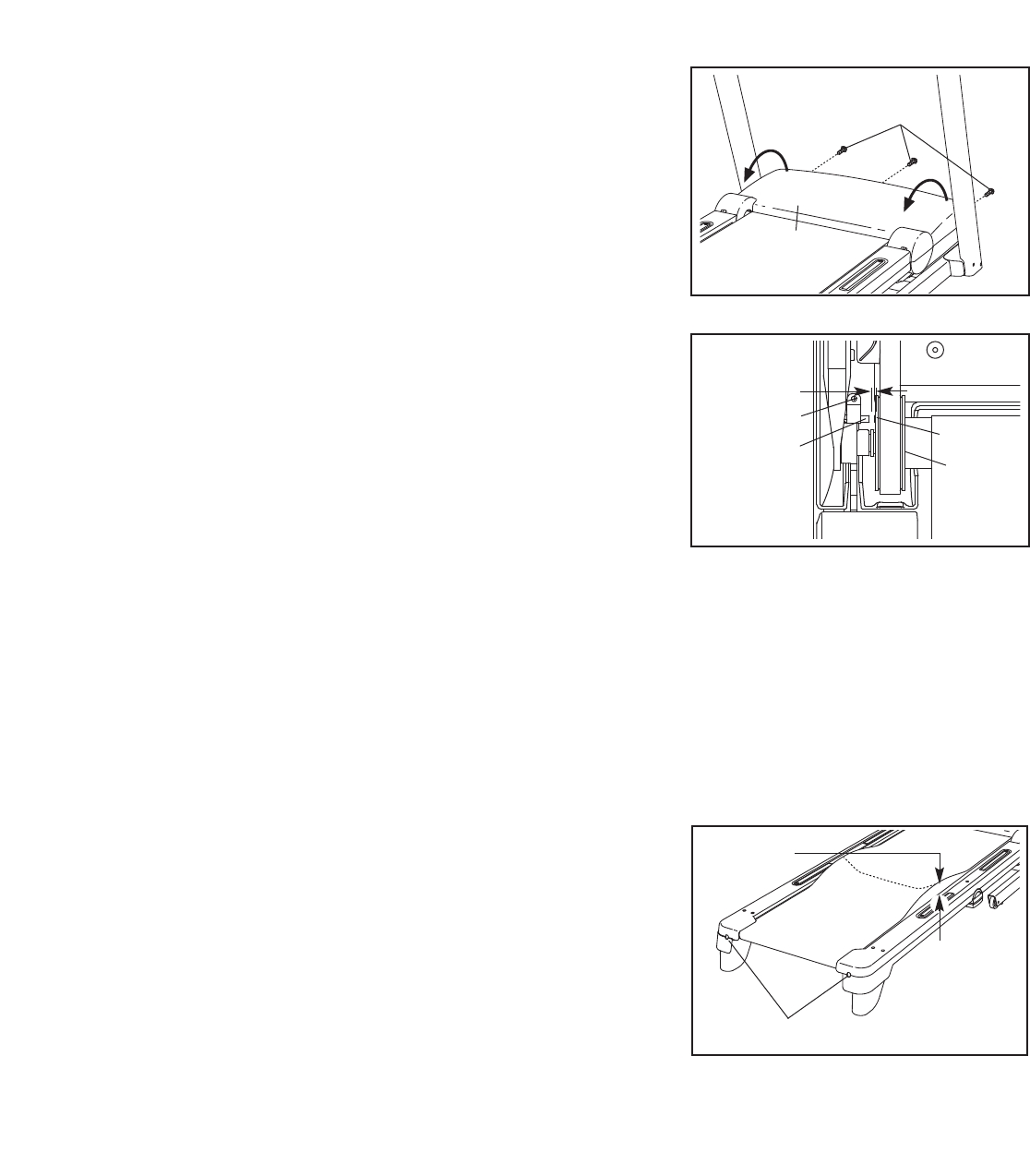

PROBLEM: The displays of the console do not function properly

SOLUTION:a. Remove the key from the console and UNPLUG

THE POWER CORD.With the help of a second

person, carefully tip the Uprights (74, 78) down.

There may be two #8 x 2" Screws (105) in the bot-

tom of the Belly Pan (73). If there are, remove

them. Note: A Phillips screwdriver with a shaft at

least 5 in. (13 cm) long is required.

Tripped Reset

105

Remove the key from the console and UNPLUG

THE POWER CORD. Remove the three #8 x 3/4"

Screws (12) and carefully pivot the Hood (57) off.

Locate the Reed Switch (64) and the Magnet (42)

on the left side of the Pulley (43). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet and

the Reed Switch is about 1/8 in. (3 mm). If neces-

sary, loosen the Reed Switch Screw (12), move the

Reed Switch slightly, and then retighten the Screw.

Reattach the Hood (not shown), and run the tread-

mill for a few minutes to check for a correct speed

reading.

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-

move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the

maximum incline level and then return to the minimum level. This will recalibrate the incline system.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG

THE POWER CORD.Using the hex key, turn both

rear roller bolts counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walking

belt is properly tightened.

c. If the walking belt still slows when walked on, see the back cover of this manual.

Top

View

1/8 in.

Rear Roller Bolts

2–3 in.

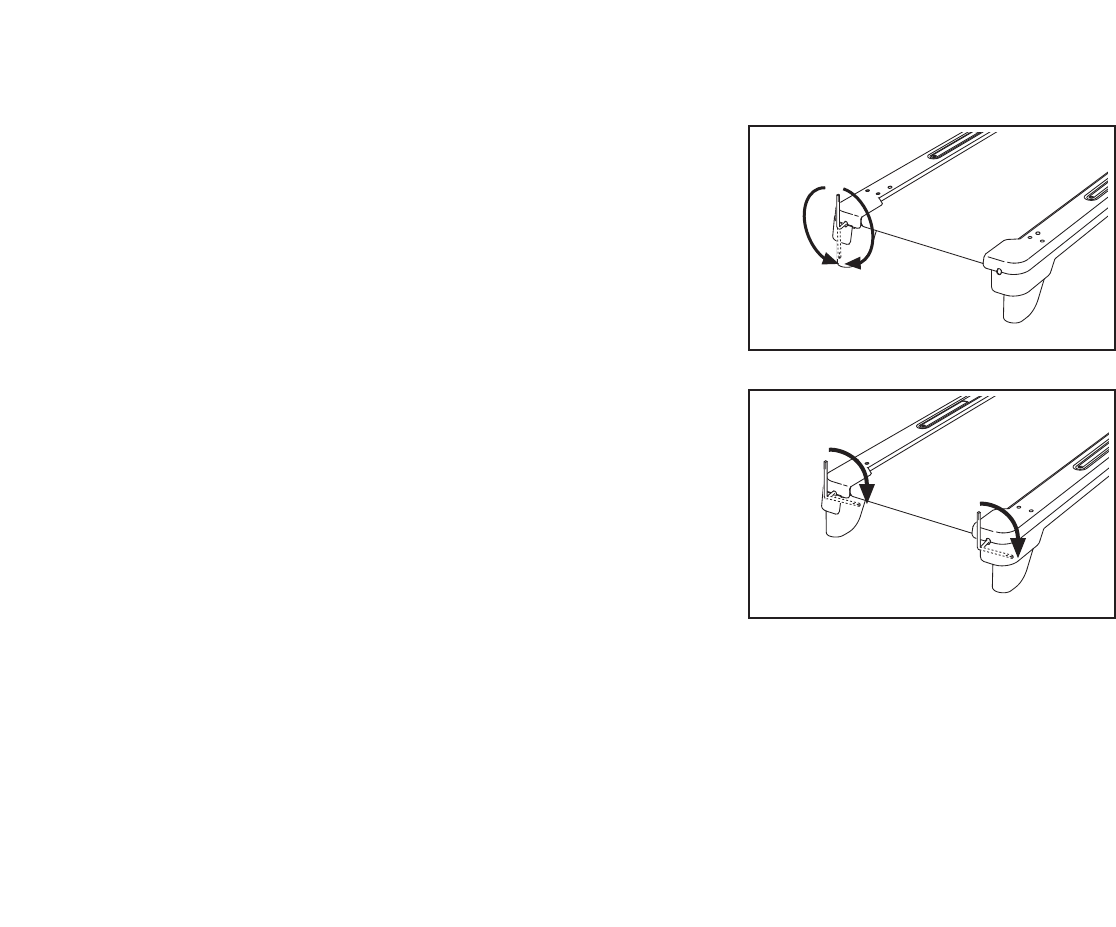

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a.Ifthe walking belt is off-center, first remove the

key and UNPLUG THE POWER CORD.If the

walking belt has shifted to the left, use the hex

key to turn the left rear roller bolt clockwise 1/2 of a

turn; if the walking belt has shifted to the right,

turn the bolt counterclockwise 1/2 of a turn. Be

careful not to overtighten the walking belt. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is centered.

b. If the walking belt slips when walked on, first re-

move the key and UNPLUG THE POWER CORD.

Using the hex key, turn both rear roller bolts clock-

wise, 1/4 of a turn. When the walking belt is cor-

rectly tightened, you should be able to lift each

edge of the walking belt 2 to 3 in. (5 to 7 cm) off

the walking platform. Be careful to keep the walk-

ing belt centered. Then, plug in the power cord, in-

sert the key, and carefully walk on the treadmill for

afew minutes. Repeat until the walking belt is

properly tightened.

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

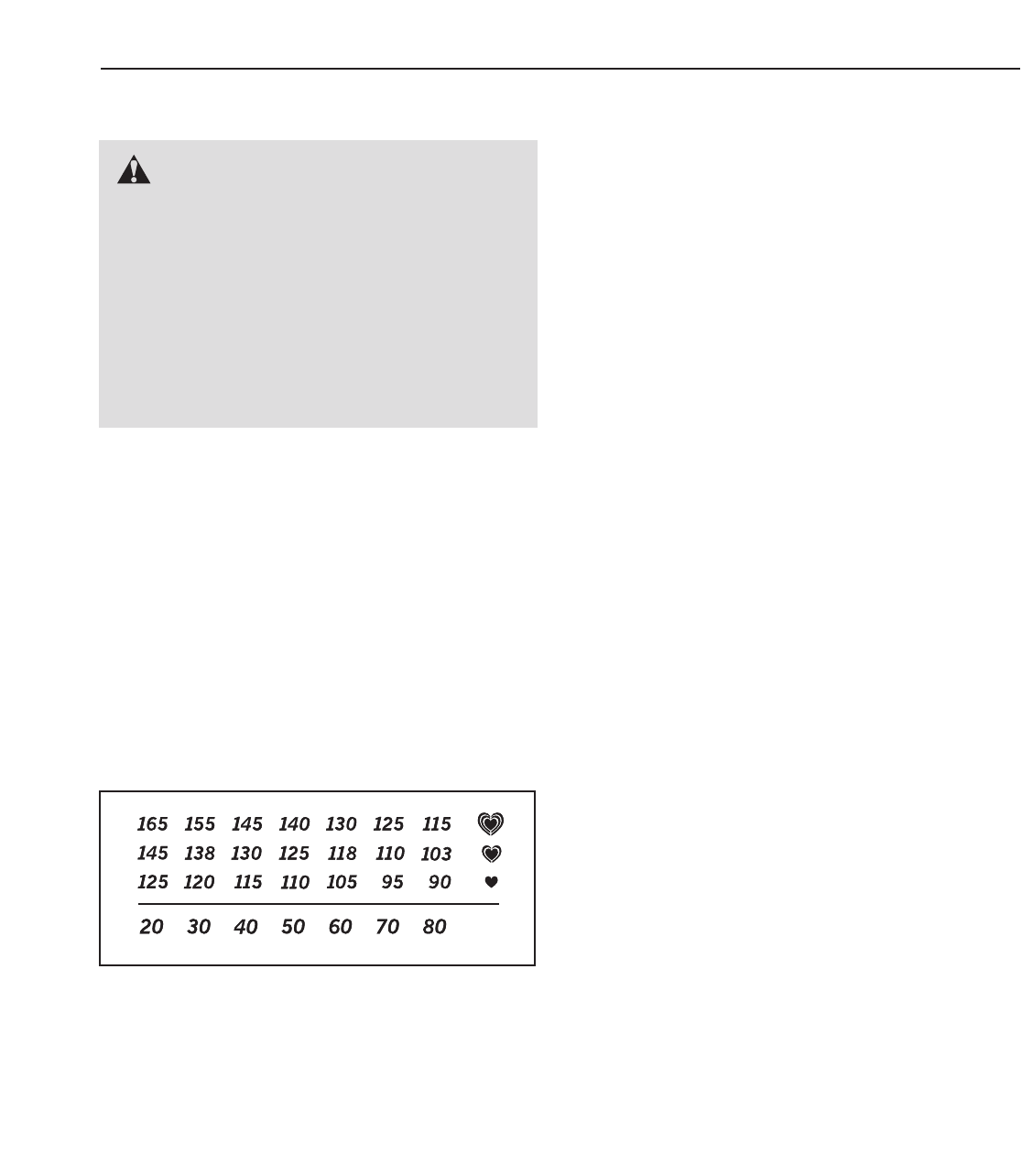

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses

carbohydrate calories

for energy. Only after

the first few minutes of exercise does your body begin

touse stored

fat calories

for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic exer-

cise, which is activity that requires large amounts of

oxygen for prolonged periods of time. For aerobic ex-

ercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming up—Start with 5 to 10 minutes of stretching

and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise–never hold your breath.

Cooling down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months of regular exer-

cise, you may complete up to five workouts each

week, if desired. Remember, the key to success is to

make exercise a regular and enjoyable part of your

everyday life.

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over the age of 35 or persons with pre-exist-

ing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is in-

tended only as an exercise aid in determining

heart rate trends in general.

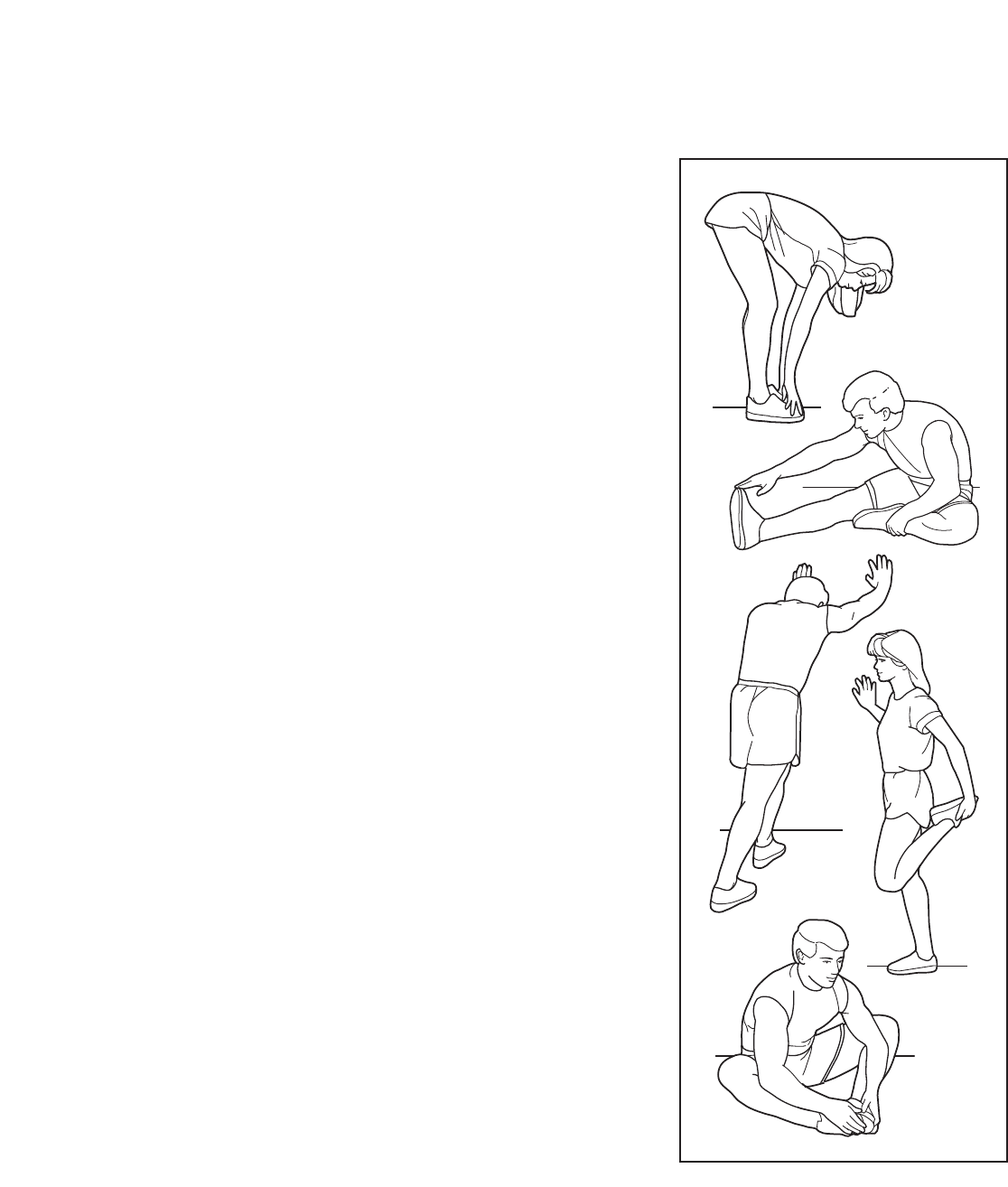

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.

1.Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts, then

relax. Repeat 3 times. Stretches: Hamstrings, back of knees and

back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat 3

times for each leg. To cause further stretching of the achilles ten-

dons, bend your back leg as well. Stretches: Calves, achilles ten-

dons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp

one foot with your other hand. Bring your heel as close to your but-

tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for

each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull

your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

PART LIST—Model No. 831.24755.1 R1107A

Key No. Qty. Description Key No. Qty. Description

16 #8 x 1/2" Screw

2 4 #8 x 1" Tek Screw

3 1 Hex Key

4 4 3/8" x 2" Bolt

5 2 #10 x 3/4" Screw

6 4 3/8" x 4" Bolt

7 4 3/8" x 1 1/4" Bolt

8 8 3/8" Nut

9 8 3/8" Star Washer

10 1 Latch Endcap

11 9 #8 x 3/4" Tek Screw

12 24 #8 x 3/4" Screw

13 2 Base Pad Spacer

14 1 Right Bottom Pulse Plate

15 1 3/4" Reed Switch Screw

16 2 #8 x 3/4" Endcap Screw

17 2 5/16" x 1 1/4" Bolt

18 2 M8 x 60mm Bolt

19 2 3/8" x 1 1/4" Bolt

20 2 Rear Roller Bolt

21 1 3/8" x 1 3/4" Bolt

22 1 3/8" x 1 1/2" Bolt

23 2 3/8" x 1" Bolt

24 10 1/2" Ground Screw

25 10 #12 x 1 1/4" Screw

26 2 Motor Bolt

27 2 #10 Star Washer

28 1 Reset/Off Circuit Breaker

29 4 Belt Guide Screw

30 2 1/4" Flat Washer

31 2 1/4" Lock Washer

32 1Transformer

33 1 Left Handrail

34 1 Right Handrail

35 1Audio Wire

36 2 5/16" Flange Nut

37 3 Hood Clip

38 1 Upright Wire

39 1 Lift Frame Ground Wire

40 4 1/4" x 1/2" Bolt

41 1 Left Foot Rail

42 1Warning Decal

43 2 Walking Platform Cushion

44 1 Walking Platform

45 1 Walking Belt

46 2 Belt Guide

47 1 Left Collar

48 2 Frame Spacer

49 2 Front Roller Spacer

50 1 Magnet

51 1 Front Roller/Pulley

52 2 15 1/2" Wire Tie

53 1 Storage Latch

54 1 Latch Knob

55 1 Right Foot Rail

56 1 Frame

57 2 Rear Roller Bracket

58 1 Rear Roller

59 2 Rear Foot

60 1 Right Collar

61 1 Hood

62 1 Drive Belt

63 2 Foot Rail Decal

64 1 Motor

65 1 Lift Frame

66 3 Wire Tie

67 1 Controller Ground Wire

68 1 Power Cord

69 1 Power Cord Grommet

70 1 Controller

71 1 Reed Switch

72 1 Reed Switch Clip

73 1 Belly Pan

74 1 Left Upright

75 1 Incline Motor

76 1 Left Upright Spacer

77 2 Base Endcap

78 1 Right Upright

79 1 Right Upright Spacer

80 4 Bolt Spacer

81 4 Base Pad

82 2Caution Decal

83 1 Base

84 2 Wheel

85 2Releasable Tie

86 10 8" Tie

87 1 Access Door

88 6 #3 x 1/4" Screw

89 1 Console

90 1 Left Tray

91 1 Right Tray

92 2Plastic Tie

93 1 Console Base

94 4 Console Clamp

95 1 Pulse Bar Bottom

96 1 Left Top Pulse Plate

97 2 Front Handrail Endcap

98 2 Rear Handrail Endcap

99 1 Left Bottom Pulse Plate

100 1 Key/Clip

To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.

Key No. Qty. Description Key No. Qty. Description

101 1 Pulse Bar Ground Wire

102 1 iFIT Universal iPod Connector

103 1 Filter Wire

104 1 Lift Motor Spacer

105 2 #8 x 2" Screw

106 1 Key Board

107 1 Frame/Roller Ground Wire

108 2 3/8" x 3/4" Bolt

109 1 3/8" x 4" Bolt

110 1 3/8" Motor Star Washer

111 1 Motor Bracket

112 2 3/8" Flange Nut

113 2 3/8" Motor Nut

114 1 Right Top Pulse Plate

* – 6" Blue Wire, 2F

* – 10" Red Wire, M/F

*– 10" Blue Wire, M/F

* – 12" Blue Wire, 2F

* – 8" Black Wire, M/F

* – User’s Manual

*These parts are not illustrated.

Specifications are subject to change without notice.

If a part is missing, call 1-888-533-1333.

107

EXPLODED DRAWING A—Model No. 831.24755.1 R1107A

103

105

108

110

111

108

109

113

112 62

EXPLODED DRAWING B—Model No. 831.24755.1 R1107A

113

104

EXPLODED DRAWING C—Model No. 831.24755.1 R1107A

102

100

101

106

27 5

14 114

EXPLODED DRAWING D—Model No. 831.24755.1 R1107A

Your Home

For repair—in your home—of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories, and user’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222 Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®(1-888-784-6427)

Get it fixed, at your home or ours!

®Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC

®Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC

ONE YEAR FULL WARRANTY

If this Sears Treadmill Exerciser fails due to a defect in material or workmanship within 1 year from the

date of purchase, call 1-800-4-MY-HOME®(1-800-469-4663) to arrange for free repair (or replacement if

repair proves impossible). The incline motor is warranted for 1 year from the date of purchase. The drive

motor is warranted for 25 years from the date of purchase. The frame is warranted for a lifetime.

This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Proform 247551 Xp Weight Loss 620 Treadmill Users Manual *294060 204705

Proform-620-Users-Manual-657956 proform-620-users-manual-657956

620 to the manual 60b90dc2-63ea-4969-a812-868cee5ffacc

Navigation menu

Versions of this User Manual:

Views

Navigation
