Proform 285441 Xp 130 Elliptical Users Manual PFEL39031 208048

Proform-285441-Owner-S-Manual proform-285441-owner-s-manual

: Proform Proform-285441-Xp-130-Elliptical-Users-Manual-697266 proform-285441-xp-130-elliptical-users-manual-697266 proform pdf

Open the PDF directly: View PDF .
Page Count: 28

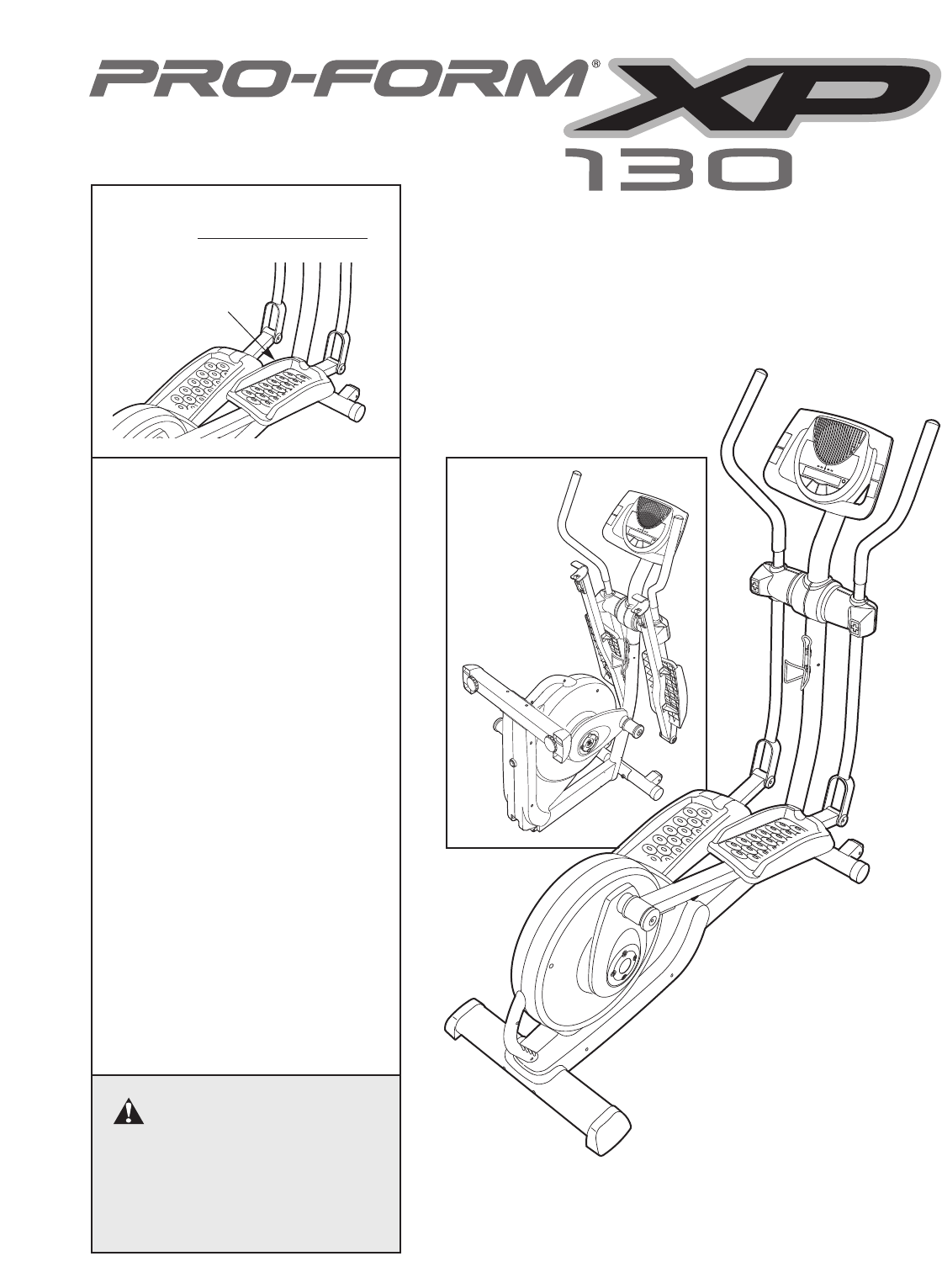

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manu-

al for future reference.

Serial

Number

Decal

Model No. 831.28544.1

Serial No. ELLIPTICAL EXERCISER

User’s Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

•Assembly

•Operation

•Maintenance

•Part List and Drawing

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

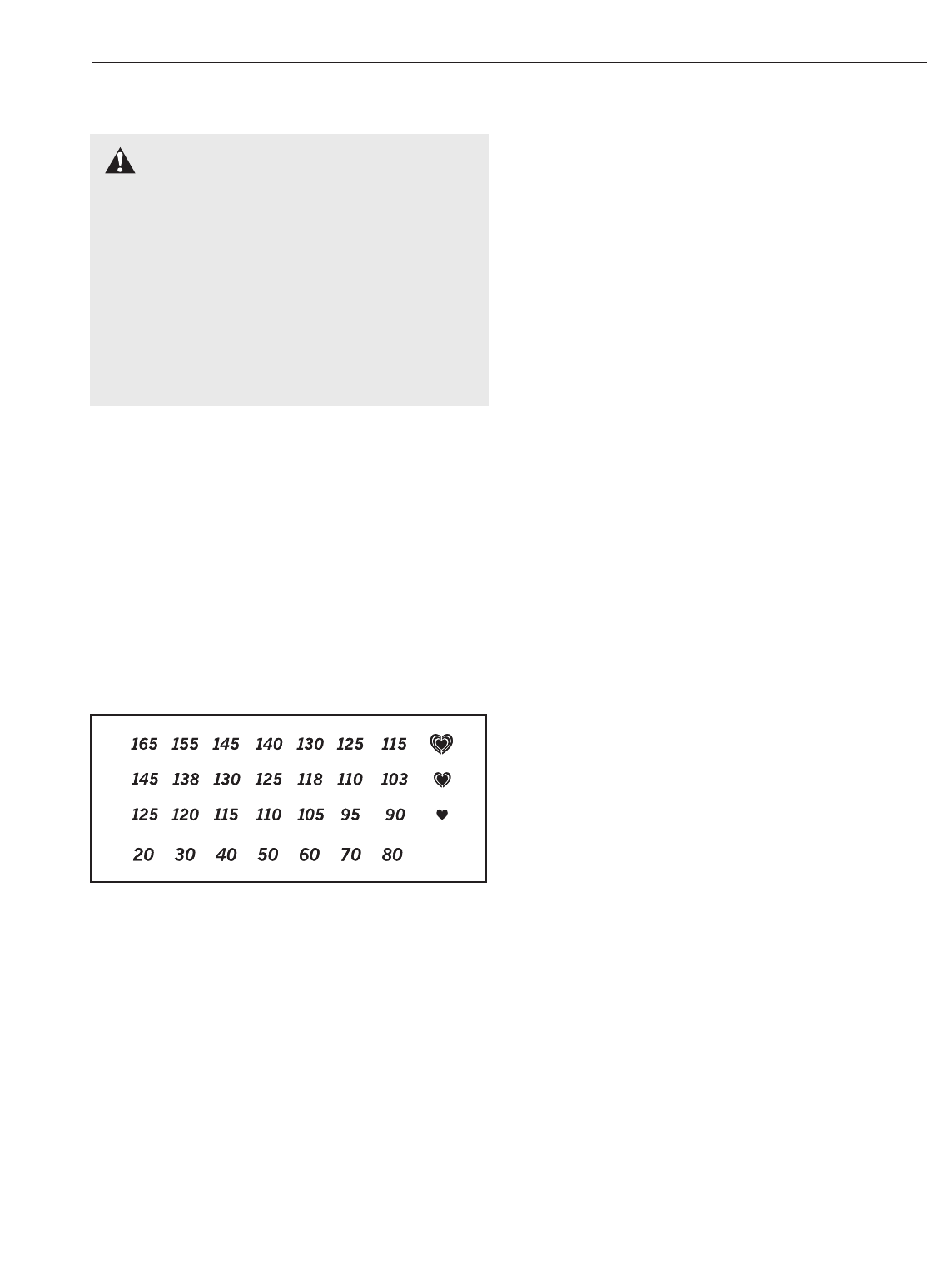

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

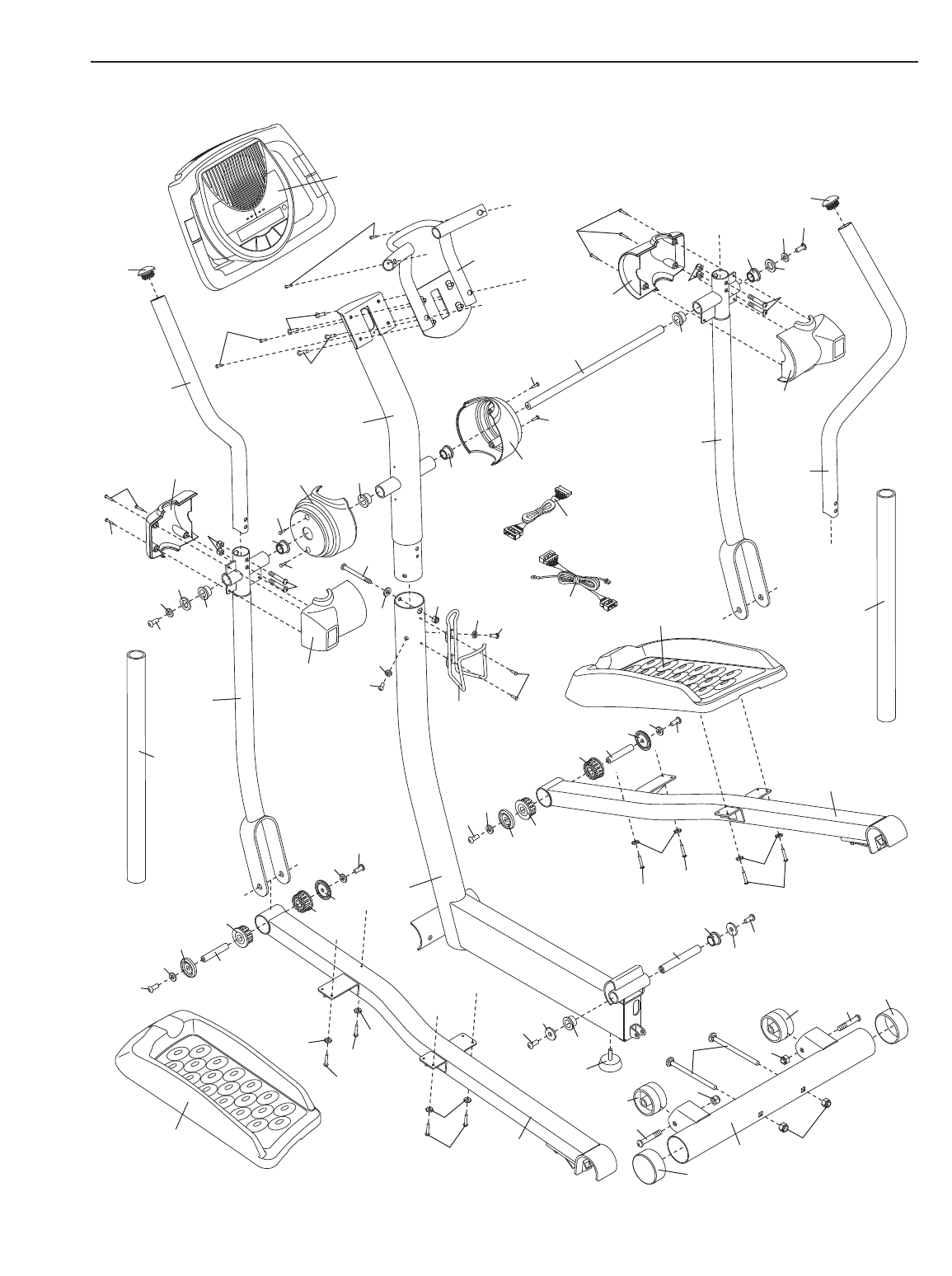

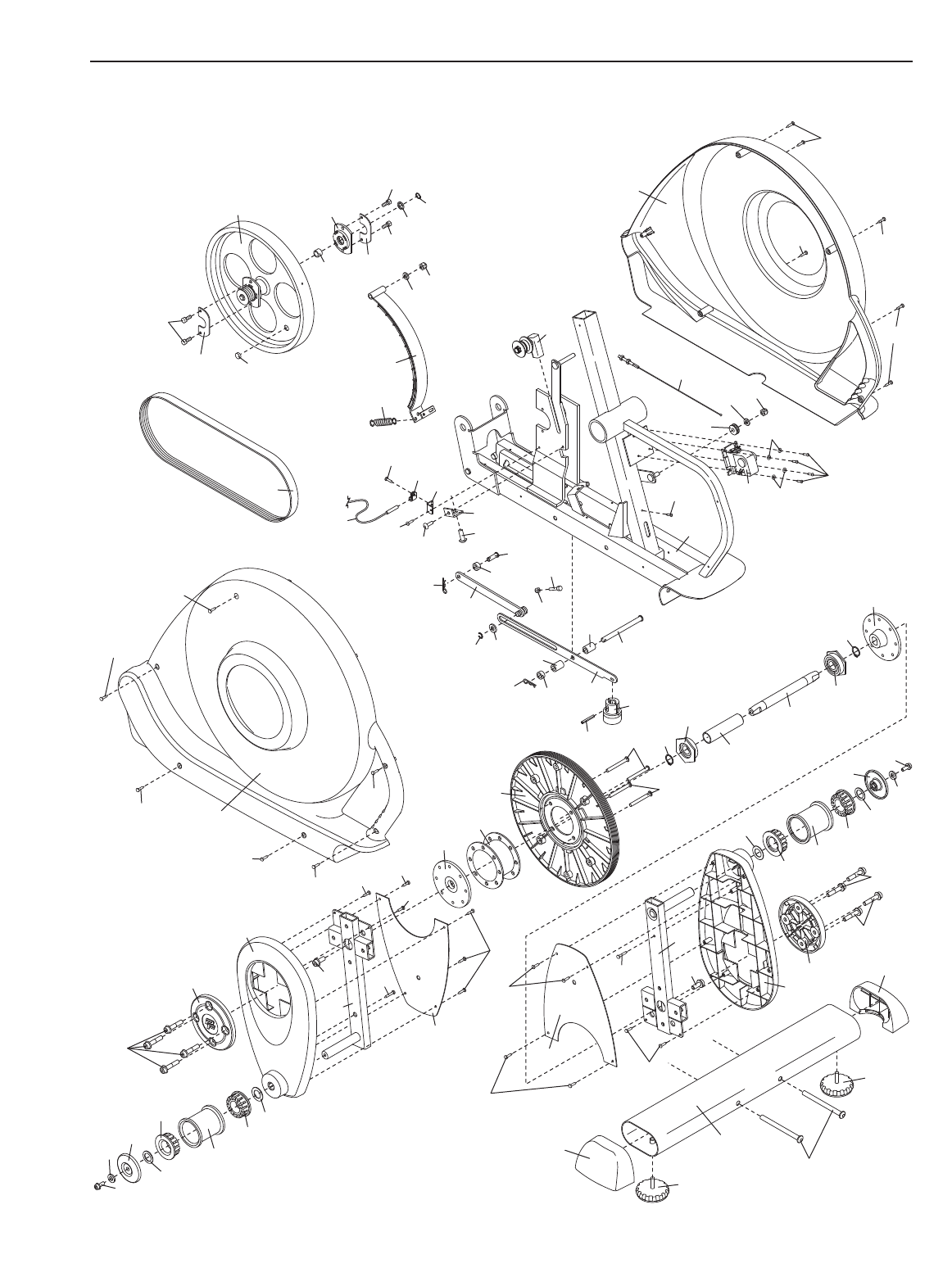

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

2

3

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical exerciser.

1. Read all instructions in this manual and all

warnings on the elliptical exerciser before

using the elliptical exerciser. Use the ellipti-

cal exercise only as described in this

manual.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. The elliptical exerciser is intended for

home use only. Do not use the elliptical

exerciser in a commercial, rental, or institu-

tional setting.

4. Keep the elliptical exerciser indoors, away

from moisture and dust. Place the elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around the elliptical exerciser to mount, dis-

mount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the elliptical exerciser at all times.

7. The elliptical exerciser should not be used

by persons weighing more than 250 pounds.

8. Wear appropriate exercise clothes when

using the elliptical exerciser. Always wear

athletic shoes for foot protection while exer-

cising.

9. Hold the handgrip pulse sensor or the han-

dlebars when mounting, dismounting, or

using the elliptical exerciser.

10. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

11. Keep your back straight when using the ellip-

tical exerciser; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13. When you stop exercising, allow the pedals

to slowly come to a stop.

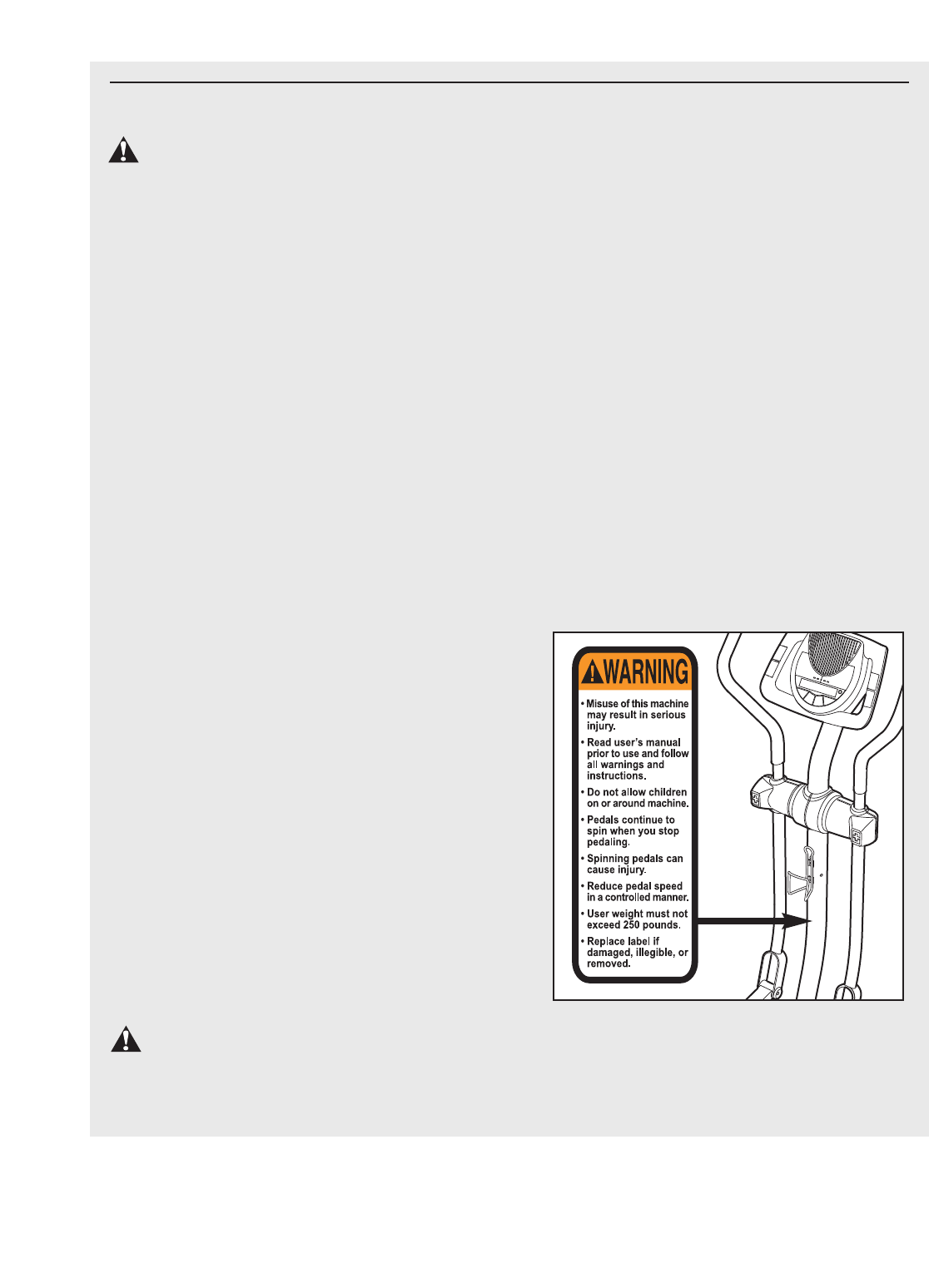

14. The decal shown below has been placed on

the elliptical exerciser.If the decal is miss-

ing, or if it is not legible, please call toll-free

1-888-533-1333 and order a free replacement

decal. Apply the decal in the location shown.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. Sears assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

4

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

XP 130 elliptical exerciser. The XP 130 elliptical exer-

ciser provides a wide array of features designed to

make your workouts at home more effective and

enjoyable—and when you’re not exercising, the

unique XP 130 can be folded out of the away.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, call 1-800-4-MY-

HOME®(1-800-469-4663). To help us assist you,

please note the product model number and serial

number before calling. The model number is

831.28544.1. The serial number can be found on a

decal attached to the elliptical exerciser (see the front

cover of this manual for the location of the decal).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor Handlebar

Pedal Disk

Wheel

Pedal

Console

Water Bottle Holder*

Leveling Foot

Handle Storage Latch

Storage Magnet

Fan

Pedal Arm Latch

*No water bottle is included

5

ASSEMBLY

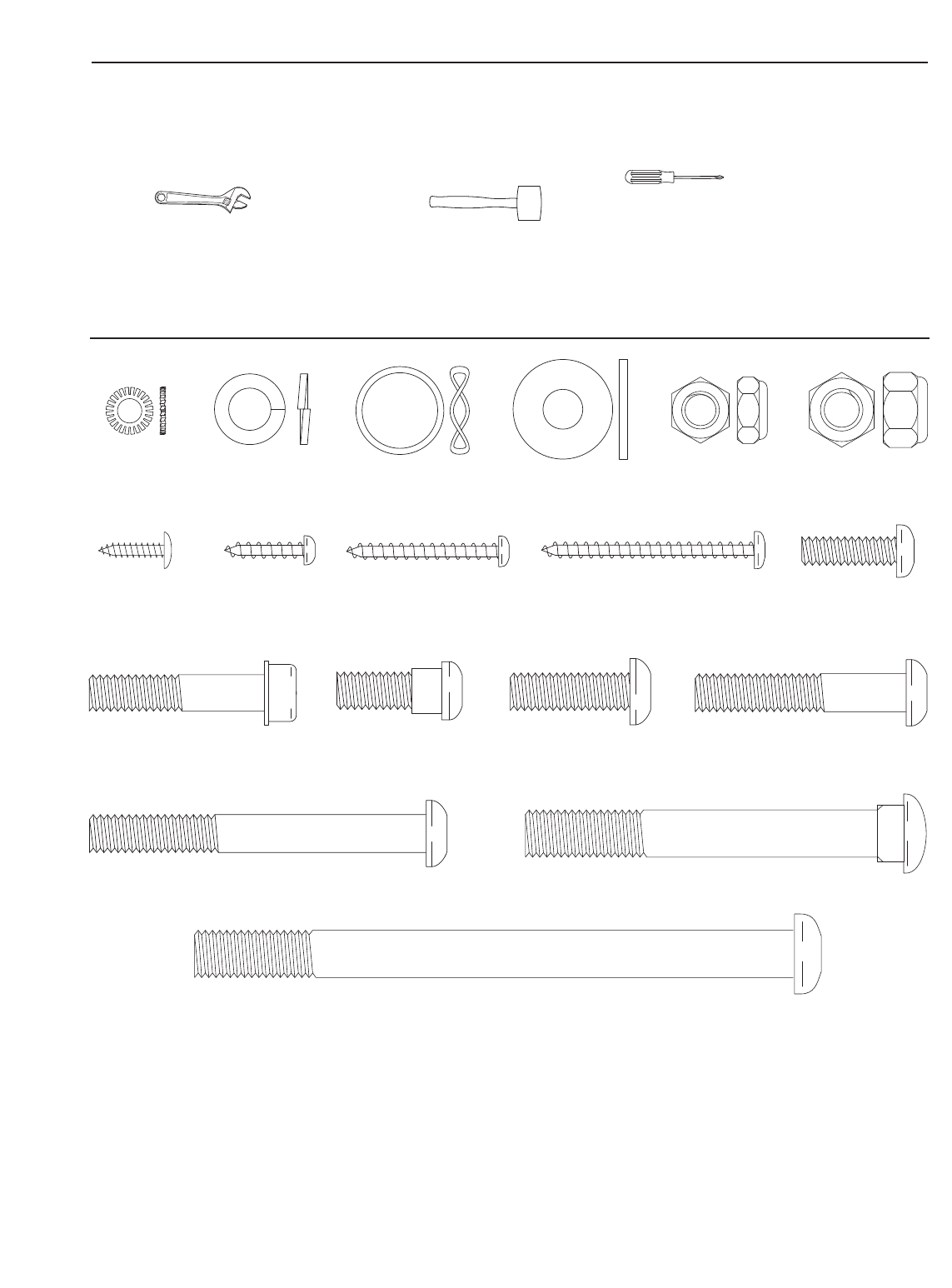

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included allen wrenches, assembly requires a phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST on page 25. The second number is the

quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in the

parts bag, check to see if it has been pre-assembled. If a part is missing, call toll-free 1-888-533-1333.

M10 x 127mm Button Screw (83)–2

M4 x 14mm

Screw (104)–8

M10 Nylon

Locknut (81)–2

M8 Jamnut

(79)–5

M8 Washer

(88)–6

Wave Washer

(111)–2

M8 x 23mm Button

Screw (84)–4

M8 Split

Washer (90)–3

M8 x 43mm Button

Bolt (78)–4

M4 x 16mm

Round Head

Screw (101)–8

M4 x 32mm

Round Head

Screw (105)–6 M4 x 45mm

Screw (108)–2

M8 x 23mm Shoulder

Screw (115)–4

M8 x 69mm Button

Bolt (80)–1 M10 x 80mm Carriage

Bolt (82)–2

M6 x 20mm Button

Screw (77)–4

Hub Screw (87)–8

Star Washer

(112)–8

6

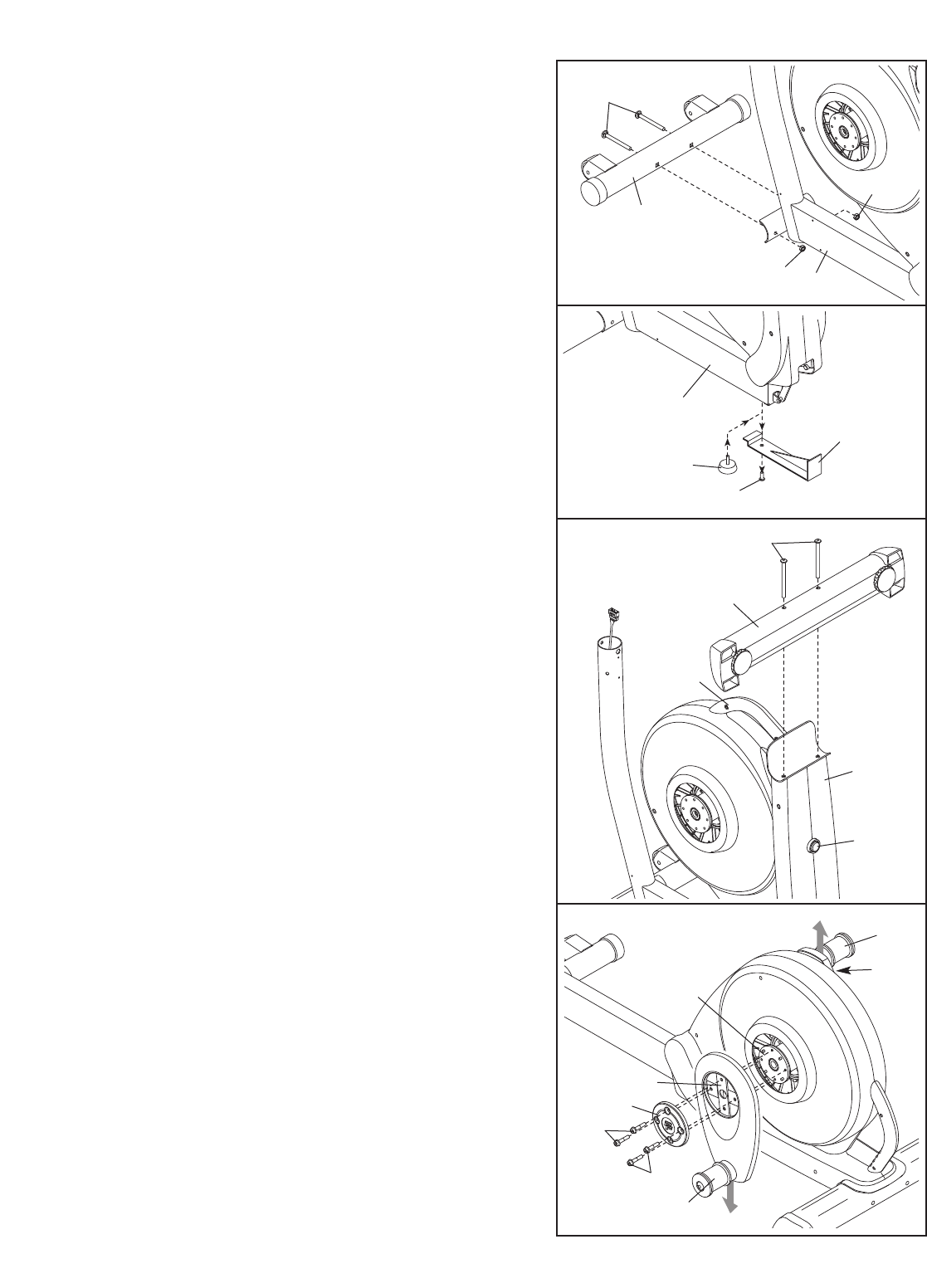

1. While another person lifts the Base (1), attach the

Front Stabilizer (6) to the Base with two M10 x 80mm

Carriage Bolts (82) and two M10 Nylon Locknuts (81).

2. Remove the indicated screw and bracket from the

Base (1). Discard the screw and the bracket.

Next, turn the Base Foot (26) into the Base (1) as far

as possible.

3. Attach the Rear Stabilizer (7) to the Frame (2) with two

M10 x 127mm Button Screws (83).

Next, hold the handle on the Frame (2), press the

Latch Button (68), and lower the Frame until the Rear

Stabilizer (7) is resting on the floor.

4. Hold a Hub Cover (75) and a Crank Arm (36) against

the left Crank Hub (38). Align the holes in the Hub

Cover and the Crank Arm with the unused holes in the

left Crank Hub. Next, insert four Hub Screws (87) into

the Hub Cover and the Crank Arm, and finger tighten

the Hub Screws into the left Crank Hub. Tighten one of

the Hub Screws, and then tighten the Hub Screw

across from the first Hub Screw. Then, tighten the

remaining two Hub Screws.

Repeat this step on the other side of the elliptical exer-

ciser; make sure that the Crank Arms (36) are ori-

ented so the Crank Bushing Sleeves (43) are in the

positions shown.

6

81

81

82

1

1

Bracket

26

Screw

383

7

Handle

2

68

2

4

36

38

75

87

87

36

43

1

43

8. While another person holds the Console (5) near the

Console Bracket (4), connect the wire harness on the

Console to the Upper Wire Harness (48). Insert the

excess wire harness into the Upright (3). Next, attach

the Console to the Console Bracket with four M4 x

16mm Round Head Screws (101). Be careful to avoid

pinching the wire harness.

7

6. Insert the end of the Upper Wire Harness (48) through

the rectangular hole in the Console Bracket (4). Attach

the Console Bracket to the Upright (3) with four M6 x

20mm Button Screws (77).

Orient one of the Upright Covers (17) as shown, and hold

it against the Upright (3). Attach the Upright Cover with

two M4 x 16mm Round Head Screws (101). Attach the

other Upright Cover in the same way.

7. The Console (5) requires four 1.5V “D” batteries (not

included); alkaline batteries are recommended. Press

the two tabs on the battery cover, and remove the bat-

tery cover.Next, insert four batteries into the Console.

Make sure that the batteries are oriented as shown

by the diagrams inside of the battery compart-

ments. Then, reattach the battery cover to the Console.

5. While another person holds the Upright (3), connect

the Upper Wire Harness (48) to the Lower Wire

Harness (49). Gently pull the upper end of the

Upper Wire Harness to remove any slack, and

insert the Upright into the Base (1). Attach the Upright

with an M8 x 69mm Button Bolt (80), an M8 Split

Washer (90), and an M8 Jamnut (79). Do not tighten

the Button Bolt yet; make sure that the Jamnut is

in the hexagonal hole in the Base.

Next, finger tighten two M8 x 23mm Button Screws

(84) with M8 Split Washers (90) into the Base (1). Do

not tighten the Button Screws yet.

Attach the Water Bottle Holder (22) to the Base (1)

with two M4 x 14mm Screws (104).

48

5

3

101

Wire

Harness

6

8

48

17 17

3

101

101

77

77

4

4

Battery

Cover

Batteries

Tabs

7

5

3

80

48

49

22

84

84

90

90

90 104

79

1

5

8

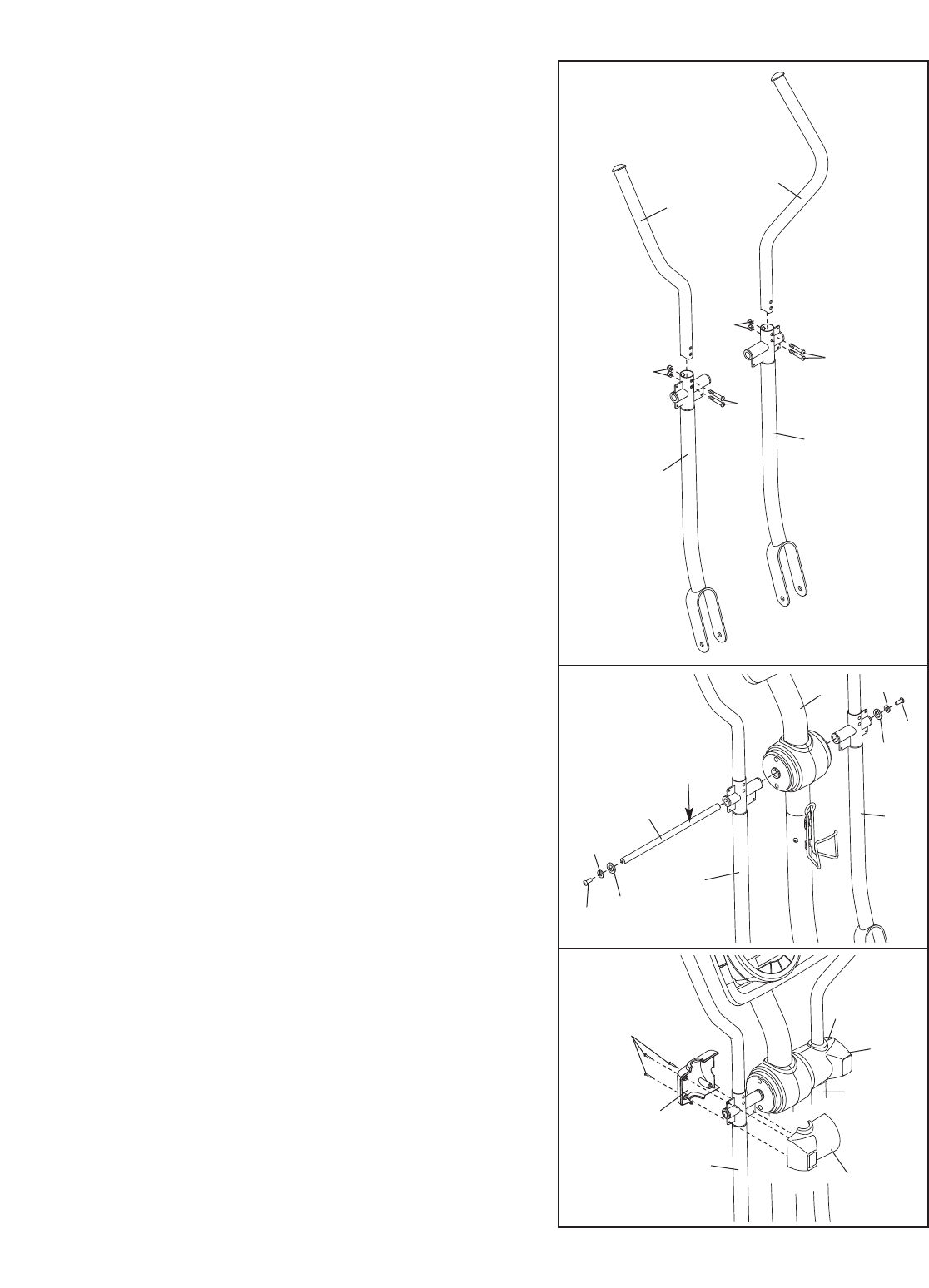

11. Hold the Left Front Handlebar Cover (18) and the Left

Rear Handlebar Cover (19) around the Left Upper Body

Arm (11). Attach the Handlebar Covers with three M4 x

32mm Round Head Screws (105).

Attach the Right Front Handlebar Cover (20) and the

Right Rear Handlebar Cover (21) in the same way.

10. Insert the Pivot Axle (74) into the Upright (3) and center

it. Apply a generous amount of the included grease to

the Pivot Axle.

Orient the Left Upper Body Arm (11) as shown, and

slide it onto the left end of the Pivot Axle (74). Slide the

Right Upper Body Arm (12) onto the right end of the

Pivot Axle.

Tighten an M8 x 23mm Button Screw (84) with an M8

Washer (88) and a Wave Washer (111) into each end of

the Pivot Axle (74). Make sure that the Wave Washers

are on the ends of the Pivot Axle.

9. Identify the Left Handlebar (8) and the Left Upper Body

Arm (11), which are marked with stickers.

Orient the Left Handlebar (8) and the Left Upper Body

Arm (11) as shown, and insert the Left Handlebar into the

Left Upper Body Arm. Attach the Left Handlebar with two

M8 x 43mm Button Bolts (78) and two M8 Jamnuts (79).

Make sure that the Jamnuts are in the hexagonal

holes in the Left Upper Body Arm.

Attach the Right Handlebar (9) to the Right Upper Body

Arm (12) in the same way.

9

11

89

12

88

84

111

88

74

3

84 111

12

11

78

78

79

79

20

21

105

12

19

Grease

11

10

18

11

9

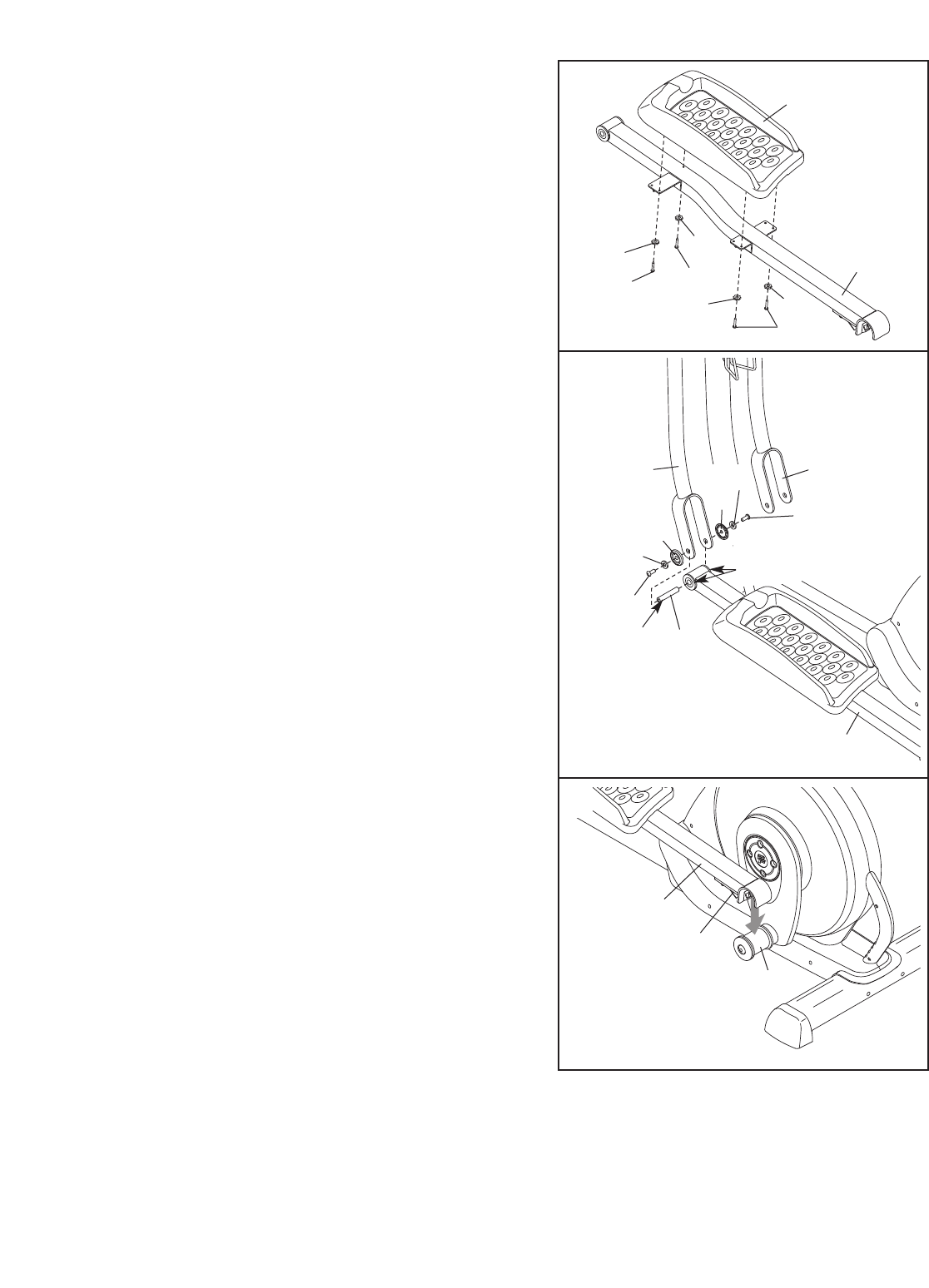

13. Apply a thin film of grease to one of the Pedal Leg Axles

(32) and to the faces of the two Pedal Leg Bushings

(33) in the Left Pedal Leg (14).

Next, slide an M8 Washer (88) and a Pedal Leg Cover

(31) onto an M8 x 23mm Shoulder Screw (115), and

turn the Shoulder Screw a few turns into the Pedal Leg

Axle (32).

While another person holds the front end of the Left

Pedal Leg (14) inside of the bracket on the Left Upper

Body Arm (11), insert the Pedal Leg Axle (32) into both

parts. Next, slide an M8 Washer (88) and a Pedal Leg

Cover (31) onto another M8 x 23mm Shoulder Screw

(115), and turn the Shoulder Screw a few turns into the

Pedal Leg Axle. Tighten both Shoulder Screws.

Repeat this step on the other side of the elliptical exer-

ciser.

14. Lift the latch on the underside of the Left Pedal Leg

(14), and set the Left Pedal Leg on the left Crank

Bushing Sleeve (43). Release the lever, and make sure

that the Left Pedal Leg is securely connected to the

Crank Bushing Sleeve.

Connect the Right Pedal Leg (not shown) in the same

way.

See step 5. Tighten the M8 x 69mm Button Bolt (80)

and the two M8 x 23mm Button Screws (84).

12. Identify the Left Pedal (13) and the Left Pedal Leg

(14), which are marked with stickers.

Attach the Left Pedal (13) to the Left Pedal Leg (14)

with an M4 x 45mm Screw (108), three M4 x 14mm

Screws (104), and four Star Washers (112).

Attach the Right Pedal (not shown) to the Right Pedal

Leg (not shown) in the same way.

15. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be

left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical exerciser.

Grease

13

115

32

88 31

12

11

31

14

Latch

14

43

13

14

104

104

112 112

112 112

14

108

12

88

33

Grease

115

10

HOW TO USE THE ELLIPTICAL EXERCISER

HOW TO FOLD AND UNFOLD THE ELLIPTICAL

EXERCISER

When the elliptical exerciser is not in use, the frame

can be folded out of the way. First, lift the latch under

each pedal leg, and lift the pedal legs off the sleeves

on the crank arms.

Next, raise the pedal legs until they touch the magnets

on the upper body arms; the magnets will hold the

pedal legs in place. Then, hold the handle and lift the

frame until it locks in a vertical position.

To use the elliptical exerciser, first hold the handle,

press the latch button, and lower the frame.

Next, pull the pedal legs off the magnets on the upper

body arms. Then, lift the latches under the pedal

legs, and set the pedal legs on the sleeves on the

crank arms. Release the latches, and make sure that

the pedal legs are securely connected to the crank

arms.

HOW TO MOVE THE ELLIPTICAL EXERCISER

To move the elliptical exerciser, first fold it as

described at the left. Next, stand in front of the ellipti-

cal exerciser, hold the handle on the console bracket,

and place one foot against the center of the front sta-

bilizer. Pull the handle until the elliptical exerciser will

roll on the front wheels. Carefully move the elliptical

exerciser to the desired position, and then lower it.

HOW TO LEVEL THE ELLIPTICAL EXERCISER

If the elliptical exerciser rocks slightly on your floor

during use, turn one or both of the leveling feet

beneath the rear stabilizer until the rocking motion is

eliminated.

Latch

Sleeve

Pedal Leg

Crank

Arm

Handle

Place

your foot

here

Magnet

Handle

Frame

Latch

Button

Pedal Leg

Leveling

Feet

11

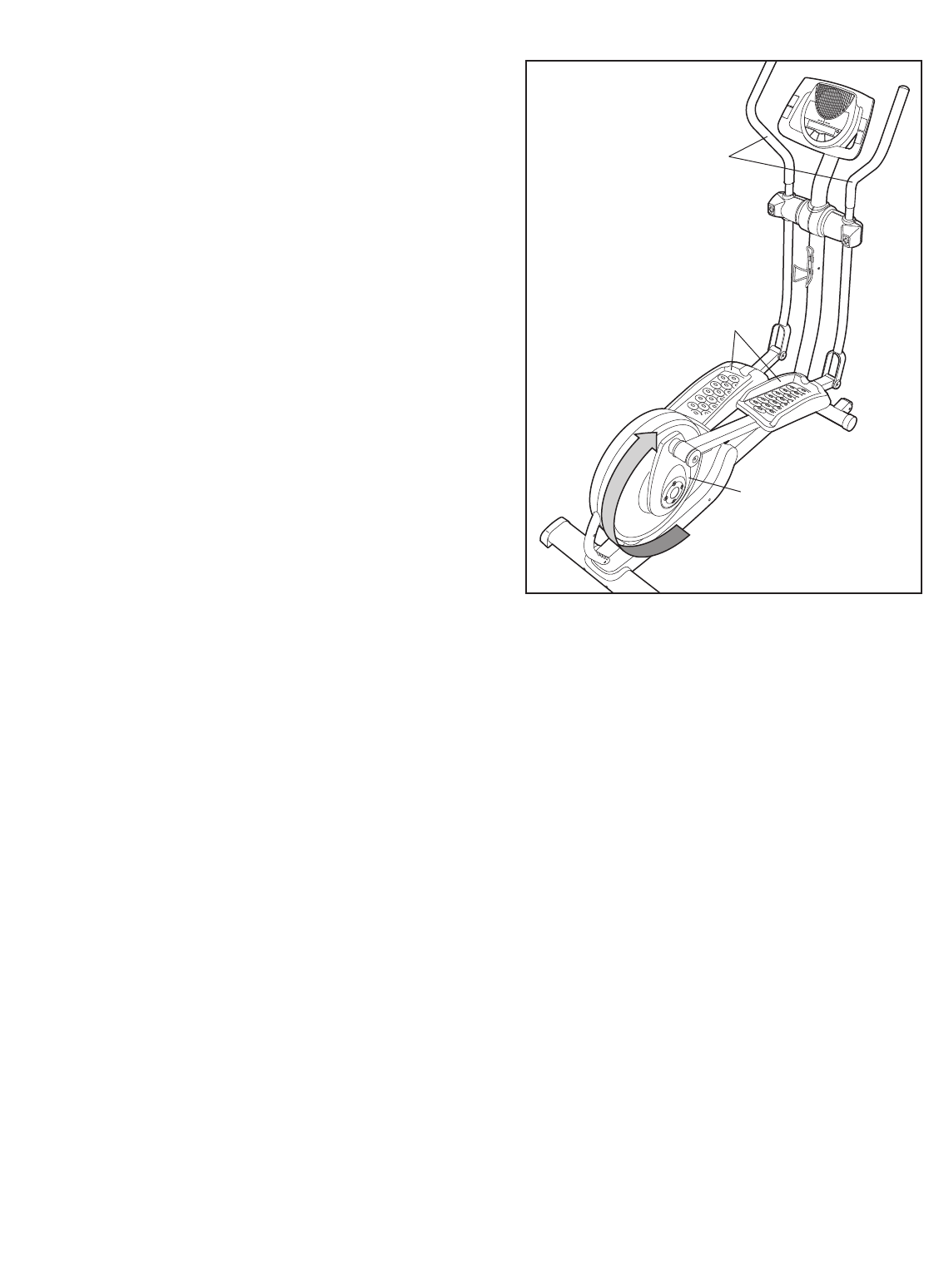

HOW TO EXERCISE ON THE ELLIPTICAL

EXERCISER

To mount the elliptical exerciser, hold the handlebars

and step onto the pedal that is in the lowest position.

Next, step onto the other pedal. Push the pedals until

they begin to move with a continuous motion.

Note: The crank arms can turn in either direction.

It is recommended that you turn the crank arms in

the direction shown by the arrow at the right; how-

ever, for variety, you can turn the crank arms in the

opposite direction.

To dismount the elliptical exerciser, wait until the ped-

als come to a complete stop. Note: The elliptical

exerciser does not have a free wheel; the pedals

will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

Pedals

Crank Arm

Handlebars

12

FEATURES OF THE CONSOLE

The advanced console offers an array of features

designed to make your workouts more effective and

enjoyable. When the manual mode of the console is

selected, you can change the resistance of the pedals

with the touch of a button. As you exercise, the con-

sole will provide continuous exercise feedback. You

can even monitor your heart rate using the handgrip

pulse sensor.

The console also offers a selection of preset programs.

The two calorie goal programs allow you to choose a

calorie-burning goal for your workout. As you exercise,

the console will count the calories that you burn until

the goal is reached.

The two pulse control programs automatically control

the resistance of the pedals and prompt you to

increase or decrease your pedaling pace to keep your

heart rate near a target heart rate setting during your

workout.

The distance program counts the number of revolu-

tions that you pedal during your workout, until you

have completed 5,000 revolutions.

The three resistance & rpm programs automatically

change the resistance of the pedals and prompt you to

vary your pedaling pace as they guide you through an

effective workout.

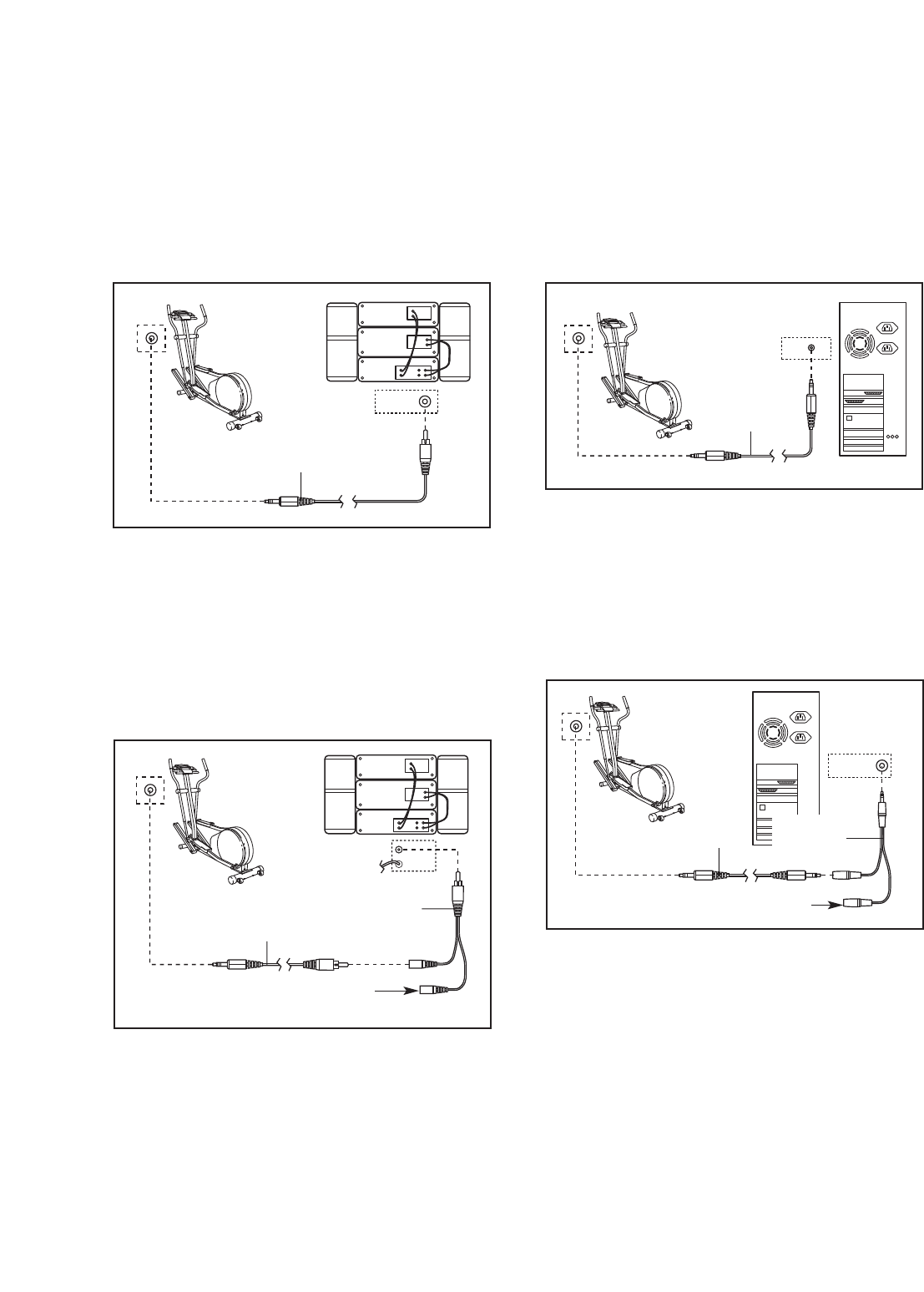

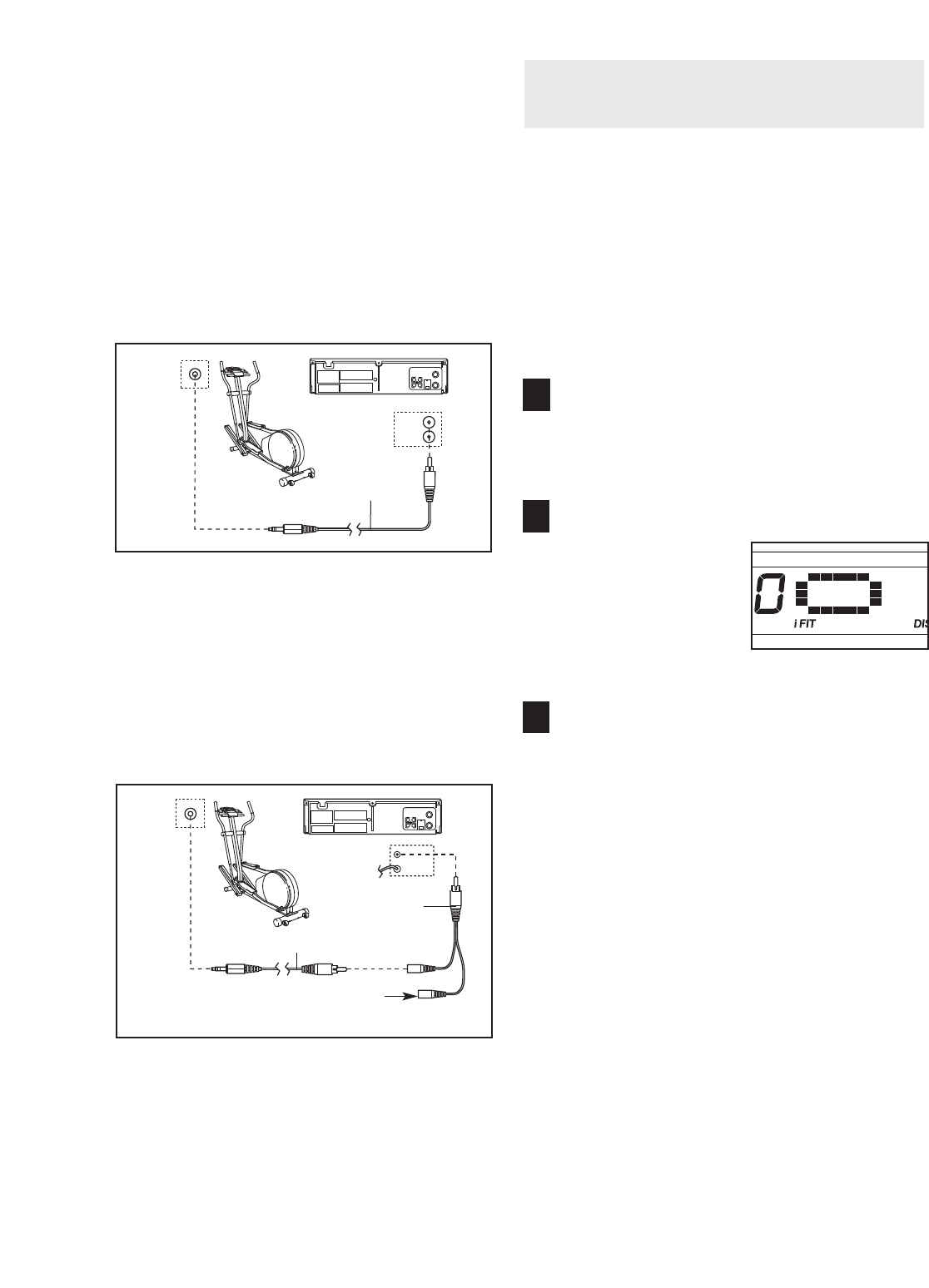

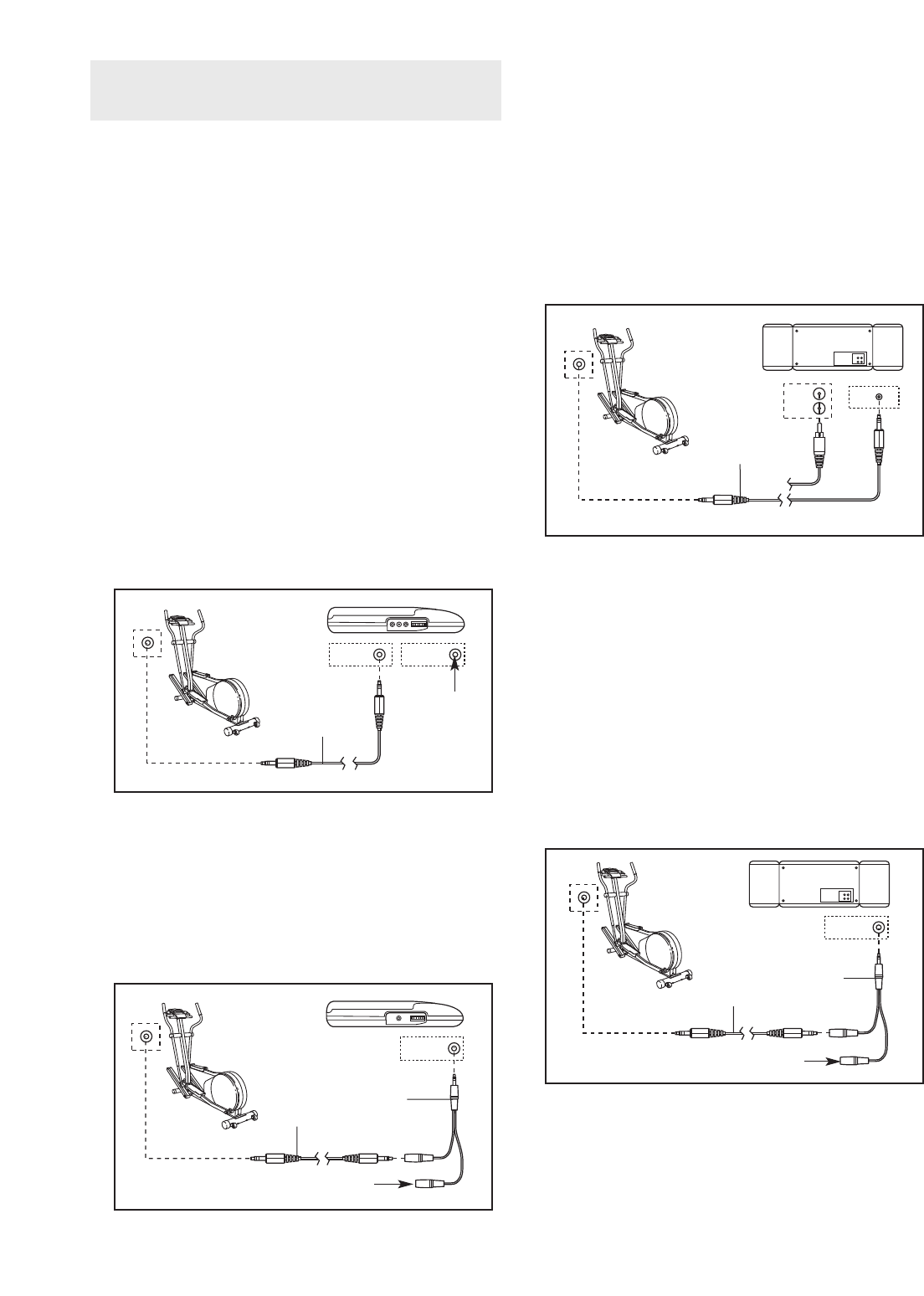

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com technology is like having a per-

sonal trainer in your home. Using a stereo audio cable

(available at electronics stores), you can connect the

elliptical exerciser to your portable stereo, home stereo,

computer,or VCR and play special iFIT.com CD and

video programs (iFIT.com CDs and videocassettes are

available separately). iFIT.com programs automatically

control the resistance of the pedals and prompt you to

vary your pace as a personal trainer coaches you

through every step of your workout. High-energy music

provides added motivation. Topurchase iFIT.com

CDs and videocassettes, call the toll-free tele-

phone number on the front cover of this manual.

With the elliptical exerciser connected to your comput-

er,you can also go to our Web site at www.iFIT.com

and access programs directly from the internet.

Explore www.iFIT.com for more information.

13

To use the manual mode of the console,follow the

steps beginning on page 13. To use a calorie goal

program,see page 15. Touse a pulse control pro-

gram,see page 15. To use the distance program,

see page 17. Touse a resistance & rpm program,

see page 17. To use an iFIT.com CD or video pro-

gram,see page 21. To use an iFIT.com program

directly from our Web site,see page 22.

Note: If there is a sheet of clear plastic on the face of

the console, remove the plastic.

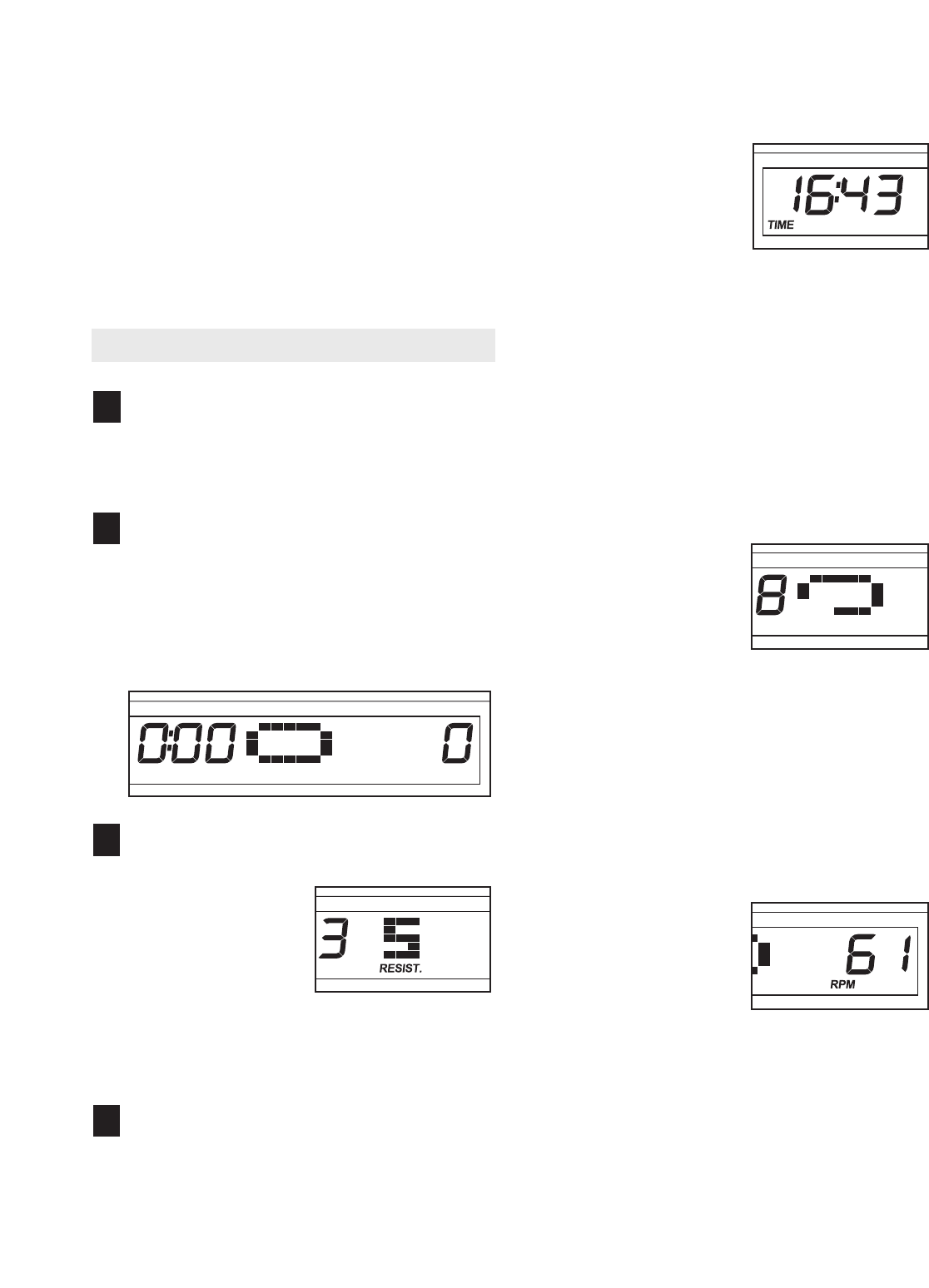

HOW TO USE THE MANUAL MODE

Press the Resistance decrease button or

begin pedaling to turn on the console.

A moment after the console is turned on, the dis-

play will light.

Select the manual mode.

Each time the console is turned on, the manual

mode will be selected automatically. If you have

selected a program or the iFIT.com mode, select

the manual mode by pressing the Programs but-

ton repeatedly until the display appears as shown

below.

Begin pedaling and change the resistance of

the pedals as desired.

As you pedal, change

the resistance of the

pedals by pressing

the Resistance

increase and

decrease buttons

repeatedly.There are

ten resistance levels. Note: After the buttons are

pressed, it will take a moment for the pedals to

reach the selected resistance level.

Monitor your progress with the display.

Note: The display can be backlit with any of three

colors, or the backlighting can be turned off to

conserve the batteries. Press the Display Color

button repeatedly to select a color or to turn off

the backlighting.

The left side of the

display—The left side

of the display will

show the elapsed

time, the approximate

number of calories

you have burned, and

the approximate number of grams of carbs you

have burned. Note: When some preset programs

are selected, the display will show the time

remaining in the program instead of the elapsed

time. When a calorie goal program is selected,

the display will show the number of calories still to

be burned instead of the number of calories you

have burned.

The left side of the display will also show your

heart rate when you use the handgrip pulse sen-

sor (see step 5 on page 14).

The center of the

display—When the

manual mode, a calo-

rie goal program, the

distance program, or

the iFIT.com mode is

selected, the center of

the display will show a track that represents 640

revolutions. As you exercise, the indicators around

the track will appear in succession until the entire

track appears. The track will then disappear and

the indicators will again begin to appear in suc-

cession.

The center of the display will also show the resis-

tance setting of the pedals for a few seconds each

time the resistance setting changes.

The right side of the

display—The right

side of the display will

show the distance

(total revolutions) you

have pedaled and

your pedaling pace

(revolutions per minute [rpm]). Note: When the

distance program is selected, the display will

show the number of revolutions still to be pedaled

instead of the number of revolutions you have

pedaled.

4

3

2

1

14

Measure your heart rate if desired.

Ifthere are thin

sheets of plastic on

the metal contacts

on the handgrip

pulse sensor, peel

off the plastic. To

measure your heart

rate, hold the hand-

grip pulse sensor,

with your palms rest-

ing against the metal contacts. Avoid moving

your hands or gripping the contacts too

tightly.

When your pulse is

detected, a heart-

shaped symbol will

flash in the left side

of the display each

time your heart

beats, one or two

dashes will appear, and then your heart rate will

be shown. For the most accurate heart rate read-

ing, hold the contacts for at least 15 seconds.

Note: If you continue to hold the handgrip pulse

sensor, the display will show your heart rate for

up to 30 seconds. The display will then show your

heart rate along with the other modes.

If your heart rate is not shown, make sure that

your hands are positioned as described. Be care-

ful not to move your hands excessively or to

squeeze the metal contacts too tightly. For opti-

mal performance, clean the metal contacts using

asoft cloth; never use alcohol, abrasives, or

chemicals.

Turn on the fan if desired.

To turn on the fan at low speed, press the Fan

button. To turn on the fan at high speed, press

the button a second time. To turn off the fan,

press the button a third time. Note: If the pedals

are not moved for a few minutes, the fan will

automatically turn off to conserve the batteries.

Pivot the thumb tab

on the right side of

the fan to adjust the

angle of the fan.

When you are finished exercising, the console

will automatically turn off.

If the pedals are not moved for several seconds, a

tone will sound and the console will pause.

If the pedals are not moved for about five min-

utes, the console will turn off and the display will

be reset.

7

6

5

Thumb

Tab

Metal Contacts

15

HOW TO USE A CALORIE GOAL PROGRAM

Press the Resistance decrease button or

begin pedaling to turn on the console.

Amoment after the console is turned on, the dis-

play will light.

Select one of the calorie goal programs.

Press the Programs

button repeatedly

until “P 1” or “P 2”

and a goal of 300

calories or 500 calo-

ries appear in the dis-

play.

Begin pedaling to start the program.

When a calorie goal program is used, the console

will function in the same way as when the manual

mode is selected, except the left side of the dis-

play will show the number of calories still to be

burned instead of the number of calories you

have burned.When the calorie goal is reached, a

tone will sound and the time will stop incrementing

in the display.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 14.

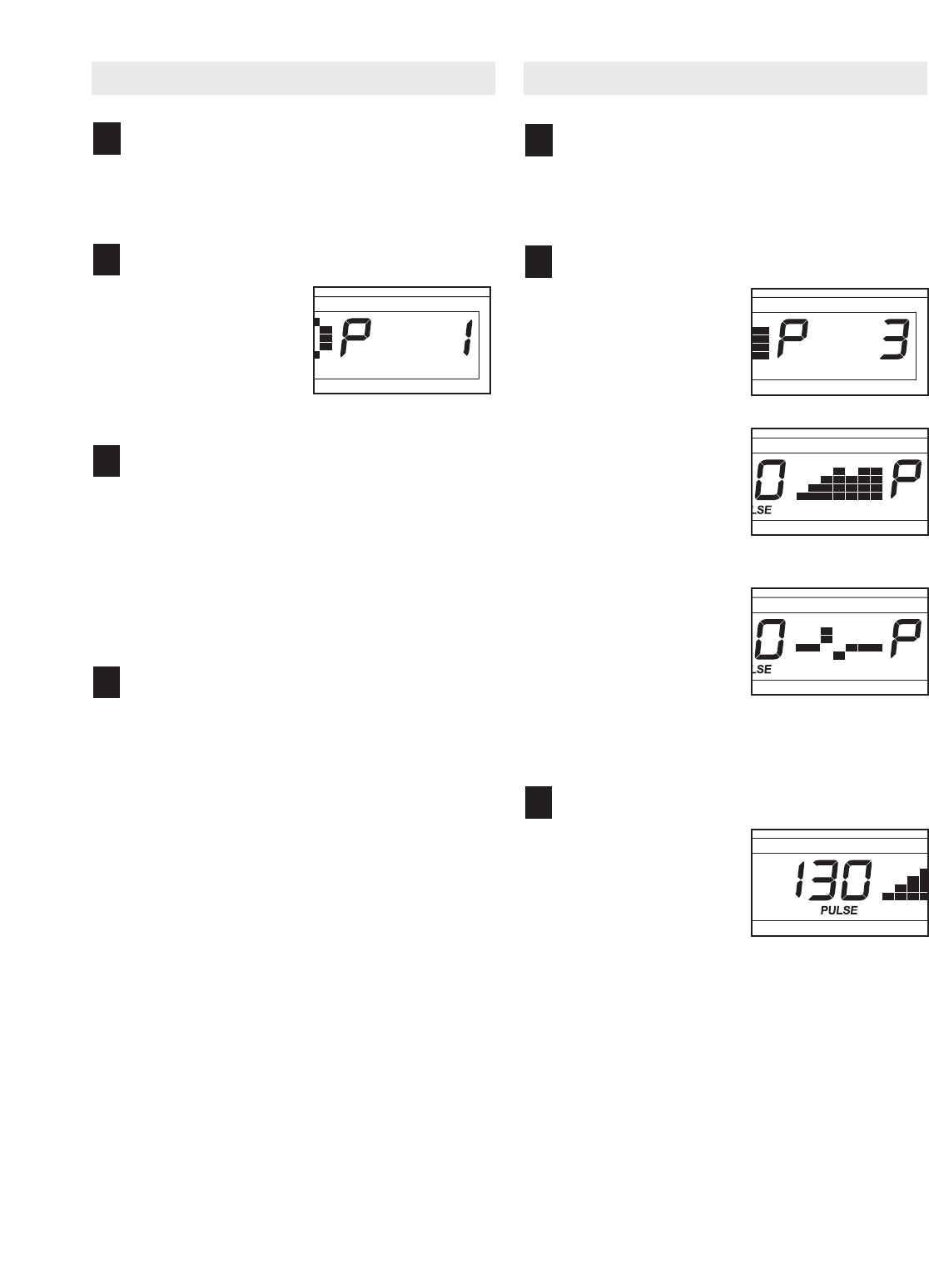

HOW TO USE A PULSE CONTROL PROGRAM

Press the Resistance decrease button or

begin pedaling to turn on the console.

A moment after the console is turned on, the dis-

play will light.

Select one of the pulse control programs.

Press the Programs

button repeatedly until

“P 3” or “P 4” appears

in the right side of the

display.

If pulse control pro-

gram 3 is selected, a

profile of the target

heart rate settings of

the program will scroll

across the center of

the display.

If pulse control pro-

gram 4 is selected, a

pulse symbol will

appear in the center

of the display. Each

time a heartbeat is

detected while you

are using the handgrip pulse sensor,the pulse

symbol will reappear.

Enter a target heart rate setting.

If pulse control pro-

gram 3 is selected,

the maximum target

heart rate setting of

the program will flash

in the display. If

desired, press the

Resistance increase and decrease buttons to

change the maximum target heart rate setting

(see EXERCISE INTENSITY on page 24). If you

change the maximum target heart rate setting,

the intensity level of the entire program will

change.

If pulse control program 4 is selected, the tar-

get heart rate setting for the program will flash in

the display. If desired, press the Resistance

increase and decrease buttons to change the tar-

get heart rate setting (see EXERCISE INTENSI-

TY on page 24).

3

2

1

4

3

2

1

16

Hold the handgrip pulse sensor.

Itis not necessary to hold the handgrip pulse

sensor continuously during a pulse control pro-

gram; however, you should hold the handgrip

pulse sensor frequently for the program to oper-

ate properly. Each time you hold the handgrip

pulse sensor, keep your hands on the metal

contacts for at least 30 seconds.

Begin pedaling to start the program.

Pulse control program 3 is divided into 30 one-

minute segments. One target heart rate setting is

programmed for each segment. Note: The same

target heart rate setting may be programmed for

two or more consecutive segments.

The target heart rate

setting for the first

segment will be

shown in the flashing

Current Segment col-

umn in the center of

the display. The tar-

get heart rate settings for the next four segments

will be shown in the columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a

series of tones will sound, and

all target heart

rate settings will move one column to the left.

The target heart rate setting for the second seg-

ment will then be shown in the flashing Current

Segment column.

Pulse control program 4 is divided into 40 one-

minute segments. The same target heart rate set-

ting is programmed for all segments. Note: For a

shorter workout, stop exercising or select a differ-

ent program before the program ends.

During both pulse control programs, the con-

sole will regularly compare your heart rate to the

target heart rate setting. If your heart rate is too

far below or above the target heart rate setting,

the resistance of the pedals will automatically

increase or decrease to bring your heart rate

closer to the target heart rate setting.

After the first minute of the program, the Pace

Coach will prompt you to maintain a consistent

pedaling pace. When one of the “Too Slow”

arrows lights, increase your pace. When the one

ofthe “Too Fast” arrows lights, decrease your

pace. When the center indicator lights, maintain

your current pace.

Important: The target heart rate settings are

intended only to provide motivation. Your

actual heart rate may be slower than the tar-

get heart rate settings. Make sure to exercise

at a pace that is comfortable for you.

Note: During the program, you can manually over-

ride the resistance setting for the current seg-

ment, if desired, by pressing the increase and

decrease buttons. However, when the console

compares your heart rate to the target heart rate

setting, the resistance of the pedals may auto-

matically increase or decrease to bring your heart

rate closer to the target heart rate setting.

If you stop pedaling for several seconds, a tone

will sound and the program will pause. Torestart

the program, simply resume pedaling.

Monitor your progress with the display.

See step 4 on page 13.

Turn on the fan if desired.

See step 6 on page 14.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 14.

8

7

6

5

4

Current Segment

17

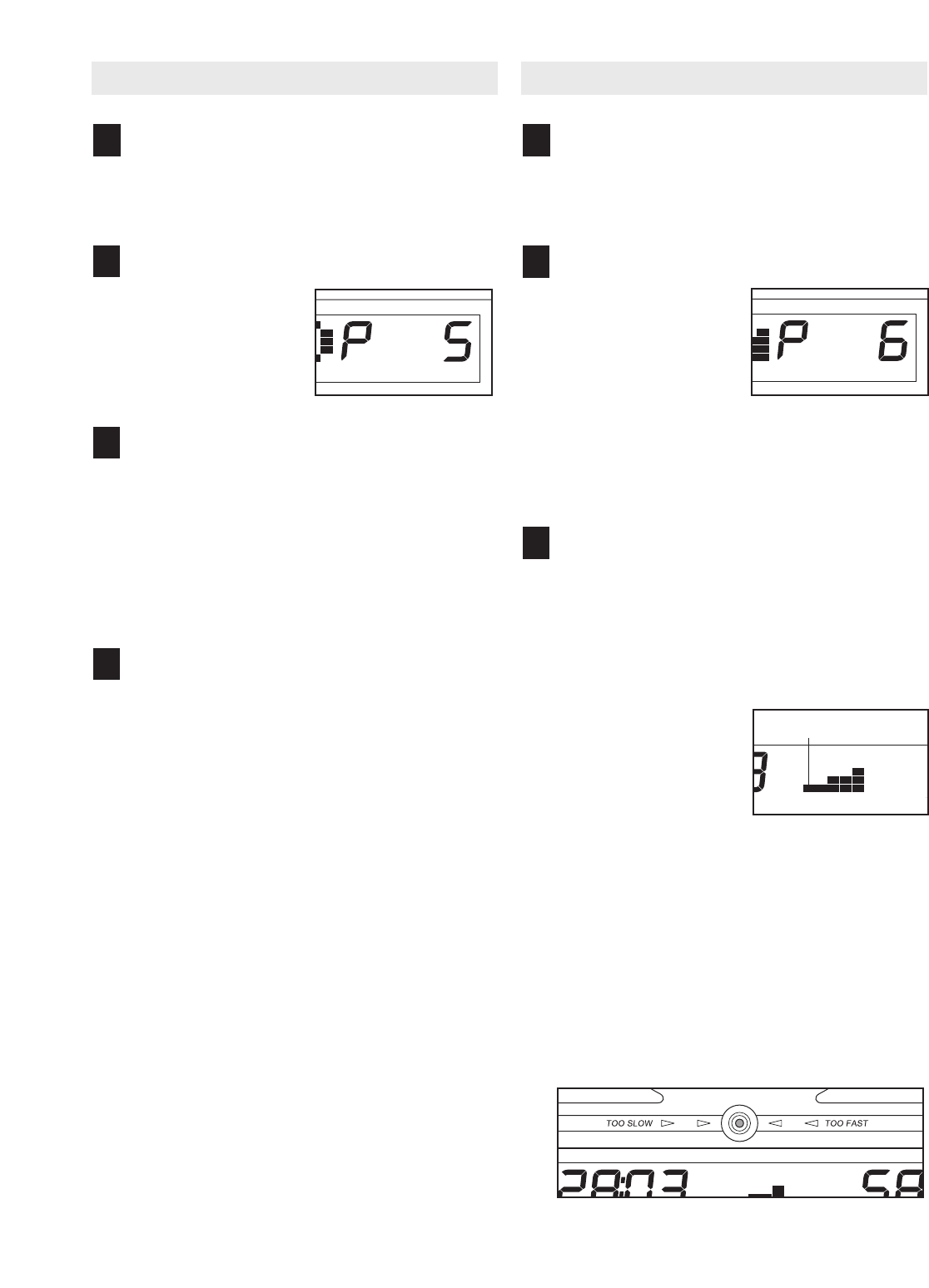

HOW TO USE THE DISTANCE PROGRAM

Press the Resistance decrease button or

begin pedaling to turn on the console.

A moment after the console is turned on, the dis-

play will light.

Select the distance program.

Press the Programs

button repeatedly until

“P 5” and a goal of

5,000 revolutions

appear in the display.

Begin pedaling to start the program.

When the distance program is used, the console

will function in the same way as when the manual

mode is selected, except the right side of the dis-

play will show the number of revolutions still to be

pedaled instead of the number of revolutions you

have pedaled. When the calorie goal is reached, a

tone will sound and the time will stop incrementing

in the display.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 14.

HOW TO USE A RESISTANCE & RPM PROGRAM

Press the Resistance decrease button or

begin pedaling to turn on the console.

A moment after the console is turned on, the dis-

play will light.

Select one of the resistance & rpm programs.

Press the Programs

button repeatedly until

“P 6,” “P 7,” or “P 8”

appears in the right

side of the display.

When a resistance &

rpm program is select-

ed, a profile of the resistance settings of the pro-

gram will scroll across the center of the display.

The left side of the display will show how long the

program will last.

Begin pedaling to start the program.

Each program is divided into several one-minute

segments. One resistance setting and one pace

setting are programmed for each segment. Note:

The same resistance setting and/or pace setting

may be programmed for two or more consecutive

segments.

The resistance setting

for the first segment

will be shown in the

flashing Current

Segment column in

the center of the dis-

play. (Note: The pace

settings are not shown in the display.) The resis-

tance settings for the next four segments will be

shown in the columns to the right.

As you exercise, the Pace Coach will help you to

keep your pedaling pace near the pace setting for

the current segment. When one of the “Too Slow”

arrows lights, increase your pace. When the one

of the “Too Fast” arrows lights, decrease your

pace. When the center indicator lights, maintain

your current pace.

3

2

1

4

3

2

1

Current Segment

18

Important: The pace settings are intended

only to provide motivation. Your actual pace

may be slower than the pace settings. Make

sure to exercise at a pace that is comfortable

for you.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a

series of tones will sound, and

all resistance set-

tings will move one column to the left.

The resis-

tance setting for the second segment will then be

shown in the flashing Current Segment column,

and the resistance of the pedals will change to the

resistance setting for the second segment. Note: If

all of the indicators in the Current Segment col-

umn are lit after the resistance settings have

moved to the left,

the resistance settings may

move downward

so only the highest indicators

appear in the matrix.

The program will continue until the resistance

setting for the last segment is shown in the

Current Segment column and the last segment

ends.

Note: During the program, you can override the

resistance setting for the current segment, if

desired, by pressing the increase or decrease but-

ton. However, when the next segment begins, the

resistance will change if a different resistance set-

ting is programmed for the next segment.

If you stop pedaling for several seconds, a tone

will sound and the program will pause. To restart

the program, simply resume pedaling.

Monitor your progress with the display.

See step 4 on page 13.

Measure your heart rate if desired.

See step 5 on page 14.

Turn on the fan if desired.

See step 6 on page 14.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 14.

7

6

5

4

19

Touse iFIT.com CDs,the elliptical exerciser must be

connected to your portable CD player, portable stereo,

home stereo, or computer with CD player. See pages 19

and 20 for connecting instructions. To use iFIT.com

videocassettes,the elliptical exerciser must be connect-

ed to your VCR. See page 21 for connecting instruc-

tions. To use iFIT.com programs directly from our

Web site,the elliptical exerciser must be connected to

your computer. See page 20.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your CD player.

Plug your headphones into the PHONES jack.

B. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into a 1/8” Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your CD player. Plug your headphones into the

other side of the Y-adapter.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

1/8” LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the cable

into the AUDIO OUT jack on your stereo.

B. See the drawing above. Plug one end of a 1/8” to

1/8” stereo audio cable (available at electronics

stores) into the jack beneath the console. Plug the

other end of the cable into the LINE OUT jack on

your stereo.

C. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into a 1/8” Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your stereo. Plug your headphones into the

other side of the Y-adapter.

HOW TO CONNECT YOUR CD PLAYER, VCR,

OR COMPUTER

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Head-

phones

A

PHONES

PHONES

Audio

Cable

1/8”

Y-adapter

Headphones

B

AUDIO OUT

RIGHT

LEFT

LINE OUT

Audio

Cable

A/B

PHONES

Audio

Cable

C

1/8”

Y-adapter

Headphones

20

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your stereo.

B. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack beneath

the console. Plug the other end of the cable into an

RCA Y-adapter (available at electronics stores).

Next, remove the wire that is currently plugged into

the LINE OUT jack on your stereo and plug the wire

into the unused side of the Y-adapter. Plug the Y-

adapter into the LINE OUT jack on your stereo.

HOW TO CONNECT YOUR COMPUTER

Note: If your computer has a 1/8” LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your computer.

B. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into a 1/8” Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your computer. Plug your headphones or speak-

ers into the other side of the Y-adapter.

CD

VCR

Amp

LINE OUT

LINE OUT

Audio

Cable

A

CD

VCR

Amp

LINE OUT

Audio

Cable

RCA

Y-adapter

Wire removed from

LINE OUT jack

B

LINE OUT

Audio

Cable

A

PHONES

Audio

Cable

B

1/8”

Y-adapter

Headphones/Speakers

21

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 20.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the AUDIO OUT jack on your VCR.

B. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into an RCA Y-adapter (available at electron-

ics stores). Next, remove the wire that is currently

plugged into the AUDIO OUT jack on your VCR

and plug the wire into the unused side of the Y-

adapter.Plug the Y-adapter into the AUDIO OUT

jack on your VCR.

To use an iFIT.com CD or video program, the elliptical

exerciser must be connected to your CD player or

VCR. See HOW TO CONNECT YOUR CD PLAYER,

VCR, OR COMPUTER on pages 19 to 21. To pur-

chase iFIT.com CDs or videocassettes, call the toll-

free telephone number on the front cover of this

manual.

Follow the steps below to use an iFIT.com CD or

video program.

Press the Resistance decrease button or

begin pedaling to turn on the console.

A moment after the console is turned on, the dis-

play will light.

Select the iFIT.com mode.

To select the iFIT.com

mode, press the

Programs button

repeatedly until the

track and the letters

“iFIT” appear in the

display.

Press the Play button on your CD player or

VCR.

Note: If you are using an iFIT.com CD, insert the

CD into your CD player; if you are using an

iFIT.com videocassette, insert the videocassette

into your VCR.

A moment after the play button is pressed, your

personal trainer will begin guiding you through

your workout. Simply follow your personal trainer’s

instructions.

The program will function in almost the same way

as a resistance & rpm program (see step 3 on

page 17). However, an electronic “chirping” sound

will alert you when the resistance setting and/or

pace setting is about to change.

3

2

1

HOW TO USE AN IFIT.COM CD OR VIDEO

PROGRAM

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

IN

OUT

CH

34

Audio

Cable

A

VIDEO AUDIO

ANT. IN

RF OUT

IN

OUT

CH

34

Audio Cable

B

Wire removed from

AUDIO OUT jack

RCA

Y-adapter

22

Note: If the resistance of the pedals and/or the

pace setting does not change when a “chirp”

isheard:

•Make sure that the letters “iFIT” appear in

the display.

•Adjust the volume of your CD player or VCR.

Ifthe volume is too high or too low, the con-

sole may not detect the program signals.

•Make sure that the audio cable is properly

connected and that it is fully plugged in.

Monitor your progress with the display.

See step 4 on page 13.

Measure your heart rate as desired.

See step 5 on page 14.

Turn on the fan if desired.

See step 6 on page 14.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 14.

HOW TO USE AN IFIT.COM PROGRAM

DIRECTLY FROM OUR WEB SITE

Our Web site at www.iFIT.com allows you to play

iFIT.com programs directly from the internet. Touse

programs from our Web site, the elliptical exerciser

must be connected to your home computer.See HOW

TOCONNECT YOUR COMPUTER on page 20. In

addition, you must have an internet connection and an

internet service provider. A list of specific system

requirements is found on our Web site.

Follow the steps below to use a program from our

Web site.

Press the Resistance decrease button or

begin pedaling to turn on the console.

A moment after the console is turned on, the dis-

play will light.

Select the iFIT.com mode.

See step 2 on page 21.

Go to your computer and start an internet

connection.

Start your Web browser, if necessary, and go

to our Web site at www.iFIT.com.

Follow the desired links on our Web site to

select a program.

Read and follow the on-line instructions for using

aprogram.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the elliptical exerciser and begin

pedaling.

When the on-screen countdown ends, the pro-

gram will begin. The program will function in

almost the same way as a resistance & rpm pro-

gram (see step 3 on page 17). However, anelec-

tronic “chirping” sound will alert you when the resis-

tance setting and/or pace setting is about to

change.

Monitor your progress with the display.

See step 4 on page 13.

Measure your heart rate if desired.

See step 5 on page 14.

Turn on the fan if desired.

See step 6 on page 14.

When you are finished exercising, the con-

sole will automatically turn off.

See step 7 on page 14.

11

10

9

8

7

6

5

4

3

2

1

7

6

5

4

23

Inspect and tighten all parts of the elliptical exerciser

regularly. Replace any worn parts immediately.

To clean the elliptical exerciser, use a damp cloth and

asmall amount of mild soap. Important: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

BATTERY REPLACEMENT

If the console displays become dim, the batteries

should be replaced; most console problems are the

result of low batteries. See assembly step 7 on page

7for replacement instructions.

HOW TO LEVEL THE ELLIPTICAL EXERCISER

If the elliptical exerciser rocks slightly on your floor

during use, turn one or both of the leveling feet

beneath the rear stabilizer until the rocking motion is

eliminated.

HANDGRIP PULSE SENSOR TROUBLESHOOTING

•Avoid moving your hands while using the handgrip

pulse sensor. Excessive movement may interfere

with heart rate readings.

• Do not hold the metal contacts too tightly; doing so

may interfere with heart rate readings.

• For the most accurate heart rate reading, hold the

metal contacts for about 30 seconds.

• For optimal performance of the handgrip pulse sen-

sor, keep the metal contacts clean. The contacts

can be cleaned with a soft cloth—never use alco-

hol, abrasives, or chemicals.

HOW TO ELIMINATE FLEXING IN THE CENTER OF

THE ELLIPTICAL EXERCISER

If the elliptical exerciser flexes in the center during

use, turn the base foot (see the drawing at the left)

until the flexing is eliminated.

MAINTENANCE AND TROUBLESHOOTING

Leveling

Feet

Base

Foot

24

CONDITIONING GUIDELINES

The following guidelines will help you to plan your

exercise program. Remember that proper nutrition

and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning, maximum fat

burning, and cardiovascular (aerobic) exercise.

To find the proper heart rate for you, first find your age

at the bottom of the chart (ages are rounded offto the

nearest ten years). Next, find the three numbers above

your age. The three numbers are your “training zone.”

The lower two numbers are recommended heart rates

for fat burning; the highest number is the recommend-

ed heart rate for aerobic exercise.

Fat Burning

Toburn fat effectively,you must exercise at a relative-

ly low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible

carbohydrate

calories for ener-

gy. Only after the first few minutes of exercise does

your body begin to use stored

fat

calories for energy.

Ifyour goal is to burn fat, adjust the intensity of your

exercise until your heart rate is near the lowest num-

ber in your training zone as you exercise.

For maximum fat burning, adjust the intensity of your

exercise until your heart rate is near the middle num-

ber in your training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exer-

cise is activity that requires large amounts of oxygen

for prolonged periods of time. This increases the

demand on the heart to pump blood to the muscles,

and on the lungs to oxygenate the blood. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone as you exercise.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A warm-up,consisting of 5 to 10 minutes of stretching

and light exercise. A proper warm-up increases your

body temperature, heart rate, and circulation in prepa-

ration for exercise.

Training zone exercise,consisting of 20 to 30 min-

utes of exercising with your heart rate in your training

zone. Note: During the first few weeks of your exer-

cise program, do not keep your heart rate in your

training zone for longer than 20 minutes.

A cool-down,with 5 to 10 minutes of stretching. This

will increase the flexibility of your muscles and will

help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week

if desired. The key to success is to make exercise a

regular and enjoyable part of your everyday life.

WARNING:

Before beginning this or any exercise pro-

gram, consult your physician. This is espe-

cially important for persons over the age of 35

or persons with pre-existing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

25

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. If a part is miss-

ing, call toll-free 1-888-533-1333. See the back cover of this manual for information about ordering replace-

ment parts.

1 1 Base

21 Frame

3 1 Upright

4 1 Console Bracket

5 1 Console

6 1 Front Stabilizer

7 1 Rear Stabilizer

8 1 Left Handlebar

9 1 Right Handlebar

10 2 Handlebar Endcap

11 1 Left Upper Body Arm

12 1 Right Upper Body Arm

13 1 Left Pedal

14 1 Left Pedal Leg

15 1 Right Pedal

16 1 Right Pedal Leg

17 2 Upright Cover

18 1 Left Front Handlebar

Cover

19 1 Left Rear Handlebar

Cover

20 1 Right Front Handlebar

Cover

21 1Right Rear Handlebar

Cover

22 1 Water Bottle Holder

23 2 Front Stabilizer Endcap

24 2Rear Stabilizer Endcap

25 2 Wheel

26 1 Base Foot

27 2 Leveling Foot

28 1 Left Side Shield

29 1 Right Side Shield

30 6 Upper Body Bushing

31 4 Pedal Leg Cover

32 2 Pedal Leg Axle

33 4 Pedal Leg Bushing

34 1 Base Axle

35 2 Base Bushing

36 2 Crank Arm

37 2 Inner Crank Cover

38 2 Crank Hub

39 1 Pulley Spacer

40 1 Pulley

41 2 Crank Bushing Cover

42 4 Crank Bushing

43 2 Crank Bushing Sleeve

44 2 Crank Bearing Set

45 1 Crank

46 1 Crank Spacer

47 2 Crank Snap Ring

48 1 Upper Wire Harness

49 1 Lower Wire Harness

50 1 Reed Switch/Wire

51 1 Belt

52 1 Flywheel

53 1 “C” Magnet

54 1 Pillow Block

55 1 Magnet

56 1 Spring

57 1 Idler

58 1 Idler Bracket

59 1 Clamp

60 1 Reed Switch Bracket

61 1 Base Pin

62 2 Latch Bracket Spacer

63 2 Hair Pin

64 1 Latch Bracket

65 1Pivot Bracket

66 2 Pivot Bracket Spacer

67 1Frame Pin

68 1 Latch Button

69 1Roll Pin

70 1 Motor

71 1 Resistance Cable Pulley

72 1 Resistance Cable Set

73 2 Foam Grip

74 1 Pivot Axle

75 2 Hub Cover

76 2 Outer Crank Cover

77 4 M6 x 20mm Button

Screw

78 4 M8 x 43mm Button Bolt

79 7 M8 Jamnut

80 1 M8 x 69mm Button Bolt

81 4 M10 Nylon Locknut

82 2 M10 x 80mm Carriage

Bolt

83 2 M10 x 127mm Button

Screw

84 4 M8 x 23mm Button

Screw

85 1 M6 x 10mm Button

Screw

86 2 Crank Screw

87 8 Hub Screw

88 10 M8 Washer

89 2 M10 x 60mm Button

Screw

90 3 M8 Split Washer

91 1 Flywheel Spacer

92 1 Flywheel Washer

93 1 Flywheel Snap Ring

94 4 Pillow Block Screw

95 1 Stop Screw

96 1 M8 x 35mm Screw

97 1 “E” Clip

98 4 Pulley Screw

99 2 Crank Washer

100 2 M4 x 25mm Screw

101 8 M4 x 16mm Round

Head Screw

102 4 Motor Washer

103 23 M4 x 16mm Screw

104 8 M4 x 14mm Screw

105 6 M4 x 32mm Round

Head Screw

106 2 M8 x 31mm Shoulder

Screw

107 4 M4 x 12mm Screw

108 2 M4 x 45mm Screw

109 2 Large Wave Washer

110 2 M8 Small Washer

111 2 Wave Washer

112 8 Star Washer

113 1 M10 Washer

114 1 M6 Nut

115 4 M8 x 23mm Shoulder

Screw

116 2 Flywheel Bracket

# 3 Allen Wrench

# 1 Grease

# 1 User’s Manual

Key

No. Qty. Description Key

No. Qty. Description Key

No. Qty. Description

PART LIST—Model No. 831.28544.1 R1105A

26

EXPLODED DRAWING A—Model No. 831.28544.1 R1105A

1

4

3

5

6

8

9

10

10

11

12

13 14

15

16

17 17

18

19

20

21

22

23

23

25

25

26

30

30

30 30

30

30

31

31

32

33 33

31 33

32

33 31

34 35

35

80

78

101

101

79

105

105

88

84

79

77

77

101

101

84

101

101 74

105

79 78

8884

104

115

115

104

88 84

104

115

115

104

104

84 88

89

82

81

81

81

89

48

49

84

73

73

108

88

88

88

88

108

90

90

90

111

111

112

112

112

112 112

27

66

2

7

24

24

27

27

28

29

75

76

36

86

99

87

106

37

38 39

40

41 42 42

43

103

103 103

103

103

107

107

103

38

43

42

42

41 106

36

75

37

83

87

87

76

103

103

103

103 86

99

44

98

98

44

45

46

47

47

103

100

103

51

50

52

53

54

55

56

94

94

94

79

92 93

91

57

58

59 60

103

103 85 96 61

62

62

63 64

63 65

66 67

68

69

113

97

70

95

103

79

71

72

100

103

103

102

102

107

88

88

109

109

114

103

110

110

116

116

EXPLODED DRAWING B—Model No. 831.28544.1 R1105A

Part No. 234444 R1105A Printed in China © 2005 Sears, Roebuck and Co.

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

Sears Elliptical Exerciser,contact the nearest Sears Service Center throughout the United States and

Sears will repair or replace the Elliptical Exerciser, free of charge.

This warranty does not apply when the Elliptical Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
