CAUTION

Read all precautions and in-

structions in this manual before

using this equipment. Save this

manual for future reference. USER'S MANUAL

Write the serial number in the space

above for future reference.

Model No. 831.290840

Serial No.

Serial Number Decal

Patent Pending

ª

¨

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

HOW TO USE THE AIR WALKER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

STORAGE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

1. Read all instructions in this manual before

using the AIR WALKER.

2. It is the responsibility of the owner to ensure

that all users of the AIR WALKER are

adequately informed of all warnings and

precautions.

3. Use the AIR WALKER only as described in

this manual.

4. Place the AIR WALKER on a level surface.

Cover the floor beneath the AIR WALKER to

protect the floor or carpet.

5. Be sure that there are no persons or obsta-

cles in front of or behind the AIR WALKER.

6. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

7. Keep children and pets away from the AIR

WALKER at all times.

8. The AIR WALKER should not be used by per-

sons weighing more than 250 pounds.

9. Keep hands and feet away from moving parts.

10. Do not wear loose clothing that could

become caught on the AIR WALKER.

11. Always wear athletic shoes for foot protec-

tion when exercising on the AIR WALKER.

12. When mounting and dismounting the AIR

WALKER, adjust the resistance to a high set-

ting, hold the handles firmly, and be sure that

your body weight is centered directly over the

pedals.

13. The resistance cylinders become very hot dur-

ing use. Allow the resistance cylinders to cool

before touching them. When adjusting the

resistance, touch only the resistance dials.

14. If you feel faint, dizzy, or short of breath while

exercising, stop immediately and begin cool-

ing down.

15. The AIR WALKER is intended for home use

only. Do not use the AIR WALKER in any

commercial, rental, or institutional setting.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions before

using the AIR WALKER.

WARNING: Before beginning this or any exercise program, consult your physician. This is especially

important for persons over the age of 35 or persons with pre-existing health problems. Read all

instructions before using. SEARS assumes no responsibility for personal injury or property damage

sustained by or through the use of this product.

3

BEFORE YOU BEGIN

Handle

Resistance Dial

Leg

Electronic Monitor

Crossbar Cover

Pedal

Resistance Cylinder

Upright

Wheel

Lock Knob

Round Tube

Frame

Thank you for selecting the innovative PROFORM¨

AIR WALKER. The AIR WALKER blends advanced

engineering with contemporary styling to provide you

with a no-impact, total body workout in the conve-

nience and privacy of your own home.

For your benefit, read this manual carefully before

using the AIR WALKER. If you have additional

questions, please call our toll-free HELPLINE at

1-800-736-6879, Monday through Saturday, 7 a.m.

until 7 p.m. Central Time (excluding holidays). To help

us assist you, please note the product model number

and serial number before calling. The model number is

831.290840. The serial number can be found on a

decal attached to the AIR WALKER (see the front

cover of this manual for the location of the decal).

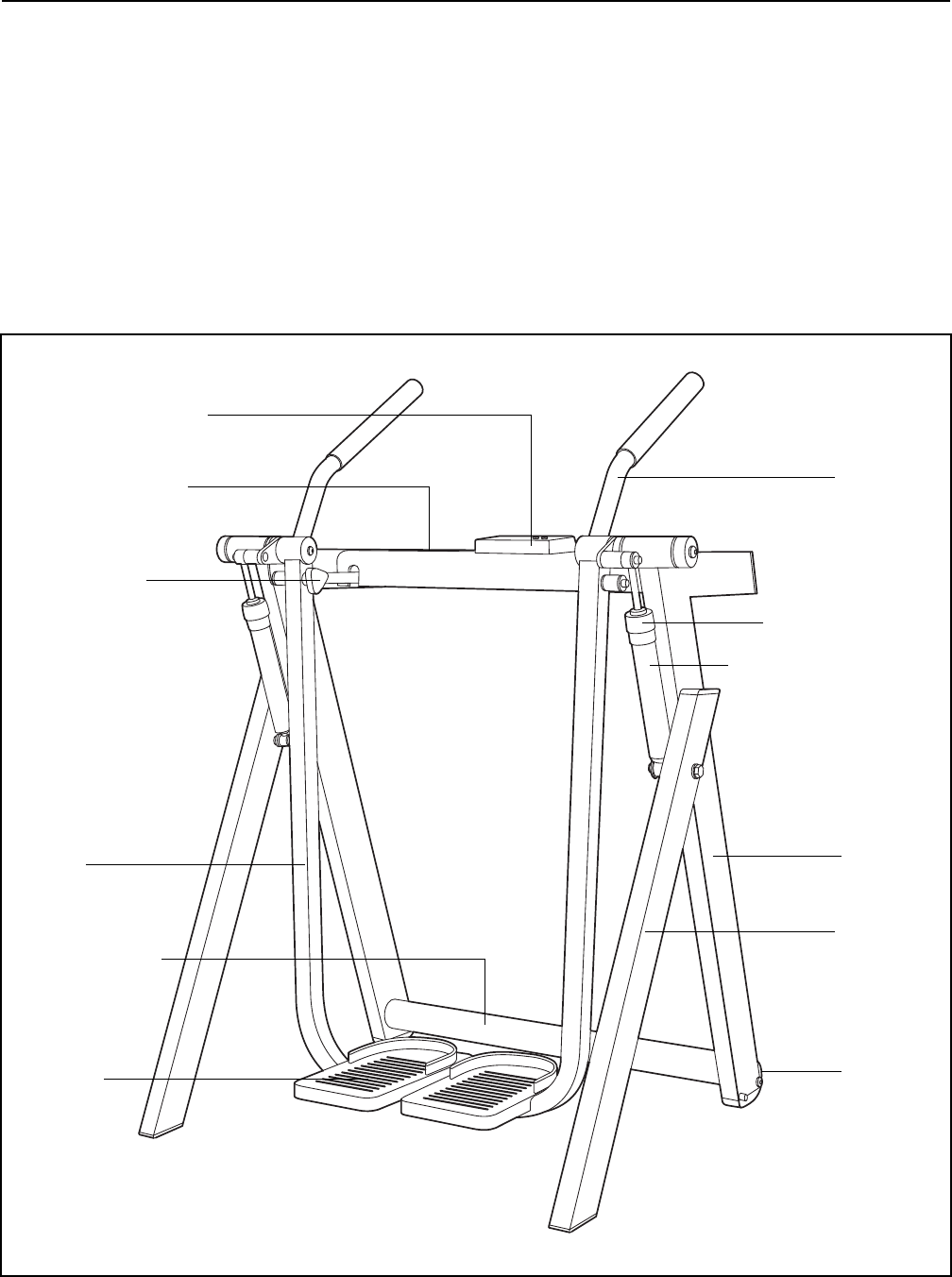

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Place all parts of the AIR WALKER in a cleared area and remove the packing materials. Do not dispose of the

packing materials until assembly is completed. Read through all assembly steps before you begin.

Assembly requires the included allen wrench and your own phillips screwdriver

and adjustable wrench .

4

ASSEMBLY

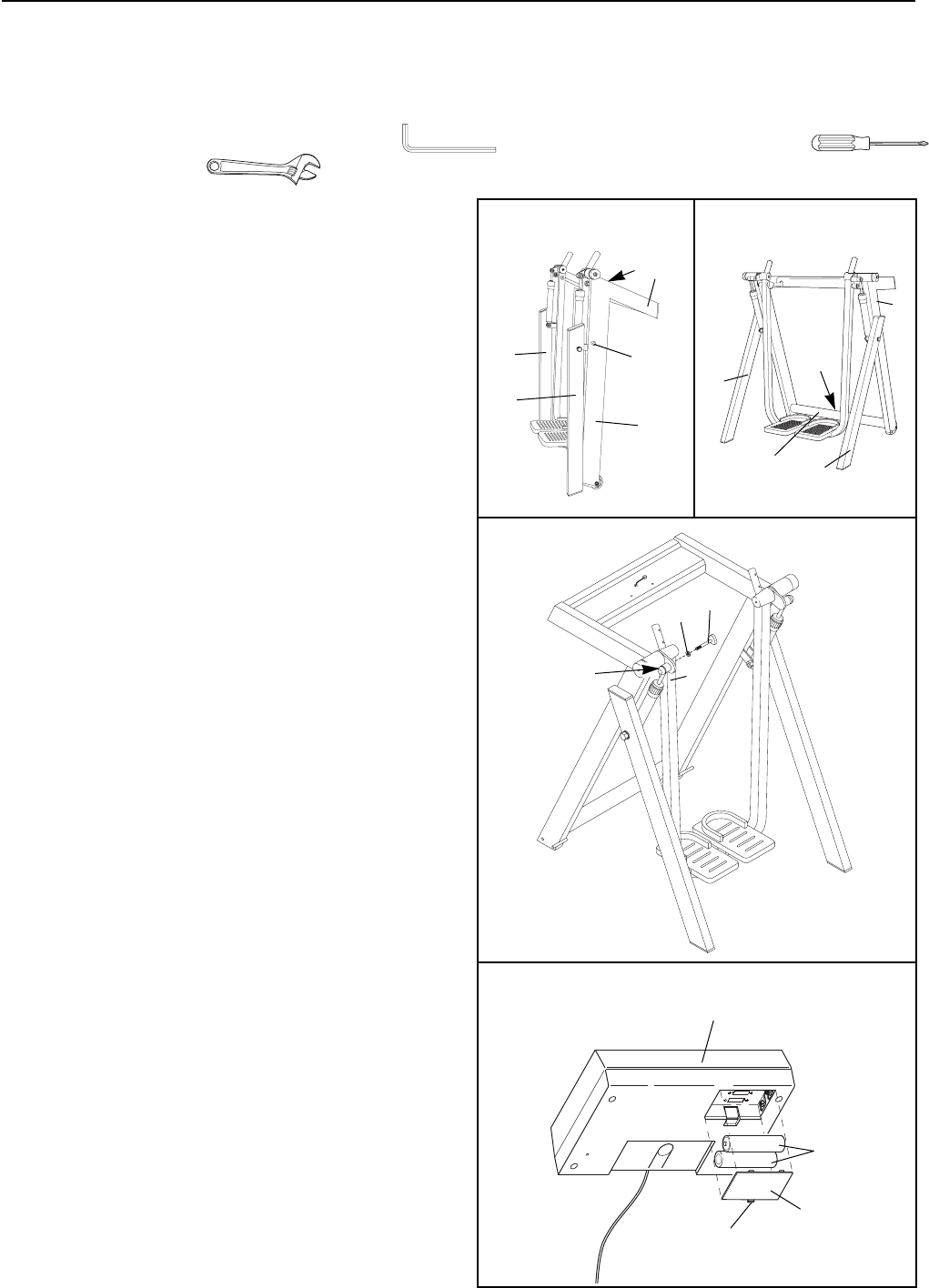

2. Slide a Lock Washer (16) onto the Lock Knob (32).

Insert the Lock Knob into the hole near the top of

the Left Leg (2). Tighten the Lock Knob into the

Link Plate (7).

3. The Electronic Monitor (9) requires two ÒAAÓ

batteries (not included). Alkaline batteries are

recommended. Press the tab on the battery cover

and remove the battery cover from the Monitor.

Insert two batteries into the Monitor. Make sure

that the negative (Ð) ends of the batteries are

touching the springs in the Console. Close the

battery cover.

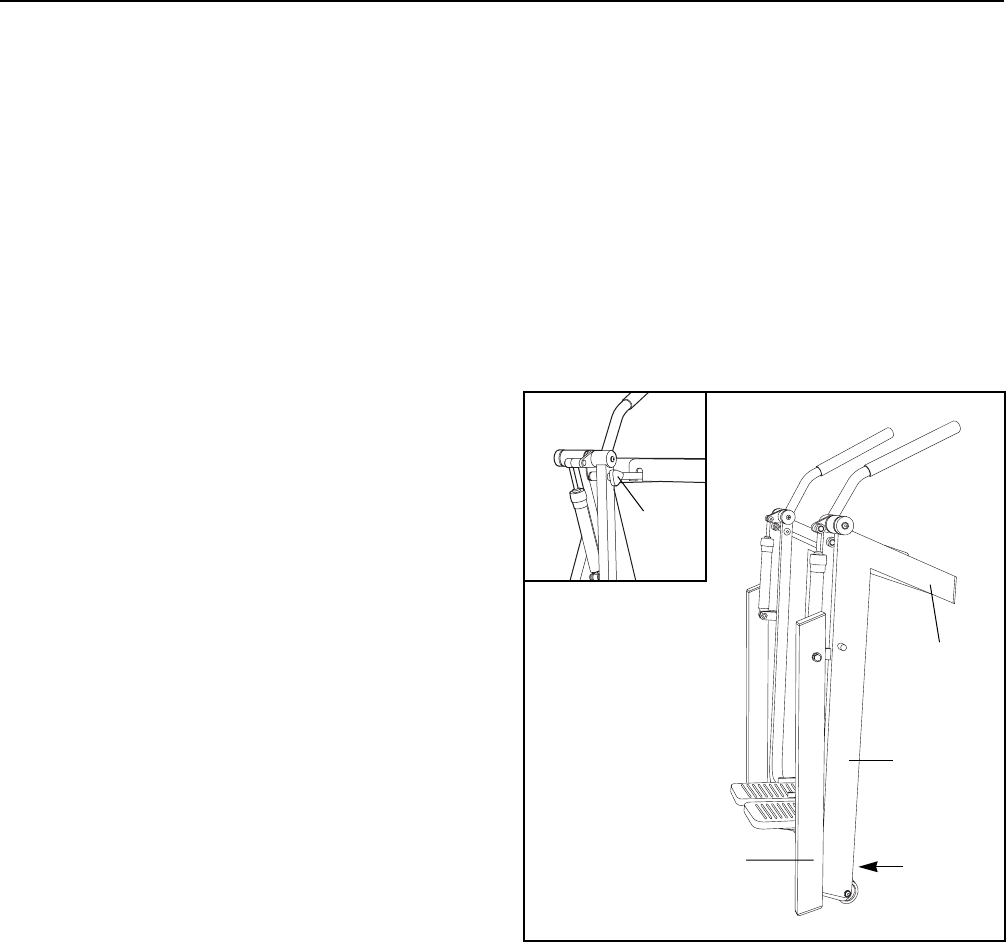

1. Refer to figure 1a. Stand at the front of the AIR

WALKER, hold the Frame (1) in the indicated

locations, and raise the AIR WALKER to the

position shown. Refer to figure 1b. Put your foot

on the round tube. Using your foot, pull the round

tube toward yourself until the Uprights (5, 6) are

fully extended. Before you proceed with

assembly, make sure that the Uprights are fully

extended and are resting against the stops

(see figure 1a).

Fig. 2

Fig. 3

9

Tab

Battery

Cover

Batteries

32

16

2

7

Fig. 1a

Foot

Round

Tube

Fig. 1b

6

6

5

5

Stop

1

1

Back Front

Hold

Here

5

8

8

2

3

50

23

Holes

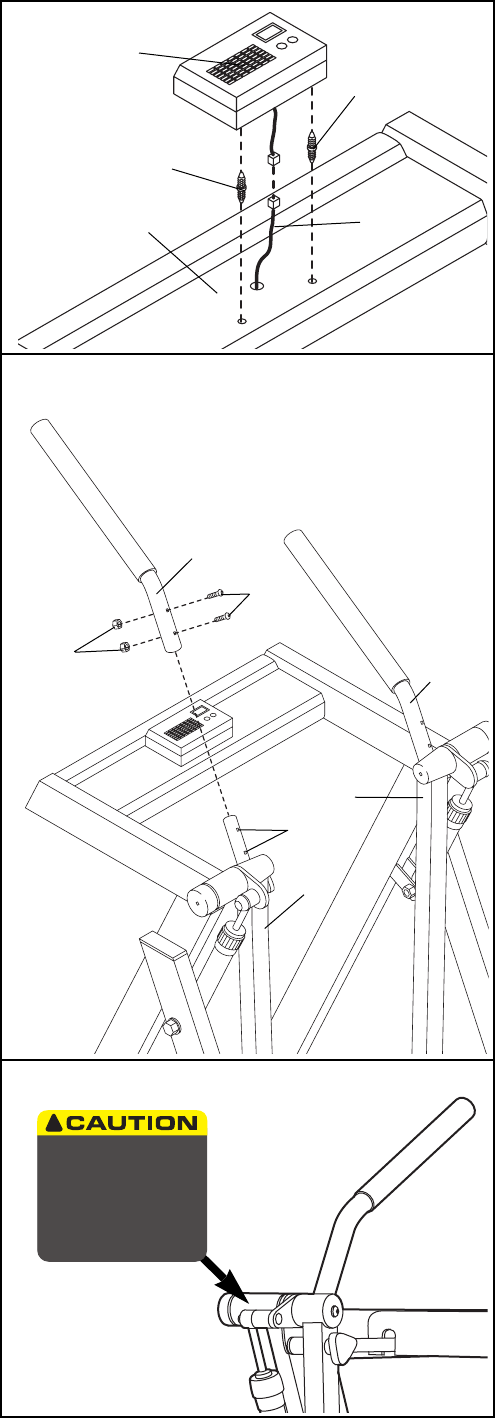

5. Slide one of the Handles (8) onto the Left Leg (2).

Attach the Handle with two Button Head Screws

(50) and two 1/4Ó Locknuts (23). Tighten the

Locknuts until the Handle cannot move. The

Handle will be deformed slightly when the

Locknuts are properly tightened.

Attach the other Handle (8) to the Right Leg (3) in

the same manner.

6. The decal shown at the right is found in the

indicated location on the AIR WALKER. If the

decal is missing, or if it is not legible, call our

Customer Service Department, toll-free, to

order a free replacement decal (see

ORDERING REPLACEMENT PARTS on the back

of this manual). Apply the decal in the location

shown.

Fig. 5

Make sure that all parts are properly tightened before

you use the AIR WALKER.

4. Connect the Reed Switch Wire (12) to the wire on

the Electronic Monitor (9). Feed any excess wire

into the Crossbar Cover (19). Press the Monitor

onto the Crossbar Cover so the Fasteners (48) on

the Monitor snap into the holes in the Crossbar

Cover.

Fig. 4

9

48

19

48

12

Do not allow children on or

around machine.

Keep hands and feet away

from moving parts and contact

points.

Read owner's manual and

follow instructions.

!

Fig. 6

6

HOW TO USE THE AIR WALKER

EXERCISING ON THE AIR WALKER

Make sure that the lock knob is tightened into the left

leg and link plate (see assembly step 2 on page 4).

Adjust the resistance to a high setting, hold the

handles, and step onto the pedals. The proper form

for exercising on the AIR WALKER is similar to the

motion of walkingÑmove one leg forward as you

move the other leg back.

For a full body workout, hold the handles as you walk

and move your arms and legs in motion with the

handles and pedals. To vary the effect of the exercise

on your muscles, bend your legs slightly instead of

keeping them straight.

For a lower body workout, rest your hands on the

crossbar cover for balance as you move the pedals.

RESISTANCE ADJUSTMENT

To vary the intensity of your workout, the resistance of

the AIR WALKER can be adjusted. To change the

resistance, turn the resistance dials on the resistance

cylinders. There are twelve different resistance levels.

Arrows on the resistance cylinders will show which

resistance level is selected. Select the same resis-

tance level on both cylinders.

CAUTION: The resistance cylinders become very

hot during use. Allow the resistance cylinders to

cool before touching them. When adjusting the

resistance, touch only the resistance dials.

ELECTRONIC MONITOR MODES

The simple-to-operate electronic monitor offers

five different modes to provide instant exercise

feedback. The five modes are described below:

SpeedÑDisplays the number of repetitions you are

performing per minute.

TimeÑDisplays the length of time you have exer-

cised. Note: If you stop exercising for ten seconds or

longer, the time mode will pause until you resume.

DistanceÑDisplays the total number of repetitions

you have completed, up to Ò999.Ó The display will then

reset to Ò0Ó and continue counting.

CaloriesÑDisplays the approximate number of

Calories you have burned. Note: If the resistance is

near the highest or lowest setting, the actual number

of Calories you have burned will be slightly higher or

lower than the number displayed.

ScanÑDisplays the speed, time, distance, and calo-

ries modes, for approximately 5 seconds each,

in a repeating cycle.

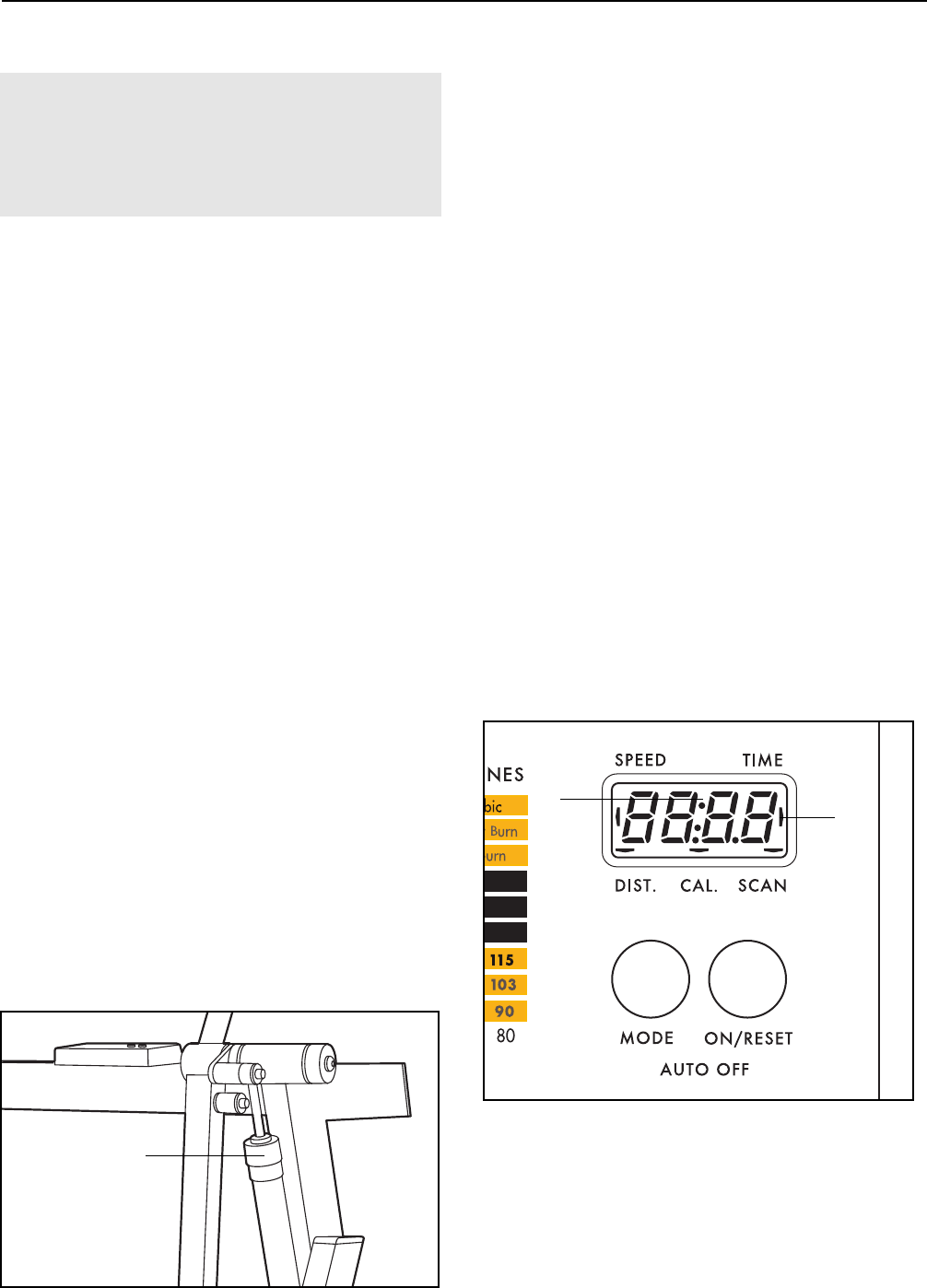

DIAGRAM OF THE ELECTRONIC MONITOR

1. LCD displayÑDisplays all modes.

2. Mode indicatorsÑShow which mode is selected.

3. Mode buttonÑSelects all modes.

4. On/Reset buttonÑTurns the power on and resets

all modes.

Resistance

Dial

CAUTION: When mounting and dismounting

the AIR WALKER, adjust the resistance to a

high setting, hold the handles firmly, and be

sure that your body weight is centered direct-

ly over the pedals.

1

2

34

7

BATTERY INSTALLATION

Before the electronic monitor can be operated, two

ÒAAÓ batteries must be installed. If you have not

installed batteries, see assembly step 3 on page 4.

OPERATING THE ELECTRONIC MONITOR

1. To turn on the power, press the on/reset button or

simply begin exercising on the AIR WALKER. The

entire display will appear for two seconds. The

electronic monitor will then be ready for operation.

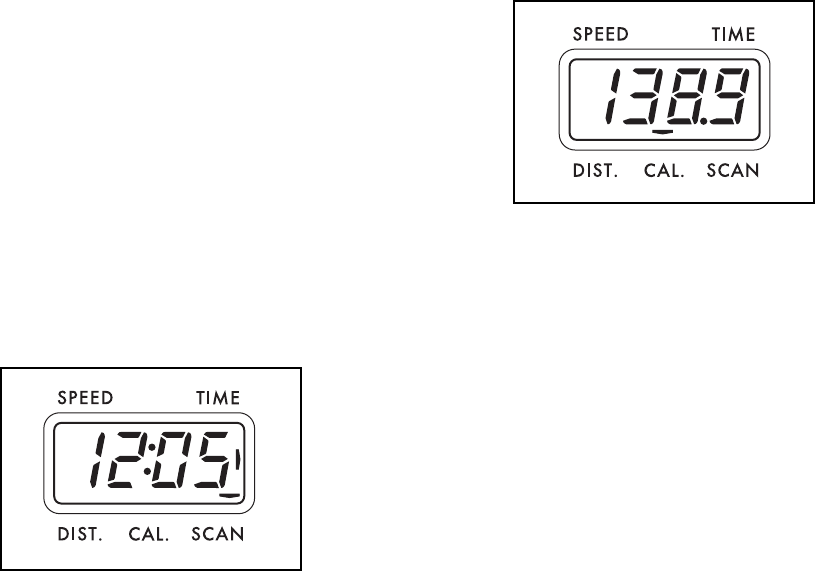

2. Select one of the five modes:

Scan modeÑWhen the power is turned on, the

scan mode will be selected automatically. The

scan mode

can also be

selected by

repeatedly

pressing the

mode but-

ton. One

mode indi-

cator will

show that

the scan

mode has been selected, and a second mode indi-

cator will show which mode is currently displayed.

Speed, time, distance, or calories modeÑ

These modes can be individually selected by

repeatedly

pressing

the mode

button. The

mode indi-

cators will

show which

mode has

been

selected.

(Make sure

that the scan mode is not selected.) The modes

will be selected in the following order: speed, time,

distance, calories, scan.

3. The monitor has an auto-off feature to turn off

the power. If the pedals are not moved and the

monitor buttons are not pressed for four minutes,

the power will turn off automatically in order to

conserve the batteries.

To reset the LCD display, press the on/reset button.

Inspect and tighten all parts of the AIR WALKER reg-

ularly. Replace any worn parts immediately.

The AIR WALKER can be cleaned with a soft, damp

cloth. Keep liquids away from the electronic monitor.

Keep the monitor out of direct sunlight or the display

may be damaged. Remove the batteries when storing

the AIR WALKER.

REPLACING THE BATTERIES

If the display of the electronic monitor becomes dim,

or if the monitor does not function properly, the batter-

ies should be replaced. To replace the batteries, first

lift the monitor from the crossbar cover (see assembly

step 4 on page 5). Make sure that the reed switch

wire is fully connected to the wire on the monitor. To

replace the batteries, refer to assembly step 3 on

page 4.

HOW TO FOLD THE AIR WALKER FOR STORAGE

When the AIR WALKER is not in use, it can be folded

for storage. To fold the AIR WALKER, first remove the

lock knob from the left leg. Next, move to the front of

the AIR WALKER and place one foot on the round

tube. Firmly grasp the frame with your hands in the

locations indicated below. While holding the round

tube stationary with your foot, pull the top of the AIR

WALKER toward you until the uprights fold against

the frame. Place the AIR WALKER in a location

where it cannot fall.

8

STORAGE AND TROUBLE-SHOOTING

Frame

Round

Tube

Front

Hand

Back

Upright

Lock

Knob

9

CONDITIONING GUIDELINES

The following guidelines will help you to plan your

exercise program. Remember that proper nutrition and

adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning, maximum fat burn-

ing, and cardiovascular (aerobic) exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, look above your age and

find the three numbers in light grey boxes. The three

numbers are your Òtraining zone.Ó The lowest number

is the recommended heart rate for fat burning; the

middle number is the recommended heart rate for

maximum fat burning; the highest number is the rec-

ommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relative-

ly low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for ener-

gy. Only after the first few minutes of exercise does

your body begin to use stored fat calories for energy. If

your goal is to burn fat, adjust your pace until your

heart rate is near the lowest number in your training

zone as you exercise. It may also be helpful to set the

dials on the resistance cylinders at level 1, 2, 3, or 4.

For maximum fat burning, adjust your pace until your

heart rate is near the middle number in your training

zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be Òaerobic.Ó Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust your pace until your heart rate is near the high-

est number in your training zone. It may also be help-

ful to set the dials on the resistance cylinders at level

5, 6, 7, or 8.

Strength Training

To strengthen and tone your muscles, you must exer-

cise your muscles at a moderate to high percentage of

their capacity. Set the dials on the resistance cylinders

at level 9, 10, 11, or 12.

HOW TO MEASURE YOUR HEART RATE

To measure your heart rate, first exercise for at least

four minutes.

Then, stop

exercising and

place two fin-

gers on your

wrist as

shown. Take a

six-second

heartbeat

count, and

multiply the

result by 10 to

find your heart

rate. For example, if your six-second heartbeat count

is 14, your heart rate is 140 beats per minute. (A six-

second count is used because your heart rate will

drop rapidly when you stop exercising.)

Adjust the intensity of your exercise until your heart

rate is at the desired level. You can adjust the intensity

of your exercise by adjusting the resistance or by

changing your pace.

WARNING: Before beginning this or any

exercise program, consult your physician.

This is especially important for persons over

the age of 35 or persons with pre-existing

health problems.

10

PART LISTÑModel No. 831.290840 R0397B

Note: Ò#Ó refers to a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A warm-up, lasting 5 to 10 minutes. Begin with slow,

controlled stretches, and progress to more rhythmic

stretches to increase the body temperature, heart rate,

and circulation in preparation for strenuous exercise.

Training zone exercise, consisting of 20 to 30 min-

utes of exercising with your heart rate in your training

zone.

A cool-down, with 5 to 10 minutes of stretching.

Thorough stretching helps to offset problems caused

when you stop exercising suddenly. Stretching for

increased flexibility is also most effective after exercis-

ing. A proper cool-down should leave you relaxed and

comfortably tired.

EXERCISE FREQUENCY

To maintain or improve your condition, plan three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each

week, if desired.

Remember, the key to success is make exercise a

regular and enjoyable part of your everyday life.

Key Part

No. Qty. No. Description

1 1 NSP Frame

2 1 136816 Left Leg

3 1 136818 Right Leg

4 1 137686 Rocker Arm

5 1 137827 Left Upright

6 1 136822 Right Upright

7 1 136829 Link Plate

8 2 136830 Handle

9 1 130165 Electronic Monitor

10 1 016028 Adhesive Tool Clip

11 1 107094 Magnet

12 1 131101 Reed Switch Wire

13 2 137683 Link Arm

14 2 137685 Link Arm Joint

15 4 136597 Small Bronze Bushing

16 1 110468 Lock Washer

17 4 136598 Large Bronze Bushing

18 1 131833 ÒDÓ Bushing

19 1 136599 Crossbar Cover

20 1 136601 Left Leg Cover

21 1 136602 Right Leg Cover

22 2 136603 Axle Cover

23 4 012139 1/4Ó Locknut

24 1 136605 Left Axle Spacer

25 1 136606 Right Axle Spacer

26 2 129110 Rocker Arm Spacer

Key Part

No. Qty. No. Description

27 1 136612 Right Pedal Cover

28 1 136600 Left Pedal Cover

29 6 013300 #8 x 3/4Ó Screw

30 2 130953 Resistance Cylinder

31 2 133072 Tree Fastener

32 1 136861 Lock Knob

33 2 119994 Button Head Screw

34 6 123116 Frame Endcap

35 1 127896 Rocker Arm Bolt

36 2 103903 Small Axle Cap

37 2 013359 Hex Head Screw

38 3 100553 1/2Ó Nylon Locknut

39 2 014080 1/2Ó Flat Washer

40 2 013601 Wheel Screw

41 2 012149 3/8Ó Nylon Locknut

42 2 052014 Wheel

43 2 014132 3/8Ó Flat Washer

44 1 100151 Large Axle Cap

45 2 126650 Rubber Foot

46 8 013162 #8 x 1/2Ó Screw

47 2 136837 Handle Grip

48 2 127597 Double Tree Fastener

49 1 136967 Star Washer

50 4 122794 Button Head Screw

51 2 105496 3/8Ó Push Nut

# 1 137741 UserÕs Manual

8

50

37

39

36

17

22

34

33

47

948

19

35

26

18

4

26

38

34

12

10

34

29

17

29

50

17

22

33

8

47

36 38

30

30

40 14

13

25

15

44

6

34

15

3

21

31

32

28

20

42

29

41 43

45

24

15

43

14

42

40

37

39

34

2

13

15

7

5

34

46

46

27

1

45

11

49

23

23

16

51

51

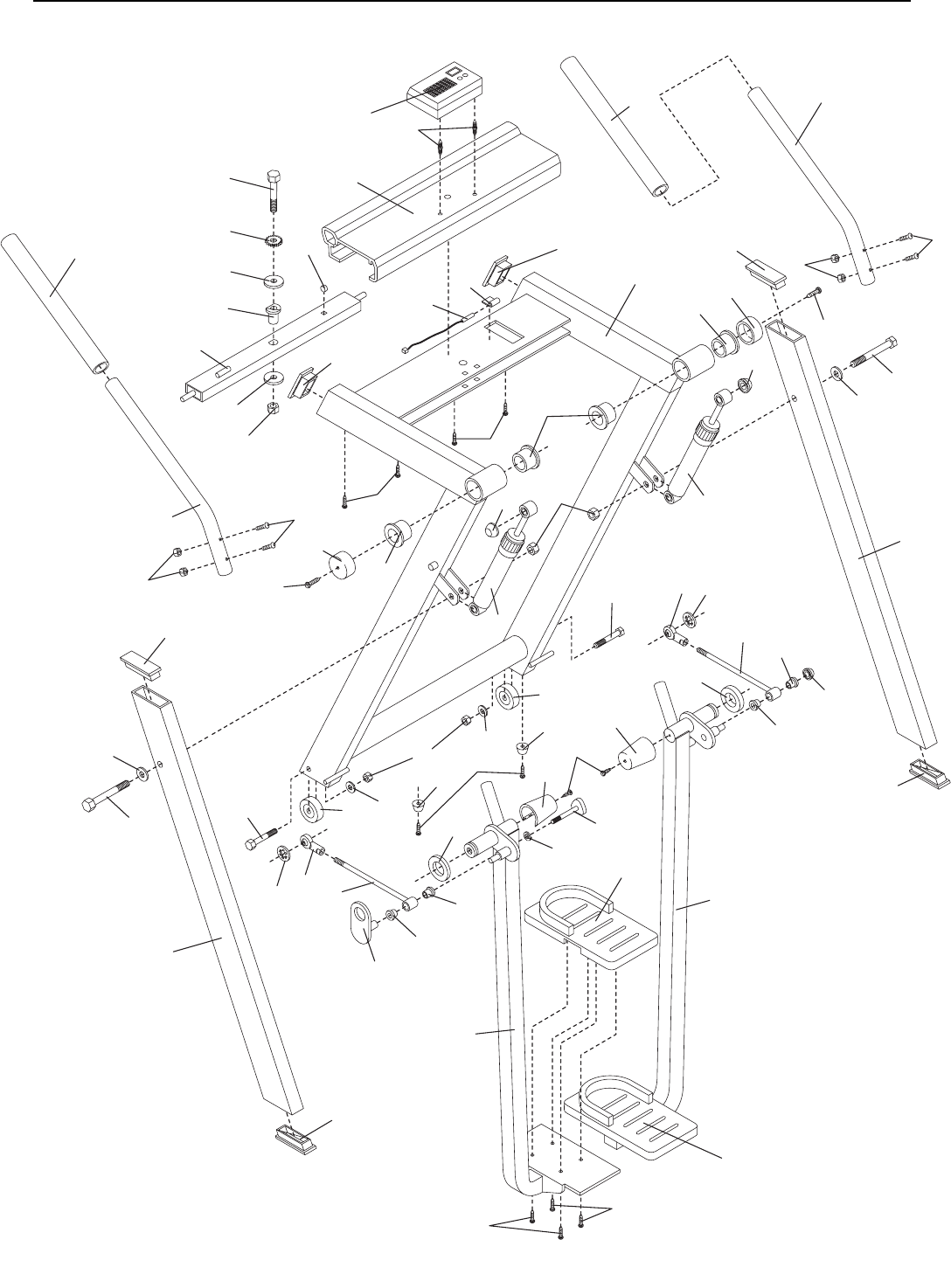

EXPLODED DRAWINGÑModel No. 831.290840 R0397B

11

Part No. 137741 G00907AC R0397B Printed in USA © 1997 Sears, Roebuck and Co.

QUESTIONS?

If you find that:

¥ you need help assembling or

operating the PROFORM¨AIR

WALKER

¥ a part is missing

¥ or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

MondayÐSaturday, 7 amÐ7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need to

be replaced, call the following

toll-free number

1-800-FON-PART

(1-800-366-7278)

The model number and serial number of your PROFORM¨AIR

WALKER are listed on a decal attached to the frame. See the front

cover of this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-free

numbers listed at the left.

When requesting help or service, or ordering parts, please be pre-

pared to provide the following information:

¥ The NAME OF THE PRODUCT (PROFORM¨AIR WALKER)

¥ The MODEL NUMBER OF THE PRODUCT (831.290840)

¥ The PART NUMBER OF THE PART (see page 10 of this manual)

¥ The DESCRIPTION OF THE PART (see page 10 of this manual)

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

AIR WALKER EXERCISER, contact the nearest SEARS Service Center throughout the United States

and SEARS will repair or replace the AIR WALKER EXERCISER, free of charge.

This warranty does not apply when the AIR WALKER EXERCISER is used commercially or for rental pur-

poses.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Model No. 831.290840
