Serial Number Decal

Model No. 831.29606.1

Serial No.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference. Sears, Roebuck and Co., Hoffman Estates, IL 60179

TREADMILL EXERCISER

User’s Manual

•Assembly

•Operation

•Maintenance

•Part List and Drawing

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

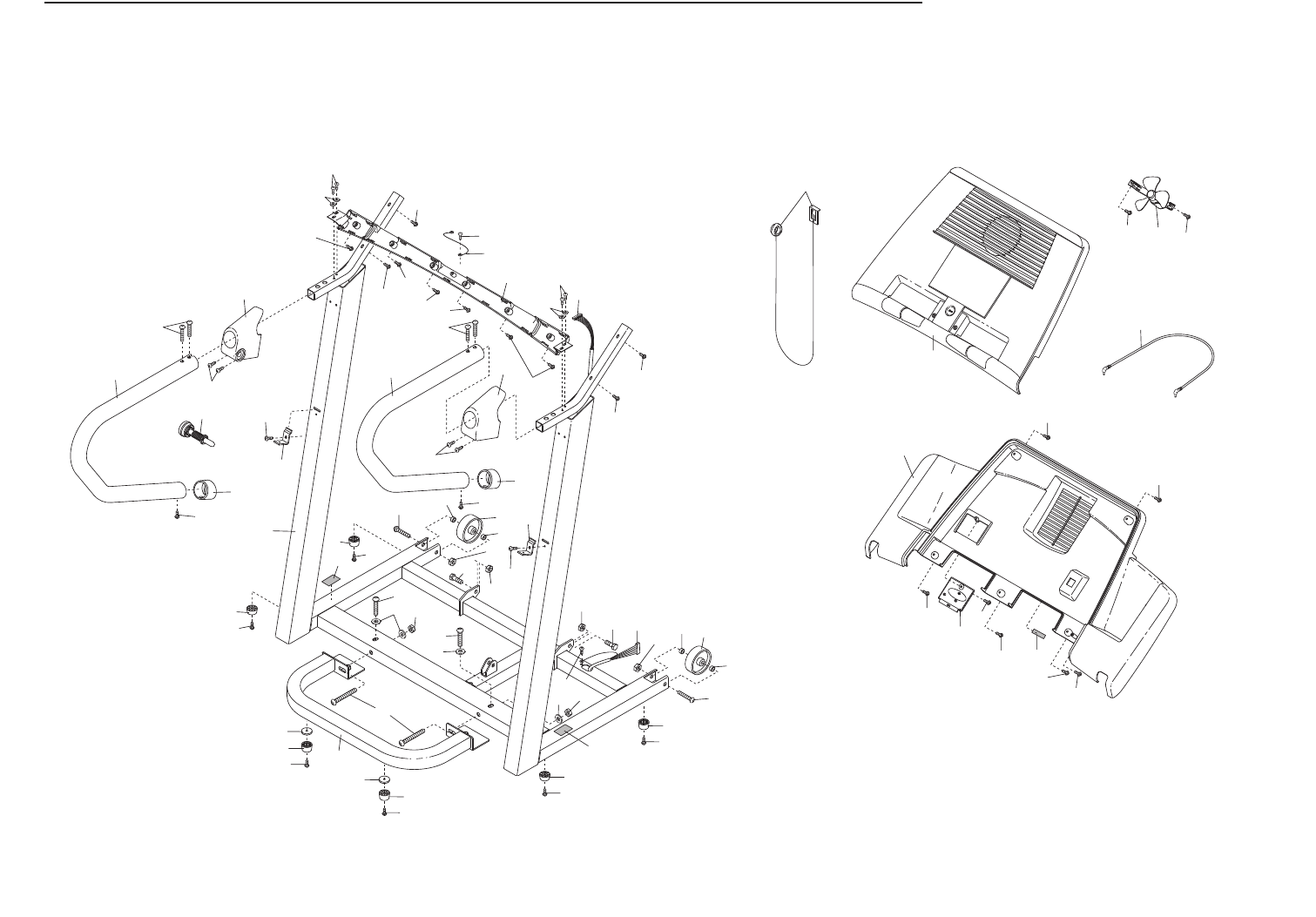

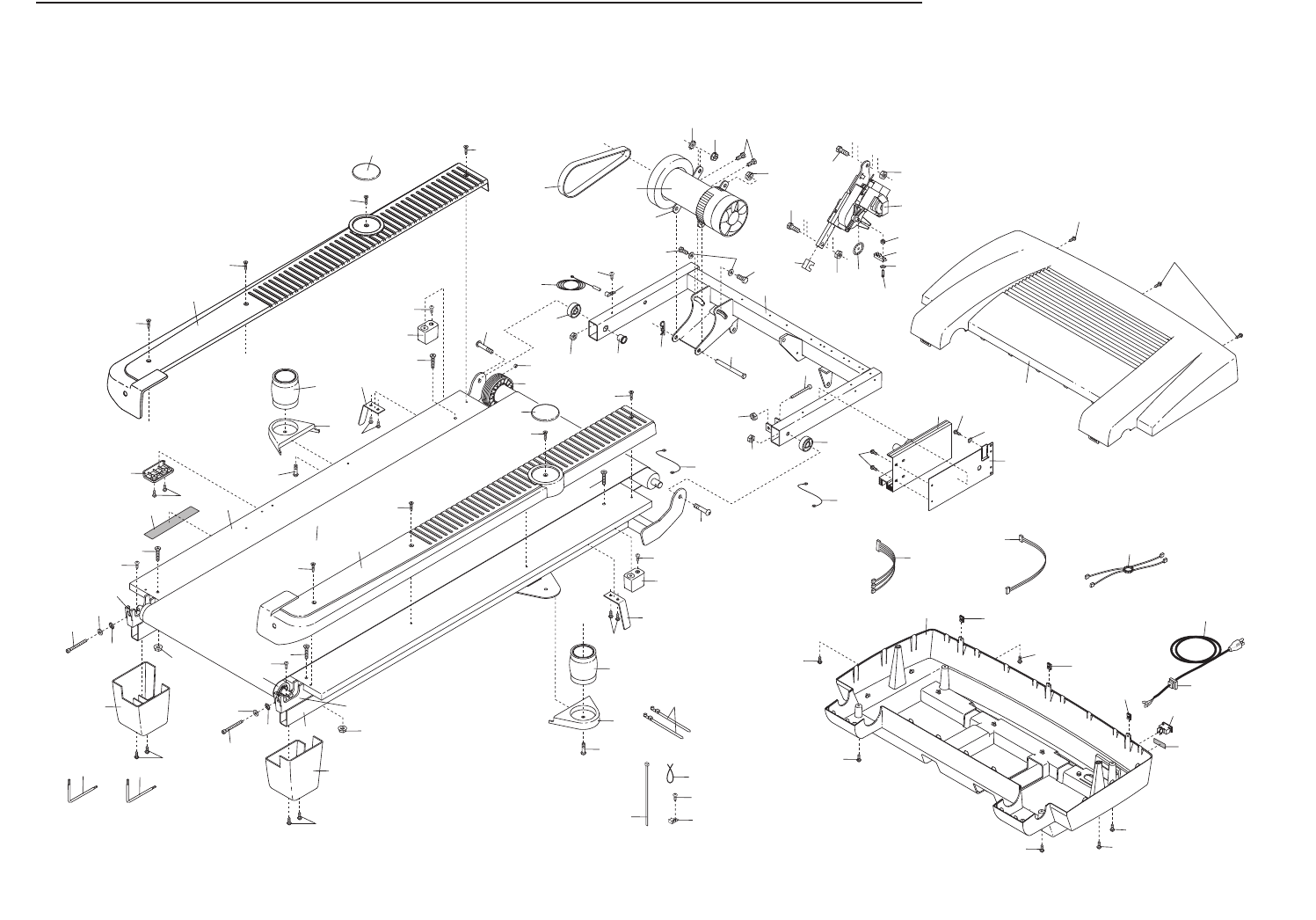

Note: An EXPLODED DRAWING is attached in the center of this manual.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it and two

feet on each side. Do not place the treadmill

on any surface that blocks air openings. To

protect the floor or carpet from damage, place

amat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should not be used by persons

weighing more than 300 pounds.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women.

Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

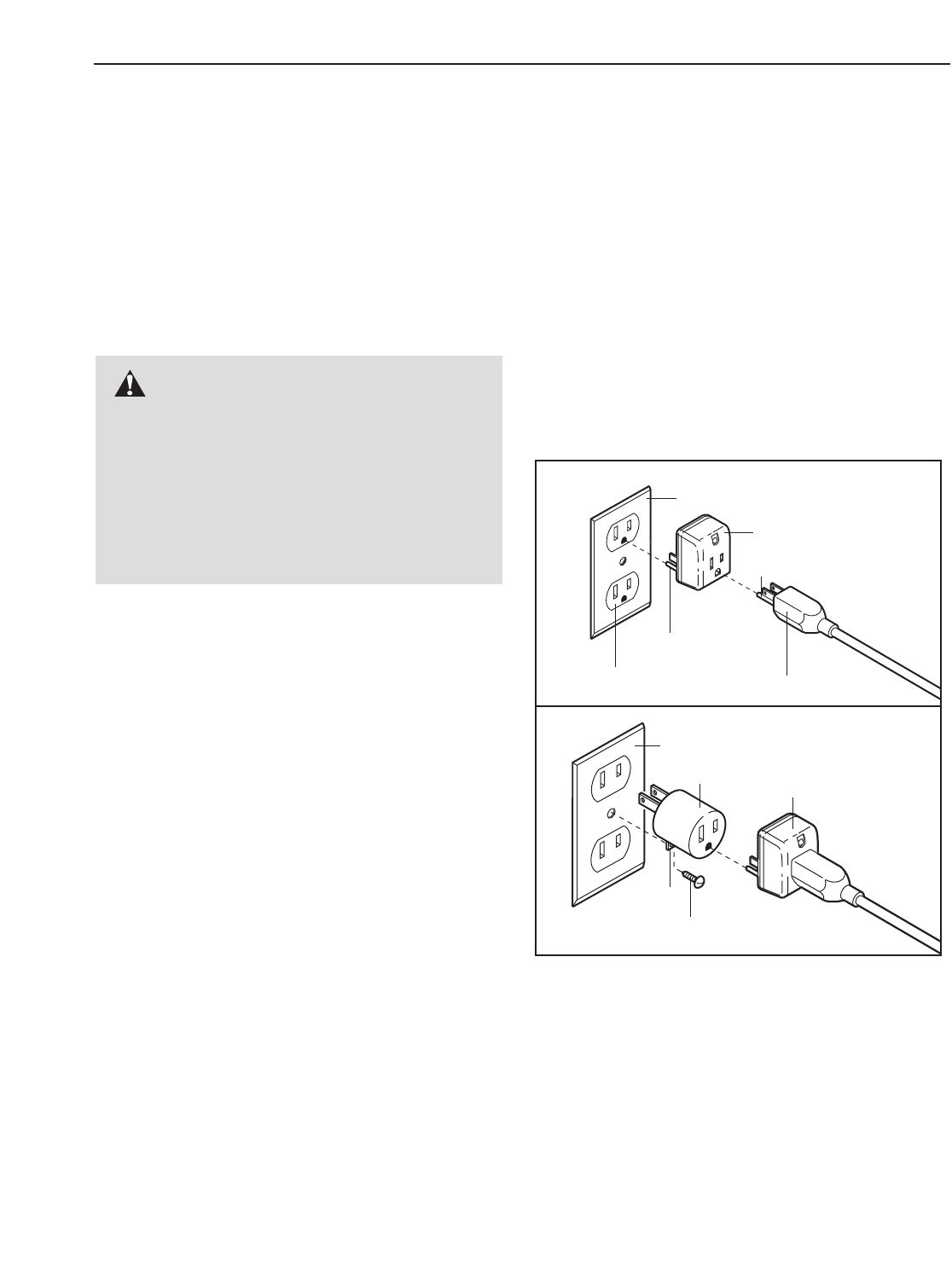

10. When connecting the power cord (see page 8),

plug the power cord into a surge suppressor

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 8. To purchase a surge suppressor, see

your local Sears store or call 1-800-366-7278

and order part number 146148, or see your

local electronics store.

12. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

speed, accelerate, or stop unexpectedly,

which may result in a fall and serious injury.

13. Keep the power cord and the surge suppres-

sor away from heated surfaces.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

2

14. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

TROUBLESHOOTING on page 22 if the tread-

mill is not working properly.)

15. Read, understand, and test the emergency

stop procedure before using the treadmill

(see OPERATION AND ADJUSTMENT).

16. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

17. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

18. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord and move the reset/off circuit

breaker to the off position when the treadmill

is not in use. (See the drawing on page 4 for

the location of the circuit breaker.)

19. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO FOLD

AND MOVE THE TREADMILL on page 21.)

You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

20. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

21. When using iFIT.com programs, an elec-

tronic “chirping” sound will alert you when

the speed and/or incline of the treadmill is

about to change. Always listen for the

“chirp” and be prepared. In some instances,

the speed and/or incline may change before

the personal trainer describes the change.

22. When using iFIT.com programs, you can man-

ually override the speed and incline settings

by pressing the speed and incline buttons.

However, when the next “chirp” is heard, the

speed and/or incline will change to the next

settings of the program.

23. Remove iFIT.com CDs and videos from your

CD player and VCR and disconnect your MP3

player when you are not using them.

24. Inspect and properly tighten all parts of the

treadmill regularly.

25. Never insert any object into any opening.

26. DANGER: Always unplug the power

cord immediately after use, before cleaning the

treadmill, and before performing the mainte-

nance and adjustment procedures described in

this manual. Never remove the motor hood un-

less instructed to do so by an authorized ser-

vice representative. Servicing other than the

procedures in this manual should be performed

by an authorized service representative only.

27. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

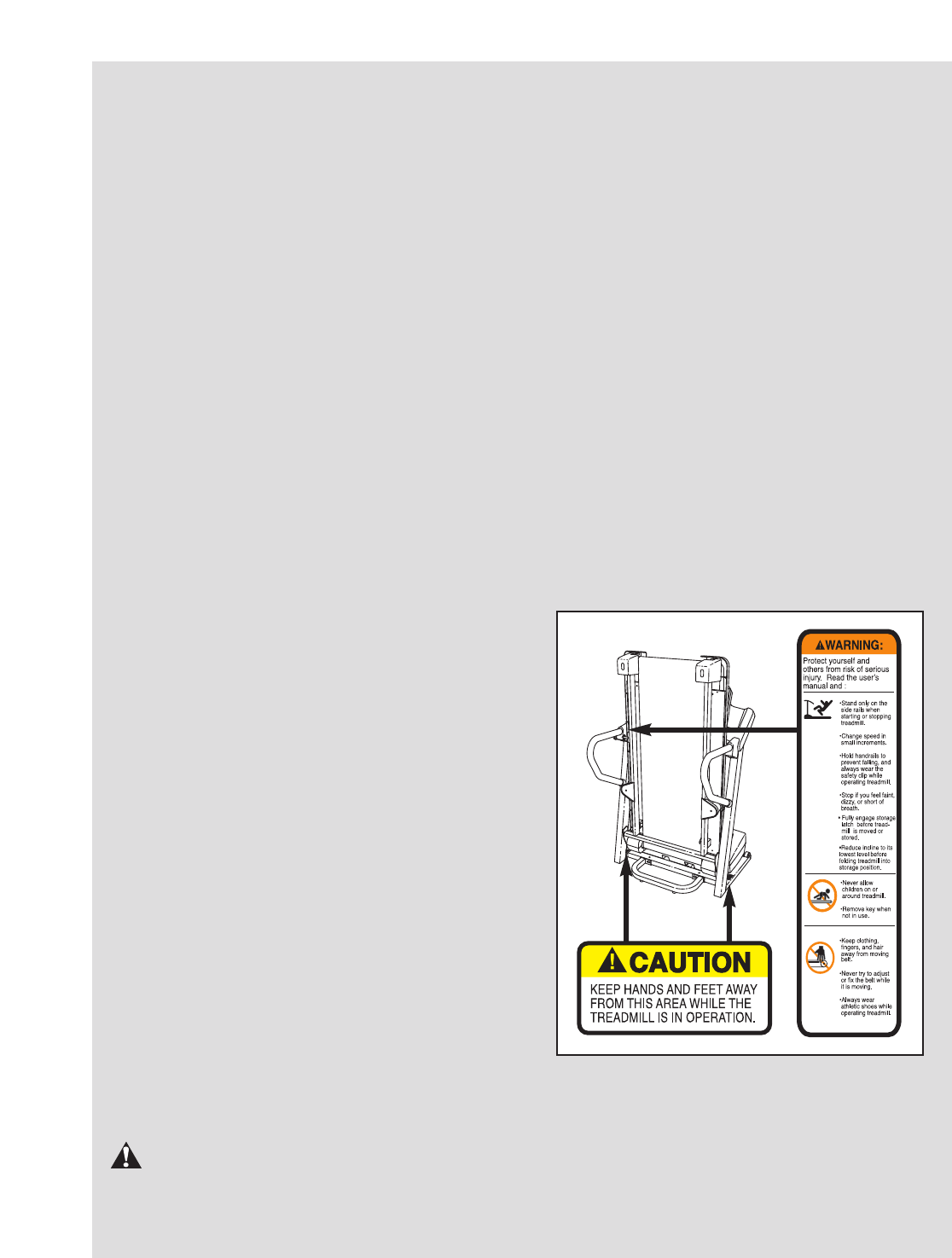

28. The decals shown below have been placed

on your treadmill. If a decal is missing, or if it

is not legible, please call toll-free 1-888-533-

1333 and order a free replacement decal.

Apply the decal in the location shown. Note:

The decals are not shown at actual size.

SAVE THESE INSTRUCTIONS

3

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. Sears assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

Thank you for selecting the revolutionary PROFORM®

XP650E treadmill. The XP 650E treadmill offers an

impressive array of features designed to make your

workouts at home more enjoyable and effective. And

when you’re not exercising, the unique XP 650E tread-

mill can be folded up, requiring less than half the floor

space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill.If you have questions after read-

ing this manual, call 1-800-4-MY-HOME®(1-800-469-

4663).To help us assist you, please note the product

model number and serial number before calling. The

model number of the treadmill is 831.29606.1. The ser-

ial number can be found on a decal attached to the

treadmill (see the front cover of this manual for the lo-

cation).

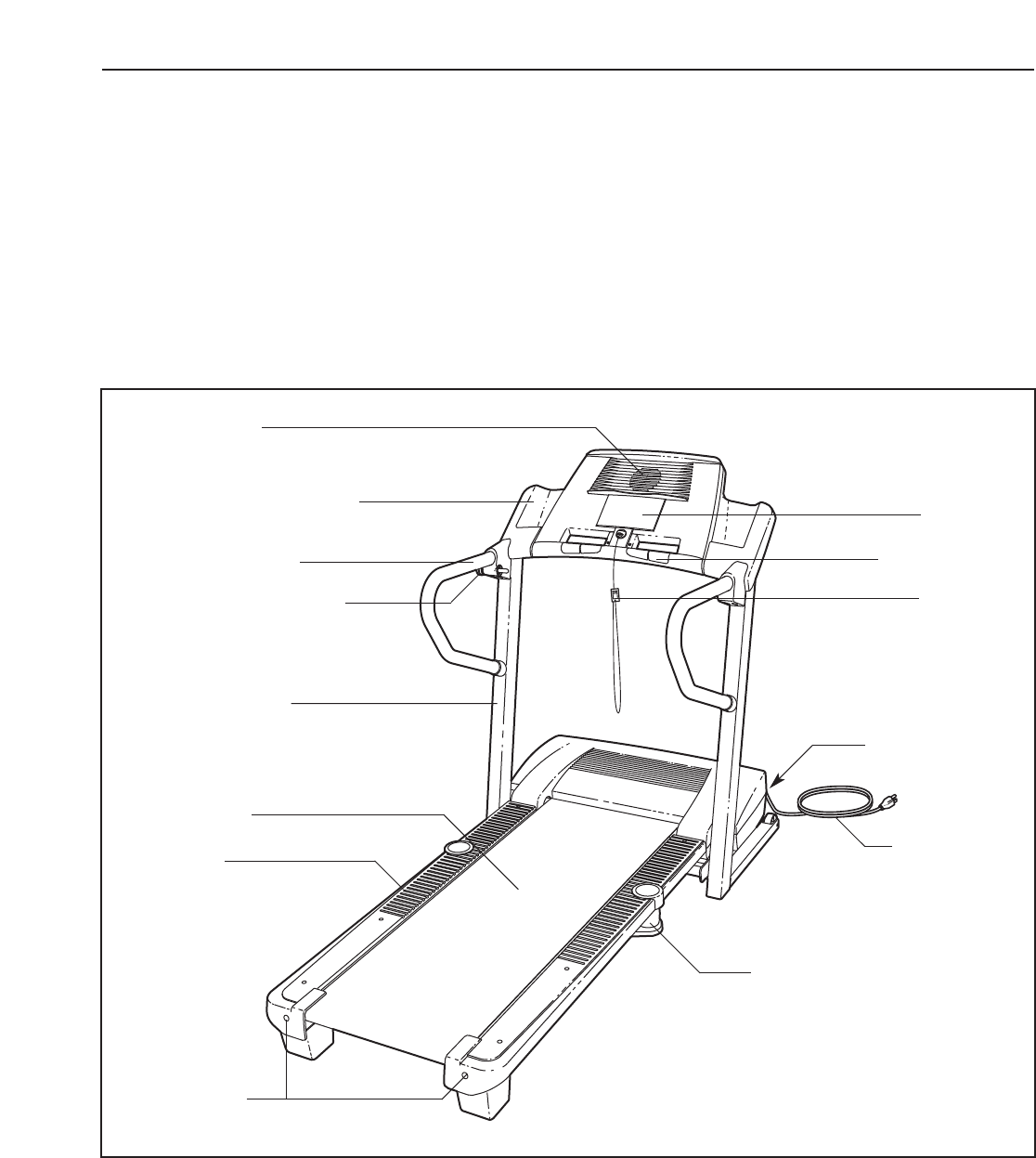

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

4

Handrail

Upright

Storage Latch

Accessory Tray

Fan

Key/Clip

Reset/Off

Circuit Breaker

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail Power Cord

RIGHT SIDE

Rear Roller

Adjustment Bolts

Console

Pulse Sensor

BACK

ASSEMBLY

Make sure that the power cord is unplugged. Assembly requires two persons. Set the treadmill in a cleared

area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note:

The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small

amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal con-

dition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the

lubricant with a soft cloth and a mild, non-abrasive cleaner.

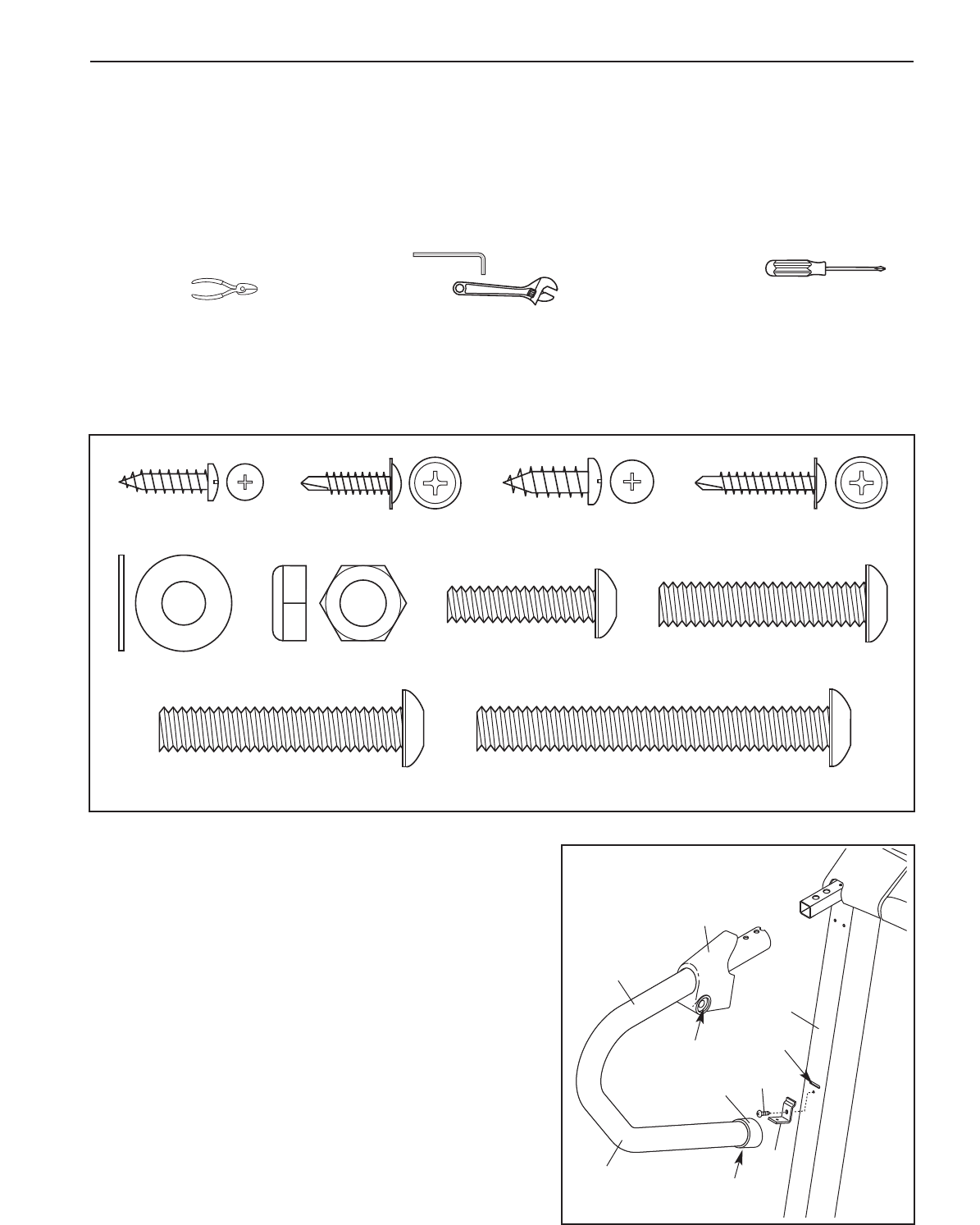

Assembly requires the included allen wrenches and your own phillips screwdriver ,

wire cutters , and adjustable wrench .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST on pages 26 and 27. The number after the parentheses shows

the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to one of

the parts to be assembled. If a part is missing, call toll-free 1-888-533-1333. To avoid damaging plastic

parts, do not use power tools for assembly.

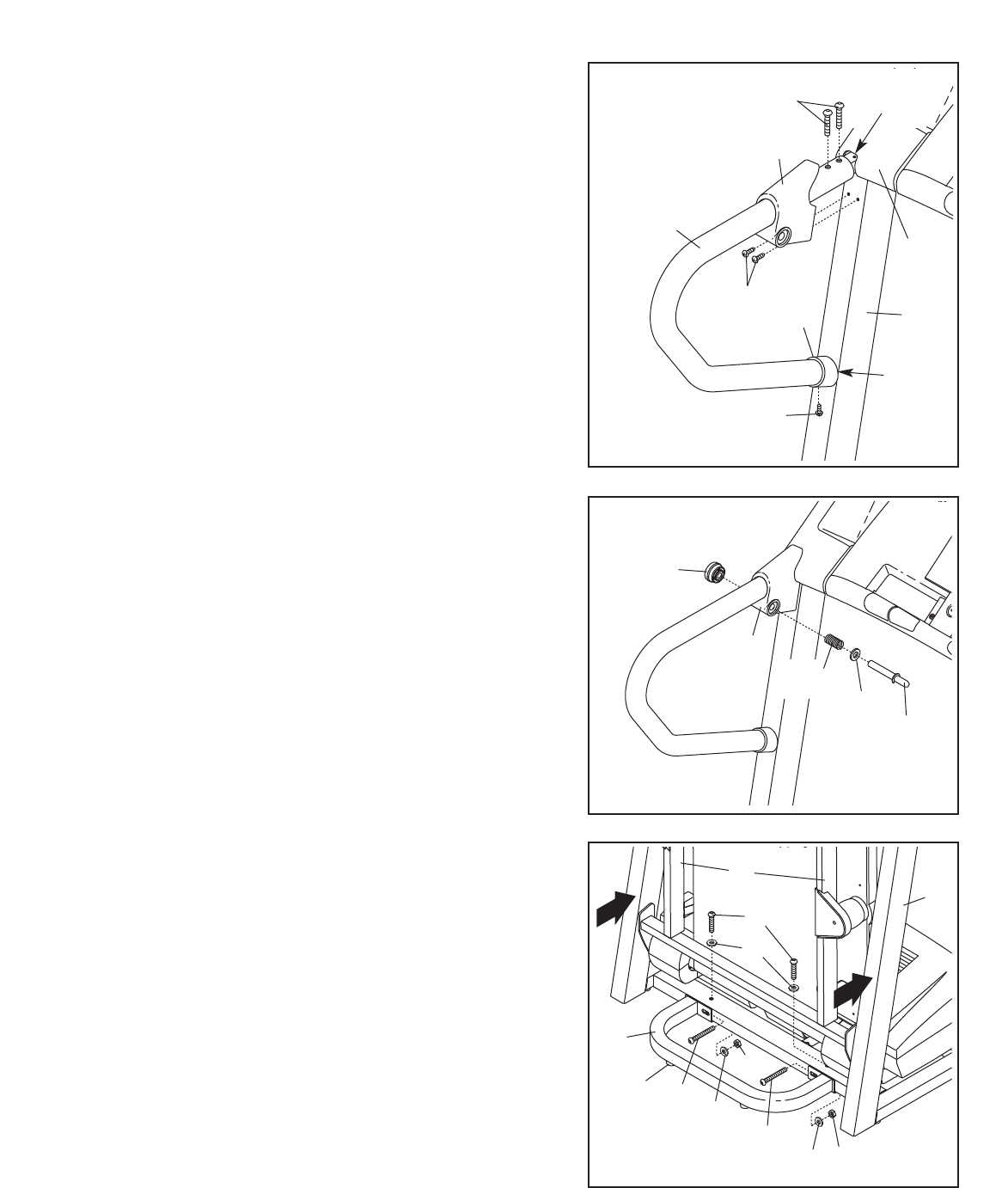

1. With the help of a second person, raise the Uprights (97)

to a vertical position.

Insert the tab on one of the Handrail Brackets (81) into

the indicated slot in the left Upright (97). Attach the

Handrail Bracket with a 3/4” Tek Screw (52).

Identify the Left Handrail Cover (27), which has holes in

the sides. Slide the Left Handrail Cover onto the upper

end of one of the Handrails (43). Slide one of the

Handrail Caps (105) onto the lower end of the Handrail.

Make sure that the small hole in the Handrail Cap is to-

ward the bend in the Handrail.

97

Slot

Hole

Small Hole

Bend

1

52

105

43

81

27

Nut (20)–4

Base Pad Screw (40)–4

Wheel Bolt (90)–2 3” Bolt (86)–2

Screw (95)–2 3/4” Tek Screw (52)–2

Washer (71)–4 1 3/4” Bolt (76)–2

Cover Screw (34)–4

Handrail Bolt (80)–4

5

6

3. Remove the knob from the pin. Make sure that the collar

and the spring are on the pin. Next, insert the pin into the

Left Handrail Cover (27), and tighten the knob back onto

the pin.

Place the treadmill in the storage position (see HOW TO

FOLD THE TREADMILL FOR STORAGE on page 21).

27

Pin

Collar

Knob

Spring

3

4

4. Have a second person tip the Uprights (97) forward and

hold them.

Orient the U-base (89) so the Base Pads (99) are un-

derneath it, and position the U-base against the base of

the Uprights (97) as shown. Insert two 3” Bolts (86) into

the U-base (89) and the base of the Uprights (97); if

necessary, tip the Uprights forward as you insert the

Bolts. Finger tighten two Nuts (20) with Washers (71)

onto the Bolts.

Next, insert two 1 3/4” Bolts (76) with Washers (71) into

the base of the Uprights and the U-base; if necessary,

tip the Uprights forward as you insert the Bolts. Start

both Bolts and then firmly tighten them.

89

99

97

76

86

86

71

71

20

20

71

59

2. Slide the left Handrail (43) onto the post on the left

Upright (97) and onto the left Handrail Bracket (81).

Finger tighten two Handrail Bolts (80) into the left

Handrail and the post; do not fully tighten the Handrail

Bolts yet.

Set the Handrail Cap (105) against the left Upright (97).

Tighten a Screw (95) into the bottom of the Handrail

Cover and into the left Handrail Bracket (81). Then,

tighten the two Handrail Bolts (80).

Slide the Left Handrail Cover (27) against the Console

Base (101). Tighten two Cover Screws (34) into the Left

Handrail Cover and the left Upright (97); be careful not

to overtighten the Cover Screws.

Repeat steps 1 and 2 on the right side (not shown).

95

97

101

81

34

105

43

27

80 Post

2

7

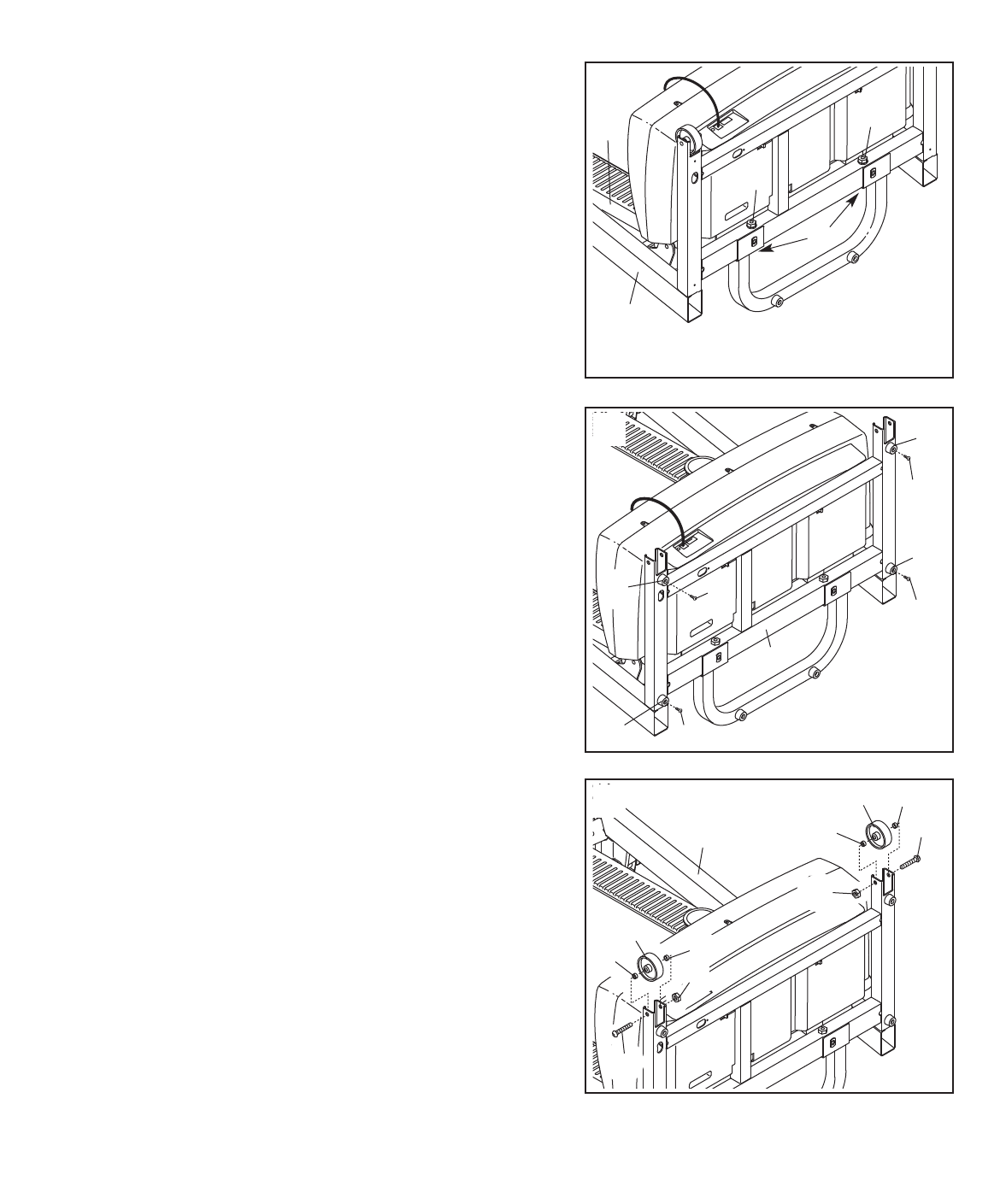

7. Attach the two Wheels (94) to the base of the Uprights

(97) with two Wheel Bolts (90), four Wheel Spacers (79),

and two Nuts (20) as shown. Do not overtighten the

Nuts; the Wheels should turn freely.

With the help of a second person, carefully raise the

Uprights (97) to the vertical position.

79

94

79

97

94 79

90

20

79

90

7

8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may

be included. Keep the included allen wrenches in a secure place; the large allen wrench is used to adjust the

walking belt (see page 23). To protect the floor or carpet, place a mat under the treadmill.

6. Attach the four Base Pads (99) to the base of the

Uprights (97) with four Base Pad Screws (40) in the loca-

tions shown.

40

97

99

99

40

99

40

40

99

6

20

5

5 Lower the treadmill Frame (59) (see HOW TO LOWER

THE TREADMILL FOR USE on page 21). With the help

ofasecond person, carefully tip the Uprights (97) down

as shown.

Firmly tighten the two Nuts (20) on the 3” Bolts (86).

97

20

20

59

86

8

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with high-

performance lubricant. IMPORTANT: Never apply sil-

icone spray or other substances to the walking

belt or the walking platform. Such substances will

deteriorate the walking belt and cause excessive

wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local Sears store or call 1-800-366-7278 and

order part number 146148, or see your local elec-

tronics store.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be a moni-

toring light on the surge suppressor to indicate

whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill. If

the control system is damaged, the walking belt

may change speed, accelerate, or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

anequipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

1

2

Grounded Outlet Box

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

9

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive.

When the manual mode of the console is selected, the

speed and incline of the treadmill can be changed with

the touch of a button. As you exercise, the console will

display continuous exercise feedback. You can even

measure your heart rate using the built-in handgrip

pulse sensor or the optional chest pulse sensor (see

page 20).

In addition, the console features six preset programs.

Each program automatically controls the speed and in-

cline of the treadmill as it guides you through an effec-

tive workout. The console also offers two heart rate pro-

grams that control the speed and incline of the treadmill

to keep your heart rate near target heart rate settings

during your workouts. Note: The heart rate programs

require the use of the optional chest pulse sensor.

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com technology is like having a per-

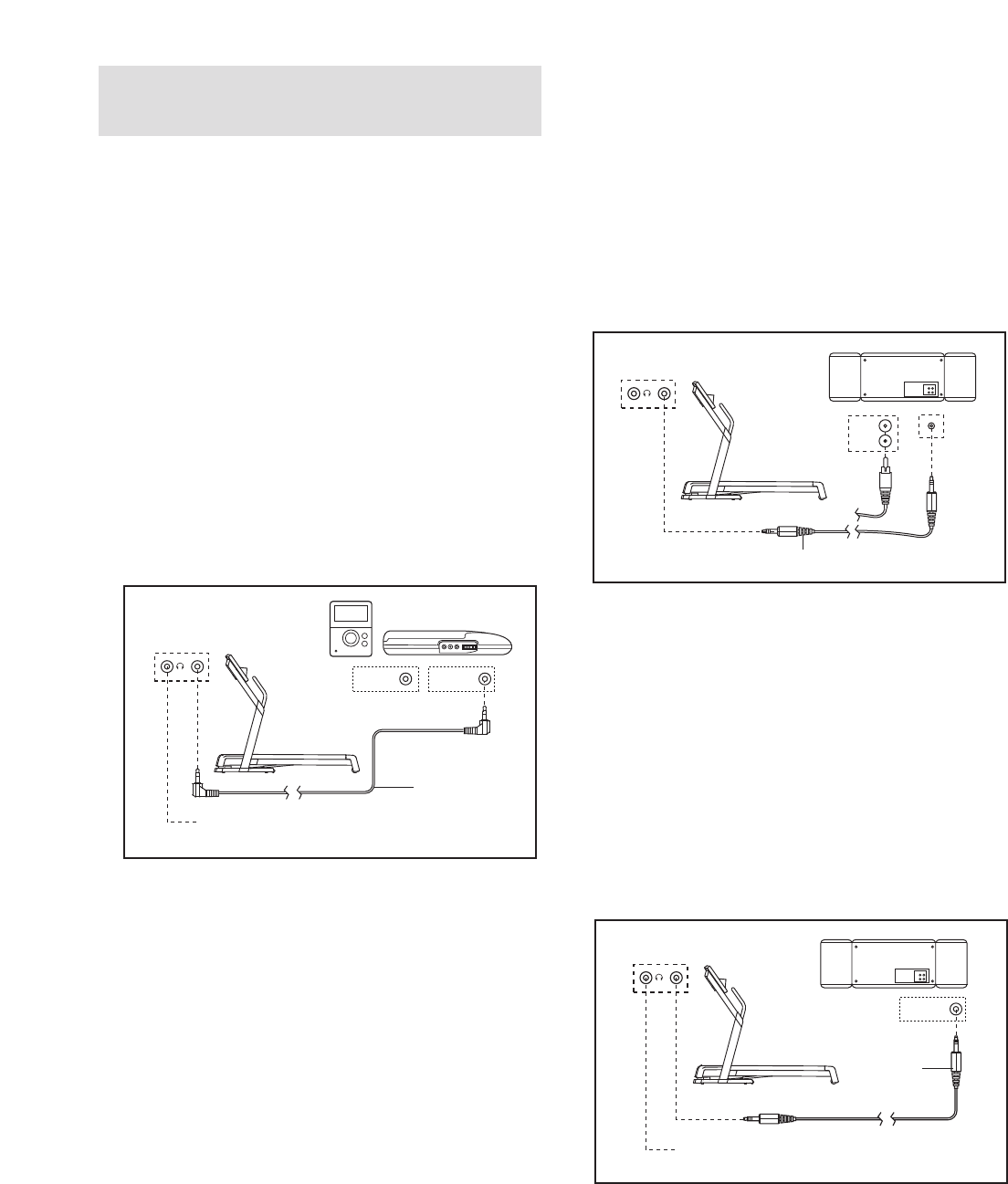

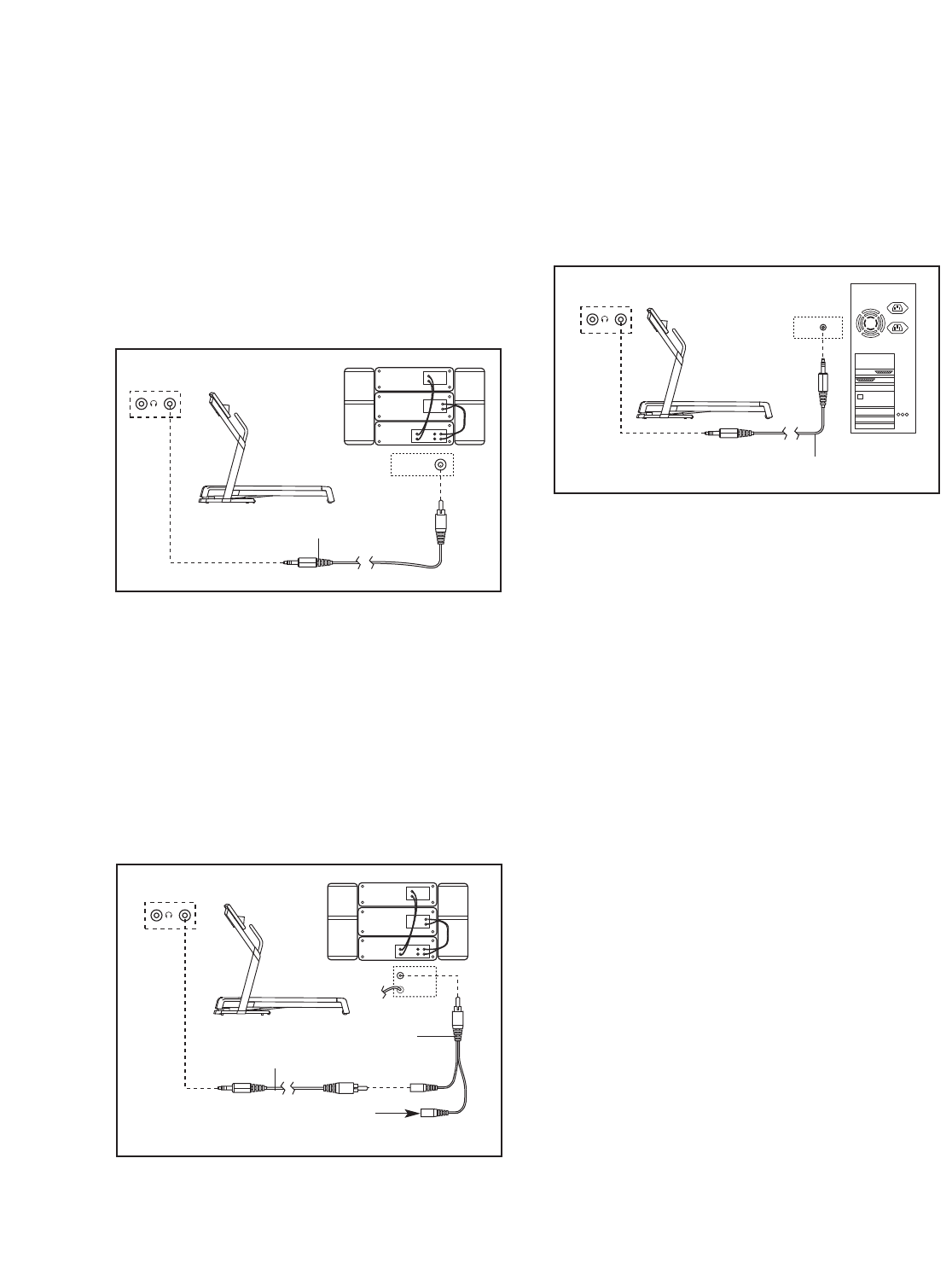

sonal trainer in your home. Using a stereo audio cable,

you can connect the treadmill to your portable stereo,

home stereo, computer, or VCR and play special

iFIT.com MP3, CD, and video programs (iFIT.com MP3

programs, CDs, and videocassettes are available sepa-

rately). iFIT.com programs automatically control the

speed and incline of the treadmill as a personal trainer

guides you through every step of your workout; high-

energy music provides added motivation. To down-

load iFIT.com MP3 programs, go to www.iFIT.com.

To purchase iFIT.com CDs or videocassettes, call

toll-free 1-888-533-1333.

With the treadmill connected to your computer, you

can also go to www.iFIT.com and access iFIT.com

programs directly from our Web site. See

www.iFIT.com for more information.

To use the manual mode of the console, follow the

steps beginning on page 10. To use a preset

program,see page 12. To use a heart rate program,

see page 13. To use an iFIT.com MP3, CD, or video

program,see page 17. To use an iFIT.com program

directly from our Web site,see page 19.

Clip

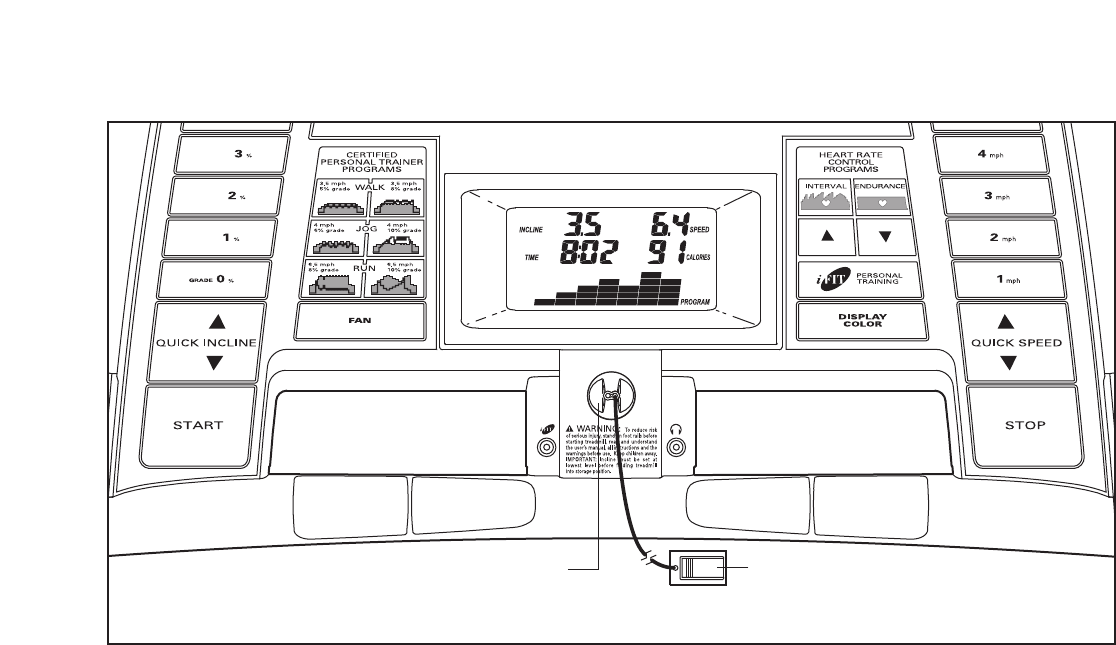

CONSOLE DIAGRAM

Key

Note: If there is a sheet of clear plastic

on the face of the console, remove it.

10

HOW TO TURN ON THE POWER

Plug in the power cord (see page 8).

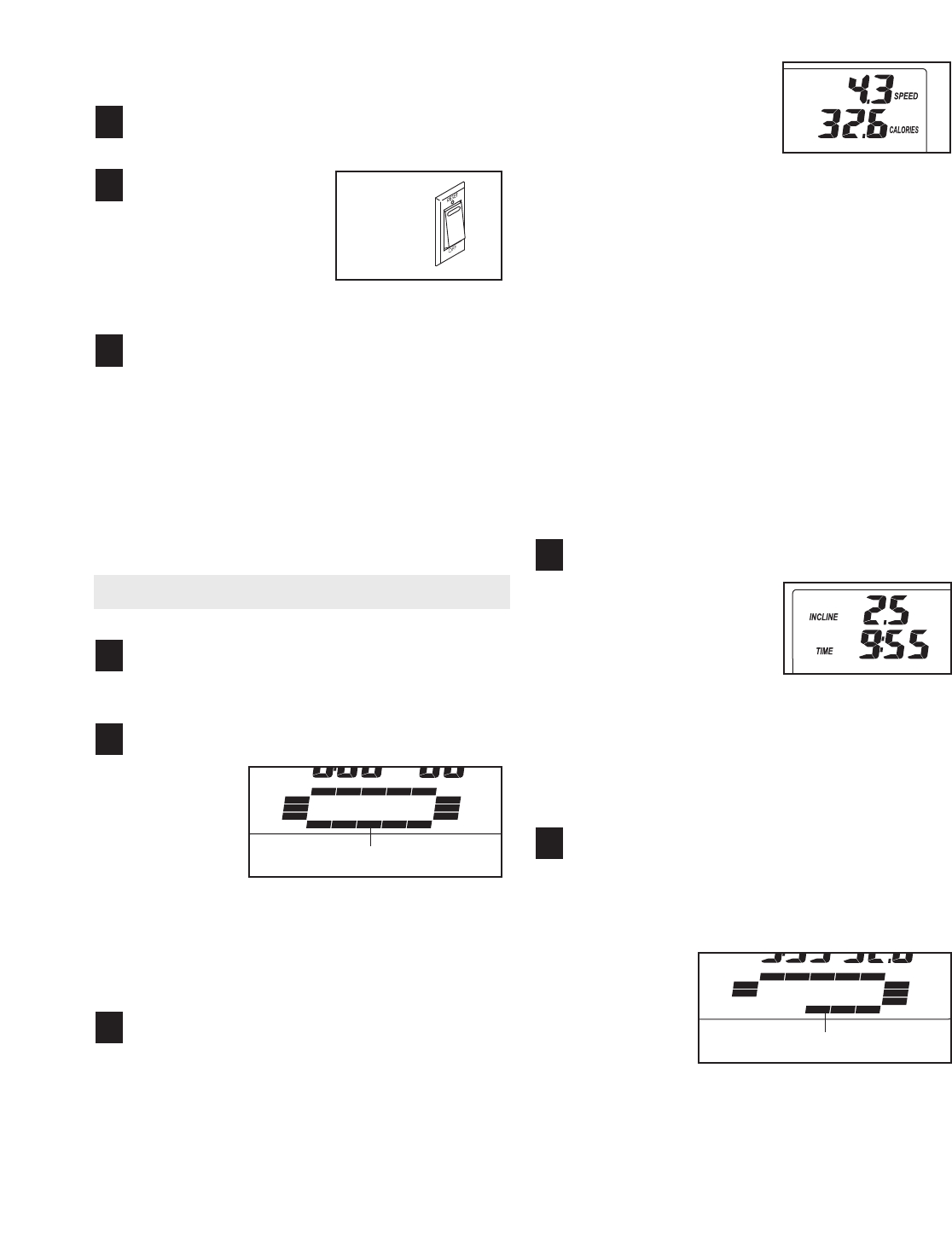

Locate the reset/off

circuit breaker on the

treadmill frame near

the power cord. Make

sure that the circuit

breaker is in the reset

position.

Stand on the foot rails of the treadmill. Find the clip

attached to the key (see the drawing on page 9)

and slide the clip onto the waistband of your

clothes. Next, insert the key into the console. After

amoment, the display will light. Important: In an

emergency situation, the key can be pulled

from the console, causing the walking belt to

slow to a stop. Test the clip by carefully taking

afew steps backward; if the key is not pulled

from the console, adjust the position of the clip.

HOW TO USE THE MANUAL MODE

Insert the key into the console.

See HOW TO TURN ON THE POWER above.

Select the manual mode.

When the

key is in-

serted, the

manual

mode will

be selected.

If a program

has been selected, reselect the manual mode by

pressing one of the Walk buttons, one of the Jog

buttons, or one of the Run buttons twice so a track

appears in the lower part of the display.

Start the walking belt.

To start the walking belt, press the Start button,

the Quick Speed increase button, or one of the

speed buttons numbered 1 through 10.

If the Start button or the Quick Speed increase

button is pressed, the walking belt will begin to

move at 1 mph. As you exercise, change the

speed of the walking belt as desired by pressing

the Quick Speed increase and decrease buttons.

Each time a button is

pressed, the speed set-

ting will change by 0.1

mph; if a button is held

down, the speed setting

will change in incre-

ments of 0.5 mph. Note: After the buttons are

pressed, it may take a moment for the walking belt

to reach the selected speed setting.

If one of the numbered speed buttons is pressed,

the walking belt will gradually increase in speed

until it reaches the selected speed setting.

To stop the walking belt, press the Stop button. To

restart the walking belt, press the Start button, the

Quick Speed increase button, or one of the num-

bered speed buttons.

Note: The first time the treadmill is used, observe

the alignment of the walking belt, and center the

walking belt if necessary (see page 23).

Change the incline of the treadmill as desired.

To change the incline of

the treadmill, press the

Quick Incline increase

and decrease buttons.

Each time a button is

pressed, the incline will

change by 0.5%. To change the incline quickly,

press one of the incline buttons numbered 0

through 10. Note: After the buttons are pressed, it

may take a moment for the treadmill to reach the

selected incline setting.

Follow your progress with the display.

Note: The display can be backlit with any of

five colors. To select the desired color, press

the Display Color button repeatedly.

When the

manual mode

or the

iFIT.com

mode is se-

lected, the

lower part of

the display will show a 1/4-mile track. As you walk

or run, the indicators around the track will appear

in succession until the entire track appears. The

track will then disappear and the indicators will

again begin to appear in succession.

5

4

3

2

1

3

2

1

Reset

Position

Track

Track

11

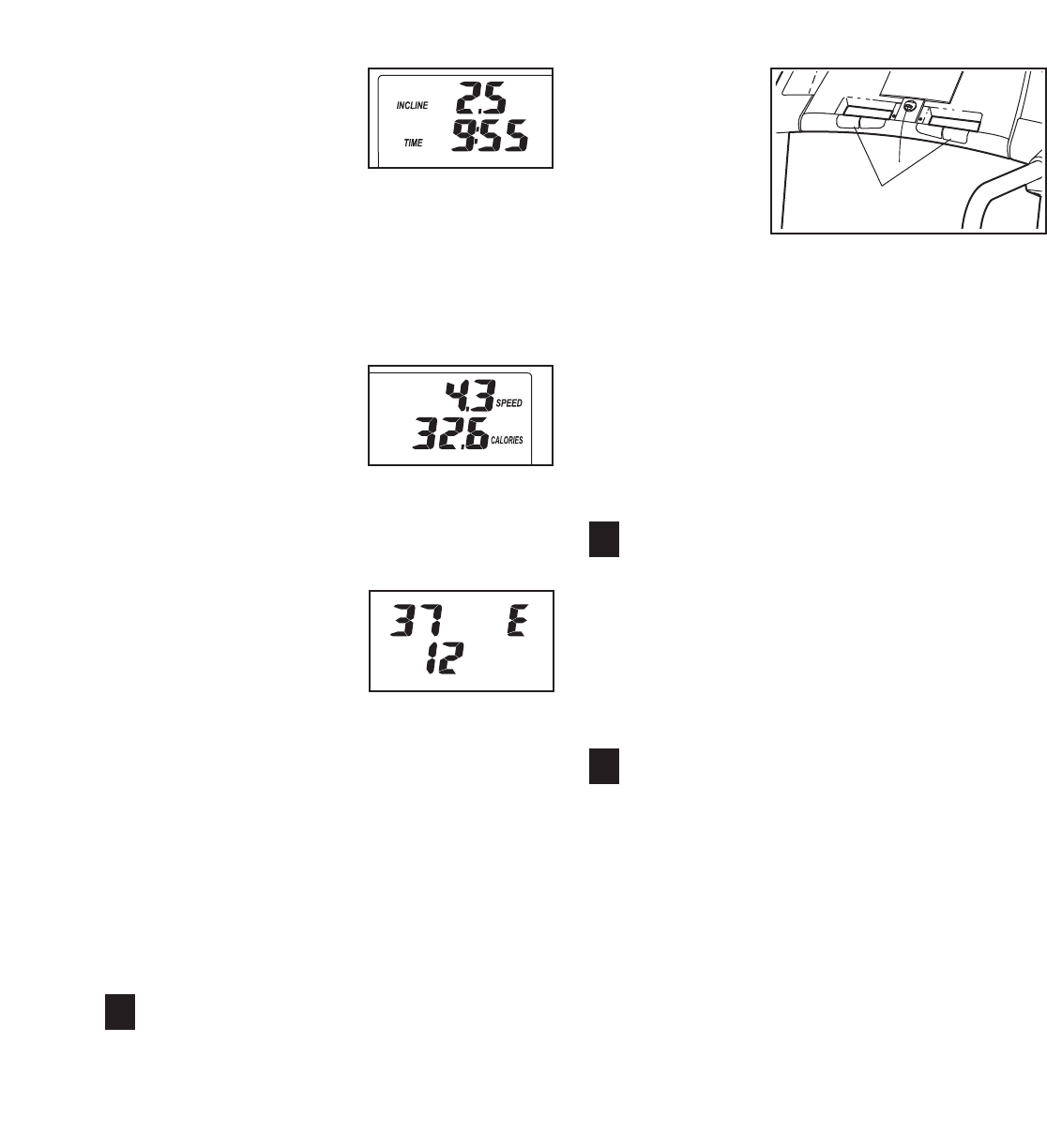

The left side of the dis-

play will show the incline

level of the treadmill, the

elapsed time, the ap-

proximate number of

grams of carbs you have

burned, and the distance you have walked or run.

Note: Each time the incline changes, the display

will show the incline setting for a few seconds

When a program is selected, the display will show

the time remaining in the program instead of the

elapsed time.

The right side of the

display will show the

speed of the walking

belt, the approximate

number of calories you

have burned, and your

pace (in minutes per mile). The display will also

show your heart rate when you use the handgrip

pulse sensor or the optional chest pulse sensor.

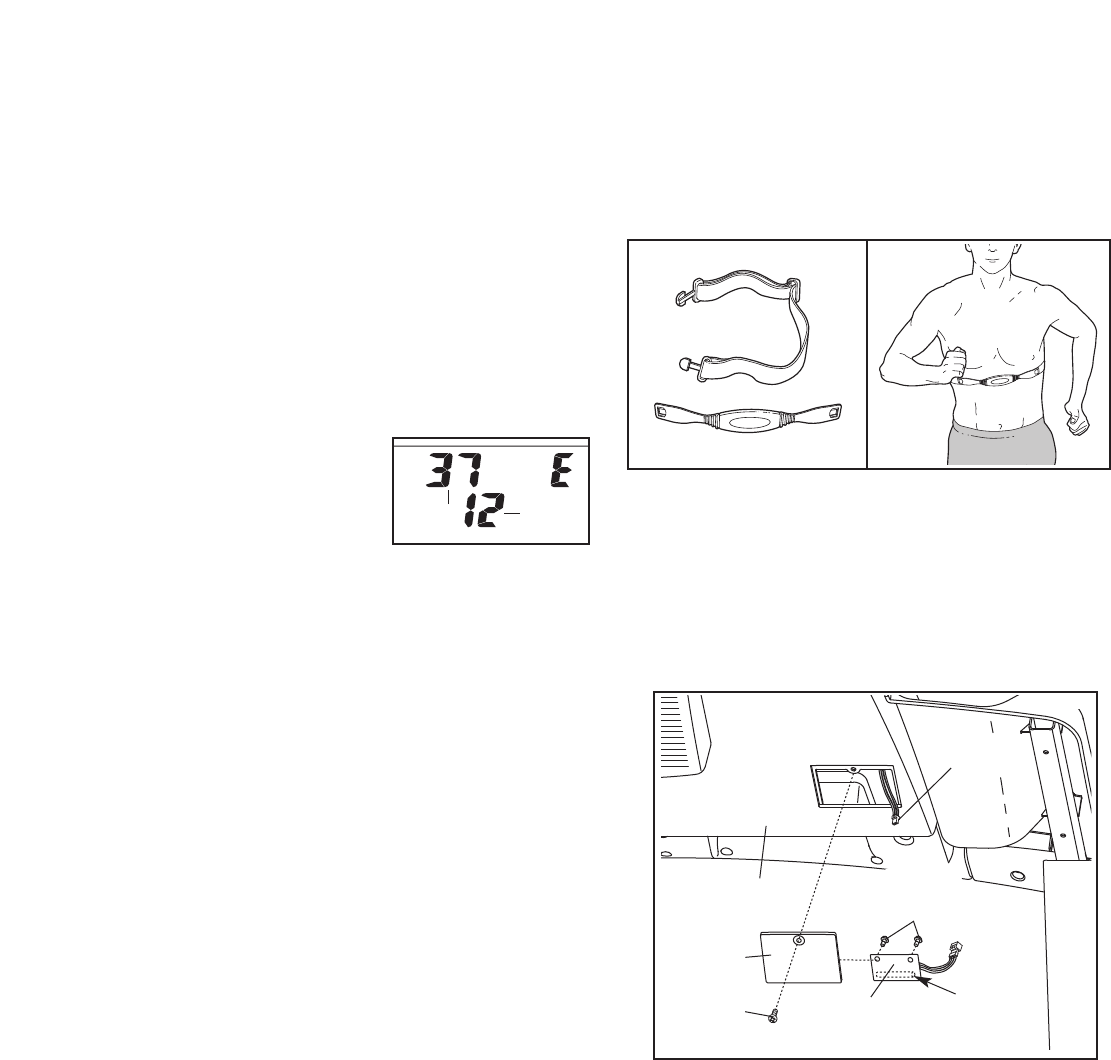

Note: The console can

display speed and dis-

tance in either miles or

kilometers. To determine

which unit of measure-

ment is selected, hold

down the Stop button while inserting the key into

the console. An “E” for English miles or an “M” for

metric kilometers will appear in the right side of the

display. Press the Quick Speed increase button to

change the unit of measurement. When the de-

sired unit of measurement is selected, remove the

key. Note: For simplicity, all instructions in this

section refer to miles.

To reset the display, press the Stop button, re-

move the key, and then reinsert the key.

Measure your heart rate if desired.

Note: If you use the handgrip pulse sensor and

the optional chest pulse sensor at the same time,

the console will not display your heart rate accu-

rately. Before using the handgrip pulse sensor, re-

move the

sheet of

clear plastic

from the

metal con-

tacts. In ad-

dition, make

sure that

your hands

are clean.

To measure your heart rate, stand on the foot

rails and hold the metal contacts on the

handrail—avoid moving your hands.When your

pulse is detected, the heart symbol in the right side

of the display will appear, one or two dashes will

appear, and then your heart rate will be shown.

For the most accurate heart rate reading, con-

tinue to hold the contacts for about 15 seconds.

Turn on the fan if desired.

To turn on the fan at low speed, press the Fan

button. To turn on the fan at medium speed, press

the button a second time. To turn on the fan at

high speed, press the button a third time. To turn

off the fan, press the button a fourth time. Note: If

the fan is on when the walking belt is stopped, the

fan will automatically turn off after a few minutes.

When you are finished exercising, remove the

key.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest setting

when the treadmill is folded to the storage posi-

tion or the treadmill will be damaged. Next, re-

move the key from the console and put it in a se-

cure place. Note: If the display remains lit after

the key is removed, the console is in the

“demo” mode. See page 20 and turn off the

demo mode.

When you are finished using the treadmill,

switch the reset/off circuit breaker to the off

position and unplug the power cord.

8

7

6

Contacts

12

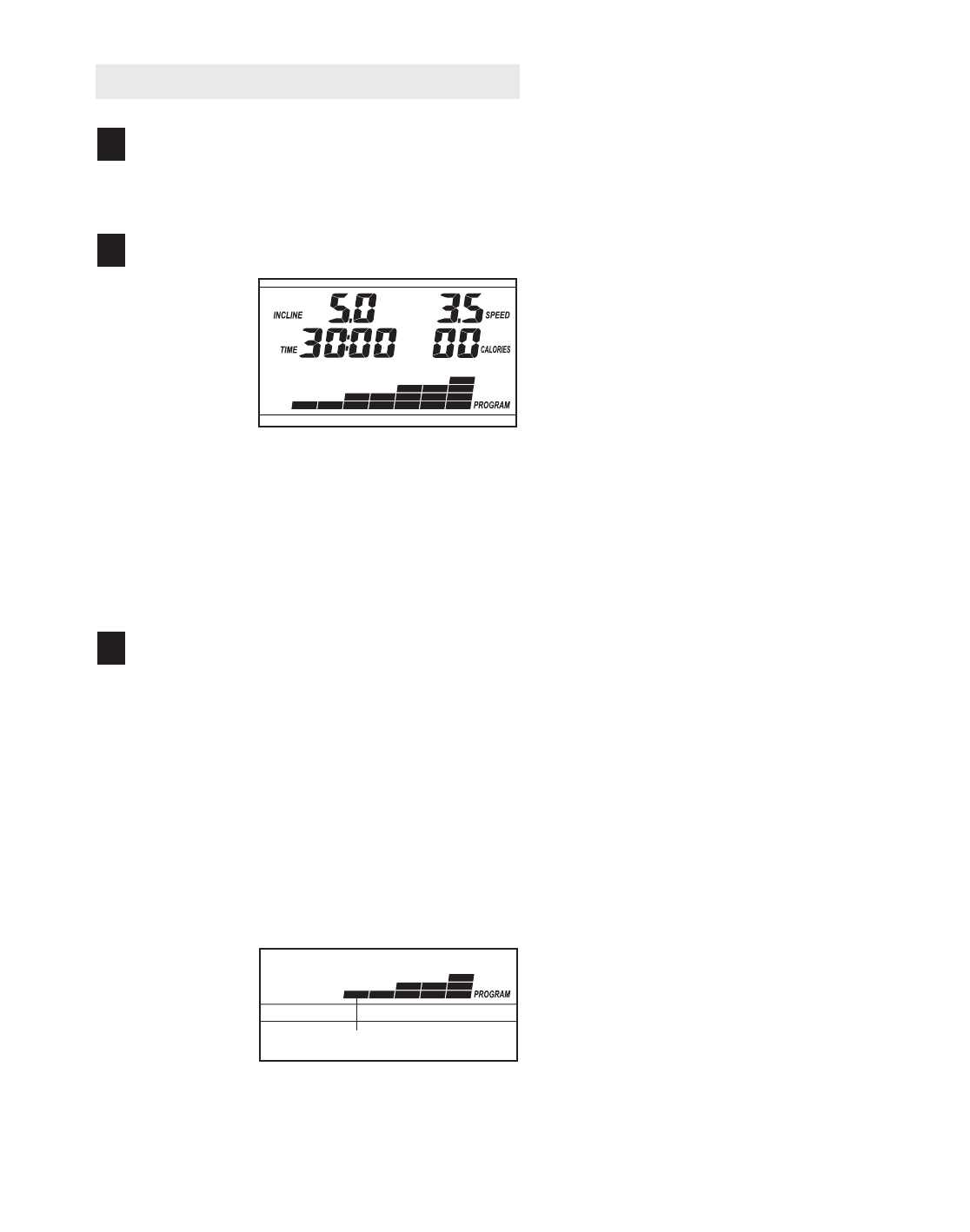

HOW TO USE A PRESET PROGRAM

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

10.

Select a preset program.

To select a

preset pro-

gram, press

one of the

Walk but-

tons, one of

the Jog but-

tons, or one

of the Run

buttons. When a preset program is selected, the

maximum speed setting of the program and the

maximum incline setting of the program will flash

in the display for a few seconds. The display will

also show how long the program will last. The ma-

trix in the lower part of the display will show the

first seven speed settings of the program.

Press the Start button or the Quick Speed in-

crease button to start the program.

Amoment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings of the program. Hold the handrails

and begin walking.

Each program is divided into 30 one-minute seg-

ments. One speed setting and one incline setting

are programmed for each segment. Note: The

same speed setting and/or incline setting may be

programmed for two or more consecutive seg-

ments.

The speed

setting for

the first seg-

ment will be

shown in the

flashing

Current

Segment column of the matrix in the lower part of

the display. (The incline settings are not shown in

the matrix.) The speed settings for the next four

segmentswill be shown in the four columns to the

right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

series of tones will sound. If the speed and/or in-

cline of the treadmill is about to change, the speed

setting and/or the incline setting will flash in the

display to alert you.

When the first segment is completed,

all speed

settings will move one column to the left

.The

speed setting for the second segment will then be

shown in the flashing Current Segment column

and the treadmill will automatically adjust to the

speed and incline settings for the second seg-

ment. Note: If all five of the indicators in the

Current Segment column are lit,

the speed settings

may move downward

so that only the highest indi-

cators appear in the matrix.

The program will continue in this way until the

speed setting for the last segment is shown in the

Current Segment column and the last segment

ends. The walking belt will then slow to a stop.

If the speed or incline setting for the current

segment is too high or too low, you can manually

override the setting by pressing the Speed or

Incline buttons. Every few times a Speed button is

pressed, an additional indicator will appear or dis-

appear in the Current Segment column; if any of

the columns to the right of the Current Segment

column have the same number of lit indicators as

the Current Segment column, an additional indica-

tor may appear or disappear in those columns as

well. Important: When the current segment of

the program ends, the treadmill will automati-

cally adjust to the speed and incline settings

for the next segment.

To stop the program at any time, press the Stop

button. To restart the program, press the Start but-

ton or the Quick Speed increase button. The walk-

ing belt will begin to move at 1 mph. When the next

segment of the program begins, the treadmill will

automatically adjust to the speed and incline set-

tings for the next segment.

3

2

1

Current Segment

13

Follow your progress with the display.

See step 5 on page 10.

Measure your heart rate if desired.

See step 6 on page 11.

Turn on the fan if desired.

See step 7 on page 11.

When you are finished exercising, remove the

key from the console.

When the program has ended, make sure that

the incline of the treadmill is at the lowest set-

ting. Next, remove the key from the console and

put it in a safe place. Note: If the display remains

lit after the key is removed, the console is in

the “demo” mode. See page 20 and turn off the

demo mode.

When you are finished using the treadmill,

switch the reset/off circuit breaker to the off

position and unplug the power cord.

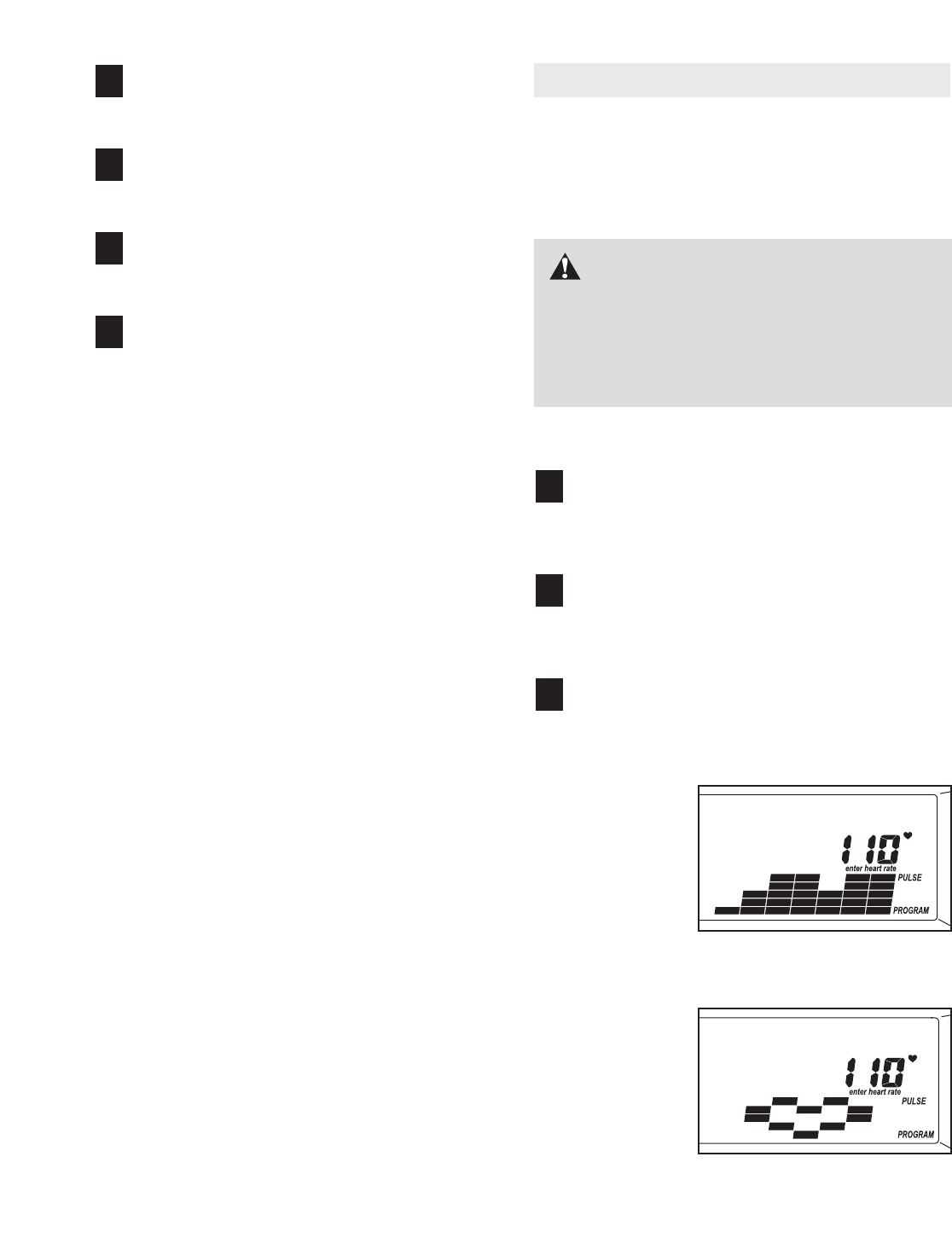

HOW TO USE A HEART RATE PROGRAM

The Interval heart rate program will automatically adjust

the speed and incline of the treadmill to keep your heart

rate within a preset range during your workout. The

Endurance heart rate program will keep your heart rate

near a target heart rate that you select.

Follow the steps below to use a heart rate program.

Put on the optional chest pulse sensor.

You must wear the optional chest pulse sensor

(see page 20) to use a heart rate program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on

page 10.

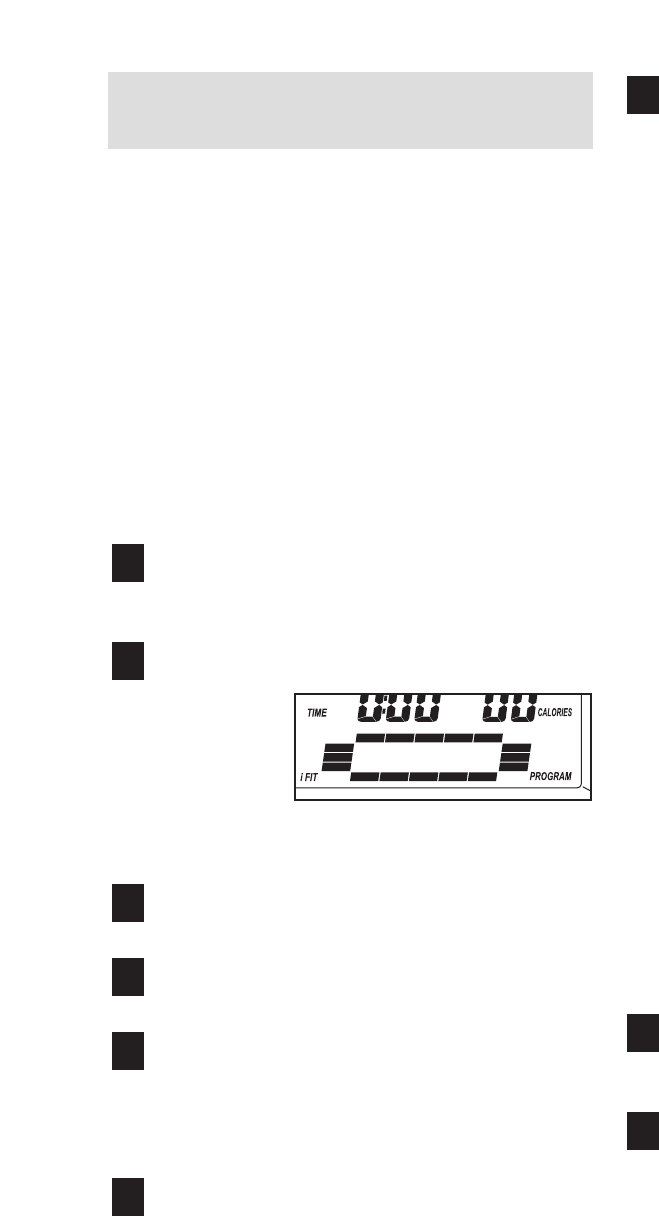

Select a heart rate program.

To select a heart rate program, press the Interval

button or the Endurance button.

If the

Interval pro-

gram is se-

lected, the

first seven

target heart

rate settings

of the pro-

gram will ap-

pear in the matrix.

If the

Endurance

program is

selected, a

heart symbol

will appear in

the matrix.

3

2

1

7

6

5

4

CAUTION: If you have heart prob-

lems, or if you are over 60 years of age and

have been inactive, do not use the heart rate

programs. If you are taking medication regu-

larly, consult your physician to find whether the

medication will affect your exercise heart rate.

14

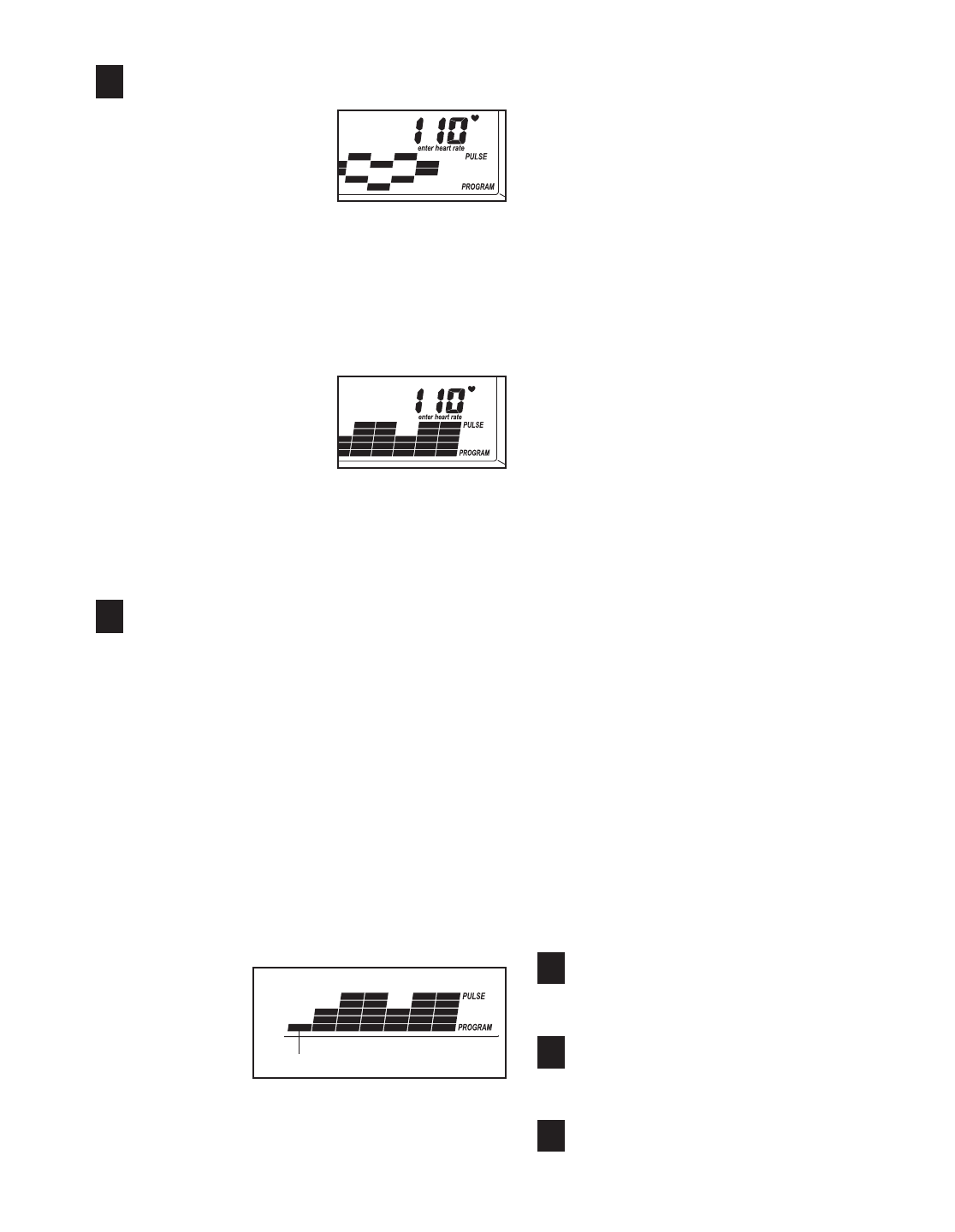

Enter a target heart rate setting.

If the Interval program

is selected, the maxi-

mum target heart rate

setting of the program

will appear in the dis-

play. If desired, press

the Heart Rate increase and decrease buttons to

change the maximum target heart rate setting

(see EXERCISE INTENSITY on page 24). Note:

If the maximum target heart rate setting is

changed, the intensity level of the entire program

will change.

If the Endurance pro-

gram is selected, the

target heart rate setting

for the program will flash

in the display. If desired,

press the Heart Rate in-

crease and decrease buttons to change the target

heart rate setting (see EXERCISE INTENSITY on

page 24). Note: The same target heart rate set-

ting will be programmed for the entire program.

Press the Start button or the Quick Speed in-

crease button to start the program.

Amoment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings of the program. Hold the handrails

and begin walking.

The Interval program is divided into 30 one-minute

segments. One target heart rate setting is pro-

grammed for each segment. (Note: The same tar-

get heart rate setting may be programmed for two

or more consecutive segments.) The Endurance

program is divided into 40 one-minute segments.

The same target heart rate setting is programmed

for all segments. Note: For a shorter workout, sim-

ply stop the program before it ends.

If the

Interval pro-

gram is se-

lected, the

target heart

rate setting

for the first

segment will be shown in the flashing Current

Segment column of the matrix. The target heart

rate settings for the next several segments will be

shown in the columns to the right. When only

three seconds remain in the first segment, both

the Current Segment column and the column to

the right will flash and a series of tones will sound.

In addition, the speed setting and the incline set-

ting will flash in the displays to alert you. When

the first segment ends,

all target heart rate set-

tings will move one column to the left.

The target

heart rate setting for the second segment will then

be shown in the flashing Current Segment col-

umn.

During both heart rate programs, the console will

regularly compare your heart rate to the current

target heart rate setting. If your heart rate is too

far below or above the target heart rate setting,

the speed of the walking belt will automatically in-

crease or decrease to bring your heart rate closer

to the target heart rate setting. If the speed of the

walking belt reaches 7.5 mph and your heart rate

is still too far below the target heart rate setting,

the incline of the treadmill will also increase.

If the speed or incline setting is too high or too low

at any time during the program, you can adjust the

setting with the Speed or Incline buttons. However,

each time the console compares your heart rate to

the target heart rate setting, the speed and/or in-

cline of the treadmill may automatically change to

bring your heart rate closer to the target heart rate.

If your pulse is not detected during the program,

the letters “PLS” will flash in the display and the

speed and/or incline of the treadmill may automat-

ically decrease.If this occurs, see the instructions

included with the optional chest pulse sensor.

To stop the program at any time, press the Stop

button. To restart the program, press the Start but-

ton or the Quick Speed increase button. The walk-

ing belt will begin to move at 1 mph. When the

console compares your heart rate to the target

heart rate setting, the speed and/or incline of the

treadmill may automatically change to bring your

heart rate closer to the target heart rate setting.

Follow your progress with the display.

See step 5 on page 10.

Turn on the fan if desired.

See step 7 on page 11.

When you are finished exercising, remove the

key from the console.

See step 7 on page 13.

8

7

6

5

4

Current Segment

15

HOW TO CONNECT THE TREADMILL TO USE

IFIT.COM PROGRAMS

To use iFIT.com MP3 or CD programs,the treadmill

must be connected to your MP3 player, CD player,

portable stereo, home stereo, or computer. See pages

15 and 16 for connecting instructions. To use iFIT.com

programs directly from our Web site,the treadmill

must be connected to your computer. See page 16 for

connecting instructions. To use iFIT.com video pro-

grams,the treadmill must be connected to your VCR.

See page 17 for connecting instructions.

HOW TO CONNECT YOUR MP3 PLAYER OR CD

PLAYER

A. Plug one end of the included 1/8” to 1/8” stereo

audio cable into the input jack on the console. Plug

the other end of the cable into a jack on your MP3

player or CD player. Plug your headphones into the

headphone jack on the console.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

1/8” LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of a long 1/8” to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into the AUDIO OUT jack on your stereo.

B. See the drawing above. Plug one end of a long 1/8”

to 1/8” stereo audio cable (available at electronics

stores) into the input jack on the console. Plug the

other end of the cable into the LINE OUT jack on

your stereo. Note: While the cable is plugged into

the LINE OUT jack, do not plug your headphones

into the headphone jack on the console.

C. Plug one end of a long 1/8” to 1/8” stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into the PHONES jack on your stereo. Plug your

headphones into the headphone jack on the console.

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Headphones

A

AUDIO OUT

RIGHT

LEFT

LINE OUT

Audio Cable

A/B

PHONES

Audio

Cable

C

Headphones

16

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of a long 1/8” to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into the LINE OUT jack on your stereo. Note: While

the cable is plugged into the LINE OUT jack, do not

plug your headphones into the headphone jack on

the console.

B. Plug one end of a long 1/8” to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into an RCA Y-adapter (available at electronics

stores). Next, remove the wire that is currently

plugged into the LINE OUT jack on your stereo and

plug the wire into the unused side of the Y-adapter.

Plug the Y-adapter into the LINE OUT jack on your

stereo. Note: While the Y-adapter is plugged into the

LINE OUT jack, do not plug your headphones into

the headphone jack on the console.

HOW TO CONNECT YOUR COMPUTER

A. Plug one end of a long 1/8” to 1/8” stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into the LINE OUT jack on your computer. Note:

While the cable is plugged into the LINE OUT jack,

do not plug your headphones into the headphone

jack on the console.

CD

VCR

Amp

LINE OUT

LINE OUT

Audio Cable

A

CD

VCR

Amp

LINE OUT

Audio

Cable

RCA

Y-adapter

Wire removed from

LINE OUT jack

B

LINE OUT

Audio Cable

A

17

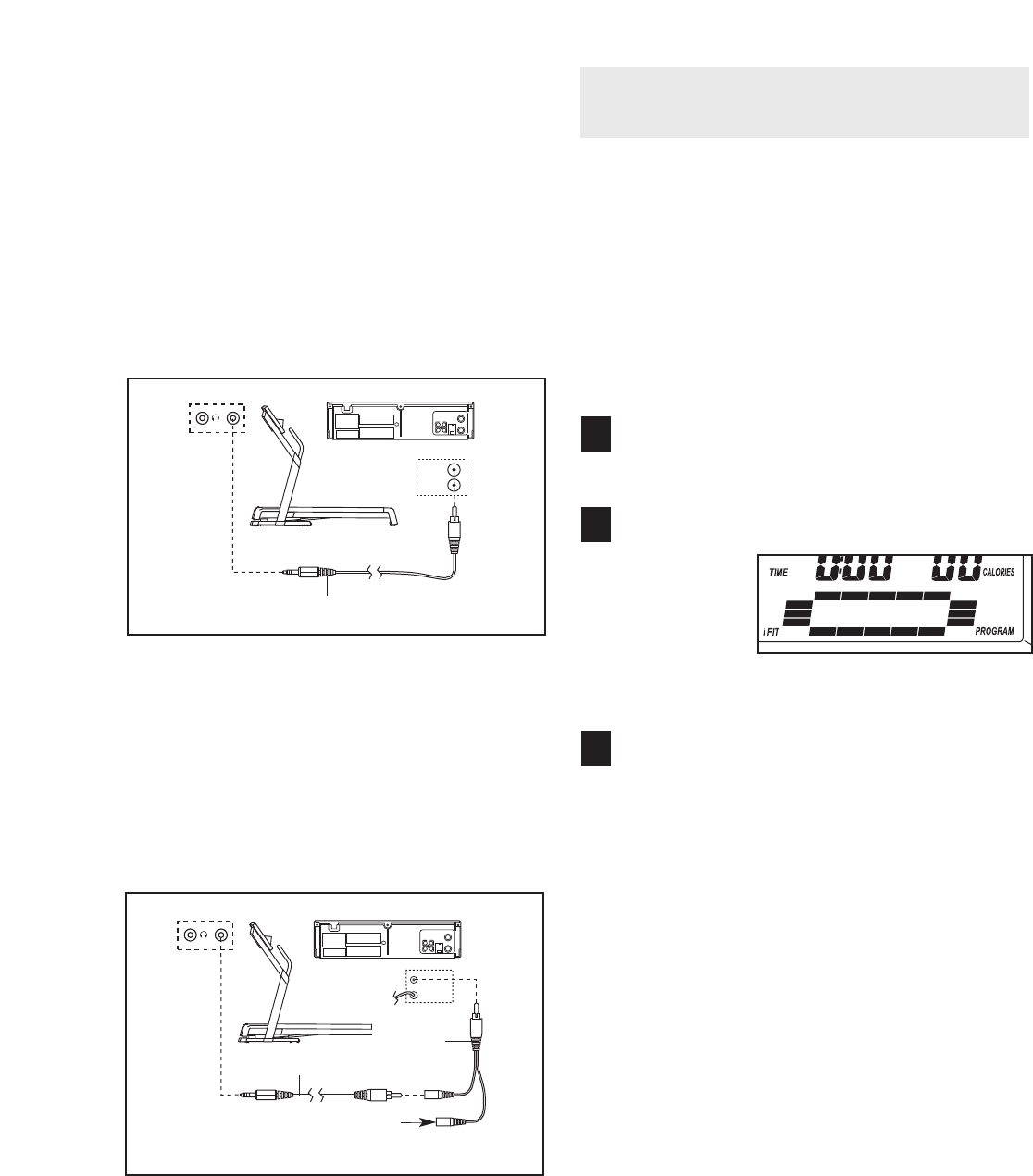

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 16.

A. Plug one end of a long 1/8” to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into the AUDIO OUT jack on your VCR.

B. Plug one end of a long 1/8” to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into an RCA Y-adapter (available at electronics

stores). Next, remove the wire that is currently

plugged into the AUDIO OUT jack on your VCR and

plug the wire into the unused side of the Y-adapter.

Plug the Y-adapter into the AUDIO OUT jack on

your VCR.

HOW TO USE AN IFIT.COM MP3, CD, OR VIDEO

PROGRAM

To use an iFIT.com MP3, CD, or video program, the

treadmill must be connected to your MP3 player, CD

player, or VCR. See HOW TO CONNECT THE

TREADMILL TO USE IFIT.COM PROGRAMS on

pages 15 to 17. To download iFIT.com MP3 pro-

grams, go to www.iFIT.com. To purchase iFIT.com

CDs or videocassettes, call toll-free 1-888-533-1333.

Follow the steps below to use an iFIT.com MP3, CD,

or video program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 10.

Select the iFIT.com mode.

To select the

iFIT.com

mode, press

the iFIT but-

ton. The let-

ters “iFIT”

and a track will appear in the display.

Press the Play button on your MP3 player, CD

player, or VCR.

Note: If you are using an iFIT.com CD, insert the

CD into your CD player; if you are using an

iFIT.com videocassette, insert the videocassette

into your VCR.

Amoment after the Play button is pressed, your

personal trainer will begin guiding you through

your workout. Simply follow your personal trainer’s

instructions. Note: If the time is flashing in the dis-

play, press the Start button or the Quick Speed in-

crease button on the console. The treadmill will

not respond to an MP3, CD, or video program

while the time is flashing in the display.

During the program, an electronic “chirping” sound

will alert you when the speed and/or incline of the

treadmill is about to change. CAUTION: Always

listen for the “chirp” and be prepared for speed

and/or incline changes. In some instances, the

speed and/or incline may change before your

personal trainer describes the change.

3

2

1

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

IN

OUT

CH

34

Audio Cable

A

VIDEO AUDIO

ANT. IN

RF OUT

IN

OUT

CH

34

A

B

Wire removed from

AUDIO OUT jack

RCA

Y-adapter

Audio Cable

18

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the program.

To stop the walking belt at any time, press the

Stop button on the console. To restart the pro-

gram, press the Start button or the Quick Speed

increase button. After a moment, the walking belt

will begin to move at 1.0 mph. When the next

“chirp” is heard, the speed and/or incline will

change to the next settings of the program.

When the program is completed, the walking belt

will stop. Note: To use another MP3, CD, or video

program, press the Stop button or remove the key

and go to step 1 on page 17.

Note: If the speed and/or incline of the treadmill

does not change when a “chirp” is heard:

•Make sure that the letters “iFIT” appear in the

display and that the time is not flashing in the

display. If the time is flashing, press the Start

button or the Quick Speed increase button

on the console.

•Adjust the volume of your MP3 player, CD

player, or VCR. If the volume is too high or too

low, the console may not detect the program

signals.

•Make sure that the audio cable is properly

connected.

•If you are using a portable CD player and the

CD skips, set the CD player on the floor or an-

other flat surface instead of on the console.

•See THE INCLINE OF THE TREADMILL DOES

NOT CHANGE CORRECTLY on page 22.

Follow your progress with the display.

See step 5 on page 10.

Measure your heart rate if desired.

See step 6 on page 11.

Turn on the fan if desired.

See step 7 on page 11.

When you are finished exercising, remove the

key from the console.

See step 7 on page 13.

CAUTION: Always remove iFIT.com CDs and

videocassettes from your CD player and VCR

and disconnect your MP3 player when you are

not using them.

7

6

5

4

19

HOW TO USE AN IFIT.COM PROGRAM

DIRECTLY FROM OUR WEB SITE

Our Web site at www.iFIT.com allows you to access

basic programs, audio programs, and video programs

directly from the internet. Additional options are soon to

be available. See www.iFIT.com for details.

To use programs from our Web site, the treadmill must

be connected to your home computer. See HOW TO

CONNECT YOUR COMPUTER on page 16. In

addition, you must have an internet connection and

an internet service provider. A list of specific system re-

quirements is found on our Web site.

Follow the steps below to use a program from our

Web site.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 10.

Select the iFIT.com mode.

To select

the iFIT.com

mode, press

the iFIT but-

ton.The let-

ters “iFIT”

and a track will appear in the display.

Go to your computer and start an internet

connection.

Start your web browser, if necessary, and go to

our Web site at www.iFIT.com.

Follow the desired links on our Web site to se-

lect a program.

Read and follow the on-line instructions for using a

program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the treadmill and stand on the foot

rails. Find the clip attached to the key and slide

the clip onto the waistband of your clothes.

When the on-screen countdown ends, the program

will begin and the walking belt will begin to move.

Hold the handrails, step onto the walking belt, and

begin walking. During the program, an electronic

“chirping” sound will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be

prepared for speed and/or incline changes.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next “chirp” is

heard, the speed and/or incline will change to

the next settings for the program.

To stop the walking belt at any time, press the

Stop button on the console. To restart the pro-

gram, press the Start button or the Quick Speed

increase button. After a moment, the walking belt

will begin to move at 1.0 mph. When the next

“chirp” is heard, the speed and incline will

change to the next settings of the program.

When the program is completed, the walking belt

will stop.Note: To use another program, press the

Stop button and go to step 5.

Note: If the speed and/or incline of the treadmill

does not change when a “chirp” is heard, make

sure that the letters “iFIT” appear in the display

and that the time is not flashing in the display.

In addition, make sure that the audio cable is

properly connected.

Follow your progress with the display.

See step 5 on page 10.

When you are finished exercising, remove the

key from the console.

See step 7 on page 13.

9

8

7

6

5

4

3

2

1

20

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps

track of the total number of hours that the treadmill has

been operated and the total number of miles that the

walking belt has moved. The information mode also al-

lows you to select miles or kilometers as the unit of

measurement and to turn on and turn off the demo

mode.

To select the information mode, hold down the Stop

button while inserting the key into the console. When

the information mode is selected, the following informa-

tion will be shown in the display:

The left side of the display

will show the total number of

miles (or kilometers) that the

walking belt has moved and

the total number of hours

that the treadmill has been

used. An “E” for English miles or an “M” for metric kilo-

meters will appear in the right side of the display. Press

the Quick Speed increase button to change the unit of

measurement.

IMPORTANT: If a “d” appears in the right side of the

display, the console is in the “demo” mode. This mode

is intended to be used only when a treadmill is dis-

played in a store. When the console is in the demo

mode, the power cord can be plugged in, the key can

be removed from the console, and the indicators in the

display will automatically appear in a preset sequence,

although the buttons on the console will not operate. If a

“d” appears when the information mode is selected,

press the Quick Speed decrease button so “d” dis-

appears.

To exit the information mode, remove the key from the

console.

THE OPTIONAL CHEST PULSE SENSOR

Anoptional chest pulse sensor offers hands-free oper-

ation, and enables you to use the console’s two heart

rate programs. Topurchase the optional chest

pulse sensor, call toll-free 1-888-533-1333.

If you purchase the optional chest pulse sensor,

follow the steps below to install the receiver in-

cluded with the chest pulse sensor.

1. Unplug the power cord. Remove the indicated

Screw (95) and the Access Door (96) from the left

side of the Console Base (101).

2. Connect the wire on the receiver (A) to the indicated

wire extending from the Console Base (101). Hold

the receiver so the small cylinder is oriented as

shown and is facing the Console Back. Attach

the receiver to the plastic posts on the Access Door

(96) with the two included small screws.

3. Make sure that no wires are pinched. Reattach

the Access Door (96) with the Screw (95). Discard

the other wires included with the receiver.

Miles Hours

A

101

Small

Cylinder

95

96

Wire

Small

Screws

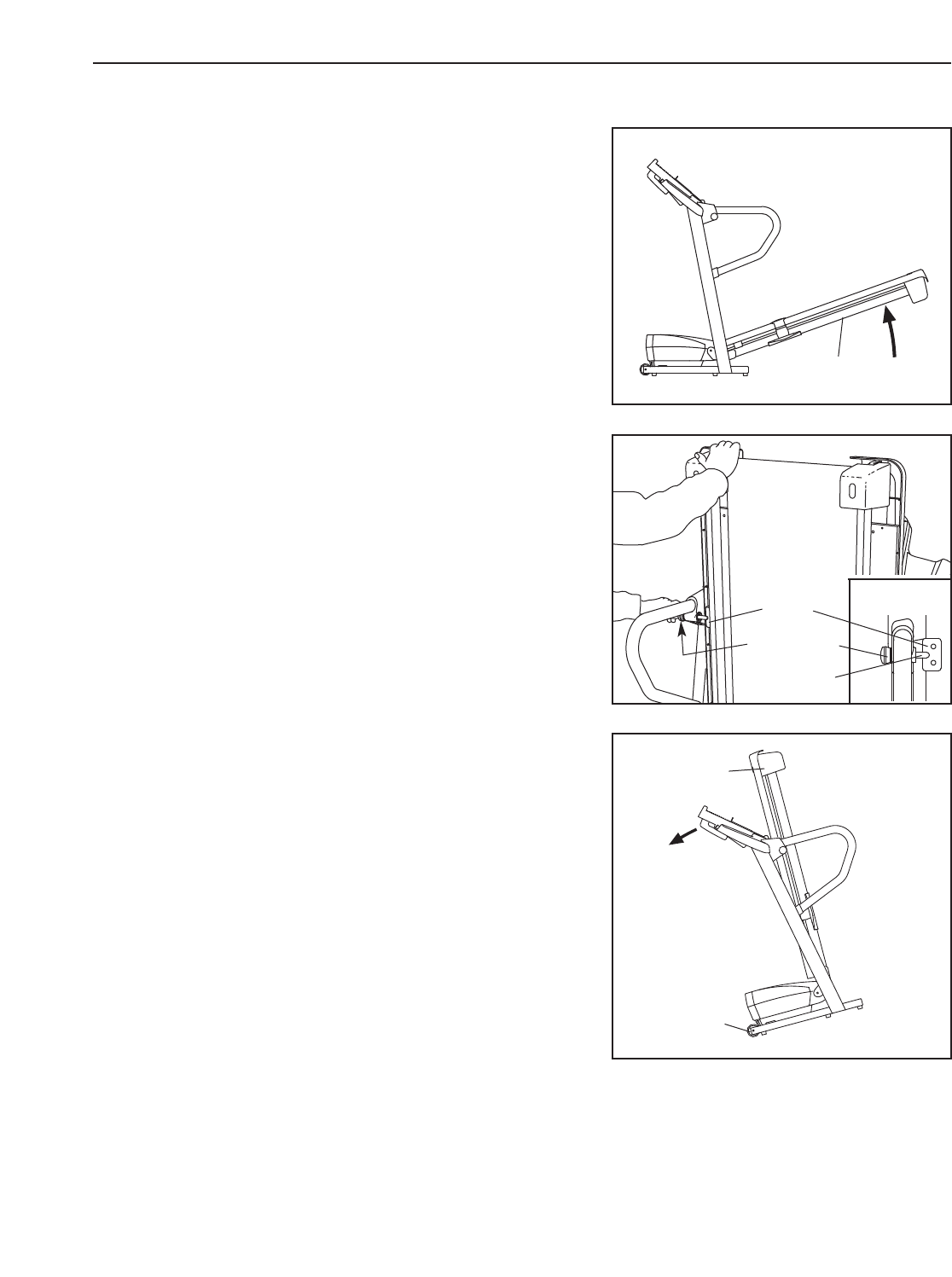

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If this is not done, the treadmill may become

permanently damaged. In addition, remove the key and unplug

the power cord. CAUTION: You must be able to safely lift 45

pounds (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown by the

arrow at the right. CAUTION: To decrease the possibility

of injury, do not lift the frame by the plastic foot rails.

Bend your legs and keep your back straight; as you raise

the frame, make sure to lift with your legs rather than your

back. Raise the frame about halfway to the vertical position.

2. Move your right hand to the position shown, and hold the

treadmill firmly. Using your left hand, pull the latch knob to

the left and hold it. Raise the frame until the catch is past the

latch pin. Slowly release the latch knob. Make sure that the

frame is held securely by the latch pin.

To protect the floor or carpet from damage, place a mat

under the treadmill. Keep the treadmill out of direct sun-

light. Do not leave the treadmill in the storage position in

temperatures above 85° Fahrenheit.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage

position as described above. Make sure that the frame is held

securely by the latch pin.

1. Hold the frame and place one foot against a wheel.

2. Tilt the treadmill back until it will roll on the wheels. Carefully

move the treadmill to the desired location. Never move the

treadmill without tipping it back.To reduce the risk of in-

jury, use extreme caution while moving the treadmill. Do

not attempt to move the treadmill over an uneven surface.

3. Place one foot against a wheel, and carefully lower the tread-

mill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2 above. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left

and hold it. Pivot the treadmill down until the frame is past the latch pin.

2. See drawing 1 above. Hold the frame firmly with both hands, and lower the frame to the floor. CAUTION: To

decrease the possibility of injury, do not lower the frame by gripping only the plastic foot rails. Do not

drop the frame to the floor. Make sure to bend your legs and keep your back straight.

Engaged

Catch

Latch Knob

Latch Pin

Frame

Wheel

1

2

21

Frame

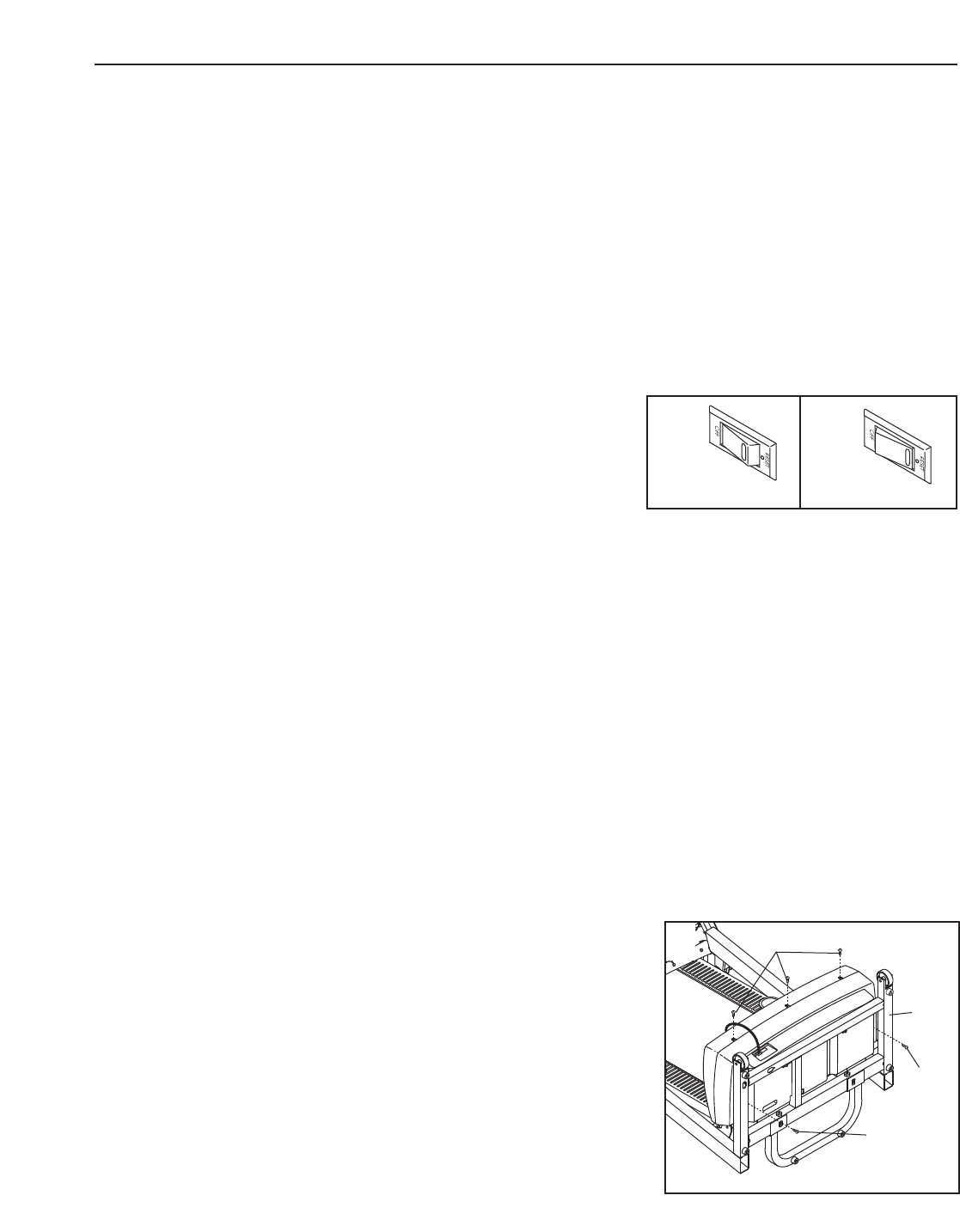

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assistance is needed, call toll-free 1-800-4-MY-HOME®

(1-800-469-4663).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor

that meets all of the specifications described on page 8. Important: The treadmill is not compatible

with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the reset/off circuit breaker located on the

treadmill frame near the power cord. If the switch

protrudes as shown, the circuit breaker has

tripped. To reset the circuit breaker, wait for five

minutes and then press the switch back in.

PROBLEM: The power turns off during use

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait

for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. If the treadmill still will not run, please call toll-free 1-800-4-MY-HOME®(1-800-469-4663).

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-

move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the

maximum incline level and then return to the minimum level. This will recalibrate the incline system.

PROBLEM: The displays of the console do not function properly

SOLUTION:a. Remove the key from the console and UNPLUG THE

POWER CORD.With the help of a second person,

carefully tip the Uprights (97) down as shown. Remove

the three Hood Screws (44) and the two Screws (95).

Note: A phillips screwdriver with a shaft at least 5” long

is required.

Tripped Reset

c

95

44

95

97

a

22

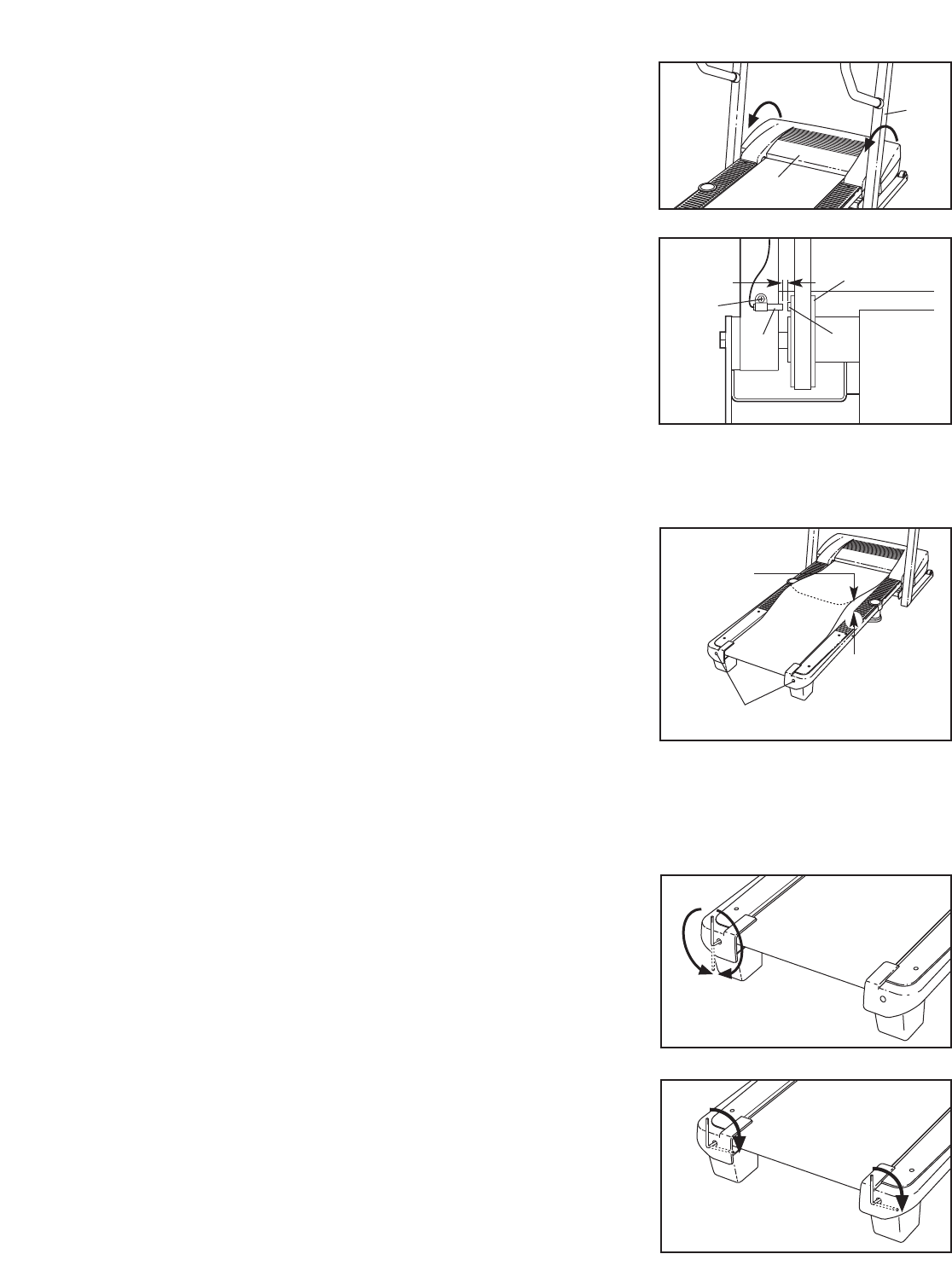

With the help of a second person, carefully raise the

Uprights (97) as shown. Carefully pivot the Hood (93)

off.

Locate the Reed Switch (22) and the Magnet (19) on

the left side of the Pulley (18). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8”. If necessary, loosen the Screw

(23), move the Reed Switch slightly, and then

retighten the Screw. Reattach the Hood, and run the

treadmill for a few minutes to check for a correct

speed reading.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD.Using the allen wrench, turn both

rear roller bolts counterclockwise, 1/4 of a turn. When

the walking belt is properly tightened, you should be

able to lift each edge of the walking belt 2 to 3 inches

off the walking platform. Be careful to keep the walk-

ing belt centered. Plug in the power cord, insert the

key, and run the treadmill for a few minutes. Repeat

until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, please call toll-free 1-800-4-MY-HOME®(1-800-

469-4663).

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key

and UNPLUG THE POWER CORD.If the walking

belt has shifted to the left, use the allen wrench to

turn the left rear roller bolt clockwise 1/2 of a turn; if

the walking belt has shifted to the right, turn the

bolt counterclockwise 1/2 of a turn. Be careful not to

overtighten the walking belt. Plug in the power cord,

insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn both rear roller bolts

clockwise, 1/4 of a turn. When the walking belt is cor-

rectly tightened, you should be able to lift each side of

the walking belt 2 to 3 inches off the walking platform.

Be careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and carefully

walk on the treadmill for a few minutes. Repeat until

the walking belt is properly tightened.

b

a

Rear Roller Bolts

2”–3”

b

19

23

22

Top

View

1/8” 18

23

93

97

24

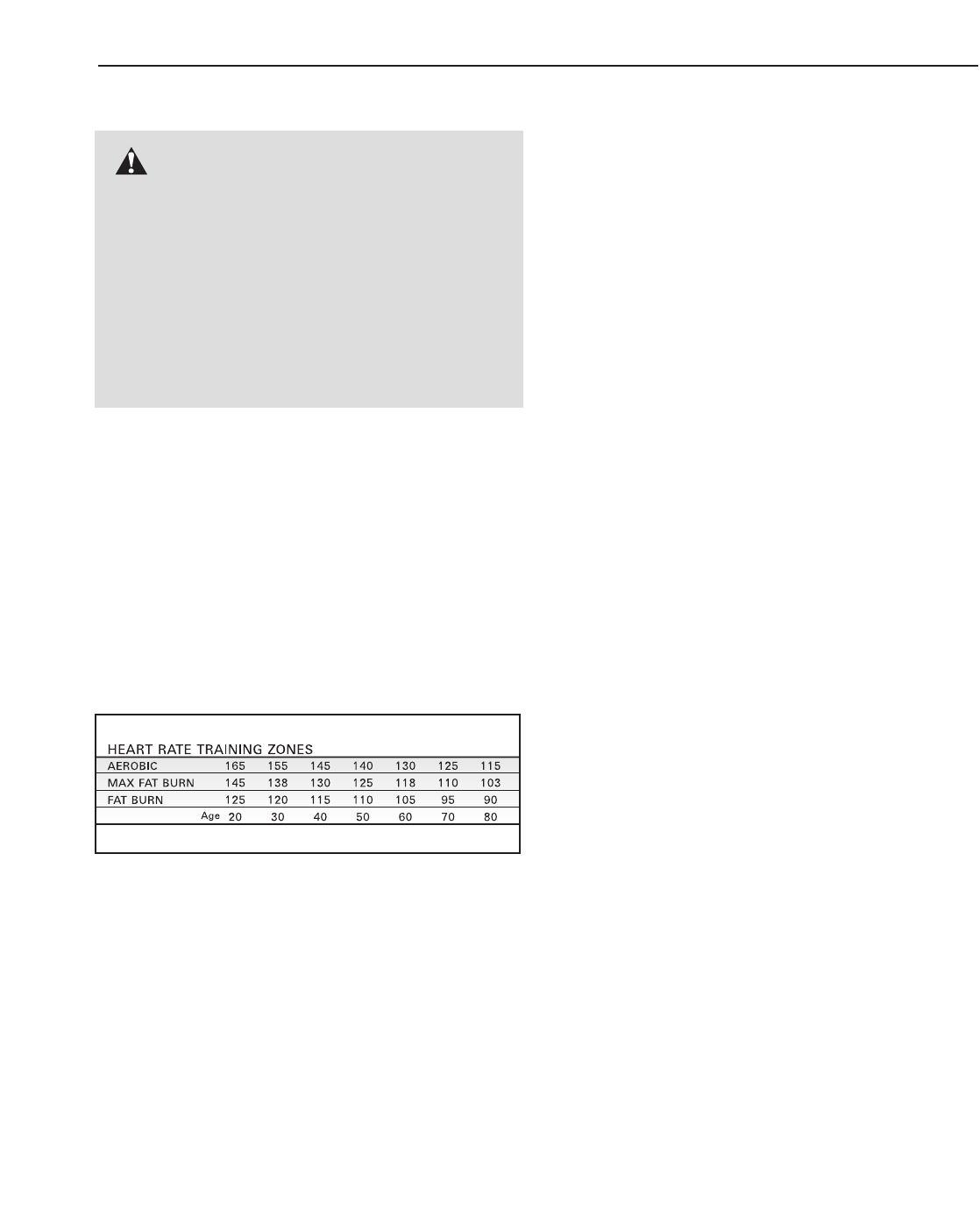

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your “train-

ing zone.” The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible

carbohydrate calories

for en-

ergy. Only after the first few minutes does your body

begin to use stored

fat calories

for energy. If your goal

is to burn fat, adjust the speed and incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

AWarm-up—Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise—After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never

hold your breath.

ACool-down—Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-

exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired. The key

to success is to make exercise a regular and enjoyable

part of your everyday life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid

in determining heart rate trends in general.

25

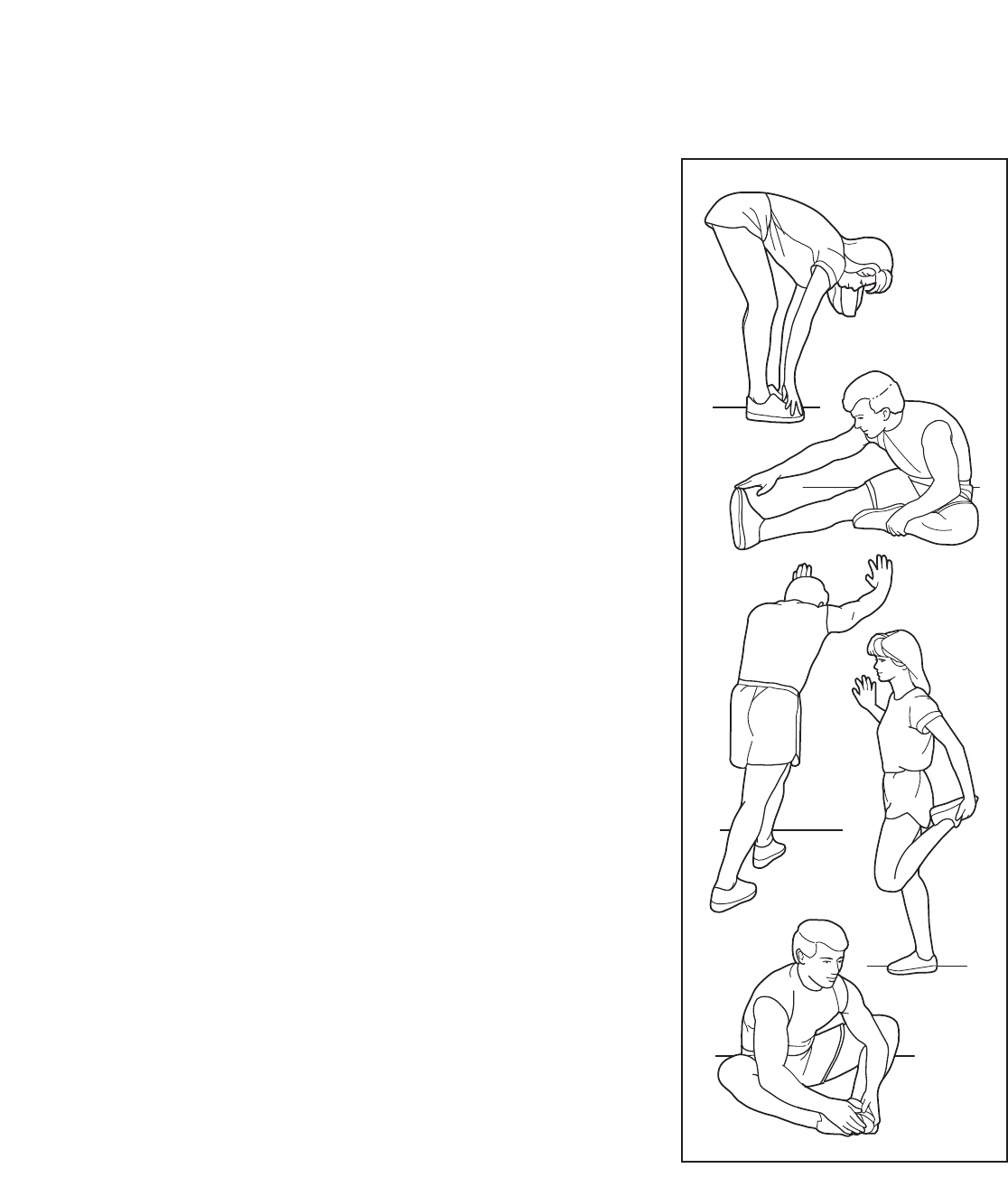

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.

1.Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts, then

relax. Repeat 3 times. Stretches: Hamstrings, back of knees and

back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat 3

times for each leg. To cause further stretching of the achilles ten-

dons, bend your back leg as well. Stretches: Calves, achilles ten-

dons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks

as possible. Hold for 15 counts, then relax. Repeat 3 times for each

leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull

your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

1

2

3

4

5

PART LIST—Model No. 831.29606.1 R0306A

Key No. Qty. Description Key No. Qty. Description

1 1 Left Foot Rail

2 8 Foot Rail Screw

3 1 Console

4 2 Isolator Decal

5 1 Catch

6 2 Front Isolator

7 2 Center Isolator

8 4 Console Mounting Screw

9 2 Isolator Bracket Cover

10 2 Front Isolator Screw

11 1 Roller Bushing

12 2 Center Isolator Bolt

13 1 Walking Platform

14 2 Belt Guide

15 4 Belt Guide Screw

16 2 Walking Platform Screw, Rear

17 2 Frame Pivot Bolt

18 1 Front Roller/Pulley

19 1 Magnet

20 10 Nut

21 2 Pivot Spacer

22 1 Reed Switch

23 3 Belly Pan Screw

24 1 Reed Switch Clip

25 2 Motor Tension Bolt

26 2 Motor Tension Washer

27 1 Left Handrail Cover

28 1 Motor Belt

29 1 Motor Star Washer

30 2 Motor Tension Nut

31 1 Right Handrail Cover

32 1 Drive Motor

33 1Lift Frame

34 5 Belly Pan Screw/Cover Screw

35 2 Walking Platform Nut

36 1 Motor Pivot Pin

37 1 Incline Motor

38 4 Incline Bolt

39 2 1/4” Washer

40 6Base Pad Screw

41 1 Front Roller Adj. Bolt

42 2 Walking Platform Screw, Front

43 2 Handrail

44 3 Hood Screw

45 2 Star Washer

46 1 Controller Bracket

47 1 Reset/Off Circuit Breaker

48 1 Controller

49 1 Power Cord

50 1 Power Cord Grommet

51 1 Static Decal

52 6 3/4” Tek Screw

53 3 Belly Pan Clip

54 1 Belly Pan

55 1 Releasable Tie

56 1 Photo Switch Wire

57 4 Tie Holder Clamp

58 1 Cable Tie

59 1 Frame

60 1 Right Rear Foot

61 1 Motor Bracket

62 2 Rear Roller Adj, Bolt

63 1 Rear Roller

64 1 Allen Wrench

65 1 7/32” Allen Wrench

66 1 Left Rear Foot

67 1 Right Foot Rail

68 1 Walking Belt

69 1 Warning Decal

70 1 Filter Wire

71 4 Washer

72 1 Cotter Pin

73 2 Small Star Washer

74 1 Wire Harness

75 4 Crossbar Screw

76 2 1 3/4” Bolt

77 1 Console Ground Wire

78 1 Photo Switch Nut

79 4 Wheel Spacer

80 4 Handrail Bolt

81 2 Handrail Bracket

82 1 Latch Assembly

83 1Controller Wire

84 4 Pulse Bar Washer

85 1 Front Roller Nut

86 2 3” Bolt

87 2 Motor Bracket Bolt

88 1 Ground Wire Screw

89 1 U-base

90 2Wheel Bolt

91 2 Caution Decal

92 1 iFIT Wire

93 1 Hood

94 2 Wheel

95 20 Screw

96 1 Access Door

97 1Upright

98 1 Photo Switch

99 4 Base Pad

100 1 Photo Switch Screw

26

To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.

27

Key No. Qty. Description Key No. Qty. Description

101 1 Console Base

102 1 Optic Disk

103 13 Ground Screw/Choke Screw

104 1 Key Clip

105 2 Handrail Cap

106 1 Console Fan

107 2 Base Pad Spacer

108 2 Rear Roller Bracket

109 2 Thin Base Pad

110 1 Crossbar

111 2 Rear Roller Bracket Screw

112 1 Incline Stop Bracket

113 2 Wire Clamp

114 1 Lift Frame Ground Wire

115 1 Front Roller Ground Wire

# 1 12” Blue Wire, M/F

# 1 14” Blue Wire, F/F

# 1 6” Blue Wire, F/F

# 1 20” Black Wire, M/F

# 1 22” Red Wire, M/F

# 1 User’s Manual

#These parts are not illustrated

If a part is missing, call toll-free 1-888-533-1333.

108

108

2

4

2

2

2

1

12

42

15

69 13

16

17

18

19

4

2

2

2

2

16

63

66

68

52

65 64

52

60

9

14

15

59

67

42

17

20

21

38

36

33

20

72

103

20

21

22 24

25 26

32

30

29

28

55

95

57

58

95

54

53

23

23

23

51

47

49

50

7

7

41

61

87

12

83

56 70

62

39

45

62

39

45

35

10

6

10

6

95

93

44

53

53

44

9

48

103

103

20

37

102

100

73

98

78

11

38

46

14

5

95

85

35 34

73

25

30

111

111

112

114

115

113

EXPLODED DRAWING—Model No. 831.29606.1 R0306A

92

97

91

20 94

90

91

99

40

38

20

20

38 74

103

104

95

106

95

3

95

95

95

95

95

74

51

96

101

8

82

99

40

99

40

95

8

89

79

79

94

79

79

90

20

99

40

88

77

86

76

76

20

20

71

71

71 103

8

8

95

110

75

75

84

84

95

95

95

99

40

107

99

40

107

27

43 43 31

95

95

52

81

81

52

34

34

95

80

80

105 105

EXPLODED DRAWING—Model No. 831.29606.1 R0306A

Part No. 235856 R0306A Printed in USA © 2006 Sears, Roebuck and Co.

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

Sears Treadmill Exerciser, contact the nearest Sears Service Center throughout the United States and

Sears will repair or replace the Treadmill Exerciser, free of charge. The drive motor is warranted for

twelve (12) years from the date of purchase.

This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
