USER'S MANUAL

®

Serial

Number

Decal

CAUTION

Read all precautions and in-

structions in this manual before

using this equipment. Save this

manual for future reference.

Write the serial number in the space

above for future reference.

Model No. 831.297442

Serial No.

2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO USE THE HAND PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

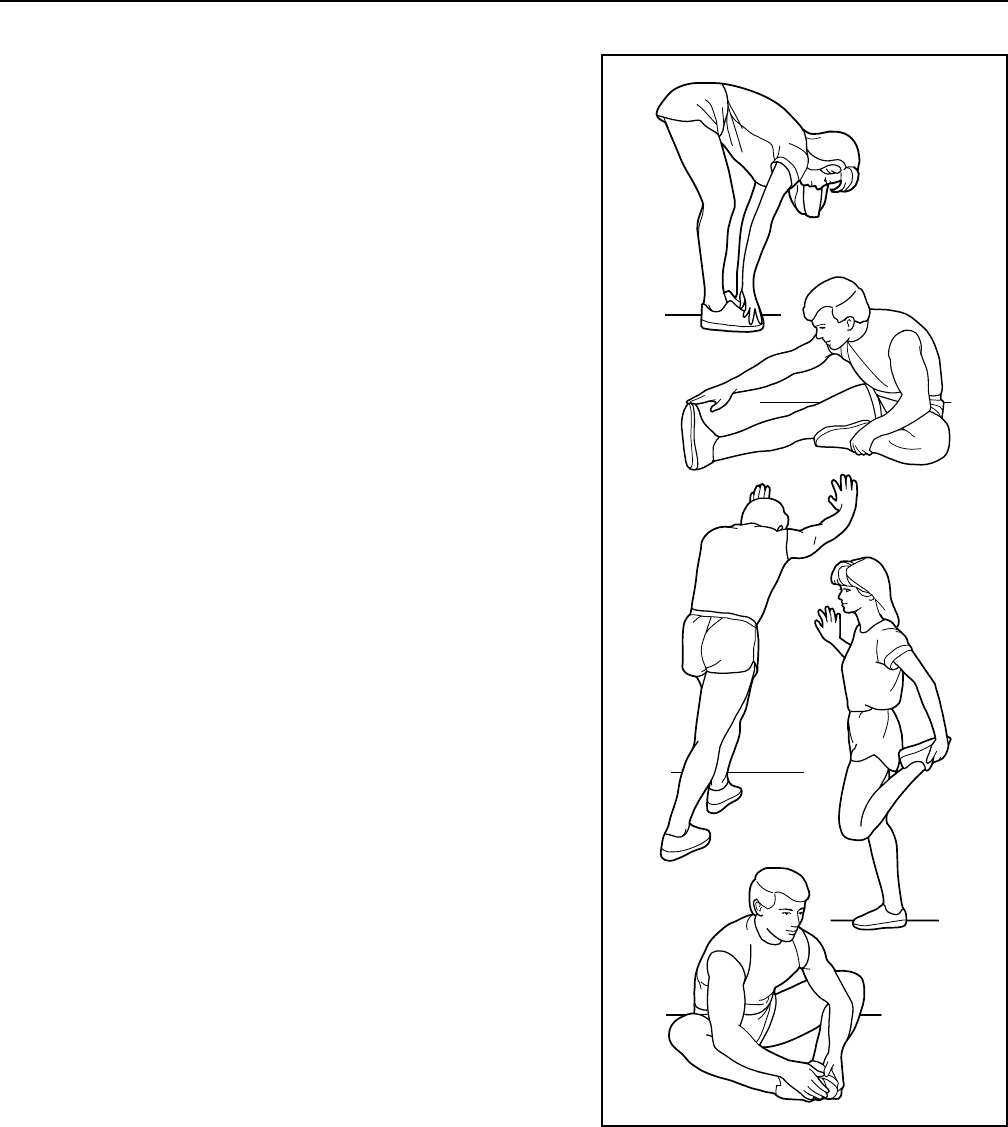

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

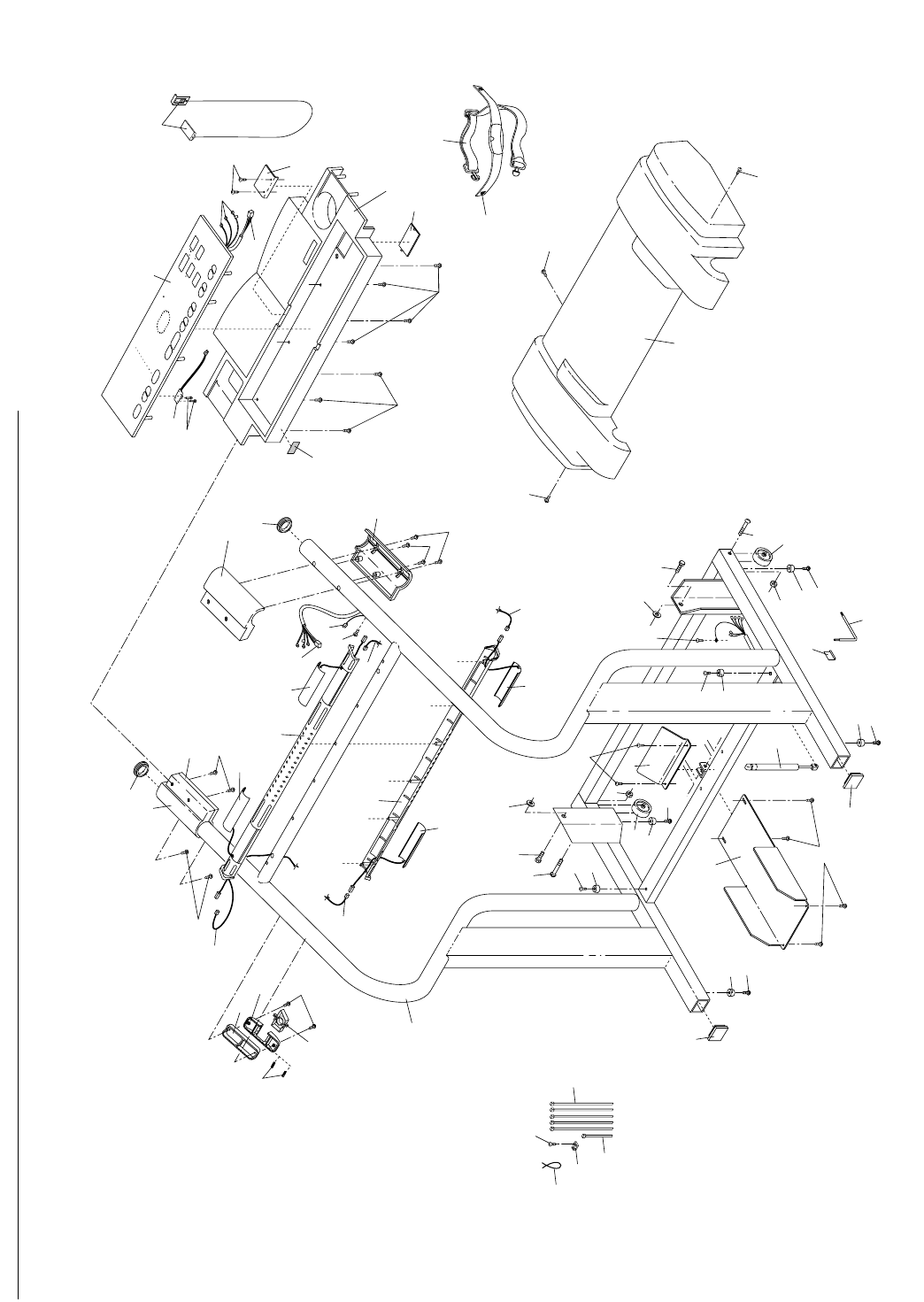

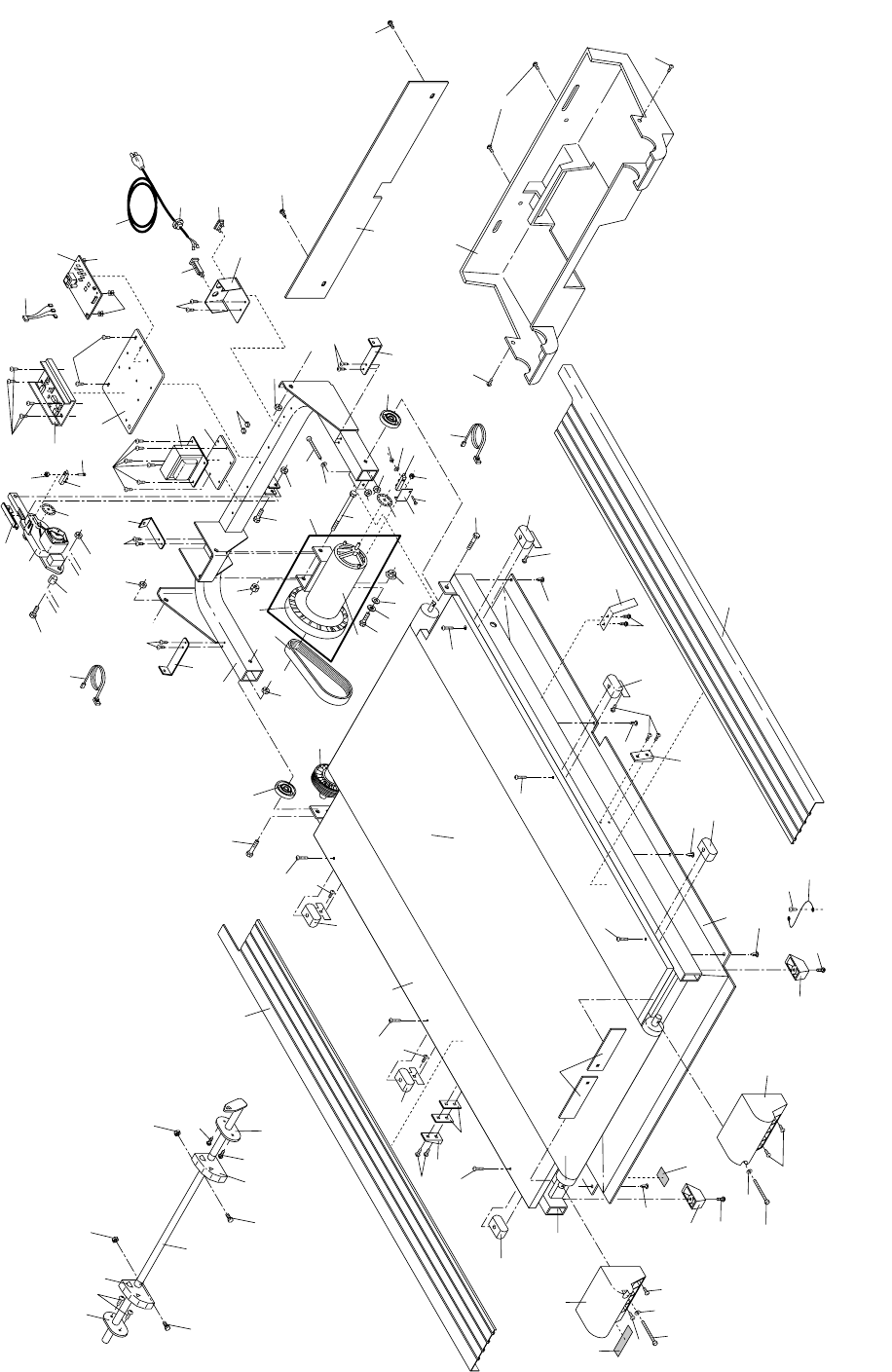

Note: An EXPLODED DRAWING is attached in the center of this manual. Save the drawing for future use.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described in this

manual.

3. Place the treadmill on a level surface, with

eight feet of clearance behind it. Do not place

the treadmill on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should not be used by persons

weighing more than 250 pounds. Only one

person should be on the treadmill at a time.

8. Wear appropriate exercise clothing when using

the treadmill. Do not wear loose clothing that

could become caught in the treadmill. Athletic

support clothes are recommended for both

men and women. Always wear athletic shoes.

Never use the treadmill with bare feet, wearing

only stockings, or in sandals.

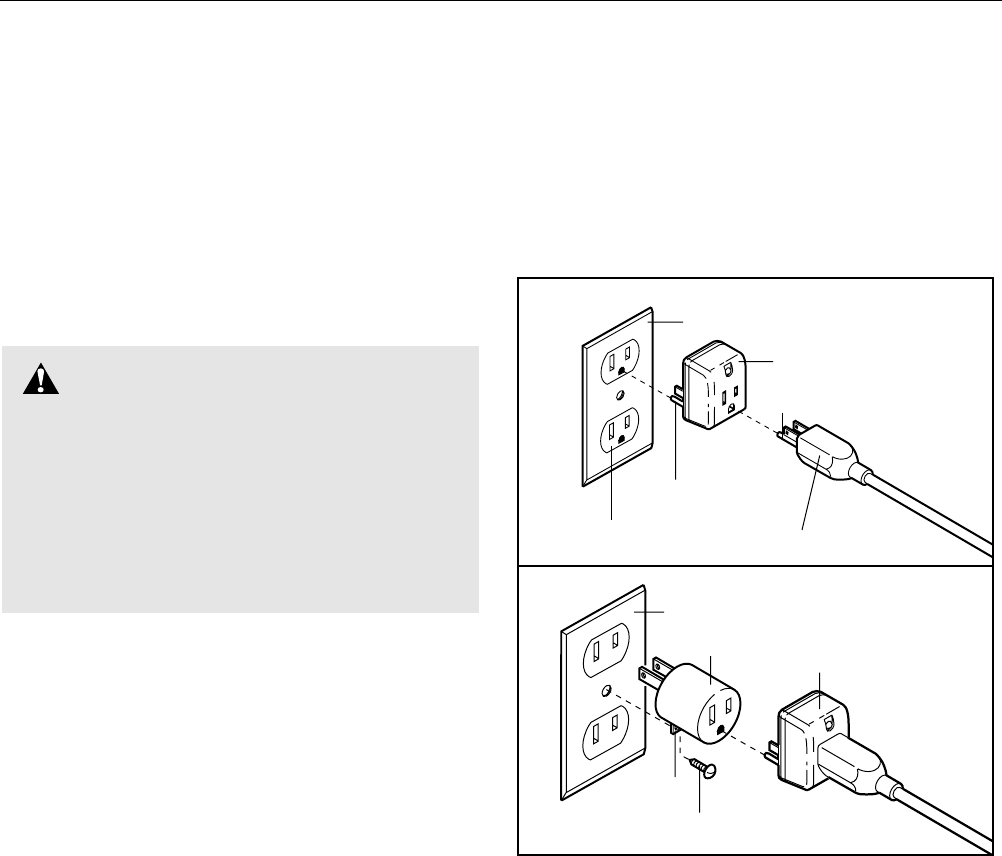

9. To connect the power cord (see page 9), plug

the power cord into a surge suppressor (not

included) and plug the surge suppressor into

a grounded circuit capable of carrying 15 or

more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

10.Use only a single-outlet surge suppressor that

is UL 1449 listed as a transient voltage surge

suppressor (TVSS). The surge suppressor

must have a UL suppressed voltage rating of

400 volts or less and a minimum surge dissi-

pation of 450 joules. The surge suppressor

must be electrically rated for 120 volts AC and

15 amps.

11.Keep the power cord and the surge suppres-

sor away from heated surfaces.

12.Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See BE-

FORE YOU BEGIN on page 4 if the treadmill is

not working properly.)

13.Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

14.The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

3

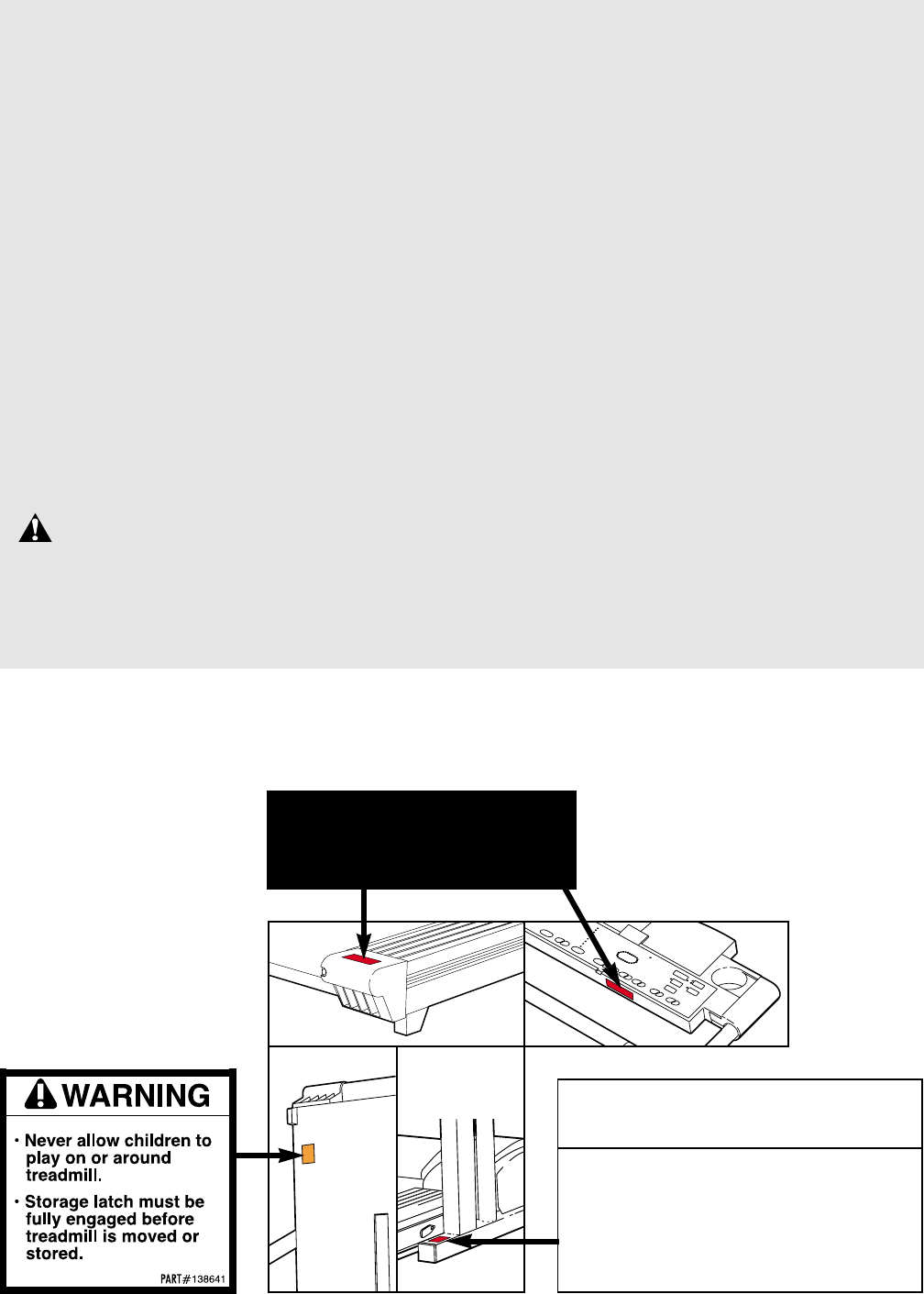

The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible,

please call our toll-free HELPLINE to order a free replacement decal (see the back cover of this manual).

Apply the decal in the location shown.

15. To reduce the possibility of the treadmill

overheating, do not operate the treadmill

continuously for longer than one hour.

16. The chest pulse sensor and hand pulse sen-

sor are not medical devices. Various factors,

including the user's movement, may affect

the accuracy of heart rate readings. The pulse

sensors are intended only as exercise aids in

determining heart rate trends in general.

17. Never leave the treadmill unattended while it

is running. Move the on/off switch to the “off”

position when the treadmill is not in use.

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO MOVE

THE TREADMILL on page 21.) You must be

able to safely lift 45 pounds (20 kg) in order to

raise, lower, or move the treadmill.

19. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

20. Inspect and tighten all parts of the treadmill

every three months.

21. Never insert any object into any opening.

22. Always unplug the power cord before per-

forming the maintenance and adjustment

procedures described in this manual. Never

remove the motor hood unless instructed to

do so by an authorized service representa-

tive. Servicing other than the procedures in

this manual should be performed by an au-

thorized service representative only.

23. This treadmill is intended for in-home use

only. Do not use this treadmill in any

commercial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. SEARS assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

au

is

IMPORTANT:

Incline must be set at lowest

level before folding treadmill

into storage position.

Keep hands and feet away from

this area while the treadmill is

in operation.

CAUTION

(One decal

on each side)

4

Thank you for selecting the innovative PROFORM®

795 treadmill. The PROFORM 795 treadmill blends

advanced technology with innovative design to let you

enjoy an excellent form of cardiovascular exercise in

the convenience and privacy of your home.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing the manual, please call our toll-free HELPLINE at

1-800-736-6879, Monday through Saturday, 7 a.m.

until 7 p.m. Central Time (excluding holidays). To help

us assist you, please note the product model number

and serial number before calling. The model number of

the treadmill is 831.297442. The serial number can be

found on a decal attached to the treadmill (see the

front cover of this manual for the location).

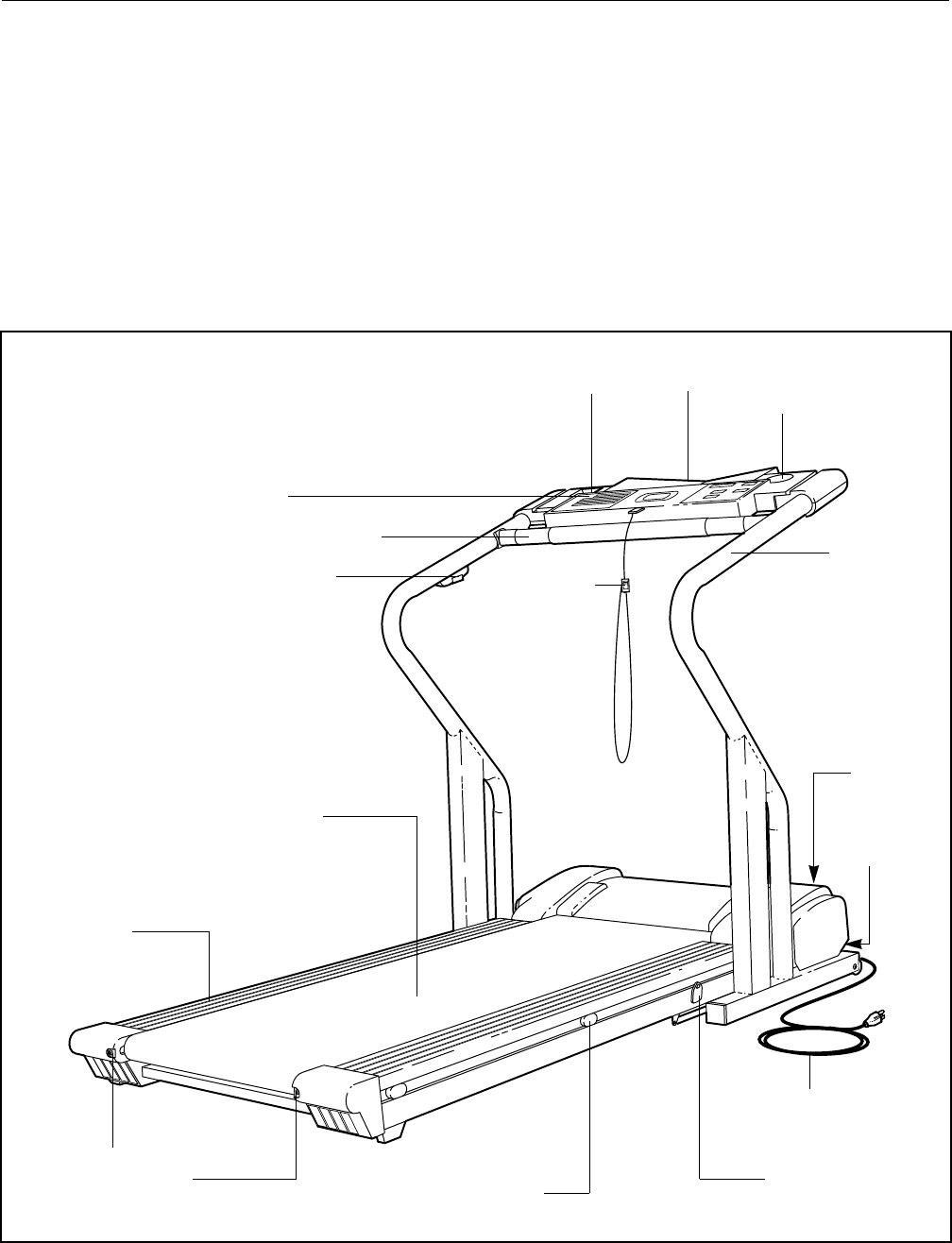

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

BEFORE YOU BEGIN

Handrail

Console

Book Rack

Storage Latch Key/Clip

Circuit

Breaker

On/Off

Switch

Hand Pulse Sensor

Walking Belt

Cushioned

Walking Platform Cushion Control

Foot Rail

Power Cord

Rear Roller

Adjustment Bolts

Water Bottle Holder

(Bottle not included)

Accessory Tray

RIGHT

SIDE

LEFT

SIDE

5

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove the packing materials. Do not

dispose of the packing materials until assembly is completed.

Assembly requires a phillips screwdriver (not included).

2. Slide the Left and Right Base Mounts (104, 78) onto

the plastic pins on the sides of the Console Base (91).

Next, carefully insert the Left and Right Base Mounts

(104, 78) into the Upright (71) as shown.

Refer to the inset drawing. Carefully feed all wires into

the hole in the Upright (71) as shown. Make sure that

the wires are routed through the notch in the base

mount and under the plastic pin. Be careful not to pull

on the wires or they may become disconnected

from the console.

78

91

71

104

2

3. Slide the Left and Right Lower Base Mounts (105, 79)

onto the Left and Right Base Mounts (104, 78). Attach

the Lower Base Mounts with eight 3/4” Screws (77) as

shown. Be careful not to overtighten the Screws.

77

105 104 78 79

77

3

Notch

Pin

71

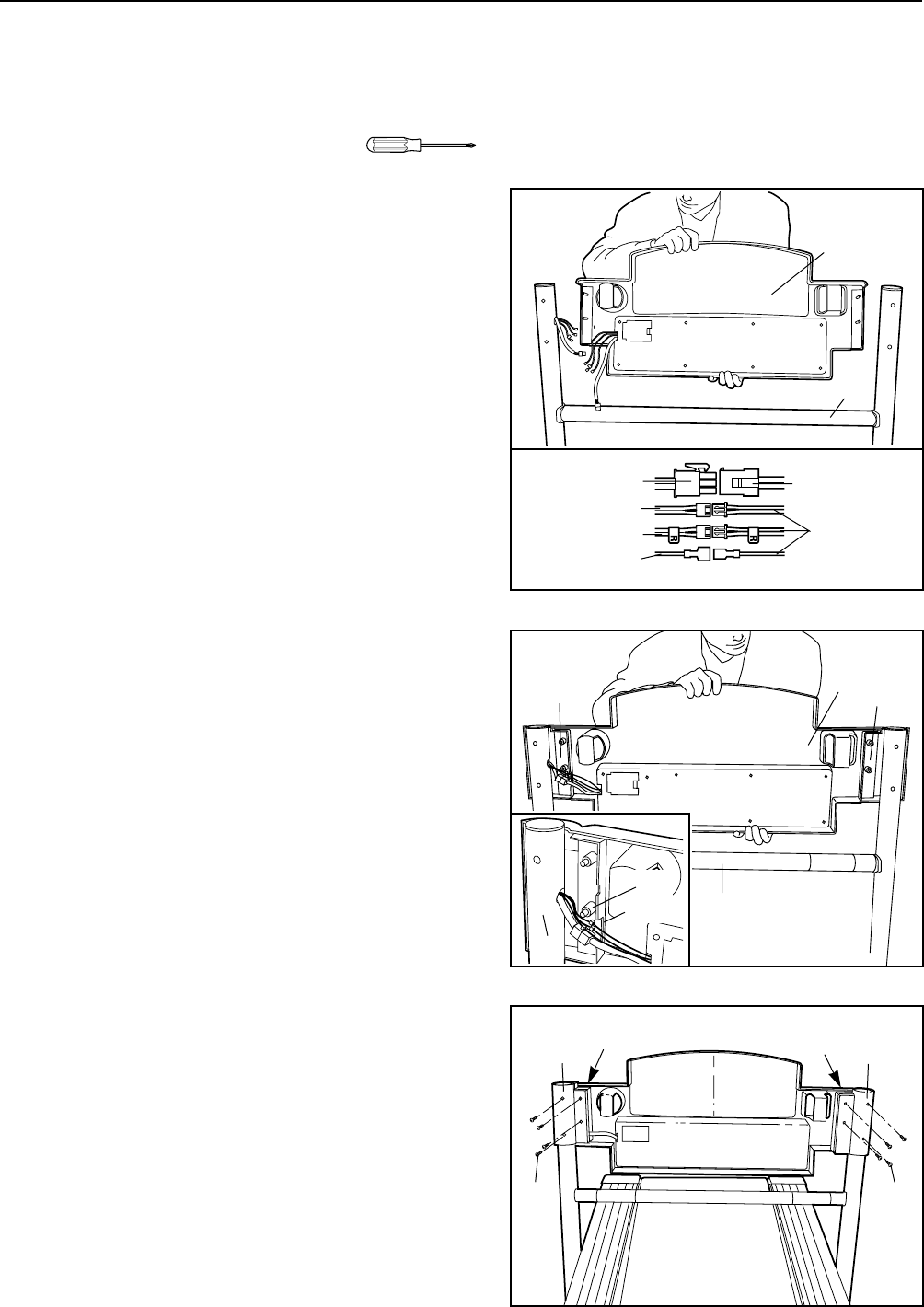

1. Note: One person must hold the Console Base (91)

near the Upright (71) during steps 1, 2, and 3. If this

is not done, the wire harness connecting the con-

sole to the treadmill may be permanently damaged.

Hold the Console Base (91) near the Upright (71).

Refer to inset drawing A. Connect the Wire Harness

(85) to the Console Wire Harness (121). Connect the

4” Ground Wire (120), the 54” Hand Pulse Wire (95)

and the 25” Hand Pulse Wire (83) to the Pulse Wire

Harness (77) (make sure that the Wires with tags are

connected to each other).

91

1

71

A85

95

83

120

121

77

6

6. Remove the backing from the Adhesive Clip (98).

Press the Adhesive Clip onto the base of the Uprights

(71) in the indicated location. Press the Allen Wrench

(99) into the Adhesive Clip.

71 99

98

6

7. Make sure that all parts are tightened before you use the treadmill. To protect the floor or carpet, place a

mat under the treadmill. To order a mat, see the back cover of this manual.

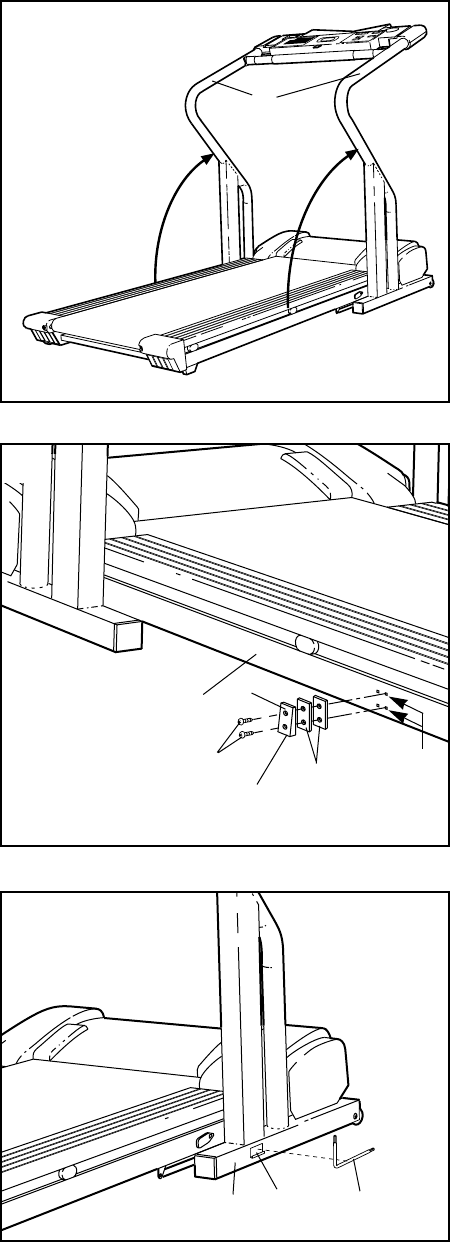

5. Locate the holes on the left side of the treadmill frame

(1). If there are four holes, the two holes toward the

back of the treadmill are used to attach the Frame

Guides. Attach the Frame Guide (5) and the two

Frame Guide Spacers (116) to the Frame with two

Small Screws (4). Be careful not to overtighten the

Screws. Make sure that the thick end of the Frame

Guide is at the bottom.

Note: If it is difficult to fold or lower the treadmill,

remove one or both of the Frame Guide Spacers

(116).

5

1

4116

Thick End

5

4. With the help of a second person, carefully raise the

Uprights (71) until the treadmill is in the position

shown.

71

4

Use these

holes.

7

The state-of-the-art chest pulse sensor allows you

to continuously monitor your heart rate while you

exercise. Follow the instructions below to use the

chest pulse sensor.

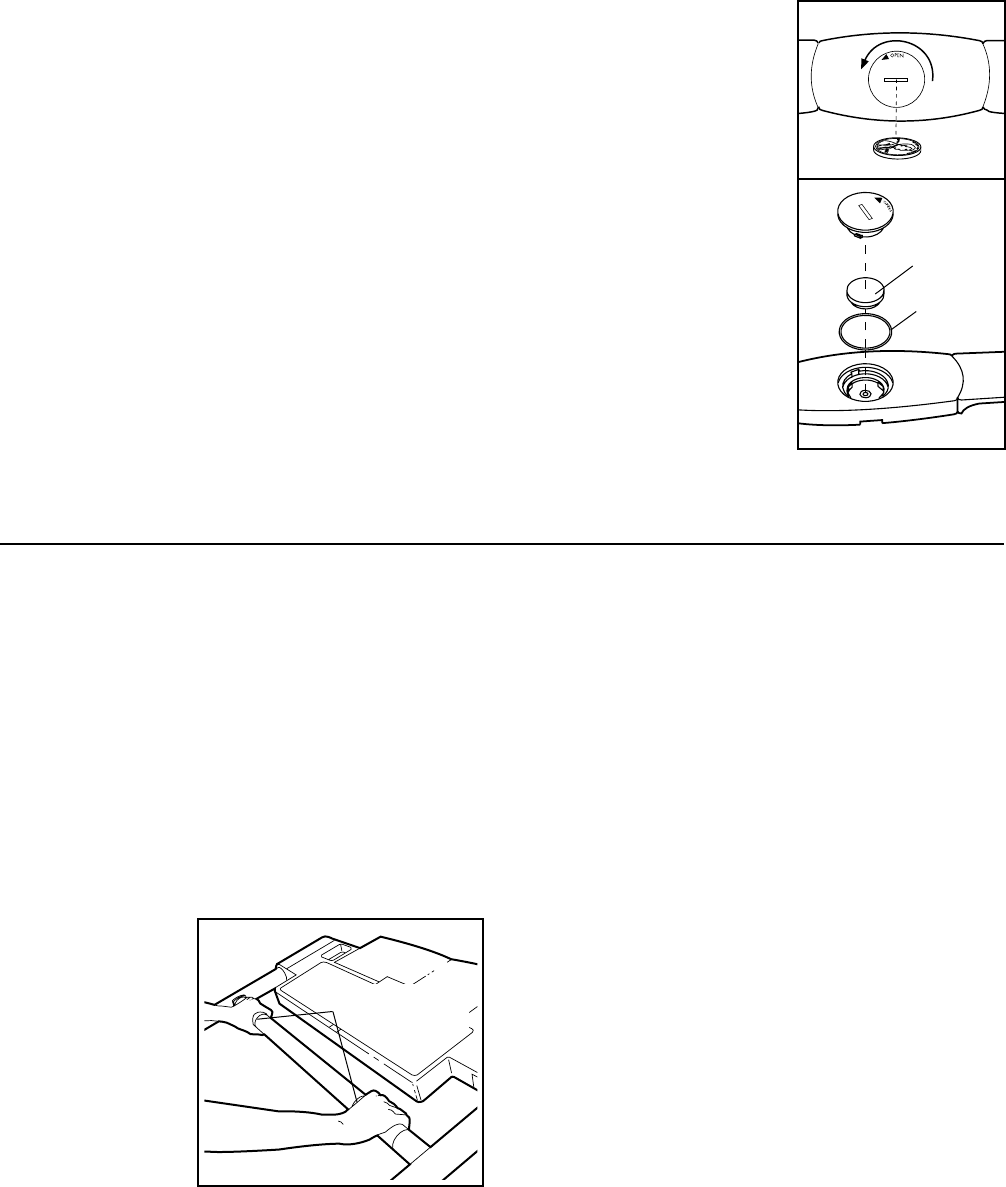

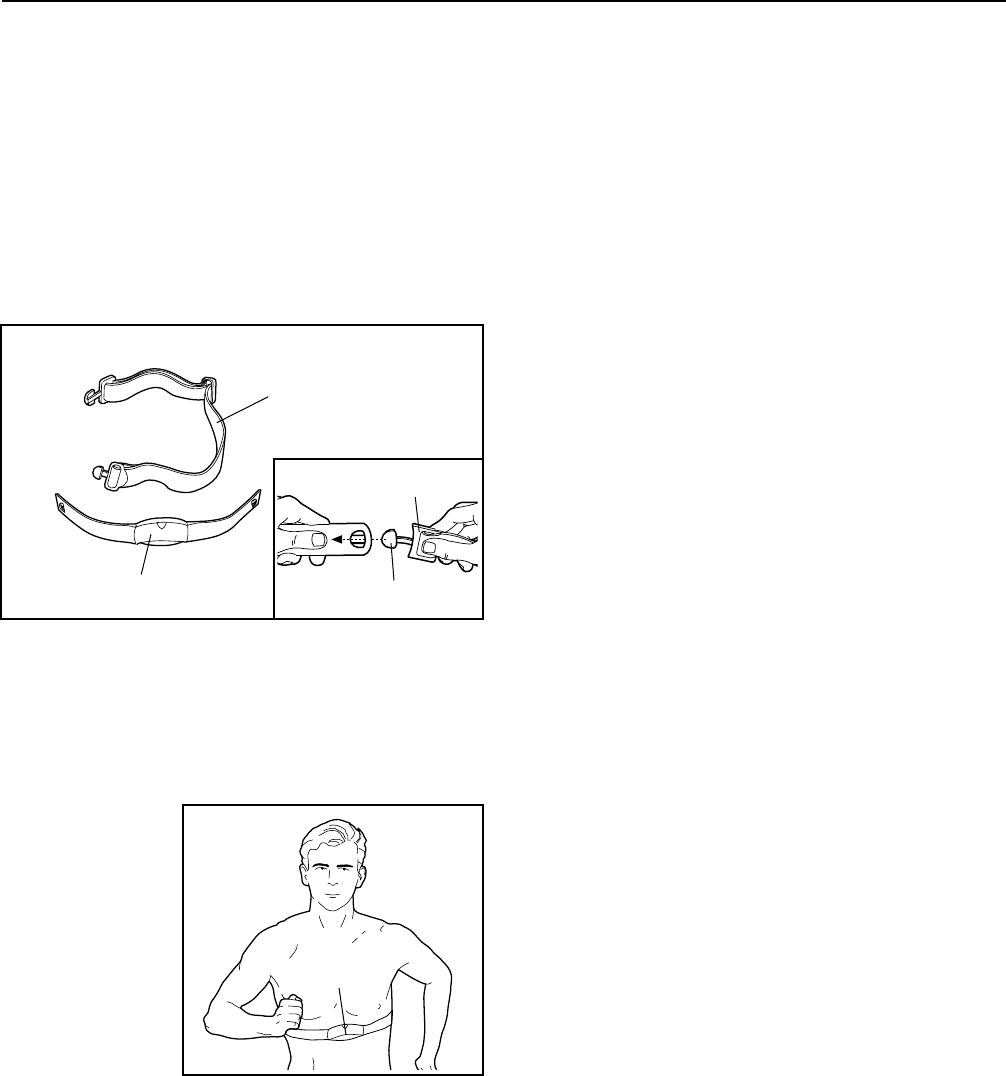

HOW TO PUT ON THE CHEST PULSE SENSOR

The chest pulse sensor consists of two components:

the chest strap and the sensor unit.

Refer to the inset drawing above. Insert one of the tabs

on the chest strap through one end of the sensor unit.

Press the end of the sensor unit under the buckle on

the chest strap. The tab should be flush with the front

of the sensor unit.

Wrap the chest

strap around

your chest and

attach the other

end of the chest

strap to the

sensor unit.

Adjust the length

of the chest

strap, if neces-

sary. The chest

pulse sensor

should be under

your clothing, tight against your skin, and as high

under the pectoral muscles or breasts as is

comfortable. Make sure that the logo on the sensor

unit is facing forward and is right-side-up.

Next, pull the sensor unit away from your body a few

inches and locate the two electrode areas on the inner

side. The electrode areas are the areas covered by

shallow ridges. Using saline solution such as saliva or

contact lens solution, wet both electrode areas. Return

the sensor unit to a position against your chest.

CARE AND MAINTENANCE

• Thoroughly dry the chest pulse sensor after each

use. The chest pulse sensor is activated when the

electrode areas are wetted and the chest pulse

sensor is put on; the chest pulse sensor shuts off

when it is removed and the electrode areas are

dried. If the chest pulse sensor is not dried after

each use, it may remain activated longer than

necessary, draining the battery prematurely.

• Store the chest pulse sensor in a warm, dry place.

Do not store the chest pulse sensor in a plastic bag

or other container that may trap moisture.

• Do not expose the chest pulse sensor to direct

sunlight for extended periods of time; do not expose

it to temperatures above 122° Fahrenheit (50°

Celsius) or below 14° Fahrenheit (-10° Celsius).

• Do not excessively bend or stretch the sensor unit

when using or storing the chest pulse sensor.

• Clean the sensor unit using a damp cloth—never

use alcohol, abrasives, or chemicals. The chest

strap may be hand washed and air dried.

CHEST PULSE SENSOR TROUBLE-SHOOTING

The instructions beginning on page 10 explain how

the chest pulse sensor is used with the console. If

the letters “PLS” appear in the CALS./FAT CALS./

PULSE display or if the displayed heart rate is

excessively high or low, try the steps below.

• Make sure that the chest pulse sensor is under your

clothing, tight against your skin, and as high under

the pectoral muscles or breasts as is comfortable.

The logo on the sensor unit must be facing forward

and be right-side-up. Note: If the chest pulse sensor

does not function when positioned as described, try

moving it slightly lower or higher on your chest.

• Use saline solution such as saliva or contact lens

solution to wet the two electrode areas on the

sensor unit. If heart rate readings do not appear until

you begin perspiring, re-wet the electrode areas.

HOW TO USE THE CHEST PULSE SENSOR

Chest Strap

Sensor Unit Tab

Buckle

Logo

8

• As you walk or run on the treadmill, position yourself

near the center of the walking belt. For the console

to display heart rate readings, the user must be

within arm’s length of the console.

• The chest pulse sensor is designed to work with

people who have normal heart rhythms. Heart rate

reading problems may be caused by medical

conditions such as premature ventricular contractions

(pvcs), tachycardia bursts, and arrhythmia.

• The operation of the chest pulse sensor can be

affected by magnetic interference caused by high

power lines or other sources. If it is suspected that

magnetic interference may be causing a problem,

try relocating the treadmill.

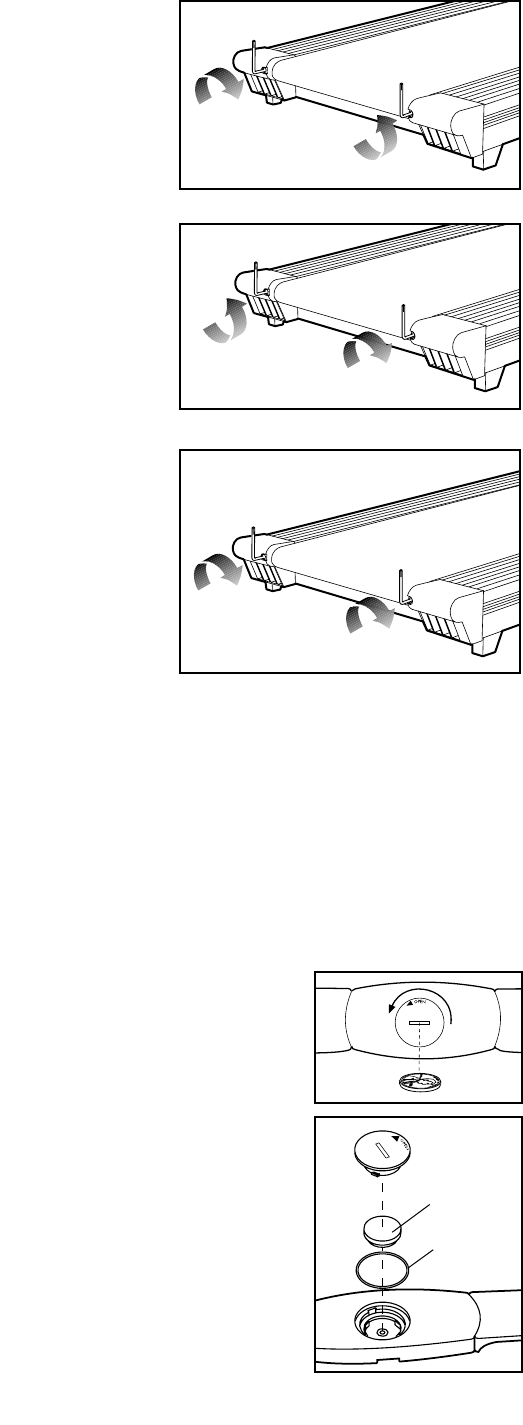

•The CR 2032 battery may need to be replaced.

Locate the battery cover

on the back of the sen-

sor unit. Insert a coin

into the slot in the cover,

turn the cover counter-

clockwise, and remove

it. Remove the old bat-

tery and insert a new CR

2032 battery, making

sure that the battery is

turned so the writing is

on top. Make sure that

the rubber gasket is in

place in the sensor unit.

Replace the battery

cover and turn it clock-

wise to close it.

The convenient hand pulse sensor allows you to

measure your heart rate without wearing the chest

pulse sensor. You can measure your heart rate before

you begin exercising, during your workout, and again

when you finish.

To use the hand pulse sensor, the console must be

turned on (see HOW TO TURN ON THE POWER on

page 11.) In addition, the walking belt must be moving

or the TIME/PACE display must be flashing (see step

5 on page 12).

Next, stand on

the foot rails and

place your hands

on the metal con-

tacts. Your palms

must be resting

on the upper

contacts, and

your fingers must

be touching the

lower contacts—

avoid moving

your hands while

measuring your heart rate. After a moment, three

dashes (– – –) will appear in the CALS./FAT CALS./

PULSE display and your heart rate will be shown. For

the most accurate heart rate reading, continue to hold

the contacts for about 15 seconds.

HAND PULSE SENSOR TROUBLE-SHOOTING

• Make sure to stand on the foot rails and avoid moving

your hands while measuring your heart rate.

Excessive movement may interfere with heart rate

readings. If the hand pulse sensor is not used

correctly, three dashes (– – –) will appear repeatedly

in the CALS./FAT CALS./PULSE display but your

heart rate will not be shown.

• Do not hold the metal contacts too tightly; doing so

may interfere with heart rate readings.

• For the most accurate heart rate reading, wait for

about 15 seconds.

• For optimal performance of the hand pulse sensor,

keep the metal contacts clean. The contacts can be

cleaned with a soft cloth—never use alcohol,

abrasives, or chemicals.

HOW TO USE THE HAND PULSE SENSOR

Metal Contacts

CR 2032

Battery

Rubber

Gasket

9

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right).

Surge suppressors are sold at most hardware stores

and department stores. Use only a single-outlet surge

suppressor that is UL 1449 listed as a transient voltage

surge suppressor (TVSS). The surge suppressor must

have a UL suppressed voltage rating of 400 volts or

less and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

1

2

Grounded Outlet Box

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features to make your workouts more effective.

When the console is in the manual mode, the speed

and incline of the treadmill can be changed with a

touch of a button. As you exercise, you can watch your

progress on the LED track while the five displays

provide continuous exercise feedback.

The console also features nine preset workout programs:

six speed programs automatically control the speed of

the treadmill as they guide you through effective work-

outs; two heart rate programs automatically control the

speed and incline of the treadmill to keep your heart

rate near predetermined settings; and a unique fitness

test program measures the relative fitness level you

have achieved.

In addition, the console offers two custom workout

programs. Each custom program automatically controls

the speed and incline of the treadmill according to

settings that you program.

To use the manual mode, follow the steps beginning

on page 12. To use a speed program, see page 14.

To use a heart rate program, see page 15. To use

the fitness test program, see page 16. To create a

custom program, see page 18. To use a custom

program, see page 19.

Note: The console can display speed and distance in

either miles or kilometers (see SPEED DISPLAY on

page 13). For simplicity, all instructions in this manual

refer to miles.

CAUTION:Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turn-

ing on the power or starting the walking belt.

• Always wear the clip (see part “O” in the

drawing above) while operating the tread-

mill. If the key is pulled from the console, the

walking belt will stop.

• The treadmill is capable of high speeds.

Adjust the speed in small increments.

• The chest pulse sensor and hand pulse

sensor are not medical devices. Various

factors, including the user's movement, may

affect the accuracy of heart rate readings.

The pulse sensors are intended only as

exercise aids in determining heart rate

trends in general.

• If you have heart problems, or if you are over

60 years of age and have been inactive, do

not use the FAT BURN or AEROBIC program.

If you are taking medication regularly, consult

your physician to find whether the medication

will affect your exercise heart rate.

• To reduce the risk of electric shock, keep the

console dry. Avoid spilling liquids on the

console and use only a sealable water bottle.

K

J

O

BA C D B E H

CFGI

LP Q

M R S

N

Note: If there is a thin sheet of clear plastic

on the face of the console, remove it.

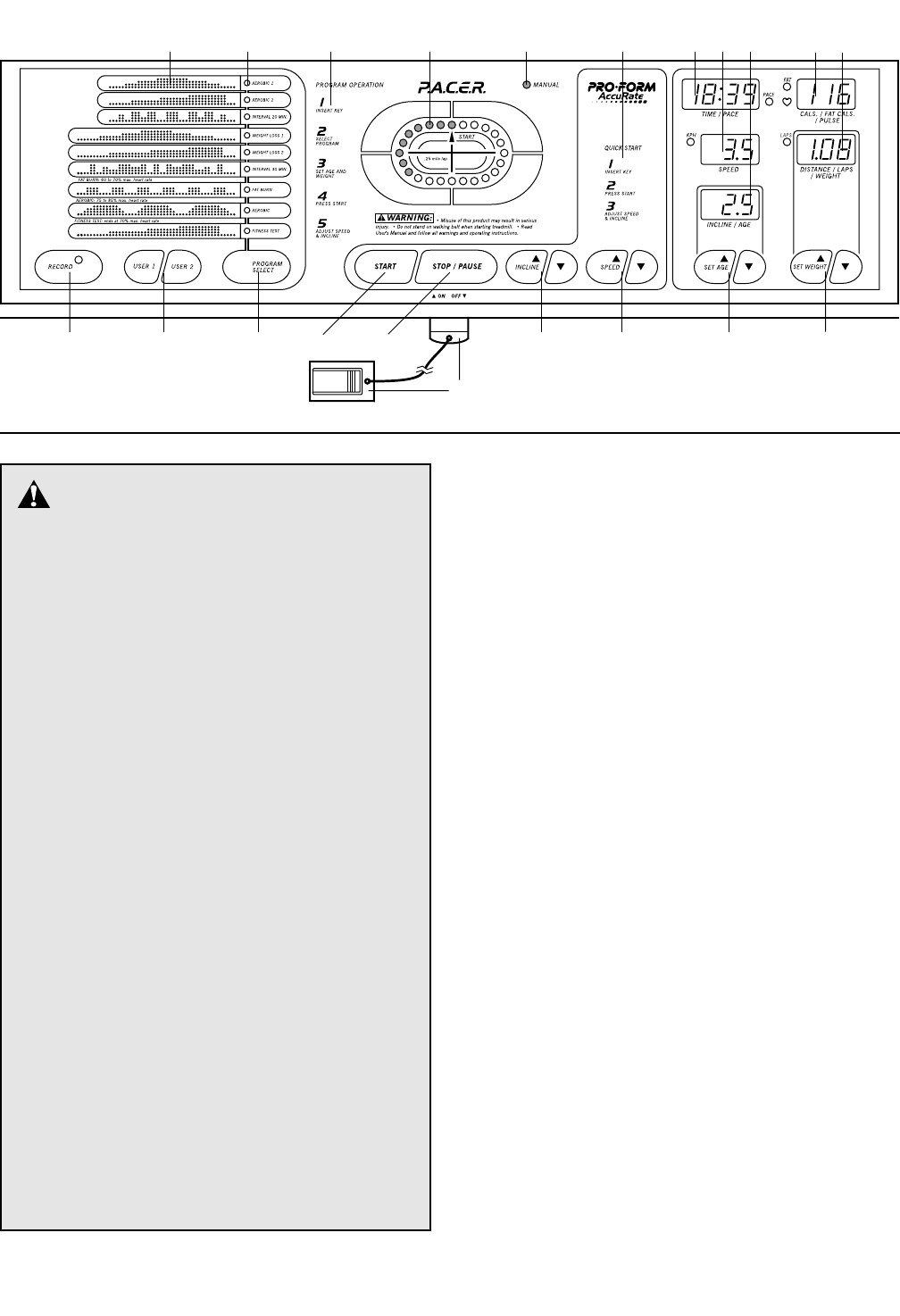

DIAGRAM OF THE CONSOLE

10

11

DIAGRAM OF THE CONSOLE

Refer to the drawing on the opposite page.

A. Workout graphs—These graphs show the settings

of the nine preset programs. During the AEROBIC 1

program, for example, the graph shows that the

speed of the treadmill will gradually increase during

the first half of the program, and then gradually

decrease during the last half of the program.

B. Mode indicators—These indicators show when the

manual mode is selected and when one of the nine

preset programs is selected.

C. Step-by-step instructions—These instructions

provide a quick overview of console operation.

D. LED track—This display shows your progress

around a 1/4-mile “track” as you exercise.

E. TIME/PACE display—When the manual mode is

selected, this display shows both the elapsed time

and your current pace (in minutes per mile). When a

preset program or a custom program is selected, the

display will show the time remaining in the program

and your current pace.

F. SPEED display—This display shows the speed of

the walking belt.

G. INCLINE/AGE display—This display shows the

incline level of the treadmill. This display is also

used to enter your age into the console.

H. CALORIES/FAT CALORIES/PULSE display—This

display shows three numbers: the approximate

number of calories you have burned, the number of

fat calories you have burned, and your heart rate.

I. DISTANCE/LAPS/WEIGHT display—This display

shows the distance that you have walked and the

number of 1/4-mile laps you have completed. This

display is also used to enter your weight into the

console.

J. RECORD button—This button is used to create and

modify custom programs.

K. USER 1 and 2 buttons—These buttons are used to

select the two custom programs.

L. PROGRAM SELECT button—This button is used to

select the manual mode and the nine preset

programs.

M. START button—This button is used to start the

walking belt.

N. STOP/PAUSE button—This button is used to stop

the walking belt.

O. Key with clip—The key turns the console on and off.

The clip is worn on the waistband of your clothes.

P. INCLINE buttons—These buttons are used to

change the incline of the treadmill. The incline range

is 1.5% to 10%.

Q. SPEED buttons—These buttons are used to change

the speed of the walking belt. The speed range is

0.5 mph to 10 mph. Note: When the START button

is pressed, the walking belt will begin to move at 1.0

mph.

R. SET AGE buttons—These buttons are used to enter

your age into the console. You must enter your age

to use the FAT BURN, AEROBIC, or FITNESS

TEST program.

S. SET WEIGHT buttons—These buttons are used to

enter your weight into the console.

Note: Each time one of the buttons is pressed, a tone

will sound. If a button is pressed at the wrong time (for

example, if a SPEED button is pressed while the

walking belt is stationary), a different tone will sound.

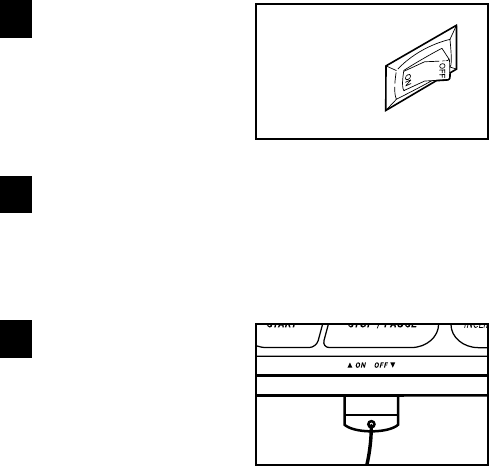

HOW TO TURN ON THE POWER

Locate the on/off

switch on the front

of the treadmill.

Make sure that the

on/off switch is in

the “on” position.

Plug in the power cord (see page 9). All displays

and indicators on the console will flash once.

Note: If the key is in the console when the power

cord is plugged in, the letters “PO” will flash in the

SPEED display. If this occurs, remove the key.

Stand on the foot

rails of the treadmill.

Find the clip

attached to the key

and slide the clip

onto the waistband

of your clothing.

Next, insert the key into the console. After a

moment, the MANUAL indicator, one indicator in

the LED track, and the TIME/PACE display will

light. In addition, the word “AGE” will appear in the

INCLINE/ AGE display and the letters “LbS” will

appear in the DISTANCE/LAPS/ WEIGHT display.

1

2

3

“On”

Position

12

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page

11. Note: When you are familiar with the console,

you may go directly to step 5 if desired. The first

time you use the console, please read and follow

all steps.

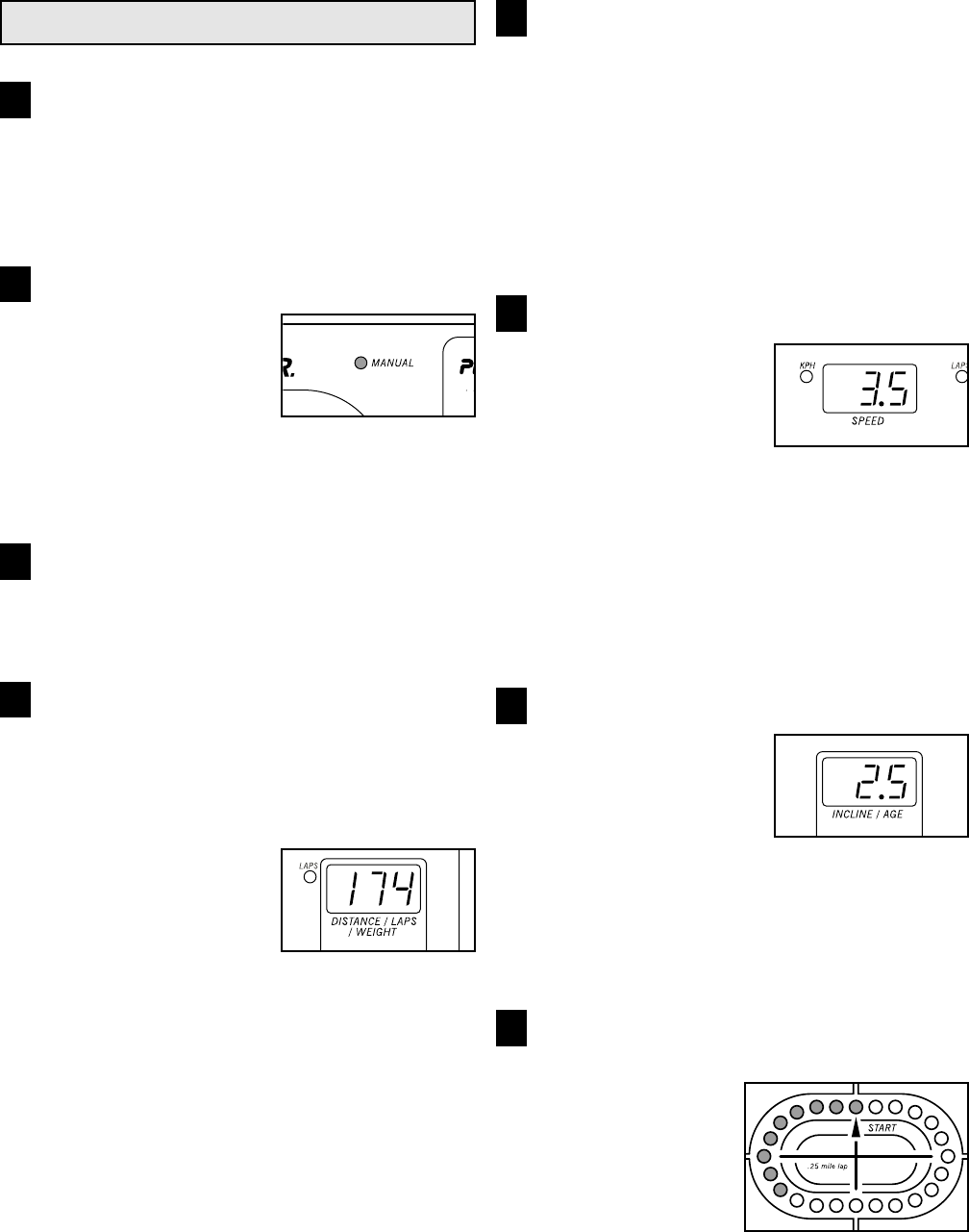

Select the MANUAL mode.

When the key is

inserted, the manual

mode will automatically

be selected, as shown

by the MANUAL indi-

cator. If a preset

program or a custom program is selected, press the

PROGRAM SELECT button repeatedly until the

MANUAL indicator is lit.

Put on the chest pulse sensor, if desired.

If you want to wear the chest pulse sensor, see

HOW TO USE THE CHEST PULSE SENSOR on

page 7.

Enter your weight, if desired.

If your weight is entered into the console, the

console will more accurately measure the numbers

of calories and fat calories you burn. To enter your

weight, press one of the SET WEIGHT buttons. The

current weight setting will

appear in the

DISTANCE/LAPS/

WEIGHT display. Press

the SET WEIGHT

buttons again to enter

your weight. Each time

one of the buttons is pressed, the weight setting

will change by 1 pound. If one of the buttons is held

down, the weight setting will change in increments

of 5 pounds. Once your weight is entered, it will be

saved in the console’s memory.

Note: Although the letters “AGE” appear in the

INCLINE/AGE display, it is not necessary to enter

your age to use the manual mode. If you want to

enter your age at this time, see step 5 on page 15.

Press the START button to start the walking belt.

A moment after the button is pressed, the walking

belt will begin to move at 1.0 mph. Hold the

handrails and begin walking.

To stop the walking belt for a moment, press the

STOP/PAUSE button. All displays will pause and

the TIME/PACE display will begin to flash. To

restart the walking belt, press the START button.

To stop the walking belt and reset all displays, hold

down the STOP/PAUSE button for two seconds.

Adjust the speed of the walking belt.

While the walking belt is

moving, adjust the speed

of the walking belt by

pressing the SPEED

buttons. Each time one

of the buttons is

pressed, the speed will change by 0.1 mph. If one

of the buttons is held down, the speed will change

in increments of 0.5 mph. The speed range is 0.5

mph to 10 mph. Note: When the SPEED buttons

are pressed, the SPEED display will show the

selected speed setting for five seconds. The

display will then show the actual speed of the

walking belt.

Adjust the incline of the treadmill.

The incline of the

treadmill can be

adjusted with the

INCLINE buttons. Each

time one of the buttons

is pressed, the incline

will change by 0.5%. The buttons can be held down

to change the incline quickly. The incline range is

1.5% to 10%. Note: After the INCLINE buttons are

pressed, it may take a few seconds for the treadmill

to reach the selected incline setting.

Follow your progress with the LED track and

the five displays.

LED track—The

LED track represents

a distance of 1/4

mile. As you exer-

cise, the indicators

around the track will

light one at a time.

When you have

completed 1/4 mile, a new lap will begin.

HOW TO USE THE MANUAL MODE

1

2

3

4

5

6

7

8

13

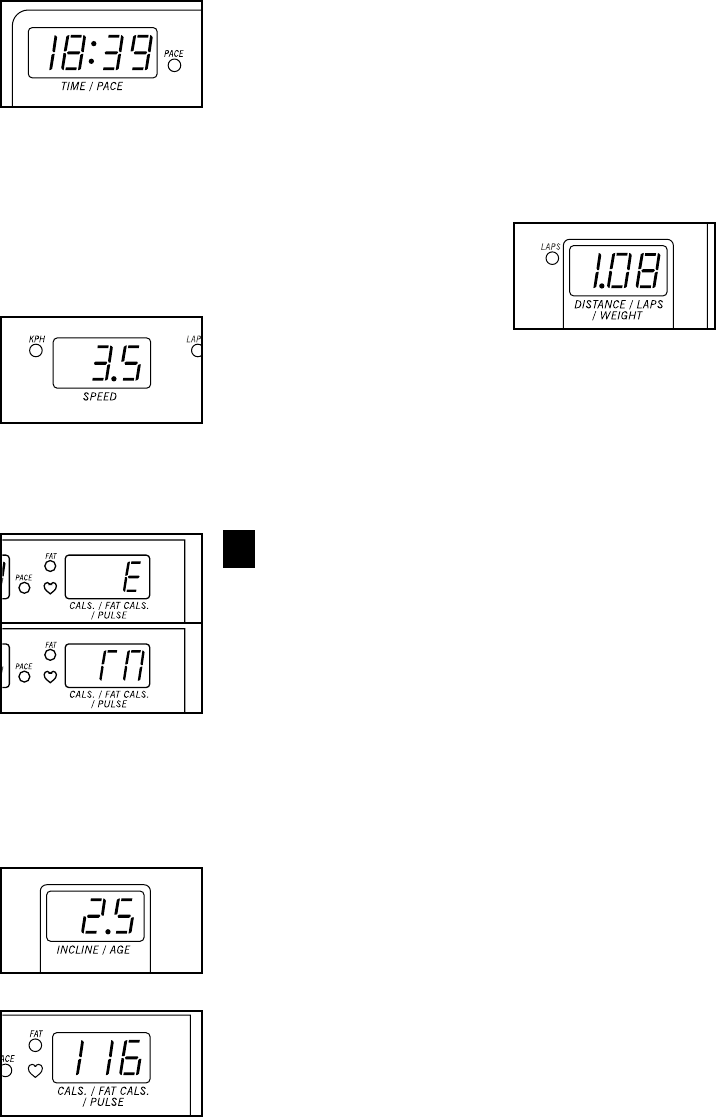

TIME/PACE display—

This display shows the

elapsed time and your

current pace (pace is

measured in minutes per

mile). The display will

change from one number to the other every seven

seconds. The PACE indicator will light when your

current pace is shown. Note: When a preset program

or a custom program is selected, the display will

show the time remaining in the program and your

current pace.

SPEED display—This

display shows the speed

of the walking belt. If the

KPH indicator beside the

SPEED display is lit, the

speed will be shown in

kilometers per hour. If the indicator is dark, the

speed will be shown in miles per hour.

Note: To change the unit

of measurement, first

hold down the STOP/

PAUSE button, insert

the key into the console,

and continue holding the

STOP/PAUSE button for

a moment. An “E” for

English (miles) or an

“M” for Metric (kilometers) will appear in the

CALS./FAT CALS./PULSE display. Press the

SPEED ▲▲button to change the unit of measure-

ment. Remove and then reinsert the key.

INCLINE/AGE

display—This display

shows the incline level of

the treadmill.

CALS./FAT CALS./

PULSE display—When

the chest pulse sensor is

worn, this display shows

three numbers: the

approximate number of

calories you have burned, the number of fat calories

you have burned, and your heart rate. The display

will change from one number to the next every

seven seconds. When the number of fat calories is

shown, the “fat” indicator beside the display will

light; when your heart rate is shown, the heart-

shaped indicator will flash with each heartbeat;

when the number of calories is shown, no indicator

will light.

If the chest pulse sensor is not worn, the display

will show only the number of calories burned and

the number of fat calories burned. If the chest pulse

sensor is not worn and you place your hands on

the hand pulse sensor, the display will show only

your heart rate.

DISTANCE/LAPS/WEIGHT display

This display shows the

distance that you have

walked and the total

number of 1/4-mile laps

you have completed.

The display will change

from one number to the other every seven seconds.

The LAPS indicator will light when the number of

laps is shown. If the KPH indicator beside the

SPEED display is lit, the distance will be shown in

kilometers. If the KPH indicator is dark, the distance

will be shown in miles.

When you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails and press the STOP/PAUSE

button. Next, change the incline of the treadmill

to 1.5%. The incline must be at 1.5% before the

treadmill is folded to the storage position or the

treadmill may be damaged. Remove the key from

the console. Store the key in a secure place. In

addition, press the on/off switch to the “off” position.

(See the drawing on page 11.)

9

14

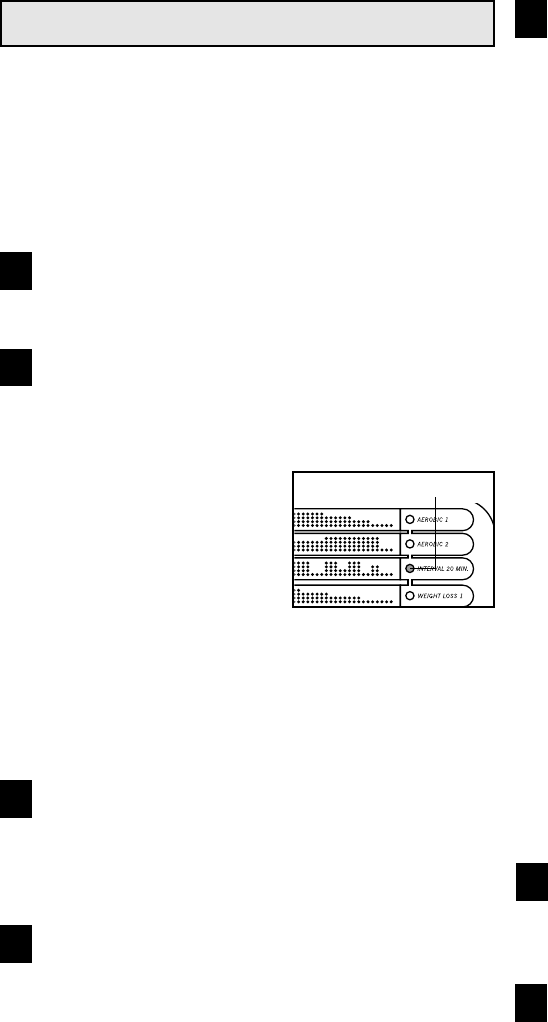

The console offers six speed programs: AEROBIC 1,

AEROBIC 2, INTERVAL (20 MIN.), WEIGHT LOSS 1,

WEIGHT LOSS 2, and INTERVAL (30 MIN.). Each

program automatically controls the speed of the

treadmill as it guides you through an effective workout.

Follow the steps below to use a speed program.

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page 11.

Select the desired speed program.

When the key is inserted, the manual mode will

automatically be selected, as shown by the MANUAL

indicator. Press the

PROGRAM SELECT

button repeatedly until

the desired program

indicator lights. The

TIME/PACE display will

show how long the

selected program will

last. Note: If the walking belt is moving when a

speed program is selected, the walking belt will

slow to a stop. In addition, if the incline of the tread-

mill is higher than 1.5%, it will automatically

decrease to 1.5%.

Put on the chest pulse sensor, if desired.

If you want to wear the chest pulse sensor, see

HOW TO USE THE CHEST PULSE SENSOR on

page 7.

Enter your weight, if desired.

If your weight is entered into the console, the

console will more accurately measure the numbers

of calories and fat calories you burn. To enter your

weight, see step 4 on page 12.

Note: Although the letters “AGE” appear in the

INCLINE/AGE display, it is not necessary to enter

your age to use a speed program. If you want to

enter your age at this time, see step 5 on page 15.

Press the START button to start the program.

A moment after the button is pressed, the walking

belt will begin to move at 1.0 mph. Hold the

handrails and begin walking.

As the program progresses, the speed of the walking

belt will change periodically as shown by the graphs

on the left side of the console. The incline of the

treadmill can be changed as desired during the

program with the INCLINE buttons. When only ten

seconds remain in the program, the incline of the

treadmill will automatically decrease to 1.5%. When

no time remains in the TIME/PACE display, the

walking belt will slow to a stop and the program will

end.

Note: To stop the program for a moment, press the

STOP/PAUSE button. All displays will pause and

the TIME/PACE display will begin to flash. To

restart the program, press the START button. To

end the program before it is completed, hold down

the STOP/PAUSE button for two seconds.

Note: While the program is running, the difficulty

level of the program can be adjusted, if desired.

Press the SPEED ▲▲button. A number will flash in

the SPEED display for three seconds. This number

is the maximum speed setting of the program. Press

the SPEED ▲▲button again. Each time the button is

pressed, the maximum speed setting and all other

speed settings of the program will increase slightly.

The SPEED ▼▼ button can be used in the same way

to decrease the difficulty level of the program.

Follow your progress with the LED track and

the five displays.

See step 8 on page 12.

When the program is completed, remove the key.

Step onto the foot rails. Make sure that the incline

of the treadmill is set at 1.5%. Remove the key

from the console. Store the key in a secure place. In

addition, press the on/off switch to the “off” position.

(See the drawing on page 11.)

HOW TO USE THE SPEED PROGRAMS

1

2

3

4

5

6

7

Program Indicator

15

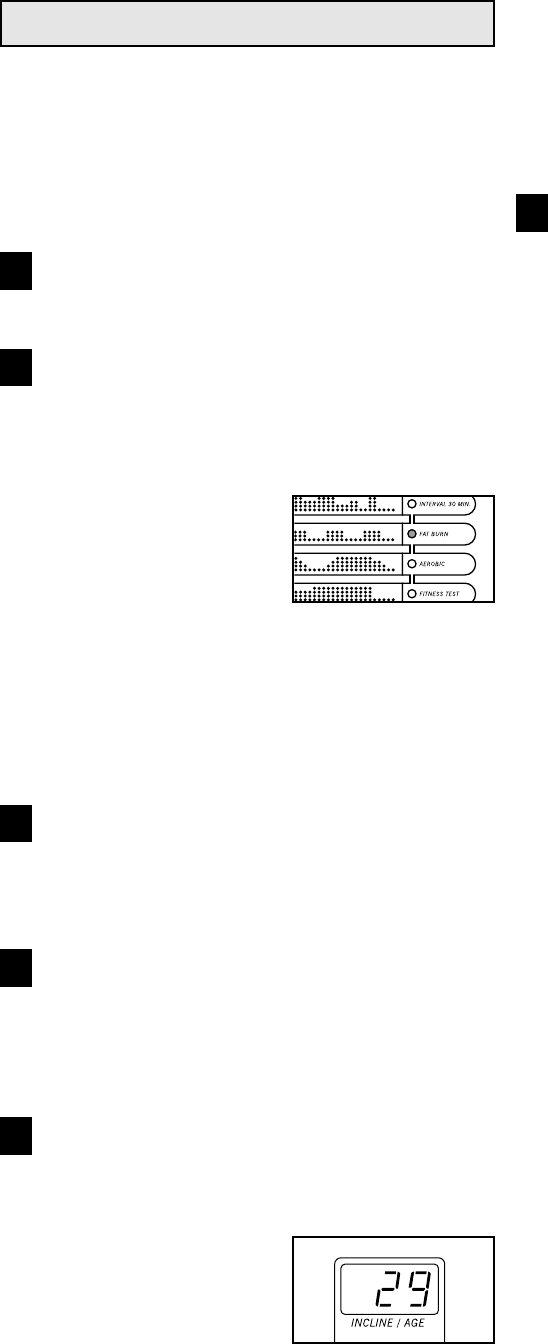

The console offers two heart rate programs: the FAT

BURN program and the AEROBIC program. Each

program will automatically control the speed and

incline of the treadmill to keep your heart rate near

predetermined settings. Follow the steps below to use

a heart rate program.

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page 11.

Select the desired heart rate program.

When the key is inserted, the manual mode will

automatically be selected, as shown by the MANUAL

indicator. Press the PROGRAM SELECT button

repeatedly until the FAT

BURN or AEROBIC

indicator lights. The

TIME/PACE display will

show that the program

will last for 30 minutes,

and the letters “AGE”

will begin to flash in the INCLINE/AGE display.

Note: If the walking belt is moving when a heart

rate program is selected, the walking belt will slow

to a stop. In addition, if the incline of the treadmill is

higher than 1.5%, it will automatically decrease to

1.5%.

Put on the chest pulse sensor.

You must wear the chest pulse sensor to use a

heart rate program. See HOW TO USE THE

CHEST PULSE SENSOR on page 7.

Enter your weight, if desired.

If your weight is entered into the console, the

console will more accurately measure the numbers

of calories and fat calories you burn. To enter your

weight, see step 4 on page 12.

Enter your age.

You must enter your age into the console to use

a heart rate program. To enter your age, press

one of the SET AGE

buttons. The current age

setting will appear in the

INCLINE/AGE display.

Press the SET AGE

buttons again to enter

your age. Each time one of the buttons is pressed,

the age setting will change by 1 year. If one of the

buttons is held down, the age setting will change in

increments of 5 years. Once your age is entered, it

will be saved in the console’s memory. If you have

already entered your age, you must press one

of the SET AGE buttons to verify the age setting.

Press the START button to start the program.

A moment after the button is pressed, the walking

belt will begin to move at 1.5 mph. Hold the

handrails and begin walking.

As the program progresses, the speed and incline

of the treadmill will change periodically to keep

your heart rate near predetermined settings, shown

by the graphs on the left side of the console. When

only ten seconds remain in the program, the incline

of the treadmill will automatically decrease to 1.5%.

When no time remains in the TIME/PACE display,

the walking belt will slow to a stop and the program

will end.

Note: If your heart rate is not detected during the

program, the letters “PLS” will flash in the CALS./

FAT CALS./PULSE display and the speed and/or

incline of the treadmill may automatically decrease.

See CHEST PULSE SENSOR TROUBLE-

SHOOTING on page 7.

Note: To stop the program for a moment, press the

STOP/PAUSE button. All displays will pause and

the TIME/PACE display will begin to flash. To

restart the program, press the START button. To

end the program before it is completed, hold down

the STOP/PAUSE button for two seconds.

Note: While the program is running, minor adjust-

ments can be made to the speed and incline of the

treadmill with the SPEED and INCLINE buttons.

However, if you increase the speed, the incline will

automatically decrease; if you decrease the speed,

the incline will increase. If you increase the incline,

the speed will automatically decrease; if you

decrease the incline, the speed will increase. The

console will always attempt to keep your heart rate

near predetermined settings. When the incline

reaches the lowest setting, the speed cannot be

increased any further. When the incline reaches

the highest setting, the speed cannot be decreased

any further.

HOW TO USE THE HEART RATE PROGRAMS

1

2

3

4

5

6

16

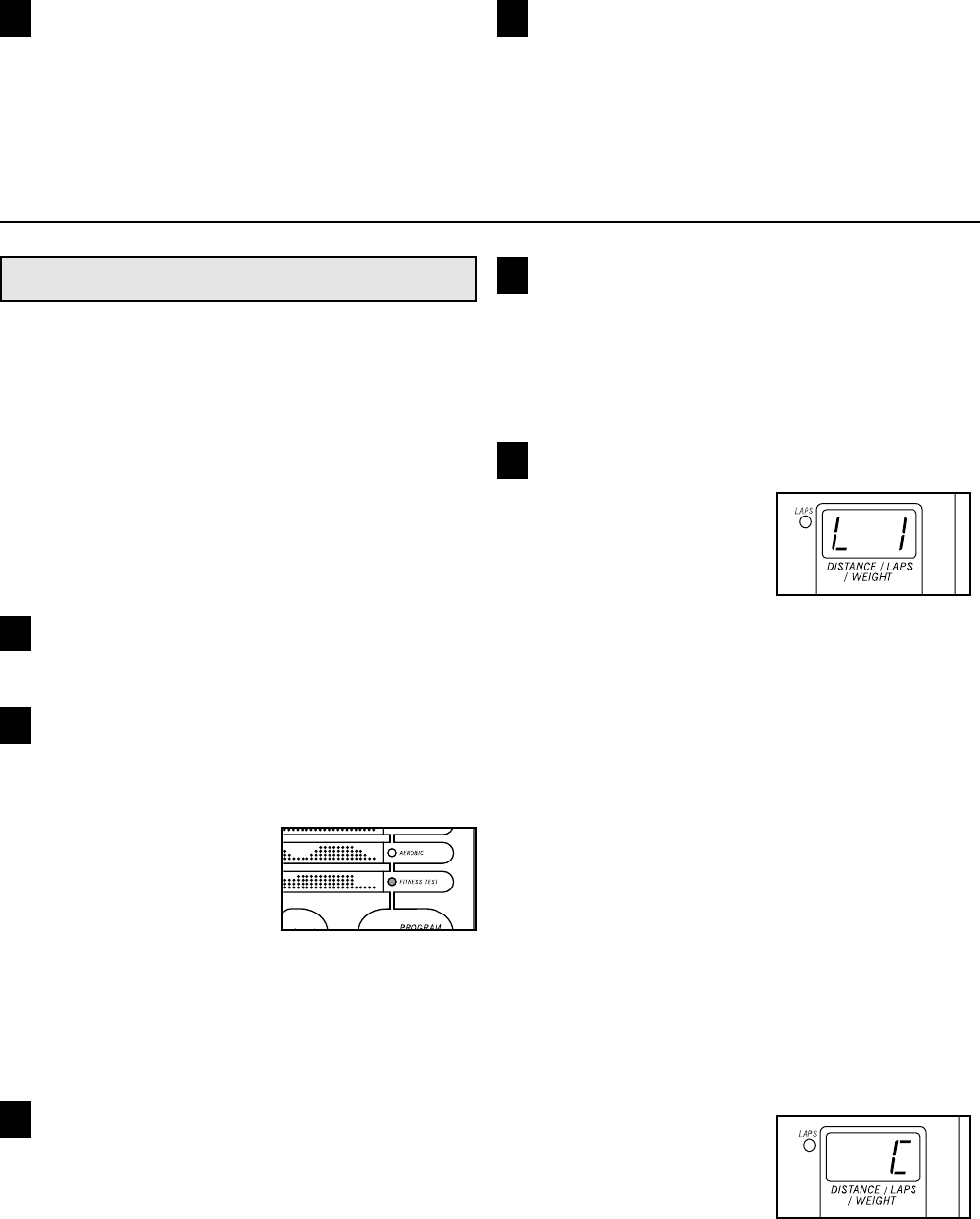

The FITNESS TEST program is designed to measure

the relative fitness level you have achieved. For the

best results, the program should be used at a time

when your energy level is high; the program should not

be used if you have already exercised during the day.

The FITNESS TEST program consists of seven 4-

minute periods, and is followed by a 2-minute cool-

down period. The speed and/or incline of the treadmill

will automatically increase at the beginning of each

period. Follow the steps below to use the program.

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page 11.

Select the FITNESS TEST program.

When the key is inserted, the manual mode will

automatically be selected, as shown by the MANUAL

indicator. Press the

PROGRAM SELECT

button repeatedly until

the FITNESS TEST indi-

cator lights. The letters

“AGE” will begin to flash

in the INCLINE/AGE

display. Note: If the walking belt is moving when

the FITNESS TEST program is selected, the walk-

ing belt will slow to a stop. In addition, if the incline

of the treadmill is higher than 1.5%, it will automati-

cally decrease to 1.5%.

Put on the chest pulse sensor.

You must wear the chest pulse sensor to use

the FITNESS TEST program. See HOW TO USE

THE CHEST PULSE SENSOR on page 7. Note:

The program can be started without your heart rate

being detected; however, the program will automat-

ically stop of your heart rate is not detected 4

minutes after the program is started.

Enter your age.

You must enter your age into the console to use

the FITNESS TEST program. To enter your age,

see step 5 on page 15. If you have already

entered your age, you must press one of the

SET AGE buttons to verify the age setting.

Press the START button to start the program.

When the START button

is pressed, the TIME/

PACE display will begin

counting up and the

DISTANCE/LAPS/

WEIGHT display will

show an “L 1” (level 1), indicating that the first 4-

minute period of the FITNESS TEST program has

begun. The incline of the treadmill will automatically

adjust to 3%, and the walking belt will begin to

move at 1.5 mph. Hold the handrails and begin

walking.

When the first 4-minute period of the program is

completed, the DISTANCE/LAPS/WEIGHT display

will show an “L 2,” indicating that the second 4-

minute period has begun. The incline will increase

to 4%, and the speed will increase to 2.5 mph. At

the beginning of each 4-minute period, the speed

and/or incline of the treadmill will automatically

increase. The FITNESS TEST will continue in this

manner until your heart rate reaches 71.5% of your

theoretical maximum heart rate, and the current 4-

minute period is completed. The FITNESS TEST

will then end, regardless of how many periods

remain.

When the FITNESS

TEST is completed, the

letter “C” will be shown

in the DISTANCE/

LAPS/WEIGHT display,

indicating that the cool-

down period has begun. The TIME/PACE display

will then begin counting down. When only ten

seconds remain in the cool-down period, the incline

of the treadmill will automatically decrease to 1.5%.

HOW TO USE THE FITNESS TEST PROGRAM

1

2

3

4

5

Follow your progress with the LED track and

the five displays.

See step 8 on page 12.

When the program is completed, remove the key.

Step onto the foot rails. Make sure that the incline

of the treadmill is set at 1.5%. Remove the key

from the console. Store the key in a secure place. In

addition, press the on/off switch to the “off” position.

(See the drawing on page 11.)

7 8

17

When the cool-down period is completed, the walk-

ing belt will slow to a stop. Your fitness level will

then be shown in the

TIME/PACE display.

There are ten fitness

levels—fitness level 10

(FL 10) is the highest.

Remember, the

FITNESS TEST is

intended only to indicate the relative fitness level

you have attained.

Note: The SPEED and INCLINE buttons will not

function while the FITNESS TEST program is

running. If your heart rate is not detected during the

program, the letters “PLS” will flash in the CALS./

FAT CALS./PULSE display. If your heart rate is not

detected during the last thirty seconds of any 4-

minute period (after 4 minutes, after 8 minutes,

etc.), the walking belt will slow to a stop, the

FITNESS TEST will end, and the TIME/PACE

display will show a fitness level of 0 (FL 00). (See

CHEST PULSE SENSOR TROUBLE-SHOOTING

on page 7.)

Note: The FITNESS TEST program cannot be

stopped for a moment and then restarted. However,

the program can be stopped at any time by press-

ing the STOP button. The TIME/PACE display will

then show an estimated fitness level.

When the program is completed, remove the key.

Step onto the foot rails. Make sure that the incline

of the treadmill is set at 1.5%. Remove the key

from the console. Store the key in a secure place. In

addition, press the on/off switch to the “off” position.

(See the drawing on page 11.)

6

18

Custom programs are workout programs that you

create. The programs automatically control the speed

and incline of the treadmill, and can be up to 40 minutes

long. The programs are stored in the console’s memory,

and can be changed as many times as desired. Follow

the steps below to create a custom program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 11.

Select one of the custom programs.

When the key is inserted, the manual mode will

automatically be selected, as shown by the MANUAL

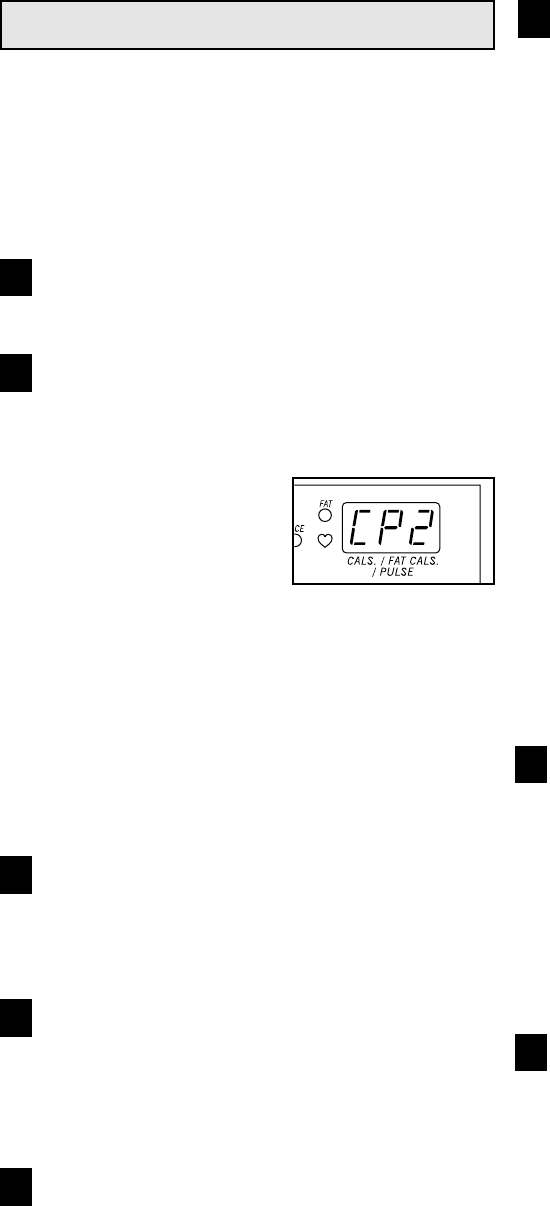

indicator. To select one

of the custom programs,

press the USER 1 or

USER 2 button. The

letters “CP1” or “CP2”

will appear in the CALS./

FAT CALS./PULSE

display to show which program you have selected.

The TIME/PACE display will show how long the

program is set to last. (The program can be set to

last for a different length of time, as explained later.)

Note: If the walking belt is moving when a custom

program is selected, the walking belt will slow to a

stop. In addition, if the incline of the treadmill is

higher than 1.5%, it will automatically decrease to

1.5%.

Put on the chest pulse sensor, if desired.

If you want to wear the chest pulse sensor, see

HOW TO USE THE CHEST PULSE SENSOR on

page 7.

Enter your weight, if desired.

If your weight is entered into the console, the

console will more accurately measure the numbers

of calories and fat calories you burn. To enter your

weight, see step 4 on page 12.

Press the START button to start the program.

A moment after the button is pressed, the walking

belt will begin to move. Hold the handrails and

begin walking.

Press the RECORD button and program the

desired speed and incline settings.

When the RECORD button is pressed, the indicator

on the button will light. Speed and incline settings

can be programmed only when the indicator on

the button is lit.

Each custom program is divided into one-minute

periods. One speed setting and one incline setting

can be programmed for each period. To program

speed and incline settings for the first one-minute

period of the program, simply adjust the speed and

incline of the treadmill as desired with the SPEED

and INCLINE buttons.

When the first one-minute period of the program is

completed, the current speed and incline settings

will be stored in the console’s memory. Program

speed and incline settings for the second one-

minute period in the same way. Repeat this

procedure until you have programmed speed and

incline settings for as many one-minute periods as

desired. Custom programs can have up to forty

periods.

Note: To stop the program for a moment, press the

STOP/PAUSE button. All displays will pause and

the TIME/PACE display will begin to flash. To

restart the program, press the START button.

Hold down the STOP/PAUSE button for two

seconds.

When you have programmed speed and incline

settings for as many one-minute periods as

desired, hold down the STOP/PAUSE button for

two seconds. The speed and incline settings that

you have programmed and the length of the program

will be stored in the console’s memory. To use the

program again, see HOW TO USE A CUSTOM

PROGRAM at the right.

When the program is completed, remove the key.

Step onto the foot rails. Make sure that the incline

of the treadmill is set at 1.5%. Remove the key

from the console. Store the key in a secure place. In

addition, press the on/off switch to the “off” position.

(See the drawing on page 11.)

6

7

8

1

2

3

4

5

HOW TO CREATE A CUSTOM PROGRAM

19

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 11.

Select one of the custom programs.

When the key is inserted, the manual mode will

automatically be selected, as shown by the MANUAL

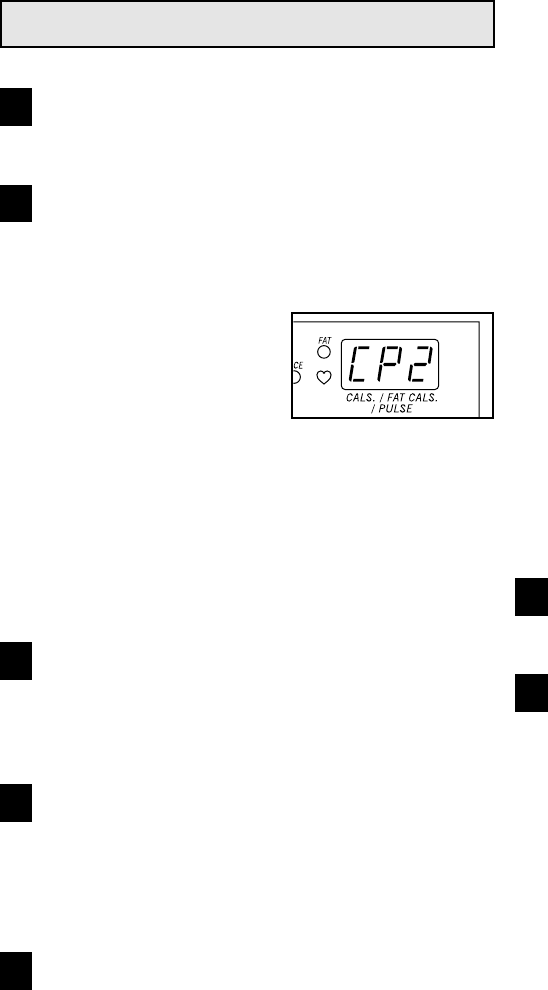

indicator. To select one

of the custom programs,

press the USER 1 or

USER 2 button. The

letters “CP1” or “CP2”

will appear in the CALS./

FAT CALS./PULSE

display to show which program you have selected.

The TIME/PACE display will show how long the

program is set to last. Note: If the walking belt is

moving when a custom program is selected, the

walking belt will slow to a stop. In addition, if the

incline of the treadmill is higher than 1.5%, it will

automatically decrease to 1.5%.

Put on the chest pulse sensor, if desired.

If you want to wear the chest pulse sensor, see

HOW TO USE THE CHEST PULSE SENSOR on

page 7.

Enter your weight, if desired.

If your weight is entered into the console, the

console will more accurately measure the numbers

of calories and fat calories you burn. To enter your

weight, see step 4 on page 12.

Press the START button.

A moment after the button is pressed, the walking

belt will begin to move. Hold the handrails and

begin walking.

During the first one-minute period of the program,

the speed and incline of the treadmill will automati-

cally adjust to the first settings that you programmed

previously. When the first one-minute period is

completed, the speed and incline of the treadmill

will automatically adjust to the second settings that

you programmed. The program will continue in this

manner until no time remains in the TIME/PACE dis-

play. The walking belt will then slow to a stop.

Note: To stop the program for a moment, press the

STOP/PAUSE button. All displays will pause and

the TIME/PACE display will begin to flash. To

restart the program, press the START button. To

end the program before it is completed, hold down

the STOP/PAUSE button for two seconds.

Note: While the program is running, the speed and

incline of the treadmill can be adjusted with the

SPEED and INCLINE buttons. Adjustments will not

be stored in the console’s memory. To reprogram

the speed and incline settings of the current one-

minute period of the program, press the RECORD

button. The indicator on the button will light. Speed

and incline settings can be reprogrammed only

when the indicator on the button is lit. Next,

adjust the speed and incline of the treadmill with

the SPEED and INCLINE buttons. When the current

period is completed, the new speed and incline

settings will be stored in memory. When you have

reprogrammed speed and incline settings for as

many periods as desired, press the RECORD

button again.

Follow your progress with the five displays.

Refer to step 8 on page 12.

When the program is completed, remove the key.

Step onto the foot rails. Next, change the incline

of the treadmill to 1.5%. Remove the key from the

console. Store the key in a secure place. In addition,

press the on/off switch to the “off” position. (See the

drawing on page 11.)

HOW TO SELECT THE INFORMATION MODE

The console features an information mode that keeps

track of the total time and distance accumulated on the

treadmill.

To access the information mode, hold down the STOP/

PAUSE button, insert the key into the console, and

continue holding the STOP/PAUSE button for a

moment. The TIME/PACE display will show the total

number of hours that the treadmill has been used. The

DISTANCE/LAPS/WEIGHT display will show the total

number of miles accumulated. The CALS./FAT CALS./

PULSE display will show an “E” for English (miles) or

an “M” for Metric (kilometers) (see SPEED DISPLAY

on page 13).

To exit the information mode, remove the key.

6

7

1

2

3

4

5

HOW TO USE A CUSTOM PROGRAM

20

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the lowest position. If the incline is not at the lowest position,

the treadmill will be permanently damaged. Next, unplug the power cord. Caution: You must be able to

safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown

at the right. Caution: To decrease the possibility of in-

jury, bend your legs and keep your back straight. As

you raise the treadmill, make sure to lift with your legs

rather than your back. Raise the treadmill about halfway

to the vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Raise the treadmill until the storage latch

closes over the frame guide. Make sure that the storage

latch closes fully over the frame guide.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85° Fahrenheit. Storage

Latch

Frame

Guide

Closed

HOW TO ADJUST THE FIRMNESS OF THE

WALKING PLATFORM

The walking

platform is

specially designed

to cushion the

impact as you

walk or run on

the treadmill. The

firmness of the

walking platform

can be adjusted

to any of three

settings using the control on the right side of the

treadmill. For a firmer walking platform, turn the control

clockwise. For a softer walking platform, turn the control

counterclockwise. If it is difficult to turn the control,

lift up on the walking platform while turning the

control. Note: The faster you run on the treadmill, the

firmer the walking platform should be. If the walking

platform is too soft, the treadmill may bounce exces-

sively.

Cushion Control

Lift Here

21

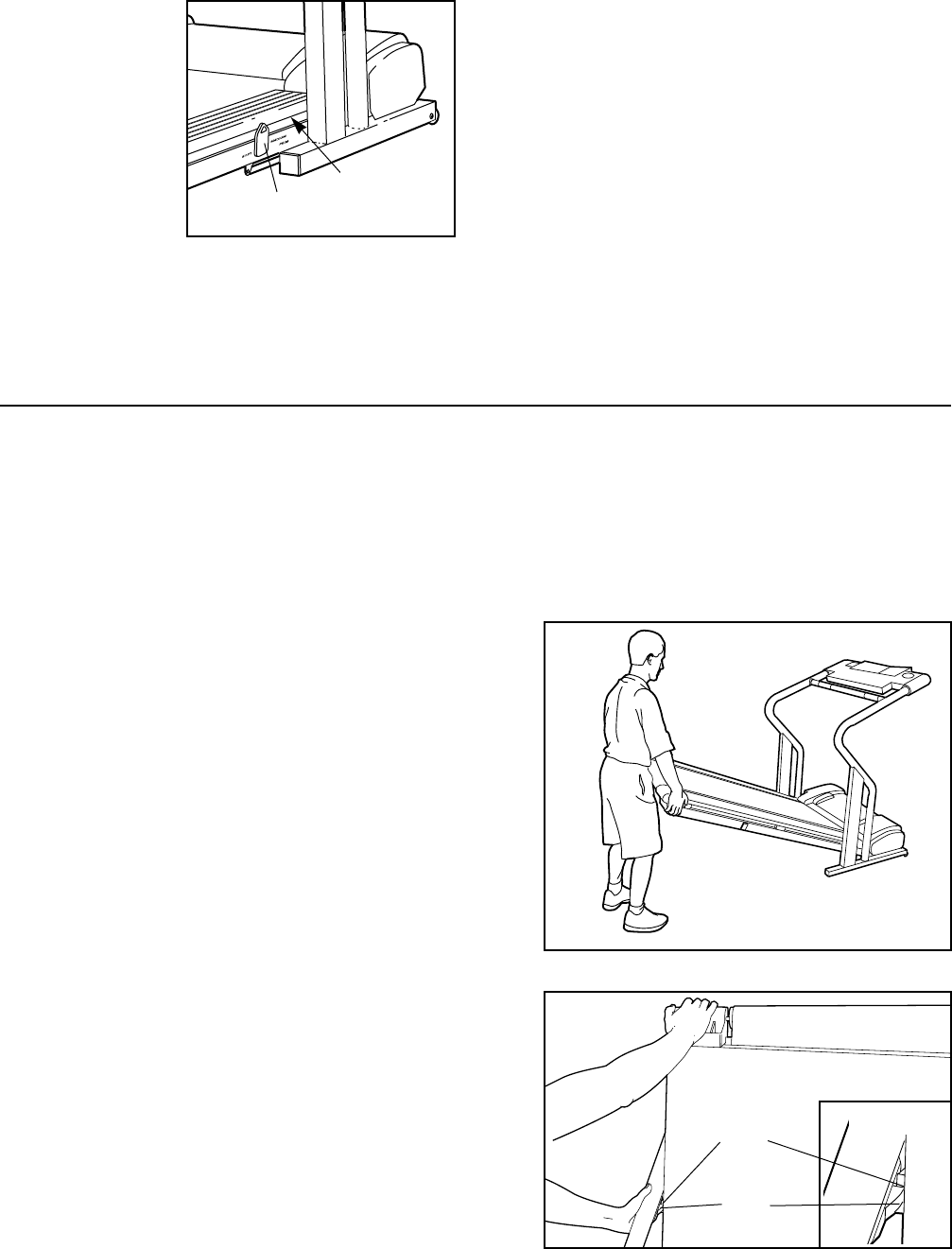

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the

storage position as described above. Make sure that the

storage latch is closed fully over the latch catch.

1. Hold the upper ends of the treadmill. Place one foot on

the base as shown.

2. Tilt the treadmill back until it rolls freely on the wheels.

Carefully move the treadmill to the desired location. To re-

duce the risk of injury, use extreme caution while

moving the treadmill. Do not attempt to move the

treadmill over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand as

shown. Using your left thumb, slide open the storage latch

and hold it open. Pivot the treadmill until the frame is past

the storage latch.

2. Hold the treadmill firmly with both hands, and lower the

treadmill to the floor. Caution: To decrease the possibil-

ity of injury, bend your legs and keep your back

straight.

Storage

Latch

Opened

Base

Wheels

MAINTENANCE AND TROUBLE-SHOOTING

Most treadmill problems can be solved by following the simple steps below. If further assistance is

needed, call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m.

Central Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor

that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor

must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation

of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

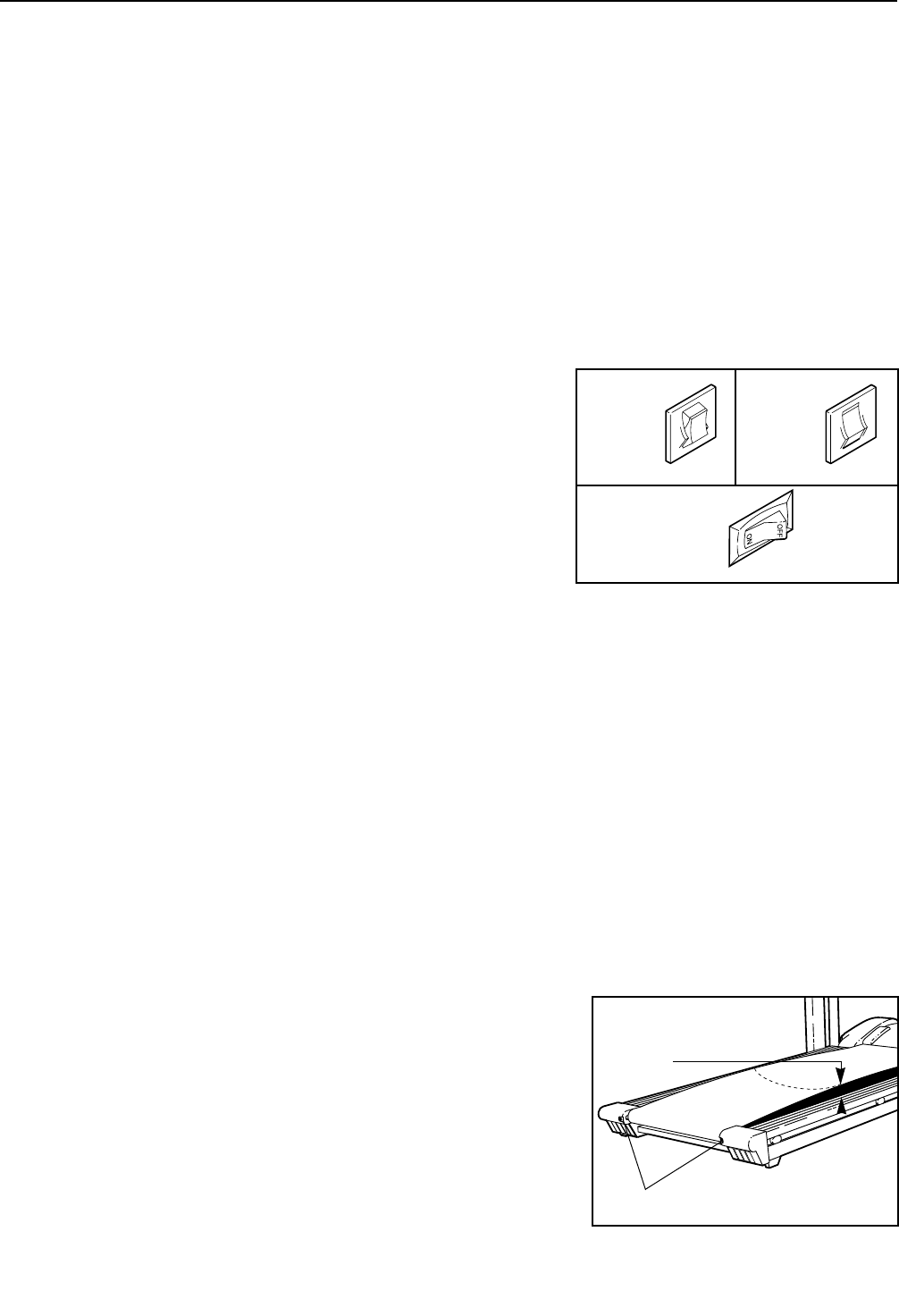

c. Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as

shown, the circuit breaker has tripped. To reset the

circuit breaker, wait for five minutes and then press

the switch back in.

d. Check the on/off switch located at the front of the

treadmill near the power cord. The switch must be

in the “on” position.

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If

the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. Check to make sure that the on/off switch is in the “on” position. (See 1. d. above.)

e. If the treadmill still will not run, please call our toll-free HELPLINE.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or

less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically

rated for 120 volts AC and 15 amps.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be per-

manently damaged. Remove the key and UNPLUG

THE POWER CORD. Using the allen wrench, turn

both rear roller adjustment bolts counterclockwise, 1/4

of a turn. When the walking belt is properly tightened,

you should be able to lift each side of the walking belt

3 to 4 inches off the walking platform. Be careful to

keep the walking belt centered. Plug in the power cord,

insert the key and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.

Tripped

Reset

Tripped

c

Reset

“On”

Position

d

Rear Roller Adjustment Bolts

3”–4”

b

22

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt has shifted to the left, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn the left rear roller adjust-

ment bolt clockwise, and the right bolt counterclock-

wise, 1/4 of a turn each. Be careful not to overtighten

the walking belt. Plug in the power cord, insert the key

and run the treadmill for a few minutes. Repeat until

the walking belt is centered.

b. If the walking belt has shifted to the right, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn the left rear roller adjust-

ment bolt counterclockwise, and the right bolt clock-

wise, 1/4 of a turn each. Be careful not to overtighten

the walking belt. Plug in the power cord, insert the

key and run the treadmill for a few minutes. Repeat

until the walking belt is centered.

c. If the walking belt slips when walked on, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn both rear roller adjust-

ment bolts clockwise, 1/4 of a turn. When the walking

belt is correctly tightened, you should be able to lift

each side of the walking belt 3 to 4 inches off the

walking platform. Be careful to keep the walking belt

centered. Plug in the power cord, insert the key and

run the treadmill for a few minutes. Repeat until the

walking belt is properly tightened.

PROBLEM: An error code (E1, E20, E21, E22, or E23) appears on the console

SOLUTION: a. If an error code appears in one of the displays of the console, remove the key from the console,

wait for a moment, and then reinsert the key. If the error code appears again, call our toll-free

HELPLINE. Do not use the treadmill until the problem is corrected.

PROBLEM: The heart rate monitor does not function properly

SOLUTION: a. If the heart rate monitor does not function properly, refer to CHEST PULSE SENSOR TROUBLE-

SHOOTING on page 7.

b. The CR 2032 battery may need to be replaced.

To replace the battery, locate the battery cover on the back of the

sensor unit. Insert a coin into the slot in the cover, turn the cover

counterclockwise, and remove it.

Remove the old battery and insert a new CR 2032 battery, making

sure that the battery is turned so the writing is on top. Make sure that

the rubber gasket is in place in the sensor unit. Replace the battery

cover and turn it clockwise to close it.

b

c

a

CR 2032

Battery

Rubber

Gasket

23

24

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. Remember—these are general guide-

lines. For more detailed information about exercise,

obtain a book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or strengthen your car-

diovascular system, the key to achieving the desired

results is to exercise with the proper intensity. The

proper intensity level can be found by using your heart

rate as a guide. For effective exercise, your heart rate

should be maintained at a level between 71.5% and

85% of your maximum heart rate as you exercise. This

is known as your training zone.

You can find your training zone in the table below.

Training zones are listed according to age and physical

condition.

Burning Fat

To burn fat, you must exercise at a low intensity level

for a sustained period of time. During the first few

minutes of exercise, your body uses easily accessible

carbohydrate calories for energy. Only after the first few

minutes of exercise does your body begin to use stored

fat calories for energy. If your goal is to burn fat, adjust

the intensity of your exercise until your heart rate is

near the low end of your training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the intensity of your exercise until your heart

rate is near the middle of your training zone.

WORKOUT GUIDELINES

Each workout should include the following three impor-

tant parts: (1) a warm-up, (2) training zone exercise,

and (3) a cool-down.

Warm-up

Warming up prepares the body for exercise by increas-

ing circulation, delivering more oxygen to the muscles,

and raising the body temperature. Begin each workout

with 5 to 10 minutes of stretching and light exercise to

warm up (see SUGGESTED STRETCHES on page 25).

Training Zone Exercise

After warming up, increase the intensity of your exer-

cise until your heart rate is in your training zone for 20

to 60 minutes. (During the first few weeks of your exer-

cise program, do not keep your heart rate in your train-

ing zone for longer than 20 minutes.) Breathe regularly

and deeply as you exercise—never hold your breath.

WARNING: Before beginning

this or any exercise program, consult your

physician. This is especially important for in-

dividuals over the age of 35 or individuals

with pre-existing health problems.

WARNING: The pulse sensors

are not medical devices. Various factors,

including your movement, may affect the

accuracy of heart rate readings. The pulse

sensors are intended only as exercise aids in

determining heart rate trends in general.

20 138-167 133-162

25 136-166 132-160

30 135-164 130-158

35 134-162 129-156

40 132-161 127-155

45 131-159 125-153

50 129-156 124-150

55 127-155 122-149

60 126-153 121-147

65 125-151 119-145

70 123-150 118-144

75 122-147 117-142

80 120-146 115-140

85 118-144 114-139

Age Unconditioned Conditioned

Training Zone (Beats/Min.)

25

Cool-down

Finish each workout with 5 to 10 minutes of stretching

to cool down. This will increase the flexibility of your

muscles and will help to prevent post-exercise problems.

Exercise Frequency

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired.

The key to success is to make exercise a regular and

enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the

right. Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward

from your hips. Allow your back and shoulders to relax as you

reach down toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Hamstrings,

back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot

toward you and rest it against the inner thigh of your extended

leg. Reach toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times for each leg. Stretches:

Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your

back foot flat on the floor. Bend your front leg, lean forward and

move your hips toward the wall. Hold for 15 counts, then relax.

Repeat 3 times for each leg. To cause further stretching of the

achilles tendons, bend your back leg as well. Stretches:

Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and

grasp one foot with your other hand. Bring your heel as close

to your buttocks as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Quadriceps and hip

muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold

for 15 counts, then relax. Repeat 3 times. Stretches:

Quadriceps and hip muscles.

1

2

3

4

5

26

PART LIST—Model No. 831.297442 R0198A

Key

No. Qty. Description

1 1 Frame

2 2 Rear Isolator

3 2 Rear Isolator Screw

4 30 Small Screw

5 2 Frame Guide

6 4 Isolator

7 4 Isolator Screw

8 1 Walking Platform

9 2 Cushion Plate

10 2 Rear Foot Screw

11 2 Adjustable Deck Cushion

12 2 Rod Bolt

13 3 Rod Nut

14 1 Isolator Adjustment Rod

15 5 Pivot Bolt

16 2 Incline Pivot Spacer

17 1 Walking Belt

18 1 Front Roller/Pulley

19 8 Incline Nut

20 1 Incline Leg

21 2 Hood Bracket

22 40 Screw

23 1 Front Hood Bracket

24 2 Sensor Wire

25 2 Incline Motor Bolt

26 1 Incline Motor Spacer

27 1 Incline Motor

28 1 Incline Disk

29 2 Small Nut

30 2 Optic Sensor

31 2 Small Bolt

32 1 Controller

33 1 Electronics Plate

34 1 Power Board w/Clips

35 4 Plastic Stand-Off

36 1 Power Cord

37 1 Power Cord Grommet

38 1 On/Off Switch

39 1 Outlet Bracket

40 1 Circuit Breaker

41 1 Choke

42 2 Wire Clip

43 1 Motor Pivot Nut

44 1 Pulley/Flywheel/Fan

45 1 Motor Belt

46 1 Motor

47 1 Motor Tension Washer

48 1 Star Washer

49 1 Motor Tension Nut

50 1 Front Roller Adj. Bolt

Key

No. Qty. Description

51 3 Adjustment Washer

52 1 Speed Optic Disk

53 1 Optic Sensor Bracket

54 1 Small Star Washer

55 1 Belly Pan Shield

56 1 Front Belly Pan

57 8 Belly Pan Fastener

58 2 Belt Guide

59 1 Right Foot Rail

60 1 Belly Pan

61 2 Ground Screw

62 1 Ground Wire

63 2 Rear Foot

64 1 Right Endcap

65 2 Rear Roller Adj. Bolt

66 1 Latch Warning Decal

67 1 Rear Roller

68 1 Releasable Tie

69 1 Cable Tie Clamp

70 5 8” Cable Tie

71 1 Upright Base

72 2 Handrail Endcap

73 1 Storage Latch

74 2 Latch Spring

75 1 Storage Latch

76 1 Latch Bracket

77 1 PulseBoard/Pulse Wire Harness

78 1 Base Mount (top left)

79 1 Base Mount (bottom left)

80 2 Endcap Plate

81 4 Hand Pulse Sensor

82 1 Sensor Housing

83 1 25” Hand Pulse Wire

84 2 Incline Stop Bracket

85 1 Wire Harness

86 1 Incline Warning Decal

87 1 Console

88 1 Key/Clip

89 2 Battery Cover

90 2 Book Holder

91 1 Console Base

92 1 Warning Decal

93 1 Hood

94 2 Plastic Spacer

95 2 54” Hand Pulse Wire

96 6 Base Pad

97 1 Incline Motor Shield

98 1 Adhesive Clip

99 1 Allen Wrench

100 2 Wheel Bolt

To identify the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.

27

Key

No. Qty. Description

101 2 Wheel

102 1 Incline Motor Plate

103 1 Shock

104 1 Base Mount (top right)

105 1 Base Mount (bottom right)

106 1 Chest Strap

107 1 Sensor Unit

108* 1 Motor/Pulley/Flywheel/Fan

109 1 Motor Pivot Bolt

110 1 Sensor Bracket Nut

111 2 Sensor Screw

112 1 Pulse Sensor

113 2 Upright Base Endcap

114 1 Left Foot Rail

115 1 Left Endcap

Key

No. Qty. Description

116 2 Frame Guide Spacer

117 1 8” Wire Harness

118 1 Choke Bracket

119 1 4” Cable Wire

120 1 4” Ground Wire

121 1 Console Wire Harness

# 1 8” Green Wire

# 1 8” Blue Wire, 2 Female

# 1 4” Black Wire, 2 Female

# 1 14” White Wire, 2 Female

# 1 8” White Wire, Male/Female

# 1 User’s Manual

* Includes all parts shown in the box

# These parts are not illustrated

13

13

11

22

22

11

12

12

922

9

24

24

14

To identify the parts shown on this EXPLODED DRAWING, refer to the PART LIST on

pages 26 and 27 of the user’s manual.

114 16

1

57

57

60

2

57

59

622

57

76

15

22

15

5

8

17

18

19

45

7

1547 48 49

43

109

19 16

25

44

19

21

22

21

20

19

22

22 23

19

51

50

25

26

19

27

3

46

22 40

36

37

38

39

34

35

22

22

33

22

41

22

22

22

4

22

5

32

56

58

61

62

67

42

108*

35

63

64

4

65

51

63

10

51

65 4

4

66

2

3

22

6

7

22

6

7

52 54

29

30

110

31

53

31

30

28

29

10

22

22

55

57

115

92

13

118

80

116

84

117

EXPLODED DRAWING—Model No. 831.297442 R0198A

96

22

96

22

98

15

94

94

4

4

4

93

103

22

68

69

4

91

4

87

113

88

86

90

22

101

100

19

85

78

104

105

79

81

81

81

81

82

82

22

22

22

15

113

61

107

106

71

111

112

99

70

72

72

96

22

96

22

4

73

76

75

74

119

83

83

95

95

77

89

120

22

121

96

22

100

101

19

96

22

102

22

22

97

22

EXPLODED DRAWING—Model No. 831.297442 R0198A

Part No. 143703 H00083AC R0198A Printed in USA © 1998 Sears, Roebuck and Co.

The model number and serial number of your PROFORM®795

treadmill are listed on a decal attached to the frame. See the front

cover of this manual to find the location of the decal.

All replacement parts are available for immediate purchase or

special order when you visit your nearest SEARS Service Center.

To request service or to order parts by telephone, call the toll-free

numbers listed at the left.

When requesting help or service, or ordering parts, please be pre-

pared to provide the following information:

• The NAME OF THE PRODUCT (PROFORM®795 treadmill)

• The MODEL NUMBER OF THE PRODUCT (831.297442)

• The KEY NUMBER AND DESCRIPTION OF THE PART (see the

PART LIST on pages 26 and 27 and the EXPLODED DRAWING

attached in the center of this manual)

Model No. 831.297442

QUESTIONS?

If you find that:

• you need help assembling or

operating the PROFORM®795

treadmill

• a part is missing

• or you need to schedule repair

service

call our toll-free HELPLINE

1-800-736-6879

Monday–Saturday, 7 am–7 pm

Central Time (excluding holidays)

REPLACEMENT

PARTS

If parts become worn and need

to be replaced, call the following

toll-free number

1-800-FON-PART

(1-800-366-7278)

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United

States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.

This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental pur-

poses.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
