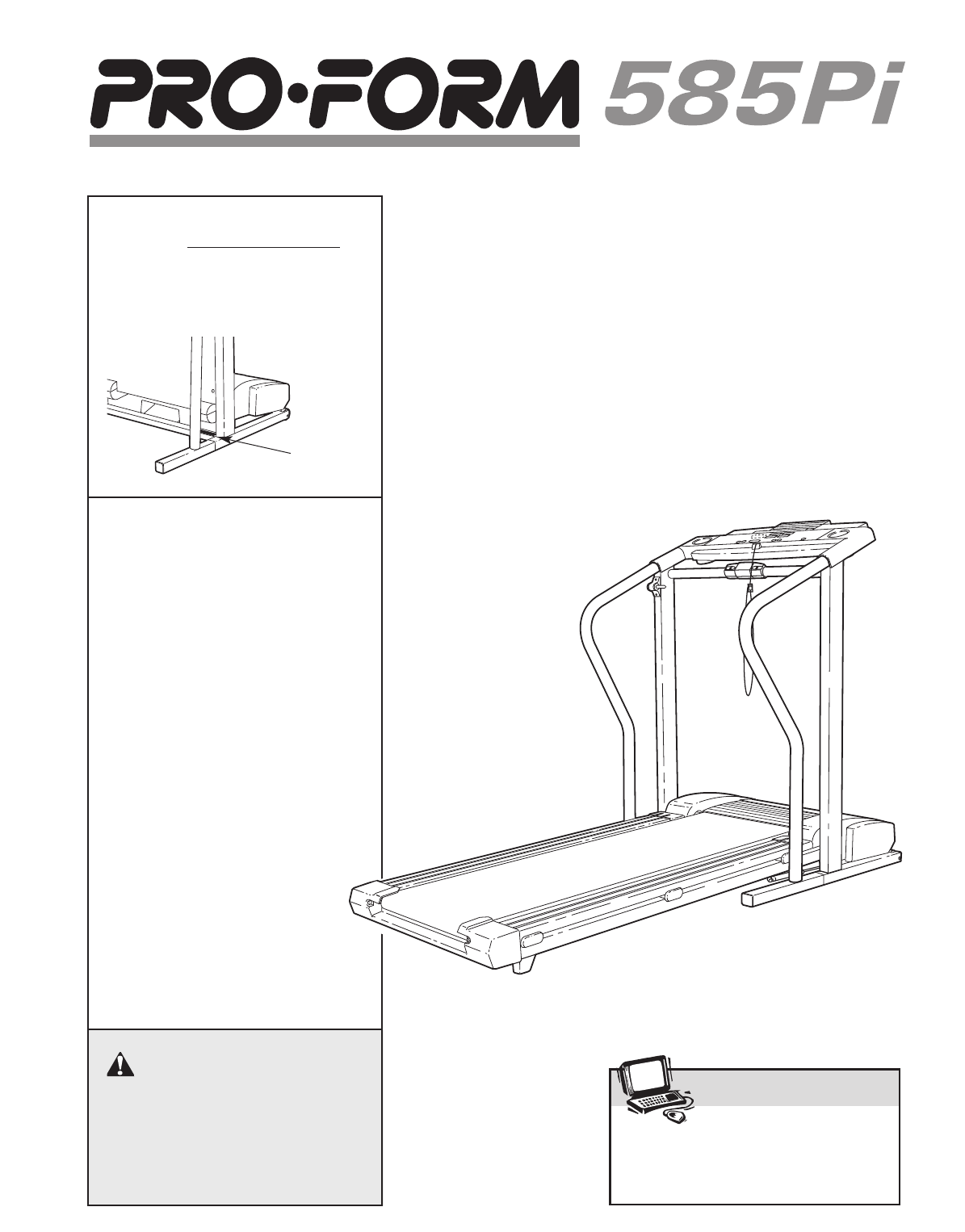

USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial

Number

Decal

Model No. PFTL59190

Serial No.

Find the serial number in the location

shown below. Write the serial number

in the space above for reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through di-

rect assistance from our factory.

TO AVOID UNNECESSARY DE-

LAYS, PLEASE CALL DIRECT TO

OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our Customer Hot Line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST Patent Pending

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

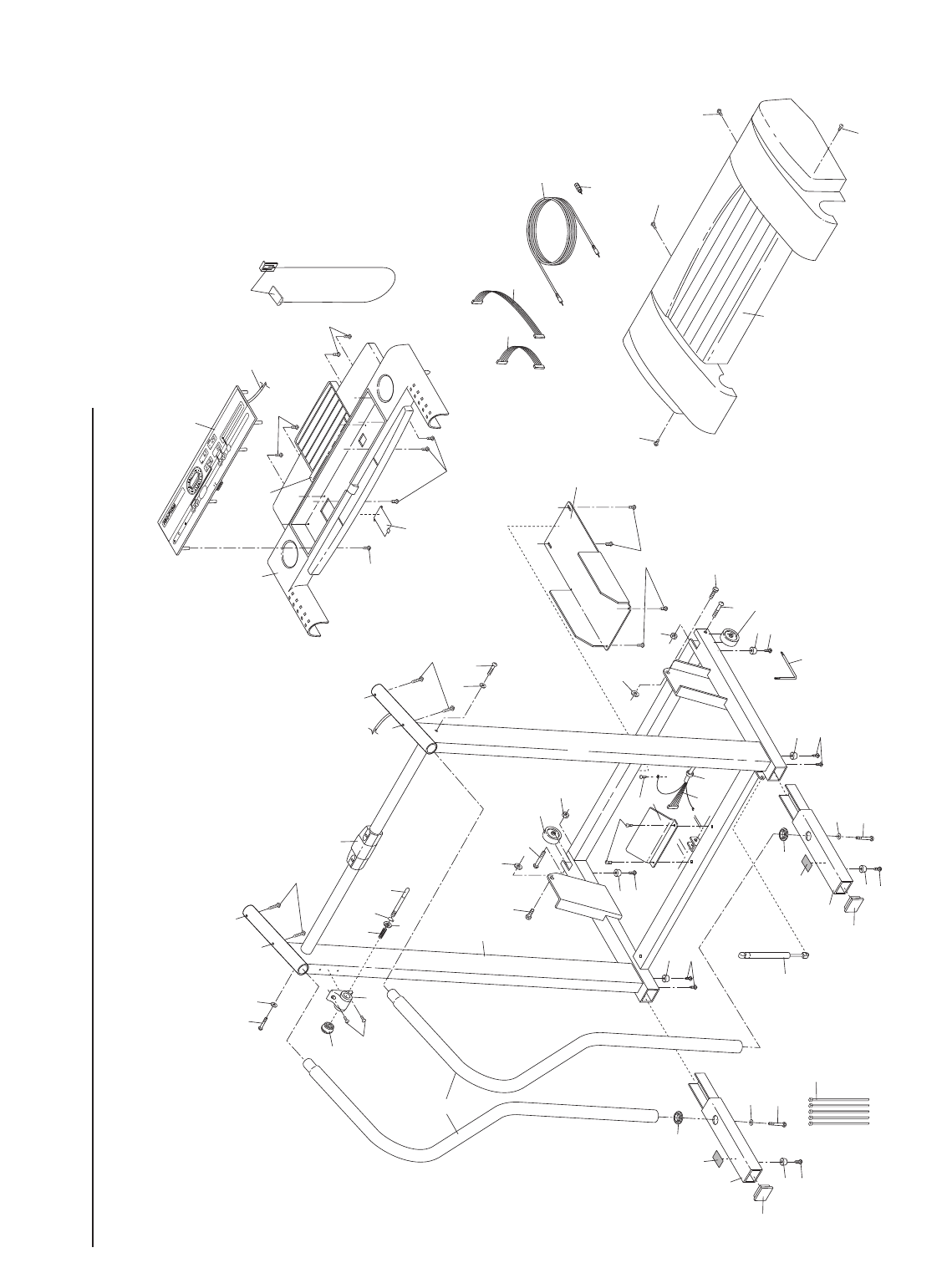

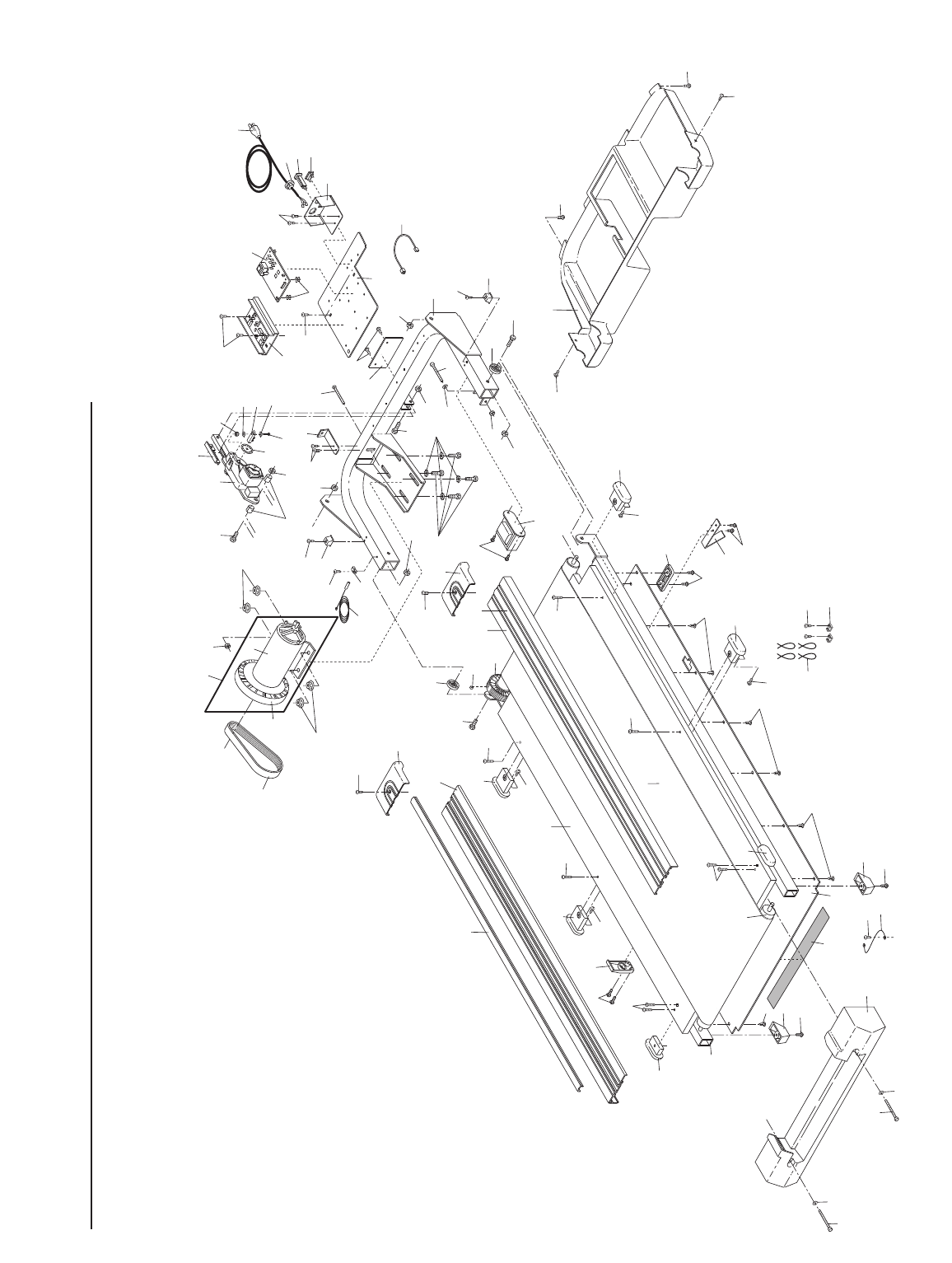

Note: An EXPLODED DRAWING is attached in the center of this manual.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described in this

manual.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it. Do not

place the treadmill on any surface that blocks

air openings. To protect the floor or carpet

from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should not be used by persons

weighing more than 250 pounds.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothing when

using the treadmill. Do not wear loose cloth-

ing that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women.

Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

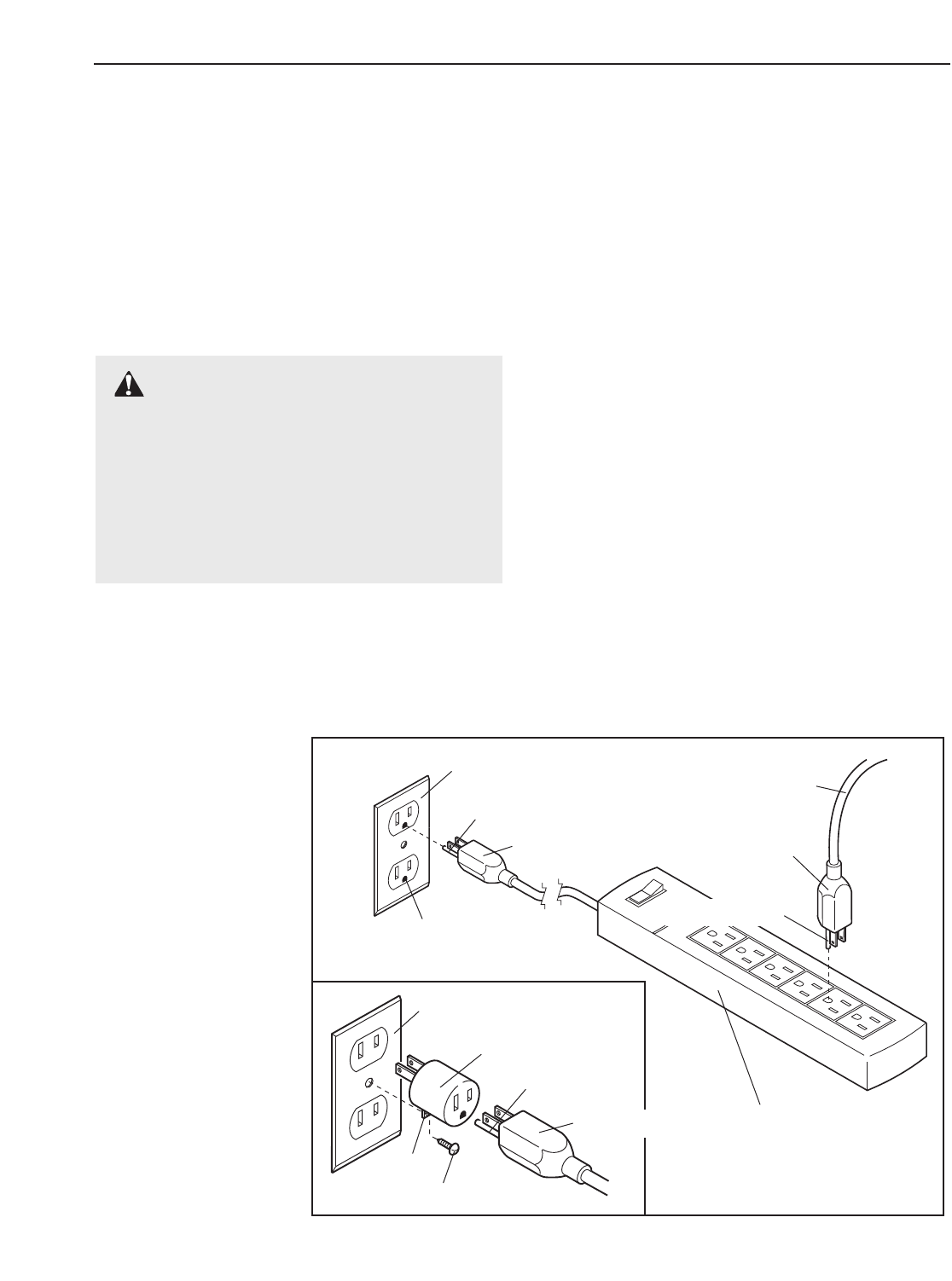

10. When connecting the power cord (see page 7),

plug the power cord into a surge protector (not

included) and plug the surge protector into a

grounded circuit capable of carrying 15 or

more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a UL-listed surge protector, rated at

15 amps, with a 14-gauge cord of five feet or

less in length. Do not use an extension cord.

12. Keep the power cord and the surge protector

away from heated surfaces.

13. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

BEFORE YOU BEGIN on page 5 if the tread-

mill is not working properly.)

14. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

15. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

16. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

17. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord and move the on/off switch to

the off position when the treadmill is not in

use. (See the drawing on page 5 for the loca-

tion of the on/off switch.)

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 18.) You

must be able to safely lift 45 pounds (20 kg) in

order to raise, lower, or move the treadmill.

19. Do not change the incline of the treadmill by

placing objects under the treadmill.

20. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

21. When using iFit.com CD’s and videos, an

electronic “chirping” sound will alert you

when the speed and/or incline of the treadmill

is about to change. Always listen for the

“chirp” and be prepared for speed and/or in-

cline changes. In some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

22. When using iFit.com CD’s and videos, you

can manually override the speed and incline

settings at any time by pressing the speed

and incline buttons. However, when the next

“chirp” is heard, the speed and/or incline will

change to the next settings of the CD or video

program.

23. Always remove iFit.com CD’s and videos from

your CD player or VCR when you are not

using them.

24. Inspect and tighten all parts of the treadmill

regularly.

25. Never insert or drop any object into any

opening.

26. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

27. This treadmill is intended for in-home use

only. Do not use this treadmill in any commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

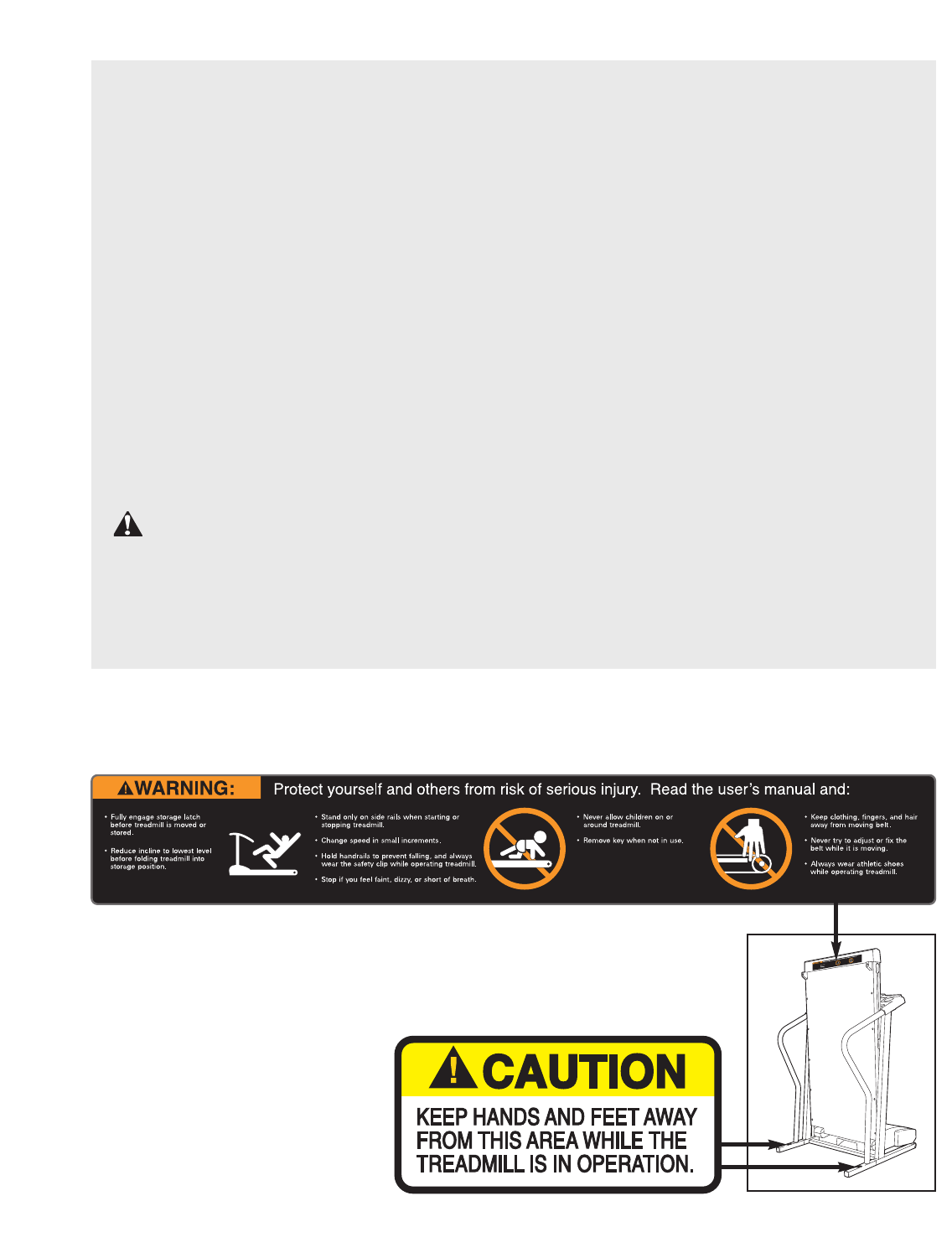

The decals shown below have been placed on your treadmill. If the decal is missing, or if it is not legible,

please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING

REPLACEMENT PARTS on the back cover of this manual). Apply the decal in the location shown.

Note: This decal is shown at 38% of actual size.

Thank you for selecting the revolutionary PROFORM®

585Pi treadmill. The 585Pi treadmill combines ad-

vanced technology with innovative design to help you

get the most from your exercise program in the conve-

nience and privacy of your home. And when you’re not

exercising, the unique 585Pi can be folded up, requir-

ing less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill.If you have additional questions,

please call our Customer Service Department toll-free

at 1-800-999-3756, Monday through Friday, 6 a.m.

until 6 p.m. Mountain Time (excluding holidays). To

help us assist you, please note the product model

number and serial number before calling. The model

number of the treadmill is PFTL59190. The serial num-

ber can be found on a decal attached to the treadmill

(see the front cover of this manual for the location).

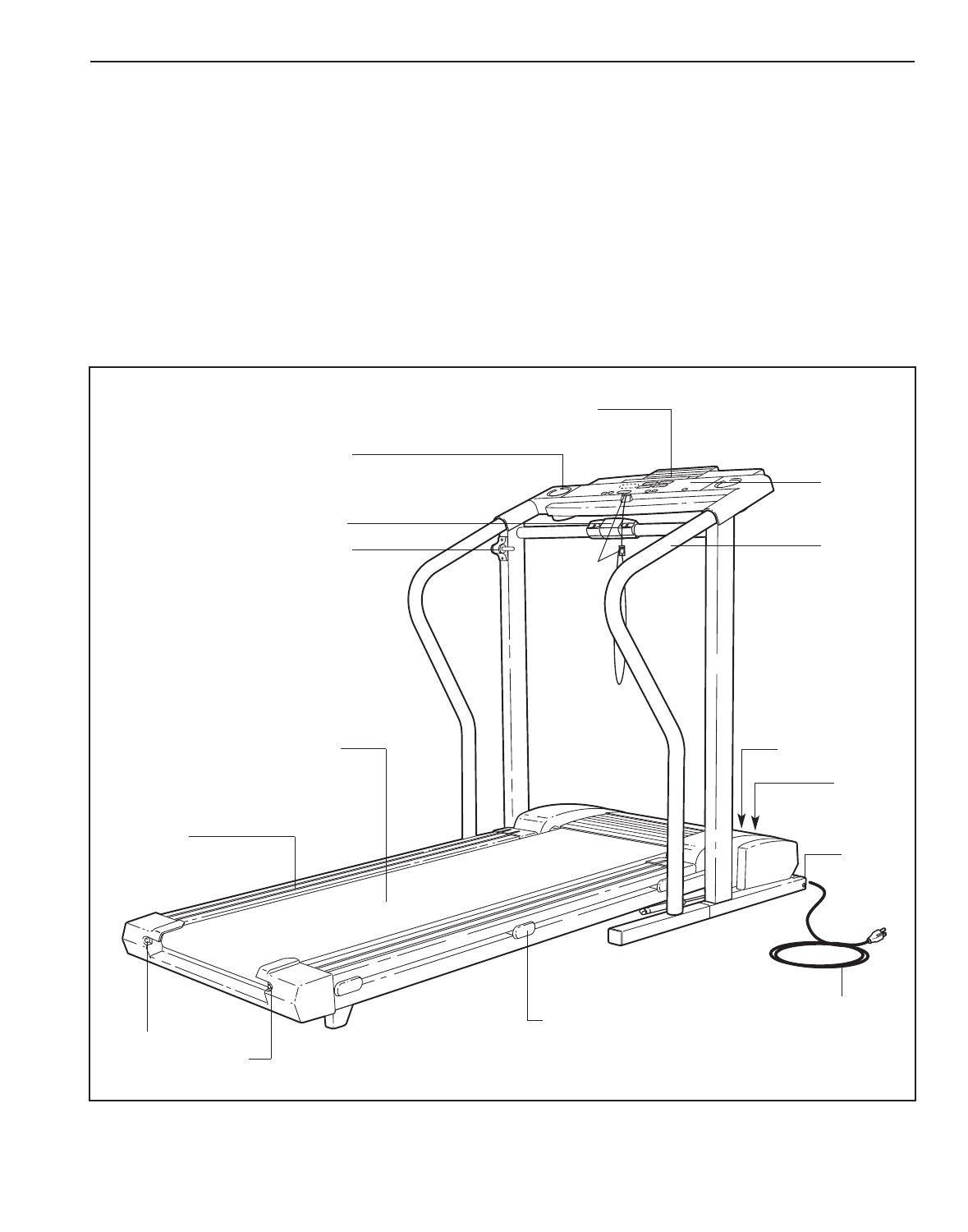

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Console

Storage Latch

Pulse Sensor

Book Holder

Key/Clip

Circuit

Breaker

On/Off Switch

Walking Belt

Cushioned Walking Platform

Front

Wheel

Foot Rail

Power Cord

Rear Roller

Adjustment Bolts

Water Bottle

Holder (Bottle

not included)

RIGHT SIDE

LEFT SIDE

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench

and your own phillips screwdriver .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal

condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off

the lubricant with a soft cloth and a mild, non-abrasive cleaner.

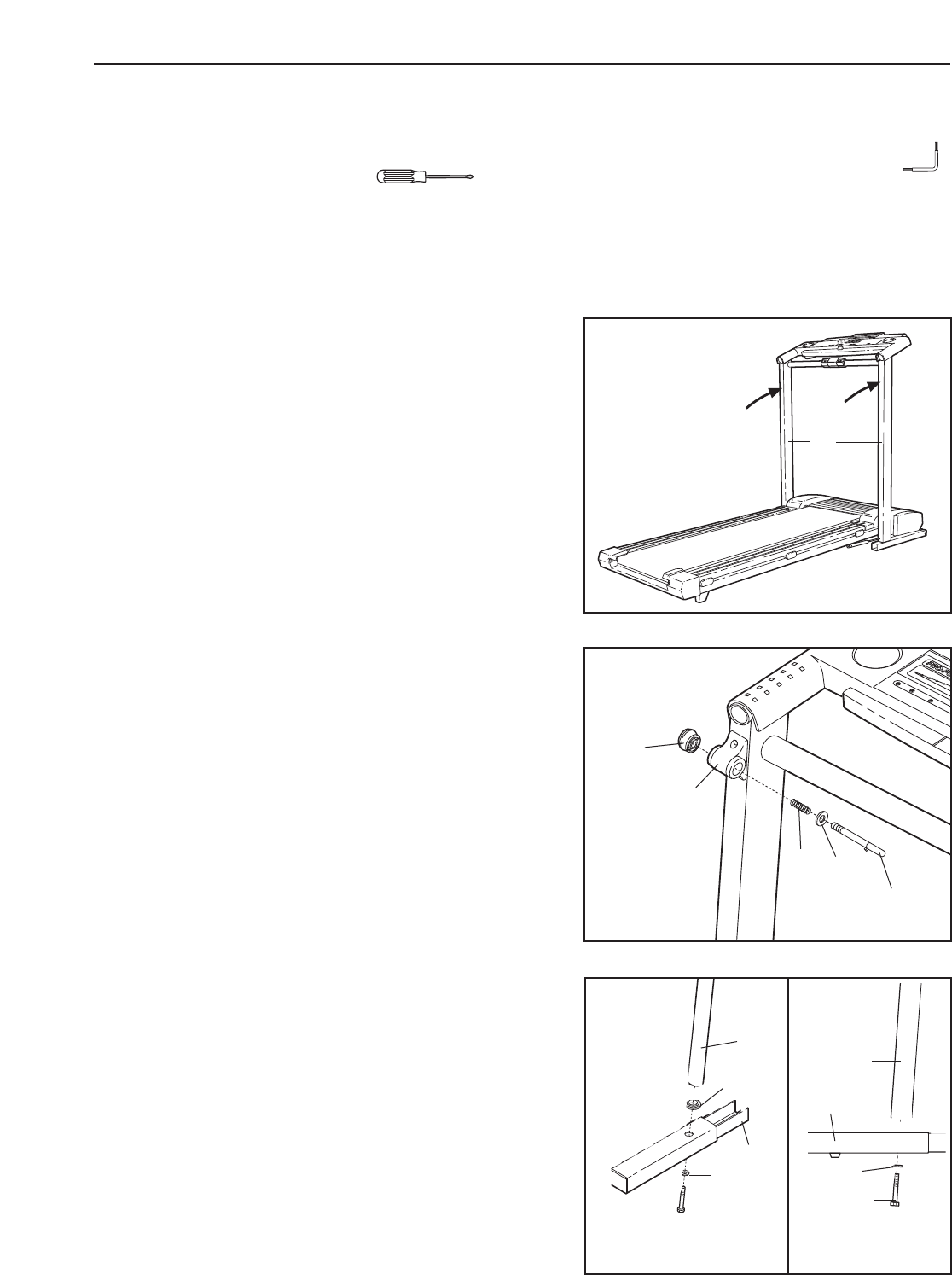

1. With the help of a second person, carefully raise the

Uprights (82) until the treadmill is in the position shown.

2. With the help of a second person, carefully lower the

treadmill frame to the floor.

Remove the Lock Knob (110) from the Lock Pin (114).

Make sure that the Lock Pin Collar (112) and the Spring

(111) are on the Lock Pin as shown. Insert the Lock Pin

into the Latch Bracket (77).

Tighten the Lock Knob (110) onto the Lock Pin (114).

112

111

114

110

3. Refer to drawing 3a. Press a Handrail Insert (102) into

the lower end of a Handrail (85). Hold an Extension Leg

(103) against the lower end of the Handrail. Insert a

Handrail Bolt (78) with a Handrail Washer (36) into the

Extension Leg and thread the Handrail Bolt three or

four turns into the Handrail. Notice the angle of the

Handrail and insert the Handrail Bolt and Washer at the

same angle (see drawing 3b).

Attach a Handrail Insert (102) and an Extension Leg

(103) to the other Handrail (85) in the same way.

103

102

103

6. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a

secure place. The allen wrench is used to adjust the walking belt (see page 20). To protect the floor or carpet

from damage, place a mat under the treadmill.

101

103

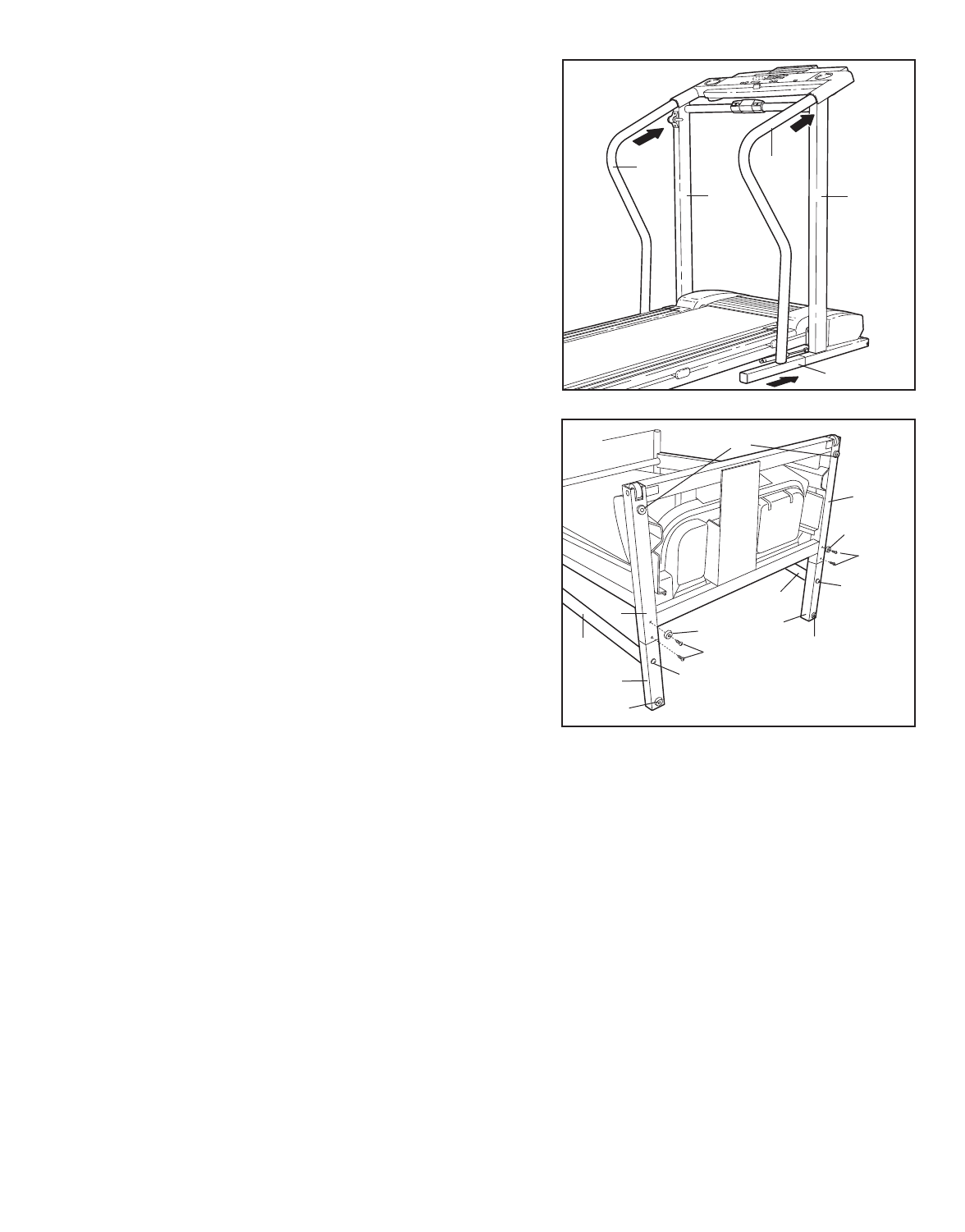

4. Slide the upper end of a Handrail (85) and then the

Extension Leg (103) into the right Upright (82) as shown.

(Note: It may be helpful to tip the Uprights [82] forward as

you insert the Extension Leg. If necessary, tap the

Extension Leg with a rubber mallet to fully insert it.)

Slide the other Handrail (85) into the left Upright (82) as

described above. 82

85 85

103

116

5. With the help of a second person, carefully tip the Uprights

(82) down as shown. Make sure that the Extension

Legs (103) and Handrails (85) remain in the Uprights.

Next, attach each Extension Leg (103) with two Screws

(101) and a Base Pad (116) as shown in drawing 5.

Make sure that the Extension Legs are fully inserted into

the Uprights (82) and push down on the Uprights as you

tighten the Screws. Tighten the Handrail Bolts (78).

Note: One replacement Base Pad (116) and Spacer (not

shown) are included. If a Base Pad becomes worn and

needs to be replaced, use the replacement Base Pad. If

aThick Base Pad (97) needs to be replaced, use the re-

placement Base Pad with the Spacer.

With the help of a second person, carefully tip the

Uprights (82) back to the upright position.

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM,ahigh-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. They will deteriorate the walking belt and

cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can re-

sult from weather conditions or from other appliances

being turned on or off.

To decrease the pos-

sibility of your tread-

mill being damaged,

always use a surge

protector (not in-

cluded) with your

treadmill.

Surge protectors are

sold at most hardware

stores and department

stores. Use only a UL-

listed surge protector,

rated at 15 amps, with a

14-gauge cord of five

feet or less in length.

This product must be

grounded. If it should

malfunction or break

down, grounding pro-

vides a path of least re-

sistance for electric cur-

rent to reduce the risk

of electric shock. This product is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord into a surge

protector, and plug the surge protector into an ap-

propriate outlet that is properly installed and

grounded in accordance with all local codes and

ordinances. Important: The treadmill is not com-

patible with GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge protector to a 2-pole recep-

tacle as shown in drawing 2 if a properly grounded out-

let is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet in-

stalled by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Treadmill Power Cord

Grounding Plug

Grounding Pin

Surge Protector

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

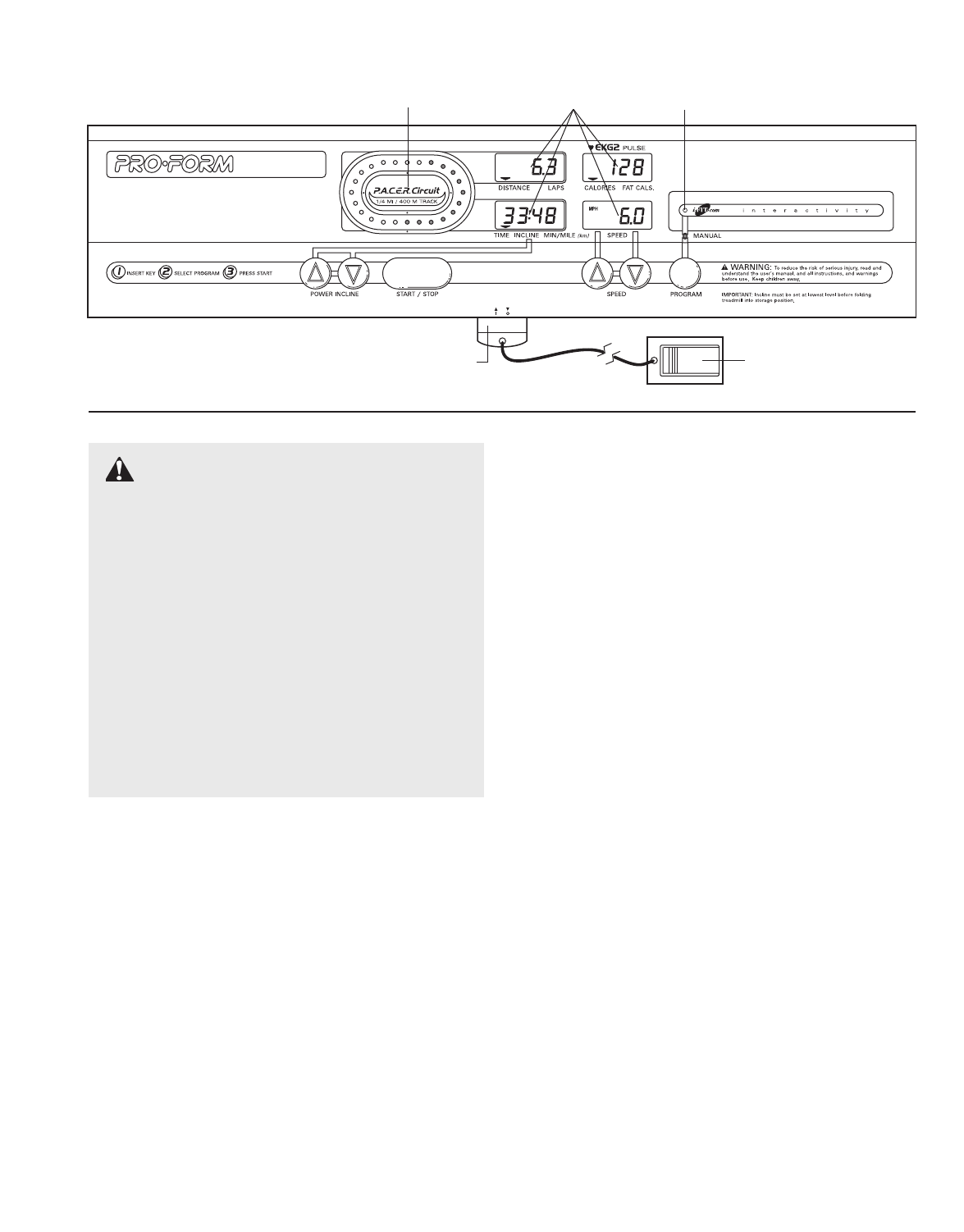

CONSOLE DIAGRAM

Clip

Key

Displays Manual/iFit.com Indicators

LED Track

Note: If there is a thin sheet of clear plastic

on the face of the console, remove it.

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features to help you get the most from your exercise.

When the console is in the manual mode, the speed

and incline of the treadmill can be controlled with a

touch of a button. As you exercise, the LED track and

the four displays will provide continuous exercise feed-

back. You can even measure your heart rate using the

built-in pulse sensor.

The console also features advanced iFit.com interac-

tive technology. IFit.com technology is like having a

personal trainer right in your home. Using the included

audio cable, you can connect the treadmill to your

home stereo, portable stereo, or computer and play

special iFit.com CD programs (CD’s are not included).

IFit.com CD programs automatically control the speed

and incline of the treadmill as a personal trainer guides

you through every step of your workout. High-energy

music provides added motivation. Each CD features

two different programs designed by certified personal

trainers.

In addition, you can connect the treadmill to your VCR

and TV and play iFit.com video programs (videocas-

settes are not included). Video programs offer the

same benefits as iFit.com CD programs, but add the

excitement of working out with a class and an instruc-

tor—the hottest new trend at health clubs.

With the treadmill connected to your computer, you

can also go to our new internet site at www.iFit.com

and access even more programs. Choose from a se-

lection of basic programs that interactively control the

speed and incline of your treadmill to help you achieve

your personal exercise goals. Or, use iFit.com audio

and video programs directly from our internet site. Visit

www.iFit.com for complete details.

By adding an optional upgrade module to the treadmill,

you can use virtually endless features from our internet

site. See www.iFit.com to learn about other iFit.com

features.

To purchase iFit.com CD’s, iFit.com videocassettes, or

an optional upgrade module, call toll-free 1-800-735-

0768.

To use the manual mode of the console, follow the

steps beginning on page 10. To use iFit.com CD or

video programs,refer to page 14. To use iFit.com

programs directly from our internet site,see page 16.

CAUTION: Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turn-

ing on the power.

• Always wear the clip (see the drawing

above) while operating the treadmill.

• Adjust the speed in small increments in

order to avoid sudden jumps in speed.

•To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids

on the console and place only a sealed water

bottle in the water bottle holder.

STEP-BY-STEP CONSOLE OPERATION

Before operating the con-

sole, make sure that the

on/off switch near the

power cord is in the on

position. Next, make sure

that the key is removed

from the console and the power cord is properly

plugged in (see HOW TO PLUG IN THE POWER

CORD on page 8).

When you are ready to begin exercising, step onto the

foot rails of the treadmill. Find the clip attached to the

key (see the drawing on page 9), and slide the clip

onto the waistband of your clothing.

To use the manual mode, follow the steps below

and on page 11. To use iFit.com CD’s or videocas-

settes (not included), refer to pages 12 and 13. To

use other iFit.com technology, see page 13.

Note: The console can display speed and distance in

either miles or kilometers (see SPEED DISPLAY on

page 11). For simplicity, all instructions in this manual

refer to miles.

HOW TO USE THE MANUAL MODE

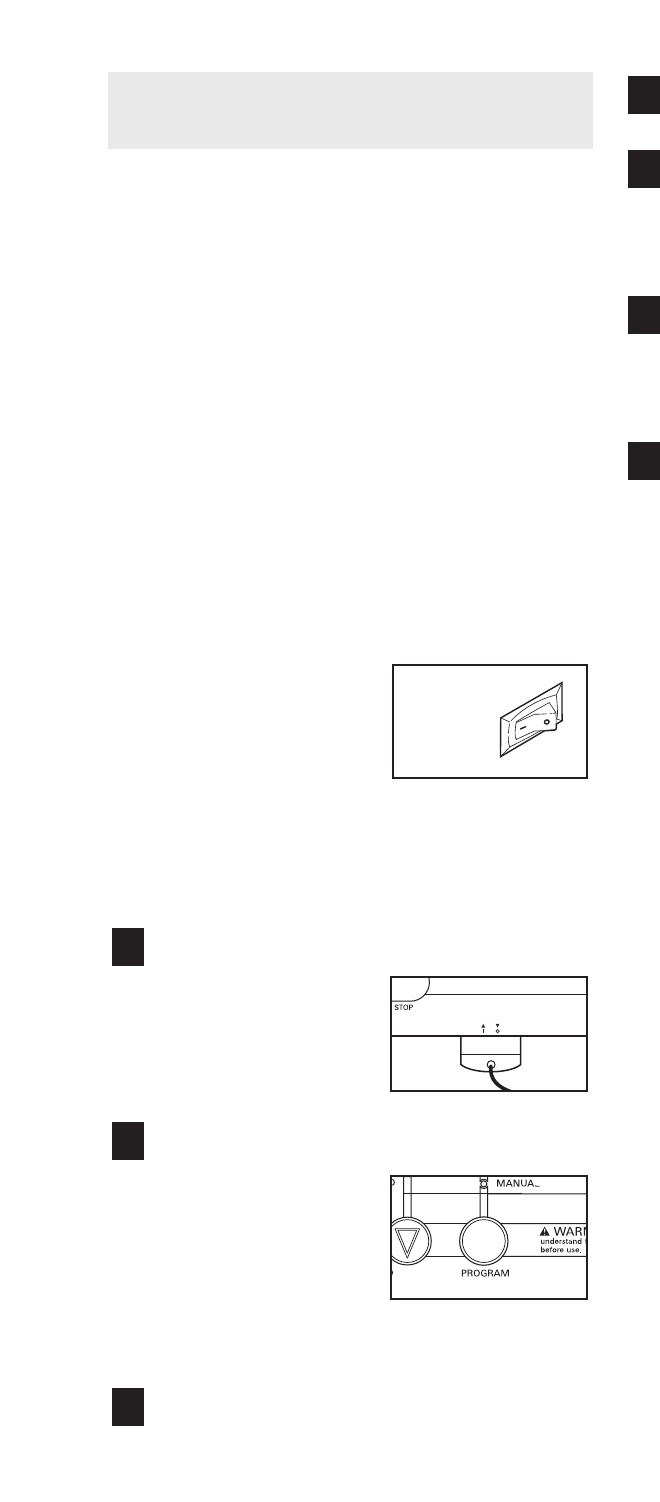

Insert the key fully into the console.

When the key is

inserted, the four dis-

plays and various indica-

tors on the console will

light.

Select the manual mode.

When the key is in-

serted, the manual

mode will automatically

be selected. If the

iFit.com indicator is lit,

press the PROGRAM

button to select the

manual mode.

Press the START/STOP button or the SPEED

button to start the walking belt.

A moment after the but-

ton is pressed, the walk-

ing belt will begin to

move at 1 mph. Hold the

handrails and carefully

begin walking. As you exercise, change the speed

of the walking belt as desired by pressing the

SPEED buttons.

To stop the walking belt, press the START/STOP

button. The TIME/INCLINE/MIN-MILE display will

begin to flash. To restart the walking belt, press the

START/ STOP button or the SPEED

button.

Change the incline of the treadmill as desired.

To change the incline of

the treadmill, press the

INCLINE buttons. Each

time a button is pressed,

the incline will change

by 0.5%. The buttons

can be held down to

change the incline rapidly. After the INCLINE but-

tons are pressed, it will take a moment for the

treadmill to reach the selected incline setting.

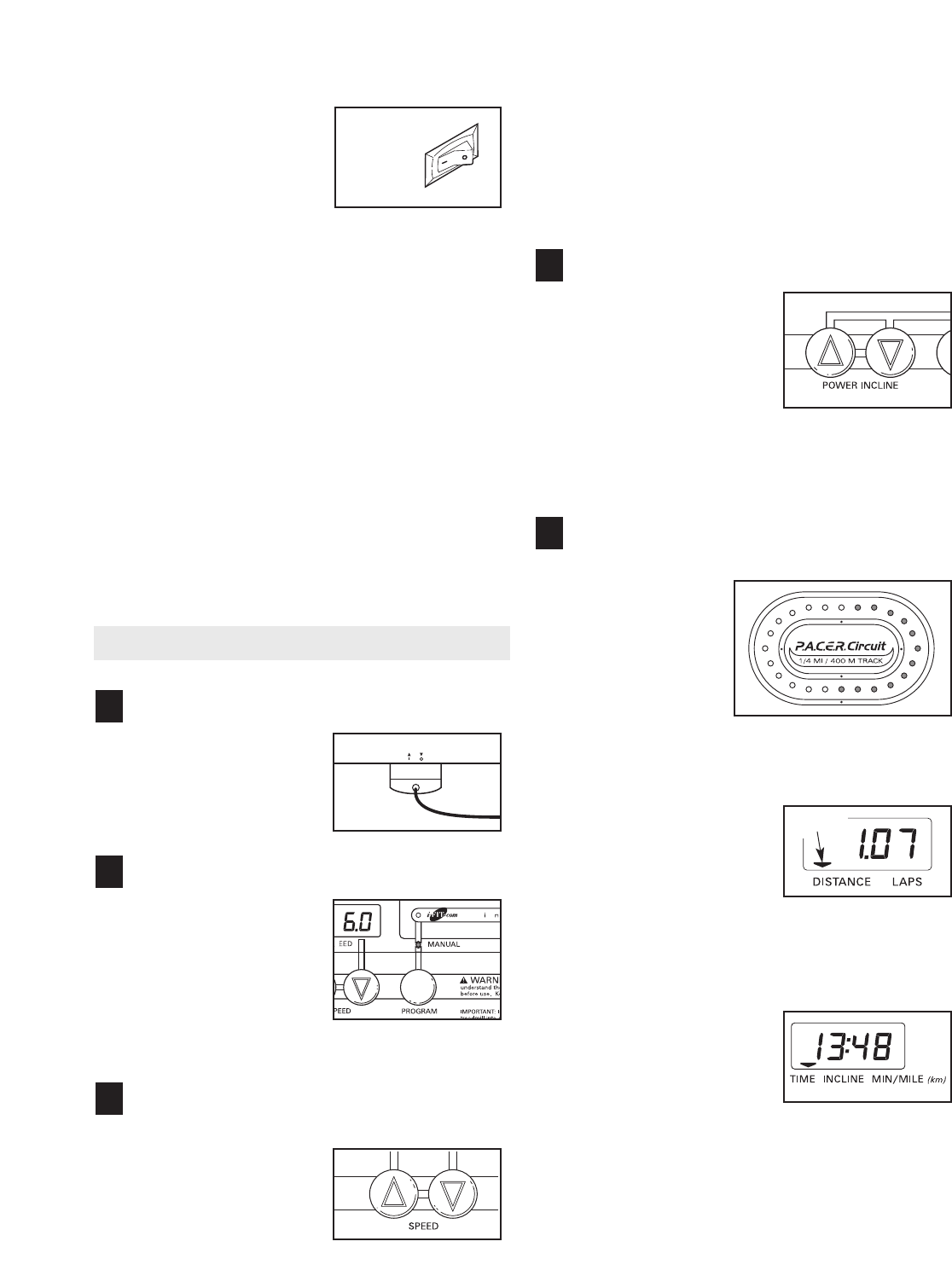

Follow your progress with the LED track and

the four displays.

The LED Track—

The LED track repre-

sents a distance of

1/4 mile. As you ex-

ercise, the indicators

around the track will

light one at a time

until you have com-

pleted 1/4 mile. A new lap will then begin.

DISTANCE/LAPS dis-

play—This display shows

the distance that you

have walked or run and

the number of laps you

have completed (one lap

equals 1/4 mile). The dis-

play will alternate

between one number and the other every seven

seconds, as shown by the arrows in the display.

TIME/INCLINE/MIN-MILE

display—This display

shows the elapsed time and

your current pace (pace is

measured in

minutes per

mile

). Your pace will be

shown for three seconds each time the speed is

adjusted. When the INCLINE buttons are pressed,

this display shows the current incline setting for

several seconds.

Arrow

Position

CALS./FAT CALS./

PULSE display—This

display shows the ap-

proximate numbers of

calories

and

fat calories

you have burned (see

FAT BURNING on page 21). Every seven sec-

onds, the display will change from one number to

the other, as shown by the arrows in the display.

This display will also show your heart rate when

the pulse sensor is used (see step 6 on this

page).

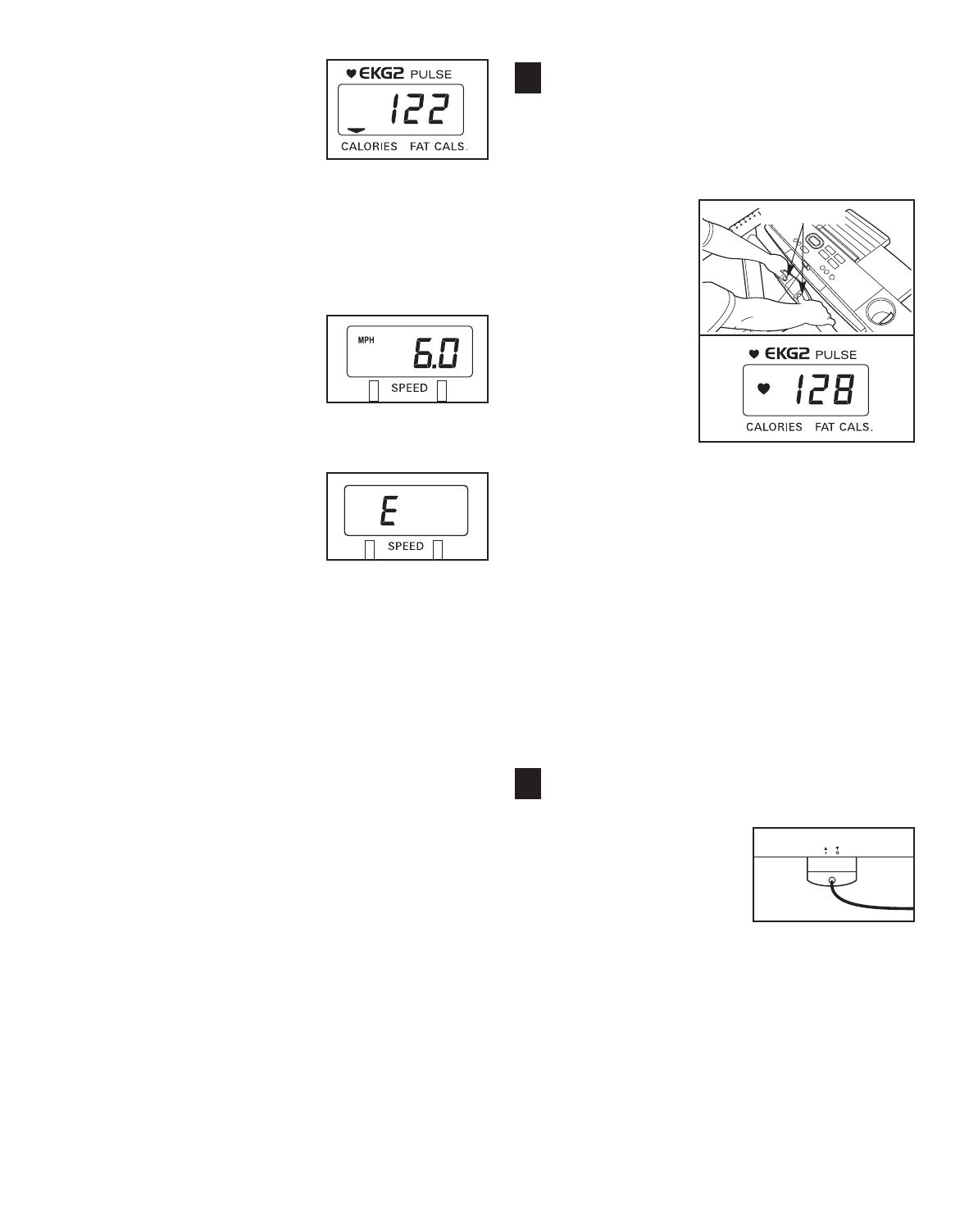

SPEED display—This

display shows the speed

of the walking belt, in

miles per hour or kilome-

ters per hour. The letters

“MPH” or “KPH” will show

which unit of measurement is selected.

To change the unit of

measurement, hold down

the START/STOP button

while inserting the key

into the console. An “E,”

for english miles, or an

“M,” for metric kilometers, will appear in the

SPEED display. Press the SPEED

button to

change the unit of measurement. When the de-

sired unit of measurement is selected, remove and

then reinsert the key.

Measure your pulse, if desired.

Note: When using the pulse sensor, make sure

that your hands are clean. The pulse sensor

should also be kept clean with a damp cloth and

mild detergent.

To measure your

pulse, stand on

the foot rails and

place both

thumbs on the

pulse sensors as

shown. Do not

press too hard,

or the circula-

tion in your

thumbs will be

restricted and

your pulse will

not be detected.

Next, wait until the heart-shaped indicator in the

CALS/FAT CALS/PULSE display flashes steadily.

After a few seconds, three dashes will appear in

the display and your pulse will be shown. Hold

your thumbs on the sensor for another 15 seconds

for the most accurate reading.

If the displayed pulse appears to be too high or too

low, or if your pulse is not displayed, lift your

thumbs off the sensors and allow the display to

reset. Then, place your thumbs on the sensors as

described above. Try the pulse sensor several

times until you become familiar with it. Remember

to stand still while measuring your pulse.

When you are finished exercising, remove the

key.

Step onto the foot rails,

press the START/STOP

button, and remove the

key from the console.

Keep the key in a secure

place. Note: If the dis-

plays and various indicators on the console re-

main lit after the key is removed, the console is

in the “demo” mode. Refer to page 17 and turn

off the demo mode.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position.

Sensors

HOW TO CONNECT THE TREADMILL TO YOUR

CD PLAYER, VCR, OR COMPUTER

To use iFit.com CD’s, the treadmill must be con-

nected to your portable CD player, portable stereo,

home stereo, or computer with CD player. See pages

12 and 13 for connecting instructions. To use iFit.com

videocassettes, the treadmill must be connected to

your VCR. See page 14 for connecting instructions. To

use iFit.com programs directly from our internet

site, the treadmill must be connected to your home

computer. See page 13 for connecting instructions.

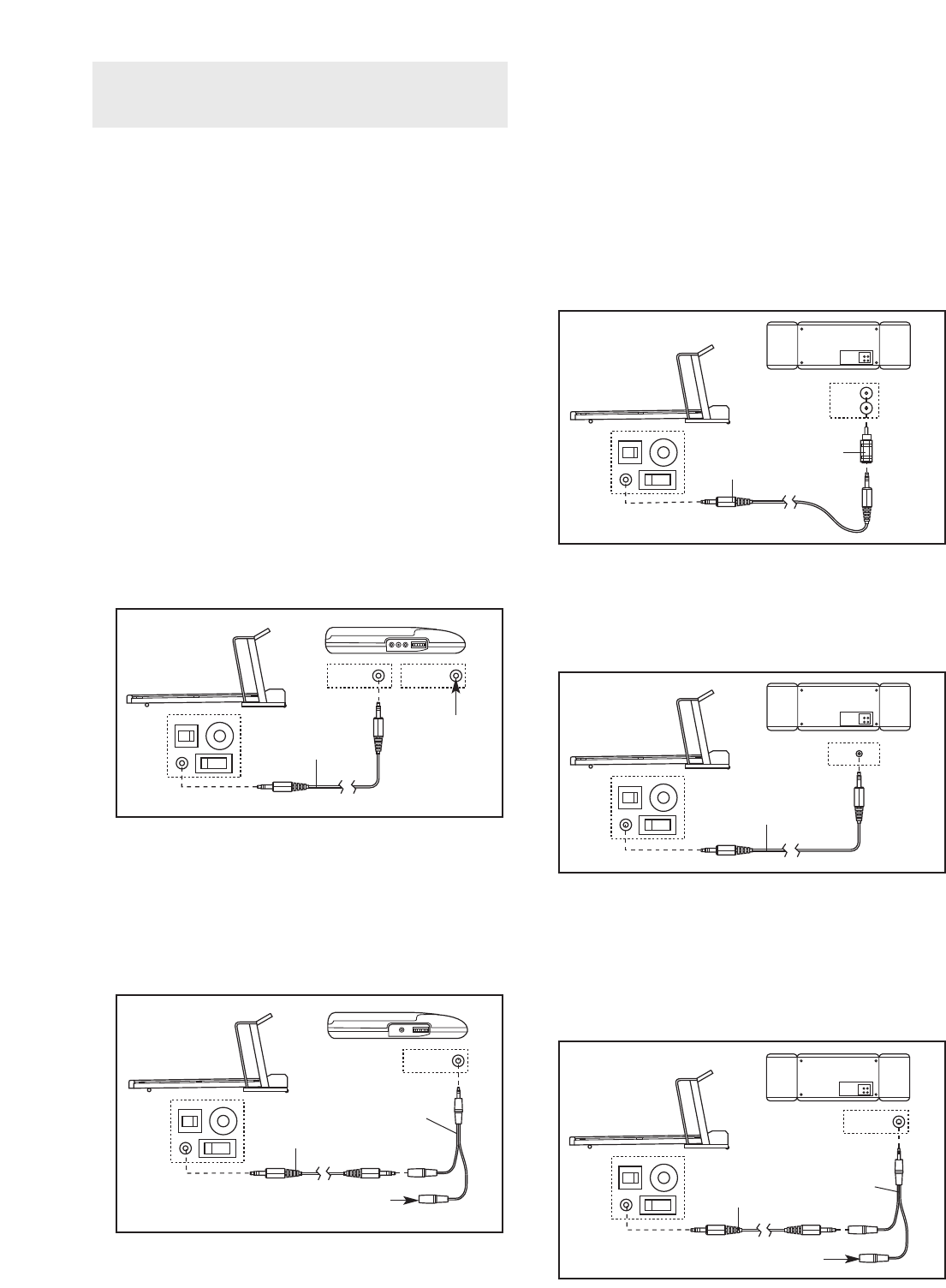

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your CD player. Plug your headphones into the

PHONES jack.

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your CD player. Plug your

headphones into the other side of the Y-adapter.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter. Plug

the adapter into an AUDIO OUT jack on your stereo.

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your stereo.

C. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your stereo. Plug your

headphones into the other side of the Y-adapter.

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Head-

phones

PHONES

LINE OUT

AUDIO OUT

RIGHT

LEFT

Audio

Cable

Adapter

PHONES

LINE OUT

AUDIO OUT

RIGHT

LEFT

Audio

Cable

PHONES

LINE OUT

AUDIO OUT

RIGHT

LEFT

Audio

Cable

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

3.5mm

Y-adapter

Headphones

3.5mm

Y-adapter

Headphones

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the LINE OUT jack on your

stereo.

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA adapter (available at

electronics stores). Next, remove the wire that is

currently plugged into the LINE OUT jack on your

stereo and plug the wire into the unused side of the

RCA adapter. Plug the RCA adapter into the LINE

OUT jack on your stereo.

HOW TO CONNECT YOUR COMPUTER

Note: If your computer has a 3.5mm LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your computer.

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your computer. Plug your

headphones or speakers into the other side of the

Y-adapter.

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

Audio

Cable

Adapter

PHONES

LINE OUT

Audio

Cable

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

Audio

Cable

RCA

Adapter

Wire removed from

LINE OUT jack

Adapter

PHONES

LINE OUT

Audio

Cable

3.5mm

Y-adapter

Headphones/Speakers

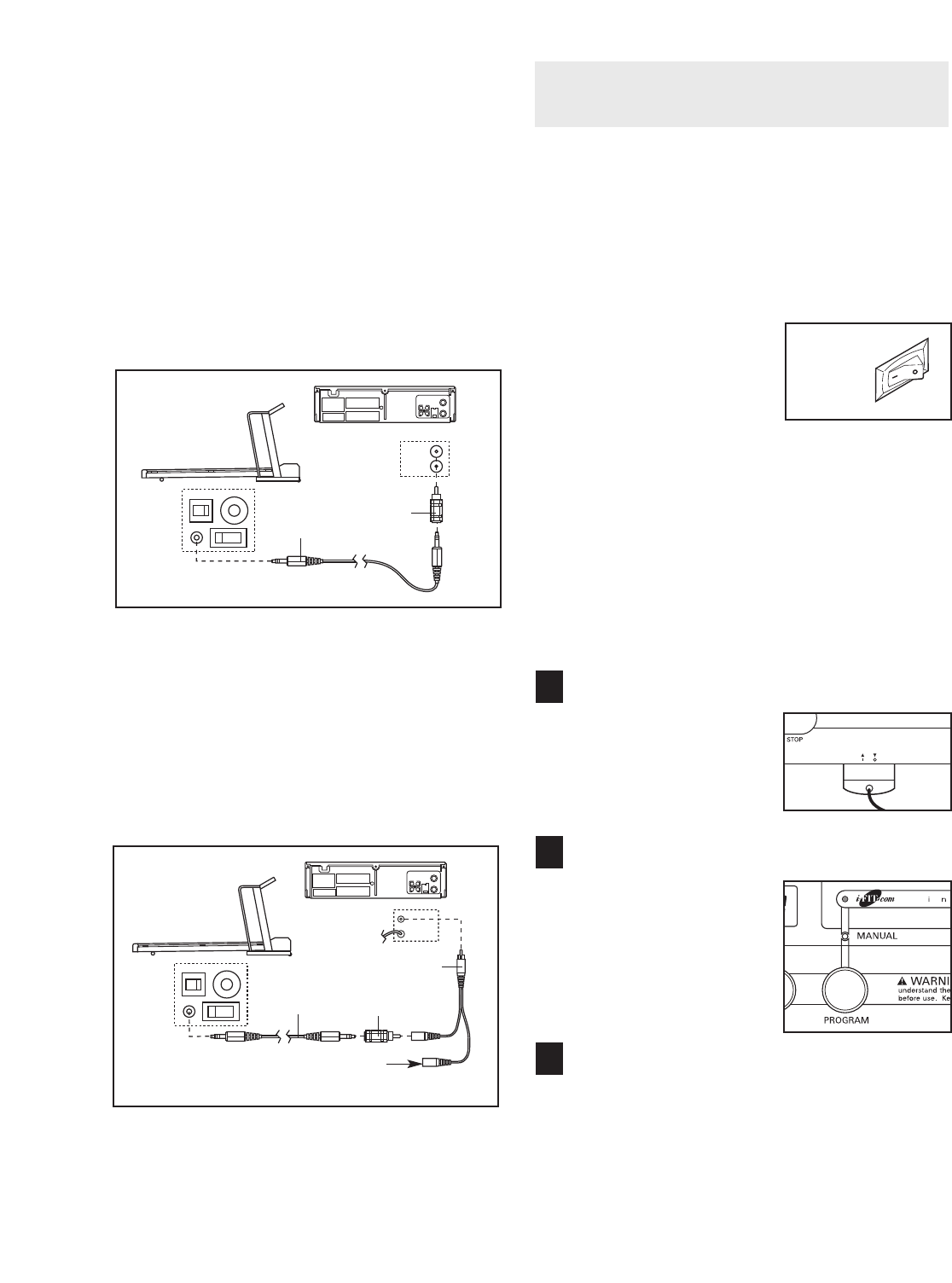

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 13.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the AUDIO OUT jack on your

VCR.

B.Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA adapter (available at

electronics stores). Next, remove the wire that is

currently plugged into the AUDIO OUT jack on your

VCR and plug the wire into the unused side of the

RCA adapter. Plug the RCA adapter into the AUDIO

OUT jack on your VCR.

HOW TO USE IFIT.COM CD AND VIDEO

PROGRAMS

To use iFit.com CD’s or videocassettes, the treadmill

must be connected to your portable CD player, portable

stereo, home stereo, computer with CD player, or

VCR. See HOW TO CONNECT THE COMPUTER TO

YOUR CD PLAYER, VCR, OR COMPUTER on page

12. Note: To purchase iFit.com CD’s or iFit.com

videocassettes, call toll-free 1-800-735-0768.

Make sure that the on/off

switch near the power cord

is in the on position. In

addition, make sure that the

power cord is properly

plugged in (see HOW TO

PLUG IN THE POWER CORD on page 8).

When you are ready to begin exercising, step onto the

foot rails of the treadmill. Find the clip attached to the

key (see the drawing on page 9), and slide the clip

onto the waistband of your clothing. Follow the steps

below to use an iFit.com CD or video. Note: The in-

structions included in the CD case describe how to

use the CD with a variety of PROFORM treadmills.

Some instructions may not apply to this treadmill.

Insert the key fully into the console.

When the key is

inserted, the four displays

and various indicators

on the console will light.

Press the PROGRAM button.

When the key is inserted,

the manual mode will

automatically be selected.

To use an iFit.com CD or

video program, press the

PROGRAM button. The

iFit.com indicator will light.

Insert the iFit.com CD or videocassette.

If you are using an iFit.com CD, insert the CD into

your CD player. If you are using an iFit.com video-

cassette, insert the videocassette into your VCR.

VIDEO AUDIO

ANT. IN

RF OUT

OUT

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

OUT

AUDIO OUT

RIGHT

LEFT

Audio

Cable

Adapter

VIDEO AUDIO

ANT. IN

RF OUT

OUT

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

OUT

AUDIO OUT

RIGHT

LEFT

Audio

Cable Adapter

Wire removed from

AUDIO OUT jack

RCA Adapter

Position

Press the PLAY button on your CD player or

VCR.

A moment after the button is pressed, your per-

sonal trainer will begin guiding you through your

workout. Simply follow your personal trainer’s

instructions.

During the CD or video program, an electronic

“chirping” sound will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be

prepared for speed and/or incline changes. In

some instances, the speed and/or incline may

change before the personal trainer describes

the change.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the SPEED or INCLINE buttons

on the console. However, when the next “chirp”

is heard, the speed and/or incline will change

to the next settings of the CD or video program.

To stop the program at any time, press the

START/STOP button on the console. The

TIME/MIN-MILE display will begin to flash. To

restart the program, press the START/STOP but-

ton again. After a moment, the walking belt will

begin to move at 1 mph. When the next “chirp”

is heard, the speed and incline will change to

the next settings of the CD or video program.

The program can also be stopped by pressing the

STOP button on your CD player or VCR.

When the CD or video program is completed, the

walking belt will stop and the TIME/MIN-MILE dis-

play will begin to flash. Note: To use another CD

or video program, press the START/STOP button

or remove the key and go to step 1 on page 12.

Note: If the speed or incline of the treadmill

does not change when a “chirp” is heard:

• make sure that the iFit.com indicator is lit and

that the TIME/INCLINE/MIN-MILE display

isnot flashing. If the TIME/INCLINE/MIN-MILE

display is flashing, press the Start button or

the Speed

button on the console

• adjust the volume of your CD player or VCR. If

the volume is too high or too low, the console

may not detect the program signals

• make sure that the audio cable is properly

connected, that it is fully plugged in, and that

it is not wrapped around a power cord

• if you are using your portable CD player and

the CD skips, set the CD player on the floor or

another flat surface instead of on the console.

Follow your progress with the LED track and

the four displays.

See step 5 on page 10.

Measure your pulse, if desired.

See step 6 on page 11.

When the iFit.com CD or video program is

finished, remove the key.

Step onto the foot rails

and remove the key from

the console. Keep the

key in a secure place.

Note: If the displays

and various indicators

on the console remain lit after the key is re-

moved, the console is in the “demo” mode.

Refer to page 17 and turn off the demo mode.

CAUTION: Always remove iFit.com CD’s and

videocassettes from your CD player or VCR

when you are finished using them.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position.

HOW TO USE PROGRAMS DIRECTLY FROM

OUR INTERNET SITE

With iFit.com membership, you can go to our new

internet site at www.iFit.com and access a large selec-

tion of programs that interactively control your treadmill

to help you achieve your specific exercise goals. In

addition, you can play iFit.com audio and video pro-

grams directly from the internet. By adding an optional

upgrade module to the console, you can use even

more features on our internet site. Explore www.iFit.com

to try free program demos and to find out how easy it

is to become a member. To purchase an upgrade

module, call toll-free 1-800-735-0768.

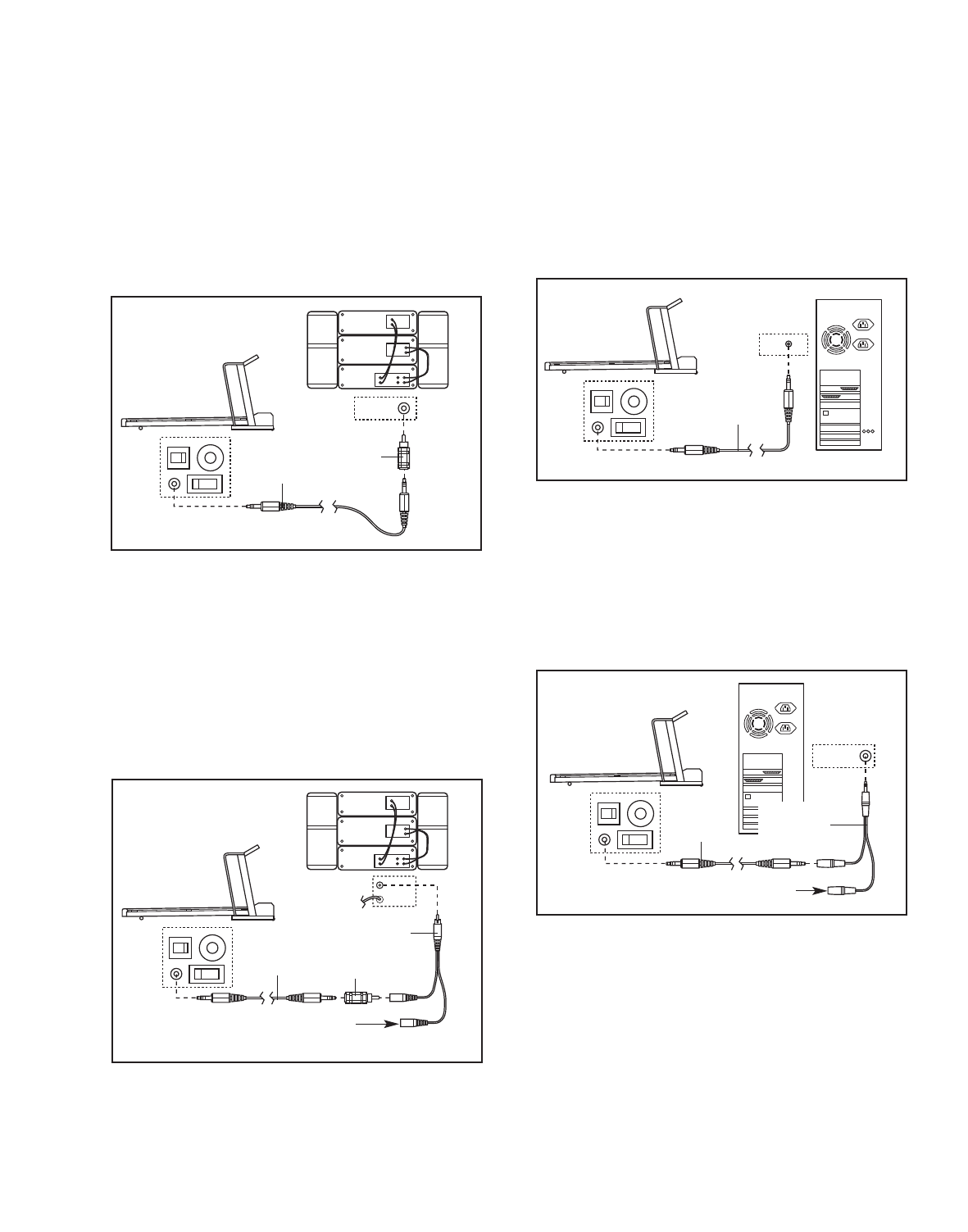

To use programs from our internet site, the treadmill

must be connected to your home computer. See HOW

TO CONNECT YOUR COMPUTER on page 13. In ad-

dition, you must have at least a 56K modem and an

account with an internet service provider. A list of addi-

tional system and software requirements will be found

on our internet site.

Next, make sure that the

on/off switch near the

power cord is in the on po-

sition. In addition, make

sure that the power cord is

properly plugged in (see

HOW TO PLUG IN THE POWER CORD on page 8).

Follow the steps below to use a program from our

internet site.

Insert the key fully into the console.

When the key is

inserted, the four dis-

plays and various indi-

cators on the console

will light.

Press the PROGRAM button.

When the key is in-

serted, the manual

mode will automatically

be selected. To use a

program from our inter-

net site, press the

PROGRAM button.

The iFit.com indicator will light.

Go to your computer and start an internet

connection.

Start your web browser, if necessary, and go to

our internet site at www.iFit.com.

Follow the desired links on our internet site to

select a program.

Read and follow the on-line instructions for using a

program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the treadmill and stand on the foot

rails. Find the clip attached to the key and slide

the key onto the waistband of your clothing.

When the on-screen countdown ends, the program

will begin and the walking belt will begin to move.

Hold the handrails, step onto the walking belt, and

begin walking.

During the program, an electronic “chirping” sound

will alert you when the speed and/or incline of the

treadmill is about to change. CAUTION: Always

listen for the “chirp” and be prepared for speed

and/or incline changes.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the SPEED or INCLINE buttons

on the console. However, when the next “chirp”

is heard, the speed and/or incline will change

to the next settings of the program.

To stop the program at any time, press the STOP

button on the console. The TIME/INCLINE display

will begin to flash. To restart the program, press

the START button. After a moment, the walking

belt will begin to move at 1.0 mph. When the next

“chirp” is heard, the speed and incline will

change to the next settings of the program.

When the program is completed, the walking belt

will stop and the TIME/INCLINE display will begin

to flash. Note: To use another program, press the

STOP button and go to step 5 above.

Note: If the speed or incline of the treadmill

does not change when a “chirp” is heard, make

sure that the iFit.com indicator is lit and that

the TIME/INCLINE/MIN-MILE display is not

flashing. In addition, make sure that the audio

cable is properly connected, that it is fully

plugged in, and that it is not wrapped around a

power cord.

Position

Follow your progress with the LED track and

the four displays.

See step 5 on page 10.

Measure your pulse, if desired.

See step 6 on page 11.

When the program is finished, remove the

key.

Step onto the foot rails and remove the key from

the console. Keep the key in a secure place. Note:

If the displays and various indicators on the

console remain lit after the key is removed, the

console is in the “demo” mode. Refer to the in-

structions at the right and turn off the demo

mode.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position.

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps

track of the total number of hours that the treadmill has

been operated and the total number of miles that the

walking belt has moved. The information mode also

allows you to switch the console from miles per hour to

kilometers per hour. In addition, the information mode

allows you to turn on and turn off the demo mode.

To select the information mode, hold down the STOP

button while inserting the key into the console. When

the information mode is selected, the following informa-

tion will be shown:

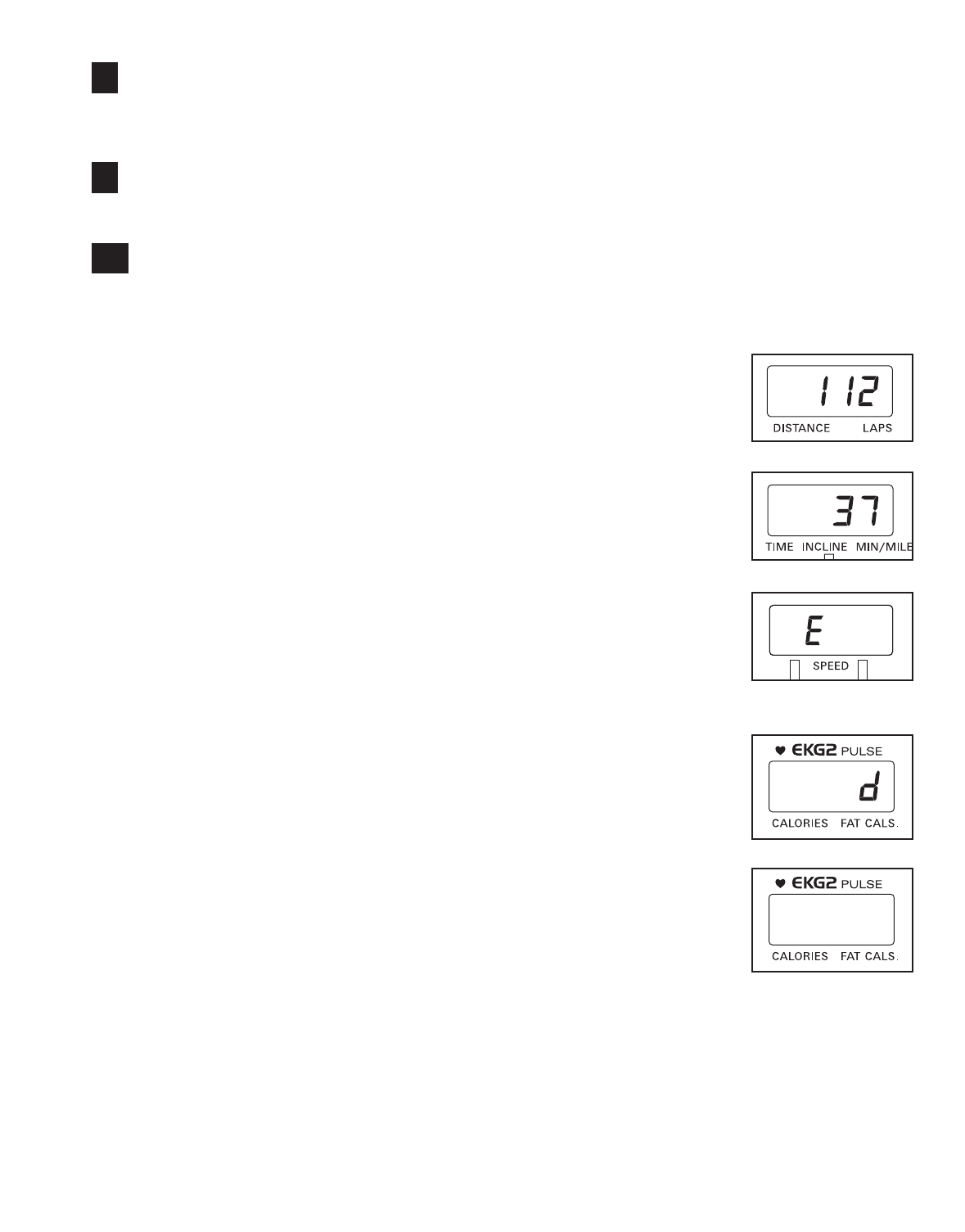

The DISTANCE/LAPS

display will show the total

number of miles that the

walking belt has moved.

The TIME/INCLINE/MIN-

MILE display will show the

total number of hours the

treadmill has been used.

An “E,” for english miles, or an

“M,” for metric kilometers, will

appear in the SPEED display.

Press the SPEED

button to

change the unit of measure-

ment.

IMPORTANT: The CALS./

FAT CALS./PULSE display

should be blank. If a “d” ap-

pears in the display, the con-

sole is in the “demo” mode.

This mode is intended to be

used only when a treadmill is

displayed in a store. When

the console is in the demo

mode, the power cord can be

plugged in, the key can be re-

moved from the console, and

the displays and indicators on

the console will automatically

light in a preset sequence, although the buttons on the

console will not operate. If a “d” appears in the

CALS./FAT CALS./PULSE display when the informa-

tion mode is selected, press the SPEED

button

so the CALS./FAT CALS./PULSE display is blank.

To exit the information mode, remove the key from the

console.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If this is not done, the treadmill may be

permanently damaged. Next, unplug the power cord.

CAUTION: You must be able to safely lift 45 pounds (20

kg) in order to raise, lower, or move the treadmill.

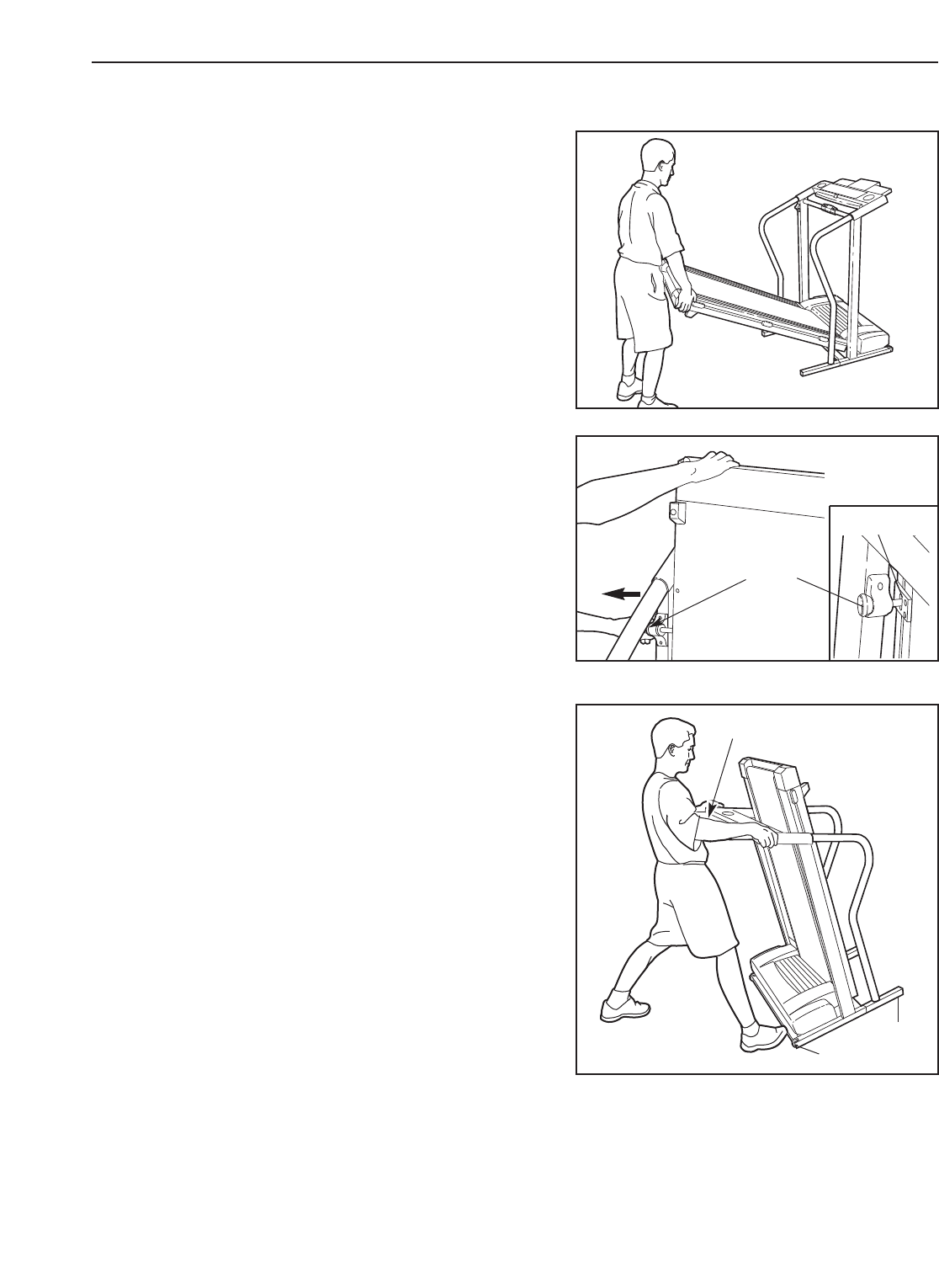

1. Hold the treadmill with your hands in the locations shown

at the right. CAUTION: To decrease the possibility of in-

jury, bend your legs and keep your back straight. As

you raise the treadmill, make sure to lift with your legs

rather than your back. Raise the treadmill about halfway

to the vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Hold the lock knob with your left hand and

pull it to the side. Raise the treadmill until the lock knob is

aligned with the slot in the catch. Note: You may need to

push the handrail to the side. Slowly release the knob.

Make sure that the pin on the lock knob is inside the

slot.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85° Fahrenheit.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the stor-

age latch is closed fully over the catch.

1. Hold the handrails as shown and place one foot against a

wheel. Do not hold or push on the book holder or the

book holder may be damaged.

2. Tilt the treadmill back until it rolls freely on the front wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back. To reduce

the risk of injury, use extreme caution while moving

the treadmill. Do not attempt to move the treadmill

over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1. Refer to drawing 2 above. Hold the upper end of the treadmill with your right hand as shown. Using your left

hand, pull the lock knob to the left and hold it. Pivot the treadmill down until the frame is past the storage latch.

Note: You may need to push the handrail to the side

2. Refer to drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.

CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.

Knob

Book Holder

Base

Front Wheels

Slot

TROUBLE-SHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-

free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge protector, and that the surge protector is

plugged into a properly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page

7.) Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or

less in length. Important: The treadmill is not compatible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-

sole. See step 1 on page 10.

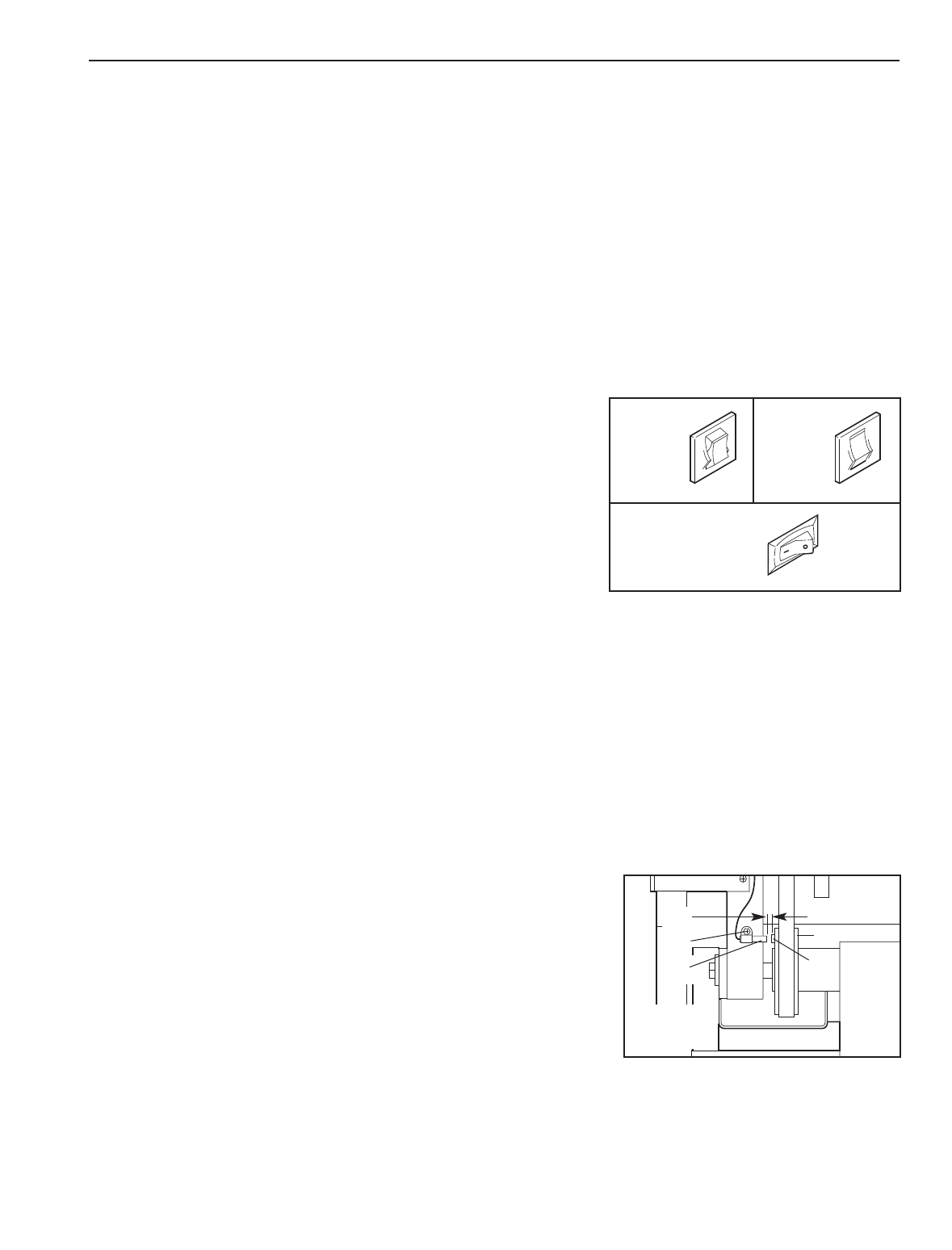

c. Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as

shown, the circuit breaker has tripped. To reset the

circuit breaker, wait for five minutes and then press

the switch back in.

d. Check the on/off switch located on the treadmill

near the power cord. The switch must be in the on

position.

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the

circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Remove the key from the console. Reinsert the key fully into the console. See step 1 on page 10.

d. Make sure that the on/off switch is in the on position.

e. If the treadmill still will not run, please call our Customer Service Department, toll-free.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and unplug the

power cord. Remove the screws from the hood and

carefully remove the hood. Locate the Reed Switch

(21) and the Magnet (43) on the left side of the Pulley

(42). Turn the Pulley until the Magnet is aligned with

the Reed Switch. Make sure that the gap between

the Magnet and the Reed Switch is about 1/8”. If

necessary, loosen the Reed Switch Screw (76) and

move the Reed Switch slightly. Retighten the Screw.

Re-attach the hood, and run the treadmill for a few

minutes to check for a correct speed reading.

PROBLEM: The pulse display on the console does not function properly

SOLUTION: a. Wash your hands prior to using the pulse sensor. Clean the sensor with a damp cloth and a little

dish soap.

b. Make sure that there is not a bright light or direct sunlight shining directly on the pulse sensor.

Tripped

Reset

Tripped

Reset

Position

1/8”

Top

View

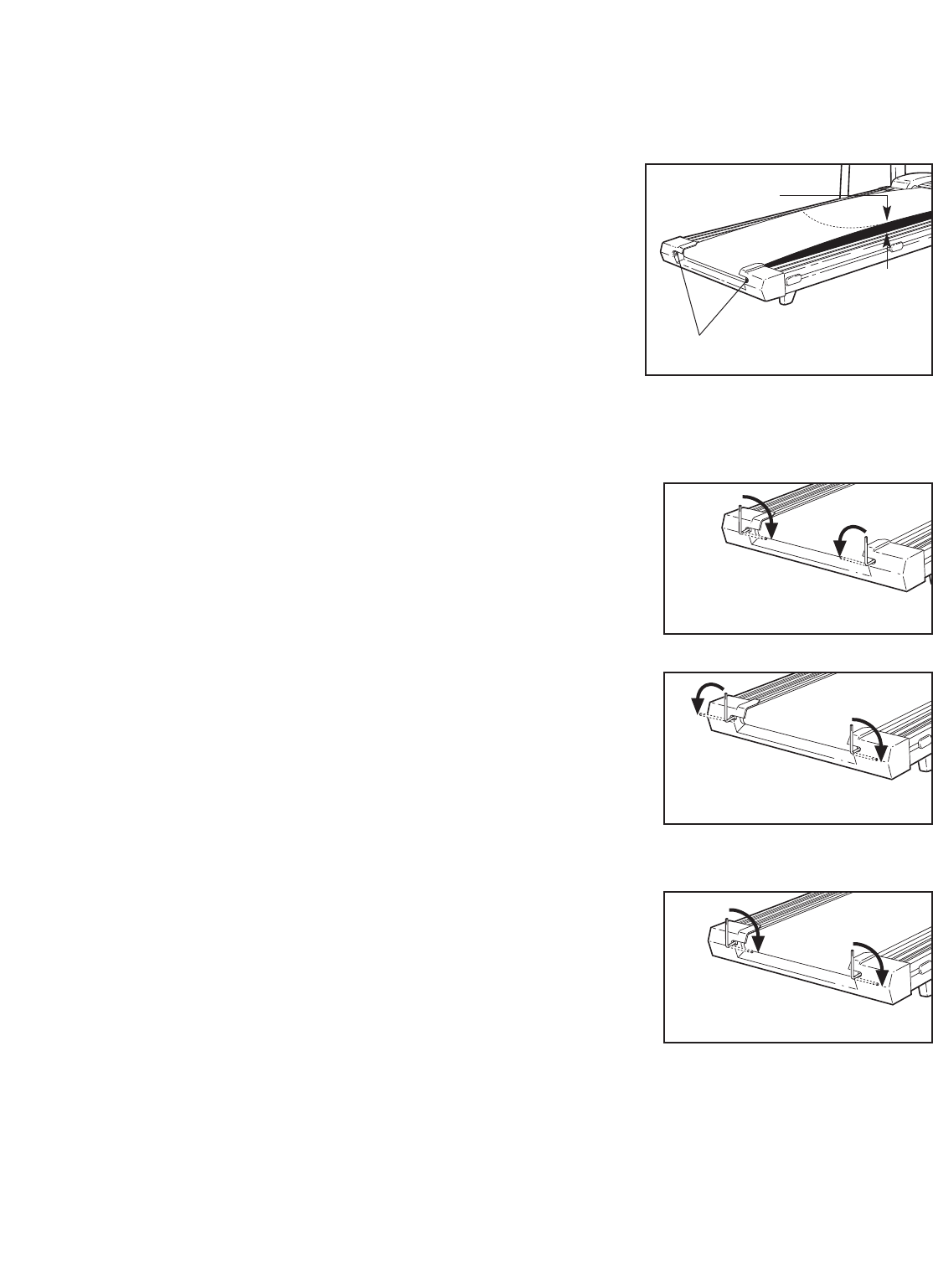

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in

length.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both

rear roller adjustment bolts counterclockwise, 1/4 of a

turn. When the walking belt is properly tightened, you

should be able to lift each side of the walking belt 3 to

4 inches off the walking platform. Be careful to keep

the walking belt centered. Plug in the power cord, in-

sert the key and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-free.

PROBLEM: The walking belt is off-center

SOLUTION: a. If the walking belt has shifted to the left, first remove

the key and UNPLUG THE POWER CORD. Using the

allen wrench, turn the left rear roller adjustment bolt

clockwise, and the right bolt counterclockwise, 1/4 of a

turn each. Be careful not to overtighten the walking belt.

Plug in the power cord, insert the key and run the tread-

mill for a few minutes. Repeat until the walking belt is

centered.

b. If the walking belt has shifted to the right, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn the left rear roller adjust-

ment bolt counterclockwise, and the right bolt clockwise,

1/4 of a turn each. Be careful not to overtighten the

walking belt. Plug in the power cord, insert the key and

run the treadmill for a few minutes. Repeat until the

walking belt is centered.

PROBLEM: The walking belt slips when walked on

SOLUTION: a. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using the

allen wrench, turn both rear roller adjustment bolts

clockwise, 1/4 of a turn. When the walking belt is cor-

rectly tightened, you should be able to lift each side of

the walking belt 3 to 4 inches off the walking platform.

Be careful to keep the walking belt centered. Plug in the

power cord, insert the key and carefully walk on the

treadmill for a few minutes. Repeat until the walking belt

is properly tightened.

PROBLEM: The incline of the treadmill does not change correctly or does not change when iFit.com

CD’s and videos are played

SOLUTION: a. With the key inserted in the console, press one of the INCLINE buttons. While the incline is

changing, remove the key. After a few seconds, re-insert the key. The treadmill will automati-

cally rise to the maximum incline level and then return to the minimum level. This will recalibrate

the incline.

Rear Roller Adjustment Bolts

3”–4”

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. Remember—these are general guide-

lines only. For more detailed exercise information, ob-

tain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

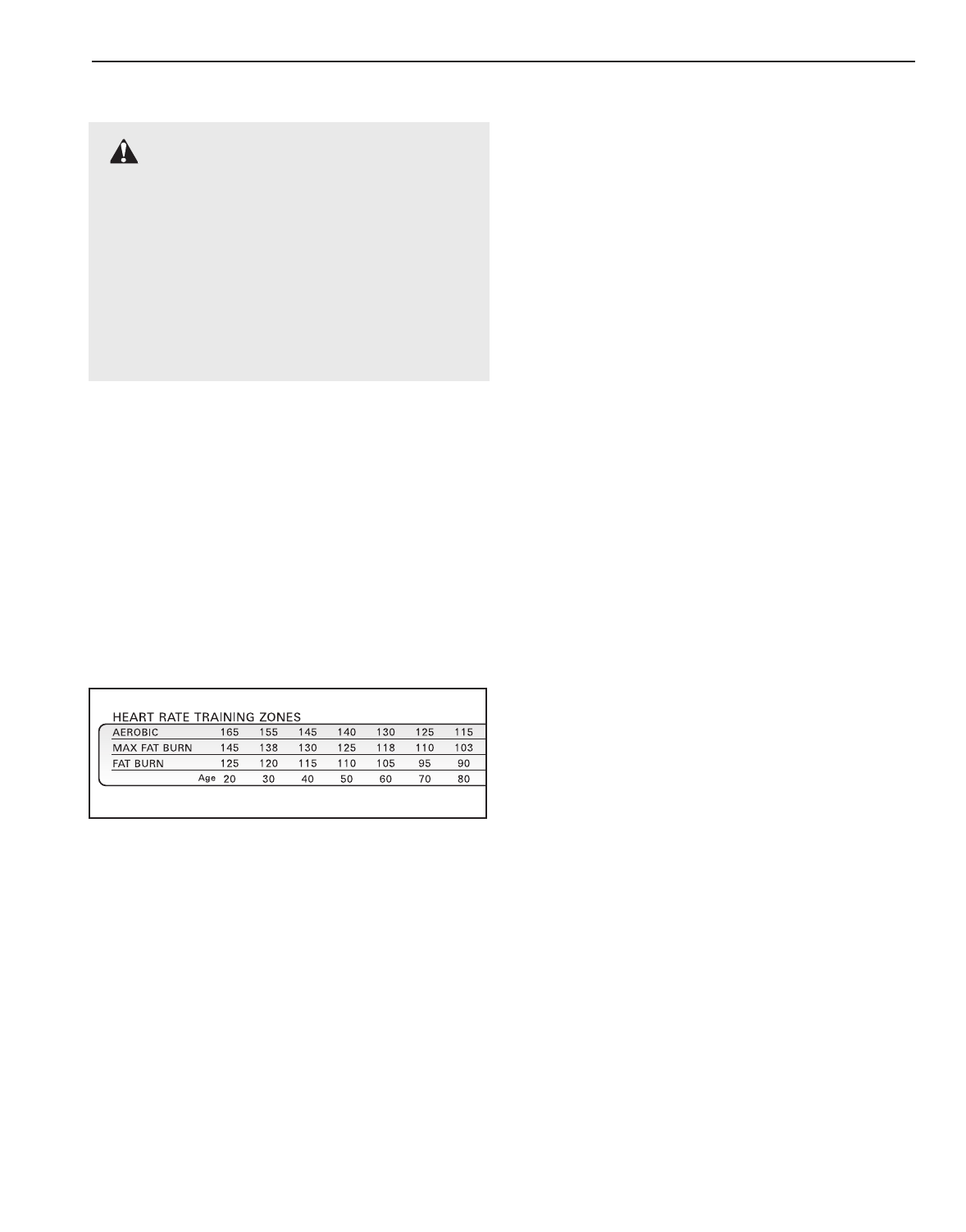

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your “train-

ing zone.” The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the

pulse sensor on the console. If your heart rate is too

high or too low, adjust the speed and incline of the

treadmill.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible

carbohydrate calories

for en-

ergy. Only after the first few minutes does your body

begin to use stored

fat calories

for energy. If your goal

is to burn fat, adjust the speed and incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise—After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never

hold your breath.

A Cool-down—Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-ex-

ercise problems.

Exercise Frequency

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired.

The key to success is to make exercise a regular and

enjoyable part of your everyday life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid

in determining heart rate trends in general.

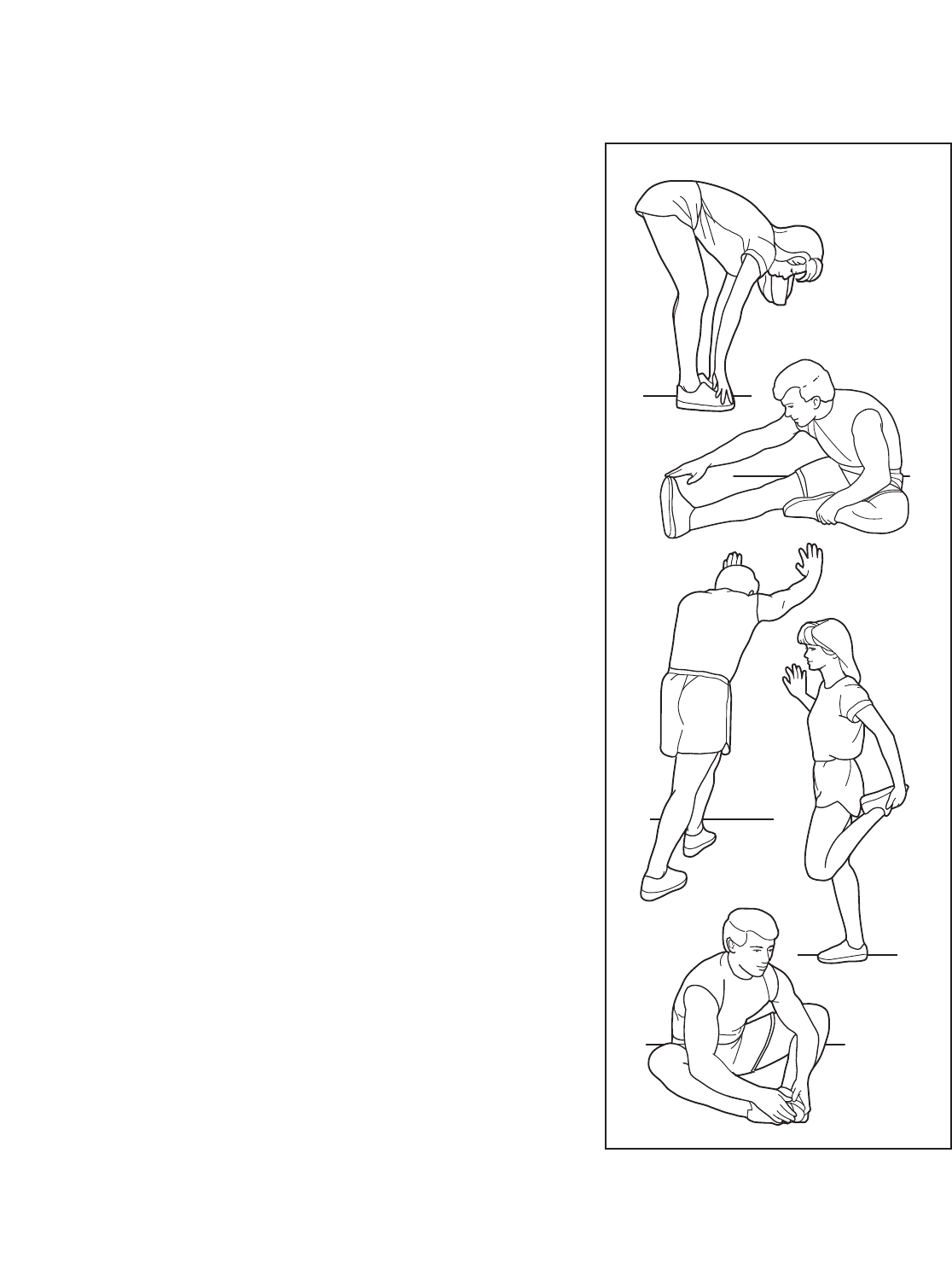

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward

from your hips. Allow your back and shoulders to relax as you

reach down toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Hamstrings,

back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot

toward you and rest it against the inner thigh of your extended

leg. Reach toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times for each leg. Stretches:

Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your

back foot flat on the floor. Bend your front leg, lean forward

and move your hips toward the wall. Hold for 15 counts, then

relax. Repeat 3 times for each leg. To cause further stretching

of the achilles tendons, bend your back leg as well. Stretches:

Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and

grasp one foot with your other hand. Bring your heel as close

to your buttocks as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Quadriceps and hip

muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees out-

ward. Pull your feet toward your groin area as far as possible.

Hold for 15 counts, then relax. Repeat 3 times. Stretches:

Quadriceps and hip muscles.

PART LIST—Model No. PFTL59190 R0101A

1 1 Motor Belt

2 1 Pulley/Flywheel/Fan

3 4 Motor Nut

4* 1 Motor/Pulley/

Flywheel/ Fan

5 2 Incline Motor Bolt

6 1 Incline Motor Spacer

7 1 Incline Motor

8 1 Stop Bracket

9 1 Small Nut

10 2 Star Washer

11 1 Optic Switch

12 1 Frame

13 1 Small Bolt

14 1 Incline Optic Disk

15 8 Incline Motor Nut

16 8 Short Screw

17 4 Plastic Stand-Off

18 2 Rubber Hood Bracket

19 2 Metal Hood Bracket

20 2 Warning Decal

21 1 Reed Switch

22 1 Reed Switch Clip

23 1 Motor/Controller Wire

24 1 Controller

25 1 Electronics Bracket

26 1 Circuit Breaker

27 1 Power Cord

28 1 Power Cord Grommet

29 1On/Off Switch

30 1 Inlet Bracket

31 1 Incline Leg

32 2Frame Pivot Bolt

33 2 Frame Pivot Spacer

34 1 Upright Wire Harness

35 1Front Roller Adj. Bolt

36 5 Handrail Washer/

Roller Adj. Washer

37 2Motor Tension Nut/

Front Roller Nut

38 4 Motor Bolt

39 2 Cap Screw

40 1 Left Foot Rail Cap

41 2 Foot Rail

42 1 Front Roller/Pulley

43 1 Magnet

44 4 Platform Screw

45 4 Isolator

46 4 Isolator Screw

47 15 Belly Pan Fastener

48 1 Shield

49 2 Belt Guide

50 1 Console Cover

51 1 Front Belly Pan

52 1 Power Supply

53 4 Cable Tie Clamp

54 4 Cable Tie

55 1 Walking Belt

56 1 25” Wire Harness

57 1 Rear Roller

58 2 Rear Isolator

59 2 Rear Foot

60 2 Rear Foot Screw

61 1 Ground Wire

62 8 Ground Wire Screw

63 1 Belly Pan

64 1 Rear Endcap

65 2 Rear Roller Adj. Bolt

66 1 Motor

67 1 Latch Decal

68 4 Rear Platform Screw

69 2 Catch Screw

70 1 Latch Catch

71 1 Walking Platform

72 58” cable Tie

73 1 Jack

74 1 Motor Tension Bolt

75 2Foot Rail Insert

76 14 Reed Switch Screw/

Belly Pan Screw

77 1Storage Latch Bracket

78 2 Handrail Bolt

79 4 Long Screw

80 110’ I-Fit Wire

81 4 Motor Star Washer

82 1 Upright

83 2 Incline Leg Pivot Bolt

84 2 Incline Leg Pivot

Washer

85 2 Handrail

86 2 Wheel Bolt

87 1 Console Base

88 1 Console

89 13 3/4” Screw

90 1 Key/Clip

91 1 Incline Motor Belly Pan

92 1 Right Foot Rail Cap

93 1 Book Holder

94 1 Motor Hood

95 2 Front Wheel

96 1 Incline Motor Shield

97 4 Thick Base Pad

98 1 12” Audio Wire

99 1 Upright Grommet

100 1 Allen Wrench

101 11 Screw

102 2 Handrail Insert

103 2 Extension Leg

104 2 Extension Leg Cap

105 1 Shock

106 1 Choke

107 2 Pulse Bar Bolt

108 2 Pulse Bar Washer

109 1 Pulse Bar

110 1 Lock Knob

111 1 Spring

112 1 Lock Pin Collar

113 1 Pin Clip

114 1 Lock Pin

115 1Belly Pan Spacer

116 2 Base Pad

#18” White Wire, 2F

#14” White Wire, M/F

# 1 8” Blue Wire, 2F

# 1 4” Blue Wire, 2F

#14” Black Wire, 2F

# 1 4” Green Wire, F/Ring

# 1 8” Green Wire, F/Ring

#18” Green Wire, 2 Ring

# 1 9” Wire Harness

# 1 User's Manual

*Includes all parts shown in the

box

# These parts are not illustrated

Key

No. Qty. Description

Key

No. Qty. Description

Key

No. Qty. Description

To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.

106

69 70

16 26

613

76 18

45 44

47 62

115

EXPLODED DRAWING—Model No. PFTL59190 R0101A

108

107

109

110

111

114

113

112

108

107

101

103

100

101

104

101

105

101

20 34

102

101

103

104

20 116

116

EXPLODED DRAWING—Model No. PFTL59190 R0101A

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give

the following information:

• The MODEL NUMBER OF THE PRODUCT (PFTL59190)

• The NAME OF THE PRODUCT (PROFORM®585Pi treadmill)

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING attached in the

center of this manual and the PART LIST on page 23).

If possible, place the treadmill near your telephone for easy reference when calling.

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All

products for which warranty claim is made must be received by ICON at one of its authorized service

centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-

chase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or

damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal

usage or repairs not provided by an ICON authorized service center, to products used for commercial or

rental purposes, or to products used as store display models. No other warranty beyond that specifically

set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-

cidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

Proform 585 Pi Users Manual *PFTL59190 159107

Proform-Pftl59190-585Pi-Treadmill-Users-Manual-701892 proform-pftl59190-585pi-treadmill-users-manual-701892

Proform-Pftl59190-Owner-S-Manual proform-pftl59190-owner-s-manual

585 PI to the manual 5fc1f920-2ed8-4cc6-b930-67ad87effaa2

Navigation menu

Versions of this User Manual:

Views

Navigation
